SERVICE MANUAL
DATA
COMPACT DISC STEREO
CASSETTE RECEIVER
BASIC TAPE MECHANISM : 2ZM-3MK2 PR7NM
BASIC CD MECHANISM : AZG-1 VZD3RNDM
NSX-WV89
HR
S/M Code No. 09-006-433-5R1
REVISION
•This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
NSX-WV89 (HR), (S/M Code No. 09-004-433-5T1).
• If requiring information about the CD mechanism, see Service Manual of
AZG-1 VZD3RNDM, (S/M Code No. 09-001-335-3NG).
NSX–WV89
MAIN
SPEAKER
SYSTEM CD
CASSEIVER
REMOTE
CONTROLLER
RC–ZAS08CX–NWV89 SX–NDP84
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 2 –
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<MW tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710kHz (10 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<SW tuner section>
Tuning range 5.730 MHz to 17.900 MHz
Antenna Wire antenna
<Amplifier section>
Power output Front
Rated: 115 W + 115 W (6 ohms, T.H.D.
1 %, 1 kHz/DIN 45500)
Reference: 145 W + 145 W (6 ohms,
T.H.D. 10 %, 1 kHz/DIN 45324)
Rear (Surround)
Rated: 25 W + 25 W (8 ohms, T.H.D.
1 %, 1 kHz/DIN 45500)
Reference: 35 W + 35 W (8 ohms,
T.H.D. 10 %, 1 kHz/DIN 45324)
Center
Rated: 30 W (8 ohms, T.H.D.
1 %, 1 kHz/DIN 45500)
Reference: 40 W (8 ohms,
T.H.D. 10 %, 1 kHz/DIN 45324)
Total harmonic distortion 0.1 % (10.5 W, 1 kHz, 6 ohms,
DIN AUDIO/Front )
Inputs VIDEO/AUX: 316 mV (adjustable)
MD: 316 mV (adjustable)
MIC 1, MIC 2:
1.0 mV (10 kohms)
5.1 CH INPUT (adjustable)
FRONT (L,R): 330 mV
REAR (L,R): 200 mV
CENTER: 510 mV
SUB WOOFER: 360 mV
Outputs FRONT SPEAKERS:
accept speakers of 6 ohms or more
SURROUND SPEAKERS:
accept speakers of 8 ohms to 16 ohms
or more
CENTER SPEAKER:
accept speakers of 8 ohms or more
SUBWOOFER: 1.1 V
VIDEO OUT: 1.0 Vp-p (75 ohms)
LINE OUT: 210 mV
PHONES (stereo jack): accepts
headphones of 32 ohms or more
SPECIFICATIONS
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response CrO2tape: 50 Hz – 16000 Hz
Normal tape: 50 Hz – 15000 Hz
Recording system AC bias
Heads Deck 1: Playback head x 1
Deck 2: Recording/Playback head x 1,
erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
Video signal NTSC/PAL color format (selectable)
Video data MPEG 1
Audio data MPEG 1, LAYER 2
<General>
Power requirements 120 V/220–230 V/240 V AC
(switchable), 50/60 Hz
Power consumption 245 W
Power consumption in If the power-economizing mode is
standby mode ECO OFF: 31 W
If the power-economizing mode is
ECO ON or ECO AUTO: 0.9 W
Dimensions of main unit 260 x 329 x 389.6 mm
(W xH xD)
Weight of main unit 12.2 kg
<Speaker system SX-NDP84>
Speaker system 2 way, bass reflex (magnetic
shielded type)
Speaker units Woofer:
160 mm cone type
Tweeter:
60 mm cone type
Impedance 6 ohms
Sensitivity 87 dB/W/m
Dimensions (W xH xD) 240 x 324 x 245 mm
Weight 5.0 Kg
• Design and specifications are subject to change without notice.
• Manufactured under license from Dolby Laboratories Licensing
Corporation.
“DOLBY”, the double-D symbol and "PRO LOGIC" are
trademarks of Dolby Laboratories Licensing Corporation.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 3 –

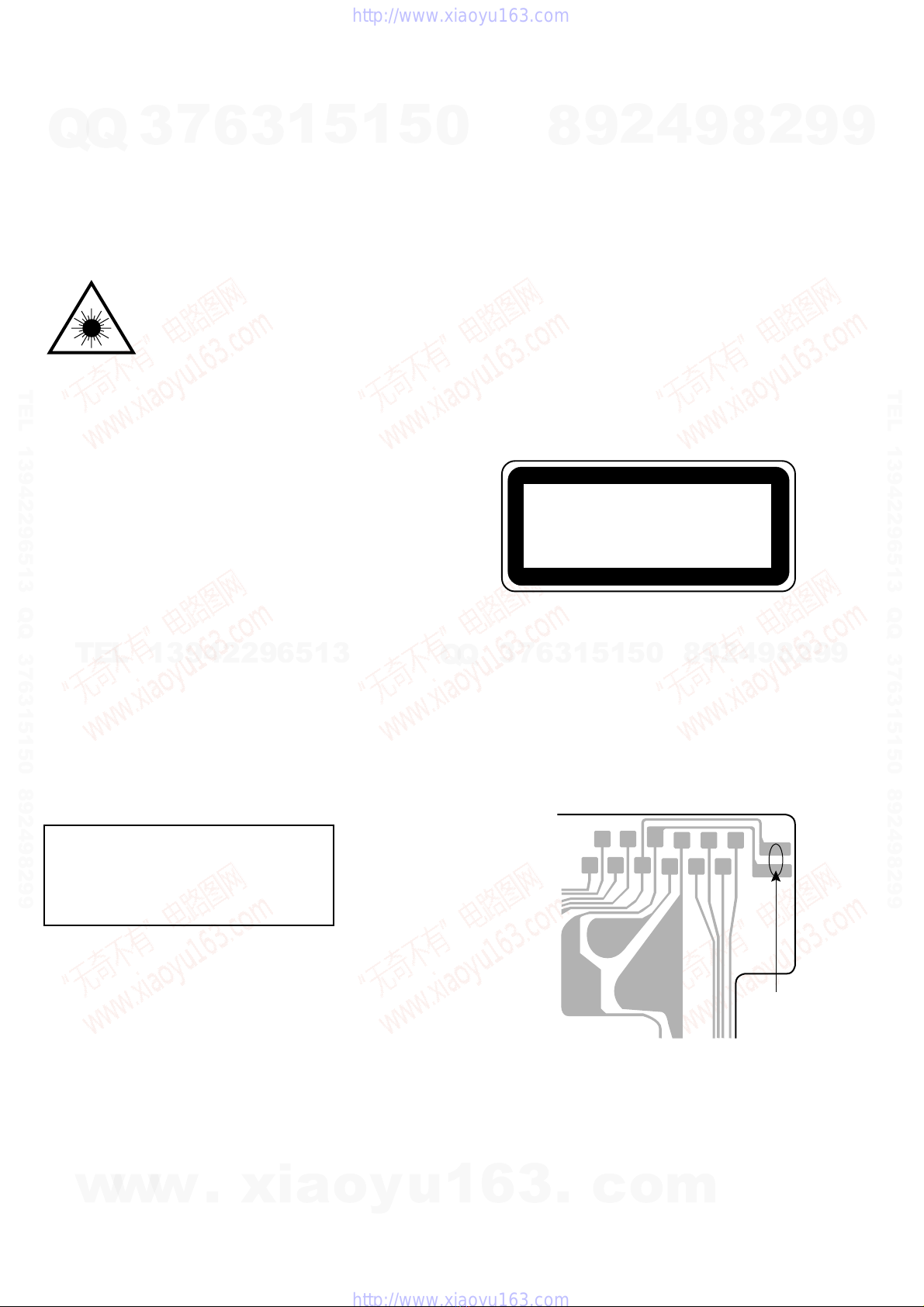

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precaution to replace Optical block
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK-UP Assy P.C.B
Solder
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 4 –
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 5 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113 *
%
C113
18
15
Short with tweezers.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 6 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8A-NH7-601-010 C-IC,LC876572V-5R25
87-A21-355-010 IC,STK490-140
87-A21-398-010 IC,STK490-110
87-A20-914-010 IC,SPS-442-1-F
87-A20-783-040 C-IC,BA7762AFS
87-A21-577-040 C-IC,M61506FP
87-A21-021-040 C-IC,BU2099FV
87-A21-097-040 C-IC,M62463AFP
87-070-289-040 C-IC,BU2092F
87-A21-015-040 C-IC,M62491FP
87-A20-561-040 C-IC,M65847AFP
87-A21-452-030 C-IC,BD3876KS2
87-A21-051-040 C-IC,BU9990-03FS
87-A21-560-010 IC,LA1844L-A
87-070-127-110 IC,LC72131D
87-020-454-010 IC,DN 6851

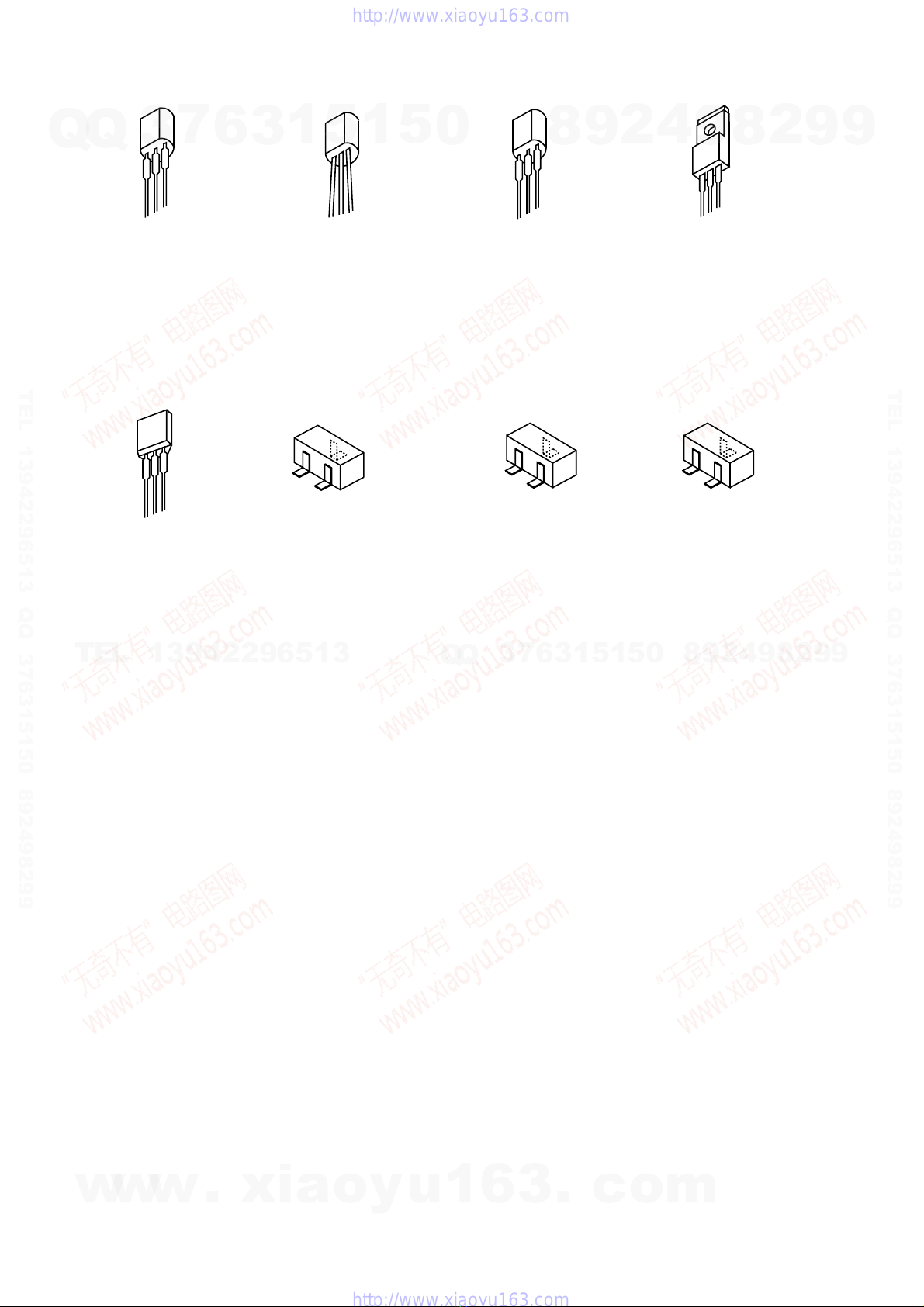

TRANSISTOR
87-026-245-080 TR,DTC114ES
87-026-609-080 TR,KTA1266GR
87-A30-198-080 TR,KTC3199GR
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-318-080 TR,CSA952K
89-213-702-010 TR,2SB1370E
87-A30-087-080 C-FET,2SK2158
87-A30-107-070 C-TR,CMBT5401
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-074-080 C-TR,RT1P 141C
87-A30-105-080 C-TR,RT1P 441C
87-A30-106-040 C-TR,CMBT5551
87-A30-190-080 TR,CC5551
87-A30-256-010 TR,2SD1933
87-A30-255-010 TR,2SB1342
87-A30-063-080 C-TR,KRA104S
87-A30-086-070 C-TR,CSD1306E
87-A30-269-040 C-FET,2SJ461-T1
87-A30-329-080 TR,CD1585BC
89-327-143-080 C-TR,2SC2714O
87-A30-489-080 C-TR,KRA107S
87-A30-484-080 C-TR,KRA102S
89-503-602-080 C-FET,2SK360E
87-A30-234-080 TR,CSC4115BC
87-026-463-080 TR,2SA933S
DIODE
87-A40-673-090 DIODE,D10XB20
87-A40-547-090 DIODE,D5SBA20
87-020-465-080 DIODE,1SS133
87-A40-553-080 DIODE,1N4003 LES
87-A40-784-080 ZENER,UZ39BSB
87-A40-764-080 ZENER,UZ10BSC
87-A40-313-080 C-DIODE,MC2840
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-768-080 ZENER,UZ16BSA
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-535-080 DIODE,1N5393-GOODARK
87-A40-754-080 ZENER,UZ6.8BSC
87-A40-802-080 ZENER,UZ5.1BSC
87-A40-760-080 ZENER,UZ9.1BSA
87-A40-747-080 ZENER,UZ5.1BSB
87-A40-745-080 ZENER,UZ4.7BSA
87-A40-749-080 ZENER,UZ5.6BSB
87-017-149-080 ZENER,HZS6A2L
MAIN C.B
C003 87-012-368-080 C-CAP,S 0.1-50 Z F
C004 87-012-368-080 C-CAP,S 0.1-50 Z F
C021 87-016-658-000 CAP,E 4700-35 M SMG
C022 87-016-658-000 CAP,E 4700-35 M SMG
C025 87-010-406-080 CAP,E 22-50 M 11L SME
C026 87-010-406-080 CAP,E 22-50 M 11L SME
C027 87-010-406-080 CAP,E 22-50 M 11L SME
C028 87-010-406-080 CAP,E 22-50 M 11L SME
C031 87-010-263-080 CAP,E 100-10 M 11L SME
C032 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C034 87-010-247-080 CAP,E 100-50 M SME
C035 87-010-260-080 CAP,E 47-25 M 11L SME
C036 87-010-381-080 CAP,E 330-16 M SME
C038 87-010-247-080 CAP,E 100-50 M SME
C039 87-010-247-080 CAP,E 100-50 M SME
C040 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C060 87-010-403-080 CAP,E 3.3-50 M 11L SME
C080 87-010-401-080 CAP,E 1-50 M 11L SME
C081 87-010-379-080 CAP,E 22-16 M 11L SME
C082 87-010-260-080 CAP,E 47-25 M 11L SME
C115 87-010-546-080 CAP,E 0.33-50 M 11L SME
C116 87-010-546-080 CAP,E 0.33-50 M 11L SME
C152 87-010-260-080 CAP,E 47-25 M 11L SME
C160 87-012-140-080 C-CAP,S 470P-50 J CH
C161 87-010-176-080 C-CAP,S 680P-50 J SL
C162 87-010-176-080 C-CAP,S 680P-50 J SL
C171 87-012-368-080 C-CAP,S 0.1-50 Z F
C172 87-012-368-080 C-CAP,S 0.1-50 Z F
C173 87-012-368-080 C-CAP,S 0.1-50 Z F
C174 87-012-368-080 C-CAP,S 0.1-50 Z F
C177 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C178 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C301 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C302 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C303 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C304 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C305 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C306 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C307 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C309 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C310 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C311 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C312 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C313 87-010-181-080 C-CAP,S 1800P-50 K B GRM
C314 87-010-181-080 C-CAP,S 1800P-50 K B GRM
C315 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C316 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C321 87-012-142-080 C-CAP,S 0.33-16 Z F GRM
C322 87-012-142-080 C-CAP,S 0.33-16 Z F GRM
C324 87-010-260-080 CAP,E 47-25 M 11L SME
C325 87-010-370-080 CAP,E 330-6.3 M SME
C327 87-010-404-080 CAP,E 4.7-50 M 11L SME
C328 87-010-404-080 CAP,E 4.7-50 M 11L SME
C332 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C335 87-010-401-080 CAP,E 1-50 M 11L SME
C336 87-010-401-080 CAP,E 1-50 M 11L SME
C337 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C339 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C340 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C351 87-012-140-080 C-CAP,S 470P-50 J CH
C352 87-012-140-080 C-CAP,S 470P-50 J CH
C354 87-010-175-080 C-CAP,S 560P-50 J SL
C355 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C356 87-010-260-080 CAP,E 47-25 M 11L SME
C357 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C358 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C359 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C360 87-010-183-080 C-CAP,S 2700P-50 K B GRM
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 7 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C370 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C373 87-016-083-080 C-CAP,S 0.15-16 K R
C374 87-016-083-080 C-CAP,S 0.15-16 K R
C378 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C379 87-010-382-080 CAP,E 22-25 M 11L SME
C380 87-010-382-080 CAP,E 22-25 M 11L SME
C381 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C382 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C383 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C384 87-010-402-080 CAP,E 2.2-50 M 11L SME
C386 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C387 87-012-145-080 C-CAP,S 270P-50 J CH GRM
C388 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C391 87-010-319-080 C-CAP,S 56P-50 J CH
C392 87-010-319-080 C-CAP,S 56P-50 J CH
C393 87-010-319-080 C-CAP,S 56P-50 J CH
C394 87-010-319-080 C-CAP,S 56P-50 J CH
C401 87-010-176-080 C-CAP,S 680P-50 J SL
C402 87-010-176-080 C-CAP,S 680P-50 J SL
C403 87-010-958-080 C-CAP,S 0.01-25 J B
C404 87-010-958-080 C-CAP,S 0.01-25 J B
C405 87-010-958-080 C-CAP,S 0.01-25 J B
C406 87-010-958-080 C-CAP,S 0.01-25 J B
C407 87-010-401-080 CAP,E 1-50 M 11L SME
C408 87-010-401-080 CAP,E 1-50 M 11L SME
C409 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C410 87-010-384-080 CAP,E 100-25 M 11L SME
C411 87-010-402-080 CAP,E 2.2-50 M 11L SME
C412 87-010-402-080 CAP,E 2.2-50 M 11L SME
C413 87-010-401-080 CAP,E 1-50 M 11L SME
C414 87-010-401-080 CAP,E 1-50 M 11L SME
C415 87-010-546-080 CAP,E 0.33-50 M 11L SME
C416 87-010-546-080 CAP,E 0.33-50 M 11L SME
C417 87-010-221-080 CAP,E 470-10 M SME
C418 87-A10-891-080 CAP,E 4.7-25 SME(K)
C419 87-A10-800-080 C-CAP,S 6800P-16 J B CM
C420 87-010-374-080 CAP,E 47-10 M 11L SME
C421 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C422 87-A10-804-080 C-CAP,S 0.1-25 J B
C424 87-010-374-080 CAP,E 47-10 M 11L SME
C425 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C428 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C429 87-010-545-080 CAP,E 0.22-50 M 11L SME
C430 87-A10-201-080 C-CAP,S 0.33-16 K B
C431 87-010-971-080 C-CAP,S 4700P-50 J B
C432 87-012-349-080 C-CAP,S 1000P-50 J CH GRM
C433 87-A11-183-080 C-CAP,S 0.12-16 J B
C434 87-A11-182-080 C-CAP,S 0.27-16 J B
C435 87-A11-182-080 C-CAP,S 0.27-16 J B
C436 87-A11-183-080 C-CAP,S 0.12-16 J B
C437 87-010-971-080 C-CAP,S 4700P-50 J B
C438 87-012-349-080 C-CAP,S 1000P-50 J CH GRM
C439 87-010-805-080 C-CAP,S 1-16 Z F
C440 87-010-401-080 CAP,E 1-50 M 11L SME
C441 87-A10-799-080 C-CAP,S 5600P-16 J B CM
C442 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C443 87-A10-229-080 C-CAP,S 0.68-10 K W5R
C444 87-A11-606-080 C-CAP,S 0.22-25 K B
C445 87-A11-606-080 C-CAP,S 0.22-25 K B
C446 87-010-404-080 CAP,E 4.7-50 M 11L SME
C447 87-010-404-080 CAP,E 4.7-50 M 11L SME
C448 87-A11-606-080 C-CAP,S 0.22-25 K B
C449 87-A11-606-080 C-CAP,S 0.22-25 K B
C450 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C451 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C452 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C453 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C454 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C455 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C456 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C457 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C461 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C463 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C465 87-016-669-080 C-CAP,S 0.1-25 K B
C466 87-010-194-080 C-CAP,S 0.047-25 Z F
C467 87-A10-201-080 C-CAP,S 0.33-16 K B
C468 87-A10-060-080 C-CAP,S 0.18-16 K B
C472 87-012-140-080 C-CAP,S 470P-50 J CH
C473 87-012-140-080 C-CAP,S 470P-50 J CH
C474 87-012-140-080 C-CAP,S 470P-50 J CH
C475 87-012-140-080 C-CAP,S 470P-50 J CH
C476 87-012-140-080 C-CAP,S 470P-50 J CH
C477 87-012-140-080 C-CAP,S 470P-50 J CH
C478 87-010-401-080 CAP,E 1-50 M 11L SME
C479 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C480 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C481 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C482 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C489 87-010-402-080 CAP,E 2.2-50 M 11L SME
C491 87-010-402-080 CAP,E 2.2-50 M 11L SME
C492 87-010-402-080 CAP,E 2.2-50 M 11L SME
C531 87-010-405-080 CAP,E 10-50 M 11L SME
C532 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C533 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C534 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C535 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C536 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C541 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C609 87-010-181-080 C-CAP,S 1800P-50 K B GRM
C610 87-010-181-080 C-CAP,S 1800P-50 K B GRM
C611 87-010-956-080 C-CAP,S 0.068-25 K B GRM
C612 87-010-369-080 C-CAP,S 0.033-25 K B
C613 87-A11-567-080 C-CAP,S 0.01-50 K B
C614 87-016-669-080 C-CAP,S 0.1-25 K B
C616 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C617 87-010-194-080 C-CAP,S 0.047-25 Z F
C618 87-010-401-080 CAP,E 1-50 M 11L SME
C619 87-010-263-080 CAP,E 100-10 M 11L SME
C620 87-016-669-080 C-CAP,S 0.1-25 K B
C621 87-A11-567-080 C-CAP,S 0.01-50 K B
C623 87-010-401-080 CAP,E 1-50 M 11L SME
C624 87-010-401-080 CAP,E 1-50 M 11L SME
C626 87-A11-590-080 C-CAP,S 0.047-16 K B
C627 87-010-400-080 CAP,E 0.47-50 M 11L SME
C628 87-010-400-080 CAP,E 0.47-50 M 11L SME
C629 87-A11-590-080 C-CAP,S 0.047-16 K B
C630 87-010-383-080 CAP,E 33-25 M 11L SME
C631 87-010-185-080 C-CAP,S 3900P-50 K B
C632 87-010-185-080 C-CAP,S 3900P-50 K B
C633 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C634 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C635 87-A10-307-080 CAP,M 0.1-50 J
C636 87-A10-307-080 CAP,M 0.1-50 J
C637 87-A10-307-080 CAP,M 0.1-50 J
C638 87-A10-307-080 CAP,M 0.1-50 J
C639 87-010-405-080 CAP,E 10-50 M 11L SME
C641 87-010-401-080 CAP,E 1-50 M 11L SME
C642 87-010-401-080 CAP,E 1-50 M 11L SME
C643 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C644 87-010-401-080 CAP,E 1-50 M 11L SME
C671 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C672 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C673 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C675 87-016-669-080 C-CAP,S 0.1-25 K B
C676 87-010-382-080 CAP,E 22-25 M 11L SME
C679 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C680 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C771 87-010-263-080 CAP,E 100-10 M 11L SME
C772 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C779 87-010-182-080 C-CAP,S 2200P-50 K B C2012
