Aiwa AV-D98 User manual
SERVICE MANUAL
DATA
STEREO RECEIVER
AV-D98
U
S/M Code No. 09-017-444-4R1
REVISION
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 9- 14-444-4T1).
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1 02 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<Amplifier section>
Power output Front
120 W + 120 W (40 Hz 20 kHz,
T.H.D. less than 1 %, 8 ohms)
150 W + 150 W (1 kHz,
T.H.D. less than 10 %, 8 ohms)
Rear (Surround)
120 W + 120 W (40 Hz 20 kHz,
T.H.D. less than 1 %, 8 ohms)
150 W + 150 W (1 kHz,
T.H.D. less than 10 %, 8 ohms)
Center
120 W (40 Hz 20 kHz,
T.H.D. less than 1 %, 8 ohms)
150 W (1 kHz,
T.H.D. less than 10 %, 8 ohms)
Total armonic distortion 0.1 % ( 5 W, 1 kHz, 8 ohms, Front)
Inputs AUDIO IN
PHONO: 2.5 mV,
adjustable (47 kohms)
VIDEO 1/DVD/MD, VIDEO 2/LD/TV,
VIDEO 3, CD: 300 mV,
adjustable (47 kohms)
TAPE MONITOR: 350 mV,
adjustable (47 kohms)
AUX: 300 mV,
adjustable (47 kohms)
5.1CH INPUT
FRONT, CENTER, SURROUND,
SUB-WOOFER: 300 mV (47 kohms)
DIGITAL IN
COAXIAL (VIDEO 2):
OPTICAL (VIDEO 1):
OPTICAL (VIDEO 3):
OPTICAL (CD):
accept linear PCM signals and bit
stream of Dolby Digital and DTS
surround (32 kHz, 44.1 kHz, 48 kHz
and 9 kHz)
VIDEO IN: 1 Vp-p (75 ohms)
Outputs AUDIO OUT (REC OUT): 300 mV
(1 kohm)
DIGITAL OUT
OPTICAL OUT
VIDEO OUT (MONITOR): 1 Vp-p
(75 ohms)
SUPER WOOFER: 1.5 V
FRONT SPEAKERS IMP: 8 ohms/4 ohms
selectable (front speakers A and B):
with the SPEAKER IMPEDANCE
SELECTOR set to 4 ohms, accepts
speakers of 4 ohms
with the SPEAKER IMPEDANCE
SELECTOR set to 8 ohms, accepts
speakers of 8 ohms or more
SURROUND SPEAKERS IMP: 8 ohms
(surround speakers): accepts speakers
of 8 ohms or more
CENTER SPEAKER IMP: 8 ohms/4 ohms
selectable
with the SPEAKER IMPEDANCE
SELECTOR set to 4 ohms, accepts
speaker of 4 ohms
with the SPEAKER IMPEDANCE
SELECTOR set to 8 ohms, accepts
speaker of 8 ohms or more
PHONES (stereo jack): accepts
headphones of 32 ohms or more
Muting 20 dB
<General>
Power requirements 120 V AC, 0 Hz
Power consumption 190 W
Power consumption in standby mode
ECO OFF: 43 W
ECO ON: 1.3 W
Dimensions (W x H x D) 430 x 155 x 402 mm
(17 x 1/8 x 157/8 in.)
Weig t 11.7 kg (25 lb 13 oz.)
SPECIFICATIONS
Design and specifications are subject to change without notice.
The word "BBE" and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
Manufactured under license from Dolby Laboratories Licensing
Corporation.
"DOLBY", the double-D symbol and "PRO LOGIC" are
trademarks of Dolby Laboratories Licensing Corporation.
Manufactured under license from Digital Theater Systems, Inc. US
Pat. No. 5,451,942 and other world-wide patents issued and pending.
"DTS" and "DTS Digital Surround" are trademarks of Digital Theater
Systems Inc. ©199 Digital Theater systems, Inc.
All Rights Reserved.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-760-040 C-IC,NJM4580V
8B-AR1-602-030 C-IC,UPD780228GF-083
87-A21-831-010 IC,SPS-422-1-F1
87-020-784-040 C-IC,TC4053BF
87-A21-703-040 C-IC,SN74LV244APW
87-017-917-080 C-IC,BU4066BCF
87-A21-916-040 C-IC,SN74LV125APW
87-A21-825-040 C-IC,M61501FP
87-A21-884-040 C-IC,CS4228A
87-017-585-080 C-IC,NJM4580
87-020-903-010 IC,NJM7805FA
87-070-205-010 IC,TC9299P
87-A21-883-040 C-IC,CS8415A
87-A21-504-010 IC,GP1F37R1
87-A21-885-040 C-IC,CS49326
87-A21-695-010 IC,LA1845L
87-A20-820-010 IC,BA7625
87-A21-967-010 IC,GP1FA551TZ
87-A21-499-040 C-IC,SN74HC153A
87-A20-804-040 C-IC,NJM2152M
87-A21-928-010 IC,LC72131D-N
TRANSISTOR
87-026-245-080 TR,DTC114 S
87-A30-612-080 TR,2SC5343Y
87-A30-476-010 TR,KTA1046Y
87-A30-071-080 C-TR,RT1N 144C
89-110-372-080 C-TR,2SA1037K(R)
87-A30-085-040 C-TR,CSA1362GR
89-318-155-080 TR,2SC1815GR
87-A30-288-040 C-TR,DTC114YKA
89-320-011-080 TR,2SC2001K
87-A30-629-010 TR,2SA1931
89-110-155-080 TR,2SA1015GR
87-A30-494-080 TR,2SA1980G
87-A30-097-010 TR,FN 1016
87-A30-107-070 C-TR,CMBT5401
87-A30-098-010 TR,FP 1016
87-A30-268-040 C-TR,2SA1514K(S)
87-A30-075-080 C-TR,2SA1235F
87-A30-257-080 C-TR,2SD1306
87-A30-076-080 C-TR,2SC3052F
87-A30-429-040 C-TR,DTC123JKA
87-A30-106-070 C-TR,CMBT5551
87-A30-087-080 C-F T,2SK2158
87-A30-196-080 TR,2SC4115SRS
87-A30-086-040 C-TR,CSD1306
87-A30-484-080 C-TR,KRA102S
87-A30-190-080 TR,CC5551
87-A30-186-010 F T,2SK3053
87-A30-072-080 C-TR,RT1P 144C
89-327-143-080 C-TR,2SC2714O
87-A30-489-080 C-TR,KRA107S
89-503-602-080 C-F T,2SK360
87-A30-234-080 TR,CSC4115BC
DIOD
87-020-465-080 DIOD ,1SS133
87-A40-749-080 Z N R,UZ5.6BSB
87-A40-755-080 Z N R,UZ7.5BSA
87-A40-748-080 Z N R,UZ5.6BSA
87-A40-547-090 DIOD ,D5SBA20
87-A40-739-080 Z N R,UZ2.7BSA
87-A40-269-080 C-DIOD ,MC2836
87-A40-270-080 C-DIOD ,MC2838
87-A40-768-080 Z N R,UZ16BSA
87-A40-956-080 DIOD , K04
87-070-274-080 DIOD ,1N4003 S M
87-027-686-080 Z N R,HZ12A1
87-A40-673-090 DIOD ,D10XB20
87-A40-780-080 Z N R,UZ33BSD
87-A40-747-080 Z N R,UZ5.1BSB
87-A40-752-080 Z N R,UZ6.2BSC
87-A40-764-080 Z N R,UZ10BSC
87-A40-740-080 Z N R,UZ3.3BSA
87-A40-757-080 Z N R,UZ7.5BSC
87-A40-488-080 DIOD ,1SS244
87-A40-313-080 C-DIOD ,MC2840
87-A40-781-080 Z N R,UZ36BSA
87-A40-646-010 DIOD ,FMB-G16L
87-017-149-080 Z N R,HZS6A2L
MAIN C.B
C101 87-010-235-080 CAP, 470-16 SM
C102 87-A12-072-080 CAP, 100-25 SMG
C103 87-A12-068-080 CAP, 470-16 SMG
C104 87-A12-076-080 CAP, 22-35 SMG
C105 87-A12-072-080 CAP, 100-25 SMG
C106 87-A12-091-080 CAP, 10-50 SMG
C107 87-A12-080-080 CAP, 220-35 SMG
C108 87-012-276-080 CAP,CHIP SS 1500 PBK
C109 87-012-368-080 C-CAP,S 0.1-50 F
C110 87-012-368-080 C-CAP,S 0.1-50 F
C111 87-012-368-080 C-CAP,S 0.1-50 F
C112 87-012-368-080 C-CAP,S 0.1-50 F
C113 87-A12-830-000 CAP, 4700-35 M 85 GS
C114 87-A12-830-000 CAP, 4700-35 M 85 GS
C115 87-012-368-080 C-CAP,S 0.1-50 F
C116 87-012-368-080 C-CAP,S 0.1-50 F
C117 87-012-368-080 C-CAP,S 0.1-50 F
C118 87-012-368-080 C-CAP,S 0.1-50 F
C121 87-A12-072-080 CAP, 100-25 SMG
C122 87-A12-089-080 CAP, 3.3-50 SMG
C126 87-A12-091-080 CAP, 10-50 SMG
C127 87-012-286-080 CAP,U 0.01-25
C129 87-A10-712-080 C-CAP,S 0.22-50 Z F
C130 87-A10-712-080 C-CAP,S 0.22-50 Z F
C131 87-A12-796-080 CAP, 47-16 105 FA
C132 87-A12-091-080 CAP, 10-50 SMG
C138 87-016-657-090 CAP, 3300-71 M SMG
C139 87-016-657-090 CAP, 3300-71 M SMG
C140 87-A12-806-090 CAP, 4700-71 SMG VB
C141 87-A12-806-090 CAP, 4700-71 SMG VB
C145 87-012-286-080 CAP,U 0.01-25
C203 87-012-368-080 C-CAP,S 0.1-50 F
C204 87-012-368-080 C-CAP,S 0.1-50 F
C205 87-012-368-080 C-CAP,S 0.1-50 F
C206 87-012-368-080 C-CAP,S 0.1-50 F
C207 87-012-282-080 CAP,U 4700P-50
C208 87-012-282-080 CAP,U 4700P-50
C211 87-012-282-080 CAP,U 4700P-50
C217 87-012-286-080 CAP,U 0.01-25
C218 87-012-286-080 CAP,U 0.01-25
C300 87-A11-548-080 C-CAP,S 560P-50 K B
C303 87-012-275-080 C-CAP,U 1200P-50 B
C304 87-012-275-080 C-CAP,U 1200P-50 B
C305 87-A12-090-080 CAP, 4.7-50 SMG
C306 87-A12-090-080 CAP, 4.7-50 SMG
C308 87-016-299-080 CAP, 10-100 SM
C309 87-A12-092-080 CAP, 22-50 SMG
C310 87-A12-092-080 CAP, 22-50 SMG
C311 87-012-195-080 C-CAP,U 100P-50CH
C312 87-012-195-080 C-CAP,U 100P-50CH
C313 87-012-164-080 C-CAP,U 2P-50 CK
C314 87-012-164-080 C-CAP,U 2P-50 CK
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
4
C315 87-A10-897-080 CAP, 100-25 BP SM
C316 87-A10-897-080 CAP, 100-25 BP SM
C317 87-A11-548-080 C-CAP,S 560P-50 K B
C318 87-A11-548-080 C-CAP,S 560P-50 K B
C319 87-012-368-080 C-CAP,S 0.1-50 F
C321 87-012-282-080 CAP,U 4700P-50
C322 87-012-368-080 C-CAP,S 0.1-50 F
C323 87-A11-548-080 C-CAP,S 560P-50 K B
C325 87-012-368-080 C-CAP,S 0.1-50 F
C326 87-012-282-080 CAP,U 4700P-50
C327 87-012-274-080 CHIP CAP,U 1000P-50B
C328 87-012-274-080 CHIP CAP,U 1000P-50B
C330 87-012-368-080 C-CAP,S 0.1-50 F
C331 87-012-368-080 C-CAP,S 0.1-50 F
C336 87-A11-548-080 C-CAP,S 560P-50 K B
C341 87-A11-548-080 C-CAP,S 560P-50 K B
C342 87-A11-548-080 C-CAP,S 560P-50 K B
C343 87-A11-548-080 C-CAP,S 560P-50 K B
C344 87-012-273-080 C-CAP,U 820P-50 B
C345 87-012-273-080 C-CAP,U 820P-50 B
C402 87-012-277-080 C-CAP,U 1800P-50 B
C403 87-A12-091-080 CAP, 10-50 SMG
C404 87-A11-548-080 C-CAP,S 560P-50 K B
C405 87-A12-092-080 CAP, 22-50 SMG
C406 87-012-195-080 C-CAP,U 100P-50CH
C407 87-012-164-080 C-CAP,U 2P-50 CK
C408 87-A10-897-080 CAP, 100-25 BP SM
C409 87-A11-548-080 C-CAP,S 560P-50 K B
C410 87-012-368-080 C-CAP,S 0.1-50 F
C411 87-012-282-080 CAP,U 4700P-50
C412 87-A11-548-080 C-CAP,S 560P-50 K B
C413 87-012-368-080 C-CAP,S 0.1-50 Z F
C414 87-012-274-080 C-CAP,U 1000P-50 K B
C416 87-016-299-080 CAP, 10-100 M SM
C420 87-012-368-080 C-CAP,S 0.1-50 F
C421 87-A11-548-080 C-CAP,S 560P-50 K B
C422 87-012-273-080 C-CAP,U 820P-50 B
C501 87-A12-090-080 CAP, 4.7-50 SMG
C502 87-A12-090-080 CAP, 4.7-50 SMG
C503 87-012-336-080 CAP,CHIP SS 330P SL
C504 87-012-336-080 CAP,CHIP SS 330P SL
C505 87-A10-305-080 CAP,M 0.068-50 J
C506 87-A10-305-080 CAP,M 0.068-50 J
C509 87-A10-298-080 CAP,M 0.018-50 J
C510 87-A10-298-080 CAP,M 0.018-50 J
C511 87-A12-090-080 CAP, 4.7-50 SMG
C512 87-A12-090-080 CAP, 4.7-50 SMG
C513 87-A12-071-080 CAP, 47-25 SMG
C514 87-A12-071-080 CAP, 47-25 SMG
C515 87-010-370-080 CAP, 330-6.3 SM
C516 87-010-370-080 CAP, 330-6.3 SM
C517 87-010-759-080 C-CAP,U 0.1-25F
C518 87-016-083-080 C-CAP,S 0.15-16 RK
C519 87-016-083-080 C-CAP,S 0.15-16 RK
C531 87-A10-305-080 CAP,M 0.068-50 J
C532 87-A10-293-080 CAP,M 6800P-50 J
C533 87-016-083-080 C-CAP,S 0.15-16 RK
C536 87-A12-090-080 CAP, 4.7-50 SMG
C537 87-012-274-080 CHIP CAP,U 1000P-50B
C538 87-010-759-080 C-CAP,U 0.1-25F
C539 87-A12-087-080 CAP, 1-50 SMG
C540 87-A12-070-080 CAP, 33-25 SMG
C541 87-A10-293-080 CAP,M 6800P-50 J
C542 87-A10-293-080 CAP,M 6800P-50 J
C543 87-A12-091-080 CAP, 10-50 SMG
C544 87-A12-091-080 CAP, 10-50 SMG
C545 87-010-759-080 C-CAP,U 0.1-25F
C546 87-A10-305-080 CAP,M 0.068-50 J
C547 87-010-759-080 C-CAP,U 0.1-25F
C549 87-010-759-080 C-CAP,U 0.1-25F
C554 87-016-083-080 C-CAP,S 0.15-16 RK
C555 87-A12-090-080 CAP, 4.7-50 SMG
C556 87-A12-091-080 CAP, 10-50 SMG
C559 87-A10-293-080 CAP,M 6800P-50 J
C560 87-010-759-080 C-CAP,U 0.1-25F
C561 87-A10-039-080 C-CAP,U 470P-50 J CH
C562 87-A10-039-080 C-CAP,U 470P-50 J CH
C565 87-A12-090-080 CAP, 4.7-50 SMG
C566 87-A12-090-080 CAP, 4.7-50 SMG
C567 87-A12-090-080 CAP, 4.7-50 SMG
C568 87-A12-090-080 CAP, 4.7-50 SMG
C569 87-A12-090-080 CAP, 4.7-50 SMG
C570 87-A12-090-080 CAP, 4.7-50 SMG
C571 87-A12-090-080 CAP, 4.7-50 SMG
C572 87-A12-090-080 CAP, 4.7-50 SMG
C577 87-A12-062-080 CAP, 100-10 SMG
C579 87-010-759-080 C-CAP,U 0.1-25F
C601 87-010-378-080 CAP, 10-16 M 11L SM
C602 87-010-378-080 CAP, 10-16 M 11L SM
C603 87-012-199-080 C-CAP,U 220P-50 J CH
C604 87-012-199-080 C-CAP,U 220P-50 J CH
C607 87-A10-301-080 CAP,M 0.033-50 J
C608 87-016-251-080 CAP, 220-16 M SMG
C609 87-A10-289-080 CAP,M 3300P-50 J
C610 87-A12-091-080 CAP, 10-50 SMG
C612 87-A10-301-080 CAP,M 0.033-50 J
C613 87-A12-086-080 CAP, 0.47-50 SMG
C614 87-A10-289-080 CAP,M 3300P-50 J
C615 87-A12-086-080 CAP, 0.47-50 SMG
C700 87-A12-090-080 CAP, 4.7-50 SMG
C702 87-010-759-080 C-CAP,U, 0.1-25F
C703 87-A10-918-080 CAP, 100-16 SMG
C704 87-A12-090-080 CAP, 4.7-50 SMG
C705 87-010-190-080 S CHIP F 0.01
C706 87-010-759-080 C-CAP,U 0.1-25F
C708 87-A12-068-080 CAP, 470-16 SMG
C709 87-A10-918-080 CAP, 100-16 SMG
C800 87-010-759-080 C-CAP,U 0.1-25F
C801 87-010-759-080 C-CAP,U 0.1-25F
C900 87-010-759-080 C-CAP,U 0.1-25F
C901 87-A12-092-080 CAP, 22-50 SMG
C902 87-A12-092-080 CAP, 22-50 SMG
C903 87-A12-092-080 CAP, 22-50 SMG
C906 87-A12-071-080 CAP, 47-25 SMG
C907 87-010-759-080 C-CAP,U 0.1-25F
C908 87-010-387-080 CAP, 470-25 SM
C909 87-010-371-080 CAP, L CT 470-6.3V
C910 87-010-371-080 CAP, L CT 470-6.3V
C911 87-010-371-080 CAP, L CT 470-6.3V
C912 87-010-759-080 C-CAP,U 0.1-25 Z F
C913 87-010-759-080 C-CAP,U 0.1-25 Z F
C915 87-012-186-080 C-CAP,U 39P-50 CH
CN110 87-A60-620-010 CONN,3P V 2MM JMT
CN112 87-A60-620-010 CONN,3P V 2MM JMT
CN202 87-099-573-010 CONN,18P TUC-P18P-B1
CN502 87-099-571-010 CONN,14P TUC-P14P-B1
CN503 87-A60-056-010 CONN,12P V 9604S-12C
CN506 87-A60-063-010 CONN,04P V 9604S-04C
CN507 87-A60-039-010 CONN,32P V 9604S-32C
CNA101 8A-AR3-654-010 CONN ASSY,9P VH
CNA200 8B-AR1-661-010 CONN ASSY,8P VH(BAR)
CNA400 8B-AR1-660-010 CONN ASSY,6P VH(BAR)
CNA901 8B-AR3-648-110 CONN ASSY,2P -VID O3
FFC503 88-912-131-110 FF-CABL ,12P 1.25 130MM
FFC506 88-904-201-110 FF-CABL ,4P 1.25
J501 87-A60-947-010 JACK,PIN 4P W/R GLD
J502 87-A60-947-010 JACK,PIN 4P W/R GLD
J503 87-A61-304-010 JACK,PIN 6P HSP-246V6- 58
J700 87-A61-059-010 JACK,PIN 1P BLK W/O SW GOLD
J901 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
5
J902 87-A60-950-010 JACK,PIN 3P R/W/Y W/ GLD
J903 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J904 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J905 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
L101 87-A50-693-010 COIL,39UH-RCR-110D
L901 87-005-239-080 COIL,100UH
R51 87-A00-418-010 R S,M/F 0.15-3W J
R143 87-A00-258-080 R S,M/F 0.22-1W J
R211 87-A00-418-010 R S,M/F 0.15-3W J
R212 87-A00-418-010 R S,M/F 0.15-3W J
R215 87-A00-418-010 R S,M/F 0.15-3W J
R216 87-A00-418-010 R S,M/F 0.15-3W J
R235 87-025-597-090 R S,M/F 220-1W J
R236 87-025-597-090 R S,M/F 220-1W J
R237 87-A00-373-050 R S,M/F 270-1W J VTP
R238 87-A00-373-050 R S,M/F 270-1W J VTP
R331 87-A00-418-010 R S,M/F 0.15-3W J
R332 87-A00-418-010 R S,M/F 0.15-3W J
R380 87-A00-418-010 R S,M/F 0.15-3W J
R416 87-A00-418-010 R S,M/F 0.15-3W J
R424 87-A00-418-010 R S,M/F 0.15-3W J
R587 87-A00-147-090 R S,M/F 68-1W J RSF(S)
RY101 87-A90-454-010 R LAY,12V DJ12D2-O(M)
RY102 87-A90-454-010 R LAY,12V DJ12D2-O(M)
RY281 87-A91-686-010 R LAY,G5PA-28(OMRON)
RY300 87-A91-686-010 R LAY,G5PA-28(OMRON)
RY481 87-A91-686-010 R LAY,G5PA-28(OMRON)
S101 86-SP8-611-010 SW,SL 1-1-2
S291 87-A90-174-010 SW,PUSH 2-2-2 R2121382 S
S292 87-A90-174-010 SW,PUSH 2-2-2 R2121382 S
TH201 87-A91-042-080 C-THMS,100K 55001
TH202 87-A91-042-080 C-THMS,100K 55001
TH301 87-A91-042-080 C-THMS,100K 55001
TH302 87-A91-042-080 C-THMS,100K 55001
TH401 87-A91-042-080 C-THMS,100K 55001
WH101 87-A90-510-010 HLDR,WIR 2.5-9P
FRONT C.B
C101 87-012-195-080 C-CAP,U 100P-50CH
C102 87-012-195-080 C-CAP,U 100P-50CH
C103 87-010-759-080 C-CAP,U 0.1-25F
C104 87-010-759-080 C-CAP,U 0.1-25F
C105 87-A10-189-040 CAP, 220-10
C107 87-012-286-080 CAP,U 0.01-25
C108 87-010-759-080 C-CAP,U 0.1-25F
C109 87-012-176-080 CAP,15P
C110 87-012-198-080 CAP,180P
C111 87-A10-039-080 C-CAP,U 470P-50 J CH
C112 87-012-274-080 CHIP CAP,U 1000P-50B
C113 87-012-199-080 CAP,220P
C114 87-012-199-080 CAP,220P
C115 87-012-199-080 CAP,220P
C116 87-012-278-080 C-CAP,U 2200P-50 B
C117 87-012-278-080 C-CAP,U 2200P-50 B
C118 87-012-274-080 CHIP CAP,U 1000P-50B
C119 87-012-286-080 CAP,U 0.01-25
C120 87-010-759-080 C-CAP,U 0.1-25F
C121 87-A10-189-040 CAP, 220-10
C122 87-010-759-080 C-CAP,U 0.1-25F
C123 87-010-759-080 C-CAP,U 0.1-25F
C124 87-010-759-080 C-CAP,U 0.1-25F
C126 87-015-699-040 CAP, 10-50 7L
C128 87-015-699-040 CAP, 10-50 7L
C129 87-010-787-080 CAP,U 0.022-25
C130 87-012-278-080 C-CAP,U 2200P-50 B
C134 87-010-785-080 C-CAP,U 0.015-25BK
C136 87-012-278-080 C-CAP,U 2200P-50 B
C138 87-010-759-080 C-CAP,U 0.1-25F
C139 87-012-274-080 CHIP CAP,U 1000P-50B
C141 87-012-195-080 C-CAP,U 100P-50CH
C142 87-012-274-080 C-CAP,U 1000P-50 K B
C143 87-012-274-080 C-CAP,U 1000P-50 K B
C144 87-012-274-080 C-CAP,U 1000P-50 K B
C145 87-012-195-080 C-CAP,U 100P-50 J CH
C146 87-012-195-080 C-CAP,U 100P-50 J CH
C147 87-012-274-080 C-CAP,U 1000P-50 K B
C148 87-012-274-080 C-CAP,U 1000P-50 K B
C149 87-012-274-080 C-CAP,U 1000P-50 K B
C150 87-012-274-080 C-CAP,U 1000P-50 K B
C151 87-012-274-080 C-CAP,U 1000P-50 K B
C152 87-012-195-080 C-CAP,U 100P-50 J CH
C153 87-012-195-080 C-CAP,U 100P-50 J CH
C155 87-012-274-080 C-CAP U 1000P-50 K B
C156 87-012-195-080 C-CAP,U 100P-50CH
C157 87-012-195-080 C-CAP,U 100P-50CH
C158 87-012-195-080 C-CAP,U 100P-50CH
C159 87-012-195-080 C-CAP,U 100P-50CH
C160 87-012-195-080 C-CAP,U 100P-50CH
C161 87-012-195-080 C-CAP,U 100P-50CH
C162 87-010-677-040 CAP, 0.15-50 7L
C201 87-012-336-080 CAP,CHIP SS 330P SL
C202 87-012-336-080 CAP,CHIP SS 330P SL
C203 87-012-336-080 CAP,CHIP SS 330P SL
C204 87-012-336-080 CAP,CHIP SS 330P SL
C205 87-012-336-080 CAP,CHIP SS 330P SL
C206 87-012-336-080 CAP,CHIP SS 330P SL
C207 87-012-336-080 CAP,CHIP SS 330P SL
C208 87-012-336-080 CAP,CHIP SS 330P SL
C209 87-012-336-080 CAP,CHIP SS 330P SL
C210 87-012-336-080 CAP,CHIP SS 330P SL
C211 87-012-336-080 CAP,CHIP SS 330P SL
C212 87-012-336-080 CAP,CHIP SS 330P SL
C213 87-010-408-040 CAP, 47-50 SM
C214 87-012-368-080 C-CAP,S 0.1-50 F
C216 87-015-699-040 CAP, 10-50 7L
C217 87-015-699-040 CAP, 10-50 7L
C218 87-012-368-080 C-CAP,S 0.1-50 F
C219 87-012-336-080 CAP,CHIP SS 330P SL
C220 87-012-336-080 CAP,CHIP SS 330P SL
CN101 87-A60-079-010 CONN,08P H 9604S-08F
CN102 87-A60-064-010 CONN,32P H 9604S-32F
CN103 87-099-759-010 CONN,21P H 9604
CN104 87-A60-061-010 CONN,06P V 9604S-06C
FFC101 88-908-101-110 FF-CABL ,8P 1.25 100MM
FFC102 88-932-441-110 FF-CABL ,32P 1.25 440MM
FFC103 88-921-331-110 FF-CABL ,21P 330MM
FFC104 88-906-061-110 FF-CABL ,6P 1.25 60MM
FL201 8B-AR3-601-010 FL,HNA-12SM12 BAR-3
L101 87-A50-655-010 COIL,CLK 4.19MHZ(TOKO)7KLY
L D2 87-A40-317-080 L D,SLR-342VCT31 R D
L D3 87-A40-317-080 L D,SLR-342VCT31 R D
L D4 87-A40-317-080 L D,SLR-342VCT31 R D
L D5 87-A40-317-080 L D,SLR-342VCT31 R D
L D6 87-A40-317-080 L D,SLR-342VCT31 R D
L D7 87-A40-317-080 L D,SLR-342VCT31 R D
L D8 87-A40-317-080 L D,SLR-342VCT31 R D
L D9 87-A40-317-080 L D,SLR-342VCT31 R D
L D10 87-A40-317-080 L D,SLR-342VCT31 R D
S301 87-A90-095-080 SW,TACT VQ11G04M
S302 87-A90-095-080 SW,TACT VQ11G04M
S306 87-A90-095-080 SW,TACT VQ11G04M
S307 87-A90-095-080 SW,TACT VQ11G04M
S308 87-A90-095-080 SW,TACT VQ11G04M
S309 87-A90-095-080 SW,TACT VQ11G04M
S310 87-A90-095-080 SW,TACT VQ11G04M
S313 87-A90-095-080 SW,TACT VQ11G04M
S314 87-A90-095-080 SW,TACT VQ11G04M
S315 87-A90-095-080 SW,TACT VQ11G04M
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
6
S316 87-A90-095-080 SW,TACT VQ11G04M
S318 87-A90-095-080 SW,TACT VQ11G04M
S319 87-A90-095-080 SW,TACT VQ11G04M
S320 87-A90-095-080 SW,TACT VQ11G04M
S321 87-A90-095-080 SW,TACT VQ11G04M
SW101 87-A92-067-010 SW,RTRY C12 12204N
SW102 87-A92-068-010 SW,RTRY C12 12504N
TUN R C.B
C772 87-012-286-080 CAP,U 0.01-25
C784 87-012-286-080 CAP,U 0.01-25
C785 87-012-286-080 CAP,U 0.01-25
C786 87-012-286-080 CAP,U 0.01-25
C788 87-012-167-080 C-CAP,U 5P-50 CH
C789 87-A11-228-080 CHIP CAPACITOR,U 0.027-25 KB
C790 87-A11-228-080 CHIP CAPACITOR,U 0.027-25 KB
C791 87-010-831-080 C-CAP,U 0.1-16F
C792 87-012-286-080 CAP,U 0.01-25
C793 87-A11-056-080 C-CAP,U 1-10 Z F
C795 87-012-286-080 CAP,U 0.01-25
C799 87-010-982-040 CAP, 33-25 M 5L SR
C800 87-010-829-080 CAP,U 0.047-16
C801 87-A11-056-080 C-CAP,U 1-10 Z F
C802 87-010-829-080 CAP,U 0.047-16
C804 87-010-264-040 CAP, 100-10 M 5L SR
C807 87-A10-463-080 C-CAP,U 0.47-10 Z F
C808 87-A11-056-080 C-CAP,U 1-10 Z F
C809 87-A11-056-080 C-CAP,U 1-10 Z F
C810 87-010-831-080 C-CAP,U 0.1-16F
C811 87-A10-463-080 C-CAP,U 0.47-10 Z F
C812 87-A10-463-080 C-CAP,U 0.47-10 Z F
C814 87-012-286-080 CAP,U 0.01-25
C815 87-A10-463-080 C-CAP,U 0.47-10 Z F
C816 87-A10-463-080 C-CAP,U 0.47-10 Z F
C821 87-A11-063-080 C-CAP,S 4.7-10 Z F
C823 87-012-273-080 C-CAP,U 820P-50 B
C824 87-A11-063-080 C-CAP,S 4.7-10 Z F
C825 87-010-829-080 CAP,U 0.047-16
C831 87-010-552-040 CAP, 22-16 M 5L SR
C836 87-012-286-080 CAP,U 0.01-25
C842 87-012-286-080 CAP,U 0.01-25
C844 87-012-286-080 CAP,U 0.01-25
C850 87-A11-056-080 C-CAP,U 1-10 Z F
C851 87-012-286-080 CAP,U 0.01-25
C852 87-012-286-080 CAP,U 0.01-25
C853 87-012-286-080 CAP,U 0.01-25
C858 87-010-831-080 C-CAP,U 0.1-16F
C860 87-012-286-080 CAP,U 0.01-25
C900 87-A11-144-080 CAP,TC U 0.1-50 K B
C902 87-012-167-080 C-CAP,U 5P-50 C CH
C908 87-012-174-080 CAP,CHIP C RA SS 12P CHJ
C909 87-012-274-080 CHIP CAP,U 1000P-50B
C911 87-012-170-080 C-CAP,U 8P-50 CH
C912 87-012-195-080 C-CAP,U 100P-50CH
C913 87-012-286-080 CAP,U 0.01-25
C914 87-012-286-080 CAP,U 0.01-25
C915 87-012-286-080 CAP,U 0.01-25
C918 87-012-164-080 C-CAP,U 2P-50 CK
C920 87-012-180-080 C-CAP,U 22P-50 CH
C921 87-012-186-080 C-CAP,U 39P-50 CH
C922 87-012-174-080 CAP,CHIP C RA SS 12P CHJ
C923 87-012-270-080 CAP,U 470P-50
C924 87-012-174-080 CAP,CHIP C RA SS 12P CHJ
C927 87-012-195-080 C-CAP,U 100P-50CH
C961 87-012-170-080 C-CAP,U 8P-50 CH
C963 87-010-831-080 C-CAP,U,0.1-16F
C971 87-010-381-080 CAP, L CT 330-16V
C972 87-A11-063-080 C-CAP,S 4.7-10 Z F
C973 87-012-286-080 CAP,U 0.01-25
C974 87-012-286-080 CAP,U 0.01-25
C976 87-010-831-080 C-CAP,U,0.1-16F
C979 87-012-195-080 C-CAP,U 100P-50CH
C981 87-A12-071-080 CAP, 47-25 SMG
C982 87-010-831-080 C-CAP,U 0.1-16F
C983 87-A11-132-080 CAP,TC U 0.01-50 K B
C984 87-012-286-080 CAP,U 0.01-25
C985 87-012-195-080 C-CAP,U 100P-50CH
C987 87-012-286-080 CAP,U 0.01-25
C990 87-012-195-080 C-CAP,U 100P-50CH
C991 87-012-176-080 CAP,15P
C992 87-012-176-080 CAP,15P
C993 87-012-274-080 CHIP CAP,U 1000P-50B
C994 87-012-195-080 C-CAP,U 100P-50CH
C995 87-012-274-080 CHIP CAP,U 1000P-50B
C996 87-012-195-080 C-CAP,U 100P-50CH
C997 87-010-831-080 C-CAP,U,0.1-16F
C998 87-010-553-040 CAP, 47-16 M 5L SR
C999 87-012-286-080 CAP,U 0.01-25
CF831 87-008-261-010 FLTR,CF SF 10.7MA5
CF832 87-008-261-010 FLTR,CF SF 10.7MA5
CN992 87-A60-056-010 CONN,12P V 9604S-12C
D902 87-A40-916-040 C-VARI-CAP,HVC202A
D903 87-A40-916-040 C-VARI-CAP,HVC202A
J832 87-A61-535-010 T RMINAL,ANT 2P HSP-302V
J940 87-A60-633-010 CONN,2P H 2.5MM JMT
L801 87-A50-608-010 COIL,FM D T-N(TOK)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH(C CS)
L832 87-005-847-080 COIL,2.2UH(C CS)
L903 88-ZA1-602-110 COIL,FM-RF-U2 2G
L904 88-ZA1-601-010 COIL,FM-RF-U1 2G
L906 87-005-847-080 COIL,2.2UH(C CS)
L907 8A-N C-611-010 COIL,FM OSC U 2G
L908 88-ZA1-624-010 COIL,FM IFT 7-6.2(COILS)
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)
R790 87-012-286-080 CAP,U 0.01-25
R902 87-012-166-080 C-CAP,U 4P-50 C CH
X991 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST
DIGITAL C.B
C101 87-A12-091-080 CAP, 10-50 SMG
C102 87-A12-091-080 CAP, 10-50 SMG
C103 87-012-172-080 CAPACITOR,CHIP U 10P CH
C104 87-012-172-080 CAPACITOR,CHIP U 10P CH
C105 87-010-759-080 C-CAP,U 0.1-25F
C106 87-A10-369-080 C-CAP,S 0.47-16 K B
C107 87-A12-068-080 CAP, 470-16 SMG
C108 87-010-759-080 C-CAP,U 0.1-25F
C109 87-A12-068-080 CAP, 470-16 SMG
C110 87-010-759-080 C-CAP,U 0.1-25F
C111 87-A12-091-080 CAP, 10-50 SMG
C112 87-A12-091-080 CAP, 10-50 SMG
C113 87-012-195-080 C-CAP,U 100P-50CH
C114 87-012-195-080 C-CAP,U 100P-50CH
C115 87-012-284-080 CAP,U 6800P-50
C116 87-012-284-080 CAP,U 6800P-50
C117 87-012-278-080 C-CAP,U 2200P-50 B
C118 87-012-278-080 C-CAP,U 2200P-50 B
C119 87-012-282-080 CAP,U 4700P-50
C120 87-012-282-080 CAP,U 4700P-50
C121 87-012-278-080 C-CAP,U 2200P-50 B
C122 87-012-278-080 C-CAP,U 2200P-50 B
C123 87-A12-091-080 CAP, 10-50 SMG
C124 87-A12-091-080 CAP, 10-50 SMG
C125 87-010-759-080 C-CAP,U 0.1-25F
C151 87-A12-091-080 CAP, 10-50 SMG
C152 87-A12-091-080 CAP, 10-50 SMG
C153 87-012-172-080 CAPACITOR,CHIP U 10P CH
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
7
C154 87-012-172-080 CAPACITOR,CHIP U 10P CH
C155 87-010-759-080 C-CAP,U 0.1-25F
C156 87-A10-369-080 C-CAP,S 0.47-16 K B
C157 87-010-759-080 C-CAP,U 0.1-25F
C159 87-016-083-080 C-CAP,S 0.15-16 RK
C160 87-016-083-080 C-CAP,S 0.15-16 RK
C161 87-012-195-080 C-CAP,U 100P-50CH
C162 87-012-195-080 C-CAP,U 100P-50CH
C163 87-010-759-080 C-CAP,U 0.1-25F
C165 87-012-284-080 CAP,U 6800P-50
C166 87-012-284-080 CAP,U 6800P-50
C167 87-012-278-080 C-CAP,U 2200P-50 B
C168 87-012-278-080 C-CAP,U 2200P-50 B
C169 87-012-278-080 C-CAP,U 2200P-50 B
C170 87-012-278-080 C-CAP,U 2200P-50 B
C171 87-012-282-080 CAP,U 4700P-50
C172 87-012-282-080 CAP,U 4700P-50
C173 87-A12-091-080 CAP, 10-50 SMG
C174 87-A12-091-080 CAP, 10-50 SMG
C175 87-010-759-080 C-CAP,U 0.1-25F
C201 87-A12-091-080 CAP, 10-50 SMG
C202 87-A12-091-080 CAP, 10-50 SMG
C203 87-012-172-080 CAPACITOR,CHIP U 10P CH
C204 87-012-274-080 CHIP CAP,U 1000P-50B
C205 87-010-759-080 C-CAP,U 0.1-25F
C206 87-A10-369-080 C-CAP,S 0.47-16 K B
C207 87-010-759-080 C-CAP,U 0.1-25F
C209 87-A12-091-080 CAP, 10-50 SMG
C210 87-A12-091-080 CAP, 10-50 SMG
C211 87-012-195-080 C-CAP,U 100P-50CH
C212 87-012-278-080 C-CAP,U 2200P-50 B
C213 87-010-759-080 C-CAP,U 0.1-25F
C215 87-010-759-080 C-CAP,U 0.1-25F
C217 87-012-284-080 CAP,U 6800P-50
C218 87-012-284-080 CAP,U 6800P-50
C219 87-012-278-080 C-CAP,U 2200P-50 B
C220 87-012-278-080 C-CAP,U 2200P-50 B
C221 87-012-278-080 C-CAP,U 2200P-50 B
C222 87-012-278-080 C-CAP,U 2200P-50 B
C223 87-012-282-080 CAP,U 4700P-50
C224 87-012-282-080 CAP,U 4700P-50
C225 87-A12-091-080 CAP, 10-50 SMG
C226 87-A12-091-080 CAP, 10-50 SMG
C235 87-A12-091-080 CAP, 10-50 SMG
C251 87-010-759-080 C-CAP,U 0.1-25F
C252 87-010-759-080 C-CAP,U 0.1-25F
C253 87-A12-091-080 CAP, 10-50 SMG
C254 87-010-759-080 C-CAP,U 0.1-25 Z F
C255 87-A12-091-080 CAP, 10-50 SMG
C256 87-010-759-080 C-CAP,U 0.1-25 Z F
C401 87-010-759-080 C-CAP,U 0.1-25F
C404 87-010-759-080 C-CAP,U 0.1-25F
C405 87-A12-087-080 CAP, 1-50 SMG
C406 87-A12-090-080 CAP, 4.7-50 SMG
C410 87-012-274-080 C-CAP,U 1000P-50 K B
C501 87-012-198-080 CAP,180P
C502 87-012-198-080 CAP,180P
C504 87-A12-091-080 CAP, 10-50 SMG
C506 87-A12-091-080 CAP, 10-50 SMG
C507 87-010-759-080 C-CAP,U 0.1-25F
C508 87-010-759-080 C-CAP,U 0.1-25F
C509 87-A12-091-080 CAP, 10-50 SMG
C510 87-A12-091-080 CAP, 10-50 SMG
C511 87-A12-091-080 CAP, 10-50 SMG
C512 87-012-278-080 C-CAP,U 2200P-50 B
C513 87-012-278-080 C-CAP,U 2200P-50 B
C601 87-A12-091-080 CAP, 10-50 SMG
C602 87-010-759-080 C-CAP,U 0.1-25F
C603 87-A12-091-080 CAP, 10-50 SMG
C604 87-010-759-080 C-CAP,U 0.1-25F
C614 87-012-172-080 C-CAP,U 10P-50 D CH
C617 87-A12-087-080 CAP, 1-50 SMG
C618 87-010-759-080 C-CAP,U 0.1-25F
C621 87-A12-091-080 CAP, 10-50 SMG
C624 87-010-759-080 C-CAP,U 0.1-25F
C631 87-A12-091-080 CAP, 10-50 SMG
C651 87-010-101-080 CAP, L CT 220-16
C653 87-010-759-080 C-CAP,U 0.1-25F
C654 87-010-759-080 C-CAP,U 0.1-25F
C655 87-A12-087-080 CAP, 1-50 SMG
C656 87-A12-087-080 CAP, 1-50 SMG
C657 87-010-759-080 C-CAP,U 0.1-25F
C658 87-010-759-080 C-CAP,U 0.1-25F
C659 87-A11-148-080 CAP,TC U 0.1-50 Z F
C702 87-010-757-080 C-CAP,U 0.047-25F
C703 87-010-759-080 C-CAP,U 0.1-25F
C704 87-012-278-080 C-CAP,U 2200P-50 B
C707 87-012-172-080 C-CAP,U 10P-50 D CH
C711 87-010-759-080 C-CAP,U 0.1-25F
C712 87-A12-062-080 CAP, 100-10 SMG
C714 87-012-286-080 C-CAP,U 0.01-25
C715 87-012-286-080 C-CAP,U 0.01-25
C751 87-012-278-080 C-CAP,U 2200P-50 B
C761 87-012-278-080 C-CAP,U 2200P-50 K B
C771 87-012-278-080 C-CAP,U 2200P-50 K B
C781 87-012-278-080 C-CAP,U 2200P-50 K B
C793 87-010-759-080 C-CAP,U 0.1-25 Z F
C794 87-012-180-080 C-CAP,U 22P-50 CH
C795 87-010-759-080 C-CAP,U 0.1-25F
C801 87-010-759-080 C-CAP,U 0.1-25F
C802 87-012-286-080 CAP,U 0.01-25
C804 87-A10-039-080 C-CAP,U 470P-50 J CH
C805 87-A12-088-080 CAP, 2.2-50 SMG
C808 87-012-172-080 C-CAP,U 10P-50 D CH
C811 87-012-172-080 C-CAP,U 10P-50 D CH
C818 87-010-759-080 C-CAP,U 0.1-25F
C819 87-A12-062-080 CAP, 100-10 SMG
C820 87-010-759-080 C-CAP,U 0.1-25F
C821 87-010-759-080 C-CAP,U 0.1-25F
C823 87-010-759-080 C-CAP,U 0.1-25F
CN102 87-099-560-010 CONN,14P TUC-P
CN401 87-099-752-010 CONN,21P V 9604SC
FB601 87-008-372-080 FLTR, MI BL01 RN1
FB602 87-008-372-080 FLTR, MI BL01 RN1
FB603 87-008-372-080 FLTR, MI BL01 RN1
FB701 87-008-372-080 FLTR, MI BL01 RN1
FB702 87-008-372-080 FLTR, MI BL01 RN1
FB801 87-008-372-080 FLTR, MI BL01 RN1
FB802 87-008-372-080 FLTR, MI BL01 RN1
J751 87-A61-143-010 JACK,PIN 1P ORN GLD
JW173 87-008-372-080 FLTR, MI BL01 RN1
JW178 87-008-372-080 FLTR, MI BL01 RN1
JW401 87-008-372-080 FLTR, MI BL01 RN1
X701 87-A70-186-080 C-VIB,XTAL OSC FCX0-3
VOLUM C.B
C601 87-012-274-080 CHIP CAP,U 1000P-50B
CN603 87-A60-081-010 CONN,06P H 9604S-06F
S600 87-A90-095-080 SW,TACT VQ11G04M
S601 87-A90-095-080 SW,TACT VQ11G04M
SW601 87-A91-645-010 SW,RTRY C12 24304NON-CLICK
HP/VID O C.B
C502 87-A11-144-080 CAP,TC U 0.1-50 K B
C503 87-A11-144-080 CAP,TC U 0.1-50 K B
C504 87-010-188-080 CAP,CHIP 6800P
C505 87-010-188-080 CAP,CHIP 6800P
C506 87-012-278-080 C-CAP,U 2200P-50 K B
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
8
C507 87-012-278-080 C-CAP,U 2200P-50 K B
C508 87-A11-144-080 CAP,TC U 0.1-50 K B
CN501 87-A60-666-010 CONN,2P H 2MM JMT
CN502 87-099-201-010 CONN,8P 6216 H
FB502 87-008-372-080 FLTR, MI BL01 RN1
FB503 87-008-372-080 FLTR, MI BL01 RN1
J502 87-A60-606-010 JACK,PIN 3P R/W/Y W/O SW H
J503 87-A60-488-010 JACK,DIA6.3 BLK ST W/SW KM16AT
SPKR C.B
C101 87-012-368-080 C-CAP,S 0.1-50 F
C102 87-012-368-080 C-CAP,S 0.1-50 F
C103 87-012-368-080 C-CAP,S 0.1-50 F
C104 87-012-368-080 C-CAP,S 0.1-50 F
C105 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C106 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C107 87-012-286-080 C-CAP,U 0.01-25
C108 87-012-286-080 C-CAP,U 0.01-25
C111 87-012-368-080 C-CAP,S 0.1-50 F
C112 87-012-368-080 C-CAP,S 0.1-50 F
C113 87-012-368-080 C-CAP,S 0.1-50 F
C114 87-012-368-080 C-CAP,S 0.1-50 F
C115 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C116 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C117 87-012-286-080 C-CAP,U 0.01-25
C118 87-012-286-080 C-CAP,U 0.01-25
C121 87-012-368-080 C-CAP,S 0.1-50 F
C122 87-012-368-080 C-CAP,S 0.1-50 F
C123 87-012-368-080 C-CAP,S 0.1-50 F
C124 87-012-368-080 C-CAP,S 0.1-50 F
C125 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C126 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C127 87-012-286-080 C-CAP,U 0.01-25
C128 87-012-286-080 C-CAP,U 0.01-25
C129 87-012-368-080 C-CAP,S 0.1-50 F
C130 87-012-368-080 C-CAP,S 0.1-50 F
C131 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C132 87-010-759-080 C-CAP,U 0.1-25F
CN101 87-099-799-010 CONN,8P V B8P-VH
CN102 87-009-663-010 CONN,6P V VH
J101 87-A61-613-010 T RMINAL,SPKR-SCR W 8P
J102 87-A61-614-010 T RMINAL,SPKR-SCR W 6P
L101 87-A50-610-010 COIL,1UH K(MD C)
L102 87-A50-610-010 COIL,1UH K(MD C)
L103 87-A50-610-010 COIL,1UH K(MD C)
L104 87-A50-610-010 COIL,1UH K(MD C)
L105 87-A50-610-010 COIL,1UH K(MD C)
L106 87-A50-610-010 COIL,1UH K(MD C)
L107 87-A50-610-010 COIL,1UH K(MD C)
AMP C.B
C803 87-012-278-080 C-CAP,U 2200P-50 B
C804 87-012-278-080 C-CAP,U 2200P-50 B
C805 87-A12-091-080 CAP, 10-50 SMG
C806 87-A12-091-080 CAP, 10-50 SMG
C807 87-012-195-080 C-CAP,U 100P-50CH
C808 87-012-195-080 C-CAP,U 100P-50CH
C809 87-A12-092-080 CAP, 22-50 SMG
C810 87-A12-092-080 CAP, 22-50 SMG
C811 87-012-273-080 C-CAP,U 820P-50 B
C812 87-012-273-080 C-CAP,U 820P-50 B
C813 87-A10-897-080 CAP, 100-25 BP SM
C814 87-A10-897-080 CAP, 100-25 BP SM
C815 87-012-164-080 C-CAP,U 2P-50 CK
C816 87-012-164-080 C-CAP,U 2P-50 CK
C817 87-A11-548-080 C-CAP,S 560P-50 K B
C818 87-A11-548-080 C-CAP,S 560P-50 K B
C819 87-A11-548-080 C-CAP,S 560P-50 K B
C820 87-A11-548-080 C-CAP,S 560P-50 K B
C821 87-A11-548-080 C-CAP,S 560P-50 K B
C822 87-A11-548-080 C-CAP,S 560P-50 K B
C823 87-A11-548-080 C-CAP,S 560P-50 K B
C824 87-A11-548-080 C-CAP,S 560P-50 K B
C827 87-012-368-080 C-CAP,S 0.1-50 F
C831 87-012-274-080 CHIP CAP,U 1000P-50B
C832 87-012-274-080 CHIP CAP,U 1000P-50B
CN801 87-099-562-010 CONN,18P TUC-P18X-B1
PT C.B
C1 87-010-237-080 CAP, 1000-16 M SM
C2 87-A12-089-080 CAP, 3.3-50 SMG
C3 87-A11-148-080 CAP,TC U 0.1-50 Z F
C4 87-A11-148-080 CAP,TC U 0.1-50 Z F
C5 87-A11-148-080 CAP,TC U 0.1-50 Z F
CN3 87-A60-851-010 CONN,9P V VH
CNA1 8A-AR3-651-110 CONN ASSY,2P AC-OUTL T
CNA2 88-805-033-690 CONN ASSY,3P 300
PR1 87-A91-276-080 FUS ,125MA 125V F 251
PT1 8B-AR1-621-010 PT,U I96-80 BAR-1
PT2 8Z-NF8-661-010 PT,SUB ZNF-8(U)
RY1 87-A91-368-010 R LAY,ACDC12V DG12D-O(M)-2
T1 87-A60-317-010 T RMINAL, 1P MSC
T2 87-A60-317-010 T RMINAL, 1P MSC
AC OUTL T C.B
C102 87-A11-145-080 CAP,TC U 0.01-50 Z F
CN101 87-099-448-010 CONN,2P V VT
CNA101 88-805-036-010 CONN ASSY,3P
F102 87-A91-230-010 FUS ,4A 125V T 51S
FC103 87-033-147-010 FUS CLAMP,MT-20
FC104 87-033-147-010 FUS CLAMP,MT-20
J101 87-A61-192-010 OUTL T,AC CCT 1304-0202
RY101 87-A91-368-010 R LAY,ACDC12V DG12D-O(M)-2
S-VID O C.B
C601 87-A12-069-080 CAP, 22-25 SMG
C602 87-A12-069-080 CAP, 22-25 SMG
C603 87-010-322-080 C-CAP,S 100P-50 CH
C604 87-010-322-080 C-CAP,S 100P-50 CH
C605 87-010-371-080 CAP, L CT 470-6.3V
C606 87-010-371-080 CAP, L CT 470-6.3V
C607 87-A12-069-080 CAP, 22-25 SMG
C608 87-A12-069-080 CAP, 22-25 SMG
C609 87-010-322-080 C-CAP,S 100P-50 CH
C610 87-010-322-080 C-CAP,S 100P-50 CH
C611 87-010-371-080 CAP, L CT 470-6.3V
C612 87-010-371-080 CAP, L CT 470-6.3V
C613 87-010-322-080 C-CAP,S 100P-50 CH
C614 87-010-322-080 C-CAP,S 100P-50 CH
C615 87-010-371-080 CAP, L CT 470-6.3V
C616 87-010-371-080 CAP, L CT 470-6.3V
C617 87-010-196-080 CHIP CAPACITOR,0.1-25
C618 87-010-387-080 CAP, 470-25 SM
C619 87-A12-069-080 CAP, 22-25 SMG
C620 87-A12-069-080 CAP, 22-25 SMG
C621 87-A12-069-080 CAP, 22-25 SMG
C622 87-A12-069-080 CAP, 22-25 SMG
C623 87-A12-062-080 CAP, 100-10 SMG
C624 87-010-196-080 CHIP CAPACITOR,0.1-25
C639 87-A12-069-080 CAP, 22-25 SMG
C640 87-A12-069-080 CAP, 22-25 SMG
CN601 87-A60-063-010 CONN,04P V 9604S-04C
J601 87-A61-550-010 JACK,Y/C YKF51-5510 2GANG
J602 87-A61-551-010 JACK,Y/C YKF51-5513 3GANG
L601 87-005-239-080 COIL,100UH K LAL03
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
!
!
!
!
!
!
!
!
!
!
!
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
9
TRANSISTOR ILLUSTRATION
E C B
2SA1980G
2SC1815GR
2SC5343Y
CC5551
CSC4115BC
2SA1037K(R)
2SA1235F
2SA1514K(S)
2SC2714O
2SC3052F
2SD1306E
CMBT5401
CMBT5551
B C E
2SA1931
FN1016
FP1016
KTA1046Y
2SK2158
E C B
2SA1015GR
2SC2001K
2SC4115SRS
DTC114ES
E C B
2SK360E
G D S
2SK3053
G
D
S
D
S
G
B
C
E
88
A

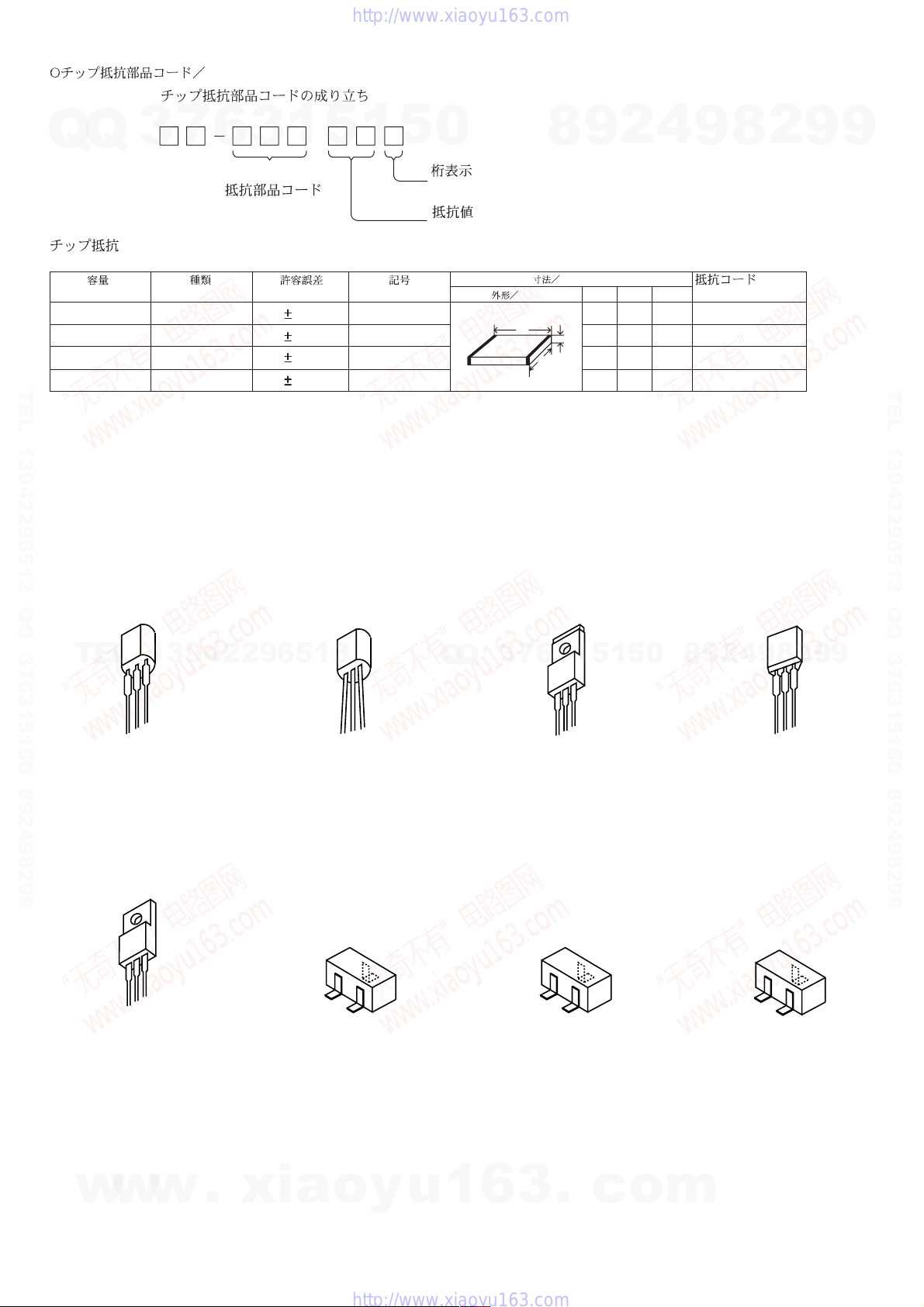

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
CSA1362GR
CSD1306E
DTC114YKA
DTC123JKA
KRA102S
KRA107S
RT1N144C
RT1P144C
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING – 1 (MAIN)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 10 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

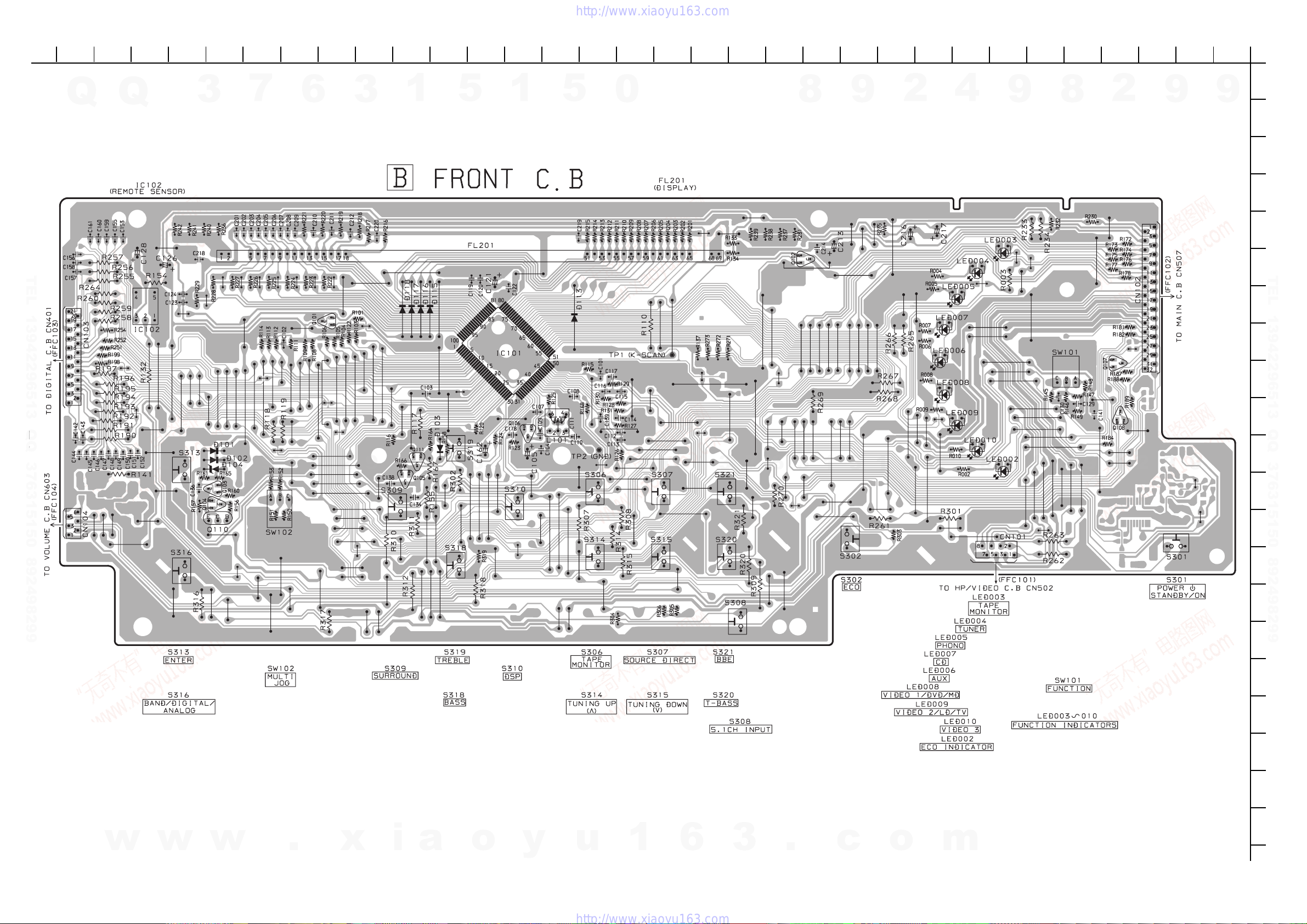

WIRING – 2 (FRONT)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 13 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

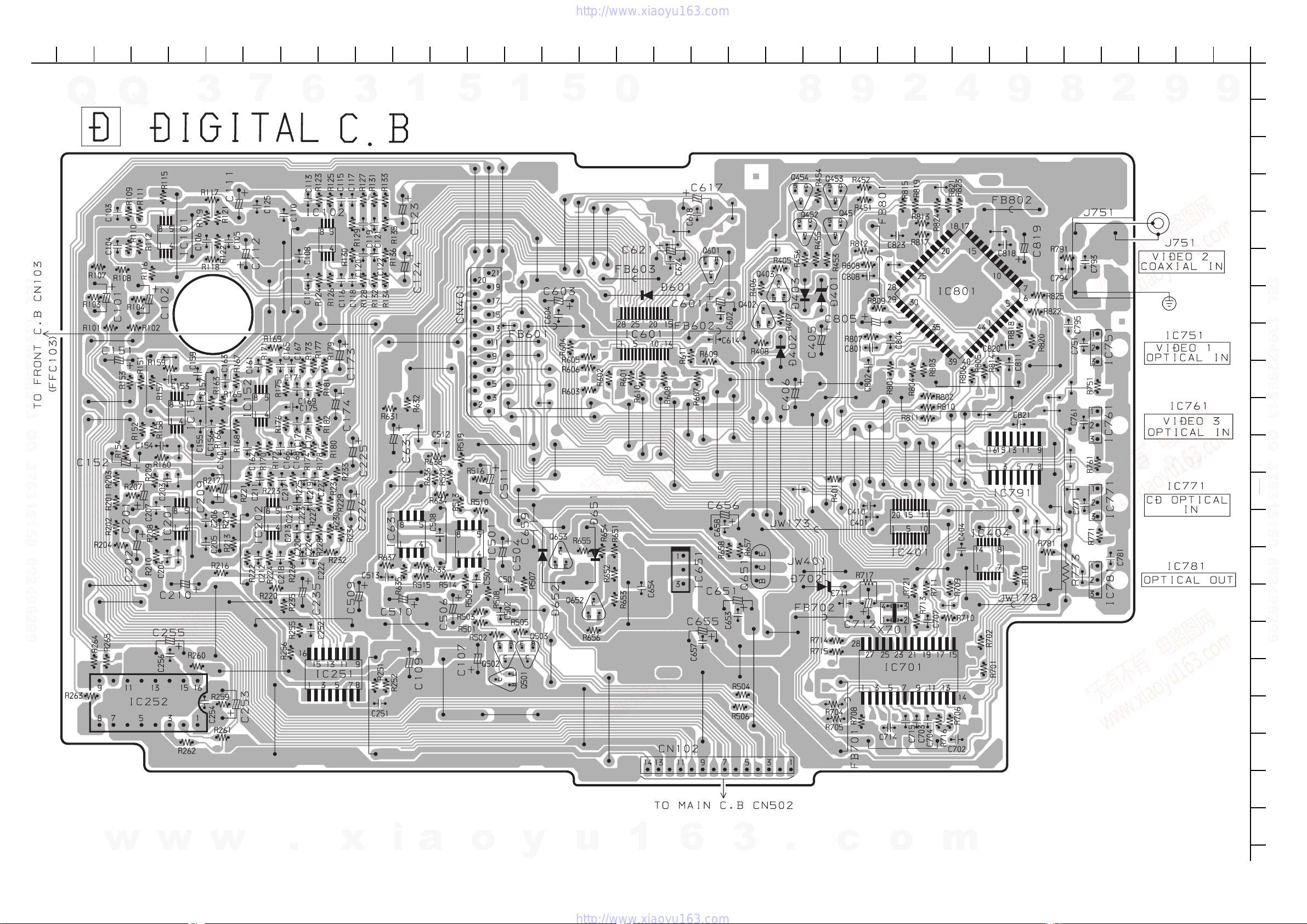

WIRING – 4 (DIGITAL)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 17 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING – 5 (VOLUME / HP / VIDEO / SPKR)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 19 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
Other manuals for AV-D98
1
This manual suits for next models
1
Table of contents
Other Aiwa Stereo Receiver manuals
Aiwa
Aiwa AV-D35 Specification sheet
Aiwa
Aiwa NSX-AV240 Specification sheet
Aiwa
Aiwa NSX-F9 User manual
Aiwa
Aiwa NSX-WK790 User manual
Aiwa
Aiwa AV-NW30, AV-NW31 User manual
Aiwa
Aiwa NSX-SZ50 User manual
Aiwa
Aiwa AV-D78 User manual
Aiwa
Aiwa NSX-SZ70 User manual
Aiwa
Aiwa XR-C303RW User manual
Aiwa
Aiwa Z-KD570 User manual
