SERVICE MANUAL

DATA

NSX-SZ10

NSX-SZ10E

NSX-SZ11

NSX-SZ12

NSX-SZ17

EZ, HR, K

COMPACT DISC / STEREO

CASSETTE RECEIVER

SIMPLE

S/M Code No. 09-003-424-8T2

• Replace this Service manual with “Revision Publishing” when it is issued.

BASIC TAPE MECHANISM : ZZM-2 PR1NM

BASIC CD MECHANISM : AZG-1 ZA3RNDM

ELECTRICAL MAIN PARTS LIST - 1/10

NOTE: The characters in the suffix column indicate the part usage.

SZ10EHASM ..............XX....................................C.................

SZ10HRJSM ..............XX.....................................D................

SZ10KSM ................XX......................................E...............

SZ17EZBM ...............XX.......................................F..............

SZ10EZSM ...............XX........................................G.............

SZ12EZSM ...............XX.........................................H............

SNSZ11LHSC2M ...........XX..........................................I...........

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 109 87-012-369-080 C-CAP,S 0.047-50F ..CDEFGH............

C 102 87-012-369-080 C-CAP,S 0.047-50F ..CDEFGH............

C 104 87-A10-797-040 CAP,E 47-35 M 5L SRM ABCDEFGH............

C 117 87-016-460-080 C-CAP,S 0.22-16 B ABCDEFGH............

C 118 87-A10-189-040 CAP,E 220-10 ABCDEFGH............

C 119 87-A10-189-040 CAP,E 220-10 ABCDEFGH............

C 125 87-010-405-040 CAP,E 10-50 ABCDEFGH............

C 120 87-012-156-080 C-CAP,S 220P-50 CH ABCDEFGH............

C 213 87-010-404-040 CAP,E 4.7-50 SME ABCDEFGH............

C 210 87-012-156-080 C-CAP,S 220P-50 CH ABCDEFGH............

CN 101 87-099-720-010 CONN,30P TYK-B(P) ABCDEFGHI...........

CN 701 87-A60-673-010 CONN,9P H 2MM JMT ABCDEFGHI...........

CN 801 87-099-015-010 CONN,13P 6216V ...DEFGHI...........

CN 801 87-A60-055-010 CONN,13P V 9604S-13C ABC.................

D 105 87-A40-752-080 ZENER,UZ6.2BSC ABCDEFGHI...........

D 305 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGHI...........

D 304 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGHI...........

D 305 87-A40-736-080 DIODE,1N4148M(SEM) ABC.................

FL 201 8A-NFA-604-010 FL,10-BT-224GNK ABCDEFGHI...........

IC 102 87-A21-482-010 IC,RPM6938-H4 ABCDEFGHI...........

IC 101 8A-MA6-651-010 C-IC,M38B47MCH-****FP ..C.................

IC 101 8A-NFA-601-010 C-IC,M38B47MCH-****FP AB..................

IC 101 8A-NFA-615-010 C-IC,M38B57MCH-****FP ...DEFG.I...........

IC 101 8A-NFA-616-010 C-IC,M38B59MCH-****FP .......H............

L 101 87-A50-050-010 COIL,CLK 4.19M(COI) ABCDEFGHI...........

LED 101 87-A40-317-080 LED,SLR-342VCT31 RED ABCDEFGHI...........

Q 104 87-026-610-080 TR,KTC3198GR ABCDEFGHI...........

Q 101 87-A30-076-080 C-TR,2SC3052F ABCDEFGHI...........

Q 102 87-A30-090-080 FET,2SK2541 ABCDEFGHI...........

Q 105 87-A30-468-080 C-TR,KRC102S-RTK ..CDEFGHI...........

Q 103 87-A30-484-080 C-TR,KRA102S ..CDEFGHI...........

Q 701 87-A30-234-080 TR,CSC4115BC ABCDEFGHI...........

S 101 87-A91-555-010 SW,RTRY EC12E24504 ABCDEFGHI...........

S 324 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........

S 327 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........

S 323 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........

S 328 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........

S 325 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........

S 322 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........

S 326 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........

S 329 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........

S 330 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........

S 331 87-A90-164-080 SW,TACT SKQAB(N) ABCDEFGHI...........

SFR 701 87-024-431-080 SFR,3.3K RH063EC ..CDEFGHI...........

C 302 87-010-179-080 CAP,CHIP S B1200P .B.DEFGH............

C 301 87-010-179-080 CAP,CHIP S B1200P .B.DEFGH............

C 305 87-010-198-080 CAP, CHIP 0.022 .B.DEFGH............

C 308 87-010-263-080 CAP, ELECT 100-10V .B.DEFGH............

C 307 87-010-263-080 CAP, ELECT 100-10V .B.DEFGH............

C 309 87-010-318-080 C-CAP,S 47P-50 CH .B.DEFGH............

C 313 87-010-188-080 CAP,CHIP 6800P .B.DEFGH............

C 314 87-010-188-080 CAP,CHIP 6800P .B.DEFGH............

C 315 87-010-263-080 CAP, ELECT 100-10V .B.DEFGH............

C 310 87-010-318-080 C-CAP,S 47P-50 CH .B.DEFGH............

C 317 87-010-546-080 CAP, ELECT 0.33-50V .B.DEFGH............

C 318 87-010-546-080 CAP, ELECT 0.33-50V .B.DEFGH............

C 311 87-010-598-080 C-CAP,S 0.068-16VRK .B.DEFGH............

C 312 87-010-598-080 C-CAP,S 0.068-16VRK .B.DEFGH............

C 327 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 326 87-010-198-080 CAP, CHIP 0.022 .B.DEFGH............

C 360 87-010-401-080 CAP, ELECT 1-50V .B.DEFGH............

C 399 87-012-140-080 CAP 470P .B.DEFGH............

C 409 87-010-182-080 C-CAP,S 2200P-50 B .B.DEFGH............

C 406 87-010-197-080 CAP, CHIP 0.01 DM ...DEFGH............

C 407 87-010-197-080 CAP, CHIP 0.01 DM ...DEFGH............

C 408 87-010-197-080 CAP, CHIP 0.01 DM ...DEFGH............

C 405 87-010-197-080 CAP, CHIP 0.01 DM ...DEFGH............

C 404 87-010-321-080 CHIP CAPACITOR,82P(J) .B.DEFGH............

C 403 87-010-321-080 CHIP CAPACITOR,82P(J) .B.DEFGH............

C 402 87-010-544-080 CAP, ELECT 0.1-50V .B.DEFGH............

C 401 87-010-544-080 CAP, ELECT 0.1-50V .B.DEFGH............

C 410 87-010-182-080 C-CAP,S 2200P-50 B .B.DEFGH............

C 411 87-010-405-080 CAP, ELECT 10-50V .B.DEFGH............

C 412 87-010-405-080 CAP, ELECT 10-50V .B.DEFGH............

C 459 87-010-175-080 CAP 560P ....EFGH............

C 458 87-010-178-080 CHIP CAP 1000P .B.DEFGH............

C 454 87-010-183-080 C-CAP,S 2700P-50 B .B.DEFGH............

C 455 87-010-183-080 C-CAP,S 2700P-50 B .B.DEFGH............

C 453 87-010-183-080 C-CAP,S 2700P-50 B .B.DEFGH............

C 456 87-010-197-080 CAP, CHIP 0.01 DM ...DEFGH............

C 452 87-010-382-080 CAP, ELECT 22-25V .B.DEFGH............

C 460 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 462 87-012-158-080 C-CAP,S 390P-50 CH .B.DEFGH............

C 461 87-012-158-080 C-CAP,S 390P-50 CH .B.DEFGH............

CN 301 87-A60-620-010 CONN,3P V 2MM JMT .B.DEFGH............

CN 351 87-A60-625-010 CONN,8P V 2MM JMT .B.DEFGH............

D 401 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGH............

IC 301 87-A21-419-040 C-IC,NJM14558MD-TE2 ...DEFGH............

IC 401 87-A21-419-040 C-IC,NJM14558MD-TE2 ...DEFGH............

L 451 87-007-342-010 COIL,OSC 85K BIAS .B.DEFGH............

Q 306 87-A30-062-080 C-TR,KRC104S ...DEFGH............

Q 309 87-A30-075-080 C-TR,2SA1235F .B.DEFGH............

Q 303 87-A30-090-080 FET,2SK2541 .B.DEFGH............

Q 304 87-A30-090-080 FET,2SK2541 .B.DEFGH............

Q 301 87-A30-091-080 FET,2SJ460 .B.DEFGH............

Q 302 87-A30-091-080 FET,2SJ460 .B.DEFGH............

Q 305 87-A30-091-080 FET,2SJ460 .B.DEFGH............

Q 308 87-A30-091-080 FET,2SJ460 .B.DEFGH............

Q 307 87-A30-091-080 FET,2SJ460 .B.DEFGH............

Q 310 87-A30-075-080 C-TR,2SA1235F .B.DEFGH............

Q 443 87-A30-075-080 C-TR,2SA1235F .B.DEFGH............

Q 444 87-A30-075-080 C-TR,2SA1235F .B.DEFGH............

Q 455 87-A30-076-080 C-TR,2SC3052F ....EFGH............

Q 451 87-A30-318-080 TR,CSA952K ...DEFGH............

Q 454 89-333-317-880 TR,2SC3331 (0.5W) .B.DEFGH............

Q 453 89-333-317-880 TR,2SC3331 (0.5W) .B.DEFGH............

C 303 87-010-178-080 CHIP CAP 1000P A.C.................

C 304 87-010-178-080 CHIP CAP 1000P A.C.................

C 301 87-010-179-080 CAP,CHIP S B1200P A.C.................

C 302 87-010-179-080 CAP,CHIP S B1200P A.C.................

C 305 87-010-198-080 CAP, CHIP 0.022 A.C.................

C 307 87-010-263-080 CAP, ELECT 100-10V A.C.................

C 308 87-010-263-080 CAP, ELECT 100-10V A.C.................

C 309 87-010-318-080 C-CAP,S 47P-50 CH A.C.................

C 313 87-010-188-080 CAP,CHIP 6800P A.C.................

C 314 87-010-188-080 CAP,CHIP 6800P A.C.................

C 315 87-010-263-080 CAP, ELECT 100-10V A.C.................

C 310 87-010-318-080 C-CAP,S 47P-50 CH A.C.................

C 317 87-010-546-080 CAP, ELECT 0.33-50V A.C.................

C 318 87-010-546-080 CAP, ELECT 0.33-50V A.C.................

C 311 87-010-598-080 C-CAP,S 0.068-16VRK A.C.................

C 312 87-010-598-080 C-CAP,S 0.068-16VRK A.C.................

C 327 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 326 87-010-198-080 CAP, CHIP 0.022 A.C.................

C 360 87-010-401-080 CAP, ELECT 1-50V A.C.................

C 399 87-012-140-080 CAP 470P A.C.................

C 409 87-010-182-080 C-CAP,S 2200P-50 B A.C.................

C 407 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 406 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 408 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 405 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 404 87-010-321-080 CHIP CAPACITOR,82P(J) A.C.................

C 403 87-010-321-080 CHIP CAPACITOR,82P(J) A.C.................

C 401 87-010-544-080 CAP, ELECT 0.1-50V A.C.................

C 402 87-010-544-080 CAP, ELECT 0.1-50V A.C.................

C 410 87-010-182-080 C-CAP,S 2200P-50 B A.C.................

C 411 87-010-405-080 CAP, ELECT 10-50V A.C.................

C 412 87-010-405-080 CAP, ELECT 10-50V A.C.................

C 453 87-010-183-080 C-CAP,S 2700P-50 B A.C.................

C 455 87-010-183-080 C-CAP,S 2700P-50 B A.C.................

C 454 87-010-183-080 C-CAP,S 2700P-50 B A.C.................

C 456 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 452 87-010-382-080 CAP, ELECT 22-25V A.C.................

C 460 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 461 87-012-158-080 C-CAP,S 390P-50 CH A.C.................

C 462 87-012-158-080 C-CAP,S 390P-50 CH A.C.................

CN 301 87-A60-620-010 CONN,3P V 2MM JMT A.C.....I...........

CN 351 87-A60-625-010 CONN,8P V 2MM JMT A.C.....I...........

D 401 87-020-465-080 DIODE,1SS133 (110MA) ........I...........

D 401 87-A40-736-080 DIODE,1N4148M(SEM) A.C.................

IC 301 87-A21-419-040 C-IC,NJM14558MD-TE2 ..C.....I...........

IC 401 87-A21-419-040 C-IC,NJM14558MD-TE2 ..C.....I...........

L 451 87-007-342-010 COIL,OSC 85K BIAS A.C.....I...........

Q 306 87-A30-062-080 C-TR,KRC104S ..C.....I...........

Q 309 87-A30-075-080 C-TR,2SA1235F A.C.....I...........

Q 303 87-A30-090-080 FET,2SK2541 A.C.....I...........

Q 304 87-A30-090-080 FET,2SK2541 A.C.....I...........

Q 307 87-A30-091-080 FET,2SJ460 A.C.....I...........

Q 305 87-A30-091-080 FET,2SJ460 A.C.....I...........

Q 301 87-A30-091-080 FET,2SJ460 A.C.....I...........

Q 308 87-A30-091-080 FET,2SJ460 A.C.....I...........

Q 302 87-A30-091-080 FET,2SJ460 A.C.....I...........

ELECTRICAL MAIN PARTS LIST - 2/10

ELECTRICAL MAIN PARTS LIST - 3/10

Q 310 87-A30-075-080 C-TR,2SA1235F A.C.....I...........

Q 443 87-A30-075-080 C-TR,2SA1235F A.C.....I...........

Q 444 87-A30-075-080 C-TR,2SA1235F A.C.....I...........

Q 451 87-026-609-080 TR,KTA1266GR A.C.................

Q 451 87-A30-318-080 TR,CSA952K ........I...........

Q 453 89-333-317-880 TR,2SC3331 (0.5W) A.C.....I...........

Q 454 89-333-317-880 TR,2SC3331 (0.5W) A.C.....I...........

C 971 87-010-381-080 CAP, ELECT 330-16V .B.DEFGH............

C 972 87-010-404-080 CAP, ELECT 4.7-50V .B.DEFGH............

C 982 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 989 87-010-197-080 CAP, CHIP 0.01 DM ...DEFGH............

C 981 87-010-260-080 CAP, ELECT 47-25V .B.DEFGH............

C 995 87-010-178-080 CHIP CAP 1000P .B.DEFGH............

C 993 87-010-178-080 CHIP CAP 1000P .B.DEFGH............

C 997 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 998 87-010-260-080 CAP, ELECT 47-25V .B.DEFGH............

C 992 87-010-312-080 C-CAP,S 15P-50 CH .B.DEFGH............

C 991 87-010-312-080 C-CAP,S 15P-50 CH .B.DEFGH............

C 999 87-A11-155-080 CAP,TC U 0.01-16 Z F .B.DEFGH............

D 991 87-017-149-080 ZENER,HZS6A2L .B.DEFGH............

D 992 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGH............

D 992 87-A40-736-080 DIODE,1N4148M(SEM) .B..................

IC 991 87-070-127-110 IC,LC72131 D .B.DEFGH............

Q 981 87-A30-234-080 TR,CSC4115BC .B.DEFGH............

R 995 87-010-322-080 C-CAP,S 100P-50 CH .B.DEFGH............

R 993 87-010-322-080 C-CAP,S 100P-50 CH .B.DEFGH............

R 991 87-010-322-080 C-CAP,S 100P-50 CH .B.DEFGH............

X 991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 .B.DEFGH............

C 974 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 973 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 971 87-010-381-080 CAP, ELECT 330-16V A.C.................

C 972 87-010-404-080 CAP, ELECT 4.7-50V A.C.................

C 982 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 987 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 983 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 984 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 981 87-010-260-080 CAP, ELECT 47-25V A.C.................

C 993 87-010-178-080 CHIP CAP 1000P A.C.................

C 995 87-010-178-080 CHIP CAP 1000P A.C.................

C 997 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 998 87-010-260-080 CAP, ELECT 47-25V A.C.................

C 992 87-010-312-080 C-CAP,S 15P-50 CH A.C.................

C 991 87-010-312-080 C-CAP,S 15P-50 CH A.C.................

C 999 87-A11-155-080 CAP,TC U 0.01-16 Z F A.C.....I...........

D 804 87-A40-736-080 DIODE,1N4148M(SEM) A.C.................

D 991 87-017-149-080 ZENER,HZS6A2L A.C.....I...........

IC 991 87-070-127-110 IC,LC72131 D A.C.....I...........

Q 981 87-A30-234-080 TR,CSC4115BC A.C.....I...........

R 993 87-010-322-080 C-CAP,S 100P-50 CH A.C.................

R 991 87-010-322-080 C-CAP,S 100P-50 CH A.C.................

R 995 87-010-322-080 C-CAP,S 100P-50 CH A.C.................

X 991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 A.C.....I...........

C 771 87-010-263-080 CAP, ELECT 100-10V .B.DEFGH............

C 779 87-010-971-080 C-CAP,S 4700P-50 B J ....EFGH............

C 788 87-010-149-080 C-CAP,S 5P-50 CH .B.DEFGH............

C 780 87-010-971-080 C-CAP,S 4700P-50 B J ....EFGH............

C 789 87-A11-532-080 C-CAP,S 0.022-50 J B ...DEFGH............

C 791 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 793 87-010-404-080 CAP, ELECT 4.7-50V .B.DEFGH............

C 799 87-010-407-080 CAP, ELECT 33-50V .B.DEFGH............

C 790 87-A11-532-080 C-CAP,S 0.022-50 J B ...DEFGH............

C 803 87-010-198-080 CAP, CHIP 0.022 .B.DEFGH............

C 804 87-010-263-080 CAP, ELECT 100-10V .B.DEFGH............

C 809 87-010-401-080 CAP, ELECT 1-50V .B.DEFGH............

C 808 87-010-401-080 CAP, ELECT 1-50V .B.DEFGH............

C 801 87-010-403-080 CAP, ELECT 3.3-50V .B.DEFGH............

C 802 87-012-369-080 C-CAP,S 0.047-50F ...DEFGH............

C 800 87-012-369-080 C-CAP,S 0.047-50F ...DEFGH............

C 810 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 814 87-010-197-080 CAP, CHIP 0.01 DM ...DEFGH............

C 815 87-010-400-080 CAP, ELECT 0.47-50V .B.DEFGH............

C 816 87-010-400-080 CAP, ELECT 0.47-50V .B.DEFGH............

C 823 87-010-177-080 C-CAP,S 820P-50 SL .B.D................

C 824 87-010-405-080 CAP, ELECT 10-50V .B.DEFGH............

C 825 87-010-596-080 CAP, S 0.047-16 .B.DEFGH............

C 823 87-012-349-080 C-CAP,S 1000P-50 CH ....EFGH............

D 803 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGH............

IC 801 87-A21-560-010 IC,LA1844L-A ...DEFGH............

L 801 87-A50-608-010 COIL,FM DET-N(TOK) ...DEFGH............

L 802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK) .B..EFGH............

L 802 87-A91-552-010 FLTR,CFMT-450AL (TOK) ...D................

L 811 87-005-847-080 COIL,2.2UH(CECS) .B.DEFGH............

C 771 87-010-263-080 CAP, ELECT 100-10V A.C.................

C 788 87-010-149-080 C-CAP,S 5P-50 CH A.C.................

C 789 87-A12-052-080 C-CAP,S 0.033-25 J B A.C.................

C 791 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 793 87-010-404-080 CAP, ELECT 4.7-50V A.C.................

ELECTRICAL MAIN PARTS LIST - 4/10

C 799 87-010-407-080 CAP, ELECT 33-50V A.C.................

C 790 87-A12-052-080 C-CAP,S 0.033-25 J B A.C.................

C 803 87-010-198-080 CAP, CHIP 0.022 A.C.................

C 804 87-010-263-080 CAP, ELECT 100-10V A.C.................

C 807 87-010-400-080 CAP, ELECT 0.47-50V A.C.................

C 809 87-010-401-080 CAP, ELECT 1-50V A.C.................

C 808 87-010-401-080 CAP, ELECT 1-50V A.C.................

C 801 87-010-403-080 CAP, ELECT 3.3-50V A.C.................

C 802 87-012-369-080 C-CAP,S 0.047-50F ..C.................

C 800 87-012-369-080 C-CAP,S 0.047-50F ..C.................

C 810 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 815 87-010-403-080 CAP, ELECT 3.3-50V A.C.................

C 816 87-010-403-080 CAP, ELECT 3.3-50V A.C.................

C 823 87-010-177-080 C-CAP,S 820P-50 SL A.C.................

C 824 87-010-405-080 CAP, ELECT 10-50V A.C.................

C 825 87-010-596-080 CAP, S 0.047-16 A.C.................

D 803 87-020-465-080 DIODE,1SS133 (110MA) ........I...........

D 803 87-A40-736-080 DIODE,1N4148M(SEM) A.C.................

IC 801 87-A21-415-010 IC,LA1843 A.C.................

IC 801 87-A21-560-010 IC,LA1844L-A ........I...........

L 801 87-A50-540-010 COIL,FM DET(TOK) A.C.................

L 801 87-A50-608-010 COIL,FM DET-N(TOK) ........I...........

L 802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK) A.C.....I...........

L 811 87-005-847-080 COIL,2.2UH(CECS) A.C.....I...........

R 790 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 869 87-010-197-080 CAP, CHIP 0.01 DM .......H............

C 875 87-010-196-080 CHIP CAPACITOR,0.1-25 .......H............

C 877 87-010-197-080 CAP, CHIP 0.01 DM .......H............

C 879 87-010-314-080 C-CAP,S 22P-50V .......H............

C 878 87-010-316-080 C-CAP,S 33P-50 CH .......H............

C 876 87-010-405-080 CAP, ELECT 10-50V .......H............

C 874 87-010-405-080 CAP, ELECT 10-50V .......H............

C 873 87-012-140-080 CAP 470P .......H............

C 872 87-012-156-080 C-CAP,S 220P-50 CH .......H............

C 871 87-012-156-080 C-CAP,S 220P-50 CH .......H............

IC 861 87-A20-440-040 C-IC,BU1920FS .......H............

L 861 87-005-847-080 COIL,2.2UH(CECS) .......H............

Q 861 87-A30-076-080 C-TR,2SC3052F .......H............

Q 863 87-A30-076-080 C-TR,2SC3052F .......H............

X 861 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309 .......H............

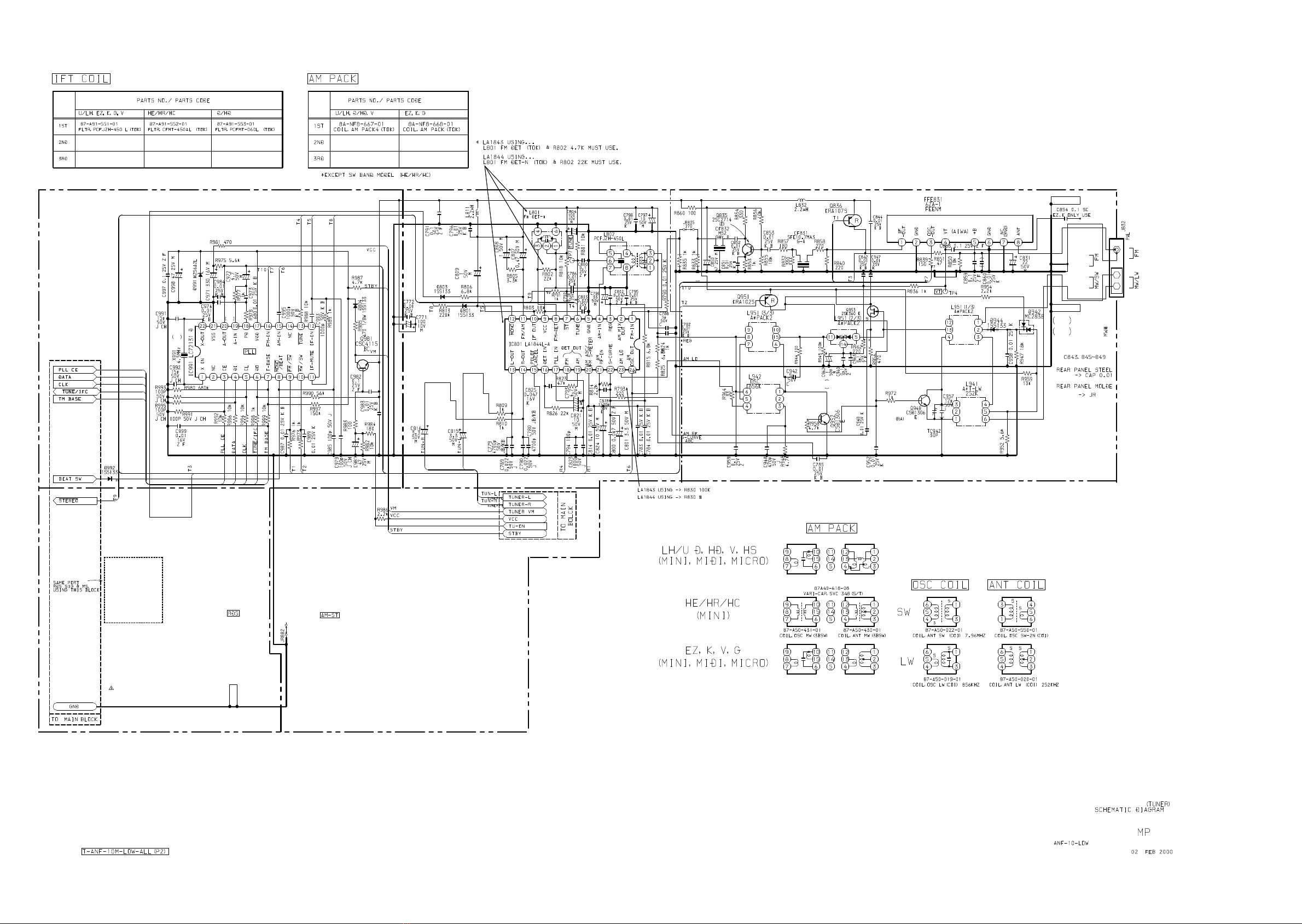

C 818 87-010-180-080 C-CER 1500P ....EFGH............

C 831 87-010-406-080 CAP, ELECT 22-50 ....EFGH............

C 859 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 858 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 850 87-010-260-080 CAP, ELECT 47-25V .B.DEFGH............

C 948 87-010-148-080 CAP, CHIP S 75P SL ...D................

C 942 87-010-149-080 C-CAP,S 5P-50 CH ....EFGH............

C 941 87-010-314-080 C-CAP,S 22P-50V ...D................

C 946 87-010-971-080 C-CAP,S 4700P-50 B J ...D................

C 948 87-012-140-080 CAP 470P ....EFGH............

C 959 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 958 87-010-197-080 CAP, CHIP 0.01 DM ...DEFGH............

C 956 87-010-263-080 CAP, ELECT 100-10V ...D................

C 957 87-010-311-080 CAP 12P ....EFGH............

C 954 87-010-400-080 CAP, ELECT 0.47-50V ...D................

C 962 87-010-401-080 CAP, ELECT 1-50V ...DEFGH............

C 964 87-010-854-080 C-CAP,S 560PCH ...D................

C 963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z .B.DEFGH............

CF 832 82-785-747-010 CF MS2 GHY R ....EFGH............

CF 832 87-008-261-010 FILTER, SFE10.7MA5-A .B.D................

CF 831 87-008-261-010 FILTER, SFE10.7MA5-A .B.D................

CF 831 87-008-423-010 CERAMIC FILTER, SFE10.7 ....EFGH............

D 944 87-020-465-080 DIODE,1SS133 (110MA) ...D.FGH............

D 942 87-A40-270-080 C-DIODE,MC2838 ....EFGH............

D 951 87-A40-618-080 VARI-CAP,SVC 348(S/T) ...D................

FFE 831 A8-6ZA-191-130 6ZA-1 FEENM ....EFGH............

FFE 831 A8-8ZA-190-030 8ZA-1 FEUNM ...D................

J 831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 .B.D................

J 832 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05 ....EFGH............

J 940 87-A60-633-010 CONN,2P H 2.5MM JMT ...D................

L 832 87-005-847-080 COIL,2.2UH(CECS) .B.DEFGH............

L 942 87-A50-019-010 COIL,OSC LW(COI) ....EFGH............

L 941 87-A50-020-010 COIL,ANT LW(COI) ....EFGH............

L 941 87-A50-022-010 COIL,ANT SW(COI) ...D................

L 944 87-A50-159-010 COIL,10MH K C2B ...D................

L 943 87-A50-522-080 COIL,1MH K CEC ...D................

L 942 87-A50-550-010 COIL,OSC SW-2N(COI) ...D................

L 952 87-A50-430-010 COIL,ANT MW(3BSW) ...D................

L 953 87-A50-431-010 COIL,OSC MW(3BSW) ...D................

L 951 8A-NF8-668-010 COIL,AM PACK 2(TOK) ....EFGH............

Q 837 87-A30-489-080 C-TR,KRA107S ...DEFGH............

Q 835 89-327-143-080 TR,2SC2714 (0.1W) .B.DEFGH............

Q 942 87-A30-075-080 C-TR,2SA1235F ...D................

Q 943 87-A30-075-080 C-TR,2SA1235F ...D................

Q 944 87-A30-076-080 C-TR,2SC3052F ...D................

Q 945 87-A30-076-080 C-TR,2SC3052F ...D................

Q 949 87-A30-076-080 C-TR,2SC3052F ...D................

ELECTRICAL MAIN PARTS LIST - 5/10

Q 952 87-A30-086-070 C-TR,CSD1306E ...DEFGH............

Q 951 87-A30-484-080 C-TR,KRA102S ...DEFGH............

Q 953 89-503-602-080 C-FET,2SK360E ...DEFGH............

TC 942 87-011-253-080 TRIMER,30P LAR ...DEFGH............

TC 941 87-011-254-080 TRIMER,20P LAR ...D................

C 842 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 844 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 859 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 858 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 853 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 852 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 851 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 850 87-010-260-080 CAP, ELECT 47-25V A.C.................

C 860 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 959 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 961 87-010-152-080 C-CAP,S 8P-50 CH A.C.................

C 960 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z A.C.................

CF 832 87-008-261-010 FILTER, SFE10.7MA5-A A.C.....I...........

CF 831 87-008-261-010 FILTER, SFE10.7MA5-A A.C.....I...........

FFE 831 A8-8ZA-190-030 8ZA-1 FEUNM ..C.................

FFE 831 A8-8ZA-191-030 8ZA-1 YFEUNM ........I...........

J 831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 A.C.....I...........

L 832 87-005-847-080 COIL,2.2UH(CECS) A.C.....I...........

L 951 8A-NF8-667-010 COIL,AM PACK 4(TOK) A.C.....I...........

Q 836 87-A30-489-080 C-TR,KRA107S ..C.....I...........

Q 835 89-327-143-080 TR,2SC2714 (0.1W) A.C.....I...........

C 9 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 11 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 10 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 12 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 26 87-010-406-080 CAP, ELECT 22-50 .B.DEFGH............

C 25 87-010-407-080 CAP, ELECT 33-50V .B..EFGH............

C 22 87-016-051-000 CAP,E 2200-35 M SMG ...DEFGH............

C 21 87-A10-520-000 CAP,E 3300-35 M SMG ...DEFGH............

C 32 87-010-197-080 CAP, CHIP 0.01 DM ...DEFGH............

C 34 87-010-247-080 CAP, ELECT 100-50V .B.DEFGH............

C 31 87-010-263-080 CAP, ELECT 100-10V .B.DEFGH............

C 36 87-010-381-080 CAP, ELECT 330-16V .B.DEFGH............

C 30 87-010-384-080 CAP, ELECT 100-25V .B.DEFGH............

C 38 87-A11-567-080 C-CAP,S 0.01-50 K B .B.DEFGH............

C 50 87-010-384-080 CAP, ELECT 100-25V .B.DEFGH............

C 61 87-010-260-080 CAP, ELECT 47-25V .B.DEFGH............

C 60 87-010-403-080 CAP, ELECT 3.3-50V .B.DEFGH............

CNA 1 8A-NF8-652-010 CONN ASSY,7P TID-A(480) ...D................

D 5 87-A40-455-080 DIODE,RL203 GW ...DEFGH............

D 6 87-A40-455-080 DIODE,RL203 GW ...DEFGH............

D 7 87-A40-455-080 DIODE,RL203 GW ...DEFGH............

D 8 87-A40-455-080 DIODE,RL203 GW ...DEFGH............

D 26 87-A40-553-080 DIODE,1N4003 LES .B.DEFGH............

D 27 87-A40-553-080 DIODE,1N4003 LES .B.DEFGH............

D 29 87-A40-774-080 ZENER,UZ24BSD .B.DEFGH............

D 30 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGH............

D 35 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGH............

D 31 87-A40-764-080 ZENER,UZ10BSC .B.DEFGH............

D 65 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGH............

D 66 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGH............

D 67 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGH............

D 64 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGH............

D 63 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGH............

D 60 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGH............

D 68 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGH............

Q 2 87-026-609-080 TR,KTA1266GR .B.DEFGH............

Q 9 87-026-609-080 TR,KTA1266GR .B.DEFGH............

Q 5 87-026-610-080 TR,KTC3198GR .B.DEFGH............

Q 7 87-A30-075-080 C-TR,2SA1235F .B.DEFGH............

Q 6 87-A30-076-080 C-TR,2SC3052F .B.DEFGH............

Q 4 89-213-702-010 TR,2SB1370 (1.8W) .B.DEFGH............

Q 10 87-A30-076-080 C-TR,2SC3052F .B.DEFGH............

Q 60 87-A30-076-080 C-TR,2SC3052F .B.DEFGH............

Q 62 87-A30-076-080 C-TR,2SC3052F .B.DEFGH............

Q 64 87-A30-076-080 C-TR,2SC3052F .B.DEFGH............

W 181 85-NF5-628-010 F-CABLE 7P-2.5 .B..EFGH............

WH 1 87-A90-460-010 HLDR,WIRE 2.5-7P .B..EFGH............

C 4 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 6 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 5 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 3 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 9 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 10 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 11 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 12 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

C 19 87-A10-627-000 CAP,E 2200-50 M SMG A.C.................

C 26 87-010-247-080 CAP, ELECT 100-50V A.C.................

C 25 87-010-385-080 CAP, ELECT 220-25V A.C.................

C 22 87-016-495-000 CAP,E 3300-25 M SMG A.C.................

C 21 87-016-495-000 CAP,E 3300-25 M SMG A.C.................

NOTE: The characters in the suffix column indicate the part usage.

KERJJM .................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

82-NE6-067-010 BADGE,AIWA 30N A...................

84-JP9-021-110 PLATE,FOOT HAIR A...................

84-JP9-202-010 SPR-T,DOOR A...................

87-JU8-210-010 SPR-T,SHUTTLE A...................

8Z-JPV-001-210 CABI,FR V A...................

8Z-JPV-002-010 DOOR,CASS V A...................

8Z-JPV-004-010 BTN,REPEAT A...................

8Z-JPV-005-010 KNOB,SL V A...................

8Z-JPV-006-010 KEY,POWER V A...................

8Z-JPV-009-010 PLATE,WIN V A...................

8Z-JPV-010-010 WINDOW,FR 2 A...................

8Z-JU4-006-110 KEY,MAIN A...................

8Z-JU4-007-010 KEY,REC A...................

8Z-JU4-008-010 CAP, RING A...................

8Z-JU4-012-010 KEY,PAUSE A...................

8Z-JU9-002-010 CAP, SHUTTLE 9 A...................

8Z-JU9-003-110 KNOB,RTRY SHUTTLE 9 A...................

81-JUK-045-010 FELT,FOOT 8-8 A...................

8Z-JPV-201-010 HLDR,FLY/REC A...................

8Z-JU4-013-010 CABI,STEEL A...................

8Z-JU4-206-010 PLATE,MECHA A...................

87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................

87-067-660-010 TAPPING SCREW, BVT2+3-8 A...................

87-067-688-010 BVTT+3-6 A...................

87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................

87-067-761-010 TAPPING SCREW, BVT2+3-10 A...................

87-761-096-410 VFT2+3-10 GLD A...................

87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................

87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................

W 901 87-A80-088-010 AC CORD ASSY,E BLK A...................

W 601 88-JU8-616-010 FF-CABLE, 7P 1.25 120MM A...................

W 602 8Z-JU4-608-010 FF-CABLE, 8P 1.25 120MM A...................

W 603 8Z-JU4-618-010 F-CABLE,7P 2.0 130MM FR A...................

C 20 87-A10-627-000 CAP,E 2200-50 M SMG A.C.................

C 32 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 34 87-010-247-080 CAP, ELECT 100-50V A.C.................

C 30 87-010-247-080 CAP, ELECT 100-50V A.C.................

C 31 87-010-263-080 CAP, ELECT 100-10V A.C.................

C 36 87-010-381-080 CAP, ELECT 330-16V A.C.................

C 35 87-010-406-080 CAP, ELECT 22-50 A.C.................

C 38 87-A11-567-080 C-CAP,S 0.01-50 K B A.C.................

C 61 87-010-260-080 CAP, ELECT 47-25V A.C.................

C 60 87-010-403-080 CAP, ELECT 3.3-50V A.C.................

C 97 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................

CNA 1 8A-NF8-653-010 CONN ASSY,9P TID-A(480) A.C.....I...........

D 18 87-A40-455-080 DIODE,RL203 GW A.C.....I...........

D 17 87-A40-455-080 DIODE,RL203 GW A.C.....I...........

D 19 87-A40-455-080 DIODE,RL203 GW A.C.....I...........

D 20 87-A40-455-080 DIODE,RL203 GW A.C.....I...........

D 26 87-A40-553-080 DIODE,1N4003 LES A.C.....I...........

D 27 87-A40-553-080 DIODE,1N4003 LES A.C.....I...........

D 29 87-A40-774-080 ZENER,UZ24BSD A.C.....I...........

D 35 87-020-465-080 DIODE,1SS133 (110MA) ........I...........

D 30 87-020-465-080 DIODE,1SS133 (110MA) ........I...........

D 35 87-A40-736-080 DIODE,1N4148M(SEM) A.C.................

D 30 87-A40-736-080 DIODE,1N4148M(SEM) A.C.................

D 31 87-A40-764-080 ZENER,UZ10BSC A.C.....I...........

D 60 87-020-465-080 DIODE,1SS133 (110MA) ........I...........

D 65 87-020-465-080 DIODE,1SS133 (110MA) ........I...........

D 64 87-A40-269-080 C-DIODE,MC2836 A.C.....I...........

D 63 87-A40-270-080 C-DIODE,MC2838 A.C.....I...........

D 62 87-A40-313-080 C-DIODE,MC 2840 A.C.....I...........

D 61 87-A40-313-080 C-DIODE,MC 2840 A.C.....I...........

D 68 87-A40-313-080 C-DIODE,MC 2840 A.C.....I...........

D 60 87-A40-736-080 DIODE,1N4148M(SEM) A.C.................

D 65 87-A40-736-080 DIODE,1N4148M(SEM) A.C.................

D 66 87-A40-768-080 ZENER,UZ16BSA ..C.....I...........

D 71 87-A40-313-080 C-DIODE,MC 2840 A.C.....I...........

D 72 87-A40-313-080 C-DIODE,MC 2840 A.C.....I...........

D 76 87-A40-313-080 C-DIODE,MC 2840 A.C.....I...........

D 77 87-A40-313-080 C-DIODE,MC 2840 A.C.....I...........

Q 2 87-026-609-080 TR,KTA1266GR A.C.....I...........

Q 9 87-026-609-080 TR,KTA1266GR A.C.....I...........

Q 5 87-026-610-080 TR,KTC3198GR A.C.....I...........

Q 8 87-A30-075-080 C-TR,2SA1235F A.C.....I...........

Q 6 87-A30-076-080 C-TR,2SC3052F A.C.....I...........

Q 3 89-213-702-010 TR,2SB1370 (1.8W) A.C.....I...........

Q 10 87-A30-076-080 C-TR,2SC3052F A.C.....I...........

Q 61 87-A30-075-080 C-TR,2SA1235F A.C.....I...........

Q 63 87-A30-075-080 C-TR,2SA1235F A.C.....I...........

Q 65 87-A30-075-080 C-TR,2SA1235F A.C.....I...........

ELECTRICAL MAIN PARTS LIST - 6/10

NOTE: The characters in the suffix column indicate the part usage.

KERJJM .................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-JPV-901-110 IB,KE(ECRAP) MC70-M A...................

87-034-796-010 CORD,RF PAL S A...................

8Z-JPV-608-010 RC UNIT,RC-ZVP01 A...................

Q 64 87-A30-076-080 C-TR,2SC3052F A.C.....I...........

Q 60 87-A30-076-080 C-TR,2SC3052F A.C.....I...........

Q 62 87-A30-076-080 C-TR,2SC3052F A.C.....I...........

WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A.C.....I...........

C 605 87-010-179-080 CAP,CHIP S B1200P .B.DEFGH............

C 606 87-010-179-080 CAP,CHIP S B1200P .B.DEFGH............

C 609 87-010-213-080 C-CAP,S 0.015-50 B .B.DEFGH............

C 615 87-010-154-080 CAP CHIP 10P .B.DEFGH............

C 610 87-010-213-080 C-CAP,S 0.015-50 B .B.DEFGH............

C 616 87-010-248-080 CAP, ELECT 220-10V ...DEFGH............

C 617 87-010-248-080 CAP, ELECT 220-10V ...DEFGH............

C 618 87-010-405-080 CAP, ELECT 10-50V .B.DEFGH............

C 614 87-010-545-080 CAP, ELECT 0.22-50V .B.DEFGH............

C 611 87-010-545-080 CAP, ELECT 0.22-50V .B.DEFGH............

C 612 87-010-545-080 CAP, ELECT 0.22-50V .B.DEFGH............

C 613 87-010-545-080 CAP, ELECT 0.22-50V .B.DEFGH............

C 630 87-016-669-080 C-CAP,S 0.1-25 K B .B.DEFGH............

C 669 87-010-322-080 C-CAP,S 100P-50 CH ....EFGH............

C 677 87-010-197-080 CAP, CHIP 0.01 DM ...DEFGH............

C 670 87-010-322-080 C-CAP,S 100P-50 CH ....EFGH............

CN 602 87-099-194-010 CONN,6P 6216V .B.DEFGH............

CN 601 87-099-719-010 CONN,30P TYK-B(X) .B.DEFGH............

D 602 87-A40-739-080 ZENER,UZ2.7BSA .B.DEFGH............

D 601 87-A40-739-080 ZENER,UZ2.7BSA .B.DEFGH............

IC 601 87-A21-443-040 C-IC,M62495AFP .B.DEFGH............

J 602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN .B.DEFGH............

Q 607 87-A30-076-080 C-TR,2SC3052F .B.DEFGH............

Q 605 87-A30-090-080 FET,2SK2541 .B.DEFGH............

Q 606 87-A30-090-080 FET,2SK2541 .B.DEFGH............

R 654 87-A11-144-080 CAP,TC U 0.1-50 K B ...DEFGH............

R 653 87-A11-144-080 CAP,TC U 0.1-50 K B ...DEFGH............

C 605 87-010-179-080 CAP,CHIP S B1200P A.C.................

C 606 87-010-179-080 CAP,CHIP S B1200P A.C.................

C 609 87-010-213-080 C-CAP,S 0.015-50 B A.C.................

C 615 87-010-154-080 CAP CHIP 10P A.C.................

C 610 87-010-213-080 C-CAP,S 0.015-50 B A.C.................

C 617 87-010-385-080 CAP, ELECT 220-25V A.C.................

C 616 87-010-385-080 CAP, ELECT 220-25V A.C.................

C 618 87-010-405-080 CAP, ELECT 10-50V A.C.................

C 612 87-010-545-080 CAP, ELECT 0.22-50V A.C.................

C 611 87-010-545-080 CAP, ELECT 0.22-50V A.C.................

C 613 87-010-545-080 CAP, ELECT 0.22-50V A.C.................

C 614 87-010-545-080 CAP, ELECT 0.22-50V A.C.................

C 630 87-016-669-080 C-CAP,S 0.1-25 K B A.C.................

C 669 87-010-322-080 C-CAP,S 100P-50 CH A.C.................

C 677 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 670 87-010-322-080 C-CAP,S 100P-50 CH A.C.................

CN 602 87-099-194-010 CONN,6P 6216V A.C.....I...........

CN 601 87-099-719-010 CONN,30P TYK-B(X) A.C.....I...........

D 601 87-A40-739-080 ZENER,UZ2.7BSA A.C.....I...........

D 602 87-A40-739-080 ZENER,UZ2.7BSA A.C.....I...........

IC 601 87-A21-443-040 C-IC,M62495AFP A.C.....I...........

J 602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN A.C.....I...........

Q 607 87-A30-076-080 C-TR,2SC3052F A.C.....I...........

Q 606 87-A30-090-080 FET,2SK2541 A.C.....I...........

Q 605 87-A30-090-080 FET,2SK2541 A.C.....I...........

R 653 87-A11-144-080 CAP,TC U 0.1-50 K B ........I...........

R 654 87-A11-144-080 CAP,TC U 0.1-50 K B ........I...........

C 183 87-010-387-080 CAP,E 470-25 SME .B..EFGH............

C 184 87-010-403-080 CAP, ELECT 3.3-50V .B..EFGH............

D 183 87-A40-269-080 C-DIODE,MC2836 .B..EFGH............

D 182 87-A40-270-080 C-DIODE,MC2838 .B..EFGH............

D 181 87-A40-270-080 C-DIODE,MC2838 .B..EFGH............

PT 181 8A-NF8-661-010 PT,SUB ANF-8 (U) .B..................

PT 181 8A-NF8-662-010 PT,SUB ANF-8 (E) ....EFGH............

Q 181 87-A30-076-080 C-TR,2SC3052F .B..EFGH............

Q 182 87-A30-468-040 C-TR,KRC102S-RTK .B..................

Q 182 87-A30-468-080 C-TR,KRC102S-RTK ....EFGH............

RY 181 87-A90-976-010 RELAY,AC12V SDT-S-112LMR .B..EFGH............

T 181 87-A60-317-010 TERMINAL, 1P MSC .B..EFGH............

T 182 87-A60-317-010 TERMINAL, 1P MSC .B..EFGH............

WH 181 87-A90-460-010 HLDR,WIRE 2.5-7P .B..EFGH............

C 108 87-010-178-080 CHIP CAP 1000P ........I...........

C 105 87-010-192-080 C-CAP,S 0.022-50 F ........I...........

C 107 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 101 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 103 87-010-374-040 CAP,E 47-10 ........I...........

C 109 87-012-369-080 C-CAP,S 0.047-50F ........I...........

ELECTRICAL MAIN PARTS LIST - 7/10

C 102 87-012-369-080 C-CAP,S 0.047-50F ........I...........

C 104 87-A10-797-040 CAP,E 47-35 M 5L SRM ........I...........

C 114 87-010-154-080 CAP CHIP 10P ........I...........

C 115 87-010-175-080 CAP 560P ........I...........

C 113 87-010-178-080 CHIP CAP 1000P ........I...........

C 111 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 110 87-010-197-080 CAP, CHIP 0.01 DM ........I...........

C 116 87-010-400-040 CAP,E 0.47-50 ........I...........

C 117 87-016-460-080 C-CAP,S 0.22-16 B ........I...........

C 119 87-A10-189-040 CAP,E 220-10 ........I...........

C 118 87-A10-189-040 CAP,E 220-10 ........I...........

C 123 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 126 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 124 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 129 87-010-374-040 CAP,E 47-10 ........I...........

C 125 87-010-405-040 CAP,E 10-50 ........I...........

C 120 87-012-156-080 C-CAP,S 220P-50 CH ........I...........

C 213 87-010-404-040 CAP,E 4.7-50 SME ........I...........

C 212 87-010-404-040 CAP,E 4.7-50 SME ........I...........

C 210 87-012-156-080 C-CAP,S 220P-50 CH ........I...........

C 701 87-010-384-040 CAP,E 100-25 SME ........I...........

C 101 87-010-185-080 C-CAP,S 3900P-50 B .B.DEFGH............

C 102 87-010-185-080 C-CAP,S 3900P-50 B .B.DEFGH............

C 106 87-010-186-080 CAP,CHIP 4700P .B.DEFGH............

C 105 87-010-186-080 CAP,CHIP 4700P .B.DEFGH............

C 107 87-010-403-080 CAP, ELECT 3.3-50V .B.DEFGH............

C 108 87-010-403-080 CAP, ELECT 3.3-50V .B.DEFGH............

C 103 87-010-545-080 CAP, ELECT 0.22-50V .B.DEFGH............

C 104 87-010-545-080 CAP, ELECT 0.22-50V .B.DEFGH............

C 112 87-010-406-080 CAP, ELECT 22-50 .B.DEFGH............

C 111 87-010-406-080 CAP, ELECT 22-50 .B.DEFGH............

C 114 87-012-156-080 C-CAP,S 220P-50 CH .B..EFGH............

C 113 87-012-156-080 C-CAP,S 220P-50 CH .B..EFGH............

C 114 87-A10-946-080 C-CAP,S 220P-100 J CH ...D................

C 113 87-A10-946-080 C-CAP,S 220P-100 J CH ...D................

C 127 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 128 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 125 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 126 87-010-196-080 CHIP CAPACITOR,0.1-25 ...DEFGH............

C 123 87-010-197-080 CAP, CHIP 0.01 DM ...DEFGH............

C 124 87-010-197-080 CAP, CHIP 0.01 DM ...DEFGH............

C 133 87-010-186-080 CAP,CHIP 4700P .B.DEFGH............

C 140 87-010-182-080 C-CAP,S 2200P-50 B .B.DEFGH............

D 129 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGH............

D 130 87-020-465-080 DIODE,1SS133 (110MA) ...DEFGH............

J 103 87-A60-238-010 TERMINAL,SP 4P (MSC) .B.DEFGH............

J 101 87-A60-602-010 JACK,DIA6.3 BLK ST W/SW TC .B.DEFGH............

L 102 87-003-383-010 COIL,1UH-S .B.DEFGH............

L 101 87-003-383-010 COIL,1UH-S .B.DEFGH............

Q 105 87-A30-075-080 C-TR,2SA1235F .B.DEFGH............

Q 104 87-A30-075-080 C-TR,2SA1235F .B.DEFGH............

Q 103 87-A30-075-080 C-TR,2SA1235F .B.DEFGH............

Q 106 87-A30-075-080 C-TR,2SA1235F .B.DEFGH............

Q 112 87-A30-190-080 TR,CC5551 .B.DEFGH............

Q 111 87-A30-190-080 TR,CC5551 .B.DEFGH............

Q 117 87-A30-255-010 TR,2SB1342 .B.DEFGH............

Q 118 87-A30-255-010 TR,2SB1342 .B.DEFGH............

Q 115 87-A30-256-010 TR,2SD1933 .B.DEFGH............

Q 116 87-A30-256-010 TR,2SD1933 .B.DEFGH............

Q 126 87-A30-075-080 C-TR,2SA1235F .B.DEFGH............

Q 123 87-A30-107-070 C-TR,CMBT5401 ...D................

Q 124 87-A30-107-070 C-TR,CMBT5401 ...D................

Q 130 87-A30-076-080 C-TR,2SC3052F .B.DEFGH............

Q 130 87-A30-106-040 C-TR,CMBT5551 ...D................

R 129 87-A00-258-080 RES,M/F 0.22-1W J ...D................

R 130 87-A00-258-080 RES,M/F 0.22-1W J ...D................

C 106 87-010-178-080 CHIP CAP 1000P A.C.................

C 105 87-010-178-080 CHIP CAP 1000P A.C.................

C 102 87-010-183-080 C-CAP,S 2700P-50 B A.C.................

C 101 87-010-183-080 C-CAP,S 2700P-50 B A.C.................

C 108 87-010-404-080 CAP, ELECT 4.7-50V A.C.................

C 107 87-010-404-080 CAP, ELECT 4.7-50V A.C.................

C 103 87-010-545-080 CAP, ELECT 0.22-50V ..C.................

C 104 87-010-545-080 CAP, ELECT 0.22-50V ..C.................

C 119 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 112 87-010-391-080 CAP,E 10-35 SME A.C.................

C 111 87-010-391-080 CAP,E 10-35 SME A.C.................

C 114 87-010-405-080 CAP, ELECT 10-50V A.C.................

C 113 87-010-405-080 CAP, ELECT 10-50V A.C.................

C 120 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 128 87-012-368-080 C-CAP,S 0.1-50 F ..C.................

C 126 87-012-368-080 C-CAP,S 0.1-50 F ..C.................

C 127 87-012-368-080 C-CAP,S 0.1-50 F ..C.................

C 125 87-012-368-080 C-CAP,S 0.1-50 F ..C.................

C 129 87-A10-592-080 C-CAP,S 0.015-50 J B ..C.................

C 133 87-010-186-080 CAP,CHIP 4700P A.C.................

C 131 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

ELECTRICAL MAIN PARTS LIST - 8/10

C 132 87-010-197-080 CAP, CHIP 0.01 DM ..C.................

C 130 87-A10-592-080 C-CAP,S 0.015-50 J B ..C.................

C 140 87-010-182-080 C-CAP,S 2200P-50 B A.C.................

D 101 87-A40-269-080 C-DIODE,MC2836 A.C.....I...........

D 116 87-A40-270-080 C-DIODE,MC2838 A.C.....I...........

IC 101 87-A21-397-010 IC,STK490-070 A.C.....I...........

J 101 87-A60-602-010 JACK,DIA6.3 BLK ST W/SW TC A.C.....I...........

J 203 87-A60-238-010 TERMINAL,SP 4P (MSC) A.C.....I...........

L 101 87-003-383-010 COIL,1UH-S A.C.....I...........

L 102 87-003-383-010 COIL,1UH-S A.C.....I...........

Q 124 87-A30-107-070 C-TR,CMBT5401 A.C.....I...........

Q 123 87-A30-107-070 C-TR,CMBT5401 A.C.....I...........

Q 126 87-A30-107-070 C-TR,CMBT5401 A.C.....I...........

Q 130 87-A30-106-040 C-TR,CMBT5551 A.C.....I...........

R 132 87-A00-258-080 RES,M/F 0.22-1W J A.C.....I...........

R 131 87-A00-258-080 RES,M/F 0.22-1W J A.C.....I...........

C 973 87-010-197-080 CAP, CHIP 0.01 DM ........I...........

C 974 87-010-197-080 CAP, CHIP 0.01 DM ........I...........

C 971 87-010-381-080 CAP, ELECT 330-16V ........I...........

C 972 87-010-404-080 CAP, ELECT 4.7-50V ........I...........

C 982 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 987 87-010-197-080 CAP, CHIP 0.01 DM ........I...........

C 983 87-010-197-080 CAP, CHIP 0.01 DM ........I...........

C 984 87-010-197-080 CAP, CHIP 0.01 DM ........I...........

C 981 87-010-260-080 CAP, ELECT 47-25V ........I...........

C 995 87-010-178-080 CHIP CAP 1000P ........I...........

C 993 87-010-178-080 CHIP CAP 1000P ........I...........

C 997 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 998 87-010-260-080 CAP, ELECT 47-25V ........I...........

C 991 87-010-312-080 C-CAP,S 15P-50 CH ........I...........

C 992 87-010-312-080 C-CAP,S 15P-50 CH ........I...........

R 993 87-010-322-080 C-CAP,S 100P-50 CH ........I...........

R 991 87-010-322-080 C-CAP,S 100P-50 CH ........I...........

R 995 87-010-322-080 C-CAP,S 100P-50 CH ........I...........

C 771 87-010-263-080 CAP, ELECT 100-10V ........I...........

C 788 87-010-149-080 C-CAP,S 5P-50 CH ........I...........

C 789 87-A12-052-080 C-CAP,S 0.033-25 J B ........I...........

C 791 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 793 87-010-404-080 CAP, ELECT 4.7-50V ........I...........

C 799 87-010-407-080 CAP, ELECT 33-50V ........I...........

C 790 87-A12-052-080 C-CAP,S 0.033-25 J B ........I...........

C 803 87-010-198-080 CAP, CHIP 0.022 ........I...........

C 804 87-010-263-080 CAP, ELECT 100-10V ........I...........

C 807 87-010-400-080 CAP, ELECT 0.47-50V ........I...........

C 809 87-010-401-080 CAP, ELECT 1-50V ........I...........

C 808 87-010-401-080 CAP, ELECT 1-50V ........I...........

C 801 87-010-403-080 CAP, ELECT 3.3-50V ........I...........

C 802 87-012-369-080 C-CAP,S 0.047-50F ........I...........

C 800 87-012-369-080 C-CAP,S 0.047-50F ........I...........

C 810 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 815 87-010-403-080 CAP, ELECT 3.3-50V ........I...........

C 816 87-010-403-080 CAP, ELECT 3.3-50V ........I...........

C 823 87-010-177-080 C-CAP,S 820P-50 SL ........I...........

C 824 87-010-405-080 CAP, ELECT 10-50V ........I...........

C 825 87-010-596-080 CAP, S 0.047-16 ........I...........

R 790 87-010-197-080 CAP, CHIP 0.01 DM ........I...........

C 844 87-010-197-080 CAP, CHIP 0.01 DM ........I...........

C 842 87-010-197-080 CAP, CHIP 0.01 DM ........I...........

C 859 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 858 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 852 87-010-197-080 CAP, CHIP 0.01 DM ........I...........

C 853 87-010-197-080 CAP, CHIP 0.01 DM ........I...........

C 851 87-010-197-080 CAP, CHIP 0.01 DM ........I...........

C 850 87-010-260-080 CAP, ELECT 47-25V ........I...........

C 860 87-010-197-080 CAP, CHIP 0.01 DM ........I...........

C 959 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 961 87-010-152-080 C-CAP,S 8P-50 CH ........I...........

C 960 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z ........I...........

C 4 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 6 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 5 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 3 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 9 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 10 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 11 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 12 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........

C 19 87-A10-627-000 CAP,E 2200-50 M SMG ........I...........

C 26 87-010-247-080 CAP, ELECT 100-50V ........I...........

C 25 87-010-385-080 CAP, ELECT 220-25V ........I...........

C 22 87-016-495-000 CAP,E 3300-25 M SMG ........I...........

C 21 87-016-495-000 CAP,E 3300-25 M SMG ........I...........

C 20 87-A10-627-000 CAP,E 2200-50 M SMG ........I...........

C 32 87-010-197-080 CAP, CHIP 0.01 DM ........I...........

C 30 87-010-247-080 CAP, ELECT 100-50V ........I...........

C 34 87-010-247-080 CAP, ELECT 100-50V ........I...........

C 31 87-010-263-080 CAP, ELECT 100-10V ........I...........

ELECTRICAL MAIN PARTS LIST - 9/10

Other manuals for NSX-SZ10 LH

This manual suits for next models

Table of contents

Popular Stereo Receiver manuals by other brands

Marantz

Marantz CINEMA 70S owner's manual

Kenwood

Kenwood KMDX92 instruction manual

Yamaha

Yamaha RX-830 owner's manual

Pioneer

Pioneer AVH-Z7250BT owner's manual

Yamaha

Yamaha RX-750 owner's manual

Denon

Denon AVR-1311 owner's manual

Denon

Denon AVR-S760H owner's manual

Denon

Denon AVR-X7200W Service manual

Pioneer

Pioneer SC-LX904 Initial setup guide

Sony

Sony XAV-1500 operating instructions

Radio Shack

Radio Shack DX-399 owner's manual

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver operating instructions

Pioneer

Pioneer SX-1000TA operating instructions

Yamaha

Yamaha MusicCast TSR-5B3D owner's manual

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver operating instructions

Sony

Sony STR-DG500 - Multi Channel Av Receiver Service manual

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Brochure & specs

Pioneer

Pioneer SX-838 Service manual

Aiwa NSX-SZ10 LH User manual

Popular Stereo Receiver manuals by other brands
