SERVICE MANUAL
DATA
BASIC TAPE MECHANISM : 2ZM-1YR8N
BASIC CD MECHANISM : DA11T3C
COMPACT DISC STEREO
SYSTEM
LCX-337
S/M Code No. 09-003-340-0N1
HA(S) EZ(S)
K(S) V(S)
MODEL CODE : 86HR8-0117(B)

2
TABLE OF CONTENTS
SPECIFICATIONS .............................................................................................................................. 3, 4
ACCESSORIES/PACKAGE LIST ........................................................................................................... 5
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING/
Precaution to replace Optical block......................................................................................................... 6
ELECTRICAL MAIN PARTS LIST ....................................................................................................... 7-9
TRANSISTOR ILLUSTRATION ............................................................................................................ 10

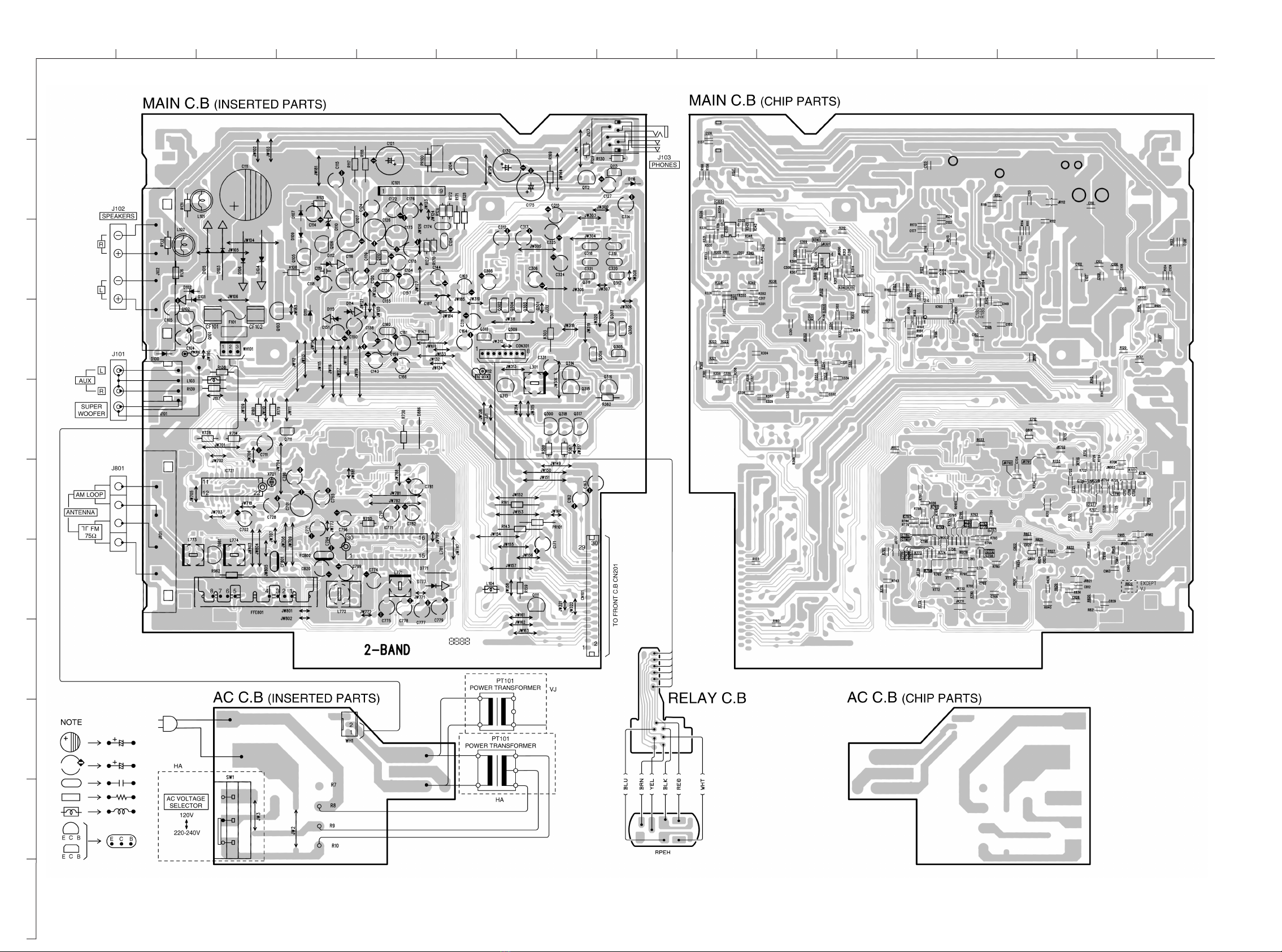

WIRING-1 (MAIN: HA, VJ) .............................................................................................................. 11, 12
WIRING-2 (MAIN: K, EZ) ................................................................................................................ 13, 14
SCHEMATIC DIAGRAM-1 (MAIN 1/2)............................................................................................ 15, 16

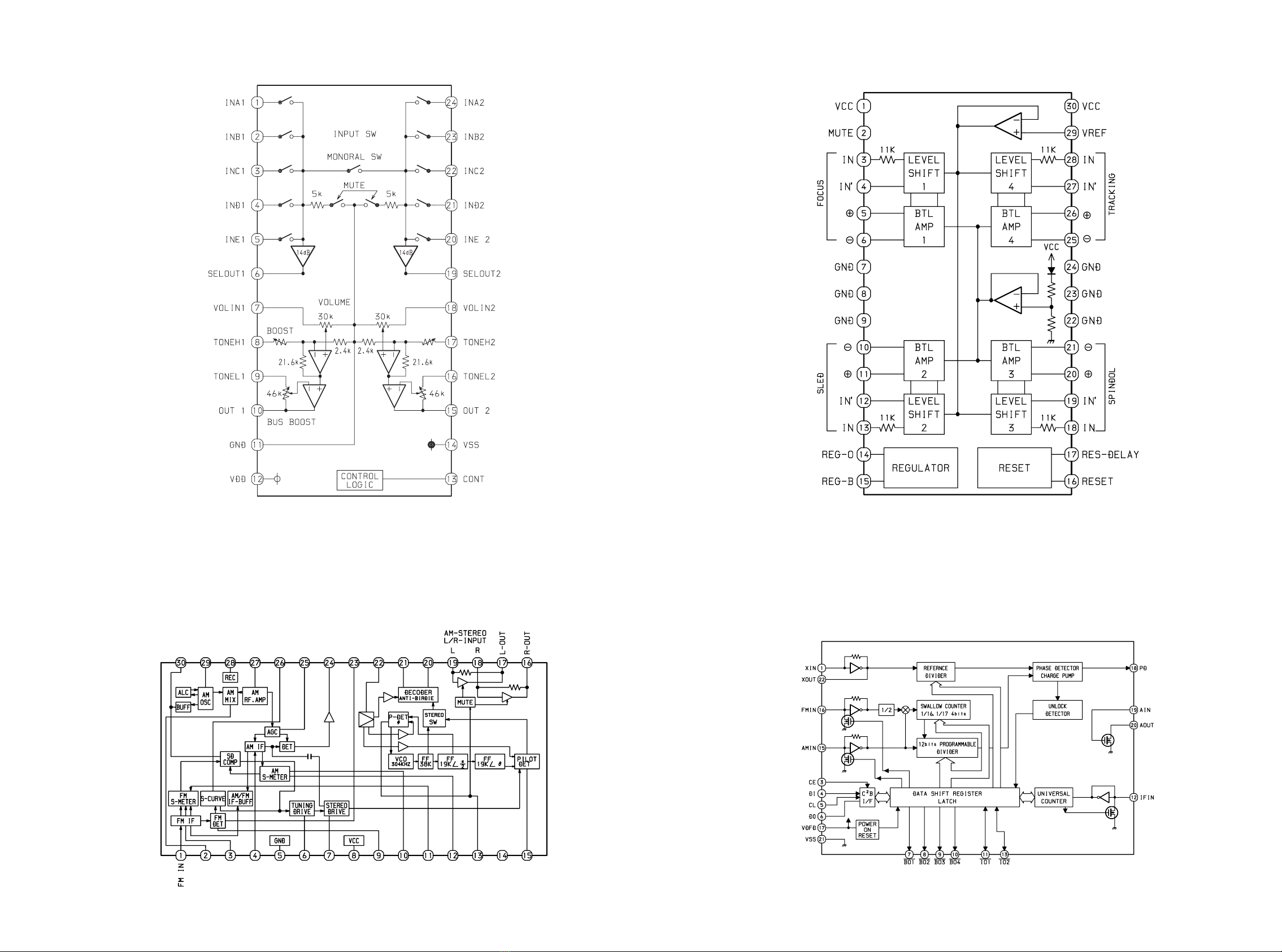

IC BLOCK DIAGRAM...................................................................................................................... 17, 18
SCHEMATIC DIAGRAM-2 (MAIN: HA, VJ 2/2) .............................................................................. 19, 20
SCHEMATIC DIAGRAM-3 (MAIN: K, EZ 2/2)................................................................................. 21, 22
WIRING-3 (CD/FRONT: INSERTED PARTS) ................................................................................ 23, 24
WIRING-4 (CD/FRONT: CHIP PARTS) .......................................................................................... 25, 26
SCHEMATIC DIAGRAM-4 (FRONT) .............................................................................................. 27, 28
SCHEMATIC DIAGRAM-5 (CD) ..................................................................................................... 29, 30
VOLTAGE CHART........................................................................................................................... 31-35
FL GRID ASSIGNMENT/ANODE CONNECTION ................................................................................ 36
ELECTRICAL ADJUSTMENT.......................................................................................................... 37-40
IC DESCRIPTION ............................................................................................................................ 41-46
MECHANICAL EXPLODED VIEW 1/1............................................................................................ 47, 48
MECHANICAL PARTS LIST 1/1 ........................................................................................................... 49
TAPE MECHANISM PARTS LIST 1/1 .................................................................................................. 50
TAPE MECHANISM EXPLODED VIEW 1/1 ................................................................................... 51, 52
CD MECHANISM EXPLODED VIEW 1/1 ............................................................................................. 53
CD MECHANISM PARTS LIST 1/1 ...................................................................................................... 53
SPRING APPLICATION POSITION .....................................................................................................54
SPEAKER PARTS LIST 1/1.................................................................................................................. 55

3
SPECIFICATIONS
HA MODEL
K MODEL
•
Design and specifications are subject to change without
notice.
•
Design and specifications are subject to change without
notice.

4
EZ MODEL
V MODEL
•
Design and specifications are subject to change without
notice.
•
Design and specifications are subject to change without
notice.

5
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES/PACKAGE LIST
1 8A-CLL-906-010 IB,EZ(9L)B<EZS>
1 8A-CLL-905-010 IB,K(E)B<KS>
1 8A-CLL-902-010 IB,LH(ESP)B<HAS>
1 8A-CLL-907-010 IB,V(ER)B<VJS>
2 8A-CLB-961-010 RC UNIT,RC-AAT11
3 87-A90-030-010 ANT,LOOP AM-NC C
4 87-043-115-010 ANT,FEEDER FM<HAS,VJS>
5 87-A90-118-010 ANT,WIRE FM (Z)<KS,EZS>
! 6 87-A91-017-010 PLUG,CONVERSION JT-0476<HAS>

6
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
Precaution to replace Optical block
(SF-P101NR)
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
Solder
PICK-UP Assy P.C.B

7
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ELECTRICAL MAIN PARTS LIST
IC
87-020-454-010 IC,DN6851
87-A20-734-010 IC,TDA2007A
87-A21-443-040 C-IC,M62495AFP
8A-CLA-620-010 IC,LC867240A-5P33
87-A21-245-010 IC,RPM6938-V4
87-A21-145-040 C-IC,BA4560F-E2
87-A20-446-010 C-IC,LA9241ML
87-A20-459-010 C-IC,LC78622ED
87-A21-093-010 IC,LA6541D
87-070-127-110 IC,LC72131 D
87-A20-913-010 IC,LA1837NL
TRANSISTOR
87-026-610-080 TR,KTC3198GR
89-213-702-010 TR,2SB1370 (1.8W)
87-A30-185-010 TR,2SD1381FQR
87-026-313-080 TR,DTC343TS
87-026-609-080 TR,KTA1266GR
87-026-218-080 TR,DTC144ES (0.2W)
87-026-237-080 CHIP-TR,DTC124XK
87-026-223-080 TR,DTC143TK
89-320-011-080 TR,2SC2001 (15W)
89-112-965-080 TR,2SA1296 (0.75W)
89-109-521-080 TR,2SA952 (0.6W)
87-A30-091-080 FET,2SJ460
87-A30-090-080 FET,2SK2541
87-A30-151-080 TR,2SA1993F
89-333-317-080 TR,2SC3331 (0.5W)
87-026-291-080 TR,DTC124XS
87-A30-227-080 TR,2SB1010Q
87-026-463-080 TR,2SA933S (0.3W)
87-026-210-080 CHIP-TR,DTC144EK
87-026-239-080 TR,DTC114TK (0.2W)
87-A30-196-080 TR,2SC4115SRS
89-327-143-080 TR,2SC2714 (0.1W)
87-A30-072-080 C-TR,RT1P 144C
89-505-434-540 C-FET,2SK543(4/5)<KS,EZS>
87-A30-257-080 C-TR,2SD1306E<KS,EZS>
87-A30-074-080 C-TR,RT1P 141C<KS,EZS>
DIODE
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-393-090 DIODE,1N5402GW(F20)
87-070-334-080 ZENER,MTZJ10B
87-017-932-080 ZENER,MTJ6.2B
87-A40-347-080 ZENER,MTZJ2.2B
87-070-136-080 ZENER,MTZJ5.1B
87-020-027-080 CHIP-DIODE 1SS184
87-027-825-080 ZENER,HZ9A3L
87-A40-234-080 ZENER,MTZJ5.6A<KS,EZS>
87-A40-270-080 C-DIODE,MC2838<KS,EZS>
MAIN C.B
C101 87-010-190-080 S CHIP F 0.01
C102 87-010-190-080 S CHIP F 0.01
C103 87-010-190-080 S CHIP F 0.01
C104 87-010-404-080 CAP, ELECT 4.7-50V
C105 87-010-403-080 CAP, ELECT 3.3-50V
C106 87-010-192-080 C-CAP,S 0.022-50 F
C107 87-010-192-080 C-CAP,S 0.022-50 F
C108 87-010-192-080 C-CAP,S 0.022-50 F
C109 87-010-192-080 C-CAP,S 0.022-50 F
C110 87-010-190-080 S CHIP F 0.01
C111 87-016-658-090 CAP,E 4700-35 SMG
C112 87-012-140-080 CAP 470P
C113 87-010-197-080 CAP, CHIP 0.01 DM
C114 87-010-408-080 CAP, ELECT 47-50V
C115 87-010-112-080 CAP, ELECT 100-16V
C116 87-010-101-080 CAP, ELECT 220-16
C118 87-010-263-080 CAP, ELECT 100-10V
C119 87-010-190-080 S CHIP F 0.01
C120 87-010-401-080 CAP, ELECT 1-50V
C121 87-010-396-080 CAP,E 470-35 SME
C122 87-010-213-080 C-CAP,S 0.015-50 B
C123 87-010-196-080 CHIP CAPACITOR,0.1-25
C124 87-010-402-080 CAP, ELECT 2.2-50V
C125 87-010-402-080 CAP, ELECT 2.2-50V
C126 87-010-408-080 CAP, ELECT 47-50V
C127 87-010-248-080 CAP, ELECT 220-10V
C128 87-010-393-080 CAP, ELECT 100-35V
C129 87-010-248-080 CAP, ELECT 220-10V
C130 87-010-393-080 CAP, ELECT 100-35V
C131 87-010-393-080 CAP, ELECT 100-35V
C132 87-010-237-080 CAP, ELECT 1000-16V
C133 87-010-237-080 CAP, ELECT 1000-16V
C136 87-010-197-080 CAP, CHIP 0.01 DM
C137 87-010-197-080 CAP, CHIP 0.01 DM
C138 87-010-197-080 CAP, CHIP 0.01 DM
C139 87-010-197-080 CAP, CHIP 0.01 DM
C143 87-010-401-080 CAP, ELECT 1-50V
C144 87-010-401-080 CAP, ELECT 1-50V
C147 87-010-190-080 S CHIP F 0.01
C150 87-010-263-080 CAP, ELECT 100-10V
C151 87-010-263-080 CAP, ELECT 100-10V
C152 87-010-182-080 C-CAP,S 2200P-50 B
C153 87-010-166-080 C-CAP,S 100P-50 SL
C154 87-010-545-080 CAP, ELECT 0.22-50V
C155 87-010-545-080 CAP, ELECT 0.22-50V
C157 87-010-404-080 CAP, ELECT 4.7-50V
C158 87-010-545-080 CAP, ELECT 0.22-50V
C159 87-010-545-080 CAP, ELECT 0.22-50V
C161 87-010-404-080 CAP, ELECT 4.7-50V
C162 87-010-405-080 CAP, ELECT 10-50V
C163 87-010-405-080 CAP, ELECT 10-50V
C164 87-010-405-080 CAP, ELECT 10-50V
C165 87-010-405-080 CAP, ELECT 10-50V
C166 87-010-404-080 CAP, ELECT 4.7-50V
C167 87-010-404-080 CAP, ELECT 4.7-50V
C169 87-010-197-080 CAP, CHIP 0.01 DM<KS,EZS>
C170 87-010-197-080 CAP, CHIP 0.01 DM<KS,EZS>
C171 87-010-404-080 CAP, ELECT 4.7-50V
C172 87-010-408-080 CAP, ELECT 47-50V
C173 87-010-405-080 CAP, ELECT 10-50V
C175 87-010-237-080 CAP, ELECT 1000-16V
C176 87-010-197-080 CAP, CHIP 0.01 DM<KS,EZS>
C184 87-A11-317-080 C-CAP,U 0.068<HAS,VJS>
C185 87-A11-317-080 C-CAP,U 0.068<HAS,VJS>
C300 87-010-986-080 C-CAP,S 820P-50 J CH
C301 87-010-198-080 CAP, CHIP 0.022
C302 87-010-986-080 C-CAP,S 820P-50 J CH
C303 87-010-180-080 C-CER 1500P
C304 87-010-180-080 C-CER 1500P
C305 87-010-263-080 CAP, ELECT 100-10V
C306 87-010-263-080 CAP, ELECT 100-10V
C307 87-010-956-080 CHIP-CAP,S 0.068-25B
C308 87-010-956-080 CHIP-CAP,S 0.068-25B
C309 87-010-187-080 CAP CHIP S5600P
C310 87-010-187-080 CAP CHIP S5600P
C311 87-010-374-080 CAP, ELECT 47-10V
C312 87-010-546-080 CAP, ELECT 0.33-50V
C313 87-010-546-080 CAP, ELECT 0.33-50V
C314 87-010-401-080 CAP, ELECT 1-50V
C315 87-010-401-080 CAP, ELECT 1-50V
C316 87-010-182-080 C-CAP,S 2200P-50 B
C317 87-010-182-080 C-CAP,S 2200P-50 B

8
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C318 87-010-188-080 CAP,CHIP 6800P
C319 87-010-188-080 CAP,CHIP 6800P
C320 87-010-184-080 CHIP CAPACITOR 3300P(K)
C321 87-010-184-080 CHIP CAPACITOR 3300P(K)
C322 87-010-321-080 CHIP CAPACITOR,82P(J)
C323 87-010-321-080 CHIP CAPACITOR,82P(J)
C324 87-010-401-080 CAP, ELECT 1-50V
C325 87-010-374-080 CAP, ELECT 47-10V
C326 87-010-198-080 CAP, CHIP 0.022
C327 87-010-183-080 C-CAP,S 2700P-50 B
C328 87-010-183-080 C-CAP,S 2700P-50 B
C329 87-010-183-080 C-CAP,S 2700P-50 B
C330 88-266-810-810 CAP, CER 0.01<KS,EZS>
C331 87-010-382-080 CAP, ELECT 22-25V
C332 87-010-187-080 CAP CHIP S5600P
C333 87-010-178-080 CHIP CAP 1000P
C334 87-010-175-080 CAP 560P
C335 87-012-158-080 C-CAP,S 390P-50 CH
C336 87-012-158-080 C-CAP,S 390P-50 CH
C337 87-010-198-080 CAP, CHIP 0.022
C350 87-010-178-080 CHIP CAP 1000P
C351 87-010-178-080 CHIP CAP 1000P
C353 87-010-190-080 S CHIP F 0.01
C701 87-010-381-080 CAP, ELECT 330-16V
C702 87-010-404-080 CAP, ELECT 4.7-50V
C703 87-012-286-080 CAP, U 0.01-25
C704 87-012-286-080 CAP, U 0.01-25
C709 87-012-195-080 C-CAP,U 100P-50CH
C711 87-010-263-080 CAP, ELECT 100-10V
C712 87-010-831-080 C-CAP,U,0.1-16F
C713 87-012-286-080 CAP, U 0.01-25<KS,EZS>
C714 87-012-286-080 CAP, U 0.01-25
C715 87-012-195-080 C-CAP,U 100P-50CH<KS,EZS>
C717 87-012-286-080 CAP, U 0.01-25
C719 87-012-286-080 CAP, U 0.01-25
C720 87-012-195-080 C-CAP,U 100P-50CH
C721 87-012-176-080 CAP 15P
C722 87-012-176-080 CAP 15P
C723 87-012-274-080 CHIP CAP,U 1000P-50B
C725 87-018-131-080 CAP, CER 1000P-50V<KS,EZS>
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP, ELECT 220-10V
C729 87-012-274-080 CHIP CAP,U 1000P-50B
C731 87-012-286-080 CAP, U 0.01-25
C752 87-012-284-080 CAP, U 6800P-50<KS,EZS>
C753 87-012-195-080 C-CAP,U 100P-50CH<KS,EZS>
C755 87-012-286-080 CAP, U 0.01-25<KS,EZS>
C756 87-012-286-080 CAP, U 0.01-25
C757 87-012-188-080 C-CAP,U 47P-50 CH
C758 87-012-167-080 C-CAP,U 5P-50 CH
C761 87-010-196-080 CHIP CAPACITOR,0.1-25<KS,EZS>
C762 87-012-286-080 CAP, U 0.01-25<KS,EZS>
C763 87-010-829-080 CAP, U 0.047-16
C764 87-012-337-080 C-CAP,U 56P-50 CH<HAS,VJS>
C765 87-012-286-080 CAP, U 0.01-25
C766 87-010-197-080 CAP, CHIP 0.01 DM<KS,EZS>
C768 87-012-286-080 CAP, U 0.01-25
C769 87-010-260-080 CAP, ELECT 47-25V
C770 87-010-829-080 CAP, U 0.047-16
C771 87-010-383-080 CAP, ELECT 33-25V
C772 87-010-829-080 CAP, U 0.047-16
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP, ELECT 100-10V
C775 87-010-404-080 CAP, ELECT 4.7-50V
C776 87-012-286-080 CAP, U 0.01-25
C777 87-010-400-080 CAP, ELECT 0.47-50V
C778 87-010-401-080 CAP, ELECT 1-50V
C779 87-010-401-080 CAP, ELECT 1-50V
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP, ELECT 10-50V
C782 87-010-405-080 CAP, ELECT 10-50V
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-010-401-080 CAP, ELECT 1-50V<HAS,VJS>
C785 87-010-405-080 CAP, ELECT 10-50V<KS,EZS>
C786 87-010-401-080 CAP, ELECT 1-50V<HAS,VJS>
C786 87-010-405-080 CAP, ELECT 10-50V<KS,EZS>
C787 87-012-287-080 C-CAP,U 0.015-25 F<KS,EZS>
C788 87-012-287-080 C-CAP,U 0.015-25 F<KS,EZS>
C789 87-012-275-080 C-CAP,U 1200P-50 B
C790 87-012-275-080 C-CAP,U 1200P-50 B
C791 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-275-080 C-CAP,U 1200P-50 B<KS,EZS>
C793 87-012-273-080 C-CAP,U 820P-50 B<HAS,VJS>
C794 87-010-406-080 CAP, ELECT 22-50
C795 87-010-596-080 CAP, S 0.047-16
C796 87-010-403-080 CAP, ELECT 3.3-50V
C797 87-012-278-080 C-CAP,U 2200P-50 B<HAS>
C797 87-012-276-080 CAP, CHIP SS 1500 PBK<KS,EZS,VJS>
C798 87-012-278-080 C-CAP,U 2200P-50 B<HAS>
C798 87-012-276-080 CAP, CHIP SS 1500 PBK<KS,EZS,VJS>
C799 87-010-829-080 CAP, U 0.047-16
C803 87-018-047-080 CAP, CER 0.01-16V<KS,EZS>
C812 87-012-286-080 CAP, U 0.01-25
C814 87-012-286-080 CAP, U 0.01-25<KS,EZS>
C820 87-010-260-080 CAP, ELECT 47-25V
C821 87-012-286-080 CAP, U 0.01-25
C822 87-012-286-080 CAP, U 0.01-25
C823 87-012-286-080 CAP, U 0.01-25
C824 87-012-172-080 CAPACITOR CHIP U 10P CH<KS,EZS>
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C909 87-012-286-080 CAP, U 0.01-25<KS,EZS>
C910 87-012-286-080 CAP, U 0.01-25<KS,EZS>
C940 87-012-286-080 CAP, U 0.01-25<KS,EZS>
C942 87-012-172-080 CAPACITOR CHIP U 10P CH<KS,EZS>
C947 87-012-286-080 CAP, U 0.01-25<KS,EZS>
C949 87-A10-039-080 C-CAP,U 470P-50 J CH<KS,EZS>
C952 87-012-286-080 CAP, U 0.01-25<KS,EZS>
C958 87-010-197-080 CAP, CHIP 0.01 DM<KS,EZS>
C959 87-010-831-080 C-CAP,U,0.1-16F<KS,EZS>
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-012-170-080 C-CAP,U 8P-50 CH<HAS,VJS>
C962 87-010-401-080 CAP, ELECT 1-50V<KS,EZS>
C963 87-010-196-080 CHIP CAPACITOR,0.1-25
CF801 87-008-423-010 CERAMIC FILTER, SFE10.7<KS,EZS>
CF801 87-008-261-010 FILTER, SFE10.7MA5-A<HAS,VJS>
CF802 82-785-747-010 CF MS2 GHY R<KS,EZS>
CF802 87-008-261-010 FILTER, SFE10.7MA5-A<HAS,VJS>
CON301 87-099-832-010 CONN,8P S2M-8W
! F101 87-035-457-010 FUSE,3.15A 250V TW/C
FC101 87-033-213-080 CLAMP, FUSE
FC102 87-033-213-080 CLAMP, FUSE
FFE801 A8-6ZA-19C-170 6ZA-1 YFEENC<KS,EZS>
FFE801 A8-6ZA-19F-170 6ZA-1 YFEVNC<VJS>
FFE801 A8-8ZA-193-070 8ZA-1 YFEUNC<HAS>
J101 8A-CLA-624-010 JACK,PIN 3P AUX
J102 87-A60-754-010 TERMINAL,SPK 4P MSP-154V-05
J103 87-A60-420-010 JACK,3.5 ST (MSC)
J104 87-099-608-010 JACK, DC HEC3800<KS,EZS>
J801 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02<HAS,VJS>
J801 87-A60-880-010 TERMINAL,ANT-PAL 2P MSP-313V-0<KS,EZS>
L101 87-005-366-010 COIL, 1UH
L102 87-005-366-010 COIL, 1UH
L104 87-005-676-080 COIL,2.2UH K LF5.0S
L302 87-007-342-010 COIL,OSC 85K BIAS
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A90-733-010 FLTR,PCFAZH-450 (TOK)
L773 87-NF4-650-010 COIL,AM PACK 4N(TOK)
L781 87-005-847-080 COIL,2.2UH(CECS)<KS,EZS>

109
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
L832 87-005-847-080 COIL,2.2UH(CECS)<KS,EZS>
L941 87-A50-020-010 COIL,ANT LW(COI)<KS,EZS>
L942 87-A50-019-010 COIL,OSC LW(COI)<KS,EZS>
L981 87-NF4-650-010 COIL,AM PACK 4N(TOK)<HAS,VJS>
L981 87-NF4-651-110 COIL,AM PACK2N(TOM)<KS,EZS>
! PR100 87-A90-091-080 PROTECTOR,2A 491
R118 87-029-118-090 RES,FUSE 220-1/2W J
R362 87-029-090-010 RES FUSE,22-1/4
TC942 87-011-164-010 CAPACITOR,TRIMMER 30P<KS,EZS>
WH101 87-099-043-010 CONN 2P EH
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
FRONT C.B
C201 87-010-375-080 CAP,E 330-10 SME
C202 87-012-350-080 C-CAP,1-25 F
C203 87-010-197-080 CAP, CHIP 0.01 DM
C205 87-010-178-080 CHIP CAP 1000P
C208 87-010-197-080 CAP, CHIP 0.01 DM
C209 87-010-196-080 CHIP CAPACITOR,0.1-25
C210 87-010-196-080 CHIP CAPACITOR,0.1-25
C211 87-010-314-080 C-CAP,S 22P-50V
C212 87-010-318-080 C-CAP,S 47P-50 CH
C213 87-010-154-080 CAP CHIP 10P
C214 87-012-149-080 C-CAP,S 30P-50 CH
C215 87-010-312-080 C-CAP,S 15P-50 CH
C216 87-010-400-080 CAP, ELECT 0.47-50V
C217 87-010-196-080 CHIP CAPACITOR,0.1-25
CN201 87-099-720-010 CONN,30P TYK-B(P)
CN202 87-A60-404-010 CONN,3P TKX-P03P-F1
CN203 8A-CLA-621-010 CONN ASSY,9P MOTOR
L206 87-003-098-080 COIL,2.2UH
LCD201 8Z-CL8-665-110 LCD,ZCL-8
S200 87-A90-095-080 SW,TACT EVQ11G04M
S201 87-A90-095-080 SW,TACT EVQ11G04M
S202 87-A90-095-080 SW,TACT EVQ11G04M
S203 87-A90-095-080 SW,TACT EVQ11G04M
S204 87-A90-095-080 SW,TACT EVQ11G04M
S205 87-A90-095-080 SW,TACT EVQ11G04M
S206 87-A90-095-080 SW,TACT EVQ11G04M
S207 87-A90-095-080 SW,TACT EVQ11G04M
S208 87-A90-095-080 SW,TACT EVQ11G04M
S209 87-A90-095-080 SW,TACT EVQ11G04M
S214 87-A90-095-080 SW,TACT EVQ11G04M
S215 87-A90-095-080 SW,TACT EVQ11G04M
S216 87-A90-095-080 SW,TACT EVQ11G04M
S217 87-A90-095-080 SW,TACT EVQ11G04M
S218 87-A90-095-080 SW,TACT EVQ11G04M
S219 87-A90-095-080 SW,TACT EVQ11G04M
S220 87-A90-095-080 SW,TACT EVQ11G04M
X201 87-030-364-010 VIB,XTAL 32.768K CT
X202 87-A70-185-080 VIB,CER 5.76MHZ TF21
CD C.B
C500 87-016-459-040 CAP,E 470-10 SMG
C502 87-016-459-040 CAP,E 470-10 SMG
C503 87-016-459-040 CAP,E 470-10 SMG
C505 87-010-196-080 CHIP CAPACITOR,0.1-25
C507 87-010-196-080 CHIP CAPACITOR,0.1-25
C510 87-010-197-080 CAP, CHIP 0.01 DM
C513 87-010-196-080 CHIP CAPACITOR,0.1-25
C514 87-010-196-080 CHIP CAPACITOR,0.1-25
C515 87-012-157-080 C-CAP,S 330P-50 CH
C516 87-010-545-080 CAP, ELECT 0.22-50V
C522 88-700-860-810 CAP, MYLAR 0.068
C525 87-010-176-080 C-CAP,S 680P-50 SL
C528 87-012-156-080 C-CAP,S 220P-50 CH
C529 87-010-545-080 CAP, ELECT 0.22-50V
C530 87-012-140-080 CAP 470P
C531 87-010-374-080 CAP, ELECT 47-10V
C532 87-010-401-080 CAP, ELECT 1-50V
C533 87-010-184-080 CHIP CAPACITOR 3300P(K)
C534 87-010-197-080 CAP, CHIP 0.01 DM
C535 87-010-145-080 C-CAP,S 1P-50 CH
C536 87-010-312-080 C-CAP,S 15P-50 CH
C537 87-010-166-080 C-CAP,S 100P-50 SL
C538 87-010-196-080 CHIP CAPACITOR,0.1-25
C539 87-010-404-080 CAP, ELECT 4.7-50V
C540 87-010-196-080 CHIP CAPACITOR,0.1-25
C541 87-010-405-080 CAP, ELECT 10-50V
C542 87-010-369-080 C-CAP,S 0.033-25 K B
C543 87-010-405-080 CAP, ELECT 10-50V
C545 87-010-197-080 CAP, CHIP 0.01 DM
C546 87-010-374-080 CAP, ELECT 47-10V
C547 87-010-263-080 CAP, ELECT 100-10V
C548 87-010-248-080 CAP, ELECT 220-10V
C549 87-010-198-080 CAP, CHIP 0.022
C550 87-010-248-080 CAP, ELECT 220-10V
C551 87-010-166-080 C-CAP,S 100P-50 SL
C552 87-010-197-080 CAP, CHIP 0.01 DM
C553 87-010-374-080 CAP, ELECT 47-10V
C555 87-010-403-080 CAP, ELECT 3.3-50V
C556 87-010-197-080 CAP, CHIP 0.01 DM
C557 87-010-197-080 CAP, CHIP 0.01 DM
C558 87-010-197-080 CAP, CHIP 0.01 DM
C559 87-010-315-080 C-CAP,S 27P-50 CH
C560 87-010-263-080 CAP, ELECT 100-10V
C561 87-010-196-080 CHIP CAPACITOR,0.1-25
C562 87-010-196-080 CHIP CAPACITOR,0.1-25
C563 87-012-156-080 C-CAP,S 220P-50 CH
C564 87-010-197-080 CAP, CHIP 0.01 DM
C565 87-010-263-080 CAP, ELECT 100-10V
C566 87-010-196-080 CHIP CAPACITOR,0.1-25
C568 87-010-197-080 CAP, CHIP 0.01 DM
C570 87-010-197-080 CAP, CHIP 0.01 DM
C571 87-010-248-080 CAP, ELECT 220-10V
C572 87-010-196-080 CHIP CAPACITOR,0.1-25
C573 87-010-197-080 CAP, CHIP 0.01 DM
C574 87-010-197-080 CAP, CHIP 0.01 DM
C578 87-010-197-080 CAP, CHIP 0.01 DM
C579 87-010-263-080 CAP, ELECT 100-10V
C582 87-010-197-080 CAP, CHIP 0.01 DM
C583 87-010-405-080 CAP, ELECT 10-50V
C584 87-010-170-080 S CHIP SL 220P(K)
C586 87-010-170-080 S CHIP SL 220P(K)
C587 87-010-166-080 C-CAP,S 100P-50 SL
C589 87-010-166-080 C-CAP,S 100P-50 SL
C590 87-010-166-080 C-CAP,S 100P-50 SL
C591 87-010-166-080 C-CAP,S 100P-50 SL
C592 87-010-166-080 C-CAP,S 100P-50 SL
C593 87-010-197-080 CAP, CHIP 0.01 DM
C594 87-010-263-080 CAP, ELECT 100-10V
C596 87-010-404-080 CAP, ELECT 4.7-50V
C597 87-010-197-080 CAP, CHIP 0.01 DM
C598 87-010-197-080 CAP, CHIP 0.01 DM
C601 87-010-197-080 CAP, CHIP 0.01 DM
CN501 87-009-345-010 CONN,2P PH H
CN510 87-009-034-010 CONN,6P PH V
CN520 87-A60-248-010 CONN,16P H CFF1416
L501 87-005-647-080 COIL,10UH K LF5S
L502 87-005-659-080 COIL,100UH K LF5.0S
R503 87-029-019-010 RES, FUSEIBLE 1/2W-2.2
SFR501 87-A90-787-080 SFR,100K H HOKU
X501 87-A70-046-010 VIB,XTAL 16.934MHZ
LED C.B
D941 87-A40-365-080 LED,L-1154 SGD
D942 87-A40-365-080 LED,L-1154 SGD
TRANSISTOR ILLUSTRATION
2SA1296
2SC1815
KTC3198
2SC2714
2SD1306
DTC114TK
DTC143TK
DTC144EK
RT1P141C
PT1P144C
2SC4115
DTC124XS
DTC343TS
2SA933
2SB1010
2SC2001
SS8050
2SD1381
BE
C
ECB ECB ECB ECB D
S
G
2SK543
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
D943 87-A40-365-080 LED,L-1154 SGD
D944 87-A40-365-080 LED,L-1154 SGD
D945 87-A40-365-080 LED,L-1154 SGD
D946 87-A40-365-080 LED,L-1154 SGD
D947 87-A40-365-080 LED,L-1154 SGD
D948 87-A40-365-080 LED,L-1154 SGD
D949 87-A40-365-080 LED,L-1154 SGD
AC C.B
C181 87-010-197-080 CAP, CHIP 0.01 DM<KS,EZS>
C182 87-010-197-080 CAP, CHIP 0.01 DM<KS,EZS>
CNA101 8A-CLA-630-010 CONN ASSY,2P PT
! SW1 87-A90-178-010 SW SL1-1-2<HAS>
! T1 87-A60-317-010 TERMINAL, 1P MSC
! T2 87-A60-317-010 TERMINAL, 1P MSC
MOTOR C.B
M2 9X-262-576-910 MOTOR GEAR ASSY
PIN3 91-564-722-110 CONNECTOR 6P
SW1 91-572-085-120 LEAF SW
DECK C.B
CN1 87-009-352-010 CONN,9P PH H
SFR1 87-024-581-010 SFR,3.3K DIA6V K0A
SOL2 82-ZM1-618-410 SOL ASSY,27K
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW5 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW6 87-A90-248-010 SW,MICRO ESE11SH2CXQ
RELAY C.B
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.

123456789
10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
1211
WIRING-1 (MAIN: HA, VJ)
