SERVICE MANUAL
DATA
BASIC TAPE MECHANISM : ZZM-2 PR3NC1
BASIC CD MECHANISM : KSM213CDM
COMPACT DISC CARRY
COMPONENT SYSTEM
CA-DW539
S/M Code No. 09-025-354-3N2
U(ST)
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

-2-
SPECIFICATIONS
•
Design and specifications are subject to change without notice.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

-3-
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla
saattaa altistaa käyt-täjän turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i denna
bruksanvising, kan användaren utsättas för osynling laserstrålning, som
överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when open
and interlocks defeated avoid exposure to
beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardousradiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que ceux
spécifiés peut entraîner une dangereuse exposition aux radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude af funktion.
Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT label is located on the rear exterior.
This set employs laser. Therefore, be sure to follow carefully the instructions
below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE
EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER
BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF
MORE THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS
ON THE OPTICAL
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT

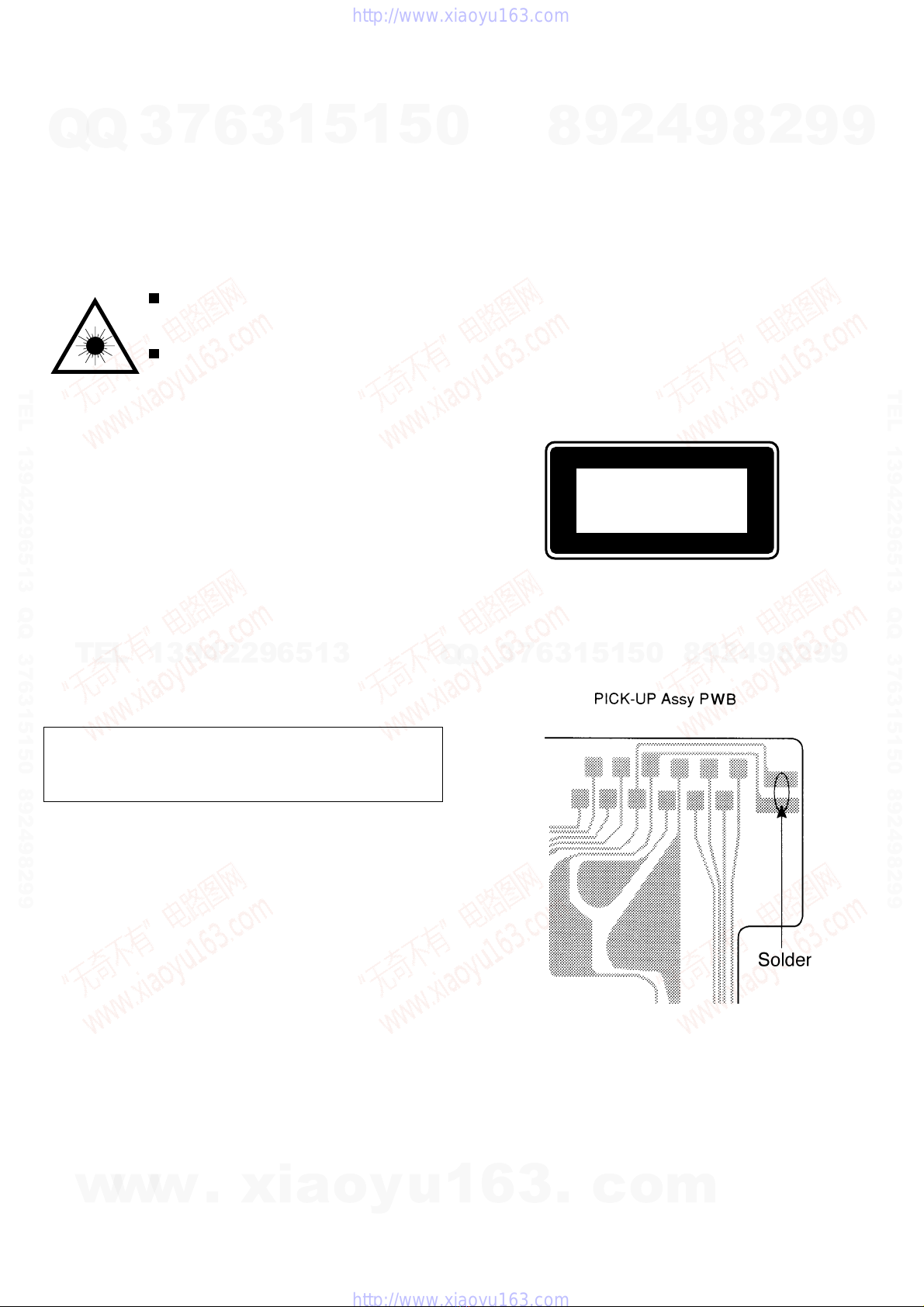

Precaution to replace Optical block
(KSS-213C)
1) After the connection, remove solder shown in the
right figure.
Body or clothes electrostatic potential could ruin laser diode
in the optical block. Be sure ground body and workbench,
and use care the clothes do not touch the diode.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-4-
ACCESSORIES PARTS LIST -1/1
CA-DW539
U2
O AS1001 8B-CT5-913-010 IB,U(ESF)FM CA-DW539 a
O AS1002 8A-CLB-961-210 RC UNIT,RC-AAT11 a
O AS1003 87-A80-109-010 AC CORD,HK7281 BLK U a
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-5-
ELECTRICAL PARTS LIST - 1/10
CA-DW539
U2
CD 0 C 0401 87-010-403-080 ELEC CAP 3.3u/50V (M) SME TP= a
CD 0 C 0402 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
CD 0 C 0403 87-010-263-080 ELEC CAP 100UF/10V (M) SME TP a
CD 0 C 0404 87-010-248-080 ELEC CAP 220U/10V (M) SME a
CD 0 C 0405 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
CD 0 C 0406 87-010-374-080 ELEC CAP 47U/10V (M) SME TP=5 a
CD 0 C 0407 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
CD 0 C 0408 87-010-198-080 CHIP CAP S 0.022U/25V (K) B T a
CD 0 C 0409 87-010-248-080 ELEC CAP 220U/10V (M) SME a
CD 0 C 0410 87-010-263-080 ELEC CAP 100UF/10V (M) SME TP a
CD X C 0411 SC-CBK-G81-54S CHIP CAP 0.15UF/50V (K) B a
CD 0 C 0412 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
CD 0 C 0413 87-016-369-080 CHIP CAP 0.033U/25V (K) B TP= a
CD 0 C 0414 87-010-405-080 ELEC CAP 10UF/50V (M) SME TP= a
CD 0 C 0416 87-010-545-080 ELEC CAP 0.22UF/50V (M) SEM T a
CD 0 C 0417 87-012-157-080 EHIP.CAP,S 330P/50V (J) CH TP a
CD 0 C 0418 87-010-213-080 CHIP CAP 0.015u/25V (K) B TP= a
CD 0 C 0419 87-A11-608-080 CHIP CAP S 0.33UF/25V KB a
CD 0 C 0420 87-016-369-080 CHIP CAP 0.033U/25V (K) B TP= a
CD X C 0421 SC-CBK-G81-54S CHIP CAP 0.15UF/50V (K) B a
CA-DW539
U2
CD 0 C 0422 87-010-183-080 CHIP CAP S 2700P/50V (K) B TP a
CD 0 C 0423 87-010-992-080 CHIP CAP S 0.047UF/25V (K) B a
CD 0 C 0424 87-010-220-080 CHIP CAP S 0.018uF/25V (K)B a
CD 0 C 0425 87-012-140-080 CHIP.CAP,S 470P/50V (J) CH TP a
CD 0 C 0426 87-A11-608-080 CHIP CAP S 0.33UF/25V KB a
CD 0 C 0428 87-010-426-080 CHIP CAP S 0.012U/25V (K) B T a
CD 0 C 0429 87-010-186-080 CHIP CAP S 4700P/50V (K) B TP a
CD 0 C 0430 87-012-156-080 CHIP CAP,S 220P/50V (J) CH TA a
CD 0 C 0431 87-010-545-080 ELEC CAP 0.22UF/50V (M) SEM T a
CD 0 C 0432 87-010-374-080 ELEC CAP 47U/10V (M) SME TP=5 a
CD 0 C 0433 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
CD 0 C 0434 87-010-184-080 CHIP CAP S 3300PF/50V (K) TP= a
CD 0 C 0435 87-018-134-080 AXIAL CAP 0.01U/50V (K) a
CD 0 C 0436 87-010-374-080 ELEC CAP 47U/10V (M) SME TP=5 a
CD 0 C 0437 87-010-405-080 ELEC CAP 10UF/50V (M) SME TP= a
CD 0 C 0438 87-016-669-080 CHIP.CAP,S 0.1U/25V (K) B a
CD 0 C 0439 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
CD 0 C 0440 87-010-145-080 CHIP CAP S 1P/50V (C) CH a
CD 0 C 0441 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
CD 0 C 0442 87-010-311-080 CHIP CAP.S 12P/50V(J)CH a
CA-DW539
U2
CD 0 C 0445 87-010-196-080 CHIP.CAP,S 0.1U/25V (Z) F TP= a
CD 0 C 0446 87-010-196-080 CHIP.CAP,S 0.1U/25V (Z) F TP= a
CD 0 C 0447 87-010-196-080 CHIP.CAP,S 0.1U/25V (Z) F TP= a
CD 0 C 0448 87-010-315-080 CHIP.CAP,S 27P/50V (J) CH a
CD 0 C 0451 87-012-156-080 CHIP CAP,S 220P/50V (J) CH TA a
CD 0 C 0455 87-010-247-080 100UF/50V ELECTRICAL T=5mm a
CD 0 C 0457 87-010-312-080 CHIP CAP 15P/50V (J) CH TP=8m a
CD 0 C 0458 87-010-312-080 CHIP CAP 15P/50V (J) CH TP=8m a
CD 0 C 0459 87-010-263-080 ELEC CAP 100UF/10V (M) SME TP a
CD 0 C 0460 87-015-819-080 CHIP.CAP 0.01U/50V (K) B TP=8 a
CD 0 C 0461 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
CD 0 C 0462 87-010-248-080 ELEC CAP 220U/10V (M) SME a
CD 0 C 0463 87-018-134-080 AXIAL CAP 0.01U/50V (K) a
CD 0 C 0465 87-010-404-080 ELEC CAP 4.7u/50V (M) SME TP= a
CD 0 C 0466 87-010-196-080 CHIP.CAP,S 0.1U/25V (Z) F TP= a
CD 0 C 0467 87-010-263-080 ELEC CAP 100UF/10V (M) SME TP a
CD 0 C 0469 87-012-154-080 CHIP.CAP,S 150P/50V (J) CH TP a
CD 0 C 0470 87-010-544-080 ELEC CAP 0.1uF/50V (M) SME TP a
CD 0 C 0471 87-015-785-080 CHIP.CAP 0.1UF/25V(Z) F TP=8m a
CD 0 C 0472 87-015-785-080 CHIP.CAP 0.1UF/25V(Z) F TP=8m a
CA-DW539
U2
CD 0 C 0473 87-015-785-080 CHIP.CAP 0.1UF/25V(Z) F TP=8m a
CD 0 C 0474 87-015-785-080 CHIP.CAP 0.1UF/25V(Z) F TP=8m a
CD 0 C 0475 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
CD 0 C 0476 87-010-236-080 ELEC CAP 1000uF/10V a
CD 0 C 0477 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
CD 0 C 0478 87-010-263-080 ELEC CAP 100UF/10V (M) SME TP a
CD 0 C 0479 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
CD 0 C 0480 87-010-221-080 ELEC CAP 470u/10V (M) SME a
CD 0 C 0481 87-010-405-080 ELEC CAP 10UF/50V (M) SME TP= a
CD 0 C 0482 87-010-405-080 ELEC CAP 10UF/50V (M) SME TP= a
CD 0 C 0483 87-012-156-080 CHIP CAP,S 220P/50V (J) CH TA a
CD 0 C 0484 87-012-156-080 CHIP CAP,S 220P/50V (J) CH TA a
CD 0 C 0489 87-010-196-080 CHIP.CAP,S 0.1U/25V (Z) F TP= a
CD 0 C 0490 87-010-196-080 CHIP.CAP,S 0.1U/25V (Z) F TP= a
CD 0 C 0493 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
CD 0 C 0494 87-018-134-080 AXIAL CAP 0.01U/50V (K) a
CD 0 C 0499 87-010-405-080 ELEC CAP 10UF/50V (M) SME TP= a
CD 0 C 4001 87-010-196-080 CHIP.CAP,S 0.1U/25V (Z) F TP= a
CD 0 C 4002 87-010-322-080 CHIP.CAP,S 100P/50V (J) CH TP a
CD 0 C 4003 87-010-322-080 CHIP.CAP,S 100P/50V (J) CH TP a
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-6-
CA-DW539
U2
CD 0 C 4004 87-010-322-080 CHIP.CAP,S 100P/50V (J) CH TP a
CD 0 C 4005 87-010-322-080 CHIP.CAP,S 100P/50V (J) CH TP a
CD 0 C 4006 87-010-322-080 CHIP.CAP,S 100P/50V (J) CH TP a
CD 0 C 4007 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
CD 0 C 4010 87-018-209-080 AXIAL CAP 0.1UF/50V (Z) F TP= a
CD 0 C 4011 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
CD 0 C 4012 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
CD 0 C 4013 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
CD X C 4120 88-700-980-810 MYLAR CAP 0.056uF/50V (J) a
CD 0 CN 0401 87-A60-424-010 CONNECTOR FFC 16P (1.0mm) a
CD 0 CNA0402 8Z-CT6-631-010 CONNECTOR ASS’Y 6P a
CD S D 0401 87-070-345-080 SILICON DIODE 1N4148M DO-34 T a
CD S D 0402 87-070-345-080 SILICON DIODE 1N4148M DO-34 T a
CD S D 0403 87-070-345-080 SILICON DIODE 1N4148M DO-34 T a
CD 0 FFC0401 88-CT6-606-010 FF-CABLE,16P 1.0 a
CD S IC 0401 87-A20-446-010 CHIP IC LA9241ML a
CD S IC 0402 87-A21-319-010 CHIP IC LC78622NE a
CD S IC 0404 87-A21-093-010 IC LA6541D a
CD 0 L 0401 87-003-102-080 FIXED IND 10UH (K) TP=26mm a
CD 0 L 0402 87-003-102-080 FIXED IND 10UH (K) TP=26mm a
CA-DW539
U2
CD 0 L 0404 87-003-152-080 FIXED IND 100UH a
CD 0 L 0405 87-003-102-080 FIXED IND 10UH (K) TP=26mm a
CD 0 L 0406 87-008-372-080 BEADS CORE (BLO1RN1-A63.T6) T a
CD S Q 0401 87-A30-216-080 TR 2SA933AS(R) a
CD S Q 0402 89-113-187-080 TRANSISTOR 2SA1318T AA a
CD S Q 0403 87-A30-287-040 CHIP TRANSISTOR DTC114TKA T14 a
CD S Q 0404 87-A30-287-040 CHIP TRANSISTOR DTC114TKA T14 a
CD S Q 0407 87-A30-062-040 CHIP TR KRC104S a
CD S Q 0408 87-A30-062-040 CHIP TR KRC104S a
CD X R 0401 88-118-101-080 CHIP RES 1/10W (J) 100ohm TP= a
CD X R 0402 88-118-100-080 CHIP RES 1/10W 10ohm (J) TP= a
CD 0 R 0403 88-118-123-080 CHIP RES 1/10W (J) 12K ohm T a
CD 0 R 0405 88-118-104-080 CHIP RES 1/10W (J) 100Kohm TP a
CD 0 R 0406 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
CD 0 R 0408 88-118-683-080 CHIP RES 1/10W (J) 68Kohm T8 a
CD X R 0409 88-118-222-080 CHIP RES 1/10W (J) 2.2Kohm TP a
CD 0 R 0410 88-118-273-080 CHIP RES 27K 0805 a
CD X R 0411 88-118-561-080 CHIP RES 1/10W (J) 560ohm TP= a
CD 0 R 0412 88-118-104-080 CHIP RES 1/10W (J) 100Kohm TP a
CD X R 0413 88-118-393-080 CHIPRES 1/10W (J) 39Kohm TP=8 a
CA-DW539
U2
CD 0 R 0414 88-118-332-080 CHIP RES 1/10W (J) 3.3K 0805 a
CD 0 R 0415 88-118-273-080 CHIP RES 27K 0805 a
CD 0 R 0417 88-118-123-080 CHIP RES 1/10W (J) 12K ohm T a
CD 0 R 0418 88-118-473-080 CHIP RES 1/10W (J) 47Kohm TP a
CD X R 0419 88-118-152-080 CHIP RES 1/10W (J) 1.5Kohm T a
CD X R 0420 88-118-333-080 CHIP RES 1/10W (J) 33K ohm T a
CD X R 0421 88-118-184-080 CHIP.RES,S 1/10W (J)180Kohm T a
CD 0 R 0423 88-118-104-080 CHIP RES 1/10W (J) 100Kohm TP a
CD X R 0424 88-118-122-080 CHIP RES 1/10W (J) 1.2Kohm TP a
CD X R 0425 88-118-563-080 CHIP RES 1/10W (J) 56Kohm TP= a
CD 0 R 0426 88-118-123-080 CHIP RES 1/10W (J) 12K ohm T a
CD 0 R 0427 88-118-103-080 CHIP RES 1/10W (J) 10Kohm TP= a
CD X R 0428 88-118-152-080 CHIP RES 1/10W (J) 1.5Kohm T a
CD X R 0429 88-118-101-080 CHIP RES 1/10W (J) 100ohm TP= a
CD X R 0430 88-128-682-080 CHIP RESISTOR 6.8K 1/8W 1206( a
CD X R 0431 88-118-274-080 CHIP RES,S 1/10W (J) 270Kohm a
CD X R 0432 88-118-274-080 CHIP RES,S 1/10W (J) 270Kohm a
CD 0 R 0433 88-118-472-080 CHIP RES 1/10W (J) 4.7Kohm TP a
CD 0 R 0434 88-118-473-080 CHIP RES 1/10W (J) 47Kohm TP a
CD 0 R 0435 88-118-223-080 CHIP RES 1/10W (J) 22Kohm TP a
CA-DW539
U2
CD X R 0436 88-118-183-080 CHIP RES 18K 0805 1/10W a
CD 0 R 0437 88-118-103-080 CHIP RES 1/10W (J) 10Kohm TP= a
CD 0 R 0438 88-118-331-080 CHIP RES,S 1/10W (J) 330ohm T a
CD 0 R 0439 88-118-153-080 CHIP RES 1/10W (J) 15Kohm TP a
CD 0 R 0440 88-118-331-080 CHIP RES,S 1/10W (J) 330ohm T a
CD X R 0441 88-118-681-080 CHIP RES 1/10W (J) 680ohm TP a
CD 0 R 0442 88-118-273-080 CHIP RES 27K 0805 a
CD X R 0443 88-118-122-080 CHIP RES 1/10W (J) 1.2Kohm TP a
CD X R 0444 88-118-333-080 CHIP RES 1/10W (J) 33K ohm T a
CD 0 R 0445 88-118-153-080 CHIP RES 1/10W (J) 15Kohm TP a
CD 0 R 0446 88-118-273-080 CHIP RES 27K 0805 a
CD 0 R 0447 88-118-103-080 CHIP RES 1/10W (J) 10Kohm TP= a
CD X R 0451 88-128-392-080 CHIP RES 1/8W 3.9K TP=8mm a
CD X R 0455 88-118-101-080 CHIP RES 1/10W (J) 100ohm TP= a
CD 0 R 0456 88-118-102-080 CHIP RES 1/10W (J) 1Kohm TP=8 a
CD 0 R 0457 88-118-103-080 CHIP RES 1/10W (J) 10Kohm TP= a
CD 0 R 0458 88-118-332-080 CHIP RES 1/10W (J) 3.3K 0805 a
CD 0 R 0460 88-118-683-080 CHIP RES 1/10W (J) 68Kohm T8 a
CD X R 0465 88-121-680-080 CARBON RES 1/6W (J) 68ohm TP= a
CD X R 0466 88-118-101-080 CHIP RES 1/10W (J) 100ohm TP= a
ELECTRICAL PARTS LIST - 2/10
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-7-
CA-DW539
U2
CD X R 0467 88-118-333-080 CHIP RES 1/10W (J) 33K ohm T a
CD R 0469 88-118-473-080 CHIP RES 1/10W (J) 47Kohm TP a
CD X R 0475 88-118-101-080 CHIP RES 1/10W (J) 100ohm TP= a
CD X R 0476 88-118-229-080 CHIP RES 2.2ohm 1/10W TP=8mm a
CD 0 R 0477 88-121-103-080 CARBON RES 1/6W (J) 10Kohm TP a
CD X R 0478 88-128-104-080 CHIP RESISTOR 1/8W 100K 1206 a
CD 0 R 0479 88-118-103-080 CHIP RES 1/10W (J) 10Kohm TP= a
CD 0 R 0480 88-118-102-080 CHIP RES 1/10W (J) 1Kohm TP=8 a
CD 0 R 0481 88-118-273-080 CHIP RES 27K 0805 a
CD 0 R 0482 88-118-273-080 CHIP RES 27K 0805 a
CD X R 0483 88-118-222-080 CHIP RES 1/10W (J) 2.2Kohm TP a
CD X R 0484 88-118-222-080 CHIP RES 1/10W (J) 2.2Kohm TP a
CD 0 R 0485 88-118-103-080 CHIP RES 1/10W (J) 10Kohm TP= a
CD 0 R 0486 88-118-103-080 CHIP RES 1/10W (J) 10Kohm TP= a
CD 0 R 0487 88-118-103-080 CHIP RES 1/10W (J) 10Kohm TP= a
CD 0 R 0488 88-118-104-080 CHIP RES 1/10W (J) 100Kohm TP a
CD X R 0489 88-118-101-080 CHIP RES 1/10W (J) 100ohm TP= a
CD X R 0495 88-118-821-080 CHIP RES 1/10W (J) 820ohm TP= a
CD X R 0496 88-128-821-010 CHIP RESISTOR 820ohm 1/8W 120 a
CD X R 0497 88-128-562-080 CHIP RESISTOR 5.6K 1/8W 1206 a
CA-DW539
U2
CD 0 R 0498 88-118-562-080 CHIP RES 1/10W(J) 5.6Kohm TP= a
CD 0 R 0530 88-118-104-080 CHIP RES 1/10W (J) 100Kohm TP a
CD 0 R 0531 88-118-104-080 CHIP RES 1/10W (J) 100Kohm TP a
CD 0 R 0532 88-118-104-080 CHIP RES 1/10W (J) 100Kohm TP a
CD 0 R 4001 88-121-101-080 CARBON RES 1/6W (J) 100ohm TP a
CD 0 R 4002 88-121-101-080 CARBON RES 1/6W (J) 100ohm TP a
CD X R 4003 88-121-272-080 CARBON RES 1/6W (J) 2.7Kohm T a
CD 0 R 4004 88-121-101-080 CARBON RES 1/6W (J) 100ohm TP a
CD 0 R 4005 88-121-101-080 CARBON RES 1/6W (J) 100ohm TP a
CD 0 R 4006 88-121-101-080 CARBON RES 1/6W (J) 100ohm TP a
CD 0 R 4007 88-118-125-080 CHIP RES,S 1/10W (J) 1.2Mohm a
CD 0 SFR0430 87-024-437-080 POTENTIAL METER 100KHZ a
CD 0 X 0401 8Z-CD5-633-010 CER RESONATOR 16.93MHZ (CSA16 a
FRONT 0 C 0601 87-010-313-080 CHIP.CAP,S 18P/50V (J) CH a
FRONT 0 C 0602 87-010-315-080 CHIP.CAP,S 27P/50V (J) CH a
FRONT 0 C 0603 87-010-317-080 CHIP.CAP,S 39P/50V (J) CH a
FRONT 0 C 0604 87-010-314-080 CHIP CAP 22P/50V (J) CH TP=8m a
FRONT 0 C 0605 87-012-184-080 CHIP CAP 33P/50V (J) CH TP=8m a
FRONT 0 C 0606 87-012-350-080 CHIP CAP (1206) 1UF/25V (F) Z a
FRONT 0 C 0607 87-012-566-080 CHIP CAP 0.01U/25V (Z) F a
CA-DW539
U2
FRONT 0 C 0608 87-010-197-080 CHIP.CAP,S 0.01U/25V (K) B TP a
FRONT 0 C 0609 87-010-196-080 CHIP.CAP,S 0.1U/25V (Z) F TP= a
FRONT 0 C 0610 87-010-263-080 ELEC CAP 100UF/10V (M) SME TP a
FRONT 0 C 0611 87-010-196-080 CHIP.CAP,S 0.1U/25V (Z) F TP= a
FRONT 0 C 0612 87-010-221-080 ELEC CAP 470u/10V (M) SME a
FRONT 0 C 0613 87-010-402-080 ELEC CAP 2.2u/50V (M) SME TP= a
FRONT 0 C 0614 87-010-196-080 CHIP.CAP,S 0.1U/25V (Z) F TP= a
FRONT 0 C 0615 87-010-400-080 ELEC CAP 0.47U/50V (M) SME a
FRONT 0 C 0616 87-010-400-080 ELEC CAP 0.47U/50V (M) SME a
FRONT 0 C 0617 87-A11-552-080 CHIP CAP S 1200P/50V (K) B TP a
FRONT 0 C 0618 87-010-263-080 ELEC CAP 100UF/10V (M) SME TP a
FRONT 0 C 0834 87-010-404-080 ELEC CAP 4.7u/50V (M) SME TP= a
FRONT 0 C 0836 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
FRONT 0 C 0837 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
FRONT 0 C 0838 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
FRONT 0 C 0839 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
FRONT 0 C 0840 87-010-221-080 ELEC CAP 470u/10V (M) SME a
FRONT 0 C 0841 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
FRONT 0 C 0844 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
FRONT 0 C 6004 87-010-198-080 CHIP CAP S 0.022U/25V (K) B T a
CA-DW539
U2
FRONT 0 C 6011 87-010-198-080 CHIP CAP S 0.022U/25V (K) B T a
FRONT 0 CN 0205 8Z-CT9-641-010 CONNECTOR ASS’Y 2P 8Z-CT6-641 a
FRONT 0 CON0601 87-A60-109-010 CONNECTOR BASE 2P V (S2M-2W) a
FRONT S D 0601 87-070-345-080 SILICON DIODE 1N4148M DO-34 T a
FRONT S D 0602 87-070-345-080 SILICON DIODE 1N4148M DO-34 T a
FRONT S D 0611 87-070-345-080 SILICON DIODE 1N4148M DO-34 T a
FRONT S D 0612 87-070-345-080 SILICON DIODE 1N4148M DO-34 T a
FRONT S D 0615 87-070-345-080 SILICON DIODE 1N4148M DO-34 T a
FRONT S D 0616 87-070-345-080 SILICON DIODE 1N4148M DO-34 T a
FRONT S D 0623 87-070-345-080 SILICON DIODE 1N4148M DO-34 T a
FRONT S D 0625 87-070-345-080 SILICON DIODE 1N4148M DO-34 T a
FRONT S D 0628 87-070-345-080 SILICON DIODE 1N4148M DO-34 T a
FRONT S D 0820 87-070-345-080 SILICON DIODE 1N4148M DO-34 T a
FRONT S D 0821 87-070-345-080 SILICON DIODE 1N4148M DO-34 T a
FRONT S D 0822 87-070-345-080 SILICON DIODE 1N4148M DO-34 T a
FRONT S IC 0601 8B-CT5-625-010 IC LC867132V5T98 (CPU) a
FRONT S IC 0602 87-A21-831-010 IC SPS-442-1-F1 a
FRONT 0 L 0601 87-003-149-080 FIXED IND 47 uH (K) T26 a
FRONT 0 L 0603 8B-CTA-971-010 FIXED IND 15UH a
FRONT 0 L 0605 87-008-372-080 BEADS CORE (BLO1RN1-A63.T6) T a
ELECTRICAL PARTS LIST - 3/10
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-8-
CA-DW539
U2
FRONT 0 L 0606 8B-CTA-971-010 FIXED IND 15UH a
FRONT 0 LCD0601 8B-CT5-601-010 LCD AIW4239-32P2N a
FRONT 0 LED0607 87-A41-050-040 LED BT-H203D-31 RED a
FRONT 0 LED0609 87-A41-050-040 LED BT-H203D-31 RED a
FRONT 0 LED0610 87-A41-050-040 LED BT-H203D-31 RED a
FRONT S Q 0601 87-A30-623-080 D TRANSISTOR DTC124XSA TP(87- a
FRONT S Q 0602 87-A30-216-080 TR 2SA933AS(R) a
FRONT S Q 0603 87-A30-623-080 D TRANSISTOR DTC124XSA TP(87- a
FRONT S Q 0605 87-026-464-080 D TRANSISTOR DTC114TSA TP a
FRONT S Q 0612 87-026-464-080 D TRANSISTOR DTC114TSA TP a
FRONT S Q 0616 87-A30-623-080 D TRANSISTOR DTC124XSA TP(87- a
FRONT S Q 0820 87-026-610-080 TR KTC3198-GR hFE=200~400 AI a
FRONT S Q 0822 87-026-610-080 TR KTC3198-GR hFE=200~400 AI a
FRONT S Q 0823 87-A30-623-080 D TRANSISTOR DTC124XSA TP(87- a
FRONT S Q 0824 87-026-462-080 TR 2SC1740SRS a
FRONT X R 0601 88-118-821-080 CHIP RES 1/10W (J) 820ohm TP= a
FRONT 0 R 0602 88-121-103-080 CARBON RES 1/6W (J) 10Kohm TP a
FRONT 0 R 0603 88-121-474-080 CARBON RES 1/6W (J) 470Kohm T a
FRONT X R 0604 88-121-334-080 CARBON RES 1/6W(J) 330kohm TP a
FRONT 0 R 0605 88-118-473-080 CHIP RES 1/10W (J) 47Kohm TP a
CA-DW539
U2
FRONT 0 R 0606 88-118-103-080 CHIP RES 1/10W (J) 10Kohm TP= a
FRONT 0 R 0607 88-118-104-080 CHIP RES 1/10W (J) 100Kohm TP a
FRONT 0 R 0611 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT 0 R 0612 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT 0 R 0613 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT 0 R 0614 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT 0 R 0615 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT 0 R 0616 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT 0 R 0617 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT 0 R 0618 88-118-102-080 CHIP RES 1/10W (J) 1Kohm TP=8 a
FRONT 0 R 0620 88-118-102-080 CHIP RES 1/10W (J) 1Kohm TP=8 a
FRONT 0 R 0621 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT 0 R 0622 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT X R 0624 88-118-152-080 CHIP RES 1/10W (J) 1.5Kohm T a
FRONT 0 R 0625 88-118-332-080 CHIP RES 1/10W (J) 3.3K 0805 a
FRONT 0 R 0627 88-118-102-080 CHIP RES 1/10W (J) 1Kohm TP=8 a
FRONT X R 0628 88-118-821-080 CHIP RES 1/10W (J) 820ohm TP= a
FRONT 0 R 0629 88-118-102-080 CHIP RES 1/10W (J) 1Kohm TP=8 a
FRONT 0 R 0630 88-118-102-080 CHIP RES 1/10W (J) 1Kohm TP=8 a
FRONT X R 0631 88-118-122-080 CHIP RES 1/10W (J) 1.2Kohm TP a
CA-DW539
U2
FRONT X R 0633 88-118-122-080 CHIP RES 1/10W (J) 1.2Kohm TP a
FRONT X R 0634 88-118-152-080 CHIP RES 1/10W (J) 1.5Kohm T a
FRONT 0 R 0635 88-118-182-080 CHIP RES 1/10W (J) 1.8Kohm TP a
FRONT 0 R 0640 88-118-102-080 CHIP RES 1/10W (J) 1Kohm TP=8 a
FRONT X R 0641 88-118-821-080 CHIP RES 1/10W (J) 820ohm TP= a
FRONT 0 R 0642 88-118-102-080 CHIP RES 1/10W (J) 1Kohm TP=8 a
FRONT 0 R 0643 88-118-102-080 CHIP RES 1/10W (J) 1Kohm TP=8 a
FRONT 0 R 0651 88-118-224-080 CHIP RES 1/10W (J) 220K ohm a
FRONT 0 R 0652 88-121-103-080 CARBON RES 1/6W (J) 10Kohm TP a
FRONT X R 0653 88-118-152-080 CHIP RES 1/10W (J) 1.5Kohm T a
FRONT 0 R 0658 88-121-103-080 CARBON RES 1/6W (J) 10Kohm TP a
FRONT X R 0660 88-118-152-080 CHIP RES 1/10W (J) 1.5Kohm T a
FRONT 0 R 0664 88-118-223-080 CHIP RES 1/10W (J) 22Kohm TP a
FRONT 0 R 0670 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT 0 R 0673 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT 0 R 0675 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT 0 R 0676 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT X R 0677 88-121-272-080 CARBON RES 1/6W (J) 2.7Kohm T a
FRONT 0 R 0678 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT 0 R 0679 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
CA-DW539
U2
FRONT 0 R 0680 88-118-102-080 CHIP RES 1/10W (J) 1Kohm TP=8 a
FRONT X R 0880 88-118-222-080 CHIP RES 1/10W (J) 2.2Kohm TP a
FRONT X R 0884 88-118-333-080 CHIP RES 1/10W (J) 33K ohm T a
FRONT 0 R 0885 88-118-472-080 CHIP RES 1/10W (J) 4.7Kohm TP a
FRONT X R 0886 88-118-474-080 CHIP RES 1/10W (J) 470Kohm 06 a
FRONT X R 0887 88-118-101-080 CHIP RES 1/10W (J) 100ohm TP= a
FRONT 0 R 0888 88-118-103-080 CHIP RES 1/10W (J) 10Kohm TP= a
FRONT 0 R 0889 88-118-103-080 CHIP RES 1/10W (J) 10Kohm TP= a
FRONT X R 0890 88-130-221-080 CARBON RES 1/4W 220ohm TP=26m a
FRONT X R 0891 88-118-334-080 CHIP RES 1/10W(J) 330Kohm TP= a
FRONT 0 R 6003 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT 0 R 6004 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT 0 R 6011 88-118-272-080 CHIP RES 1/10W (J) 2.7Kohm T a
FRONT 0 SW 0602 87-A91-704-080 TACT SWITCH H=5.0mm a
FRONT 0 SW 0603 87-A91-704-080 TACT SWITCH H=5.0mm a
FRONT 0 SW 0604 87-A91-704-080 TACT SWITCH H=5.0mm a
FRONT 0 SW 0605 87-A91-704-080 TACT SWITCH H=5.0mm a
FRONT 0 SW 0606 87-A91-704-080 TACT SWITCH H=5.0mm a
FRONT 0 SW 0607 87-A92-171-080 TACT SW H=5.0mm 260g a
FRONT 0 SW 0608 87-A91-704-080 TACT SWITCH H=5.0mm a
ELECTRICAL PARTS LIST - 4/10
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-9-
CA-DW539
U2
FRONT 0 SW 0612 87-A91-704-080 TACT SWITCH H=5.0mm a
FRONT 0 SW 0613 87-A91-704-080 TACT SWITCH H=5.0mm a
FRONT 0 SW 0614 87-A91-704-080 TACT SWITCH H=5.0mm a
FRONT 0 SW 0615 87-A91-704-080 TACT SWITCH H=5.0mm a
FRONT 0 SW 0616 87-A91-704-080 TACT SWITCH H=5.0mm a
FRONT 0 SW 0617 87-A91-704-080 TACT SWITCH H=5.0mm a
FRONT 0 SW 0618 87-A91-704-080 TACT SWITCH H=5.0mm a
FRONT 0 SW 0619 87-A91-704-080 TACT SWITCH H=5.0mm a
FRONT 0 VR 0801 87-A90-239-010 ROTARY VOLUME 10KA a
FRONT 0 X 0601 87-030-273-010 X’TAL CD 32.768KHZ CL:12.5P(D a
FRONT 0 X 0602 87-030-376-080 CER.RESONATOR 5.76MHZ 87-A70- a
JACK 0 C 0830 87-010-197-080 CHIP.CAP,S 0.01U/25V (K) B TP a
JACK 0 C 0831 87-012-566-080 CHIP CAP 0.01U/25V (Z) F a
JACK 0 C 0832 87-010-181-080 CHIP CAP 1800P/50V (K) B TP=8 a
JACK 0 C 0833 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
JACK 0 C 0835 87-010-544-080 ELEC CAP 0.1u/50V (M) SME a
JACK 0 C 0842 87-012-140-080 CHIP.CAP,S 470P/50V (J) CH TP a
JACK 0 J 0251 87-009-216-010 3.5 JACK W/SW ST a
JACK 0 J 0801 87-009-216-010 3.5 JACK W/SW ST a
JACK 0 L 0801 87-008-372-080 BEADS CORE (BLO1RN1-A63.T6) T a
CA-DW539
U2
JACK S Q 0821 89-322-405-080 TR 2SC2240GR TP a
JACK X R 0279 88-118-181-080 CHIP RES 1/10W (J) 180ohm TP= a
JACK X R 0280 88-118-181-080 CHIP RES 1/10W (J) 180ohm TP= a
JACK X R 0878 88-118-681-080 CHIP RES 1/10W (J) 680ohm TP a
JACK 0 R 0879 88-118-224-080 CHIP RES 1/10W (J) 220K ohm a
JACK X R 0881 88-118-474-080 CHIP RES 1/10W (J) 470Kohm 06 a
JACK 0 R 0882 88-118-472-080 CHIP RES 1/10W (J) 4.7Kohm TP a
JACK X R 0883 88-118-101-080 CHIP RES 1/10W (J) 100ohm TP= a
MAIN 0 C 0001 87-010-314-080 CHIP CAP 22P/50V (J) CH TP=8m a
MAIN 0 C 0002 87-012-184-080 CHIP CAP 33P/50V (J) CH TP=8m a
MAIN 0 C 0003 87-010-314-080 CHIP CAP 22P/50V (J) CH TP=8m a
MAIN 0 C 0005 87-016-669-080 CHIP.CAP,S 0.1U/25V (K) B a
MAIN 0 C 0006 87-010-313-080 CHIP.CAP,S 18P/50V (J) CH a
MAIN 0 C 0007 87-012-140-080 CHIP.CAP,S 470P/50V (J) CH TP a
MAIN 0 C 0008 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
MAIN 0 C 0010 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0011 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0012 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0013 87-010-149-080 CHIP CAP 5P/50V 0805 CH (C) a
MAIN 0 C 0014 87-010-303-080 CHIP CAP 330P/50V (K) B a
CA-DW539
U2
MAIN 0 C 0015 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
MAIN 0 C 0016 87-010-374-080 ELEC CAP 47U/10V (M) SME TP=5 a
MAIN 0 C 0017 87-010-992-080 CHIP CAP S 0.047UF/25V (K) B a
MAIN 0 C 0018 87-010-757-080 CHIP CAP 0.047UF/25V (K) B 12 a
MAIN 0 C 0019 87-010-263-080 ELEC CAP 100UF/10V (M) SME TP a
MAIN 0 C 0020 87-010-404-080 ELEC CAP 4.7u/50V (M) SME TP= a
MAIN 0 C 0021 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0022 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0023 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0025 87-A12-162-080 CHIP CAP 0.22U/25V (K) B a
MAIN 0 C 0027 87-010-805-080 CHIP.CAP,S 1UF/16V (Z) F TP=8 a
MAIN 0 C 0028 87-016-669-080 CHIP.CAP,S 0.1U/25V (K) B a
MAIN 0 C 0029 87-016-669-080 CHIP.CAP,S 0.1U/25V (K) B a
MAIN 0 C 0030 87-A11-228-080 CHIP CAP 0.027UF/25V (K) B TP a
MAIN 0 C 0031 87-A11-228-080 CHIP CAP 0.027UF/25V (K) B TP a
MAIN 0 C 0033 87-015-610-080 CHIP CAP 0.47UF/25V (Z)F a
MAIN 0 C 0034 87-015-610-080 CHIP CAP 0.47UF/25V (Z)F a
MAIN 0 C 0035 87-015-819-080 CHIP.CAP 0.01U/50V (K) B TP=8 a
MAIN 0 C 0036 87-010-263-080 ELEC CAP 100UF/10V (M) SME TP a
MAIN 0 C 0037 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
CA-DW539
U2
MAIN 0 C 0038 87-010-374-080 ELEC CAP 47U/10V (M) SME TP=5 a
MAIN 0 C 0039 87-010-404-080 ELEC CAP 4.7u/50V (M) SME TP= a
MAIN 0 C 0040 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0042 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
MAIN 0 C 0043 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
MAIN 0 C 0044 87-010-312-080 CHIP CAP 15P/50V (J) CH TP=8m a
MAIN 0 C 0045 87-010-312-080 CHIP CAP 15P/50V (J) CH TP=8m a
MAIN 0 C 0046 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0047 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0048 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0049 87-012-140-080 CHIP.CAP,S 470P/50V (J) CH TP a
MAIN 0 C 0050 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0071 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0072 87-010-263-080 ELEC CAP 100UF/10V (M) SME TP a
MAIN 0 C 0073 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0075 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0091 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0092 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0093 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0099 87-018-134-080 AXIAL CAP 0.01U/50V (K) a
ELECTRICAL PARTS LIST - 5/10
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-10-
CA-DW539
U2
MAIN 0 C 0215 87-A10-201-080 CHIP CAP 0.33/50V (Z) F a
MAIN 0 C 0216 87-A10-201-080 CHIP CAP 0.33/50V (Z) F a
MAIN 0 C 0231 87-015-632-080 CHIP CAP 0.015UF/50V (Z) F a
MAIN 0 C 0232 87-015-632-080 CHIP CAP 0.015UF/50V (Z) F a
MAIN 0 C 0233 87-A10-201-080 CHIP CAP 0.33/50V (Z) F a
MAIN 0 C 0234 87-A10-201-080 CHIP CAP 0.33/50V (Z) F a
MAIN 0 C 0235 87-A12-319-080 CHIP CAP 0.1U/25V (K) B (1206 a
MAIN 0 C 0236 87-A12-319-080 CHIP CAP 0.1U/25V (K) B (1206 a
MAIN 0 C 0237 87-010-380-080 ELEC CAP 47UF/16V (M) TP=5mm a
MAIN 0 C 0238 87-010-248-080 ELEC CAP 220U/10V (M) SME a
MAIN 0 C 0239 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0240 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0241 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
MAIN 0 C 0242 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
MAIN 0 C 0243 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
MAIN 0 C 0244 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
MAIN 0 C 0245 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
MAIN 0 C 0246 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
MAIN 0 C 0247 87-010-404-080 ELEC CAP 4.7u/50V (M) SME TP= a
MAIN 0 C 0248 87-010-404-080 ELEC CAP 4.7u/50V (M) SME TP= a
CA-DW539
U2
MAIN 0 C 0251 87-010-405-080 ELEC CAP 10UF/50V (M) SME TP= a
MAIN 0 C 0261 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
MAIN 0 C 0262 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
MAIN 0 C 0263 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
MAIN 0 C 0264 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
MAIN 0 C 0266 87-010-545-080 ELEC CAP 0.22UF/50V (M) SEM T a
MAIN 0 C 0267 87-010-545-080 ELEC CAP 0.22UF/50V (M) SEM T a
MAIN 0 C 0271 87-010-237-080 EL CAP 1000UF/16V a
MAIN 0 C 0272 87-010-237-080 EL CAP 1000UF/16V a
MAIN 0 C 0277 87-010-404-080 ELEC CAP 4.7u/50V (M) SME TP= a
MAIN 0 C 0278 87-010-112-080 ELEC CAP 100UF/16V (M) SME TP a
MAIN 0 C 0279 87-010-112-080 ELEC CAP 100UF/16V (M) SME TP a
MAIN 0 C 0280 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
MAIN 0 C 0281 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
MAIN 0 C 0285 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
MAIN 0 C 0287 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
MAIN 0 C 0288 87-010-198-080 CHIP CAP S 0.022U/25V (K) B T a
MAIN 0 C 0292 87-010-404-080 ELEC CAP 4.7u/50V (M) SME TP= a
MAIN 0 C 0293 87-010-404-080 ELEC CAP 4.7u/50V (M) SME TP= a
MAIN 0 C 0298 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
CA-DW539
U2
MAIN 0 C 0299 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0301 87-012-157-080 EHIP.CAP,S 330P/50V (J) CH TP a
MAIN 0 C 0302 87-012-157-080 EHIP.CAP,S 330P/50V (J) CH TP a
MAIN 0 C 0303 87-010-177-080 CHIP CAP 820P/50V TP=8mm a
MAIN 0 C 0304 87-010-177-080 CHIP CAP 820P/50V TP=8mm a
MAIN 0 C 0305 87-010-374-080 ELEC CAP 47U/10V (M) SME TP=5 a
MAIN 0 C 0306 87-010-374-080 ELEC CAP 47U/10V (M) SME TP=5 a
MAIN 0 C 0307 87-010-382-080 ELEC.CAP 22 UF/25V (M) SME TP a
MAIN 0 C 0308 87-010-405-080 ELEC CAP 10UF/50V (M) SME TP= a
MAIN 0 C 0309 87-010-404-080 ELEC CAP 4.7u/50V (M) SME TP= a
MAIN 0 C 0310 87-010-404-080 ELEC CAP 4.7u/50V (M) SME TP= a
MAIN 0 C 0311 87-010-248-080 ELEC CAP 220U/10V (M) SME a
MAIN 0 C 0312 87-010-374-080 ELEC CAP 47U/10V (M) SME TP=5 a
MAIN 0 C 0313 87-015-828-080 CHIP CAP 0.033UF/25V (Z)F TP= a
MAIN 0 C 0314 87-015-828-080 CHIP CAP 0.033UF/25V (Z)F TP= a
MAIN 0 C 0315 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
MAIN 0 C 0316 87-010-401-080 ELEC CAP 1UF/50V (M) SME TP=5 a
MAIN 0 C 0317 87-010-382-080 ELEC.CAP 22 UF/25V (M) SME TP a
MAIN 0 C 0318 87-010-382-080 ELEC.CAP 22 UF/25V (M) SME TP a
MAIN 0 C 0319 87-010-405-080 ELEC CAP 10UF/50V (M) SME TP= a
CA-DW539
U2
MAIN 0 C 0320 87-010-405-080 ELEC CAP 10UF/50V (M) SME TP= a
MAIN 0 C 0321 87-012-157-080 EHIP.CAP,S 330P/50V (J) CH TP a
MAIN 0 C 0322 87-012-157-080 EHIP.CAP,S 330P/50V (J) CH TP a
MAIN 0 C 0323 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0324 87-010-197-080 CHIP CAP S 0.01U/25V (K) B TP a
MAIN 0 C 0325 87-010-180-080 CHIP CAP 1500P/50V (K) B TP=8 a
MAIN 0 C 0326 87-010-180-080 CHIP CAP 1500P/50V (K) B TP=8 a
MAIN 0 C 0327 87-010-404-080 ELEC CAP 4.7u/50V (M) SME TP= a
MAIN 0 C 0328 87-010-178-080 CHIP CAP 1000P/50V (K) B TP=8 a
MAIN 0 C 0329 87-010-182-080 CHIP CAP 2200P/50V (K) B TP=8 a
MAIN 0 C 0330 87-010-213-080 CHIP CAP 0.015u/25V (K) B TP= a
MAIN 0 C 0331 87-010-263-080 ELEC CAP 100UF/10V (M) SME TP a
MAIN 0 C 0332 88-700-620-810 MALAY CAP 0.0012UF/50V (J) a
MAIN 0 C 0334 87-012-155-080 CHIP CAP 180P/50V (J) CH TP=8 a
MAIN 0 C 0341 87-012-157-080 EHIP.CAP,S 330P/50V (J) CH TP a
MAIN 0 C 0342 87-012-157-080 EHIP.CAP,S 330P/50V (J) CH TP a
MAIN 0 C 0343 87-012-157-080 EHIP.CAP,S 330P/50V (J) CH TP a
MAIN 0 C 0344 87-010-303-080 CHIP CAP 330P/50V (K) B a
MAIN 0 C 0363 87-010-182-080 CHIP CAP 2200P/50V (K) B TP=8 a
MAIN 0 C 0364 87-010-182-080 CHIP CAP 2200P/50V (K) B TP=8 a
ELECTRICAL PARTS LIST - 6/10
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
