Aiwa XR-M1000 User manual

88-SP1-903-01
980320AKY-U-9
IFor assistance and information I
Icall toll free I-800-BUY=AIWA I
I(United States and Puerto Rico) I
(ilEiE
DIGITAL AUDIO

I \ 7\IRISKOFELECTRICSHOCKI/ I \ ~i%~$

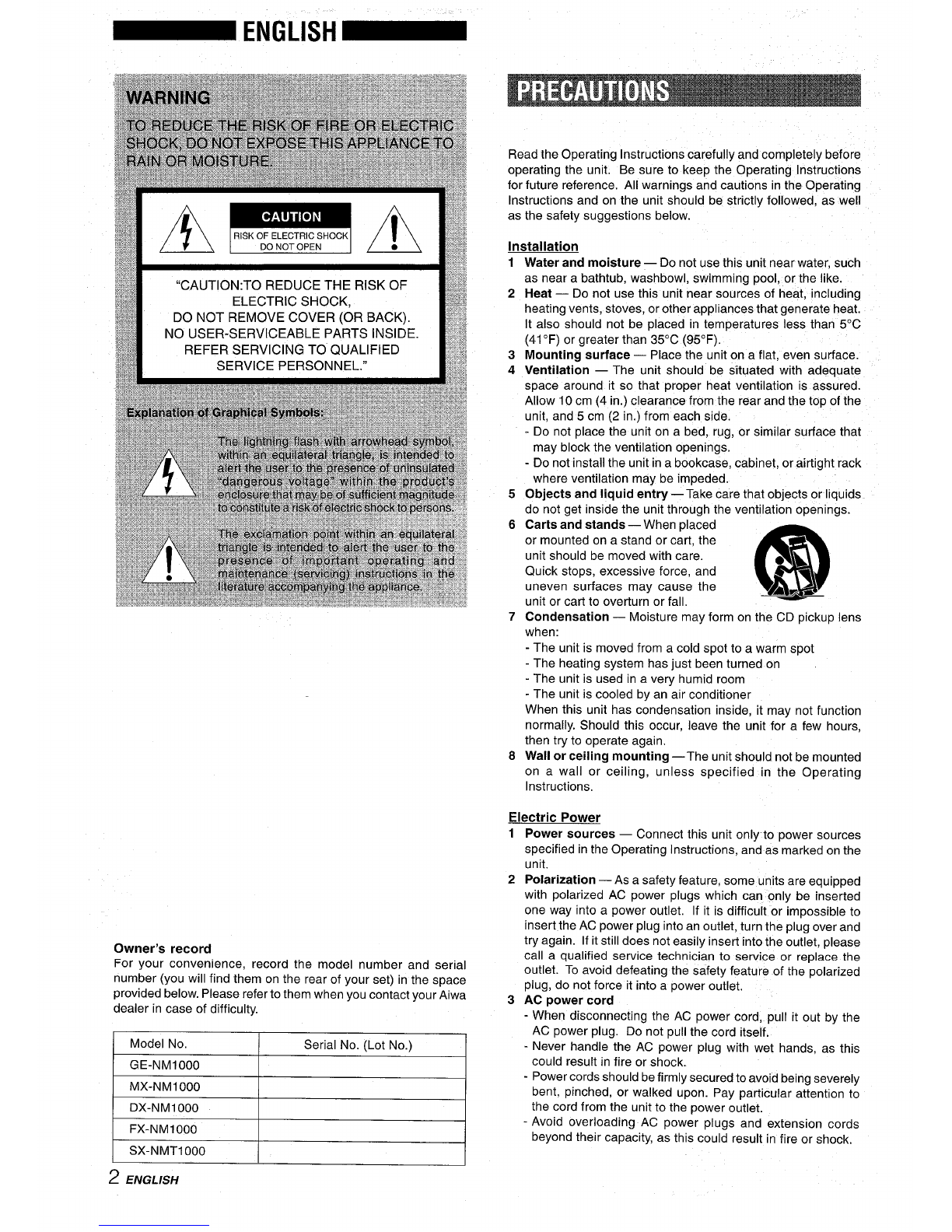

“CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
Owner’s record
For your convenience, record the model number and serial
number (you will find them on the rear of your set) in the space
provided below. Please refer to them when you contact your Aiwa
dealer in case of difficulty.
Model No. Serial No. (Lot No.)
GE-NMIOOO
MX-NMIOOO
DX-NM1OOO
FX-NM1OOO
SX-NMTIOOO
2ENGLISH
Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions
for future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well
as the safety suggestions below.
Installation
1
2
3
4
5
6
7
8
Water and moisture —Do not use this unit near water, such
as near abathtub, washbowl, swimming pool, or the like.
Heat —Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
(41“F) or greater than 35°C (95”F).
Mounting surface —Place the unit on a flat, even surface.
Ventilation —The unit should be situated with adequate
space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the rear and the top of the
unit, and 5 cm (2 in.) from each side.
-Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.
-Do not install the unit in abookcase, cabinet, or airtight rack
where ventilation may be impeded.
Objects and liquid entry —Take care that objects or liquids
do not get inside the unit through the ventilation openings.
Carts and stands —When placed
or mounted on a stand or cart, the
unit should be moved with care.
Quick stops, excessive force, and @!l!!!l
●\
uneven surfaces may cause the 3
A-s
unit or cart to overturn or fall.
Condensation —Moisture may form on the CD pickup lens
when:
-The unit is moved from acold spot to awarm spot
-The heating system has just been turned on
-The unit is used in avery humid room
-The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for afew hours,
then try to operate again.
Wall or ceiling mounting —The unit should not be mounted
on a wall or ceiling, unless specified in the Operating
Instructions.
Electric Power
1Power sources —Connect this unit onlv to Dower sources
2
3
.,
specified in the Operating Instructions, and as marked on the
unit.
Polarization —As asafety feature, some units are equipped
with polarized AC power plugs which can only be inserted
one way into apower outlet. If it is difficult or impossible to
insert the AC power plug into an outlet, turn the plug over and
try again. If it still does not easily insert into the outlet, please
call aqualified service technician to service or replace the
outlet. To avoid defeating the safety feature of the polarized
plug, do not force it into apower outlet.
AC power cord
-When disconnecting the AC power cord, pull it out by the
AC power plug. Do not pull the cord itself.
-Never handle the AC power plug with wet hands, as this
could result in fire or shock.
-Power cords should be firmly secured to avoid being severely
bent, pinched, or walked upon. Pay particular attention to
the cord from the unit to the power outlet.
-Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or shock.

4
5
Extension cord —To help prevent electric shock, do not use
apolarized AC power plug with an extension cord, receptacle,
or other outlet unless the polarized plug can be completely
inserted to prevent exposure of the blades of the plug.
When not in use —Unplug the AC power cord from the power
outlet if the unit will not be used for several months or more,
When the cord is plugged in, asmall amount of current
continues to flow to the unit, even when the power is turned
off.
Outdoor Antenna
1Power lines —When connecting an outdoor antenna, make
sure it is located away from power lines,
2Outdoor antenna grounding —Be sure the antenna system
is properly grounded to provide protection against unexpected
voltage surges or static electricity build-up. Article 810 of the
National Electrical Code, ANS1/NFPA 70, provides information
on proper grounding of the mast, supporting structure, and
the lead-in wire to the antenna discharge unit, as well as the
size of the grounding unit, connection to grounding terminals,
and requirements for grounding terminals themselves.
Antenna Grounding According to the National Electrical Code
T~ANTENNA LEAD IN WIRE
. ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC
SERVICE
EQUIPMENT GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
-~POWER SERVICE GROUNDING
ELECTRQDE SYSTEM
(NEC ART 250 PART H)
NEC.NATIONAL ELECTRICAL CQDE
Maintenance
Clean the unit only as recommended in the Operating
Instructions.
Damaae Reuuirina Service
Have the units serviced by aqualified service technician if:
-The AC power cord or plug has been damaged
-Foreign objects or liquid have gotten inside the unit
-The unit has been exposed to rain or water
-The unit does not seem to operate normally
-The unit exhibits amarked change in performance
-The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
tr 7
❑
Precautions .......................m.m.........................................2
PREPARATIONS
CONNECTIONS ................................................................. 4
REMOTE CONTROL .............m.............................................6
BEFORE OPERATION ........................................................6
AUDIO ADJUSTMENTS .................................................... 7
❑GRAPHIC EQUALIZER
PARTS INDEX .................................................................... 8
GRAPHIC EQUALIZER ......................................................8
DSP SURROUND ............................................................. 10
RHYTHM PLAY FUNCTION (BEAT MASTER) ...............12
SETTING THE CLOCK .................................................... 13
SETTING THE SLEEP TIMER ......................................... 13
SETTING THE TIMER ...................................................... 14
❑STEREO RECEIVER
PARTS INDEX .................................................................. 16
RADIO RECEPTION ........................................................ 16
PRESETTING STATIONS ................................................ 17
MICROPHONE MIXING (KARAOKE) ............................. 18
❑CD PLAYER
PARTS INDEX .................................................................. 20
CD PLAYING .................................................................... 20
PROGRAMMED PLAY ..................................................... 22
KARAOKE PROGRAM .................................................... 23
❑CASSETTE DECK
PARTS INDEX ........................................................m......... 24
TAPE PLAYBACK ............................................................ 24
CONTINUOUS PLAY ....................................................... 25
BASIC RECORDING ........................................................ 26
DUBBING ATAPE MANUALLY ...................................... 27
DUBBING THE WHOLE TAPE ........................................ 27
Al EDIT RECORDING ...................................................... 28
PROGRAMMED EDIT RECORDING ............................... 29
GENERAL
CONNECTING OPTIONAL EQUIPMENT ....................... 30
LISTENING TO EXTERNAL SOURCES ......................... 30
CARE AND MAINTENANCE ........................................... 31
TROUBLESHOOTING GUIDE ......................................... 32
SPECIFICATIONS ............................................................ 33
ENGLISH 3

IMPORTANT

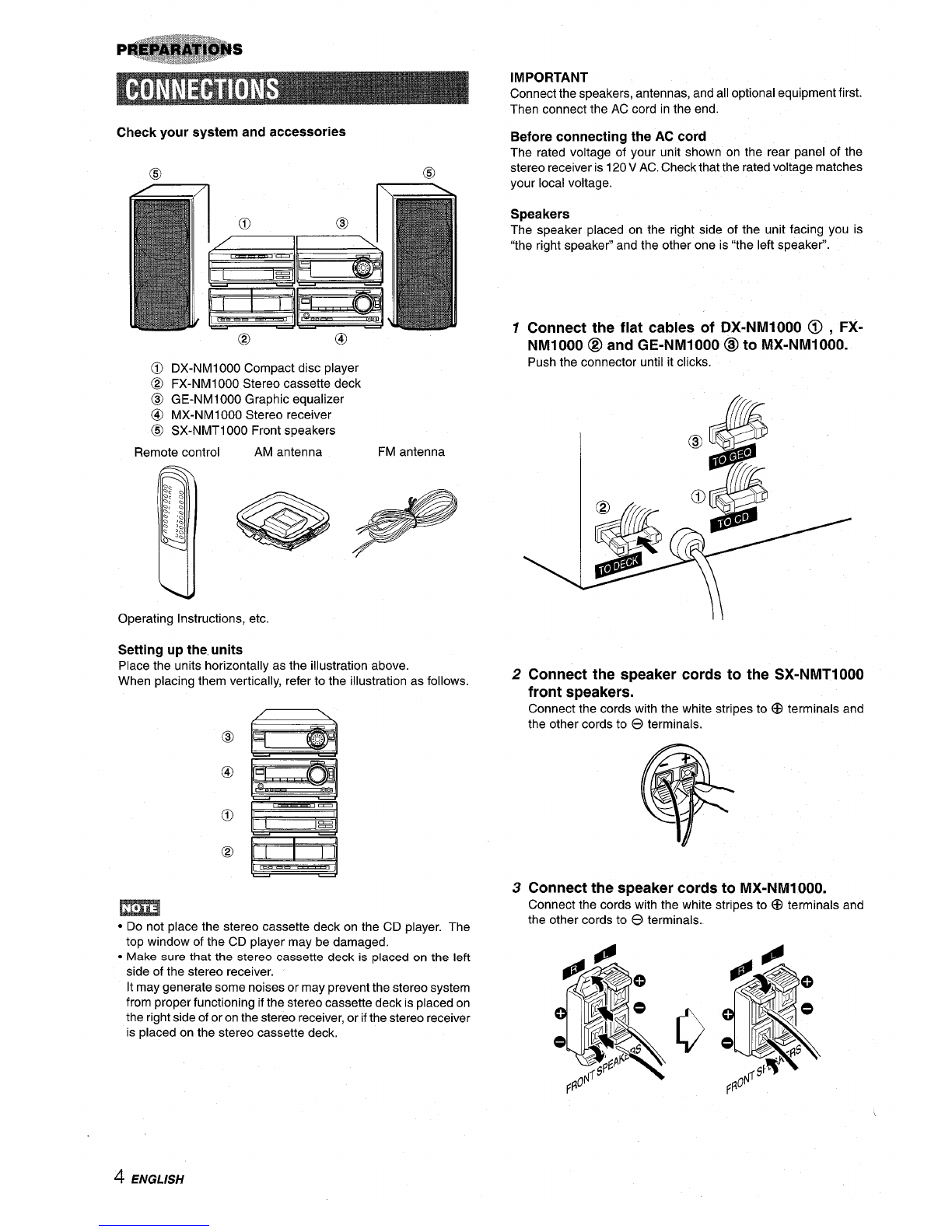

Check your system and accessories
@@
Ah.
@@
@DX-NMI 000 Compact disc player
@FX-NM1 000 Stereo cassette deck
@GE-NMIOOO Graphic equalizer
@MX-NMI 000 Stereo receiver
@SX-NMT1 000 Front speakers
Remote control AM antenna FM antenna
Operating Instructions, etc.
Setting up the, units
Place the units horizontally as the illustration above.
When placing them vertically, refer to the illustration as follows.
●Do not place the stereo cassette deck on the CD player. The
top window of the CD player may be damaged.
●Make sure that the stereo cassette deck is placed on the left
side of the stereo receiver.
It may generate some noises or may prevent the stereo system
from proper functioning if the stereo cassette deck is placed on
the right side of or on the stereo receiver, or ifthe stereo receiver
is placed on the stereo cassette deck.
Connect the speakers, antennas, and all optional equipment first.
Then connect the AC cord in the end.
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel of the
stereo receiver is 120VAC. Check that the rated voltage matches
your local voltage.
Speakers
The speaker placed on the right side of the unit facing you is
“the right speaker” and the other one is “the left speaker”.
1
.
2
3
Connect the flat cables of DX-NM1OOO @,FX-
NM1OOO@and GE-NM1OOO @to MX-NMIOOO.
Push the connector until it clicks.
Connect the speaker cords to the SX-NMTI 000
front speakers.
Connect the cords with the white stripes to @terminals and
the other cords to @terminals.
Connect the speaker cords to MX-NM1 000.
Connect the cords with the white stripes to @terminals and
the other cords to ~terminals.
4ENGLISH

Left speaker
SX-NMT1 000
4FM antenna
)1[
-AMantennaq
L‘L
Right speaker
SX-NMT1 000
~Kr Ill (3 DX-NM1OOO la
Speaker cord +5
4Connect the supplied antennas. To position the antennas
Connect the FM antenna to FM 75 Qterminals and the AM FM antenna:
antenna to AM LOOP terminals. Extend this antenna horizontally in aT-shape and fix its ends to
FM antenna
)[(
ntenna
5Connect the AC cord to an AC outlet.
To stand the AM antenna on a surface
Fix the claw to the slot,
the wall.
AM antenna:
Position to find the best possible reception.
m
●Be sure to connect the speaker cords correctly. Improper
connections can cause short circuits in SPEAKERS terminals.
●Do not leave objects generating magnetism, such as credit
cards, near the speakers, as these objects may be damaged.
●Do not bring the FM antenna near metal objects or curtain rails.
●Do not bring the AM antenna near other optional equipment,
the stereo system itself, the AC cord or speaker cords, since
noise will be picked up.
●Do not unwind the AM antenna wire.
ENGLISH 5

To unplug the connector of the flat cable
Press the tabs and pull out.
For better FM reception, use of an outdoor antenna is
recommended,
Connect the outdoor antenna to FM 75 Qterminals.
p’ ‘“
To connect other optional equipment+ page 30.
Inserting batteries
Detach the battery cover on the rear of the remote control and
insert two R6 (size AA) batteries.
R6(AA)
When to replace the batteries
The maximum operational distance between the remote control
and the sensor on the main unit should be approximately 5meters
(16 feet). When this distance decreases, replace the batteries
with new ones,
Using the remote control
The instructions in this manual refer mainly to the buttons on the
main unit. Buttons on the remote control with the same names
as those on the main unit can be used as well.
●If the remote control is not going to be used for an extended
period of time, remove the batteries to prevent possible
electrolyte leakage.
●The remote control may not operate correctly when:
-The line of sight between the remote control and the remote
sensor inside the display window is exposed to intense light,
such as direct sunlight
-Other remote controls are used nearby (those of atelevision,
etc.)
AOPEN/CLOSE MULTI JOG
■STOP DEMO
IDISPLAY
I
1I
II
POWER PHONES TUNING
V,A
To turn the power on
Press one of the function buttons (TAPE, TUNER, VIDEO/AUX,
CD, MD). Playback of the inserted disc or tape begins, or the
previously tuned station is received (Direct Play Function).
POWER is also available.
When the unit is turned on, the disc compartment may open and
close to reset the unit.
To turn the power off
Press POWER.
Using the headphones
Connect headphones to the PHONES jack with astandard stereo
plug (06.3 mm, ‘/4 inch).
No sound is output from the speakers while the headphones are
plugged in.
Flash window
The window on the top of the CD player lights up or flashes
while the unit is being powered on.
To turn off, press ■STOP of the CD player while pressing
AOpEN/CLOSE. To turn back on, repeat the above.
To dim the illumination of the display
1Press DISPLAY twice so that “DIMMER” is displayed.
2Within 4seconds, turn MULTI JOG to select the dimmer mode
as follows.
rDIMMER O* DIMMER 1*DIMMER 27
DIMMER O: The normal display.
DIMMER 1: The illumination of the display is dimmer than
usual.
DIMMER 2: The illumination of the display is dimmer than
DIMMER 1, and the spectrum analyzer and
illumination on the buttons disappear.
To change the spectrum analyzer display
4patterns of spectrum analyzer display can be shown.
Press DISPLAY once, and turn MULTI JOG within 4seconds to
select the desired spectrum analyzer display.
(a EAIGL/SH

When the AC cord is connected or DEMO is pressed, the display
windows start the demonstration and you can enjoy the game
Demo.
●The demonstration is canceled when the power is turned on,
To play the game Demo
1Press DEMO so that the game Demo displays.
2Press TUNING A.
Three numbers on the display start to run.
3Press TUNING Vonce.
The number on the left side stops.
4Press TUNING Vtwice to stop the remaining two numbers.
●You can enjoy the game Demo with game sound while the
power is on.
Scoring:
20 points are given to start the game.
If all the numbers are eaual, 50 points are added to the score,
If not equal, one point is subtracted.
If the gained points reach 9999, you win.
If the gained points fall to O,you lose.
To cancel the game Demo
Press DEMO. Tore-activate the game Demo, press DEMO again.
To reset the game Demo
Press DEMO twice, then press TUNING A. The game starts
again.
To mute the game sound
Once, cancel the game Demo by pressing DEMO. Then, keep
pressing DEMO until “)) OFF is displayed.
To restore the game sound, keep pressing DEMO again until
“}) ON” is displayed,
m
●During the game Demo, TUNING Vand TUNING Aare
available only for the game Demo. Cancel the game Demo to
use these buttons for the functions such as tuning or presetting
astation, etc.
●To change the game sound, see “RHYTHM PLAY FUNCTION”
on page 12.
●During the game Demo, some indicators unrelated with the
actual operation light up on the display.
Use the buttons and controls on the stereo receiver or the remote
control.
VOLUME
T-BASS
VOLUME
.IP:,.”7 ,:. *~,,p~ .,! .:,,,,.,. ,,,m,,..,r...%”, $h!$fjw~jx,? x,? ... . . ...,.,,.,=.,,,...
.,.,
I'm,,,,,.,. . . . h.*. , : :“ $“%:’”t*!’”$’:: :.; ;“;
VOLUME
Turn VOLUME on the stereo receiver, or press VOLUME
on the remote control.
The volume level is displayed as anumber from Oto MAX (50).
The volume level is automatically set to 20 when the power is
turned off with the volume level set to 21 or more.
BBE SYSTEM
The BBE system enhances the clarity of high-frequency sound.
It also enriches the Karaoke function to make your voice sound
clear and pleasant.
Press BBE on the stereo receiver.
Each time it is pressed, the level changes. Select one of the 3
levels, or the off position to suit your preference.
sound.
Press T-BASS on the stereo receiver.
Each time it is pressed, the level changes. Select one of the 4
levels, or the off position to suit your preference.
Low frequency sound may be distorted when the T-BASS system
is used for adisc or tape in which low frequency sound is originally
emphasized. In this case, cancel the T-BASS system.
ENGLISH 7

Name
ODEMO
@Display window
6) FREQ DOWN
GEQ
FREQ UP
~CLOCWTIMER
@DISPLAY
@ENTER
() RHYTHM
~DELAY TIME
SURROUND
EFFECT
~MULTI JOG
page
7
9
8
9
13-15
6,7
9,11,12
12
10,11
10,11
10,11
6-14
This unit provides the following 5different programmed
equalization curves.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence inthe vocals and midrange
JAZZ: Accented Iowerfrequencies forjazz-type music
CLASSIC: Enriched soundwith heavy bass andfinetreble.
BGM:Calm tone with suppressed bass and treble.
G:Q
MULTi JOG
GEQ
Press GEQ, and turn MULTI JOG to select one of the
programmed equalization curves within 4seconds.
The-GEQ mode is displayed cyclically as follows.
rlROCK++ POP++ JAZZ~CLASSIC~ BGM +
.---------- Programmed mode -----------
LGEQ GEQ GEQ GEQ GEQ
M5 —M4 —M3 —M2 —Ml +
‘------------- Manualmode-----------:
To cancel the graphic equalizer
Press GEQ once or twice so that “GEQ OFF appears on the
display of the stereo receiver.
When using the remote control, press GEQrepeatedly until “GEQ
OFF” is displayed.
8ENGLISH

SETTING ANEW EQUALIZATION CURVE
MANUALLY
The equalization curve can be customized to suit your preference.
1Press FREQ DOWN or FREQ UP.
2Within 4seconds, press FREQ DOWN or FREQ
UP repeatedly to select the frequency you want
the
4Repeat steps 2 and 3 to complete the equalization
curve.
To cancel the graphic equalizer
Press GEQ once or twice so that “GEQ OFF appears on the
display of the stereo receiver.
When using the remote control, press GEQ repeatedly until “GEQ
OFF is displayed.
1,3 12,4
Up to 5customized equalization curves can be stored as the
manual modes Ml -M5.
7Set anew equalization curve with FREQ DOWN, ~! ~
FREQ UP and MULTI JOG. f
‘<.g
?.~
See“SETTING ANEW EQUALIZATION CURVE MANUALLY”. u
The created curve is displayed for 8seconds. a
.m
2Within 4seconds, press ENTER.
“M 1“ indicator flashes on the display for 4seconds.
●If this step is not completed within 4seconds, press GEQ
first to display “GEQ ON”. Then press ENTER within 4
seconds.
3Within 8seconds, turn MULTI JOG to select one
of the manual modes Ml -M5 to store the curve.
4Within 8seconds, press ENTER.
The new equalization curve is stored.
To select the stored equalization curve
Press GEQ, and turn MULTI JOG to select one of the manual
modes Ml -M5 within 4seconds.
ENGLISH 9

The DSP (Digital Signal Processor) SURROUND adjusts the
delay time, the input mode and the feedback level to give a
resonant surround sound, allowing you to enjoy the real sound
presence of different environments.
This unit has been programmed with 5different SURROUND
modes, You can also create and memorize up to 5of your own
surround settings.
SELECTING APROGRAMMED DSP
SURROUND MODE
MULTI JOG
SURROUND
When you select the programmed DSP SURROUND mode, the
sound presence of adisco (DISCO), live music performance
(LIVE), movie theater (MOVIE), concert hall (HALL) or arena
(ARENA) can be chosen.
Press SURROUND, and turn MULTI JOG to select
the desired Programmed mode within 4seconds.
The DSP SURROUND mode is displayed cyclically as follows.
~DISCO— LIVE —MOVIE —HALL— ARENA~
L‘------------ Programmed mode ------------:
DSP DSP DSP DSP DSP
M5 —M4 —M3 —M2 —Ml J
‘----------------Manual mode -------------:
Equalization curves are selected automatically to match the
programmed DSP SURROUND modes, For the manual mode,
the corresponding number of the manual GEQ mode is selected.
To cancel DSP SURROUND
Press SURROUND once or twice so that “DSP OFF” appears
on the stereo receiver.
When the music source is monaural
Select “LIVE” or “MOVIE to obtain asimulated stereo effect,
When “DISCO, “HAL~ or “ARENA is selected, no sound will
be heard from the connected surround speakers. (The surround
speakers are not supplied. See page 30.)
The elements of the DSP SURROUND sound can be customized.
MULTI JOG
DELA; TIME EFF’ECT
DELAY TIME (delay time)
Increasing the number in the display increases the delay time
and surround effect.”1 5“,” 20, “30, “50, “100 or “140” msec
can be selected.
To adjust the delay time
Press DELAY TIME, and turn MULTI JOG to select one of
the levels within 8seconds.
L-R, L+R (inmt mode)
When “L+R” is displayed, the surround effect increases,
especially in the center.
When “L-R is displayed, it increases on the outside.
To select an input mode
Press EFFECT ~, and turn MULTI JOG to select “L-R or
“L+R within 8seconds.
FB (feedback level)
Increasing the number in the display increases the echo.
Alevel from “OFF (0) to “7” can be selected.
To adjust the level of feedback
Press EFFECTw, and turn MULTI JOG to select one of
the levels within 8seconds,
To cancel DSP SURROUND
Press SJJRROUND once or twice so that “DSP OFF appears
on the stereo receiver.
1() ENGLISH

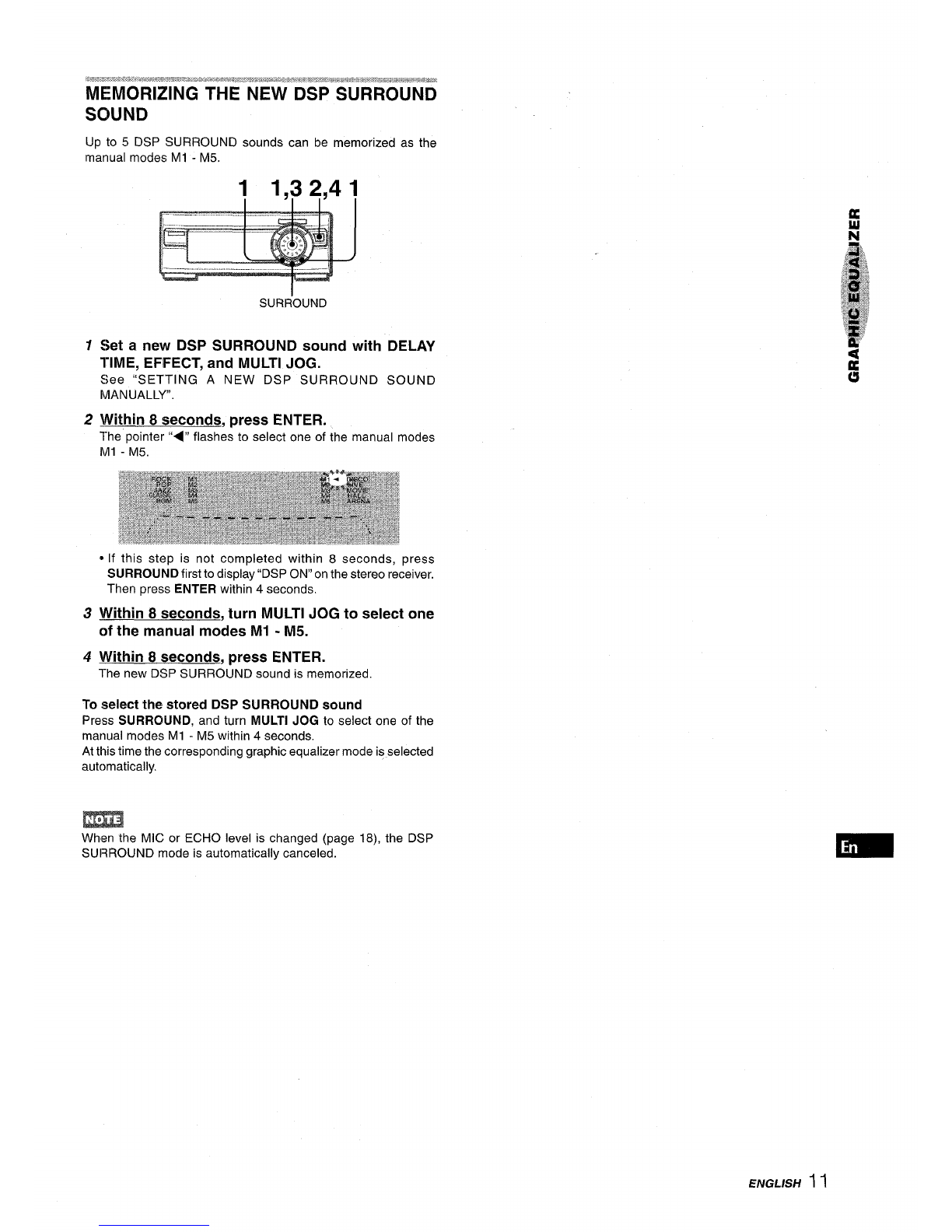

MEMORIZING THE NEW DSP SURROUND
SOUND
Up to 5DSP SURROUND sounds can be memorized as the
manual modes Ml -M5.
1
2
3
4
SURROUND
Set anew DSP SURROUND sound
TIME, EFFECT, and MULTI JOG. with DELAY
See “SETTING ANEW DSP SURROUND SOUND
MANUALLY”.
Within 8seconds, press ENTER.
l-he pointer “<” flashes to select one of the manual modes
Ml -M5.
oIf this step is not completed within 8seconds, press
SURROUND first to display “DSP ON” on the stereo receiver.
Then press ENTER within 4seconds.
!hlithin 8seconds, turn MULTI JOG to select one
of the manual modes Ml -M5.
\iVithin 8seconds, press ENTER.
The new DSP SURROUND sound is memorized.
To select the stored DSP SURROUND sound
Press SURROUND, and turn MULTI JOG to select one of the
manual modes Ml -M5 within 4seconds,
At this time the corresponding graphic equalizer mode is selected
automatically.
m
When the MIC or ECHO level is changed (page 18), the DSP
SURROUND mode is automatically canceled.
ENGLISH 1I

You can add extra beat to your music.
1,2
Refer to the display information on the stereo receiver.
7Press MULTI JOG.
One of the rhythm patterns is displayed.
2Turn MULTI JOG to select the desired rhythm
pattern.
The rhythm pattern is displayed cyclically as follows.
To change the tempo of the selected rhythm pattern
Press RHYTHM ~while the selected rhythm pattern is
displayed, then turn MULTI JOG to select the rhythm tempo,
The rhythm tempo can be changed from 90 to 160.
To change the volume level of the selected rhythm pattern
Press RHYTHM *while the selected rhythm pattern is
displayed, then turn MULTI JOG to select the volume level.
The volume level can be changed from 1to 4.
To cancel the rhythm play function
Press MULTI JOG.
To restart the rhythm play function
Press MULTI JOG again, The rhythm pattern selected the last
time begins.
●When the GAME pattern is selected, the rhythm tempo and the
rhythm volume level cannot be changed.
●The signal output from LINE OUT jack is affected with the rhythm
play function.
“MiT
H,Rock 1,2,3
(Hard Rock) Waltz 1,2,3
$$.
Samba 1,2,3 4Beat 1,2,3
$+
Salsa 1,2,3 8Beat 1,2,3
~~t$
Mereng 1,2,3 +.+ 16 Beat 1,2,3
(Merengue)
These voice wave data incorporated in this product are Yamaha
Corporation’s copyrightable property and we are licensed by
Yamaha Corporation.
12 ENGLISH

12,3 1,2J3
1
2
3
Press CLOCWTIMER m, then
within 6seconds. press ENTER
Turn MULTI JOG to designate the hour, then press
ENTER.
The hour stops flashing and the minute starts flashing.
Turn MULTI JOG to designate the minute, then
press ENTER.
The minute stops flashing on the display and the clock starts
from 00 seconds.
To switch to the 24-hour standard
Press the CLOCWTIMER and then press MULTI JOG within 6
seconds.
Repeat the same procedure to restore the 12-hour standard.
If the clock display flashes
This is caused by apower interruption. The current time needs
to be reset.
If power is interrupted for more than approximately 24 hours,
all settings stored in memory after purchase need to be reset.
●CLOCK on the remote control is also available instead of CLOCK7
TIMER.
●IISET on the remote control is also available instead of ENTER.
●44 or Won the remote control is also available instead of MULTI
JOG.
‘?5
The unit can be turned off automatically at aspecified time.
Use the remote control.
1
2
Press SLEEP.
“SL~EP” appears.
Within 4seconds, press ++ or *to specify
the time until the power is turned off.
Each time the button is pressed, the time changes between 5
and 240 minutes in 5-minute steps.
To check the time remaining until the power is turned off
Press SLEEP W. The remaining time is displayed for 4
seconds.
To cancel the sleep timer Em
Press SLEEP ME so that “SLEEP on the display disappears.
ENGLISIY 13

12,3,4 1,2,3,4
I

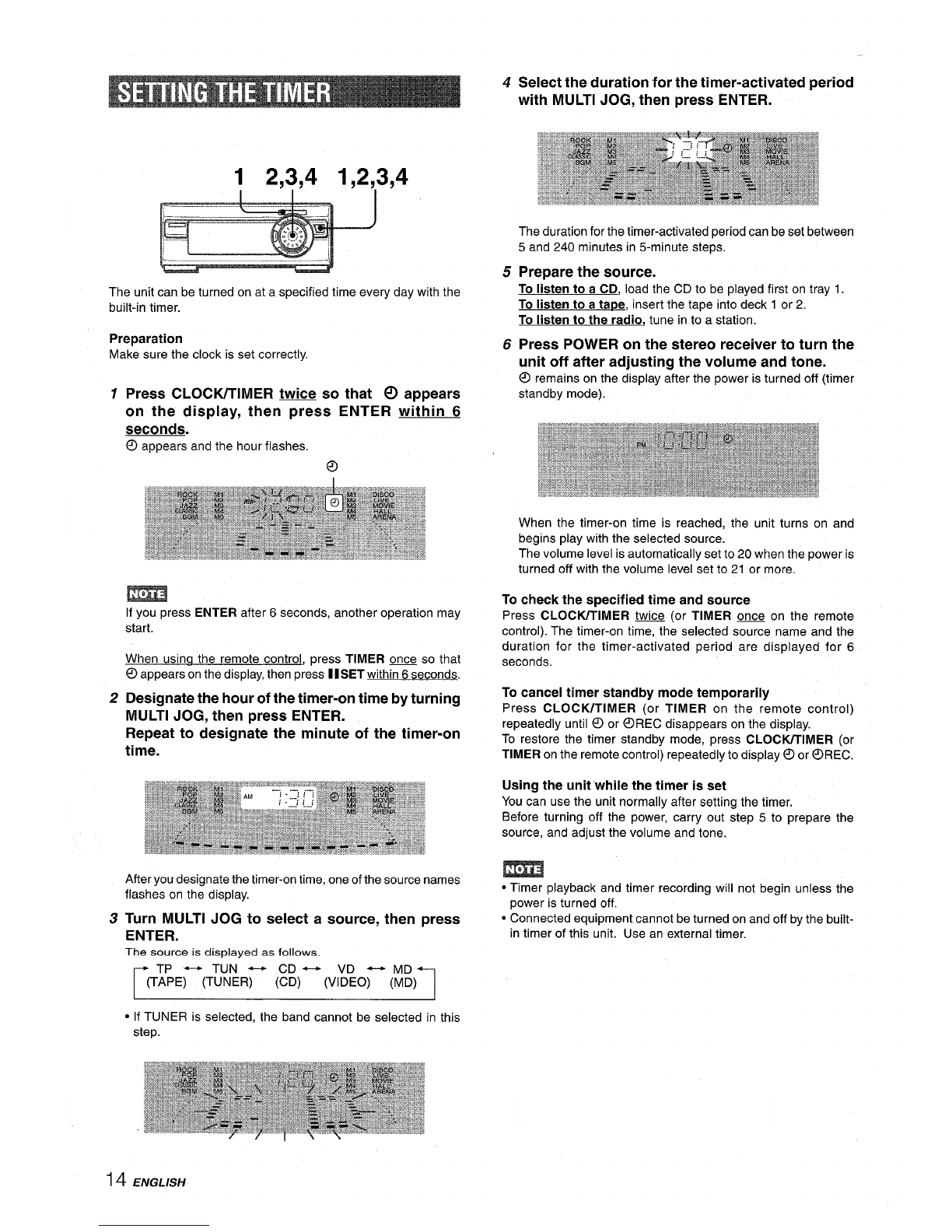

The unit can be turned on at aspecified time every day with the
built-in timer.
Preparation
Make sure the clock is set correctly.
1
2
3
Press CLOCWTIMER twice so that @appears
on the display, then press ENTER within 6
seconds.
@appears and the hour flashes.
a
m
If you press ENTERafter 6seconds, another operation may
start.
When usina the remote control, press TIMER ~so that
@appears on the display, then press IlSET within 6seconds.
Designate the hour of the timer-on time by turning
MULTI JOG, then press ENTER.
Repeat to designate the minute of the timer-on
time.
After you designate the timer-on time, one of the source names
flashes on the display.
Turn MULTI JOG to select asource, then press
ENTER.
The source is displayed as follows.
r
TP*TUN *CD+ VD~MD
(TAPE) (TUNER) (CD) (VIDEO) (MD)1
●If TUNER is selected, the band cannot be selected in this
step.
4
5
6
Select the duration for the timer-activated period
with MULTI JOG, then press ENTER.
The duration for the timer-activated period can be set between
5 and 240 minutes in 5-minute steps.
Prepare the source.
To listen to aCD, load the CD to be played first on tray 1,
To listen to atape, insert the tape into deck 1or 2.
To listen to the radio, tune in to astation.
Press POWER on the stereo receiver to turn the
unit off after adjusting the volume and tone.
@remains on the display after the power is turned off (timer
standby mode).
When the timer-on time is reached, the unit turns on and
begins play with the selected source.
The volume level is automatically set to 20 when the power is
turned off with the volume level set to 21 or more.
To check the specified time and source
Press CLOCWTIMER w(or TIMER won the remote
control). The timer-on time, the selected source name and the
duration for the timer-activated period are displayed for 6
seconds.
To cancel timer standby mode temporarily
Press CLOCK/TiMER (or TiMER on the remote control)
repeatedly until ~or @REC disappears on the display.
To restore the timer standby mode, press CLOCiVTIMER (or
TiMER on the remote control) repeatedly to display 0or OREC.
Using the unit’whiie the timer is set
You can use the unit normally after setting the timer.
Before turning off the power, carry out step 5to prepare the
source, and adjust the volume and tone.
m
●Timer playback and timer recording will not begin unless the
power is turned off.
●Connected equipment cannot be turned on and off by the built-
in timer of this unit. Use an external timer.
14 ENGLISH

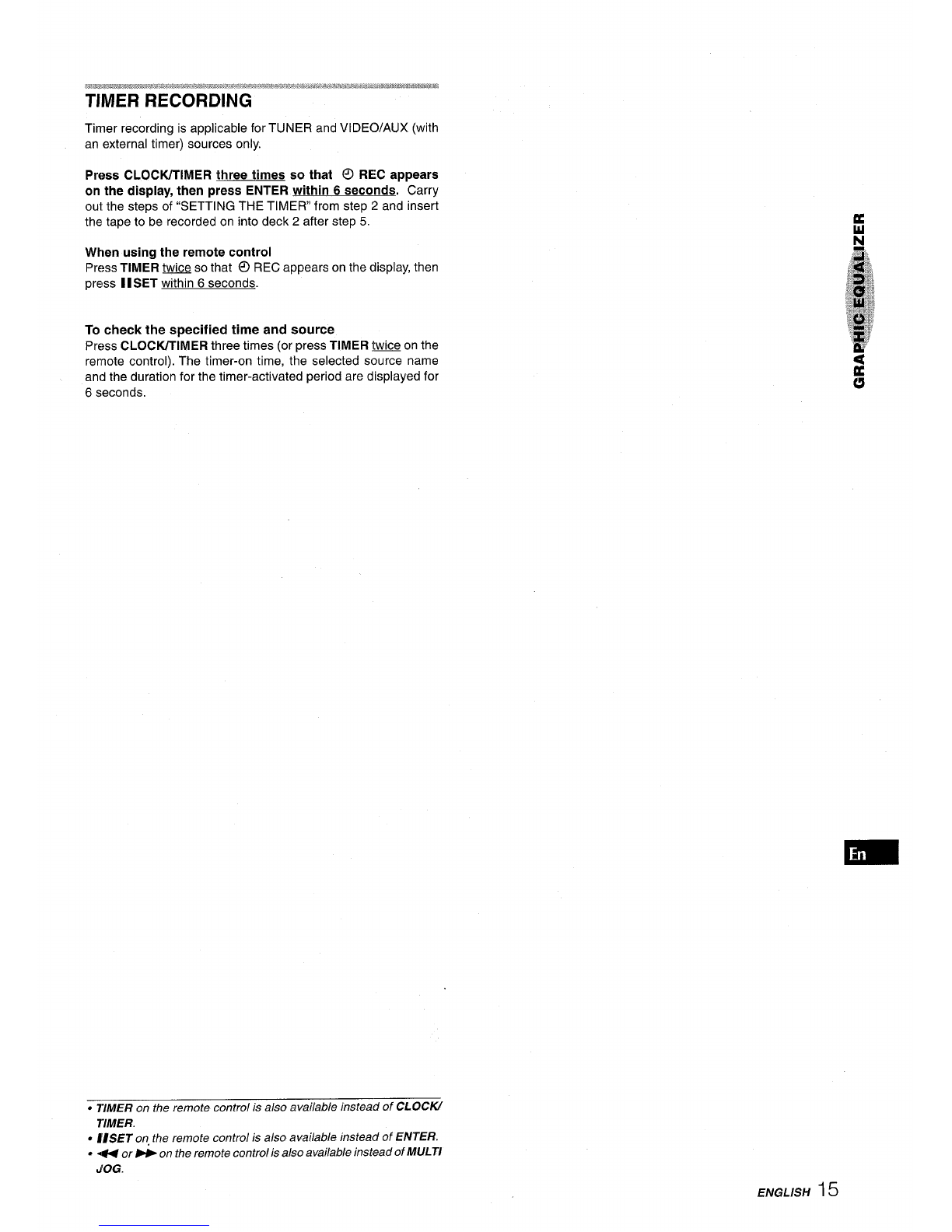

Press CLOCWTIMER three times so that @REC appears
on the display, then press ENTER within 6seconds. Carry
out the steps of “SETTING THE TIMER” from step 2 and insert
the tape to be recorded on into deck 2after step 5.
When using the remote control
Press TIMER N&.e so that 0REC appears on the display, then
press 1ISET within 6seconds.
To check the specified time and source
Press CLOCIVTIMER three times (or press TIMER Won the
rennote control). The timer-on time, the selected source name
and the duration for the timer-activated period are displayed for
6seconds.
?IMER on the remote control is also available instead of CLOCIU
TIMER.
●EISET on, the remote control is also available instead of ENTER.
..U or won the remote contro/ is also available instead of MULTI
JOG.
ENGLISH 15

). —8._ _
T‘
(g) @@@
Name page
POWER 6,17,32
TAPE DECK1/2 6,24-27
TUNER BAND 6,16,17
VIDEO/AUX 6,30
CD 6,20,28,29
MD 6,30
Display window
T-BASS 7
BBE 7
KARAOKE 19
ECHO 18
MIC 18
PHONES 6
TUNING/PRESET 16,17
SET 17
V, ATUNING/PRESET 7,16,
VOLUME 7,18
MIC 1,2 18
7
21
1
2
3
I
3
MONO
TUNER
TUNER
BAND
44, -
Press TUNER BAND repeatedly to select the
desired band.
When TUNER BAND is pressed while the power is off, the
power is turned on directly.
Press TUNING/PRESET once or twice so
“PRESET NO.” in the display disappears. that
Press TUNING Vor TUNING Ato select a
station.
Each time the button is pressed, the frequency changes.
When astation is received, “TUNE” is displayed for 2seconds.
During FM stereo reception, [[loll) is displayed.
[[101)) TUNE
When you use the remote control, press -or ~,
To search for astation quickly (Auto Search)
In step 3keep Vor Apressed until the frequency starts to
change rapidly. After tuning in to astation, the search stops.
To stop the Auto Search manually, press Vor A.
●The Auto Search may not stop at stations with very weak
signals.
When an FM stereo broadcast contains noise
Press MONO TUNER on the remote control so that “MONO
appears on the display.
Noise is reduced, although reception is monaural.
To restore stereo reception, press MONO TUNER so that
“STEREO” appears.
16 E/VGL/S/-/

I3 2
0-9,+10
TUNER
BAND
The unit can store atotal of 32 preset stations. When astation is
stored, apreset number is assigned to the station. Use the preset
number to tune in to apreset station directly.
1lPress TUNING/PRESET once or twice so that
“PRESET NO.” in the display disappears.
2lPress TUNER BAND to select aband, and press
TUNING Vor TUNING Ato select astation.
3lPress SET to store the station.
Apreset number beginning from 1in consecutive order for
each band is assigned to the station.
Frequency
Preset number
PRESET NUMBER TUNING
Use the remote control to select the preset number directly.
1
2
SET TUNER BAND
II
I
T+N~G
2
1
Press TUNER BAND to select aband.
Press numbered buttons O-9 and +1Oto select a
preset number.
“PRESET NO.” appears in the display.
Example:
To select preset number 20, press +10, +10 and O.
To select preset number 15, press +10 and 5.
Selecting apreset number on the main unit
1Press TUNER BAND to select aband.
2Press TUNING/PRESET repeatedly so that “PRESET NO.”
appears on the display.
3Press TUNING Vor TUNING Ato select astation.
To clear apreset station
Select the preset number of the station to be cleared. Then, press
SET. The frequency flashes. Then press SET again within 4
seconds.
The preset numbers of all other stations in the band with higher
numbers are also decreased by one.
4lRepeat steps 1to 3.
“Thenext station will not be stored if atotal of 32 preset Sk3tiOnS
for all the bands have already been stored.
m
If power is interrupted for more than approximately 24 hours,
preset stations stored in memory after purchase need to be reset.
To change the AM tuning interval
The default setting of the AM tuning interval is 10 kHz/step. If
you use this unit in an area where the frequency allocation system
is 9kHz/step, change the tuning interval.
Press POWER while pressing TUNER BAND.
To reset the interval, repeat this procedure.
m
When the AM tuning interval is changed, all preset stations are
cleared. The preset stations have to be set again.
ENGLISH 17 ‘

3+5 KAR;OKE ~
I1
—. . . . C&&== ~~ I
Ii%”d
_-— ,-%=
1~. .-
i– “-”””‘“ b
,0 ..——,—
214
Two microphones (not supplied) can be connected to this unit,
allowing you to sing along to music sources.
Use microphones with mini plugs (03.5 mm, 1/8inch).
1
2
3
4
5
m
●When the MIC or ECHO level is changed, the SURROUND
mode is automatically canceled.
●If amicrophone is held too near the speakers, ahowling sound
may be produced. In this case, hold the microphone away
from the speakers, or decrease the microphone volume.
●If sound through the microphone is extremely loud, it may be
distorted. In this case, decrease the microphone volume.
●When the function is changed, the microphone volume and echo
are set to off.
Recommended microphones
The use of unidirectional type microphones is recommended to
prevent howling. Contact your local Aiwa dealer for details.
Connect your microphones to NllC 1 and MIC 2
jacks.
MIC 1MIC 2
Press one of the function buttons to select the
source to be mixed, and play the source.
Adjust the volume and tone of the source.
Press MIC and turn VOLUME within 4seconds to
adjust the microphone volume.
The microphone volume can be selected from 1to MAX (7)
or OFF (cancel).
The volume of both microphones is adjusted simultaneously.
Press ECHO and turn VOLUME within 4seconds
to adjust the echo level.
The echo level can be selected from 1to MAX (7) or OFF
(cancel).
To change the delay time of echo
Hold down ECHO while the echo is on.
“ECHO-L” (Long) and “ECHO-M” (Middle) are displayed
alternately. At the desired position, release the button.
To record microphone sound mixed with source sound
Follow the procedure for recording from the sound source (see
page 26).
SYNC DUB cannot be used for mixing.
When the microphones are not being used
Set the microphone volume and echo level to OFF and remove
the microphones from MIC jacks.
18 ENGLISH

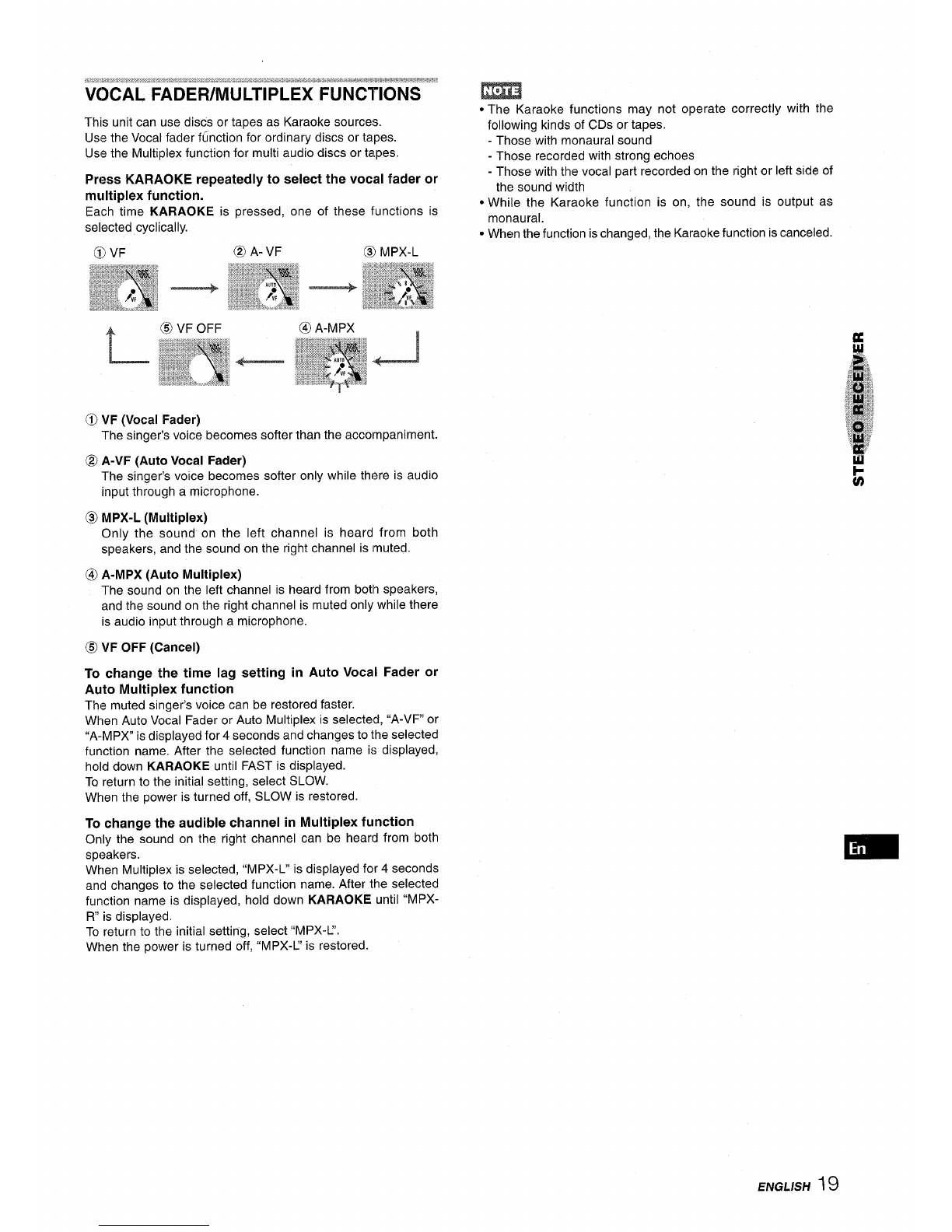

This unit can use discs or tapes as Karaoke sources.
Use the Vocal fader ffinction for ordinary discs or tapes.
tk~ the Multiplex function for multi audio discs or tapes.
Press KARAOKE repeatedly to select the vocal fader or
multiplex function.
Each time KARAOKE is pressed, one of these functions is
selected cyclically.
(i) VF @A- VF @MPX-L
(j) VF (Vocal Fader)
The singer’s voice becomes softer than the accompaniment.
@A-VF (Auto Vocal Fader)
The singer’s voice becomes softer only while there is audio
input through amicrophone.
(!3 MPX-L (Multiplex)
Only the sound on the left channel is heard from both
speakers, and the sound on the right channel is muted.
@A-MPX (Auto Multiplex)
The sound on the left channel is heard from botlh speakers,
and the sound on the right channel is muted only while there
is audio input through amicrophone.
@VF OFF (Cancel)
To change the time lag setting in Auto Vocal Fader or
Auto Multiplex function
The muted singer’s voice can be restored faster.
When Auto Vocal Fader or Auto Multiplex is selected, “A-VF or
“A-MPX” is displayed for 4seconds and changes to Ihe selected
function name. After the selected function name is displayed,
hold down KARAOKE until FAST is displayed.
To return to the initial setting, select SLOW.
When the power is turned off, SLOW is restored.
To change the audible channel in Multiplex function
Only the sound on the right channel can be heard from both
speakers.
When Multiplex is selected, “MPX-L” is displayed for 4seconds
and changes to the selected function name. After the selected
function name is displayed, hold down KARAOKE until “MPX-
R“ is displayed.
To return to the initial setting, select “MPX-L’.
When the power is turned off, “MPX-IJ’ is restored.
m
●The Karaoke functions may not operate correctly with the
following kinds of CDs or tapes.
-Those with monaural sound
-Those recorded with strong echoes
-Those with the vocal part recorded on the right or left side of
the sound width
.While the Karaoke function is on, the sound is output as
monaural.
●When the function is changed, the Karaoke function is canceled.
ENGLISH19

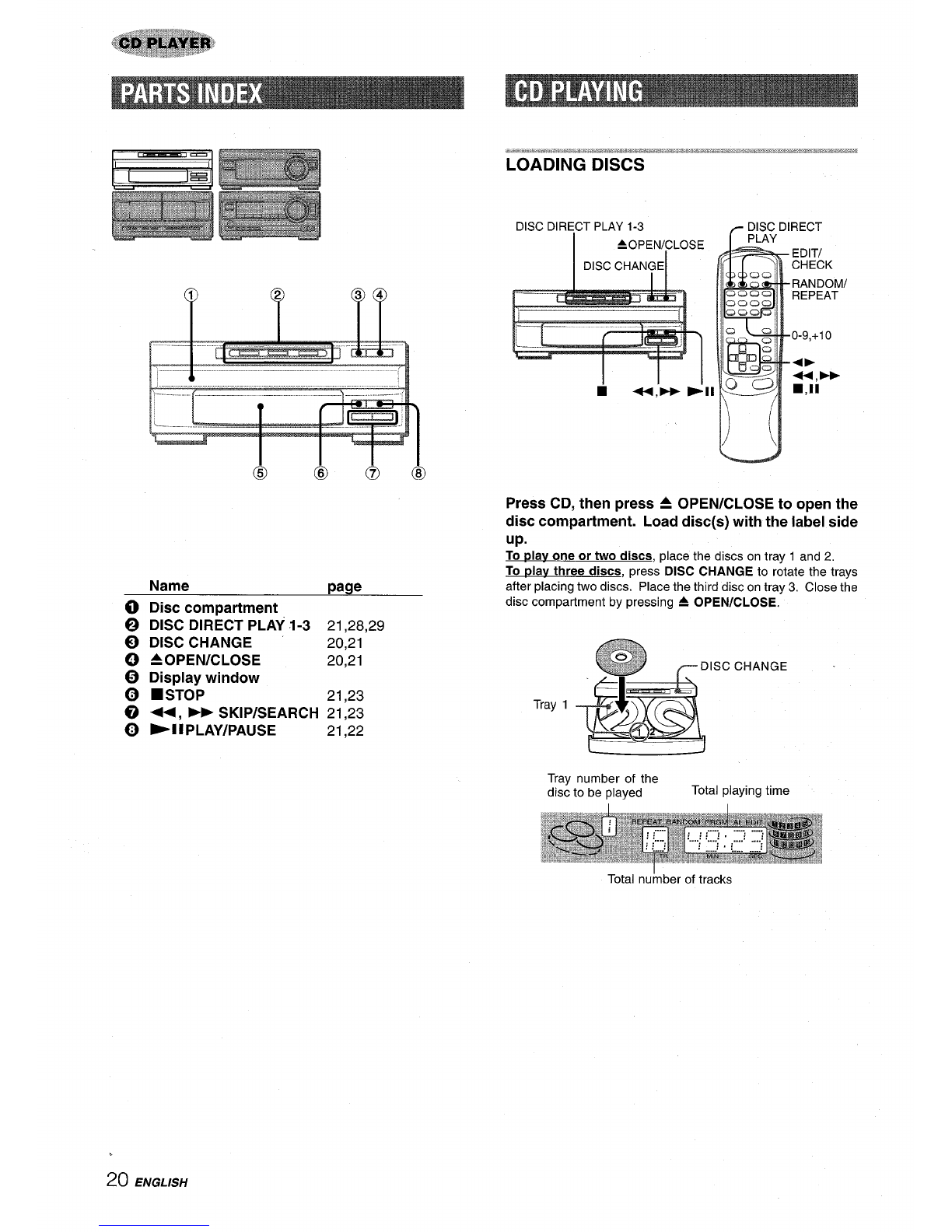

Name page
() Disc compartment
~DISC DIRECT PLAY 1-3 21,28,29
@DISC CHANGE 20,21
~=opEN/cLosE 20,21
~Display window
0■STOP 21,23
~+, BSKIP/SEARCH 21,23
~EllPLAY/PAUSE 21,22
DISC DIRECT PLAY 1-3 RECT
EDITI
CHECK
RANDOM/
REPEAT
0-9,+10
4>
-,W
■+,* Pll ■,11
Press CD, then press AOPEN/CLOSE to open the
disc compartment. Load disc(s) with the label side
up.
To plav one or two discs, place the discs on tray 1 and 2.
To plav three discs, press DISC CHANGE to rotate the trays
after placing two discs. Place the third disc on tray 3. Close the
disc compartment by pressing AOPEN/CLOSE.
Tray 1
SC CHANGE
Tray number of the
disc to be played Total playing time
Total number of tracks
20 ENGLISH
