Aiwa NSX-SZ80 User manual

SERVICE MANUAL
DATA
COMPACT DISC STEREO
CASSETTE RECEIVER BASIC TAPE MECHANISM : 2ZM-3MK2 PR7NM BASIC CD MECHANISM : AZG-1 ZD3RNDM
NSX-SZ80
NSX-SZ83
NSX-AJ80
NSX-SZ80E
LH
LH
U
HA
S/M Code No. 09-003-424-4R1
REVISION
•This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
NSX-SZ80/SZ83/AJ80/SZ80E (LH, U, HA), (S/M Code No. 09-001-424-4T1).
• If requiring information about the CD mechanism, see Service Manual of
AZG-1 ZD3RNDM, (S/M Code No. 09-001-335-3N8).
NSX–SZ80 (LH)
MAIN
SPEAKER
SYSTEM CD
CASSEIVER
SX–WNH83CX–NSZ83
REMOTE
CONTROLLER
NSX–SZ83 (LH) RC–ZAS01
NSX–AJ80 (U)
NSX–SZ80E (HA)
CX–NSZ80
CX–NAJ80
CX–NSZ80E
SX–WNSZ80
SX–WNAJ85
SX–WNSZ80
SATELLITE
SPEAKER
SX–S80

– 2 –
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<Amplifier section>
Mid-high frequency amplifier
Power output LH, HA:
Rated 35 W + 35 W (6 ohms,
T.H.D. 1 %, 1 kHz)
Reference: 45 W + 45 W (6 ohms,
T.H.D. 10 %, 1 kHz)
U:
30 W + 30 W (200 Hz - 20 kHz,
T.H.D. less than 1 %, 8 ohms)
Total harmonic distortion 0.1 % (25 W, 1 kHz, 8 ohms,
DIN AUDIO )
Low frequency amplifier
Power output LH, HA:
Rated 105 W + 105 W (6 ohms,
T.H.D. 1 %, 120 Hz)
Reference: 135 W + 135 W (6 ohms,
T.H.D. 10 %, 120 Hz)
U:
90 W + 90 W (50 Hz - 200 Hz,
T.H.D. less than 1 %, 6 ohms)
Total harmonic distortion 0.1 % (75 W, 120 Hz, 6 ohms,
DIN AUDIO)
Satellite amplifier<U only>
Power output 5 W + 5 W (1 kHz, T.H.D. less than
1 %, 8 ohms)
Total harmonic distortion 0.1 % (3 W, 1 kHz, 8 ohms,
DIN AUDIO )
Inputs VIDEO/AUX: 316 mV (adjustable)
MD: 316 mV (adjustable)
MIC: 1.0 mV (10 k ohms)
Outputs SPEAKERS HIGH FREQ:
accept speakers of 8 ohms or more
SPEAKERS LOW FREQ:
accept speakers of 6 ohms or more
SATELLITE SPEAKERS:
accept speakers of 8 ohms or more
SURROUND SPEAKERS:
accept speakers of 8 ohms to 16 ohms
LINE OUT: 210 mV
PHONES (stereo jack): accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response CrO2tape: 50 Hz – 16000 Hz
NORMAL tape: 50 Hz – 15000 Hz
Recording system AC bias
Heads Deck 1: Playback head x 1
Deck 2: Recording/Playback head
x 1, erase head x 1
SPECIFICATIONS
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
<General>
Power requirements U: 120 V AC, 60 Hz
LH, HA: 120 V/220-230 V/240 V AC
(switchable), 50/60 Hz
Power consumption U: 165 W
LH, HA: 245 W
Power consumption in If the power-economizing mode is
standby mode ECO OFF:
LH, HA: 29.5 W
U: 27.5 W
If the power-economizing mode is
ECO ON or ECO AUTO: 0.9 W
Dimensions of main unit 260 x 329 x 389.6 mm
(W xH xD) (10 1/4X 13 X 15 3/8in.)
Weight of main unit 11.8 kg (26 lbs.)
<Speaker system SX–WNH83 / SX–WNSZ80 / SX–WNAJ85>
Speaker system 3 way, built-in subwoofer (magnetic
shielded type)
Speaker units Subwoofer:
200 mm (7 7/8 in.) cone type
Full range:
120 mm (4 3/4 in.) cone type
Super tweeter:
20 mm (13/16 in.) ceramic type
Impedance 6 ohms/8 ohms
Output sound pressure level 87 dB/W/m
Dimensions (W xH xD) SX-WNH83 / WNAJ85:
240 x 324 x 285 mm
(9 1/2X 12 7/8X 11 1/4in.)
SX-WNSZ80: 240 x 384 x 310 mm
Weight 5.8 kg (12 lbs. 13 oz.)
<Satellite speaker SX–S80>
Speaker system Full range (magnetic shielded type)
Speakers units 80 mm cone type
Impedance 8 ohms
Output sound pressure level 87 dB/W/m
Dimensions (W xH xD) 100 x 327 x 105 mm
(4 X 12 7/8X 4 1/4in.)(with pedestal)
100 x 190 x 81 mm
(4 X 7 1/2X 3 1/4in.)(without pedestal)
Weight 0.6 kg (1 lbs. 5 oz.)
• Design and specifications are subject to change without notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.

– 3 –
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BESURETOOBSERVEFROMADISTANCEOFMORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynliglaserstålingvedåbning,
nårsikkerhedsafbrydereerudeaffunktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autresque ceuxspécifiés peutentraîner unedangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precaution to replace Optical block
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK-UP Assy P.C.B
Solder

– 4 –
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
WhentheHOLD terminal (INPUT) of the MICROCOMPUTER is“H”,the MICROCOMPUTER is judged to be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.

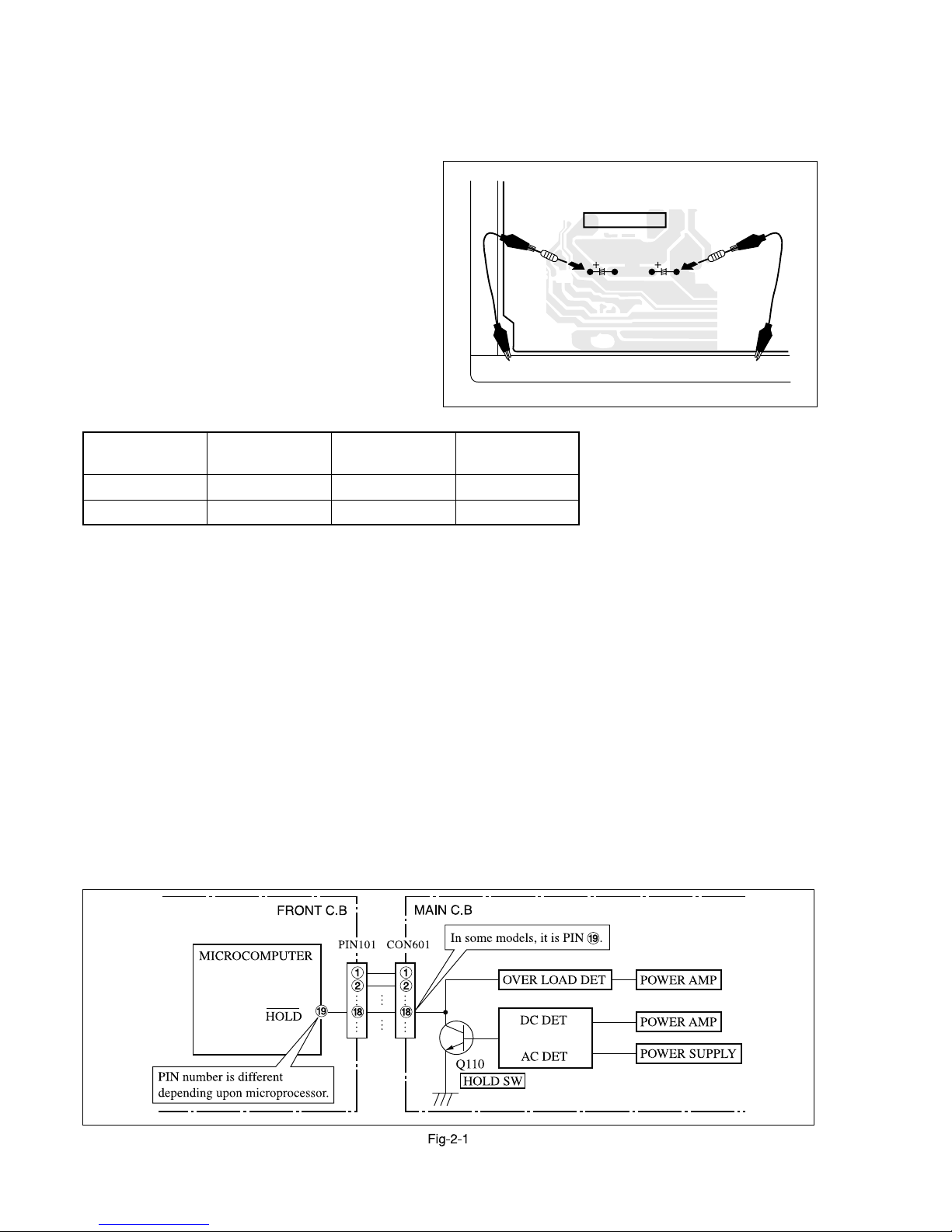

Fig-1
MAIN C.B
D101
C101 C102
22
34

– 5 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22

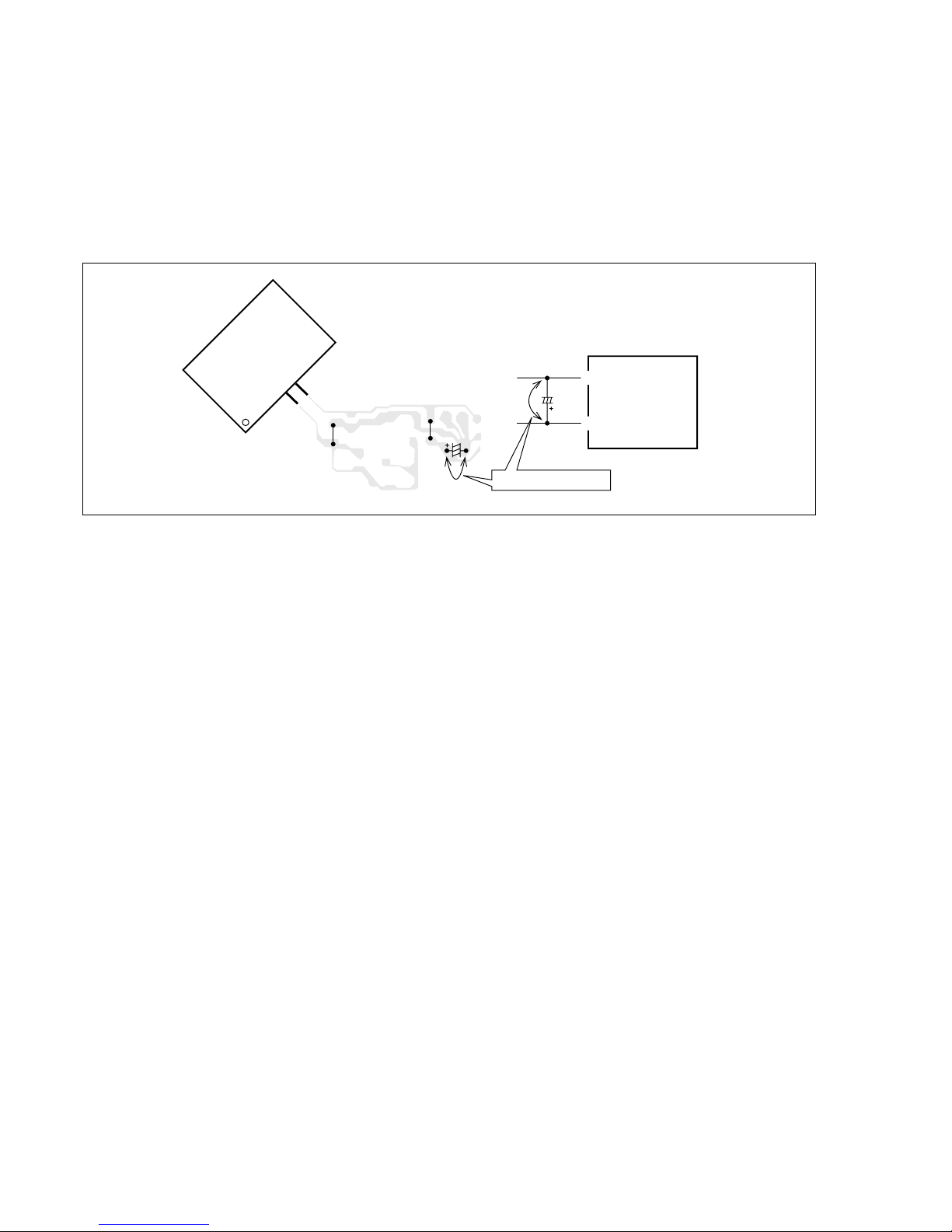

2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: Thereferencenumber or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor(C113)can change depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113 *
%
C113
18
15
Short with tweezers.

– 6 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8A-NF6-610-030 C-IC,LC87654V-5P35
87-A21-418-010 IC,STK490-340
87-A21-018-040 C-IC,M65849BFP631D
87-A21-396-010 IC,STK490-040<80U>
87-A21-397-010 IC,STK490-070<EXCEPT 80U>
87-A20-914-010 IC,SPS-442-1-F
87-A20-783-040 C-IC,BA7762AFS
87-A21-577-040 C-IC,M61506FP
87-A21-021-040 C-IC,BU2099FV
87-070-289-040 IC,BU 2092F
87-A21-452-030 C-IC,BD3876KS2
87-A21-051-040 C-IC,BU9990-03FS<EXCEPT 80U>
87-A21-415-010 IC,LA1843
87-070-127-110 IC,LC72131 D
87-020-454-010 IC,DN 6851
TRANSISTOR
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
87-A30-075-080 C-TR,2SA1235F
87-A30-318-080 TR,CSA952K
89-213-702-010 TR,2SB1370 (1.8W)
87-A30-076-080 C-TR,2SC3052F
87-026-610-080 TR,KTC3198GR
87-026-609-080 TR,KTA1266GR
87-A30-087-080 C-FET,2SK2158
87-A30-107-070 C-TR,CMBT5401
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-074-080 C-TR,RT1P141C
87-A30-269-040 C-FET,2SJ461-T1
87-A30-106-040 C-TR,CMBT5551
87-A30-086-040 C-TR,CSD1306E
87-A30-190-080 TR,CC5551
89-420-613-010 TR,2SD2061F
89-213-703-010 TR,2SB1370F
87-A30-063-080 C-TR,KRA104S
87-A30-086-070 C-TR,CSD1306E
87-A30-329-080 TR,CD1585BC
89-327-143-080 TR,2SC2714 (0.1W)
87-A30-489-080 C-TR,KRA107S
87-A30-234-080 TR,CSC4115BC
87-026-463-080 TR,2SA933S
DIODE
87-A40-673-090 DIODE,D10XB20
87-A40-547-090 DIODE,D5SBA20
87-020-465-080 DIODE,1SS133
87-A40-553-080 DIODE,1N4003 LES
87-A40-784-080 ZENER,UZ39BSB
87-A40-764-080 ZENER,UZ10BSC
87-A40-313-080 C-DIODE,MC 2840
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-768-080 ZENER,UZ16BSA
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-748-080 ZENER,UZ5.6BSA
87-A40-802-080 ZENER,UZ5.1BSC
87-A40-747-080 ZENER,UZ5.1BSB
87-A40-745-080 ZENER,UZ4.7BSA
87-A40-749-080 ZENER,UZ5.6BSB<EXCEPT 80U>
87-017-149-080 ZENER,HZS6A2L
MAIN C.B
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C21 87-016-658-000 CAP,E 4700-35 M SMG
C22 87-016-658-000 CAP,E 4700-35 M SMG
C25 87-010-382-080 CAP, ELECT 22-25V
C26 87-010-382-080 CAP, ELECT 22-25V<EXCEPT 80U>
C26 87-010-383-080 CAP, ELECT 33-25V<80U>
C27 87-010-382-080 CAP, ELECT 22-25V
C28 87-010-382-080 CAP, ELECT 22-25V<EXCEPT 80U>
C28 87-010-383-080 CAP, ELECT 33-25V<80U>
C31 87-010-263-080 CAP, ELECT 100-10V
C32 87-010-197-080 CAP, CHIP 0.01 DM
C33 87-010-263-080 CAP, ELECT 100-10V<80U>
C34 87-010-247-080 CAP, ELECT 100-50V
C35 87-010-260-080 CAP, ELECT 47-25V
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-010-384-080 CAP, ELECT 100-25V
C39 87-010-384-080 CAP, ELECT 100-25V
C40 87-010-197-080 CAP, CHIP 0.01 DM
C60 87-010-403-080 CAP, ELECT 3.3-50V
C80 87-010-401-080 CAP, ELECT 1-50V<EXCEPT 80U>
C81 87-010-374-080 CAP, ELECT 47-10V<EXCEPT 80U>
C82 87-010-260-080 CAP, ELECT 47-25V<EXCEPT 80U>
C104 87-010-196-080 CHIP CAPACITOR,0.1-25
C105 87-010-196-080 CHIP CAPACITOR,0.1-25
C111 87-010-545-080 CAP, ELECT 0.22-50V
C112 87-010-545-080 CAP, ELECT 0.22-50V
C113 87-010-545-080 CAP, ELECT 0.22-50V
C114 87-010-545-080 CAP, ELECT 0.22-50V
C115 87-010-546-080 CAP, ELECT 0.33-50V
C116 87-010-546-080 CAP, ELECT 0.33-50V
C121 87-010-546-080 CAP, ELECT 0.33-50V
C122 87-010-546-080 CAP, ELECT 0.33-50V
C171 87-012-368-080 C-CAP,S 0.1-50 F
C172 87-012-368-080 C-CAP,S 0.1-50 F
C173 87-012-368-080 C-CAP,S 0.1-50 F
C174 87-012-368-080 C-CAP,S 0.1-50 F
C301 87-010-318-080 C-CAP,S 47P-50 J CH
C302 87-010-318-080 C-CAP,S 47P-50 J CH
C303 87-012-157-080 C-CAP,S 330P-50 CH
C304 87-012-157-080 C-CAP,S 330P-50 CH
C305 87-012-157-080 C-CAP,S 330P-50 CH
C306 87-012-157-080 C-CAP,S 330P-50 CH
C307 87-010-196-080 CHIP CAPACITOR,0.1-25
C309 87-010-196-080 CHIP CAPACITOR,0.1-25
C310 87-010-196-080 CHIP CAPACITOR,0.1-25
C311 87-010-198-080 CAP, CHIP 0.022
C312 87-010-198-080 CAP, CHIP 0.022
C313 87-010-179-080 CAP,CHIP S B1200P
C314 87-010-179-080 CAP,CHIP S B1200P
C315 87-010-179-080 CAP,CHIP S B1200P
C316 87-010-179-080 CAP,CHIP S B1200P
C321 87-012-142-080 CAP, S 0.33-16
C322 87-012-142-080 CAP, S 0.33-16
C324 87-010-260-080 CAP, ELECT 47-25V
C325 87-010-370-080 CAP,E 330-6.3 SME
C327 87-010-404-080 CAP, ELECT 4.7-50V
C328 87-010-404-080 CAP, ELECT 4.7-50V
C332 87-010-196-080 CHIP CAPACITOR,0.1-25
C335 87-010-401-080 CAP, ELECT 1-50V
C336 87-010-401-080 CAP, ELECT 1-50V
C337 87-010-196-080 CHIP CAPACITOR,0.1-25
C339 87-010-196-080 CHIP CAPACITOR,0.1-25
C340 87-010-196-080 CHIP CAPACITOR,0.1-25
C351 87-012-140-080 CAP 470P
C352 87-012-140-080 CAP 470P
C354 87-010-175-080 CAP 560P
C355 87-010-178-080 CHIP CAP 1000P
C356 87-010-260-080 CAP, ELECT 47-25V
C357 87-010-197-080 CAP, CHIP 0.01 DM
C358 87-010-183-080 C-CAP,S 2700P-50 B
C359 87-010-183-080 C-CAP,S 2700P-50 B
C360 87-010-183-080 C-CAP,S 2700P-50 B

– 7 –
C370 87-010-196-080 CHIP CAPACITOR,0.1-25
C373 87-016-083-080 C-CAP,S 0.15-16 RK
C374 87-016-083-080 C-CAP,S 0.15-16 RK
C378 87-010-196-080 CHIP CAPACITOR,0.1-25
C379 87-010-382-080 CAP, ELECT 22-25V
C380 87-010-382-080 CAP, ELECT 22-25V
C381 87-010-197-080 CAP, CHIP 0.01 DM
C382 87-010-312-080 C-CAP,S 15P-50 CH
C383 87-010-197-080 CAP, CHIP 0.01 DM
C384 87-010-402-080 CAP, ELECT 2.2-50V
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C387 87-012-145-080 CAP, CHIP S 270P CH
C388 87-012-156-080 C-CAP,S 220P-50 CH
C391 87-010-319-080 C-CAP,S 56P-50 CH
C392 87-010-319-080 C-CAP,S 56P-50 CH
C393 87-010-319-080 C-CAP,S 56P-50 CH
C394 87-010-319-080 C-CAP,S 56P-50 CH
C501 87-010-263-080 CAP, ELECT 100-10V
C502 87-010-196-080 CHIP CAPACITOR,0.1-25
C503 87-012-393-080 C-CAP,S 0.22-16 R K
C504 87-012-393-080 C-CAP,S 0.22-16 R K
C505 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C506 87-010-184-080 CHIP CAPACITOR 3300P(K)
C507 87-010-177-080 C-CAP,S 820P-50 SL
C508 87-016-669-080 C-CAP,S 0.1-25 K B
C509 87-016-669-080 C-CAP,S 0.1-25 K B
C510 87-010-184-080 CHIP CAPACITOR 3300P(K)
C511 87-010-177-080 C-CAP,S 820P-50 SL
C512 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C513 87-010-544-080 CAP, ELECT 0.1-50V
C514 87-010-374-080 CAP, ELECT 47-10V
C515 87-010-401-080 CAP, ELECT 1-50V
C516 87-010-401-080 CAP, ELECT 1-50V
C517 87-010-183-080 C-CAP,S 2700P-50 B
C518 87-010-183-080 C-CAP,S 2700P-50 B
C531 87-010-405-080 CAP, ELECT 10-50V
C532 87-010-196-080 CHIP CAPACITOR,0.1-25
C533 87-010-196-080 CHIP CAPACITOR,0.1-25
C534 87-012-156-080 C-CAP,S 220P-50 CH
C535 87-010-178-080 CHIP CAP 1000P
C536 87-010-196-080 CHIP CAPACITOR,0.1-25
C538 87-010-318-080 C-CAP,S 47P-50 CH
C541 87-010-178-080 CHIP CAP 1000P
C609 87-010-181-080 CAP,CHIP S 1800P
C610 87-010-181-080 CAP,CHIP S 1800P
C611 87-010-956-080 CHIP-CAP,S 0.068-25B
C612 87-016-369-080 C-CAP,S 0.033-25 B K
C613 87-010-197-080 CAP, CHIP 0.01 DM
C614 87-016-669-080 C-CAP,S 0.1-25 K B
C616 87-010-184-080 CHIP CAPACITOR 3300P(K)
C617 87-012-369-080 C-CAP,S 0.047-50F
C618 87-010-401-080 CAP, ELECT 1-50V
C619 87-010-263-080 CAP, ELECT 100-10V
C620 87-016-669-080 C-CAP,S 0.1-25 K B
C621 87-010-197-080 CAP, CHIP 0.01 DM
C623 87-010-401-080 CAP, ELECT 1-50V
C624 87-010-401-080 CAP, ELECT 1-50V
C626 87-010-596-080 CAP, S 0.047-16
C627 87-010-400-080 CAP, ELECT 0.47-50V
C628 87-010-400-080 CAP, ELECT 0.47-50V
C629 87-010-596-080 CAP, S 0.047-16
C630 87-010-383-080 CAP, ELECT 33-25V
C631 87-010-185-080 C-CAP,S 3900P-50 B
C632 87-010-185-080 C-CAP,S 3900P-50 B
C634 87-010-196-080 CHIP CAPACITOR,0.1-25
C635 87-A10-307-080 CAP,M 0.1-50 J
C636 87-A10-307-080 CAP,M 0.1-50 J
C637 87-A10-307-080 CAP,M 0.1-50 J
C638 87-A10-307-080 CAP,M 0.1-50 J
C639 87-010-405-080 CAP, ELECT 10-50V
C641 87-010-401-080 CAP, ELECT 1-50V
C642 87-010-401-080 CAP, ELECT 1-50V
C643 87-010-196-080 CHIP CAPACITOR,0.1-25
C644 87-010-401-080 CAP, ELECT 1-50V
C671 87-010-322-080 C-CAP,S 100P-50 CH
C672 87-010-322-080 C-CAP,S 100P-50 CH
C673 87-010-197-080 CAP, CHIP 0.01 DM
C679 87-010-196-080 CHIP CAPACITOR,0.1-25
C680 87-010-197-080 CAP, CHIP 0.01 DM
C682 87-010-196-080 CHIP CAPACITOR,0.1-25
C771 87-010-263-080 CAP, ELECT 100-10V
C772 87-010-197-080 CAP, CHIP 0.01 DM
C773 87-010-184-080 CHIP CAPACITOR 3300P(K)
C774 87-010-184-080 CHIP CAPACITOR 3300P(K)
C779 87-A10-679-080 C-CAP,S 3300P-50 JR
C780 87-A10-679-080 C-CAP,S 3300P-50 JR
C782 87-010-197-080 CAP, CHIP 0.01 DM
C783 87-010-197-080 CAP, CHIP 0.01 DM
C784 87-010-197-080 CAP, CHIP 0.01 DM
C785 87-010-197-080 CAP, CHIP 0.01 DM
C786 87-010-197-080 CAP, CHIP 0.01 DM
C788 87-010-149-080 C-CAP,S 5P-50 CH
C789 87-A10-592-080 C-CAP,S 0.015-50 J B
C790 87-A10-592-080 C-CAP,S 0.015-50 J B
C791 87-010-196-080 CHIP CAPACITOR,0.1-25
C792 87-010-197-080 CAP, CHIP 0.01 DM
C793 87-010-404-080 CAP, ELECT 4.7-50V
C795 87-010-197-080 CAP, CHIP 0.01 DM
C796 87-010-197-080 CAP, CHIP 0.01 DM
C797 87-010-405-080 CAP, ELECT 10-50V
C798 87-010-197-080 CAP, CHIP 0.01 DM
C799 87-010-407-080 CAP, ELECT 33-50V
C800 87-012-369-080 C-CAP,S 0.047-50F
C801 87-010-403-080 CAP, ELECT 3.3-50V
C802 87-012-369-080 C-CAP,S 0.047-50F
C803 87-010-198-080 CAP, CHIP 0.022
C804 87-010-263-080 CAP, ELECT 100-10V
C807 87-010-400-080 CAP, ELECT 0.47-50V
C808 87-010-401-080 CAP, ELECT 1-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-196-080 CHIP CAPACITOR,0.1-25
C811 87-010-403-080 CAP, ELECT 3.3-50V
C812 87-010-403-080 CAP, ELECT 3.3-50V
C814 87-010-197-080 CAP, CHIP 0.01 DM
C815 87-010-400-080 CAP, ELECT 0.47-50V
C816 87-010-400-080 CAP, ELECT 0.47-50V
C819 87-010-179-080 CAP,CHIP S B1200P
C820 87-010-179-080 CAP,CHIP S B1200P
C821 87-010-405-080 CAP, ELECT 10-50V
C823 87-010-177-080 C-CAP,S 820P-50 SL
C824 87-010-405-080 CAP, ELECT 10-50V
C825 87-010-596-080 CAP, S 0.047-16
C842 87-010-197-080 CAP, CHIP 0.01 DM
C843 87-010-197-080 CAP, CHIP 0.01 DM
C844 87-010-197-080 CAP, CHIP 0.01 DM
C845 87-010-197-080 CAP, CHIP 0.01 DM
C846 87-010-197-080 CAP, CHIP 0.01 DM
C847 87-010-197-080 CAP, CHIP 0.01 DM
C848 87-010-197-080 CAP, CHIP 0.01 DM
C849 87-010-197-080 CAP, CHIP 0.01 DM
C850 87-010-260-080 CAP, ELECT 47-25V
C851 87-010-197-080 CAP, CHIP 0.01 DM
C852 87-010-197-080 CAP, CHIP 0.01 DM
C853 87-010-197-080 CAP, CHIP 0.01 DM
C858 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-010-196-080 CHIP CAPACITOR,0.1-25
C860 87-010-197-080 CAP, CHIP 0.01 DM
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-010-152-080 C-CAP,S 8P-50 CH
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

– 8 –
C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-010-404-080 CAP, ELECT 4.7-50V
C973 87-010-197-080 CAP, CHIP 0.01 DM
C974 87-010-197-080 CAP, CHIP 0.01 DM
C979 87-010-322-080 C-CAP,S 100P-50 CH
C981 87-010-260-080 CAP, ELECT 47-25V
C982 87-010-196-080 CHIP CAPACITOR,0.1-25
C983 87-010-197-080 CAP, CHIP 0.01 DM
C984 87-010-197-080 CAP, CHIP 0.01 DM
C987 87-010-197-080 CAP, CHIP 0.01 DM
C991 87-010-312-080 C-CAP,S 15P-50 CH
C992 87-010-312-080 C-CAP,S 15P-50 CH
C993 87-010-178-080 CHIP CAP 1000P
C995 87-010-178-080 CHIP CAP 1000P
C997 87-010-196-080 CHIP CAPACITOR,0.1-25
C998 87-010-260-080 CAP, ELECT 47-25V
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER, SFE10.7MA5-A
CF832 87-008-261-010 FILTER, SFE10.7MA5-A
CN1 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN91 87-A60-109-010 CONN,2P V S2M-2W<EXCEPT 80U>
CN101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-099-194-010 CONN,6P 6216V
CNA1 8A-NF6-646-010 CONN ASSY,9P TID-A(460)
CNA2 8A-NF6-630-010 CONN ASSY,3P (VM) ANF-6
CNA101 8A-NF6-670-010 CONN ASSY,2P (MUTE) ANF-6
CON301 87-NF6-615-010 CONN ASSY,3P PB
CON351 87-NF6-616-010 CONN ASSY,8P RPB
FB501 87-008-372-080 FILTER, EMI BL OIRNI
FC602 88-906-621-110 FF-CABLE,6P 1.25 620MM
FFE831 A8-8ZA-190-030 8ZA-1 FEUNM
J102 87-A60-238-010 TERMINAL,SP 4P (MSC)
J103 87-A60-929-010 JACK,DIA6.3 BLK ST W/S TAI
J601 87-A60-885-010 JACK,PIN 6P R/W MSC
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
L101 87-A50-610-010 COIL,1UH K(MDEC)
L102 87-A50-610-010 COIL,1UH K(MDEC)
L301 87-A50-049-010 COIL,TRAP 85K(COI)
L302 87-A50-049-010 COIL,TRAP 85K(COI)
L351 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-540-010 COIL,FM DET(TOK)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L821 87-A50-209-010 COIL,1POLE MPX(MIT)
L822 87-A50-209-010 COIL,1POLE MPX(MIT)
L832 87-005-847-080 COIL,2.2UH(CECS)
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)
R161 87-A00-441-050 RES,270-1/2W J RP
R162 87-A00-441-050 RES,270-1/2W J RP
R163 87-A00-441-050 RES,270-1/2W J RP
R164 87-A00-441-050 RES,270-1/2W J RP
R790 87-010-197-080 CAP, CHIP 0.01 DM
R991 87-010-322-080 C-CAP,S 100P-50 CH
R993 87-010-322-080 C-CAP,S 100P-50 CH
R995 87-010-322-080 C-CAP,S 100P-50 CH
SFR351 87-A90-433-080 SFR,50K H NVZ6TLTA
SFR352 87-A90-433-080 SFR,50K H NVZ6TLTA
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
FRONT C.B
C101 87-010-197-080 CAP, CHIP 0.01 DM
C102 87-010-322-080 C-CAP,S 100P-50 CH
C103 87-010-312-080 C-CAP,S 15P-50 CH
C104 87-012-157-080 C-CAP,S 330P-50 CH
C105 87-010-415-040 CAP,E 10-50 5L
C106 87-010-493-040 CAP,E 0.47-50 GAS
C107 87-A10-189-040 CAP,E 220-10
C108 87-A10-189-040 CAP,E 220-10
C109 87-010-196-080 CHIP CAPACITOR,0.1-25
C110 87-010-178-080 CHIP CAP 1000P
C112 87-012-368-080 C-CAP,S 0.1-50 F
C113 87-A10-354-080 C-CAP,S 0.047-50 K B
C114 87-010-196-080 CHIP CAPACITOR,0.1-25
C115 87-010-196-080 CHIP CAPACITOR,0.1-25
C116 87-010-196-080 CHIP CAPACITOR,0.1-25
C118 87-012-145-080 CAP, CHIP S 270P CH
C180 87-010-178-080 CHIP CAP 1000P
C181 87-010-178-080 CHIP CAP 1000P
C202 87-012-156-080 C-CAP,S 220P-50 CH
C203 87-010-322-080 C-CAP,S 100P-50 CH
C204 87-012-157-080 C-CAP,S 330P-50 CH
C205 87-012-156-080 C-CAP,S 220P-50 CH
C214 87-010-322-080 C-CAP,S 100P-50 CH
C215 87-010-322-080 C-CAP,S 100P-50 CH
C216 87-010-177-080 C-CAP,S 820P-50 SL
C221 87-010-421-040 CAP,E 4.7-50 5L
C222 87-010-421-040 CAP,E 4.7-50 5L
C223 87-010-408-040 CAP,E 47-50 SME
C224 87-012-369-080 C-CAP,S 0.047-50F
C312 87-010-498-040 CAP,E 10-16 GAS
C314 87-010-196-080 CHIP CAPACITOR,0.1-25
C315 87-010-196-080 CHIP CAPACITOR,0.1-25
C316 87-010-196-080 CHIP CAPACITOR,0.1-25
C321 87-012-393-080 C-CAP,S 0.22-16 R K
C382 87-010-320-080 CHIP CAP 68P
C383 87-010-196-080 CHIP CAPACITOR,0.1-25
C384 87-010-196-080 CHIP CAPACITOR,0.1-25
C385 87-010-196-080 CHIP CAPACITOR,0.1-25
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C387 87-010-196-080 CHIP CAPACITOR,0.1-25
C392 87-010-320-080 CHIP CAP 68P
C402 87-010-196-080 CHIP CAPACITOR,0.1-25
C403 87-010-322-080 C-CAP,S 100P-50 CH
C404 87-010-322-080 C-CAP,S 100P-50 CH
C405 87-010-322-080 C-CAP,S 100P-50 CH
C406 87-010-322-080 C-CAP,S 100P-50 CH
C407 87-010-322-080 C-CAP,S 100P-50 CH
C408 87-010-322-080 C-CAP,S 100P-50 CH
C461 87-010-196-080 CHIP CAPACITOR,0.1-25
C462 87-010-196-080 CHIP CAPACITOR,0.1-25
C463 87-010-196-080 CHIP CAPACITOR,0.1-25
C464 87-010-196-080 CHIP CAPACITOR,0.1-25
C465 87-010-196-080 CHIP CAPACITOR,0.1-25
C652 87-010-183-080 C-CAP,S 2700P-50 B
C653 87-010-213-080 C-CAP,S 0.015-50 B
C701 87-010-406-040 CAP,E 22-50 SME
C802 87-012-154-080 C-CAP,S 150P-50 CH<EXCEPT 80U>
C804 87-010-187-080 CAP CHIP S5600P<EXCEPT 80U>
C805 87-010-196-080 CHIP CAPACITOR,0.1-25<EXCEPT 80U>
C806 87-010-401-040 CAP,E 1-50 SME<EXCEPT 80U>
C807 87-010-196-080 CHIP CAPACITOR,0.1-25<EXCEPT 80U>
C808 87-010-196-080 CHIP CAPACITOR,0.1-25<EXCEPT 80U>
C809 87-012-155-080 C-CAP 180P-50CH<EXCEPT 80U>
C810 87-010-263-040 CAP,E 100-10<EXCEPT 80U>
C811 87-010-545-040 CAP,E 0.22-50 SME<EXCEPT 80U>
C812 87-010-405-040 CAP,E 10-50<EXCEPT 80U>
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN104 87-099-017-010 CONN, 15P 6216 V
CN301 87-099-195-010 CONN,7P 6216 V
CN604 87-099-210-010 CONN,5P 6216 H
CN901 87-A60-161-010 CONN,13P H FE
FB801 87-008-372-080 FILTER, EMI BL OIRNI<EXCEPT 80U>
FC104 88-915-111-110 FF-CABLE,15P 1.25
FC301 88-907-421-110 FF-CABLE,7P 1.25 420MM
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

– 9 –
FC901 88-913-521-110 FF-CABLE,13P 1.25 520MM
FL201 8A-NF6-601-010 FL,BJ750GNK 13G-35S ANF-6
L101 87-A50-333-010 COIL,OSC 9.43MHZ
L801 87-A50-093-010 COIL,CLOCK 5.76MHZ<EXCEPT 80U>
LED401 87-017-756-040 LED,SLR-342DCT31 ORN
LED402 87-017-756-040 LED,SLR-342DCT31 ORN
LED403 87-017-756-040 LED,SLR-342DCT31 ORN
LED404 87-017-756-040 LED,SLR-342DCT31 ORN
LED405 87-017-756-040 LED,SLR-342DCT31 ORN
LED406 87-A40-496-040 LED,SLR-342MCT31 GRN
LED407 87-A40-496-040 LED,SLR-342MCT31 GRN
LED408 87-A40-496-040 LED,SLR-342MCT31 GRN
LED409 87-A40-496-040 LED,SLR-342MCT31 GRN
LED410 87-A40-496-040 LED,SLR-342MCT31 GRN
LED416 87-A40-809-080 LED,LTL-307KK PGRN
LED417 87-A40-809-080 LED,LTL-307KK PGRN
LED418 87-A40-809-080 LED,LTL-307KK PGRN
LED419 87-A40-809-080 LED,LTL-307KK PGRN
LED420 87-A40-809-080 LED,LTL-307KK PGRN
LED421 87-A40-809-080 LED,LTL-307KK PGRN
LED425 87-017-756-040 LED,SLR-342DCT31 ORN
LED426 87-017-756-040 LED,SLR-342DCT31 ORN
LED431 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
LED432 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
LED433 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
LED440 87-A91-665-010 LED,SELU1E10 CXM-SLF55 BLUE
LED441 87-A91-665-010 LED,SELU1E10 CXM-SLF55 BLUE
LED499 87-A40-317-080 LED,SLR-342VCT31 RED
S101 87-A91-591-010 SW,RTRY RE0121PVB25FINA24
S102 87-A91-664-010 SW,RTRY RE0121PVB30F
S301 87-A91-024-180 SW,TACT KSH0611BT
S302 87-A91-024-180 SW,TACT KSH0611BT
S303 87-A91-024-180 SW,TACT KSH0611BT
S304 87-A91-024-180 SW,TACT KSH0611BT
S305 87-A91-024-180 SW,TACT KSH0611BT
S306 87-A91-024-180 SW,TACT KSH0611BT
S310 87-A91-024-180 SW,TACT KSH0611BT
S311 87-A91-024-180 SW,TACT KSH0611BT
S312 87-A91-024-180 SW,TACT KSH0611BT
S313 87-A91-024-180 SW,TACT KSH0611BT
S314 87-A91-024-180 SW,TACT KSH0611BT<EXCEPT 80U>
S321 87-A91-024-180 SW,TACT KSH0611BT
S322 87-A91-024-180 SW,TACT KSH0611BT
S323 87-A91-024-180 SW,TACT KSH0611BT
S324 87-A91-024-180 SW,TACT KSH0611BT
S325 87-A91-024-180 SW,TACT KSH0611BT
S326 87-A91-024-180 SW,TACT KSH0611BT
S327 87-A91-024-180 SW,TACT KSH0611BT
S328 87-A91-024-180 SW,TACT KSH0611BT
S329 87-A91-024-180 SW,TACT KSH0611BT<EXCEPT 80U>
S330 87-A91-024-180 SW,TACT KSH0611BT<EXCEPT 80U>
S331 87-A91-024-180 SW,TACT KSH0611BT<EXCEPT 80U>
S332 87-A91-024-180 SW,TACT KSH0611BT<EXCEPT 80U>
S333 87-A91-024-180 SW,TACT KSH0611BT
S334 87-A91-024-180 SW,TACT KSH0611BT
S341 87-A91-024-180 SW,TACT KSH0611BT
S342 87-A91-024-180 SW,TACT KSH0611BT
S343 87-A91-024-180 SW,TACT KSH0611BT
S344 87-A91-024-180 SW,TACT KSH0611BT
S345 87-A91-024-180 SW,TACT KSH0611BT
S346 87-A91-024-180 SW,TACT KSH0611BT
S347 87-A91-024-180 SW,TACT KSH0611BT
CD KEY C.B
CN302 87-099-195-010 CONN,7P 6216 V
LED451 87-017-756-040 LED,SLR-342DCT31 ORN
LED452 87-017-756-040 LED,SLR-342DCT31 ORN
LED453 87-017-756-040 LED,SLR-342DCT31 ORN
LED454 87-A40-496-040 LED,SLR-342MCT31 GRN
LED455 87-A40-496-040 LED,SLR-342MCT31 GRN
LED456 87-A40-496-040 LED,SLR-342MCT31 GRN
S349 87-A91-024-180 SW,TACT KSH0611BT
S350 87-A91-024-180 SW,TACT KSH0611BT
S351 87-A91-024-180 SW,TACT KSH0611BT
S352 87-A91-024-180 SW,TACT KSH0611BT
S353 87-A91-024-180 SW,TACT KSH0611BT
S354 87-A91-024-180 SW,TACT KSH0611BT
S355 87-A91-024-180 SW,TACT KSH0611BT
MIC C.B
C601 87-010-186-080 CAP,CHIP 4700P
C602 87-010-405-040 CAP,E 10-50
C603 87-010-320-080 CHIP CAP 68P
C604 87-010-546-040 CAP,E 0.33-50
C606 87-010-112-040 CAP,E 100-16
C607 87-010-196-080 CHIP CAPACITOR,0.1-25
C608 87-010-178-080 CHIP CAP 1000P
C621 87-010-178-080 CHIP CAP 1000P
CN603 87-099-212-010 CONN,5P 6216 V
FB601 87-008-372-080 FILTER, EMI BL OIRNI
FC603 88-905-281-110 FF-CABLE, 5P 1.25 280MM
J601 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM
J602 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM
VM C.B
AMP 1F C.B
C101 87-010-178-080 CHIP CAP 1000P
C102 87-010-178-080 CHIP CAP 1000P
C103 87-010-545-080 CAP, ELECT 0.22-50V
C104 87-010-545-080 CAP, ELECT 0.22-50V
C107 87-016-145-080 CAP, ELECT 10-50 M 105 KME<80U>
C107 87-010-405-080 CAP, ELECT 10-50V<EXCEPT 80U>
C108 87-016-145-080 CAP, ELECT 10-50 M 105 KME<80U>
C108 87-010-405-080 CAP, ELECT 10-50V<EXCEPT 80U>
C113 87-010-405-080 CAP, ELECT 10-50V
C114 87-010-405-080 CAP, ELECT 10-50V
C115 87-A12-180-080 CAP, ELECT 10-63 M 105 KME<80U>
C115 87-016-299-080 CAP,E 10-100 SME<EXCEPT 80U>
C116 87-A12-180-080 CAP, ELECT 10-63 M 105 KME<80U>
C116 87-016-299-080 CAP,E 10-100 SME<EXCEPT 80U>
C119 87-010-197-080 CAP, CHIP 0.01 DM
C120 87-010-197-080 CAP, CHIP 0.01 DM
C133 87-010-190-080 C-CAP,S 0.01-50 ZF
C153 87-010-188-080 C-CAP,S 6800P-50 B
C201 87-A10-300-080 CAP,M 0.027-50 J
C202 87-A10-300-080 CAP,M 0.027-50 J
C203 87-A10-300-080 CAP,M 0.027-50 J
C204 87-A10-300-080 CAP,M 0.027-50 J
C205 87-010-180-080 C-CER 1500P
C206 87-010-180-080 C-CER 1500P
C207 87-010-401-080 CAP, ELECT 1-50V
C208 87-010-401-080 CAP, ELECT 1-50V
C209 87-010-187-080 CAP CHIP S5600P
C210 87-010-187-080 CAP CHIP S5600P
C211 87-016-142-080 CAP, ELECT 2.2-50 KME<80U>
C211 87-010-402-080 CAP, ELECT 2.2-50V<EXCEPT 80U>
C212 87-010-402-080 CAP, ELECT 2.2-50V
C215 87-012-140-080 C-CAP,S 470P-50 J CH
C216 87-012-140-080 C-CAP,S 470P-50 J CH
C217 87-010-401-080 CAP, ELECT 1-50V
C218 87-016-141-080 CAP, ELECT 1-50 M 105 KME<80U>
C218 87-010-401-080 CAP, ELECT 1-50V<EXCEPT 80U>
C221 87-010-405-080 CAP, ELECT 10-50V
C222 87-010-405-080 CAP, ELECT 10-50V
C223 87-010-197-080 CAP, CHIP 0.01 DM
C224 87-010-197-080 CAP, CHIP 0.01 DM
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

– 10 –
!
!
!
!
!
!
!
!
!
C251 87-012-368-080 C-CAP,S 0.1-50 F
C252 87-012-368-080 C-CAP,S 0.1-50 F
C253 87-010-196-080 CHIP CAPACITOR,0.1-25
C254 87-010-196-080 CHIP CAPACITOR,0.1-25
C401 87-010-260-080 CAP, ELECT 47-25V
CN101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CN102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CN106 87-099-195-010 CONN,7P 6216 V
CNA101 8A-NF6-645-010 CONN ASSY,5P TID-A(530)
CNA102 8A-NF6-660-010 CONN ASSY,3P (SATE) ANF-6
FC106 88-907-151-110 FF-CABLE, 7P 1.25 150MM
J201 87-A61-148-010 JACK,PIN 4P R/W BLUE
L251 87-003-383-010 COIL,1UH-S
L252 87-003-383-010 COIL,1UH-S
R129 87-A00-262-080 RES,M/F 0.15-2W J
R130 87-A00-262-080 RES,M/F 0.15-2W J
R231 87-A00-258-080 RES,M/F 0.22-1W J
R232 87-A00-258-080 RES,M/F 0.22-1W J
WH101 87-A90-459-010 HLDR,WIRE 2.5-5P
AMP SATE C.B
C201 87-010-263-080 CAP, ELECT 100-10V
C211 87-012-393-080 C-CAP,S 0.22-16 R K
C212 87-012-393-080 C-CAP,S 0.22-16 R K
C213 87-012-393-080 C-CAP,S 0.22-16 R K
C214 87-012-393-080 C-CAP,S 0.22-16 R K
C215 87-010-196-080 CHIP CAPACITOR,0.1-25
C216 87-010-196-080 CHIP CAPACITOR,0.1-25
C217 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C218 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C219 87-010-184-080 CHIP CAPACITOR 3300P(K)
C220 87-010-184-080 CHIP CAPACITOR 3300P(K)
C221 87-010-177-080 C-CAP,S 820P-50 SL
C222 87-010-177-080 C-CAP,S 820P-50 SL
C223 87-016-669-080 C-CAP,S 0.1-25 K B
C224 87-016-669-080 C-CAP,S 0.1-25 K B
C225 87-016-669-080 C-CAP,S 0.1-25 K B
C226 87-016-669-080 C-CAP,S 0.1-25 K B
C227 87-010-184-080 CHIP CAPACITOR 3300P(K)
C228 87-010-184-080 CHIP CAPACITOR 3300P(K)
C229 87-010-177-080 C-CAP,S 820P-50 SL
C230 87-010-177-080 C-CAP,S 820P-50 SL
C231 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C232 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C233 87-010-374-080 CAP, ELECT 47-10V
C234 87-010-374-080 CAP, ELECT 47-10V
C235 87-010-544-080 CAP, ELECT 0.1-50V
C236 87-010-544-080 CAP, ELECT 0.1-50V
C237 87-010-183-080 C-CAP,S 2700P-50 B
C238 87-010-183-080 C-CAP,S 2700P-50 B
C239 87-010-544-080 CAP, ELECT 0.1-50V
C240 87-010-544-080 CAP, ELECT 0.1-50V
C301 87-010-178-080 CHIP CAP 1000P
C302 87-010-178-080 CHIP CAP 1000P
C303 87-010-544-080 CAP, ELECT 0.1-50V
C304 87-010-544-080 CAP, ELECT 0.1-50V
C309 87-010-401-080 CAP, ELECT 1-50V
C310 87-010-401-080 CAP, ELECT 1-50V
C311 87-010-260-080 CAP, ELECT 47-25V
C312 87-010-260-080 CAP, ELECT 47-25V
C315 87-A10-596-080 C-CAP,S 100P-100 J CH
C316 87-A10-596-080 C-CAP,S 100P-100 J CH
C317 87-010-197-080 CAP, CHIP 0.01 DM
C318 87-010-197-080 CAP, CHIP 0.01 DM
C319 87-012-368-080 C-CAP,S 0.1-50 F
C320 87-012-368-080 C-CAP,S 0.1-50 F
C321 87-010-197-080 CAP, CHIP 0.01 DM
C322 87-010-197-080 CAP, CHIP 0.01 DM
C323 87-010-196-080 CHIP CAPACITOR,0.1-25
C324 87-010-196-080 CHIP CAPACITOR,0.1-25
C325 87-010-186-080 CAP,CHIP 4700P
C401 87-010-196-080 CHIP CAPACITOR,0.1-25
C402 87-010-196-080 CHIP CAPACITOR,0.1-25
C403 87-010-405-080 CAP, ELECT 10-50V
C404 87-010-405-080 CAP, ELECT 10-50V
CN101 87-099-195-010 CONN,7P 6216 V
CN102 87-049-919-010 CONN,3P EH V WHT
CN103 87-A60-619-010 CONN,2P V 2MM JMT
J301 87-A61-189-010 JACK,3.5 MONO
J302 87-A61-189-010 JACK,3.5 MONO
L301 87-003-383-010 COIL,1UH-S
L302 87-003-383-010 COIL,1UH-S
PT C.B
C1 87-010-387-080 CAP,E 470-25 SME
C4 87-A11-148-080 CAP,TC U 0.1-50 Z F
C5 87-A11-148-080 CAP,TC U 0.1-50 Z F
C6 87-010-917-000 CAP,E 3300-50 M SMG
C7 87-010-917-000 CAP,E 3300-50 M SMG
C8 87-A11-148-080 CAP,TC U 0.1-50 Z F
C9 87-A11-148-080 CAP,TC U 0.1-50 Z F
C10 87-A11-148-080 CAP,TC U 0.1-50 Z F
C11 87-A11-148-080 CAP,TC U 0.1-50 Z F
C12 87-016-520-000 CAP,E 3300-65 M SMG<80U>
C12 87-016-657-090 CAP,E 3300-71<EXCEPT 80U>
C13 87-016-520-000 CAP,E 3300-65 M SMG<80U>
C13 87-016-657-090 CAP,E 3300-71<EXCEPT 80U>
C16 87-010-403-080 CAP, ELECT 3.3-50V
CN1 87-A61-110-010 CONN,9P V TID-A
CN2 87-A61-108-010 CONN,5P V TID-A
PT2 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI<EXCEPT 80U>
PT2 8A-NF8-661-010 PT,SUB ANF-8 (U)<80U>
PT101 8A-NF6-622-010 PT,LH EI96-60 ANF-6<EXCEPT 80U>
PT101 8A-NF6-621-010 PT,U EI96-60 ANF-6<80U>
RY1 87-A91-281-010 RELAY,ACDC12V OSA-SS-212DM5<EX 80U>
RY2 87-A90-976-010 RELAY,AC12V SDT-S-112LMR<80U>
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301<EXCEPT 80U>
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
DECK C.B
CON501 87-099-756-019 CONN,15P 9604S F
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SOL1 82-ZM1-618-410 SOL ASSY,27
SOL2 82-ZM1-618-410 SOL ASSY,27
SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-036-110-010 SW,MICRO SPPB62
SW5 87-036-110-010 SW,MICRO SPPB62
SW6 87-036-110-010 SW,MICRO SPPB62
SW8 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW9 87-A90-248-010 SW,MICRO ESE11SH2CXQ
W1 82-ZM3-601-010 RBN-CORD,4P-75
HEAD-1 C.B
HEAD-2 C.B
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

– 11 –
TRANSISTOR ILLUSTRATION
E C B
KTA1266GR
KTC3198GR
CD1585BC
CSA952K
E C B
CC5551 2SB1370
2SB1370F
2SD2061F
DTC114ES
KTC3199GR
2SA933S
CSC4115BC
E C B B C E
E
B
C
2SA1235F
2SC2714O
2SC3052F
CMBT5551
CMBT5401
RT1P141C
CSD1306E
KRA104S
KRC102S-RTK
KRA107S
S
G
D
2SK2158
2SJ461-T1
E C B
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W

WIRING – 1 (MAIN / VM)
– 12 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

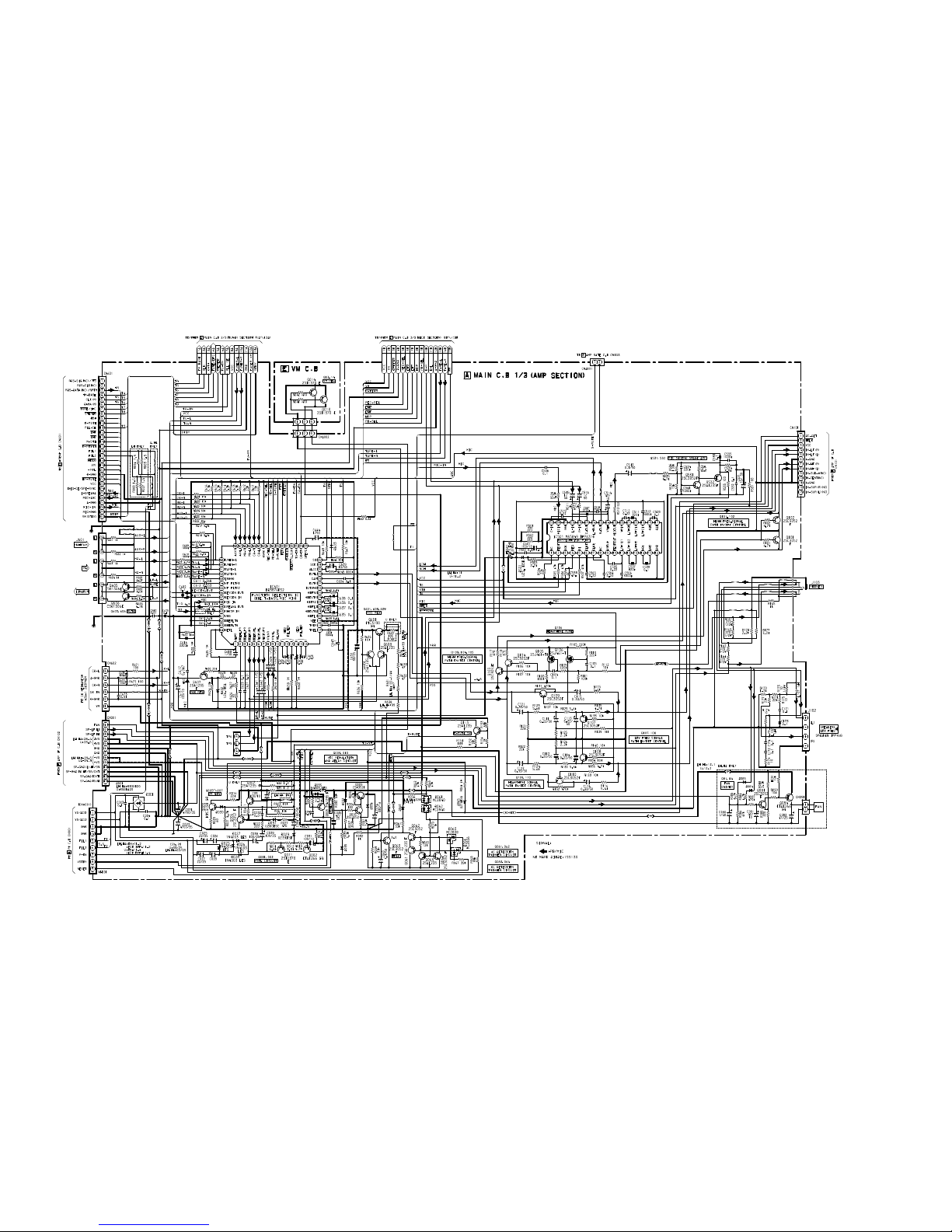

SCHEMATIC DIAGRAM – 1 (MAIN 1 / 3: AMP SECTION / VM)
– 13 –

SCHEMATIC DIAGRAM – 2 (MAIN 2 / 3: TUNER SECTION)
– 14 –
L802
AM IF ADJ.
/PB

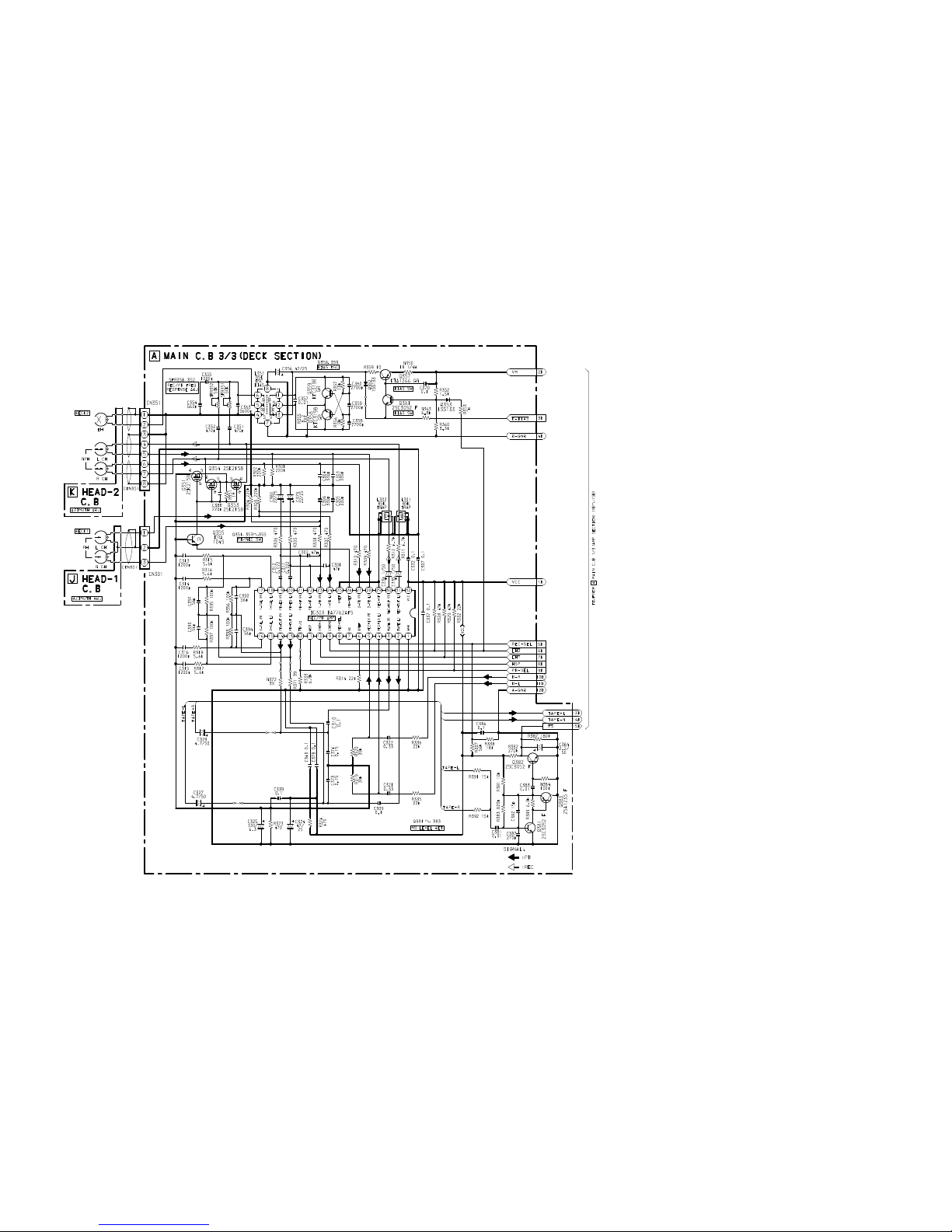

SCHEMATIC DIAGRAM – 3 (MAIN 3 / 3: DECK SECTION)
– 15 –

– 16 –
181920212223242526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

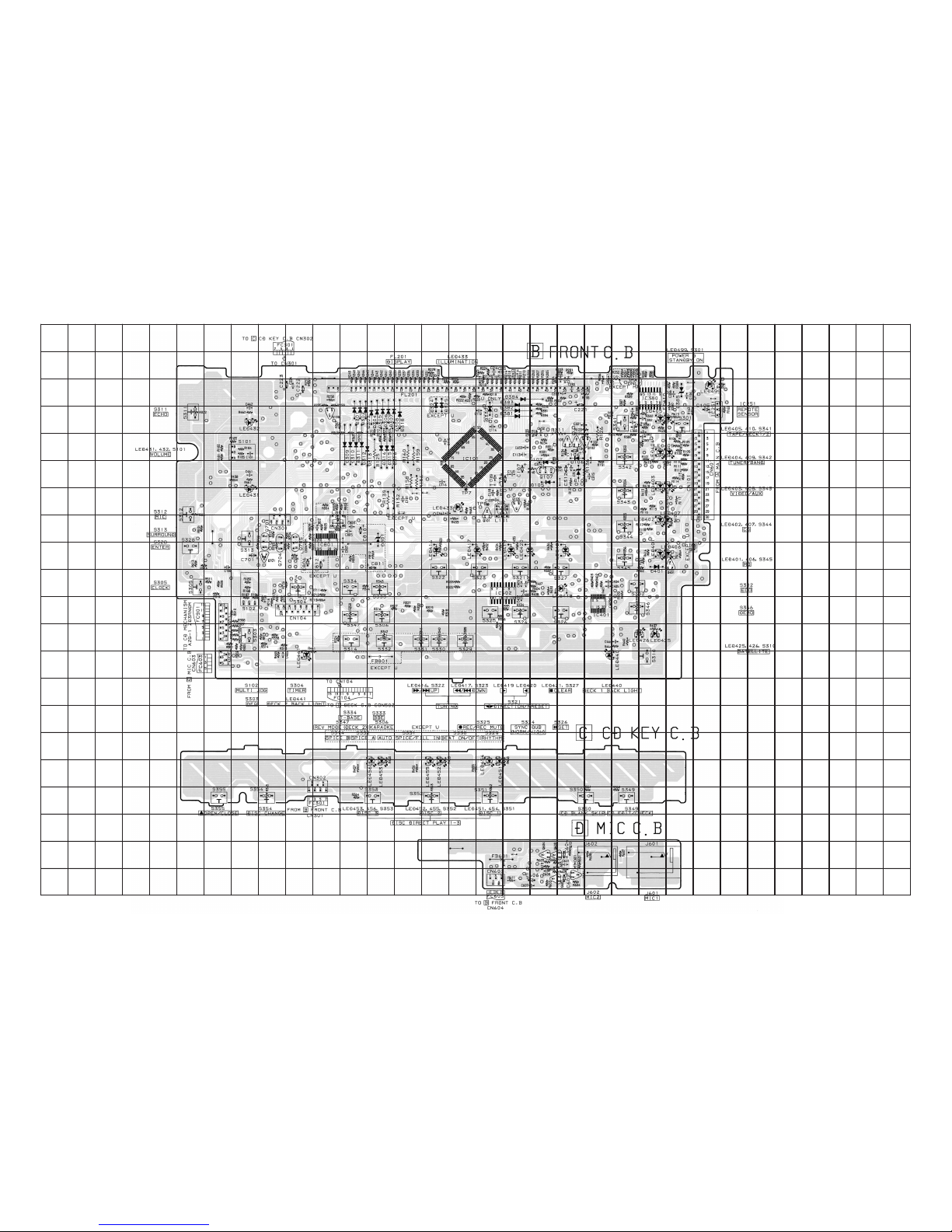

WIRING – 2 (FRONT / CD KEY / MIC) <1 / 2>

– 17 –

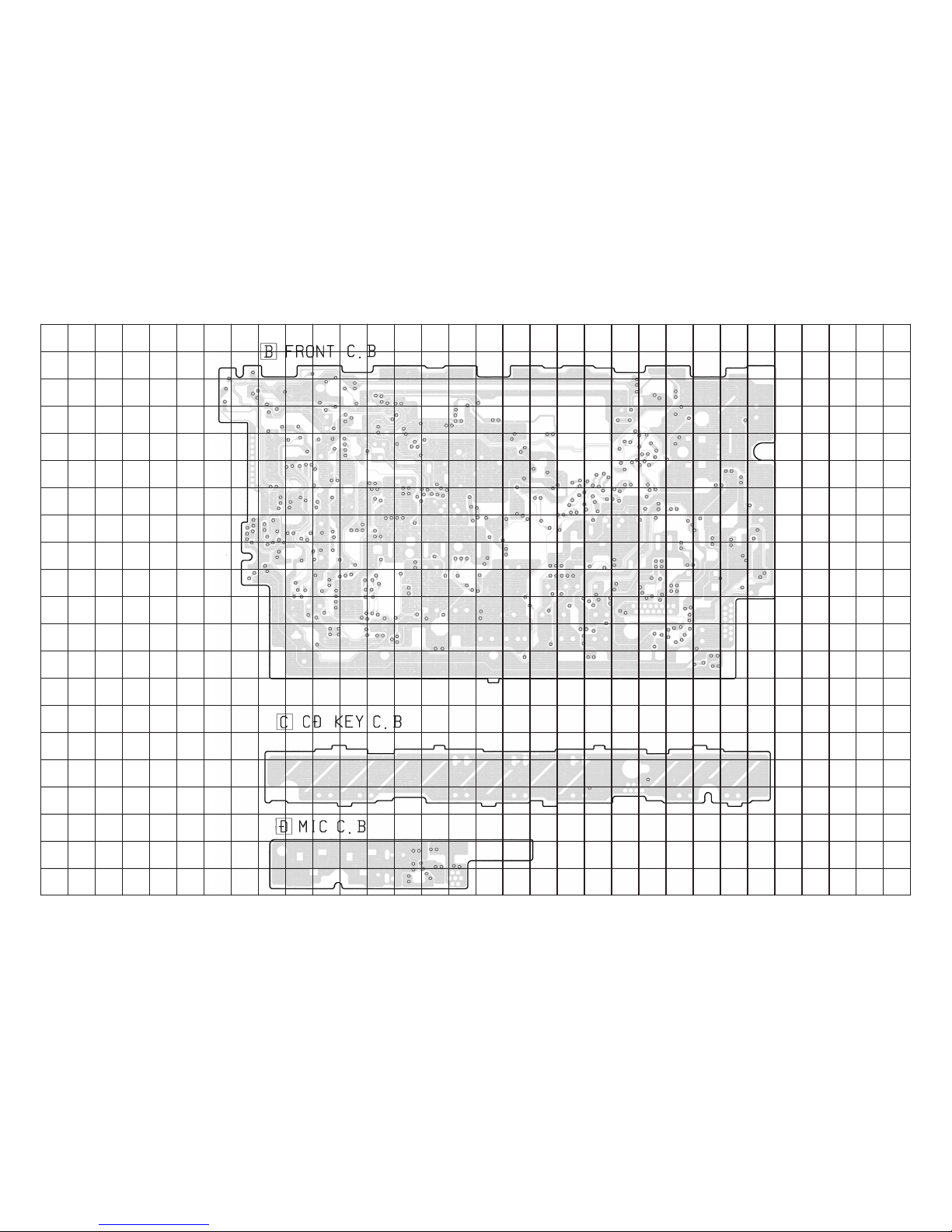

WIRING – 2 (FRONT / CD KEY / MIC) <2 / 2> 151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

SCHEMATIC DIAGRAM – 4 (FRONT / CD KEY / MIC)
– 18 –
IC401, 402
FRONT SHIFT REGISTER

WIRING – 3 (AMP 1F)
– 19 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

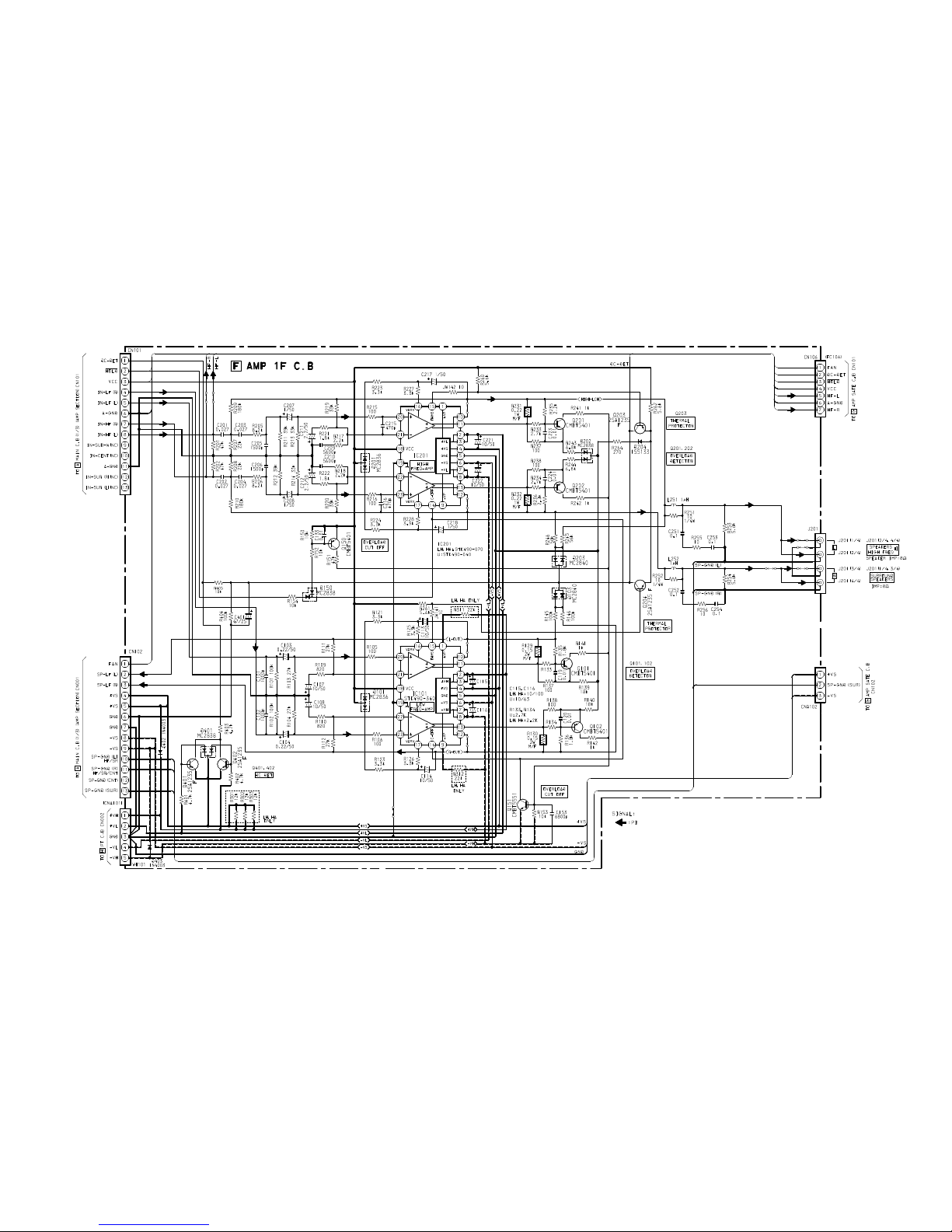

SCHEMATIC DIAGRAM – 5 (AMP 1F)
– 20 –
