SERVICE MANUAL
DATA
NSX–BL54
SYSTEM CD
CASSEIVER REMOTE CONTROLLER
CX–NBL54
COMPACT DISC
STEREO SYSTEM
BASIC TAPE MECHANISM : 2ZM-3MK2 YPR4N(LH)
BASIC TAPE MECHANISM : ZZM-3 PR1NF(U)
BASIC CD MECHANISM : AZG-1 ZD8RDC(LH)
BASIC CD MECHANISM : AZG-1 YKZD8RDF(U)
NSX-BL54
NSX-AJ54
LH
U
S/M Code No. 09-002-429-5N3
• If requiring information about the CD mechanism, see Service Manual of
AZG-1 ZD8RDC (S/M Code No. 09-001-335-3NA)/
AZG-1 YKZD8RDF (S/M Code No. 09-001-335-3N6).
SPEAKER
SX–WNBL53
NSX–AJ54 CX–NAJ54 SX–WNAJ53
RC–ZAS01
RC–ZAS02

2
Main unit CX-NBL54/CX-NAJ54
FM tuner section
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminal 75 ohms (unbalanced)
AM tuner section
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
Amplifier section
Mid-high frequency amplifier
Power output Rated: 20 W + 20 W (8 ohms,
T.H.D. 1 %, 1 kHz) <LH>
Reference : 25 W + 25 W (8 ohms,
T.H.D. 10 %, 1 kHz) <LH>
20 W + 20 W (200 Hz - 20kHz, THD
less than 1%, 8 ohms) <U>
Total harmonic distortion 0.1 % (10 W, 1 kHz, 8 ohms, DIN
AUDIO)
Low frequency amplifier
Power output Rated: 60 W + 60 W (6 ohms,
T.H.D. 1 %, 130 Hz) <LH>
Reference : 75 W + 75 W (6 ohms,
T.H.D. 10 %, 130 Hz) <LH>
60 W + 60 W (50 Hz - 200 Hz, THD
less than 1%, 6 ohms) <U>
Total harmonic distortion 0.1 % (30W, 130 Hz, 6 ohms, DIN
AUDIO)
Inputs VIDEO/AUX: 500 mV
MIC 1.0 mV (10 k ohms) <LH>
Outputs SPEAKERS HIGH FREQ:
accept speakers of 8 ohms or more
SPEAKERS LOW FREQ:
accept speakers of 6 ohms or more
SURROUND SPEAKERS:
accept speakers of 8 ohms to 16
ohms
PHONES (stereo jack): accepts
headphones of 32 ohms or more
Cassette deck section
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 15000 Hz
Recording system AC bias
Heads Deck 1: Playback head x 1
Deck 2: Recording/playback head
x 1, erase head x 1
SPECIFICATIONS
Compact disc player section
Laser Semiconductor laser (λ = 780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
General
Power requirements 120 V/220 – 230 V/240 V AC,
switchable 50/60 Hz <LH>
120 V AC, 60 Hz <U>
Power consumption 130 W <LH>, 110 W <U>
Power consumption in standby mode
If the power-economizing mode is
ECO OFF: 20 W
If the power-economizing mode is
ECO ON or ECO AUTO: 0.9 W
Dimensions of main unit 260 x 326 x 346 mm
(W xH xD) (10 1/4x 127/8x 135/8in.)
Weight of main unit 9.0 kg <LH>
8.0 kg (17 lbs 10 oz.) <U>
Speaker system SX-WNBL53/SX-WNAJ53
Speaker system 3 way, Built-in subwoofer (magnetic
shielded type)
Speaker units Subwoofer: 160 mm (63/8in.)
cone type
Full range: 100 mm (4 in.)cone type
Super tweeter: 20 mm (13/16 in.)
ceramic type
Impedance 6 ohms/8 ohms
Sensitvity 87 dB/W/m
Dimensions (W xH xD) 230 x 324 x 282 mm
(91/8x 127/8x 111/8in.)
Weight 4.8 kg (10 lbs 9 oz)
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES LIST
1 8A-NFJ-902-010 IB,LH(ESP)B<LH>
1 8A-NFJ-913-010 IB,U(ESF)M<U>
2 8Z-NF8-702-010 RC UNIT,RC-ZAS01<LH>
2 8Z-NF9-702-010 RC UNIT,ZAS02<U>
3 87-006-268-010 ANT,LOOP AM<U>
3 87-A90-030-010 ANT,LOOP AM-NC C<LH>
4 87-043-115-010 FEEDER-ANT,FM
!5 87-A91-017-010 PLUG,CONVERSION JT-0476<LH>
• Design and specifications are subject to change without notice.
• The word “BBE” and the “BBE symbol” are trademarks of BBE
Sound, Inc.
• Under license from BBE Sound, Inc.

3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
Precaution to replace Optical block

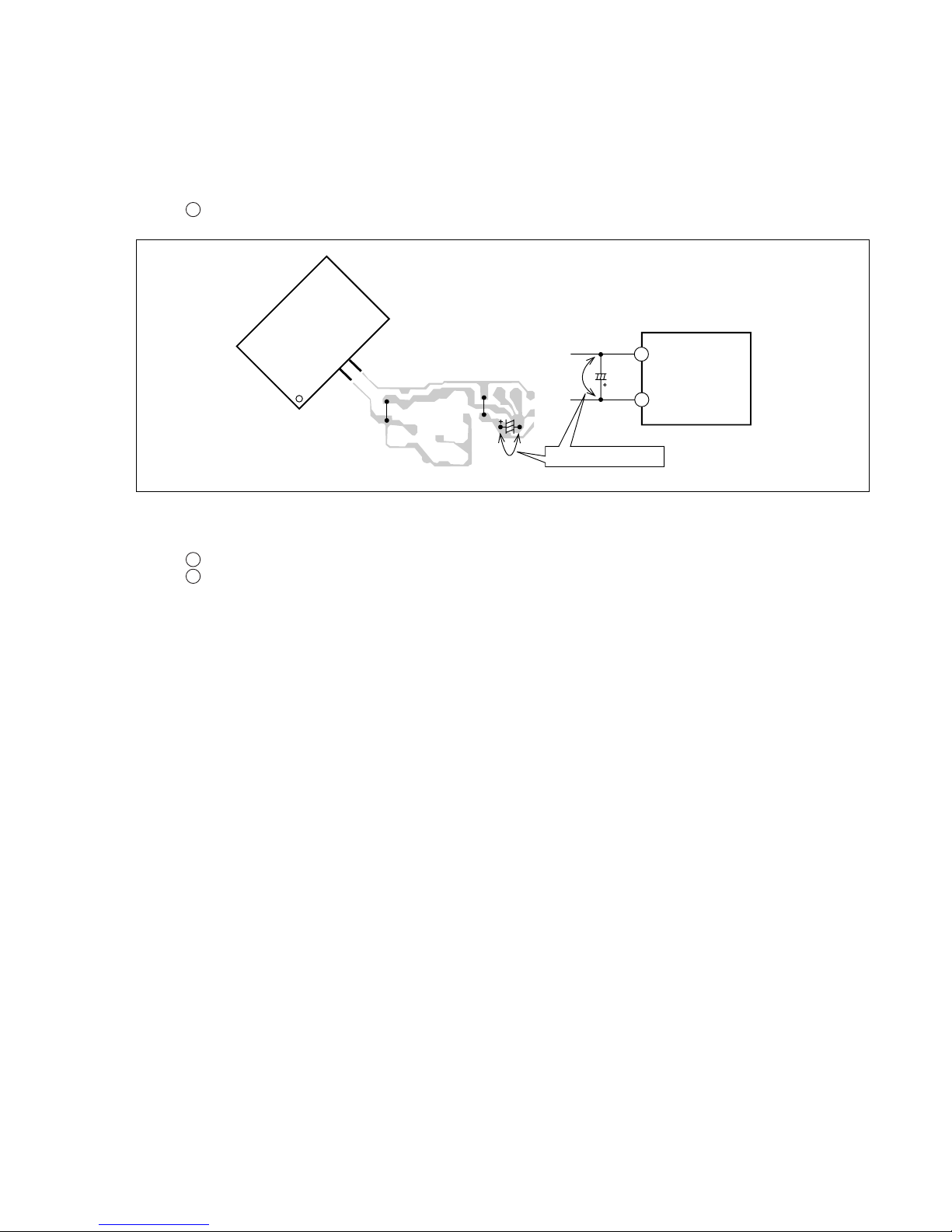

1) After the connection, remove solder shown in
the figure below.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
Solder
ZA8/ZD8 MODEL
ZA3/ZA4 (KSS-213F) MODEL

4
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
1 Turn on the AC main power.
2 Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
3 When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.

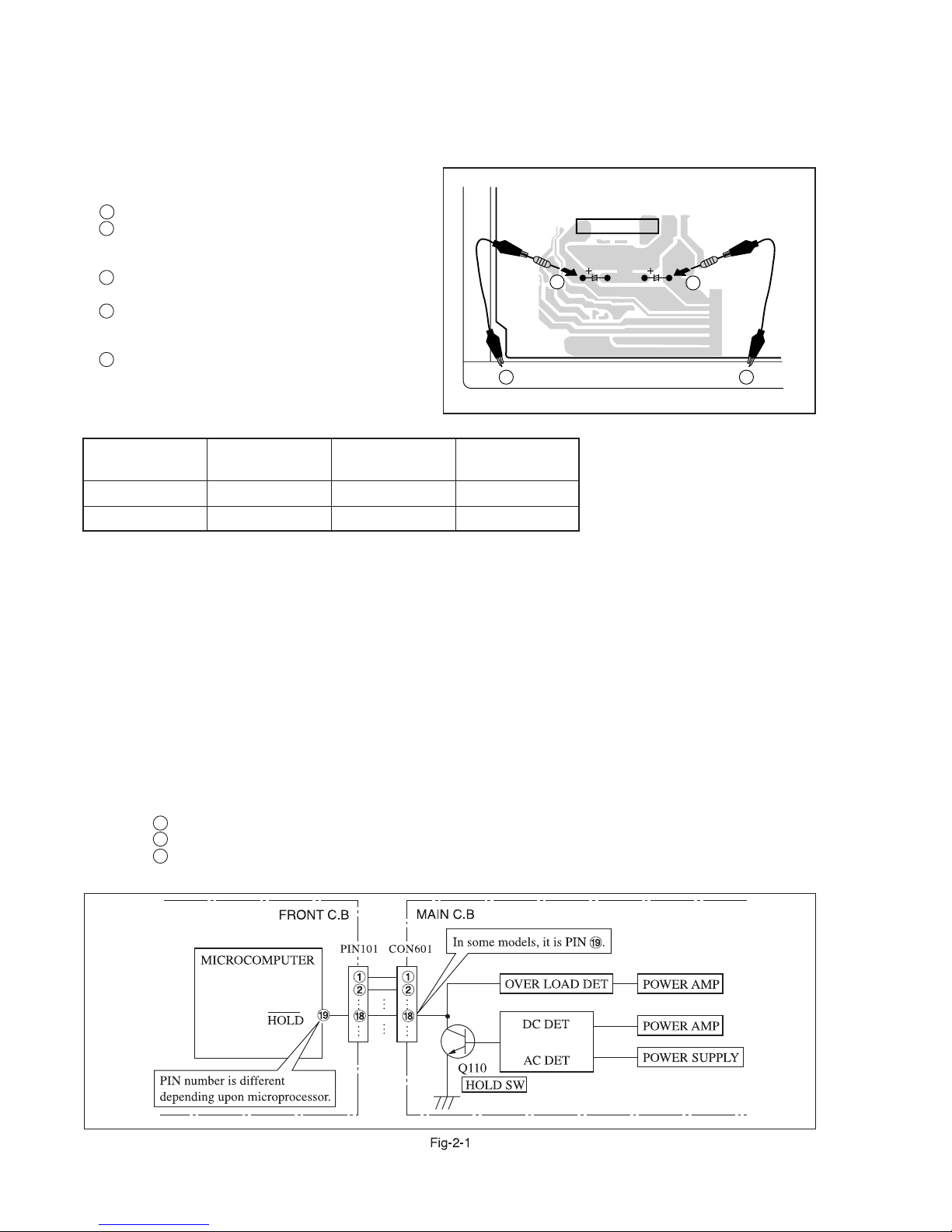

Discharge procedure
1 Remove the AC power cord.
2 Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
3 Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
4 Contact the same end of the discharging resistor as step 3
to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
5 Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
MAIN C.B
D101
C101 C102
34
22

5
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
1Remove the AC power cord.
2 Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
3 Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: ThereferencenumberorMICROCOMPUTERpinnumberoftransistor(Q110)andelectrolyticcapacitor(C113)canchangedepending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113
18
15
C113
18
15
Short with tweezers.

6
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ELECTRICAL MAIN PARTS LIST
IC
87-A21-269-010 IC,EW732<U>
87-020-454-010 IC,DN6851<LH>
87-A21-417-010 IC,STK490-310
8A-NF8-613-010 C-IC,LC866548V-5P87<U>
8A-NF8-612-110 C-IC,LC866548V-5P40<LH>
87-A21-396-010 IC,STK490-040
87-A21-629-010 IC,SPS-442-1-N
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-023-040 C-IC,BA3835F
87-070-289-040 C-IC,BU2092F
87-A21-401-040 C-IC,M61503FP
87-A21-415-010 IC,LA1843
87-070-127-110 IC,LC72131D
TRANSISTOR
87-026-451-080 TR,2SA933S<LH>
87-026-609-080 TR,KTA1266GR
89-213-702-010 TR,2SB1370E
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
87-A30-107-070 C-TR,CMBT5401
87-A30-106-040 C-TR,CMBT5551
87-A30-087-080 C-FET,2SK2158
87-A30-074-080 C-TR,RT1P 141C
87-A30-318-080 TR,CSA952K
87-A30-091-080 FET,2SJ460
87-A30-329-080 TR,CD1585BC
87-A30-090-080 FET,2SK2541
87-A30-104-080 C-TR,RT1N 441C
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-484-080 C-TR,KRA102S<U>
89-333-317-880 TR,2SC3331(T/U)
87-A30-269-040 C-FET,2SJ461-T1
89-327-143-080 C-TR,2SC2714O
87-A30-489-080 C-TR,KRA107S
87-A30-234-080 TR,CSC4115BC
DIODE
87-A40-393-090 DIODE,1N5402GW(F20)
87-020-465-080 DIODE,1SS133
87-A40-548-090 DIODE,D3SBA20<U>
87-A40-547-090 DIODE,D5SBA20<LH>
87-A40-455-080 DIODE,RL203 GW
87-A40-553-080 DIODE,1N4003 LES
87-A40-776-080 ZENER,UZ27BSD
87-A40-764-080 ZENER,UZ10BSC
87-A40-270-080 C-DIODE,MC2838
87-A40-313-080 C-DIODE,MC2840
87-A40-269-080 C-DIODE,MC2836
87-A40-768-080 ZENER,UZ16BSA
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-802-080 ZENER,UZ5.1BSC
87-A40-739-080 ZENER,UZ2.7BSA
87-017-149-080 ZENER,HZS6A2L
MAIN C.B
C0003 87-012-368-080 C-CAP,S 0.1-50 Z F
C0004 87-012-368-080 C-CAP,S 0.1-50 Z F
C0005 87-012-368-080 C-CAP,S 0.1-50 Z F
C0006 87-012-368-080 C-CAP,S 0.1-50 Z F
C0009 87-012-368-080 C-CAP,S 0.1-50 Z F
C0010 87-012-368-080 C-CAP,S 0.1-50 Z F
C0011 87-012-368-080 C-CAP,S 0.1-50 Z F
C0012 87-012-368-080 C-CAP,S 0.1-50 Z F
C0015 87-012-368-080 C-CAP,S 0.1-50 Z F
C0016 87-012-368-080 C-CAP,S 0.1-50 Z F
C0017 87-012-368-080 C-CAP,S 0.1-50 Z F
C0018 87-012-368-080 C-CAP,S 0.1-50 Z F
C0019 87-016-520-000 CAP,E 3300-65 M SMG
C0020 87-016-520-000 CAP,E 3300-65 M SMG
C0021 87-016-051-000 CAP,E 2200-35 M SMG
C0022 87-016-051-000 CAP,E 2200-35 M SMG
C0023 87-016-658-000 CAP,E 4700-35 M SMG
C0024 87-016-658-000 CAP,E 4700-35 M SMG
C0025 87-010-408-080 CAP,E 47-50 M 11L SME
C0026 87-010-247-080 CAP,E 100-50 M SME
C0030 87-010-430-080 CAP,E 100-63
C0031 87-010-263-080 CAP,E 100-10 M 11L SME
C0032 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0033 87-010-263-080 CAP,E 100-10 M 11L SME<U>
C0034 87-010-260-080 CAP,E 47-25 M 11L SME
C0035 87-010-380-080 CAP,E 47-16 M 11L SME
C0036 87-010-381-080 CAP,E 330-16 M SME
C0038 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0060 87-010-403-080 CAP,E 3.3-50 M 11L SME
C0061 87-010-260-080 CAP,E 47-25 M 11L SME
C0101 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C0102 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C0103 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0104 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0107 87-010-405-080 CAP,E 10-50 M 11L SME
C0108 87-010-405-080 CAP,E 10-50 M 11L SME
C0111 87-010-405-080 CAP,E 10-50 M 11L SME
C0112 87-010-405-080 CAP,E 10-50 M 11L SME
C0113 87-010-866-080 CAP,E 10-63 M VX
C0114 87-010-866-080 CAP,E 10-63 M VX
C0119 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0120 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0125 87-012-368-080 C-CAP,S 0.1-50 Z F
C0126 87-012-368-080 C-CAP,S 0.1-50 Z F
C0127 87-012-368-080 C-CAP,S 0.1-50 Z F
C0128 87-012-368-080 C-CAP,S 0.1-50 Z F
C0133 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C0140 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C0141 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0203 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C0204 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C0205 87-012-140-080 C-CAP,S 470P-50 J CH
C0206 87-012-140-080 C-CAP,S 470P-50 J CH
C0209 87-010-402-080 CAP,E 2.2-50 M 11L SME
C0210 87-010-402-080 CAP,E 2.2-50 M 11L SME
C0211 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C0212 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C0213 87-010-402-080 CAP,E 2.2-50 M 11L SME
C0214 87-010-402-080 CAP,E 2.2-50 M 11L SME
C0217 87-010-405-080 CAP,E 10-50 M 11L SME
C0218 87-010-405-080 CAP,E 10-50 M 11L SME
C0220 87-010-405-080 CAP,E 10-50 M 11L SME
C0223 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C0224 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C0228 87-010-405-080 CAP,E 10-50 M 11L SME
C0229 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0230 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0231 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0232 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0239 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0301 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0302 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0303 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0304 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0307 87-010-263-080 CAP,E 100-10 M 11L SME
C0308 87-010-263-080 CAP,E 100-10 M 11L SME

7
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C0309 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C0310 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C0313 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C0314 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C0315 87-010-263-080 CAP,E 100-10 M 11L SME
C0317 87-010-546-080 CAP,E 0.33-50 M 11L SME
C0318 87-010-546-080 CAP,E 0.33-50 M 11L SME
C0326 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C0327 87-012-368-080 C-CAP,S 0.1-50 Z F
C0360 87-010-401-080 CAP,E 1-50 M 11L SME
C0399 87-012-140-080 C-CAP,S 470P-50 J CH
C0401 87-010-544-080 CAP,E 0.1-50 M 11L SME
C0402 87-010-544-080 CAP,E 0.1-50 M 11L SME
C0403 87-010-321-080 C-CAP,S 82P-50 J CH
C0404 87-010-321-080 C-CAP,S 82P-50 J CH
C0405 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0406 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0407 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0408 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0409 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C0410 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C0411 87-010-405-080 CAP,E 10-50 M 11L SME
C0412 87-010-405-080 CAP,E 10-50 M 11L SME
C0452 87-010-382-080 CAP,E 22-25 M 11L SME
C0453 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C0454 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C0455 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C0456 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0458 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0459 87-010-175-080 C-CAP,S 560P-50 J SL
C0460 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0461 87-012-158-080 C-CAP,S 390P-50 J CH GRM
C0462 87-012-158-080 C-CAP,S 390P-50 J CH GRM
C0507 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0508 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0509 87-A10-300-080 CAP,M 0.027-50 J
C0510 87-A10-300-080 CAP,M 0.027-50 J
C0515 87-A10-300-080 CAP,M 0.027-50 J
C0516 87-A10-300-080 CAP,M 0.027-50 J
C0518 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0519 87-010-401-080 CAP,E 1-50 M 11L SME
C0520 87-010-401-080 CAP,E 1-50 M 11L SME
C0521 87-010-546-080 CAP,E 0.33-50 M 11L SME
C0522 87-010-546-080 CAP,E 0.33-50 M 11L SME
C0523 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0524 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0525 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0526 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0605 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C0606 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C0609 87-010-213-080 C-CAP,S 0.015-25 K B GRM
C0610 87-010-213-080 C-CAP,S 0.015-25 K B GRM
C0611 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0612 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0613 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0614 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0615 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C0616 87-010-385-080 CAP,E 220-25 M SME
C0617 87-010-385-080 CAP,E 220-25 M SME
C0618 87-010-405-080 CAP,E 10-50 M 11L SME
C0620 87-010-263-080 CAP,E 100-10 M 11L SME
C0630 87-016-669-080 C-CAP,S 0.1-25 K B
C0631 87-010-185-080 C-CAP,S 3900P-50 K B
C0632 87-010-185-080 C-CAP,S 3900P-50 K B
C0633 87-016-369-080 C-CAP,S 0.033-25 K B GRM
C0634 87-016-369-080 C-CAP,S 0.033-25 K B GRM
C0661 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0662 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0671 87-010-196-080 C-CAP,S 0.1-25 Z F C2012<LH>
C0672 87-010-196-080 C-CAP,S 0.1-25 Z F C2012<LH>
C0673 87-010-182-080 C-CAP,S 2200P-50 K B C2012<LH>
C0677 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0771 87-010-263-080 CAP,E 100-10 M 11L SME
C0772 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0782 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0783 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0784 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0785 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0786 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0788 87-010-149-080 C-CAP,S 5P-50 C CH GRM
C0789 87-A12-052-080 C-CAP,S 0.033-25 J B
C0790 87-A12-052-080 C-CAP,S 0.033-25 J B
C0791 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0792 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0793 87-010-404-080 CAP,E 4.7-50 M 11L SME
C0795 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0796 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0797 87-010-405-080 CAP,E 10-50 M 11L SME
C0798 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0799 87-010-407-080 CAP,E 33-50 M 11L SME
C0800 87-012-369-080 C-CAP,S 0.047-50 Z F
C0801 87-010-403-080 CAP,E 3.3-50 M 11L SME
C0802 87-010-194-080 C-CAP,S 0.047-25 Z F
C0803 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C0804 87-010-263-080 CAP,E 100-10 M 11L SME
C0807 87-010-400-080 CAP,E 0.47-50 M 11L SME
C0808 87-010-401-080 CAP,E 1-50 M 11L SME
C0809 87-010-401-080 CAP,E 1-50 M 11L SME
C0810 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0814 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0815 87-010-400-080 CAP,E 0.47-50 M 11L SME
C0816 87-010-400-080 CAP,E 0.47-50 M 11L SME
C0821 87-010-405-080 CAP,E 10-50 M 11L SME
C0823 87-010-177-080 C-CAP,S 820P-50 J SL C2012
C0824 87-010-405-080 CAP,E 10-50 M 11L SME
C0825 87-010-596-080 C-CAP,S 0.047-16 K R C2012
C0842 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0844 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0850 87-010-260-080 CAP,E 47-25 M 11L SME
C0851 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0852 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0853 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0858 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0859 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0860 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0959 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0960 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0961 87-010-152-080 C-CAP,S 8P-50 D CH GRM
C0963 87-015-785-080 C-CAP, 0.1-25 Z F C3216
C0971 87-010-381-080 CAP,E 330-16 M SME
C0972 87-010-404-080 CAP,E 4.7-50 M 11L SME
C0973 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0974 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0979 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0981 87-010-260-080 CAP,E 47-25 M 11L SME
C0982 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0983 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0984 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0987 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0991 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C0992 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C0993 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0995 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0997 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0998 87-010-260-080 CAP,E 47-25 M 11L SME
C0999 87-A11-132-080 CAP,TC U 0.01-50 K B
CF0831 87-008-261-010 FLTR,CF SFE10.7MA5
CF0832 87-008-261-010 FLTR,CF SFE10.7MA5
CN0301 87-A60-620-010 CONN,3P V 2MM JMT
CN0351 87-A60-625-010 CONN,8P V 2MM JMT

8
CN0601 87-099-719-010 CONN,30P H BLK TYK-B(X)
CN0602 87-A60-131-010 CONN,6P V FE
CNA0001 8A-NF8-654-010 CONN ASSY,11P TID-A(480)
FFC602 88-906-251-110 FF-CABLE,6P 1.25
FFE0831 A8-8ZA-191-030 8ZA-1 YFEUNM<U>
FFE0831 A8-8ZA-193-070 8ZA-1 YFEUNC<LH>
J0201 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM
J0203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J0204 87-A61-153-010 JACK,PIN 4P R/W(BL) (SEPA) KM<U>
J0205 87-A61-157-010 JACK,PIN 2P R/W/BL V(SEPA) KM<LH>
J0602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J0831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
L0101 87-003-383-010 COIL,1UH K
L0102 87-003-383-010 COIL,1UH K
L0201 87-003-383-010 COIL,1UH K
L0202 87-003-383-010 COIL,1UH K
L0451 87-007-342-010 COIL,OSC 85KHZ BIAS
L0801 87-A50-540-010 COIL,FM DET(TOK)
L0802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L0811 87-005-847-080 COIL,2.2UH K CECS
L0832 87-005-847-080 COIL,2.2UH K CECS
L0951 8A-NF8-667-010 COIL,AM PACK 4(TOK)
R0129 87-A00-257-080 RES,M/F 0.15-1W J
R0130 87-A00-257-080 RES,M/F 0.15-1W J
R0143 87-A00-439-050 RES,180-1/2W J RP<U>
R0143 87-A00-440-050 RES,220-1/2W J RP<LH>
R0144 87-A00-439-050 RES,180-1/2W J RP<U>
R0144 87-A00-440-050 RES,220-1/2W J RP<LH>
R0145 87-A00-439-050 RES,180-1/2W J RP<U>
R0145 87-A00-440-050 RES,220-1/2W J RP<LH>
R0146 87-A00-439-050 RES,180-1/2W J RP<U>
R0146 87-A00-440-050 RES,220-1/2W J RP<LH>
R0233 87-A00-258-080 RES,M/F 0.22-1W J
R0234 87-A00-258-080 RES,M/F 0.22-1W J
R0790 87-010-197-080 C-CAP,S 0.01-25 K B C2012
R0991 87-010-322-080 C-CAP,S 100P-50 J CH GRM
R0993 87-010-322-080 C-CAP,S 100P-50 J CH GRM
R0995 87-010-322-080 C-CAP,S 100P-50 J CH GRM
SFR0451 87-A90-432-080 SFR,30K H NVZ6TLTA
SFR0452 87-A90-432-080 SFR,30K H NVZ6TLTA
WH0001 87-A91-179-010 HLDR,WIRE 2.5-11P
X0991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309

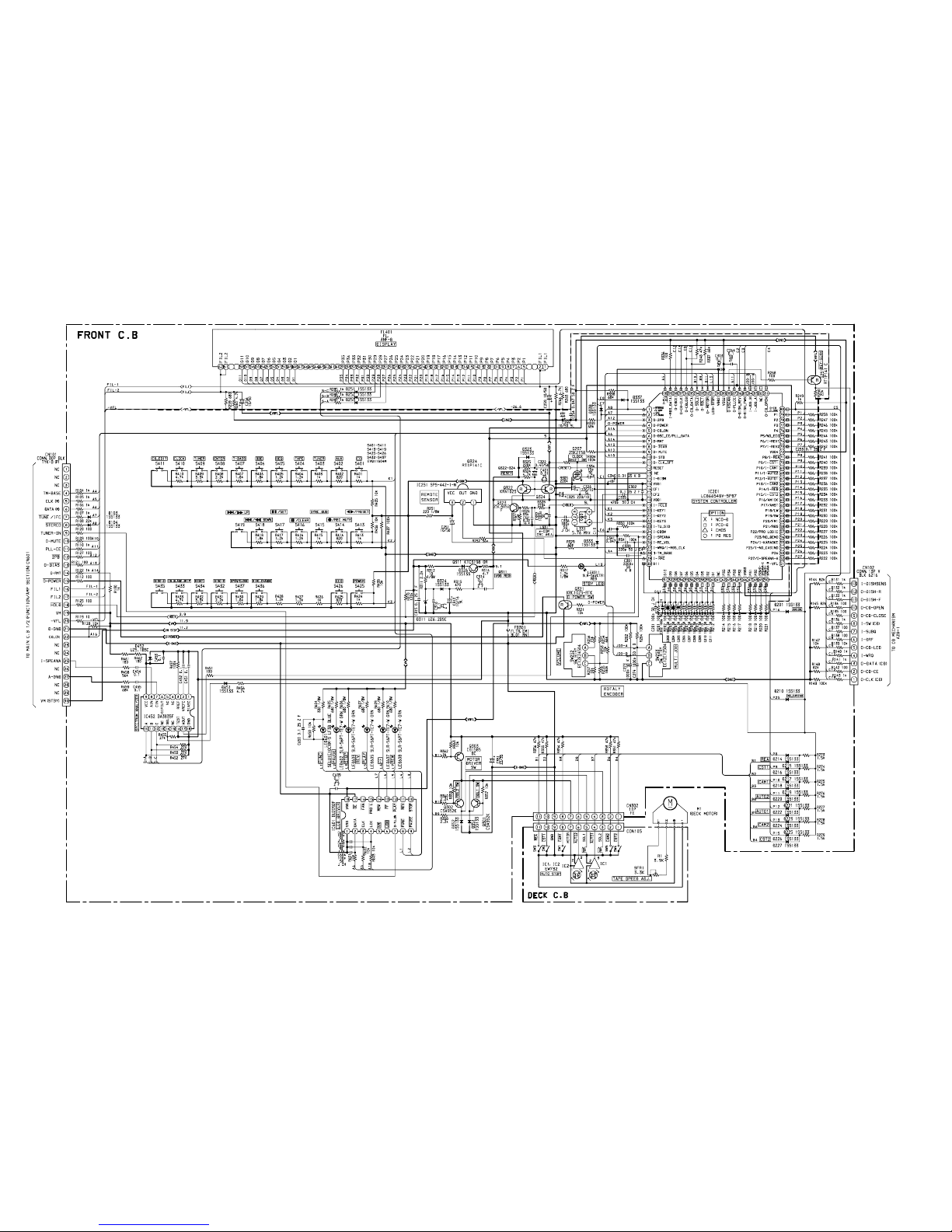

FRONT C.B
C0201 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0202 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0203 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0204 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0205 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0206 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0207 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0208 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0209 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0210 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0211 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0251 87-010-405-040 CAP,E 10-50 M 11L SME
C0253 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0254 87-012-369-080 C-CAP,S 0.047-50 Z F
C0255 87-010-560-040 CAP,E 10-50 M 5L MA
C0256 87-010-405-040 CAP,E 10-50 M 11L SME
C0259 87-010-405-040 CAP,E 10-50 M 11L SME
C0264 87-A11-148-080 CAP,TC U 0.1-50 Z F
C0273 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0274 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0301 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C0302 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0303 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0312 87-010-498-040 CAP,E 10-16 M 5L SRE
C0314 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0315 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0316 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0321 87-012-393-080 C-CAP,S 0.22-16 K W5R CM/CB
C0322 87-010-400-040 CAP,E 0.47-50 M 11L SME
C0325 87-A10-189-040 CAP,E 220-10 M 5L
C0326 87-A10-189-040 CAP,E 220-10 M 5L
C0332 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0334 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C0335 87-012-140-080 C-CAP,S 470P-50 J CH
C0336 87-012-155-080 C-CAP,S 180P-50 J CH GRM
C0339 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C0340 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0341 87-010-194-080 C-CAP,S 0.047-25 Z F
C0351 87-010-981-040 CAP,E 22-35 M 5L SRE
C0401 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0451 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0452 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0453 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0454 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0455 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0502 87-010-186-080 C-CAP,S 4700P-50 K B C2012<LH>
C0503 87-010-112-040 CAP,E 100-16 M 11L SME<LH>
C0504 87-010-405-040 CAP,E 10-50 M 11L SME<LH>
C0505 87-010-545-040 CAP,E 0.22-50 M 11L SME<LH>
C0506 87-010-320-080 C-CAP,S 68P-50 J CH GRM<LH>
C0507 87-010-544-040 CAP,E 0.1-50 M 11L SME<LH>
C0508 87-010-544-040 CAP,E 0.1-50 M 11L SME<LH>
C0510 87-010-322-080 C-CAP,S 100P-50 J CH GRM<LH>
C0511 87-010-265-040 CAP,E 33-16 M 11L SME<LH>
C0512 87-010-178-080 C-CAP,S 1000P-50 K B C2012<LH>
C0513 87-010-196-080 C-CAP,S 0.1-25 Z F C2012<LH>
C0515 87-010-178-080 C-CAP,S 1000P-50 K B C2012<LH>
C0602 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0603 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0604 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0650 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0699 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
CN0101 87-099-720-010 CONN,30P BLK TYK-B(P)
CN0102 87-099-015-010 CONN,13P V BLK 6216
CN0301 87-A60-140-010 CONN,15P V FE<LH>
CN0302 87-A60-136-010 CONN,11P V FE<U>
FB0301 87-008-372-080 FLTR,EMI BL01 RN1
FB0501 87-008-372-080 FLTR,EMI BL01 RN1<LH>
FFC102 88-913-301-110 FF-CABLE,13P-1.25
FFC105 88-911-101-110 FF-CABLE,11P 1.25<U>
FFC105 88-915-101-110 FF-CABLE, 15P 1.25 100MM<LH>
FL0401 8A-NF8-601-010 FL,HNA-11MM30(ANF-8)
J0501 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM<LH>
L0331 87-A50-408-010 COIL,OSC 5.76MHZ
LED0311 87-A40-589-040 LED,SLR-56VCT31 RED
LED0601 87-A40-803-010 LED,SELU1E10CXM-S LF38 BLUE
LED0602 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED0603 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED0604 87-A40-619-080 LED,SLR-56PT-TE7-W GRN<LH>
LED0605 87-A40-619-080 LED,SLR-56PT-TE7-W GRN<U>
LED0606 87-A40-619-080 LED,SLR-56PT-TE7-W GRN<LH>
LED0607 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED0608 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
S0401 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0401 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0402 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0402 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0403 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0403 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0404 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0404 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0405 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0405 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0406 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0406 87-A91-024-180 SW,TACT KSHG611BT<LH>
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.

9
S0407 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0407 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0408 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0408 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0409 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0409 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0410 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0410 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0411 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0411 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0412 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0413 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0413 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0414 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0414 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0415 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0415 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0416 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0416 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0417 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0417 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0418 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0418 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0419 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0419 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0420 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0425 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0425 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0426 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0426 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0432 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0432 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0433 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0433 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0434 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0434 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0435 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0435 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0436 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0436 87-A91-024-180 SW,TACT KSHG611BT<LH>
S0437 87-A90-095-080 SW,TACT EVQ11G04M<U>
S0437 87-A91-024-180 SW,TACT KSHG611BT<LH>
SW0252 87-A91-555-010 SW,RTRY EC12E24504
SW0253 87-A91-542-010 SW,RTRY EC12E12504
VR0501 86-NFA-607-010 VR,RTRY 10K15AX1 1 V XV0121PVN<LH>
DECK C.B
REF. NO PART NO. KANRI DESCRIPTION
NO.
CON105 87-099-753-010 CONN,11P 9604 S F<U>
CON105 87-099-756-010 CONN,15P 9604 S F<LH>
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SOL1 82-ZM1-618-410 SOL ASSY,27
SOL2 82-ZM1-618-410 SOL ASSY,27
SW1 87-A90-673-010 SW,MICRO ESE11SH1C<U>
SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ<LH>
SW2 87-A91-500-010 SW,MICRO MPU11470MLB0<U>
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ<LH>
SW3 87-A91-500-010 SW,MICRO MPU11470MLB0<U>
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ<LH>
SW4 87-A91-500-010 SW,MICRO MPU11470MLB0<U>
SW4 87-036-110-010 SW,MICRO SPPB62<LH>
SW5 87-A90-673-010 SW,MICRO ESE11SH1C<U>
SW5 87-036-110-010 SW,MICRO SPPB62<LH>
SW6 87-036-110-010 SW,MICRO SPPB62<LH>
SW8 87-A90-248-010 SW,MICRO ESE11SH2CXQ<LH>
SW9 87-A90-248-010 SW,MICRO ESE11SH2CXQ<LH>
W1 82-ZM3-601-010 RBN,CORD,4P-75<LH>
HEAD-1 C.B<LH>
85-ZM3-602-010 PWB,FLEX A<LH>
CON301 87-NF6-615-010 CONN ASSY,3P PB<LH>
HEAD-2 C.B<LH>
85-ZM3-602-010 PWB,FLEX A<LH>
CON351 87-NF6-616-010 CONN ASSY,8P-RPB<LH>
PT C.B
C0001 87-010-387-080 CAP,E 470-25 M SME
C0031 87-010-403-040 CAP,E 3.3-50 M 11L SME
CN0001 87-A61-122-010 CONN,11P V TID-A
!PT0001 8A-NF8-604-010 PT,ANF-8 U<U>
!PT0001 8A-NF8-605-010 PT,ANF-8 LH<LH>
!PT0002 8A-NF8-661-010 PT,SUB ANF-8 (U)<U>
!PT0002 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI<LH>
!RY0001 87-A91-339-010 RELAY,AC DC12V G5PA-2<LH>
!RY0002 87-A91-418-010 RELAY,AC12V G5PA-1-M<U>
!S0001 87-A90-165-010 SW,SL 1-2-3 SWS2301<LH>
!T0001 87-A60-317-010 TERMINAL, 1P MSC
!T0002 87-A60-317-010 TERMINAL, 1P MSC
REF. NO PART NO. KANRI DESCRIPTION
NO.
88
A

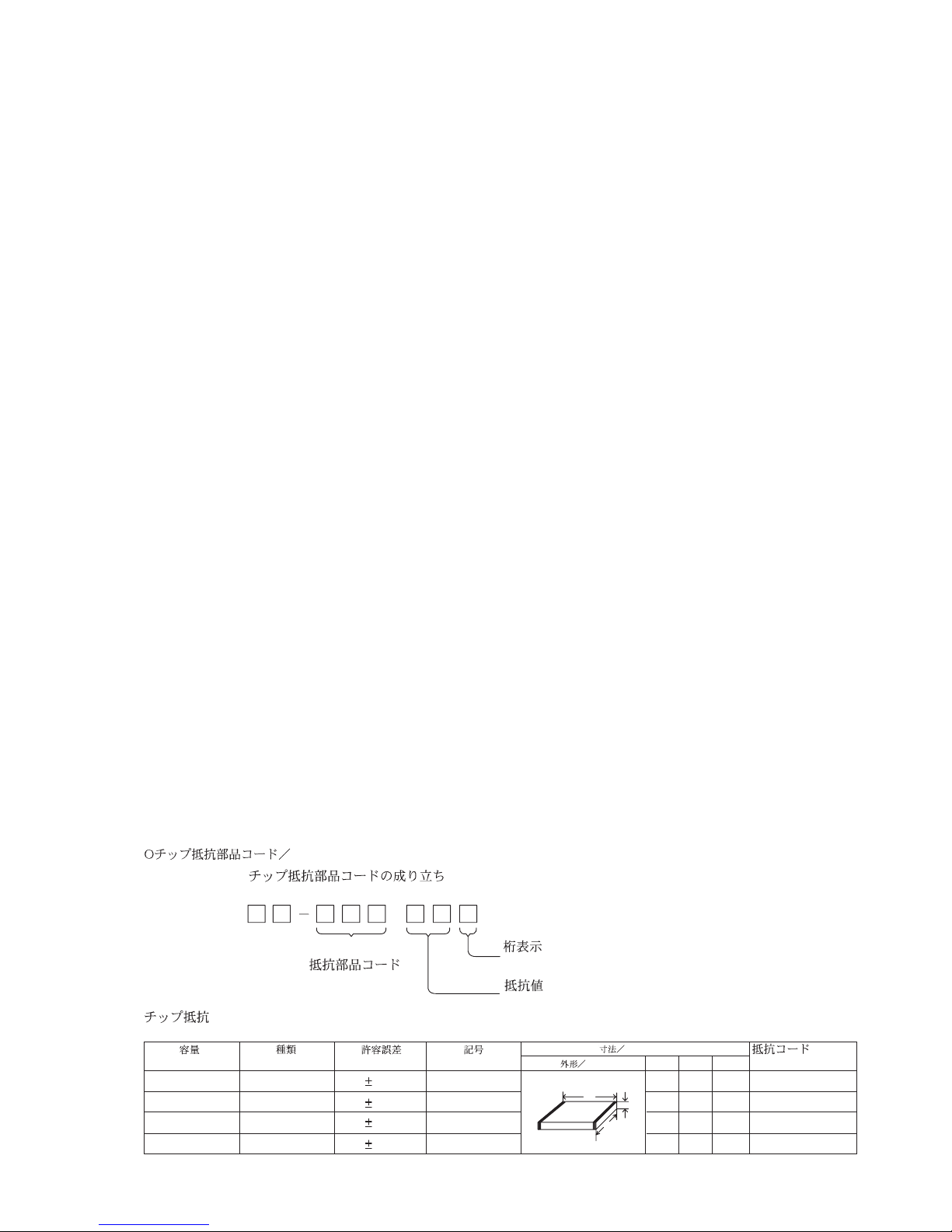

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W

10
TRANSISTOR ILLUSTRATION
BE
C
2SA1235
2SC2714
2SC3052
CMBT5401
CMBT5551
KRA102S
KRA107S
KRC102S
RT1N441C
RT1P141C
GS
D
2SJ461
2SK2158
E C B
2SC3331
CD1585
CSA952
CSC4115
KTA1266
KTC3198
E C B
2SA933S
DTC114ES
KTC3199
S D G
2SJ460
2SK2541
B C E
2SB1370

1211
FL (HNA-11MM30) GRID ASSIGNMENT/ANODE CONNECTION
GRID ASSIGNMENT
ANODE CONNECTION

1615

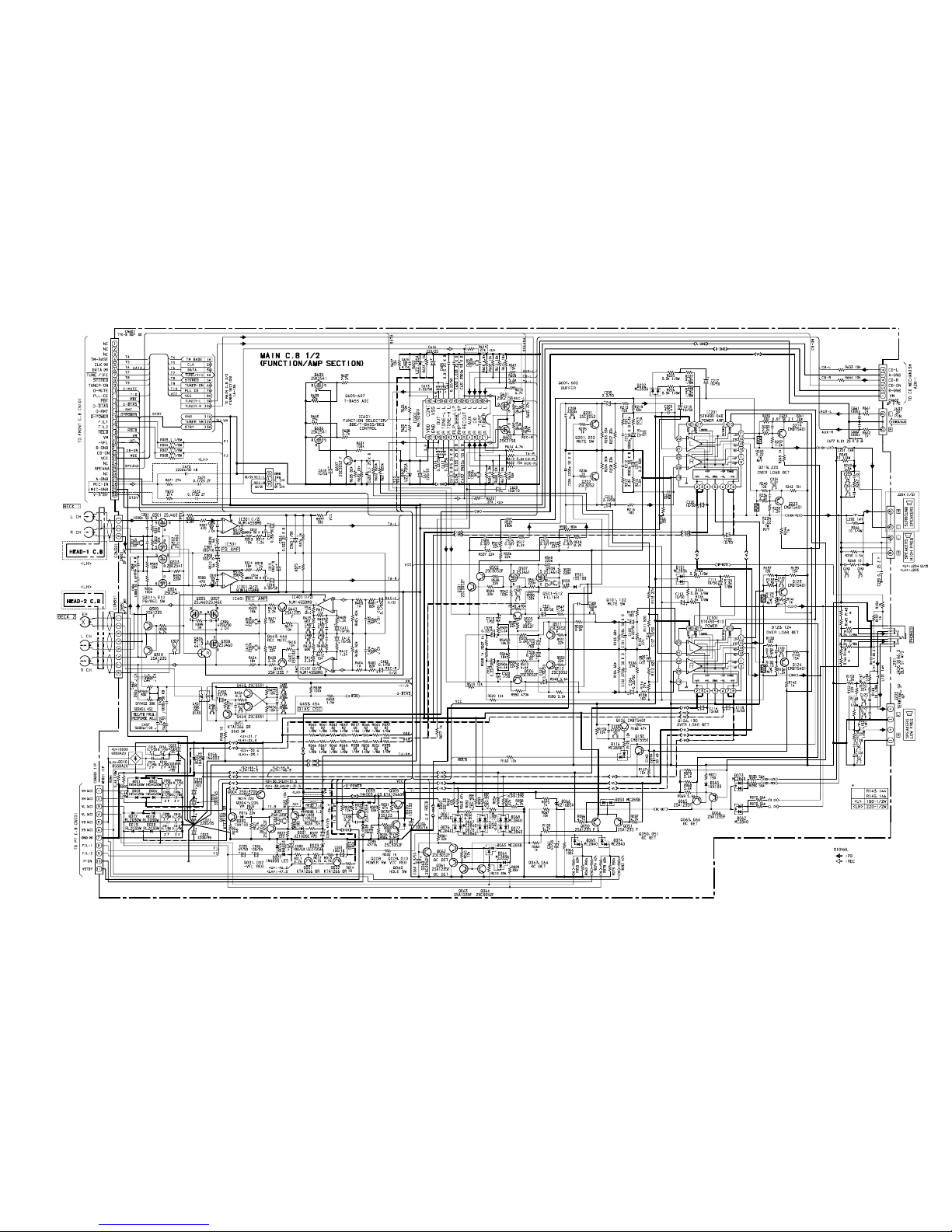

SCHEMATIC DIAGRAM-1 (FUNCTION/AM SECTION)

1817
SCHEMATIC DIAGRAM-2 (TUNER SECTION)

2019
SCHEMATIC DIAGRAM-3 (PT SECTION) <LH> SCHEMATIC DIAGRAM-4 (PT SECTION) <U>
123456
7
A
B
C
D
E
F
123456
7
A
B
C
D
E
F
WIRING-2 (PT C.B) <LH> WIRING-3 (PT C.B) <U>

2221
SCHEMATIC DIAGRAM-5 (FRONT SECTION) <LH>
68k

2625
SCHEMATIC DIAGRAM-6 (FRONT SECTION) <U>

32

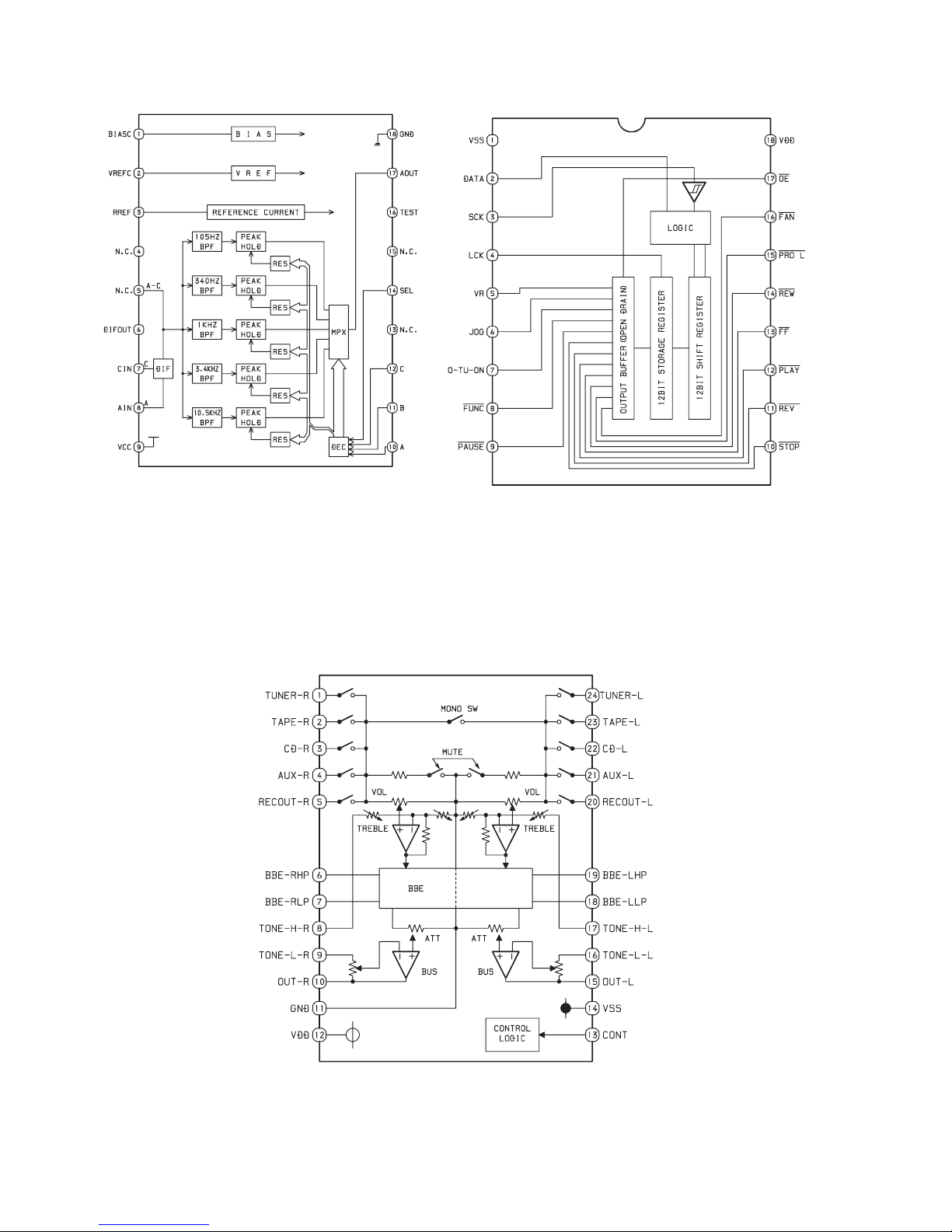

IC, M61503FP
IC, BU2092F
IC, BA3835F

Pin No. Pin Name I/O Description
33
IC DESCRIPTION
I
I
O
O
O
O
O
O
O
O
O
I
–
I
–
–
–
–
I
I
I
I
I
I
I
I
I
I
I
O
–
O
–
O
O
O
–
O
O
I/O
I/O
I/O
Stereo detected input/CD DRF input
Tune IF count serial data input/CD SUBQ input
Deck 2 playback switch output
_______
System power supply ON/OFF output
_______
CD power ON/OFF output
LED driver, Tuner IC, Function IC data output
Deck 2 REC MUTE output
_____
Deck 2 bias ON/OFF output
_______
System mute ON/OFF output
Latch strobe output for LED driver IC
Micon clock shift output
System reset
Not connected
CD turntable photo sensor A/D converter input
GND
5.76 MHz oscillator circuit
5.76 MHz oscillator circuit
Power supply input
Power failure detected input
KEY input (A/D)
KEY input (A/D)
KEY input (A/D)
Tuner signal input
CD mechanical switch A/D converter input
A/D input for spectrum analyzer display
Rotary encoder input (VOL)
CD WRQ input/Tuner RDS clock input
Reference clock input for timer watch
System remotecontrol signal input
FL GRID output G11 ~ G1
Not connected
FL SEGMENT output P35 ~ P32
Power supply input
FL SEGMENT output P31 ~ P30
FL SEGMENT output P29/Spectrum analyzer band switching output
FL SEGMENT output P28/Spectrum analyzer band switching output
Power supply input for FL display
FL SEGMENT output P27/Spectrum analyzer band switch output
FL SEGMENT output P26
FL SEGMENT output P25/NO CASINO DEMO input to diode
FL SEGMENT output P24/KARAOKE input to diode
FL SEGMENT output P23/NO DEMO input to diode
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30 ~ 40
41
42 ~ 45
46
47 ~ 48
49
50
51
52
53
54
55
56
_______________
I-STEREO/I-DRF
______
I-IFC/I-SUBQ
O-2PB
O-POWER
O-CD-ON
O-PLL_DATA
O-RMT
_________
O-BIAS
O-MUTE
O-STB
_________________
O-CLK_SFT
RESET
NC
I-DISH
VSS1
CF1
CF2
VDD1
__________
I-HOLD
I-KEY1
I-KEY2
I-KEY3
I-TU_SIG
I-CDSW
I-SPEANA
I-RE_VOL
I-WRQ/I-RDS_CLK
I-TM_BASE
_________
I-RMC
G11 ~ G1
NC
P35 ~ P32
VDD3
P31 ~ P30
P29/O-SPEANA-C
P28/O-SPEANA-B
VFL
P27/O-SPEANA-A
P26
P25/I-NO_CASINO
P24/I-KARAOKE
P23/NO_DEMO
IC, LC866548V-5P87 <U>, LC866548V-5P40 <LH>

Pin No. Pin Name I/O Description
34
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76 ~ 79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
P22/PRO LOGIC
P21/RDS
P20/FM1
P19/SW
P18/LW
P17/AMST
P16/AM10K
_________
P15/I-CST2
________
P14/I-REB
___________
P13/I-CAM2
____________
P12/I-AUTO1
_____________
P11/I-AUTO2
__________
P10/I-CAM1
_________
P9/I-CST1
________
P8/I-REA
VDD4
P7/I-REV2
P6/I-REV1
P5/NO_ECO
P4 ~ P1
O-CD CLOSE
O-CD OPEN
NC
I-JOG_A
I-JOG_B
O-DISH_FWD
O-DISH_REV
O-PLL_CE
_____________
O-KSCAN
VSS2
VDD2
_________
LED-STBY
______________
O-MOTOR
_________
O-SOL1
_________
O-SOL2
O-CD-DATA
O-CD-LED
O-CD CLK
O-CD CE
I-RDS_DATA
O-PLL_CLK
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
–
I/O
I/O
I/O
O
O
O
–
I
I
O
O
O
O
–
–
O
O
O
O
O
O
O
O
I
O
FL SEGMENT output P22/PROLOGIC input to diode (not used)
FL SEGMENT output P21/RDS input to diode
FL SEGMENT output P20/FM1 input to diode
FL SEGMENT output P19/SW input to diode
FL SEGMENT output P18/LW input to diode
FL SEGMENT output P17/AMST input to diode
FL SEGMENT output P16/AM10K input to diode
FL SEGMENT output P15/DECK2 cassette detect switch data input
FL SEGMENT output P14/DECK2 side-B record OK switch data input
FL SEGMENT output P13/DECK2 CAM switch signal input
FL SEGMENT output P12/DECK1 AUTO STOP signal input
FL SEGMENT output P11/DECK2 AUTO STOP signal input
FL SEGMENT output P10/DECK1 CAM switch data input
FL SEGMENT output P9/DECK1 cassette detect switch data input
FL SEGMENT output P8/DECK2 side A record OK switch data input
Power supply input
FL SEGMENT output P7/DECK2 REVERSE mode input to diode
FL SEGMENT output P6/DECK1 REVERSE mode input to diode
FL SEGMENT output P5/NO ECO MODE input to diode
FL SEGMENT output P4 ~ P1
CD TRAY CLOSE data output
CD TRAY OPEN data output
Not connected
Rotary encoder A input (JOG)
Rotary encoder B input (JOG)
CD turntable forward rotation output
CD turntble reverse rotation output
PLL IC chip enable output
Switch SCAN timing output
GND
Power supply input
STAND BY LED (Echo mode) ouput
_____
DECK MOTOR ON/OFF output
DECK1 soleroid ouput
DECK2 soleroid ouput
CD DATA output
CD LED output
CD clock output
CD chip enable output
RDS data input
PLL IC CLOCK output

3635
< TUNER SECTION >
1. Clock frequency Check
Settings : • Test point : TP2
Method : Set toAM 1710kHz and check that the test point is
2160kHz ±45Hz.
2. AM VT Check
Settings : • Test point : TP1 (VT)
Method : Set toAM 1710kHz, 530kHz and check that the test
point is less than 8.5V (1710kHz) and more than
0.6V (530kHz).
3. FM VT Check
Settings : • Test point : TP1 (VT)
Method : Set to FM 87.5MHz, 108.0MHz and check that the
test point is more than 0.5V (87.5MHz) and less
than 8.0V (108.0MHz).
4. AM TrackingAdjustment
Settings : • Test point : TP8(Lch), TP9(Rch)
•Adjustment location :
L951(1/3) ...................................... 1000kHz
Method : Set toAM 1000kHz and adjust L951(1/3) so that
the level at the test point becomes maximum.
5. FM Tracking Check
Settings : • Test point : TP8(Lch),TP9(Rch)
Method : Set to FM 98.0MHz and check that the test point is
less than 9dBµV.
6. AM IFAdjustment
Settings : • Test point : TP8(Lch),TP9(Rch)
•Adjustment location :
L802 ............................................. 1000kHz
7. DC Balance / Mono DistortionAdjustment
Settings : • Test point : TP3, TP4 (DC Balance)
: TP8(Lch), TP9(Rch) (Distortion)
•Adjustment location : L801
• Input level : 60dBµV
Method : Set to FM 98.0MHz and adjust L801 so that the
voltage between TP3 and TP4 becomes 0V±0.3V.
Next, check that the distortion is less than 1.3%.
< DECK SECTION >
8. Tape SpeedAdjustment (DECK 2)
Settings : • Test tape : TTA–100
• Test point : TP8(Lch),TP9(Rch)
•Adjustment location : SFR1
Method : Play back the test tape and adjust SFR1 so that the
frequency counter reads 3000Hz ±5Hz and ±45Hz
(REV) with respect to forward speed.
9. HeadAzimuthAdjustment (DECK 1, DECK 2)
Settings : • Test tape : TTA–330
• Test point : TP8(Lch),TP9(Rch)
•Adjustment location : Head azimuth
adjustment screw
Method : Play back (FWD) the 8kHz signal of the test tape
and adjust screw so that the output becomes
maximum. Next, perform on REV PLAY mode.
10.PB Frequency Response Check (DECK 1, DECK 2)
Settings : • Test tape : TTA–300
• Test point :TP8(Lch), TP9(Rch)
Method : Play back the 315Hz and 8kHz signals of the test
tape and check that the output ratio of the 8kHz
signal with respect to that of the 315Hz signal is
within 5dB.
11.PB Sensitivity Check (DECK 1, DECK 2)
Settings : • Test tape : TTA–200
• Test point : TP8(Lch),TP9(Rch)
Method : Play back the test tape and check that the output
level of the test point is 140mV ±3dB.
12.REC/PB Frequency Response Adjustment (DECK 2)
Settings : • Test tape : TTA–602
• Test point : TP8(Lch),TP9(Rch)
• Input signal : 1kHz / 8kHz (LINE IN)
•Adjustment location : SFR451 (Lch)
SFR452 (Rch)
Method :Apply a 1kHz signal and REC mode. Then adjust
OSC attenuator so that the output level at the TP8,
TP9 becomes -20VU. Record and play back the
1kHz and 8kHz signals and adjust SFRs so that the
output of the 8kHz signals becomes 0dB ±0.5dB
with respect to that of the 1kHz signal.
13.REC/PB Sensitivity Check (DECK 2)
Settings : • Test tape : TTA–602
• Test point : TP8(Lch),TP9(Rch)
• Input signal : 1kHz (LINE IN)
Method :Apply a 1kHz signal and REC mode. Then adjust
OSC attenuator so that the output level at TP8, TP9
becomes 0VU. Record and play back the 1kHz
signals and check that the output is –2dB ±3.0dB.
< FRONT SECTION >
14.µ-CON OSC Adjustment
Settings : • Test point : TP7 and GND
•Adjustment location : L331
Method : InsertAC plug while pressing POWER and TUNER
function keys.Adjust L331 so that the frequency at
the test point is 153.84Hz ±0.15Hz.

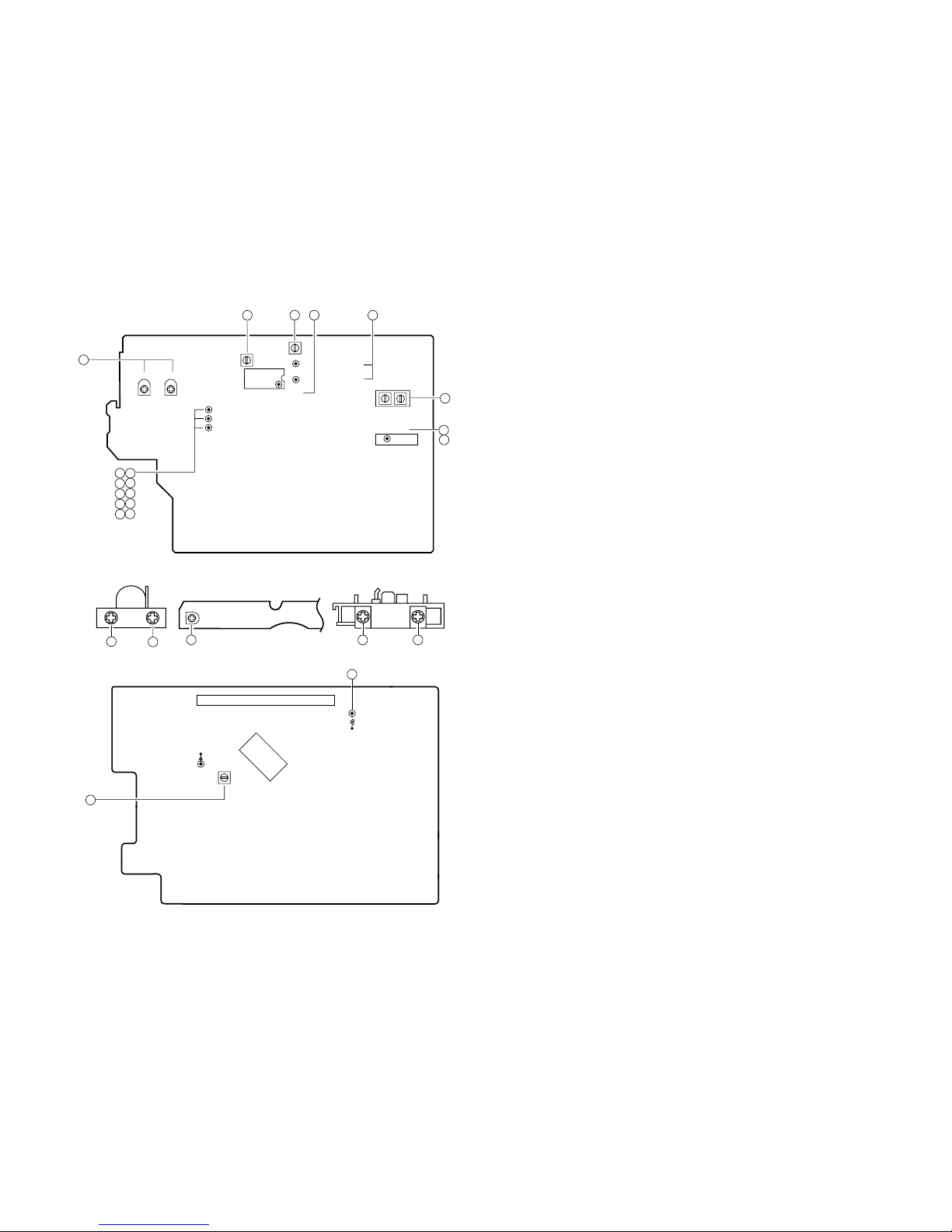

ADJUSTMENT
FRONT C.B
IC201
FL401
GND
TP7
14
L331
C326
1
R268
+
30
9
REV FWD
DECK-1 P HEAD
DECK-2 R/P/E HEAD
9
8
SFR1
DECK C.B
MAIN C.B
L951
SFR451 SFR452
L801
TP2 (CLK)
TP4 (DC BALANCE)
GND
TP8 (RCH)
TP9 (LCH)
10
2
L802
7
4
TP1 (VT)
(3/3) (1/3)
FFE831
TP3 (DC BALANCE)
61
3
5
6
7
8
9
11
12
13
14
7
12 IC801
4
11
DECK-1 P HEAD
DECK-2 R/P HEAD
FWD
11
REV
<U> <LH>
