Aiwa XR-M191 User manual
anva
J
Compact
Disc
|
———
OPERATING
INSTRUCTIONS
Stereo
System
—-
MANUAL
DE
INSTRUCCIONES
DIGITAL
AUDIO
XR-M
191
ose
MODE
D'EMPLOI
LU
|
For
assistance
and
information
call
toll
free
1-800-BUY-AIWA
(United
States
and
Puerto
Rico)
8B-CL9-901-01
001127AYH-X6
En
(English)
E
(Espaiiol)
F
(Francais)
PRECAUTIONS
Read
these
Operating
instructions
carefully
and
completely
before
operating
the
unit.
All
precautions
on
this
booklet
and
on
the
unit
should
be
strictly
followed.
Keep
the
Operating
Instructions
for
future
reference.
RISK
OF
ELECTRIC
SHOCK
|
DO
NOT
OPEN
e
“CAUTION:TO
REDUCE
THE
RISK
OF
ELECTRIC
SHOCK,
DO
NOT
REMOVE
COVER
(OR
BACK).
NO
USER-SERVICEABLE
PARTS
INSIDE.
REFER
SERVICING
TO
QUALIFIED
SERVICE
PERSONNEL.”
Installation
1
Water
and
moisture
—
Do
not
use
this
unit
near
water,
such
as
near
a
bathtub,
washbowl,
swimming
pool,
or
the
like.
2
Heat
—
Do
not
use
this
unit
near
sources
of
heat,
including
heating
vents,
stoves,
or
other
appliances
that
generate
heat.
It
also
should
not
be
placed
in
temperatures
less
than
5°C
(41°F)
or
greater
than
35°C
(95°F).
3
Mounting
surface
—
Place
the
unit
on
a
flat,
even
surface.
4
Ventilation
—
The
unit
should
be
situated
with
adequate
space
around
it
so
that
proper
heat
ventilation
is
assured.
Allow
10
cm
(4
in.)
clearance
from
the
rear
and
the
top
of
the
unit,
and
5
cm
(2
in.)
from
each
side.
-
Do
not
place
the
unit
on
a
bed,
rug,
or
similar
surface
that
may
block
the
ventilation
openings.
-
Do
not
install
the
unit
in
a
bookcase,
cabinet,
or
airtight
rack
where
ventilation
may
be
impeded.
5
Objects
and
liquid
entry
—
Take
care
that
objects
or
liquids
do
not
get
inside
the
unit
through
the
ventilation
openings.
6
Carts
and
stands
—
When
placed
or
mounted
on
a
stand
or
cart,
the
unit
should
be
moved
with
care.
Quick
stops,
excessive
force,
and
uneven
surfaces
may
cause
the
WS
\3}
unit
or
cart
to
overturn
or
fall.
7
Condensation
—
Moisture
may
form
on
the
CD
pickup
lens
when:
-
The
unit
is
moved
from
a
cold
spot
to
a
warm
spot
-
The
heating
system
has
just
been
turned
on
-
The
unit
is
used
in
a
very
humid
room
-
The
unit
is
cooled
by
an
air
conditioner
When
this
unit
has
condensation
inside,
it
may
not
function
normally.
Should
this
occur,
leave
the
unit
for
a
few
hours,
then
try
to
operate
again.
8
Wall
or
ceiling
mounting
—
The
unit
should
not
be
mounted
on
a
wall
or
ceiling,
unless
specified
in
the
Operating
Instructions.
Electric
Power
1
Power
sources
—
Connect
this
unit
only
to
power
sources
specified
in
the
Operating
Instructions,
and
as
marked
on
the
unit.
2
Polarization
—
As
a
safety
feature,
some
units
are
equipped
ith
polarized
AC
power
plugs
which
can
only
be
inserted
one
way
into
a
power
outlet.
If it
is
difficult
or
impossible
to
insert
the
AC
power
plug
into
an
outlet,
turn
the
plug
over
and
try
again.
If
it
still
does
not
easily
insert
into
the
outlet,
please
call
a
qualified
service
technician
to
service
or
replace
the
outlet.
To
avoid
defeating
the
safety
feature
of
the
polarized
plug,
do
not
force
it
into
a
power
outlet.
3
AC
power
cord
-
When
disconnecting
the
AC
power
cord,
pull
it
out
by
the
AC
power
plug.
Do
not
pull
the
cord
itself.
-
Never
handle
the
AC
power
plug
with
wet
hands,
as
this
could
result
in
fire
or
shock.
-
Power
cords
should
be
firmly
secured
to
avoid
being
severely
bent,
pinched,
or
walked
upon.
Pay
particular
attention
to
the
cord
from
the
unit
to
the
power
outlet.
-
Avoid
overloading
AC
outlets
and
extension
cords
beyond
their
capacity,
as
this
could
result
in
fire
or
shock.
4
Extension
cord
—
To
help
prevent
electric
shock,
do
not
use
a
polarized
AC
power
plug
with
an
extension
cord,
receptacle,
or
other
outlet
unless
the
polarized
plug
can
be
completely
inserted
to
prevent
exposure
of
the
blades
of
the
plug.
5
When
not
in
use
—
Unplug
the
AC
power
cord
from
the
power
outlet
if
the
unit
will
not
be
used
for
several
months
or
more.
When
the
cord
is
plugged
in,
a
small
amount
of
current
continues
to
flow
to
the
unit,
even
when
the
power
is
turned
off.
=
Outdoor
Antenna
1
Power
lines
—
When
connecting
an
outdoor
antenna,
make
sure
it
is
located
away
from
power
lines.
2
Outdoor
antenna
grounding
—
Be
sure
the
antenna
system
is
properly
grounded
to
provide
protection
against
unexpected
voltage
surges
or
static
electricity
build-up.

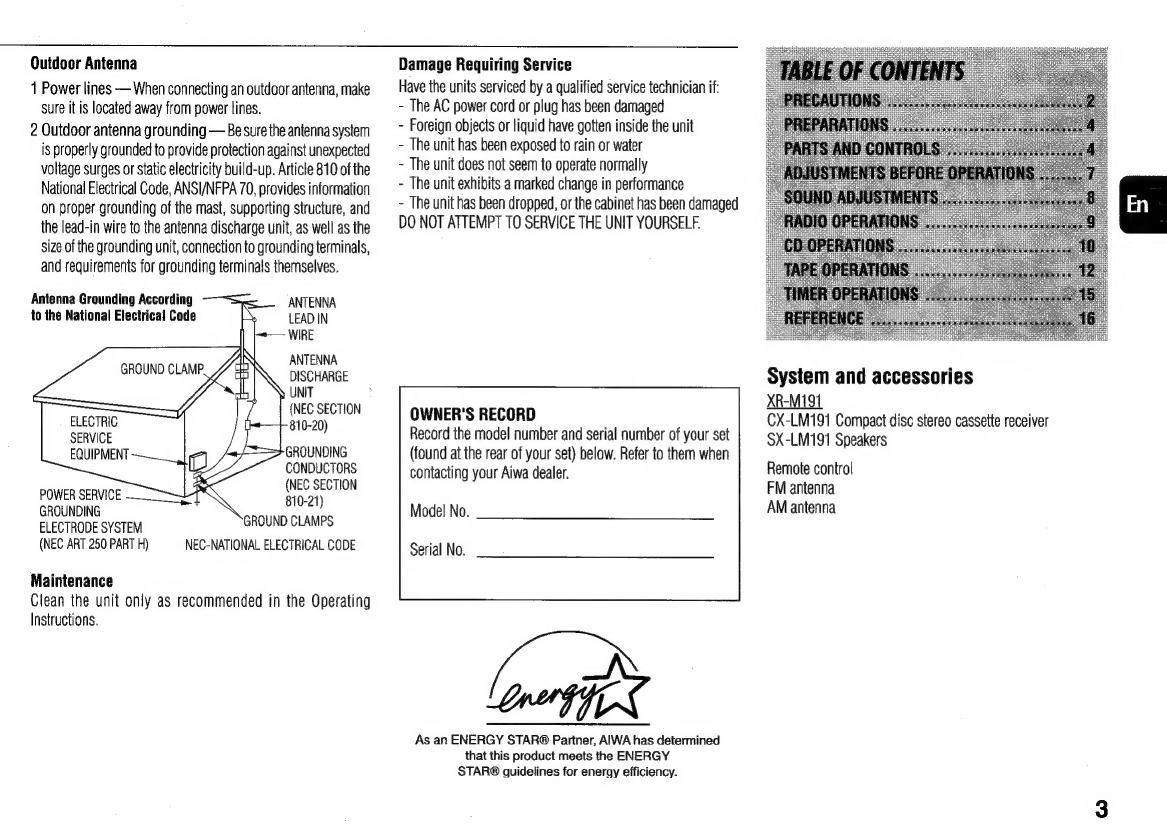

Article
810
of
the
National
Electrical
Code,
ANSI/NFPA
70,
provides
information
on
proper
grounding
of
the
mast,
supporting
structure,
and
the
lead-in
wire
to
the
antenna
discharge
unit,
as
well
as
the
size
of
the
grounding
unit,
connection
to
grounding
terminals,
and
requirements
for
grounding
terminals
themselves.
Antenna
Grounding
According
ANTENNA
to
the
National
Electrical
Code
is
LEAD
IN
}-~-—
WIRE
ANTENNA
DISCHARGE
\
UNIT
(NEC
SECTION
810-20)
ELECTRIC
SERVICE
GROUNDING
CONDUCTORS
©
SECTION
POWER
SERVICE
ree
GROUNDING
ELECTRODE
SYSTEM
GROUND
CLAMPS
(NEC
ART
250PARTH)
_NEC-NATIONAL
ELECTRICAL
CODE
Maintenance
Clean
the
unit
only
as
recommended
in
the
Operating
Instructions.
Damage
Requiring
Service
Have
the
units
serviced
by
a
qualified
service
technician
if:
-
The
AC
power
cord
or
plug
has
been
damaged
-
Foreign
objects
or
liquid
have
gotten
inside
the
unit
-
The
unit
has
been
exposed
to
rain
or
water
-
The
unit
does
not
seem
to
operate
normally
-
The
unit
exhibits
a
marked
change
in
performance
-
The
unit
has
been
dropped,
or
the
cabinet
has
been
damaged
DO
NOT
ATTEMPT
TO
SERVICE
THE
UNIT
YOURSELF.
QWNER'S
RECORD
Record
the
model
number
and
serial
number
of
your
set
(found
at
the
rear
of
your
set)
below.
Refer
to
them
when
contacting
your
Aiwa
dealer.
Model
No.
Serial
No.
Due
ty
As
an
ENERGY
STAR®
Partner,
AIWA
has
determined
that
this
product
meets
the
ENERGY
STAR®
guidelines
for
energy
efficiency.
System
and
accessories
XR-M191
CX-LM191
Compact
disc
stereo
cassette
receiver
SX-LM191
Speakers
Remote
control
FM
antenna
AM
antenna

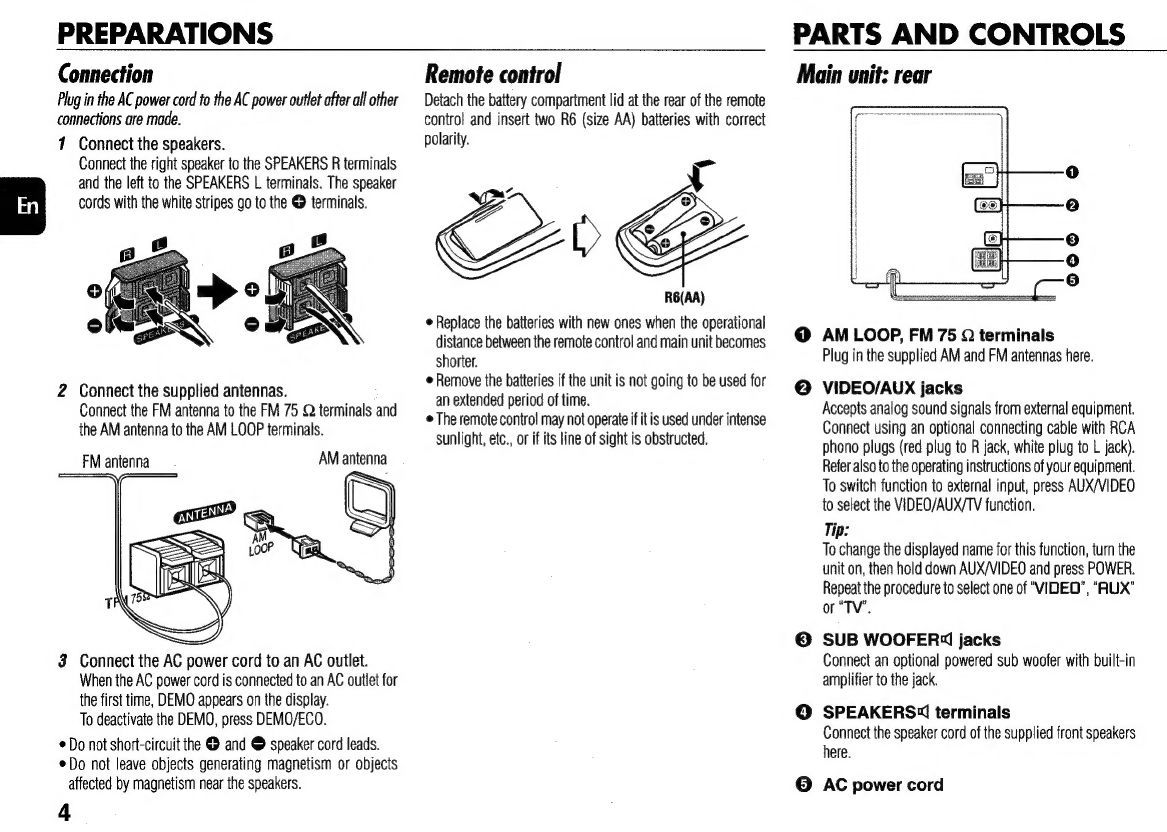

PREPARATIONS
Connection
Plug
in
the
AC
power
cord
to
the
AC
power
outlet
after
all
other
connections
are
made.
7
Connect
the
speakers.
Connect
the
right
speaker
to
the
SPEAKERS
R
terminals
and
the
left
to
the
SPEAKERS
L
terminals.
The
speaker
cords
with
the
white
stripes
go
to
the
@
terminals.
2
Connect
the
supplied
antennas.
Connect
the
FM
antenna
to
the
FM
75
Q
terminals
and
the
AM
antenna
to
the
AM
LOOP
terminals.
AM
antenna
FM
antenna
3
Connect
the
AC
power
cord
to
an
AC
outlet.
When
the
AC
power
cord
is
connected
to
an
AC
outlet
for
the
first
time,
DEMO
appears
on
the
display.
To
deactivate
the
DEMO,
press
DEMO/ECO.
¢
Do
not
short-circuit
the
&
and
©
speaker
cord
leads.
¢Do
not
leave
objects
generating
magnetism
or
objects
affected
by
magnetism
near
the
speakers.
4
Remote
control
Detach
the
battery
compartment
lid
at
the
rear
of
the
remote
control
and
insert
two
R6
(size
AA)
batteries
with
correct
polarity.
R6(AA)
¢
Replace
the
batteries
with
new
ones
when
the
operational
distance
between
the
remote
control
and
main
unit
becomes
shorter.
¢
Remove
the
batteries
if
the
unit
is
not
going
to
be
used
for
an
extended
period
of
time.
The
remote
control
may
not
operate
if
it
is
used
under
intense
sunlight,
etc.,
or
if
its
line
of
sight
is
obstructed.
PARTS
AND
CONTROLS
Main
unif:
rear
@o0
8 8
@
AMLOOP,
FM
75
©
terminals
Plug
in
the
supplied
AM
and
FM
antennas
here.
©
VIDEO/AUX
jacks
Accepts
analog
sound
signals
from
external
equipment.
Connect
using
an
optional
connecting
cable
with
RCA
phono
plugs
(red
plug
to
R
jack,
white
plug
to
L
jack).
Refer
also
to
the
operating
instructions
of
your
equipment.
To
switch
function
to
external
input,
press
AUX/VIDEO
to
select
the
VIDEO/AUX/TV
function.
Tip:
To
change
the
displayed
name
for
this
function,
turn
the
unit
on,
then
hold
down
AUX/VIDEO
and
press
POWER.
Repeat
the
procedure
to
select
one
of
“VIDEO”,
“AUX”
or
“TV”.
©
SUB
WOOFER®
jacks
Connect
an
optional
powered
sub
woofer
with
built-in
amplifier
to
the
jack.
©
SPEAKERS4
terminals
Connect
the
speaker
cord
of
the
supplied
front
speakers
here.
©
AC
power
cord
Main
unit:
front
@
POWER
®STANDBY/ON
Switches
the
unit
on
and
off
(Standby).
©
CD
BLANK
SKIP
The
silent
portions
between
tracks
recorded
ona
CD
can
be
skipped
during
playback.
DEMO/ECO
When
the
unit
is
turned
off:
switches
DEMO
and
ECO
on
and
off.
When
the
unit
is
turned
on:
switches
dimmer
on
and
off.
TIMER
Enters
timer
setting
mode.
SLEEP
Enters
sleep
setting
mode.
©
HCLEAR
CD
and
Tape:
stops
playback.
Radio:
clears
a
station
preset.
<4
DIR/PRESET
CD:
starts
playback.
Tape:
starts
playback
and
changes
direction.
Radio:
tunes
into
a
preset
station.
@REC/REC
MUTE
Starts
recording.
HiSET
CD
and
Tape:
pauses
playback.
Radio:
stores
the
received
station
to
preset.
<</IX<DOWN,
PP/P>PIUP
TUNING
CD:
skips
to
a
previous
or
a
succeeding
track
when
pressed,
searches
a
track
in
fast
forward
or
fast
reverse
playback
when
held
down.
Tape:
fast
forwards
or
rewinds
the
tape.
Radio:
manually
tunes
down
or
up
within
the
band.
©
PHONES
jack
Plug
in
here
an
optional
headphones
set
with
a
standard
stereo
plug
(¢3.5
mm).
Speaker
output
is
canceled.
©
TUNER/BAND
Selects
Radio
function
and
the
radio
band.
CD
Selects
CD
function.
TAPE/REV
MODE
Selects
Tape
function
and
playback
mode.
AUX/VIDEO
Selects
the
function
of
external
equipment
connected
to
VIDEO/AUX
jacks.
@
ACD
OPEN/CLOSE
Opens
or
closes
the
disc
compartment.
@
QSOUND
Enhances
three
dimensional
sound
area
for
stereo
SOUTCES.
JOG
MODE
Switches
between
T-BASS,
GEQ
and
volume
mode.
ENTER
Confirms
clock
and
timer
operations.
VOLUME/MULTI
JOG
VOLUME:
adjusts
the
volume.
MULTI
JOG:
selects
T-BASS
and
GEQ
level.
Remote
control
©
DISPLAY
©
POWER
Displays
clock
time,
volume
mode
and
the
remaining
time
of
a
CD
when
pressed
during
playback.
©
VOL
(4,¥)
BAND
©
HIPAUSE
Switches
the
radio
band.
PLAY
EQ
<4
/I4<DOWN,
&P/PPIUP
TUNING
Selects
a
sound
equalization
curve.
HISTOP
REPEAT
Enters
repeat
mode.
MODE
CD:
enters
random,
programmed,
edited
CD
recording
mode.
Radio:
switches
between
stereo
or
monaural
FM
reception.
Buttons
with
same
or
similar
names
with
the
main
unit
basically
FUNCTION
have
the
same
function.
Switches
the
active
function
among
CD,
TAPE,
TUNER/
BAND
and
AUX/VIDEO.
@
0-9,
+10
CD:
selects
a
CD
track
of
the
specified
number.
Radio:
tunes
in
to
the
station
with
the
specified
preset
number.

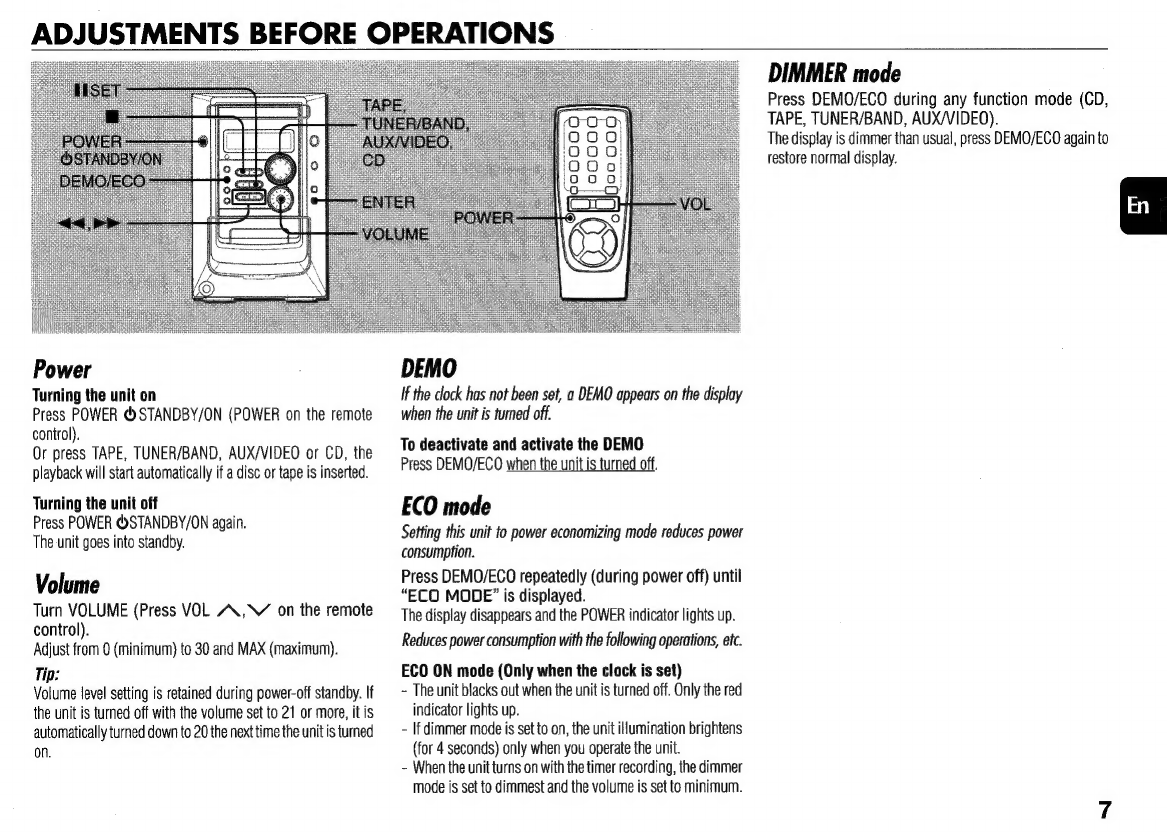

ADJUSTMENTS
BEFORE
OPERATIONS
Peet
i
Power
Turning
the
unit
on
Press
POWER
STANDBY/ON
(POWER
on
the
remote
control).
Or
press
TAPE,
TUNER/BAND,
AUX/VIDEO
or
CD,
the
playback
will
start
automatically
if
a
disc
or
tape
is
inserted.
Turning
the
unit
off
Press
POWER
@STANDBY/ON
again.
The
unit
goes
into
standby.
Volume
Turn
VOLUME
(Press
VOL
AA,
on
the
remote
control).
Adjust
from
0
(minimum)
to
30
and
MAX
(maximum).
Tip:
Volume
level
setting
is
retained
during
power-off
standby.
If
the
unit
is
turned
off
with
the
volume
set
to
21
or
more,
it
is
automatically
turned
down
to
20
the
next
time
the
unit
is
turned
on.
DEMO
If
the
clock
has
not
been
set,
a
DEMO
appears
on
the
display
when
the
unit
is
turned
off.
To
deactivate
and
activate
the
DEMO
Press
DEMO/ECO
when
the
unit
is
turned
off.
ECO
mode
Setting
this
unit
to
power
economizing
mode
reduces
power
consumption.
Press
DEMO/ECO
repeatedly
(during
power
off)
until
“ECO
MODE”
is
displayed.
The
display
disappears
and
the
POWER
indicator
lights
up.
Reduces
power
consumption
with
the
following
operations,
etc.
ECO
ON
mode
(Only
when
the
clock
is
set)
~
The
unit
blacks
out
when
the
unit
is
turned
off.
Only
the
red
indicator
lights
up.
-
If
dimmer
mode
is
set
to
on,
the
unit
illumination
brightens
(for
4
seconds)
only
when
you
operate
the
unit.
-
When
the
unit
turns
on
with
the
timer
recording,
the
dimmer
mode
is
set
to
dimmest
and
the
volume
is
set
to
minimum.
DIMMER
mode
Press
DEMO/ECO
during
any
function
mode
(CD,
TAPE,
TUNER/BAND,
AUX/VIDEO).
The
display
is
dimmer
than
usual,
press
DEMO/ECO
again
to
restore
normal
display.

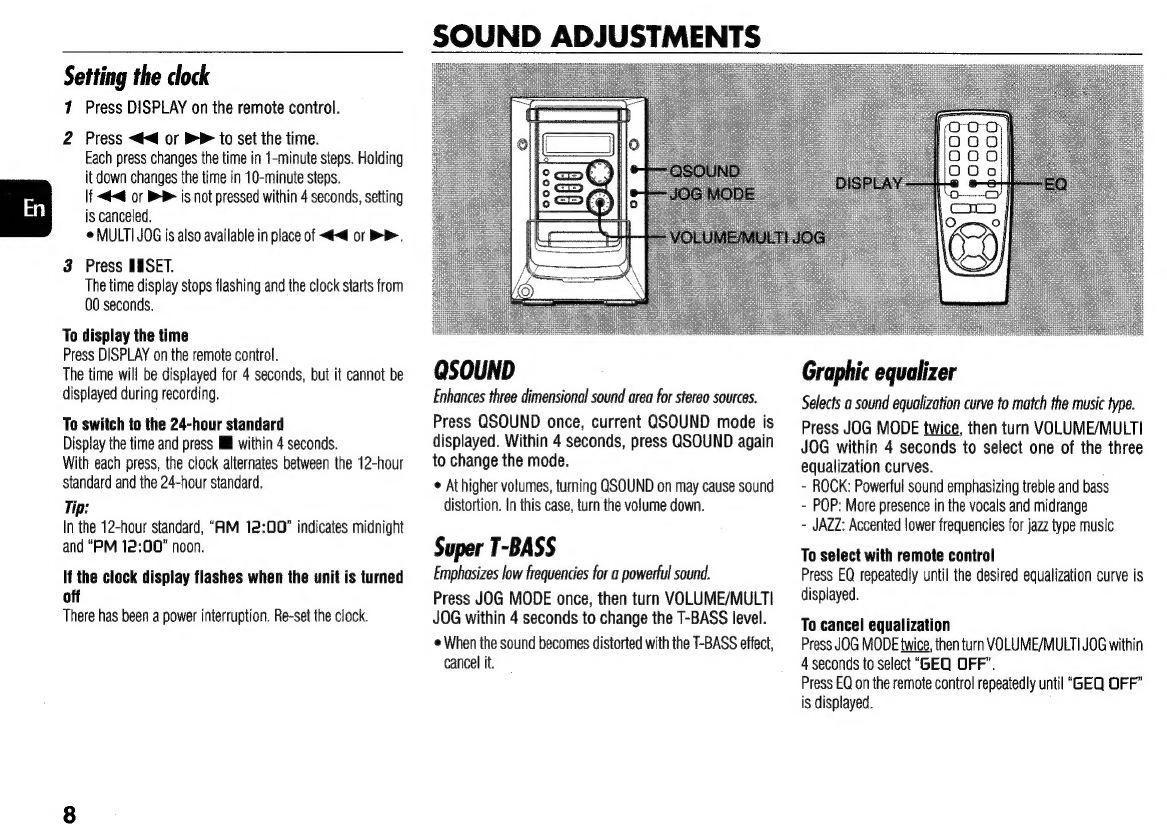

Setting
the
clock
1
Press
DISPLAY
on
the
remote
control.
2
Press
<4
or
>
to
set
the
time.
Each
press
changes
the
time
in
1-minute
steps.
Holding
it
down
changes
the
time
in
10-minute
steps.
If
<4
or
BP
is
not
pressed
within
4
seconds,
setting
is
canceled.
©
MULTI
JOG
is
also
available
in
place
of
<<
or
>>.
3
Press
WESET.
The
time
display
stops
flashing
and
the
clock
starts
from
00
seconds.
To
display
the
time
Press
DISPLAY
on
the
remote
control.
The
time
will
be
displayed
for
4
seconds,
but
it
cannot
be
displayed
during
recording.
To
switch
to
the
24-hour
standard
Display
the
time
and
press
I
within
4
seconds.
With
each
press,
the
clock
alternates
between
the
12-hour
standard
and
the
24-hour
standard.
Tip:
In
the
12-hour
standard,
“AM
12:00”
indicates
midnight
and
“PM
12:00"
noon.
If
the
clock
display
flashes
when
the
unit
is
turned
off
There
has
been
a
power
interruption.
Re-set
the
clock.
SOUND
ADJUSTMENTS
ue
QSOUND
Enhances
three
dimensional
sound
area
for
stereo
sources.
Press
QSOUND
once,
current
QSOUND
mode
is
displayed.
Within
4
seconds,
press
QSOUND
again
to
change
the
mode.
¢
At
higher
volumes,
turning
QSOUND
on
may
cause
sound
distortion.
In
this
case,
turn
the
volume
down.
Super
T-BASS
Emphasizes
low
frequencies
for
a
powerful
sound.
Press
JOG
MODE
once,
then
turn
VOLUME/MULTI
JOG
within
4
seconds
to
change
the
T-BASS
level.
©
When
the
sound
becomes
distorted
with
the
T-BASS
effect,
cancel
it.
Graphic
equalizer
Selects
a
sound
equalization
curve
to
match
the
music
type.
Press
JOG
MODE
twice,
then
turn
VOLUME/MULTI
JOG
within
4
seconds
to
select
one
of
the
three
equalization
curves.
-
ROCK:
Powerful
sound
emphasizing
treble
and
bass
-
POP:
More
presence
in
the
vocals
and
midrange
-
JAZZ:
Accented
lower
frequencies
for
jazz
type
music
To
select
with
remote
control
Press
EQ
repeatedly
until
the
desired
equalization
curve
is
displayed.
To
cancel
equalization
Press
JOG
MODE
twice,
then
turn
VOLUME/MULTI
JOG
within
4
seconds
to
select
“GEQ
OFF’.
Press
EQ
on
the
remote
control
repeatedly
until
“GEQ
OFF”
is
displayed.

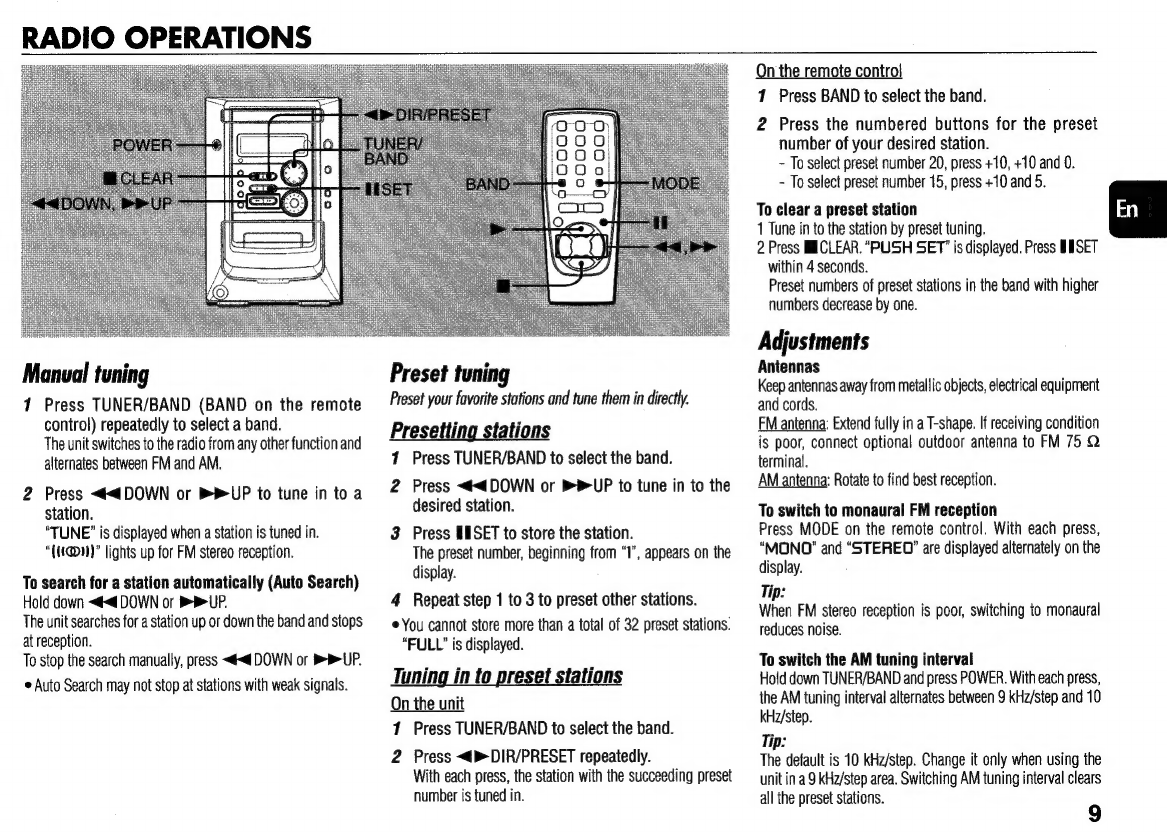

RADIO
OPERATIONS
Manual
tuning
7
Press
TUNER/BAND
(BAND
on
the
remote
control)
repeatedly
to
select
a
band.
The
unit
switches
to
the
radio
from
any
other
function
and
alternates
between
FM
and
AM.
2
Press
<4<4
DOWN
or
PUP
ito
tune
in
to
a
station.
“TUNE?”
is
displayed
when
a
station
is
tuned
in.
“{(t@D0))”
lights
up
for
FM
stereo
reception.
To
search
for
a
station
automatically
(Auto
Search)
Hold
down
~<@
DOWN
or
B>B>UP.
The
unit
searches
for
a
station
up
or
down
the
band
and
stops
at
reception.
To
stop
the
search
manually,
press
<4<d
DOWN
or
B-UP.
¢
Auto
Search
may
not
stop
at
stations
with
weak
signals.
Preset
tuning
Preset
your
favorite
stations
and
tune
them
in
directly.
Presetti
tion.
1
Press
TUNER/BAND
to
select
the
band.
2
Press
<<DOWN
or
PUP
to
tune
in
to
the
desired
station.
3
Press
EESET
to
store
the
station.
The
preset
number,
beginning
from
“I”,
appears
on
the
display.
4
Repeat
step
1
to
3
to
preset
other
stations.
¢
You
cannot
store
more
than
a
total
of
32
preset
stations.
“FULL’
is
displayed.
Tuning
in
to
preset
stations
Qn
the
unit
1
Press
TUNER/BAND
to
select
the
band.
2
Press
<4bDIR/PRESET
repeatedly.
With each
press,
the
station
with
the
succeeding
preset
number
is
tuned
in.
Qn
the
remote
control
7
Press
BAND
to
select
the
band.
2
Press
the
numbered
buttons
for
the
preset
number
of
your
desired
station.
-
To
select
preset
number
20,
press
+10,
+10
and
0.
-
To
select
preset
number
15,
press
+10
and
5.
To
clear
a
preset
station
1
Tune
in
to
the
station
by
preset
tuning.
2
Press
MCLEAR.
“PUSH
SET’
is
displayed.
Press
BISET
within
4
seconds.
Preset
numbers
of
preset
stations
in
the
band
with
higher
numbers
decrease
by
one.
Adjustments
Antennas
Keep
antennas
away
from
metallic
objects,
electrical
equipment
and
cords.
FM
antenna:
Extend
fully
in
a
T-shape.
If
receiving
condition
is
poor,
connect
optional
outdoor
antenna
to
FM
75
Q
terminal.
AM
antenna:
Rotate
to
find
best
reception.
To
switch
to
monaural
FM
reception
Press
MODE
on
the
remote
control.
With
each
press,
“MONO”
and
“STEREO”
are
displayed
alternately
on
the
display.
Tip:
When
FM
stereo
reception
is
poor,
switching
to
monaural
reduces
noise.
To
switch
the
AM
tuning
interval
Hold
down
TUNER/BAND
and
press
POWER.
With
each
press,
the
AM
tuning
interval
alternates
between
9
kHz/step
and
10
kHz/step.
Tip:
The
default
is
10
kHz/step.
Change
it
only
when
using
the
unit
in
a
9
kHz/step
area.
Switching
AM
tuning
interval
clears
all
the
preset
stations.
9
Seeibeattielt
This
unit
plays
back
finalized
CD-R/RW
discs
as
well
as
audio
CDs.
Playback
1
Press
CD
and
load
disc.
Press
&CD
OPEN/CLOSE
to
open
the
disc
compartment
and
load
a
disc with
the
labeled
side
up.
Close
the
compartment
with
&CD
OPEN/CLOSE.
e
When
loading
an
8-cm
(3-inch)
disc,
place
it
on
the
inner
circle
of
the
tray.
2
Press
<>.
Play
begins
with
the
first
track.
To
stop
playback
Press
Ml.
To
pause
playback
Press
HM.
Press
again
to
resume
playback.
10
To
skip
to
the
beginning
of
the
current/preceding/
succeeding
track
Press
<&<@
or
Bb
repeatedly.
To
search
(playback
in
fast
forward
or
fast
reverse)
Hold
down
<<
or
BB.
Release
at
the
desired
point.
To
select
a
track
with
the
remote
control
Press
the
numbered
buttons
to
select
a
track.
-
To
select
track
25,
press
+10,
+10
and
5.
-
To
select
track
10,
press
+10
and
0.
To
display
the
remaining
playback
time
of
the
CD
Press
DISPLAY
repeatedly
on
the
remote
control.
Press
again
to
return
to
the
elapsed
time
display.
¢Remaining
playback
time
cannot
be
displayed
during
random,
repeat
or
programmed
playback.
Random
/Repeat
playback
Random
playback
plays
all
the
tracks
on
the
disc
in
random
order.
Repeat
playback
plays
all
the
tracks
repeatedly
on
the
disc.
RANDOM
pla
Press
MODE
on
the
remote
control
once,
“RANDOM?”
lights
up
on
the
display.
To
cancel
random
play,
press
the
button
once
during
play
or
press
the
button
four
times
in
stop
mode.
REPEAT
pla
Press
REPEAT
on
the
remote
control.
Each
time
REPEAT
is
pressed,
the
operation
can
be
selected
cyclically.
Tip:
To
repeat
the
entire
disc,
turn
on
“Ce”.
To
repeat
the
desired
track,
turn
on
“G1”.

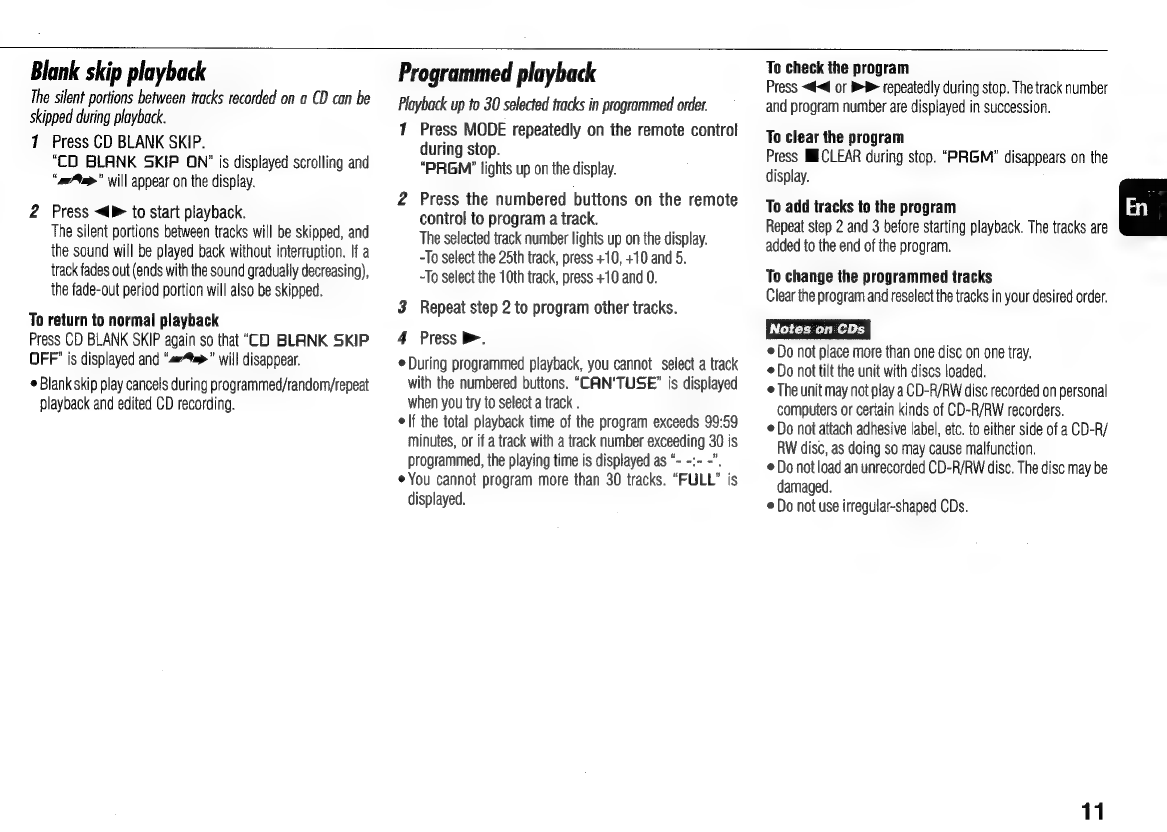

Blank
skip
playback
The
silent
portions
between
tracks
recorded
on
a
CD
can
be
skipped
during
playback.
7
Press
CD
BLANK
SKIP.
“CD
BLANK
SKIP
ON’
js
displayed
scrolling
and
“aA”
will
appear
on
the
display.
2
Press
<4
to
start
playback.
The
silent
portions
between
tracks
will
be
skipped,
and
the
sound
will
be
played
back
without
interruption.
If
a
track
fades
out
(ends
with
the
sound
gradually
decreasing),
the
fade-out
period
portion
will
also
be
skipped.
To
return
to
normal
playback
Press
CD
BLANK
SKIP
again
so
that
“CD
BLANK
SKIP
OFF’
is
displayed
and
“a>”
will
disappear.
©
Blank
skip
play
cancels
during
programmed/random/repeat
playback
and
edited
CD
recording.
Programmed
playback
Playback
up
to
30
selected
tracks
in
programmed
order.
1
Press
MODE
repeatedly
on
the
remote
control
during
stop.
“PRGM’
lights
up
on
the
display.
2
Press
the
numbered
buttons
on
the
remote
control
to
program
a
track.
The
selected
track
number
lights
up
on
the
display.
-To
select
the
25th
track,
press
+10,
+10
and
5.
-To
select
the
10th
track,
press
+10
and
0.
3
Repeat
step
2
to
program
other
tracks.
4
Press
>.
¢
During
programmed
playback,
you
cannot
select
a
track
with
the
numbered
buttons.
“CAN'TUSE”
is
displayed
when
you
try
to
select
a
track
.
elf
the
total
playback
time
of
the
program
exceeds
99:59
minutes,
or
if
a
track
with
a
track
number
exceeding
30
is
programmed,
the
playing
time
is
displayed
as
“-
-:~
-”.
¢You
cannot
program
more
than
30
tracks.
“FULL”
is
displayed.
To
check
the
program
Press
<@<d
or
BB
repeatedly
during
stop.
The
track
number
and
program
number
are
displayed
in
succession.
To
clear
the
program
Press
MICLEAR
during
stop.
“PRGM"”
disappears
on
the
display.
To
add
tracks
to
the
program
Repeat
step
2
and
3
before
starting
playback.
The
tracks
are
added
to
the
end
of
the
program.
To
change
the
programmed
tracks
Clear
the
program
and
reselect
the
tracks
in
your
desired
order.
©
Do
not
place
more
than
one
disc
on
one
tray.
¢
Do
not
tilt
the
unit
with
discs
loaded.
¢
The
unit
may
not
play
a
CD-R/RW
disc
recorded
on
personal
computers
or
certain
kinds
of
CD-R/RW
recorders.
¢
Do
not
attach
adhesive
label,
etc.
to
either
side
of
a
CD-R/
RW
disc,
as
doing
so
may
cause
malfunction.
Do
not
load
an
unrecorded
CD-R/RW
disc.
The
disc
may
be
damaged.
©
Do
not
use
irregular-shaped
CDs.
11
TAPE

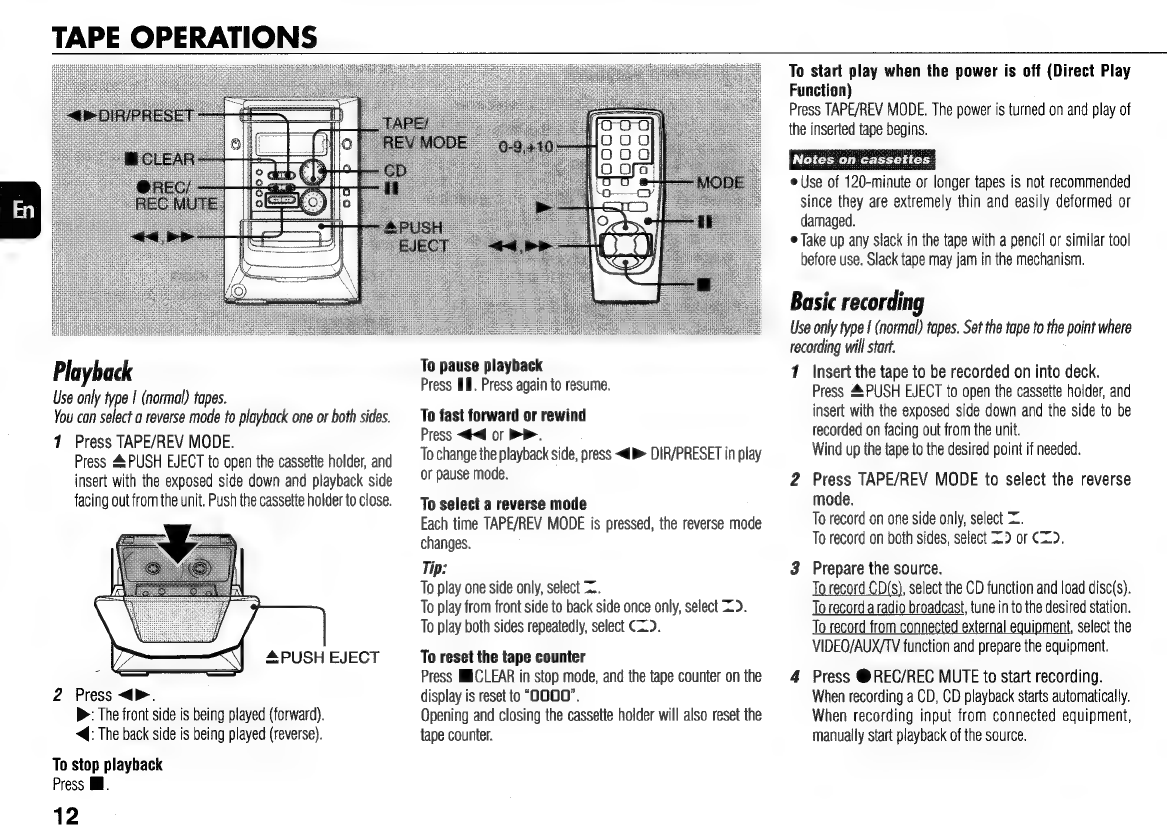

OPERATIONS
Playback
Use
only
type
|
(normal)
tapes.
You
can
select
a
reverse
mode
to
playback
one
or
both
sides.
1
Press
TAPE/REV
MODE.
Press
4s:PUSH
EJECT
to
open
the
cassette
holder,
and
insert
with
the
exposed
side
down
and
playback
side
facing
out
from
the
unit.
Push
the
cassette
holder
to
close.
PUSH
EJECT
2
Press
<>.
>:
The
front
side
is
being
played
(forward).
<4:
The
back
side
is
being
played
(reverse).
To
stop
playback
Press
Ml.
12
To
pause
playback
Press
Ill.
Press
again
to
resume.
To
fast
forward
or
rewind
Press
<<
or
>.
To
change
the
playback
side,
press
<4»
DIR/PRESET
in
play
or
pause
mode.
To
select
a
reverse
mode
Each
time
TAPE/REV
MODE
is
pressed,
the
reverse
mode
changes.
Tip:
To
play
one
side
only,
select
=.
To
play
from
front
side
to
back
side
once
only,
select
=>.
To
play
both
sides
repeatedly,
select
C=).
To
reset
the
tape
counter
Press
MBCLEAR
in
stop
mode,
and
the
tape
counter
on
the
display
is
reset
to
“OOOO”.
Opening
and
closing
the
cassette
holder
will
also
reset
the
tape
counter.
To
start
play
when
the
power
is
off
(Direct
Play
Function)
Press
TAPE/REV
MODE.
The
power
is
turned
on
and
play
of
the
inserted
tape
begins.
Notes
on
cassettes
Use
of
120-minute
or
longer
tapes
is
not
recommended
since
they
are
extremely
thin
and
easily
deformed
or
damaged.
Take
up
any
slack
in
the
tape
with
a
pencil
or
similar
tool
before
use.
Slack
tape
may
jam
in
the
mechanism.
Basic
recording
Use
only
type
|
(normal)
tapes.
Set
the
tape
to
the
point
where
recording
will
start.
7
Insert
the
tape
to
be
recorded
on
into
deck.
Press
«PUSH
EJECT
to
open
the
cassette
holder,
and
insert
with
the
exposed
side
down
and
the
side
to
be
recorded
on
facing
out
from
the
unit.
Wind
up
the
tape
to the
desired
point
if
needed.
2
Press
TAPE/REV
MODE
to
select
the
reverse
mode.
To
record
on
one
side
only,
select
=.
To
record
on
both
sides,
select
=)
or
C=).
3
Prepare
the
source.
To
record
CD(s),
select
the
CD
function
and
load
disc(s).
Jo
record
a
radio
broadcast,
tune
in
to
the
desired
station.
To
record
from
connected
external
equipment,
select
the
VIDEO/AUX/TV
function
and
prepare
the
equipment.
4
Press
@REC/REC
MUTE
to
start
recording.
When
recording
a
CD,
CD
playback
starts
automatically.
When
recording
input
from
connected
equipment,
manually
start
playback
of
the
source.
When
recording
on
tape,
close
the
disc
compartment
before
starting
to
record.
Volume
or
tone
adjustment
does
not
affect
recording.
e
"CAN'T
REC’
is
displayed
if
you
attempt
to
record
a
tape
with
the
tab
broken
off.
To
stop
recording
Press
Ml.
To
pause
recording
(only
for
TUNER
or
AUX/VIDEO
source)
Press
Il.
Press
again
to
resume.
To
record
a
selected
set
of
tracks
from
a
CD
Program
the
desired
tracks
(see
“Programmed
playback”)
and
then
press
@REC/REC
MUTE.
To
record
a
4-second
blank
space
(only
for
TUNER
or
AUX/VIDEO
source)
1
Press
@REC/REC
MUTE
during
recording
or
in
recording
pause
mode.
“Tq”
flashes
on
the
display
for
4
seconds
(a
blank
space
is
made
in
the
meantime)
and
then
the
unit
enters
recording
pause
mode.
To
record
less
than
a
4-second
blank
space,
press
@REC/
REC
MUTE
again
while
“Gixed"
flashes.
To
record
more
than
a4-second
blank
space,
press
@
REC/
REC
MUTE
again
after
the
unit
enters
recording
pause
mode.
Each
time
the
button
is
pressed,
a
4
second
blank
space
is
added.
2
Press
Hl
to
resume
recording.
To
erase
a
tape
1
Insert
the
tape
to
be
erased
into
the
deck.
Set
the
tape
to
the
desired
point
if
needed.
2
Set
the
reverse
mode
by
pressing
TAPE/REV
MODE.
3
Press
AUX/VIDEO
and
turn
the
connected
equipment
off.
4
Press
@REC/REC
MUTE.

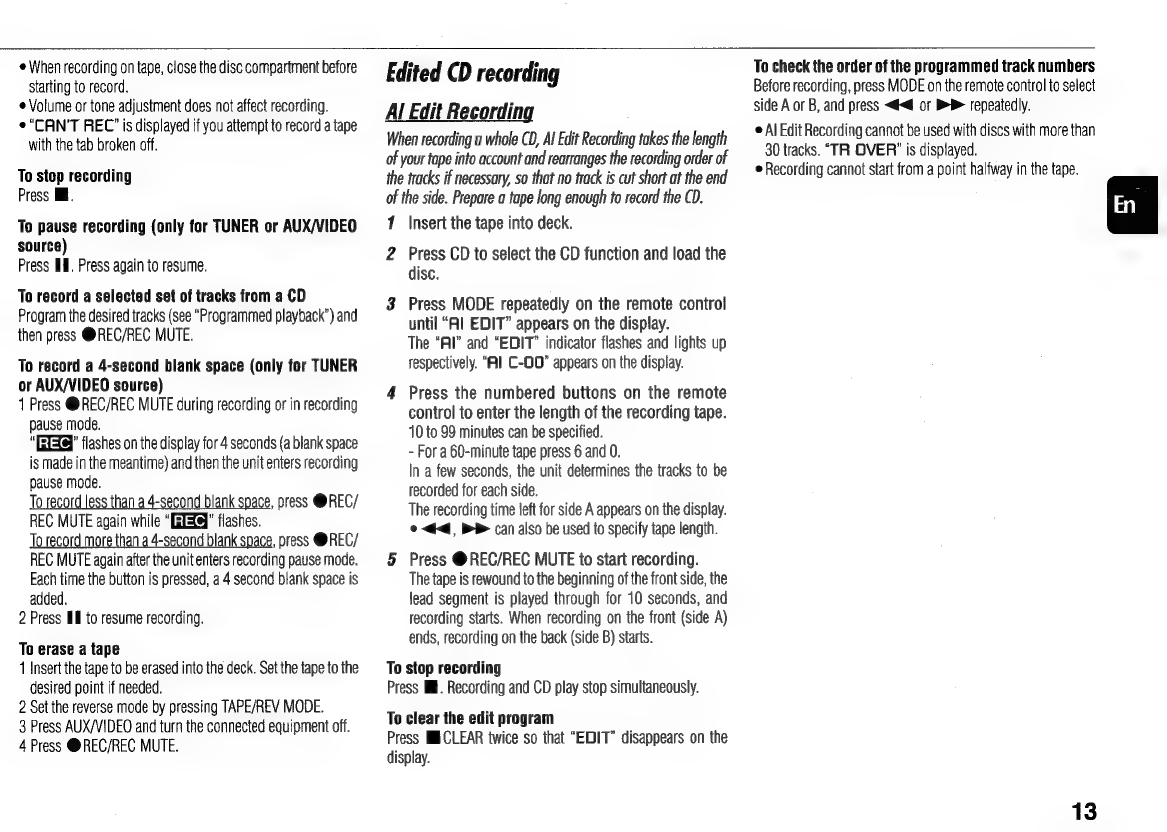

Edited
CD
recording
Al
Edit
Recordin
When
recording
a
whole
CD,
Al
Edit
Recording
takes
the
length
of
your
tape
into
account
and
rearranges
the
recording
order
of
the
tracks
if
necessary,
so
that
no
track
is
cut
short
at
the
end
of
the
side.
Prepare
a
tape
long
enough
to
record
the
CD.
1
Insert
the
tape
into
deck.
2
Press
CD
to
select
the
CD
function
and
load
the
disc.
3
Press
MODE
repeatedly
on
the
remote
control
until
“Al
EDIT”
appears
on
the
display.
The
“Al”
and
“EDIT”
indicator
flashes
and
lights
up
respectively.
“Al
C-OO”
appears
on
the
display.
4
Press
the
numbered
buttons
on
the
remote
control
to
enter
the
length
of
the
recording
tape.
10
to
99
minutes
can
be
specified.
-
For
a
60-minute
tape
press
6
and
0.
In
a
few
seconds,
the
unit
determines
the
tracks
to
be
recorded
for
each
side.
The
recording
time
left
for
side
A
appears
on
the
display.
©
<<,
>
can
also
be
used
to
specify
tape
length.
5
Press
@REC/REC
MUTE
to
start
recording.
The
tape
is
rewound
to
the
beginning
of
the
front
side,
the
lead
segment
is
played
through
for
10
seconds,
and
recording
starts.
When
recording
on
the
front
(side
A)
ends,
recording
on
the
back
(side
B)
starts.
To
stop
recording
Press
Ml.
Recording
and
CD
play
stop
simultaneously.
To
clear
the
edit
program
Press
MCLEAR
twice
so
that
“EDIT”
disappears
on
the
display.
To
check
the
order
of
the
programmed
track
numbers
Before
recording,
press
MODE
on
the
remote
control
to
select
side
A
or
B,
and
press
<<
or
>
repeatedly.
Aj
Edit
Recording
cannot
be
used
with
discs
with
more
than
30
tracks.
“TR
OVER’
is
displayed.
Recording
cannot
start
from
a
point
halfway
in
the
tape.
13
En
Programmed
Edit
Recording
As
you
program
the
CD
tracks
fo
record,
Programmed
Edit
Recording
displays
the
remaining
recording
time
for
each
side
of
the
tape,
so
you
can
easily
select
a
set
of
desired
tracks
within
the
length
of
your
tape.
7
Insert
the
tape
into
the
deck.
2
Press
CD
to
select
the
CD
function
and
load
the
disc.
3
Press
MODE
repeatedly
on
the
remote
control
until
“PRGM
EDIT”
appears
on
the
display.
The
“PRGM”
and
“EDIT”
indicator
flashes
and
lights
up
respectively.
“PRGMC-OO’
appears
on
the
display.
4
Press
the
numbered
buttons
on
the
remote
control
to
enter
the
length
of
the
recording
tape.
10
to
99
minutes,
can
be
specified.
@
<q,
>
can
also
be
used
to
specify
tape
length.
5
Press
the
numbered
buttons
on
the
remote
control
to
select
the
first
track
to
be
recorded
on
side
A.
-To
select
the
25th
track,
press
+10,
+10
and
5.
-To
select
the
10th
track,
press
+10
and
0.
6
Repeat
step
5
to
select
the
rest
of
the
tracks
for
side
A.
The
remaining
recording
time
of
side
A
is
displayed.
You
cannot
select
a
track
with
a
longer
playing
time.
7
Press
MODE
on
the
remote
control
to
switch
to
side
B
and
select
the
tracks
for
the
side.
After
confirming
“B”
on
the
display,
repeat
step
5.
14
8
Press
@REC/REC
MUTE
to
start
recording.
The
tape
is
rewound
to
the
beginning
of
the
front
side,
the
lead
segment
is
played
through
for
10
seconds,
and
recording
starts.
When
recording
on
the
front
(side
A)
ends,
recording
on
the
back
(side
B)
starts.
¢You
cannot
program
more
than
30
tracks.
“FULL”
is
displayed.
You
cannot
program
a
track
with
a
track
number
larger
than
30.
Recording
cannot
start
from
a
point
halfway
in
the
tape.
To
stop
recording
Press
a.
Recording
and
CD
playback
stop
simultaneously.
To
check
the
program
1
Before
recording;-press
MODE
on
the
remote
control
to
select
side
A
or
B.
2
Press
<4<@
or
BP
repeatedly.
The
track
number
and
program
number
are
displayed
in
succession.
To
change
the
program
of
each
side
Press
MODE
on
the
remote
control
to
select
side
A
or
B,
and
press
MICLEAR
to
clear
the
program
for
the
selected
side.
Then,
select
tracks
again.
To
clear
the
edit
program
Press
MCLEAR
twice
so
that
“EDIT”
disappears
from
the
display.
Break
off
the
plastic
tab
of
the
cassette
tape
with
a
screwdriver
or
other
pointed
tool.
To
record
on
the
tape
again,
cover
the
detection
slot
with
adhesive
tape.
Tab
for
side
A

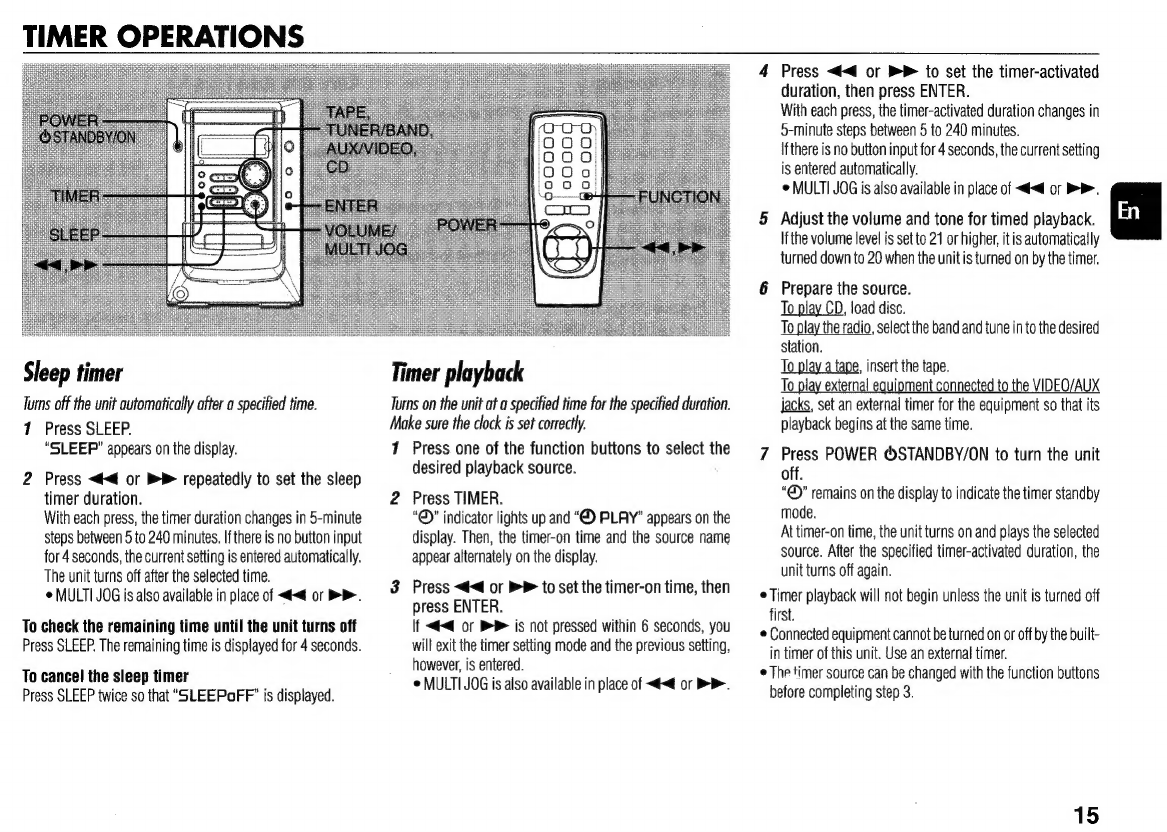

TIMER
OPERATIONS
Sleep
timer
Tums
off the
unit
automatically
after
a
specified
time.
7
Press
SLEEP.
“SLEEP”
appears
on
the
display.
2
Press
<<
or
>
repeatedly
to
set
the
sleep
timer
duration.
With
each
press,
the
timer
duration
changes
in
5-minute
steps
between
5
to
240
minutes.
If
there
is
no
button
input
for
4
seconds,
the
current
setting
is
entered
automatically.
The
unit
turns
off
after
the
selected
time.
©
MULTI
JOG
is
also
available
in
place
of
<<
or
>>.
To
check
the
remaining
time
until
the
unit
turns
off
Press
SLEEP.
The
remaining
time
is
displayed
for
4
seconds.
To
cancel
the
sleep
timer
Press
SLEEP
twice
so
that
“SLEEPoFF’
is
displayed.
Timer
playback
Turns
on
the
unit
at
a
specified
time
for
the
specified
duration.
Make
sure
the
clock
is
set
correctly.
1
Press
one
of
the
function
buttons
to
select
the
desired
playback
source.
2
Press
TIMER.
“®”
indicator
lights
up
and
“®
PLAY”
appears
on
the
display.
Then,
the
timer-on
time
and
the
source
name
appear
alternately
on
the
display.
3
Press
<<
or
>
to
set
the
timer-on
time,
then
press
ENTER.
If
<4<4
or
BP
is
not
pressed
within
6
seconds,
you
will
exit
the
timer
setting
mode
and
the
previous
setting,
however,
is
entered.
©
MULTI
JOG
is
also
available
in
place
of
<<
or
>.
4
Press
<<
or
»P
io
set
the
timer-activated
duration,
then
press
ENTER.
With
each
press,
the
timer-activated
duration
changes
in
5-minute
steps
between
5
to
240
minutes.
If
there
is
no
button
input
for
4
seconds,
the
current
setting
is
entered
automatically.
¢
MULTI
JOG
is
also
available
in
place
of
<<
or
>>.
5
Adjust
the
volume
and
tone
for
timed
playback.
If
the
volume
level
is
set
to
21
or
higher,
it
is
automatically
turned
down
to
20
when
the
unit
is
turned
on
by
the
timer.
6
Prepare
the
source.
To
play
CD,
load
disc.
To
play
the
radio,
select
the
band
and
tune
in
to
the
desired
station.
To
play
a
tape,
insert
the
tape.
To
play
external
equi
IDEQ/AUX
jacks,
set
an
external
timer
for
the
equipment
so
that
its
playback
begins
at
the
same
time.
7
Press
POWER
®STANDBY/ON
to
turn
the
unit
off.
“®”
remains
on
the
display
to
indicate
the
timer
standby
mode.
At
timer-on
time,
the
unit
turns
on
and
plays
the
selected
source.
After
the
specified
timer-activated
duration,
the
unit
turns
off
again.
©
Timer
playback
will
not
begin
unless
the
unit
is
turned
off
first.
¢
Connected
equipment
cannot
be
turned
on
or
off
by
the
built-
in
timer
of
this
unit.
Use
an
external
timer.
e
The
timer
source
can
be
changed
with
the
function
buttons
before
completing
step
3.
15
To
display
the
timer
setting
Press
TIMER.
The
timer-on
time,
the
source
and
the
timer-activated
duration
are
displayed
for
6
seconds.
Tip:
Timer
setting
can
be
displayed
even
while
the
unit
is
turned
off,
and
at
that
time
if
you
press
ENTER
within
6
seconds
after
TIMER
is
pressed,
you
can
enter
the
timer
setting
mode
and
change
the
setting.
To
change
the
timer
setting
Re-set
the
timer
again.
To
cancel
the
timer
Press
TIMER
repeatedly
until
“©)
OFF”
is
displayed.
“©”
disappears
from
the
display.
Tip:
Your
timer
setting
is
retained
even
if
the
timer
is
canceled.
Next
time
the
timer
is
activated,
you
can
change
your
previous
setting,
or
simply
use
the
same
setting
again.
16
REFERENCE
Timer
recording
Timer
recording
is
available
only
for
TUNER
and
AUX/VIDEO
(with
an
external
timer)
sources.
1
Press
either
TUNER/BAND
or
AUX/VIDEO
to
select
a
source.
2
Press
TIMER
repeatedly
until
“©
REC”
appears
on
the
display.
3
Carry
out
step
3
to
step
5
described
in
“Timer
playback”.
4
Prepare
the
source.
To
record
the
radio,
select
the
band
and
tune
in
to
the
desired
station.
To
record
external
equipment
conn
the
VIDE
AUX
jacks,
set
an
external
timer
for
the
equipment
so
that
its
playback
begins
at
the
same
time.
5
Insert
the
recording
tape
and
then
turn
the
unit
off.
Care
and
maintenance
Occasional
core
and
maintenance
of
the
unif
and
the
software
are
needed
fo
optimize
the
performance
of
your
unit.
To
clean
the
cabinet
Use
a
soft
and
dry
cloth.
If
the
unit
surfaces
are
extremely
dirty,
use
a
soft
cloth
lightly
moistened
with
mild
detergent
solution.
Do
not
use
strong
solvents
such
as
alcohol,
benzine
or
thinner.
To
clean
the
tape
heads
Dirty
tape
heads
cause
sound
deterioration.
After
every
10
hours
of
use,
clean
the
tape
heads
with
a
head
cleaning
cassette.
Refer
to
the
instructions
of
the
cleaning
cassette.
To
demagnetize
the
tape
heads
Use
a
demagnetizing
cassette
after
every
20
to
30
hours
of
use.
Refer
to
the
instructions
of
the
demagnetizing
cassette.
Care
of
CDs
When
a
CD
becomes
dirty,
wipe
it
from
the
center
out
with
a
cleaning
cloth.
After
playing
a
CD,
store
it
in
its
case.
Do
not
keep
it
in
hot
or
humid
places.
Care
of
tapes
Store
tapes
in
their
cases
after
use.
Do
not
leave
tapes
near
magnets,
motors,
television
sets,
or
any
source of
magnetism.
Do
not
expose
tapes
to
direct
sunlight,
or
leave
them
in
a
car
parked
in
direct
sunlight.
Resetting
the
unit
lf
an
unusual
condition
occurs
in
the
display
window
or
the
cassette
deck,
reset
the
unit
as
follows:
1
Press
POWER
to
turn
off
the
power.
Ifthe
power
cannot
be
turned
off,
disconnect
the
AC
power
cord,
then
plug
it
in
again.
2
Hold
down
Ml
and
press
POWER.
Everything
stored
in
memory
after
purchase
is
cleared.

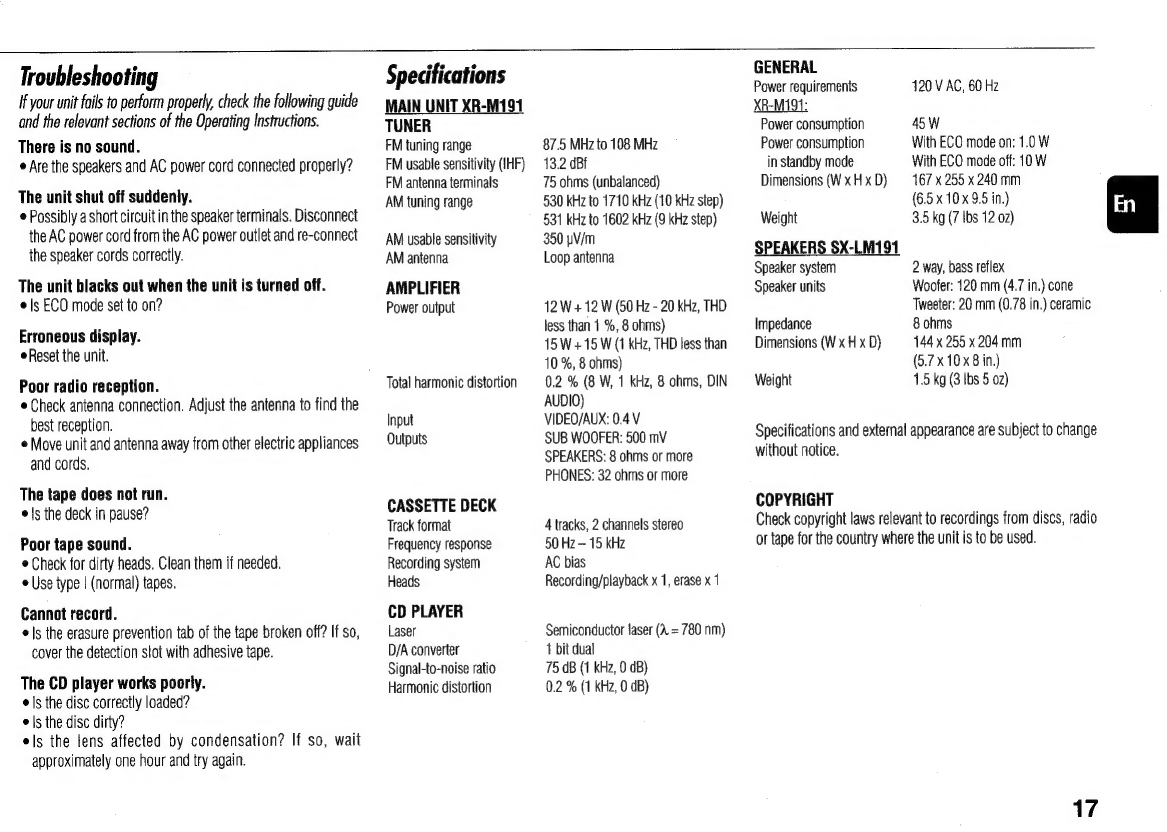

Troubleshooting
Hf
your
unit
fails
to
perform
properly,
check
the
following
guide
and
the
relevant
sections
of
the
Operating
Instructions.
There
is
no
sound.
¢
Are
the
speakers
and
AC
power
cord
connected
properly?
The
unit
shut
off
suddenly.
©
Possibly
a
short
circuit
in
the
speaker
terminals.
Disconnect
the
AC
power
cord
from
the
AC
power
outlet
and
re-connect
the
speaker
cords
correctly.
The
unit
blacks
out
when
the
unit
is
turned
off.
¢\s
ECO
mode
set
to
on?
Erroneous
display.
Reset
the
unit.
Poor
radio
reception.
Check
antenna
connection.
Adjust
the
antenna
to
find
the
best
reception.
¢
Move
unit
and
antenna
away
from
other
electric
appliances
and
cords.
The
tape
does
not
run.
©
|s
the
deck
in
pause?
Poor
tape
sound.
Check
for
dirty
heads.
Clean
them
if
needed.
©
Use
type
|
(normal)
tapes.
Cannot
record.
¢
|s
the
erasure
prevention
tab
of
the
tape
broken
off?
If
so,
cover
the
detection
slot
with
adhesive
tape.
The
CD
player
works
poorly.
¢|s
the
disc
correctly
loaded?
e|s
the
disc
dirty?
els
the
lens
affected
by
condensation?
If
so,
wait
approximately
one
hour
and
try
again.
Specifications
MAIN
UNIT
XR-M191
TUNER
FM
tuning
range
FM
usable
sensitivity
(IHF)
FM
antenna
terminals
AM
tuning
range
AM
usable
sensitivity
AM
antenna
AMPLIFIER
Power
output
Total
harmonic
distortion
Input
Outputs
CASSETTE
DECK
Track
format
Frequency
response
Recording
system
Heads
CD
PLAYER
Laser
D/A
converter
Signal-to-noise
ratio
Harmonic
distortion
87.5
MHz
to
108
MHz
13.2
dBf
75
ohms
(unbalanced)
530
kHz
to
1710
kHz
(10
kHz
step)
531
kHz
to
1602
kHz
(9
kHz
step)
350
uV/m
Loop
antenna
12
W
+
12
W
(50
Hz
-
20
kHz,
THD
less
than
1
%,
8
ohms)
15
W
+15
W
(1
kHz,
THD
less
than
10
%,
8
ohms)
0.2
%
(8
W,
1
kHz,
8
ohms,
DIN
AUDIO)
VIDEO/AUX:
0.4
V
SUB
WOOFER:
500
mV
SPEAKERS:
8
ohms
or
more
PHONES:
32
ohms
or
more
4
tracks,
2
channels
stereo
50 Hz
~
15
kHz
AC
bias
Recording/playback
x
1,
erase
x
1
Semiconductor
taser
(4
=
780
nm)
1
bit
dual
75
dB
(1
kHz,
0
dB)
0.2
%
(1
kHz,
0
dB)
GENERAL
Power
requirements
XR-M191:
Power
consumption
Power
consumption
in
standby
mode
Dimensions
(W
x
H
x
D)
Weight
SPEAKERS
SX-LM191
Speaker
system
Speaker
units
Impedance
Dimensions
(W
x
H
x
D)
Weight
120
V
AC,
60 Hz
45W
With
ECO
mode
on:
1.0
W
With
ECO
mode
off:
10
W
167
x
255
x
240
mm
(6.5
x
10x
9.5
in.)
3.5
kg
(7
Ibs
12
02)
2
way,
bass
reflex
Woofer:
120
mm
(4,7
in.)
cone
Tweeter:
20
mm
(0.78
in.)
ceramic
8
ohms
144
x
255
x
204
mm
(5.7
x
10x
8
in.)
1.5
kg
(3
Ibs
5
02)
Specifications
and
external
appearance
are
subject
to
change
without
notice.
COPYRIGHT
Check
copyright
laws
relevant
to
recordings
from
discs,
radio
or
tape
for
the
country
where
the
unit
is
to
be
used.
17

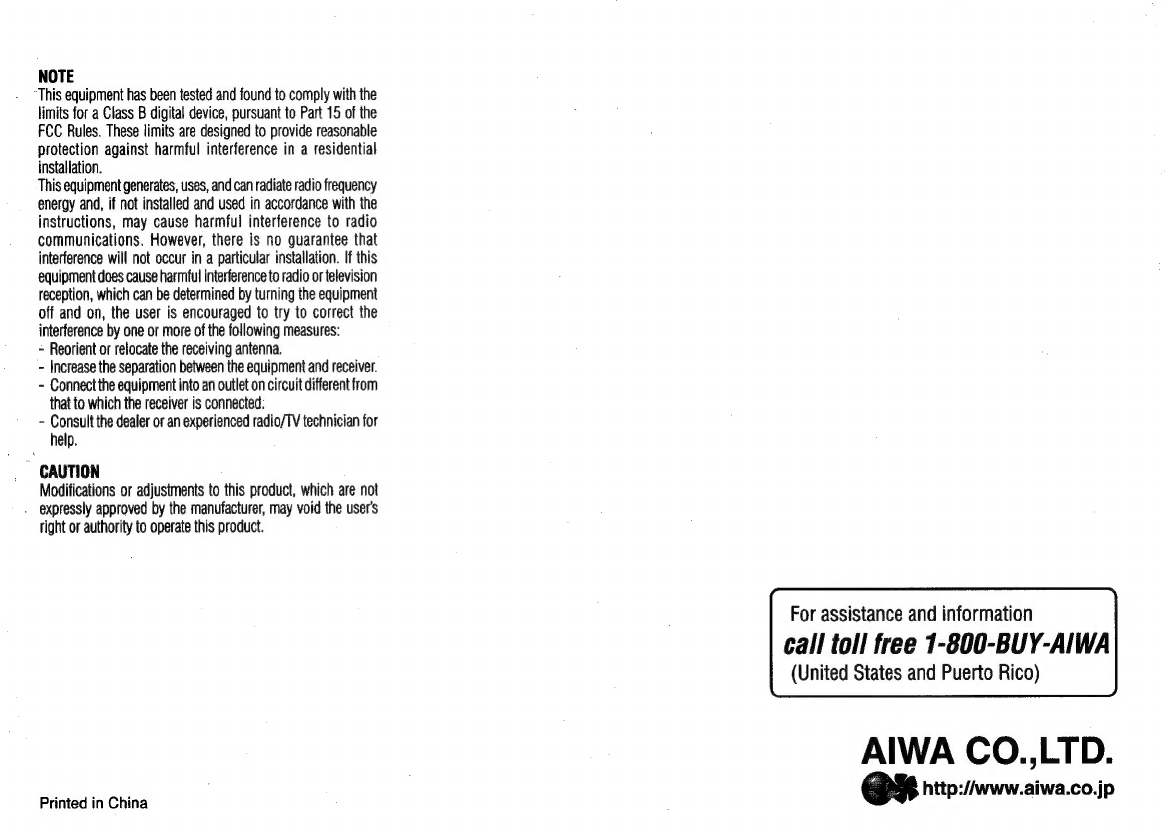

NOTE
“This
equipment
has
been
tested
and
found
to
comply
with
the
limits
for
a
Class
B
digital
device,
pursuant
to
Part
15
of
the
FCC
Rules.
These
limits
are
designed
to
provide
reasonable
protection
against
harmful
interference
in
a
residential
installation.
This
equipment
generates,
uses,
and
can
radiate
radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
instructions,
may
cause
harmful
interference
to
radio
communications.
However,
there
is
no
guarantee
that
interference
will
not
occur
in
a
particular
installation.
If
this
equipment
does
cause
harmful
interference
to
radio
or
television
reception,
which
can
be
determined
by
turning
the
equipment
off
and
on,
the
user
is
encouraged
to
try
to
correct
the
interference
by
one
or
more
of
the
following
measures:
~
Reorient
or
relocate
the
receiving
antenna.
-
Increase
the
separation
between
the
equipment
and
receiver.
~
Connect
the
equipment
into
an
outlet
on
circuit
different
from
that
to
which
the
receiver
is
connected:
-
Consult
the
dealer
or
an
experienced
radio/TV
technician
for
help.
CAUTION
Modifications
or
adjustments
to
this
product,
which
are
not
.
expressly
approved
by
the
manufacturer,
may
void
the
user's
right
or
authority
to
operate
this
product.
Printed
in
China
For
assistance
and
information
call
toll
free
1-800-BUY-AIWA
(United
States
and
Puerto
Rico)
AIWA
CO.,LTD.
es
http://www.aiwa.co.jp
