ailia

|_|

Compact

Disc

OPERATING

INSTRUCTIONS

Stereo

System

———

MANUAL

DE

INSTRUCCIONES

NSX-DS50—Ss

RSE

Sener

es

—

MODE

D'EMPLO!

NSX-DS55

DIGITAL

AUDIO

LU

|

|

Espanol)

For

assistance

and

information

call

toll

free

1-800-BUY-AIWA

(United

States

and

Puerto

Rico)

8B-NCK-903-01

010115AKH-U-M

RISK

OF

ELECTRIC

SHOCK|

DO

NOT

OPEN

“CAUTION:TO

REDUCE

THE

RISK

OF

ELECTRIC

SHOCK,

DO

NOT

REMOVE

COVER

(OR

BACK).

NO

USER-SERVICEABLE

PARTS

INSIDE.

REFER

SERVICING

TO

QUALIFIED

SERVICE

PERSONNEL.”

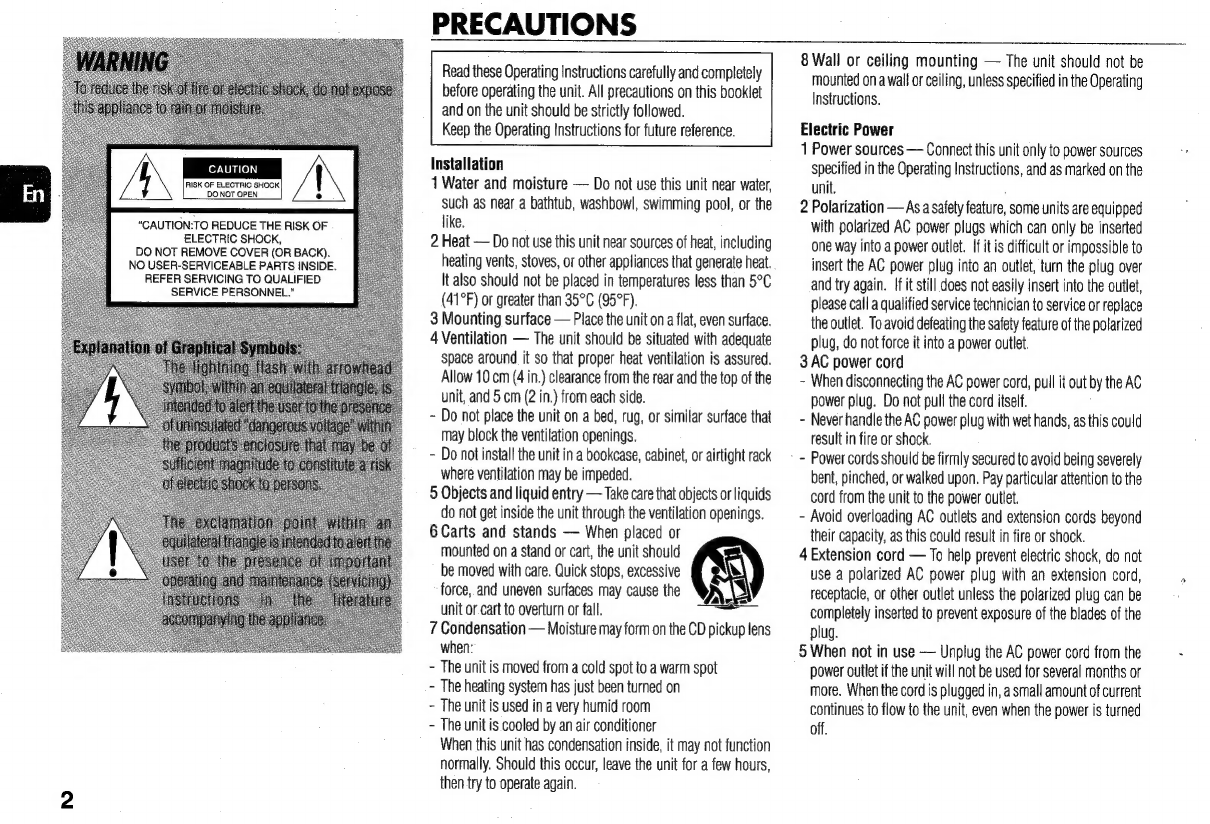

PRECAUTIONS

Read

these

Operating

Instructions

carefully

and

completely

before

operating

the

unit.

All

precautions

on

this

booklet

and

on

the

unit

should

be

strictly

followed.

Keep

the

Operating

Instructions

for

future

reference.

Installation

1

Water

and

moisture

—

Do

not

use

this unit

near

water,

such

as

near

a

bathtub,

washbowl,

swimming

pool,

or

the

like.

2

Heat

—

Do

not

use

this

unit

near

sources

of

heat,

including

heating

vents,

stoves,

or

other

appliances

that

generate

heat.

It

also

should

not

be

placed

in

temperatures

less

than

5°C

(41°F)

or

greater

than

35°C

(95°F).

3

Mounting

surface

—

Place

the

unit

ona

flat,

even

surface.

4

Ventilation

—

The

unit

should

be

situated

with

adequate

space

around

it

so

that

proper

heat

ventilation

is

assured.

Allow

10

cm

(4

in.)

clearance

from

the

rear

and

the

top

of

the

unit,

and

5

cm (2

in.)

from

each

side.

~

Do

not

place

the

unit

on

a

bed,

rug,

or

similar

surface

that

may

block

the

ventilation

openings.

~

Do

not

install

the

unit

in

a

bookcase,

cabinet,

or

airtight

rack

where

ventilation

may

be

impeded.

5

Objects

and

liquid

entry

—

Take

care

that

objects

or

liquids

do

not

get

inside

the

unit

through

the

ventilation

openings.

6

Carts

and

stands

—

When

placed

or

mounted

on

a

stand

or

cart,

the

unit

should

be

moved

with

care.

Quick

stops,

excessive

force,.and

uneven

surfaces

may

cause

the

yy.

b|

unit

or-cart

fo

overturn

or

fall.

7

Condensation

—

Moisture

may

form

on

the

CD

pickup

lens

when:

-

The

unit

is

moved

from

a

cold

spot

to

a

warm

spot

-

The

heating

system

has

just

been

turned

on

-

The

unit

is

used

in

a

very

humid

room

-

The

unit

is

cooled

by

an

air

conditioner

When

this unit

has

condensation

inside,

it

may

not

function

normally.

Should

this

occur,

leave

the

unit

for

a

few

hours,

then

try

to operate

again.

8

Wall

or

ceiling

mounting

—

The

unit

should

not

be

mounted

on

a

wall

or

ceiling,

unless

specified

in

the

Operating

Instructions.

Electric

Power

1

Power

sources

—

Connect

this

unit

only

to

power

sources

specified

in

the

Operating

Instructions,

and

as

marked

on

the

unit.

2

Polarization

—

Asa

safety

feature,

some

units

are

equipped

with

polarized

AC

power

plugs

which

can

only

be

inserted

one

way

into

a

power

outlet.

if

it

is

difficult

or

impossible

to

insert

the

AC

power

plug

into

an

outlet,

turn

the

plug

over

and

try

again.

If

it

still

does

not

easily

insert

into

the

outlet,

please

call

a

qualified

service

technician

to

service

or

replace

the

outlet.

To

avoid

defeating

the

safety

feature

of

the

polarized

plug,

do

not

force

it

into

a

power

outlet.

3

AC

power

cord

-

When

disconnecting

the

AC

power

cord,

pull

it

out

by

the

AC

power

plug.

Do

not

pull

the

cord

itself.

-

Never

handle

the

AC

power

plug

with

wet

hands,

as

this

could

result

in

fire

or

shock.

-

Power

cords

should

be

firmly

secured

to

avoid

being

severely

bent,

pinched,

or

walked

upon.

Pay

particular

attention

to

the

cord

from

the

unit

to

the

power

outlet.

-

Avoid

overloading

AC

outlets

and

extension

cords

beyond

their

capacity,

as

this

could

result

in

fire

or

shock.

4

Extension

cord

—

To

help

prevent

electric

shock,

do

not

use

a

polarized

AC

power

plug

with

an

extension

cord,

receptacle,

or

other

outlet

unless

the

polarized

plug

can

be

completely

inserted

to

prevent

exposure

of

the

blades

of

the

plug.

5

When

not

in

use

—

Unplug

the

AC

power

cord

from

the

power

outlet

if

the

unit

will

not

be

used

for

several

months

or

more.

When

the

cord

is

plugged

in,

a

smal!

amount

of

current

continues

to

flow

to

the

unit,

even

when

the

power

is

turned

off.

Outdoor

Antenna

1

Power

lines

—

When

connecting

an

outdoor

antenna,

make

sure

it

is

located

away

from

power

lines.

2

Outdoor

antenna

grounding

—Be

sure

the

antenna

system

is

properly

grounded

to

provide

protection

against

unexpected

voltage

surges

or

static

electricity

build-up.

Article

810

of

the

National

Electrical

Code,

ANSI/NFPA

70,

provides

information

on

proper

grounding

of

the

mast,

supporting

structure,

and

the

lead-in

wire

to

the

antenna

discharge

unit,

as

well

as

the

size

of

the

grounding

unit,

connection

to

grounding

terminals,

and

requirements

for

grounding

terminals

themselves.

Antenna

Grounding

According

to

the

National

Electrical

Code

ANTENNA

IN

ANTENNA

DISCHARGE

UNIT

GROUND

CLAMP.

(NEC

SECTION

ELECTRIC

810-20)

SERVICE

EQUIPMENT

GROUNDING

CONDUCTORS

NEC

POWER

SERVICE

Graal

GROUNDING

ELECTRODE

SYSTEM

GROUND

CLAMPS

(NEC

ART

250

PARTH)

-—-NEC-NATIONAL

ELECTRICAL

CODE

Maintenance

Clean

the

unit

only

as

recommended

in

the

Operating

Instructions.

Damage

Requiring

Service

Have

the

units

serviced

by

a

qualified

service

technician

if:

-

The

AC

power

cord

or

plug

has

been

damaged

~

Foreign

objects

or liquid

have

gotten

inside

the

unit

-

The

unit

has

been

exposed

to

rain

or

water

-

The

unit

does

not

seem

to

operate

normally

-

The

unit

exhibits

a

marked

change

in

performance

-

The

unit

has

been

dropped,

or

the

cabinet

has

been

damaged

DO

NOT

ATTEMPT

TO

SERVICE

THE

UNIT

YOURSELF.

sO

OWNER'S

RECORD

Record

the

model

number

and

serial

number

of

your

set

(found

at

the

rear

of

your

set)

below.

Refer

to

them

when

contacting

your

Aiwa

dealer.

Model

No.

Serial

No.

lnwrfiine

As

an

ENERGY

STAR®

Partner,

AIWA

has

determined

that

this

product

meets

the

ENERGY

STAR®

guidelines

for

energy

efficiency.

System

and

accessories

NSX-DS50

CX-NDS50

Compact

disc

stereo

cassette

receiver

SX-NAJ502

Front

speakers

SX-R290

Surround

speakers

SX-C610

Center

speaker

NSX-DS55

CX-NDS55

Compact

disc

stereo

cassette

receiver

SX-NAJ502

Front

speakers

SX-R290

Surround

speakers

SX-C610

Center

speaker

TS-WM6

Subwoofer

Remote

control

FM

antenna

AM

antenna

PREPARATIONS

Connection

Plug

in

the

AC

power

cord

to

the

AC

power

outlet

affer

all

other

connections

are

made.

Surround

speaker

Surround

speaker

aS

ee

2

DVD

player

etc.

|

oe

| :

|_|

VIDEO/

|.

|

G

en

4

TAUX/DvD

oe

ey

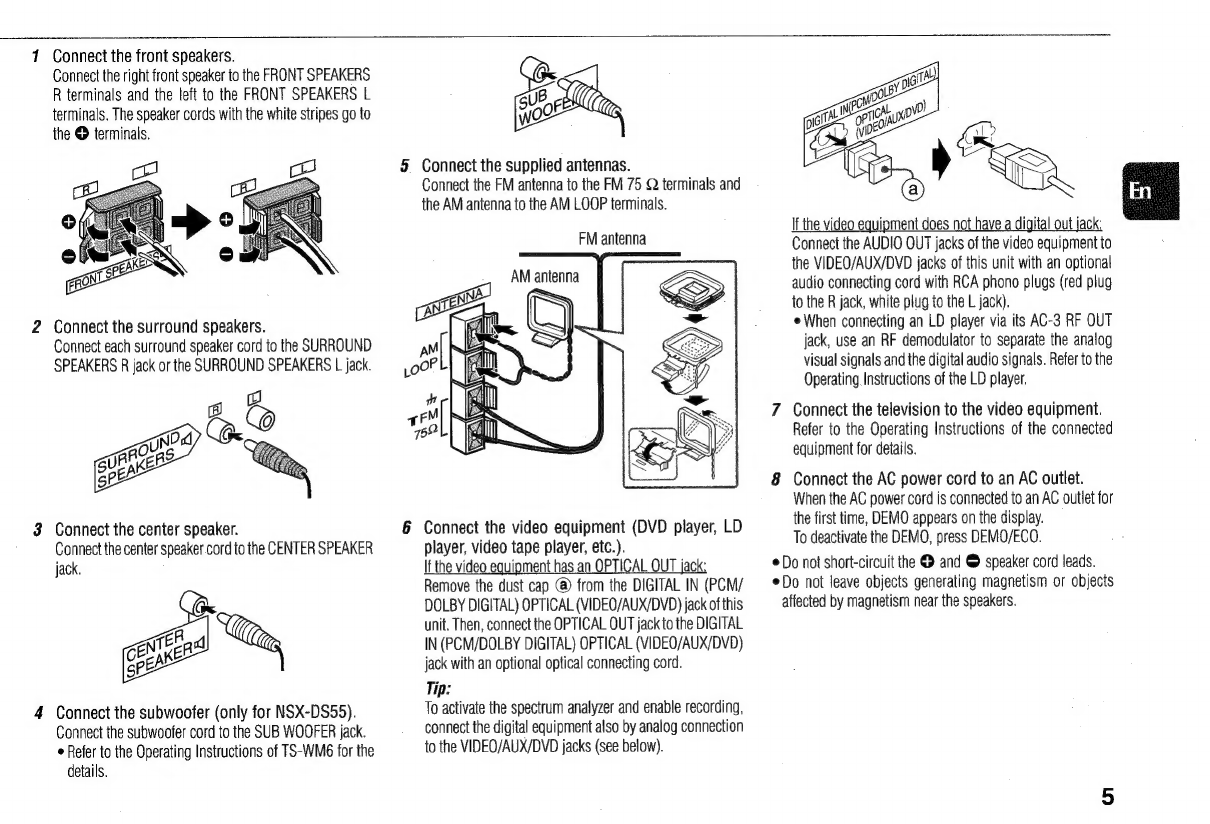

Connect

the

front

speakers.

Connect

the

right

front

speaker

to

the

FRONT

SPEAKERS

R

terminals

and

the

left

to

the

FRONT

SPEAKERS

L

terminals.

The

speaker

cords

with

the

white

stripes

go

to

the

@

terminals.

Connect

the

surround

speakers.

Connect

each

surround

speaker

cord

to

the

SURROUND

SPEAKERS

R

jack

or

the

SURROUND

SPEAKERS

L

jack.

Connect

the

center

speaker.

Connect

the

center

speaker

cord

to

the

CENTER

SPEAKER

jack.

Connect

the

subwoofer

(only

for

NSX-DS55).

Connect

the

subwoofer

cord

to

the

SUB

WOOFER

jack.

©

Refer

to

the

Operating

Instructions

of

TS-WME6

for

the

details.

G

UB

wi02

F

5

Connect

the

supplied

antennas.

Connect

the

FM

antenna

to

the

FM

75

Q

terminals

and

the

AM

antenna

to

the

AM

LOOP

terminals.

Connect

the

video

equipment

(DVD

player,

player,

video

tape

player,

etc.).

Ifthe

video

equipment

has

an

OPTICAL

OUT

jack:

Remove

the

dust

cap

@

from

the

DIGITAL

IN

(PCM/

DOLBY

DIGITAL)

OPTICAL

(VIDEO/AUX/DVD)

jack

of

this

unit.

Then,

connect

the

OPTICAL

OUT

jack

to

the

DIGITAL

IN

(PCM/DOLBY

DIGITAL)

OPTICAL

(VIDEO/AUX/DVD)

jack

with

an

optional

optical

connecting

cord.

To

activate

the

spectrum

analyzer

and

enable

recording,

connect

the

digital

equipment

also

by

analog

connection

to

the

VIDEO/AUX/DVD

jacks

(see

below).

Ifthe

video

equipment

does

not

have

a

digital

out

jack:

Connect

the

AUDIO

OUT

jacks

of

the

video

equipment

to

the

VIDEO/AUX/DVD

jacks

of

this

unit

with

an

optional

audio

connecting

cord

with

RCA

phono

plugs

(red

plug

to

the

R

jack,

white

plug

to

the

L

jack).

eWhen

connecting

an

LD

player

via

its

AC-3

RF

OUT

jack,

use

an

RF

demodulator

to

separate

the

analog

visual

signals

and

the

digital

audio

signals.

Refer

to

the

Operating

Instructions

of

the

LD

player.

Connect

the

television

to

the

video

equipment.

Refer

to

the

Operating

Instructions

of

the

connected

equipment

for

details.

Connect

the

AC

power

cord

to

an

AC

outlet.

When

the

AC

power

cord

is

connected

to an

AC

outlet

for

the

first

time,

DEMO

appears

on

the

display.

To

deactivate

the

DEMO,

press

DEMO/ECO.

¢

Do

not

short-circuit

the

and

©

speaker

cord

leads.

¢Do

not

leave

objects

generating

magnetism

or

objects

affected

by

magnetism

near

the

speakers.

To

mount

the

surround

speakers

on

the

wall

Mount

each

speaker

on

a

spot

that

can

hold

its

weight.

Positioning

the

speakers

To

achieve

the

optimum

effects

obtainable

with

the

Dolby

Digital

or

the

Dolby

Pro

Logic

system,

it is

important

to

position

the

speakers

properly.

Refer

to

the

following

illustration

to

find

out

the

best

location

in

your

room.

AIWA

disclaims

any

responsibility

for

injury

to

persons

or

other

accidents

caused

by

not

fitting

the

surround

speakers

properly

or

if

the

place

of

the

installation

is

not

suitable.

L&R:

Front

speakers

C:

Center

speaker

Position

in

the

center

of

the

two

front

speakers.

In

addition,

position

on

or

below

the

TV

set,

if

connecting

a

TV

set

to

the

unit.

LS&RS:

Surround

speakers

Place

the

surround

speakers

directly

to

the

side

of

or

slightly

behind

the

listening

area.

Align

them

horizontally,

about

1

meter

(3.2

feet)

above

ear

height.

SW:

Subwoofer

Place

the

subwoofer

on

the

floor

close

to

a

wall

or

in

a

corner

of

the

room.

¢

Sound

output

from

the

center

and

the

surround

speakers

is

only

available

when

the

Dolby

Digital

system

or

the

Dolby

Pro

Logic

system

is

activated

with

the

appropriate

setting.

6

Remote

control

Detach

the

battery

compartment

lid

at

the

rear

of

the

remote

control

and

insert

two

R6

(size

AA)

batteries

with

correct

polarity.

R6(AA)

e

Replace

the

batteries

with

new

ones

when

the

operational

distance

between

the

remote

control

and

main

unit

becomes

shorter.

Remove

the

batteries

if

the

unit

is

not

going

to

be

used

for

an

extended

period

of

time.

¢

The

remote

contro!

may

not

operate

if it

is

used

under

intense

sunlight,

etc.,

or

if

its

line

of

sight

is

obstructed.

PARTS

AND

CONTROLS

Main

unit:

rear

Dynamic

Integrated

Neo

Amplifier

@

DIGITAL

IN

(PCM/DOLBY

DIGITAL)

__

|Sabrand-new

amplifier

system

where

clear

mid-to-high

range

OPTICAL

(VIDEO/AUX/DVD)

jack

frequency

sound,

as

well

as

rich

low

frequency

sound,

can

be

Accepts

Dolby

Digital

signals

as

well

as

PCM

signals

reproduced

and

listeners

can

enjoy

the

close-to-original

sound

(conventional

digital

audio

signals,

used,

for

example

with

less

distortion

at

either

high

or

low

volume

levels.

in

audio

CDs)

from

external

digital

equipment.

When

this

jack

is

not

being

used,

attach

the

supplied

dust

cap.

@

SURROUND

SPEAKERS4

jacks

Connect

the

speaker

cord

of

the

supplied

surround

speakers

here.

©

AM

LOOP,

FM

75

terminals

Plug

in

the

supplied

AM

and

FM

antennas

here.

©

CENTER

SPEAKER{

jack

Connect

the

speaker

cord

of

the

supplied

center

speaker

here.

SUB

WOOFER{

jack

Connect

the

speaker

cord

of

the

supplied

subwoofer

(only

for

NSX-DS55)

or

an

optional

powered

subwoofer

with

a

built-in

amprifier

here.

©

VIDEO/AUX/DVD

jacks

Accepts

analog

sound

signals

from

external

equipment.

©

FRONT

SPEAKERS“

terminals

Connect

the

speaker

cord

of

the

supplied

front

speakers

here.

@

AC

power

cord

Main

unit:

front

@

POWER

OSTANDBY/ON

Switches

the

unit

on

and

off

(standby).

DEMO/ECO

When

the

unit

is

turned

off:

switches

DEMO

on

and

off.

When

the

unit

is

turned

on:

enters

ECO

or

dimmer

setting

mode.

SURROUND

Selects

a

Dolby

Surround

mode.

GEQ

Selects

a

sound

equalization

curve.

BBE

Enhances

high

frequency

sound.

T-BASS/LFE

Emphasizes

low

frequency

sound

and

adjusts

the

low-

frequency

effect

level

of

the

Dolby

Digital

sound.

14)

8

PHONES

jack

Plug

in

here

an

optional

headphones

set

with

a

standard

stereo

plug

(26.3

mm).

Speaker

output

is

canceled.

MCLEAR

CD

and

Tape:

stops

playback.

Radio:

clears

a

station

preset.

»

PRESET

CD

and

Tape:

starts

playback.

Radio:

tunes

into

a

preset

station.

<<4/1I<<

DOWN,

PP/P>PIUP

TUNING

CD:

skips

to

a

previous

or

a

succeeding

track

when

pressed,

searches

a

track

in

fast

forward

or

fast

reverse

playback

when

held

down.

Tape:

fast

forwards

or

rewinds

the

tape.

Radio:

manually

tunes

down

or

up

within

the

band.

HISET

CD

and

Tape:

pauses

playback.

Radio:

stores

the

received

station

to

preset.

SYNC

DUB

Starts

dubbing

a

whole

tape.

@REC/REC

MUTE

Starts

recording.

@

TAPE

DECK

1/2

Selects

Tape

function,

and

deck

1

or

2.

TUNER/BAND

Selects

Radio

function

and

the

radio

band.

VIDEO/AUX/DVD

Selects

the

function

of

external

equipment

connected

to

DIGITAL

IN

(PCM/DOLBY

DIGITAL)

OPTICAL

(VIDEO/

AUX/DVD)

jack

or

VIDEO/AUX/DVD

jacks.

CD

Selects

CD

function.

VOLUME

Adjusts

the

volume,

MULTI

JOG

CD:

skips

to

a

previous

or

a

succeeding

track.

Radio:

selects

a

preset

number.

Clock

and

Timer:

sets

the

time.

ECO

and

Dimmer:

selects

the

mode.

ENTER

Determines

the

mode

and

the

time

(ECO,

dimmer,

clock

and

timer).

TIMER

Enters

timer

setting

mode.

DISC

DIRECT

PLAY

1-3

Selects

a

CD

tray.

DISC

CHANGE

Rotates

the

CD

trays.

A

OPEN/CLOSE

Opens

or

closes

the

disc

compartment.

Remote

control

SLEEP

©

POWER

Enters

sleep-timer

setting

mode.

@

TAPE/DECK

1/2

CLOCK

:

Enters

clock

adjustment

mode.

TUNER/BAND

RANDOM/REPEAT

VIDEO/AUX

Enters

random

or

repeat

CD

playback

mode.

cD

©

0-9,

+10

©

HSET

CD:

selects

a

CD

track

of

the

specified

number.

>

/<>

PRESET

Radio:

tunes

in

to

the

station

with

the

specified

preset

ote

ae

pamper

nae

is

P

The

function

is

the

same

as

that

of

B>

on

the

main

unit.

<4<4/1K<DOWN,

>P/PPIUP

TUNING

CD

DIRECT

Selects

a

CD

tray

with

the

numbered

button

(1-3).

MICLEAR

©

MONO

TUNER

VOL(W~.,

)

Switches

between

stereo

or

monaural

FM

reception.

Buttons

with

same

or

similar

names

with

the

main

unit

basically

T-BASS

have

the

same

function.

GEQ

@

CD

EDIT/CHECK

SURROUND

Displays

the

remaining

playback

time

of

a

CD

when

pressed

during

playback.

MANUAL

SELECT

Enters

Al

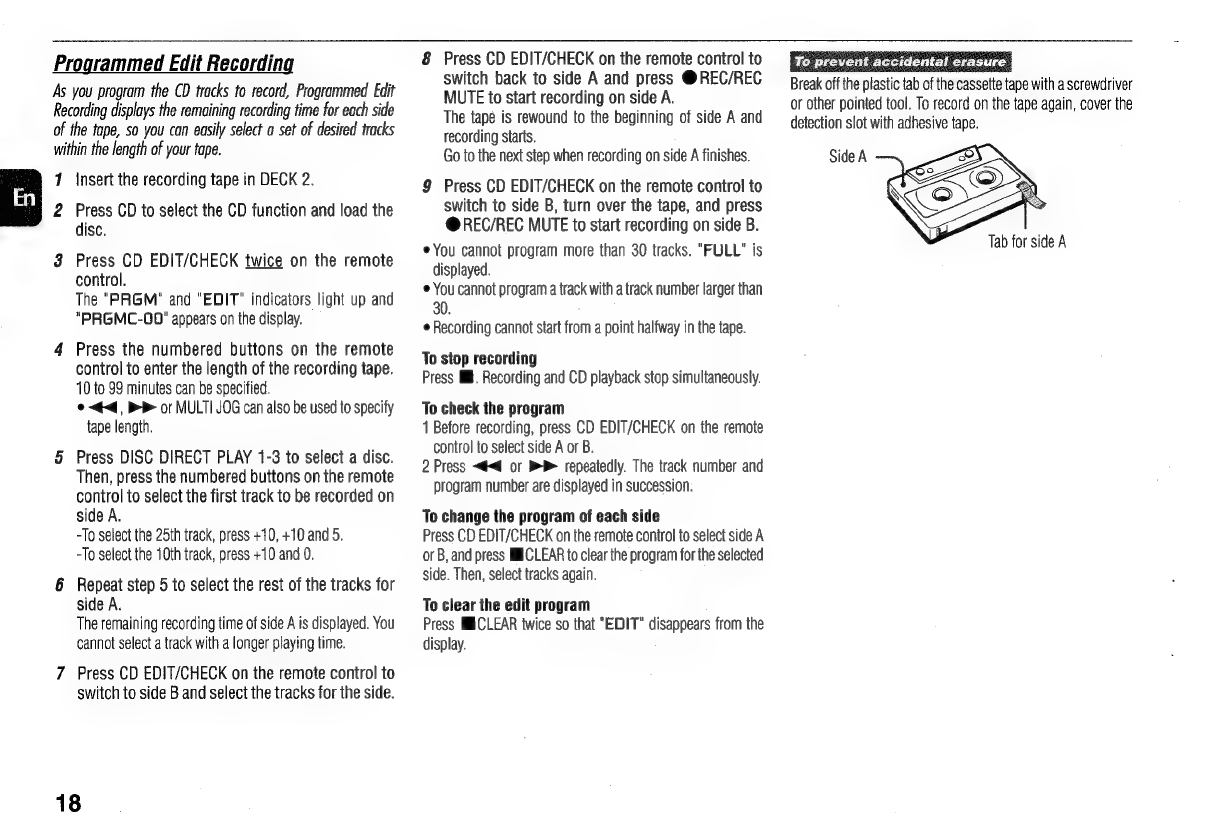

Edit

Recording

or

Programmed

Edit

Recording

Adjusts

speaker

level

or

delay

time.

mode

when

pressed

during

stop.

CENTER

LEVEL

(+,

—)

PRGM

Adjusts

the

sound

level

of

the

center

speaker

for

Dolby

Enters

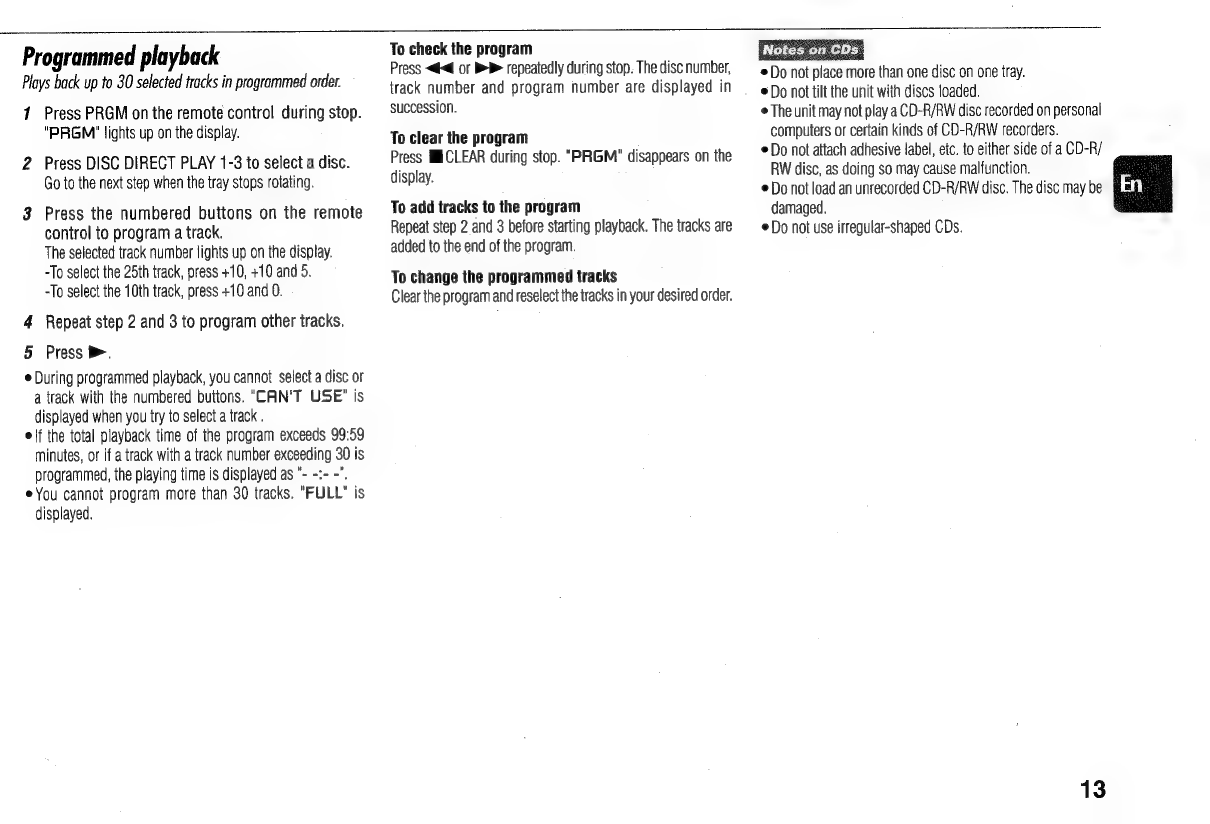

programmed

CD

playback

mode.

Surround.

TIMER

REAR

LEVEL

(+,

—)

Adjusts

the

sound

level

of

the

surround

speakers

for

Dolby

Surround.

ADJUSTMENTS

BEFORE

OPERATIONS

Power

Turning

the

unit

on

Press

POWER

«)STANDBY/ON

(POWER

on

the

remote

control),

Or

press

TAPE,

TUNER/BAND,

VIDEO/AUX/DVD

or

CD,

the

playback

will

start

automatically

if

a

disc

or

tape

is

inserted.

Turning

the

unit

off

Press

POWER

@STANDBY/ON

again.

The

unit

goes

into

standby.

10

Volume

Turn

VOLUME

(Press

VOL

AA,

on

the

remote

control).

Adjust

from

0

(minimum)

to

49

and

MAX

(maximum).

Tip:

Volume

level

setting

is

retained

during

power-off

standby.

If

the

unit

is

turned

off

with

the

volume

set

to

21

or

more,

it

is

automatically

turned

down

to

20

the

next

time

the

unit

is

turned

on.

To

change

the

left/right

balance

Press

MANUAL

SELECT

repeatedly

on

the

remote

control

until

"L/R"

is

displayed.

Then,

press

<<

or

BB

within

4

seconds.

¢

The

front

speakers

level

for

the

Dolby

Digital

and

Dolby

Pro

Logic

systems

is

changed

as

well.

DEMO

If

the

clock

has

not

been

set,

a

DEMO

appears

on

the

display

when

the

unit

is

turned

off.

There

are

two

kinds

of

DEMO:

“Illumination

demo"

and

“Game

demo".

You

can

enjoy

both

on

the

unit.

To

deactivate

and

activate

the

DEMO

Press

DEMO/ECO

when

the

unit

is

turned

off.

To

switch

between

“Illumination

demo"

and

"Game

demo"

Hold

down

DEMO/ECO

and

press

POWER.

To

play

the

Game

demo

Press

B>

so

that

three

numbers

start

to

run

and

then

press

I

three

times

to

stop

the

numbers,

ifthe

three

numbers

are

equal,

you

win

points.

If

not,

you

lose

them.

Tip:

To

change

the

winning

probability,

press

<4

or

BP

so

that

the

CD

tray

number

indicator

changes

between

1

(lowest)

and

3

(highest).
