SERVICE MANUAL
DATA
K(S),K(ST)
COMPACT DISC STEREO
RADIO CASSETTE RECEIVER
S/M Code No. 09-027-361-3T2
SIMPLE
Replace this Service Manual with "Revision Publishing" when it is issued.
BASIC TYPE MECHANISM:TN-21ZVC-2000
BASIC CD MECHANISM :KSM-213 RDM
CSD-TD9
EZ(S),EZ(ST)
CSD-TD19
EZ(S),EZ(ST)
EZ(L)

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-2-
ACCESSORIES PARTS LIST-1/1
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
O AS1001 S8-493-840-000 ANT COIL ASSY ARA8-849384 w/B a b c d e f g
X AS1002 S0-001-000-000 CABLE/PLASTIC TIE a b . . e f g
X AS1003 87-057-961-010 CAUTION LABEL a b c d e f g
X AS1004 87-056-770-010 COLOR LABEL(SILVER) a . c . . . .
X AS1005 87-056-905-010 COLOR LABEL(TITAN SILVER) . . . . . . g
O AS1006 87-A80-081-020 CORD,POWER 2.5A a b c d e f g
O AS1007 S0-230-000-000 EURO CONVERTOR PLUG 250V/2.5A a b . . . . .
X AS1008 87-B50-079-010 FACILITY LIST(B) a b c d e f g
X AS1009 8C-CHN-851-010 G/B,(EZS) . . . . e f g
X AS1010 8C-CHC-855-010 G/B,(EZST) . . c d . . .
X AS1011 8C-CHC-855-010 G/B,(EZST) a b . . . . .
O AS1012 8C-CHC-906-010 IB,(EZ) . . c d e f g
O AS1013 8C-CHC-905-010 IB,(K) a b . . . . .
X AS1014 87-056-168-010 INFORMATION WARRANTY SHEET a b c d e f g
X AS1015 87-B40-281-010 LBL,BAR CODE(A-35-8) a b c d e f g
X AS1016 87-057-995-010 LBL,CLASS 1 a b c d e f g
X AS1017 87-056-926-010 LBL,COLOR BLU . . . . . f .
X AS1018 87-056-600-010 LBL,DIFFERENCE a b . . . . .
X AS1019 S0-401-300-000 PE POLY BAG 0.045x4"x13" w/RE a . c . e f g
X AS1020 S0-402-600-000 PE POLY BAG 0.045x4"x26" . b . . . . .
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X AS1021 S0-400-600-000 PE POLY BAG 0.045x4"x6" a . . . . . .
X AS1022 87-051-183-010 POLY BAG 0.045-3.25-11.5 . . . d . . .
X AS1023 87-B40-085-010 POLY BAG 0.045-8.5-14 a b c d e f g
X AS1024 S0-600-400-200 POLYFOAM BAR S:60x40x20 a b . . e f g
X AS1025 S0-600-450-220 POLYFOAM SHEET 60mmx45mmx22mm . . c d . . .
X AS1026 8C-CDC-851-010 POLYFOAM,CCDC-90 #2691 a b c d e f g
X AS1027 8C-CHC-972-010 POP LABEL(K) . . c d . . .
X AS1028 8C-CHN-970-010 POP LABEL(K) . . . . e f g
X AS1029 8C-CHC-971-010 POP LABEL(U) a b . . . . .
O AS1030 8C-CHN-961-010 RC UNIT,RC-CAT3 . . . . e f g
X AS1031 8C-CHC-052-010 SPEC LBL(EZ) . . c d . . .
X AS1032 8C-CHN-052-110 SPEC LBL(EZ) . . . . e f g
X AS1033 8C-CHC-051-010 SPEC LBL(K) a b . . . . .
X AS1034 87-CD8-229-010 SPONGE 15-10 a b . . e f g

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-3-
ELECTRICAL PARTS LIST -1/8
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X BAT0000 S6-732-000-060 JP WIRE 200MM a b c d e f g
X BAT0000 S6-732-000-090 JP WIRE 200MM(BLK) a b c d e f g
O BAT0000 S3-801-391-400 PT001WEI48/18&F&WEN& 230V:11. . . c d . . .
X C 0102 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
X C 0103 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0104 S4-120-500-500 CAP,CER 12PF-50V a b c d e f g
X C 0105 S4-471-500-500 CAP,CER 470PF-50V a b c d e f g
X C 0106 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0107 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0108 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0109 S0-102-800-500 CAP,CER 0.001U-50V a b c d e f g
X C 0110 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0111 S4-808-300-500 CAP,CER 8PF-50V a b c d e f g
X C 0112 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0113 S4-471-500-500 CAP,CER 470PF-50V a b c d e f g
X C 0114 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0115 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0117 S4-120-500-500 CAP,CER 12PF-50V a b c d e f g
X C 0118 S4-308-300-500 CAP,CER 3PF-50V a b c d e f g
X C 0119 S0-331-100-500 CAP,CER 330PF-50V a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X C 0120 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
X C 0121 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
O C 0122 87-010-053-810 CAP,E 1-50V a b c d e f g
X C 0123 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
X C 0124 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0125 S0-153-501-000 CAP,M 0.015UF-100V a b c d e f g
X C 0126 S0-153-501-000 CAP,M 0.015UF-100V a b c d e f g
O C 0127 87-010-545-010 CAP,E 0.22-50V a b c d e f g
O C 0128 87-010-545-010 CAP,E 0.22-50V a b c d e f g
X C 0129 S4-300-500-500 CAP,CER 30PF-50V a b c d e f g
X C 0130 S4-200-500-500 CAP,CER 20P-50V a b c d e f g
X C 0131 S4-240-500-500 CAP,CER 24P-50V a b c d e f g
X C 0132 S0-102-800-500 CAP,CER 0.001U-50V a b c d e f g
X C 0133 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0134 S0-102-800-500 CAP,CER 0.001U-50V a b c d e f g
X C 0135 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0136 S0-101-100-500 CAP,CER 100P-50V a b c d e f g
X C 0137 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
X C 0138 S0-101-100-500 CAP,CER 100P-50V a b c d e f g
X C 0139 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X C 0140 S0-408-400-500 CAP,CER 4P-50V a b c d e f g
X C 0141 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
O C 0142 87-010-375-010 CAP,E 330-10V a b c d e f g
X C 0143 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
X C 0145 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0146 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0147 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0148 S0-100-500-500 CAP,CER 10PF-50V a b c d e f g
X C 0149 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0150 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0151 S0-101-100-500 CAP,CER 100P-50V a b c d e f g
X C 0152 S0-101-100-500 CAP,CER 100P-50V a b c d e f g
X C 0155 S4-240-500-500 CAP,CER 24P-50V a b c d e f g
X C 0156 S4-240-500-500 CAP,CER 24P-50V a b c d e f g
X C 0157 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0158 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b . . . . .
X C 0159 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
O C 0160 87-010-404-010 CAP,E 4.7-50V a b c d e f g
O C 0162 87-010-404-010 CAP,E 4.7-50V a b . . e f g
O C 0162 87-010-400-010 CAP,E 0.47-50V . . c d . . .
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
O C 0163 87-010-263-080 CAP,E 100-10V a b c d e f g
O C 0164 87-010-263-080 CAP,E 100-10V a b c d e f g
X C 0165 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0166 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0167 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
O C 0171 87-010-375-010 CAP,E 330-10V a b . . e f g
O C 0172 87-010-375-010 CAP,E 330-10V a b . . e f g
X C 0176 S0-101-100-500 CAP,CER 100P-50V a b . . e f g
X C 0177 S2-104-810-500 CAP,CER 0.1UF-50V a b . . e f g
O C 0178 87-010-037-010 CAP,E 10-50V a b . . e f g
O C 0178 87-010-263-080 CAP,E 100-10V . . c d . . .
O C 0302 87-010-263-080 CAP,E 100-10V a b c d e f g
O C 0303 87-010-404-010 CAP,E 4.7-50V a b c d e f g
O C 0304 S0-102-101-000 CAP,M 0.001UF-100V a b c d e f g
X C 0305 S0-273-101-000 CAP,M 0.027UF-100V a b c d e f g
O C 0306 87-010-037-010 CAP,E 10-50V a b c d e f g
O C 0307 87-010-404-010 CAP,E 4.7-50V a b c d e f g
O C 0308 87-010-263-080 CAP,E 100-10V a b c d e f g
O C 0310 S0-102-101-000 CAP,M 0.001UF-100V a b c d e f g
O C 0311 87-010-375-010 CAP,E 330-10V a b c d e f g

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-4-
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X C 0312 S0-273-101-000 CAP,M 0.027UF-100V a b c d e f g
X C 0313 S0-222-101-000 CAP,M 0.0022UF-100V a b c d e f g
O C 0314 S0-102-101-000 CAP,M 0.001UF-100V a b c d e f g
X C 0315 S0-222-101-000 CAP,M 0.0022UF-100V a b c d e f g
O C 0316 S0-102-101-000 CAP,M 0.001UF-100V a b c d e f g
O C 0323 87-010-053-810 CAP,E 1-50V a b c d e f g
O C 0324 87-010-053-810 CAP,E 1-50V a b c d e f g
O C 0330 87-010-045-010 CAP,E 100-25V a b c d e f g
X C 0334 S0-102-800-500 CAP,CER 0.001U-50V a b c d e f g
O C 0335 87-010-248-080 CAP,E 220-10V a b c d e f g
O C 0336 S0-103-101-000 CAP,M 0.01UF-100V a b c d e f g
O C 0337 S0-103-101-000 CAP,M 0.01UF-100V a b c d e f g
O C 0338 S0-472-101-000 CAP,M 0.0047UF-100V a b c d e f g
X C 0339 S0-152-101-000 CAP,M 0.0015U-100V a b . . e f g
O C 0339 S0-102-101-000 CAP,M 0.001UF-100V . . c d . . .
O C 0340 87-010-248-080 CAP,E 220-10V a b c d e f g
O C 0361 87-010-101-080 CAP,E 220-16V a b c d e f g
O C 0362 87-010-263-080 CAP,E 100-10V a b c d e f g
X C 0393 S0-331-100-500 CAP,CER 330PF-50V a b c d e f g
X C 0394 S0-331-100-500 CAP,CER 330PF-50V a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X C 0401 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
X C 0402 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
O C 0403 87-010-404-010 CAP,E 4.7-50V a b c d e f g
O C 0404 87-010-404-010 CAP,E 4.7-50V a b c d e f g
X C 0405 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0406 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0407 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
O C 0408 87-010-380-010 CAP,E 47-16V a b c d e f g
X C 0409 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
O C 0410 87-010-380-010 CAP,E 47-16V a b c d e f g
X C 0411 S0-470-100-500 CAP,CER 47PF-50V a b c d e f g
O C 0414 87-010-380-010 CAP,E 47-16V a b c d e f g
O C 0415 S3-153-100-250 CAP,S 0.015UF-25V a b c d e f g
X C 0416 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0417 88-266-680-810 CAP,0.0027UF-25V a b c d e f g
X C 0418 88-266-680-810 CAP,0.0027UF-25V a b c d e f g
X C 0419 S3-682-200-250 CAP,S 0.0068 uF/25V +-20% a b c d e f g
X C 0420 S0-473-800-500 CAP,CER 0.047UF-50V a b c d e f g
X C 0421 S0-473-800-500 CAP,CER 0.047UF-50V a b c d e f g
X C 0422 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X C 0423 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0424 S0-473-800-500 CAP,CER 0.047UF-50V a b c d e f g
X C 0425 S0-473-800-500 CAP,CER 0.047UF-50V a b c d e f g
X C 0426 S0-150-100-500 CAP,CER 15PF-50V a b c d e f g
X C 0427 S0-150-100-500 CAP,CER 15PF-50V a b c d e f g
X C 0428 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
O C 0429 87-010-263-080 CAP,E 100-10V a b c d e f g
O C 0430 87-010-263-080 CAP,E 100-10V a b c d e f g
O C 0431 87-010-263-080 CAP,E 100-10V a b c d e f g
X C 0432 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
O C 0433 87-010-263-080 CAP,E 100-10V a b c d e f g
O C 0434 87-010-263-080 CAP,E 100-10V a b c d e f g
X C 0435 S0-104-800-160 CAP,CER 0.1-16V . . c d . . .
O C 0436 87-010-263-080 CAP,E 100-10V a b c d e f g
X C 0437 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
O C 0438 87-010-263-080 CAP,E 100-10V a b c d e f g
X C 0439 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0441 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
X C 0442 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
O C 0443 87-010-263-080 CAP,E 100-10V a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
O C 0443 87-010-263-080 CAP,E 100-10V . . c . . . .
O C 0443 87-010-263-080 CAP,E 100-10V . . . d . . .
X C 0444 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
O C 0446 87-010-221-010 CAP,E 470-10V a b c d e f g
X C 0447 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
X C 0452 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
O C 0453 87-010-263-080 CAP,E 100-10V a b c d e f g
X C 0454 S0-333-501-000 CAP,M 0.033UF-100V a b c d e f g
X C 0455 S0-560-100-500 CAP,CER 56PF-50V a b . . e f g
X C 0455 S0-390-100-500 CAP,CER 39PF-50V . . c d . . .
X C 0460 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
X C 0461 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0462 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
O C 0463 S0-473-101-000 CAP,M 0.047UF-100V a b . . e f g
O C 0464 S0-473-101-000 CAP,M 0.047UF-100V a b . . e f g
O C 0468 87-010-263-080 CAP,E 100-10V a b c d e f g
X C 0601 S0-203-800-500 CAP,CER 0.02U-50V a b c d e f g
O C 0601 87-010-263-080 CAP,E 100-10V a b c d e f g
X C 0602 S0-203-800-500 CAP,CER 0.02U-50V a b c d e f g
O C 0602 87-010-221-010 CAP,E 470-10V a b c d e f g
ELECTRICAL PARTS LIST -2/8

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-5-
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X C 0603 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
X C 0603 S0-203-800-500 CAP,CER 0.02U-50V a b c d e f g
X C 0604 S0-203-800-500 CAP,CER 0.02U-50V a b c d e f g
O C 0604 87-010-375-010 CAP,E 330-10V a b . . e f g
O C 0604 87-010-248-080 CAP,E 220-10V . . c d . . .
O C 0605 87-010-388-010 CAP,E 1000-25V a b . . e f g
X C 0606 S0-203-800-500 CAP,CER 0.02U-50V a b c d e f g
O C 0606 87-010-545-010 CAP,E 0.22-50V a b c d e f g
O C 0607 87-010-035-010 CAP,E 2.2-50V a b c d e f g
X C 0608 S4-330-500-500 CAP,CER 33P-50V a b c d e f g
X C 0609 S4-330-500-500 CAP,CER 33P-50V a b c d e f g
X C 0610 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
O C 0611 87-010-038-010 CAP,E 22-25V . . . . e f g
X C 0612 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
X C 0613 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
X C 0614 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
X C 0617 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d e f g
O C 0619 87-010-263-080 CAP,E 100-10V a b c d e f g
O C 0620 87-010-403-010 CAP,E 3.3-50V a b c d e f g
X C 0621 S0-104-800-160 CAP,CER 0.1-16V a b . . e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X C 0622 S0-104-800-160 CAP,CER 0.1-16V a b . . e f g
X C 0623 S2-104-810-500 CAP,CER 0.1UF-50V a b . . e f g
X C 0624 S2-104-810-500 CAP,CER 0.1UF-50V a b . . e f g
X C 0648 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0649 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0650 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0651 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0652 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0653 S0-471-100-510 CAP,CER 470PF-50V . . c d e f g
X C 0654 S0-471-100-510 CAP,CER 470PF-50V . . c d e f g
X C 0655 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0656 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0657 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0658 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0659 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0660 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0661 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0662 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0663 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0664 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X C 0665 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
O C 0801 S0-102-101-000 CAP,M 0.001UF-100V a b . . e f g
X C 0801 S0-222-101-000 CAP,M 0.0022UF-100V . . c d . . .
O C 0802 S0-102-101-000 CAP,M 0.001UF-100V a b . . e f g
X C 0802 S0-222-101-000 CAP,M 0.0022UF-100V . . c d . . .
O C 0805 87-010-544-010 CAP,E 0.1-50V a b . . e f g
O C 0805 87-010-053-810 CAP,E 1-50V . . c d . . .
O C 0806 87-010-544-010 CAP,E 0.1-50V a b . . e f g
O C 0806 87-010-053-810 CAP,E 1-50V . . c d . . .
X C 0807 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
X C 0808 S0-471-100-510 CAP,CER 470PF-50V a b c d e f g
O C 0809 87-010-038-010 CAP,E 22-25V a b . . e f g
O C 0809 87-A10-216-080 CAP,E 47-25V . . c d . . .
O C 0810 87-010-038-010 CAP,E 22-25V a b . . e f g
O C 0810 87-A10-216-080 CAP,E 47-25V . . c d . . .
O C 0811 87-010-263-080 CAP,E 100-10V a b c d e f g
O C 0812 87-010-263-080 CAP,E 100-10V a b c d e f g
O C 0813 S0-331-002-5C0 CAP,E 330-25V a b . . e f g
O C 0813 87-010-101-080 CAP,E 220-16V . . c d . . .
O C 0814 S0-331-002-5C0 CAP,E 330-25V a b . . e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
O C 0814 87-010-101-080 CAP,E 220-16V . . c d . . .
X C 0815 S2-104-810-500 CAP,CER 0.1UF-50V a b . . e f g
O C 0817 S0-224-101-000 CAP,M 0.22UF-100V a b c d e f g
O C 0818 S0-224-101-000 CAP,M 0.22UF-100V a b c d e f g
O C 0819 87-010-101-080 CAP,E 220-16V a b c d e f g
O C 0820 87-010-388-010 CAP,E 1000-25V a b c d e f g
O C 0821 87-010-035-010 CAP,E 2.2-50V a b c d e f g
O C 0828 87-010-038-010 CAP,E 22-25V a b c d e f g
O C 0841 87-010-263-080 CAP,E 100-10V a b . . e f g
X C 0844 S2-104-810-500 CAP,CER 0.1UF-50V a b . . e f g
X C 0845 S0-104-800-160 CAP,CER 0.1-16V a b . . e f g
X C 0846 S2-104-810-500 CAP,CER 0.1UF-50V a b . . e f g
X C 0847 S2-104-810-500 CAP,CER 0.1UF-50V a b . . e f g
O C 0856 87-010-053-810 CAP,E 1-50V a b c d e f g
O C 0857 87-010-237-010 CAP,E 1000-16V a b c d e f g
O C 0858 87-010-906-010 CAP,E 2200-25V a b c d e f g
O C 0872 87-010-263-080 CAP,E 100-10V a b c d e f g
O C 0873 87-010-546-080 CAP,E 0.33-50V a b . . e f g
O C 0873 87-010-053-810 CAP,E 1-50V . . c d . . .
O C 0874 87-010-546-080 CAP,E 0.33-50V a b . . e f g
ELECTRICAL PARTS LIST -3/8

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-6-
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
O C 0874 87-010-053-810 CAP,E 1-50V . . c d . . .
O C 0877 S0-393-101-000 (F004-039350-050) CAP,M 0. a b . . e f g
O C 0877 S0-473-101-000 CAP,M 0.047UF-100V . . c d . . .
O C 0878 S0-393-101-000 (F004-039350-050) CAP,M 0. a b . . e f g
O C 0878 S0-473-101-000 CAP,M 0.047UF-100V . . c d . . .
O C 0885 87-010-546-080 CAP,E 0.33-50V a b . . e f g
O C 0885 87-010-053-810 CAP,E 1-50V . . c d . . .
O C 0886 87-010-546-080 CAP,E 0.33-50V a b . . e f g
O C 0886 87-010-053-810 CAP,E 1-50V . . c d . . .
O C 0889 87-010-403-010 CAP,E 3.3-50V a b c d e f g
O C 0890 87-010-546-080 CAP,E 0.33-50V a b . . e f g
O C 0890 87-010-035-010 CAP,E 2.2-50V . . c d . . .
O C 0891 87-010-546-080 CAP,E 0.33-50V a b . . e f .
O C 0891 87-010-035-010 CAP,E 2.2-50V . . c d . . .
X C 0892 S0-104-800-160 CAP,CER 0.1-16V a b c d e f g
O C 0893 87-010-263-080 CAP,E 100-10V a b . . e f g
X C 0894 S0-220-100-500 CAP,CER 22PF-50V a b c d e f g
X C 0895 S0-220-100-500 CAP,CER 22PF-50V a b c d e f g
X C 0896 S0-220-100-500 CAP,CER 22PF-50V a b c d e f g
X C 0897 S0-220-100-500 CAP,CER 22PF-50V a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X C 3654 S0-471-100-510 CAP,CER 470PF-50V a b . . . . .
X C 446- S6-730-600-090 JP WIRE 60MM(BLK) a b . . e f g
O CF 0101 S0-004-500-000 CER,FIL SFU450B a b c d e f g
O CF 0102 87-A90-988-010 C-FIL KMFC5153T6-Z a b c d e f g
O CF 0103 87-A90-988-010 C-FIL KMFC5153T6-Z a b c d e f g
X CN 0301 S0-052-670-400 HEADER,MOLEX 4P a b c d e f g
O CN 0402 SP-HS0-200-200 HEADER CTL 2 PINS PHS-02 PITC a b c d e f g
O CN 0402 S0-206-682-000 HSG CD668R-2A JST PHR 2mm WIT a b c d e f g
O CN 0405 S0-061-161-600 FFC CONN SOCKET 16PINS P:1mm a b c d e f g
X CN 0501 S0-052-670-400 HEADER,MOLEX 4P a b c d e f g
O CN 0601 SP-HS1-201-200 HEADER CTL 12 PINS PHS-12 PIT a b c d e f g
O CN 0603 SF-011-330-000 HSG(2mm) JST PHR-11 w/330mm B a b c d e f g
O CN 0604 SF-012-330-000 HSG(2mm) JST PHR-12 w/330mm B a b c d e f g
X CN 0801 S0-052-670-400 HEADER,MOLEX 4P a b c d e f g
O CN 0801 S0-476-9C2-500 HSG 769C-4 PINS MOLEX 5264 YE a b c d e f g
X CN 0851 S0-052-670-300 HEADER,MOLEX 3P a b c d e f g
O D 0101 87-A40-618-080 VARI-CAP,SVC348 a b c d e f g
O D 0102 S0-001-010-000 DIODE,1SV101 a b c d e f g
O D 0103 S0-001-010-000 DIODE,1SV101 a b c d e f g
O D 0104 82-135-799-010 DIODE,IN4148 . . c d . . .
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
O D 0105 82-135-799-010 DIODE,IN4148 . . c d . . .
O D 0106 82-135-799-010 DIODE,IN4148 a b c d e f g
S D 0108 87-A40-346-080 ZENER,MTZJ8.2C a b c d e f g
O D 0302 82-135-799-010 DIODE,IN4148 a b c d e f g
O D 0303 82-135-799-010 DIODE,IN4148 a b c d e f g
O D 0361 82-135-799-010 DIODE,IN4148 a b c d e f g
O D 0362 82-135-799-010 DIODE,IN4148 a b c d e f g
O D 0363 S0-100-821-230 ZENER DIODE 8.2V #MTZJ8.2A 1/ a b c d e f g
O D 0601 82-596-799-010 DI,1N4001B a b c d e f g
O D 0602 82-596-799-010 DI,1N4001B a b c d e f g
O D 0603 82-596-799-010 DI,1N4001B a b c d e f g
O D 0604 82-596-799-010 DI,1N4001B a b c d e f g
O D 0604 87-020-465-080 DIODE,1SS133 a b c d e f g
O D 0605 82-596-799-010 DI,1N4001B a b c d e f g
O D 0605 87-020-465-080 DIODE,1SS133 a b c d e f g
O D 0606 87-020-465-080 DIODE,1SS133 a b c d e f g
O D 0606 82-596-799-010 DI,1N4001B . . c d . . .
O D 0607 87-020-465-080 DIODE,1SS133 a b c d e f g
O D 0608 87-020-465-080 DIODE,1SS133 a b c d e f g
O D 0609 87-020-465-080 DIODE,1SS133 a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
O D 0610 87-020-465-080 DIODE,1SS133 a b c d e f g
O D 0808 82-135-799-010 DIODE,IN4148 a b . . e f g
O D 0855 82-135-799-010 DIODE,IN4148 a b c d e f g
O D 0856 82-135-799-010 DIODE,IN4148 a b c d e f g
O FOR0000 S0-423-152-500 HSG 2315-4C MOLEX 5264 w/300m a b c d e f g
X FOR0000 S6-731-600-090 JP WIRE,AWG26#1007 3x3-160MM a b . . e . .
O FOR0301 S0-401-68C-010 HSG CD168-103(C) PEC 2507-H-4 a b c d e f g
O HP 0002 S2-201-000-070 AC SOCKET PSE27 DAIICHI 2.5A/ a b c d e f g
O IC 0101 S8-321-110-010 IC TA2111N (TOSHIBA) a b c d e f g
O IC 0102 87-A21-928-010 IC,LC72131D/-N a b c d e f g
O IC 0301 87-020-636-010 IC,BA3308 a b c d e f g
O IC 0401 S2-114-690-000 IC MM1469XH a b c d e f g
S IC 0402 87-A22-261-040 IC,TA2109F a b . . . . .
S IC 0402 87-A22-261-040 IC,TA2109F . . c d e f g
S IC 0601 8C-CHC-614-030 IC,TC94A23F-704 a b . . . . .
S IC 0601 8C-CHC-610-030 IC,TC94A23F-701 . . c d . . .
S IC 0601 8C-CHC-611-030 IC,TC94A23F-703 . . . . e f g
O IC 0801 S8-382-270-000 IC,TA8227P a b c d e f g
X JW 0001 S6-731-600-090 JP WIRE,AWG26#1007 3x3-160MM . . . . . f g
O L 0101 S0-061-200-100 IFT,1A612R a b c d e f g
ELECTRICAL PARTS LIST -4/8

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-7-
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
O L 0102 S0-400-500-080 FM COIL 4T,5mm,DIA:0.8mm (CS5 a b . . e f g
X L 0102 S0-400-450-080 FM,COIL 4T 4.5MM . . c d . . .
O L 0105 87-A50-565-010 FM COIL,4.5T 4.8MM DIA:0.7MM a b c d e f g
O L 0107 87-003-143-010 INDUCTOR,4.7UH . . c d . . .
O L 0108 S0-300-500-080 FM COIL 3T,5mm,DIA:0.8mm (CS5 a b c d e f g
O L 0110 87-003-143-010 INDUCTOR,4.7UH a b c d e f g
O L 0401 S0-101-560-050 INDUCTOR,15UH a b . . e f g
O L 0403 87-005-196-080 INDUCTOR,10UH a b c d e f g
O L 0405 87-005-196-080 INDUCTOR,10UH a b c d e f g
O L 0406 87-005-196-080 INDUCTOR,10UH a b c d e f g
O L 0601 87-003-143-010 INDUCTOR,4.7UH a b c d e f g
O L 0602 87-003-143-010 INDUCTOR,4.7UH a b c d e f g
O L D808 82-135-799-010 DIODE,IN4148 . . c d . . .
O LCD0601 S0-043-050-000 LCD-P-06D-36x21SM018P #AIW430 a b c d e f g
O PT 0001 S3-801-391-400 PT001WEI48/18&F&WEN& 230V:11. a b . . e f g
O Q 0101 SA-001-146-000 TR,DTC114YSA a b c d e f g
O Q 0102 87-026-447-080 TR,2SC1740S a b c d e f g
S Q 0103 89-110-155-010 TR,2SA1015-GR a b c d e f g
O Q 0104 87-026-572-080 TR,DTA114TS a b . . e f g
O Q 0104 87-026-214-080 TR,DTA114YS . . c d . . .
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
S Q 0105 89-318-154-080 TR,2SC1815GR a b c d e f g
S Q 0106 89-318-154-080 TR,2SC1815GR a b c d e f g
O Q 0107 86-NFZ-657-080 TR,2SC1923(O) a b c d e f g
O Q 0108 86-NFZ-657-080 TR,2SC1923(O) a b c d e f g
O Q 0109 87-026-214-080 TR,DTA114YS a b c d e f g
O Q 0110 87-026-214-080 TR,DTA114YS a b c d e f g
O Q 0111 87-026-572-080 TR,DTA114TS a b c d e f g
S Q 0301 89-318-154-080 TR,2SC1815GR a b c d e f g
S Q 0302 S6-805-000-000 TR,3DA8050 a b c d e f g
S Q 0303 89-318-154-080 TR,2SC1815GR a b . . e f g
O Q 0361 S6-901-200-000 TR,3CG9012 a b c d e f g
O Q 0362 S4-193-600-000 TR,2SD1936T/U a b c d e f g
O Q 0403 S1-019-790-000 TR,2SA1979O a b c d e f g
O Q 0404 S1-019-790-000 TR,2SA1979O a b c d e f g
S Q 0602 S6-805-000-000 TR,3DA8050 a b c d e f g
S Q 0603 89-318-154-080 TR,2SC1815GR a b c d e f g
S Q 0604 89-318-154-080 TR,2SC1815GR a b c d e f g
O Q 0605 87-026-291-010 TR,DTC124XS a b c d e f g
O Q 0801 S9-025-410-000 TR,2SK2541-T/2SK2541 ( a b c d e f g
O Q 0802 S9-025-410-000 TR,2SK2541-T/2SK2541 ( a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
O Q 0803 S9-025-410-000 TR,2SK2541-T/2SK2541 ( a b c d e f g
O Q 0804 S9-025-410-000 TR,2SK2541-T/2SK2541 ( a b c d e f g
S Q 0807 89-318-154-080 TR,2SC1815GR a b c d e f g
S Q 0808 89-318-154-080 TR,2SC1815GR a b c d e f g
O Q 0809 S9-025-410-000 TR,2SK2541-T/2SK2541 ( a b c d e f .
O Q 0810 S9-025-410-000 TR,2SK2541-T/2SK2541 ( a b c d e f .
O Q 0851 S2-015-661-000 TR,B1566E (LIGHTNING) a b c d e f g
S Q 0852 S6-805-000-000 TR,3DA8050 a b c d e f g
S Q 0853 89-110-155-010 TR,2SA1015-GR a b c d e f g
S Q 0854 89-318-154-080 TR,2SC1815GR a b c d e f g
X R 0101 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0102 S0-104-510-160 RES,100K-1/16W ( a b c d e f g
X R 0103 S0-330-510-160 RES,33-1/16W a b c d e f g
X R 0104 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0105 S0-473-510-160 RES,47K-1/16W (1 a b c d e f g
X R 0106 S0-100-510-160 RES,10-1/16W (1/ a b c d e f g
X R 0107 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0108 S0-100-510-160 RES,10-1/16W (1/ a b c d e f g
X R 0109 S0-221-510-160 RES,220-1/16W a b c d e f g
X R 0110 S0-221-510-160 RES,220-1/16W a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X R 0111 S0-223-510-160 RES,22K-1/16W (1 a b c d e f g
X R 0112 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0113 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0114 S0-104-510-160 RES,100K-1/16W ( a b c d e f g
X R 0115 S0-221-510-160 RES,220-1/16W a b c d e f g
X R 0116 S0-104-510-160 RES,100K-1/16W ( a b c d e f g
X R 0117 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0118 S0-222-510-160 RES,2.2K-1/16W a b c d e f g
X R 0119 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0121 S0-331-510-160 RES,330-1/16W (1 a b c d e f g
X R 0122 S0-104-510-160 RES,100K-1/16W ( a b c d e f g
X R 0123 S0-104-510-160 RES,100K-1/16W ( a b c d e f g
X R 0124 S0-473-510-160 RES,47K-1/16W (1 a b c d e f g
X R 0125 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0126 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0128 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0129 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0130 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
X R 0131 S0-121-510-160 RES,120-1/16W a b c d e f g
X R 0132 S0-562-510-160 RES,5.6K-1/16W a b c d e f g
ELECTRICAL PARTS LIST -5/8

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-8-
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X R 0133 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0134 S0-681-510-160 RES,680-1/16W (1 a b c d e f g
X R 0136 S0-104-510-160 RES,100K-1/16W ( a b c d e f g
X R 0137 S0-104-510-160 RES,100K-1/16W ( a b c d e f g
X R 0141 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0142 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0143 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0144 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0145 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0146 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0147 S0-222-510-160 RES,2.2K-1/16W a b c d e f g
X R 0150 S0-332-510-160 RES,3.3K-1/16W a b c d e f g
X R 0161 S0-100-510-160 RES,10-1/16W (1/ a b c d e f g
X R 0168 S0-393-510-160 RES,39K-1/16W (1 a b c d e f g
X R 0169 S0-393-510-160 RES,39K-1/16W (1 a b c d e f g
X R 0301 S0-823-510-160 RES,82K-1/16W a b c d e f g
X R 0302 S0-224-510-160 RES,220K-1/16W a b c d e f g
X R 0303 S0-823-510-160 RES,82K-1/16W a b c d e f g
X R 0304 S0-101-510-160 RES,100-1/16W (1 a b c d e f g
X R 0305 S0-680-510-160 RES,68-1/16W (1/ a b . . e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X R 0305 S0-560-510-160 RES,56-1/16W . . c d . . .
X R 0306 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0307 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0308 S0-680-510-160 RES,68-1/16W (1/ a b . . e f g
X R 0308 S0-560-510-160 RES,56-1/16W . . c d . . .
X R 0309 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0310 S0-223-510-160 RES,22K-1/16W (1 a b c d e f g
X R 0311 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
X R 0312 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0313 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0314 S0-682-510-160 RES,6.8K-1/16W a b c d e f g
X R 0315 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
X R 0316 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0317 S0-333-510-160 RES,33K-1/16W (1 a b c d e f g
X R 0318 S0-333-510-160 RES,33K-1/16W (1 a b c d e f g
X R 0319 S0-682-510-160 RES,6.8K-1/16W a b c d e f g
X R 0321 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0322 S0-681-510-160 RES,680-1/16W (1 a b c d e f g
X R 0323 S0-223-510-160 RES,22K-1/16W (1 a b c d e f g
X R 0339 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X R 0340 S0-470-510-160 RES,47-1/16W a b c d e f g
X R 0341 S0-332-510-160 RES,3.3K-1/16W a b c d e f g
X R 0342 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
X R 0343 S0-568-510-160 RES,5.6-1/16W a b c d e f g
X R 0344 S0-221-510-160 RES,220-1/16W a b c d e f g
X R 0361 S0-182-510-160 RES,1.8K-1/16W a b c d e f g
X R 0362 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
X R 0363 S0-221-510-160 RES,220-1/16W a b c d e f g
X R 0364 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0395 S0-102-510-160 RES,1K-1/16W (1/ a b . . e f g
X R 0396 S0-472-510-160 RES,4.7K-1/16W a b . . e f g
X R 0405 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
X R 0406 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
X R 0407 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0408 S0-152-500-160 RES,1.5K-1/16W a b c d e f g
X R 0409 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
X R 0410 S0-473-510-160 RES,47K-1/16W (1 a b c d e f g
X R 0411 S0-224-510-160 RES,220K-1/16W a b c d e f g
X R 0412 S0-333-510-160 RES,33K-1/16W (1 a b c d e f g
X R 0413 S0-562-510-160 RES,5.6K-1/16W a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X R 0416 S0-101-510-160 RES,100-1/16W (1 a b c d e f g
X R 0417 S0-100-510-160 RES,10-1/16W (1/ a b c d e f g
X R 0418 S0-473-510-160 RES,47K-1/16W (1 a b c d e f g
X R 0419 S0-124-510-160 RES,120K-1/16W ( a b c d e f g
X R 0420 S0-124-510-160 RES,120K-1/16W ( a b c d e f g
X R 0421 S0-473-510-160 RES,47K-1/16W (1 a b c d e f g
X R 0422 S0-473-510-160 RES,47K-1/16W (1 a b c d e f g
X R 0423 S0-473-510-160 RES,47K-1/16W (1 a b c d e f g
X R 0424 S0-473-510-160 RES,47K-1/16W (1 a b c d e f g
X R 0425 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
X R 0426 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0427 S0-222-510-160 RES,2.2K-1/16W a b c d e f g
X R 0428 S0-683-510-160 RES,68K-1/16W (1/8W) a b c d e f g
X R 0429 S0-273-510-160 RES,27K-1/16W a b c d e f g
X R 0431 S0-333-510-160 RES,33K-1/16W (1 a b c d . . .
X R 0432 S0-393-510-160 RES,39K-1/16W (1 a b c d e f g
X R 0433 S0-333-510-160 RES,33K-1/16W (1 . . . . e f g
X R 0437 S0-228-500-120 RES,2.2-1/2W a b c d e f g
X R 0439 S0-122-510-160 RES,1.2K-1/16W ( a b c d e f g
X R 0440 S0-101-510-160 RES,100-1/16W (1 a b c d e f g
ELECTRICAL PARTS LIST -6/8

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-9-
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X R 0441 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0443 S0-101-510-160 RES,100-1/16W (1 a b c d e f g
X R 0446 S0-122-510-160 RES,1.2K-1/16W ( . . c d . . .
X R 0447 S0-392-510-160 RES,3.9K-1/16W (1/8W a b . . e f g
X R 0447 S0-103-510-160 RES,10K-1/16W (1 . . c d . . .
X R 0449 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0462 S0-100-510-160 RES,10-1/16W (1/ a b c d e f g
X R 0463 S0-100-510-160 RES,10-1/16W (1/ a b c d e f g
X R 0465 S0-473-510-160 RES,47K-1/16W (1 a b c d e f g
X R 0466 S0-473-510-160 RES,47K-1/16W (1 a b c d e f g
X R 0470 S0-154-510-160 RES,150K-1/16W ( a b c d e f g
X R 0471 S0-154-510-160 RES,150K-1/16W ( a b c d e f g
X R 0475 S0-478-501-120 RES,4.7-1/2W a b c d e f g
X R 0602 S0-682-510-160 RES,6.8K-1/16W a b . . e f g
X R 0602 S0-822-510-160 RES,8.2K-1/16W . . c d . . .
X R 0604 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
X R 0606 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
X R 0608 S0-473-510-160 RES,47K-1/16W (1 a b c d e f g
X R 0609 S0-473-510-160 RES,47K-1/16W (1 a b c d e f g
X R 0610 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X R 0611 S0-104-510-160 RES,100K-1/16W ( a b c d e f g
X R 0615 S0-223-510-160 RES,22K-1/16W (1 a b c d e f g
X R 0616 S0-222-510-160 RES,2.2K-1/16W a b c d e f g
X R 0617 S0-222-510-160 RES,2.2K-1/16W a b c d e f g
X R 0618 S0-332-510-160 RES,3.3K-1/16W a b c d e f g
X R 0619 S0-562-510-160 RES,5.6K-1/16W a b c d e f g
X R 0620 S0-822-510-160 RES,8.2K-1/16W a b c d e f g
X R 0621 S0-182-510-160 RES,1.8K-1/16W . . . . e f g
X R 0623 S0-224-510-160 RES,220K-1/16W a b c d e f g
X R 0636 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0637 S0-333-510-160 RES,33K-1/16W (1 a b c d e f g
X R 0639 S0-334-510-160 RES,330K-1/16W a b c d e f g
X R 0652 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0653 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0654 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0655 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0656 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0657 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0658 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0659 S3-101-520-160 C-RES,100-1/1 a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X R 0660 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0661 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0662 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0663 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0664 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0665 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0666 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0667 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0668 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0669 S3-101-520-160 C-RES,100-1/1 a b c d e f g
X R 0705 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0706 S0-152-500-160 RES,1.5K-1/16W a b c d e f g
X R 0707 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0708 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0709 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0710 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0711 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0801 S0-153-510-160 RES,15K-1/16W (1 a b c d e f g
X R 0802 S0-153-510-160 RES,15K-1/16W (1 a b c d e f g
X R 0803 S0-332-510-160 RES,3.3K-1/16W a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X R 0804 S0-332-510-160 RES,3.3K-1/16W a b c d e f g
X R 0805 S0-822-510-160 RES,8.2K-1/16W a b . . e f g
X R 0805 S0-103-510-160 RES,10K-1/16W (1 . . c d . . .
X R 0806 S0-822-510-160 RES,8.2K-1/16W a b . . e f g
X R 0806 S0-103-510-160 RES,10K-1/16W (1 . . c d . . .
X R 0808 S0-223-510-160 RES,22K-1/16W (1 a b c d e f g
X R 0811 S0-101-510-160 RES,100-1/16W (1 a b . . e f g
X R 0811 S0-560-510-160 RES,56-1/16W . . c d . . .
X R 0812 S0-101-510-160 RES,100-1/16W (1 a b . . e f g
X R 0812 S0-560-510-160 RES,56-1/16W . . c d . . .
X R 0813 S0-228-500-140 RES,2.2-1/4W a . c d e f g
X R 0813 S0-228-507-140 RES,2.2-1/4W . b . . . . .
X R 0814 S0-228-500-140 RES,2.2-1/4W a . c d e f g
X R 0814 S0-228-507-140 RES,2.2-1/4W . b . . . . .
X R 0818 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0819 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0848 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
X R 0849 S0-472-510-160 RES,4.7K-1/16W a b c d e f g
X R 0850 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
X R 0851 S0-103-510-160 RES,10K-1/16W (1 a b c d e f g
ELECTRICAL PARTS LIST -7/8

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-10-
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X R 0852 S0-471-510-160 RES,470-1/16W a b c d e f g
X R 0855 S0-104-510-160 RES,100K-1/16W ( a b c d e f g
X R 0856 S0-104-510-160 RES,100K-1/16W ( a b c d e f g
X R 0857 S0-473-510-160 RES,47K-1/16W (1 a b c d e f g
X R 0858 S0-473-510-160 RES,47K-1/16W (1 a b c d e f g
X R 0859 S0-222-510-160 RES,2.2K-1/16W a b c d e f g
X R 0860 S0-222-510-160 RES,2.2K-1/16W a b c d e f g
X R 0861 S0-152-500-160 RES,1.5K-1/16W a b c d e f g
X R 0862 S0-152-500-160 RES,1.5K-1/16W a b c d e f g
X R 0865 S0-682-510-160 RES,6.8K-1/16W a b . . e f g
X R 0865 S0-392-510-160 RES,3.9K-1/16W (1/8W . . c d . . .
X R 0866 S0-682-510-160 RES,6.8K-1/16W a b . . e f g
X R 0866 S0-392-510-160 RES,3.9K-1/16W (1/8W . . c d . . .
X R 0867 S0-152-500-160 RES,1.5K-1/16W a b c d e f g
X R 0868 S0-152-500-160 RES,1.5K-1/16W a b c d e f g
X R 0869 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0870 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0871 S0-104-510-160 RES,100K-1/16W ( a b c d e f g
X R 0872 S0-471-510-160 RES,470-1/16W a b c d e f g
X R 0873 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X R 0874 S0-102-510-160 RES,1K-1/16W (1/ a b c d e f g
X R 0875 S0-154-510-160 RES,150K-1/16W ( a b c d e f g
O SPK0000 S4-080-020-150 SPK,8OHM 2W a . . . e f .
O SPK0001 S4-080-020-140 SPK00004"008OHM0002W w/RED CO . b c d . . g
O SPK0002 S4-080-020-140 SPK00004"008OHM0002W w/RED CO . b c d . . g
X SW 0000 S6-731-000-060 JP WIRE 100MM(RED) a b . . e f g
O SW 0301 S0-092-200-000 SW,REC 9P2T 2MM a b c d e f g
O SW 0601 S1-141-650-000 (F021-KHH902-001) TACT SW EVQ a b c d e f g
O SW 0601 S2-200-410-010 SLIDE SW SS22D07G4/SS22D07G A a b c d e f g
O SW 0602 S1-141-650-000 (F021-KHH902-001) TACT SW EVQ a b c d e f g
O SW 0603 S1-141-650-000 (F021-KHH902-001) TACT SW EVQ a b c d e f g
O SW 0604 S1-141-650-000 (F021-KHH902-001) TACT SW EVQ a b c d e f g
O SW 0605 S1-141-650-000 (F021-KHH902-001) TACT SW EVQ a b c d e f g
O SW 0606 S1-141-650-000 (F021-KHH902-001) TACT SW EVQ a b c d e f g
O SW 0802 S4-300-710-030 SW,SLIDE 4P3T a b c d e f g
X SW O SW S6-731-000-060 JP WIRE 100MM(RED) . . c d . . .
O SW OOR) S0-011-200-020 LEAF SWITCH LSA-1120Y2 a b c d e f g
O T 0106 S0-022-400-100 IFT,4A-224R,10mm a b c d e f g
O T 0301 S0-036-300-100 IFT,4A363R(B) a b c d e f g
O TC 0101 S2-006-100-000 TRIMMER CAP CVN610 3-10pF WHI a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X TO 0000 S0-104-800-160 CAP,CER 0.1-16V . . . . e . g
O VR 0301 S1-030-850-000 SFR,10K a b c d e f g
O VR 0802 SD-165-031-020 RES,VARIABLE 50KA a b c d e f g
O X 0101 87-A70-306-010 X’TAL,4.5 MHz(CSA309) a b c d e f g
O X 0401 S0-016-930-050 CER,RESO 16.93 MHz ZT a b c d e f g
O X 0601 87-030-349-010 X’TAL,75KHZ a b c d e f g
O ZD 0601 S0-100-621-210 ZENER,BZX55-C6V2 6.2V a b c d e f g
ELECTRICAL PARTS LIST -8/8

-11-

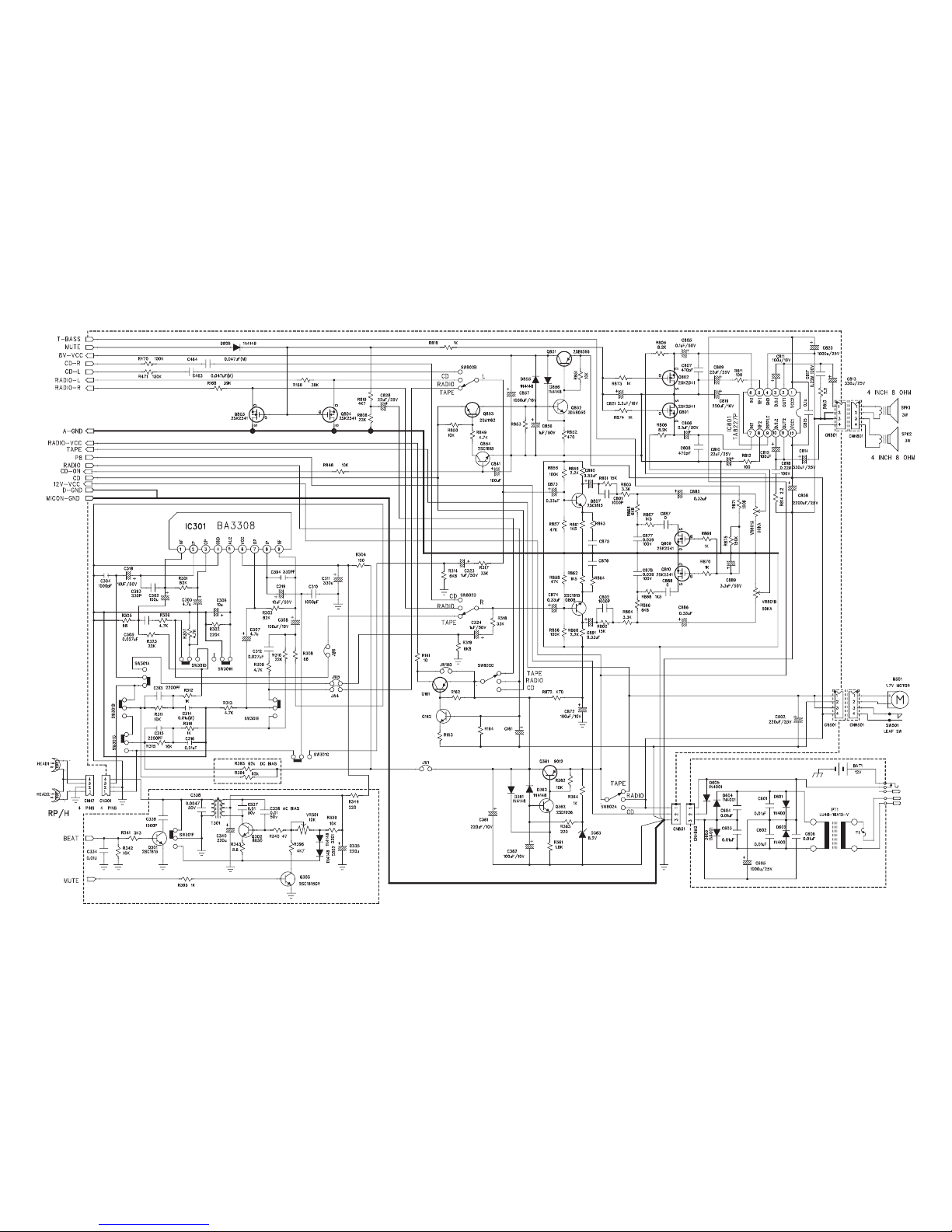

SCHEMATICDIAGRAM-1/3(MAIN)

-12-
SCHEMATICDIAGRAM-2/3(FRONT/CD)

-13-
SCHEMATICDIAGRAM-3/3(TUNER)

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-14-
MECHANICAL PARTS LIST -1/2
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
O MC1001 S1-212-240-020 (F151-121224-000) MOTOR-DC-01 a b c d e f g
O MC1002 S6-301-560-000 (F500-630156-000) CD CHUCK 63 a b c d e f g
O MC1003 S1-892-190-000 (F550-189219-000) CD CHUCK HO a b c d e f g
O MC1004 S2-23L-H60-000 (F550-223LH6-000) SUPPORT BRA a b c d e f g
O MC1005 S2-500-000-000 (F550-250000-000) ANTENNA BAR a b c d e f g
O MC1006 S2-838-070-000 AC SOCKET COVER BLK a b c d e f g
O MC1007 SC-CDC-320-000 AC VOLTAGE PLATE CCDC-32 T=0. a b c d e f g
O MC1008 S0-101-950-000 ANTRD-0400-227D2S5.2S TL5.2-1 a b c d e f g
O MC1009 S1-790-200-000 BATTERY SPRING 1790-20 SPRING a b c d e f g
O MC1010 8C-CHN-021-010 CABI ASSY,FR (L) . . . . . f .
O MC1011 8C-CHC-030-010 CABI ASSY,FR (S) a . c . . . .
O MC1012 8C-CHN-011-010 CABI ASSY,FR (SN) . . . . e . .
O MC1013 8C-CHC-001-010 CABI ASSY,FR (T) . b . d . . .
O MC1014 8C-CHN-001-010 CABI ASSY,FR (TN) . . . . . . g
O MC1015 8C-CHC-063-010 CABI,REAR (L) . . . . . f .
O MC1016 8C-CHC-032-010 CABI,REAR (S) a . c . e . .
O MC1017 8C-CHC-003-010 CABI,REAR (T) . b . d . . g
O MC1018 SC-CDC-950-300 CASS DOOR CARD CCDC-95-03 S:1 a b c d e f g
O MC1019 SC-CDC-140-000 CASS DOOR SPRING CCDC-14 DIA: a b c d e f g
X MC1020 M8-AZK-890-070 CASS.DECK TN-21ZVC-2000 a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
X MC1021 S7-006-68K-000 CASSDECK-SM-T-S12+6P TK20FX-V a b c d e f g
O MC1022 S0-768-660-010 CD CHUCK HOLDING PLATE 768-66 a b c d e f g
O MC1023 SB-CDC-290-000 CD COVER BCDC-29 MOLDED BLACK a b c d e f g
O MC1024 S1-892-390-010 CD CUSHION 1892-39 HARDNESS T a b c d e f g
X MC1025 SC-CDC-950-400 CD DOOR CARD a b . . e f g
O MC1026 SC-CDC-280-000 CD LID SPRING CCDC-28 DIA:1.2 a b c d e f g
O MC1027 8C-CHC-006-010 CHAS,CD a . c . e . .
O MC1028 8C-CHC-066-010 CHAS,CD (L) . . . . . f .
O MC1029 8C-CHC-024-010 CHAS,CD (T) . b . d . . g
O MC1030 87-A80-081-020 CORD,POWER 2.5A a b c d e f g
O MC1031 8C-CHC-067-010 COVER,BATTERY (L) . . . . . f .
O MC1032 8C-CHC-036-010 COVER,BATTERY (S) . . c . . . .
O MC1033 8C-CHC-036-010 COVER,BATTERY (S) a . . . e . .
O MC1034 8C-CHC-009-010 COVER,BATTERY (T) . b . d . . g
O MC1035 8C-CHC-210-010 DAMP GEAR ALCOM HOLDER a b c d e f g
O MC1036 8C-CHN-024-010 DOOR,CASS (LN) . . . . . f .
O MC1037 8C-CHC-034-010 DOOR,CASS (SD) a . c . e . .
O MC1038 8C-CHC-005-010 DOOR,CASS (T) . b . d . . g
O MC1039 8C-CHN-023-010 DOOR,CD (L) . . . . . f .
O MC1040 8C-CHC-033-010 DOOR,CD (S) a . c . . . .
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
O MC1041 8C-CHN-013-010 DOOR,CD (SN) . . . . e . .
O MC1042 8C-CHC-004-010 DOOR,CD (T) . b . d . . .
O MC1043 8C-CHN-003-010 DOOR,CD (T-N) . . . . . . g
O MC1044 S0-200-060-000 E-HEAD,6PA a b . . . . .
O MC1045 S0-103-800-000 ER/HEAD-6P-TDK&&&&&& #PHK380M . . c d e f g
X MC1046 SS-DC0-190-010 FELT,B 50x15x0.3 a b . . . . .
O MC1047 S1-601-001-010 FFC FLAT CABLE 16P a b c d e f g
X MC1048 SC-CHC-050-000 FIBRE PLATE 67x61 a b . . e f g
O MC1049 8C-CHC-070-010 HANDLE,(L) . . . . . f .
O MC1050 8C-CHC-048-010 HANDLE,(S) a . c . e . .
O MC1051 8C-CHC-022-010 HANDLE,(T) . b . d . . g
X MC1052 S3-838-000-000 HEAT SINK a b c d e f g
X MC1053 S3-838-000-000 HEAT SINK . b . . . . .
X MC1054 S3-838-000-000 HEAT SINK a . . . . . .
O MC1055 S0-CDG-740-000 HEAT SINK CDG-74 T=2.0mm ALUM a b c d e f g
O MC1056 8C-CDC-205-010 HLDR,CD LOCK a b c d e f g
X MC1057 8C-CHC-207-010 HLDR,LCD a b c d e f g
X MC1058 S6-733-500-090 JP WIRE 350MM a b c d e f g
O MC1059 8C-CHC-041-010 KEY,CASS FF (S) a . c . e f .
O MC1060 8C-CHC-014-010 KEY,CASS FF (T) . b . d . . g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
O MC1061 8C-CHC-039-110 KEY,CASS PAUSE (S) a . c . e f .
O MC1062 8C-CHC-012-010 KEY,CASS PAUSE (T) . b . d . . g
O MC1063 8C-CHC-043-010 KEY,CASS PLAY (S) a . c . e f .
O MC1064 8C-CHC-016-010 KEY,CASS PLAY (T) . b . d . . g
O MC1065 8C-CHC-044-010 KEY,CASS REC (S) a . c . e f .
O MC1066 8C-CHC-017-010 KEY,CASS REC (T) . b . d . . g
O MC1067 8C-CHC-042-010 KEY,CASS REW (S) a . c . e f .
O MC1068 8C-CHC-015-010 KEY,CASS REW (T) . b . d . . g
O MC1069 8C-CHC-040-110 KEY,CASS STOP (S) a . c . e f .
O MC1070 8C-CHC-013-010 KEY,CASS STOP (T) . b . d . . g
O MC1071 8C-CHC-018-010 KEY,CONT a b c d e f g
O MC1072 8C-CHC-045-010 KEY,SL BASS (S) . . c . . . .
O MC1073 8C-CHC-045-010 KEY,SL BASS (S) a . . . e f .
O MC1074 8C-CHC-019-010 KEY,SL BASS (T) . b . d . . g
O MC1075 8C-CHC-037-010 KNOB,SL FUNC (S) a . c . e f .
O MC1076 8C-CHC-010-010 KNOB,SL FUNC (T) . b . d . . g
O MC1077 8C-CHC-038-010 KNOB,VOLUME (S) a . c . e f .
O MC1078 8C-CHC-011-010 KNOB,VOLUME (T) . . . d . . g
O MC1079 8C-CHC-011-010 KNOB,VOLUME (T) . b . . . . .
O MC1080 M8-CZK-490-070 KSM-213RDM a b c d e f g

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-15-
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
O MC1081 8C-CDC-204-010 LEVER,CD LOCK a b c d e f g
O MC1082 SB-CH8-270-000 LOCK SPRING BCH8-27 MAT’L=SUS a b c d e f g
O MC1083 S0-000-030-000 MAGNET “SONY” FOR TOP LOADING a b c d e f g
O MC1084 S2-028-095-500 METAL WASHER DIA:2.8/DIA:9.5x a b c d e f g
O MC1085 S2-032-120-800 METAL WASHER O3.2xO12x0.8mm a b c d e f g
O MC1086 S0-000-305-000 NUT M3x0.5 PITCH Ni a b c d e f g
O MC1087 S0-000-305-000 NUT M3x0.5 PITCH Ni . . . . . f .
O MC1088 S0-000-305-000 NUT M3x0.5 PITCH Ni . . . . e . .
O MC1089 S0-000-305-000 NUT M3x0.5 PITCH Ni . . . . . . g
O MC1090 S0-000-305-000 NUT M3x0.5 PITCH Ni . . c . . . .
O MC1091 S0-000-305-000 NUT M3x0.5 PITCH Ni . . . d . . .
O MC1092 S0-000-305-000 NUT M3x0.5 PITCH Ni . b . . . . .
O MC1093 S0-000-305-000 NUT M3x0.5 PITCH Ni a . . . . . .
O MC1094 8C-CHC-211-010 OIL DAMP GEAR CCHC-41 a b c d e f g
X MC1095 S0-0CC-DC4-010 PCB CCDC-01-04,05,06,07 (94V0 a b c d e f g
X MC1096 S0-0CC-HC3-020 PCB CCHCEZ-01-01,02,03 384x17 a b c d e f g
O MC1097 S5-070-045-200 PVC WASHER O7xO4.5x0.2mm (7CD a b c d e f g
O MC1098 S0-071-380-000 REMOTE/CONTROL PHOTO RECEIVER . . . . e f g
O MC1099 S0-209-510-020 RP/HEAD-ST-TECHRECO& #TC951(0 a b c d e f g
O MC1100 87-357-036-010 SCREW ST 2-8 a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
O MC1101 S1-102-601-720 SCREW ST2.6x17mm BB w/CHROMAT a b c d e f g
O MC1102 S1-402-600-600 SCREW ST2.6x6mm, KB BRASS BAS a b c d e f g
O MC1103 87-743-103-410 SCREW ST3-25MM HEAD a b c d e f g
O MC1104 87-743-103-410 SCREW ST3-25MM HEAD . . . . . f .
O MC1105 87-743-103-410 SCREW ST3-25MM HEAD . . . . e . .
O MC1106 87-743-103-410 SCREW ST3-25MM HEAD . . . . . . g
O MC1107 87-743-103-410 SCREW ST3-25MM HEAD . . c . . . .
O MC1108 87-743-103-410 SCREW ST3-25MM HEAD . . . d . . .
O MC1109 87-743-103-410 SCREW ST3-25MM HEAD . b . . . . .
O MC1110 87-743-103-410 SCREW ST3-25MM HEAD a . . . . . .
O MC1111 87-343-075-210 SCREW,2.6-10 a b c d e f g
O MC1112 87-263-033-010 SCREW,2-4 a b c d e f g
O MC1113 87-741-096-010 SCREW,3-10MM PM a b c d e f g
O MC1114 87-343-075-210 SCREW,ST 2.6-10 . . c d . . .
O MC1115 S0-202-601-000 SCREW,ST2.6-10 a b c d e f g
O MC1116 87-743-073-410 SCREW,ST2.6-6MM a b c d e f g
O MC1117 S0-402-601-200 SCREW,ST2.6x12 PWB2/AC a b . . e f g
O MC1118 87-741-096-410 SCREW,ST3-10MM a b c d e f g
O MC1119 87-741-096-410 SCREW,ST3-10MM HEAD V5.9-6.3 a b c d e f g
O MC1120 87-B10-071-010 SCREW,ST3-15 a b c d e f g
CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD9 CSD-TD19 CSD-TD19 CSD-TD19
KSC KSTC EZSC EZSTCC EZSC EZLC EZSTCC
O MC1121 87-741-103-410 SCREW,ST3-25 a b . . . . .
O MC1122 87-741-104-010 SCREW,ST3-30MM PAB a b c d e f g
O MC1123 87-741-094-410 SCREW,ST3-6 a b . . . . .
O MC1124 87-352-095-010 SCREW,ST3-8 a b c d e f g
O MC1125 87-261-095-010 SCREW,ST3-8MM HEAD V5.9-6.3 B a b . . . . .
X MC1126 SC-CHC-040-000 SHIELD COPPER PLATE a b . . e f g
X MC1127 SC-CDC-330-000 SHIELD PLATE (FOR TF) CCDC-33 a b c d e f g
X MC1128 S3-000-000-000 SOLDERING LUG a b c d e f g
X MC1129 S3-000-000-020 SOLDERING PIN a b . . e f g
X MC1130 S9-938-560-000 SPK. BOX FELT 80x8x0.3mm, 993 a b . . . . .
X MC1131 S1-138-540-000 SPKR,CLIP B & C a b c d e f g
O MC1132 SB-CDC-200-000 TF PLATE BCDC-20 T=1.0mm (E.G a b c d e f g
O MC1133 87-261-095-410 V+3-8 a b c d e f g
O MC1134 8C-CHC-008-010 WINDOW,CASS a b c d e f g
O MC1135 8C-CHC-007-010 WINDOW,DISP (T) a b c d e f g
O MC1136 S1-212-240-020 (F151-121224-000) MOTOR-DC-01 a b c d e f g
O MC1137 S0-323-152-500 HSG 2315-3B MOLEX 5264 w/260m a b c d e f g
O MC1138 S0-601-89B-010 HSG CD189-55-6B(C) PEC 2001H- a b c d e f g
X MC1139 SP-HS1-101-100 HEADER,CTL 11P a b c d e f g
MECHANICAL PARTS LIST -2/2

2-11, IKENOHATA 1-CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:[phone]
0251431
