SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM
BASIC CD MECHANISM : 4ZG-1 VOS1RDSHM
BASIC TAPE MECHANISM : 2ZM-3MK2 YPR4NM
NSX-K581 HR
S/M Code No. 09-003-401-7S6
SUPPLEMENT
• This Service Manual is the "Supplement" and replaces "Simple Manual",
(S/M Code No. 09-002-406-6T4).
• This Service Manual contains information about the difference between
NSX-K581 (HR) and NSX-S555 (HR). If requiring other information, see
Service Manual of NSX-S555 (HR). (S/M Code No. 09-996-401-7R2)
•If requiring information about the CD mechanism, see Service Manual
of 4ZG-1 (S/M Code No. 09-985-249-8S2).
NSX-K581
SPEAKER
SYSTEM CD
CASSEIVER
REMOTE
CONTROLLER
CX-NK581 SX-WNS555 RC-ZAS07

– 2 –
Main unit CX-NK581
<FM Tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminal 75 ohms (unbalanced)
<MW Tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 uV/m
Antenna Loop Antenna
<SW Tuner section>
Tuning range 5.9 MHz to 17.900 MHz
Antenna Wire Antenna
<Amplifier section>
Mid-high frequency amplifier
Power output Rated 10W + 10W (8ohms,T.H.D.
1%,1kHz)
Reference:12W + 12W (8ohms, T.H.D.
10%,1kHz)
Total harmonic distortion 0.06%(8W,1kHz,8ohms,DIN AUDIO)
Low frequency amplifier
Power output Rated 40W + 40W (4ohms,T.H.D.
1%,135Hz)
Reference:50W + 50W (4ohms, T.H.D.
10%,135Hz)
Total harmonic distortion 0.06%(32W,135Hz,4ohms,DIN AUDIO)
Inputs VIDEO / AUX: 300mV (adjustable)
Mic : 1.0mV (10k ohms)
Outputs VIDEO OUT: 1.0Vp-p (75 ohms)
SPEAKER HIGH FREQ :
8ohms or more
SPEAKER LOW FREQ :
4ohms or more
SURROUND SPEAKERS :
8ohms or more
PHONES : 32ohms
SPECIFICATIONS
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 15000 Hz
Recording system AC bias
Heads Deck 1 : Playback head x 1
Deck 2 :
Recording/playback/erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1kHz,0dB)
Harmonic distortion 0.05% (1kHz,0dB)
Video data MPEG 1
MPEG 2
Audio data MPEG 1,LAYER 2
MPEG 2,LAYER 2
<General>
Power requirements 120V/220 - 230V/240V AC
switchable,50/60Hz
Power consumption 140 W
Dimensions of main unit 260 x 330 x 355 mm
(W xH xD)
Weight of main unit 8.5 kg
Speaker system SX-WNS555
Cabinet type 2 way, subwoofer
( magnetic shielded type)
Speakers Subwoofer :
160 mm cone type
Full range :
100 mm cone type
Impedance 4 ohms/8 ohms
Output sound pressure level 87 dB/W/m
Dimensions (W xH xD) 240 x 324 x 275 mm
Weight 4.8 kg
• Design and specifications are subject to change without notice.

– 3 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

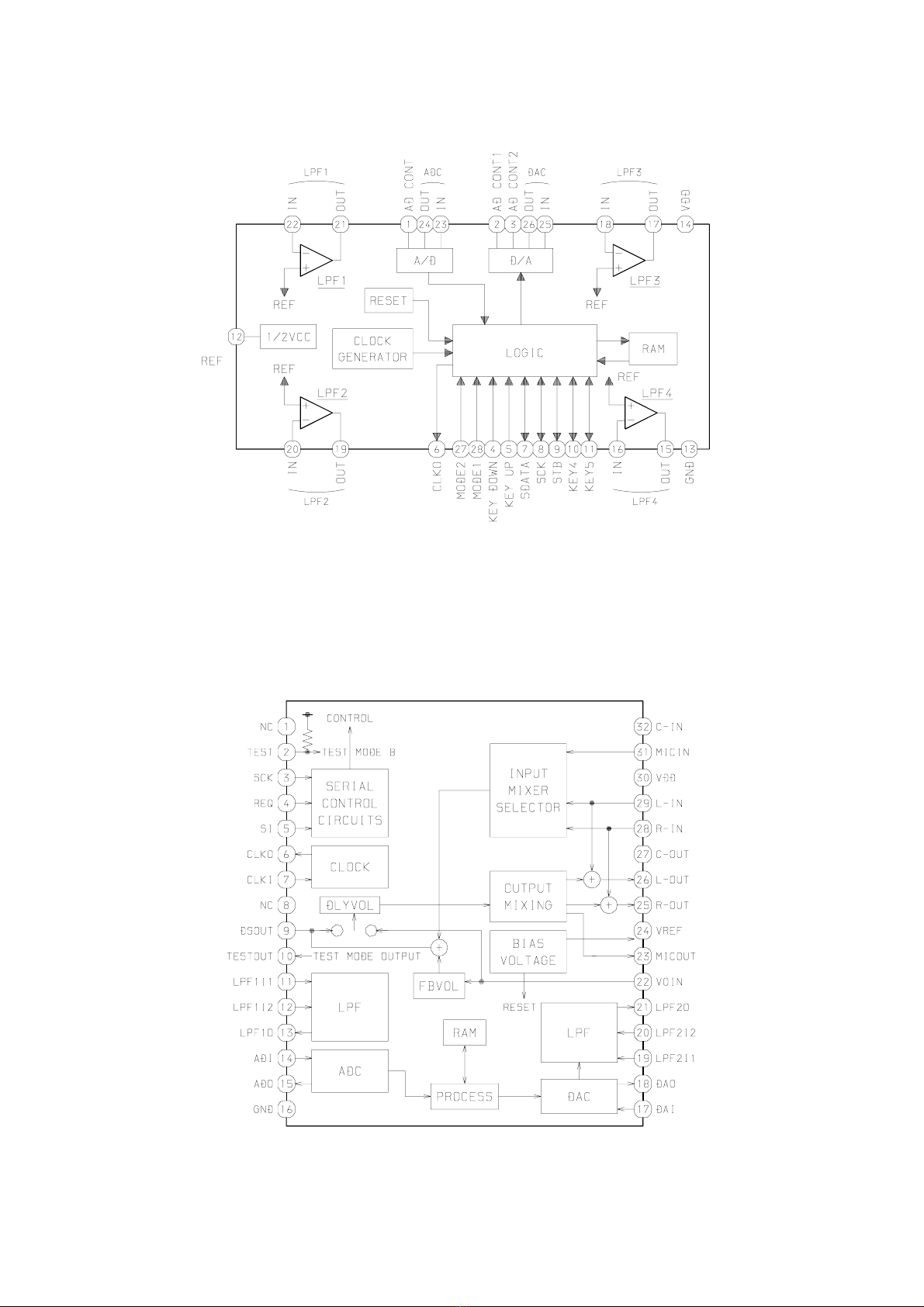

IC
8Z-NH8-614-010 C-IC,UPD780228GF-044-3BA
87-A20-951-010 IC,TSOP1838RF1
87-A20-783-040 C-IC,BA7762AFS
87-A21-023-040 C-IC,BA3835F
87-A21-031-040 C-IC,BU4551BF
87-A21-021-040 C-IC,BU2099FV
87-A21-202-040 C-IC,M62445AFP
87-070-127-110 IC,LC72131D
87-A20-913-010 IC,LA1837NL
87-A20-561-040 C-IC,M65847AFP
87-020-454-010 IC,DN6851
87-A20-613-040 C-IC,BU9262AFS

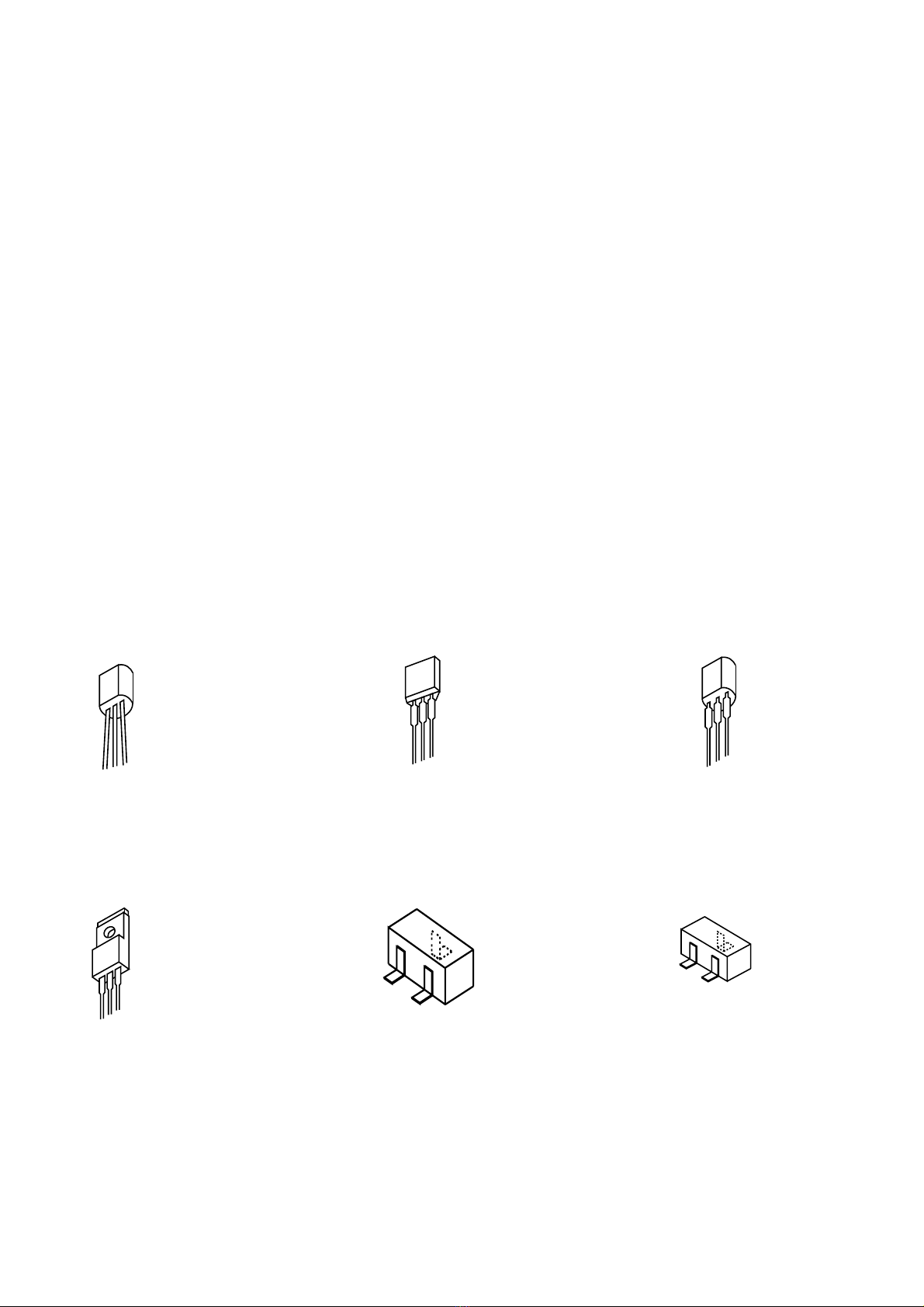

TRANSISTOR
87-026-609-080 TR,KTA1266GR
89-213-702-010 TR,2SB1370 (1.8W)
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-196-080 TR,2SC4115SRS
87-A30-074-080 C-TR,RT1P141C
87-A30-067-080 C-TR,2SA1298Y
87-A30-257-080 C-TR,2SD1306E
87-A30-190-080 TR,CC5551
87-A30-329-080 TR,CD1585BC
87-A30-106-070 C-TR,CMBT5551
87-A30-087-080 C-FET,2SK2158
87-A30-142-040 C-TR,DTA123EKA
87-A30-073-080 C-TR,RT1N141C
87-A30-086-070 C-TR,CSD1306E
87-A30-105-080 C-TR,RT1P441C
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
87-A30-097-010 TR,FN1016
87-A30-098-010 TR,FP1016
DIODE
87-020-465-080 DIODE,1SS133 (110MA)
87-017-447-010 DIODE,GBU4DL-5419
87-070-274-080 DIODE,1N4003 SEM
87-A40-383-080 ZENER,MTZJ30A
87-A40-345-080 ZENER,MTZJ10C
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-488-080 DIODE,1SS244
87-A40-291-080 DIODE,1N4148
87-A40-509-080 ZENER,MTZJ6.8C
87-017-932-080 ZENER,MTJ6.2B
87-A40-002-080 ZENER,MTZJ5.1C
87-A40-438-080 ZENER,MTZJ4.7A
87-070-136-080 ZENER,MTZJ5.1B
87-A40-234-080 ZENER,MTZJ5.6A
87-A40-548-090 DIODE,D3SBA20
MAIN C.B
C1 87-012-369-080 C-CAP,S 0.047-50F
C2 87-012-369-080 C-CAP,S 0.047-50F
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C5 87-012-368-080 C-CAP,S 0.1-50 F
C6 87-012-368-080 C-CAP,S 0.1-50 F
C9 87-A10-520-090 CAP,E 3300-35 M SMG
C10 87-A10-520-090 CAP,E 3300-35 M SMG
C21 87-010-385-080 CAP,E 220-25 M 11L SME
C22 87-010-385-080 CAP,E 220-25 M 11L SME
C23 87-010-247-080 CAP,E 100-50 M 11L SME
C24 87-010-247-080 CAP,E 100-50 M 11L SME
C25 87-010-430-080 CAP, ELECT 100-63
C26 87-010-263-080 CAP, ELECT 100-10V
C27 87-012-140-080 CAP 470P
C29 87-010-247-080 CAP, ELECT 100-50V
C30 87-010-112-080 CAP, ELECT 100-16V
C31 87-010-235-080 CAP,E 470-16 SME
C33 87-010-405-080 CAP,E 10-50
C34 87-010-405-080 CAP,E 10-50
C61 87-010-260-080 CAP, ELECT 47-25V
C62 87-010-403-080 CAP, ELECT 3.3-50V
C101 87-010-178-080 CHIP CAP 1000P
C102 87-010-178-080 CHIP CAP 1000P
C103 87-010-405-080 CAP, ELECT 10-50V
C104 87-010-405-080 CAP, ELECT 10-50V
C107 87-010-408-080 CAP, ELECT 47-50V
C108 87-010-408-080 CAP, ELECT 47-50V
C109 87-010-322-080 C-CAP,S 100P-50 CH
C110 87-010-322-080 C-CAP,S 100P-50 CH
C111 87-010-260-080 CAP, ELECT 47-25V
C112 87-010-260-080 CAP, ELECT 47-25V
C113 87-A10-685-080 C-CAP,S 470P-100 J CH
C114 87-A10-685-080 C-CAP,S 470P-100 J CH
C117 87-A11-185-080 C-CAP,0.47-50 F Z
C118 87-A11-185-080 C-CAP,0.47-50 F Z
C121 87-010-178-080 CHIP CAP 1000P
C122 87-010-178-080 CHIP CAP 1000P
C123 87-010-176-080 C-CAP,S 680P-50 SL
C124 87-010-176-080 C-CAP,S 680P-50 SL
C125 87-012-368-080 C-CAP,S 0.1-50 F
C126 87-012-368-080 C-CAP,S 0.1-50 F
C127 87-012-368-080 C-CAP,S 0.1-50 F
C128 87-012-368-080 C-CAP,S 0.1-50 F
C129 87-010-191-080 C-CAP,S 0.015-50 F
C130 87-010-191-080 C-CAP,S 0.015-50 F
C131 87-010-197-080 CAP, CHIP 0.01 DM
C132 87-010-197-080 CAP, CHIP 0.01 DM
C133 87-010-197-080 CAP, CHIP 0.01 DM
C203 87-010-177-080 C-CAP,S 820P-50 SL
C204 87-010-177-080 C-CAP,S 820P-50 SL
C209 87-010-403-080 CAP, ELECT 3.3-50V
C210 87-010-403-080 CAP, ELECT 3.3-50V
C211 87-010-181-080 CAP,CHIP S 1800P
C212 87-010-181-080 CAP,CHIP S 1800P
C213 87-010-403-080 CAP, ELECT 3.3-50V
C214 87-010-403-080 CAP, ELECT 3.3-50V
C215 87-010-322-080 C-CAP,S 100P-50 CH
C216 87-010-322-080 C-CAP,S 100P-50 CH
C217 87-010-260-080 CAP, ELECT 47-25V
C218 87-010-260-080 CAP, ELECT 47-25V
C219 87-A10-946-080 C-CAP,S 220P-100 J CH
C220 87-A10-946-080 C-CAP,S 220P-100 J CH
C223 87-010-190-080 S CHIP F 0.01
C224 87-010-190-080 S CHIP F 0.01
C225 87-016-247-080 C-CAP,0.1-50 Z F
C226 87-016-247-080 C-CAP,0.1-50 Z F
C227 87-010-186-080 CAP,CHIP 4700P
C228 87-010-186-080 CAP,CHIP 4700P
C229 87-010-993-080 C-CAP,S 0.056-25 B
C230 87-010-993-080 C-CAP,S 0.056-25 B
C231 87-010-196-080 CHIP CAPACITOR,0.1-25
C232 87-010-196-080 CHIP CAPACITOR,0.1-25
C233 87-010-190-080 S CHIP F 0.01
C234 87-010-190-080 S CHIP F 0.01
C237 87-010-322-080 C-CAP,S 100P-50 CH
C238 87-010-322-080 C-CAP,S 100P-50 CH
C239 87-010-196-080 CHIP CAPACITOR,0.1-25
C240 87-010-408-080 CAP, ELECT 47-50V
C301 87-010-318-080 C-CAP,S 47P-50 CH

– 4 –
C302 87-010-318-080 C-CAP,S 47P-50 CH
C303 87-012-157-080 C-CAP,S 330P-50 CH
C304 87-012-157-080 C-CAP,S 330P-50 CH
C305 87-012-145-080 CAP, CHIP S 270P CH
C306 87-012-145-080 CAP, CHIP S 270P CH
C307 87-010-196-080 CHIP CAPACITOR,0.1-25
C309 87-010-196-080 CHIP CAPACITOR,0.1-25
C310 87-010-196-080 CHIP CAPACITOR,0.1-25
C311 87-010-198-080 CAP, CHIP 0.022
C312 87-010-198-080 CAP, CHIP 0.022
C313 87-010-178-080 C-CAP,S 1000P-50 B
C314 87-010-178-080 C-CAP,S 1000P-50 B
C315 87-010-178-080 C-CAP,S 1000P-50 B
C316 87-010-178-080 C-CAP,S 1000P-50 B
C321 87-016-492-080 C-CAP,S 0.33-16 FZ
C322 87-016-492-080 C-CAP,S 0.33-16 FZ
C324 87-010-260-080 CAP, ELECT 47-25V
C325 87-010-370-080 CAP,E 330-6.3 SME
C327 87-010-404-080 CAP, ELECT 4.7-50V
C328 87-010-404-080 CAP, ELECT 4.7-50V
C332 87-010-196-080 CHIP CAPACITOR,0.1-25
C335 87-010-401-080 CAP, ELECT 1-50V
C336 87-010-401-080 CAP, ELECT 1-50V
C337 87-010-196-080 CHIP CAPACITOR,0.1-25
C339 87-010-196-080 CHIP CAPACITOR,0.1-25
C340 87-010-196-080 CHIP CAPACITOR,0.1-25
C351 87-012-140-080 CAP 470P
C352 87-012-140-080 CAP 470P
C354 87-010-175-080 CAP 560P
C355 87-012-349-080 C-CAP,S 1000P-50 CH
C356 87-010-260-080 CAP, ELECT 47-25V
C357 87-010-197-080 CAP, CHIP 0.01 DM
C358 87-010-183-080 C-CAP,S 2700P-50 B
C359 87-010-183-080 C-CAP,S 2700P-50 B
C360 87-010-183-080 C-CAP,S 2700P-50 B
C363 87-A10-772-080 CAP,M 5600P-50 J
C370 87-010-196-080 CHIP CAPACITOR,0.1-25
C373 87-016-083-080 C-CAP,S 0.15-16 RK
C374 87-016-083-080 C-CAP,S 0.15-16 RK
C378 87-010-196-080 CHIP CAPACITOR,0.1-25
C379 87-010-382-080 CAP,E 22-25 M 11L SME
C380 87-010-382-080 CAP,E 22-25 M 11L SME
C382 87-010-312-080 C-CAP,S 15P-50 CH
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C387 87-012-145-080 CAP, CHIP S 270P CH
C388 87-012-156-080 C-CAP,S 220P-50 CH
C391 87-010-319-080 C-CAP,S 56P-50 CH
C392 87-010-319-080 C-CAP,S 56P-50 CH
C393 87-010-319-080 C-CAP,S 56P-50 CH
C394 87-010-319-080 C-CAP,S 56P-50 CH
C451 87-010-400-080 CAP,E 0.47-50 M 11L SME
C452 87-010-400-080 CAP,E 0.47-50 M 11L SME
C457 87-010-196-080 CHIP CAPACITOR,0.1-25
C458 87-010-196-080 CHIP CAPACITOR,0.1-25
C459 87-A11-004-080 CAP,M 0.022-50 J
C460 87-A11-004-080 CAP,M 0.022-50 J
C465 87-A11-004-080 CAP,M 0.022-50 J
C466 87-A11-004-080 CAP,M 0.022-50 J
C509 87-010-196-080 CHIP CAPACITOR,0.1-25
C512 87-010-196-080 CHIP CAPACITOR,0.1-25
C601 87-010-180-080 C-CER 1500P
C602 87-010-180-080 C-CER 1500P
C605 87-010-318-080 C-CAP,S 47P-50 CH
C606 87-010-318-080 C-CAP,S 47P-50 CH
C613 87-016-081-080 C-CAP,S 0.1-16 RK
C614 87-016-081-080 C-CAP,S 0.1-16 RK
C615 87-A11-011-080 CAP,M 0.12-50 J DE
C616 87-A11-011-080 CAP,M 0.12-50 J DE
C617 87-A11-008-080 CAP,M 0.056-50 J
C618 87-A11-008-080 CAP,M 0.056-50 J
C619 87-010-185-080 C-CAP,S 3900P-50 B
C620 87-010-185-080 C-CAP,S 3900P-50 B
C621 87-010-401-080 CAP, ELECT 1-50V
C622 87-010-401-080 CAP, ELECT 1-50V
C623 87-A10-307-080 CAP,M 0.10-50 J
C624 87-A10-307-080 CAP,M 0.10-50 J
C625 87-010-405-080 CAP, ELECT 10-50V
C626 87-010-405-080 CAP, ELECT 10-50V
C627 87-010-196-080 CHIP CAPACITOR,0.1-25
C629 87-010-405-080 CAP, ELECT 10-50V
C630 87-010-213-080 C-CAP,S 0.015-50 B
C631 87-010-992-080 C-CAP,S 0.047-25 B
C632 87-010-263-080 CAP, ELECT 100-10V
C633 87-010-263-080 CAP, ELECT 100-10V
C634 87-010-196-080 CHIP CAPACITOR,0.1-25
C635 87-010-196-080 CHIP CAPACITOR,0.1-25
C636 87-010-194-080 C-CAP,S 0.047-25
C637 87-010-183-080 C-CAP,S 2700P-50 B
C638 87-010-314-080 C-CAP,S 22P-50V
C639 87-010-314-080 C-CAP,S 22P-50V
C641 87-010-196-080 CHIP CAPACITOR,0.1-25
C701 87-010-263-080 CAP, ELECT 100-10V
C702 87-010-196-080 CHIP CAPACITOR,0.1-25
C703 87-010-319-080 C-CAP,S 56P-50 J CH
C704 87-010-319-080 C-CAP,S 56P-50 J CH
C705 87-012-393-080 C-CAP,S 0.22-16V
C706 87-010-197-080 CAP, CHIP 0.01 DM
C707 87-010-180-080 C-CAP,S 1500P-50 K B
C708 87-010-213-080 C-CAP,S 0.015-25 K B
C709 87-010-213-080 C-CAP,S 0.015-25 K B
C710 87-010-197-080 CAP, CHIP 0.01 DM
C711 87-010-181-080 C-CAP,S 1800P-50 K B
C712 87-010-196-080 CHIP CAPACITOR,0.1-25
C713 87-010-544-080 CAP, ELECT 0.1-50 M
C714 87-010-374-080 CAP, ELECT 47-10
C731 87-010-560-080 CAP, ELECT 10-50
C732 87-010-196-080 CHIP CAPACITOR,0.1-25
C733 87-010-196-080 CHIP CAPACITOR,0.1-25
C734 87-012-157-080 C-CAP,S 330P-50
C735 87-010-178-080 C-CAP,S 1000P-50 K B
C736 87-010-196-080 CHIP CAPACITOR,0.1-25
C737 87-010-318-080 C-CAP,S 47P-50 J CH
C738 87-010-318-080 C-CAP,S 47P-50 J CH
C739 87-010-318-080 C-CAP,S 47P-50 J CH
CN301 87-099-827-010 CONN,3P S2M-3W
CN351 87-099-832-010 CONN,8P S2M-8W
CN502 87-099-566-010 CONN,7P
CN601 88-NF9-657-010 CONN,30P H BLK TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CN604 87-099-570-010 CONN,13P TUC-P13P-B1
J201 87-A60-483-010 JACK,DIA 6.3 BLK ST W/S KM
J203 87-033-240-010 TERMINAL,SP 4P32SV1-05
J205 87-A60-751-010 JACK,PIN 2P P/W BLUE
J602 87-A60-398-010 JACK,PIN 2P R/W HSP-242V24
L101 87-003-383-010 COIL,1UH-S
L102 87-003-383-010 COIL,1UH-S
L201 87-003-383-010 COIL,1UH-S
L202 87-003-383-010 COIL,1UH-S
L301 87-A50-049-010 COIL,TRAP 85K(COI)
L302 87-A50-049-010 COIL,TRAP 85K(COI)
L351 87-007-342-010 COIL,OSC 85K BIAS
L701 87-005-448-080 COIL,220UH K FLR50
R20 87-A00-261-080 RES,M/F 0.56-1W J
R129 87-A00-257-080 RES,M/F 0.15-1W J
R130 87-A00-257-080 RES,M/F 0.15-1W J
R131 87-A00-257-080 RES,M/F 0.15-1W J
R132 87-A00-257-080 RES,M/F 0.15-1W J
R143 87-A00-440-050 RES,220-1/2W J RP
R144 87-A00-440-050 RES,220-1/2W J RP
R145 87-A00-440-050 RES,220-1/2W J RP
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

– 5 –
R146 87-A00-440-050 RES,220-1/2W J RP
R165 87-A00-257-080 RES,M/F 0.15-1W J
R166 87-A00-257-080 RES,M/F 0.15-1W J
R231 87-A00-258-080 RES,M/F 0.22-1W J
R232 87-A00-258-080 RES,M/F 0.22-1W J
R233 87-A00-258-080 RES,M/F 0.22-1W J
R234 87-A00-258-080 RES,M/F 0.22-1W J
R265 87-A00-258-080 RES,M/F 0.22-1W J
R266 87-A00-258-080 RES,M/F 0.22-1W J
SFR351 87-A90-433-080 SFR,50K H NVZ6TLTA
SFR352 87-A90-433-080 SFR,50K H NVZ6TLTA
TH101 87-A91-042-080 C-THMS,100K
TH101 87-A91-042-080 C-THMS,100K
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
FRONT C.B
C201 87-012-140-080 C-CAP,S 470P-50 CH
C202 87-010-322-080 C-CAP,S 100P-50 CH
C203 87-012-157-080 C-CAP,S 330P-50 CH
C204 87-010-322-080 C-CAP,S 100P-50 CH
C205 87-010-322-080 C-CAP,S 100P-50 CH
C206 87-010-322-080 C-CAP,S 100P-50 CH
C207 87-010-322-080 C-CAP,S 100P-50 CH
C208 87-010-322-080 C-CAP,S 100P-50 CH
C209 87-010-322-080 C-CAP,S 100P-50 CH
C210 87-010-322-080 C-CAP,S 100P-50 CH
C211 87-012-157-080 C-CAP,S 330P-50 CH
C251 87-015-699-040 CAP,E 10-50 7L
C252 87-010-198-080 CAP, CHIP 0.022
C254 87-010-194-080 CAP, CHIP 0.047
C255 87-A10-586-040 CAP,E 47-35 7L SR
C256 87-015-699-040 CAP,E 10-50 7L
C259 87-015-699-040 CAP,E 10-50 7L
C260 87-010-198-080 CAP, CHIP 0.022
C262 87-010-196-080 CHIP CAPACITOR,0.1-25
C301 87-010-182-080 C-CAP,S 2200P-50 B
C302 87-010-182-080 C-CAP,S 2200P-50 B
C311 87-010-194-080 CAP, CHIP 0.047
C313 87-010-196-080 CHIP CAPACITOR,0.1-25
C314 87-010-194-080 CAP, CHIP 0.047
C321 87-010-196-080 CHIP CAPACITOR,0.1-25
C323 87-010-248-040 CAP,E 220-10 SME
C324 87-010-194-080 CAP, CHIP 0.047
C331 87-010-196-080 CHIP CAPACITOR,0.1-25
C332 87-010-178-080 CHIP CAP 1000P
C333 87-012-140-080 CAP 470P
C334 87-010-312-080 C-CAP,S 15P-50 CH
C335 87-012-140-080 CAP 470P
C336 87-010-196-080 CHIP CAPACITOR,0.1-25
C337 87-010-196-080 CHIP CAPACITOR,0.1-25
C338 87-012-155-080 C-CAP 180P-50CH
C339 87-012-156-080 C-CAP,S 220P-50 CH
C340 87-010-197-080 CAP, CHIP 0.01 DM
C401 87-010-197-080 CAP, CHIP 0.01 DM
C451 87-010-196-080 CHIP CAPACITOR,0.1-25
C452 87-010-196-080 CHIP CAPACITOR,0.1-25
C453 87-010-196-080 CHIP CAPACITOR,0.1-25
C454 87-010-196-080 CHIP CAPACITOR,0.1-25
C455 87-010-196-080 CHIP CAPACITOR,0.1-25
C456 87-012-158-080 C-CAP,S 390P-50 CH
C457 87-010-196-080 CHIP CAPACITOR,0.1-25
C502 87-010-186-080 CAP, CHIP 4700P
C503 87-010-112-040 CAP,E 100-16
C504 87-010-405-040 CAP,E 10-50
C505 87-010-546-040 CAP,E 0.33-50
C506 87-010-320-080 C-CAP,S 68P-50 CH
C507 87-010-544-040 CAP,E 0.1-50
C508 87-010-178-080 C-CAP,S 1000P-50 K
C509 87-010-544-040 CAP,E 0.1-50
C601 87-010-196-080 CHIP CAPACITOR,0.1-25
C602 87-010-322-080 C-CAP,S 100P-50 CH
C603 87-010-322-080 C-CAP,S 100P-50 CH
C604 87-010-322-080 C-CAP,S 100P-50 CH
C701 87-010-196-080 CHIP CAPACITOR,0.1-25
CON101 87-099-720-010 CONN,30P TYK-B(P)
CON102 87-099-015-010 CONN,13P 6216V
CON301 87-099-017-010 CONN,15P 6216 V
EMI201 87-008-372-080 FILTER, EMI BL OIRNI
EMI202 87-008-372-080 FILTER, EMI BL OIRNI
EMI701 87-A50-322-080 C-COIL,S BK2125 LM252
FL401 8Z-NH8-603-010 FL BJ674GNK
J501 87-A60-651-010 JACK,3.5 MONO
L331 87-A50-434-010 COIL,CLK 4.19M(TOKO)
LED311 87-A40-317-080 LED,SLR-342VCT31 RED
LED601 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED602 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED603 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED604 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED605 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED606 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED607 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED608 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED609 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED610 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED611 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED612 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED613 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED614 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED631 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED632 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED633 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED634 87-A40-619-040 LED,SLR-56PT-T31-W GRN
SW401 87-A91-024-080 SW,TACT KSH0611BT
SW402 87-A91-024-080 SW,TACT KSH0611BT
SW403 87-A91-024-080 SW,TACT KSH0611BT
SW404 87-A91-024-080 SW,TACT KSH0611BT
SW405 87-A91-024-080 SW,TACT KSH0611BT
SW406 87-A91-024-080 SW,TACT KSH0611BT
SW407 87-A91-024-080 SW,TACT KSH0611BT
SW408 87-A91-024-080 SW,TACT KSH0611BT
SW409 87-A91-024-080 SW,TACT KSH0611BT
SW410 87-A91-024-080 SW,TACT KSH0611BT
SW411 87-A91-024-080 SW,TACT KSH0611BT
SW412 87-A91-024-080 SW,TACT KSH0611BT
SW413 87-A91-024-080 SW,TACT KSH0611BT
SW414 87-A91-024-080 SW,TACT KSH0611BT
SW415 87-A91-024-080 SW,TACT KSH0611BT
SW416 87-A91-024-080 SW,TACT KSH0611BT
SW417 87-A91-024-080 SW,TACT KSH0611BT
SW418 87-A91-024-080 SW,TACT KSH0611BT
SW419 87-A91-024-080 SW,TACT KSH0611BT
SW420 87-A91-024-080 SW,TACT KSH0611BT
SW421 87-A91-024-080 SW,TACT KSH0611BT
SW422 87-A91-024-080 SW,TACT KSH0611BT
SW423 87-A91-024-080 SW,TACT KSH0611BT
SW424 87-A91-024-080 SW,TACT KSH0611BT
SW425 87-A91-024-080 SW,TACT KSH0611BT
SW426 87-A91-024-080 SW,TACT KSH0611BT
SW427 87-A91-024-080 SW,TACT KSH0611BT
SW428 87-A91-024-080 SW,TACT KSH0611BT
SW429 87-A91-024-080 SW,TACT KSH0611BT
SW430 87-A91-024-080 SW,TACT KSH0611BT
SW431 87-A91-024-080 SW,TACT KSH0611BT
SW432 87-A91-024-080 SW,TACT KSH0611BT
SW433 87-A91-024-080 SW,TACT KSH0611BT
SW434 87-A91-024-080 SW,TACT KSH0611BT
SW252 87-A90-535-010 SW,RTRY EC16B24304
SW253 87-A90-950-010 SW,RTRY EC12E12504 ENCODER
VR501 87-NB7-602-010 VR,RTRY 10KAX1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

– 6 –
!
!
!
!
!
!
!
PS C.B
C1 87-010-387-080 CAP,E 470-25 SME
C8 87-A10-520-090 CAP,E 3300-35
C9 87-A10-520-090 CAP,E 3300-35
C31 87-010-403-040 CAP,E 3.3-50 M
CN1 87-A60-851-010 CONN,9P V VH
PR1 87-026-682-080 PROTECTOR,10A 491S 60V
PR2 87-026-682-080 PROTECTOR,10A 491S 60V
PT1 8Z-NF8-605-010 PT,ZNF-8
PT2 8Z-NF8-663-010 PT,SUB ZNF-8
RY1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212 DM5
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
TUNER C.B
C701 87-010-381-080 CAP,ELECT 330-16V
C702 87-010-404-080 CAP,ELECT 4.7-50V
C703 87-012-286-020 CAP,U 0.01-25
C704 87-012-286-020 CAP,U 0.01-25
C705 87-A10-592-020 C-CAP,S 0.015-50 J B
C706 87-A10-592-020 C-CAP,S 0.015-50 J B
C709 87-012-195-020 C-CAP,U 100P-50CH
C711 87-010-553-080 CAP,E 47-16 M 5L
C712 87-010-831-020 C-CAP,U,0.1-16F
C714 87-012-286-020 CAP,U 0.01-25
C717 87-012-286-020 CAP,U 0.01-25
C719 87-012-286-020 CAP,U 0.01-25
C720 87-012-195-020 C-CAP,U 100P-50CH
C721 87-012-176-020 CAP,15P
C722 87-012-176-020 CAP,15P
C723 87-012-274-020 CHIP CAP,U 1000P-50B
C725 87-012-274-020 CHIP CAP,U 1000P-50B
C727 87-010-196-020 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP,ELECT 220-10V
C729 87-012-274-020 CHIP CAP,U 1000P-50B
C731 87-012-286-020 CAP,U 0.01-25
C733 87-010-987-080 C-CAP,S 1500P-50 CH
C734 87-010-987-080 C-CAP,S 1500P-50 CH
C735 87-010-987-080 C-CAP,S 1500P-50 CH
C736 87-010-987-080 C-CAP,S 1500P-50 CH
C737 87-A10-592-020 C-CAP,S 0.015-50 J B
C738 87-A10-592-020 C-CAP,S 0.015-50 J B
C751 87-010-220-020 C-CAP,S 0.018-25KB
C752 87-010-220-020 C-CAP,S 0.018-25KB
C756 87-012-286-020 CAP,U 0.01-25
C757 87-012-188-020 C-CAP,U 47P-50 CH
C758 87-012-167-020 C-CAP,U 5P-50 CH
C763 87-010-829-020 CAP,U 0.047-16
C764 87-012-337-020 C-CAP,U 56P-50 CH
C765 87-012-286-020 CAP,U 0.01-25
C768 87-012-286-020 CAP,U 0.01-25
C769 87-010-260-080 CAP,ELECT 47-25V
C770 87-010-829-020 CAP,U 0.047-16
C771 87-010-383-080 CAP,ELECT 33-25V
C772 87-010-829-020 CAP,U 0.047-16
C773 87-010-196-020 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP,ELECT 100-10V
C775 87-010-404-080 CAP,ELECT 4.7-50V
C777 87-010-400-080 CAP, ELECT 0.47-50V
C778 87-010-401-080 CAP,ELECT 1-50V
C779 87-010-401-080 CAP,ELECT 1-50V
C780 87-010-196-020 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP,ELECT 10-50V
C782 87-010-405-080 CAP,ELECT 10-50V
C783 87-012-286-020 CAP,U 0.01-25
C784 87-012-286-020 CAP,U 0.01-25
C785 87-010-494-080 CAP, E 1-50M 5L
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C786 87-010-494-080 CAP, E 1-50M 5L
C789 87-012-275-020 C-CAP,U 1200P-50 B
C790 87-012-275-020 C-CAP,U 1200P-50 B
C791 87-010-405-080 CAP,ELECT 10-50V
C793 87-012-273-020 C-CAP,U 820P-50 B
C794 87-010-406-080 CAP,ELECT 22-50
C795 87-010-596-020 CAP,S 0.047-16
C796 87-010-403-080 CAP,ELECT 3.3-50V
C799 87-010-829-080 CAP,U 0.047-16
C812 87-012-286-020 CAP,U 0.01-25
C820 87-010-260-080 CAP,ELECT 47-25V
C821 87-012-286-020 CAP,U 0.01-25
C822 87-012-286-020 CAP,U 0.01-25
C823 87-012-286-020 CAP,U 0.01-25
C828 87-010-196-020 CHIP CAPACITOR,0.1-25
C829 87-010-196-020 CHIP CAPACITOR,0.1-25
C940 87-012-286-020 C-CAP,U 0.01-25 KB
C941 87-012-180-020 C-CAP,U 22P-50 J CH
C943 87-012-286-020 C-CAP,U 0.01-25 KB
C945 87-012-286-020 C-CAP,U 0.01-25 KB
C947 87-012-286-020 C-CAP,U 0.01-25 KB
C950 87-014-073-080 CAP,PP 4700P-100J
C952 87-012-286-020 C-CAP,U 0.01-25 KB
C953 87-012-286-020 C-CAP,U 0.01-25 KB
C954 87-012-358-020 C-CAP,S 0.47-10 ZF
C956 87-010-263-080 CAP,E 100-10M 11L
C959 87-010-831-020 C-CAP,U 0.1-16 ZF
C960 87-012-350-020 C-CAP,1-25 ZF
CF801 87-008-261-010 FILTER, SFE10.7MA5-A
CF802 87-008-261-010 FILTER, SFE10.7MA5-A
CN701 87-A60-700-010 CONN,13P H GRY TUC-P13X-C1
FFE801 A8-8ZA-190-030 8ZA-1 FEUNM
J801 87-A60-703-010 TERMINAL,ANT3P CJ-9037
J940 81-754-629-010 CONNECTOR XH 2P (UL)
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A90-052-010 FLTR,CFMT-450A(TOK)
L941 87-A50-022-010 COIL,ANT SW(COI)7.96MHZ
L942 87-A50-173-010 COIL,OSC SW-N(COI)
L943 87-A50-432-010 COIL,1MH K CW
L944 87-A50-159-010 COIL,10MH K C2B
L981 88-NF8-625-110 COIL,AM PACK 3N(TOK)
TC941 87-011-220-080 TRIMMER,CER 20P 6.15X5.9
TC943 87-011-221-080 TRIMMER,CER 30P 6.15X5.9
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
X771 87-030-354-010 VIB,CER 450.0KHZ BFU C
DECK C.B
CON105 87-099-756-010 CONN,15P 9604 S F
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SOL1 82-ZM1-618-410 SOL ASSY,27
SOL2 82-ZM1-618-410 SOL ASSY,27
SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-036-110-010 SW,MICRO SPPB62
SW5 87-036-110-010 SW,MICRO SPPB62
SW6 87-036-110-010 SW,MICRO SPPB62
SW8 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW9 87-A90-248-010 SW,MICRO ESE11SH2CXQ
W1 82-ZM3-601-010 RBN,CORD,4P-75
HEAD-1 C.B
85-ZM3-602-010 PWB,FLEX A
HEAD-2 C.B
85-ZM3-602-010 PWB,FLEX A
CON351 87-NF6-616-010 CONN ASSY,8P-RPB
!

– 7 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
KEY CON C.B
C501 87-A10-060-080 C-CAP,S 0.18-16 K B
C502 87-A10-060-080 C-CAP,S 0.18-16 K B
C503 87-012-154-080 C-CAP,S 150P-50 J CH
C504 87-012-154-080 C-CAP,S 150P-50 J CH
C505 87-012-145-080 C-CAP,S 270P-50 J CH
C506 87-012-145-080 C-CAP,S 270P-50 J CH
C507 87-010-183-080 C-CAP,S 2700P-50 K B
C509 87-010-196-080 C-CAP,S 0.1-25 Z F
C510 87-010-177-080 C-CAP,S 820P-50 J
C511 87-010-177-080 C-CAP,S 820P-50 J
C512 87-010-196-080 C-CAP,S 0.1-25 Z F
C513 87-010-374-080 CAP,E 47-10V
C514 87-010-196-080 C-CAP,S 0.1-25 Z F
C515 87-010-263-080 CAP,E 100-10V
C517 87-010-183-080 C-CAP,S 2700P-50 K B
C521 87-016-460-080 C-CAP,S 0.22-16 K B
C522 87-016-460-080 C-CAP,S 0.22-16 K B
C523 87-016-460-080 C-CAP,S 0.22-16 K B
C527 87-010-196-080 C-CAP,S 0.1-25 Z F
CN501 87-A60-689-010 CONN,7P
TRANSISTOR ILLUSTRATION
2SC4115
DTC114ES
E C B
E C B
CC5551
CD1585
2SB1370
FN1016
FP1016
B C E
E C B
KTA1266
KTC3198
KTC3199
2SK2158
S
D
G
E
B
C
2SA1235
2SC3052
2SD1306
2SA1298Y
CSD1306E
CMBT5551
DTA123EKA
RT1N141C
RT1P141C
RT1P441C

– 8 –

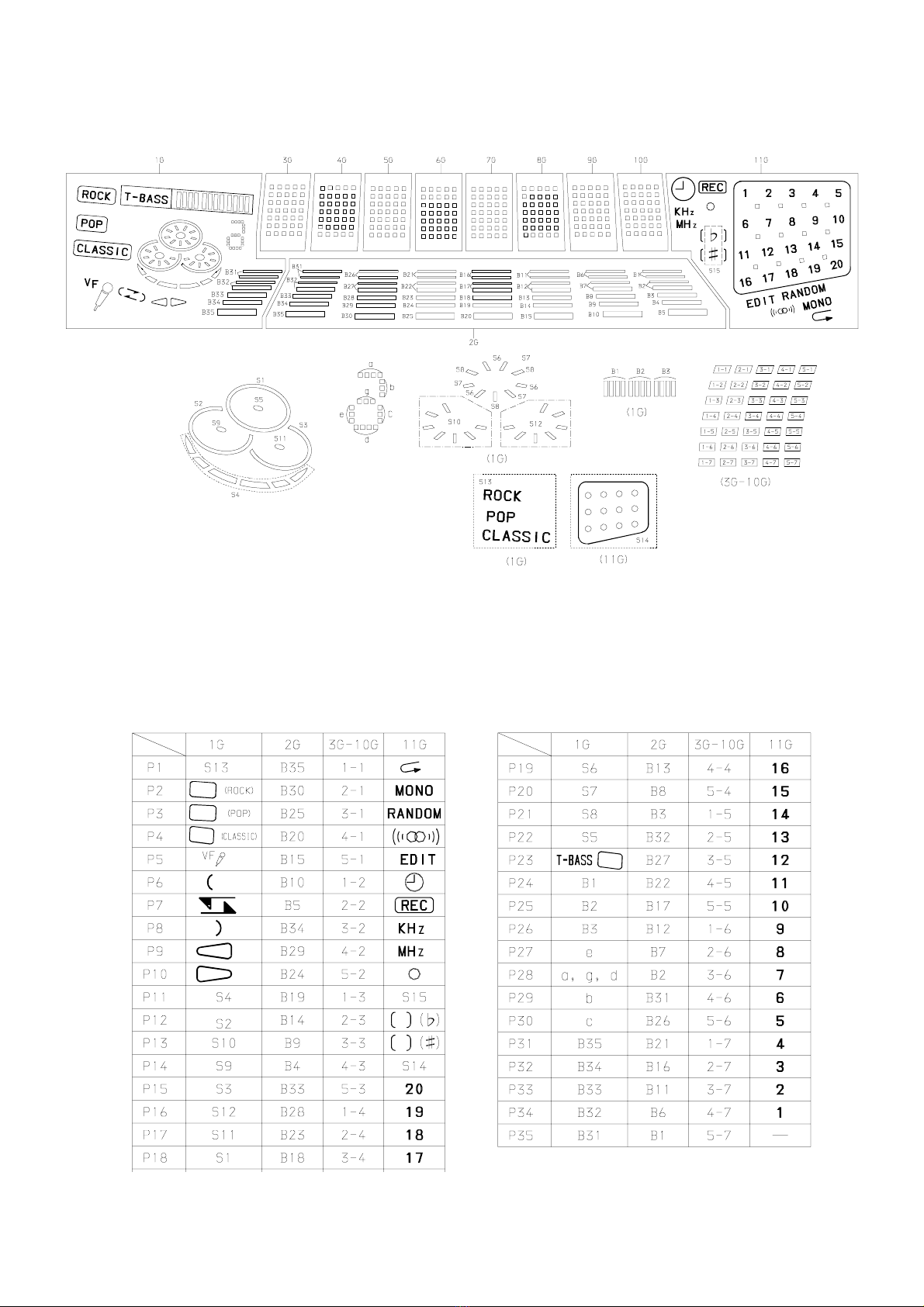

FL (BJ674GNK) GRID ASSIGNMENT & ANODE CONNECTION
GRID ASSIGNMENT
ANODE CONNECTION

– 9 –
IC BLOCK DIAGRAM
IC, M65847AFP
IC, BU9262AFS

WIRING - 1 (MAIN / KEY-CON)
– 10 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 11 –

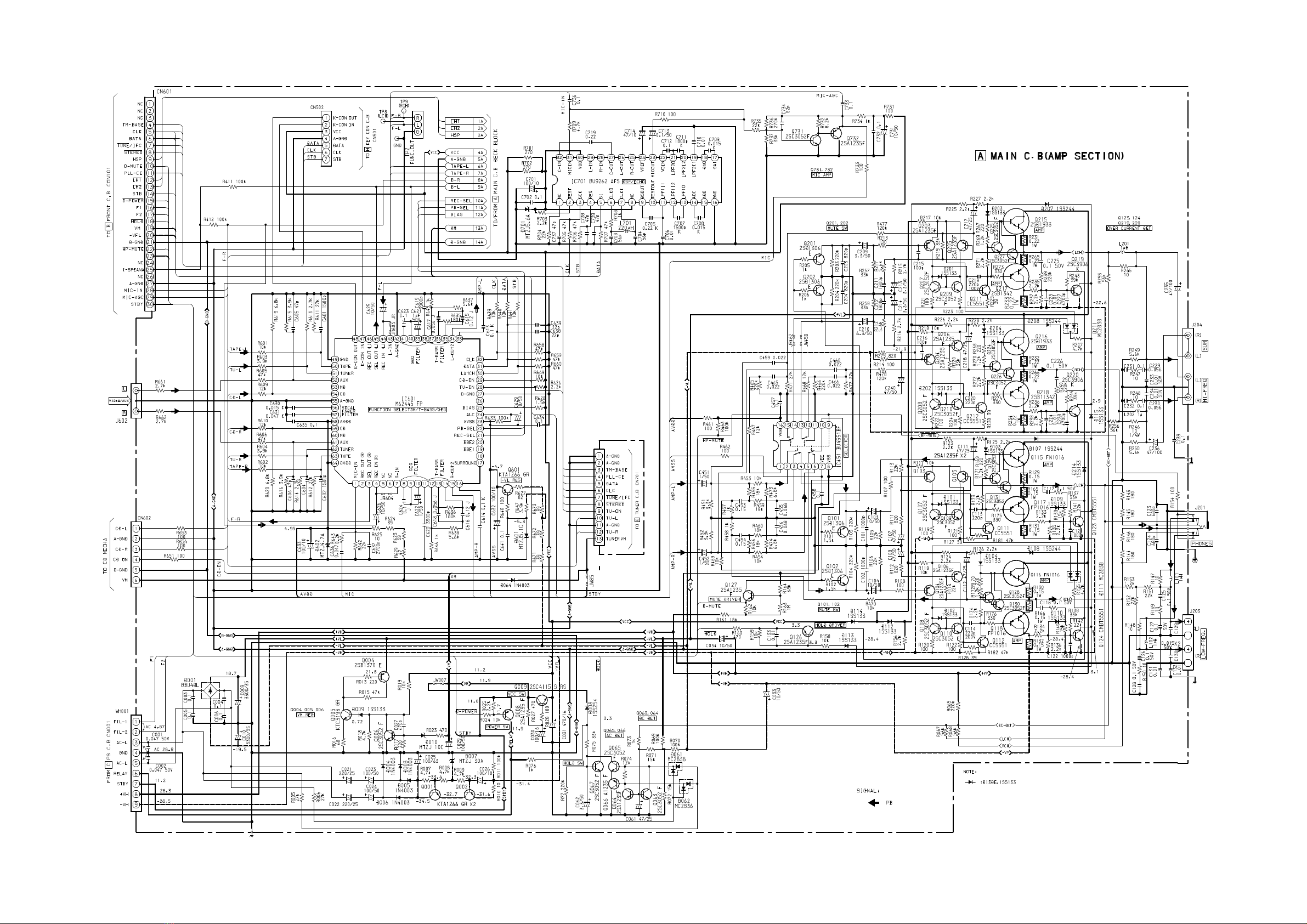

SCHEMATIC DIAGRAM – 1 (MAIN 1 / 3 : AMP)

– 12 –
SCHEMATIC DIAGRAM – 2 (MAIN 2 / 3 : DECK)

–13 –

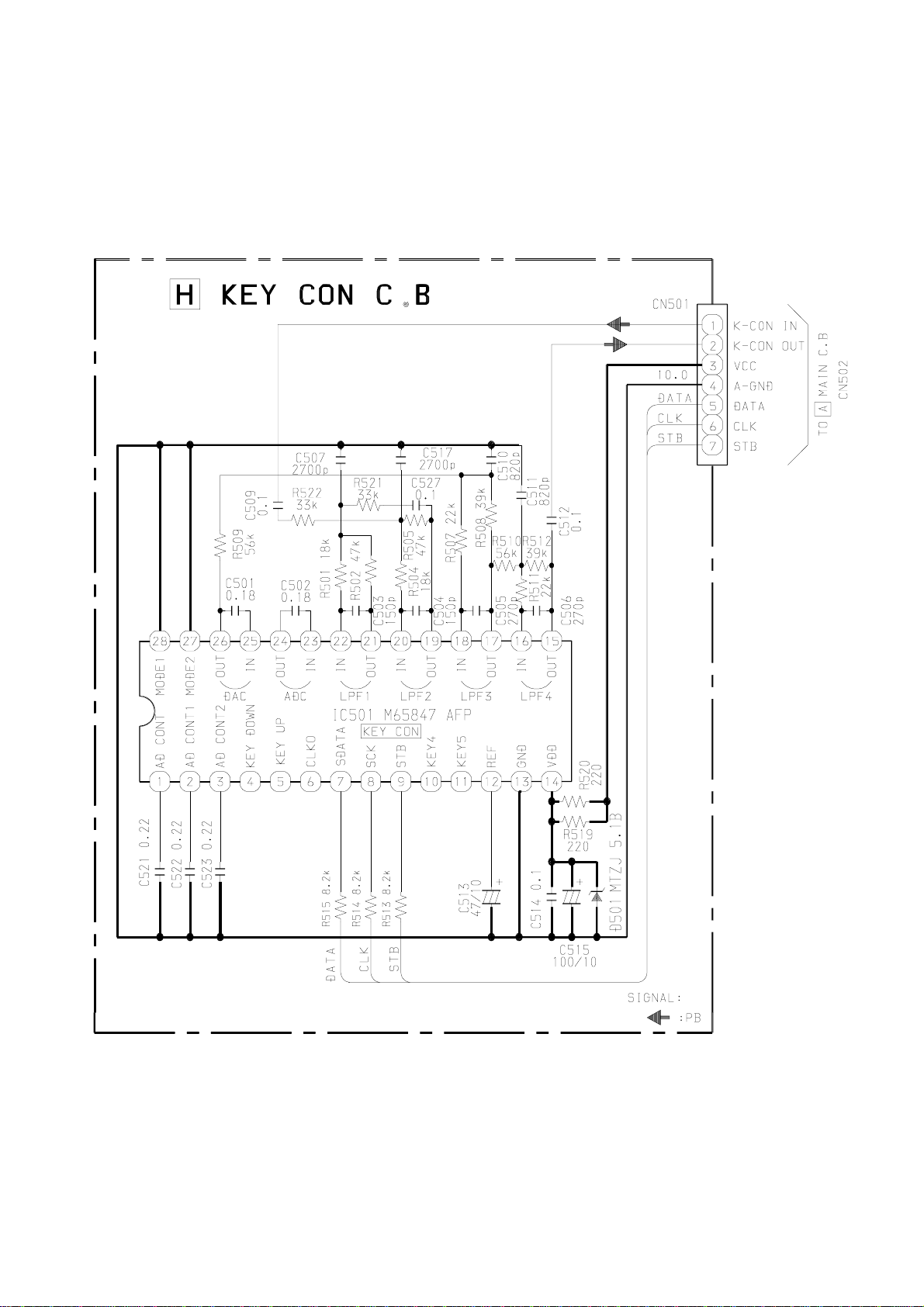

SCHEMATIC DIAGRAM – 3 (MAIN 3 / 3 : KEY-CON)

WIRING - 2 (FRONT)
– 10 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 15 –
SCHEMATIC DIAGRAM – 4 (FRONT / DECK)

WIRING - 3 (PS)
– 16 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 17 –
SCHEMATIC DIAGRAM – 5 (PS)

– 18 –
MECHANICAL EXPLODED VIEW 1 / 1
a
i
P.C.B
ZZA-1
A
A
d
e
g
4ZP-1 VOS1RDSHM
31
22
8
7
6
11
10
P.C.B
A
A
A
A
A
A
H
E
E
B
B
a
CHAS,MAIN
2ZM-3MK2 YPR4NM
PLATE,EARTH MECH
20
37
38
38 40
40
39
16
46
34
33
45
29
30 32
32
20
41
51
43
FL401
42
47
48
26
2725
24
23
21
19
28
44 17
23
18
14
5
17
A
F
JJ
G
D
A
HT-SINK
HT-SINK,T5
HT-SINK
FIN,H
HT-SINK,FIN
PLATE,SHLD PT 2T
4
36
35
15
P.C.B
49
52
53
A
A
A
A
A
A
l
f
g
h
h
i
j
j
k
PLATE,SHLD 76
13
l
12
3
50
1
2
9I
D
d
e
f
C
C
k

– 19 –
1 87-050-079-010 AC-CORD ASSY,E
2 87-085-185-010 BUSHING, AC CORD (E)
3 8Z-NF8-605-010 PT,ZNF-8HR
4 8Z-NB8-240-010 COVER, PL
5 8Z-NF8-201-110 GUIDE,OPE
6 86-NFZ-001-010 WINDOW,TOP
7 8Z-NF9-095-010 PANEL,TOP V-2 R
8 8Z-NB8-011-210 PANEL,LEFT V-2
9 8Z-NF9-043-010 PANEL,RIGHT S V-2
10 8Z-NH8-002-010 PANEL,TRAY H
11 82-NE6-067-010 BADGE,AIWA 30N
12 8Z-NH8-024-010 CABI,REAR HRSK1
13 87-064-185-010 HLDR,WIRE
14 8Z-NF8-202-010 GUIDE,FUN
15 8Z-NF8-026-010 KNOB,RTRY JOG
16 8Z-NF8-027-010 KNOB,RTRY VOL
17 8Z-NF8-019-010 KEY,ECHO
18 8Z-NF9-204-010 PLATE,MIC
19 8Z-NH8-006-010 KEY,EDIT
20 8Z-NH8-003-010 CABI,FR H
21 8Z-NF8-020-110 KEY,RDS
22 8Z-NF8-008-010 KEY,TIMER
23 8Z-NH8-007-010 KEY,ASSY PLAY
24 8Z-NH8-009-010 KEY,ASSY PAUSE
25 8Z-NF8-006-010 KEY,CD
26 8Z-NF8-010-010 KEY,ASSY FUN
27 8Z-NF8-005-210 KEY,POWER
28 8Z-NF8-007-010 REFLECTOR,ECO
29 8Z-NF8-029-010 REFLECTOR,JOG
30 8Z-NH8-028-010 WINDOW,DISP 581
31 8Z-NF8-024-010 WINDOW,CD
32 87-NF8-220-010 DMPR,150
33 8Z-NF8-022-010 WINDOW,CASS 2
34 8Z-NF8-038-010 BOX,CASS 2H
35 8Z-NF8-021-010 WINDOW,CASS 1
36 8Z-NF8-037-010 BOX,CASS 1H
37 87-NF4-217-110 HLDR,LOCK 2
38 86-NF9-224-010 SPR-C,LOCK
39 87-NF4-216-010 HLDR,LOCK 1
40 82-NF5-229-010 PLATE,LOCK
41 88-NF5-208-010 HLDR,PWB-M N
42 8Z-NF8-205-310 HLDR,HT-SINK
43 88-NF8-205-010 GUIDE,FL
44 82-NF5-218-010 SPR-T,EJECT 1 (SIN)
45 82-NF5-219-010 SPR-T,EJECT 2 (SIN)
46 81-532-080-010 LABEL, CASS. COMPT
47 88-913-301-110 FF-CABLE,13P-1.25
48 88-915-101-110 FF-CABLE, 15P 1.25 100MM
49 8Z-NH8-201-010 HLDR,PWB
50 88-906-241-110 FF-CABLE,6P 1.25
51 87-NF6-616-010 CONN ASSY,8P RPB
52 84-ZG1-245-010 CAP,OPTICAL
53 85-NF7-599-010 PVC W 3.2-8-0.3
A 87-067-703-010 TAPPING SCREW, BVT2+3-10
B 87-721-097-410 QT2+3-12 GLD
C 87-078-191-010 S-SCREW,IT+4-10
D 87-067-688-010 BVTT+3-6
E 87-721-096-410 QT2+3-10 GLD
F 87-067-758-010 BVT2+3-12 W/O SLOT
G 87-067-581-010 TAPPING SCREW, BVT2+3-15
H 87-NF4-224-010 S-SCREW,IT3B+3-8 CU
I 87-067-641-010 UTT2+3-8(W/O SLOT)BL
J 87-B10-090-010 BVIT3B+3-12 GOLD
MECHANICAL PARTS LIST 1 / 1
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
!

– 20 –
SPEAKER PARTS LIST <SX-WNS555 (YJ3STL)>
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8Z-NS8-001-010 PANEL,FR
2 8Z-NS8-002-010 PANEL,BA
3 8Z-NSY-003-010 CORD,BUSH
4 8Z-NS8-003-010 PROTECTOR, TW
5 88-NS5-610-010 CORD,SPKR
6 88-NS5-611-010 CORD,SPKR B/L
7 8Z-NSY-602-010 SPKR,W 160
8 8Z-NSY-604-010 SPKR,M 100
9 88-NS3-029-010 CORD,BUSH L
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8Z-NH8-914-010 IB,H(T)M-KIT 581
2 87-043-115-010 ANT,FEEDER FM
3 87-050-103-010 CORD,PIN 1PY1.5M
4 87-099-789-010 PLUG,ADPTR IR44
5 87-A90-054-010 ANT,LOOP AM-CON C
6 87-A90-119-010 ANT,WIRE SW(5M)
7 8Z-NH8-702-010 RC UNIT,RC-ZAS07
!
