S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with ”Revision Publishing” when it is issued.
NSX-AV540
• TYPE: EZ,K
COMPACT DISC STEREO SYSTEM
• BASIC TAPE MECHANISM:6ZM-3 PR2NM
• BASIC CD MECHANISM:4ZG-1 Z3RDSHM
S/M Code No. 09–994–401–9T2
ELECTRICALPARTSLIST-1/7
NOTE: The characters in the suffix column indicate the part usage.
KSTE ...................XX....................................C.................
EZSTE ..................XX.....................................D................
EZSTM ..................XX......................................E...............
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 503 87-010-112-040 CAP,E 100-16 AB..E...............
C 508 87-010-178-080 CHIP CAP 1000P ....E...............
C 502 87-010-186-080 CAP,CHIP 4700P AB..E...............
C 506 87-010-320-080 CHIP CAP 68P AB..E...............
C 504 87-010-405-040 CAP,E 10-50 AB..E...............
C 509 87-010-544-040 CAP,E 0.1-50 SME AB..E...............
C 507 87-010-544-040 CAP,E 0.1-50 SME AB..E...............
C 505 87-010-546-040 CAP,E 0.33-50 AB..E...............
C 510 87-018-127-080 CAP, CER 470P-50V ....E...............
J 501 87-A60-651-010 JACK,3.5MONO AB..E...............
Q 504 87-A30-075-080 C-TR,2SA1235F AB..E...............
Q 505 87-A30-076-080 C-TR,2SC3052F AB..E...............
Q 501 87-A30-087-080 C-FET,2SK2158 AB..E...............
VR 501 87-NB7-602-010 VR,RTRY 10KAX1 1 V AB..E...............
C 1 87-010-387-080 CAP,E 470-25 SME ..CDE...............
C 1 87-010-388-080 CAP ELECT 1000-25V SME AB..................
C 9 87-010-917-090 CAP,E 3300-50 M SMG ABCDE...............
C 8 87-010-917-090 CAP,E 3300-50 M SMG ABCDE...............
C 9 87-010-918-090 CAP,E 4700-50 ....................
C 8 87-010-918-090 CAP,E 4700-50 ....................
C 2 87-018-209-010 CAP 0.1 ABCDE...............
C 6 87-A11-148-080 CAP,TC U 0.1-50 Z F ..CDE...............
C 4 87-A11-148-080 CAP,TC U 0.1-50 Z F ..CDE...............
C 3 87-A11-148-080 CAP,TC U 0.1-50 Z F ..CDE...............
C 5 87-A11-148-080 CAP,TC U 0.1-50 Z F ..CDE...............
C 31 87-010-403-080 CAP, ELECT 3.3-50V ..CDE...............
CN 1 87-A60-851-010 CONN,9P V VH ABCDE...............
D 6 87-017-447-010 DIODE,GBU4DL AB..................
D 5 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 2 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 1 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 4 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 3 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 6 87-A40-548-090 DIODE,D3SBA20 ..CDE...............
D 31 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 32 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
PR 2 87-026-682-080 PROTECTOR,10A 60V491 ..CDE...............
PR 1 87-026-682-080 PROTECTOR,10A 60V491 ..CDE...............
PR 2 87-026-691-080 FUSE,10A 125V 251 ....................
PR 1 87-026-691-080 FUSE,10A 125V 251 ....................
PR 3 87-A91-276-080 FUSE,125MA 125V F 251 ....................
PT 2 8Z-NF8-661-010 PT,SUB ZNF-8(U) A...................
PT 2 8Z-NF8-662-010 PT,SUB ZNF-8(E) ..CDE...............
PT 2 8Z-NF8-663-010 PT,SUB ZNF-8(H) .B..................
Q 31 87-026-245-080 TR,DTC114ES ..CDE...............
Q 32 87-A30-198-080 TR,KTC3199GR ..CDE...............
RY 2 87-A90-976-010 RELAY,AC12V SDT-S-112LMR A.CDE...............
RY 1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5 .B..................
S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 ....................
T 2 87-A60-317-010 TERMINAL, 1P MSC ABCDE...............
T 1 87-A60-317-010 TERMINAL, 1P MSC ABCDE...............
88-NF8-205-010 GUIDE,FL AB..E...............
* 8Z-NF8-201-010 GUIDE,OPE AB..E...............
* 8Z-NF8-202-010 GUIDE,FUN AB..E...............
C 201 87-012-156-080 C-CAP,S 220P-50 CH AB..E...............
C 254 87-010-194-080 CAP, CHIP 0.047 AB..E...............
C 256 87-015-699-040 CAP,E 10-50 7L AB..E...............
C 259 87-015-699-040 CAP,E 10-50 7L AB..E...............
C 251 87-015-699-040 CAP,E 10-50 7L AB..E...............
C 255 87-A10-586-040 CAP,E 47-35 7L SR AB..................
C 255 87-A10-797-040 CAP,E 47-35 M 5L SRM ....E...............
C 302 87-010-182-080 C-CAP,S 2200P-50 B AB..E...............
C 301 87-010-182-080 C-CAP,S 2200P-50 B AB..E...............
C 314 87-010-194-080 CAP, CHIP 0.047 AB..E...............
C 311 87-010-194-080 CAP, CHIP 0.047 AB..E...............
C 312 87-010-405-040 CAP,E 10-50 AB..E...............
C 324 87-010-194-080 CAP, CHIP 0.047 AB..E...............
C 323 87-010-248-040 CAP,E 220-10 SME AB..................
C 325 87-010-263-040 CAP,E 100-10 AB..E...............
C 322 87-015-694-040 E/CAP 0.47-50 AB..E...............
C 323 87-016-459-040 CAP,E 470-10 SMG ....E...............
C 332 87-010-178-080 CHIP CAP 1000P ....................
C 332 87-010-198-080 CAP, CHIP 0.022 AB..E...............
C 334 87-010-312-080 C-CAP,S 15P-50 CH AB..E...............
C 335 87-012-140-080 CAP 470P AB..E...............
C 333 87-012-140-080 CAP 470P AB..E...............
C 338 87-012-155-080 C-CAP 180P-50CH AB..E...............
C 339 87-012-156-080 C-CAP,S 220P-50 CH AB..E...............
C 341 87-010-194-080 CAP, CHIP 0.047 AB..E...............
C 340 87-010-197-080 CAP, CHIP 0.01 DM AB..E...............
C 351 87-010-382-040 CAP,E 22-25 SME AB..E...............
C 401 87-010-197-080 CAP, CHIP 0.01 DM AB..E...............
C 457 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..E...............
C 455 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..E...............
ELECTRICALPARTSLIST-2/7
C 456 87-012-158-080 C-CAP,S 390P-50 CH AB..E...............
C 601 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..E...............
C 603 87-010-322-080 C-CAP,S 100P-50 CH AB..E...............
C 602 87-010-322-080 C-CAP,S 100P-50 CH AB..E...............
C 604 87-010-322-080 C-CAP,S 100P-50 CH AB..E...............
C 701 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..E...............
CON 102 87-099-015-010 CONN,13P 6216V AB..E...............
CON 101 87-099-720-010 CONN,30P TYK-B(P) AB..................
CON 101 88-NF9-658-010 CONN,30P BLK TYK-B(P) ....E...............
CON 301 87-099-013-010 CONN,11P 6216 V A...E...............
CON 301 87-099-017-010 CONN, 15P 6216 V .B..................
D 204 87-020-465-080 DIODE,1SS133 (110MA) AB..E...............
D 311 87-A40-509-080 ZENER,MTZJ6.8C AB..E...............
D 452 87-017-932-080 ZENER,MTJ6.2B AB..E...............
EMI 201 87-008-372-080 FILTER, EMI BL OIRNI AB..E...............
EMI 202 87-A50-322-080 C-COIL,S BK2125 LM252 AB..E...............
FL 401 8Z-NF8-616-010 FL,SVA-11MM22 ....E...............
FL 401 8Z-NH8-603-010 FL,BJ674GNK AB..................
IC 201 8Z-NF8-602-010 C-IC,UPD780228GF-031-3BA AB..................
IC 201 8Z-NF8-675-010 C-IC,UPD780228GF-037-3BA ....E...............
IC 251 87-A20-914-010 IC,SPS-442-1-F AB..................
IC 251 87-A20-951-010 IC,TSOP1838RF1 ....E...............
IC 451 87-A21-023-040 C-IC,BA3835F AB..E...............
IC 601 87-A21-021-040 C-IC,BU2099FV AB..E...............
L 331 87-A50-434-010 COIL,CLK 4.19M(TOKO) AB..E...............
LED 311 87-A40-317-080 LED,SLR-342VCT31 RED AB..E...............
LED 611 87-A40-619-080 LED,SLR-56PT-TE7-W GRN AB..E...............
LED 633 87-A40-619-040 LED,SLR-56PT-T31-W GRN AB..E...............
LED 634 87-A40-619-040 LED,SLR-56PT-T31-W GRN AB..E...............
Q 207 87-A30-087-080 C-FET,2SK2158 AB..E...............
Q 251 87-A30-074-080 C-TR,RT1P 141C AB..E...............
Q 302 87-A30-067-080 C-TR,2SA 1298Y ....E...............
Q 301 87-A30-067-080 C-TR,2SA 1298Y ....E...............
Q 301 87-A30-159-080 C-TR,KTA1298Y AB..................
Q 302 87-A30-159-080 C-TR,KTA1298Y AB..................
Q 303 87-A30-240-080 TR,CSA1585BC AB..E...............
Q 311 87-026-610-080 TR,KTC3198GR AB..E...............
Q 312 87-A30-087-080 C-FET,2SK2158 AB..E...............
Q 322 87-A30-073-080 C-TR,RT1N 141C AB..E...............
Q 323 87-A30-087-080 C-FET,2SK2158 AB..E...............
S 434 87-A91-024-080 SW,TACT KSH0611BT AB..E...............
SW 252 87-A90-535-010 SW,RTRY EC16B24304 AB..E...............
SW 253 87-A90-950-010 SW,RTRY EC12E12504 ENCORDER AB..E...............
C 309 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 302 87-010-318-080 C-CAP,S 47P-50 CH ABCDE...............
C 301 87-010-318-080 C-CAP,S 47P-50 CH ABCDE...............
C 306 87-012-145-080 CAP, CHIP S 270P CH ABCDE...............
C 305 87-012-145-080 CAP, CHIP S 270P CH ABCDE...............
C 304 87-012-157-080 C-CAP,S 330P-50 CH ABCDE...............
C 303 87-012-157-080 C-CAP,S 330P-50 CH ABCDE...............
C 314 87-010-178-080 CHIP CAP 1000P .B..................
C 315 87-010-178-080 CHIP CAP 1000P .B..................
C 316 87-010-178-080 CHIP CAP 1000P .B..................
C 313 87-010-178-080 CHIP CAP 1000P .B..................
C 314 87-010-180-080 C-CER 1500P A.CDE...............
C 313 87-010-180-080 C-CER 1500P A.CDE...............
C 315 87-010-182-080 C-CAP,S 2200P-50 B A.CDE...............
C 316 87-010-182-080 C-CAP,S 2200P-50 B A.CDE...............
C 310 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 311 87-010-198-080 CAP, CHIP 0.022 ABCDE...............
C 312 87-010-198-080 CAP, CHIP 0.022 ABCDE...............
C 324 87-010-260-080 CAP, ELECT 47-25V ABCDE...............
C 325 87-010-370-080 CAP,E 330-6.3 SME ABCDE...............
C 327 87-010-404-080 CAP, ELECT 4.7-50V ABCDE...............
C 328 87-010-404-080 CAP, ELECT 4.7-50V ABCDE...............
C 322 87-016-492-080 C-CAP,S 0.33-16 FZ ABCDE...............
C 321 87-016-492-080 C-CAP,S 0.33-16 FZ ABCDE...............
C 335 87-010-401-080 CAP, ELECT 1-50V ABCDE...............
C 336 87-010-401-080 CAP, ELECT 1-50V ABCDE...............
C 354 87-010-175-080 CAP 560P ABCDE...............
C 359 87-010-183-080 C-CAP,S 2700P-50 B ABCDE...............
C 358 87-010-183-080 C-CAP,S 2700P-50 B ABCDE...............
C 357 87-010-197-080 CAP, CHIP 0.01 DM ABCDE...............
C 356 87-010-260-080 CAP, ELECT 47-25V ABCDE...............
C 351 87-012-140-080 CAP 470P ABCDE...............
C 352 87-012-140-080 CAP 470P ABCDE...............
C 355 87-012-349-080 C-CAP,S 1000P-50 CH ABCDE...............
C 360 87-010-183-080 C-CAP,S 2700P-50 B ABCDE...............
C 363 87-A10-772-080 CAP,M 5600P-50 J ABCDE...............
C 379 87-010-382-080 CAP, ELECT 22-25V ABCDE...............
C 374 87-016-083-080 C-CAP,S 0.15-16 RK ABCDE...............
C 373 87-016-083-080 C-CAP,S 0.15-16 RK ABCDE...............
C 380 87-010-382-080 CAP, ELECT 22-25V ABCDE...............
C 388 87-012-156-080 C-CAP,S 220P-50 CH ABCDE...............
C 392 87-010-319-080 C-CAP,S 56P-50 CH ABCDE...............
C 393 87-010-319-080 C-CAP,S 56P-50 CH ABCDE...............
C 391 87-010-319-080 C-CAP,S 56P-50 CH ABCDE...............
C 394 87-010-319-080 C-CAP,S 56P-50 CH ABCDE...............
CN 301 87-099-827-010 CONN,3P S2M-3W ABCDE...............
CN 351 87-099-832-010 CONN,8P S2M-8W ABCDE...............
D 352 87-A40-269-080 C-DIODE,MC2836 ABCDE...............
IC 303 87-A20-783-040 C-IC,BA7762AFS ABCDE...............
ELECTRICALPARTSLIST-3/7
L 302 87-A50-049-010 COIL,TRAP 85K(COI) ABCDE...............
L 301 87-A50-049-010 COIL,TRAP 85K(COI) ABCDE...............
L 351 87-007-342-010 COIL,OSC 85K BIAS ABCDE...............
Q 358 87-026-610-080 TR,KTC3198GR ABCDE...............
Q 357 87-026-610-080 TR,KTC3198GR ABCDE...............
Q 359 87-026-610-080 TR,KTC3198GR ABCDE...............
Q 353 87-A30-087-080 C-FET,2SK2158 ABCDE...............
Q 354 87-A30-087-080 C-FET,2SK2158 ABCDE...............
Q 351 87-A30-087-080 C-FET,2SK2158 ABCDE...............
Q 355 87-A30-105-080 C-TR,RT1P 441C ABCDE...............
SFR 351 87-A90-433-080 SFR,50K H NVZ6TLTA ABCDE...............
SFR 352 87-A90-433-080 SFR,50K H NVZ6TLTA ABCDE...............
C 458 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 457 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 452 87-010-401-080 CAP, ELECT 1-50V ABCDE...............
C 451 87-010-401-080 CAP, ELECT 1-50V ABCDE...............
C 459 87-A11-004-080 CAP,M 0.022-50 J DE A...................
C 467 87-010-805-080 CAP, S 1-16 ABCDE...............
C 465 87-A11-004-080 CAP,M 0.022-50 J DE A...................
C 460 87-A11-004-080 CAP,M 0.022-50 J DE A...................
C 466 87-A11-004-080 CAP,M 0.022-50 J DE A...................
IC 451 87-A21-031-040 C-IC,BU4551BF A...................
C 9 87-010-917-090 CAP,E 3300-50 M SMG ABCDE...............
C 6 87-012-368-080 C-CAP,S 0.1-50 F ABCDE...............
C 4 87-012-368-080 C-CAP,S 0.1-50 F ABCDE...............
C 5 87-012-368-080 C-CAP,S 0.1-50 F ABCDE...............
C 3 87-012-368-080 C-CAP,S 0.1-50 F ABCDE...............
C 2 87-012-369-080 C-CAP,S 0.047-50F ABCDE...............
C 1 87-012-369-080 C-CAP,S 0.047-50F ABCDE...............
C 10 87-010-917-090 CAP,E 3300-50 M SMG ABCDE...............
C 29 87-010-247-080 CAP, ELECT 100-50V ABCDE...............
C 28 87-010-263-080 CAP, ELECT 100-10V ABCDE...............
C 22 87-010-385-080 CAP, ELECT 220-25V AB..................
C 21 87-010-385-080 CAP, ELECT 220-25V AB..................
C 21 87-010-408-080 CAP, ELECT 47-50V ..CDE...............
C 24 87-010-408-080 CAP, ELECT 47-50V ..CDE...............
C 22 87-010-408-080 CAP, ELECT 47-50V ..CDE...............
C 23 87-010-408-080 CAP, ELECT 47-50V ..CDE...............
C 25 87-010-430-080 CAP, ELECT 100-63 ABCDE...............
C 27 87-012-140-080 CAP 470P ABCDE...............
C 30 87-010-112-080 CAP, ELECT 100-16V ABCDE...............
C 31 87-010-235-080 CAP,E 470-16 SME ABCDE...............
C 33 87-010-405-080 CAP, ELECT 10-50V ABCDE...............
C 34 87-010-405-080 CAP, ELECT 10-50V ABCDE...............
C 61 87-010-260-080 CAP, ELECT 47-25V ABCDE...............
C 62 87-010-403-080 CAP, ELECT 3.3-50V ABCDE...............
C 92 87-010-248-080 CAP, ELECT 220-10V A...................
C 93 87-010-380-080 CAP, ELECT 47-16V ABCDE...............
C 91 87-010-401-080 CAP, ELECT 1-50V ABCDE...............
CN 1 87-A60-739-010 CONN,13P JL-BT A...................
CN 92 87-A60-109-010 CONN,2P V S2M-2W ABCDE...............
CNA 1 8Z-NF8-669-010 CONN ASSY,9P VH ABCDE...............
D 1 87-017-654-060 DIODE,GBU6J AB..................
D 9 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 8 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 5 87-070-274-080 DIODE,1N4003 SEM ABCDE...............
D 4 87-070-274-080 DIODE,1N4003 SEM ABCDE...............
D 3 87-070-274-080 DIODE,1N4003 SEM ABCDE...............
D 6 87-070-274-080 DIODE,1N4003 SEM ABCDE...............
D 7 87-A40-383-080 ZENER,MTZJ30A ABCDE...............
D 1 87-A40-547-090 DIODE,D5SBA20 ..CDE...............
D 10 87-A40-345-080 ZENER,MTZJ10C ABCDE...............
D 64 87-070-274-080 DIODE,1N4003 SEM ABCDE...............
D 62 87-A40-269-080 C-DIODE,MC2836 ABCDE...............
D 61 87-A40-270-080 C-DIODE,MC2838 ABCDE...............
D 91 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
D 92 87-020-465-080 DIODE,1SS133 (110MA) ABCDE...............
JW 16 87-008-372-080 FILTER, EMI BL OIRNI .BCDE...............
Q 2 87-026-609-080 TR,KTA1266GR ABCDE...............
Q 1 87-026-609-080 TR,KTA1266GR ABCDE...............
Q 5 87-026-610-080 TR,KTC3198GR ABCDE...............
Q 9 87-A30-196-080 TR,2SC4115SRS ABCDE...............
Q 3 89-213-702-010 TR,2SB1370 (1.8W) .BCDE...............
Q 64 87-A30-075-080 C-TR,2SA1235F ABCDE...............
Q 66 87-A30-075-080 C-TR,2SA1235F ABCDE...............
Q 81 87-A30-074-080 C-TR,RT1P 141C .BCDE...............
Q 82 87-A30-107-080 C-TR,CMBT5401 ....................
Q 91 87-A30-076-080 C-TR,2SC3052F ABCDE...............
Q 92 87-A30-240-080 TR,CSA1585BC ....................
R 20 87-A00-261-080 RES,M/F 0.56-1W J A...................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ABCDE...............
87-067-703-010 TAPPING SCREW, BVT2+3-10 .BCDE...............
C 102 87-010-178-080 CHIP CAP 1000P ABCDE...............
C 101 87-010-178-080 CHIP CAP 1000P ABCDE...............
C 102 87-010-182-080 C-CAP,S 2200P-50 B .BCDE...............
C 101 87-010-182-080 C-CAP,S 2200P-50 B .BCDE...............
C 105 87-010-186-080 CAP,CHIP 4700P .BCDE...............
C 106 87-010-186-080 CAP,CHIP 4700P .BCDE...............
C 109 87-010-322-080 C-CAP,S 100P-50 CH .BCDE...............
C 107 87-010-404-080 CAP, ELECT 4.7-50V .BCDE...............
C 108 87-010-404-080 CAP, ELECT 4.7-50V .BCDE...............
C 112 87-010-260-080 CAP, ELECT 47-25V .BCDE...............
ELECTRICALPARTSLIST-4/7
C 111 87-010-260-080 CAP, ELECT 47-25V .BCDE...............
C 110 87-010-322-080 C-CAP,S 100P-50 CH .BCDE...............
C 117 87-016-247-080 C-CAP,0.1-50 F .BCDE...............
C 118 87-016-247-080 C-CAP,0.1-50 F .BCDE...............
C 113 87-A10-812-080 C-CAP,S 220P-200 J CH .BCDE...............
C 114 87-A10-812-080 C-CAP,S 220P-200 J CH .BCDE...............
C 123 87-010-176-080 C-CAP,S 680P-50 SL ABCDE...............
C 124 87-010-176-080 C-CAP,S 680P-50 SL ABCDE...............
C 129 87-010-191-080 C-CAP,S 0.015-50 F ABCDE...............
C 130 87-010-191-080 C-CAP,S 0.015-50 F ABCDE...............
C 133 87-010-197-080 CAP, CHIP 0.01 DM ABCDE...............
C 134 87-010-382-080 CAP, ELECT 22-25V ..CDE...............
C 136 87-012-368-080 C-CAP,S 0.1-50 F ABCDE...............
D 109 87-020-465-080 DIODE,1SS133 (110MA) .BCDE...............
D 108 87-A40-488-080 DIODE,1SS244 .BCDE...............
D 107 87-A40-488-080 DIODE,1SS244 .BCDE...............
D 110 87-020-465-080 DIODE,1SS133 (110MA) .BCDE...............
D 111 87-A40-270-080 C-DIODE,MC2838 .BCDE...............
J 203 87-A60-238-010 TERMINAL,SP 4P (MSC) ABCDE...............
J 201 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM ABCDE...............
L 102 87-003-383-010 COIL,1UH-S ABCDE...............
L 101 87-003-383-010 COIL,1UH-S ABCDE...............
Q 103 87-A30-075-080 C-TR,2SA1235F ABCDE...............
Q 105 87-A30-075-080 C-TR,2SA1235F ABCDE...............
Q 106 87-A30-075-080 C-TR,2SA1235F ABCDE...............
Q 104 87-A30-075-080 C-TR,2SA1235F ABCDE...............
Q 108 87-A30-076-080 C-TR,2SC3052F .BCDE...............
Q 109 87-A30-076-080 C-TR,2SC3052F .BCDE...............
Q 107 87-A30-076-080 C-TR,2SC3052F .BCDE...............
Q 101 87-A30-257-080 C-TR,2SD1306E ABCDE...............
Q 102 87-A30-257-080 C-TR,2SD1306E ABCDE...............
Q 110 87-A30-076-080 C-TR,2SC3052F .BCDE...............
Q 116 87-A30-097-010 TR,FN 1016 .BCDE...............
Q 115 87-A30-097-010 TR,FN 1016 .BCDE...............
Q 118 87-A30-098-010 TR,FP 1016 .BCDE...............
Q 117 87-A30-098-010 TR,FP 1016 .BCDE...............
Q 112 87-A30-190-080 TR,CC5551 .BCDE...............
Q 111 87-A30-190-080 TR,CC5551 .BCDE...............
Q 126 87-A30-075-080 C-TR,2SA1235F ABCDE...............
Q 129 87-A30-076-080 C-TR,2SC3052F .BCDE...............
Q 128 87-A30-076-080 C-TR,2SC3052F .BCDE...............
Q 124 87-A30-106-070 C-TR,CMBT5551 .BCDE...............
Q 123 87-A30-106-070 C-TR,CMBT5551 .BCDE...............
Q 130 87-A30-076-080 C-TR,2SC3052F .BCDE...............
Q 131 87-A30-076-080 C-TR,2SC3052F .BCDE...............
R 129 87-A00-257-080 RES,M/F 0.15-1W J .BCDE...............
R 130 87-A00-257-080 RES,M/F 0.15-1W J .BCDE...............
R 131 87-A00-257-080 RES,M/F 0.15-1W J .BCDE...............
R 132 87-A00-257-080 RES,M/F 0.15-1W J .BCDE...............
R 145 87-A00-439-050 RES,180-1/2W J RP A.CDE...............
R 146 87-A00-439-050 RES,180-1/2W J RP A.CDE...............
R 143 87-A00-439-050 RES,180-1/2W J RP A.CDE...............
R 144 87-A00-439-050 RES,180-1/2W J RP A.CDE...............
R 143 87-A00-440-050 RES,220-1/2W J RP .B..................
R 146 87-A00-440-050 RES,220-1/2W J RP .B..................
R 144 87-A00-440-050 RES,220-1/2W J RP .B..................
R 145 87-A00-440-050 RES,220-1/2W J RP .B..................
R 165 87-A00-257-080 RES,M/F 0.15-1W J .BCDE...............
R 166 87-A00-257-080 RES,M/F 0.15-1W J .BCDE...............
TH 101 87-A91-042-080 C-THMS,100K 55001 .BCDE...............
TH 102 87-A91-042-080 C-THMS,100K 55001 .BCDE...............
C 204 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 203 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 209 87-010-404-080 CAP, ELECT 4.7-50V .BCDE...............
C 211 87-010-182-080 C-CAP,S 2200P-50 B ..CDE...............
C 212 87-010-182-080 C-CAP,S 2200P-50 B ..CDE...............
C 217 87-010-260-080 CAP, ELECT 47-25V .BCDE...............
C 218 87-010-260-080 CAP, ELECT 47-25V .BCDE...............
C 213 87-010-404-080 CAP, ELECT 4.7-50V .BCDE...............
C 210 87-010-404-080 CAP, ELECT 4.7-50V .BCDE...............
C 214 87-010-404-080 CAP, ELECT 4.7-50V .BCDE...............
C 213 87-010-408-080 CAP, ELECT 47-50V .B..................
C 214 87-010-408-080 CAP, ELECT 47-50V .B..................
C 219 87-A10-946-080 C-CAP,S 220P-100 J CH .BCDE...............
C 227 87-010-186-080 CAP,CHIP 4700P .BCDE...............
C 228 87-010-186-080 CAP,CHIP 4700P .BCDE...............
C 225 87-010-544-080 CAP, ELECT 0.1-50V .B..................
C 226 87-010-544-080 CAP, ELECT 0.1-50V .B..................
C 225 87-012-368-080 C-CAP,S 0.1-50 F ..CDE...............
C 226 87-012-368-080 C-CAP,S 0.1-50 F ..CDE...............
C 220 87-A10-946-080 C-CAP,S 220P-100 J CH .BCDE...............
C 237 87-010-190-080 S CHIP F 0.01 ABCDE...............
C 232 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 238 87-010-322-080 C-CAP,S 100P-50 CH ABCDE...............
C 230 87-010-993-080 C-CAP,S 0.056-25 B ABCDE...............
C 252 87-010-183-080 C-CAP,S 2700P-50 B ABCDE...............
C 251 87-010-402-080 CAP, ELECT 2.2-50V ABCDE...............
C 899 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 898 87-010-993-080 C-CAP,S 0.056-25 B ABCDE...............
C 900 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
CN 201 87-A60-739-010 CONN,13P JL-BT A...................
D 208 87-A40-488-080 DIODE,1SS244 .BCDE...............
ELECTRICALPARTSLIST-5/7
D 207 87-A40-488-080 DIODE,1SS244 .BCDE...............
D 213 87-020-465-080 DIODE,1SS133 (110MA) .BCDE...............
D 211 87-A40-270-080 C-DIODE,MC2838 .BCDE...............
J 205 87-A60-751-010 JACK,PIN 2P R/W BLUE A...................
J 204 87-A60-752-010 JACK,PIN 4P R/W,O/B .BCDE...............
J 206 87-A60-872-010 JACK,PIN 3P W/R/O A...................
L 202 87-003-383-010 COIL,1UH-S ABCDE...............
L 801 87-003-383-010 COIL,1UH-S ABCDE...............
Q 206 87-A30-075-080 C-TR,2SA1235F .BCDE...............
Q 205 87-A30-075-080 C-TR,2SA1235F .BCDE...............
Q 203 87-A30-075-080 C-TR,2SA1235F .BCDE...............
Q 204 87-A30-075-080 C-TR,2SA1235F .BCDE...............
Q 209 87-A30-076-080 C-TR,2SC3052F .BCDE...............
Q 207 87-A30-076-080 C-TR,2SC3052F .BCDE...............
Q 208 87-A30-076-080 C-TR,2SC3052F .BCDE...............
Q 210 87-A30-076-080 C-TR,2SC3052F .BCDE...............
Q 219 87-A30-119-040 C-TR,2SC3906K R .BCDE...............
Q 212 87-A30-190-080 TR,CC5551 .BCDE...............
Q 211 87-A30-190-080 TR,CC5551 .BCDE...............
Q 218 87-A30-255-010 TR,2SB1342 .BCDE...............
Q 217 87-A30-255-010 TR,2SB1342 .BCDE...............
Q 216 87-A30-256-010 TR,2SD1933 .BCDE...............
Q 215 87-A30-256-010 TR,2SD1933 .BCDE...............
Q 225 87-A30-076-080 C-TR,2SC3052F .BCDE...............
Q 226 87-A30-076-080 C-TR,2SC3052F .BCDE...............
Q 224 87-A30-076-080 C-TR,2SC3052F .BCDE...............
Q 227 87-A30-076-080 C-TR,2SC3052F .BCDE...............
Q 223 87-A30-105-080 C-TR,RT1P 441C ABCDE...............
Q 220 87-A30-119-040 C-TR,2SC3906K R .BCDE...............
Q 230 87-A30-257-080 C-TR,2SD1306E ABCDE...............
R 234 87-A00-258-080 RES,M/F 0.22-1W J .BCDE...............
R 231 87-A00-258-080 RES,M/F 0.22-1W J .BCDE...............
R 232 87-A00-258-080 RES,M/F 0.22-1W J .BCDE...............
R 233 87-A00-258-080 RES,M/F 0.22-1W J .BCDE...............
R 266 87-A00-258-080 RES,M/F 0.22-1W J .BCDE...............
R 265 87-A00-258-080 RES,M/F 0.22-1W J .BCDE...............
TH 201 87-A91-042-080 C-THMS,100K 55001 ....................
TH 202 87-A91-042-080 C-THMS,100K 55001 ....................
C 802 87-010-176-080 C-CAP,S 680P-50 SL ABCDE...............
C 801 87-010-176-080 C-CAP,S 680P-50 SL ABCDE...............
C 808 87-010-401-080 CAP, ELECT 1-50V ABCDE...............
C 807 87-010-401-080 CAP, ELECT 1-50V ABCDE...............
C 805 87-010-958-080 CHIP -CAP,S 0.01-25BJ ABCDE...............
C 803 87-010-958-080 CHIP -CAP,S 0.01-25BJ ABCDE...............
C 804 87-010-958-080 CHIP -CAP,S 0.01-25BJ ABCDE...............
C 806 87-010-958-080 CHIP -CAP,S 0.01-25BJ ABCDE...............
C 810 87-010-112-080 CAP, ELECT 100-16V ABCDE...............
C 817 87-010-221-080 CAP, ELECT 470-10V ABCDE...............
C 813 87-010-400-080 CAP, ELECT 0.47-50V ABCDE...............
C 812 87-010-493-080 CAP,E 0.47-50 GAS ABCDE...............
C 811 87-010-493-080 CAP,E 0.47-50 GAS ABCDE...............
C 814 87-010-494-080 CAP ELECT GAS 1/50 ABCDE...............
C 819 87-A10-800-080 C-CAP,S 6800P-16 J B CM ABCDE...............
C 818 87-A10-891-080 CAP,E 4.7-25 SME(K) ABCDE...............
C 824 87-010-374-080 CAP, ELECT 47-10V ABCDE...............
C 820 87-010-374-080 CAP, ELECT 47-10V ABCDE...............
C 829 87-010-545-080 CAP, ELECT 0.22-50V ABCDE...............
C 822 87-A10-804-080 C-CAP,S 0.1-25 J B ABCDE...............
C 839 87-010-805-080 CAP, S 1-16 ABCDE...............
C 831 87-010-971-080 C-CAP,S 4700P-50 B J ABCDE...............
C 837 87-010-971-080 C-CAP,S 4700P-50 B J ABCDE...............
C 830 87-012-142-080 CAP, S 0.33-16 ABCDE...............
C 838 87-012-349-080 C-CAP,S 1000P-50 CH ABCDE...............
C 832 87-012-349-080 C-CAP,S 1000P-50 CH ABCDE...............
C 835 87-A11-182-080 C-CAP,S 0.27-16 J B ABCDE...............
C 834 87-A11-182-080 C-CAP,S 0.27-16 J B ABCDE...............
C 836 87-A11-183-080 C-CAP,S 0.12-16 J B ABCDE...............
C 833 87-A11-183-080 C-CAP,S 0.12-16 J B ABCDE...............
C 840 87-010-401-080 CAP, ELECT 1-50V ABCDE...............
C 846 87-010-404-080 CAP, ELECT 4.7-50V ABCDE...............
C 847 87-010-404-080 CAP, ELECT 4.7-50V ABCDE...............
C 848 87-012-393-080 C-CAP,S 0.22-16 R K ABCDE...............
C 849 87-012-393-080 C-CAP,S 0.22-16 R K ABCDE...............
C 845 87-012-393-080 C-CAP,S 0.22-16 R K ABCDE...............
C 844 87-012-393-080 C-CAP,S 0.22-16 R K ABCDE...............
C 843 87-A10-229-080 C-CAP,S 0.68-10 K W5 ABCDE...............
C 841 87-A10-799-080 C-CAP,S 5600P-16 J B CM ABCDE...............
C 842 87-A10-802-080 C-CAP,S 0.047-16 J B CM ABCDE...............
C 850 87-016-081-080 C-CAP,S 0.1-16 RK ABCDE...............
C 857 87-016-081-080 C-CAP,S 0.1-16 RK ABCDE...............
C 853 87-016-081-080 C-CAP,S 0.1-16 RK ABCDE...............
C 854 87-016-081-080 C-CAP,S 0.1-16 RK ABCDE...............
C 856 87-A10-801-080 C-CAP,S 0.022-16 J B CM ABCDE...............
C 855 87-A10-801-080 C-CAP,S 0.022-16 J B CM ABCDE...............
C 851 87-A10-802-080 C-CAP,S 0.047-16 J B CM ABCDE...............
C 852 87-A10-802-080 C-CAP,S 0.047-16 J B CM ABCDE...............
C 899 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 890 87-010-993-080 C-CAP,S 0.056-25 B .BCDE...............
D 802 87-070-136-080 ZENER,MTZJ5.1B ABCDE...............
D 801 87-A40-442-080 ZENER,MTZJ9.1A ABCDE...............
IC 801 87-A20-853-010 C-IC,M62463FP ABCDE...............
L 801 87-003-383-010 COIL,1UH-S .BCDE...............
ELECTRICALPARTSLIST-6/7
R 807 87-022-214-080 C-RES S100K-1/10WF ABCDE...............
C 602 87-010-180-080 C-CER 1500P ABCDE...............
C 601 87-010-180-080 C-CER 1500P ABCDE...............
C 606 87-010-318-080 C-CAP,S 47P-50 CH ABCDE...............
C 605 87-010-318-080 C-CAP,S 47P-50 CH ABCDE...............
C 619 87-010-185-080 C-CAP,S 3900P-50 B ABCDE...............
C 613 87-016-081-080 C-CAP,S 0.1-16 RK ABCDE...............
C 614 87-016-081-080 C-CAP,S 0.1-16 RK ABCDE...............
C 617 87-A11-008-080 CAP,M 0.056-50 J DE ABCDE...............
C 618 87-A11-008-080 CAP,M 0.056-50 J DE ABCDE...............
C 615 87-A11-011-080 CAP,M 0.12-50 J DE ABCDE...............
C 616 87-A11-011-080 CAP,M 0.12-50 J DE ABCDE...............
C 620 87-010-185-080 C-CAP,S 3900P-50 B ABCDE...............
C 627 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 621 87-010-401-080 CAP, ELECT 1-50V ABCDE...............
C 622 87-010-401-080 CAP, ELECT 1-50V ABCDE...............
C 629 87-010-405-080 CAP, ELECT 10-50V ABCDE...............
C 623 87-A10-773-080 CAP,M 0.10-50 J ABCDE...............
C 624 87-A10-773-080 CAP,M 0.10-50 J ABCDE...............
C 637 87-010-183-080 C-CAP,S 2700P-50 B ABCDE...............
C 636 87-010-194-080 CAP, CHIP 0.047 ABCDE...............
C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 635 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 630 87-010-213-080 C-CAP,S 0.015-50 B ABCDE...............
C 633 87-010-263-080 CAP, ELECT 100-10V ABCDE...............
C 632 87-010-263-080 CAP, ELECT 100-10V ABCDE...............
C 638 87-010-314-080 C-CAP,S 22P-50V ABCDE...............
C 639 87-010-314-080 C-CAP,S 22P-50V ABCDE...............
C 631 87-010-992-080 C-CAP,S 0.047-25 B ABCDE...............
C 641 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 678 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 677 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 680 87-A11-144-080 CAP,TC U 0.1-50 K B ..CDE...............
CN 604 87-099-570-010 CONN,13P TUC-P13P-B1 AB..................
CN 601 87-099-719-010 CONN,30P TYK-B(X) AB..................
CN 602 87-A60-131-010 CONN,6P V FE ABCDE...............
CN 605 87-A60-189-010 CONN,16P V TUC-P16P-B1 ...DE...............
CN 601 88-NF9-657-010 CONN,30P H BLK TYK-B(X) ..CDE...............
D 601 87-A40-002-080 ZENER,MTZJ5.1C ABCDE...............
D 603 87-A40-234-080 ZENER,MTZJ5.6A ..CDE...............
D 602 87-A40-438-080 ZENER,MTZJ4.7A ABCDE...............
IC 601 87-A21-011-040 C-IC,M62445FP-600D ABCDE...............
J 602 87-A60-398-010 JACK,PIN 2P R/W HSP-242V24 ABCDE...............
JW 604 87-020-465-080 DIODE,1SS133 (110MA) A...................
Q 601 87-026-609-080 TR,KTA1266GR ABCDE...............
Q 604 87-A30-142-040 C-TR,DTA123EKA ..CDE...............
Q 601 89-212-370-080 TR,2SB1237 TV2 ....................
C 735 87-010-178-080 CHIP CAP 1000P ..CDE...............
C 736 87-010-193-080 CHIP CAPACITOR,0.033 AB..................
C 733 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 732 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 731 87-010-560-080 CAP,E 10-50 GAS ABCDE...............
C 734 87-012-157-080 C-CAP,S 330P-50 CH ABCDE...............
C 835 87-A11-182-080 C-CAP,S 0.27-16 J B A...................
C 834 87-A11-182-080 C-CAP,S 0.27-16 J B A...................
C 836 87-A11-183-080 C-CAP,S 0.12-16 J B A...................
C 833 87-A11-183-080 C-CAP,S 0.12-16 J B A...................
JR 703 87-012-368-080 C-CAP,S 0.1-50 F ..CDE...............
Q 732 87-A30-075-080 C-TR,2SA1235F ABCDE...............
Q 731 87-A30-076-080 C-TR,2SC3052F ABCDE...............
C 900 87-010-196-080 CHIP CAPACITOR,0.1-25 .BCDE...............
C 101 87-010-405-080 CAP, ELECT 10-50V A...................
C 102 87-010-405-080 CAP, ELECT 10-50V A...................
C 199 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 203 87-010-405-080 CAP, ELECT 10-50V A...................
C 204 87-010-405-080 CAP, ELECT 10-50V A...................
C 208 87-010-408-080 CAP, ELECT 47-50V A...................
C 207 87-010-408-080 CAP, ELECT 47-50V A...................
C 211 87-010-260-080 CAP, ELECT 47-25V A...................
C 212 87-010-260-080 CAP, ELECT 47-25V A...................
C 219 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 219 87-016-247-080 C-CAP,0.1-50 F A...................
C 214 87-A10-812-080 C-CAP,S 220P-200 J CH A...................
C 213 87-A10-812-080 C-CAP,S 220P-200 J CH A...................
C 214 87-A10-946-080 C-CAP,S 220P-100 J CH A...................
C 213 87-A10-946-080 C-CAP,S 220P-100 J CH A...................
C 221 87-010-178-080 CHIP CAP 1000P A...................
C 222 87-010-178-080 CHIP CAP 1000P A...................
C 220 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 220 87-016-247-080 C-CAP,0.1-50 F A...................
C 306 87-010-181-080 CAP,CHIP S 1800P ....................
C 305 87-010-181-080 CAP,CHIP S 1800P ....................
C 309 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 308 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 307 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 303 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 304 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 314 87-010-260-080 CAP, ELECT 47-25V A...................
C 313 87-010-260-080 CAP, ELECT 47-25V A...................
C 310 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 312 87-A10-946-080 C-CAP,S 220P-100 J CH A...................
C 311 87-A10-946-080 C-CAP,S 220P-100 J CH A...................
ELECTRICALPARTSLIST-7/7
C 322 87-010-186-080 CAP,CHIP 4700P A...................
C 321 87-010-186-080 CAP,CHIP 4700P A...................
C 407 87-010-186-080 CAP,CHIP 4700P A...................
C 404 87-010-260-080 CAP, ELECT 47-25V A...................
C 401 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 403 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 400 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 408 87-010-544-080 CAP, ELECT 0.1-50V A...................
C 405 87-A10-946-080 C-CAP,S 220P-100 J CH A...................
C 501 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 509 87-010-186-080 CAP,CHIP 4700P A...................
C 506 87-010-260-080 CAP, ELECT 47-25V A...................
C 503 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 505 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 502 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 507 87-A10-946-080 C-CAP,S 220P-100 J CH A...................
C 510 87-010-544-080 CAP, ELECT 0.1-50V A...................
C 603 87-010-190-080 S CHIP F 0.01 A...................
C 601 87-010-993-080 C-CAP,S 0.056-25 B A...................
CN 101 87-A60-727-010 CONN,13P JL-R A...................
CN 102 87-A60-727-010 CONN,13P JL-R A...................
CN 502 87-099-043-010 CONN 2P EH A...................
CN 501 87-099-043-010 CONN 2P EH A...................
D 197 87-A40-270-080 C-DIODE,MC2838 A...................
D 208 87-A40-488-080 DIODE,1SS244 A...................
D 207 87-A40-488-080 DIODE,1SS244 A...................
D 212 87-A40-270-080 C-DIODE,MC2838 A...................
D 302 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 306 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 305 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 301 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 309 87-A40-488-080 DIODE,1SS244 A...................
D 312 87-A40-270-080 C-DIODE,MC2838 A...................
D 310 87-A40-488-080 DIODE,1SS244 A...................
D 401 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 402 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 404 87-A40-488-080 DIODE,1SS244 A...................
D 412 87-A40-270-080 C-DIODE,MC2838 A...................
D 501 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 502 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 504 87-A40-488-080 DIODE,1SS244 A...................
L 601 87-003-383-010 COIL,1UH-S A...................
Q 101 89-213-702-010 TR,2SB1370 (1.8W) A...................
Q 102 89-213-702-010 TR,2SB1370 (1.8W) A...................
Q 209 87-A30-190-080 TR,CC5551 A...................
Q 210 87-A30-190-080 TR,CC5551 A...................
Q 216 87-A30-214-010 TR,2SB1344 A...................
Q 215 87-A30-214-010 TR,2SB1344 A...................
Q 218 87-A30-215-010 TR,2SD2025 A...................
Q 217 87-A30-215-010 TR,2SD2025 A...................
Q 222 87-A30-106-070 C-TR,CMBT5551 A...................
Q 221 87-A30-106-070 C-TR,CMBT5551 A...................
Q 317 87-A30-106-070 C-TR,CMBT5551 A...................
Q 318 87-A30-106-070 C-TR,CMBT5551 A...................
Q 311 87-A30-190-080 TR,CC5551 A...................
Q 312 87-A30-190-080 TR,CC5551 A...................
Q 314 87-A30-255-010 TR,2SB1342 A...................
Q 313 87-A30-255-010 TR,2SB1342 A...................
Q 315 87-A30-256-010 TR,2SD1933 A...................
Q 316 87-A30-256-010 TR,2SD1933 A...................
Q 403 87-A30-075-080 C-TR,2SA1235F A...................
Q 407 87-A30-190-080 TR,CC5551 A...................
Q 409 87-A30-255-010 TR,2SB1342 A...................
Q 408 87-A30-256-010 TR,2SD1933 A...................
Q 410 87-A30-119-040 C-TR,2SC3906K R A...................
Q 504 87-A30-075-080 C-TR,2SA1235F A...................
Q 502 87-A30-075-080 C-TR,2SA1235F A...................
Q 506 87-A30-076-080 C-TR,2SC3052F A...................
Q 503 87-A30-076-080 C-TR,2SC3052F A...................
Q 507 87-A30-076-080 C-TR,2SC3052F A...................
Q 505 87-A30-076-080 C-TR,2SC3052F A...................
Q 508 87-A30-190-080 TR,CC5551 A...................
Q 509 87-A30-256-010 TR,2SD1933 A...................
Q 501 87-A30-257-080 C-TR,2SD1306E A...................
Q 511 87-A30-119-040 C-TR,2SC3906K R A...................
Q 510 87-A30-255-010 TR,2SB1342 A...................
R 225 87-A00-257-080 RES,M/F 0.15-1W J A...................
R 227 87-A00-257-080 RES,M/F 0.15-1W J A...................
R 228 87-A00-257-080 RES,M/F 0.15-1W J A...................
R 226 87-A00-257-080 RES,M/F 0.15-1W J A...................
R 239 87-A00-257-080 RES,M/F 0.15-1W J A...................
R 242 87-A00-257-080 RES,M/F 0.15-1W J A...................
R 521 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 520 87-A00-258-080 RES,M/F 0.22-1W J A...................
ELECTRICAL MAIN PARTS LIST - 1/3 (TUNER: ZZA-1)
NOTE: The characters in the suffix column indicate the part usage.
ZRDS ...................XX.......................................F..............
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 701 87-010-381-080 0E CAP, ELECT 330-16V ABCDEFGH............
C 702 87-010-404-080 0E CAP, ELECT 4.7-50V ABCDEFGH............
C 711 87-010-260-080 0E CAP, ELECT 47-25V ABCD.FGH............
C 711 87-010-553-080 0E CAP,E 47-16 ....E...............
C 712 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGH............
C 718 87-012-179-080 0E C-CAP,U 20P-50 CH .BCD................
C 727 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............
C 728 87-010-248-080 0E CAP, ELECT 220-10V ABCDEFGH............
C 721 87-012-176-080 0E CAP 15P ABCDEFGH............
C 722 87-012-176-080 0E CAP 15P ABCDEFGH............
C 720 87-012-195-080 0E C-CAP,U 100P-50CH ABCDEFGH............
C 729 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFGH............
C 725 87-018-131-080 0E CAP, CER 1000P-50V .....FG.............
C 805 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 806 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
CN 701 87-A60-650-010 1A CONN,16P H GRY TUC-P16X-C1 .....F..............
CN 701 87-A60-700-010 0E CONN,13P H GRY TUC-P13X-C1 ABCDE.GH............
D 721 87-017-149-080 0E ZENER,HZS6A2L .BCDEFGH............
D 722 87-020-465-080 0E DIODE,1SS133 (110MA) .....FG.............
D 721 87-A40-234-080 0E ZENER,MTZJ5.6A A...................
IC 721 87-070-127-110 1C IC,LC72131 D ABCDEFGH............
Q 713 87-A30-072-080 0E C-TR,RT1P 144C ....E...............
Q 712 87-A30-072-080 0E C-TR,RT1P 144C ....E...............
Q 711 87-A30-196-080 0E TR,2SC4115SRS A...................
Q 711 87-A30-234-080 0E TR,CSC4115BC .BCDEFGH............
X 721 87-A70-061-010 1A VIB,XTAL 4.500MHZ CSA-309 ABCDEFGH............
C 872 87-010-400-080 0E CAP, ELECT 0.47-50V AB.....H............
C 873 87-010-404-080 0E CAP, ELECT 4.7-50V AB.....H............
C 877 87-012-278-080 0E C-CAP,U 2200P-50 B AB.....H............
C 878 87-012-278-080 0E C-CAP,U 2200P-50 B AB.....H............
C 889 87-010-248-080 0E CAP, ELECT 220-10V AB.....H............
C 884 87-010-260-080 0E CAP, ELECT 47-25V AB.....H............
C 883 87-010-404-080 0E CAP, ELECT 4.7-50V AB.....H............
C 885 87-010-545-080 0E CAP, ELECT 0.22-50V A......H............
C 886 87-010-545-080 0E CAP, ELECT 0.22-50V A......H............
C 888 87-010-787-080 0E CAP, U 0.022-25 AB.....H............
C 881 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F AB.....H............
C 882 87-012-172-080 0E CAPACITOR CHIP U 10P CH AB.....H............
C 887 87-012-286-080 0E CAP, U 0.01-25 AB.....H............
C 886 87-016-460-080 0E C-CAP,S 0.22-16 B .B..................
C 885 87-016-460-080 0E C-CAP,S 0.22-16 B .B..................
IC 871 87-070-060-040 1F IC,TA2040AF AB.....H............
Q 873 87-026-226-080 0E CHIP-TR,DTA143EK AB.....H............
X 891 87-030-394-010 1B VIB,CER CSA3.6MGF228 AB.....H............
C 705 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 706 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 705 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 706 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 737 87-010-180-080 0E C-CER 1500P ....................
C 734 87-010-180-080 0E C-CER 1500P ....................
C 733 87-010-180-080 0E C-CER 1500P ....................
C 738 87-010-180-080 0E C-CER 1500P ....................
C 735 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 736 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 736 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 734 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 733 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 735 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 733 87-012-280-080 0E CAP, U 3300P-50 .....FG.............
C 734 87-012-280-080 0E CAP, U 3300P-50 .....FG.............
C 737 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 738 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 752 87-010-220-080 0E C-CAP,S 0.018-25 B .B..E...............
C 751 87-010-220-080 0E C-CAP,S 0.018-25 B .B..E...............
C 758 87-012-167-080 0E C-CAP,U 5P-50 CH ABCDEFGH............
C 757 87-012-188-080 0E C-CAP,U 47P-50 CH ABCDEFGH............
C 753 87-012-195-080 0E C-CAP,U 100P-50CH .....FG.............
C 752 87-012-282-080 0E CAP, U 4700P-50 .....FG.............
C 756 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 752 87-012-365-080 0E C-CAP,S 0.027-25VBK ..CD................
C 751 87-012-365-080 0E C-CAP,S 0.027-25VBK ..CD................
C 766 87-010-197-080 0E CAP, CHIP 0.01 DM .....FG.............
C 769 87-010-260-080 0E CAP, ELECT 47-25V ABCDEFGH............
C 765 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 768 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 764 87-012-337-080 0E C-CAP,U 56P-50 CH ABCDE..H............
C 774 87-010-263-080 0E CAP, ELECT 100-10V ABCDEFGH............
C 771 87-010-383-080 0E CAP, ELECT 33-25V ABCDEFGH............
C 777 87-010-400-080 0E CAP, ELECT 0.47-50V ABCDE..H............
C 775 87-010-404-080 0E CAP, ELECT 4.7-50V ABCDEFGH............
C 777 87-010-493-040 0E CAP,E 0.47-50 GAS ....................
C 777 87-010-493-080 0E CAP,E 0.47-50 GAS .....FG.............
C 770 87-010-829-080 0E CAP, U 0.047-16 ABCDEFGH............
C 780 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............
C 785 87-010-401-080 0E CAP, ELECT 1-50V ABCDEFGH............
C 786 87-010-401-080 0E CAP, ELECT 1-50V ABCDEFGH............
ELECTRICAL MAIN PARTS LIST - 2/3 (TUNER: ZZA-1)
C 786 87-010-405-080 0E CAP, ELECT 10-50V ABCDEFGH............
C 785 87-010-405-080 0E CAP, ELECT 10-50V ABCDEFGH............
C 786 87-010-494-080 0E CAP ELECT GAS 1/50 ....E...............
C 785 87-010-494-080 0E CAP ELECT GAS 1/50 ....E...............
C 788 87-012-275-080 0E C-CAP,U 1200P-50 B ABCDEFGH............
C 787 87-012-275-080 0E C-CAP,U 1200P-50 B ABCDEFGH............
C 784 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 796 87-010-403-080 0E CAP, ELECT 3.3-50V ABCDEFGH............
C 794 87-010-406-080 0E CAP, ELECT 22-50 ABCDEFGH............
C 795 87-010-596-080 0E CAP, S 0.047-16 ..CDEFG.............
C 793 87-012-273-080 0E C-CAP,U 820P-50 B ABCDEFGH............
C 797 87-012-276-080 0E CAP, CHIP SS 1500 PBK A....FGH............
C 798 87-012-276-080 0E CAP, CHIP SS 1500 PBK A....FGH............
D 771 87-020-465-080 0E DIODE,1SS133 (110MA) ABCDEFGH............
D 773 87-A40-291-080 0E DIODE,1N4148 (CPT) ....................
IC 771 87-A20-913-010 1D IC,LA1837NL ABCDEFGH............
L 771 87-A50-266-010 1A COIL,FM DET-2N(TOK) ABCDEFGH............
L 772 87-A90-052-010 1C FLTR,CFMT-450A(TOK) ....E...............
L 772 87-A90-053-010 1C FLTR,PCFMT-060(TOK) AB.....H............
L 772 87-A90-733-010 1A FLTR,PCFAZH-450 (TOK) ....................
L 772 87-A91-110-010 1B FLTR,PCFJZH-450 (TOK) ..CD.FG.............
L 781 87-005-847-080 0E COIL,2.2UH(CECS) .....FG.............
L 791 87-A50-027-010 1A COIL,1 POLE MPX(TOK) .....FG.............
L 792 87-A50-027-010 1A COIL,1 POLE MPX(TOK) .....FG.............
X 771 87-030-354-010 1A VIB,CF BFU 450C ....E...............
C 859 87-012-286-080 0E CAP, U 0.01-25 .....F..............
C 865 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .....F..............
C 866 87-010-405-080 0E CAP, ELECT 10-50V .....F..............
C 864 87-010-405-080 0E CAP, ELECT 10-50V .....F..............
C 869 87-012-180-080 0E C-CAP,U 22P-50 CH .....F..............
C 868 87-012-184-080 0E C-CAP,U 33P-50 CH .....F..............
C 862 87-012-199-080 0E CAP 220P .....F..............
C 861 87-012-199-080 0E CAP 220P .....F..............
C 863 87-012-270-080 0E CAP, U 470P-50 .....F..............
C 867 87-012-286-080 0E CAP, U 0.01-25 .....F..............
IC 851 87-A20-440-040 1H C-IC,BU1920FS .....F..............
L 851 87-005-847-080 0E COIL,2.2UH(CECS) .....F..............
Q 853 87-A30-076-080 0E C-TR,2SC3052F .....F..............
X 851 87-A70-091-010 1B VIB,XTAL 4.332MHZ CSA-309 .....F..............
C 801 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 809 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 802 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 803 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 804 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 808 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 807 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 810 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 820 87-010-260-080 0E CAP, ELECT 47-25V ABCDEFGH............
C 893 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 894 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 942 87-012-168-080 0E C-CAP,U 6P-50 CH .....FG.............
C 942 87-012-172-080 0E CAPACITOR CHIP U 10P CH ....................
C 941 87-012-180-080 0E C-CAP,U 22P-50 CH ....E...............
C 944 87-014-049-080 0E CAP,PP 470P-100 J ....................
C 944 87-014-051-080 0E CAPACITOR (PP), 560P ....E...............
C 949 87-A10-039-080 0E C-CAP,U 470P-50 J CH .....FG.............
C 958 87-010-197-080 0E CAP, CHIP 0.01 DM .....FG.............
C 956 87-010-263-080 0E CAP, ELECT 100-10V ....E...............
C 959 87-010-831-080 0E C-CAP,U,0.1-16F ....EFG.............
C 954 87-012-358-080 0E C-CAP,S 0.47-10 F Z ....E...............
C 950 87-014-073-080 0E CAP,PP 4700P-100 J ....E...............
C 963 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............
C 962 87-010-401-080 0E CAP, ELECT 1-50V .....FG.............
C 964 87-012-170-080 0E C-CAP,U 8P-50 CH A...................
C 961 87-012-174-080 0E CAP CHIP CERA SS 12P CHJ .BCD...H............
C 960 87-012-350-080 0E C-CAP,1-25 F ....E...............
CF 802 82-785-747-010 1A CF MS2 GHY R .....FG.............
CF 802 87-008-261-010 1A FILTER, SFE10.7MA5-A ABCDE..H............
CF 801 87-008-261-010 1A FILTER, SFE10.7MA5-A ABCDE..H............
CF 801 87-008-423-010 1A CERAMIC FILTER, SFE10.7 .....FG.............
D 944 87-020-465-080 0E DIODE,1SS133 (110MA) ....EFG.............
D 942 87-A40-270-080 0E C-DIODE,MC2838 .....FG.............
D 981 87-A40-618-080 1B VARI-CAP,SVC 348(S/T) ....E...............
FFE 801 A8-6ZA-190-030 0E 6ZA-1 FEUNM ....................
FFE 801 A8-6ZA-191-130 6ZA-1 FEENM .....FG.............
FFE 801 A8-6ZA-192-030 2Y 6ZA-1 FEJNM .B..................
FFE 801 A8-6ZA-193-130 6ZA-1 FEVNM ....................
FFE 801 A8-6ZA-199-170 6ZA-1 FEENC ....................
FFE 801 A8-6ZA-19A-070 6ZA-1 FEJNC ....................
FFE 801 A8-6ZA-19D-070 1H 6ZA-1 YFEJNC A......H............
FFE 801 A8-8ZA-190-030 8ZA-1 FEUNM ..C.E...............
FFE 801 A8-8ZA-192-070 8ZA-1 FEUNC ....................
FFE 801 A8-8ZA-193-070 1E 8ZA-1 YFEUNC ...D................
J 801 87-033-241-010 1B TERMINAL,ANT AJ-2039 .....FG.............
J 801 87-A60-702-010 1B TERMINAL,ANT 4P CJ-9036 ABCD...H............
J 801 87-A60-703-010 1A TERMINAL,ANT 3P CJ-9037 ....E...............
J 940 81-754-629-010 0E CONNECTOR, 2P ....E...............
L 832 87-005-847-080 0E COIL,2.2UH(CECS) .....FG.............
L 943 87-005-372-080 0E COIL S 1MHM ....................
L 942 87-A50-019-010 0E COIL,OSC LW(COI) .....FG.............
L 941 87-A50-020-010 0E COIL,ANT LW(COI) .....FG.............
L 941 87-A50-022-010 0E COIL,ANT SW(COI) ....E...............
ELECTRICAL MAIN PARTS LIST - 3/3 (TUNER: ZZA-1)
L 944 87-A50-159-010 0E COIL,10MH K C2B ....E...............
L 942 87-A50-173-010 0E COIL,OSC SW-N(COI) ....E...............
L 943 87-A50-432-010 0E COIL,1MH K CW ....E...............
L 981 87-A50-430-010 0E COIL,ANT MW(3BSW) ....E...............
L 982 87-A50-431-010 0E COIL,OSC MW(3BSW) ....E...............
L 981 87-NF4-650-010 1D COIL,AM PACK 4N(TOK) A...................
L 981 87-NF4-651-010 1C COIL,AM PACK2N(TOM) ....................
L 981 88-NF8-625-110 1D COIL,AM PACK3N(TOK) ....................
L 981 8Z-ZA1-664-010 1D COIL,AM PACK 4(TOK) .BCD...H............
L 981 8Z-ZA1-665-010 1E COIL,AM PACK 2(TOK) .....FG.............
Q 712 87-A30-072-080 0E C-TR,RT1P 144C ABCD.FGH............
Q 805 89-327-143-080 0E TR,2SC2714 (0.1W) ABCDEFGH............
Q 942 87-A30-075-080 0E C-TR,2SA1235F ....E...............
Q 943 87-A30-075-080 0E C-TR,2SA1235F ....E...............
Q 949 87-A30-076-080 0E C-TR,2SC3052F ....E...............
Q 945 87-A30-076-080 0E C-TR,2SC3052F ....E...............
Q 944 87-A30-076-080 0E C-TR,2SC3052F ....E...............
Q 948 87-A30-086-070 0E C-TR,CSD1306E ....EFG.............
Q 947 89-503-602-080 1A C-FET,2SK360E ....E...............
Q 947 89-505-434-540 0E C-FET,2SK543(4/5) .....FG.............
Q 951 87-A30-074-080 0E C-TR,RT1P 141C ....EFG.............
TC 942 87-011-164-010 0E CAPACITOR,TRIMMER 30P .....FG.............
TC 941 87-011-173-010 1A CERAMIC TRIMMER 20P ....................
TC 941 87-011-220-080 1A TRIMMER CAP 20P VTC ....E...............
TC 943 87-011-221-080 1A CAP, TRIMMER 30P ....E...............
MECHANICAL PARTS LIST-1/2
NOTE: The characters in the suffix column indicate the part usage.
KSTE ...................XX....................................C.................
EZSTE ..................XX.....................................D................
EZSTM ..................XX......................................E...............
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NE6-067-010 BADGE,AIWA 30N ABCDE...............
86-NFZ-001-010 WINDOW,TOP ABCDE...............
8Z-NB8-011-110 PANEL,LEFT V-2 ABCDE...............
8Z-NF8-003-010 BOX,CASS 1U A...................
8Z-NF8-004-010 BOX,CASS 2U A...E...............
8Z-NF8-021-010 WINDOW,CASS 1 AB..E...............
8Z-NF8-022-010 WINDOW,CASS 2 AB..E...............
8Z-NF8-024-010 WINDOW,CD AB..E...............
8Z-NF8-025-010 PANEL,TRAY U ABCDE...............
8Z-NF8-037-010 BOX,CASS 1H .B..E...............
8Z-NF8-038-010 BOX,CASS 2H .B..................
8Z-NF9-042-010 PANEL,TOP V-2 ABCDE...............
8Z-NF9-043-010 PANEL,RIGHT S V-2 ABCDE...............
8Z-NFV-003-010 WINDOW,DISP U A...................
8Z-NFV-004-010 WINDOW,DISP H .B..................
8Z-NFV-005-010 WINDOW,DISP E ....E...............
8Z-NFV-006-010 CABI,FR U A...................
8Z-NFV-011-010 CABI,FR E ....E...............
8Z-NFV-013-010 CABI,FR LH .B..................
8Z-NFV-013-110 CABI,FR LH ....................
8Z-NFV-021-010 CABI,REAR USTNM A...................
8Z-NFV-022-010 CABI,REAR KSTE ..C.................
8Z-NFV-023-010 CABI,REAR EZSTE ...D................
8Z-NFV-026-010 CABI,REAR LHSTM .B..................
8Z-NFV-027-010 CABI,REAR EZSTM ....E...............
8Z-NF8-005-010 KEY,POWER AB..................
8Z-NF8-005-110 KEY,POWER ....E...............
8Z-NF8-006-010 KEY,CD AB..E...............
8Z-NF8-007-010 REFLECTOR,ECO AB..E...............
8Z-NF8-008-010 KEY,TIMER AB..E...............
8Z-NF8-010-010 KEY,ASSY FUN AB..E...............
8Z-NF8-013-010 KEY,ASSY PLAY .B..E...............
8Z-NF8-016-010 KEY,ASSY PAUSE AB..E...............
8Z-NF8-020-010 KEY,RDS ....E...............
8Z-NF8-026-010 KNOB,RTRY JOG AB..E...............
8Z-NF8-027-010 KNOB,RTRY VOL AB..E...............
8Z-NF8-028-010 KNOB,RTRY MIC AB..E...............
8Z-NF8-029-010 REFLECTOR,JOG AB..E...............
8Z-NF8-030-010 KEY,ASSY PLAY U A...................
8Z-NF8-050-010 KEY,KARAOKE AB..E...............
8Z-NFV-001-010 KEY,PRO .B..................
8Z-NFV-010-010 KEY,PRO U A...E...............
81-532-080-010 LABEL, CASS. COMPT AB..E...............
87-NF6-616-010 CONN ASSY,8P RPB .B..................
84-ZG1-245-210 CAP,OPTICAL ABCDE...............
82-NF5-218-010 SPR-T,EJECT 1 (SIN) ABCDE...............
82-NF5-219-010 SPR-T,EJECT 2 (SIN) ABCDE...............
82-NF5-229-010 PLATE,LOCK AB..E...............
86-NF9-224-010 SPR-C,LOCK AB..E...............
87-NF4-216-010 HLDR,LOCK 1 AB..E...............
87-NF4-217-010 HLDR,LOCK 2 AB..E...............
87-NF4-221-010 HLDR,CABLE ABCD................
87-NF8-220-010 DMPR,150 AB..E...............
88-NF5-208-010 HLDR,PWB-M N ABCDE...............
8Z-NB8-216-010 HLDR,FAN ....................
8Z-NB8-240-010 COVER, PL ABCDE...............
8Z-NF8-205-010 HLDR,HT-SINK .B..................
8Z-NF8-205-110 HLDR,HT-SINK ..CDE...............
8Z-NF9-204-010 PLATE,MIC AB..E...............
8Z-NFV-002-010 PLATE,PRO ....E...............
8Z-NFV-203-010 HLDR,HT F A...................
8Z-NFV-204-010 HLDR,HT R A...................
87-067-581-010 TAPPING SCREW, BVT2+3-15 .B..E...............
87-067-584-010 TAPPING SCREW, BVT2+3-6 ....................
87-067-641-010 UTT2+3-8(W/O SLOT)BL ....E...............
87-067-688-010 BVTT+3-6 ABCDE...............
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCDE...............
87-067-758-010 BVT2+3-12 W/O SLOT .B..................
87-067-822-010 BVT2+3-20 W/O SLOT A.CDE...............
87-067-873-010 BVT2+3-25 W/O SLOT ....................
87-078-191-010 S-SCREW,IT+4-10 ABCDE...............
87-721-096-410 QT2+3-10 GLD ABCDE...............
87-721-097-410 QT2+3-12 GLD ABCDE...............
87-B10-091-010 UTT2+3-10 W/O BLK ABCDE...............
87-B10-184-010 BVTT+3-20 W/O SLOT ....E...............
87-NF4-224-010 S-SCREW,IT3B+3-8 CU ABCDE...............
87-050-034-010 AC CORD ASSY,E ..CD................
87-050-079-010 AC-CORD ASSY,E .B..E...............
87-085-185-010 BUSHING, AC CORD (E) .BCDE...............
87-085-189-010 BUSHING, CORD (U) A...................
87-099-811-010 PLUG,ADPTR CONV(K) ..C.................
87-A80-110-010 AC CORD ASSY,U SPT-2W A...................
87-A90-796-010 FAN,F614R-12MC-15-300MM ABCDE...............
88-906-251-110 FF-CABLE,6P 1.25 ABCDE...............
88-911-101-110 FF-CABLE,11P 1.25 A...E...............
88-913-301-110 FF-CABLE,13P-1.25 AB..E...............
88-915-101-110 FF-CABLE, 15P 1.25 100MM .B..................
8Z-NFV-604-010 PT,ZNF-28 U A...................
8Z-NFV-606-010 PT,ZNF-28 EZ ...DE...............
8Z-NFV-607-010 PT,ZNF-28 LH .B..................
8Z-NFV-608-010 PT,ZNF-28 K ..C.................
C 705 87-012-349-080 C-CAP,S 1000P-50 CH ABCDE...............
88-NF8-205-010 GUIDE,FL AB..E...............
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ABCDE...............
87-067-703-010 TAPPING SCREW, BVT2+3-10 .BCDE...............
MECHANICAL PARTS LIST-2/2
ACCESSORIES/PACKAGELIST-1/1
NOTE: The characters in the suffix column indicate the part usage.
KSTE ...................XX....................................C.................
EZSTE ..................XX.....................................D................
EZSTM ..................XX......................................E...............
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-NFV-902-010 IB,LH(ESP)M .B..................
8Z-NFV-903-010 IB,U(ESF)M A...................
8Z-NFV-905-010 IB,K(E)E ..C.................
8Z-NFV-906-010 IB,EZ(9L)E ...D................
8Z-NFV-916-010 IB,EZ(9L)M ....E...............
87-006-225-010 AM LOOP ANT NC2 ABCDE...............
87-043-106-010 WIRE, FM ANT (Z) ..CDE...............
87-043-115-010 ANT,FEEDER FM AB..................
87-099-789-010 PLUG,ADPTR IR44 .B..................
8Z-NFV-702-010 RC UNIT,RC-ZAS05 AB..................
8Z-NFV-705-010 RC UNIT,RC-ZAS15 ..CDE...............

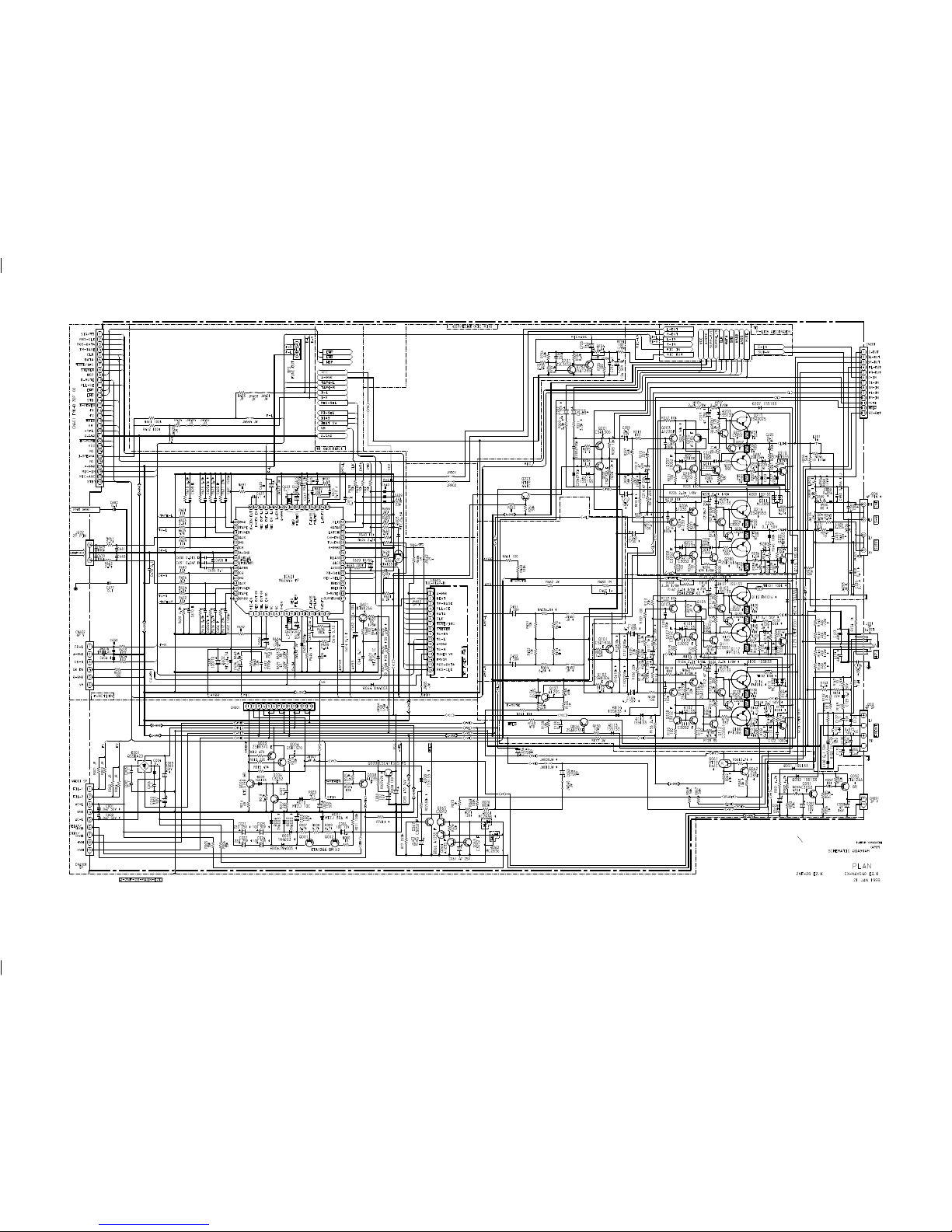

SCHEMATIC DIAGRAM_1(MAIN)

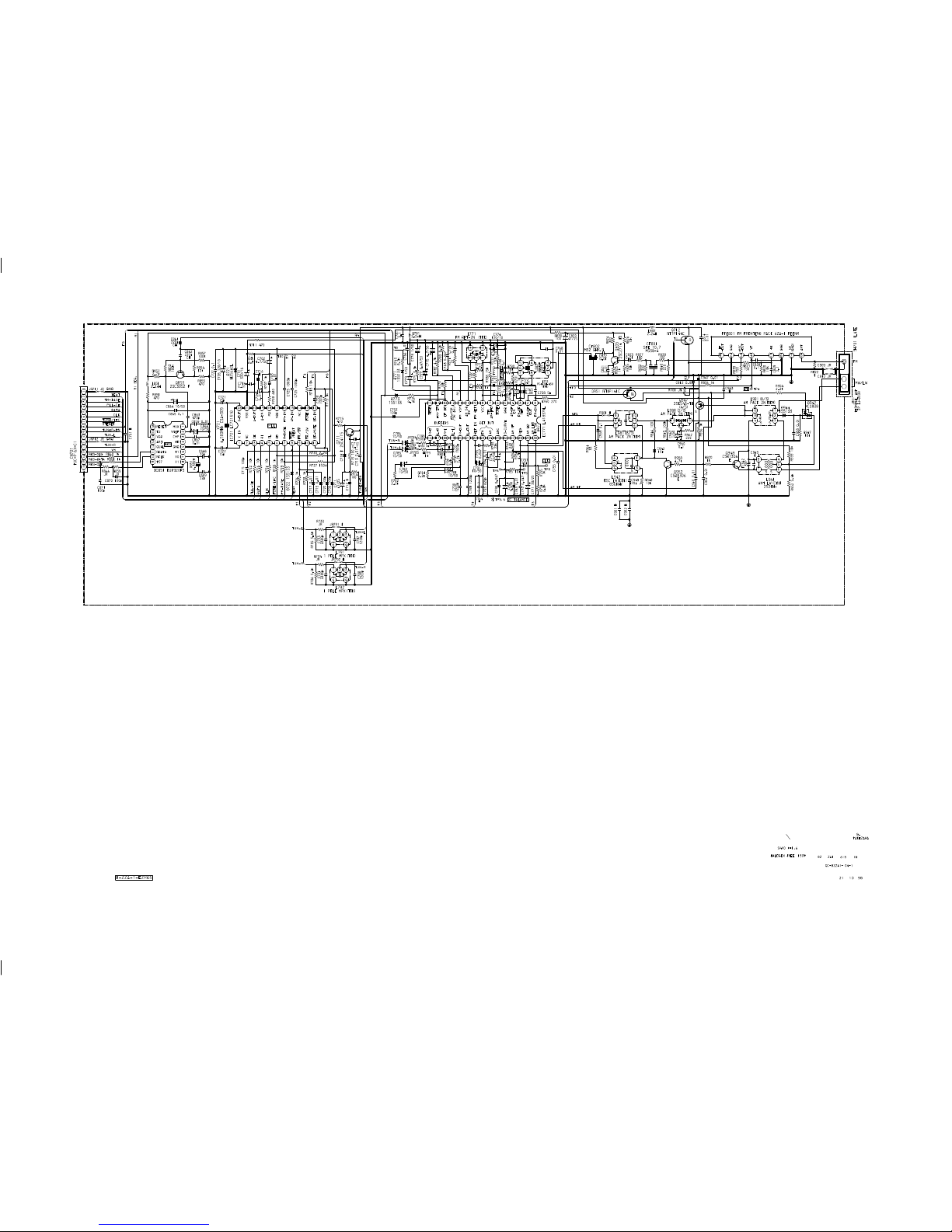

SCHEMATIC DIAGRAM _2(MAIN-DECK)
SCHEMATIC DIAGRAM_3(MAIN-PROLOGIC)
SCHEMATIC DIAGRAM _4 (TUNER)
SCHEMATIC DIAGRAM_5(FRONT)
SCHEMATIC DIAGRAM _6(PS)
Table of contents
Other Aiwa Stereo System manuals
