AIWA-01451
En (English)
ana
———— OPERATING INSTRUCTIONS
Compact Disc
Stereo System
NSX-SZ310 nist
8B-NFY-937-01
001215AKH-AR-IN

PRECAUTIONS
Read thess!Operating Instructions carefully and completely
before oprating the unit. All precautions on this booklet
and on tt#t unit should be strictly followed.
Keep the perating Instructions for future reference.
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NCT REMOVE COVER (OR BACK).
NO USIR-SERVICEABLE PARTS INSIDE.
REFEFA SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CLASS 1
LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1
LASER APPARAT
Installation
1 Water and moisture — Do not use this unit near water,
such as near a bathtub, washbowl, swimming pool, or the
like.
2 Heat — Do not use this unit near sources ofheat, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
or greater than 35°C,
3 Mounting surface — Place the unit ona flat, even surface.
4 Ventilation — The unit should be situated with adequate
space around it so that proper heat ventilaion is assured.
Allow 10 cm clearance from the rear and the top of the unit,
and 5 cm from each side.
- Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.
- Do not install the unit in a bookcase, cabinet, or airtight
rack where ventilation may be impeded.
5 Objects and liquid entry — Take care that objects or
liquids do not get inside the unit through the ventilation
openings.
6 Carts and stands — When placed or mounted on a stand
or cart, the unit should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause
the unit or cart to overturn or fall.
7 Condensation — Moisture may form onthe CD pickup
lens when:
- The unit is moved from a cold spot to a warm spot
- The heating system has just been turned on
- The unit is used in a very humid room
- The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for a few hours,
then try to operate again.
8 Wall or ceiling mounting — The unit should not be
mounted on a wall or ceiling, unless specified in the
Operating Instructions.

Electric Power
1 Power sources — Connect this unit only to power sources
specified in the Operating Instructions, and as marked on
the unit.
2 AC power cord
- When disconnecting the AC power cord, pull it out by the
AC power plug. Do not pull the cord itself.
- Never handle the AC power plug with wet hands, as this
could result in fire or shock.
- Power cords should be firmly secured to avoid being
severely bent, pinched, or walked upon. Pay particular
attention to the cord from the unit to the power socket.
- Avoid overloading power socket and extension cords
beyond their capacity, as this could result in fire or shock.
3 When not in use — Unplug the AC power cord from the
power socket ifthe unit will not be used for several months
or more, When the cord is plugged in, a small amount of
current continues to flow to the unit, even when the power
is turned off.
Maintenance
Clean the unit only as recommended in the Operating
Instructions.
Damage Requiring Service
Have the units serviced by a qualified service technician if:
- The AC power cord or plug has been damaged
- Foreign objects or fiquid have gotten inside the unit
- The unit has been exposed to rain or water
- The unit doesnot seem to operate normally
- The unit exhibits a marked change in performance
- The unit has been dropped, or the cabinet has been damaged
DO NOT ATTENPT TO SERVICE THE UNIT YOURSELF.
System and accessories
NSX-SZ34
CX-NSZ310 Compact disc stereo cassette recever
SX-NSZ312 Front speakers
Remote control
FM antenna
MW/LW antenna

PREPARATIONS
Connection
Plug in the AC power cord to the wall socket after all other
connections are made.
7 Connect the front speakers.
Connecl the right front speaker to the SPEAKERS R
terminaas and the left to the SPEAKERS L terminals. The
speaker cords with the white stripes go to the © terminals.
2 Connect the supplied antennas.
Connecithe FM antenna to the FM 75 Q terminal and the
MW/LW antenna to the MW/LW LOOP terminals.
MW/LW antenna
3 Connect the AC power cord to the wall socket.
When the AC power cord is connected to the wall socket
for the first time, DEMO appears on the display.
To deactivate the DEMO, press DEMO/ECO.
© Do not short-circuit the & and © speaker cord leads.
¢Do not leave objects generating magnetism or objects
affected by magnetism near the speakers.
Remote control
Detach the battery compartment lid at the rear of the remote
contro! and insert two R6 (size AA) batteries with correct
polarity.
we
E& V
© Replace the batteries with new ones when the operational
distance between the remote control and main unit becomes
shorter.
¢ Remove the batteries if the unit is not going to be used for
an extended period of time.
The remote control may not operate if it is used under intense
sunlight, etc., or if its line of sight is obstructed.
e°4* and "5" of DISC DIRECT PLAY on the remote control
cannot be used on this system.
R6(AA)
4
7 1 ’
Nicati GENERAL
Sp ecifications Power requirements 230 V AC, 50 Hz
a Power consumption 75 W
TUNER Power consumption With ECO mode on: 0.6 W
FM tuning range 87.5 MHz to 108 MHz in standby mode With ECO mode off: 17 W
FM usable sensitivity (IHF) 16.8 dBf Dimensions (W x H x D) 260 x 324 x 339 mm
FM antenna terminal 75 ohms (unbalanced) Weight 5.8 kg
MW tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step) PEAKE! 4) 4
MW usable sensitivity 350 uV/m Speaker system 3 way, bass reflex (magnetic
LW tuning range 144 kHz to 290 kHz shielded)
LW
usable
sensitivity
1400
pV/m
Speaker
units
Woofer:
140
mm
cone
MW/LW antenna Loop antenna Tweeter: 60 mm cone
AMPLIFIER erie Eee tweeter: 20 mm ceramic
Power output Rated: 32W+32W(6ohms,T.H.D. — MPecan Onn
1%, 1 kHz/DIN 45500) Dimensions (WxHxD) 220 x 324 x 225 mm
Weight 43kg
Total harmonic distortion
Input
Outputs
CASSETTE DECK
Track format
Frequency response
Recording system
Heads
CD PLAYER
Laser
D/A converter
Signal-to-noise ratio
Harmonic distortion
Reference: 40 W + 40 W (6 ohms,
TH.D. 10 %, 1 KHz/DIN 45324)
DIN MUSIC POWER: 120 W + 120
WwW
0.08 % (20 W, 1 kHz, 6 ohms, DIN
AUDIO)
VIDEO/AUX: 500 mV
SPEAKERS: 6 ohms or more
PHONES: 32 ohms or more
4 tracks, 2 channels stereo
50 Hz - 15 kHz
AC bias
DECK 1: playback x 1
DECK 2: recording/playback x 1,
erase x 1
Semiconductor laser (A = 780 nm)
1 bit dual
85 dB (4 kHz, 0 dB)
0.05 % (1 kHz, 0 dB)
Specifications and external appearance are subject to change
without notice.
COPYRIGHT
Check copyright laws relevant to recordings from discs, radio
or tape for the country where the unit is to be used.
BBE SYSTEM
The word "BBE" and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under License from BBE Sound, Inc.
21

REFERENCE
Care and maintenance
Occasional core and maintenance of the unit and the software
are needed to optimize the performance of your unit.
To clean the cabinet
Use a Soft and dry cloth. If the unit surfaces are extremely
dirty, use a soft cloth lightly moistened with mild detergent
solution. Do not use strong solvents such as alcohol, benzine
or thinner.
To clean the tape heads
Dirty tape heads cause sound deterioration. After every 10
hours of use, clean the tape heads with a head cleaning
cassette. Refer to the instructions of the cleaning cassette.
To demagnetize the tape heads
Use a demagnetizing cassette after every 20 to 30 hours of
use. Refer to the instructions of the demagnetizing cassette.
Care of CDs
When a CD becomes dirty, wipe it from the centre out with a
cleaning cloth. After playing a CD, store it in its case. Do not
keep it in hot or humid places.
Care of tapes
Store tapes in their cases after use. Do not leave tapes near
magnets, motors, television sets, or any source of magnetism.
Do not expose tapes to direct sunlight, or leave them in a car
parked in direct sunlight.
20
PARTS AND CONTROLS
Main unit: rear
Troubleshooting
If your unit fails fo perform properly, check the following guide
and the relevant sections of the Operating Instructions.
There is no sound.
@ Are the speakers and AC power cord connected properly?
The unit shut off suddenly.
© Possibly a short circuit in the speaker terminals. Disconnect
the AC power cord from the wall socket and re-connect the
speaker cords correctly.
The unit blacks out when the unit is turned off.
els ECO mode set to on?
Erroneous display.
Reset the unit.
Poor radio reception.
© Check antenna connection. Adjust the antenna to find the
best reception.
© Move unit and antenna away from other electric appliances
and cords.
The tape does not run.
ls the deck in pause?
Poor tape sound.
© Check for dirty heads. Clean them if needed.
Use type | (normal) tapes.
Cannot record.
|s the erasure prevention tab of the tape broken off? If so,
cover the detection slot with adhesive tape.
The CD player works poorly.
ls the disc correctly loaded?
© |s the disc dirty?
els the lens affected by condensation? If so, wait
approximately one hour and try again.
@ MW/LW LOOP, FM 75 © terminals
Plug in the supplied MW/LW and FM antennas here.
© VIDEO/AUX jacks
Accepts analog sound signals from external equipment.
Connect using an optional connecting cable with RCA
phono plugs (red plug to R jack, white plug to L jack).
Refer also to the operating instructions of your equipment.
To switch function to external input, press VIDEO/AUX
to select the VIDEO (AUX/TV) function.
Tip:
To change the displayed name for this function, turn the
unit on, then hold down VIDEO/AUX and press POWER.
Repeat the procedure to select one of "VIDED", "AUX"
or"TV".
SPEAKERS“ terminals
Connect the speaker cord of the supplied front speakers
here.
© AC power cord
13]
Resetting the unit
if an unusual condition occurs in the display window or the
cassette deck, reset the unit as follows:
1 Press POWER to turn off the power.
If the power cannot be turned off, disconnect the AC power
cord, then plug it in again.
2 Hold down Ml and press POWER.
Everything stored in memory after purchase is cleared.

Main uait: front
@ DEMO/ECO
When the unit is turned off: switches DEMO on and off.
When the unit is turned on: enters ECO or dimmer setting
mode.
© POWER OSTANDBY/ON
Switches the unit on and off (standby).
© TAPE DECK 1/2
Selects Tape function, and deck 1 or 2.
TUNER/BAND
Selects Radio function and the radio band.
VIDEO/AUX
Selects the function of external equipment connected to
VIDEO/AUX jacks.
cD
Selects CD function.
To display the timer setting
Press TIMER.
The timer-on time, the source and the timer-activated duration
are displayed for 6 seconds.
Tip:
Timer setting can be displayed even while the unit is turned
off, and at that time if you press ENTER or 8 within 6 seconds
after TIMER is pressed, you can enter the timer setting mode
and change the setting.
To change the timer setting
Re-set the timer again.
To cancel the timer
Press TIMER repeatedly until "© OFF" is displayed. "©"
disappears from the display.
Tip:
Your timer setting is retained even if the timer is cancelled.
Next time the timer is activated, you can change your previous
setting, or simply use the same setting again.
© PHONES jack
Plug in here an optional headphones set with a standard
stereo plug (96.3 mm). Speaker output is cancelled.
HISET
CD and Tape: pauses playback.
Radio: stores the received station to preset.
MCLEAR
CD and Tape: stops playback.
Radio: clears a station preset.
PRESET
CD and Tape: starts playback.
Radio: tunes into a preset station.
<<4/K4<DOWN, PP /PPIUP TUNING
CD: skips to a previous or a succeeding track when
pressed, searches a track in fast forward or fast reverse
playback when held down.
Tape: fast forwards or rewinds the tape.
Radio: manually tunes down or up within the band.
GEQ
Selects a sound equalization curve.
BBE
Enhances high frequency sound.
T-BASS
Emphasizes low frequency sound.
6
Timer recording
Timer recording is available only for TUNER and VIDEO/AUX
(with on external timer) sources.
7 Press either TUNER/BAND or VIDEO/AUX to
select a source.
2 Press TIMER repeatedly until "©REC" appears
on the display.
3 Carry out step 3 to step 5 described in "Timer
playback’.
4 Prepare the source.
To tecord the radio, select the band and tune in to the
desired station.
To record external equipment connected to the VIDEO/
AUX jacks, set an external timer for the equipment so that
its playback begins at the same time.
5 Insert the recording tape in DECK 2 and then turn
the unit off.
7)
MULTI JOG
CD: skips to a previous or a succeeding track,
Radio: selects a preset number.
Clock and Timer: sets the time.
ECO and Dimmer: selects the mode.
ENTER
Determines the mode and the time (ECO, dimmer, clock
and timer).
TIMER
Enters timer setting mode.
© VOLUME
19)
Adjusts the volume.
DISC DIRECT PLAY 1-3
Selects a CD tray.
DISC CHANGE
Rotates the CD trays.
4 OPEN/CLOSE
Opens or closes the disc compartment.
SYNC DUB
Starts dubbing a whole tape.
@REC/REC MUTE
Starts recording.
19

TIMER OPERATIONS
Sleep timer
Turns off the unit automatically after a specified time.
1 Press SHIFT+SLEEP on the remote control.
"SLEEP" appears on the display.
2 Press <4 or > repeatedly to set the sleep
timer duration.
With each press, the timer duration changes in 5-minute
steps between 5 to 240 minutes. If there is no button input
for 4 seconds, the current setting is entered automatically.
The unit turns off after the selected time.
© MULTI JOG is also available in place of << or >>.
Tip:
The display is dimmed while the sleep timer is active.
To check the remaining time until the unit turns off
Press SHIFT+SLEEP on the remote control. The remaining
time is displayed for 4 seconds.
To cancel the sieep timer
Press SHIFT+SLEEP twice on the remote control so that
“SLEEP oFF’ js displayed.
18
Remote control
Buttons with same or similar names with the main unit basically
have the same function.
@ DISC DIRECT PLAY 1-3
© 0-9, +10
CD: selects a CD track of the specified number.
Radio: tunes in to the station with the specified preset
number.
Timer playback
Turns on the unit at a specified time for the specified duration.
Make sure the clock is set correctly.
1 Press one of the function buttons to select the
desired playback source.
2 Press TIMER (SHIFT+TIMER on the remote
control).
"©" indicator lights up and “© PLAY" appears on the
display. Then, the timer-on time and the source name
appear alternately on the display.
3 Press <4<4 or BP to set the timer-on time, then
press EESET or ENTER.
If <4 of BP is not pressed within 6 seconds, you
will exit the timer setting mode and the previous setting,
however, is entered.
¢ MULTI JOG is also available in place of <4<4 or >>.
© The numbered buttons take on these functions when pressed
together with SHIFT held down:
CD EDIT/CHECK
Displays the remaining playback time of a CD when
pressed during playback.
Enters Al Edit Recording or Programmed Edit Recording
mode when pressed during stop.
PRGM
Enters programmed CD playback mode.
RANDOM/REPEAT
Enters random or repeat CD playback mode.
GEQ
T-BASS
TIMER
SLEEP
Enters sleep-timer setting mode.
CLOCK
Enters clock adjustment mode.
MONO TUNER
Switches between stereo or monaural FM reception.
BAND
Switches the radio band.
4 Press <4 or > to set the timer-activated
duration, then press HESET or ENTER.
With each press, the timer-activated duration changes in
5-minule steps between 5 to 240 minutes.
If there is no button input for 4 seconds, the current setting
is entered automatically.
© MULTI JOG is also available in place of << or D>.
5 Adjust the volume and tone for timed playback.
if the volume level is set to 17 or higher, itis automatically
turned down to 16 when the unit is turned on by the timer.
6 Prepare the source.
To play CD(s), load disc(s).
Toplay the radio, select the band and tune in to the desired
station.
Jo play a tape, insert the tape.
To play externa! equipment connected to the VIDEO/AUX
jacks, set an external timer for the equipment so that its
playback begins at the same time.
7 Press POWER ®STANDBY/ON to turn the unit
off.
"©" remains on the display to indicate the timer standby
mode.
At timer-on time, the unit turns on and plays the selected
source. After the specified timer-activated duration, the
unit turns off again.
¢ Timer playback will not begin unless the unit is turned off
first.
* Connected equipment cannot be turned on or off by the built-
in timer of this unit. Use an external timer.
e The timer source can be changed with the function buttons
before completing step 3.
© SHIFT
Hold down when pressing a numbered button to change
its function to that printed above the number.
e.g.)
"Press SHIFT+SLEEP on the remote control” indicates
“Hold down SHIFT and press '8' (SLEEP)’, so that you
can use ‘Sleep timer’ function.
LISET
»>PRESET
<44/I44DOWN, PP /PPIUP TUNING
MCLEAR
VOL(AA, VY)
POWER
FUNCTION
Switches the active function among TAPE, TUN ER/BAND,
VIDEO/AUX and CD.

Power
Turning thet unit on
Press POVWER <>STANDBY/ON (POWER on the remote
control).
Or press TAPE, TUNER/BAND, VIDEO/AUX or CD, the
playback wi listart automatically if a disc or tape is inserted.
Turning that unit off
Press POW ER &)STANDBY/ON again.
The unit goes into standby.

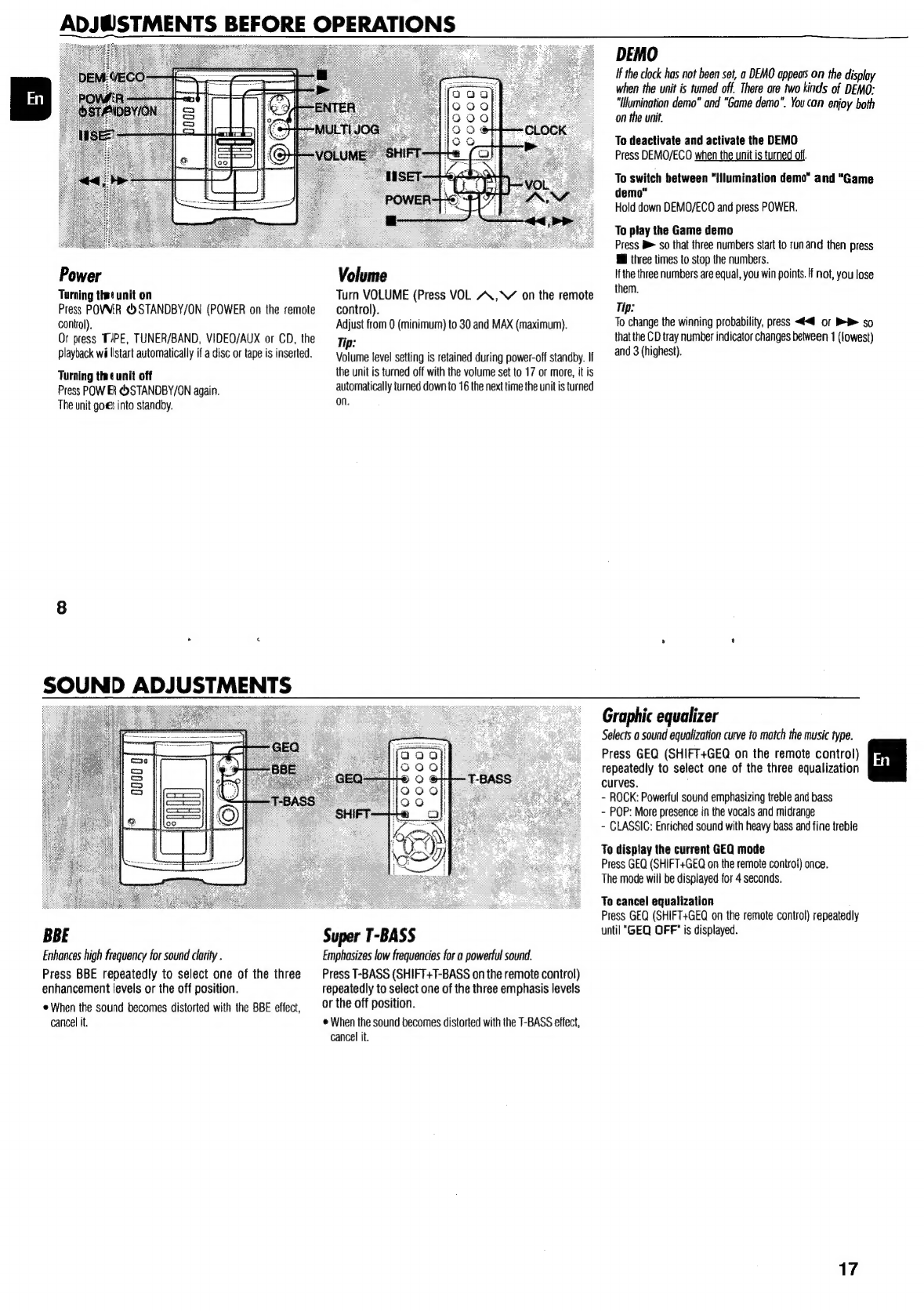

SOUND ADJUSTMENTS
BBE
Enhances high frequency for sound clarity .
Press BBE repeatedly to select one of the three
enhancement levels or the off position.
When the sound becomes distorted with the BBE effect,
cancel it.
ADJW@STMENTS BEFORE OPERATIONS
Volume
Turn VOLUME (Press VOL AA, on the remote
control).
Adjust from 0 (minimum) to 30 and MAX (maximum).
Tip:
Volume level setting is retained during power-off standby. If
the unit is turned off with the volume set to 17 or more, it is
automatically turned down to 16 the next time the unit is turned
on.
Super T-BASS
Emphasizes low frequencies for a powerful sound.
Press T-BASS (SHIFT+T-BASS on the remote control)
repeatedly to select one of the three emphasis levels
or the off position.
© When the sound becomes distorted with the T-BASS effect,
cancel it.
DEMO
if the clock has not been set, a DEMO apes on the display
when the unit is tumed off. There are two kinds of DEMO:
"Ilumination demo” and “Game demo". You can enjoy both
on the unit.
To deactivate and activate the DEMO
Press DEMO/ECO when the unit is turned off.
To switch between “Iilumination demo” and “Game
demo"
Hold down DEMO/ECO and press POWER.
To play the Game demo
Press B> so that three numbers start fo run and then press
@ three times to stop the numbers.
Ifthe three numbers are equal, you win points. If not, you lose
them.
Tip:
To change the winning probability, press <4<@ or > so
that the CD tray number indicator changes between 1 (lowest)
and 3 (highest).
Graphic equalizer
Selects a sound equalization curve to match the music type.
Press GEQ (SHIFT+GEQ on the remote control)
repeatedly to select one of the three equalization
curves.
- ROCK: Powerful sound emphasizing treble and bass
- POP: More presence in the vocals and midrange
- CLASSIC: Enriched sound with heavy bass and fine treble
To display the current GEQ mode
Press GEQ (SHIFT+GEQ on the remote control) once.
The mode will be displayed for 4 seconds.
To cancel equalization
Press GEQ (SHIFT+GEQ on the remote control) repeatedly
until "GEQ OFF" is displayed.
17

Programmed Edit Recording
As you program the CD tracks to record, Programmed Edit
Recording displays the remaining recording time for each side
of the tape, so you can easily select a set of desired tracks
within the length of your tape.
17 Insert the recording tape in DECK 2.
2 Press CD to select the CD function and load the
disc.
Press SHIFT+CD EDIT/CHECK twice on the
remote control.
The “PRGM" and “EDIT” indicators light up and
“PAGMC-O0" appears on the display.
Press the numbered buttons on the remote
control to enter the length of the recording tape.
10 to 99 minutes can be specified.
© <<, > oF MULTI JOG can also be used to specify
tape length.
Press DISC DIRECT PLAY 1-3 to select a disc.
Then, press the numbered buttons on the remote
control to select the first track to be recorded on
side A.
-To select the 25th track, press +10, +10 and 5.
-To select the 10th track, press +10 and 0.
Repeat step 5 to select the rest of the tracks for
side A.
The remaining recording time of side A is displayed. You
cannot select a track with a longer playing time.
7 Press SHIFT+CD EDIT/CHECK on the remote
control to switch to side B and select the tracks
for the side.
8 Press SHIFT+CD EDIT/CHECK on the remote
control to switch back to side A and press @REC/
REC MUTE to start recording on side A.
The tape is rewound to the beginning of side A and
recording starts.
Go to the next step when recording on side A finishes.
Press SHIFT+CD EDIT/CHECK on the remote
control to switch to side B, turn over the tape,
and press @REC/REC MUTE to start recording
on side B.
eYou cannot program more than 30 tracks. "FULL" is
displayed.
You cannot program a track with a track number larger than
30.
¢ Recording cannot start from a point halfway in the tape.
To stop recording
Press Ill. Recording and CD playback stop simultaneously.
To check the program
1 Before recording, press SHIFT+CD EDIT/CHECK on the
remote control to select side A or B.
2 Press <¢<@ or BP repeatedly. The track number and
program number are displayed in succession.
To change the program of each side
Press SHIFT+ CD EDIT/CHECK on the remote contro! to select
side A or B, and press Mi CLEAR to clear the program for the
selected side. Then, select tracks again.
To clear the edit program
Press MI CLEAR twice so that "EDIT" disappears from the
display.
To prevent accidental erasure
Break off the plastic tab of the cassette tape with a screwdriver
or other pointed tool. To record on the tape again, cover the
detection slot with adhesive tape.
; Tab for side A
16
. . ¢
ECO mode Dimmer Setting the clock
Reduces power consumption with the following operations, etc. Adjusts the brightness of the display. 1 Press SHIFT+CLOCK on the remote control.
ECO ON mode 1 Press DEMO/ECO twice when the unit is turned 2 Press <4 or ®P ito set the time.
- The unit blacks out when the unit is turned off. Only the red on, and then within 4 seconds press ENTER. Each press changes the time in 1-minute steps. Holding
indicator lights up. (Only when the clock is set.) ‘ it down changes the time in 10-minute steps.
- If dimmer mode is set to on, the unit illumination brightens 2 Ee aaelias asthe the ena If <4 of bP is not pressed within 4 seconds, setting
(for 10 seconds) only when you operate the unit. tie TEE : the bri ht a d OIANEE 3" th is cancelled.
- When the unitturns on with the timer recording, the dimmer ainimneek rae ee Sule © MULTI JOG is also available in place of <@< or >>.
6 pads SORT MME NOLIN $6520 ANON If there is no MULTI JOG or button operation within 4 3 Press ENTER or BESET.
- In addition to the operations of ECO ON mode, the unit seconds, setting is cancelled. i. time oo stops flashing and the clock starts from
automatically turns itself off if you do not operate the unit Tp cancel the dimmer SECONES,
and the sound source is mute for 10 minutes. Repeat the above and select “DIM-OFF". To display the time
1
2
Press DEMO/ECO once when the unit is turned
on, and then within 4 seconds press ENTER.
Turn MULTI JOG to select one of the ECO modes
and then press ENTER.
If there is no MULTI JOG or button operation within 4
seconds, the setting is cancelled.
To cancel the ECO mode
Repeat the above and select "ECO OFF".
Press SHIFT+CLOCK on the remote control.
The time will be displayed for 4 seconds, but it cannot be
displayed during recording.
To switch to the 24-hour standard
Display the time and press Il within 4 seconds.
With each press, the clock alternates between the 12-hour
standard and the 24-hour standard.
Tip:
In the 12-hour standard, "AM 12:00" indicates midnight
and "PM 12:00" noon.
If the clock display flashes when the unit is tuned
off
There has been a power interruption. Re-set the clock.

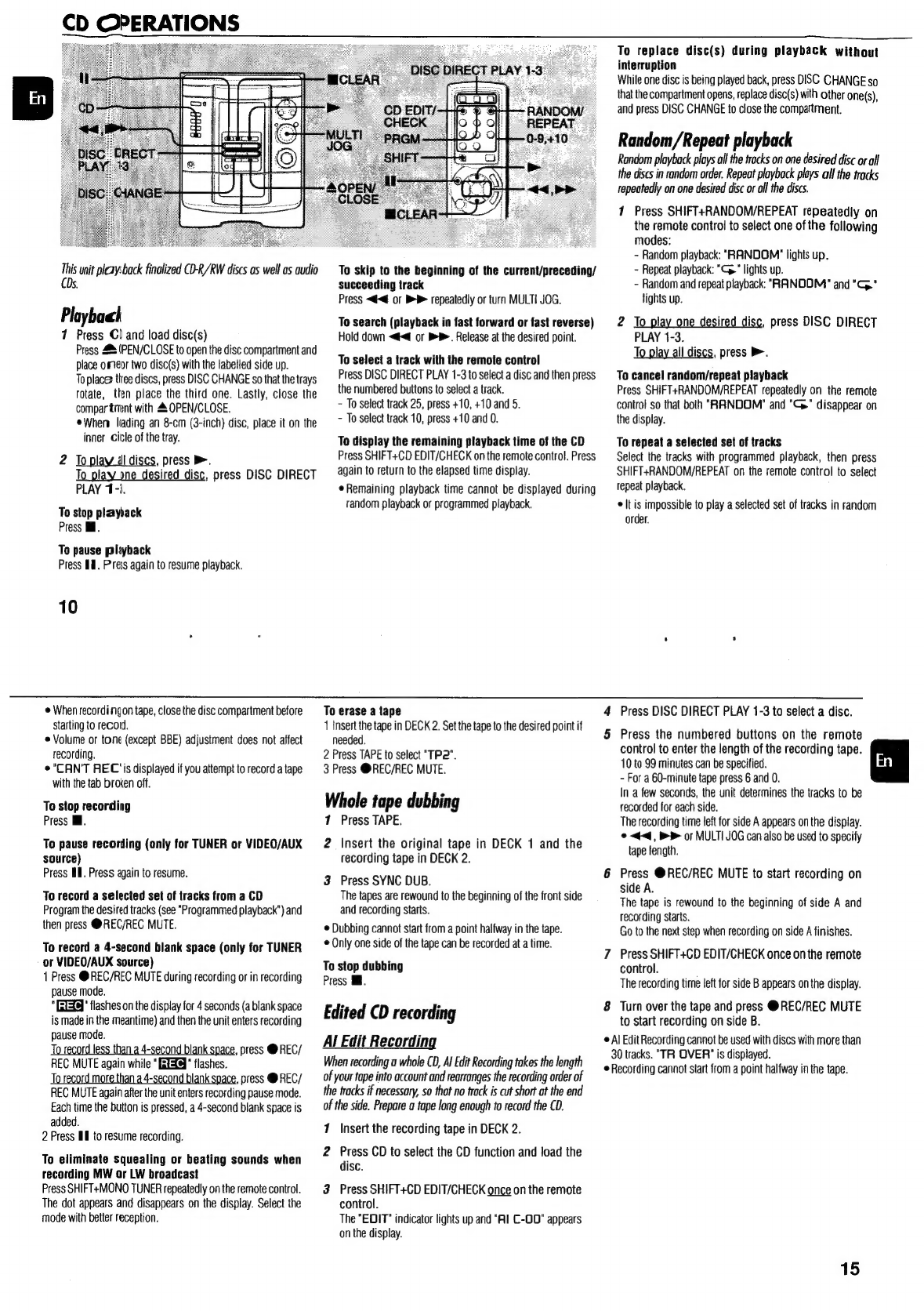

CD OPERATIONS
This unit playback finalized CD-R/RW discs as well as audio
CDs.
Playbaah
1
Press G) and load disc(s)
Press 4% (PEN/CLOSE to open the disc compartment and
place omeor two disc(s) with the labelled side up.
Toplace t
compartment with 4 OPEN/CLOSE.
When liading an 8-cm (3-inch) disc, place it on the
inner Cicle of the tray.
2 Tool I discs, press >.
To pl n ired disc, press DISC DIRECT
PLAY 1-3.
To stop playback
Press Mi.
To pause pliyback
Press #8. Pras again to resume playback.
10
© When recordingon tape, close the disc compartment before
starting to record.
© Volume or tone (except BBE) adjustment does not affect
recording.
©"CAN'T REC ‘is displayed if you attempt to record a tape
with the tab broken off.
To stop recording
Press il.
To pause recording (only for TUNER or VIDEO/AUX
source)
Press Ill. Press again to resume.
To record a selected set of tracks from a CD
Program the desired tracks (see "Programmed playback") and
then press @REC/REC MUTE.
To record a 4-second blank space (only for TUNER
or VIDEO/AUX source)
1 Press @REC/REC MUTE during recording or in recording
pause mode.
" [GTXq" flashes on the display for 4 seconds (a blank space
is made in the meantime) and then the unit enters recording
pause mode.
Tor 4-second blank , press @REC/
REC MUTE again while " Yel" flashes.
Torecord more than a 4-second blank space, press @ REC/
REC MUTE again after the unit enters recording pause mode.
Each time the button is pressed, a 4-second blank space is
added.
2 Press Wl to resume recording.
To eliminate squealing or beating sounds when
recording MW or LW broadcast
Press SHIFT+MONO TUNER repeatedly on the remote control.
The dot appears and disappears on the display. Select the
mode with better reception.
ee discs, press DISC CHANGE so that the trays
rotate, tten place the third one. Lastly, close the
To skip to the beginning of the current/preceding/
succeeding track
Press << or BP repeatedly or turn MULTI JOG.
To search (playback in fast forward or fast reverse)
Hold down <@<@ or BB. Release at the desired point.
To select a track with the remote control
Press DISC DIRECT PLAY 1-3 to select a disc and then press
the numbered buttons to select a track.
- To select track 25, press +10, +10 and 5.
- To select track 10, press +10 and 0.
To display the remaining playback time of the CD
Press SHIFT+CD EDIT/CHECK on the remote control. Press
again to return to the elapsed time display.
¢ Remaining playback time cannot be displayed during
random playback or programmed playback.
To erase a tape
1 Insert the tape in DECK 2. Set the tape to the desired point if
needed.
2 Press TAPE to select "TP2".
3 Press @REC/REC MUTE.
Whole tape dubbing
1
Press TAPE.
2 Insert the original tape in DECK 1 and the
recording tape in DECK 2.
3 Press SYNC DUB.
The tapes are rewound to the beginning of the front side
and recording starts.
Dubbing cannot start from a point halfway in the tape.
¢ Only one side of the tape can be recorded at a time.
To stop dubbing
Press .
Edited CD recording
Al Edit Recording
When recording a whole CD, Al Edit Recording tokes the length
of your tape into account and rearranges the recording order of
the tracks if necessary, so that no track is cut short at the end
of the side. Prepare a tape long enough to record the CD.
17 Insert the recording tape in DECK 2.
2 Press CD to select the CD function and load the
disc.
3 Press SHIFT+CD EDIT/CHECK once on the remote
control.
The "EDIT" indicator lights up and “Al C-OD" appears
on the display.
4
5
8
To replace disc(s) during playback without
interruption
While one disc is being played back, press DISC CHANGE so
that the compartment opens, replace disc(s) with other one(s),
and press DISC CHANGE to close the compartment.
Random/Repeat playback
Random playback plays all the tracks on one desired disc or all
the discs in random order. Repeat playback ploys all the tracks
repeatedly on one desired disc or all the discs.
7 Press SHIFT+RANDOM/REPEAT repeatedly on
the remote control to select one of the following
modes:
- Random playback: "RANDOM" lights up.
~ Repeat playback: "C” lights up.
- Random and repeat playback: "RANDOM" and "G."
lights up.
2 To play one desired disc, press DISC DIRECT
PLAY 1-3.
To play all discs, press B.
To cancel random/repeat playback
Press SHIFT+RANDOM/REPEAT repeatedly on the remote
contro} so that both "RANDOM" and "Cy" disappear on
the display.
To repeat a selected set of tracks
Select the tracks with programmed playback, then press
SHIFT+RANDOM/REPEAT on the remote control to select
repeat playback.
© lt is impossible to play a selected set of tracks in random
order.
Press DISC DIRECT PLAY 1-3 to select a disc.
Press the numbered buttons on the remote
control to enter the length of the recording tape.
10 to 99 minutes can be specified.
- For a 60-minute tape press 6 and 0.
In a few seconds, the unit determines the tracks to be
recorded for each side.
The recording time left for side A appears on the display.
© <q, > 0 MULTI JOG can also be used to specify
tape length.
Press @REC/REC MUTE to start recording on
side A.
The tape is rewound to the beginning of side A and
recording starts.
Go to the next step when recording on side A finishes.
Press SHIFT+CD EDIT/GHECK once onthe remote
control.
The recording time left for side B appears on the display.
Turn over the tape and press @REC/REC MUTE
to start recording on side B.
Al Edit Recording cannot be used with discs with more than
30 tracks. "TR OVER" is displayed.
Recording cannot start from a point halfway in the tape.
15

TAPE OPERATIONS
Playback
Use only type | (normal) tapes.
71 Press TAPE and insert the tape in either deck.
Press &PUSH EJECT to open the cassette holder, and
insert with the exposed side down and playback side
facing out from the unit. Push the cassette holder to close.
&PUSH EJECT
2 Press >.
To stop playback
Press iil.
To pause playback (DECK 2 only)
Press IM. Press again to resume.
To fast forward or rewind
Press <<@ or >>.
To select a deck (DECK 1 or DECK 2)
Press TAPE in stop mode when tapes are loaded in both decks.
The deck number ("TP1" or "TP2") is displayed.
To reset the tape counter
Press MECLEAR in stop mode, and the tape counter on the
display is reset to "OOOO".
Opening and closing the cassette holder wil! also reset the
tape counter.
To play continuously (DECK 1 to DECK 2 )
Load tapes in both decks and start playback on DECK 1. Then,
as soon as playback on DECK 1 finishes, playback on DECK
2 will start without interruption.
To play back type Hi (High position) tapes
Turn MULTI JOG until "SOFT" is displayed while playing a
type II tape.
Then, the unit provides the optimum playback sound for type
Il tapes.
Notes on cassettes
© Use of 120-minute or longer tapes is not recommended
since they are extremely thin and easily deformed or
damaged.
© Take up any slack in the tape with a pencil or similar tool
before use. Slack tape may jam in the mechanism.
© "SOFT" sound for type Il tapes described above is cancelled
when the graphic equalizer is turned on, the cassette holder
is opened, the function is changed, or the unit is turned off.
Basic recording
Use only type | (normal) tapes. DECK 2 is the recording deck.
Only one side of the tape can be recorded at a time.
7 Insert the recording tape in DECK 2.
Press 4 PUSH EJECT to open the cassette holder, and
insert with the exposed side down and the side to be
recorded on facing out from the unit.
Wind up the tape to the desired point if needed.
2 Prepare the source.
To record CD{s), select the CD function and load disc(s).
To record aradio broadcast, tune in to the desired station.
To record a tape, select the tape function and insert the
source tape in DECK 1.
To record from connected external equipment, select the
VIDEO (AUX/TV) function and prepare the equipment.
3 Press @REC/REC MUTE to start recording.
When recording a CD or tape, playback starts
automatically.
When recording input from connected equipment,
manually start playback of the source.
14
Programmed playback To check the program
Plays back up to 30 selected tracks in programmed order.
7 Press SHIFT+PRGM on the remote control during
stop.
"PRGM'" lights up on the display.
2 Press DISC DIRECT PLAY 1-3 to select a disc.
Go to the next step when the tray stops rotating.
3 Press the numbered buttons on the remote
control to program a track.
The selected track number lights up on the display.
-To select the 25th track, press +10, +10 and 5.
-To select the 10th track, press +10 and 0.
4 Repeat step 2 and 3 to program other tracks.
5 Press >.
During programmed playback, you cannot select a disc or
a track with the numbered buttons. "CAN'T USE" is
displayed when you try to select a track .
elf the total playback time of the program exceeds 99:59
minutes, or ifa track with a track number exceeding 30 is
programmed, the playing time is displayed as "- -:- -".
¢You cannot program more than 30 tracks. "FULL" is
displayed.
Press << or BB repeatedly during stop. The disc number,
track number and program number are displayed in
succession.
To clear the program
Press MCLEAR during stop. "PRGM" disappears on the
display.
To add tracks to the program
Repeat step 2 and 3 before starting playback. The tracks are
added to the end of the program.
To change the programmed tracks
Clear the program and reselect the tracks in your desired order.
© Do not place more than one disc on one tray.
© Do not tilt the unit with discs loaded.
© The unit may not play a CD-R/RW disc recorded on personal
computers or certain kinds of CD-R/RW recorders.
© Do not attach adhesive label, etc. to either side of a CD-R/
RW disc, as doing so may cause malfunction.
© Do not load an unrecorded CD-R/RW disc. The disc may be
damaged.
© Do not use irregular-shaped CDs.
En
11

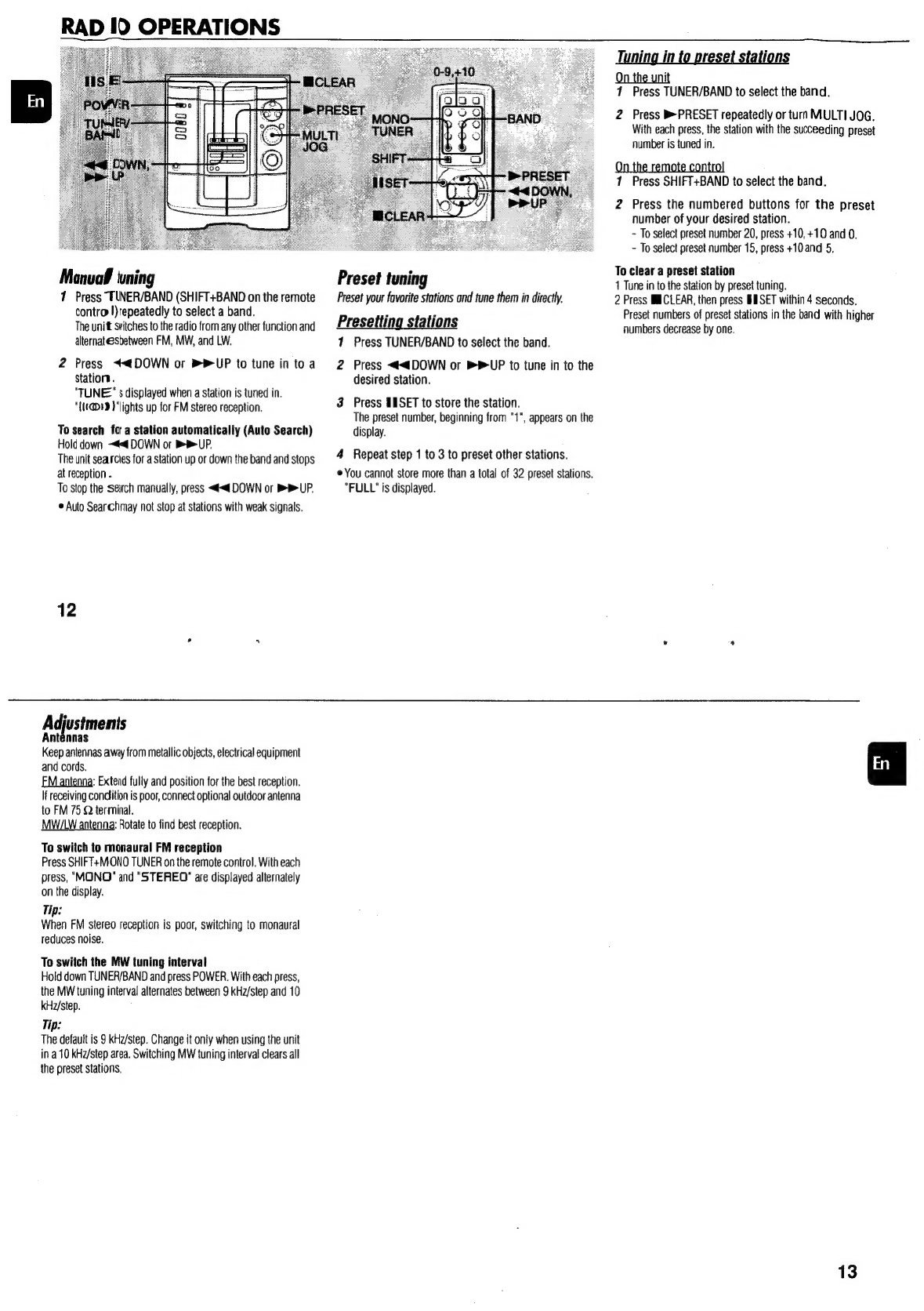

RAD 10 OPERATIONS
Manual ning
7 Press TUNER/BAND (SHIFT+BAND on the remote
contro !)repeatedly to select a band.
The unit stitches to the radio from any other function and
alternatesbetween FM, MW, and LW.
2 Press <<tDOWN or PUP to tune in to a
Station.
"TUNE" s displayed when a station is tuned in.
"{{1@19 ) ‘lights up for FM stereo reception.
To search fo a station automatically (Auto Search)
Hold down ~#< DOWN or BB UP.
The unit searcies for a station up or down the band and stops
at reception .
To stop the serch manually, press << DOWN or BB UP.
© Auto Searchmay not stop at stations with weak signals.
12
Adjustments
Antennas
Keep antennas away from metallic objects, electrical equipment
and cords.
EM antenna: Extend fully and position for the best reception.
If receiving condition is poor, connect optional outdoor antenna
to FM 75 Q terminal.
MW/LW antenna: Rotate to find best reception.
To switch to monaural FM reception
Press SHIFT+MONO TUNER on the remote control. With each
press, "MONO" and "STEREO" are displayed alternately
on the display.
Tip:
When FM stereo reception is poor, switching to monaural
reduces noise.
To switch the MW tuning interval
Hold down TUNER/BAND and press POWER. With each press,
the MW tuning interval alternates between 9 kHz/step and 10
kHz/step.
Tip:
The default is 9 kHz/step. Change it only when using the unit
ina 10 kH2/step area. Switching MW tuning interval clears all
the preset stations,
Tuning in to pr ion
On the unit
1 Press TUNER/BAND to select the band.
2 Press PRESET repeatedly or turn MULTI JOG.
With each press, the station with the succeeding preset
number is tuned in.
1 Press SHIFT+BAND to select the band.
2 Press the numbered buttons for the preset
number of your desired station.
- To select preset number 20, press +10, +10 and 0.
- To select preset number 15, press +10 and 5,
To clear a preset station
P reset tuning ’ 3 1 Tune in to the station by preset tuning.
Preset your favorite stations and tune them in directly. 2 Press MICLEAR, then press BESET within 4 seconds.
; é Preset numbers of preset stations in the band with higher
Presetting stations numbers decrease by one.
1 Press TUNER/BAND to select the band.
2 Press <<4DOWN or BP UP to tune in to the
desired station.
3 Press SISET to store the station.
The preset number, beginning from "1", appears on the
display.
4 Repeat step 1 to 3 to preset other stations.
© You cannot store more than a total of 32 preset stations.
"FULL" is displayed.
13
