Aiwa Nsx-tr99 User manual

SERVICE MANUAL

DATA

CD STEREO SYSTEM

NSX-TR99

S/M Code No. 09-029-361-5N1

U(S)/LH(S)

BASIC TAPE MECHANISM : 2ZM-3MK2 YPR9NC

BASIC CD MECHANISM : BZG-5 ZD4GNC2

NSX-TR99

SPEAKERSYSTEM CD

CASSEIVER

CX-SNTR99

REMOTE

CONTROLLER

RC-CAS02

SX-SNTR99

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-2-

SPECIFICATIONS ...........................................................................................................................................................4, 5

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING ......................................................................6

NOTE ON BEFORE STARTING REPAIR ...................................................................................................................7, 8

ACCESSORIES PARTS LIST..............................................................................................................................................9

ELECTRICAL PARTS LIST .....................................................................................................................................10 ~ 30

TRANSISTOR ILLUSTRATION ........................................................................................................................................31

SCHEMATIC DIAGRAM -1/12 (MAIN C.B-1/2, AMP SECTION) /HP C.B ................................................................32

SCHEMATIC DIAGRAM -2/12 (MAIN C.B-2/2, TUNER SECTION) ......................................................................... 33

WIRING -1/10 (MAIN C.B/HP C.B) ............................................................................................................................ 34

SCHEMATIC DIAGRAM -3/12 (MAIN C.B-1/3, AMP SECTION) /HP C.B <LH>..............................................................35

SCHEMATIC DIAGRAM -4/12 (MAIN C.B-2/3, TUNER SECTION) <LH> ....................................................................... 36

SCHEMATIC DIAGRAM -5/12 (MAIN C.B-3/3, VF SECTION) <LH> ............................................................................... 37

SCHEMATIC DIAGRAM -6/12 (MIC C.B) <LH> ............................................................................................................... 38

WIRING -1/10 (MAIN C.B/MIC C.B/HP C.B) <LH>............................................................................................................ 39

SCHEMATIC DIAGRAM -7/12 (FRONT C.B/DECK C.B) ........................................................................................ 40

WIRING -3/10 (FRONT C.B) ...................................................................................................................................... 41

WIRING -4/10 (DECK C.B) ........................................................................................................................................42

SCHEMATIC DIAGRAM -8/12 (FRONT C.B/DECK C.B) <LH> ....................................................................................... 43

WIRING -5/10 (FRONT C.B) <LH> .................................................................................................................................... 44

WIRING -6/10 (DECK C.B) <LH> ...................................................................................................................................... 45

SCHEMATIC DIAGRAM -9/12 (AMP C.B) ................................................................................................................ 46

WIRING -7/10 (AMP C.B) ........................................................................................................................................... 47

SCHEMATIC DIAGRAM -10/12 (AMP C.B) <LH> ............................................................................................................ 48

WIRING -8/10 (AMP C.B) <LH>......................................................................................................................................... 49

SCHEMATIC DIAGRAM -11/12 (POWER C.B) ........................................................................................................ 50

WIRING -9/10 (POWER C.B) ..................................................................................................................................... 51

SCHEMATIC DIAGRAM -12/12 (POWER C.B) <LH> ...................................................................................................... 52

WIRING -10/10 (POWER C.B) <LH>................................................................................................................................. 53

ELECTRICAL ADJUSTMENT....................................................................................................................................54 ~ 61

CD TEST MODE ................................................................................................................................................................ 62

FL DISPLAY.................................................................................................................................................................63, 64

IC BLOCK DIAGRAM....................................................................................................................................................... 65

IC DESCRIPTION ....................................................................................................................................................... 66, 67

TABLE OF CONTENTS -1/2

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-3-

MECHANICAL EXPLODED VIEW.................................................................................................................................. 68

MECHANICAL MAIN PARTS LIST ............................................................................................................................. 69, 70

COLOR NAME TABLE.....................................................................................................................................................71

TAPE MECHANISM EXPLODED VIEW <2ZM-3MK2> ................................................................................................. 72

TAPE MECHANISM PARTS LIST <2ZM-3MK2> ........................................................................................................... 73

GENERAL SPEAKER DISASSEMBLY INSTRUCTIONS (FOR REFERENCE) ........................................................... 74

SPEAKER PARTS LIST (SX-SNTR99) ........................................................................................................................... 75

OTHER PARTS LIST ................................................................................................................................................. 76, 77

CD MECHANISM SECTION

CD MECHANISM SECTION .............................................................................................................................................. 78

How to Adjust the Rotating Phase of the Gear, Main Cam ................................................................................................ 78

ELECTRICAL PARTS LIST .......................................................................................................................................79 ~ 81

TRANSISTOR ILLUSTRATION .........................................................................................................................................81

BLOCK DIAGRAM-1/1 ....................................................................................................................................................... 82

WIRING-1/2 (3CD) ............................................................................................................................................................. 83

SCHEMATIC DIAGRAM -1/1 ............................................................................................................................................ 84

WIRING -2/2 (T-T/MOTOR) ...............................................................................................................................................85

WAVE FORM ..................................................................................................................................................................... 86

IC BLOCK DIAGRAM......................................................................................................................................................... 87

IC DESCRIPTION ........................................................................................................................................................ 88, 89

CD MECHANISM EXPLODED VIEW <BZG-5> ................................................................................................................ 90

CD MECHANISM PARTS LIST <BZG-5>.......................................................................................................................... 91

COLOR NAME TABLE....................................................................................................................................................... 92

CD MECHANISM EXPLODED VIEW <KSM-2131FAM> .................................................................................................. 93

CD MECHANISM PARTS LIST <KSM-2131FAM>............................................................................................................ 94

TABLE OF CONTENTS -2/2

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-4-

SPECIFICATIONS -1/2

MAIN UNIT CX-NTR99 (U)

TUNER

FM tuning range 87.5 MHz to 108 MHz

FM usable sensitivity (IHF) 13.2 dBf

FM antenna terminal 75 ohms (unbalanced)

AM tuning range 530 kHz to 1710 kHz (10 kHz step)

531 kHz to 1602 kHz (9 kHz step)

AM usable sensitivity 350 µV/m

AM antenna Loop antenna

AMPLIFIER

Main frequency amplifier

Power output 56W+56W(110Hz-20kHz,THD

less than 1 %, 8 ohms)

70W+ 70W(1 kHz,THD less than

10 %, 8 ohms)

Total harmonic distortion 0.08 % (40 W, 1 kHz, 8 ohms, DIN

AUDIO)

Low frequency amplifier

Power output 88 W + 88 W (30 Hz - 110 Hz, THD

less than 1 %, 4 ohms)

110 W + 110 W (100 Hz, THD less

than 10 %, 4 ohms)

Total harmonic distortion 0.08%(60W,100 Hz,4ohms,DIN

AUDIO)

Input VIDEO/AUX: 400 mV

Outputs SPEAKERS MAIN: 8 ohms or more

SPEAKERS LOW FREQ: 4 ohms or

PHONES: 32 ohms or more

CASSETTE DECK

Track format 4 tracks, 2 channels stereo

Frequency response 50 Hz – 15 kHz

Recording system AC bias

Heads DECK 1: playback x 1

DECK 2: recording/playback x 1,

erase x 1

CD PLAYER

Laser Semiconductor laser (λ= 780 nm)

D/A converter 1 bit dual

Signal-to-noise ratio 85 dB (1 kHz, 0 dB)

Harmonic distortion 0.05 % (1 kHz, 0 dB)

GENERAL

Power requirements 120 V AC, 60 Hz

Power consumption 140 W

Power consumption With ECO mode on: 0.6 W

in standby mode With ECO mode off: 25 W

Dimensions (W x H x D) 260 x 324 x 391 mm

(10 1/4x 12 7/8x 15 1/2in.)

Weight 10.1 kg (22 lbs 4 oz)

FRONT SPEAKERS SX-NTR99

Speaker system 3 way, bass reflex

Speaker units Woofer:140mm (55/8in.)cone x3

Tweeter: 80 mm (13 1/4in.) cone

Super tweeter: 20 mm (13/16 in.)

ceramic

Impedance Main: 8 ohms

Low freq.: 4 ohms

Dimensions (W x H x D) 310 x 404 x 340 mm

(12 1/4x 16 x 13 1/2in.)

Weight 8.3 kg (18 lbs 5 oz)

Specificationsandexternalappearancearesubjecttochange

without notice.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-5-

SPECIFICATIONS -2/2

MAIN UNIT CX-NTR99 (LH)

TUNER

FM tuning range 87.5 MHz to 108 MHz

FM usable sensitivity (IHF) 13.2 dBf

FM antenna terminal 75 ohms (unbalanced)

AM tuning range 530 kHz to 1710 kHz (10 kHz step)

531 kHz to 1602 kHz (9 kHz step)

AM usable sensitivity 350 µV/m

AM antenna Loop antenna

AMPLIFIER

Main frequency amplifier

Power output Rated:80W+80W(8ohms,T.H.D.

1 %, 1 kHz)

Reference:100W+100W(8ohms,

T.H.D. 10 %, 1 kHz)

Total harmonic distortion 0.08 % (50 W, 1 kHz, 8 ohms, DIN

AUDIO)

Low frequency amplifier

Power output Rated: 112 W + 112 W (4 ohms,

T.H.D. 1 %, 100 Hz)

Reference:140W+140W(4ohms,

T.H.D. 10 %, 100 Hz)

Total harmonic distortion 0.08%(70 W,100Hz,4ohms,DIN

AUDIO)

Inputs VIDEO/AUX: 450 mV

MIC: 1.7 mV (10 kohms)

Outputs SPEAKERS MAIN: 8 ohms or more

SPEAKERS LOW FREQ: 4 ohms or

PHONES: 32 ohms or more

CASSETTE DECK

Track format 4 tracks, 2 channels stereo

Frequency response 50 Hz –15 kHz

Recording system AC bias

Heads DECK 1: playback x 1

DECK 2: recording/playback x 1,

erase x 1

CD PLAYER

Laser Semiconductor laser (λ= 780 nm)

D/A converter 1 bit dual

Signal-to-noise ratio 85 dB (1 kHz, 0 dB)

Harmonic distortion 0.05 % (1 kHz, 0 dB)

GENERAL

Power requirements 120 V/220 V - 230 V/240 V AC

(Switchable), 50 Hz/60 Hz

Power consumption 185 W

Power consumption With ECO mode on: 0.6 W

in standby mode With ECO mode off: 28 W

Dimensions (W x H x D) 260 x 324 x 391 mm

Weight 10.9 kg

FRONT SPEAKERS SX-NTR99

Speaker system 3 way, bass reflex

Speaker units Woofer: 140 mm cone x 3

Tweeter: 80 mm cone

Super tweeter: 20 mm ceramic

Impedance Main: 8 ohms

Low freq.: 4 ohms

Dimensions (W x H x D) 310 x 404 x 340 mm

Weight 8.5 kg

Specificationsandexternalappearancearesubjecttochange

without notice.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-6-

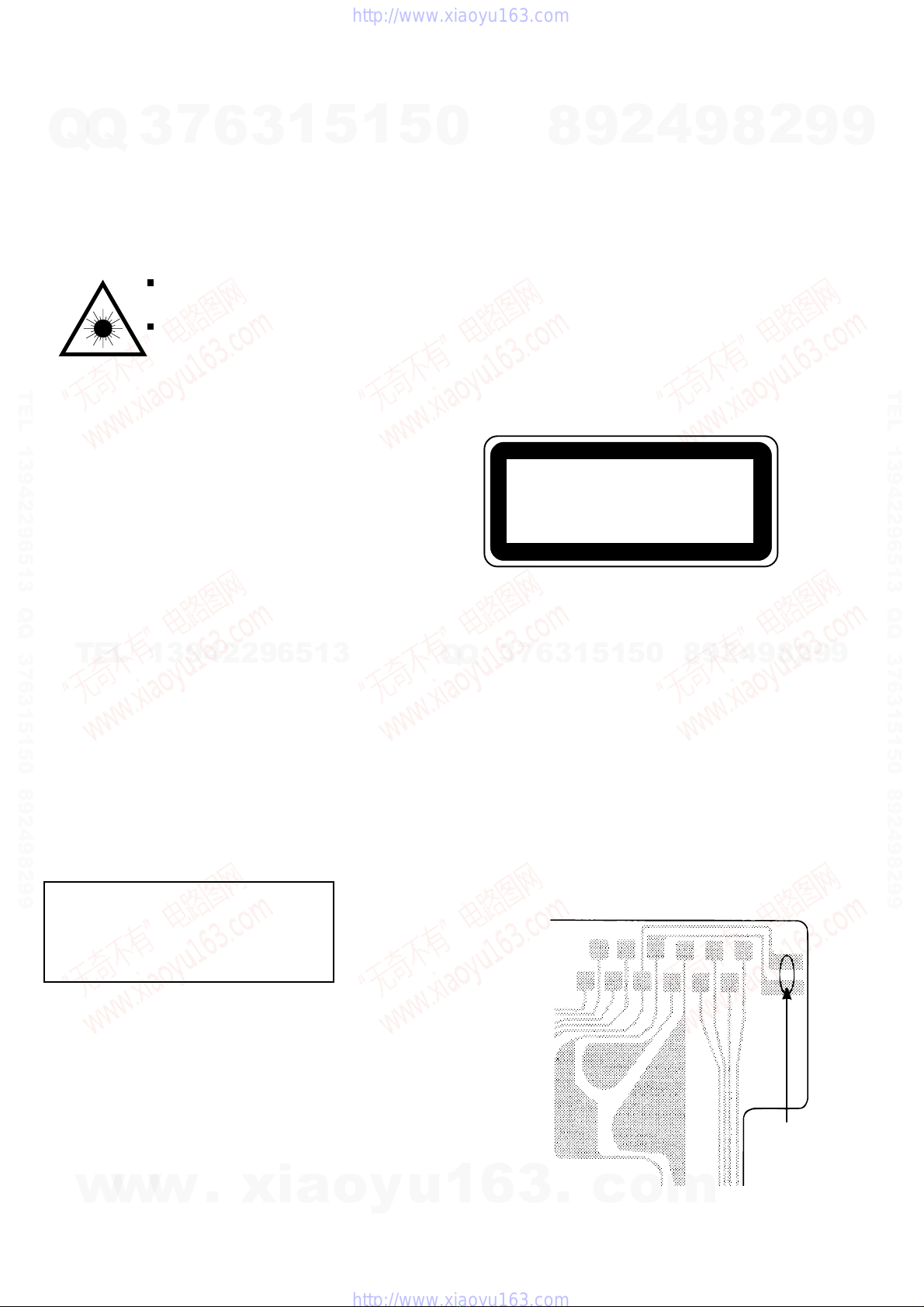

This set employs laser. Therefore, be sure to follow carefully the

instructions below when servicing.

WARNING!!

WHEN SERVICING, DO NOT APPROACH THE LASER

EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS

NECESSARYTOCONFIRMLASERBEAMEMISSION.BE

SURE TO OBSERVE FROM A DISTANCE OF MORE

THAN 30cm FROM THE SURFACE OF THE OBJECTIVE

LENS ON THE OPTICAL PICK-UP BLOCK.

Caution: Invisible laser radiation when

open and interlocks defeated avoid

exposure to beam.

Advarsel: Usynlig laserståling vedåbning,

når sikkerhedsafbrydere er ude af funktion.

Undgå udsÊttelse for stråling.

VAROITUS!

Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa

mainitulla tavalla saataa altistaa käyt-täjän

turvallisuusluokan 1 ylittävälle näkymättömälle

lasersäteilylle.

VARNING!

Om apparaten används på annat sätt än vad som

specificeras i denna bruksanvising, kan användaren

utsättas för osynling laserstrålning, som överskrider

gränsen för laserklass 1.

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING -1/1

CAUTION

Use of controls or adjustments or performance of proce-

dures other than those specified herin may result in

hazardous radiation exposure.

ATTENTION

L'utillisationdecommandes,réglagesouprocéduresautres

que ceux spécifiés peut entraîner une dangereuse

exposition aux radiations.

ADVARSEL

Usynliglaserstålingvedåbning,når sikkerhedsafbrydereer

ude af funktion. Undgå udsættelse for stråling.

This Compact Disc player is classified as a CLASS 1

LASER product.

The CLASS 1 LASER PRODUCT label is located on the

rear exterior.

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASERAPPARAT

Precaution to replace Optical block

(KSS-213F)

Body or clothes electrostatic potential could

ruin laser diode in the optical block. Be sure

ground body and workbench, and use care

the clothes do not touch the diode.

1) After the connection, remove solder shown in

right figure.

PICK-UP Assy PWB

Solder

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-7-

NOTE ON BEFORE STARTING REPAIR -1/2

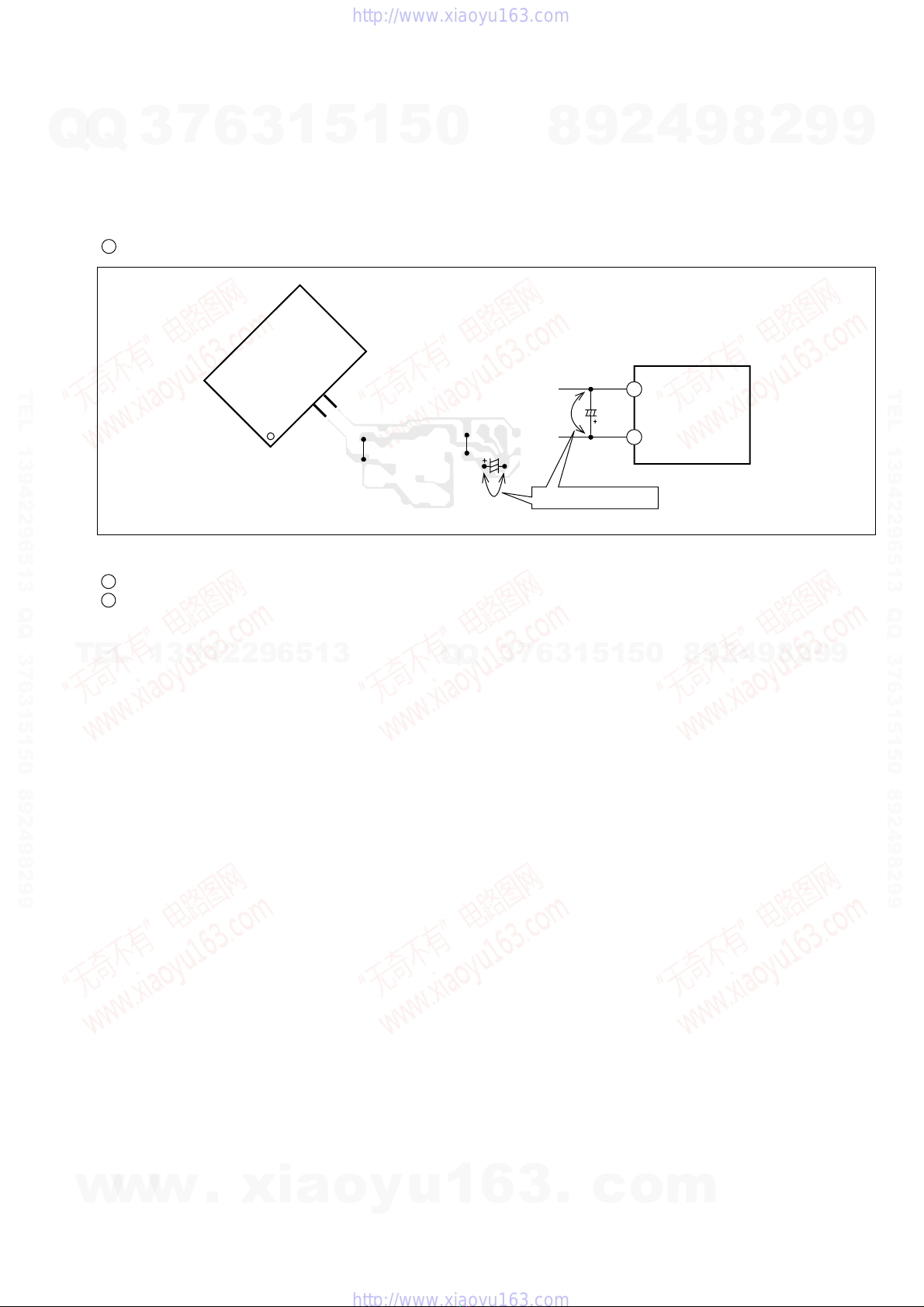

1. Forced discharge of electrolytic capacitor of power supply block

When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across the

electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect can occur.

In order to prevent the secondary trouble, perform the following measures before starting repair work.

Discharge procedure

1 Remove the AC power cord.

2 Connect a discharging resistor at an end of lead wire that has

clips at both ends. Connect the other end of the lead wire to

metal chassis.

3 Contact the other end of the discharging resistor to the

positive (+) side (+VH) of C101. (For two seconds)

4 Contact the same end of the discharging resistor as step 3 to

the negative (-) side (-VH) of C102 in the same way.

(For two seconds)

5 Check that voltage across C101 and C102 has decreased to

1 V or less using a multimeter or an oscilloscope.

Select a discharging resistor referring to the following table.

Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the reference numbers

of the charging capacitors on schematic diagram before starting the discharging work.

2. Check items before exchanging the MICROCOMPUTER

Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming that the

MICROCOMPUTER is surely defective.

2-1. Regarding the HOLD terminal of the MICROCOMPUTER

When the HOLD terminal (INPUT) of the MICROCOMPUTER is "H", the MICROCOMPUTER is judged to be operating correctly.

When this terminal is "L", the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD terminal before

exchange.

When the MICROCOMPUTER is not defective, the HOLD terminal can also go "L" when the POWER AMPLIFIER has any abnormalities

that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to "L".

• Good or no good judgement of the MICROCOMPUTER

1 Turn on the AC main power.

2 Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the "H" level or not.

3 When the HOLD terminal is "L" level, the abnormality detection circuit is judged to be working correctly and the MICRO

COMPUTER is judged to be good.

Fig-1

MAIN C.B

D101

C101 C102

Charging voltage (V) Discharging Rated power (W) Parts number

(C101, 102) resistor ( )

25-48 100 3 87-A00-247-090

49-140 220 5 87-A00-232-090

CN701 CN601

Q060

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

-8-

In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.

2-2. Regarding reset

There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power cord is

re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.

When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to exchange the

MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no good of the MICROCOM

PUTER.

1 Remove the AC power cord.

2 Short both ends of the electrolytic capacitor C911 that is connected to VDD of the MICROCOMPUTER with tweezers.

3 Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is good.

Note: The reference number or MICROCOMPUTER pin number of transistor (Q060) and electrolytic capacitor (C911) can change depending on the

models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.

2-3. Confirmation of soldering state of MICROCOMPUTER

Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the

MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.

NOTE ON BEFORE STARTING REPAIR -2/2

Fig-2-2

MICRO-

COMPUTER

MICROCOMPUTER

FRONT C.B

VSS

VDD

C911

Short with tweezers.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

! = ! SAFTY PARTS

C = Components marked

All components used on this model at the production line are shown in this service manual.

However, please note that not all components will be available as spare parts for after-sales service.

Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.

Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

-9-

ACCESSORIES PARTS LIST -1/1

CX-SNTR99 CX-SNTR99

USTC LHSTC

O AS1001 8C-NFR-903-010 IB,U(ESF)BF NSX-TR99 a .

O AS1001 8C-NFR-902-010 IB,LH(ESP)BF NSX-TR99 . b

O AS1002 8C-NF5-701-010 RC UNIT,RC-CAS02 ALPS a b

O AS1003 87-006-225-110 ANT,LOOP ANT NC2 a b

O AS1004 87-A92-345-110 ANT,WIRE FM(SEMI-ST) a b

! X AS1006 87-A91-017-010 PLUG,CONVERSION JT-0476 . b

X AS1007 87-B50-053-010 WARR-CARD,USA CUST/AV,VISUAL a .

X AS1008 87-B40-034-010 LBL,USA 1-800 a .

X AS1009 87-B40-085-010 BAG,PV 0.04-200-350 PL a b

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

! = ! SAFTY PARTS

C = Components marked

All components used on this model at the production line are shown in this service manual.

However, please note that not all components will be available as spare parts for after-sales service.

Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.

Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

-10-

ELECTRICAL PARTS LIST - 1/21

CX-SNTR99 CX-SNTR99

USTC LHSTC

AMP O C 0101 87-012-284-080 C-CAP,U 6800P-50 K B GRM a b

AMP O C 0102 87-012-284-080 C-CAP,U 6800P-50 K B GRM a b

AMP O C 0103 87-010-402-080 CAP,E 2.2-50 M 11L SME a b

AMP O C 0104 87-010-402-080 CAP,E 2.2-50 M 11L SME a b

AMP O C 0107 87-010-405-080 CAP,E 10-50 M 11L SME a b

AMP O C 0108 87-010-405-080 CAP,E 10-50 M 11L SME a b

AMP O C 0111 87-010-260-080 CAP,E 47-25 M 11L SME a b

AMP O C 0112 87-010-260-080 CAP,E 47-25 M 11L SME a b

AMP O C 0113 87-012-195-080 C-CAP,U 100P-50 J CH GRM a .

AMP O C 0113 87-A10-596-080 C-CAP,S 100P-100 J CH . b

AMP O C 0114 87-012-195-080 C-CAP,U 100P-50 J CH GRM a .

AMP O C 0114 87-A10-596-080 C-CAP,S 100P-100 J CH . b

AMP O C 0117 87-A12-317-080 C-CAP,U 0.1-50 Z F a b

AMP O C 0118 87-A12-317-080 C-CAP,U 0.1-50 Z F a b

AMP O C 0119 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b

AMP O C 0120 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b

AMP O C 0123 87-A12-470-080 C-CAP,U 820P-50 J SL a b

AMP O C 0124 87-A12-470-080 C-CAP,U 820P-50 J SL a b

AMP O C 0125 87-012-195-080 C-CAP,U 100P-50 J CH GRM a .

AMP O C 0125 87-A10-596-080 C-CAP,S 100P-100 J CH . b

CX-SNTR99 CX-SNTR99

USTC LHSTC

AMP O C 0126 87-012-195-080 C-CAP,U 100P-50 J CH GRM a .

AMP O C 0126 87-A10-596-080 C-CAP,S 100P-100 J CH . b

AMP O C 0186 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b

AMP O C 0187 87-010-406-080 CAP,E 22-50 M 11L SME a .

AMP O C 0187 87-A12-890-080 CAP,E 10-63 VR . b

AMP O C 0188 87-010-406-080 CAP,E 22-50 M 11L SME a .

AMP O C 0188 87-A12-890-080 CAP,E 10-63 VR . b

AMP O C 0193 87-012-273-080 C-CAP,U 820P-50 K B GRM a b

AMP O C 0194 87-012-273-080 C-CAP,U 820P-50 K B GRM a b

AMP O C 0233 87-012-282-080 C-CAP,U 4700P-50 K B GRM a b

AMP O C 0240 87-012-278-080 C-CAP,U 2200P-50 K B GRM a b

AMP O C 0291 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

AMP O C 0292 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

AMP O C 0293 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

AMP O C 0294 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

AMP O C 0301 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b

AMP O C 0302 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b

AMP O C 0303 87-010-546-080 CAP,E 0.33-50 M 11L SME a b

AMP O C 0304 87-010-546-080 CAP,E 0.33-50 M 11L SME a b

AMP O C 0307 87-010-404-080 CAP,E 4.7-50 M 11L SME a b

CX-SNTR99 CX-SNTR99

USTC LHSTC

AMP O C 0308 87-010-404-080 CAP,E 4.7-50 M 11L SME a b

AMP O C 0311 87-010-406-080 CAP,E 22-50 M 11L SME a b

AMP O C 0312 87-010-406-080 CAP,E 22-50 M 11L SME a b

AMP O C 0313 87-012-195-080 C-CAP,U 100P-50 J CH GRM a .

AMP O C 0313 87-A10-596-080 C-CAP,S 100P-100 J CH . b

AMP O C 0314 87-012-195-080 C-CAP,U 100P-50 J CH GRM a .

AMP O C 0314 87-A10-596-080 C-CAP,S 100P-100 J CH . b

AMP O C 0317 87-A12-317-080 C-CAP,U 0.1-50 Z F a b

AMP O C 0318 87-A12-317-080 C-CAP,U 0.1-50 Z F a b

AMP O C 0319 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b

AMP O C 0320 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b

AMP O C 0323 87-A12-470-080 C-CAP,U 820P-50 J SL a b

AMP O C 0324 87-A12-470-080 C-CAP,U 820P-50 J SL a b

AMP O C 0325 87-012-195-080 C-CAP,U 100P-50 J CH GRM a .

AMP O C 0325 87-A10-596-080 C-CAP,S 100P-100 J CH . b

AMP O C 0326 87-012-195-080 C-CAP,U 100P-50 J CH GRM a .

AMP O C 0326 87-A10-596-080 C-CAP,S 100P-100 J CH . b

AMP O C 0393 87-012-273-080 C-CAP,U 820P-50 K B GRM a b

AMP O C 0394 87-012-273-080 C-CAP,U 820P-50 K B GRM a b

AMP O CN0102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3 a b

CX-SNTR99 CX-SNTR99

USTC LHSTC

AMP O CN0103 87-A61-013-010 CONN,15P H BLK TAC-L15P-A3 a b

AMP S D 0101 87-A40-269-040 C-DIODE,MC2836 a b

AMP S D 0103 87-020-465-080 DIODE,1SS133 a b

AMP S D 0104 87-020-465-080 DIODE,1SS133 a b

AMP S D 0105 87-A40-269-040 C-DIODE,MC2836 a b

AMP S D 0106 87-A40-269-040 C-DIODE,MC2836 a b

AMP S D 0107 87-A40-270-040 C-DIODE,MC2838 a b

AMP S D 0108 87-A40-270-040 C-DIODE,MC2838 a b

AMP S D 0109 87-A40-488-080 DIODE,1SS244 a b

AMP S D 0110 87-A40-488-080 DIODE,1SS244 a b

AMP S D 0150 87-A40-270-040 C-DIODE,MC2838 a b

AMP S D 0183 87-070-178-090 DIODE,1N5402-BD54 a b

AMP S D 0184 87-070-178-090 DIODE,1N5402-BD54 a b

AMP S D 0185 87-070-178-090 DIODE,1N5402-BD54 a b

AMP S D 0186 87-070-178-090 DIODE,1N5402-BD54 a b

AMP S D 0187 87-A40-747-080 ZENER,UZ5.1BSB a b

AMP S D 0188 87-A40-749-080 ZENER,UZ5.6BSB a b

AMP S D 0189 87-A40-270-040 C-DIODE,MC2838 a b

AMP S D 0190 87-A40-269-040 C-DIODE,MC2836 a b

AMP S D 0191 87-A40-764-080 ZENER,UZ10BSC a b

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Other manuals for NSX-TR99

Table of contents

Popular Stereo System manuals by other brands

Sony

Sony HCD-VX88 Service manual

Philips

Philips MCM398D/12 user manual

Sony

Sony CMT-SPZ90DB operating instructions

LG OM4560 owner's manual

JVC

JVC UX-G3 instructions

Odys

Odys ODYS - LOOP instruction manual

Panasonic

Panasonic SC-AK100 operating instructions

Sharp

Sharp CD-G10000V Operation manual

Bogen

Bogen NEARSCAPES 4.1 manual

Panasonic

Panasonic SCPM29 - MINI HES W/CD PLAYER operating instructions

Meyer

Meyer LD-3 operating instructions

THOMSON

THOMSON MIC302U manual

Philips

Philips MCM530 Service manual

Sony

Sony SS-CEP50 Service manual

Cetacea Sound

Cetacea Sound CVS-II user guide

Sony

Sony MHC-V21D Service manual

Denon

Denon UCD-250 Service manual

Exibel

Exibel BDX600-UK user manual

Aiwa NSX-TR99 User manual

Popular Stereo System manuals by other brands
