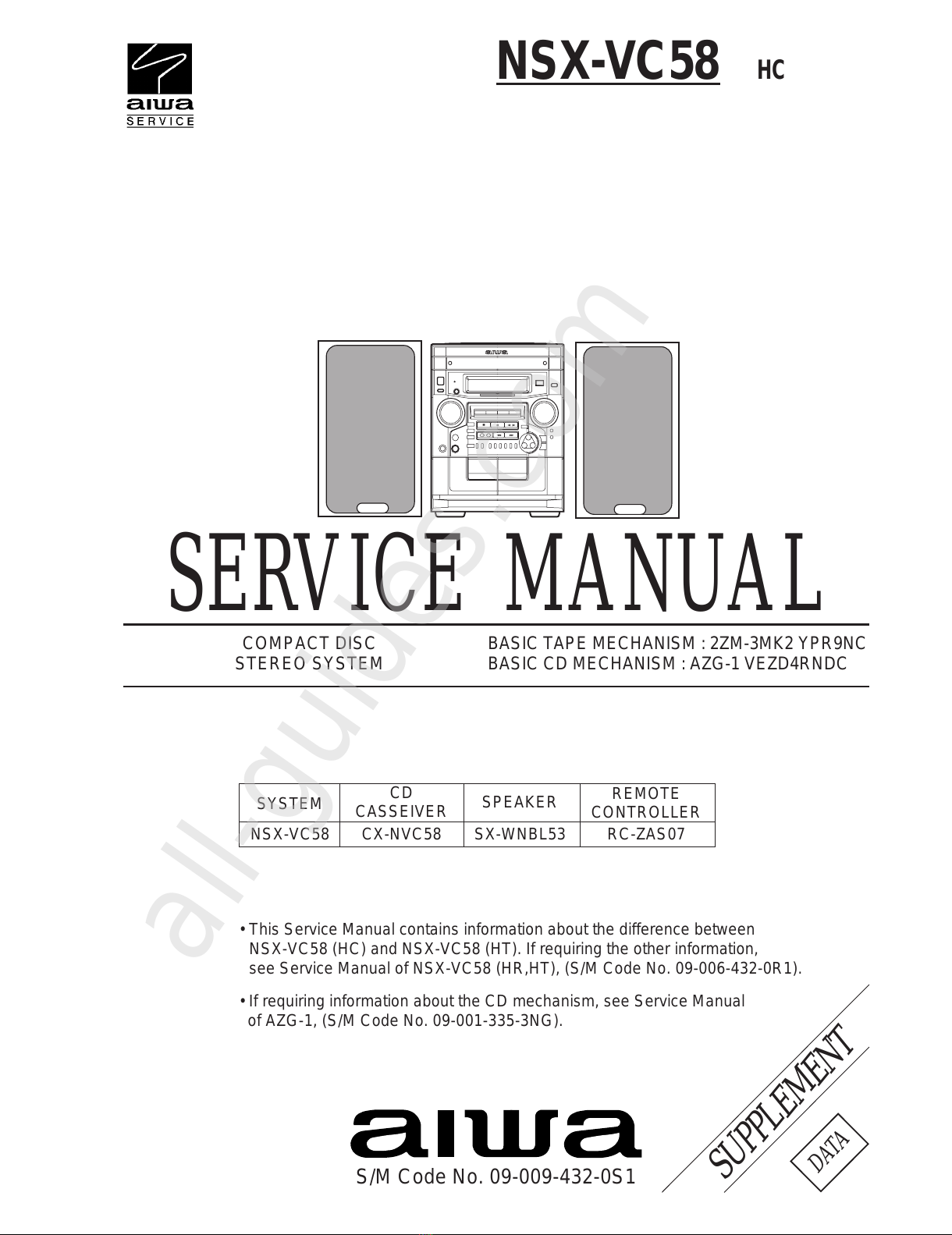

Aiwa nsx-vc58 hc User manual

SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM BASIC TAPE MECHANISM : 2ZM-3MK2 YPR9NC BASIC CD MECHANISM : AZG-1 VEZD4RNDC
NSX-VC58 HC
S/M Code No. 09-009-432-0S1
SUPPLEMENT
• If requiring information about the CD mechanism, see Service Manual
of AZG-1, (S/M Code No. 09-001-335-3NG).
NSX-VC58
SPEAKER
SYSTEM CD
CASSEIVER REMOTE
CONTROLLER
SX-WNBL53CX-NVC58 RC-ZAS07
• This Service Manual contains information about the difference between
NSX-VC58 (HC) and NSX-VC58 (HT). If requiring the other information,
see Service Manual of NSX-VC58 (HR,HT), (S/M Code No. 09-006-432-0R1).
All manuals and user guides at all-guides.com
all-guides.com

– 2 –

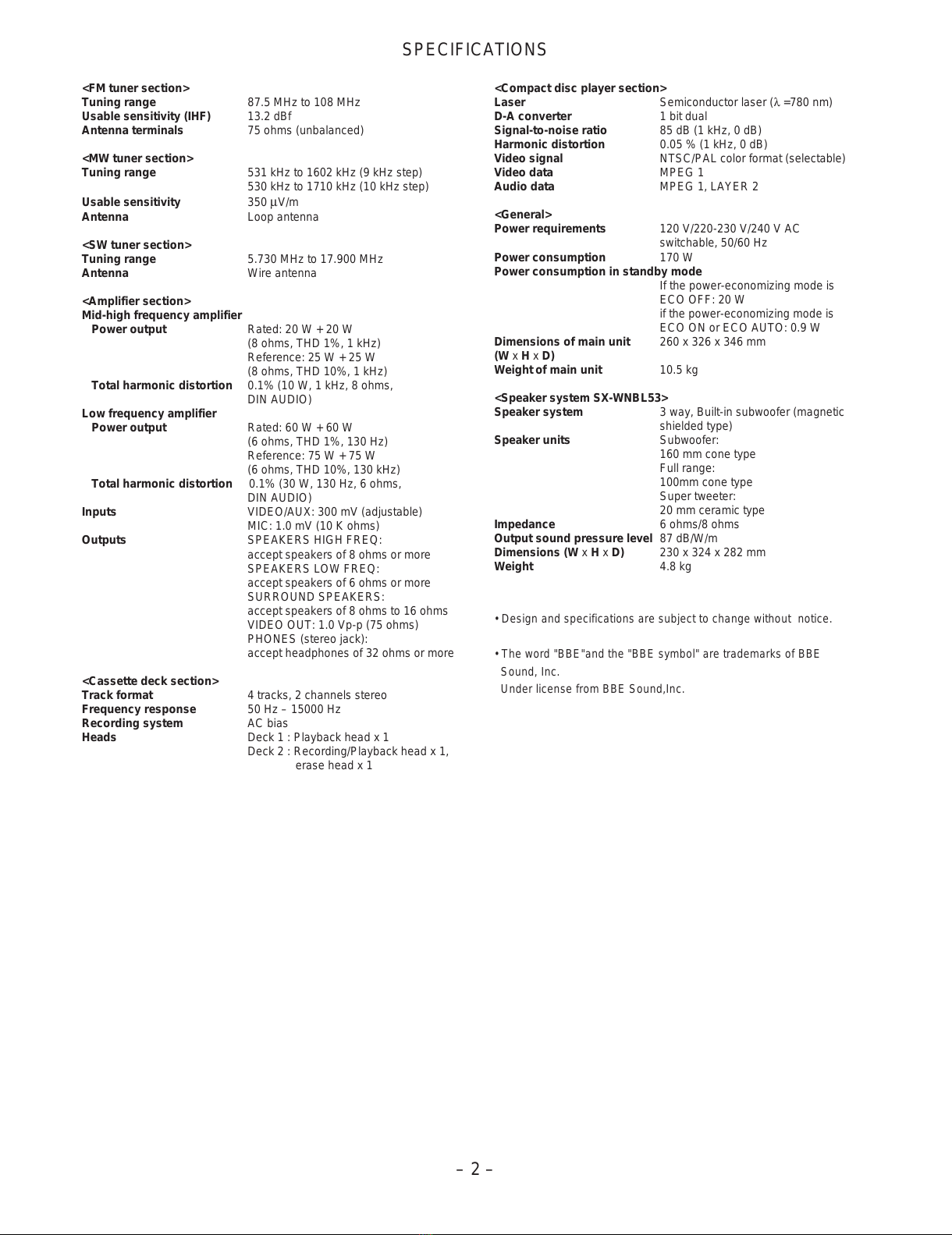

SPECIFICATIONS
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<MW tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<SW tuner section>
Tuning range 5.730 MHz to 17.900 MHz
Antenna Wire antenna
<Amplifier section>
Mid-high frequency amplifier
Power output Rated: 20 W + 20 W
(8 ohms, THD 1%, 1 kHz)
Reference: 25 W + 25 W
(8 ohms, THD 10%, 1 kHz)
Total harmonic distortion 0.1% (10 W, 1 kHz, 8 ohms,
DIN AUDIO)
Low frequency amplifier
Power output Rated: 60 W + 60 W
(6 ohms, THD 1%, 130 Hz)
Reference: 75 W + 75 W
(6 ohms, THD 10%, 130 kHz)
Total harmonic distortion 0.1% (30 W, 130 Hz, 6 ohms,
DIN AUDIO)
Inputs VIDEO/AUX: 300 mV (adjustable)
MIC: 1.0 mV (10 K ohms)
Outputs SPEAKERS HIGH FREQ:
accept speakers of 8 ohms or more
SPEAKERS LOW FREQ:
accept speakers of 6 ohms or more
SURROUND SPEAKERS:
accept speakers of 8 ohms to 16 ohms
VIDEO OUT: 1.0 Vp-p (75 ohms)
PHONES (stereo jack):
accept headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 15000 Hz
Recording system AC bias
Heads Deck 1 : Playback head x 1
Deck 2 : Recording/Playback head x 1,
erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Video signal NTSC/PAL color format (selectable)
Video data MPEG 1
Audio data MPEG 1, LAYER 2
<General>
Power requirements 120 V/220-230 V/240 V AC
switchable, 50/60 Hz
Power consumption 170 W
Power consumption in standby mode
If the power-economizing mode is
ECO OFF: 20 W
if the power-economizing mode is
ECO ON or ECO AUTO: 0.9 W
Dimensions of main unit 260 x 326 x 346 mm
(W xH xD)
Weight of main unit 10.5 kg
<Speaker system SX-WNBL53>
Speaker system 3 way, Built-in subwoofer (magnetic
shielded type)
Speaker units Subwoofer:
160 mm cone type
Full range:
100mm cone type
Super tweeter:
20 mm ceramic type
Impedance 6 ohms/8 ohms
Output sound pressure level 87 dB/W/m
Dimensions (W xH xD) 230 x 324 x 282 mm
Weight 4.8 kg
• Design and specifications are subject to change without notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
All manuals and user guides at all-guides.com

– 3 –
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BESURETOOBSERVEFROMADISTANCEOFMORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynliglaserstålingvedåbning,
nårsikkerhedsafbrydereerudeaffunktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autresque ceuxspécifiés peutentraîner unedangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precaution to replace Optical block
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK-UP Assy P.W.B
Solder
All manuals and user guides at all-guides.com

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 4 –

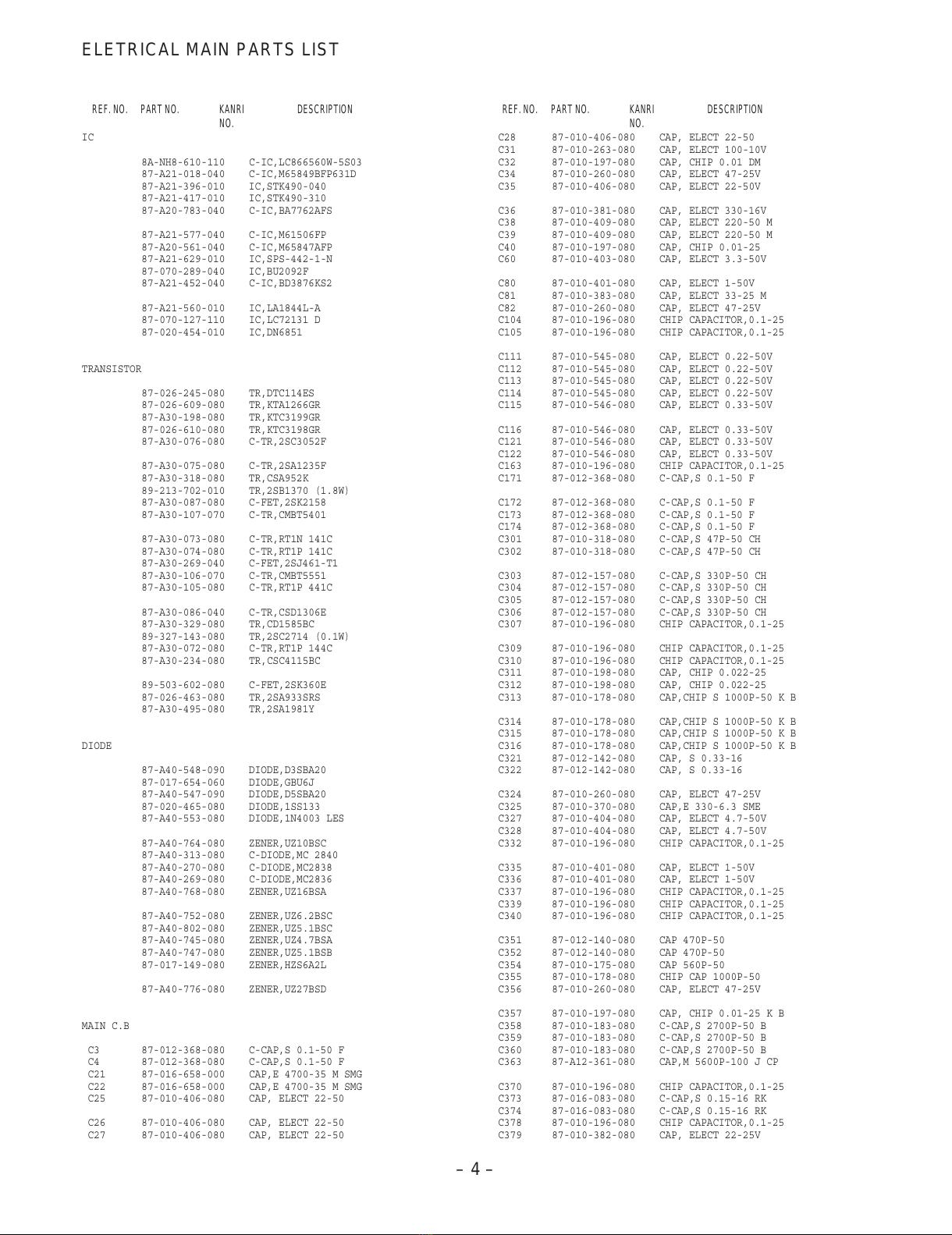

ELETRICAL MAIN PARTS LIST
IC
8A-NH8-610-110 C-IC,LC866560W-5S03
87-A21-018-040 C-IC,M65849BFP631D
87-A21-396-010 IC,STK490-040
87-A21-417-010 IC,STK490-310
87-A20-783-040 C-IC,BA7762AFS
87-A21-577-040 C-IC,M61506FP
87-A20-561-040 C-IC,M65847AFP
87-A21-629-010 IC,SPS-442-1-N
87-070-289-040 IC,BU2092F
87-A21-452-040 C-IC,BD3876KS2
87-A21-560-010 IC,LA1844L-A
87-070-127-110 IC,LC72131 D
87-020-454-010 IC,DN6851
TRANSISTOR
87-026-245-080 TR,DTC114ES
87-026-609-080 TR,KTA1266GR
87-A30-198-080 TR,KTC3199GR
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-318-080 TR,CSA952K
89-213-702-010 TR,2SB1370 (1.8W)
87-A30-087-080 C-FET,2SK2158
87-A30-107-070 C-TR,CMBT5401
87-A30-073-080 C-TR,RT1N 141C
87-A30-074-080 C-TR,RT1P 141C
87-A30-269-040 C-FET,2SJ461-T1
87-A30-106-070 C-TR,CMBT5551
87-A30-105-080 C-TR,RT1P 441C
87-A30-086-040 C-TR,CSD1306E
87-A30-329-080 TR,CD1585BC
89-327-143-080 TR,2SC2714 (0.1W)
87-A30-072-080 C-TR,RT1P 144C
87-A30-234-080 TR,CSC4115BC
89-503-602-080 C-FET,2SK360E
87-026-463-080 TR,2SA933SRS
87-A30-495-080 TR,2SA1981Y
DIODE
87-A40-548-090 DIODE,D3SBA20
87-017-654-060 DIODE,GBU6J
87-A40-547-090 DIODE,D5SBA20
87-020-465-080 DIODE,1SS133
87-A40-553-080 DIODE,1N4003 LES
87-A40-764-080 ZENER,UZ10BSC
87-A40-313-080 C-DIODE,MC 2840
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-768-080 ZENER,UZ16BSA
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-802-080 ZENER,UZ5.1BSC
87-A40-745-080 ZENER,UZ4.7BSA
87-A40-747-080 ZENER,UZ5.1BSB
87-017-149-080 ZENER,HZS6A2L
87-A40-776-080 ZENER,UZ27BSD
MAIN C.B
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C21 87-016-658-000 CAP,E 4700-35 M SMG
C22 87-016-658-000 CAP,E 4700-35 M SMG
C25 87-010-406-080 CAP, ELECT 22-50
C26 87-010-406-080 CAP, ELECT 22-50
C27 87-010-406-080 CAP, ELECT 22-50
C28 87-010-406-080 CAP, ELECT 22-50
C31 87-010-263-080 CAP, ELECT 100-10V
C32 87-010-197-080 CAP, CHIP 0.01 DM
C34 87-010-260-080 CAP, ELECT 47-25V
C35 87-010-406-080 CAP, ELECT 22-50V
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-010-409-080 CAP, ELECT 220-50 M
C39 87-010-409-080 CAP, ELECT 220-50 M
C40 87-010-197-080 CAP, CHIP 0.01-25
C60 87-010-403-080 CAP, ELECT 3.3-50V
C80 87-010-401-080 CAP, ELECT 1-50V
C81 87-010-383-080 CAP, ELECT 33-25 M
C82 87-010-260-080 CAP, ELECT 47-25V
C104 87-010-196-080 CHIP CAPACITOR,0.1-25
C105 87-010-196-080 CHIP CAPACITOR,0.1-25
C111 87-010-545-080 CAP, ELECT 0.22-50V
C112 87-010-545-080 CAP, ELECT 0.22-50V
C113 87-010-545-080 CAP, ELECT 0.22-50V
C114 87-010-545-080 CAP, ELECT 0.22-50V
C115 87-010-546-080 CAP, ELECT 0.33-50V
C116 87-010-546-080 CAP, ELECT 0.33-50V
C121 87-010-546-080 CAP, ELECT 0.33-50V
C122 87-010-546-080 CAP, ELECT 0.33-50V
C163 87-010-196-080 CHIP CAPACITOR,0.1-25
C171 87-012-368-080 C-CAP,S 0.1-50 F
C172 87-012-368-080 C-CAP,S 0.1-50 F
C173 87-012-368-080 C-CAP,S 0.1-50 F
C174 87-012-368-080 C-CAP,S 0.1-50 F
C301 87-010-318-080 C-CAP,S 47P-50 CH
C302 87-010-318-080 C-CAP,S 47P-50 CH
C303 87-012-157-080 C-CAP,S 330P-50 CH
C304 87-012-157-080 C-CAP,S 330P-50 CH
C305 87-012-157-080 C-CAP,S 330P-50 CH
C306 87-012-157-080 C-CAP,S 330P-50 CH
C307 87-010-196-080 CHIP CAPACITOR,0.1-25
C309 87-010-196-080 CHIP CAPACITOR,0.1-25
C310 87-010-196-080 CHIP CAPACITOR,0.1-25
C311 87-010-198-080 CAP, CHIP 0.022-25
C312 87-010-198-080 CAP, CHIP 0.022-25
C313 87-010-178-080 CAP,CHIP S 1000P-50 K B
C314 87-010-178-080 CAP,CHIP S 1000P-50 K B
C315 87-010-178-080 CAP,CHIP S 1000P-50 K B
C316 87-010-178-080 CAP,CHIP S 1000P-50 K B
C321 87-012-142-080 CAP, S 0.33-16
C322 87-012-142-080 CAP, S 0.33-16
C324 87-010-260-080 CAP, ELECT 47-25V
C325 87-010-370-080 CAP,E 330-6.3 SME
C327 87-010-404-080 CAP, ELECT 4.7-50V
C328 87-010-404-080 CAP, ELECT 4.7-50V
C332 87-010-196-080 CHIP CAPACITOR,0.1-25
C335 87-010-401-080 CAP, ELECT 1-50V
C336 87-010-401-080 CAP, ELECT 1-50V
C337 87-010-196-080 CHIP CAPACITOR,0.1-25
C339 87-010-196-080 CHIP CAPACITOR,0.1-25
C340 87-010-196-080 CHIP CAPACITOR,0.1-25
C351 87-012-140-080 CAP 470P-50
C352 87-012-140-080 CAP 470P-50
C354 87-010-175-080 CAP 560P-50
C355 87-010-178-080 CHIP CAP 1000P-50
C356 87-010-260-080 CAP, ELECT 47-25V
C357 87-010-197-080 CAP, CHIP 0.01-25 K B
C358 87-010-183-080 C-CAP,S 2700P-50 B
C359 87-010-183-080 C-CAP,S 2700P-50 B
C360 87-010-183-080 C-CAP,S 2700P-50 B
C363 87-A12-361-080 CAP,M 5600P-100 J CP
C370 87-010-196-080 CHIP CAPACITOR,0.1-25
C373 87-016-083-080 C-CAP,S 0.15-16 RK
C374 87-016-083-080 C-CAP,S 0.15-16 RK
C378 87-010-196-080 CHIP CAPACITOR,0.1-25
C379 87-010-382-080 CAP, ELECT 22-25V
All manuals and user guides at all-guides.com

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 5 –

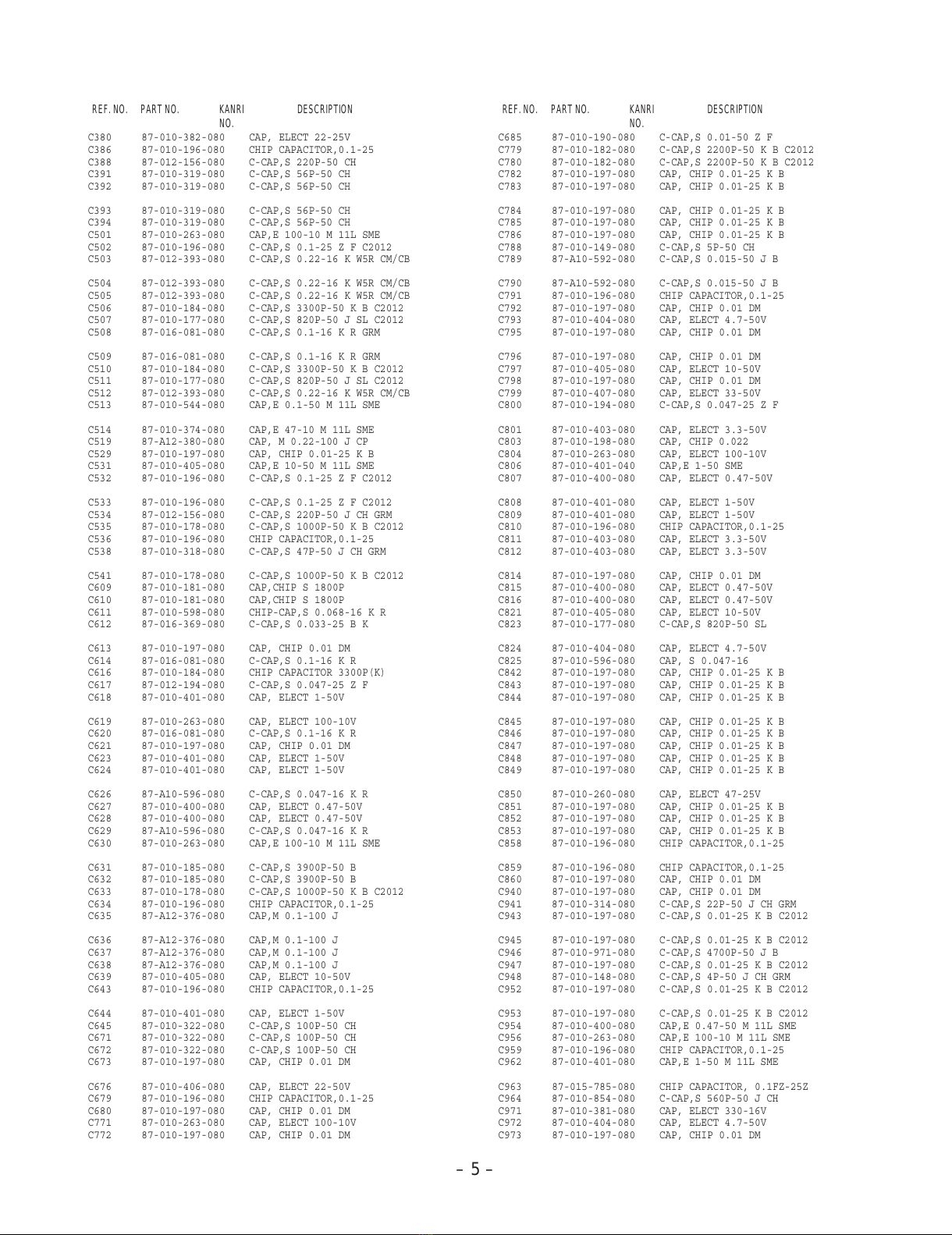

C380 87-010-382-080 CAP, ELECT 22-25V
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C388 87-012-156-080 C-CAP,S 220P-50 CH
C391 87-010-319-080 C-CAP,S 56P-50 CH
C392 87-010-319-080 C-CAP,S 56P-50 CH
C393 87-010-319-080 C-CAP,S 56P-50 CH
C394 87-010-319-080 C-CAP,S 56P-50 CH
C501 87-010-263-080 CAP,E 100-10 M 11L SME
C502 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C503 87-012-393-080 C-CAP,S 0.22-16 K W5R CM/CB
C504 87-012-393-080 C-CAP,S 0.22-16 K W5R CM/CB
C505 87-012-393-080 C-CAP,S 0.22-16 K W5R CM/CB
C506 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C507 87-010-177-080 C-CAP,S 820P-50 J SL C2012
C508 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C509 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C510 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C511 87-010-177-080 C-CAP,S 820P-50 J SL C2012
C512 87-012-393-080 C-CAP,S 0.22-16 K W5R CM/CB
C513 87-010-544-080 CAP,E 0.1-50 M 11L SME
C514 87-010-374-080 CAP,E 47-10 M 11L SME
C519 87-A12-380-080 CAP, M 0.22-100 J CP
C529 87-010-197-080 CAP, CHIP 0.01-25 K B
C531 87-010-405-080 CAP,E 10-50 M 11L SME
C532 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C533 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C534 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C535 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C536 87-010-196-080 CHIP CAPACITOR,0.1-25
C538 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C541 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C609 87-010-181-080 CAP,CHIP S 1800P
C610 87-010-181-080 CAP,CHIP S 1800P
C611 87-010-598-080 CHIP-CAP,S 0.068-16 K R
C612 87-016-369-080 C-CAP,S 0.033-25 B K
C613 87-010-197-080 CAP, CHIP 0.01 DM
C614 87-016-081-080 C-CAP,S 0.1-16 K R
C616 87-010-184-080 CHIP CAPACITOR 3300P(K)
C617 87-012-194-080 C-CAP,S 0.047-25 Z F
C618 87-010-401-080 CAP, ELECT 1-50V
C619 87-010-263-080 CAP, ELECT 100-10V
C620 87-016-081-080 C-CAP,S 0.1-16 K R
C621 87-010-197-080 CAP, CHIP 0.01 DM
C623 87-010-401-080 CAP, ELECT 1-50V
C624 87-010-401-080 CAP, ELECT 1-50V
C626 87-A10-596-080 C-CAP,S 0.047-16 K R
C627 87-010-400-080 CAP, ELECT 0.47-50V
C628 87-010-400-080 CAP, ELECT 0.47-50V
C629 87-A10-596-080 C-CAP,S 0.047-16 K R
C630 87-010-263-080 CAP,E 100-10 M 11L SME
C631 87-010-185-080 C-CAP,S 3900P-50 B
C632 87-010-185-080 C-CAP,S 3900P-50 B
C633 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C634 87-010-196-080 CHIP CAPACITOR,0.1-25
C635 87-A12-376-080 CAP,M 0.1-100 J
C636 87-A12-376-080 CAP,M 0.1-100 J
C637 87-A12-376-080 CAP,M 0.1-100 J
C638 87-A12-376-080 CAP,M 0.1-100 J
C639 87-010-405-080 CAP, ELECT 10-50V
C643 87-010-196-080 CHIP CAPACITOR,0.1-25
C644 87-010-401-080 CAP, ELECT 1-50V
C645 87-010-322-080 C-CAP,S 100P-50 CH
C671 87-010-322-080 C-CAP,S 100P-50 CH
C672 87-010-322-080 C-CAP,S 100P-50 CH
C673 87-010-197-080 CAP, CHIP 0.01 DM
C676 87-010-406-080 CAP, ELECT 22-50V
C679 87-010-196-080 CHIP CAPACITOR,0.1-25
C680 87-010-197-080 CAP, CHIP 0.01 DM
C771 87-010-263-080 CAP, ELECT 100-10V
C772 87-010-197-080 CAP, CHIP 0.01 DM
C685 87-010-190-080 C-CAP,S 0.01-50 Z F
C779 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C780 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C782 87-010-197-080 CAP, CHIP 0.01-25 K B
C783 87-010-197-080 CAP, CHIP 0.01-25 K B
C784 87-010-197-080 CAP, CHIP 0.01-25 K B
C785 87-010-197-080 CAP, CHIP 0.01-25 K B
C786 87-010-197-080 CAP, CHIP 0.01-25 K B
C788 87-010-149-080 C-CAP,S 5P-50 CH
C789 87-A10-592-080 C-CAP,S 0.015-50 J B
C790 87-A10-592-080 C-CAP,S 0.015-50 J B
C791 87-010-196-080 CHIP CAPACITOR,0.1-25
C792 87-010-197-080 CAP, CHIP 0.01 DM
C793 87-010-404-080 CAP, ELECT 4.7-50V
C795 87-010-197-080 CAP, CHIP 0.01 DM
C796 87-010-197-080 CAP, CHIP 0.01 DM
C797 87-010-405-080 CAP, ELECT 10-50V
C798 87-010-197-080 CAP, CHIP 0.01 DM
C799 87-010-407-080 CAP, ELECT 33-50V
C800 87-010-194-080 C-CAP,S 0.047-25 Z F
C801 87-010-403-080 CAP, ELECT 3.3-50V
C803 87-010-198-080 CAP, CHIP 0.022
C804 87-010-263-080 CAP, ELECT 100-10V
C806 87-010-401-040 CAP,E 1-50 SME
C807 87-010-400-080 CAP, ELECT 0.47-50V
C808 87-010-401-080 CAP, ELECT 1-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-196-080 CHIP CAPACITOR,0.1-25
C811 87-010-403-080 CAP, ELECT 3.3-50V
C812 87-010-403-080 CAP, ELECT 3.3-50V
C814 87-010-197-080 CAP, CHIP 0.01 DM
C815 87-010-400-080 CAP, ELECT 0.47-50V
C816 87-010-400-080 CAP, ELECT 0.47-50V
C821 87-010-405-080 CAP, ELECT 10-50V
C823 87-010-177-080 C-CAP,S 820P-50 SL
C824 87-010-404-080 CAP, ELECT 4.7-50V
C825 87-010-596-080 CAP, S 0.047-16
C842 87-010-197-080 CAP, CHIP 0.01-25 K B
C843 87-010-197-080 CAP, CHIP 0.01-25 K B
C844 87-010-197-080 CAP, CHIP 0.01-25 K B
C845 87-010-197-080 CAP, CHIP 0.01-25 K B
C846 87-010-197-080 CAP, CHIP 0.01-25 K B
C847 87-010-197-080 CAP, CHIP 0.01-25 K B
C848 87-010-197-080 CAP, CHIP 0.01-25 K B
C849 87-010-197-080 CAP, CHIP 0.01-25 K B
C850 87-010-260-080 CAP, ELECT 47-25V
C851 87-010-197-080 CAP, CHIP 0.01-25 K B
C852 87-010-197-080 CAP, CHIP 0.01-25 K B
C853 87-010-197-080 CAP, CHIP 0.01-25 K B
C858 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-010-196-080 CHIP CAPACITOR,0.1-25
C860 87-010-197-080 CAP, CHIP 0.01 DM
C940 87-010-197-080 CAP, CHIP 0.01 DM
C941 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C943 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C945 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C946 87-010-971-080 C-CAP,S 4700P-50 J B
C947 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C948 87-010-148-080 C-CAP,S 4P-50 J CH GRM
C952 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C953 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C954 87-010-400-080 CAP,E 0.47-50 M 11L SME
C956 87-010-263-080 CAP,E 100-10 M 11L SME
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C962 87-010-401-080 CAP,E 1-50 M 11L SME
C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C964 87-010-854-080 C-CAP,S 560P-50 J CH
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-010-404-080 CAP, ELECT 4.7-50V
C973 87-010-197-080 CAP, CHIP 0.01 DM
All manuals and user guides at all-guides.com

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.

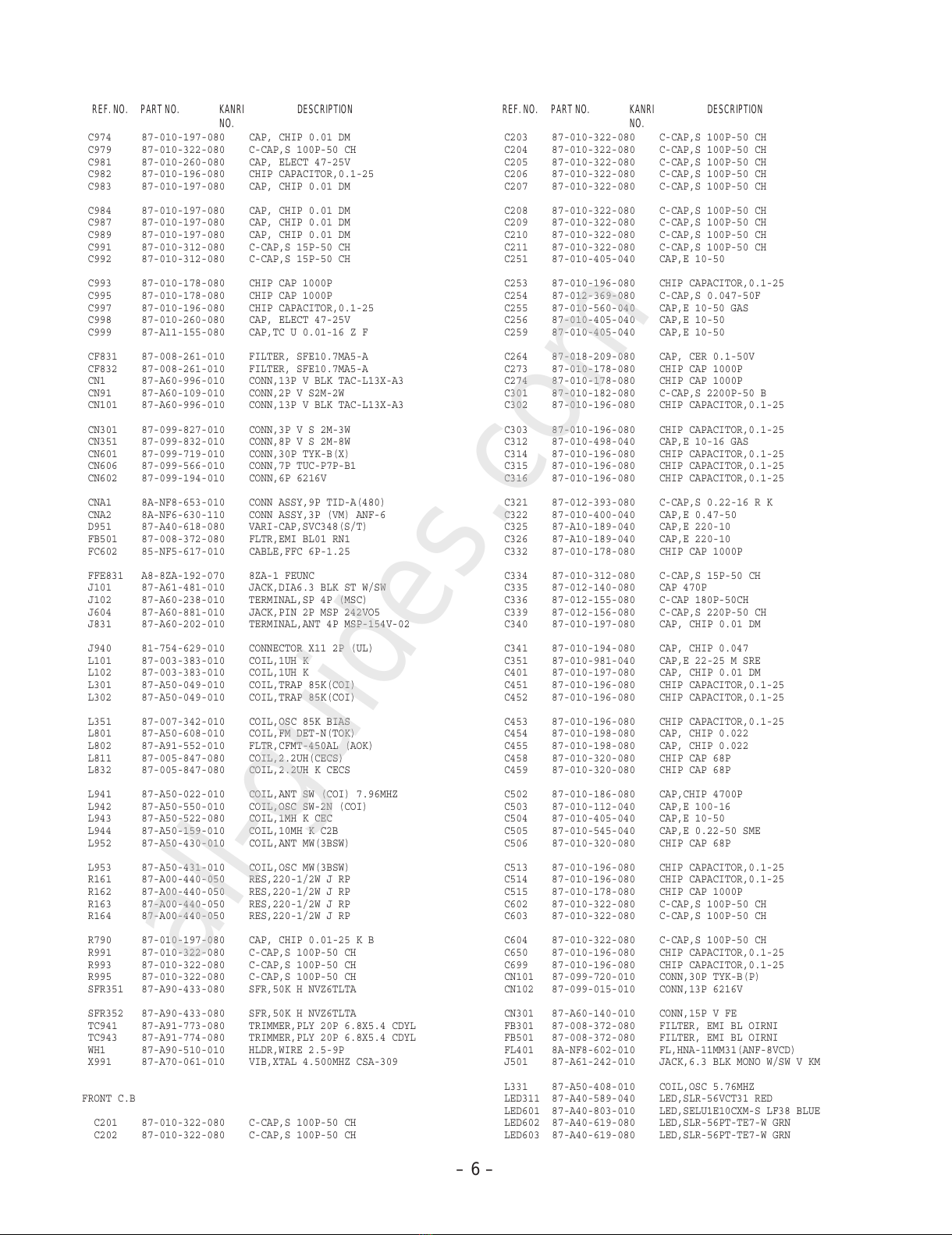

– 6 –
C974 87-010-197-080 CAP, CHIP 0.01 DM
C979 87-010-322-080 C-CAP,S 100P-50 CH
C981 87-010-260-080 CAP, ELECT 47-25V
C982 87-010-196-080 CHIP CAPACITOR,0.1-25
C983 87-010-197-080 CAP, CHIP 0.01 DM
C984 87-010-197-080 CAP, CHIP 0.01 DM
C987 87-010-197-080 CAP, CHIP 0.01 DM
C989 87-010-197-080 CAP, CHIP 0.01 DM
C991 87-010-312-080 C-CAP,S 15P-50 CH
C992 87-010-312-080 C-CAP,S 15P-50 CH
C993 87-010-178-080 CHIP CAP 1000P
C995 87-010-178-080 CHIP CAP 1000P
C997 87-010-196-080 CHIP CAPACITOR,0.1-25
C998 87-010-260-080 CAP, ELECT 47-25V
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER, SFE10.7MA5-A
CF832 87-008-261-010 FILTER, SFE10.7MA5-A
CN1 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN91 87-A60-109-010 CONN,2P V S2M-2W
CN101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN301 87-099-827-010 CONN,3P V S 2M-3W
CN351 87-099-832-010 CONN,8P V S 2M-8W
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN606 87-099-566-010 CONN,7P TUC-P7P-B1
CN602 87-099-194-010 CONN,6P 6216V
CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480)
CNA2 8A-NF6-630-110 CONN ASSY,3P (VM) ANF-6
D951 87-A40-618-080 VARI-CAP,SVC348(S/T)
FB501 87-008-372-080 FLTR,EMI BL01 RN1
FC602 85-NF5-617-010 CABLE,FFC 6P-1.25
FFE831 A8-8ZA-192-070 8ZA-1 FEUNC
J101 87-A61-481-010 JACK,DIA6.3 BLK ST W/SW
J102 87-A60-238-010 TERMINAL,SP 4P (MSC)
J604 87-A60-881-010 JACK,PIN 2P MSP 242VO5
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
J940 81-754-629-010 CONNECTOR X11 2P (UL)
L101 87-003-383-010 COIL,1UH K
L102 87-003-383-010 COIL,1UH K
L301 87-A50-049-010 COIL,TRAP 85K(COI)
L302 87-A50-049-010 COIL,TRAP 85K(COI)
L351 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)
L802 87-A91-552-010 FLTR,CFMT-450AL (AOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH K CECS
L941 87-A50-022-010 COIL,ANT SW (COI) 7.96MHZ
L942 87-A50-550-010 COIL,OSC SW-2N (COI)
L943 87-A50-522-080 COIL,1MH K CEC
L944 87-A50-159-010 COIL,10MH K C2B
L952 87-A50-430-010 COIL,ANT MW(3BSW)
L953 87-A50-431-010 COIL,OSC MW(3BSW)
R161 87-A00-440-050 RES,220-1/2W J RP
R162 87-A00-440-050 RES,220-1/2W J RP
R163 87-A00-440-050 RES,220-1/2W J RP
R164 87-A00-440-050 RES,220-1/2W J RP
R790 87-010-197-080 CAP, CHIP 0.01-25 K B
R991 87-010-322-080 C-CAP,S 100P-50 CH
R993 87-010-322-080 C-CAP,S 100P-50 CH
R995 87-010-322-080 C-CAP,S 100P-50 CH
SFR351 87-A90-433-080 SFR,50K H NVZ6TLTA
SFR352 87-A90-433-080 SFR,50K H NVZ6TLTA
TC941 87-A91-773-080 TRIMMER,PLY 20P 6.8X5.4 CDYL
TC943 87-A91-774-080 TRIMMER,PLY 20P 6.8X5.4 CDYL
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
FRONT C.B
C201 87-010-322-080 C-CAP,S 100P-50 CH
C202 87-010-322-080 C-CAP,S 100P-50 CH
C203 87-010-322-080 C-CAP,S 100P-50 CH
C204 87-010-322-080 C-CAP,S 100P-50 CH
C205 87-010-322-080 C-CAP,S 100P-50 CH
C206 87-010-322-080 C-CAP,S 100P-50 CH
C207 87-010-322-080 C-CAP,S 100P-50 CH
C208 87-010-322-080 C-CAP,S 100P-50 CH
C209 87-010-322-080 C-CAP,S 100P-50 CH
C210 87-010-322-080 C-CAP,S 100P-50 CH
C211 87-010-322-080 C-CAP,S 100P-50 CH
C251 87-010-405-040 CAP,E 10-50
C253 87-010-196-080 CHIP CAPACITOR,0.1-25
C254 87-012-369-080 C-CAP,S 0.047-50F
C255 87-010-560-040 CAP,E 10-50 GAS
C256 87-010-405-040 CAP,E 10-50
C259 87-010-405-040 CAP,E 10-50
C264 87-018-209-080 CAP, CER 0.1-50V
C273 87-010-178-080 CHIP CAP 1000P
C274 87-010-178-080 CHIP CAP 1000P
C301 87-010-182-080 C-CAP,S 2200P-50 B
C302 87-010-196-080 CHIP CAPACITOR,0.1-25
C303 87-010-196-080 CHIP CAPACITOR,0.1-25
C312 87-010-498-040 CAP,E 10-16 GAS
C314 87-010-196-080 CHIP CAPACITOR,0.1-25
C315 87-010-196-080 CHIP CAPACITOR,0.1-25
C316 87-010-196-080 CHIP CAPACITOR,0.1-25
C321 87-012-393-080 C-CAP,S 0.22-16 R K
C322 87-010-400-040 CAP,E 0.47-50
C325 87-A10-189-040 CAP,E 220-10
C326 87-A10-189-040 CAP,E 220-10
C332 87-010-178-080 CHIP CAP 1000P
C334 87-010-312-080 C-CAP,S 15P-50 CH
C335 87-012-140-080 CAP 470P
C336 87-012-155-080 C-CAP 180P-50CH
C339 87-012-156-080 C-CAP,S 220P-50 CH
C340 87-010-197-080 CAP, CHIP 0.01 DM
C341 87-010-194-080 CAP, CHIP 0.047
C351 87-010-981-040 CAP,E 22-25 M SRE
C401 87-010-197-080 CAP, CHIP 0.01 DM
C451 87-010-196-080 CHIP CAPACITOR,0.1-25
C452 87-010-196-080 CHIP CAPACITOR,0.1-25
C453 87-010-196-080 CHIP CAPACITOR,0.1-25
C454 87-010-198-080 CAP, CHIP 0.022
C455 87-010-198-080 CAP, CHIP 0.022
C458 87-010-320-080 CHIP CAP 68P
C459 87-010-320-080 CHIP CAP 68P
C502 87-010-186-080 CAP,CHIP 4700P
C503 87-010-112-040 CAP,E 100-16
C504 87-010-405-040 CAP,E 10-50
C505 87-010-545-040 CAP,E 0.22-50 SME
C506 87-010-320-080 CHIP CAP 68P
C513 87-010-196-080 CHIP CAPACITOR,0.1-25
C514 87-010-196-080 CHIP CAPACITOR,0.1-25
C515 87-010-178-080 CHIP CAP 1000P
C602 87-010-322-080 C-CAP,S 100P-50 CH
C603 87-010-322-080 C-CAP,S 100P-50 CH
C604 87-010-322-080 C-CAP,S 100P-50 CH
C650 87-010-196-080 CHIP CAPACITOR,0.1-25
C699 87-010-196-080 CHIP CAPACITOR,0.1-25
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN102 87-099-015-010 CONN,13P 6216V
CN301 87-A60-140-010 CONN,15P V FE
FB301 87-008-372-080 FILTER, EMI BL OIRNI
FB501 87-008-372-080 FILTER, EMI BL OIRNI
FL401 8A-NF8-602-010 FL,HNA-11MM31(ANF-8VCD)
J501 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM
L331 87-A50-408-010 COIL,OSC 5.76MHZ
LED311 87-A40-589-040 LED,SLR-56VCT31 RED
LED601 87-A40-803-010 LED,SELU1E10CXM-S LF38 BLUE
LED602 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED603 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
All manuals and user guides at all-guides.com
all-guides.com

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 7 –
LED604 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED606 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED607 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED608 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
S401 87-A91-024-180 SW,TACT KSHG611BT
S402 87-A91-024-180 SW,TACT KSHG611BT
S403 87-A91-024-180 SW,TACT KSHG611BT
S404 87-A91-024-180 SW,TACT KSHG611BT
S405 87-A91-024-180 SW,TACT KSHG611BT
S406 87-A91-024-180 SW,TACT KSHG611BT
S407 87-A91-024-180 SW,TACT KSHG611BT
S408 87-A91-024-180 SW,TACT KSHG611BT
S409 87-A91-024-180 SW,TACT KSHG611BT
S410 87-A91-024-180 SW,TACT KSHG611BT
S411 87-A91-024-180 SW,TACT KSHG611BT
S412 87-A91-024-180 SW,TACT KSHG611BT
S413 87-A91-024-180 SW,TACT KSHG611BT
S414 87-A91-024-180 SW,TACT KSHG611BT
S415 87-A91-024-180 SW,TACT KSHG611BT
S416 87-A91-024-180 SW,TACT KSHG611BT
S417 87-A91-024-180 SW,TACT KSHG611BT
S418 87-A91-024-180 SW,TACT KSHG611BT
S419 87-A91-024-180 SW,TACT KSHG611BT
S420 87-A91-024-180 SW,TACT KSHG611BT
S421 87-A91-024-180 SW,TACT KSHG611BT
S422 87-A91-024-180 SW,TACT KSHG611BT
S423 87-A91-024-180 SW,TACT KSHG611BT
S425 87-A91-024-180 SW,TACT KSHG611BT
S426 87-A91-024-180 SW,TACT KSHG611BT
S428 87-A91-024-180 SW,TACT KSHG611BT
S429 87-A91-024-180 SW,TACT KSHG611BT
S432 87-A91-024-180 SW,TACT KSHG611BT
S433 87-A91-024-180 SW,TACT KSHG611BT
S434 87-A91-024-180 SW,TACT KSHG611BT
S435 87-A91-024-180 SW,TACT KSHG611BT
S436 87-A91-024-180 SW,TACT KSHG611BT
S437 87-A91-024-180 SW,TACT KSHG611BT
SW252 87-A91-555-010 SW,RTRY EC12E24504
SW253 87-A91-542-010 SW,RTRY EC12E12504
AMP 1F C.B
C101 87-010-181-080 C-CAP,S 1800P-50 B
C102 87-010-181-080 C-CAP,S 1800P-50 B
C103 87-010-545-080 CAP, ELECT 0.22-50V
C104 87-010-545-080 CAP, ELECT 0.22-50V
C107 87-010-405-080 CAP, ELECT 10-50V
C108 87-010-405-080 CAP, ELECT 10-50V
C111 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C112 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C113 87-010-405-080 CAP, ELECT 10-50V
C114 87-010-405-080 CAP, ELECT 10-50V
C115 87-010-866-080 CAP, ELECT 10-63
C116 87-010-866-080 CAP, ELECT 10-63
C119 87-010-197-080 CAP, CHIP 0.01 DM
C120 87-010-197-080 CAP, CHIP 0.01 DM
C133 87-010-197-080 CAP, CHIP 0.01 DM
C153 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C201 87-A10-300-080 CAP,M 0.027-50 J
C202 87-A10-300-080 CAP,M 0.027-50 J
C203 87-A10-300-080 CAP,M 0.027-50 J
C204 87-A10-300-080 CAP,M 0.027-50 J
C205 87-010-180-080 C-CER 1500P
C206 87-010-180-080 C-CER 1500P
C207 87-010-401-080 CAP, ELECT 1-50V
C208 87-010-401-080 CAP, ELECT 1-50V
C209 87-010-187-080 CAP CHIP S5600P
C210 87-010-187-080 CAP CHIP S5600P
C211 87-010-403-080 CAP, ELECT 3.3-50V
C212 87-010-403-080 CAP, ELECT 3.3-50V
C215 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C216 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C217 87-010-405-080 CAP, ELECT 10-50V
C218 87-010-405-080 CAP, ELECT 10-50V
C221 87-010-405-080 CAP, ELECT 10-50V
C222 87-010-405-080 CAP, ELECT 10-50V
C223 87-010-197-080 CAP, CHIP 0.01 DM
C224 87-010-197-080 CAP, CHIP 0.01 DM
C251 87-010-196-080 CHIP CAPACITOR,0.1-25
C252 87-010-196-080 CHIP CAPACITOR,0.1-25
C253 87-010-196-080 CHIP CAPACITOR,0.1-25
C254 87-010-196-080 CHIP CAPACITOR,0.1-25
C259 87-010-197-080 CAP, CHIP 0.01 DM
C260 87-010-197-080 CAP, CHIP 0.01 DM
C401 87-010-260-080 CAP, ELECT 47-25
CN101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CN102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CNA101 8A-NF8-656-010 CONN ASSY,5P TID-A 400
J201 87-A61-148-010 JACK,PIN 4P R/W BLUE
L251 87-003-383-010 COIL,1UH K
L252 87-003-383-010 COIL,1UH K
R129 87-A00-257-080 RES,M/F 0.15-1W J
R130 87-A00-257-080 RES,M/F 0.15-1W J
R231 87-A00-258-080 RES,M/F 0.22-1W J
R232 87-A00-258-080 RES,M/F 0.22-1W J
WH101 87-A90-459-010 HLDR,WIRE 2.5-5P
KEY CON C.B
C551 87-A10-060-080 C-CAP,S 0.18-16 KB
C552 87-A10-060-080 C-CAP,S 0.18-16 KB
C553 87-012-154-080 C-CAP,S 150P-50
C554 87-012-154-080 C-CAP,S 150P-50
C555 87-012-145-080 C-CAP,S 270P-50
C556 87-012-145-080 C-CAP,S 270P-50
C557 87-010-183-080 C-CAP,S 2700P-50 B
C559 87-010-196-080 CHIP CAPACITOR,0.1-25
C560 87-010-177-080 C-CAP,S 820P-50 SL
C561 87-010-177-080 C-CAP,S 820P-50 SL
C562 87-010-196-080 CHIP CAPACITOR,0.1-25
C563 87-010-374-080 CAP, ELECT 47-10V
C564 87-010-196-080 CHIP CAPACITOR,0.1-25
C565 87-010-263-080 CAP, ELECT 100-10V
C567 87-010-183-080 C-CAP,S 2700P-50 B
C571 87-016-460-080 C-CAP,S 0.22-16 K B
C572 87-016-460-080 C-CAP,S 0.22-16 K B
C573 87-016-460-080 C-CAP,S 0.22-16 K B
C577 87-010-196-080 CHIP CAPACITOR,0.1-25
CN551 87-A60-689-010 CONN,7P H GRY TUC-P07X-C1
VM C.B
CNA3 87-049-919-010 CONN,3P V WHT EH
PT C.B
C1 87-010-387-080 CAP,E 470-25 SME
C4 87-A11-148-080 CAP,TC U 0.1-50 Z F
C5 87-A11-148-080 CAP,TC U 0.1-50 Z F
C6 87-A12-441-000 CAP,E 2200-35 M85
C7 87-A12-441-000 CAP,E 2200-35 M85
C8 87-A11-148-080 CAP,TC U 0.1-50 Z F
C9 87-A11-148-080 CAP,TC U 0.1-50 Z F
C10 87-A11-148-080 CAP,TC U 0.1-50 Z F
C11 87-A11-148-080 CAP,TC U 0.1-50 Z F
C12 87-A12-432-000 CAP,E 3300-50 M85
C13 87-A12-432-000 CAP,E 3300-50 M85
C14 87-A11-148-080 CAP,TC U 0.1-50 Z F
C15 87-A11-148-080 CAP,TC U 0.1-50 Z F
C16 87-010-403-080 CAP, ELECT 3.3-50V
All manuals and user guides at all-guides.com

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 8 –

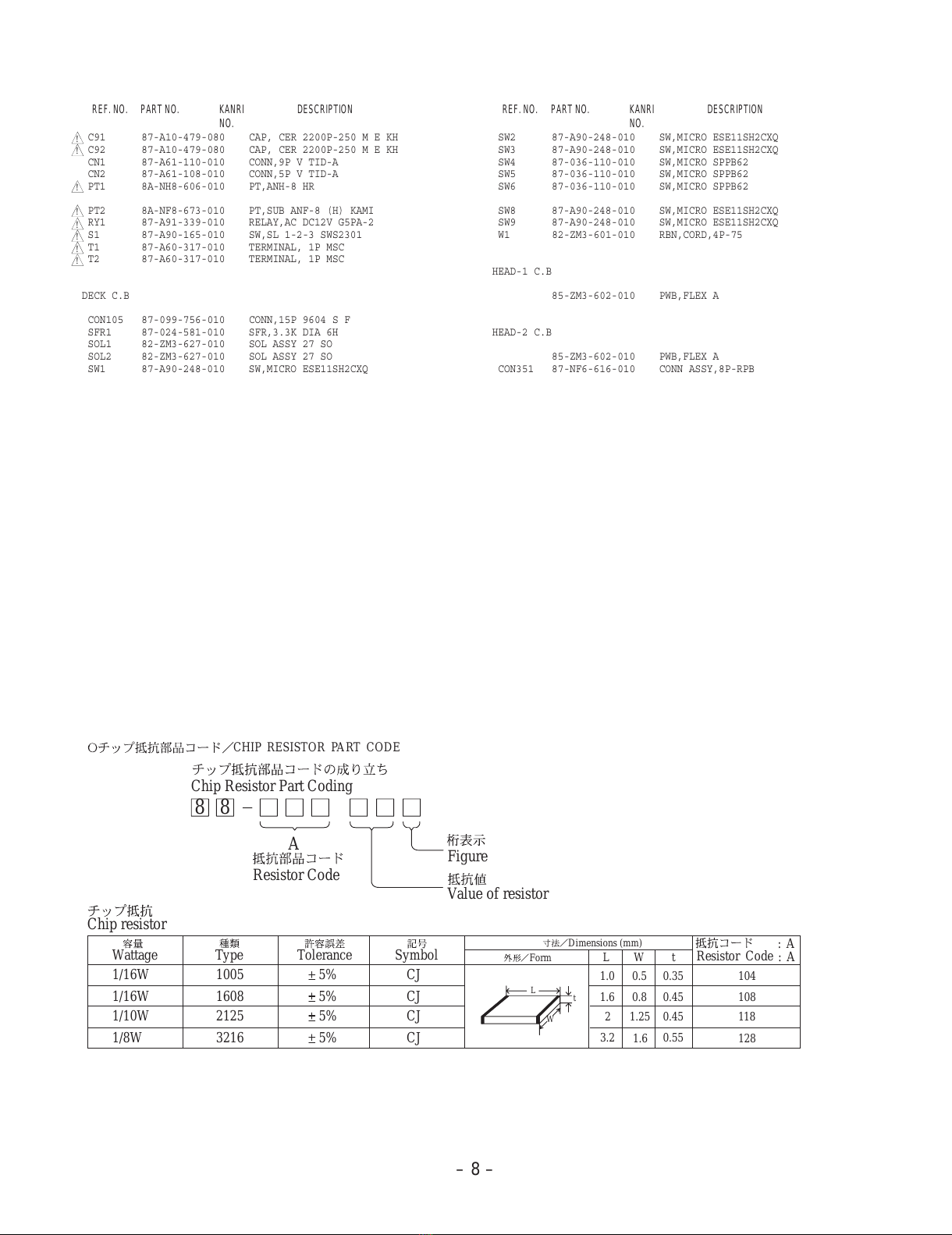

C91 87-A10-479-080 CAP, CER 2200P-250 M E KH
C92 87-A10-479-080 CAP, CER 2200P-250 M E KH
CN1 87-A61-110-010 CONN,9P V TID-A
CN2 87-A61-108-010 CONN,5P V TID-A
PT1 8A-NH8-606-010 PT,ANH-8 HR
PT2 8A-NF8-673-010 PT,SUB ANF-8 (H) KAMI
RY1 87-A91-339-010 RELAY,AC DC12V G5PA-2
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
DECK C.B
CON105 87-099-756-010 CONN,15P 9604 S F
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SOL1 82-ZM3-627-010 SOL ASSY 27 SO
SOL2 82-ZM3-627-010 SOL ASSY 27 SO
SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-036-110-010 SW,MICRO SPPB62
SW5 87-036-110-010 SW,MICRO SPPB62
SW6 87-036-110-010 SW,MICRO SPPB62
SW8 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW9 87-A90-248-010 SW,MICRO ESE11SH2CXQ
W1 82-ZM3-601-010 RBN,CORD,4P-75
HEAD-1 C.B
85-ZM3-602-010 PWB,FLEX A
HEAD-2 C.B
85-ZM3-602-010 PWB,FLEX A
CON351 87-NF6-616-010 CONN ASSY,8P-RPB
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
!
!
!
!
!
!
!
!
All manuals and user guides at all-guides.com

– 9 –
TRANSISTOR ILLUSTRATION
E C B
2SA1981Y
CD1585BC
CSA952K
CSC4115BC
KTA1266GR
KTC3198GR
2SB1370
DTC114ES
KTC3199GR
B C E
E
B
C
S
G
D
E C B
2SA1235F
2SA933SRS
2SC2714
2SC3052F
CMBT5401
CMBT5551
CSD1306E
RT1N141C
RT1P141C
RT1P144C
RT1P441C
2SK2158
2SJ461-T1
2SK360E
All manuals and user guides at all-guides.com

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 10 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
WIRING  1 (MAIN / VM)
All manuals and user guides at all-guides.com

 11 
SCHEMATIC DIAGRAM  1 (MAIN 1 / 3 : AMP / VM)
All manuals and user guides at all-guides.com
all-guides.com

 12 
SCHEMATIC DIAGRAM  2 (MAIN 2 / 3 : DECK / HEAD-1 / HEAD-2)
All manuals and user guides at all-guides.com

 13 

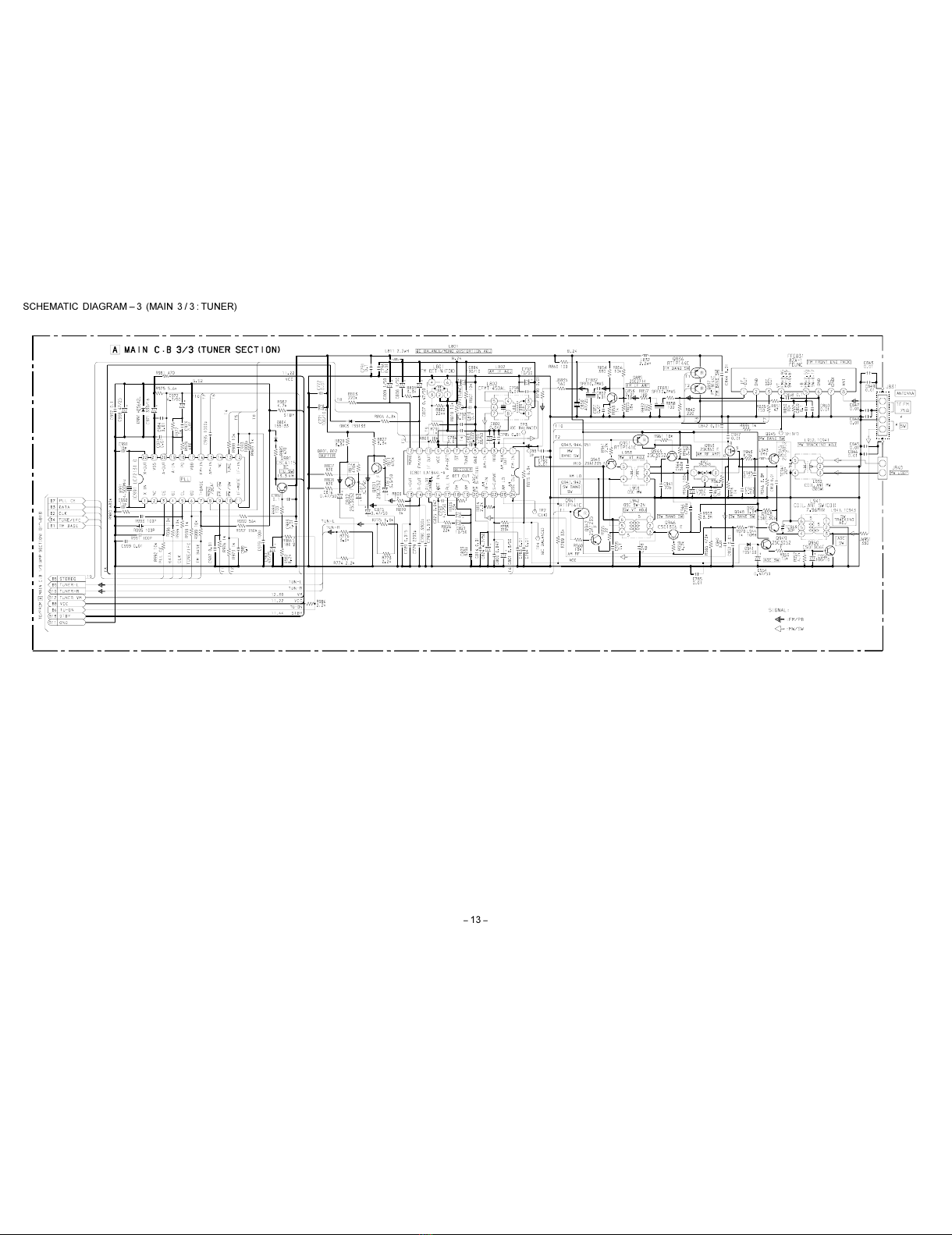

SCHEMATIC DIAGRAM  3 (MAIN 3 / 3 : TUNER)
All manuals and user guides at all-guides.com

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 14 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
WIRING  2 (FRONT)
All manuals and user guides at all-guides.com

 15 
SCHEMATIC DIAGRAM  4 (FRONT)
All manuals and user guides at all-guides.com

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 16 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

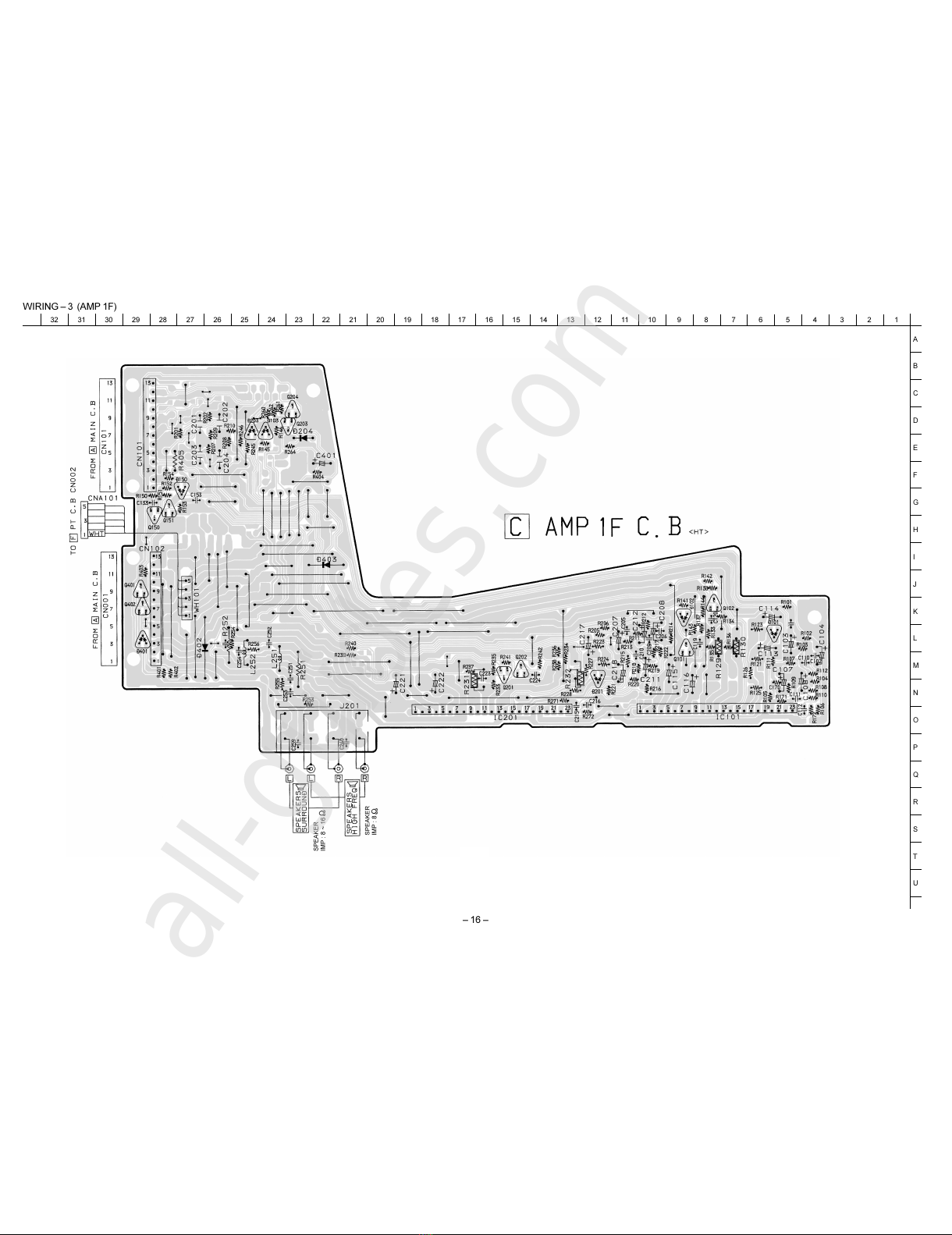

WIRING  3 (AMP 1F)
All manuals and user guides at all-guides.com
all-guides.com

 17 
SCHEMATIC DIAGRAM  5 (AMP 1F)
All manuals and user guides at all-guides.com

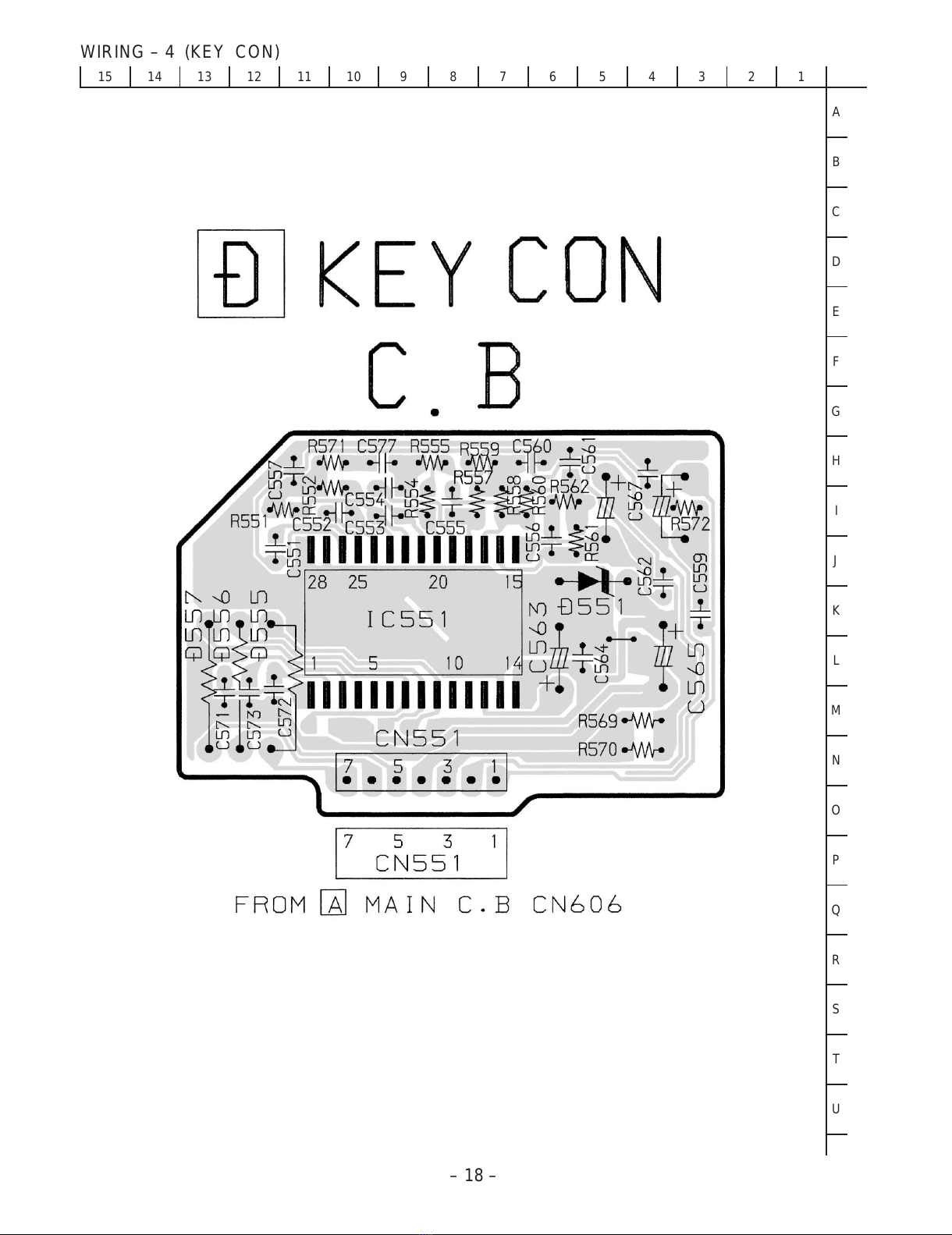

WIRING – 4 (KEY CON)
– 18 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

– 19 –

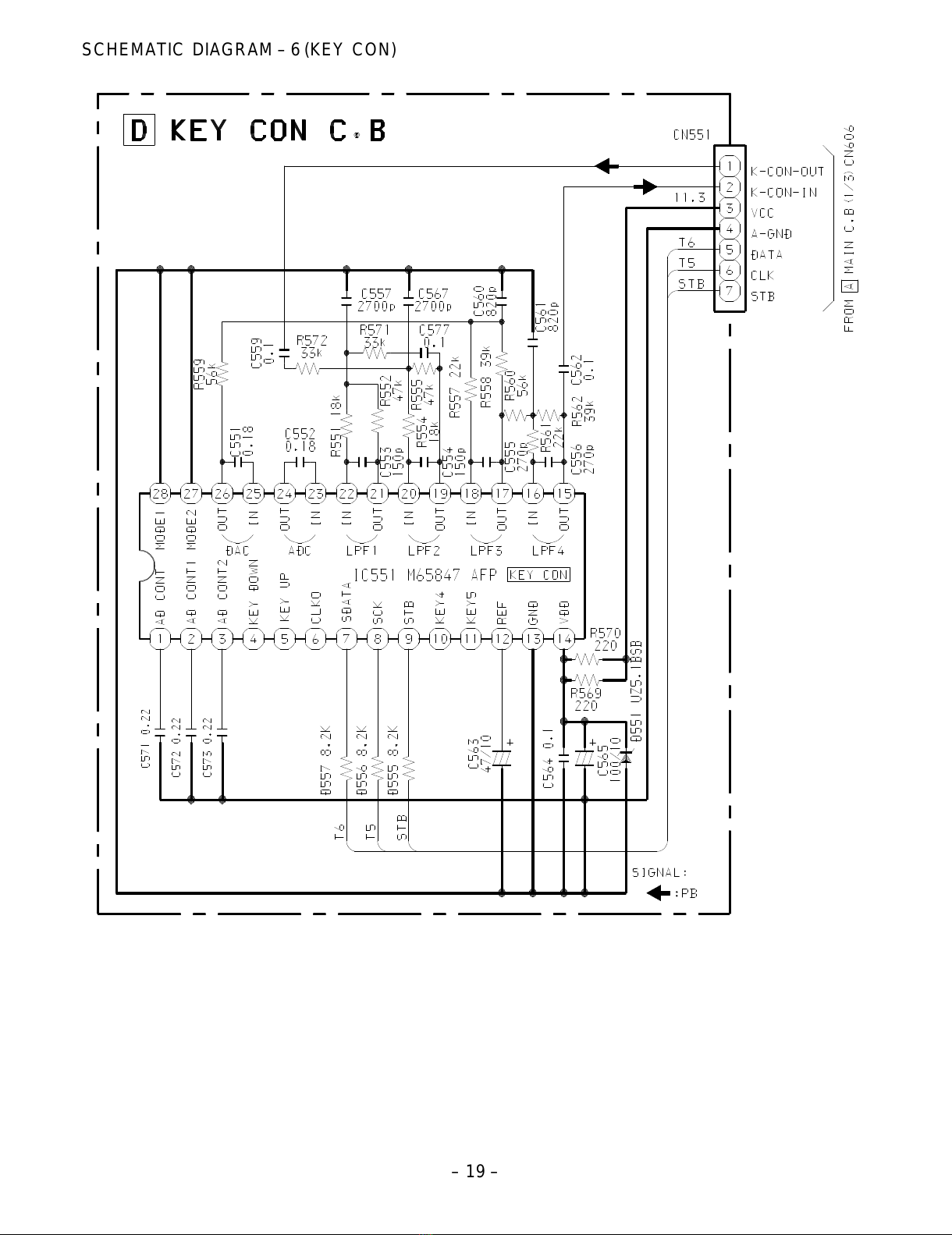

SCHEMATIC DIAGRAM–6(KEY CON)
All manuals and user guides at all-guides.com

WIRING – 5 (PT)
– 20 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com
