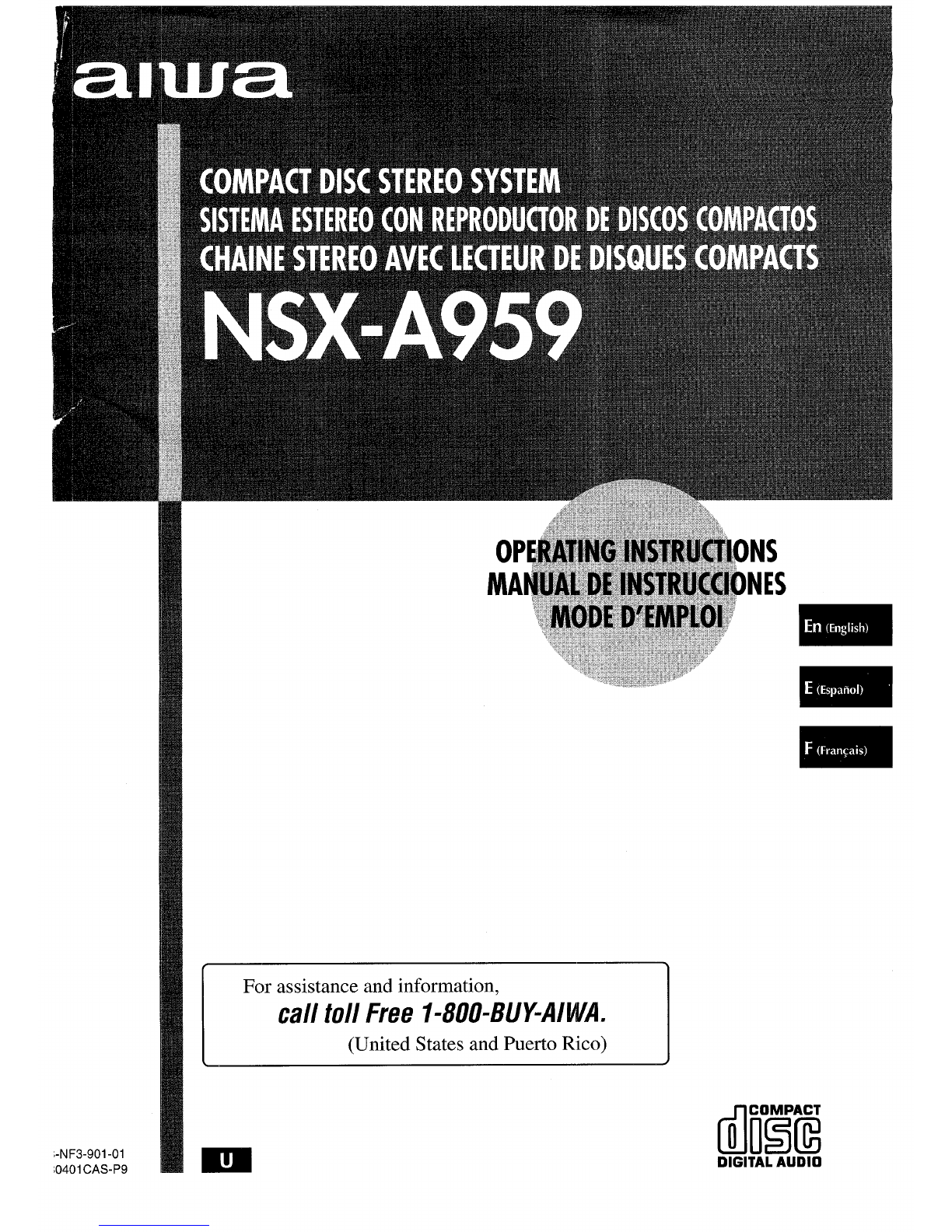

Aiwa NSX-A959 User manual

-NF3-901-01
i0401CAS-P9
For assistance and information,
call toll Free I-800-BUY=AIWA.
(United States and Puerto Rico)
m(mFliE
DIGITAL AUDIO

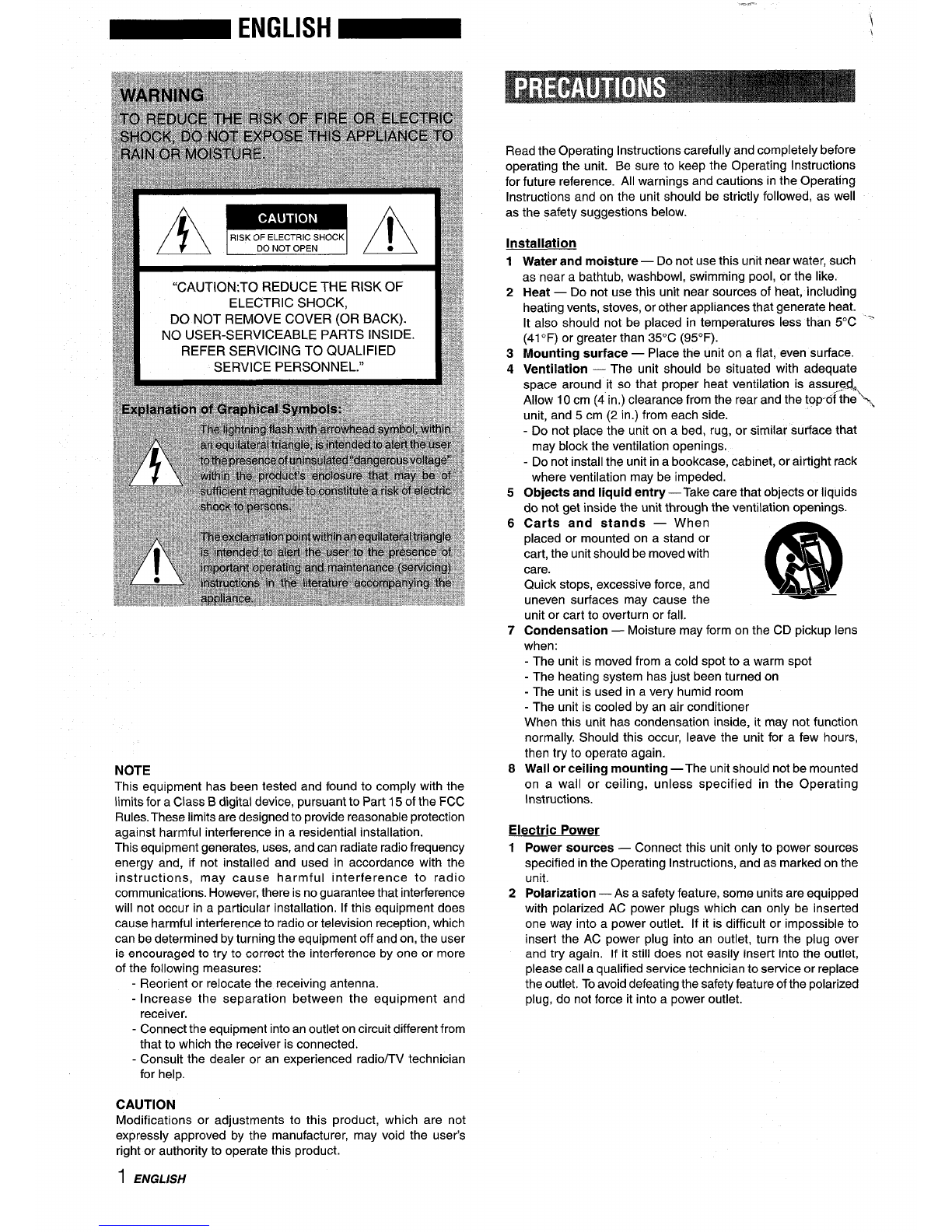

“CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
NOTE
This equipment has been tested and found to comply with the
limits for aClass Bdigital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in aresidential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in aparticular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more
of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.
CAUTION
Modifications or adjustments to this product, which are not
expressly approved by the manufacturer, may void the user’s
right or authority to operate this product.
Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions
for future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well
as the safety suggestions below.
Installation
1
2
3
4
5
6
7
8
Water and moisture —Do not use this unit near water, such
as near abathtub, washbowl, swimming pool, or the like.
Heat —Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
(41oF) or greater than 35°C (95”F).
Mounting surface —Place the unit on a flat, even surface.
Ventilation —The unit should be situated with adequate
space around it so that proper heat ventilation is assurjesl~.
Allow 10 cm (4 in.) clearance from the rear and the top-of the’%,
unit, and 5 cm (2 in.) from each side.
-Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.
-Do not install the unit in abookcase, cabinet, or airtight rack
where ventilation may be impeded.
Objects and liquid entry —Take care that objects or liquids
do not get inside the unit through the ventilation openings.
Carts and stands —When
placed or mounted on a stand or
cart, the unit should be moved with
care.
Quick stops, excessive force, and @●>
AA*
uneven surfaces may cause the
unit or cart to overtur~ or fall.
Condensation —Moisture may form on the CD pickup lens
when:
-The unit is moved from acold spot to awarm spot
-The heating system has just been turned on
-The unit is used in avery humid room
-The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for afew hours,
then try to operate again.
Wall or ceiling mounting —The unit should not be mounted
on a wall or ceiling, unless specified in the Operating
Instructions.
Electric Power
1
2
Power sources —Connect this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit.
Polarization —As asafety feature, some units are equipped
with polarized AC power plugs which can only be inserted
one way into apower outlet. If it is difficult or impossible to
insert the AC power plug into an outlet, turn the plug over
and try again. If it still does not easily insert into the outlet,
please call aqualified service technician to service or replace
the outlet. To avoid defeating the safety feature of the polarized
plug, do not force it into apower outlet.
1ENGL/SH

3
4
5

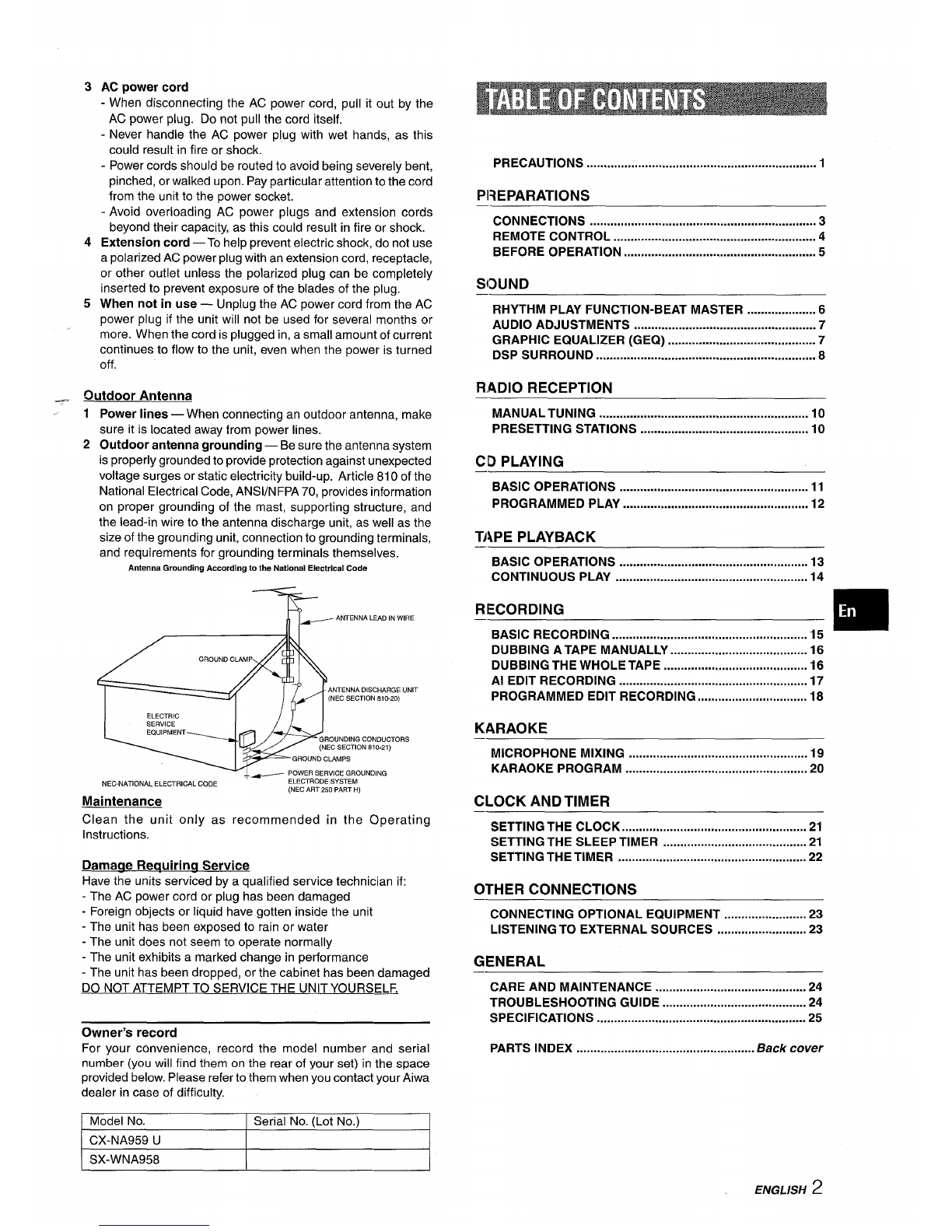

AC power cord
-When disconnecting the AC power cord, pull it out by the
AC power plug. Do not pull the cord itself.
-Never handle the AC power plug with wet hands, as this
could result in fire or shock.
-Power cords should be routed to avoid being severely bent,
pinched, or walked upon. Pay particular attention to the cord
from the unit to the power socket.
-Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or shock.
Extension cord —To help prevent electric shock, do not use
apolarized AC power plug with an extension cord, receptacle,
or other outlet unless the polarized plug can be completely
inserted to prevent exposure of the blades of the plug.
When not in use —Unplug the AC power cord from the AC
power plug if the unit will not be used for several months or
more. When the cord is pk.rgged in, asmall amount of current
continues to flow to the”un~~even when the power is turned
off.
~. Outdoor Antenna
., 1Power lines —When connecting an outdoor antenna, make
sure it is located away from power lines.
2Outdoor antenna grounding —Be sure the antenna system
is properly grounded to provide protection against unexpected
voltage surges or static electricity build-up. Article 810 of the
National Electrical Code, ANS1/NFPA70, provides information
on proper grounding of the mast, supporting structure, and
the lead-in wire to the antenna discharge unit, as well as the
size of the grounding unit, connection to grounding terminals,
and requirements for grounding terminals themselves.
Antenna Grounding According to the National Electrical Code
Ti-
~ANTENNA LEAD IN WIRE
-ANTENNA DISCHARGE UNIT
(NEC SECTION 8?0-20)
ELECTRIC
SERVICE
EQUIPMENT GROUNDING CONDUCTORS
(NEC SECTION 810.21)
GROUND CLAMPS
,~POWER SERVICE GROUNDING
NEC-NATIONAL ELECTRICAL CODE ELECTRODE SYSTEM
(NEC ART 250 PART H)
Maintenance
Clean the unit only as recommended in the Operating
Instructions.
Damaae Reauirina Service
Have the units serviced by aqualified service technician if:
-The AC power cord or plug has been damaged
-Foreign objects or liquid have gotten inside the unit
-The unit has been exposed to rain or water
-The unit does not seem to operate normally
-The unit exhibits amarked change in performance
-The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
Owner’s record
For your convenience, record the model number and serial
number (you will find them on the rear of your set) in the space
provided below. Please refer to them when you contact your Aiwa
dealer in case of difficulty.
PRECAUTIONS ................................................................... 1
PREPARATIONS
CONNECTIONS ..................................................................3
REMOTE CONTROL .........................m.................................4
BEFORE OPERATION ........................................................5
SOUND
RHYTHM PLAY FUNCTION-BEAT MASTER .................... 6

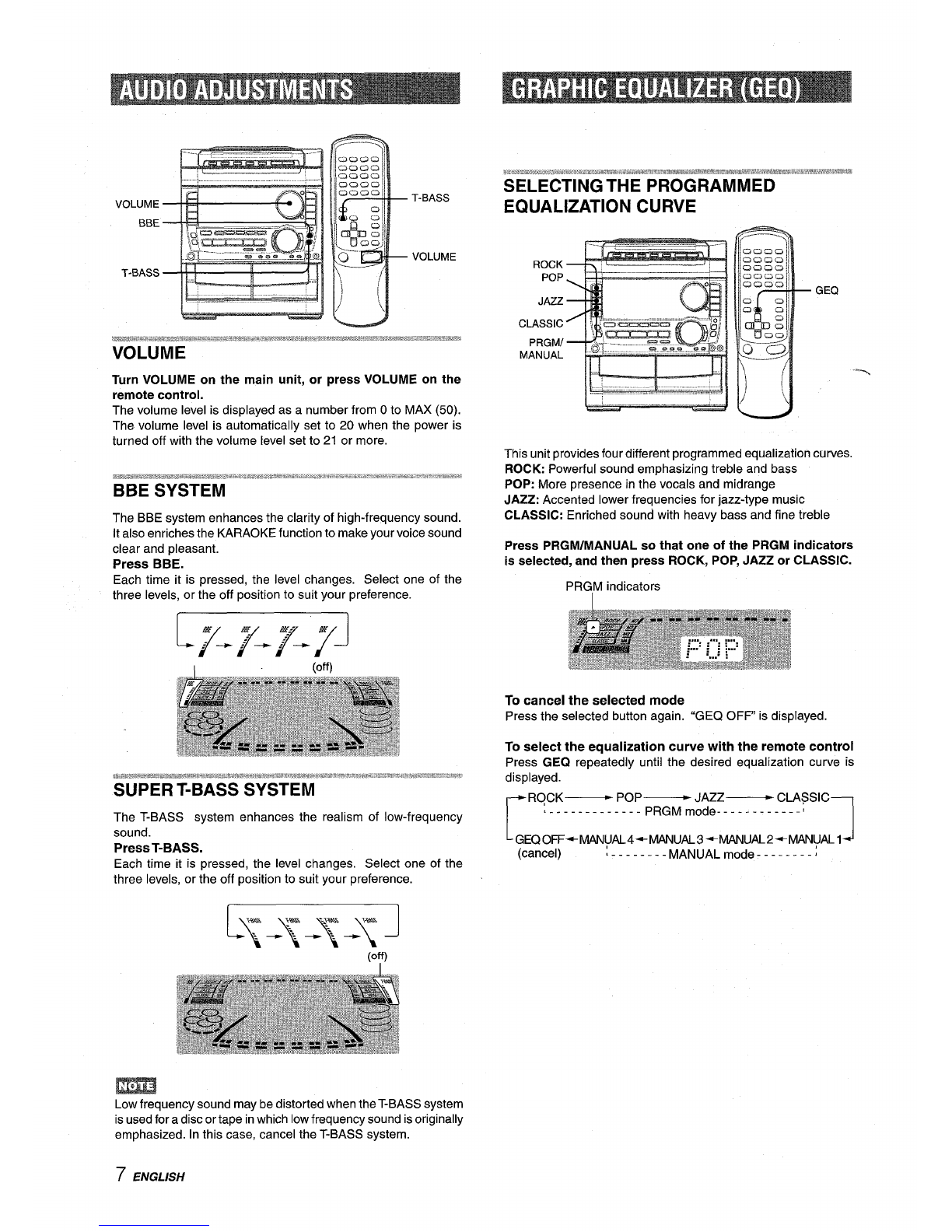

AUDIO ADJUSTMENTS .....................................................7
GRAPHIC EQUALIZER (GEQ) ...........................................7

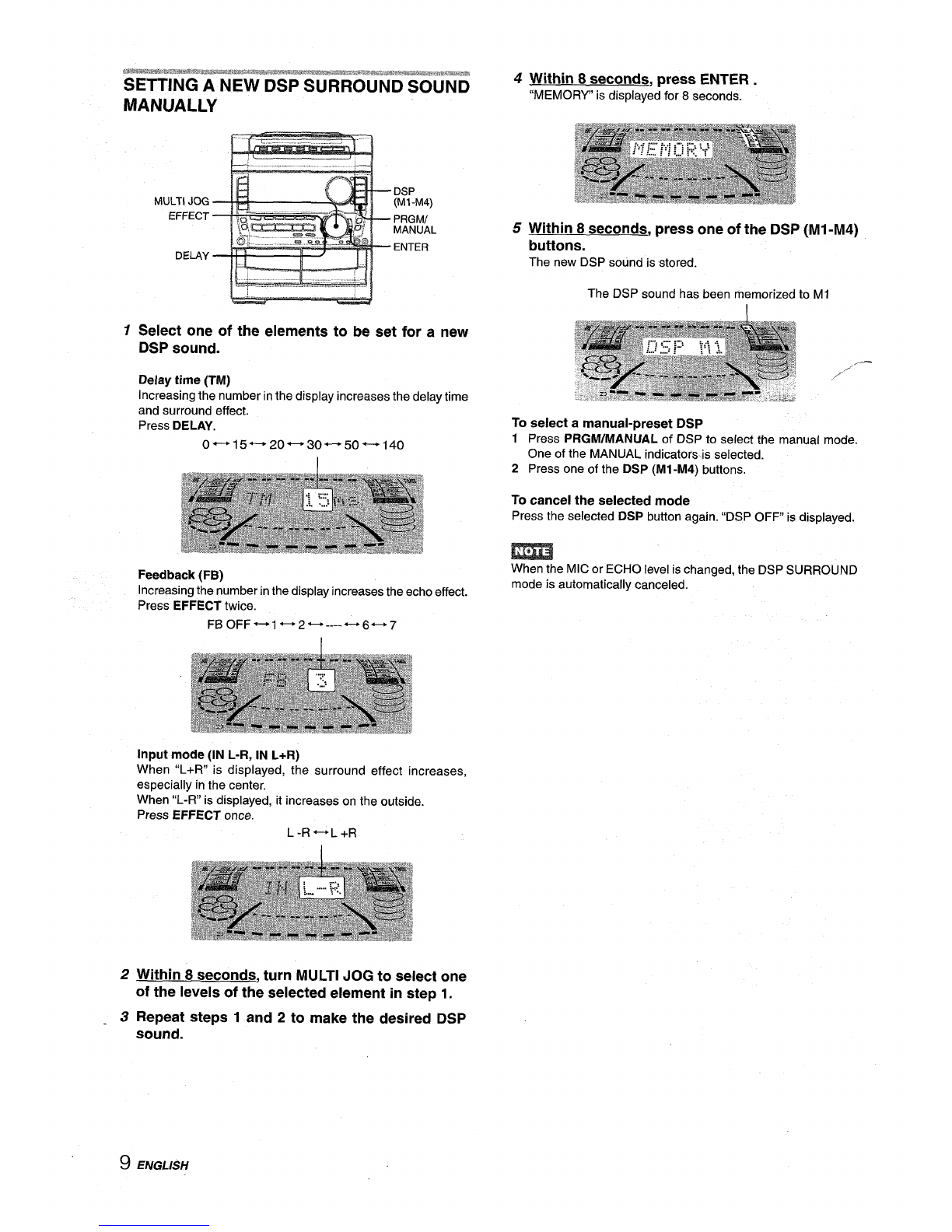

DSP SURROUND ................................................................8
RAD1O RECEPTION
MANUAL TUNING ............................................................. 10
PRESETTING STATIONS ................................................. 10
CD PLAYING
BASIC OPERATIONS ....................................................... 11

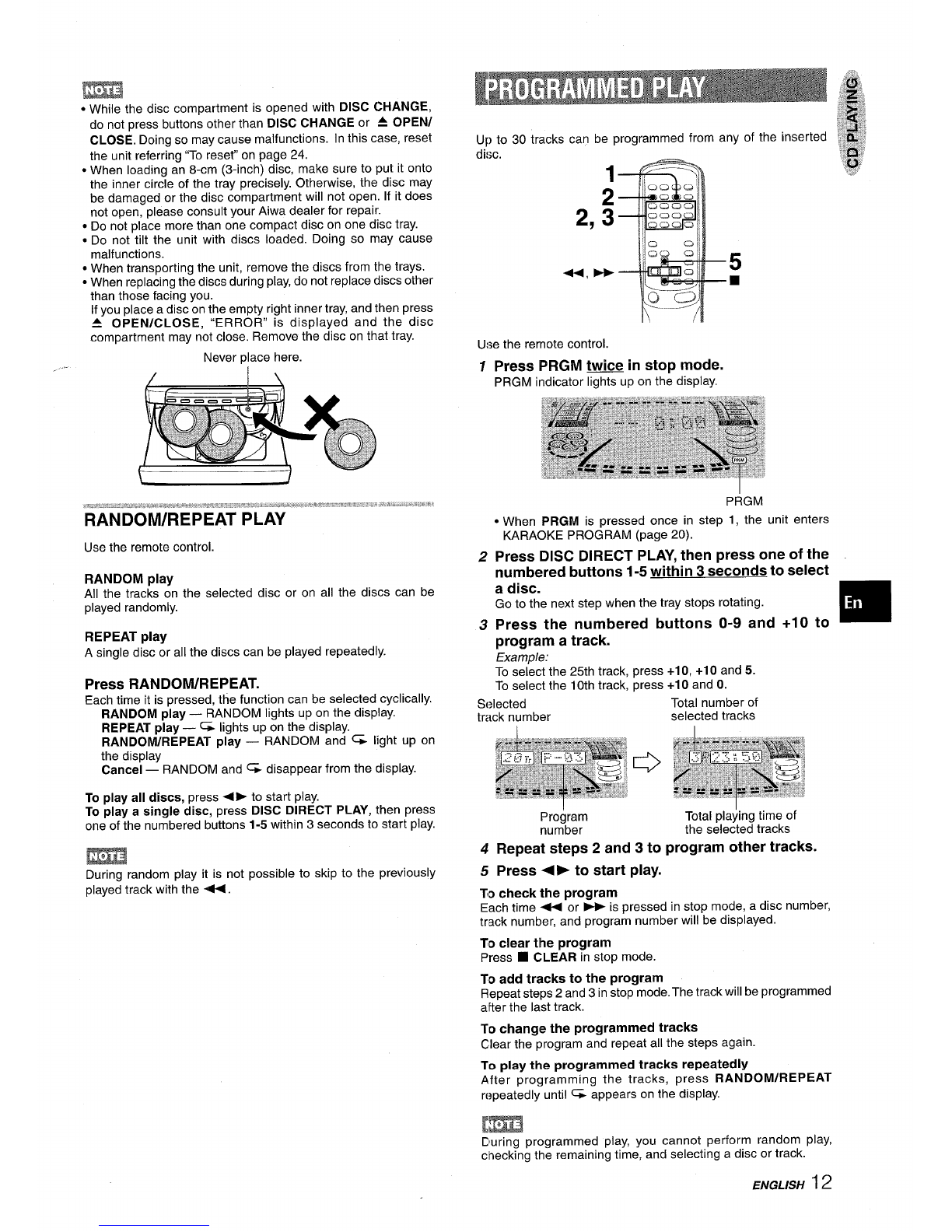

PROGRAMMED PLAY .....................m................................l2
TAPE PLAYBACK

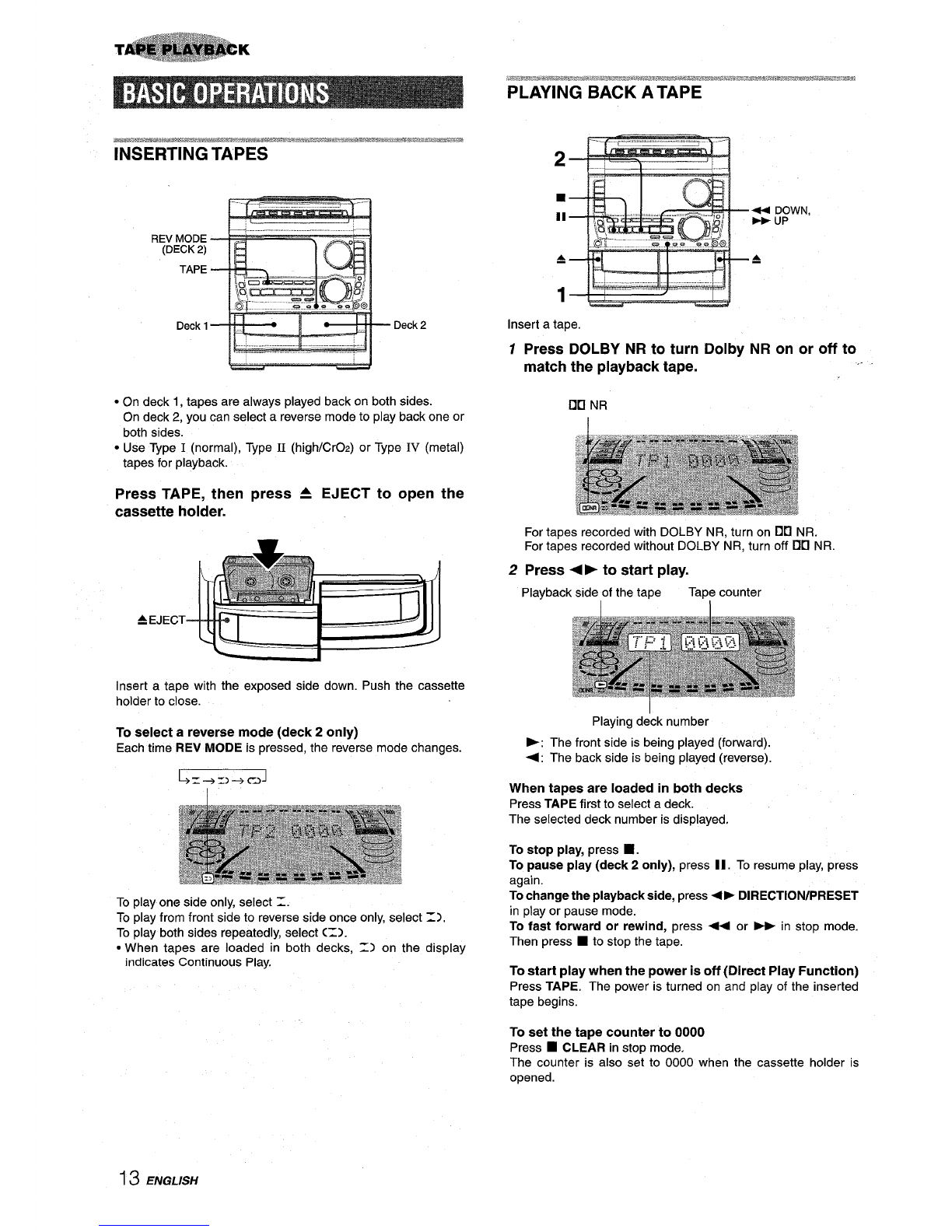

BASIC OPERATIONS ....................................................... 13
CONTINUOUS PLAY ........................................................ 14
RECORDING
—BASIC RECORDING ......................................................... 15 m
DUBBING ATAPE MANUALLY ........................................ 16
DUBBING THE WHOLE TAPE .......................................... 16
Al EDIT RECORDING ....................................................... 17
PROGRAMMED EDIT RECORDING ................................ 18
KARAOKE
MICROPHONE MIXING .................................................... 19
KARAOKE PROGRAM .....................................................20
CLOCK AND TIMER
SETTING THE CLOCK ......................................................21
SETTING THE SLEEP TIMER ..........................................21
SETTING THE TIMER .......................................................22
OTHER CONNECTIONS
CONNECTING OPTIONAL EQUIPMENT ........................23
LISTENING TO EXTERNAL SOURCES ..........................23
GENERAL
—CARE AND MAINTENANCE ............................................24
TROUBLESHOOTING GUIDE ..........................................24
SPECIFICATIONS .............................................................25
PARTS INDEX ....................................................Back cover
IModel No. ISerial No. (Lot No.) I
ICX-NA959 uII
SX-WNA958
ENGLISH 2

s
Check your system and accessories.
CX-NA959 Compact disc stereo cassette receiver
SX-WNA958 Front speakers
Remote control AM antenna FM antenna
iMPORTANT
●Connect the speakers, antennas, and all optional equipment
first. Then connect the AC cord in the end.
●There are no differences between the front speakers. Both
speakers can be connected as L(left) or R(right).
7Connect the right speaker to the main unit.
@Connect the blue colored speaker cord to SPEAKERS
HIGH FREQ Rterminal.
@Connect the speaker cord with the white stripe to the
SPEAKERS LOW FREQ R0terminals and the black cord
to the oterminal.
0
#., ,“,,4
●
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is 2Connect the left speaker to the main unit.
120VAC. Check that the rated voltage matches your local Connect the blue colored speaker cord to SPEAKERS HIGH
voltage. FREQ Lterminal, and another speaker cord to the
SPEAKERS LOW FREQ Lterminals in the same manner as
step 1.
3LI
QAM antenna
FM antenna
—)Ir
&if Ill
Left speaker
Im I& Speaker cord
fhlack/white\ = ~+ ToanACoutlet
,-.—.......... . $
AC cord
3ENGLISH

3
4

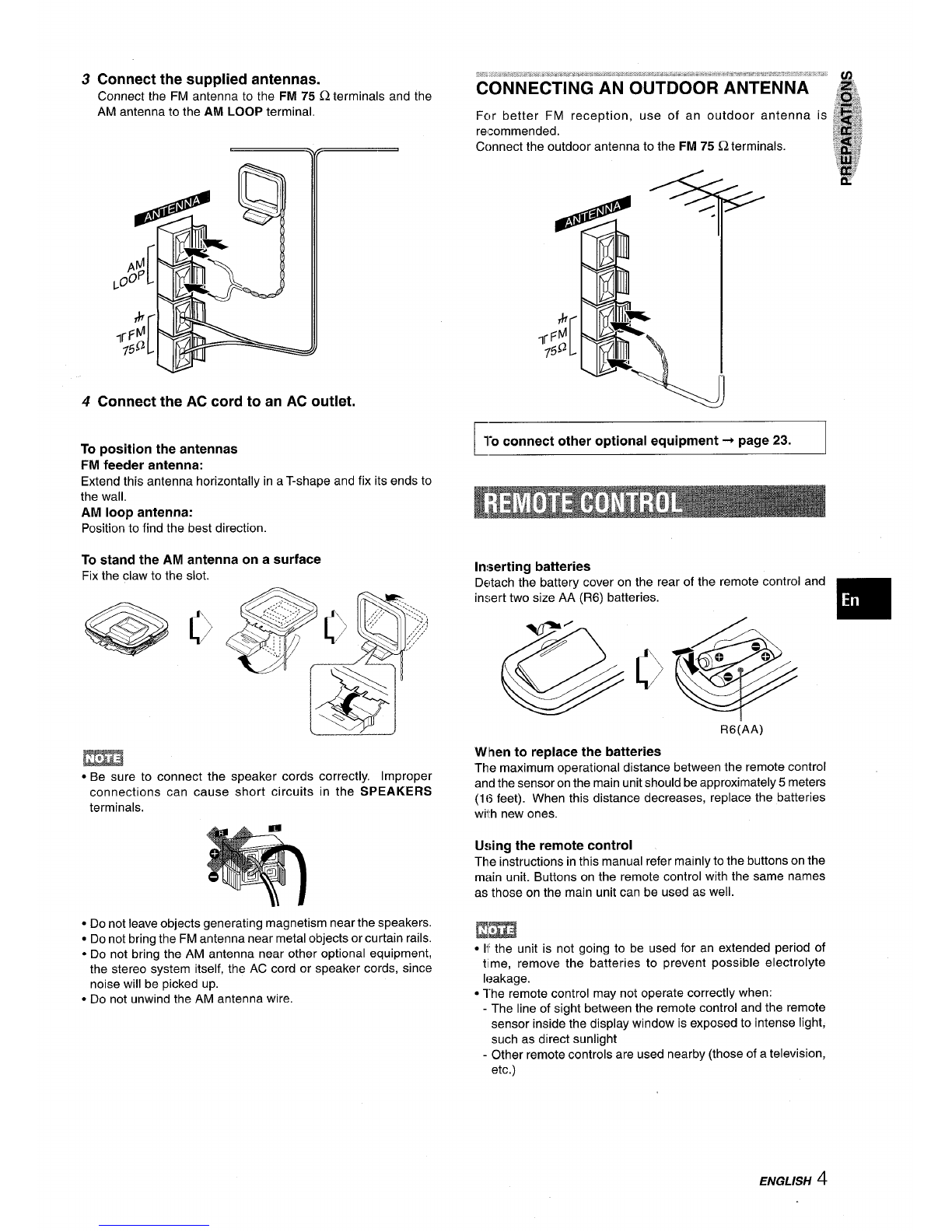

Connect the supplied antennas.
Connect the FM antenna to the FM 75 Qterminals and the
AM antenna to the AM LOOP terminal.
Connect the AC cord to an AC outlet.
To position the antennas
FM feeder antenna:
Extend this antenna horizontally in aT-shape and fix its ends to
the wall.
AM loop antenna:
Position to find the best direction.
To stand the AM antenna on asurface
Fix the claw to the slot.
m
●Be sure to connect the speaker cords correctly. Improper
connections can cause short circuits in the SPEAKERS
terminals.
●Do not leave objects generating magnetism near the speakers.
●Do not bring the FM antenna near metal objects or curtain rails.
●Do not bring the AM antenna near other optional equipment,
the stereo system itself, the AC cord or speaker cords, since
noise will be picked up.
●Do not unwind the AM antenna wire.
CONNECTING AN OUTDOOR ANTENNA
Fclr better FM reception, use of an outdoor antenna is
re~ommended.
Connect the outdoor antenna to the FM 75 Qterminals.
L
To connect other optional equipment+ page 23.
Inserting batteries
Detach the battery cover on the rear of the remote control and
insert two size AA (R6) batteries.
R6(AA)
When to replace the batteries
The maximum operational distance between the remote control
and the sensor on the main unit should be approximately 5meters
(16 feet). When this distance decreases, replace the batteries
with new ones.
Using the remote control
The instructions in this manual refer mainly to the buttons on the
main unit. Buttons on the remote control with the same names
as those on the main unit can be used as well.
mm
●11’the unit is not going to be used for an extended period of
time, remove the batteries to prevent possible electrolyte
leakage.
●l“he remote control may not operate correctly when:
-The line of sight between the remote control and the remote
sensor inside the display window is exposed to intense light,
such as direct sunlight
-Other remote controls are used nearby (those of atelevision,
etc.)
ENGLISH 4

DEMO
DISPLAY
MULTI JOG
To turn the unit on
Press one of the function buttons (TAPE, TUNER, VIDEO/AUX,
CD, MD).
Playback of the inserted disc or tape begins, or the previously
tuned station is received (Direct Play Function).
POWER is also available.
When the unit is turned on, the disc compartment may open and
close to reset the unit.
To turn the power off
Press POWER.
Illumination guides
Whenever one of the function buttons is pressed, the buttons for
that operation light up or flash.
Flash windows
The windows on the top of the unit and the cassette decks light
up or flash while the unit is being powered on.
To turn off the light of the top window, press Wwhile pressing
CD. To turn back on, repeat the above.
Toturn off the light of the cassette decks, press ■while pressing
TAPE, To turn back on, repeat the above.
●Do not perform this operation during recording.
To dim the illumination of the display
1Press DISPLAY twice so that “DIMMER” is displayed.
2Within 4seconds, turn MULTI JOG to select the dimmer mode
as follows,
rDIMMER O-DIMMER 1*DIMMER 2*DIMMER 3
7
DIMMER O:
DIMMER 1:
DIMMER 2:
DIMMER 3:
The normal display.
The illumination of the display is dimmer than usual.
The illumination of the display is dimmer than
DIMMER 1.
The illumination of the display is dimmer than
DIMMER 2, the spectrum analyzer and the
illumination on the buttons light off.
Using the headphones
Connect headphones to PHONES with astereo standard plug
(06.3 mm, ‘/4 inch).
No sound is output from the speakers while the headphones are
plugged in.
Game Demo
When the AC cord is connected, the display window
demonstrates the game Demo. When the power is turned on,
the game Demo is overridden by the operation display. When
the power is turned off, the game Demo is restored.
To cancel the game Demo
Press DEMO. To re-activate the game Demo, press DEMO
again.
To play the game Demo
1
2
3
4
.
Press DEMO.
Three numbers on the display start to run.
Press ■once.
The number on the left side stops.
Press ■twice to stop the remaining two numbers.
Press +- to start the number running again.
You can enioy the Oame Demo with ~ame sound by pressing
DEMO whiie-the p;wer is on. -
Scoring: --
20 points are given to start the game.
If all the numbers are equal, 50 points are added to the score.
If not equal, one point is subtracted.
If the gained points reach 9999, you win.
If the gained points fall to O,you lose.
To reset the game Demo
Press DEMO twice, then press +>. The game starts again.
To mute the game sound
First, cancel the game Demo by pressing DEMO. Then, keep
pressing DEMO until “)~ OFF” is displayed.
To restore the game sound, keep pressing DEMO again until
“~~ ON” is displayed.
●During playing the game Demo, ■and +> are available only
for the game Demo. Cancel the game Demo to use these
buttons for the functions such as CD playing, etc.
●During the game Demo, some indicators unrelated with the
actual operation light up on the display.
●To change the game sound, see “RHYTHM PLAY FUNCTION”
on page 6.
To change the spectrum analyzer display
3patterns of spectrum analyzer display can be shown. Press
DISPLAY once to display the name of the spectrum analyzer,
then turn MULTI JOG within 4seconds to select the pattern.
rNORMAL ~REVERSE ~PEAK T
/\
The Multi Amplifier System equipped with your system
The Multi Amplifier System has two amplifiers with lefts and rights
channels; one for middle-and-high frequency sound from 200 Hz to
20 kHz, the other for low frequency from 20 Hz to 200 Hz,
If both middle-and-high and low frequency sounds are output from
one amplifier, middle-and-high frequency sound may be distorted.
On the other hand, if each frequency sound is output from separate
amplifier, each sound will be played back in good quality.
So, good quality sound will be played back with this Multi Amplifier
System which has separate amplifiers for two frequency ranges,
L/
5ENGLISH

You can enjoy music of CDs, tapes
patterns programmed in the unit. or etc. mixed with rhythm
OFFION
m
●When the game Demo is selected, the rhythm tempo and rhythm
volume level cannot be changed.
●The signal output from LINE OUT jack is affected with the
rhythm play function.
1
2
Press RHYTHM.
One of the rhythm patterns is displayed.
Turn MULTI JOG to select the desired rhythm
pattern.
The rhythm pattern is displayed cyclically as follows.
H.Ro~k 1,2,3 1
(Har; Rock) Waltz 1,2,3
1
Sam~a 1,2,3 4Be~t 1,2,3
11
Salsa 1,2,3 8Beat 1,2,3
1
Mereng 1,2,3 i
(Merengue) —16 Beat 1,2,3
To change the tempo of the selected rhythm pattern
Press RHYTHM ~while the selected rhythm pattern is
displayed, then turn MULTI JOG to select the rhythm tempo.
The rhythm tempo can be changed from 90 to 160.
To change the volume level of the selected rhythm pattern
F’ress RHYTHM @while the selected rhythm pattern is
displayed, then turn MULTI JOG to select the volume level.
The volume level can be changed from 1to 4.
10 cancel the rhythm play function
F’ress RHYTHM PUSH OFF/ON.
T’o restart the rhythm play function
F’ress RHYTHM PUSH OFF/ON again. The rhythm pattern
selected last time starts.
*These voice wave data incorporated in this product are Yamaha
Corporation’s copyrightable property and we are licensed by
Yamaha Corporation.
ENGL/SH6

T-BASS
VOLUME
Turn VOLUME on the main unit, or press VOLUME on the
remote control.
The volume level is displayed as anumber from Oto MAX (50).
The volume level is automatically set to 20 when the power is
turned off with the volume level set to 21 or more.
The BBE system enhances the clarity of high-frequency sound.
It also enriches the KARAOKE function to make your voice sound
clear and pleasant.
Press BBE.
Each time it is pressed, the level changes. Select one of the
three levels, or the off position to suit your preference.
The T-BASS system enhances the realism of low-frequency
sound.
Press T-BASS.
Each time it is pressed, the level changes. Select one of the
three levels, or the off position to suit your preference.
GEQ
--Y
This unit provides four different programmed equalization curves.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
JAZZ: Accented lower frequencies for jazz-type music
CLASSIC: Enriched sound with heavy bass and fine treble
Press PRGM/MANUAL so that one of the PRGM indicators
is selected, and then press ROCK, POP, JAZZ or CLASSIC.
PRGM indicators
To cancel the selected mode
Press the selected button again. “GEQ OFF is displayed.
To select the equalization curve with the remote control
Press GEQ repeatedly until the desired equalization curve is
displayed.
rROCK— PoP— JAZZ— CLASSIC
,------------- PRGM mode--- --------- I1
LGEQOW+WUA4+MUA 3+ MUA2+WUA1J
(cancel) ,-------- MANUAL mode ------ --~
Low frequency sound may be distorted when the T-BASS system
is used for adisc or tape in which low frequency sound is originally
emphasized. In this case, cancel the T-BASS system.
7ENGLISH

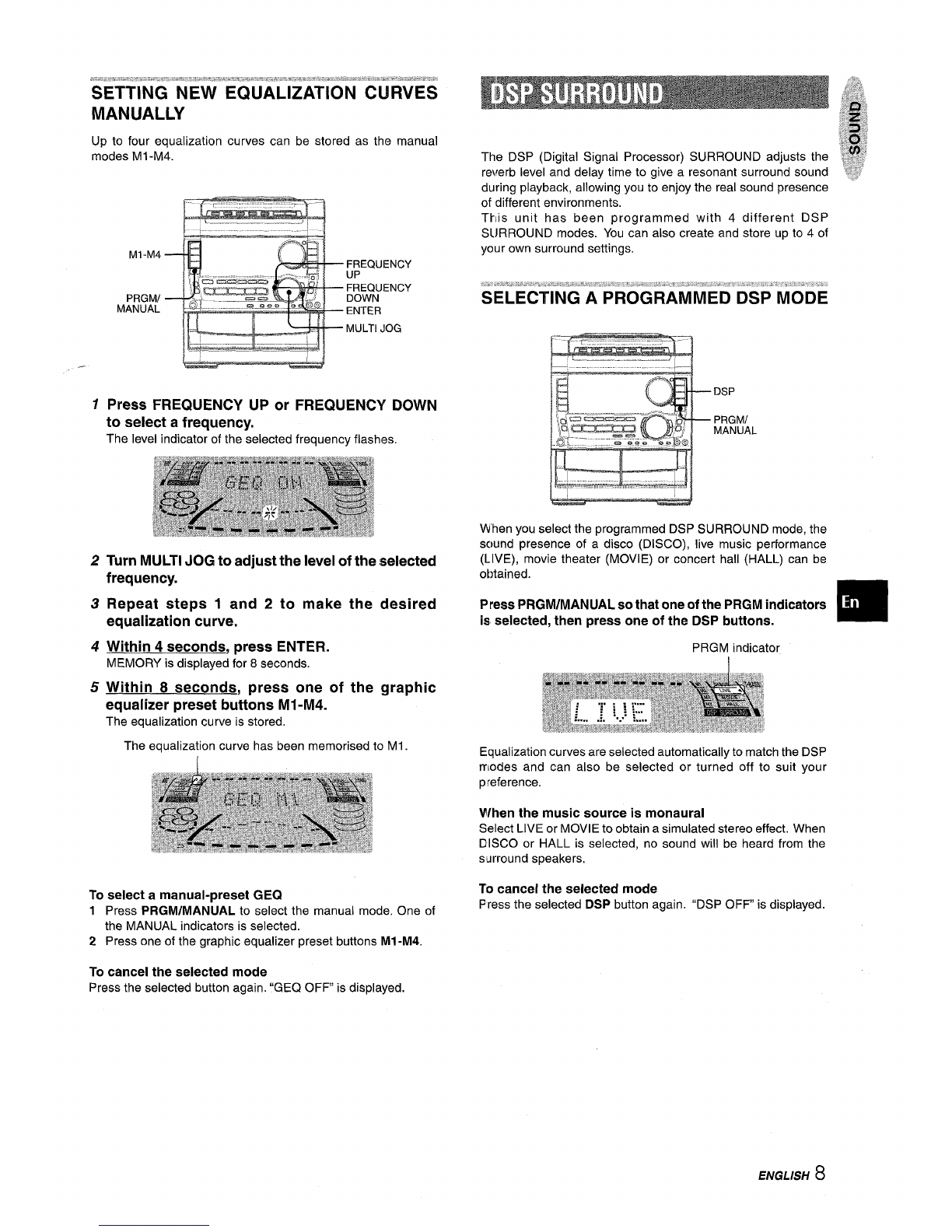

SETTING NEW EQUALIZATION CURVES
MANUALLY
Up to four equalization curves can be stored as the manual
modes M1-M4.
MI-M4
PRGM/
MANUAL
1
2
3
4
5
Press FREQUENCY UP or FREQUENCY DOWN
to select afrequency.
The level indicator of the selected frequency flashes.
Turn MULTI JOG to adjust the level of the selected
frequency.
Repeat steps 1and 2to make the desired
equalization curve.
Within 4seconds, press ENTER.
MEMORY is displayed for 8seconds.
Within 8seconds, press one of the graphic
equalizer preset buttons Ml -M4.
The equalization curve is stored.
The equalization curve has been memorised to Ml.
To select amanual-preset GEQ
1Press PRGM/MANUAL to select the manual mode. One of
the MANUAL indicators is selected.
2Press one of the graphic equalizer preset buttons M1-M4.
To cancel the selected mode
Press the selected button again. “GEQ OFF is displayed.
The DSP (Digital Signal Processor) SURROUND adjusts the
reverb level and delay time to give aresonant surround sound
during playback, allowing you to enjoy the real sound presence
of different environments.
This unit has been programmed with 4different DSP
SURROUND modes. You can also create and store up to 4of
your own surround settings.
~-–=-=-..—_-–---
(——.—4
When you select the programmed DSP SURROUND mode, the
scmnd presence of adisco (DISCO), live music performance
(LIVE), movie theater (MOVIE) or concert hall (HALL) can be
obtained.
Press PRGM/MANUAL so that one of the PRGM indicators
is selected, then press one of the DSP buttons.
PRGM indicator
Equalization curves are selected automatically to match the DSP
modes and can also be selected or turned off to suit your
preference.
When the music source is monaural
Select LIVE or MOVIE to obtain asimulated stereo effect, When
DISCO or HALL is selected, no sound will be heard from the
surround speakers.
To cancel the selected mode
Press the selected DSP button again. “DSP OFF is displayed.
ENGLISH 8

e&-a*xa*am!-mam&F&.&.2mm$%wea&mmmeA.Ya&a.E--*mm.m**se-
SETTING ANEW DSP SURROUND SOUND 4Within 8seconds, press ENTER .
MANUALLY “MEMORY” is displayed for 8seconds.
Select one of the elements to be set for anew
DSP sound.
Delay time (TM)
Increasing the number in the display increases the delay time
and surround effect.
Press DELAY.
0~15s20*30 *50+-+140
Feedback (FB)
Increasing the number in the display increases the echo effect.
Press EFFECT twice.
FBOFF~l~2*----+6~7
Input mode (IN L-R, IN L+R)
When “L+R” is displayed, the surround effect increases,
especially in the center.
When “L-R is displayed, it increases on the outside.
Press EFFECT once.
Within 8seconds, turn MULTI JOG to select one
of the levels of the selected element in step 1.
Repeat steps 1and 2to make the desired DSP
sound.
ENGLISH
5Within 8seconds, press one of the DSP (M1-M4)
buttons.
The new DSP sound is stored.
The DSP sound has been memorized to Ml
To select amanual-preset DSP
1Press PRGM/MANUAL of DSP to select the manual mode.
One of the MANUAL indicators.is selected.
2Press one of the DSP (Ml -M4) buttons.
To cancel the selected mode
Press the selected DSP button again. “DSP OFF is displayed.
m
When the MIC or ECHO level is changed, the DSP SURROUND
mode is automatically canceled.

.- 1
2
[~
.. ._.-... ___-——..... ..
MONO
(MD/TUNER)
Press TUNER/BAND repeatedly to select the
desired band, FM or AM.
When TUNEFUBAND is pressed while the power is off, the
power is turned on directly.
Press +DOWN or -UP to select astation.
Each time the button is pressed, the frequency changes.
When astation is received, “TUNE is displayed for 2seconds.
During FM stereo reception, IIKD!I) is displayed.
TUNE [[[01))
To search for astation quickly (Auto Search)
Keep ++ DOWN or *UP pressed until the frequency starts
to change rapidly. After tuning in to astation, the search stops.
To stop the Auto Search manually, press +DOWN or -
UP.
●The Auto Search may not stop at stations with very weak
signals.
When an FM stereo broadcast contains noise
Press MONO on the remote controlso that “MONO appears on
the display.
Noise is reduced, although reception is monaural.
Torestorestereo reception,pressthe buttonagain so that MONO
disappears.
To change the AM tuning interval
The default setting of the AM tuning interval is 10 kHz/step. If
you use this unit in an area where the frequency allocation system
is 9kHz/step, change the tuning interval.
Press POWER while pressing TUNER/BAND.
To reset the interval, repeat this procedure.
When the AM tuning interval is changed, all preset stations are
cleared. The preset stations have to be set again.
The unit can store atotal of 32 preset stations. When astation is
stored, apreset number is assigned to the station. Use the preset
number to tune in to apreset station directly.
1Press the TUNER/BAND to select aband, and
press -DOWN or -UP to select astation.
2! Press II SET to store the station.
Astation is assigned apreset number, beginning from 1in
consecutive order for each band.
Preset number -1
4Repeat steps 1and 2.
The next station will not be stored if atotal of 32 preset stations
for all the bands have already been stored.
,,$,a,:.,~!,..=.&s.,..,..!*T.*.,:h:.S... . ,. .- ...,$-. . q,$-.,f~.,,...,k“.?/#.;-@J.. ..-r-h,‘,!“$%.,,,*!.5w.=,.*&5:-
I>RESET N(JMBERTUNING
Use the remote control to select the preset number directly.
‘f
‘>
d.
Press TUNER/BAND to select aband.
Press numbered buttons O-9 and +1Oto select a
preset number.
Example:
To select preset number 15, press +10 and 5.
To select preset number 20, press +10, +1Oand O.
!Selecting apreset number on the main unit
Press TUNER/BAND to select aband. Then, press +>
l)lRECTION/PRESET repeatedly or turn MULTI JOG.
Each time DIRECTION/PRESET is pressed, the next higher
number is selected.
TO clear apreset station
Select the preset numberofthe stationto be cleared.Then, press
■CLEAR, and press II SET within 4seconds.
“rhe preset numbers of all other stations in the band with higher
numbers are also decreased by one.
ENGLISH 10

K
Press CD, then press &OPEN/CLOSE to open the
disc compartment. Load disc (s) with the label side
up.
To load one or two discs, place the disc(s) on the tray(s) in the
direction of the arrows as illustrated.
Tray
num
To load three to five discs, press DISC CHANGE to rotate the
trays after placing two discs. Place the next disc on the empty
tray. Each time DISC CHANGE is pressed, the trays rotate and
one disc can be placed.
After placing the disc, press AOPEN/CLOSE to close the
disc compartment.
The display shows the information of the disc to be played.
Tray number of the
disc to be played Total playing time
Total number of tracks
Load discs.
To play all discs in the disc compartment, press
+b.
All discs are played once.
Number of track being played Elapsed playing time
To play one disc only, press one of the DISC DIRECT
PLAY 1-5.
The selected disc is played once.
To play with the remote control
Press DISC DIRECT PLAY, then press one of the numbered
buttons 1-5within 3seconds to select adisc.
To stop play, press ■.
To pause play, press 11.To resume play, press again.
To search for aparticular point during playback, keep U
or -pressed and release it at the desired point.
To skip to the beginning of atrack during playback, press
+or -repeatedly or turn MULTI JOG.
To remove discs, press AOPEN/CLOSE.
You can only remove the two discs that face you. When the disc
to be removed does not face you, press DISC CHANGE
repeatedly.
To start play when the power is off (Direct Play Function)
Press CD. The power is turned on and play of the loaded disc(s)
begins,
When AOPEN/CLOSE is pressed, the power is also turned on
and the disc compartment is opened.
To check the remaining time
Press EDIT/CHECK on the remote control during play. The
amount of time remaining until all tracks finish playing is displayed.
To restore the playing time display, press EDIT/CHECK again.
When using the main unit, press CD EDiT/CHECK during play.
Selecting atrack with the remote control
1Press DISC DIRECT PLAY, then press one of the numbered
buttons 1-5within 3seconds to select adisc.
2Press numbered buttons O-9 and +1Oto select atrack.
Example:
To select the 25th track, press +1O,+1Oand 5.
To select the 10th track, press +10 and O.
The selected track starts to play and play continues to the
end of that disc.
Replacing discs during play
While one disc is playing, the other discs can be replaced without
interrumina r31av.
1
2
3
Press WC-CHANGE.
Two discs can be replaced.
Remove the discs and replace with other discs.
To replace the other two discs, press DISC CHANGE again.
Press 4OPEN/CLOSE to close the disc compartment.
11 ENGLISH

m
●While the disc compartment is opened with DISC CHANGE,
do not press buttonsother than DISC CHANGE or AOPEN/
CLOSE. Doing so may cause malfunctions. In this case, reset
the unit referring “TOreset” on page 24.
●When loading an 8-cm (3-inch) disc, make sure to put it onto
the inner circle of the tray precisely. Otherwise, the disc may
be damaged or the disc compartment will not open. If it does
not open, please consult your Aiwa dealer for repair.
●Do not place more than one compact disc on one disc tray.
*Do not tilt the unit with discs loaded. Doing so may cause
malfunctions.
eWhen transporting the unit, remove the discs from the trays.
●When replacing the discs during play, do not replace discs other
than those facing you.
If you place adisc on the empty right inner tray, and then press
AOPEN/CLOSE, “ERROR” is displayed and the disc
compartment may not close. Remove the disc on that tray.
Never place here.
Use the remote control.
RANDOM play
All the tracks on the selected disc or on all the discs can be
played randomly.
REPEAT play
Asingle disc or all the discs can be played repeatedly
Press RANDOM/REPEAT.
Each time it is pressed, the function can be selected cyclically.
RANDOM play —RANDOM lights up on the display.
REPEAT play —=lights upon the display.
RANDOM/REPEAT play —RANDOM and Glight up on
the display
Cancel —RANDOM and -disappear from the display.
To play all discs, press 4> to start play.
To play asingle disc, press DISC DIRECT PLAY, then press
one of the numbered buttons 1-5within 3seconds to start play.
m
During random play it is not possible to skip to the previously
played track with the ++.
Up to 30 tracks can be programmed from any of the inserted
disc.
1
2
2,3
+, w5
9
Lh>ethe remote control.
1
2
3
Press PRGM twice in stop mode.
PRGM indicator lights up on the display.
PRGM
●When PRGM is pressed once in step 1, the unit enters
KARAOKE PROGRAM (page 20).
Press DISC DIRECT PLAY, then press one of the
numbered buttons 1-5 within 3seconds to select
adisc.
Go to the next step when the tray stops rotating.
Press the numbered buttons O-9 and +10 to
program atrack.
Example:
To select the 25th track, press +10, +10 and 5.
To select the 10th track, press +1Oand O.
Selected Total number of
track number selected tracks
Program Total pla~ing time of
number the selected tracks
4Repeat steps 2and 3to program other tracks.
5Press 4> to start play.
T~ check the Drociram
Each time +-or -is pressed in stop mode, adisc number,
track number, and program number will be displayed.
Tb clear the program
Press ■CLEAR in stop mode.
To add tracks to the program
Repeat steps 2 and 3 in stop mode. The track will be programmed
after the last track.
To change the programmed tracks
Clear the program and repeat all the steps again.
To play the programmed tracks repeatedly
After programming the tracks, press RANDOM/REPEAT
repeatedly until -appears on the display.
[m
~uring programmed play, you cannot perform random play,
checking the remaining time, and selecting adisc or track.
ENGLISH I2

●On deck 1, tapes are always played back on both sides.
On deck 2, you can select areverse mode to play back one or
both sides.
●Use Type I(normal), Type II (high/CrOz) or Type IV (metal)
tapes for playback.
Press TAPE, then press AEJECT to open the
cassette holder.
=EJECT
insert atape with the exposed side down. Push the cassette
holder to close.
To select areverse mode (deck 2only)
Each time REV MODE is pressed, the reverse mode changes.
To play one side only, select =.
To play from front side to reverse side once only, select =1.
To play both sides repeatedly, select C=).
.When tapes are loaded in both decks, =) on the display
indicates Continuous Play.
Insert atape,
7Press DOLBY NR to turn Dolby NR on or off to
match the playback tape. ..
❑0NR
For tapes recorded with DOLBY NR, turn on no NR.
For tapes recorded without DOLBY NR, turn off DO NR.
2Press <P to start play.
Playback side of the tape Tape counter
Playing deck number
>: The front side is being played (forward).
4: The back side is being played (reverse).
When tapes are loaded in both decks
Press TAPE firstto select adeck.
The selected deck number is displayed,
To stop play, press ■.
To pause piay (deck 2only), press II. To resume play, press
again.
To change the playback side, press +E DIRECTION/PRESET
in play or pause mode.
To fast forward or rewind, press <or -in stop mode.
Then press ■to stop the tape.
To start play when the power is off (Direct Play Function)
Press TAPE. The power is turned on and play of the inserted
tape begins.
To set the tape counter to 0000
Press ■CLEAR in stop mode.
The counter is also set to 0000 when the cassette holder is
opened.
13 EArGL/SH

If there is a4-second or longer blank between each track, a
search for the beginning of the current or next track during
playback can be done easily.
When Eof ●➤button is flashing, press _to move to the
next track or 44 to move to the beginning of the current track.
When <of <P button is flashing, press <to move to the
nexttrack, or _to move to the beginning of the current track.
The search function may not be able to detect tracks under the
follwing conditions:
●Blanks of less than 4seconds between tracks
●Noisy blanks
●Long passages of low-end sound
●Low overall recording levels
After playback on one deck finishes, the tape in the other deck
will start to play without interruption.
1Insert tapes into deck 1and deck 2.
2Press TAPE/DECKl/2 to select
played back first.
3Press REV MODE to select Z).
4Press 4bto start playback.
Playback continues until ■is pressed.
the deck to be
About cassette tapes
*TO prevent accidental erasure, break off the plastic tabs
on the cassette tape after recording with ascrewdriver or
other pointed tool.
Side A
e,
q
,<Q;;Q
,@
[>
Type II tape Tab for side A
detection
slot /
To record on the tape again, cover the tab openings with
adhesive tape, etc. (On Type II tapes, take care not to cover
the Type II tape detection slot.)
“120-minute or longer tapes are extremely thin and easily
deformed or damaged. They are not recommended.
‘Take up any slack in the tape with apencil or similar tool
before use. Slack tape may break or jam in the mechanism.
DOLBY NR system
The Dolby Noise Reduction system reduces tape hiss noise.
For optimum performance when playing back atape
recorded with the DOLBY NR system, turn on the DOLBY
NR system.
ENGLISH14

This section explains how to record from the tuner, CD player, or
external equipment.
4
3
Preparation
●Set the tape to the point where recording will start.
●Use Type I(normal) and Type II (high/CrOz) tapes for recording.
1
2
3
4
5
Insert the tape to be recorded on into deck 2.
Insert the tape with the side to be recorded on first facing out
from the unit.
AEJECT
I4
Press REV MODE to select the reverse mode.
To record on one side only, select z.
To record on both sides, select Z) or C=).
Press DOLBY NR to turn Dolby NR on or off.
To record with DOLBY NR, turn on no NR,
To record without DOLBY NR, turn off DO NR.
Press function (CD, TUNER, VIDEO/AUX or MD)
and prepare the source to be recorded.
To record from aCD, press CD and load the disc(s).
To record from aradio broadcast, press TUNER and tune
in to astation.
To record from aconnected source, press VIDEO/AUX or
MD and play.
Press ●RECIREC MUTE to start recording.
To stop recording, press ■.
To pause recording, press II. (Applicable when the source is
TUNER, VIDEO/AUX or MD.) To resume recording, press again.
Insertion of 4-second blank spaces enables you to activate the
Music Sensor function. (Applicable when the source is TUNER,
VIDEO/AUX or MD.)
1Press ●REC/REC MUTE during recording or while in
recording pause mode.
~on the display flashes for 4seconds and the tape runs
without recording. After 4seconds, the deck enters the
recording pause mode.
2Press II to resume recording.
To insert ablank space of less than 4seconds, press ●
REC/REC MUTE again while ~is flashing.
To insert blank spaces of more than 4seconds, after the
deck enters recording pause mode, press ●REC/REC MUTE
again. Each time the buttonis pressed, a4-second blank space
is added. -. ~
..+.. ... .. -,:= .- , :,.1- ‘a.w$.*&amT--- r, .- :- .- =.-=+?
SOUND ADJUSTMENT DURING
RECORDING
The output volume and tone (except BBE and Rhythm play
function) of the speakers or headphones may be freely varied
without affecting the level of the recording.
Recording with BBE
The desired source can be recorded with the BBE function to
enhance the clarity of high-frequency sound. When playing back
atape recorded with BBE, it is recommended that BBE be set to
off.
To erase arecording
Make sure the micro~hone is not connected to this unit and the
Rhythm play function (page 6)is canceled.
1Insert the ta~e to be erased into deck 2 and press TAPEI
2
3
4
DECK 1/2 to”display “TP 2.
Set the tape to the point where the erasure is to be started.
Set the reverse mode by pressing REV MODE.
Press ●REC/REC MUTE to start the erasure.
15 ENGLISH

1, 4
2
3
Preparation
*Set the tape to the point where recording will start.
*The reverse mode is automatically set to z. Note that recording
will be done on one side of the tape only.
1
2
3
4
5
Press TAPE.
Insert the original tape into deck 1and the tape
to be recorded on into deck 2.
Insert the tapes with the sides to be played back or recorded
on facing out from the unit.
Press DOLBY NR to turn off the Dolby NR.
❑DNR on the display goes out.
Press TAPE/DECK 1/2 to select deck 1.
“TPI” is displayed.
Press ●REC/REC MUTE to start recording.
Playing and recording start simultaneously.
To stop dubbing
Press ❑.
To set the Dolby NR when playing back the dubbed tape
Press DOLBY NR and turn Dolby NR on or off to match the
original tape.
Tlhis function allows you to make exact copies of both sides of
the original tape. The reverse side of both tapes will start
simultaneously as soon as the longer tape has been reversed.
●Dubbing does not start from apoint halfway in the tape.
“The reverse mode is automatically set to =>.
●The Dolby NR does not affect recording.
1
2
3
Press TAPE.
Insert the original tape into deck 1and the tape
to be recorded on into deck 2.
Insert each tape with the side to be played back or recorded
on first facing out from the unit.
Press SYNCHRO DUBBING once or twice to start
recording.
@For recording at normal speed, press it once to display
NORM-DUB.
@For recording at high speed, press it twice to display
HIGH-DUB.
@@
The tapes are rewound to the beginning of the front sides,
and recording starts.
TD stop dubbing
Press E.
TD set the Dolby NR when playing back the dubbed tape
Press DOLBY NR and turn Dolby NR on or off to match the
original tape.
Gm
●Recording does not start, if the erasure prevention tab on either
side of the tape is broken off.
●If the leader segment of the tape to be recorded on is longer
than that of the original tape, recording on the reverse side
may stop midway through the recording. In this case, dub each
side manually following the procedure in “DUBBING ATAPE
MANUALLY”.
ENGLISH16

DISC DIRECT
PLAY
o-9
The Al edit function enables CD recording without worrying about
tape length and track length. When aCD is inserted, the unit
automatically calculates the total track length. If necessary, the
order of tracks is rearranged so that no track is cut short.
(Al: Artificial Intelligence)
Al edit recording will not start from apoint halfway into the tape.
The tape must be recorded from the beginning of either side.
1
2
3
4
5
Insert the tape into deck 2, and press DOLBY NR
to turn Dolby NR on or off.
Insert the tape with the side to be recorded on first facing out
from the unit.
Press CD and load the disc(s).
Press CD EDIT/CHECK once.
“EDIT” lights up and “Al” flashes on the display.
When using the remote control, press EDIT/CHECK once.
Al
When “PRGM” is displayed, press CD EDIT/CHECK again.
Press one of the DISC DIRECT PLAY 1-5 to select
adisc.
Press +or -to designate the tape length.
10 to 99 minutes can be specified.
In afew seconds, the microcomputer determines the tracks
to be recorded on each side of the tape.
sThe numbered buttons O-9or MULTI JOG are also available
to designate the tape length.
Example: When using a60-minute tape, press 6 and O.
Tape length Ta~e side AProgrammed (front side) tracks for side A
I
6Press ●REC/REC MUTE to start recording.
The tape is rewound to the beginning of the front side, the
lead segment is played through for 10 seconds, and recording
starts. When recording on the front (side A) ends, recording
on the back (side B) starts.
To stop recording
Press ■.Recording and CD play stop simultaneously.
To clear the edit program
Press ■CLEAR twice so that “EDIT”disappears on the display.
To check the order of the programmed track numbers
Before recording, press CD EDIT/CHECK to select side Aor B,
and press -or _repeatedly or turn MULTI JOG.
Program number
Tape side Track number Programmed
track numbers
To add tracks from other discs to the edit program
If there is any time remaining on the tape after step 5, you can
add tracks from other discs in the CD compartment .
1
2
3
4
Press EDIT/CHECK on the remote control to select side Aor
B.
Press DISC DIRECT PLAY, then press one of the numbered
buttons 1-5 on the remote control within 3seconds to select
adisc.
Press the numbered buttons on the remote control to select
tracks.
Al goes out and PRGM starts flashing on the display.
Atrack which has aplaying time longer than the remaining
time cannot be programmed.
Repeat steps 2 and 3 to add more tracks.
Time on cassette tapes and editing time
The actual cassette recording time is usually alittle longer than
the specified recording time printed on the label. This unit can
program tracks to use the extra time. When the total recording
time is alittle longer than the tape’s specified recording time
after editing, the display shows the extra time (without aminus
mark), instead of the time remaining on the tape (with the minus
mark).
●Recording is inhibited if the erasure prevention tab on either
side of the tape is broken off.
●The edit function cannot be used with discs containing 31 tracks
or more.
Remaining time
of recording
~7ENGLISH

4
2
8
1
3,7
maI
5
Programmed edit function enables CD recording while checking
the remaining time on each side of the tape as the tracks are
programmed.
The programmed edit recording will not start from apoint halfway
in the tape. The tape must be recorded from the beginning of
either side.
1
2
3
4
5
Insert the tape into deck 2, and press DOLBY NR
to turn Dolby NR on or off.
Insert the tape with the side to be recorded on first facing out
from the unit.
Press CD and load the disc(s).
Press CD EDIT/CHECK twice.
EDIT lights up and “PRGM” flashes on the display.
When using the remote control, press EDIT/CHECK twice.
PRGM
When “Al” is displayed, press CD EDIT/CHECK again.
Press +or -to designate the tape length.
10 to 99 minutes can be specified.
●The numbered buttons O-9 or MULTI JOG are also
available to designate the tape length. Maximum recording
Tape length Tape side (A) time for side A
II
Press DISC DIRECT PLAY, then press numbered
buttons 1-5 within 3seconds on the remote
control to select adisc. Then press numbered
buttons O-9 and +1 Oto program atrack.
Example: To select the 10th track of disc 2, press DISC
DIRECT PLAY and numbered button2, then press numbered
buttons +1Oand O.
dRepeat step 5for the rest of the tracks for side A.
Atrack whose playing time is longer than the remaining time
cannot be programmed,
Selected track number
Sele~ted disc P;ogram number
number Remaining time Pr~grammed
of side Atracks
7Press CD EDIT/CHECK to select side Band
program the tracks for side B.
After confirming Bon the display, repeat step 5.
8Press
Tape side B(reverse side)
●REC/REC MUTE to start recording.
The tape is rewound to the beginning of the front side, the
lead segment is played through for 10 seconds, and recording
starts. When recording on the front side (A) ends, recording
on the back side (B) starts.
To stop recording
Press h. Recordin~ and CD play stop simultaneously.
To check the order of the programmed track numbers ❑
Before recording, press CD EDIT/CHECK to select side Aor B,
and press <or -repeatedly or turn MULTI JOG.
Disc number Program number
Track number Programmed track numbers
To change the program of each side
Press CD EDIT/CHECK to select side Aor B, and press ■
CI.EAR to clear the program of the selected side. Then program
tracks again.
Tc) clear the edit program
Press ■twice so that “EDIT disappears on the display.
Em
●Recording is inhibited if the erasure prevention tab on either
side of the tape is broken off.
●l-he edit function cannot be used with discs containing 31 tracks
c}rmore.
ENGLISH 18

[~1 ——,.---- ..KARAOKE
Two microphones (not supplied) can be connected to this unit,
allowing you to sing along to music sources.
Use microphones with mini plugs (03.5 mm, 1/8 inch).
1
2
3
4
5
Connect your microphones to MIC 1and MIC 2
jacks.
=2 /
Press one of the function buttons to select the
source to be mixed, and play the source.
Adjust the volume and tone of the source.
Press MIC and turn VOLUME within 4seconds to
adjust the microphone volume.
The microphone volume can be selected from 1to MAX (7)
or OFF (cancel).
The volume of both microphones is adjusted simultaneously.
Press ECHO and turn VOLUME within 4seconds
to adjust the echo level.
The echo level can be selected from 1to MAX (7) or OFF
(cancel).
To change the delay time of echo
Hold down ECHO while the echo is on.
“ECHO-C’ (Long) and “ECHO-M” (Medium) are displayed
alternately. At the desired position, release the button.
To record microphone SOund mixed with source sound
Follow the procedure for recording from the sound source (see
page 15).
SYNCHRO DUBBING cannot be used for mixing recording.
When not using the microphones
Set the microphone volume and echo level to OFF and remove
the microphones from MIC jacks.
m
●MIC and ECHO are reset to OFF automatically when the
function is changed, one of the DSP SURROUND buttons is
pressed, the power is turned off, or the AC cord is disconnected.
●When the MIC or ECHO level is changed, the DSP SURROUND
mode is automatically canceled.
●If amicrophone is held too near the speakers, ahowling sound
may be produced. In this case, hold the microphone away from
the speakers, or decrease the microphone volume.
●If sound through the microphone is extremely loud, it may be
distorted. In this case, decrease the microphone volume.
Recommended microphones
The use of unidirectional type microphones is recommended to
prevent howling. Contact your local Aiwa dealer for details.
This unit can use discs or tapes as Karaoke sources.
Use the vocal fader function for ordinary discs or tapes.
Use the multiplex function for multi audio discs or tapes.
Press KARAOKE repeatedly to select the vocal fader or -
multiplex function.
Each time KARAOKE is pressed, one of these functions is
selected cyclically.
OVocal Fader
The singer’s voice becomes softer than the accompaniment.
@Auto Vocal Fader
The singer’s voice becomes softer only while there is audio
input through microphones.
@Multiplex
The sound on the left channel is heard from both speakers,
and the sound on the right channel is muted.
To hear the sound on the right channel, see below.
@)Auto Multiplex
The sound on the left channel is heard from both speakers,
and the sound on the right channel is muted only while there
is audio input through amicrophone.
To hear the sound on the right channel, see below
@Cancel
To change the audible channel in Multiplex function
When Multiplex is selected, “MPX-L’ is displayed for 3seconds
and changes to the selected function name. After the selected
function name is displayed, keep pressing KARAOKE until “MPX-
R“ is displayed.
To return to the initial setting, select MPX-L.
When the power is turned off, MPX-L is restored.
To change the time lag setting in Auto Vocal Fader or
Auto Multiplex function
The muted original singer’s voice can be turned faster to the
normal level.
When Auto Vocal Fader or Auto Multiplex is selected, “A-VF or
“A-MPX is displayed for 3seconds and changes to the selected
function name. After the selected function name is displayed,
keeg tIressina KARAOKE until “FAST” is displayed.
To return to the initial setting, select SLOW.
When the power is turned off, SLOW is restored.
19 ENGLISH
