Aiwa Nsx-wv59 User manual

SERVICE MANUAL

DATA

COMPACT DISC

STEREO SYSTEM

BASIC TAPE MECHANISM : 2ZM-3MK2 YPR4NM

BASIC CD MECHANISM : AZG-1 YVZD3RDM

NSX-WV59

HR

S/M Code No. 09-009-435-3N1

• If requiring information about the CD mechanism, see Service Manual

of AZG-1, (S/M Code No. 09-001-335-3NG).

NSX-WV59

SPEAKERSYSTEM CD

CASSEIVER

REMOTE

CONTROLLER

CX-NWV59 RC-ZAS08

SX-NDP54

SX-R277

SX-C607

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 2 –

SPECIFICATIONS

Tuning range 87.5 MHz to 108 MHz

Usable sensitivity (IHF) 13.2 dBf

Antenna terminals 75 ohms (unbalanced)

Tuning range 531 kHz to 1602 kHz (9 kHz step)

530 kHz to 1710 kHz (10 kHz step)

Usable sensitivity 350 µV/m

Antenna Loop antenna

Tuning range 5.730 MHz to 17.900 MHz

Antenna Wire antenna

Mid-high frequency amplifier

Power output Front

Rated: 65 W + 65 W (6 ohms, T.H.D.

1%, 1 kHz)

Reference: 80 W + 80 W

(6 ohms,T.H.D. 10%, 1 kHz)

Rear (Surround)

Rated: 20 W + 20 W (8 ohms, T.H.D.

1%, 1 kHz)

Reference: 25 W + 25 W

(8 ohms,T.H.D. 10%, 1 kHz)

Center

Rated: 20 W (8 ohms, T.H.D.1%, 1 kHz)

Reference: 25 W (8 ohms, T.H.D. 10%,

1 kHz)

Total harmonic distortion 0.1% (35 W, 1kHz, 6 ohms,

DIN AUDIO / Front)

Inputs VIDEO/AUX: 300 mV (adjustable)

MIC: 1.0 mV (10 K ohms)

Outputs VIDEO OUT: 1.0 Vp-p (75ohms)

SPEAKERS: accept speakers of 6

ohms or more

SURROUND SPEAKERS:

accept speakers of 8 ohms to 16 ohms

CENTER SPEAKER:

accept speakers of 8 ohms or more

SUB WOOFER: 1.9 V

PHONES (stereo jack): accepts

headphones of 32 ohms or more

Track format 4 tracks, 2 channels stereo

Frequency response 50 Hz – 15000 Hz

Recording system AC bias

Heads Deck 1 : Playback head x 1

Deck 2 : Recording/Playback head x 1,

erase head x 1

Laser Semiconductor laser (λ =780 nm)

D-A converter 1 bit dual

Signal-to-noise ratio 85 dB (1 kHz, 0 dB)

Harmonic distortion 0.05 % (1 kHz, 0 dB)

Video signal NTSC/PAL color format (selectable)

Video data MPEG 1

Audio data MPEG 1, LAYER 2

Speaker system 2 way, bass reflex (magnetic

shielded type)

Speaker units Woofer:

160 mm cone type

Tweeter:

60 mm cone type

Impedance 6 ohms

Sensitivity 87 dB/W/m

Dimensions (W xH xD) 240 x 324 x 245 mm

Weight 4.4 kg

Power requirements 120 V/220-230 V/240 V AC

switchable, 50/60 Hz

Power consumption 200 W

Power consumption in standby mode

If the power-economizing mode is

ECO OFF: 20 W

if the power-economizing mode is

ECO ON or ECO AUTO: 0.9 W

Dimensions of main unit 260 x 326 x 345 mm

(W xH xD)

Weight of main unit 10.5 kg

• Design and specifications are subject to change without notice.

• Manufactured under license from Dolby Laboratories Licensing

Corporation.

“DOLBY”, the double-D symbol and "PRO LOGIC" are

trademarks of Dolby Laboratories Licensing Corporation.

• The word "BBE"and the "BBE symbol" are trademarks of BBE

Sound, Inc.

Under license from BBE Sound,Inc.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 3 –

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

This set employs laser. Therefore, be sure to follow carefully

the instructions below when servicing.

WARNING!!

WHEN SERVICING, DO NOT APPROACH THE LASER

EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS

NECESSARY TO CONFIRM LASER BEAM EMISSION.

BE SURE TO OBSERVE FROM A DISTANCE OF MORE

THAN 30cm FROM THE SURFACE OF THE OBJEC-

TIVE LENS ON THE OPTICAL PICK-UP BLOCK.

sCaution: Invisible laser radiation when

open and interlocks defeated avoid

exposure to beam.

sAdvarsel: Usynlig laserståling ved åbning,

når sikkerhedsafbrydere er ude af funktion.

Undgå udsættelse for stråling.

VAROITUS!

Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa

mainitulla tavalla saataa altistaa käyt-täjän

turvallisuusluokan 1 ylittävälle näkymättömälle

lasersäteilylle.

VARNING!

Om apparaten används på annat sätt än vad som

specificeras i denna bruksanvising, kan användaren

utsättas för osynling laserstrålning, som överskrider

gränsen för laserklass 1.

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

CAUTION

Use of controls or adjustments or performance of proce-

dures other than those specified herin may result in

hazardous radiation exposure.

ATTENTION

L’utillisation de commandes, réglages ou procédures

autres que ceux spécifiés peut entraîner une dangereuse

exposition aux radiations.

ADVARSEL

Usynlig laserståling ved åbning, når sikkerhedsafbrydereer

ude af funktion. Undgå udsættelse for stråling.

This Compact Disc player is classified as a CLASS 1

LASER product.

The CLASS 1 LASER PRODUCT label is located on the

rear exterior.

Precaution to replace Optical block

(KSS-213F)

Body or clothes electrostatic potential could

ruin laser diode in the optical block. Be sure

ground body and workbench, and use care the

clothes do not touch the diode.

1) After the connection, remove solder shown in

right figure.

PICK-UP Assy PWB

Solder

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 4 –

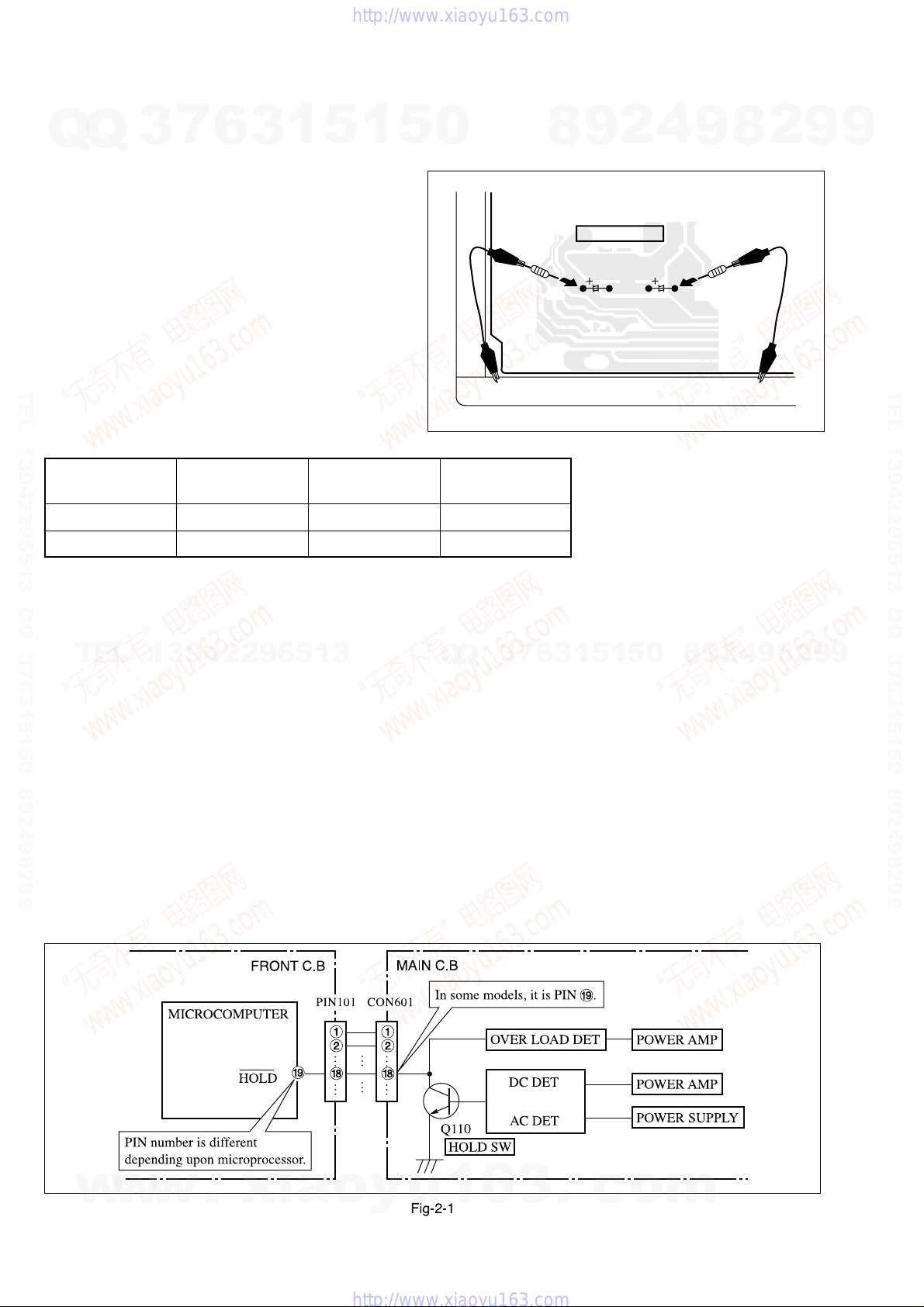

NOTE ON BEFORE STARTING REPAIR

Charging voltage (V) Discharging Rated power (W) Parts number

(C101, 102) resistor (Ω)

25-48 100 3 87-A00-247-090

49-140 220 5 87-A00-232-090

Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the

reference numbers of the charging capacitors on schematic diagram before starting the discharging work.

2. Check items before exchanging the MICROCOMPUTER

Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming

that the MICROCOMPUTER is surely defective.

2-1. Regarding the HOLD terminal of the MICROCOMPUTER

When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly.

When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD

terminal before exchange.

When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any

abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.

• Good or no good judgement of the MICROCOMPUTER

11

1Turn on the AC main power.

22

2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.

33

3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the

MICROCOMPUTER is judged to be good.

1. Forced discharge of electrolytic capacitor of power supply block

When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across

the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect

can occur.

In order to prevent the secondary trouble, perform the following measures before starting repair work.

Discharge procedure

11

1Remove the AC power cord.

22

2Connect a discharging resistor at an end of lead wire that

has clips at both ends. Connect the other end of the lead

wire to metal chassis.

33

3Contact the other end of the discharging resistor to the

positive (+) side (+VH) of C101. (For two seconds)

44

4Contact the same end of the discharging resistor as step

33

3to the negative (-) side (-VH) of C102 in the same way.

(For two seconds)

55

5Check that voltage across C101 and C102 has decreased

to 1 V or less using a multimeter or an oscilloscope.

Select a discharging resistor referring to the following table.

Fig-1

MAIN C.B

D101

C101 C102

22

34

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 5 –

In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.

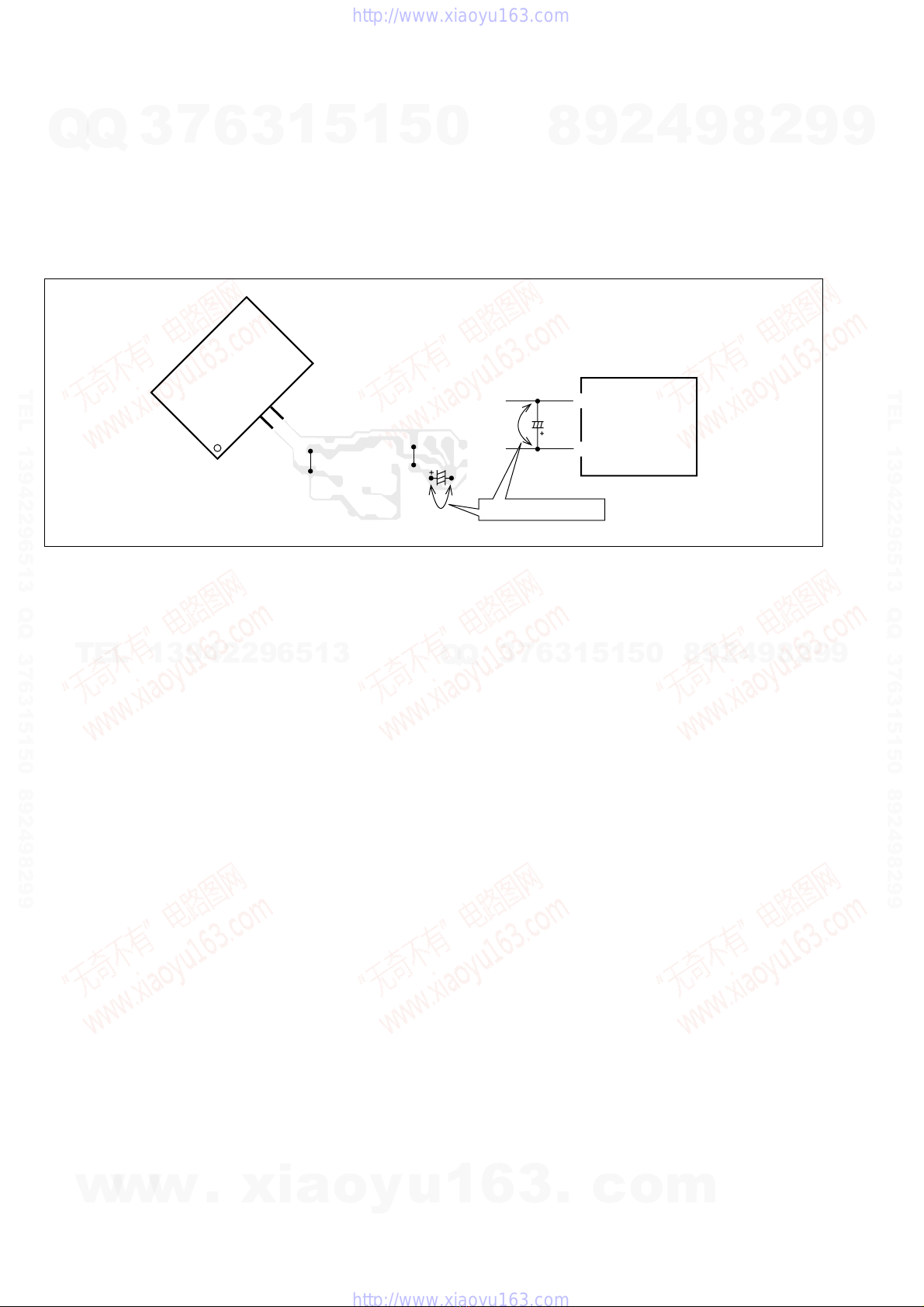

2-2. Regarding reset

There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power

cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.

When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to

exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no

good of the MICROCOMPUTER.

11

1Remove the AC power cord.

22

2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.

33

3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is

good.

Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending

on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.

2-3. Confirmation of soldering state of MICROCOMPUTER

Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the

MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.

Fig-2-2

MICRO-

COMPUTER

MICROCOMPUTER

FRONT C.B

VSS

VDD

C113 *

%

C113

18

15

Short with tweezers.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

 6 

ELECTRICAL MAIN PARTS LIST

DESCRIPTIONREF. NO. KANRI

NO.

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

IC

87-A21-355-010 IC,STK490-140

87-A21-398-010 IC,STK490-110

8A-NH8-610-010 C-IC,LC86656OW5R27

87-A21-629-010 IC,SPS-442-1-N

87-A20-783-040 C-IC,BA7762AFS

87-A21-097-040 C-IC,M62463AFP

87-A21-577-040 C-IC,M61506FP

87-A20-561-040 C-IC,M65847AFP

87-070-289-040 C-IC,BU2092F

87-A21-452-030 C-IC,BD3876KS2

87-A21-560-010 IC,LA1844L-A

87-070-127-110 IC,LC72131D

87-020-454-010 IC,DN6851

TRANSISTOR

87-026-245-080 TR,DTC114 S

89-213-702-010 TR,2SB1370

87-A30-198-080 TR,KTC3199GR

87-026-609-080 TR,KTA1266GR

87-026-610-080 TR,KTC3198GR

87-A30-076-080 C-TR,2SC3052F

87-A30-075-080 C-TR,2SA1235F

87-A30-318-080 TR,CSA952K

87-A30-107-070 C-TR,CMBT5401

87-A30-106-040 C-TR,CMBT5551

87-A30-087-080 C-F T,2SK2158

87-A30-074-080 C-TR,RT1P141C

87-A30-329-080 TR,CD1585BC

87-A30-073-080 C-TR,RT1N141C

87-A30-105-080 C-TR,RT1P 441C

87-A30-086-040 C-TR,CSD1306

87-A30-202-080 C-TR,RT1P441C

89-327-143-080 TR,2SC2714O

87-A30-072-080 C-TR,RT1P144C

89-503-602-080 C-F T,2SK360

87-A30-234-080 TR,CSC4115BC

87-026-463-080 TR,2SA933SRS

DIOD

87-017-654-060 DIOD ,GBU6JL6131

87-A40-838-090 DIOD ,G3SBA60L-6088

87-A40-839-090 DIOD ,G5SBA60L-6088

87-020-465-080 DIOD ,1SS133

87-A40-553-080 DIOD ,1N4003 L S

87-A40-776-080 Z N R,UZ27BSD

87-A40-764-080 Z N R,UZ10BSC

87-A40-313-080 C-DIOD ,MC2840

87-A40-270-080 C-DIOD ,MC2838

87-A40-269-080 C-DIOD ,MC2836

87-A40-768-080 Z N R,UZ16BSA

87-A40-313-080 C-DIOD ,MC2840

87-A40-752-080 Z N R,UZ6.2BSC

87-A40-760-080 Z N R,UZ9.1BSA

87-A40-747-080 Z N R,UZ5.1BSB

87-A40-802-080 Z N R,UZ5.1BSC

87-A40-745-080 Z N R,UZ4.7BSA

87-017-149-080 Z N R,HZS6A2L

MAIN C.B

C3 87-012-368-080 C-CAP,S 0.1-50 Z F

C4 87-012-368-080 C-CAP,S 0.1-50 Z F

C21 87-016-658-000 CAP, 4700-35 M SMG

C22 87-016-658-000 CAP, 4700-35 M SMG

C25 87-010-406-080 CAP, 22-50 M 11L SM

C26 87-010-406-080 CAP, 22-50 M 11L SM

C27 87-010-406-080 CAP, 22-50 M 11L SM

C28 87-010-406-080 CAP, 22-50 M 11L SM

C31 87-010-263-080 CAP, 100-10 M 11L SM

C32 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C34 87-010-260-080 CAP, 47-25 M 11L SM

C35 87-010-406-080 CAP, 22-50 M 11L SM

C36 87-010-381-080 CAP, 330-16 M SM

C38 87-010-409-080 CAP, 220-50 M SM

C39 87-010-409-080 CAP, 220-50 M SM

C40 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C60 87-010-403-080 CAP, 3.3-50 M 11L SM

C80 87-010-401-080 CAP, 1-50 M 11L SM

C81 87-010-383-080 CAP, 33-25 M 11L SM

C82 87-010-260-080 CAP, 47-25 M 11L SM

C160 87-012-140-080 C-CAP,S 470P-50 J CH

C163 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C171 87-012-368-080 C-CAP,S 0.1-50 Z F

C172 87-012-368-080 C-CAP,S 0.1-50 Z F

C173 87-012-368-080 C-CAP,S 0.1-50 Z F

C174 87-012-368-080 C-CAP,S 0.1-50 Z F

C301 87-010-318-080 C-CAP,S 47P-50 J CH GRM

C302 87-010-318-080 C-CAP,S 47P-50 J CH GRM

C303 87-012-157-080 C-CAP,S 330P-50 J CH GRM

C304 87-012-157-080 C-CAP,S 330P-50 J CH GRM

C305 87-012-157-080 C-CAP,S 330P-50 J CH GRM

C306 87-012-157-080 C-CAP,S 330P-50 J CH GRM

C307 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C309 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C310 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C311 87-010-198-080 C-CAP,S 0.022-25 K B C2012

C312 87-010-198-080 C-CAP,S 0.022-25 K B C2012

C313 87-010-178-080 C-CAP,S 1000P-50 K B C2012

C314 87-010-178-080 C-CAP,S 1000P-50 K B C2012

C315 87-010-178-080 C-CAP,S 1000P-50 K B C2012

C316 87-010-178-080 C-CAP,S 1000P-50 K B C2012

C321 87-012-142-080 C-CAP,S 0.33-16 F GRM

C322 87-012-142-080 C-CAP,S 0.33-16 F GRM

C324 87-010-260-080 CAP, 47-25 M 11L SM

C325 87-010-370-080 CAP, 330-6.3 SM

C327 87-010-404-080 CAP, 4.7-50 M 11L SM

C328 87-010-404-080 CAP, 4.7-50 M 11L SM

C332 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C335 87-010-401-080 CAP, 1-50 M 11L SM

C336 87-010-401-080 CAP, 1-50 M 11L SM

C337 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C339 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C340 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C351 87-012-140-080 C-CAP,S 470P-50 J CH

C352 87-012-140-080 C-CAP,S 470P-50 J CH

C354 87-010-175-080 C-CAP,S 560P-50 J SL

C355 87-010-178-080 C-CAP,S 1000P-50 K B C2012

C356 87-010-260-080 CAP, 47-25 M 11L SM

C357 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C358 87-010-183-080 C-CAP,S 2700P-50 K B GRM

C359 87-010-183-080 C-CAP,S 2700P-50 K B GRM

C360 87-010-183-080 C-CAP,S 2700P-50 K B GRM

C370 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C373 87-016-083-080 C-CAP,S 0.15-16 K R

C374 87-016-083-080 C-CAP,S 0.15-16 K R

C378 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C379 87-010-382-080 CAP, 22-25 M 11L SM

C380 87-010-382-080 CAP, 22-25 M 11L SM

C386 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C388 87-012-156-080 C-CAP,S 220P-50 J CH GRM

C391 87-010-319-080 C-CAP,S 56P-50 J CH

C392 87-010-319-080 C-CAP,S 56P-50 J CH

C393 87-010-319-080 C-CAP,S 56P-50 J CH

C394 87-010-319-080 C-CAP,S 56P-50 J CH

C401 87-010-176-080 C-CAP,S 680P-50 J SL

C402 87-010-176-080 C-CAP,S 680P-50 J SL

C403 87-010-958-080 C-CAP,S 0.01-25 J B

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

 7 

DESCRIPTIONREF. NO. KANRI

NO.

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

C404 87-010-958-080 C-CAP,S 0.01-25 J B

C405 87-010-958-080 C-CAP,S 0.01-25 J B

C406 87-010-958-080 C-CAP,S 0.01-25 J B

C407 87-010-401-080 CAP, 1-50 M 11L SM

C408 87-010-401-080 CAP, 1-50 M 11L SM

C409 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C410 87-010-112-080 CAP, 100-16 M 11L SM

C411 87-010-400-080 CAP, 0.47-50 M 11L SM

C412 87-010-400-080 CAP, 0.47-50 M 11L SM

C413 87-010-400-080 CAP, 0.47-50 M 11L SM

C414 87-010-401-080 CAP, 1-50 M 11L SM

C417 87-010-221-080 CAP, 470-10 M SM

C418 87-A10-891-080 CAP, 4.7-25 SM (K)

C419 87-A10-800-080 C-CAP,S 6800P-16 J B CM

C420 87-010-374-080 CAP, 47-10 M 11L SM

C421 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C422 87-A10-804-080 C-CAP,S 0.1-25 J B

C424 87-010-374-080 CAP, 47-10 M 11L SM

C425 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C429 87-010-544-080 CAP, 0.1-50 M 11L SM

C430 87-A10-201-080 C-CAP,S0.33-16 KB

C431 87-010-971-080 C-CAP,S 4700P-50 J B

C432 87-012-349-080 C-CAP,S 1000P-50 J CH GRM

C433 87-A11-183-080 C-CAP,S 0.12-16 J B

C434 87-A11-182-080 C-CAP,S 0.27-16 J B

C435 87-A11-182-080 C-CAP,S 0.27-16 J B

C436 87-A11-183-080 C-CAP,S 0.12-16 J B

C437 87-010-971-080 C-CAP,S 4700P-50 J B

C438 87-012-349-080 C-CAP,S 1000P-50 J CH GRM

C439 87-010-805-080 C-CAP,S 1-16 Z F

C440 87-010-401-080 CAP, 1-50 M 11L SM

C441 87-A10-799-080 C-CAP,S 5600P-16 J B CM

C442 87-A10-802-080 C-CAP,S 0.047-16 J B CM

C443 87-A10-229-080 C-CAP,S 0.68-10 K W5R

C444 87-012-393-080 C-CAP,S 0.22-16 K W 5R CM/CB

C445 87-012-393-080 C-CAP,S 0.22-16 K W 5R CM/CB

C446 87-010-404-080 CAP, 4.7-50 M 11L SM

C447 87-010-404-080 CAP, 4.7-50 M 11L SM

C448 87-012-393-080 C-CAP,S 0.22-16 K W 5R CM/CB

C449 87-012-393-080 C-CAP,S 0.22-16 K W 5R CM/CB

C450 87-016-081-080 C-CAP,S 0.1-16 K R GRM

C451 87-A10-802-080 C-CAP,S 0.047-16 J B CM

C452 87-A10-802-080 C-CAP,S 0.047-16 J B CM

C453 87-016-081-080 C-CAP,S 0.1-16 K R GRM

C454 87-016-081-080 C-CAP,S 0.1-16 K R GRM

C455 87-A10-801-080 C-CAP,S 0.022-16 J B CM

C456 87-A10-801-080 C-CAP,S 0.022-16 J B CM

C457 87-016-081-080 C-CAP,S 0.1-16 K R GRM

C489 87-010-545-080 CAP, 0.22-50 M 11L SM

C492 87-010-545-080 CAP, 0.22-50 M 11L SM

C531 87-010-405-080 CAP, 10-50 M 11L SM

C532 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C533 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C534 87-012-156-080 C-CAP,S 220P-50 J CH GRM

C535 87-010-178-080 C-CAP,S 1000P-50 K B C2012

C536 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C541 87-010-178-080 C-CAP,S 1000P-50 K B C2012

C609 87-010-181-080 C-CAP,S 1800P-50 K B GRM

C610 87-010-181-080 C-CAP,S 1800P-50 K B GRM

C611 87-010-598-080 C-CAP,S 0.068-16 K R GRM

C612 87-010-369-080 C-CAP,S 0.033-25 K B

C613 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C614 87-016-081-080 C-CAP,S 0.1-16 K R GRM

C616 87-010-184-080 C-CAP,S 3300P-50 K B C2012

C617 87-010-194-080 C-CAP,S 0.047-25 Z F

C618 87-010-401-080 CAP, 1-50 M 11L SM

C619 87-010-263-080 CAP, 100-10 M 11L SM

C620 87-016-081-080 C-CAP,S 0.1-16 K R GRM

C621 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C623 87-010-401-080 CAP, 1-50 M 11L SM

C624 87-010-401-080 CAP, 1-50 M 11L SM

C626 87-010-596-080 C-CAP,S 0.047-16 K R C2012

C627 87-010-400-080 CAP, 0.47-50 M 11L SM

C628 87-010-400-080 CAP, 0.47-50 M 11L SM

C629 87-010-596-080 C-CAP,S 0.047-16 K R C2012

C630 87-010-263-080 CAP, 100-10 M 11L SM

C631 87-010-185-080 C-CAP,S 3900P-50 K B

C632 87-010-185-080 C-CAP,S 3900P-50 K B

C634 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C635 87-A10-307-080 CAP,M 0.1-50 J

C636 87-A10-307-080 CAP,M 0.1-50 J

C637 87-A10-307-080 CAP,M 0.1-50 J

C638 87-A10-307-080 CAP,M 0.1-50 J

C639 87-010-405-080 CAP, 10-50 M 11L SM

C643 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C644 87-010-401-080 CAP, 1-50 M 11L SM

C671 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C672 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C673 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C679 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C680 87-010-190-080 C-CAP,S 0.01-50 Z F C2012

C685 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C771 87-010-263-080 CAP, 100-10 M 11L SM

C772 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C779 87-010-182-080 C-CAP,S 2200P-50 K B C2012

C780 87-010-182-080 C-CAP,S 2200P-50 K B C2012

C782 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C783 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C784 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C785 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C786 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C788 87-010-149-080 C-CAP,S 5P-50C CH GRM

C789 87-A10-592-080 C-CAP,S 0.015-50 J B

C790 87-A10-592-080 C-CAP,S 0.015-50 J B

C791 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C792 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C793 87-010-404-080 CAP, 4.7-50 M 11L SM

C795 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C796 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C797 87-010-405-080 CAP, 10-50 M 11L SM

C798 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C799 87-010-407-080 CAP, 33-50 M 11L SM

C800 87-010-194-080 C-CAP,S 0.047-25 Z F

C801 87-010-403-080 CAP, 3.3-50 M 11L SM

C802 87-010-194-080 C-CAP,S 0.047-25 Z F

C803 87-010-198-080 C-CAP,S 0.022-25 K B C2012

C804 87-010-263-080 CAP, 100-10 M 11L SM

C807 87-010-400-080 CAP, 0.47-50 M 11L SM

C808 87-010-401-080 CAP, 1-50 M 11L SM

C809 87-010-401-080 CAP, 1-50 M 11L SM

C810 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C811 87-010-403-080 CAP, 3.3-50 M 11L SM

C812 87-010-403-080 CAP, 3.3-50 M 11L SM

C814 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C815 87-010-400-080 CAP, 0.47-50 M 11L SM

C816 87-010-400-080 CAP, 0.47-50 M 11L SM

C821 87-010-405-080 CAP, 10-50 M 11L SM

C823 87-010-177-080 C-CAP,S 820P-50 J SL C2012

C824 87-010-404-080 CAP, 47-50M 11L SM

C825 87-010-596-080 C-CAP,S 0.047-16 K R C2012

C842 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C843 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C844 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C845 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C846 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C847 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C848 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C849 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C850 87-010-260-080 CAP, 47-25 M 11L SM

C851 87-010-197-080 C-CAP,S 0.01-25 K B C2012

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

 8 

C852 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C853 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C858 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C859 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C860 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C940 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C941 87-010-314-080 C-CAP,S 22P-50 J CH GRM

C943 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C945 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C946 87-010-971-080 C-CAP,S 4700P-50 J B

C947 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C948 87-010-148-080 C-CAP,S 4P-50 C CH GRM

C952 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C953 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C954 87-010-400-080 CAP, 0.47-50 M 11L SM

C956 87-010-263-080 CAP, 100-10 M 11L SM

C959 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C962 87-010-401-080 CAP, 1-50 M 11L SM

C963 87-015-785-080 C-CAP,0.1-25ZF C3216

C964 87-010-854-080 C-CAP,S 560P-50 J CH

C971 87-010-381-080 CAP, 330-16 M SM

C972 87-010-404-080 CAP, 4.7-50 M 11L SM

C973 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C974 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C979 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C981 87-010-260-080 CAP, 47-25 M 11L SM

C982 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C983 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C984 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C987 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C989 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C991 87-010-312-080 C-CAP,S 15P-50 J CH GRM

C992 87-010-312-080 C-CAP,S 15P-50 J CH GRM

C993 87-010-178-080 C-CAP,S 1000P-50 K B C2012

C995 87-010-178-080 C-CAP,S 1000P-50 K B C2012

C997 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C998 87-010-260-080 CAP, 47-25 M 11L SM

C999 87-A11-155-080 CAP,TC U 0.01-16 Z F

CF831 87-008-261-010 FLTR,CF SF 10.7MA5

CF832 87-008-261-010 FLTR,CF SF 10.7MA5

CN1 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3

CN91 87-A60-109-010 CONN,2P V S2M-2W

CN101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3

CN301 87-099-827-010 CONN,3P S2M-3W

CN351 87-099-832-010 CONN,8P S2M-8W

CN601 87-099-719-010 CONN,30P H BLKTYK-B(X)

CN602 87-099-194-010 CONN,6P V BLK 6216V

CN606 87-099-566-010 CONN,7P TUC-P7P-B1

CNA2 8A-NF6-630-110 CONN ASSY,3P (VM) ANF-6

D951 87-A40-618-080 VARI-CAP,SVC 348(S/T)

FC602 88-906-251-110 FF-CABL ,6P 1.25

FF 831 A8-8ZA-191-030 8ZA-1 YF UNM

J102 87-A60-238-010 T RMINAL,SP 4P (MSC)

J103 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM

J604 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN

J831 87-A60-202-010 T RMINAL,ANT 4P MSP-154V-02

J940 81-754-629-010 CONN CTOR,XH 2P(UL)

L101 87-A50-610-010 COIL,1UH K(MD C)

L102 87-A50-610-010 COIL,1UH K(MD C)

L301 87-A50-049-010 COIL,TRAP 85K(COI)

L302 87-A50-049-010 COIL,TRAP 85K(COI)

L351 87-007-342-010 COIL,OSC 85K HZ BIAS

L801 87-A50-608-010 COIL,FM D T-N(TOK)

L802 87-A90-052-010 FLTR,CFMT-450A(TOK)

L811 87-005-847-080 COIL,2.2UH K(C CS)

L832 87-005-847-080 COIL,2.2UH R(C CS)

L941 87-A50-022-010 COIL,ANT SW(COI)7.96MHZ

L942 87-A50-550-010 COIL,OSC SW-2N(COI)

L943 87-A50-522-080 COIL,1MH K C C

L944 87-A50-159-010 COIL,10MH K C2B

L952 87-A50-430-010 COIL,ANT MW(3BSW)

L953 87-A50-431-010 COIL,OSC MW(3BSW)

R161 87-A00-440-050 R S,220-1/2W J RP

R162 87-A00-440-050 R S,220-1/2W J RP

R163 87-A00-440-050 R S,220-1/2W J RP

R164 87-A00-440-050 R S,220-1/2W J RP

R407 87-022-214-080 C-R S S100K-1/10WF

R790 87-010-197-080 C-CAP,S 0.01-25 K B C2012

R993 87-010-322-080 C-CAP,S 100P-50 J CH GRM

R995 87-010-322-080 C-CAP,S 100P-50 J CH GRM

SFR351 87-A90-433-080 SFR,50K H NVZ6TLTA

SFR352 87-A90-433-080 SFR,50K H NVZ6TLTA

TC941 87-011-254-080 TRIM R,C R 30P 4.0X4.5 CR

TC943 87-011-253-080 TRIM R,C R 30P 4.0X4.5 CRLA

WH1 87-A90-510-010 HLDR,WIR 2.5-9P

X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309

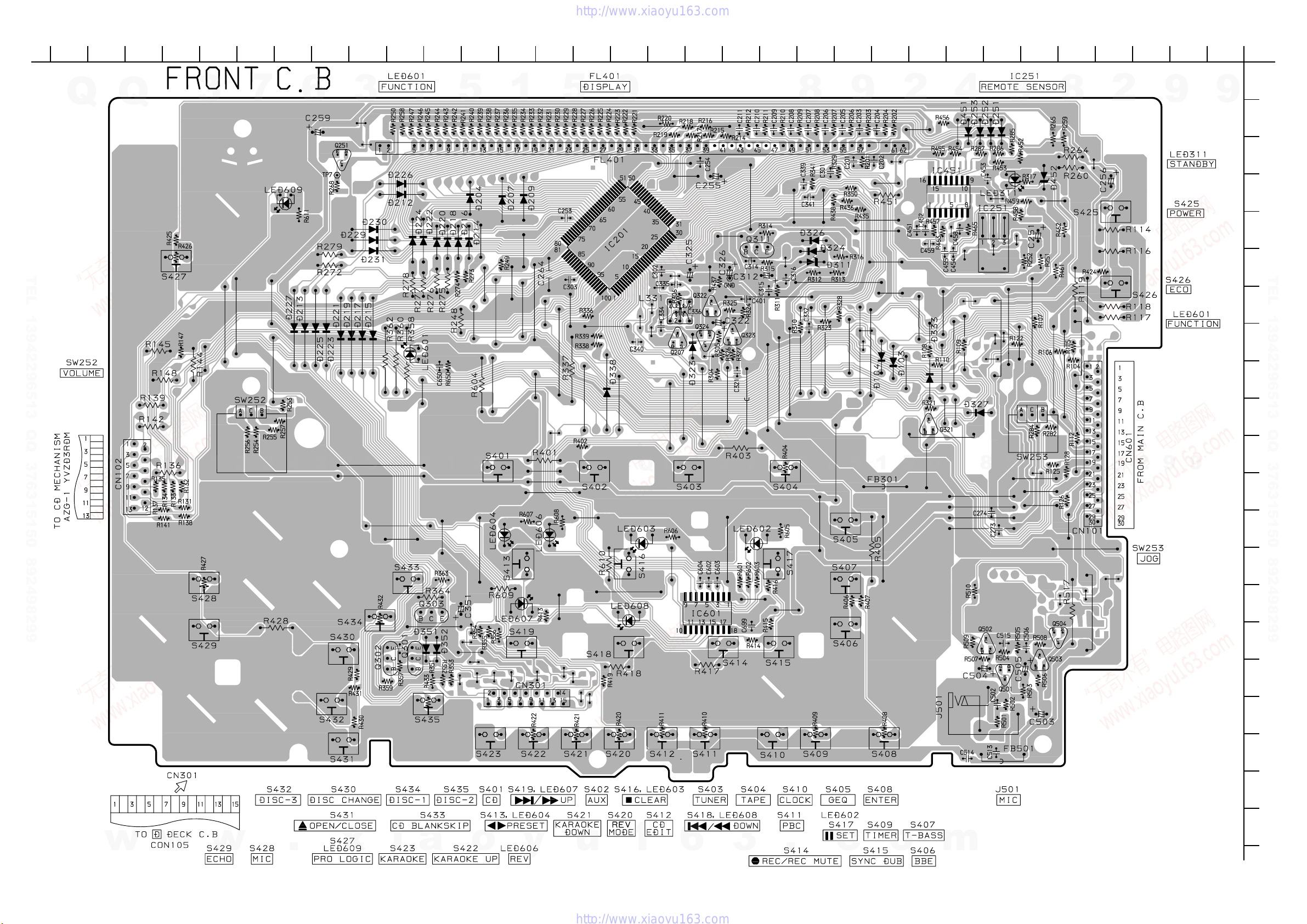

FRONT C.B

C201 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C202 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C203 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C204 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C205 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C206 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C207 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C208 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C209 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C210 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C211 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C251 87-010-405-040 CAP, 10-50 M 11L SM

C253 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C254 87-012-369-080 C-CAP,S 0.047-50 Z F

C255 87-010-560-040 CAP, 10-50 M 5L MA

C256 87-010-405-040 CAP, 10-50 M 11L SM

C259 87-010-405-040 CAP, 10-50 M 11L SM

C264 87-018-209-080 CAP,TC-U 0.1-50 Z F UP050

C273 87-010-178-080 C-CAP,S 1000P-50 K B C2012

C274 87-010-178-080 C-CAP,S 1000P-50 K B C2012

C301 87-010-182-080 C-CAP,S 2200P-50 K B C2012

C302 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C303 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C312 87-010-498-040 CAP, 10-16 M 5L SR

C314 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C315 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C316 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C321 87-012-393-080 C-CAP,S 0.22-16 K W 5R CM/CB

C322 87-010-400-040 CAP, 0.47-50 M 11L SM

C325 87-A10-189-040 CAP, 220-10 M 5L

C326 87-A10-189-040 CAP, 220-10 M 5L

C332 87-010-178-080 C-CAP,S 1000P-50 K B C2012

C334 87-010-312-080 C-CAP,S 15P-50 J CH GRM

C335 87-012-140-080 C-CAP,S 470P-50 J CH

C336 87-012-155-080 C-CAP,S 180P-50 J CH GRM

C339 87-012-156-080 C-CAP,S 220P-50 J CH GRM

C340 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C341 87-010-194-080 C-CAP,S 0.047-25 Z F

C351 87-010-382-040 CAP, 22-25 M 11L SM

C401 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C451 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C452 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C453 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C454 87-010-198-080 C-CAP,S 0.022-25 K B C2012

C455 87-010-198-080 C-CAP,S 0.022-25 K B C2012

C458 87-010-320-080 C-CAP,S 68P-50 J CH GRM

C459 87-010-320-080 C-CAP,S 68P-50 J CH GRM

C502 87-010-186-080 C-CAP,S 4700P-50 K B C2012

C503 87-010-112-040 CAP, 100-16 M 11L SM

C504 87-010-405-040 CAP, 10-50 M 11L SM

C505 87-010-545-040 CAP, 0.22-50 SM

DESCRIPTIONREF. NO. KANRI

NO.

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

 9 

DESCRIPTIONREF. NO. KANRI

NO.

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

C506 87-010-320-080 C-CAP,S 68P-50 J CH GRM

C513 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C514 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C515 87-010-178-080 C-CAP,S 1000P-50 K B C2012

C602 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C603 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C604 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C650 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C699 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

CN101 87-099-720-010 CONN,30P BLK TYK-B(P)

CN102 87-099-015-010 CONN,13P V BLK 6216V

CN301 87-A60-140-010 CONN,15P V F

FC103 88-913-301-110 FF-CABL ,13P 1.25

FC104 88-915-101-110 FF-CABL ,15P 1.25 100MM

FB301 87-008-372-080 FLTR, MI BL OI RNI

FB501 87-008-372-080 FLTR, MI BL OI RNI

FL401 8A-NF8-602-010 FL,HNA-11MM31(ANF-8VCD)

J501 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM

L331 87-A50-408-010 COIL,OSC 5.76MHZ

L D311 87-A40-589-040 L D,SLR-56VCT31 R D

L D601 87-A40-803-010 L D,S LU1 10CXM-S LF38 BLU

L D602 87-A40-619-080 L D,SLR-56PT-T 7-W GRN

L D603 87-A40-619-080 L D,SLR-56PT-T 7-W GRN

L D604 87-A40-619-080 L D,SLR-56PT-T 7-W GRN

L D606 87-A40-619-080 L D,SLR-56PT-T 7-W GRN

L D607 87-A40-619-080 L D,SLR-56PT-T 7-W GRN

L D608 87-A40-619-080 L D,SLR-56PT-T 7-W GRN

L D609 87-A40-589-040 L D,SLR-56VCT31 R D

S401 87-A91-024-180 SW,TACT KSHG611BT

S402 87-A91-024-180 SW,TACT KSHG611BT

S403 87-A91-024-180 SW,TACT KSHG611BT

S404 87-A91-024-180 SW,TACT KSHG611BT

S405 87-A91-024-180 SW,TACT KSHG611BT

S406 87-A91-024-180 SW,TACT KSHG611BT

S407 87-A91-024-180 SW,TACT KSHG611BT

S408 87-A91-024-180 SW,TACT KSHG611BT

S409 87-A91-024-180 SW,TACT KSHG611BT

S410 87-A91-024-180 SW,TACT KSHG611BT

S411 87-A91-024-180 SW,TACT KSHG611BT

S412 87-A91-024-180 SW,TACT KSHG611BT

S413 87-A91-024-180 SW,TACT KSHG611BT

S414 87-A91-024-180 SW,TACT KSHG611BT

S415 87-A91-024-180 SW,TACT KSHG611BT

S416 87-A91-024-180 SW,TACT KSHG611BT

S417 87-A91-024-180 SW,TACT KSHG611BT

S418 87-A91-024-180 SW,TACT KSHG611BT

S419 87-A91-024-180 SW,TACT KSHG611BT

S420 87-A91-024-180 SW,TACT KSHG611BT

S421 87-A91-024-180 SW,TACT KSHG611BT

S422 87-A91-024-180 SW,TACT KSHG611BT

S423 87-A91-024-180 SW,TACT KSHG611BT

S425 87-A91-024-180 SW,TACT KSHG611BT

S426 87-A91-024-180 SW,TACT KSHG611BT

S427 87-A91-024-180 SW,TACT KSHG611BT

S428 87-A91-024-180 SW,TACT KSHG611BT

S429 87-A91-024-180 SW,TACT KSHG611BT

S430 87-A91-024-180 SW,TACT KSHG611BT

S431 87-A91-024-180 SW,TACT KSHG611BT

S432 87-A91-024-180 SW,TACT KSHG611BT

S433 87-A91-024-180 SW,TACT KSHG611BT

S434 87-A91-024-180 SW,TACT KSHG611BT

S435 87-A91-024-180 SW,TACT KSHG611BT

SW252 87-A91-555-010 SW,RTRY C12 24504

SW253 87-A91-542-010 SW,RTRY C12 12504

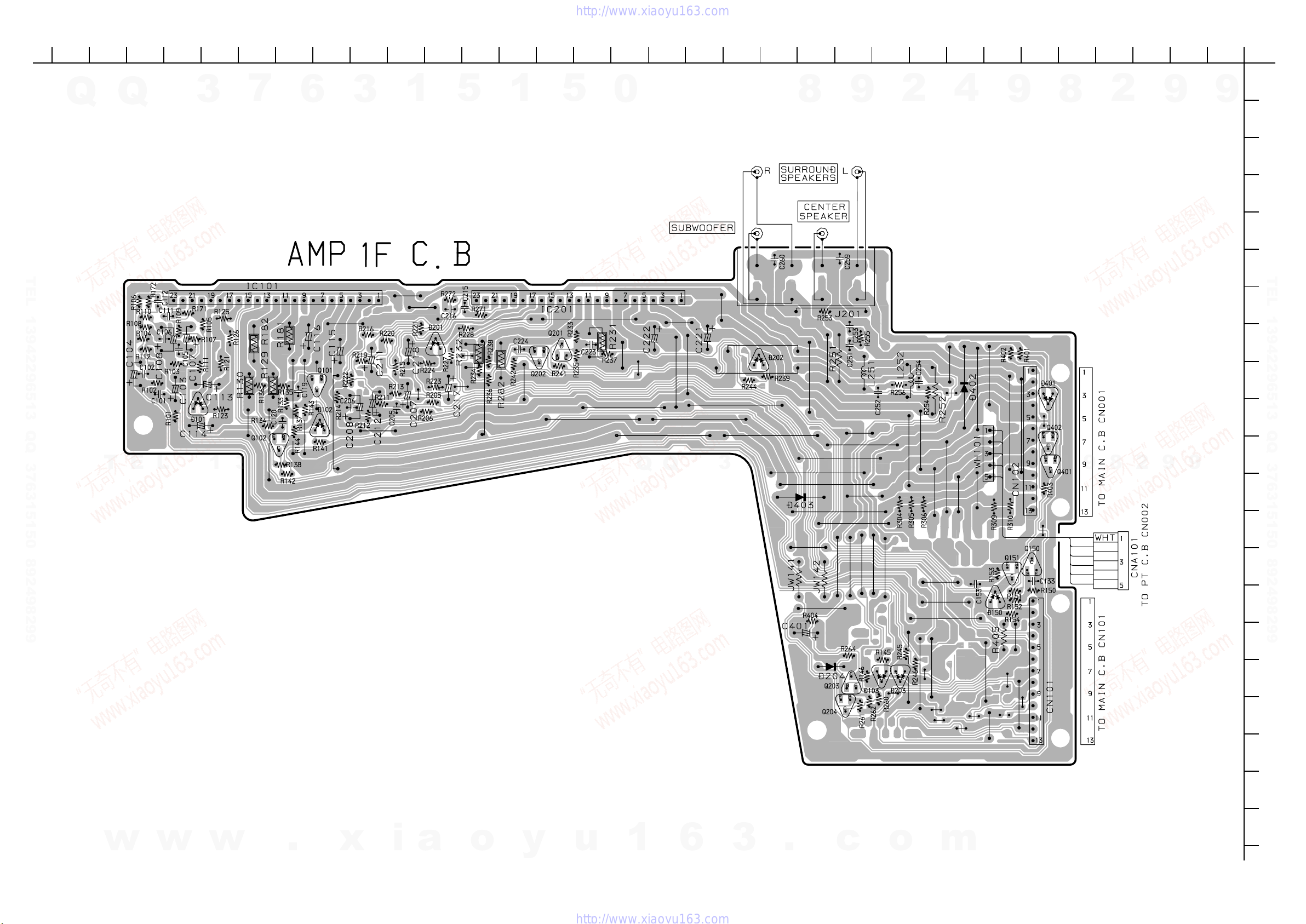

AMP 1F C.B

C101 87-010-184-080 C-CAP,S 3300P-50 K B C2012

C102 87-010-184-080 C-CAP,S 3300P-50 K B C2012

C103 87-010-545-080 CAP, 0.22-50 M 11L SM

C104 87-010-545-080 CAP, 0.22-50 M 11L SM

C105 87-010-186-080 C-CAP,S 4700P-50 K B C2012

C106 87-010-186-080 C-CAP,S 4700P-50 K B C2012

C107 87-010-404-080 CAP, 4.7-50 M 11L SM

C108 87-010-404-080 CAP, 4.7-50 M 11L SM

C111 87-010-179-080 C-CAP,S 1200P-50 K B GRM

C112 87-010-179-080 C-CAP,S 1200P-50 K B GRM

C113 87-010-405-080 CAP, 10-50 M 11L SM

C114 87-010-405-080 CAP, 10-50 M 11L SM

C115 87-010-866-080 CAP, 10-63 M VX

C116 87-010-866-080 CAP, 10-63 M VX

C119 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C120 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C133 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C153 87-010-188-080 C-CAP,S 6800P-500 K B C2012

C205 87-010-181-080 C-CAP,S 1800P-50 K B GRM

C206 87-010-181-080 C-CAP,S 1800P-50 K B GRM

C207 87-010-400-080 CAP, 0.47-50 M 11L SM

C208 87-010-400-080 CAP, 0.47-50 M 11L SM

C211 87-010-405-080 CAP, 10-50 M 11L SM

C212 87-010-405-080 CAP, 10-50 M 11L SM

C215 87-010-179-080 C-CAP,S 1200P-50 K B GRM

C216 87-010-179-080 C-CAP,S 1200P-50 K B GRM

C217 87-010-405-080 CAP, 10-50 M 11L SM

C218 87-010-405-080 CAP, 10-50 M 11L SM

C221 87-010-405-080 CAP, 10-50 M 11L SM

C222 87-010-405-080 CAP, 10-50 M 11L SM

C223 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C224 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C251 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C252 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C253 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C254 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C259 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C260 87-010-197-080 C-CAP,S 0.01-25 K B C2012

C401 87-010-260-080 CAP, 47-25 M 11L SM

CN101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3

CN102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3

CNA101 8A-NF8-656-010 CONN ASSY,5P TID-A 400

J201 87-A61-159-010 JACK,PIN 4P R/W/B/0 KM

L251 87-003-383-010 COIL,1UH-K

L252 87-003-383-010 COIL,1UH-K

R129 87-A00-669-080 R S,M/F 0.22-2W J RA

R130 87-A00-669-080 R S,M/F 0.22-2W J RA

R181 87-A00-669-080 R S,M/F 0.22-2W J RA

R182 87-A00-669-080 R S,M/F 0.22-2W J RA

R231 87-A00-258-080 R S,M/F 0.22-1W J

R232 87-A00-669-080 R S,M/F 0.22-2W J RA

R282 87-A00-669-080 R S,M/F 0.22-2W J RA

K Y CON C.B

C550 87-018-134-080 CAP,TC U 0.01-16 N Y

C551 87-A10-060-080 C-CAP,S 0.18-16 K B

C552 87-A10-060-080 C-CAP,S 0.18-16 K B

C553 87-012-154-080 C-CAP,S 150P-50 J CH GRM

C554 87-012-154-080 C-CAP,S 150P-50 J CH GRM

C555 87-012-145-080 C-CAP,S 270P-50 J CH GRM

C556 87-012-145-080 C-CAP,S 270P-50 J CH GRM

C557 87-010-183-080 C-CAP,S 2700P-50 K B GRM

C559 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C560 87-010-177-080 C-CAP,S 820P-50 J SL C2012

C561 87-010-177-080 C-CAP,S 820P-50 J SL C2012

C562 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C563 87-010-374-080 CAP, 47-10 M 11L SM

C564 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C565 87-010-263-080 CAP, 100-10 M 11L SM

C567 87-010-183-080 C-CAP,S 2700P-50 K B GRM

C571 87-016-460-080 C-CAP,S 0.22-16 K B

C572 87-016-460-080 C-CAP,S 0.22-16 K B

C573 87-016-460-080 C-CAP,S 0.22-16 K B

C577 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

 10 

DESCRIPTIONREF. NO. KANRI

NO.

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

88

A

Resistor Code

Chip Resistor Part Coding

Figure

Value of resistor

Chip resistor

Wattage Type Tolerance

1/16W

1/10W

1/8W

1608

2125

3216

5%

CJ

Form

LW t

1.6 0.8 0.45

2 1.25 0.45

3.2 1.6

108

118

128

: A

CHIP RESISTOR PART CODE

0.55

Resistor Code

Dimensions (mm)

Symbol

1/16W 1005 5% CJ

1.0 0.5 0.35 104

Lt

W

CN551 87-A60-689-010 CONN,7P H GRY TUC-P07X-C1

VM C.B

PT C.B

C1 87-010-387-080 CAP, 470-25 M SM

C4 87-A11-148-080 CAP,TC U 0.1-50 Z F

C5 87-A11-148-080 CAP,TC U 0.1-50 Z F

C6 87-010-917-000 CAP, 3300-50 M SMG

C7 87-010-917-000 CAP, 3300-50 M SMG

C8 87-A11-148-080 CAP,TC U 0.1-50 Z F

C9 87-A11-148-080 CAP,TC U 0.1-50 Z F

C10 87-A11-148-080 CAP,TC U 0.1-50 Z F

C11 87-A11-148-080 CAP,TC U 0.1-50 Z F

C12 87-016-520-000 CAP, 3300-65 M SMG

C13 87-016-520-000 CAP, 3300-65 M SMG

C14 87-A11-148-080 CAP,TC U 0.1-50 Z F

C15 87-A11-148-080 CAP,TC U 0.1-50 Z F

C16 87-010-403-080 CAP, 3.3-50 M 11L SM

CN1 87-A61-110-010 CONN,9P V TID-A

CN2 87-A61-108-010 CONN,5P V TID-A

PT1 8A-NFV-605-010 PT,ANF-28 LH

PT2 8A-NF8-663-010 PT,SUB ANF-8 (H)

RY1 87-A91-339-010 R LAY,AC DC12V G5PA-2

S1 87-A90-165-010 SW,SL 1-2-3 SWS2301

T1 87-A60-317-010 T RMINAL, 1P MSC

T2 87-A60-317-010 T RMINAL, 1P MSC

D CK C.B

CN105 87-099-756-010 CONN,15P 9604 S F

SFR1 87-024-581-010 SFR,3.3K DIA 6H

SOL1 82-ZM1-618-410 SOL ASSY,27

SOL2 82-ZM1-618-410 SOL ASSY,27

SW1 87-A90-248-010 SW,MICRO S 11SH2CXQ

SW2 87-A90-248-010 SW,MICRO S 11SH2CXQ

SW3 87-A90-248-010 SW,MICRO S 11SH2CXQ

SW4 87-036-110-010 SW,MICRO SPPB62

SW5 87-036-110-010 SW,MICRO SPPB62

SW6 87-036-110-010 SW,MICRO SPPB62

SW8 87-A90-248-010 SW,MICRO S 11SH2CXQ

SW9 87-A90-248-010 SW,MICRO S 11SH2CXQ

W1 82-ZM3-601-010 RBN,CORD 4P-75

H AD-1 C.B

85-ZM3-602-010 PWM,FL X A

H AD-2 C.B

85-ZM3-602-010 PWM,FL X A

CON351 87-NF6-616-010 CONN ASSY,8P-RPB

!

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 11 –

TRANSISTOR ILLUSTRATION

E C B

CD1585BC

CSA952K

CSC4115BC

KTA1266GR

KTC3198GR

2SB1370

DTC114ES

KTC3199GR

B C E

E

B

C

S

G

D

E C B

2SA1235F

2SA933SRS

2SC2714

2SC3052F

CMBT5401

CMBT5551

CSD1306E

RT1N141C

RT1P141C

RT1P144C

RT1P441C

2SK2158

2SK360E

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

WIRING - 1 (MAIN / VM / KEY CON)

 12 

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 13 –

SCHEMATIC DIAGRAM - 1 (MAIN 1 / 4 : AMP / VM)

(FC602)

-VFL:-26.7

21.7

-22.4

-46.2

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 14 –

SCHEMATIC DIAGRAM - 2 (MAIN 2 / 4 : TUNER)

11.0

11.9

8.1

8.1 8.1

8.1

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 15 –

SCHEMATIC DIAGRAM - 3 (MAIN 3 / 4 : DECK / HEAD-1 / HEAD-2)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 16 –

SCHEMATIC DIAGRAM - 4 (MAIN 4 / 4 : PROLOGIC)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 17 –– 17 –

SCHEMATIC DIAGRAM - 5 (KEY CON)

c550

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

WIRING - 2 (FRONT)

 18 

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 19 –

TP6

(FC104)

W1

Q1

2SA933RS

SCHEMATIC DIAGRAM - 6 (FRONT / DECK)

(FC103)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

WIRING-3(AMPIF)

– 20 –

ANH28_A3.p65 8/25/01, 3:58 PM4

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Aiwa NSX-WV59 User manual

Popular Stereo System manuals by other brands
