Aiwa XR-H220MD User manual

BASIC TAPE MECHANISM : TN-591SW-143
MD / CD STEREO SYSTEM
XR-H220MD
S/M Code No. 09-997-413-6R1
EZ,K
SERVICE MANUAL
DATA
BASIC CD MECHANISM : 4ZG-1 Z3RNSMDJM
BASIC MD MECHANISM : ZZG-7 DM
SYSTEM
XR-H220MD
CASSIVER
CX-NH220MD
SPEAKER
SX-NH220 YSC
SX-NH220 YSC9
REVISION
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-997-413-6T1).
If requiring information about the CD mechanism, see Service Manual of 4ZG-1, S/M
Code No.09-992-325-4N2.

2
TABLE OF CONTENTS
SPECIFICATIONS .................................................................................................................................. 3
ACCESSORIES/PACKAGE LIST ........................................................................................................... 3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING/
Precaution to replace Optical block......................................................................................................... 4
DISASSEMBLY INSTRUCTIONS........................................................................................................ 5-7
ELECTRICAL MAIN PARTS LIST ..................................................................................................... 8-12
TRANSISTOR ILLUSTRATION ............................................................................................................ 13
FL GRID ASSIGNMENT/ANODE CONNECTION ................................................................................ 14

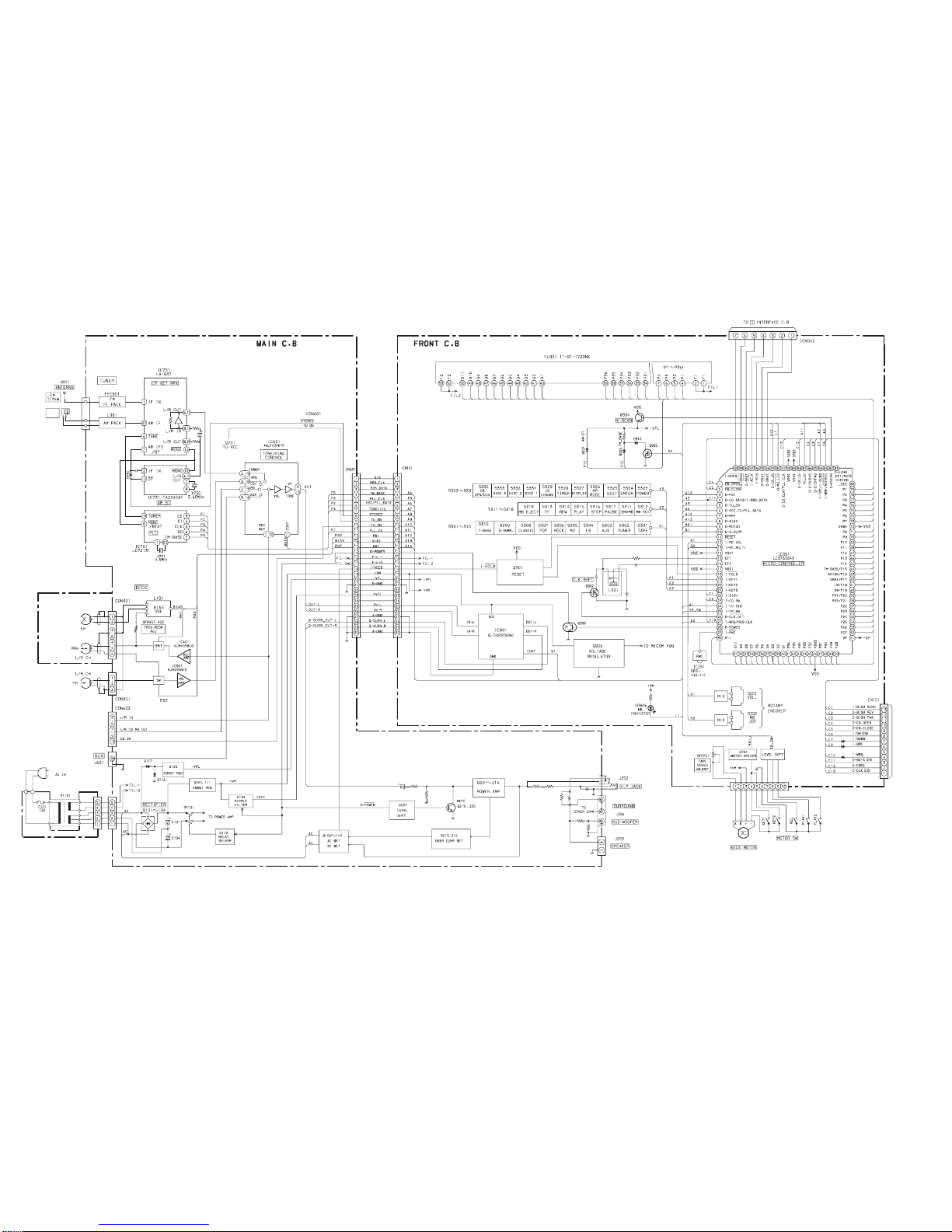

BLOCK DIAGRAM-1 (MAIN)........................................................................................................... 15, 16
BLOCK DIAGRAM-2 (MD) .............................................................................................................. 17, 18
WIRING-1 (MAIN) ........................................................................................................................... 19, 20
SCHEMATIC DIAGRAM-1 (MAIN).................................................................................................. 21, 22

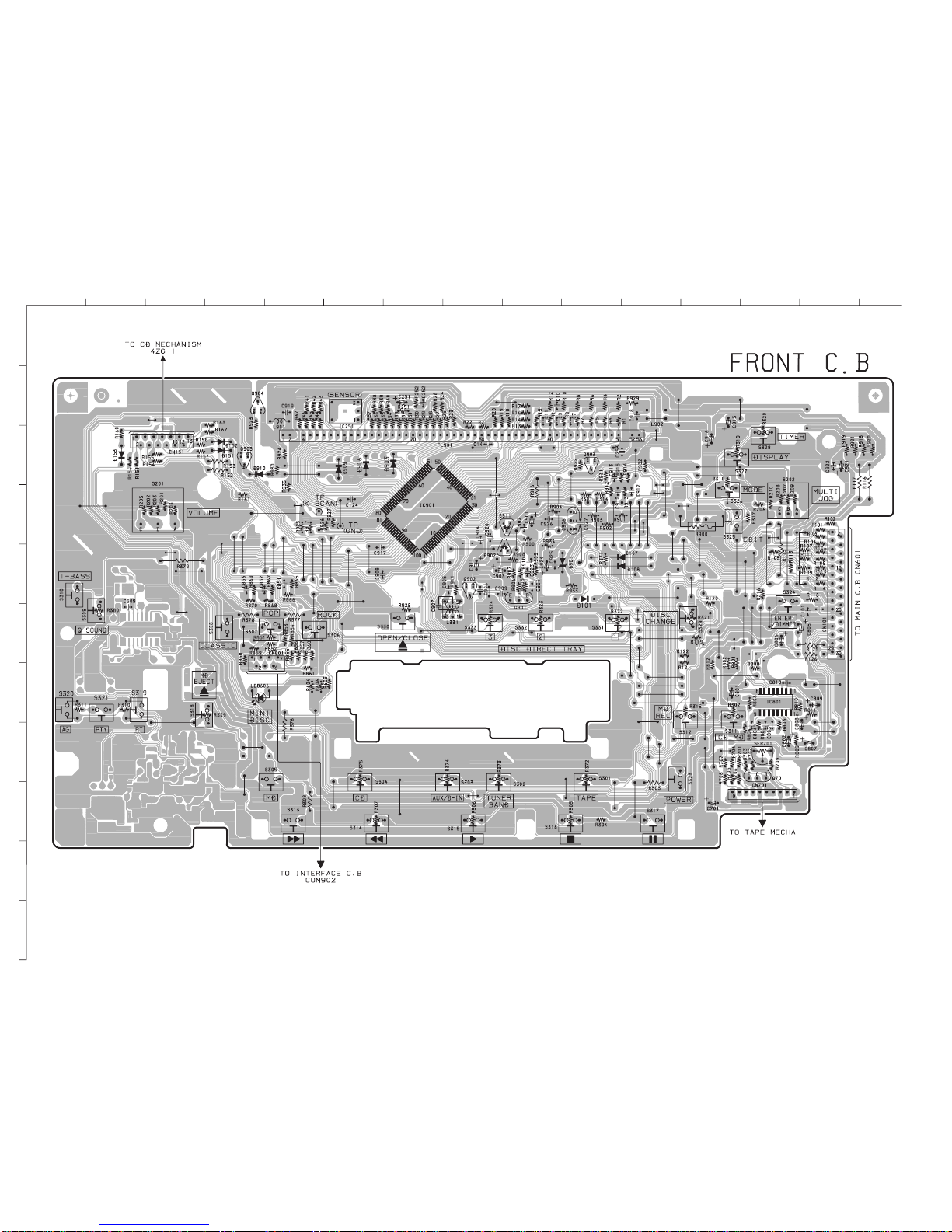

WIRING-2 (FRONT)........................................................................................................................ 23, 24

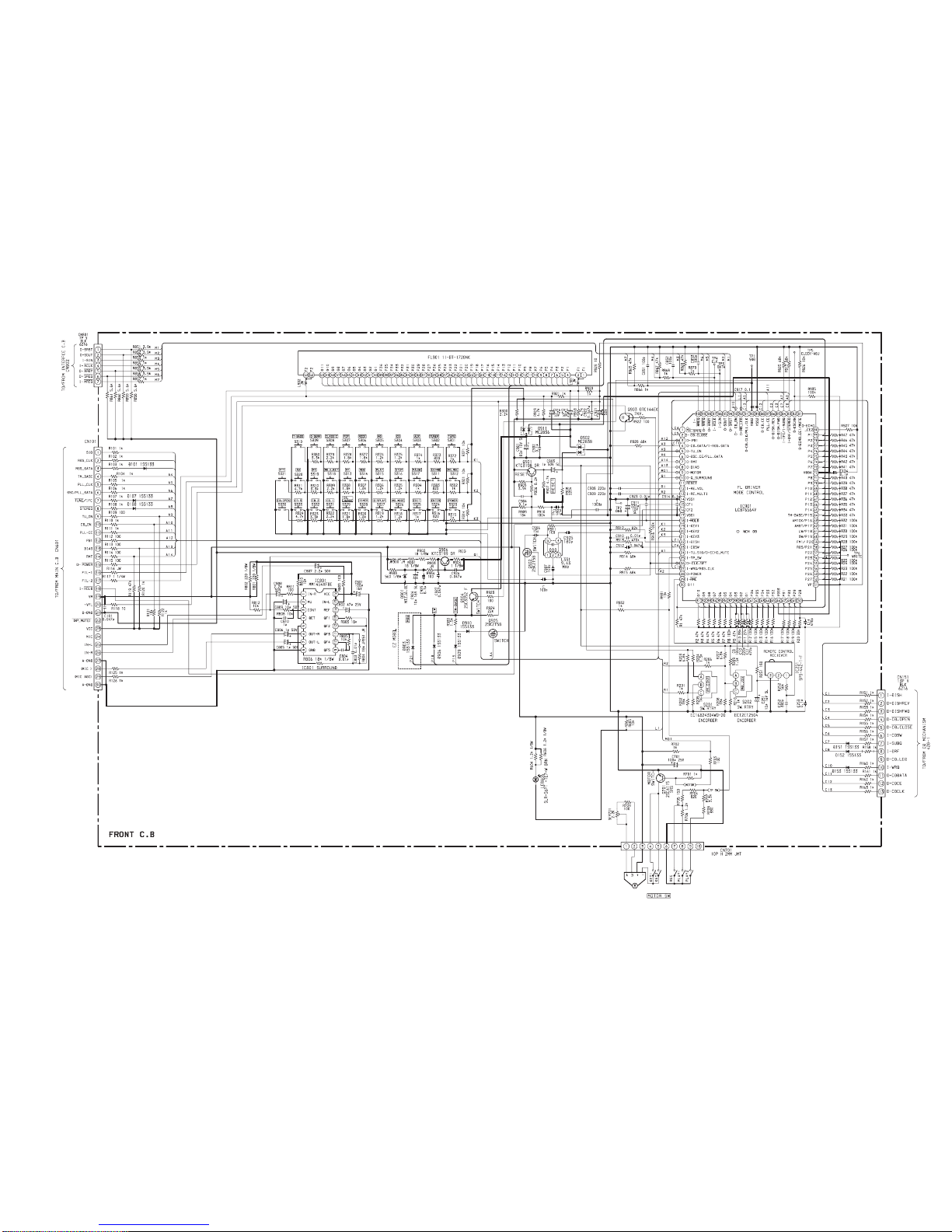

SCHEMATIC DIAGRAM-2 (FRONT) .............................................................................................. 25, 26
WIRING-3 (MD)............................................................................................................................... 27, 28
SCHEMATIC DIAGRAM-3 (MD) ..................................................................................................... 29, 30
WIRING-4 (INTERFACE)................................................................................................................ 31, 32
SCHEMATIC DIAGRAM-4 (INTERFACE) ...................................................................................... 33, 34
WIRING-5 (MECHANISM) .............................................................................................................. 35, 36
WIRING-6 (FAN) ................................................................................................................................... 37
SCHEMATIC DIAGRAM-5 (FAN) ......................................................................................................... 38
WIRING-7 (PT)...................................................................................................................................... 39
TEST MODE .................................................................................................................................... 40-43
ELECTRICAL ADJUSTMENT/PRACTICAL SERVICE FIGURE ..................................................... 44-49
IC DESCRIPTION ............................................................................................................................ 50-57
IC BLOCK DIAGRAM....................................................................................................................... 58-61
MECHANICAL PARTS LIST 1/1 ........................................................................................................... 62
MECHANICAL EXPLODED VIEW 1/1............................................................................................ 63, 64
TAPE MECHANISM EXPLODED VIEW 1/1 ................................................................................... 65, 66
TAPE MECHANISM PARTS LIST 1/1 .................................................................................................. 67
MD MECHANISM EXPLODED VIEW 1/4............................................................................................. 68
MD MECHANISM PARTS LIST 1/4...................................................................................................... 68
MD MECHANISM EXPLODED VIEW 2/4............................................................................................. 69
MD MECHANISM PARTS LIST 2/4...................................................................................................... 69
MD MECHANISM EXPLODED VIEW 3/4............................................................................................. 70
MD MECHANISM PARTS LIST 3/4...................................................................................................... 71
MD MECHANISM EXPLODED VIEW 4/4............................................................................................. 72
MD MECHANISM PARTS LIST 4/4...................................................................................................... 73
SPEAKER DISASSEMBLY INSTRUCTIONS....................................................................................... 74
SPEAKER PARTS LIST 1/1.................................................................................................................. 75

3
SPECIFICATIONS
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES/PACKAGE LIST
1 8Z-NB9-906-010 IB,EZ(9L)M<EZS>
1 8Z-NB9-905-010 IB,K(E)M<KS>
2 87-A90-030-010 ANT,LOOP AM-NC C
3 8Z-NB8-704-010 RC UNIT,RC-ZAS16
4 87-043-106-010 WIRE, FM ANT (Z)
•
Design and specifications are subject to change without
notice.
•
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol are trademarks
of Dolby Laboratories Licensing Corporation.
•
The word “BBE” and the “BBE symbol” are trademarks
of BBE Sound,Inc.
Under license from BBE Sound,Inc.

4
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT

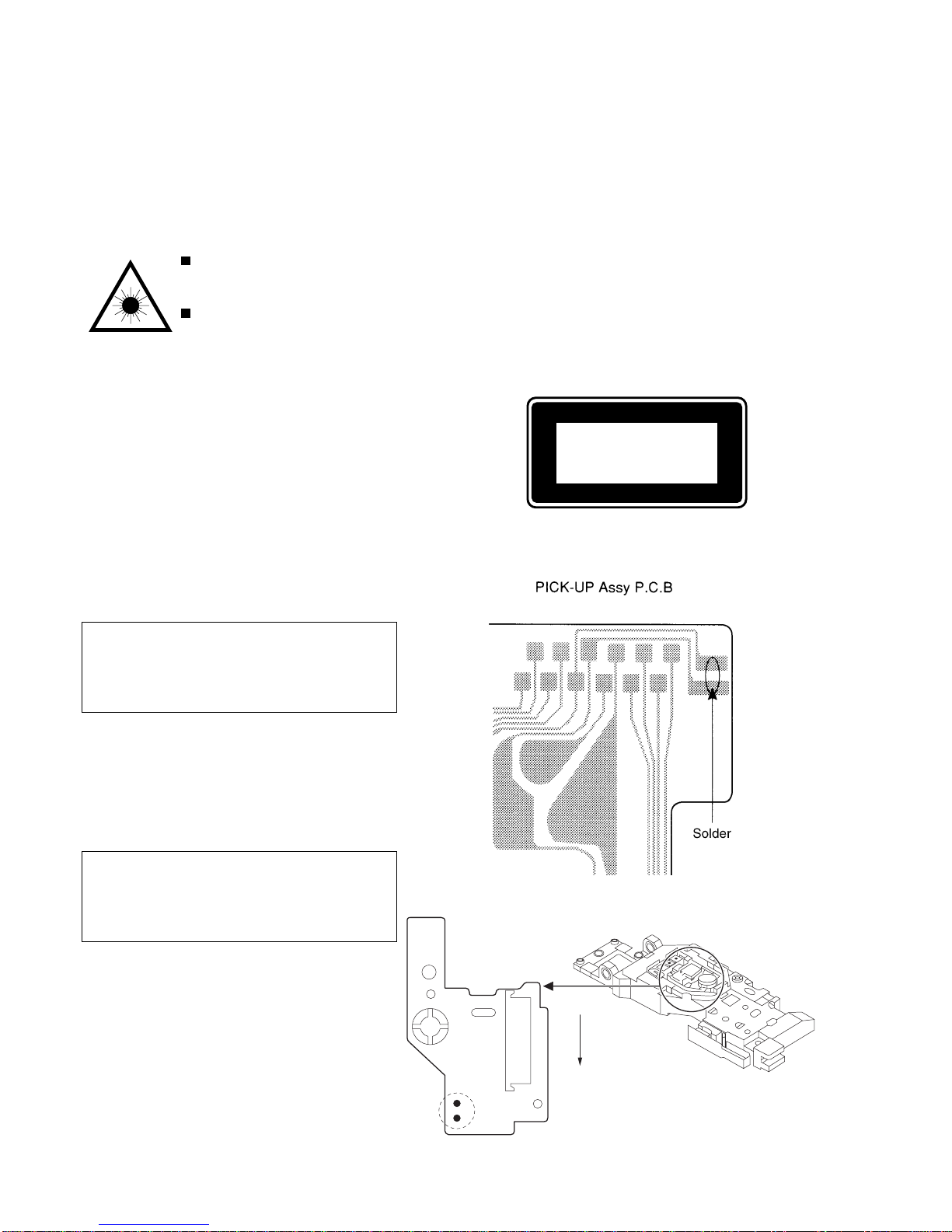

Precaution to replace Optical block
(KSS-213B)
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
Precaution to replace Optical block
(KMS-260A)
1) After the connection, remove solder
shown in the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
1VEE
¡TRK –

5

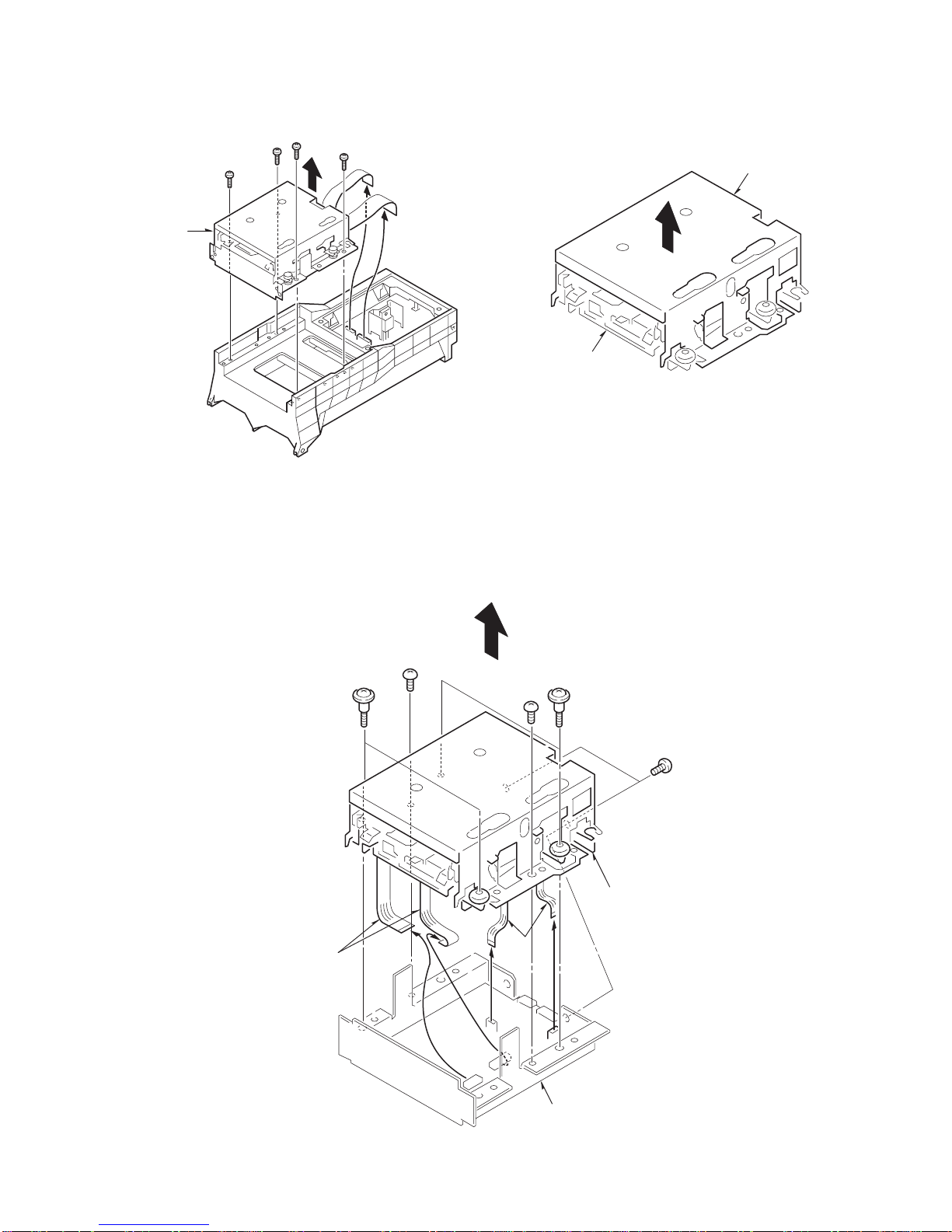

DISASSEMBLY INSTRUCTIONS
1. Remove the four screws A(BVT 2+3-10 W/O SLOT).
Remove the 7ZG-9 in the direction of the arrow.
2. Remove the two screws A(S-SCREW, MDT), two screws
B(S-SCREW, MD) and four screws C(VTT+3-4).
Remove the four FFCs from the connector, and remove the
MD MECHANISM in the direction of the arrow.
7ZG-9
A
AAA
MD MECHANISM
FFC
FFC
HLDR, SHIELD BOT
BA
C
C
C
3. Remove the HLDR, SHLD TOP in the direction of the arrow.
HLDR, SHIELD TOP
7ZG-8 A1

6
4. Remove the two screws A(VTT+2-4), and remove the PLATE ASSY, SIDE L and PLATE SIDE R in the direction of the arrow.
Remove the screw B(VW+1.7-5 W/O MFZN2C), and remove the HEAD and OWH RF325-74A in the direction of the arrow.
5. Open the 7ZG-3 A1 in the direction of the arrow (a), remove the BOSS by pressing it gently in the direction of the arrow (b), and
remove the 7ZG-3 A1 in the direction of the arrow (c).
HEAD, OWH RF325-74A
PLATE ASSY,
SLIDE L
Stud
PLATE, SLIDE R
CAM, LOAD
A
A
B
a
b
b
c
BOSS
7ZG-3 A1

7

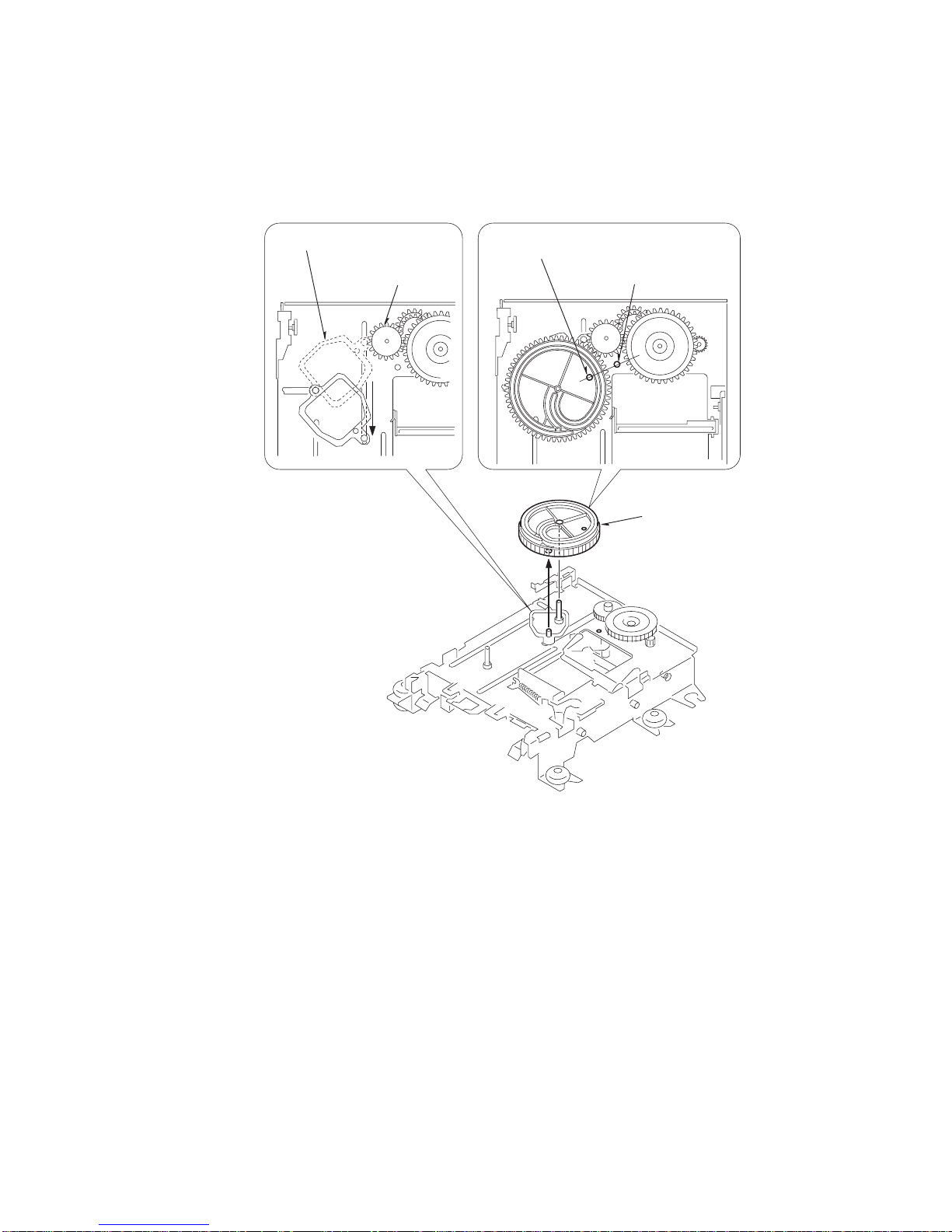

LEVER ASSY, CAM
GEAR, IDLER2
The reference hole of CAM, LOAD
The shaft of LEVER, SW H
CAM, LOAD
6. Remove the CAM, LOAD in the direction of arrow.
Note During Assembling:
Rotate the gear fully in the direction of the arrow.
Set up the mechanism so that the reference holes of CAM and LOAD are positioned closest to the shaft of LEVER, SW H.
Let the CAM and LOAD engage with the teeth of GEAR, IDLER2.

8
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.

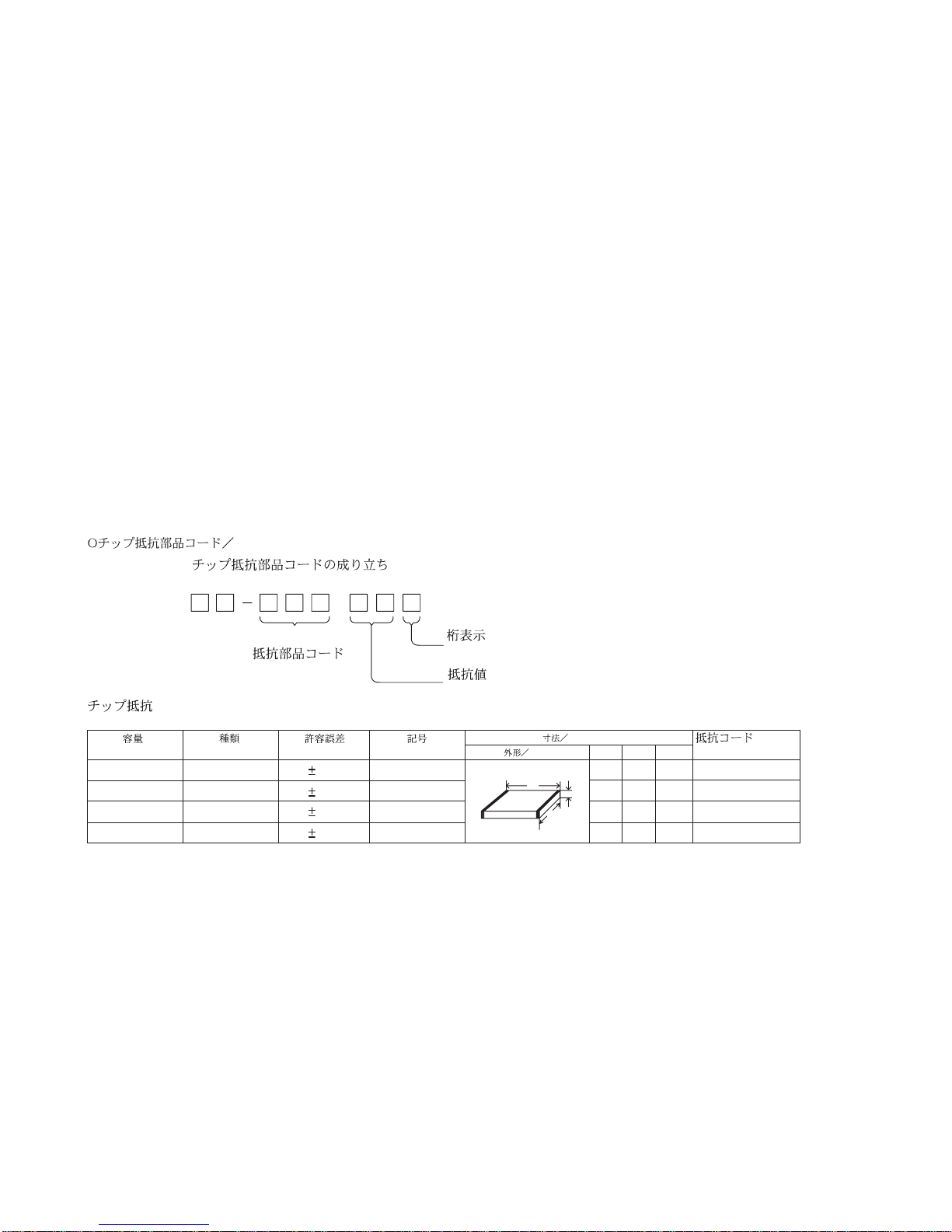

ELECTRICAL MAIN PARTS LIST
IC
87-017-888-080 IC,NJM4558MD
87-A20-870-010 IC,GP1F37R
87-A20-971-040 C-IC,SN74LV14APW
87-A20-707-010 C-IC,CXA2523AR
87-A20-708-010 C-IC,CXD2652AR
87-A20-709-040 C-IC,BD7910FV
87-ZG9-607-010 C-IC,CXP81952M-523R
87-ZG9-606-040 C-IC,MN41V4400SJ-08
87-A20-755-080 C-IC,AK93C45AF
87-A20-710-040 C-IC,S-8110AMP
87-A20-711-040 C-IC,BA5970FP
87-A20-712-040 C-IC,BA6417F
87-A21-110-040 C-IC,AK4519VF
87-017-853-040 IC,NJM2100V
87-A20-797-040 C-IC,NJU7221U30
87-A20-798-040 C-IC,NJU7221U35
87-A20-714-040 C-IC,NJM2370U33
87-017-889-010 IC,NJM4558LD
87-A20-715-010 IC,M62439SP
87-070-127-110 IC,LC72131 D
87-A20-913-010 IC,LA1837NL
87-A21-103-040 C-IC,MM1454XFBE
87-A20-502-010 IC,BU1920
87-A20-914-010 IC,SPS-442-1-F
8Z-NB9-601-010 C-IC,LC876564V
TRANSISTOR
89-213-750-010 TR,2SB1375 (25W)
87-A30-076-080 C-TR,2SC3052F
87-A30-071-080 C-TR,RT1N 144C
87-A30-075-080 C-TR,2SA1235F
87-026-225-080 FET,2SJ106GR
87-A30-072-080 C-TR,RT1P 144C
87-A30-074-080 C-TR,RT1P 141C
87-A30-087-080 C-FET,2SK2158
87-026-423-080 C-TR RN2305
89-115-884-080 CHIP -TRANSISTER 2SA1588Y
89-341-164-080 CHIP-TRANSISTOR,2SC4116 Y
87-026-412-080 C-TR RN1305
89-213-702-010 TR,2SB1370 (1.8W)
87-026-610-080 TR,KTC3198GR
87-A30-196-080 TR,2SC4115SRS
87-026-609-080 TR,KTA1266GR
87-026-269-080 TR,DTA114ES
87-026-219-080 TR,DTA144ES (0.3W)
87-A30-152-080 TR,2SC5395F
87-A30-256-010 TR,2SD1933
87-A30-255-010 TR,2SB1342
87-A30-047-080 TR,CSD655E
87-A30-091-080 FET,2SJ460
87-A30-090-080 FET,2SK2541
87-026-218-080 TR,DTC144ES (0.2W)
87-026-214-080 TR,DTA114YS (0.3W)
89-305-352-380 TR,2SC535(B/C)
87-A30-164-080 TR,CSC2001K
87-A30-092-080 FET,2SK439E/F
87-026-210-080 CHIP-TR,DTC144EK
87-A30-198-080 TR,KTC3199GR
DIODE
87-A40-304-080 ZENER,DZ6.2M
87-A40-313-080 C-DIODE,MC 2840
87-A40-469-080 C-DIODE,HSM2838CTR
87-A40-468-080 C-DIODE,HSM2836CTR
87-A40-299-080 ZENER,DZ5.1M
87-001-166-080 DIODE,1SS301
87-A40-412-040 C-DIODE,SB05-05CP
87-A40-336-080 ZENER,MTZJ27D T-72
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-345-080 ZENER,MTZJ10C
87-070-274-080 DIODE,1N4003 SEM
87-A40-454-090 DIODE,1N5393
87-A40-466-080 ZENER,MTZJ2.7A
87-017-931-080 ZENER,MTZJ5.6B
87-A40-509-080 ZENER,MTZJ6.8C
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
MAIN C.B
C101 87-016-495-000 CAP,E 3300-25 M SMG
C104 87-A10-011-090 CAP,E 2200-25 SMG
C105 87-018-127-080 CAP, CER 470P-50V
C106 87-010-260-080 CAP, ELECT 47-25V
C107 87-010-384-080 CAP, ELECT 100-25V
C108 87-010-381-080 CAP, ELECT 330-16V
C111 87-010-247-080 CAP, ELECT 100-50V
C112 87-010-263-080 CAP, ELECT 100-10V
C113 87-010-403-080 CAP, ELECT 3.3-50V
C114 87-010-374-080 CAP, ELECT 47-10V
C115 87-A11-007-080 CAP,M 0.047-50 J DE
C116 87-A11-007-080 CAP,M 0.047-50 J DE
C122 87-010-260-080 CAP, ELECT 47-25V
C123 87-010-260-080 CAP, ELECT 47-25V
C124 87-A11-132-080 CAP,TC U 0.01-50 K B
C130 87-018-211-080 CAP, CER 0.01-50
C152 87-010-409-080 CAP,E 220-50 SME
C207 87-010-545-080 CAP, ELECT 0.22-50V
C208 87-010-545-080 CAP, ELECT 0.22-50V
C209 87-018-133-080 CAPACITOR,CER 4700P-16V
C210 87-018-133-080 CAPACITOR,CER 4700P-16V
C211 87-010-403-080 CAP, ELECT 3.3-50V
C212 87-010-403-080 CAP, ELECT 3.3-50V
C213 87-010-260-080 CAP, ELECT 47-25V
C214 87-010-260-080 CAP, ELECT 47-25V
C217 87-A11-008-080 CAP,M 0.056-50 J DE
C218 87-A11-008-080 CAP,M 0.056-50 J DE
C219 87-010-544-080 CAP, ELECT 0.1-50V
C220 87-010-544-080 CAP, ELECT 0.1-50V
C221 87-018-221-080 CAP,CER 0.01-50
C222 87-018-221-080 CAP,CER 0.01-50
C223 87-018-134-080 CAPACITOR,TC-U 0.01-16
C224 87-018-134-080 CAPACITOR,TC-U 0.01-16
C229 87-018-123-080 CAP, CER 220P-50V
C230 87-018-123-080 CAP, CER 220P-50V
C235 87-018-209-080 CAP, CER 0.1-50V
C236 87-018-209-080 CAP, CER 0.1-50V
C237 87-018-134-080 CAPACITOR,TC-U 0.01-16
C253 87-018-131-080 CAP, CER 1000P-50V
C254 87-018-131-080 CAP, CER 1000P-50V
C255 87-018-115-080 CAP, CER 47P-50V
C256 87-018-115-080 CAP, CER 47P-50V
C257 87-018-119-080 CAP, CER 100P-50V
C258 87-018-119-080 CAP, CER 100P-50V
C301 87-018-195-080 CAP, CER 1200P-16V
C302 87-018-195-080 CAP, CER 1200P-16V
C303 87-018-195-080 CAP, CER 1200P-16V
C304 87-018-195-080 CAP, CER 1200P-16V
C307 87-010-263-080 CAP, ELECT 100-10V
C308 87-010-263-080 CAP, ELECT 100-10V
C309 87-018-115-080 CAP, CER 47P-50V
C310 87-018-115-080 CAP, CER 47P-50V
C311 87-A10-773-080 CAP,M 0.10-50 J
C312 87-A10-773-080 CAP,M 0.10-50 J
C315 87-010-374-080 CAP, ELECT 47-10V

9
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C317 87-010-546-080 CAP, ELECT 0.33-50V
C318 87-010-546-080 CAP, ELECT 0.33-50V
C322 87-018-209-080 CAP, CER 0.1-50V
C323 87-018-209-080 CAP, CER 0.1-50V
C325 87-018-209-080 CAP, CER 0.1-50V
C326 87-018-209-080 CAP, CER 0.1-50V
C327 87-018-209-080 CAP, CER 0.1-50V
C360 87-010-401-080 CAP, ELECT 1-50V
C361 87-010-374-080 CAP, ELECT 47-10V
C399 87-018-127-080 CAP, CER 470P-50V
C401 87-010-400-080 CAP, ELECT 0.47-50V
C402 87-010-400-080 CAP, ELECT 0.47-50V
C403 87-018-118-080 CAP,TC-U 82P-50 B
C404 87-018-118-080 CAP,TC-U 82P-50 B
C409 88-266-660-810 CAP,SC 2200P-25 X K
C410 88-266-660-810 CAP,SC 2200P-25 X K
C411 87-010-405-080 CAP, ELECT 10-50V
C412 87-010-405-080 CAP, ELECT 10-50V
C452 87-010-382-080 CAP, ELECT 22-25V
C458 87-018-131-080 CAP, CER 1000P-50V
C459 87-018-128-080 CAP, CERA-SOL SS 560P
C461 87-018-126-080 CAP,TC-U 390P-50 B
C462 87-018-126-080 CAP,TC-U 390P-50 B
C601 87-018-195-080 CAP, CER 1200P-16V
C602 87-018-195-080 CAP, CER 1200P-16V
C611 87-010-545-080 CAP, ELECT 0.22-50V
C612 87-010-545-080 CAP, ELECT 0.22-50V
C613 87-010-545-080 CAP, ELECT 0.22-50V
C614 87-010-545-080 CAP, ELECT 0.22-50V
C615 87-018-104-080 CAP,TC-U 10P-50 SL
C616 87-010-260-080 CAP, ELECT 47-25V
C617 87-010-260-080 CAP, ELECT 47-25V
C701 87-010-404-080 CAP, ELECT 4.7-50V
C702 87-018-134-080 CAPACITOR,TC-U 0.01-16
C703 87-018-134-080 CAPACITOR,TC-U 0.01-16
C704 87-018-131-080 CAP, CER 1000P-50V
C705 87-018-131-080 CAP, CER 1000P-50V
C706 87-018-131-080 CAP, CER 1000P-50V
C707 87-010-112-080 CAP, ELECT 100-16V
C708 87-A11-144-080 CAP,TC U 0.1-50 K B
C709 87-010-248-080 CAP, ELECT 220-10V
C710 87-010-112-080 CAP, ELECT 100-16V
C712 87-018-149-080 CAP,TC-U 15P-50 CH
C713 87-018-149-080 CAP,TC-U 15P-50 CH
C714 87-010-112-080 CAP, ELECT 100-16V
C715 87-018-119-080 CAP, CER 100P-50V
C746 87-018-134-080 CAPACITOR,TC-U 0.01-16
C751 87-018-134-080 CAPACITOR,TC-U 0.01-16
C752 87-018-143-080 CAP,TC-U 4.7P-50 CH
C753 87-010-408-080 CAP, ELECT 47-50V
C755 87-A11-144-080 CAP,TC U 0.1-50 K B
C756 87-018-134-080 CAPACITOR,TC-U 0.01-16
C757 87-018-134-080 CAPACITOR,TC-U 0.01-16
C758 87-010-112-080 CAP, ELECT 100-16V
C759 87-018-134-080 CAPACITOR,TC-U 0.01-16
C761 87-010-404-080 CAP, ELECT 4.7-50V
C762 87-010-400-080 CAP, ELECT 0.47-50V
C763 87-010-401-080 CAP, ELECT 1-50V
C764 87-010-401-080 CAP, ELECT 1-50V
C765 87-018-115-080 CAP, CER 47P-50V
C766 87-010-407-080 CAP, ELECT 33-50V
C768 87-018-208-080 CAP 0.047-50F
C769 87-010-403-080 CAP, ELECT 3.3-50V
C770 87-018-134-080 CAPACITOR,TC-U 0.01-16
C771 87-010-406-080 CAP, ELECT 22-50
C773 87-018-195-080 CAP, CER 1200P-50V
C774 87-010-405-080 CAP, ELECT 10-50V
C775 88-266-850-810 CAP,SC 0.047-25 X K
C776 87-018-134-080 CAPACITOR,TC-U 0.01-16
C783 87-018-202-080 CAP, CERAM. 6800PF
C784 87-018-202-080 CAP, CERAM. 6800PF
C785 87-010-405-080 CAP, ELECT 10-50V
C786 87-010-405-080 CAP, ELECT 10-50V
C787 87-018-196-080 CAP, CER 1500P-16V
C788 87-018-196-080 CAP, CER 1500P-16V
C789 87-010-546-080 CAP, ELECT 0.33-50V
C790 87-010-546-080 CAP, ELECT 0.33-50V
C801 87-018-134-080 CAPACITOR,TC-U 0.01-16
C802 87-018-134-080 CAPACITOR,TC-U 0.01-16
C803 87-018-134-080 CAPACITOR,TC-U 0.01-16
C804 87-018-134-080 CAPACITOR,TC-U 0.01-16
C805 87-010-401-040 CAP,E 1-50 SME
C807 87-A11-144-080 CAP,TC U 0.1-50 K B
C808 87-018-134-080 CAPACITOR,TC-U 0.01-16
C809 87-018-134-080 CAPACITOR,TC-U 0.01-16
C810 87-018-134-080 CAPACITOR,TC-U 0.01-16
C811 87-018-134-080 CAPACITOR,TC-U 0.01-16
C812 87-010-408-080 CAP, ELECT 47-50V
C813 87-018-131-080 CAP, CER 1000P-50V
C851 87-018-123-080 CAP, CER 220P-50V
C852 87-018-123-080 CAP, CER 220P-50V
C853 87-018-127-080 CAP, CER 470P-50V
C854 87-A11-144-080 CAP,TC U 0.1-50 K B
C855 87-010-405-080 CAP, ELECT 10-50V
C856 87-010-405-080 CAP, ELECT 10-50V
C857 87-018-134-080 CAPACITOR,TC-U 0.01-16
C858 87-018-109-080 CAP, CER 22P-50V
C859 87-018-109-080 CAP, CER 22P-50V
C860 87-018-134-080 CAPACITOR,TC-U 0.01-16
C901 87-018-209-080 CAP, CER 0.1-50V
C921 87-018-134-080 CAPACITOR,TC-U 0.01-16
C922 87-018-099-080 CAP CERA 3.9P-50
C923 87-018-144-080 CAP,TC U 506P-50 CH
C924 87-014-049-080 CAP,PP 470P-100 J
C937 87-018-134-080 CAPACITOR,TC-U 0.01-16
C938 87-018-134-080 CAPACITOR,TC-U 0.01-16
C943 87-A11-144-080 CAP,TC U 0.1-50 K B
C944 87-018-104-080 CAP,TC-U 10P-50 SL
CF801 87-008-423-010 CERAMIC FILTER,SFE10.7
CF802 82-785-747-010 CF MS2 GHY R
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN603 87-099-014-010 CONN,12P 6216 V
CN605 84-ZG1-647-010 CONN ASSY,2P
CNA101 87-NB8-626-010 CONN ASSY, 4P FAN
FB301 87-008-372-080 FILTER, EMI BL OIRNI
FB303 87-008-474-080 F-BEAD, EMI BL02RN1
FB601 87-008-372-080 FILTER, EMI BL OIRNI
FFE801 A8-6ZA-192-030 6ZA-1 FEJNM
J201 87-A60-602-010 JACK,DIA6.3 BLK ST W/SW TC
J202 87-A60-238-010 TERMINAL,SP 4P (MSC)
J206 87-A60-641-010 JACK,PIN 4P R/W/B JALCO
J601 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J802 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05
JW307 87-008-372-080 FILTER, EMI BL OIRNI
L201 87-003-383-010 COIL,1UH-S
L202 87-003-383-010 COIL,1UH-S
L451 87-007-342-010 COIL,OSC 85K BIAS
L701 87-005-847-080 COIL,2.2UH(CECS)
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A91-110-010 FLTR,PCFJZH-450 (TOK)
L801 87-005-847-080 COIL,2.2UH(CECS)
L851 87-005-847-080 COIL,2.2UH(CECS)
L941 87-A50-020-080 COIL,ANT LW(COI)
L942 87-A50-019-080 COIL,OSC LW(COI)
L981 8Z-NFA-665-010 COIL,AMPACK 2L(TOK)
R249 87-A00-258-080 RES,M/F 0.22-1W J
R250 87-A00-258-080 RES,M/F 0.22-1W J
RY101 87-A90-464-010 RELAY, DG12D2-O(M)

10
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
TC942 87-011-221-080 CAP, TRIMMER 30P
W101 83-NE2-618-110 F-CABEL,5P-2.5
WH102 87-A90-459-010 HLDR,WIRE 2.5-5P
X701 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
FRONT C.B
C9 87-010-322-080 C-CAP,S 100P-50 CH
C10 87-012-156-080 C-CAP,S 220P-50 CH
C11 87-012-140-080 C-CAP,S 470P-50 CH
C14 87-012-140-080 C-CAP,S 470P-50 CH
C101 87-010-194-080 CAP, CHIP 0.047
C124 87-010-196-080 CHIP CAPACITOR,0.1-25
C251 87-010-075-040 CAP,E 10-16 5L
C252 87-012-157-080 C-CAP,S 330P-50 CH
C253 87-010-196-080 CHIP CAPACITOR,0.1-25
C701 87-010-384-040 CAP,E 100-25 SME
C801 87-010-112-040 CAP,E 100-16
C802 87-010-260-040 CAP,E 47-25 SME
C803 87-010-197-080 CAP, CHIP 0.01 DM
C804 87-010-197-080 CAP, CHIP 0.01 DM
C805 87-A11-144-080 CAP,TC U 0.1-50 K B
C806 87-010-401-040 CAP,E 1-50 SME
C807 87-010-402-040 CAP,E 2.2-50 SME
C808 87-010-402-040 CAP,E 2.2-50 SME
C809 87-010-405-040 CAP,E 10-50
C810 87-010-805-080 C-CAP,S 1-16 Z F
C851 87-010-322-080 C-CAP,S 100P-50 CH
C852 87-010-322-080 C-CAP,S 100P-50 CH
C853 87-010-322-080 C-CAP,S 100P-50 CH
C901 87-010-555-040 CAP,E 100-10 GAS
C902 87-010-196-080 CHIP CAPACITOR,0.1-25
C903 87-010-494-040 CAP,E 1-50 GAS
C904 87-010-196-080 CHIP CAPACITOR,0.1-25
C905 87-012-155-080 C-CAP 180P-50CH
C906 87-010-312-080 C-CAP,S 15P-50 CH
C907 87-010-322-080 C-CAP,S 100P-50 CH
C908 87-012-156-080 C-CAP,S 220P-50 CH
C909 87-012-156-080 C-CAP,S 220P-50 CH
C910 87-010-197-080 CAP, CHIP 0.01 DM
C911 87-A10-189-040 CAP,E 220-10
C912 87-010-194-080 CAP, CHIP 0.047
C914 87-010-196-080 CHIP CAPACITOR,0.1-25
C915 87-010-404-040 CAP,E 4.7-50 SME
C916 87-010-404-040 CAP,E 4.7-50 SME
C917 87-010-196-080 CHIP CAPACITOR,0.1-25
C918 87-010-190-080 S CHIP F 0.01
C919 87-010-190-080 S CHIP F 0.01
C920 87-010-197-080 CAP, CHIP 0.01 DM
C921 87-010-408-040 CAP,E 47-50 SME
C922 87-010-194-080 CAP, CHIP 0.047
C923 87-010-197-080 CAP, CHIP 0.01 DM
C924 87-010-075-040 CAP,E 10-16 5L
C925 87-010-196-080 CHIP CAPACITOR,0.1-25
C926 87-010-194-080 CAP, CHIP 0.047
C927 87-010-194-080 CAP, CHIP 0.047
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN151 87-099-015-010 CONN,13P 6216V
CN701 87-A60-674-010 CONN,10P H 2MM JMT
CN801 87-099-195-010 CONN,7P 6216 V
FL901 8Z-NB9-602-010 FL,11-BT-172GNK
L331 87-A50-333-010 COIL,OSC 9.43MHZ
LED606 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
S201 87-A90-535-010 SW,RTRY EC16B24304
S202 87-A90-950-010 SW,RTRY EC12E12504 ENCORDER
S301 87-A91-024-080 SW,TACT KSH0611BT
S302 87-A91-024-080 SW,TACT KSH0611BT
S303 87-A91-024-080 SW,TACT KSH0611BT
S304 87-A91-024-080 SW,TACT KSH0611BT
S305 87-A91-024-080 SW,TACT KSH0611BT
S306 87-A91-024-080 SW,TACT KSH0611BT
S307 87-A91-024-080 SW,TACT KSH0611BT
S308 87-A91-024-080 SW,TACT KSH0611BT
S309 87-A91-024-080 SW,TACT KSH0611BT
S310 87-A91-024-080 SW,TACT KSH0611BT
S311 87-A91-024-080 SW,TACT KSH0611BT
S312 87-A91-024-080 SW,TACT KSH0611BT
S313 87-A91-024-080 SW,TACT KSH0611BT
S314 87-A91-024-080 SW,TACT KSH0611BT
S315 87-A91-024-080 SW,TACT KSH0611BT
S316 87-A91-024-080 SW,TACT KSH0611BT
S317 87-A91-024-080 SW,TACT KSH0611BT
S318 87-A91-024-080 SW,TACT KSH0611BT
S319 87-A91-024-080 SW,TACT KSH0611BT
S320 87-A91-024-080 SW,TACT KSH0611BT
S321 87-A91-024-080 SW,TACT KSH0611BT
S323 87-A91-024-080 SW,TACT KSH0611BT
S324 87-A91-024-080 SW,TACT KSH0611BT
S325 87-A91-024-080 SW,TACT KSH0611BT
S326 87-A91-024-080 SW,TACT KSH0611BT
S327 87-A91-024-080 SW,TACT KSH0611BT
S328 87-A91-024-080 SW,TACT KSH0611BT
S329 87-A91-024-080 SW,TACT KSH0611BT
S330 87-A91-024-080 SW,TACT KSH0611BT
S331 87-A91-024-080 SW,TACT KSH0611BT
S332 87-A91-024-080 SW,TACT KSH0611BT
S333 87-A91-024-080 SW,TACT KSH0611BT
SFR701 87-A90-556-080 SFR,2.2K H HOKU
AC1 C.B
! 87-033-213-080 CLAMP, FUSE
! F101 87-035-190-010 FUSE, 2AT
! T1 87-A60-317-010 TERMINAL, 1P MSC
! T2 87-A60-317-010 TERMINAL, 1P MSC
AC2 C.B
! PR101 87-A90-195-080 PROTECTOR,7A 491SERIES 60V
! PR102 87-A90-195-080 PROTECTOR,7A 491SERIES 60V
! PT101 8Z-NB9-605-010 PT,D ZNB-9
WH101 87-A90-459-010 HLDR,WIRE 2.5-5P
INTERFACE C.B
C101 87-010-196-080 CHIP CAPACITOR,0.1-25
C102 87-010-101-080 CAP, ELECT 220-16
C104 87-010-370-040 CAP,E 330-6.3 SME
C105 87-010-380-080 CAP, ELECT 47-16V
C106 87-010-101-080 CAP, ELECT 220-16
C201 87-010-402-080 CAP, ELECT 2.2-50V
C202 87-010-402-080 CAP, ELECT 2.2-50V
C203 87-012-156-080 C-CAP,S 220P-50 CH
C204 87-012-156-080 C-CAP,S 220P-50 CH
C205 87-010-180-080 C-CER 1500P
C206 87-010-180-080 C-CER 1500P
C207 87-010-404-080 CAP, ELECT 4.7-50V
C208 87-010-404-080 CAP, ELECT 4.7-50V
C251 87-010-408-080 CAP, ELECT 47-50V
C252 87-010-196-080 CHIP CAPACITOR,0.1-25
C401 87-010-178-080 CHIP CAP 1000P
C402 87-010-178-080 CHIP CAP 1000P
C403 87-010-196-080 CHIP CAPACITOR,0.1-25
C404 87-010-196-080 CHIP CAPACITOR,0.1-25
C411 87-012-140-080 CAP 470P
C421 87-010-196-080 CHIP CAPACITOR,0.1-25
CON901 87-A60-056-010 CONN,12P V 9604S-12C
CON902 87-A60-060-010 CONN,07P V 9604S-07C
CON903 87-009-030-010 CONNECTOR 2P PH M
CON904 87-A60-061-010 CONN,06P V 9604S-06C
