S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with ”Revision Publishing” when it is issued.
Z-L10
• TYPE: EZ,K
COMPACT DISC STEREO SYSTEM
• BASIC TAPE MECHANISM:TN Z1788-8MA5
• BASIC CD MECHANISM:4ZG-1 Z3N1DLSHM
S/M Code No. 09–992–402–0T2
ELECTRICALPARTSLIST-1/4
NOTE: The characters in the suffix column indicate the part usage.
KSTM ...................XX...................................B..................
EZSTM ..................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NF7-210-110 GUIDE,FL (*) ABC.................
C 102 87-010-380-040 CAP,E 47-16 SME .BC.................
C 102 87-010-380-080 CAP, ELECT 47-16V A...................
C 101 87-018-208-080 CAP 0.047-50F ABC.................
C 204 87-010-408-040 CAP,E 47-50 SME .BC.................
C 204 87-010-408-080 CAP, ELECT 47-50V A...................
C 201 87-010-497-040 CAP,E 4.7-35 GAS .BC.................
C 202 87-010-497-040 CAP,E 4.7-35 GAS .BC.................
C 202 87-010-497-080 CAP,E 4.7-35 5L A...................
C 201 87-010-497-080 CAP,E 4.7-35 5L A...................
C 203 87-010-560-040 CAP,E 10-50 GAS ABC.................
C 206 87-018-208-080 CAP 0.047-50F ABC.................
C 205 87-018-208-080 CAP 0.047-50F ABC.................
C 207 87-018-208-080 CAP 0.047-50F ABC.................
C 211 87-010-248-040 CAP,E 220-10 SME .BC.................
C 211 87-010-248-080 CAP, ELECT 220-10V A...................
C 210 87-010-263-040 CAP,E 100-10 .BC.................
C 210 87-010-263-080 CAP, ELECT 100-10V A...................
C 213 87-010-494-040 CAP,E 1-50 GAS ABC.................
C 215 87-018-125-080 CAP, CER 330P-50V ABC.................
C 214 87-018-131-080 CAP, CER 1000P-50V ABC.................
C 217 87-018-131-080 CAP, CER 1000P-50V ABC.................
C 216 87-018-208-080 CAP 0.047-50F ABC.................
C 212 87-018-209-080 CAP, CER 0.1-50V ABC.................
C 222 87-018-105-080 CAP,TC-U 12P-50 SL .BC.................
C 225 87-018-125-080 CAP, CER 330P-50V ABC.................
C 221 87-018-128-080 CAP, CERA-SOL SS 560P ABC.................
C 223 87-018-131-080 CAP, CER 1000P-50V ABC.................
C 220 87-018-208-080 CAP 0.047-50F ABC.................
C 226 87-018-208-080 CAP 0.047-50F ABC.................
C 231 87-010-384-040 CAP,E 100-25 SME .BC.................
C 231 87-010-384-080 CAP, ELECT 100-25V A...................
C 241 87-018-117-080 CAP,TC-U 68P-50 SL ABC.................
C 246 87-018-117-080 CAP,TC-U 68P-50 SL ABC.................
C 252 87-010-248-040 CAP,E 220-10 SME .BC.................
C 252 87-010-248-080 CAP, ELECT 220-10V A...................
C 282 87-018-125-080 CAP, CER 330P-50V ABC.................
C 281 87-018-125-080 CAP, CER 330P-50V ABC.................
C 501 87-010-391-040 CAP,E 10-35 SME .BC.................
C 502 87-010-491-040 CAP,E 0.22-50 GAS .BC.................
CN 103 87-009-353-010 CONN,10P PH H ABC.................
CN 102 87-099-015-010 CONN,13P 6216V ABC.................
CN 101 87-099-720-010 CONN,30P TYK-B(P) ABC.................
D 103 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 102 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 201 87-017-932-080 ZENER,MTJ6.2B ABC.................
D 209 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 206 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 204 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 210 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 502 87-A40-335-080 ZENER,MTZJ11C T-72 .BC.................
D 503 87-A40-466-080 ZENER,MTZJ2.7A .BC.................
FL 301 8Z-NF9-610-010 FL,SVA-10MS12 ABC.................
IC 202 87-A20-914-010 IC,SPS-442-1-F ABC.................
IC 201 8Z-MA5-610-010 C-IC,M38B57MC-XXXFP A...................
IC 201 8Z-MA5-611-010 C-IC,M38B57MCH-E219FP .BC.................
IC 501 87-017-889-010 IC,NJM4558LD .BC.................
L 101 87-A50-050-010 COIL,CLK 4.19M(COI) A...................
L 101 87-A50-434-010 COIL,CLK 4.19M(TOKO) .BC.................
Q 203 87-026-269-080 TR,DTA114ES ABC.................
Q 206 87-026-287-080 TR,DTC143ES ABC.................
Q 201 87-A30-090-080 FET,2SK2541 ABC.................
Q 202 87-A30-090-080 FET,2SK2541 ABC.................
Q 204 87-A30-090-080 FET,2SK2541 ABC.................
Q 205 87-A30-196-080 TR,2SC4115SRS ABC.................
R 301 87-025-424-080 RES,M/F 10K 1/6W F ABC.................
R 302 87-025-424-080 RES,M/F 10K 1/6W F ABC.................
S 101 87-A90-535-010 SW,RTRY EC16B24304 ABC.................
S 323 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 324 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 325 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
SFR 201 87-024-350-080 SFR 2.2K DIA 6H ABC.................
FC 1 87-A90-505-080 FUSE CLAMP,TP00351-51 ABC.................
FC 2 87-A90-505-080 FUSE CLAMP,TP00351-51 ABC.................
PR 101 87-026-681-080 PROTECTOR,5A 60V 491 .BC.................
PR 102 87-026-681-080 PROTECTOR,5A 60V 491 .BC.................
PR 102 87-026-690-080 FUSE,5A 125V 251 A...................
PR 101 87-026-690-080 FUSE,5A 125V 251 A...................
T 2 87-A60-317-010 TERMINAL, 1P MSC ABC.................
T 1 87-A60-317-010 TERMINAL, 1P MSC ABC.................
WH 101 87-A90-459-010 HLDR,WIRE 2.5-5P ABC.................
C 108 87-010-381-080 CAP, ELECT 330-16V ABC.................
C 107 87-010-384-080 CAP, ELECT 100-25V ABC.................
C 106 87-010-408-080 CAP, ELECT 47-50V ABC.................
C 103 87-016-051-090 CAP,E 2200-35 SMG ABC.................
ELECTRICALPARTSLIST-2/4
C 101 87-016-495-090 CAP,E 3300-25 SMG ....................
C 105 87-018-127-080 CAP, CER 470P-50V ABC.................
C 104 87-A10-011-090 CAP,E 2200-25 SMG ....................
C 101 87-A10-520-090 CAP,E 3300-35 M SMG ABC.................
C 111 87-010-247-080 CAP, ELECT 100-50V .BC.................
C 110 87-010-263-080 CAP, ELECT 100-10V ABC.................
C 114 87-010-374-080 CAP, ELECT 47-10V ABC.................
C 113 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
C 111 87-010-430-080 CAP, ELECT 100-63 A...................
C 122 87-010-260-080 CAP, ELECT 47-25V A...................
C 123 87-010-260-080 CAP, ELECT 47-25V A...................
D 108 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 109 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 107 87-A40-336-080 ZENER,MTZJ27D T-72 ABC.................
D 113 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 117 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 116 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 110 87-A40-345-080 ZENER,MTZJ10C ABC.................
D 122 87-A40-535-080 DIODE,1N5393-GOODARK ABC.................
D 123 87-A40-535-080 DIODE,1N5393-GOODARK ABC.................
D 124 87-A40-535-080 DIODE,1N5393-GOODARK ABC.................
D 121 87-A40-535-080 DIODE,1N5393-GOODARK ABC.................
JW 129 87-008-372-080 FILTER, EMI BL OIRNI ....................
Q 108 87-026-609-080 TR,KTA1266GR ABC.................
Q 106 87-026-610-080 TR,KTC3198GR ABC.................
Q 107 87-026-610-080 TR,KTC3198GR ABC.................
Q 109 87-026-610-080 TR,KTC3198GR ABC.................
Q 103 87-026-610-080 TR,KTC3198GR ABC.................
Q 104 87-A30-196-080 TR,2SC4115SRS ABC.................
Q 115 87-026-219-080 TR,DTA144ES (0.3W) ABC.................
Q 112 87-026-269-080 TR,DTA114ES ABC.................
Q 110 87-026-609-080 TR,KTA1266GR ABC.................
Q 111 89-213-702-010 TR,2SB1370 (1.8W) ABC.................
R 124 87-A00-261-080 RES,M/F 0.56-1W J A...................
RY 101 87-A90-464-010 RELAY, DG12D2-O(M) ABC.................
W 101 83-NE2-618-110 F-CABEL,5P-2.5 ABC.................
WH 102 87-A90-459-010 HLDR,WIRE 2.5-5P ABC.................
87-067-584-010 TAPPING SCREW, BVT2+3-6 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
C 207 87-010-546-080 CAP, ELECT 0.33-50V ABC.................
C 208 87-010-546-080 CAP, ELECT 0.33-50V ABC.................
C 209 87-018-133-080 CAPACITOR,CER 4700P-16V ABC.................
C 214 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 213 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 211 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
C 212 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
C 219 87-010-544-080 CAP, ELECT 0.1-50V ABC.................
C 210 87-018-133-080 CAPACITOR,CER 4700P-16V ABC.................
C 220 87-010-544-080 CAP, ELECT 0.1-50V ABC.................
C 229 87-018-123-080 CAP, CER 220P-50V ABC.................
C 224 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABC.................
C 223 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABC.................
C 222 87-018-211-080 CAP, CER 0.01-50 .BC.................
C 221 87-018-211-080 CAP, CER 0.01-50 .BC.................
C 230 87-018-123-080 CAP, CER 220P-50V ABC.................
C 255 87-018-115-080 CAP, CER 47P-50V .BC.................
C 256 87-018-115-080 CAP, CER 47P-50V .BC.................
C 257 87-018-119-080 CAP, CER 100P-50V .BC.................
C 254 87-018-131-080 CAP, CER 1000P-50V .BC.................
C 253 87-018-131-080 CAP, CER 1000P-50V .BC.................
D 218 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 219 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 222 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 220 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 221 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
J 202 87-A60-238-010 TERMINAL,SP 4P (MSC) ABC.................
J 204 87-A60-488-010 JACK,DIA6.3 BLK ST W/SW KM16AT ....................
J 204 87-A60-602-010 JACK,DIA6.3 BLK ST W/SW TC ABC.................
L 201 87-003-383-010 COIL,1UH-S ABC.................
L 202 87-003-383-010 COIL,1UH-S ABC.................
Q 204 87-026-609-080 TR,KTA1266GR ABC.................
Q 202 87-026-609-080 TR,KTA1266GR ABC.................
Q 201 87-026-609-080 TR,KTA1266GR ABC.................
Q 203 87-026-609-080 TR,KTA1266GR ABC.................
Q 218 87-026-609-080 TR,KTA1266GR ABC.................
Q 216 87-026-610-080 TR,KTC3198GR ABC.................
Q 215 87-026-610-080 TR,KTC3198GR ABC.................
Q 214 87-A30-255-010 TR,2SB1342 ABC.................
Q 213 87-A30-255-010 TR,2SB1342 ABC.................
Q 211 87-A30-256-010 TR,2SD1933 ABC.................
Q 212 87-A30-256-010 TR,2SD1933 ABC.................
R 223 87-A00-258-080 RES,M/F 0.22-1W J ABC.................
R 224 87-A00-258-080 RES,M/F 0.22-1W J ABC.................
C 307 87-010-263-080 CAP, ELECT 100-10V ABC.................
C 308 87-010-263-080 CAP, ELECT 100-10V ABC.................
C 309 87-018-115-080 CAP, CER 47P-50V .BC.................
C 303 87-018-195-080 CAP, CER 1200P-16V .BC.................
C 301 87-018-195-080 CAP, CER 1200P-16V .BC.................
C 304 87-018-195-080 CAP, CER 1200P-16V .BC.................
C 302 87-018-195-080 CAP, CER 1200P-16V .BC.................
C 315 87-010-374-080 CAP, ELECT 47-10V ABC.................
C 317 87-010-546-080 CAP, ELECT 0.33-50V ABC.................
ELECTRICALPARTSLIST-3/4
C 318 87-010-546-080 CAP, ELECT 0.33-50V ABC.................
C 310 87-018-115-080 CAP, CER 47P-50V .BC.................
C 326 87-018-205-080 CAP, CERA-SOL 0.022 A...................
C 322 87-018-209-080 CAP, CER 0.1-50V .BC.................
C 361 87-010-374-080 CAP, ELECT 47-10V ABC.................
C 360 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 399 87-018-127-080 CAP, CER 470P-50V ABC.................
C 402 87-010-400-080 CAP, ELECT 0.47-50V ABC.................
C 401 87-010-400-080 CAP, ELECT 0.47-50V ABC.................
C 404 87-018-118-080 CAP,TC-U 82P-50 B ABC.................
C 403 87-018-118-080 CAP,TC-U 82P-50 B ABC.................
C 411 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 412 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 452 87-010-382-080 CAP, ELECT 22-25V ABC.................
C 459 87-018-128-080 CAP, CERA-SOL SS 560P ABC.................
C 458 87-018-131-080 CAP, CER 1000P-50V ABC.................
C 461 87-018-126-080 CAP,TC-U 390P-50 B ABC.................
C 462 87-018-126-080 CAP,TC-U 390P-50 B ABC.................
CN 301 87-A60-620-010 CONN,3P V 2MM JMT ABC.................
CN 351 87-A60-625-010 CONN,8P V 2MM JMT ABC.................
D 401 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
FB 303 87-008-474-080 F-BEAD,EMI BL02RN1 .BC.................
IC 301 87-017-889-010 IC,NJM4558LD ABC.................
IC 401 87-017-889-010 IC,NJM4558LD ABC.................
JW 307 87-008-372-080 FILTER, EMI BL OIRNI .BC.................
L 451 87-007-342-010 COIL,OSC 85K BIAS ABC.................
Q 306 87-026-218-080 TR,DTC144ES (0.2W) ABC.................
Q 309 87-026-609-080 TR,KTA1266GR ABC.................
Q 303 87-A30-090-080 FET,2SK2541 ABC.................
Q 304 87-A30-090-080 FET,2SK2541 ABC.................
Q 308 87-A30-091-080 FET,2SJ460 ABC.................
Q 301 87-A30-091-080 FET,2SJ460 ABC.................
Q 305 87-A30-091-080 FET,2SJ460 ABC.................
Q 302 87-A30-091-080 FET,2SJ460 ABC.................
Q 307 87-A30-091-080 FET,2SJ460 ABC.................
Q 310 87-026-609-080 TR,KTA1266GR ABC.................
Q 443 87-026-609-080 TR,KTA1266GR ABC.................
Q 444 87-026-609-080 TR,KTA1266GR ABC.................
Q 455 87-026-610-080 TR,KTC3198GR ABC.................
SFR 451 87-024-355-080 SFR,33K DIA6 H A...................
SFR 452 87-024-355-080 SFR,33K DIA6 H A...................
SFR 451 87-024-356-080 SFR,47K DIA6 H .BC.................
SFR 452 87-024-356-080 SFR,47K DIA6 H .BC.................
C 262 87-018-119-080 CAP, CER 100P-50V ....................
C 261 87-018-119-080 CAP, CER 100P-50V ....................
C 602 87-018-195-080 CAP, CER 1200P-16V ABC.................
C 601 87-018-195-080 CAP, CER 1200P-16V ABC.................
C 616 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 617 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 613 87-010-545-080 CAP, ELECT 0.22-50V ABC.................
C 612 87-010-545-080 CAP, ELECT 0.22-50V ABC.................
C 614 87-010-545-080 CAP, ELECT 0.22-50V ABC.................
C 611 87-010-545-080 CAP, ELECT 0.22-50V ABC.................
C 615 87-018-104-080 CAP,TC-U 10P-50 SL ABC.................
CN 602 87-099-194-010 CONN,6P 6216V ABC.................
CN 601 87-099-719-010 CONN,30P TYK-B(X) ABC.................
D 601 87-A40-466-080 ZENER,MTZJ2.7A ABC.................
D 602 87-A40-466-080 ZENER,MTZJ2.7A ABC.................
IC 601 87-A20-715-010 IC,M62439SP ABC.................
J 601 87-A60-425-010 JACK,PIN 2P YKC21-3838 ABC.................
JW 616 87-008-372-080 FILTER, EMI BL OIRNI .BC.................
C 707 87-010-112-080 CAP, ELECT 100-16V ABC.................
C 709 87-010-248-080 CAP, ELECT 220-10V ABC.................
C 701 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 705 87-018-131-080 CAP, CER 1000P-50V ABC.................
C 706 87-018-131-080 CAP, CER 1000P-50V ABC.................
C 704 87-018-131-080 CAP, CER 1000P-50V ABC.................
C 702 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABC.................
C 703 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABC.................
C 708 87-A11-144-080 CAP,TC U 0.1-50 K B ABC.................
C 714 87-010-112-080 CAP, ELECT 100-16V ABC.................
C 710 87-010-112-080 CAP, ELECT 100-16V ABC.................
C 715 87-018-119-080 CAP, CER 100P-50V ABC.................
C 712 87-018-149-080 CAP,TC-U 15P-50 CH ABC.................
C 713 87-018-149-080 CAP,TC-U 15P-50 CH ABC.................
D 701 87-017-931-080 ZENER,MTZJ5.6B ABC.................
D 702 87-020-465-080 DIODE,1SS133 (110MA) .BC.................
IC 701 87-070-127-110 IC,LC72131 D ABC.................
L 701 87-005-847-080 COIL,2.2UH(CECS) ABC.................
Q 701 87-A30-196-080 TR,2SC4115SRS ABC.................
X 701 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 ABC.................
C 758 87-010-112-080 CAP, ELECT 100-16V ABC.................
C 753 87-010-408-080 CAP, ELECT 47-50V ABC.................
C 751 87-018-131-080 CAP, CER 1000P-50V ABC.................
C 752 87-018-143-080 CAP,TC-U 4.7P-50 CH .BC.................
C 755 87-A11-144-080 CAP,TC U 0.1-50 K B ABC.................
C 762 87-010-400-080 CAP, ELECT 0.47-50V ABC.................
C 763 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 764 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 769 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
C 761 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 766 87-010-407-080 CAP, ELECT 33-50V ABC.................
ELECTRICALPARTSLIST-4/4
C 765 87-018-115-080 CAP, CER 47P-50V ABC.................
C 768 87-018-208-080 CAP 0.047-50F ABC.................
C 774 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 771 87-010-406-080 CAP, ELECT 22-50 ABC.................
C 776 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABC.................
C 773 87-018-195-080 CAP, CER 1200P-16V .BC.................
C 789 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
C 786 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 785 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 788 87-018-132-080 CAP, CER 2200P-16V A...................
C 787 87-018-132-080 CAP, CER 2200P-16V A...................
C 787 87-018-196-080 CAP, CER 1500P-16V .BC.................
C 788 87-018-196-080 CAP, CER 1500P-16V .BC.................
C 783 87-018-199-080 CAP, CER 3300P A...................
C 784 87-018-199-080 CAP, CER 3300P A...................
C 784 87-018-202-080 CAP.CERAM.6800PF .BC.................
C 783 87-018-202-080 CAP.CERAM.6800PF .BC.................
C 790 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
D 751 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
IC 751 87-A20-913-010 IC,LA1837NL ABC.................
L 771 87-A50-266-010 COIL,FM DET-2N(TOK) ABC.................
L 772 87-A90-733-010 FLTR,PCFAZH-450 (TOK) ABC.................
C 856 87-010-405-080 CAP, ELECT 10-50V .BC.................
C 855 87-010-405-080 CAP, ELECT 10-50V .BC.................
C 859 87-018-109-080 CAP, CER 22P-50V .BC.................
C 858 87-018-109-080 CAP, CER 22P-50V .BC.................
C 852 87-018-123-080 CAP, CER 220P-50V .BC.................
C 851 87-018-123-080 CAP, CER 220P-50V .BC.................
C 853 87-018-127-080 CAP, CER 470P-50V .BC.................
C 857 87-018-134-080 CAPACITOR,TC-U 0.01-16 .BC.................
C 854 87-A11-144-080 CAP,TC U 0.1-50 K B .BC.................
C 860 87-018-134-080 CAPACITOR,TC-U 0.01-16 .BC.................
IC 851 87-A20-502-010 IC,BU1920 .BC.................
L 851 87-005-847-080 COIL,2.2UH(CECS) .BC.................
Q 851 87-026-610-080 TR,KTC3198GR .BC.................
X 851 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309 .BC.................
C 809 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABC.................
C 805 87-A11-144-080 CAP,TC U 0.1-50 K B ABC.................
C 807 87-A11-144-080 CAP,TC U 0.1-50 K B ABC.................
C 812 87-010-408-080 CAP, ELECT 47-50V .BC.................
C 813 87-018-131-080 CAP, CER 1000P-50V ABC.................
C 810 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABC.................
C 811 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABC.................
C 901 87-018-209-080 CAP, CER 0.1-50V ABC.................
C 924 87-014-049-080 CAP,PP 470P-100 J .BC.................
C 922 87-018-099-080 CAP CERA 3.9P-50 .BC.................
C 923 87-018-102-080 CAP,TC-U 6.8P-50 SL .BC.................
C 944 87-018-104-080 CAP,TC-U 10P-50 SL A...................
C 943 87-A11-144-080 CAP,TC U 0.1-50 K B ABC.................
CF 802 82-785-747-010 CF MS2 GHY R .BC.................
CF 801 87-008-261-010 FILTER, SFE10.7MA5-A A...................
CF 801 87-008-423-010 CERAMIC FILTER, SFE10.7 .BC.................
D 923 87-020-465-080 DIODE,1SS133 (110MA) .BC.................
D 921 87-020-465-080 DIODE,1SS133 (110MA) .BC.................
D 922 87-020-465-080 DIODE,1SS133 (110MA) .BC.................
FFE 801 A8-6ZA-191-130 6ZA-1 FEENM .BC.................
FFE 801 A8-8ZA-190-030 8ZA-1 FEUNM A...................
J 801 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 A...................
J 802 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05 .BC.................
L 801 87-005-847-080 COIL,2.2UH(CECS) ABC.................
L 942 87-A50-019-010 COIL,OSC LW(COI) .BC.................
L 941 87-A50-020-010 COIL,ANT LW(COI) .BC.................
L 981 87-NF4-650-010 COIL,AM PACK 4N(TOK) A...................
L 981 87-NF4-651-110 COIL,AM PACK2N(TOM) .BC.................
Q 801 87-026-214-080 TR,DTA114YS (0.3W) ABC.................
Q 803 89-305-352-380 TR,2SC535(B/C) .BC.................
Q 935 87-A30-092-080 FET,2SK439E/F .BC.................
Q 933 87-A30-164-080 TR,CSC2001K .BC.................
Q 941 87-026-269-080 TR,DTA114ES .BC.................
TC 942 87-011-221-080 CAP, TRIMMER 30P .BC.................
MECHANICAL PARTS LIST-1/1
NOTE: The characters in the suffix column indicate the part usage.
KSTM ...................XX...................................B..................
EZSTM ..................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NE6-067-010 BADGE,AIWA 30N ABC.................
8Z-MA4-006-010 BOX,CASS L ABC.................
8Z-MA4-007-010 BOX,CASS,R ABC.................
8Z-MA5-019-010 PANEL,SIDE L(5) .BC.................
8Z-MA5-020-010 PANEL,SIDE R(5) .BC.................
8Z-MA5-021-010 PANEL,SIDE LU(5) A...................
8Z-MA5-022-010 PANEL,SIDE RU(5) A...................
8Z-MA5-023-010 PANEL,TOP(5) .BC.................
8Z-MA5-024-010 PANEL,TOP U(5) A...................
8Z-MA5-037-010 CABI,REAR EZ(Z5) .BC.................
8Z-MA6-002-010 CABI,FR EZ(6) .BC.................
8Z-MA6-004-010 CABI,FR U(6) A...................
8Z-MA6-016-010 CABI,REAR USTM(6) A...................
8Z-MA4-030-010 KEY,POWER ABC.................
8Z-MA4-032-010 KEY,T-BASS ABC.................
8Z-MA4-038-010 KEY,CASS L ABC.................
8Z-MA4-039-010 KEY,CASS R ABC.................
8Z-MA4-040-010 KEY,RDS .BC.................
8Z-MA4-041-010 KNOB,RTRY VOL ABC.................
8Z-MA5-016-010 KEY,OPEN(5) ABC.................
8Z-MA6-005-010 KEY,PLAY(6) ABC.................
8Z-MA6-006-010 PLATE,JOG(6) ABC.................
8Z-MA6-013-010 KEY,GEQ 1(6) ABC.................
8Z-MA6-014-010 KEY,GEQ 2(6) ABC.................
81-532-080-010 LABEL, CASS. COMPT ABC.................
86-MA3-042-010 WINDOW,TOP .BC.................
87-MAT-009-010 WINDOW,TOP(U) A...................
8Z-MA4-025-010 WINDOW,CASS L ABC.................
8Z-MA4-026-010 WINDOW,CASS R ABC.................
8Z-MA4-027-010 WINDOW,CD ABC.................
8Z-MA5-010-010 PANEL,TRAY(5) ABC.................
8Z-MA6-007-010 WINDOW,AMP U(6) A...................
8Z-MA6-008-010 WINDOW,AMP EZ(6) .BC.................
84-ZG1-245-210 CAP,OPTICAL ABC.................
83-MA2-205-110 SRR-T,EJECT ABC.................
86-NFZ-231-010 DMPR,70 ABC.................
88-MA1-208-110 JOINT,CABI ABC.................
88-NF9-203-010 BUSHING,CORD-U A...................
88-NF9-210-010 BUSHING,CORD-E .BC.................
87-067-641-010 UTT2+3-8(W/O SLOT)BL ABC.................
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABC.................
87-067-758-010 BVT2+3-12 W/O SLOT ABC.................
87-078-060-010 BVIT3PB+3-10 ABC.................
87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD) ABC.................
87-721-096-410 QT2+3-10 GLD ABC.................
87-741-172-410 UT2+4-12 W/O SLOT ABC.................
87-050-079-010 AC-CORD ASSY,E .BC.................
87-099-811-010 PLUG,ADPTR CONV(K) .B..................
87-A80-110-010 AC CORD ASSY,U SPT-2W A...................
88-906-271-110 CABLE,FFC 6P-1.25 ABC.................
88-913-221-110 FF-CABLE, 13P 1.25 220MM ABC.................
F 101 87-035-358-010 FUSE,T400MMA 250V TE .BC.................
F 101 87-035-482-010 FUSE,1A 125V T 237 A...................
F 101 87-A90-555-010 FUSE,800MA 250V T 239 ....................
FB 101 87-003-317-010 F-BEAD,F0H2515-LG7 .BC.................
FB 602 87-008-372-010 FILTER, EMI BL OIRNI ....................
PT 101 8Z-MA6-601-010 PT,ZMA-6 U A...................
PT 101 8Z-MA6-602-010 PT,ZMA-6 EZ .BC.................
82-NF7-210-110 GUIDE,FL (*) ABC.................
WH 101 87-A90-459-010 HLDR,WIRE 2.5-5P ABC.................
W 101 83-NE2-618-110 F-CABEL,5P-2.5 ABC.................
WH 102 87-A90-459-010 HLDR,WIRE 2.5-5P ABC.................
87-067-584-010 TAPPING SCREW, BVT2+3-6 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
ACCESSORIES / PACKAGE LIST-1/1
NOTE: The characters in the suffix column indicate the part usage.
KSTM ...................XX...................................B..................
EZSTM ..................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-MA6-903-010 IB,U(ESF)M A...................
8Z-MA6-905-010 IB,K(E)M .B..................
8Z-MA6-906-010 IB,EZ(9L)M ..C.................
87-043-106-010 WIRE, FM ANT (Z) .BC.................
87-043-115-010 ANT,FEEDER FM A...................
87-A90-030-010 ANT,LOOP AM-NC C ABC.................
8Z-NF9-701-010 RC UNIT,ZAS02 A...................
8Z-NF9-701-110 RC UNIT,ZAS02 .BC.................

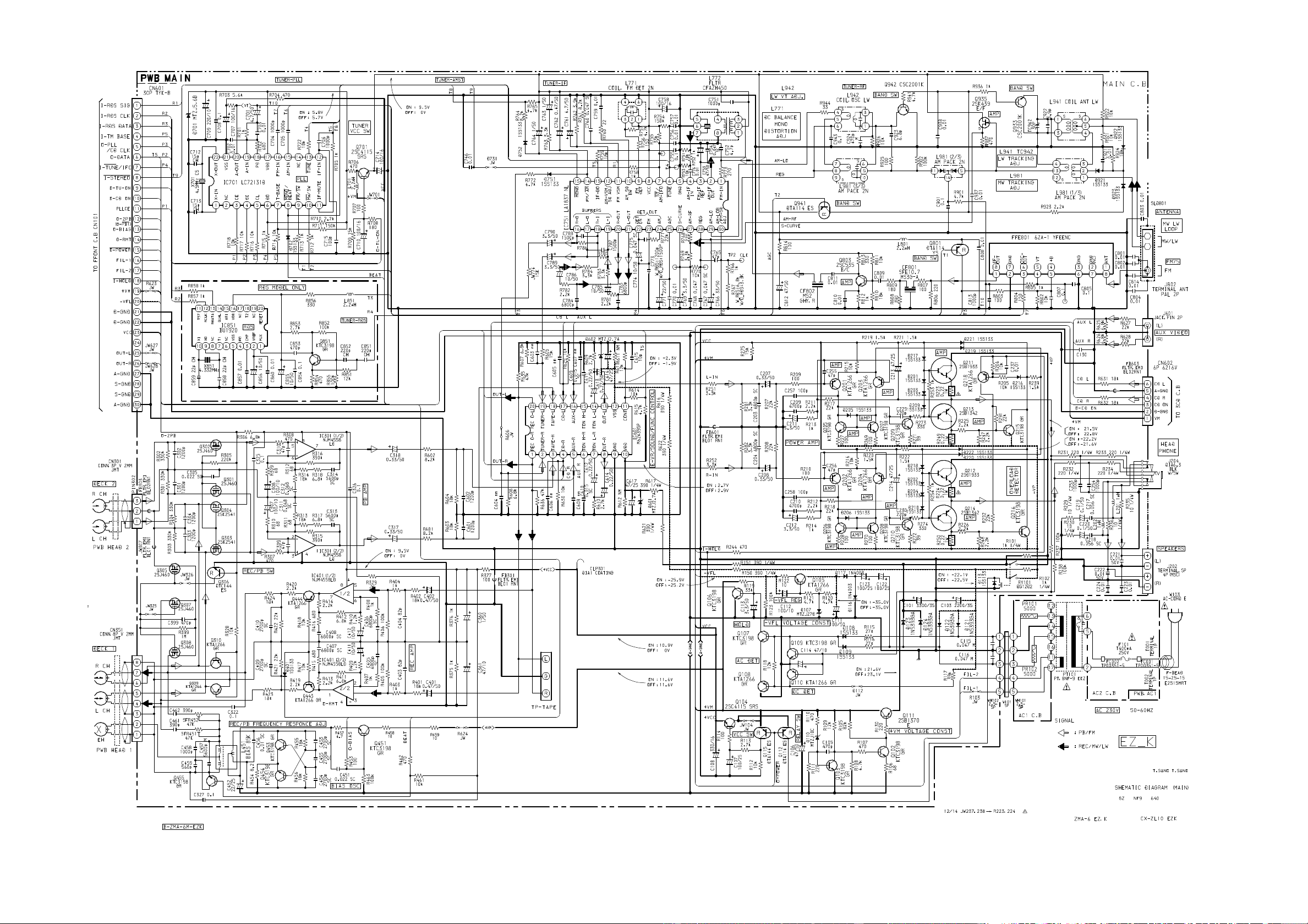

SCHEMATIC DIAGRAM _1 (AMP)

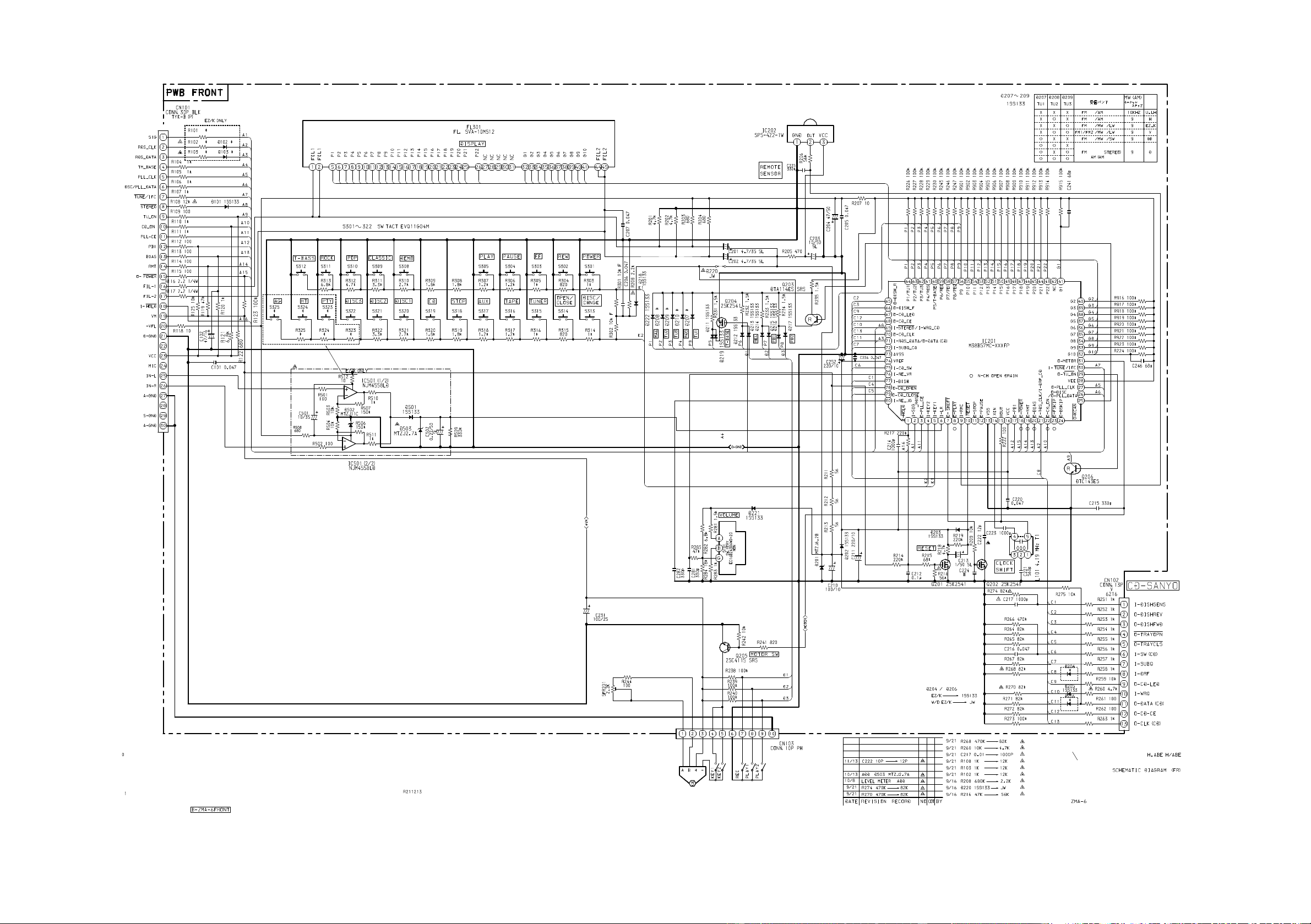

SCHEMATIC DIAGRAM_2(FRONT)
PrintedinSingapore
Tokyo Japan
4
9820527
Table of contents
Other Aiwa Stereo System manuals
