S E R V I C E M A N U A L

SIMPLE MANUAL

•Replace this Service Manual with ”Revision Publishing” when it is issued.

XR-M55

• BASIC TAPE MECHANISM: 2ZM–1 YR9NC

• BASIC CD MECHANISM: 3ZG–3 E3NC • TYPE:U

S/M Code No. 09–992–408–2T1

COMPACT DISC STEREO SYSTEM

ELECTRICAL MAIN PARTS LIST - 1/8

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

87-030-375-080 VIB,CF 4.19MG200 A...................

C 301 87-010-178-080 CHIP CAP 1000P A...................

C 302 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 304 87-010-405-040 CAP,E 10-50 A...................

C 305 87-A10-797-040 CAP,E 47-35 M 5L SRM A...................

C 307 87-010-404-040 CAP,E 4.7-50 SME A...................

C 308 87-010-404-040 CAP,E 4.7-50 SME A...................

C 309 87-010-198-080 CAP, CHIP 0.022 A...................

C 313 87-010-263-040 CAP,E 100-10 A...................

C 314 87-010-248-040 CAP,E 220-10 SME A...................

C 315 87-010-198-080 CAP, CHIP 0.022 A...................

C 316 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 317 87-010-198-080 CAP, CHIP 0.022 A...................

C 318 87-010-320-080 CHIP CAP 68P A...................

C 319 87-010-320-080 CHIP CAP 68P A...................

C 320 87-010-320-080 CHIP CAP 68P A...................

C 321 87-010-320-080 CHIP CAP 68P A...................

C 322 87-010-320-080 CHIP CAP 68P A...................

C 323 87-010-320-080 CHIP CAP 68P A...................

C 324 87-010-320-080 CHIP CAP 68P A...................

C 325 87-010-320-080 CHIP CAP 68P A...................

C 326 87-010-320-080 CHIP CAP 68P A...................

C 327 87-010-320-080 CHIP CAP 68P A...................

C 328 87-010-320-080 CHIP CAP 68P A...................

C 329 87-010-198-080 CAP, CHIP 0.022 A...................

C 330 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 331 87-010-312-080 C-CAP,S 15P-50 CH A...................

C 333 87-010-401-040 CAP,E 1-50 SME A...................

C 335 87-010-316-080 C-CAP,S 33P-50 CH A...................

C 338 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 339 87-015-819-080 CAPACITOR,0.01 A...................

C 340 87-010-197-080 CAP, CHIP 0.01 DM A...................

CN 301 87-099-720-010 CONN,30P TYK-B(P) A...................

CN 302 87-CL4-704-010 CONN ASSY 9P DECK A...................

CN 303 87-099-203-010 CONN,10P 6216 H A...................

D 301 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 307 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 308 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 309 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 310 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 311 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 312 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 313 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 314 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 315 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 316 87-017-931-080 ZENER,MTZJ5.6B A...................

D 317 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 318 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 319 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 320 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 322 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 323 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 324 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 325 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 326 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 327 87-020-465-080 DIODE,1SS133 (110MA) A...................

FL 301 8Z-CL6-682-010 FL,11BT-171GK A...................

GFL 1 82-NF7-210-110 GUIDE,FL (*) A...................

IC 301 8Z-CL7-683-010 C-IC,M38B557MC A...................

IC 303 87-A20-914-010 IC,SPS-442-1-F A...................

LED 301 87-A40-229-040 LED,SLR-342VR TB7 RED A...................

LED 302 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

LED 303 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

LED 304 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

LED 305 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

LED 306 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

LED 307 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

LED 308 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

LED 309 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

LED 310 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

LED 311 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

Q 301 87-026-245-080 TR,DTC114ES A...................

Q 302 89-112-965-080 TR,2SA1296 (0.75W) A...................

Q 303 89-112-965-080 TR,2SA1296 (0.75W) A...................

Q 304 89-327-125-080 CHIP TR,2SC2712GR A...................

Q 305 89-327-125-080 CHIP TR,2SC2712GR A...................

Q 306 89-327-125-080 CHIP TR,2SC2712GR A...................

Q 307 89-327-125-080 CHIP TR,2SC2712GR A...................

Q 308 89-327-125-080 CHIP TR,2SC2712GR A...................

Q 309 89-111-624-080 TR,2SA1162Y A...................

Q 310 87-A30-090-080 FET,2SK2541 A...................

Q 311 89-327-125-080 CHIP TR,2SC2712GR A...................

Q 312 89-327-125-080 CHIP TR,2SC2712GR A...................

Q 313 87-026-235-080 CHIP-TR,DTC114EK A...................

S 301 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 302 87-A90-095-080 SW,TACT EVQ11G04M A...................

ELECTRICAL MAIN PARTS LIST - 2/8

S 303 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 304 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 305 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 306 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 308 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 310 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 311 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 312 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 313 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 314 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 315 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 317 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 318 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 319 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 351 87-A90-085-010 SW,RTRY EC16B 24204 A...................

S 352 87-A90-535-010 SW,RTRY EC16B24304 A...................

X 301 87-030-375-080 VIB,CF 4.19MG200 A...................

C 101 87-010-399-090 CAP,E 3300-35 SME A...................

C 102 87-010-398-090 CAP,E 2200-35V A...................

C 104 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 105 87-012-140-080 CAP 470P A...................

C 106 87-010-408-080 CAP, ELECT 47-50V A...................

C 107 87-010-384-080 CAP, ELECT 100-25V A...................

C 108 87-010-381-080 CAP, ELECT 330-16V A...................

C 113 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 114 87-010-374-080 CAP, ELECT 47-10V A...................

C 115 87-012-369-080 C-CAP,S 0.047-50F A...................

C 116 87-012-369-080 C-CAP,S 0.047-50F A...................

C 131 87-010-194-080 CAP, CHIP 0.047 A...................

C 132 87-010-194-080 CAP, CHIP 0.047 A...................

C 141 87-A10-011-090 CAP,E 2200-25 SMG A...................

C 142 87-A10-011-090 CAP,E 2200-25 SMG A...................

C 151 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

D 101 87-070-022-010 DIODE,IN5402 (RECT) A...................

D 102 87-070-022-010 DIODE,IN5402 (RECT) A...................

D 103 87-070-022-010 DIODE,IN5402 (RECT) A...................

D 104 87-070-022-010 DIODE,IN5402 (RECT) A...................

D 107 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 110 87-A40-345-080 ZENER,MTZJ10C A...................

D 111 87-017-495-080 DIODE,IN5393 A...................

D 112 87-017-495-080 DIODE,IN5393 A...................

D 113 87-017-495-080 DIODE,IN5393 A...................

D 114 87-017-495-080 DIODE,IN5393 A...................

D 171 87-020-465-080 DIODE,1SS133 (110MA) A...................

Q 101 89-213-702-010 TR,2SB1370 (1.8W) A...................

Q 102 89-333-317-080 TR,2SC3331 (0.5W) A...................

Q 104 87-A30-196-080 TR,2SC4115SRS A...................

Q 106 87-A30-076-080 C-TR,2SC3052F A...................

Q 107 87-A30-076-080 C-TR,2SC3052F A...................

Q 109 87-A30-076-080 C-TR,2SC3052F A...................

Q 110 87-A30-075-080 C-TR,2SA1235F A...................

Q 111 89-213-702-010 TR,2SB1370 (1.8W) A...................

Q 112 87-A30-076-080 C-TR,2SC3052F A...................

Q 115 87-026-211-080 TR,DTA144EK A...................

W 101 8Z-CL6-642-010 CONN ASSY,11P ZCL6 A...................

WH 101 87-A91-179-010 HLDR,WIRE 2.5-11P A...................

C 303 87-010-177-080 C-CAP,S 820P-50 SL A...................

C 304 87-010-177-080 C-CAP,S 820P-50 SL A...................

C 307 87-010-263-080 CAP, ELECT 100-10V A...................

C 308 87-010-263-080 CAP, ELECT 100-10V A...................

C 311 87-010-195-080 C-CAP,S 0.068-25 F A...................

C 312 87-010-195-080 C-CAP,S 0.068-25 F A...................

C 313 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 314 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 315 87-010-374-080 CAP, ELECT 47-10V A...................

C 317 87-010-546-080 CAP, ELECT 0.33-50V A...................

C 318 87-010-546-080 CAP, ELECT 0.33-50V A...................

C 340 87-010-197-080 CAP, CHIP 0.01 DM ....................

C 349 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 350 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 361 87-010-374-080 CAP, ELECT 47-10V A...................

C 362 87-010-401-080 CAP, ELECT 1-50V A...................

C 381 87-010-178-080 CHIP CAP 1000P ....................

C 382 87-010-178-080 CHIP CAP 1000P ....................

C 384 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 386 87-010-197-080 CAP, CHIP 0.01 DM ....................

C 393 87-010-178-080 CHIP CAP 1000P ....................

C 394 87-010-178-080 CHIP CAP 1000P ....................

C 401 87-010-401-080 CAP, ELECT 1-50V A...................

C 402 87-010-401-080 CAP, ELECT 1-50V A...................

C 403 87-010-321-080 CHIP CAPACITOR,82P(J) A...................

C 404 87-010-321-080 CHIP CAPACITOR,82P(J) A...................

C 405 87-010-188-080 CAP,CHIP 6800P A...................

C 406 87-010-188-080 CAP,CHIP 6800P A...................

C 407 87-010-426-080 C-CAP,S 0.012-25 B A...................

C 408 87-010-426-080 C-CAP,S 0.012-25 B A...................

C 451 87-010-198-080 CAP, CHIP 0.022 A...................

C 452 87-010-382-080 CAP, ELECT 22-25V A...................

C 453 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 454 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 455 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 456 87-010-197-080 CAP, CHIP 0.01 DM A...................

ELECTRICAL MAIN PARTS LIST - 3/8

C 458 87-010-178-080 CHIP CAP 1000P A...................

C 459 87-010-175-080 CAP 560P A...................

C 461 87-012-158-080 C-CAP,S 390P-50 CH A...................

C 462 87-012-158-080 C-CAP,S 390P-50 CH A...................

CN 351 87-A60-624-010 CONN,7P V 2MM JMT A...................

IC 301 87-017-889-010 IC,NJM4558LD A...................

IC 401 87-017-889-010 IC,NJM4558LD A...................

L 451 87-007-342-010 COIL,OSC 85K BIAS A...................

Q 305 87-A30-087-080 C-FET,2SK2158 A...................

Q 306 87-026-211-080 TR,DTA144EK A...................

Q 307 87-A30-087-080 C-FET,2SK2158 A...................

Q 308 87-A30-087-080 C-FET,2SK2158 A...................

Q 309 87-A30-197-080 TR,KTA1267GR A...................

Q 310 87-A30-197-080 TR,KTA1267GR A...................

Q 313 87-026-218-080 TR,DTC144ES (0.2W) A...................

Q 314 87-026-218-080 TR,DTC144ES (0.2W) A...................

Q 441 87-A30-075-080 C-TR,2SA1235F A...................

Q 442 87-A30-075-080 C-TR,2SA1235F A...................

Q 451 89-333-317-080 TR,2SC3331 (0.5W) A...................

Q 452 87-026-610-080 TR,KTC3198GR ....................

Q 453 89-333-317-080 TR,2SC3331 (0.5W) A...................

Q 454 89-333-317-080 TR,2SC3331 (0.5W) A...................

C 601 87-010-180-080 C-CER 1500P A...................

C 602 87-010-180-080 C-CER 1500P A...................

C 609 87-010-213-080 C-CAP,S 0.015-50 B A...................

C 610 87-010-213-080 C-CAP,S 0.015-50 B A...................

C 611 87-010-545-080 CAP, ELECT 0.22-50V A...................

C 612 87-010-545-080 CAP, ELECT 0.22-50V A...................

C 613 87-010-545-080 CAP, ELECT 0.22-50V A...................

C 614 87-010-545-080 CAP, ELECT 0.22-50V A...................

C 615 87-010-154-080 CAP CHIP 10P A...................

C 616 87-010-408-080 CAP, ELECT 47-50V A...................

C 617 87-010-408-080 CAP, ELECT 47-50V A...................

C 619 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 620 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 625 87-010-405-080 CAP, ELECT 10-50V A...................

C 626 87-010-405-080 CAP, ELECT 10-50V A...................

C 661 87-010-178-080 CHIP CAP 1000P ....................

CN 202 87-099-719-010 CONN,30P TYK-B(X) A...................

CN 671 87-099-210-010 CONN,5P 6216 H A...................

D 601 87-A40-466-080 ZENER,MTZJ2.7A A...................

D 602 87-A40-466-080 ZENER,MTZJ2.7A A...................

D 603 87-020-465-080 DIODE,1SS133 (110MA) ....................

IC 601 87-A21-111-040 C-IC,M62495FP A...................

PR 601 87-A91-153-080 FUSE,630MA 125V 251 A...................

PR 601 87-026-689-080 PROTECTOR,1A 60V 491 ....................

Q 601 87-026-210-080 CHIP-TR,DTC144EK A...................

Q 602 87-026-210-080 CHIP-TR,DTC144EK A...................

Q 603 87-026-210-080 CHIP-TR,DTC144EK A...................

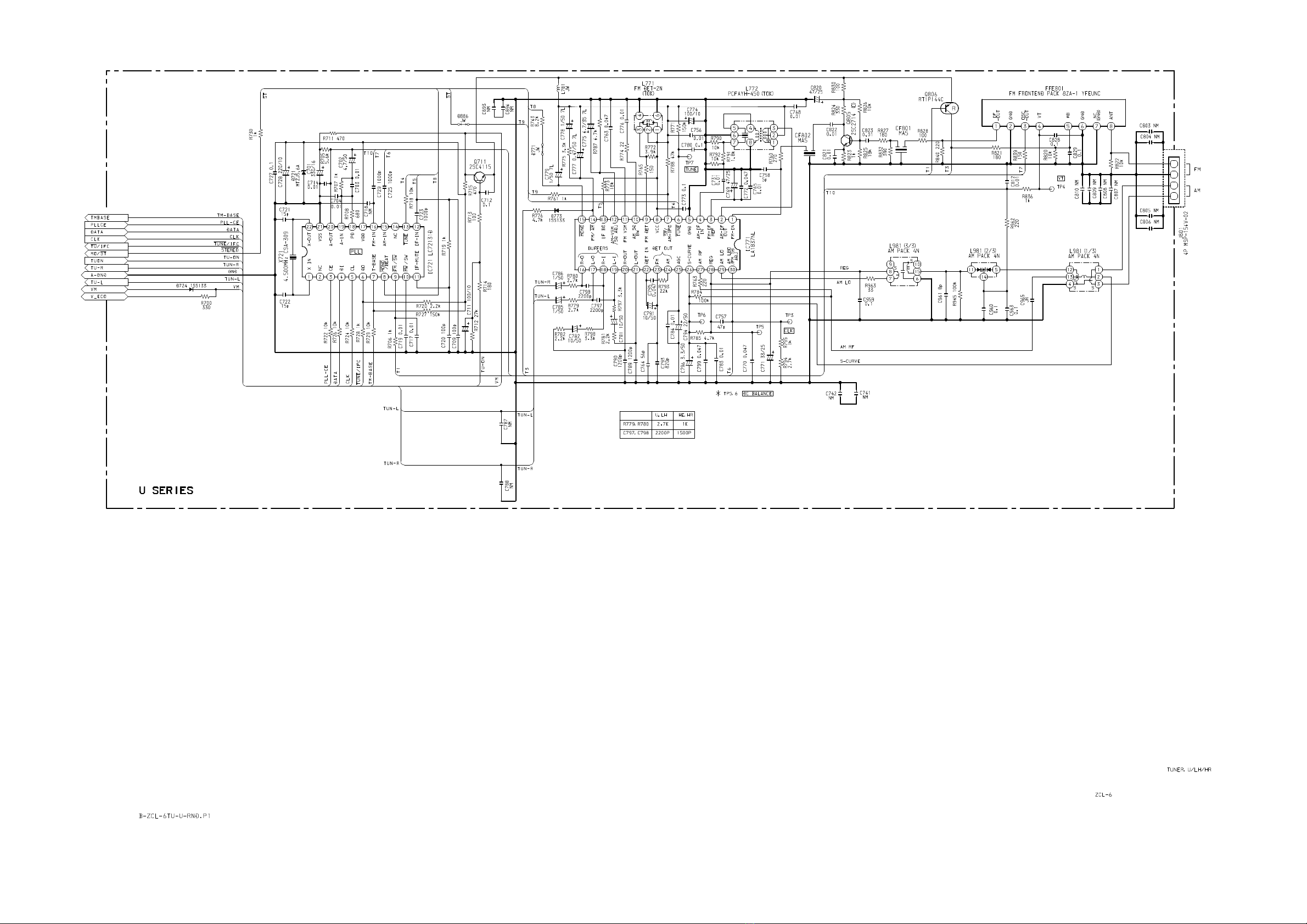

C 812 87-012-286-080 CAP, U 0.01-25 A...................

C 814 87-012-286-080 CAP, U 0.01-25 ....................

C 820 87-010-260-080 CAP, ELECT 47-25V A...................

C 821 87-012-286-080 CAP, U 0.01-25 A...................

C 822 87-012-286-080 CAP, U 0.01-25 A...................

C 823 87-012-286-080 CAP, U 0.01-25 A...................

C 828 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 829 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 909 87-012-286-080 CAP, U 0.01-25 ....................

C 910 87-012-286-080 CAP, U 0.01-25 ....................

C 940 87-012-286-080 CAP, U 0.01-25 ....................

C 942 87-012-172-080 CAPACITOR CHIP U 10P CH ....................

C 947 87-012-286-080 CAP, U 0.01-25 ....................

C 949 87-A10-039-080 C-CAP,U 470P-50 J CH ....................

C 952 87-012-286-080 CAP, U 0.01-25 ....................

C 958 87-010-197-080 CAP, CHIP 0.01 DM ....................

C 959 87-010-831-080 C-CAP,U,0.1-16F A...................

C 960 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 961 87-012-170-080 C-CAP,U 8P-50 CH A...................

C 962 87-010-401-080 CAP, ELECT 1-50V ....................

C 963 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

CF 801 87-008-423-010 CERAMIC FILTER, SFE10.7 ....................

CF 801 87-008-261-010 FILTER, SFE10.7MA5-A A...................

CF 802 82-785-747-010 CF MS2 GHY R ....................

CF 802 87-008-261-010 FILTER, SFE10.7MA5-A A...................

D 942 87-A40-270-080 C-DIODE,MC2838 ....................

D 944 87-020-465-080 DIODE,1SS133 (110MA) ....................

FFE 801 A8-6ZA-19C-170 6ZA-1 YFEENC ....................

FFE 801 A8-6ZA-19D-070 6ZA-1 YFEJNC ....................

FFE 801 A8-8ZA-193-070 8ZA-1 YFEUNC A...................

J 801 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 A...................

J 801 87-033-241-010 TERMINAL,ANT AJ-2039 ....................

L 832 87-005-847-080 COIL,2.2UH(CECS) ....................

L 941 87-A50-020-010 COIL,ANT LW(COI) ....................

L 942 87-A50-019-010 COIL,OSC LW(COI) ....................

L 981 87-NF4-650-010 COIL,AM PACK 4N(TOK) A...................

L 981 87-NF4-651-110 COIL,AM PACK2N(TOM) ....................

Q 805 89-327-143-080 TR,2SC2714 (0.1W) A...................

Q 806 87-A30-072-080 C-TR,RT1P 144C A...................

Q 947 89-505-434-540 C-FET,2SK543(4/5) ....................

Q 948 87-A30-257-080 C-TR,2SD1306E ....................

Q 951 87-A30-074-080 C-TR,RT1P 141C ....................

Q 952 87-A30-257-080 C-TR,2SD1306E ....................

ELECTRICAL MAIN PARTS LIST - 4/8

TC 942 87-011-164-010 CAPACITOR,TRIMMER 30P ....................

C 731 87-012-286-080 CAP, U 0.01-25 A...................

C 752 87-012-282-080 CAP, U 4700P-50 ....................

C 753 87-012-195-080 C-CAP,U 100P-50CH ....................

C 755 87-012-286-080 CAP, U 0.01-25 ....................

C 756 87-012-286-080 CAP, U 0.01-25 A...................

C 757 87-012-188-080 C-CAP,U 47P-50 CH A...................

C 758 87-012-167-080 C-CAP,U 5P-50 CH A...................

C 761 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 762 87-012-286-080 CAP, U 0.01-25 ....................

C 763 87-010-829-080 CAP, U 0.047-16 A...................

C 764 87-012-337-080 C-CAP,U 56P-50 CH A...................

C 765 87-012-286-080 CAP, U 0.01-25 A...................

C 766 87-010-197-080 CAP, CHIP 0.01 DM ....................

C 768 87-012-286-080 CAP, U 0.01-25 A...................

C 769 87-010-260-080 CAP, ELECT 47-25V A...................

C 770 87-010-829-080 CAP, U 0.047-16 A...................

C 771 87-010-383-080 CAP, ELECT 33-25V A...................

C 772 87-010-829-080 CAP, U 0.047-16 A...................

C 773 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 774 87-010-263-080 CAP, ELECT 100-10V A...................

C 775 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 776 87-012-286-080 CAP, U 0.01-25 A...................

C 777 87-010-400-080 CAP, ELECT 0.47-50V A...................

C 778 87-010-401-080 CAP, ELECT 1-50V A...................

C 779 87-010-401-080 CAP, ELECT 1-50V A...................

C 780 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 781 87-010-405-080 CAP, ELECT 10-50V A...................

C 782 87-010-405-080 CAP, ELECT 10-50V A...................

C 783 87-012-286-080 CAP, U 0.01-25 A...................

C 784 87-012-286-080 CAP, U 0.01-25 A...................

C 785 87-010-401-080 CAP, ELECT 1-50V A...................

C 785 87-010-405-080 CAP, ELECT 10-50V ....................

C 786 87-010-401-080 CAP, ELECT 1-50V A...................

C 786 87-010-405-080 CAP, ELECT 10-50V ....................

C 787 87-012-284-080 CAP, U 6800P-50 ....................

C 788 87-012-284-080 CAP, U 6800P-50 ....................

C 789 87-012-275-080 C-CAP,U 1200P-50 B A...................

C 790 87-012-275-080 C-CAP,U 1200P-50 B A...................

C 791 87-010-405-080 CAP, ELECT 10-50V A...................

C 793 87-A10-915-080 C-CAP,U 1000P-25 J CH ....................

C 793 87-012-273-080 C-CAP,U 820P-50 B A...................

C 794 87-010-406-080 CAP, ELECT 22-50 A...................

C 795 87-010-596-080 CAP, S 0.047-16 A...................

C 796 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 797 87-012-278-080 C-CAP,U 2200P-50 B A...................

C 797 87-012-276-080 CAP, CHIP SS 1500 PBK ....................

C 798 87-012-278-080 C-CAP,U 2200P-50 B A...................

C 798 87-012-276-080 CAP, CHIP SS 1500 PBK ....................

C 799 87-010-829-080 CAP, U 0.047-16 A...................

D 771 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 773 87-020-465-080 DIODE,1SS133 (110MA) A...................

IC 771 87-A20-913-010 IC,LA1837NL A...................

L 771 87-A50-266-010 COIL,FM DET-2N(TOK) A...................

L 772 88-CL4-692-010 FLTR,APCFMP-450 (TOK) ....................

L 772 88-CL4-693-010 FLTR,PCFAYH-450 (TOK) A...................

L 781 87-005-847-080 COIL,2.2UH(CECS) ....................

C 701 87-010-381-080 CAP, ELECT 330-16V A...................

C 702 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 703 87-012-286-080 CAP, U 0.01-25 A...................

C 704 87-012-286-080 CAP, U 0.01-25 A...................

C 709 87-012-195-080 C-CAP,U 100P-50CH A...................

C 711 87-010-263-080 CAP, ELECT 100-10V A...................

C 712 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 713 87-012-286-080 CAP, U 0.01-25 ....................

C 714 87-012-286-080 CAP, U 0.01-25 A...................

C 715 87-012-195-080 C-CAP,U 100P-50CH ....................

C 717 87-012-286-080 CAP, U 0.01-25 A...................

C 718 87-012-179-080 C-CAP,U 20P-50 CH A...................

C 719 87-012-286-080 CAP, U 0.01-25 A...................

C 720 87-012-195-080 C-CAP,U 100P-50CH A...................

C 721 87-012-176-080 CAP 15P A...................

C 722 87-012-176-080 CAP 15P A...................

C 723 87-012-274-080 CHIP CAP,U 1000P-50B A...................

C 725 87-018-131-080 CAP, CER 1000P-50V ....................

C 725 87-012-274-080 CHIP CAP,U 1000P-50B A...................

C 727 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 728 87-010-248-080 CAP, ELECT 220-10V A...................

C 729 87-012-274-080 CHIP CAP,U 1000P-50B A...................

D 721 87-A40-234-080 ZENER,MTZJ5.6A A...................

D 722 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 724 87-020-465-080 DIODE,1SS133 (110MA) A...................

IC 721 87-070-127-110 IC,LC72131 D A...................

Q 711 87-A30-196-080 TR,2SC4115SRS A...................

X 721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 A...................

C 872 87-010-400-080 CAP, ELECT 0.47-50V ....................

C 873 87-010-404-080 CAP, ELECT 4.7-50V ....................

C 877 87-012-278-080 C-CAP,U 2200P-50 B ....................

C 878 87-012-278-080 C-CAP,U 2200P-50 B ....................

C 881 87-012-141-080 CHIP-CAPACITOR,0.22-16F ....................

C 882 87-012-172-080 CAPACITOR CHIP U 10P CH ....................

C 883 87-010-404-080 CAP, ELECT 4.7-50V ....................

ELECTRICAL MAIN PARTS LIST - 5/8

C 884 87-010-260-080 CAP, ELECT 47-25V ....................

C 885 87-010-545-080 CAP, ELECT 0.22-50V ....................

C 886 87-010-545-080 CAP, ELECT 0.22-50V ....................

C 887 87-012-286-080 CAP, U 0.01-25 ....................

C 888 87-010-787-080 CAP, U 0.022-25 ....................

C 889 87-010-248-080 CAP, ELECT 220-10V ....................

D 886 87-020-465-080 DIODE,1SS133 (110MA) ....................

IC 871 87-070-060-040 IC,TA2040AF ....................

Q 873 87-026-226-080 CHIP-TR,DTA143EK ....................

X 891 87-030-394-010 VIB,CER CSA3.6MGF228 ....................

C 859 87-012-286-080 CAP, U 0.01-25 ....................

C 861 87-012-199-080 CAP 220P ....................

C 862 87-012-199-080 CAP 220P ....................

C 863 87-012-270-080 CAP, U 470P-50 ....................

C 864 87-010-405-080 CAP, ELECT 10-50V ....................

C 865 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 866 87-010-405-080 CAP, ELECT 10-50V ....................

C 867 87-012-286-080 CAP, U 0.01-25 ....................

C 868 87-012-184-080 C-CAP,U 33P-50 CH ....................

C 869 87-012-180-080 C-CAP,U 22P-50 CH ....................

IC 851 87-A20-440-040 C-IC,BU1920FS ....................

L 851 87-005-847-080 COIL,2.2UH(CECS) ....................

Q 853 87-A30-076-080 C-TR,2SC3052F ....................

X 851 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309 ....................

87-067-689-010 TAPPING SCREW, BVTT+3-8 A...................

C 203 87-010-187-080 CAP CHIP S5600P A...................

C 204 87-010-187-080 CAP CHIP S5600P A...................

C 209 87-010-546-080 CAP, ELECT 0.33-50V A...................

C 210 87-010-546-080 CAP, ELECT 0.33-50V A...................

C 211 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 212 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 213 87-010-260-080 CAP, ELECT 47-25V A...................

C 214 87-010-260-080 CAP, ELECT 47-25V A...................

C 217 87-010-993-080 C-CAP,S 0.056-25 B A...................

C 218 87-010-993-080 C-CAP,S 0.056-25 B A...................

C 219 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 220 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 221 87-010-220-080 C-CAP,S 0.018-25 B ....................

C 222 87-010-220-080 C-CAP,S 0.018-25 B ....................

C 223 87-010-186-080 CAP,CHIP 4700P A...................

C 224 87-010-186-080 CAP,CHIP 4700P A...................

C 225 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 226 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 229 87-A10-946-080 C-CAP,S 220P-100 J CH A...................

C 230 87-A10-946-080 C-CAP,S 220P-100 J CH A...................

C 231 87-010-260-080 CAP, ELECT 47-25V A...................

C 261 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 274 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 275 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 285 87-010-400-080 CAP, ELECT 0.47-50V A...................

C 286 87-010-400-080 CAP, ELECT 0.47-50V A...................

C 287 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 288 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

D 201 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 202 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 203 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 204 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 205 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 206 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 209 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 210 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 261 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 262 87-020-465-080 DIODE,1SS133 (110MA) A...................

J 241 87-A60-217-010 TERMINAL,SPKR 4P A...................

L 201 87-005-366-010 COIL, 1UH A...................

L 202 87-005-366-010 COIL, 1UH A...................

Q 201 87-A30-075-080 C-TR,2SA1235F A...................

Q 202 87-A30-075-080 C-TR,2SA1235F A...................

Q 203 87-A30-075-080 C-TR,2SA1235F A...................

Q 204 87-A30-075-080 C-TR,2SA1235F A...................

Q 205 87-A30-076-080 C-TR,2SC3052F A...................

Q 206 87-A30-076-080 C-TR,2SC3052F A...................

Q 207 87-A30-076-080 C-TR,2SC3052F A...................

Q 208 87-A30-076-080 C-TR,2SC3052F A...................

Q 209 89-333-317-080 TR,2SC3331 (0.5W) A...................

Q 210 89-333-317-080 TR,2SC3331 (0.5W) A...................

Q 211 87-A30-215-010 TR,2SD2025 A...................

Q 212 87-A30-215-010 TR,2SD2025 A...................

Q 213 87-A30-214-010 TR,2SB1344 A...................

Q 214 87-A30-214-010 TR,2SB1344 A...................

Q 215 87-A30-076-080 C-TR,2SC3052F A...................

Q 216 87-A30-076-080 C-TR,2SC3052F A...................

Q 220 87-026-219-080 TR,DTA144ES (0.3W) A...................

Q 260 87-A30-075-080 C-TR,2SA1235F A...................

Q 261 87-A30-257-080 C-TR,2SD1306E A...................

Q 262 87-A30-257-080 C-TR,2SD1306E A...................

R 223 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 224 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 249 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 250 87-A00-258-080 RES,M/F 0.22-1W J A...................

87-067-689-010 TAPPING SCREW, BVTT+3-8 A...................

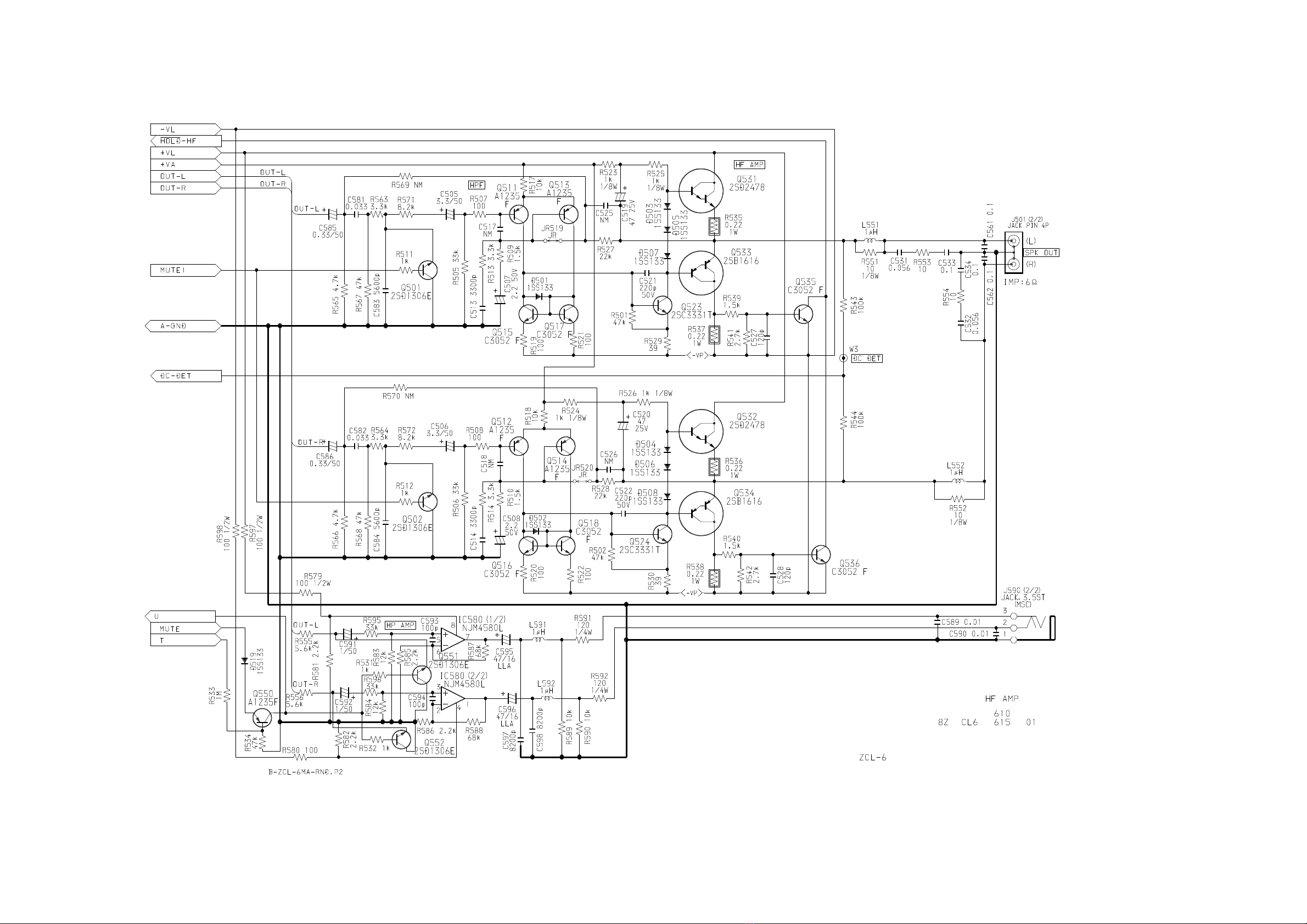

C 505 87-010-403-080 CAP, ELECT 3.3-50V A...................

ELECTRICAL MAIN PARTS LIST - 6/8

C 506 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 507 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 508 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 513 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 514 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 517 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 518 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 519 87-010-260-080 CAP, ELECT 47-25V A...................

C 520 87-010-260-080 CAP, ELECT 47-25V A...................

C 521 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 522 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 527 87-012-153-080 C-CAP,S 120P-50 CH A...................

C 528 87-012-153-080 C-CAP,S 120P-50 CH A...................

C 531 87-010-993-080 C-CAP,S 0.056-25 B A...................

C 532 87-010-993-080 C-CAP,S 0.056-25 B A...................

C 533 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 534 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 561 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 562 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 581 87-010-193-080 CHIP CAPACITOR,0.033 A...................

C 582 87-010-193-080 CHIP CAPACITOR,0.033 A...................

C 583 87-010-180-080 C-CER 1500P A...................

C 584 87-010-180-080 C-CER 1500P A...................

C 585 87-010-546-080 CAP, ELECT 0.33-50V A...................

C 586 87-010-546-080 CAP, ELECT 0.33-50V A...................

D 501 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 502 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 503 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 504 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 505 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 506 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 507 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 508 87-020-465-080 DIODE,1SS133 (110MA) A...................

L 551 87-005-366-010 COIL, 1UH A...................

L 552 87-005-366-010 COIL, 1UH A...................

Q 501 87-A30-257-080 C-TR,2SD1306E A...................

Q 502 87-A30-257-080 C-TR,2SD1306E A...................

Q 511 87-A30-075-080 C-TR,2SA1235F A...................

Q 512 87-A30-075-080 C-TR,2SA1235F A...................

Q 513 87-A30-075-080 C-TR,2SA1235F A...................

Q 514 87-A30-075-080 C-TR,2SA1235F A...................

Q 515 87-A30-076-080 C-TR,2SC3052F A...................

Q 516 87-A30-076-080 C-TR,2SC3052F A...................

Q 517 87-A30-076-080 C-TR,2SC3052F A...................

Q 518 87-A30-076-080 C-TR,2SC3052F A...................

Q 523 89-333-317-080 TR,2SC3331 (0.5W) A...................

Q 524 89-333-317-080 TR,2SC3331 (0.5W) A...................

Q 531 87-A30-127-010 TR,2SD2478 A...................

Q 532 87-A30-127-010 TR,2SD2478 A...................

Q 533 87-A30-126-010 TR,2SB1616 A...................

Q 534 87-A30-126-010 TR,2SB1616 A...................

Q 535 87-A30-076-080 C-TR,2SC3052F A...................

Q 536 87-A30-076-080 C-TR,2SC3052F A...................

R 535 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 536 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 537 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 538 87-A00-258-080 RES,M/F 0.22-1W J A...................

C 589 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 590 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 591 87-010-401-080 CAP, ELECT 1-50V A...................

C 592 87-010-401-080 CAP, ELECT 1-50V A...................

C 593 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 594 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 595 87-010-263-080 CAP, ELECT 100-10V A...................

C 596 87-010-263-080 CAP, ELECT 100-10V A...................

C 597 87-010-189-080 C-CAP,S 8200P-50 B A...................

C 598 87-010-189-080 C-CAP,S 8200P-50 B A...................

IC 580 87-001-596-010 IC,NJM4580L A...................

J 590 87-A60-420-010 JACK,3.5 ST (MSC) A...................

L 591 87-005-366-010 COIL, 1UH A...................

L 592 87-005-366-010 COIL, 1UH A...................

C 101 87-010-387-080 CAP,E 470-25 SME A...................

C 107 87-010-260-080 CAP, ELECT 47-25V A...................

C 108 87-010-260-080 CAP, ELECT 47-25V A...................

C 109 87-010-260-080 CAP, ELECT 47-25V A...................

C 110 87-010-260-080 CAP, ELECT 47-25V A...................

C 111 87-010-247-080 CAP, ELECT 100-50V A...................

C 112 87-010-263-080 CAP, ELECT 100-10V A...................

CN 101 87-099-411-010 CONN,11P V WHT EH A...................

D 101 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 102 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 103 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 104 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 105 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 107 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 108 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 120 87-A40-341-080 ZENER,MTZJ 36 A A...................

D 121 87-A40-553-080 DIODE,1N4003 LES A...................

D 122 87-A40-553-080 DIODE,1N4003 LES A...................

D 123 87-A40-553-080 DIODE,1N4003 LES A...................

D 124 87-A40-553-080 DIODE,1N4003 LES A...................

FC 101 87-A90-505-080 FUSE CLAMP,TP00351-51 A...................

ELECTRICAL MAIN PARTS LIST - 7/8

FC 102 87-A90-505-080 FUSE CLAMP,TP00351-51 A...................

PT 102 8Z-NF8-660-110 PT,SUB ZNF-8(D) ....................

PT 102 8Z-NF8-662-010 PT,SUB ZNF-8(E) ....................

PT 102 8Z-NF8-663-010 PT,SUB ZNF-8(H) ....................

PT 102 8Z-NF8-661-010 PT,SUB ZNF-8(U) A...................

Q 101 87-026-610-080 TR,KTC3198GR A...................

Q 105 89-113-184-080 TR,2SA1318T A...................

RY 102 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5 ....................

RY 102 87-A90-976-010 RELAY,AC12V SDT-S-112LMR A...................

SW 101 87-A90-234-010 SW,SL 1-2-2 SW2201 ....................

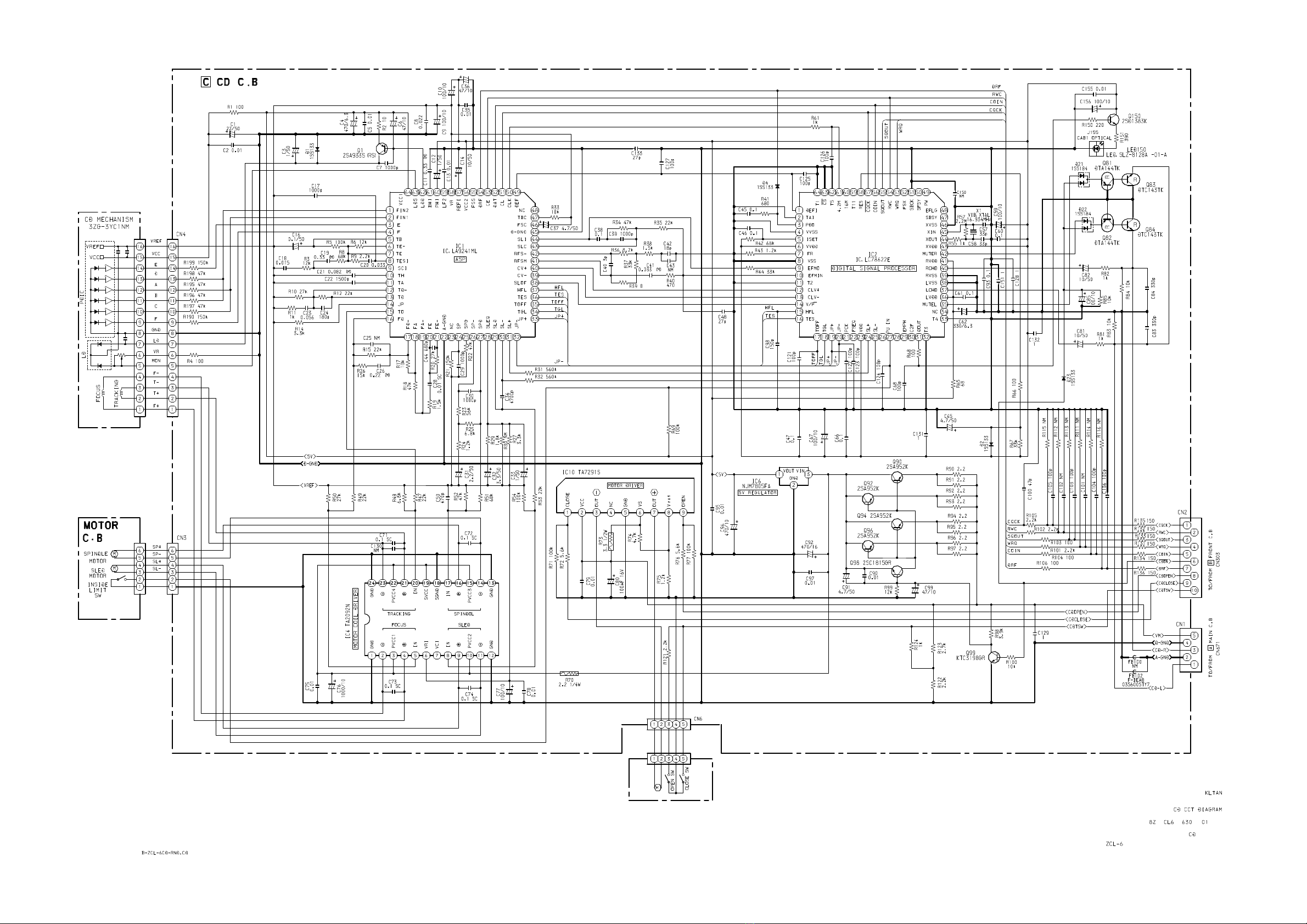

T 101 87-A60-317-010 TERMINAL, 1P MSC A...................

T 102 87-A60-317-010 TERMINAL, 1P MSC A...................

C 1 87-010-406-080 CAP, ELECT 22-50 A...................

C 2 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 3 87-010-401-080 CAP, ELECT 1-50V A...................

C 4 87-010-371-080 CAP, ELECT 470-6.3V A...................

C 5 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 6 87-010-374-080 CAP, ELECT 47-10V A...................

C 7 87-010-178-080 CHIP CAP 1000P A...................

C 8 87-010-198-080 CAP, CHIP 0.022 A...................

C 9 87-010-263-080 CAP, ELECT 100-10V A...................

C 10 87-010-263-080 CAP, ELECT 100-10V A...................

C 12 87-010-401-080 CAP, ELECT 1-50V A...................

C 13 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 14 87-010-405-080 CAP, ELECT 10-50V A...................

C 16 87-010-544-080 CAP, ELECT 0.1-50V A...................

C 17 87-010-178-080 CHIP CAP 1000P A...................

C 18 87-010-213-080 C-CAP,S 0.015-50 B A...................

C 20 87-016-369-080 C-CAP,S 0.033-25 B K A...................

C 21 87-A11-010-080 CAP,M 0.082-50 J DE A...................

C 22 87-010-180-080 C-CER 1500P A...................

C 23 87-010-993-080 C-CAP,S 0.056-25 B A...................

C 24 87-012-155-080 C-CAP 180P-50CH A...................

C 26 87-A11-014-080 CAP,M 0.22-50 J DE A...................

C 29 87-010-178-080 CHIP CAP 1000P A...................

C 30 87-010-178-080 CHIP CAP 1000P A...................

C 31 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 32 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 33 87-010-401-080 CAP, ELECT 1-50V A...................

C 34 87-010-186-080 CAP,CHIP 4700P A...................

C 35 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 36 87-010-374-080 CAP, ELECT 47-10V A...................

C 37 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 38 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 39 87-010-178-080 CHIP CAP 1000P A...................

C 40 87-010-147-080 C-CAP,S 3P-50 CH A...................

C 41 87-A11-006-080 CAP,M 0.033-50 J DE A...................

C 42 87-010-313-080 CAP, CHIP 18P A...................

C 44 87-010-176-080 C-CAP,S 680P-50 SL A...................

C 45 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 46 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 47 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 48 87-010-315-080 C-CAP,S 27P-50 CH A...................

C 50 87-012-140-080 CAP 470P A...................

C 57 87-010-316-080 C-CAP,S 33P-50 CH A...................

C 58 87-010-316-080 C-CAP,S 33P-50 CH A...................

C 59 87-010-263-080 CAP, ELECT 100-10V A...................

C 60 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 61 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 62 87-010-370-080 CAP,E 330-6.3 SME A...................

C 65 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 66 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 67 87-010-263-080 CAP, ELECT 100-10V A...................

C 68 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 75 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 76 87-A10-102-080 CAP,E 1000-10 REA A...................

C 77 87-010-263-080 CAP, ELECT 100-10V A...................

C 78 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 79 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 80 87-010-112-080 CAP, ELECT 100-16V A...................

C 81 87-010-405-080 CAP, ELECT 10-50V A...................

C 82 87-010-405-080 CAP, ELECT 10-50V A...................

C 83 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 84 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 85 87-010-263-080 CAP, ELECT 100-10V A...................

C 90 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 91 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 92 87-010-235-080 CAP,E 470-16 SME A...................

C 93 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 95 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 96 87-010-221-080 CAP, ELECT 470-10V A...................

C 97 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 98 87-012-154-080 C-CAP,S 150P-50 CH A...................

C 99 87-010-374-080 CAP, ELECT 47-10V A...................

C 100 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 103 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 104 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 105 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 106 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 121 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 122 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 123 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 124 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 125 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 126 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 127 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 128 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 129 87-010-805-080 CAP, S 1-16 A...................

C 131 87-010-805-080 CAP, S 1-16 A...................

C 132 87-010-805-080 CAP, S 1-16 A...................

C 138 87-010-315-080 C-CAP,S 27P-50 CH A...................

C 151 87-010-805-080 CAP, S 1-16 A...................

C 155 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 156 87-010-263-080 CAP, ELECT 100-10V A...................

CN 1 87-A60-130-010 CONN,5P V FE A...................

CN 2 87-099-203-010 CONN,10P 6216 H A...................

CN 3 87-A60-131-010 CONN,6P V FE A...................

CN 4 87-A60-248-010 CONN,16P H CFF1416 A...................

CN 6 87-A60-130-010 CONN,5P V FE A...................

D 1 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 2 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 4 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 21 87-020-027-080 CHIP-DIODE 1SS184 A...................

D 22 87-020-027-080 CHIP-DIODE 1SS184 A...................

D 23 87-020-465-080 DIODE,1SS133 (110MA) A...................

FB 102 87-A90-896-080 F-BEAD, 035600STY7 A...................

IC 1 87-A20-446-010 C-IC,LA9241ML A...................

IC 2 87-A20-459-010 C-IC,LC78622ED A...................

IC 4 87-A20-157-010 IC,TA2092N A...................

IC 6 87-020-903-010 IC,NJM7805FA A...................

IC 10 87-001-982-010 IC,TA7291S A...................

J 155 84-ZG1-244-310 CABI,OPTICAL A...................

LED 150 87-A40-558-010 LED,SLZ-8128A-01-A A...................

Q 1 87-026-463-080 TR,2SA933S (0.3W) A...................

Q 81 87-026-297-080 TR,DTA144TK A...................

Q 82 87-026-297-080 TR,DTA144TK A...................

Q 83 87-026-223-080 TR,DTC143TK A...................

Q 84 87-026-223-080 TR,DTC143TK A...................

Q 90 89-109-521-080 TR,2SA952 (0.6W) A...................

Q 92 89-109-521-080 TR,2SA952 (0.6W) A...................

Q 94 89-109-521-080 TR,2SA952 (0.6W) A...................

Q 96 89-109-521-080 TR,2SA952 (0.6W) A...................

Q 98 89-318-155-080 TR,2SC1815 (0.4W) A...................

Q 99 87-026-610-080 TR,KTC3198GR A...................

Q 150 87-A30-039-040 C-TR,2SD1383K A...................

R 70 87-029-124-090 RESISTOR, FUSE 1/4W 2.2 A...................

R 73 87-029-361-090 FUSING RESISTOR, 1/2W-3.3 A...................

X 1 87-A70-046-010 VIB,XTAL 16.934MHZ A...................

ELECTRICAL MAIN PARTS LIST - 8/8

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-CL6-030-010 BOX,CASS A...................

8Z-CL6-002-010 CABI,FR D ....................

8Z-CL6-001-010 CABI,FR U A...................

8Z-CL6-025-010 CABI,TOP A...................

8Z-CL6-038-010 PANEL,CASS A...................

8Z-CL6-040-010 PANEL,FR A...................

8Z-CL6-042-010 PANEL,FR D ....................

8Z-CL6-041-010 PANEL,FR EZ ....................

8Z-CL6-014-010 PANEL,REAR D ....................

8Z-CL6-012-010 PANEL,REAR EZ ....................

8Z-CL6-016-010 PANEL,REAR HRJ ....................

8Z-CL6-013-010 PANEL,REAR K ....................

8Z-CL6-011-010 PANEL,REAR LH ....................

8Z-CL6-010-010 PANEL,REAR U A...................

8Z-CL6-036-010 PANEL,TRAY A...................

8Z-CL6-064-010 KEY,CON A...................

8Z-CL6-063-010 KEY,DEMO A...................

8Z-CL6-062-010 KEY,ENTER A...................

8Z-CL6-065-010 KEY,FUNC A...................

8Z-CL6-076-010 KEY,FUNC ASSY A...................

8Z-CL6-061-010 KEY,OPEN A...................

8Z-CL6-067-010 KEY,OPEN D ....................

8Z-CL6-060-010 KEY,POWER A...................

8Z-CL6-066-010 KEY,POWER D ....................

8Z-CL6-081-010 KNOB,RTRY JOG A...................

8Z-CL6-080-010 KNOB,RTRY VOL A...................

* 8Z-CL6-203-010 GUIDE,LED FUNC A...................

87-B00-002-010 BADGE,AIWA 30 ABS SIL A...................

8Z-CL6-085-010 LENS,STANDBY A...................

8Z-CL6-050-010 WINDOW,CASS A...................

8Z-CL6-051-010 WINDOW,CASS D ....................

8Z-CL6-045-010 WINDOW,DISP A...................

8Z-CL6-046-010 WINDOW,DISP EZ ....................

88-CL4-215-010 CUSH,FOOT FR A...................

87-NF8-220-010 DMPR,150 A...................

8Z-CL6-202-010 HLDR,CD A...................

8Z-CL6-222-010 HLDR,HT-SINK A...................

87-NF4-217-010 HLDR,LOCK 2 A...................

8Z-CL6-225-010 HLDR,TRANS A...................

82-ZM1-264-010 LVR,EJECT R A...................

82-NF5-229-010 PLATE,LOCK A...................

86-NF9-224-010 SPR-C,LOCK A...................

88-CL4-220-010 SPR-T,CASS A...................

87-067-688-010 BVTT+3-6 A...................

87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................

87-067-689-010 TAPPING SCREW, BVTT+3-8 A...................

* 87-B10-230-010 BVT2+3-10 W/O SLOT SILVER CR A...................

* 87-B10-231-010 QT1+3-12 SILVER CR A...................

* 87-581-169-410 UIT+4-6 A...................

87-050-098-010 AC CODE ASSY,D ....................

87-A80-092-010 AC CORD ASSY,E BLK SUN FAI ....................

87-050-108-010 AC CORD ASSY,K 3PH ....................

87-A80-110-010 AC CORD ASSY,U SPT-2W A...................

84-ZG1-245-210 CAP,OPTICAL A...................

87-A90-562-010 F-BEAD,9.5-17.5-28.5 BRH ....................

88-910-261-210 FF-CABLE, 10P 1.25 260MM A...................

8Z-CL7-704-010 FF-CABLE, 16P 1.0 A...................

88-905-201-110 FF-CABLE, 5P 1.25 A...................

88-906-171-110 FF-CABLE,6P 1.25 A...................

87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................

CN 301 88-CL4-701-010 CONN ASSY,7P RPEH A...................

PT 101 8Z-CL6-605-010 PT,D EI66-60 ZCL6 ....................

PT 101 8Z-CL6-604-010 PT,EZ EI66-60 ZCL6 ....................

PT 101 8Z-CL6-602-010 PT,HR EI66-60 ZCL6 ....................

PT 101 8Z-CL6-603-010 PT,LH EI66-60 ZCL6 ....................

PT 101 8Z-CL6-601-010 PT,U EI66-60 ZCL6 A...................

87-030-375-080 VIB,CF 4.19MG200 A...................

W 101 8Z-CL6-642-010 CONN ASSY,11P ZCL6 A...................

WH 101 87-A91-179-010 HLDR,WIRE 2.5-11P A...................

87-067-689-010 TAPPING SCREW, BVTT+3-8 A...................

Other manuals for XR-M55

Table of contents

Popular Stereo System manuals by other brands

Sony

Sony HCD-VX88 Service manual

Philips

Philips MCM398D/12 user manual

Sony

Sony CMT-SPZ90DB operating instructions

LG OM4560 owner's manual

JVC

JVC UX-G3 instructions

Odys

Odys ODYS - LOOP instruction manual

Panasonic

Panasonic SC-AK100 operating instructions

Sharp

Sharp CD-G10000V Operation manual

Bogen

Bogen NEARSCAPES 4.1 manual

Panasonic

Panasonic SCPM29 - MINI HES W/CD PLAYER operating instructions

Meyer

Meyer LD-3 operating instructions

THOMSON

THOMSON MIC302U manual

Philips

Philips MCM530 Service manual

Sony

Sony SS-CEP50 Service manual

Cetacea Sound

Cetacea Sound CVS-II user guide

Sony

Sony MHC-V21D Service manual

Denon

Denon UCD-250 Service manual

Exibel

Exibel BDX600-UK user manual

Aiwa XR-M55 User manual

Popular Stereo System manuals by other brands
