SERVICE MANUAL
DATA
MD / CD
STEREO SYSTEM
BASIC TAPE MECHANISM : 2ZM-1 YR9NF
BASIC CD MECHANISM : 3ZG-3 YE3NC
BASIC MD MECHANISM : AZG-4A
XR-MD510
XR-MD511
D,K
EZ
S/M Code No. 09-004-422-8R1
REVISION
• !"#$%&'()*+,(-= uoJjaRNM=EaFI=EpLj=`çÇÉ=kçK=MVJMMOJQOOJUqNF
 !"#$%&'()*+&),-./$
• !"#$%&'()*=ja= !"#$% !"#$%
ja !"#$%&'(^wdJQ^=EpLj=`çÇÉ=kçK=MVJMMNJPQNJOkNF
 !"#$%&'()*+,-
• !"#$%&'()*=“DISASSEMBLY INSTRUCTION”= =“CD TEST MODE”
 !"#$ %&'()*+,-./0'
• This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
XR-MD510 / 511 (K / EZ), (S/M Code No. 09-002-422-8T2).
• If requiring information about the MD mechanism, see Service Manual of
AZG-4A, (S/M Code No. 09-001-341-2N2).
• This Service Manual does not include “DISASSEMBLY INSTRUCTION” and
“TEST MODE”. These items will be issued in the next Supplement.
MODEL CODE : 8ACJ4-0130 (S)
8ACJ4-0133 (SM)
XR–MD510/511
SYSTEM SPEAKER
SX-M510

– 2 –
TABLE OF CONTENTS
SPECIFICATIONS <D> ........................................................................................................................................................ 3
SPECIFICATIONS <K,EZ> ................................................................................................................................................... 4
 !"#$%EF !"...................................................................................................................................... 5
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING ....................................................................... 6
PRECAUTION TO REPLACE OPTICAL BLOCK/  !"#$%&'() KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK 6
ELECTRICAL MAIN PARTS LIST ............................................................................................................................. 7 ~ 12
TRANSISTOR ILLUSTRATION ......................................................................................................................................... 13
WIRING –1 (MAIN) ........................................................................................................................................................... 14

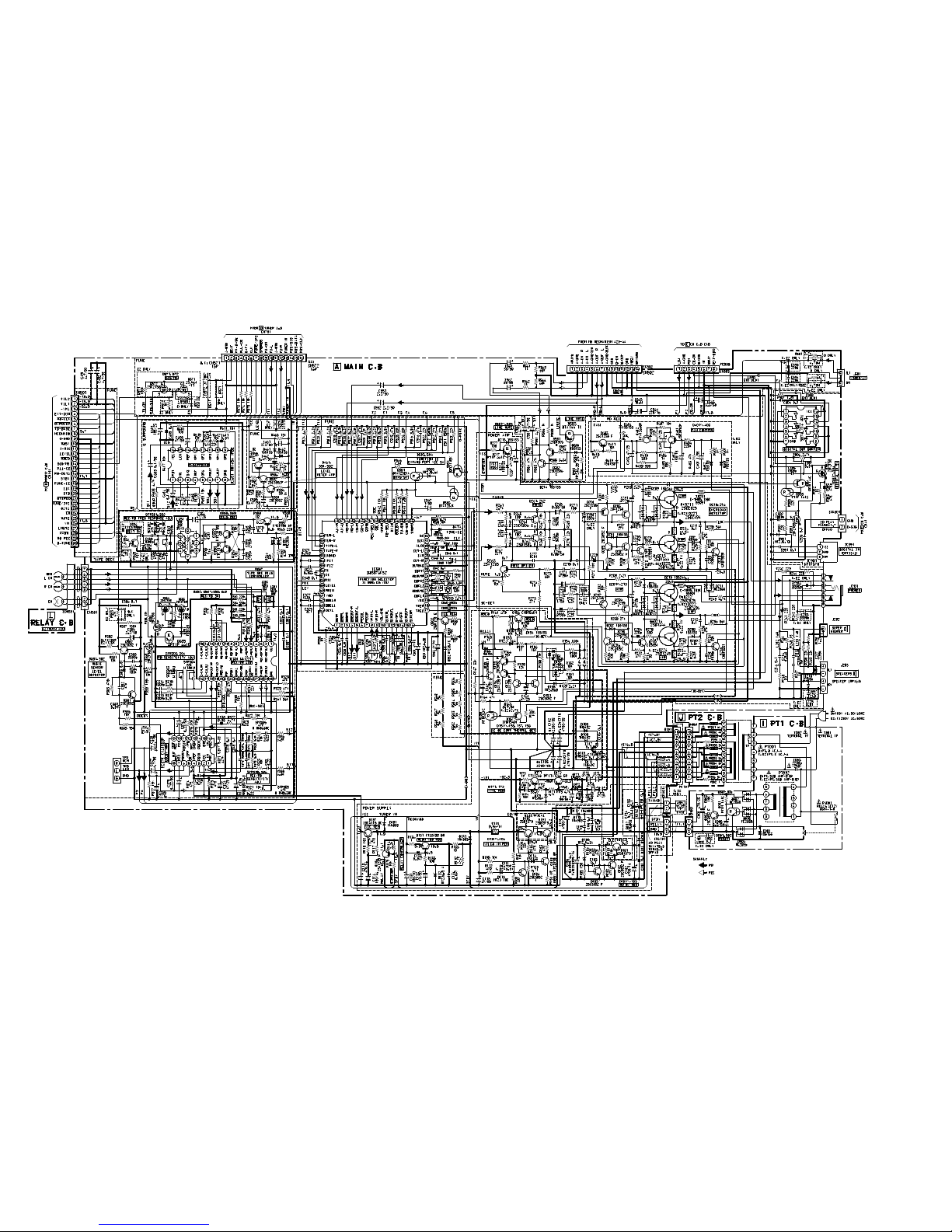

SCHEMATIC DIAGRAM –1 (MAIN / PT1 / PT2 / RELAY) ............................................................................................... 15
WIRING –2 (FRONT / SW-1 / SW-2) ................................................................................................................................ 16
SCHEMATIC DIAGRAM –2 (FRONT / SW-1 / SW-2 / FACE-A / FACE-B / FACE-C / DECK)........................................ 17
WIRING –3 (FACE-A / FACE-B / FACE-C)....................................................................................................................... 18
WIRING –4 (CD / CD LOAD / CD DRIVE) ........................................................................................................................ 19
SCHEMATIC DIAGRAM –3 (CD / CD LOAD / CD DRIVE) ............................................................................................. 20
WIRING –5 (D : TUNER) .................................................................................................................................................. 21
SCHEMATIC DIAGRAM –4 (D : TUNER) ........................................................................................................................ 22
WIRING –6 (K : TUNER)................................................................................................................................................... 23
SCHEMATIC DIAGRAM –5 (K : TUNER) ........................................................................................................................ 24
WIRING –7 (EZ : TUNER) ................................................................................................................................................ 25
SCHEMATIC DIAGRAM –6 (EZ : TUNER) ...................................................................................................................... 26
WIRING –8 (DECK / RELAY)............................................................................................................................................ 27
WIRING –9 (PT1 / PT2) .................................................................................................................................................... 28
IC BLOCK DIAGRAM................................................................................................................................................ 29 ~ 34
ADJUSTMENT (TUNER / DECK / FRONT / CD)....................................................................................................... 35 ~ 40
IC DESCRIPTION ...................................................................................................................................................... 41 ~ 54
FL (13-ST-44GNK ACJ-4) GRID ASSIGNMENT / ANODE CONNECTION ............................................................. 55, 56
MECHANICAL EXPLODED VIEW 1 / 1 ........................................................................................................................... 57
MECHANICAL PARTS LIST 1 / 1 .................................................................................................................................... 58
TAPE MECHANISM EXPLODED VIEW 1 / 1 ................................................................................................................. 59
TAPE MECHANISM PARTS LIST 1 / 1 .......................................................................................................................... 60
CD MECHANISM EXPLODED VIEW 1 / 2 ..................................................................................................................... 61
CD MECHANISM PARTS LIST 1 / 2 .............................................................................................................................. 62
CD MECHANISM EXPLODED VIEW 2 / 2 ..................................................................................................................... 63
CD MECHANISM PARTS LIST 2 / 2 .............................................................................................................................. 63
SPEAKER DISASSEMBLY INSTRUCTIONS ............................................................................................................. 64, 65
SPEAKER PARTS LIST <SX-M510> .............................................................................................................................. 66
ACCESSORIES / PACKAGE LIST .................................................................................................................................... 66

– 3 –
 ! " ! "
 ! " ! "
 ! "


cjcj
cjcj
cj


 !" !"
 !" !"
 !"

TSjeò NMUjeò
 ! !
 ! !
 !

TR  !"


^j^j
^j^j
^j


 !" !"
 !" !"
 !"

RPNâeò NSMOâeò
 ! !
 ! !
 !

 !"#$
 !"#$ !"#$
 !"#$ !"#$
 !"#$
 !"#$%& !"#$%&
 !"#$%& !"#$%&
 !"#$%&

 !"#$ !"#
 !"#$  !"#$
 !"#$  !"#$
 !"#$ 

R !"#$% OQM 
 ! !
 ! !
 !

NO  LOQ  !
 ! !
 ! !
 !
 ! !
 ! !
 !

PMt PMtNâeòSNMbf^g
 ! !
 ! !
 !

^ruLsfabl=fk= PNMãs
afdfq^i=fk=
 ! !
 ! !
 !

pr bo=tllcbo==NKQs
p b^hbop==S
elkbp= PO 
 !" #$ !" #$
 !" #$ !" #$
 !" #$
 !"# !"#
 !"# !"#
 !"#

Q ! O !"
 !" !"
 !" !"
 !"

 !"#$%&'=====RM NSMMMeò
 !"#=====RM NRMMMeò
`a`a
`a`a
`a ! " ! "
 ! " ! "
 ! "
 ! !
 ! !
 !

 !"#$%!
 !"# !"#
 !"# !"#
 !"#

 !"#$%&'
 !"#$#%&'
 
 
 

NÄáí  !





 !" !"
 !" !"
 !"

 !"#
jaja
jaja
ja ! " ! "
 ! " ! "
 ! "





 !"# $%&'( !')"*+
 !"# !"#
 !"# !"#
 !"#

 !"#$%&'
 !"#$#%&'
 ! !
 ! !
 !

 !"#$#%&'()
 
 
 

QMM VMMêéã`is
 !"#$% !"#$%
 !"#$% !"#$%
 !"#$%

QQKNâeò
 !"#$% !"#$%
 !"#$% !"#$%
 !"#$%
 !"!#$ !"!#$
 !"!#$ !"!#$
 !"!#$

POâeò QQKNâeò QUâeò
 !"# !"#
 !"# !"#
 !"#

 ! O !"#$%&" N

 ! !
 ! !
 !

bcj
^La^La
^La^La
^La


aL^aL^
aL^aL^
aL^ 
 
 

NÄáí
 !" !"
 !" !"
 !"

OM OMIMMMeò MKR  NKRÇ_





 !" !"
 !" !"
 !"

 ! MKMMNtK b^h
 
 






^`=NMMsRMLSMeò
 ! !
 ! !
 !

SRt
 !"#$% !"#$%
 !"#$% !"#$%
 !"#$%

NTR ORT PPP !ãã
 ! !
 ! !
 !

SKRâÖ
 !  !
 !  !
 !





O !"#$% & !bf^gF
 !"# !"#
 !"# !"#
 !"#

S
 !"#$ !"#$
 !"#$ !"#$
 !"#$

USÇ_LtLã
 !"#" !"#"
 !"#" !"#"
 !"#"

  NPÅã !"! OKOÅã
 !"# !"#
 !"# !"#
 !"#

NRR ORQ ONM !ãã





OKShÖ
• !"#$%&'()*+,-./012+3
•__b __b !"#$%__b !"#!$%&'#
 !"#$%&__b !"#!$%&'#()"*+,-
 !"#$%&'()*
• !"#$%&'()*+ !,-,.%!$,#/*(*
 !" #$%&'()*+,-./012345678
 !I=ali_v= !"=a==h= !"#$#%&"'
 !"!#$%&'%"(!)*+,-.
SPECFICATIONS <D>

– 4 –
Main unit
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 16.8 dBf
Antenna terminals 75 ohms (unbalanced)
<MW tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<LW tuner section>
Tuning range 144 kHz to 290 kHz
Usable sensitivity 1400 µV/m
Antenna Loop antenna
<Amplifier section>
Power output Rated: 25 W + 25 W (6 ohms,
T.H.D. 1 %, 1 kHz / DIN 45500)
Reference: 30 W + 30 W (6 ohms,
T.H.D. 10 %, 1 kHz / DIN 45324)
EZ: DIN MUSIC POWER
42 W + 42 W
Inputs AUX / VIDEO IN: 310 mV
DIGITAL IN (OPTICAL)
Sampling frequency: 48 kHz / 32 kHz
Optical input level: more than -21 dBm
Outputs SUPER WOOFER: 1.2 V
SPEAKERS: accept speakers of 6
ohms or more
PHONES (stereo mini jack): accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response CrO2 tape : 50 Hz – 16000 Hz
Normal tape : 50 Hz – 15000 Hz
Signal-to-noise ratio 45 dB (Dolby B NR ON, CrO2tape
peak level)
Recording system AC bias
Heads Recording / Playback head x 1,
erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ = 780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
SPECIFICATIONS <K,EZ>
<MD recorder section>
Scanning method Non-contact optical scanner
(Semiconductor laser application)
Recording system Magnetic polarity modulation
overwrite system
Rotation speed Approx. 400 to 900 rpm (CLV)
Sampling frequency 44.1kHz
No. of channels Stereo: 2 channels
Monaural: 1 channel
A-D, D-A converter 1-bit
Frequency 20 to 20000 Hz +0.5 to -1.5 dB
Wow and flutter Unmeasurable
<General>
Power requirements 230 V AC, 50 Hz
Power consumption 90 W
Standby power consumption 1.0 W (power-economizing
mode set to ON or AUTO)
Dimensions of main unit 175 x 257 x 333 mm
(W xH xD)
Weight of main unit 6.5 kg
<Speaker system>
Cabinet type 2 way, bass reflex (magnetic
shielded type)
Speakers Woofer : 130 mm
Tweeter: 22 mm cone type
Impedance 6 ohms
Output sound pressure level 86 dB/W/m
Dimensions 155 x 254 x 210 mm
(W xH xD)
Weight 2.6 kg
• Design and specifications are subject to change without notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
• Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.

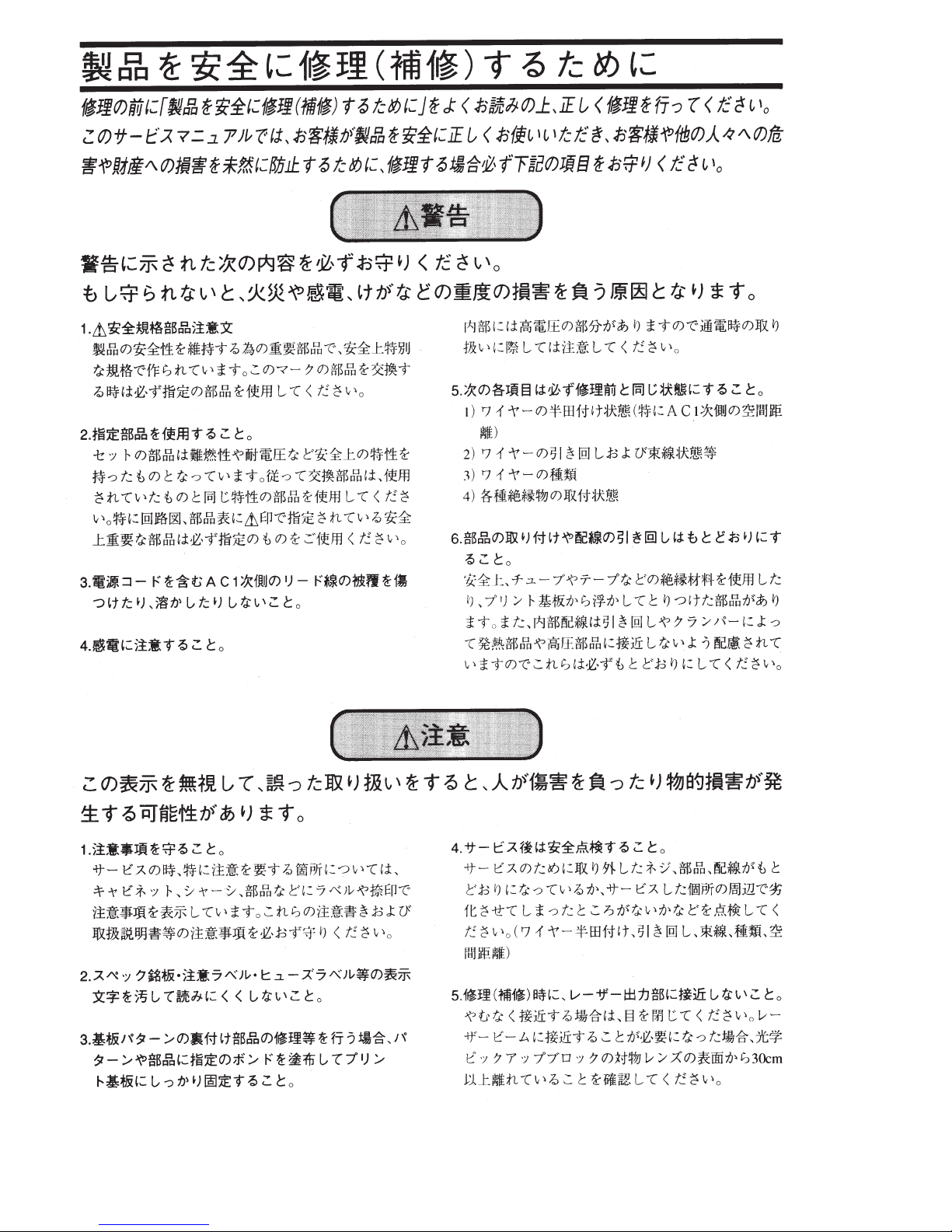

– 5 –

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgåudsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässäkäyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används påannat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer
ude af funktion. Undgåudsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
(KSS-213F, KMS-260B)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
the figure below.
MD PICK-UP Assy P.C.B
(KMS-260B)
CD PICK-UP Assy P.C.B
(KSS-213F)
Solder
1 VEE
- TRK-
▲
Pattern
Solder
 !"#$%&'()(*+,(-./
 !"#$%&#'()#*+,-./01
 ! !"#$%&'()"* !
 !"#$%&'( !"#$%
 !"#$%
 !"#$%&' !"#$%&'(
 !"# $
Precaution to replace Optical block /  !"#$%&'()
–6 –
 !  !"
 !
1
-

– 7 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
IC
87-A20-446-010 1E C-IC,LA9241ML
87-A20-459-010 2A C-IC,LC78622ED
87-A20-445-010 1F IC,BA5936
87-A21-021-040 1B C-IC,BU2099FV
8A-CJ4-601-010 -- C-IC,LC87F65C8AU:ACJ-4
87-A21-573-010 -- IC,SPS-448-1-E
87-A20-455-010 1E IC,HA12211
87-A20-355-010 1C IC,CXA1553P
87-017-917-080 1A IC,BU4066BCF
87-A21-452-040 -- C-IC,BD3876KS2
87-A21-103-040 1E C-IC,MM1454XFBE
87-070-289-040 1B IC,BU 2092F
87-A20-870-010 1F IC,GP1F37R
87-A20-971-040 1A C-IC,SN74LV14APW
87-070-127-110 1C IC,LC72131D
87-A20-913-010 1D IC,LA1837NL
87-070-060-040 1F C-IC,TA2040AF<D>
87-A20-440-040 C-IC,BU1920FS<EZ>
87-020-454-010 1A IC,DN6851
TRANSISTOR
87-A30-073-080 0E C-TR,RT1N 141C
87-026-463-080 0E TR,2SA933S (0.3W)
87-A30-076-080 0E C-TR,2SC3052F
89-113-187-880 0E TRANSISTOR,2SA1318 (0.5W)
87-A30-047-080 0E TR,CSD655E
89-213-702-010 1A TR,2SB1370 (1.8W)
87-A30-075-080 0E C-TR,2SA1235F
87-A30-234-080 0E TR,CSC4115BC
87-026-610-080 0E TR,KTC3198GR
87-A30-107-070 0E C-TR,CMBT5401
87-A30-087-080 0E C-FET,2SK2158
87-A30-074-080 0E C-TR,RT1P 141C
87-026-609-080 0E TR,KTA1266GR
87-A30-190-080 0E TR,CC5551
87-A30-215-010 1B TR,2SD2025<D>
87-A30-214-010 1B TR,2SB1344<D>
87-A30-106-070 0E C-TR,CMBT5551
87-A30-105-080 0E C-TR,RT1P 441C
87-A30-137-010 TR,2SD2494<K,EZ>
87-A30-138-010 TR,2SB1625<K,EZ>
87-A30-257-080 0E C-TR,2SD1306E
87-A30-240-080 0E TR,CSA1585BC
87-026-239-080 0E TR,DTC114TK (0.2W)
87-A30-159-080 0E C-TR,KTA1298Y
87-A30-084-080 0E TR,CSB1058B
87-A30-142-040 0E C-TR,DTA123EKA
87-026-580-080 -- C-TR,DTA123JK
87-026-235-080 -- C-TR,DTC114EK
87-A30-269-040 C-FET,2SJ461-T1<EZ>
87-026-297-080 0E TR,DTA144TK
87-A30-071-080 0E C-TR,RT1N 144C
87-A30-072-080 0E C-TR,RT1P 144C
89-327-143-080 0E C-TR,2SC2714(0.1W)
87-026-226-080 0E C-TR,DTA143EK
89-505-434-540 -- C-FET,2SK543(4/5)
87-A30-086-070 -- C-TR,CSD1306E
87-A30-196-080 -- TR,2SC4115SRS
DIODE
87-020-465-080 0E DIODE,1SS133 (110MA)
87-A40-270-080 0E C-DIODE,MC2838
87-A40-269-080 0E C-DIODE,MC2836
87-070-274-080 0E DIODE,1N4003 SEM
87-070-022-010 0E DIODE,IN5402 (RECT)
87-A40-345-080 0E ZENER,MTZJ10C
87-A40-650-080 0E ZENER,MTZJ6.8A
87-A40-004-080 0E ZENER,MTZJ16A
87-070-322-080 0E ZENER,MTZJ 36D
87-A40-341-080 0E ZENER,MTZJ 36 A
87-A40-003-080 0E ZENER,MTZJ4.3A
87-A40-250-040 0E C-DIODE,DAN217
87-A40-488-080 0E DIODE,1SS244
87-020-465-010 0E DIODE,1SS133 (110MA)
87-A40-437-080 -- ZENER,MTZJ4.3B
87-A40-002-080 0E ZENER,MTZJ5.1C
87-A40-234-080 0E ZENER,MTZJ5.6A
87-017-932-080 0E ZENER,MTJ6.2B
87-070-136-080 0E ZENER,MTZJ5.1B
87-017-149-080 0E ZENER,HZS6A2L
MAIN C.B
C102 87-016-051-000 1B CAP,E 2200-35 M SMG<D>
C103 87-016-051-000 1B CAP,E 2200-35 M SMG<D>
C104 87-012-368-080 0E C-CAP,S 0.1-50 F
C105 87-012-368-080 0E C-CAP,S 0.1-50 F
C106 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C107 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C108 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C109 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C110 87-010-928-000 1B CAP,E 4700-25 M SMG
C111 87-012-140-080 0E CAP 470P<D>
C111 87-010-197-080 0E CAP, CHIP 0.01 DM
C113 87-010-408-080 0E CAP, ELECT 47-50V
C114 87-010-112-080 0E CAP, ELECT 100-16V
C115 87-010-235-080 0E CAP,E 470-16 SME
C116 87-012-368-080 0E C-CAP,S 0.1-50 F
C117 87-012-368-080 0E C-CAP,S 0.1-50 F
C118 87-016-658-000 CAP,E 4700-35 M SMG<K,EZ>
C119 87-016-658-000 CAP,E 4700-35 M SMG<K,EZ>
C131 87-010-263-080 0E CAP, ELECT 100-10V
C132 87-010-405-080 0E CAP, ELECT 10-50V
C133 87-010-194-080 0E CAP, CHIP 0.047
C134 87-010-194-080 0E CAP, CHIP 0.047
C161 87-010-260-080 0E CAP, ELECT 47-25V
C162 87-010-403-080 0E CAP, ELECT 3.3-50V
C163 87-010-197-080 0E C-CAP,S 0.01-25 KB
C171 87-010-260-080 0E CAP, ELECT 47-25V
C172 87-010-260-080 0E CAP, ELECT 47-25V
C173 87-010-260-080 0E CAP, ELECT 47-25V
C174 87-010-260-080 0E CAP, ELECT 47-25V
C175 87-010-247-080 0E CAP, ELECT 100-50V
C176 87-010-263-080 0E CAP, ELECT 100-10V
C181 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C182 87-A11-233-090 1B CAP,E 4700-16 105 KMG
C183 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C186 87-016-080-090 CAP,E 3300-16 M SMG<K,EZ>
C186 87-010-373-090 0E CAP,E 3300-6.3 M SME<D>
C191 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C192 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C193 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C194 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C201 87-010-260-080 0E CAP, ELECT 47-25V
C202 87-010-260-080 0E CAP, ELECT 47-25V
C203 87-A10-946-080 0E C-CAP,S 220P-100 J CH
C204 87-A10-946-080 0E C-CAP,S 220P-100 J CH
C209 87-010-178-080 0E CHIP CAP 1000P
C210 87-010-178-080 0E CHIP CAP 1000P
C211 87-012-368-080 0E C-CAP,S 0.1-50 F
C212 87-012-368-080 0E C-CAP,S 0.1-50 F
C213 87-010-195-080 0E C-CAP,S 0.068-25 F
C214 87-010-195-080 0E C-CAP,S 0.068-25 F
C215 87-012-368-080 0E C-CAP,S 0.1-50 F
C216 87-012-368-080 0E C-CAP,S 0.1-50 F
C217 87-010-182-080 0E C-CAP,S 2200P-50 B

– 8 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
C218 87-010-182-080 0E C-CAP,S 2200P-50 B
C219 87-012-368-080 0E C-CAP,S 0.1-50 F
C220 87-012-368-080 0E C-CAP,S 0.1-50 F
C221 87-010-186-080 0E CAP,CHIP 4700P
C222 87-010-186-080 0E CAP,CHIP 4700P
C223 87-010-401-080 0E CAP, ELECT 1-50V
C224 87-010-401-080 0E CAP, ELECT 1-50V
C225 87-010-197-080 CAP, CHIP 0.01 DM<K,EZ>
C226 87-010-197-080 CAP, CHIP 0.01 DM<K,EZ>
C261 87-010-197-080 0E C-CAP,S 0.01-25 KB
C262 87-010-197-080 0E C-CAP,S 0.1-25 KB
C265 87-010-546-080 0E CAP, ELECT 0.33-50V
C266 87-010-546-080 0E CAP, ELECT 0.33-50V
C267 87-010-260-080 0E CAP, ELECT 47-25V
C277 87-010-197-080 0E C-CAP,S 0.01-25 KB
C281 87-012-157-080 C-CAP,S 330P-50 CH<K,EZ>
C282 87-012-157-080 C-CAP,S 330P-50 CH<K,EZ>
C283 87-010-184-080 CHIP CAPACITOR 3300P(K)<K,EZ>
C284 87-010-184-080 CHIP CAPACITOR 3300P(K)<K,EZ>
C303 87-012-157-080 0E C-CAP,S 330P-50 CH
C304 87-012-157-080 0E C-CAP,S 330P-50 CH
C307 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C311 87-012-365-080 0E C-CAP,S 0.027-25 KB
C312 87-012-365-080 0E C-CAP,S 0.027-25 KB
C315 87-010-181-080 0E CAP,CHIP S 1800P
C316 87-010-181-080 0E CAP,CHIP S 1800P
C317 87-A10-201-080 0E C-CAP,S0.33-16 KB
C318 87-A10-201-080 0E C-CAP,S0.33-16 KB
C319 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F
C320 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F
C321 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F
C322 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F
C324 87-010-260-080 0E CAP, ELECT 47-25V
C325 87-010-370-080 0E CAP,E 330-6.3 SME
C327 87-010-404-080 0E CAP, ELECT 4.7-50V
C328 87-010-404-080 0E CAP, ELECT 4.7-50V
C332 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C335 87-010-401-080 0E CAP, ELECT 1-50V
C336 87-010-401-080 0E CAP, ELECT 1-50V
C337 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C339 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C340 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C351 87-012-140-080 0E CAP 470P
C352 87-012-140-080 0E CAP 470P
C354 87-010-175-080 0E CAP 560P
C355 87-010-178-080 0E CHIP CAP 1000P
C356 87-010-260-080 0E CAP, ELECT 47-25V
C357 87-010-197-080 0E CAP, CHIP 0.01 DM
C358 87-010-183-080 0E C-CAP,S 2700P-50 B
C359 87-010-183-080 0E C-CAP,S 2700P-50 B
C360 87-010-183-080 0E C-CAP,S 2700P-50 B
C370 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C371 87-010-179-080 0E CAP,CHIP S B1200P
C372 87-010-179-080 0E CAP,CHIP S B1200P
C373 87-010-185-080 0E C-CAP,S 3900P-50 KB
C374 87-010-185-080 0E C-CAP,S 3900P-50 KB
C375 87-010-545-080 0E CAP, ELECT 0.22-50V
C376 87-010-545-080 0E CAP, ELECT 0.22-50V
C378 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C381 87-010-197-080 0E CAP, CHIP 0.01 DM
C382 87-010-318-080 0E C-CAP,S 47P-50 CH
C383 87-010-197-080 0E CAP, CHIP 0.01 DM
C384 87-010-402-080 0E CAP, ELECT 2.2-50V
C385 87-010-184-080 0E CHIP CAPACITOR 3300P(K)
C386 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C388 87-012-156-080 0E C-CAP,S 220P-50 CH
C389 87-010-380-080 0E CAP,E 47-16 M 11L SME
C401 87-010-401-080 CAP, ELECT 1-50V<K,EZ>
C402 87-010-263-080 CAP, ELECT 100-10V<K,EZ>
C403 87-010-260-080 CAP, ELECT 47-25V<K,EZ>
C410 87-010-260-080 CAP,E 47-25 M 11L SME<K,EZ>
C461 87-010-402-080 0E CAP, ELECT 2.2-50V
C462 87-010-400-080 0E CAP, ELECT 0.47-50V
C491 87-010-404-080 0E CAP, ELECT 4.7-50V
C492 87-010-404-080 0E CAP, ELECT 4.7-50V
C501 87-010-374-080 0E CAP, ELECT 47-10V
C502 87-010-374-080 0E CAP, ELECT 47-10V
C511 87-010-180-080 0E C-CER 1500P
C512 87-010-180-080 0E C-CER 1500P
C515 87-010-318-080 0E C-CAP,S 47P-50 CH
C516 87-010-318-080 0E C-CAP,S 47P-50 CH
C517 87-010-318-080 0E C-CAP,S 47P-50 CH
C518 87-010-318-080 0E C-CAP,S 47P-50 CH
C521 87-010-956-080 0E CHIP-CAP,S 0.068-25B
C522 87-016-369-080 0E C-CAP,S 0.033-25 B K
C524 87-010-401-080 0E CAP, ELECT 1-50V
C525 87-016-081-080 0E C-CAP,S 0.1-16 RK
C526 87-016-081-080 0E C-CAP,S 0.1-16 RK
C527 87-010-197-080 0E CAP, CHIP 0.01 DM
C528 87-010-197-080 0E CAP, CHIP 0.01 DM
C531 87-010-404-080 0E CAP, ELECT 4.7-50V
C532 87-010-404-080 0E CAP, ELECT 4.7-50V
C535 87-A11-590-080 0E C-CAP,S 0.047-16 K B
C536 87-A11-590-080 0E C-CAP,S 0.047-16 K B
C537 87-010-400-080 0E CAP, ELECT 0.47-50V
C538 87-010-400-080 0E CAP, ELECT 0.47-50V
C539 87-010-185-080 0E C-CAP,S 3900P-50 B
C540 87-010-185-080 0E C-CAP,S 3900P-50 B
C541 87-A10-307-080 0E CAP,M 0.1-50 J
C542 87-A10-307-080 0E CAP,M 0.1-50 J
C543 87-A10-307-080 0E CAP,M 0.1-50 J
C544 87-A10-307-080 0E CAP,M 0.1-50 J
C545 87-016-081-080 0E C-CAP,S 0.1-16 RK
C546 87-016-081-080 0E C-CAP,S 0.1-16 RK
C547 87-010-401-080 0E CAP, ELECT 1-50V
C548 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C549 87-010-401-080 0E CAP, ELECT 1-50V
C550 87-010-401-080 0E CAP, ELECT 1-50V
C551 87-010-402-080 0E CAP, ELECT 2.2-50V
C552 87-010-402-080 0E CAP, ELECT 2.2-50V
C561 87-010-407-080 0E CAP, ELECT 33-50V
C562 87-010-407-080 0E CAP, ELECT 33-50V
C563 87-012-158-080 0E C-CAP,S 390P-50 CH
C564 87-010-101-080 0E CAP, ELECT 220-16
C565 87-010-403-080 0E CAP,E 3.3-50 M 11L SME
C571 87-012-158-080 C-CAP,S 390P-50 J CH<K,EZ>
C581 87-010-404-080 0E CAP, ELECT 4.7-50V
C582 87-010-404-080 0E CAP, ELECT 4.7-50V
C593 87-012-156-080 C-CAP,S 220P-50 J CH<K,EZ>
C594 87-012-156-080 C-CAP,S 220P-50 J CH<K,EZ>
C595 87-010-400-080 0E CAP, ELECT 0.47-50V
C603 87-010-544-080 0E CAP, ELECT 0.1-50V
C604 87-010-544-080 0E CAP, ELECT 0.1-50V
C605 87-010-408-080 0E CAP, ELECT 47-50V
C607 87-010-405-080 0E CAP, ELECT 10-50V
C608 87-010-405-080 0E CAP, ELECT 10-50V
C609 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C610 87-010-384-080 0E CAP, ELECT 100-25V
C611 87-010-197-080 0E CAP, CHIP 0.01 DM
C612 87-010-197-080 0E CAP, CHIP 0.01 DM
C901 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C902 87-010-178-080 0E CHIP CAP 1000P
C903 87-010-178-080 0E CHIP CAP 1000P
C904 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C905 87-012-140-080 0E CAP 470P
C906 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C907 87-010-197-080 0E CAP, CHIP 0.01 DM
CN301 87-A60-624-010 0E CONN,7P V 2MM JMT
CN401 87-A60-619-010 CONN,2P V 2MM JMT<K,EZ>
CN501 87-099-719-010 1B CONN,30P TYK-B(X)

– 9 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
CN502 87-A60-423-010 0E CONN,14P V TOC-B
CN503 87-A60-133-010 0E CONN,8P V FE
CN571 87-099-570-010 1A CONN,13P TUC-P13P-B1<D,K>
CN572 87-A60-189-010 CONN,16P V TUC-P16P-B1<EZ>
CNA101 8A-CJ4-640-010 -- CONN ASSY,3P V AC1
CNA901 8Z-CL4-656-010 0E CONN ASSY,2P V DTL SHLD
FC101 8Z-CL4-658-010 1A F-CABLE,10P 2.5 300MM
FC502 8A-CJ4-648-010 -- FF-CABLE,14P 1.0
FC503 88-908-201-110 1A FF-CABLE 8P 1.25
J201 87-A60-420-010 1A JACK,3.5 ST (MSC)
J202 87-099-801-010 0E JACK,PIN 1P BLK
J203 87-A60-238-010 1A TERMINAL,SP 4P (MSC)
J501 87-A60-354-010 1B JACK,PIN 2P MSP -242V-05
L201 87-003-383-010 1A COIL,1UH-S
L202 87-003-383-010 1A COIL,1UH-S
L301 87-A50-049-010 0E COIL,TRAP 85K(COI)
L302 87-A50-049-010 0E COIL,TRAP 85K(COI)
L351 87-007-342-010 0E COIL,OSC 85K BIAS
L563 87-A50-517-080 -- COIL,10UHK FLR88
L590 87-008-372-080 0E FILTER, EMI BL OIRNI
L908 87-008-372-080 0E FILTER, EMI BL OIRNI
R215 87-A00-258-080 0E RES,M/F 0.22-1W J
R216 87-A00-258-080 0E RES,M/F 0.22-1W J
R217 87-A00-258-080 0E RES,M/F 0.22-1W J
R218 87-A00-258-080 0E RES,M/F 0.22-1W J
R219 87-A00-258-080 0E RES,M/F 0.22-1W J
R220 87-A00-258-080 0E RES,M/F 0.22-1W J
R591 87-003-143-080 COIL 4.7 UH<K,EZ>
R592 87-003-143-080 COIL 4.7 UH<K,EZ>
SFR303 87-A90-557-080 0E SFR,33K H HOKU
SFR304 87-A90-557-080 0E SFR,33K H HOKU
SFR305 87-024-436-080 0E SFR,47K RH063EC
SFR306 87-024-436-080 0E SFR,47K RH063EC
SFR351 87-024-436-080 0E SFR,47K RH063EC
SFR352 87-024-436-080 0E SFR,47K RH063EC
TH251 87-A91-042-080 0E C-THMS,100K 55001
TH252 87-A91-042-080 0E C-THMS,100K 55001
FRONT C.B
C161 87-010-196-080 0E C-CAP,S 0.1-25 ZF
C162 87-010-322-080 0E C-CAP,S 100P-50 J CH
C201 87-010-316-080 0E C-CAP,S 33P-50 CH
C203 87-010-313-080 0E CAP, CHIP 18P
C204 87-018-209-080 0E CAP, CER 0.1-50V
C205 87-010-196-080 0E C-CAP,S 0.1-25 ZF
C206 87-018-209-080 0E CAP, CER 0.1-50V
C207 87-018-209-080 0E CAP, CER 0.1-50V
C231 87-010-560-040 0E CAP,E 10-50 GAS
C232 87-010-178-080 0E CHIP CAP 1000P
C241 87-016-526-080 0E C-CAP,S 0.47-16 BK
C242 8A-CJ4-635-010 0E CAP,E 470-10 SRG3.5PITCH
C243 87-010-196-080 0E C-CAP,S 0.1-25 ZF
C246 87-012-393-080 0E C-CAP,S 0.22-16 K
C250 87-015-883-080 0E CHIP CAPACITOR, 0.022 (D)
C351 87-010-197-080 0E C-CAP,S 0.01-25 KB
C352 87-010-197-080 0E C-CAP,S 0.01-25 KB
C353 87-010-197-080 0E C-CAP,S 0.01-25 KB
C354 87-010-197-080 0E C-CAP,S 0.01-25 KB
C371 87-010-552-040 0E CAP,E 22-16 M 5L
C372 87-010-552-040 0E CAP,E 22-16 M 5L
C373 87-A12-078-040 0E CAP,E 47-35 SMG
CN101 87-099-720-010 1B CONN,30P TYK-B(P)
CN102 87-A60-984-010 -- CONN,17P V TOC-B
CN301 87-A60-626-010 0E CONN,9P V 2MM JMT
CNA303 8A-CJ4-641-010 -- CONN ASSY,7P H SW
CNA304 8A-CJ4-649-010 -- CONN ASSY,4P V FR
CNA401 88-802-092-420 1B CONN ASSY,9P
FC102 8A-CJ4-645-010 -- FF-CABLE,17P 1.0
FL301 8A-CJ4-604-010 -- FL,13-ST-44GNK ACJ-4
L201 87-A50-333-010 0E COIL,OSC 9.43MHZ
LED151 87-A40-317-080 0E LED,SLR-342VCT31 RED
LED152 87-A40-317-080 0E LED,SLR-342VCT31 RED
LED153 87-A40-317-080 0E LED,SLR-342VCT31 RED
LED154 87-A40-317-080 0E LED,SLR-342VCT31 RED
LED155 87-A40-317-080 0E LED,SLR-342VCT31 RED
LED156 87-A40-317-080 0E LED,SLR-342VCT31 RED
LED161 87-A40-786-080 -- LED,SMLS1BE16WTP4 BLU/UMB
LED162 87-A40-786-080 -- LED,SMLS1BE16WTP4 BLU/UMB
LED163 87-A40-786-080 -- LED,SMLS1BE16WTP4 BLU/UMB
S301 87-A90-095-080 0E SW,TACT EVQ11G04M
S302 87-A90-095-080 0E SW,TACT EVQ11G04M
S303 87-A90-095-080 0E SW,TACT EVQ11G04M
S304 87-A90-095-080 0E SW,TACT EVQ11G04M
S305 87-A90-095-080 0E SW,TACT EVQ11G04M
S306 87-A90-095-080 0E SW,TACT EVQ11G04M
S307 87-A90-095-080 0E SW,TACT EVQ11G04M
S308 87-A90-095-080 0E SW,TACT EVQ11G04M
S309 87-A90-095-080 SW,TACT EVQ11G04M<EZ>
S310 87-A90-095-080 0E SW,TACT EVQ11G04M
S311 87-A90-095-080 0E SW,TACT EVQ11G04M
S312 87-A90-095-080 0E SW,TACT EVQ11G04M
S352 87-A91-687-010 -- SW,RTRY RE012102PV-VOL
SW351 87-A91-753-010 -- SW,RTRY RE12E12504-JOG
X201 87-XMN-602-010 1B VIB,PIEZO PKM13EPY
CD C.B
C1 87-010-544-080 0E CAP, ELECT 0.1-50V
C2 87-010-197-080 0E CAP, CHIP 0.01 DM
C3 87-010-264-080 0E CAP,E 100-10 5L
C4 87-010-248-080 0E CAP, ELECT 220-10V
C5 87-010-197-080 0E CAP, CHIP 0.01 DM
C6 87-010-233-010 0E CAP,E 47-10 M 5L SRE
C7 87-012-349-080 0E C-CAP,S 1000P-50 CH
C8 87-010-198-080 0E CAP, CHIP 0.022
C9 87-010-248-080 0E CAP, ELECT 220-10V
C10 87-010-264-080 0E CAP,E 100-10 5L
C12 87-010-071-080 0E CAP, ELECT 1-50 M 5L SRE
C13 87-010-193-080 0E CHIP CAPACITOR,0.033
C14 87-010-415-080 0E CAP ELE SRE 10-50V
C17 87-012-157-080 0E C-CAP,S 330P-50 CH
C18 87-010-213-080 0E C-CAP,S 0.015-50 B
C20 87-010-193-080 0E CHIP CAPACITOR,0.033
C22 87-010-183-080 0E C-CAP,S 2700P-50 B
C23 87-010-956-080 0E CHIP-CAP,S 0.068-25B
C25 87-010-994-080 0E C-CAP,S 680P-50 CH
C29 87-010-186-080 0E CAP,CHIP 4700P
C30 87-012-156-080 0E C-CAP,S 220P-50 CH
C31 87-010-068-080 0E CAP, ELECT 0.22-50
C32 87-010-233-010 0E CAP,E 47-10 M 5L SRE
C33 87-010-071-080 0E CAP,ELECT 1-50 M 5L SRE
C34 87-010-184-080 0E CHIP CAPACITOR 3300P(K)
C35 87-010-197-080 0E CAP, CHIP 0.01 DM
C36 87-010-233-010 0E CAP,E 47-10 M 5L SRE
C37 87-010-421-080 0E CAP, ELECT 4.7-50V
C38 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C39 87-012-349-080 0E C-CAP,S 1000P-50 CH
C40 87-010-145-080 0E C-CAP,S 1P-50 CH
C42 87-010-312-080 0E C-CAP,S 15P-50 CH
C45 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C46 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C47 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C48 87-010-315-080 0E C-CAP,S 27P-50 CH
C50 87-012-140-080 0E CAP 470P
C51 87-012-156-080 0E C-CAP,S 220P-50 CH
C55 87-010-264-080 0E CAP,E 100-10 5L
C57 87-010-316-080 0E C-CAP,S 33P-50 CH
C58 87-010-316-080 0E C-CAP,S 33P-50 CH
C59 87-010-264-040 0E CAP,E 100-10 5L

– 10 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
C60 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C61 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C62 87-010-371-080 0E CAP,E 470-6.3 M SME
C65 87-010-421-080 0E CAP, ELECT 4.7-50V
C66 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C67 87-010-264-080 0E CAP,E 100-10 5L
C68 87-010-322-080 0E C-CAP,S 100P-50 CH
C69 87-012-154-080 0E C-CAP,S 150P-50 CH
C75 87-010-197-080 0E CAP, CHIP 0.01 DM
C76 87-A10-102-080 0E CAP,E 1000-10 REA
C77 87-010-197-080 0E CAP, CHIP 0.01 DM
C78 87-010-221-080 0E CAP, ELECT 470-10V
C79 87-010-264-080 0E CAP,E 100-10 5L
C80 87-010-197-080 0E CAP, CHIP 0.01 DM
C81 87-010-417-080 0E CAP,E 2.2-35 M 5L SRE
C82 87-010-417-080 0E CAP,E 2.2-35 M 5L SRE
C83 87-010-181-080 0E CAP,CHIP S 1800P
C84 87-010-181-080 0E CAP,CHIP S 1800P
C90 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C91 87-010-408-080 0E CAP, ELECT 47-50V
C92 87-010-281-080 0E CAP, ELECT 22-35 SRE
C93 87-010-197-080 0E CAP, CHIP 0.01 DM
C94 87-010-197-080 0E CAP, CHIP 0.01 DM
C95 87-010-197-080 0E CAP, CHIP 0.01 DM
C101 87-010-322-080 0E C-CAP,S 100P-50 CH
C102 87-010-322-080 0E C-CAP,S 100P-50 CH
C103 87-010-322-080 0E C-CAP,S 100P-50 CH
C104 87-010-322-080 0E C-CAP,S 100P-50 CH
C105 87-010-322-080 0E C-CAP,S 100P-50 CH
C110 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C495 87-010-196-080 0E CHIP CAPACITOR,0.1-25
CN1 87-A60-424-010 0E CONN,16P V TOC-B
CN2 87-A60-154-010 0E CONN,6P H FE
CN3 87-A60-153-010 -- CONN,5P H FE
CN4 87-A61-283-010 -- CONN,17P V FWN-BTRK
CN5 87-A60-156-010 0E CONN,8P H FE
CN6 87-A60-422-010 0E CONN,8P V TOC-B
CNA1 87-A60-619-010 0E CONN,2P V 2MM JMT
FC1 8Z-CL4-642-010 1B FF-CABLE,16P 1.0 320MM
FC2 88-906-101-110 0E FF-CABLE 6P-1.25
FC3 88-905-251-110 0E FF-CABLE 5P 1.25
FC6 88-CE2-640-010 1A FF-CABLE 8P 1.0 300MM N
L1 87-003-102-080 0E COIL, 10UH
L2 87-003-146-080 0E COIL,15UH LAL02
L3 87-008-372-080 0E FILTER, EMI BL OIRNI
L5 87-003-152-080 0E COIL, 100UH
R68 87-A50-189-080 0E C-COIL,S BLM21B272S
R70 87-026-689-080 -- PROTECTOR,1A 491 SERIES 60V
SFR130 87-024-437-080 0E SFR100K,RH063EC
X1 87-A70-046-010 1B VIB,XTAL 16.934MHZ
FACE-A C.B
C824 87-010-197-080 0E C-CAP,S 0.01-25 KB
CNA801 8A-CJ4-642-010 -- CONN ASSY,4P V FACE A
FACE-B C.B
C801 87-010-322-080 0E C-CAP,S 100P-50 J CH
C802 87-010-322-080 0E C-CAP,S 100P-50 J CH
C821 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C826 87-010-197-080 0E C-CAP,S 0.01-25 KB
C827 87-010-197-080 0E C-CAP,S 0.01-25 KB
C829 87-010-197-080 0E C-CAP,S 0.01-25 KB
C830 87-010-197-080 0E C-CAP,S 0.01-25 KB
C831 87-010-197-080 0E C-CAP,S 0.01-25 KB
C834 87-010-197-080 0E C-CAP,S 0.01-25 KB
C835 87-010-197-080 0E C-CAP,S 0.01-25 KB
CN801 87-A60-621-010 0E CONN,4P V 2MM JMT
CNA301 8A-CJ4-644-010 -- CONN ASSY,9P H PANEL
CNA802 8A-CJ4-643-010 -- CONN ASSY,4P V FACE C
D831 87-A40-496-040 0E LED,SLR-342MCT31 GRN
D832 87-A40-496-040 0E LED,SLR-342MCT31 GRN
D833 87-A40-496-040 0E LED,SLR-342MCT31 GRN
D834 87-A40-496-040 0E LED,SLR-342MCT31 GRN
D835 87-A40-496-040 0E LED,SLR-342MCT31 GRN
S801 87-A90-095-080 0E SW,TACT EVQ11G04M
S802 87-A90-095-080 0E SW,TACT EVQ11G04M
S803 87-A90-095-080 0E SW,TACT EVQ11G04M
S804 87-A90-095-080 0E SW,TACT EVQ11G04M
S805 87-A90-095-080 0E SW,TACT EVQ11G04M
S806 87-A90-095-080 0E SW,TACT EVQ11G04M
S807 87-A90-095-080 0E SW,TACT EVQ11G04M
S808 87-A90-095-080 0E SW,TACT EVQ11G04M
S809 87-A90-095-080 0E SW,TACT EVQ11G04M
S810 87-A90-095-080 0E SW,TACT EVQ11G04M
FACE-C C.B
C825 87-010-197-080 0E C-CAP,S 0.01-25 KB
C828 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C851 87-010-197-080 0E CAP, CHIP 0.01 DM
C852 87-010-197-080 0E CAP, CHIP 0.01 DM
CN802 87-A60-621-010 -- CONN,4P V 2MM JMT
S851 87-A91-698-010 -- SW,RTRY EC12E12403
S861 87-A90-095-080 0E SW,TACT EVQ11G04M
S862 87-A90-095-080 0E SW,TACT EVQ11G04M
S863 87-A90-095-080 0E SW,TACT EVQ11G04M
S864 87-A90-095-080 0E SW,TACT EVQ11G04M
S865 87-A90-095-080 0E SW,TACT EVQ11G04M
SW-1 C.B
C901 87-010-264-040 0E CAP,E 100-10 5L
C902 87-010-264-040 0E CAP,E 100-10 5L
CN303 87-A60-672-010 0E CONN,8P H 2MM JMT
CNA901 8A-CJ4-646-010 -- CONN ASSY,2P V SW-2
M901 87-A90-036-010 1D MOT ASSY,RF-300CA-11
S902 87-A90-117-010 1A SW,PUSH 1-1-1 MPU103
S903 87-A90-117-010 1A SW,PUSH 1-1-1 MPU103
S904 87-A90-117-010 1A SW,PUSH 1-1-1 MPU103
SW-2 C.B
S901 87-A90-117-010 1A SW,PUSH 1-1-1 MPU103
PT1 C.B
C1 87-010-387-080 1A CAP,E 470-25 SME
C2 87-010-196-080 CHIP CAPACITOR,0.1-25<K,EZ>
C3 87-A10-479-080 0E CAP,CER 2200P-250 M E KH
C5 87-010-403-080 0E CAP, ELECT 3.3-50V
CN1 87-A60-620-010 0E CONN,3P V 2MM JMT
PT1 8A-CJ4-605-010 -- PT,D ACJ-4<D>
PT1 8A-CJ4-608-010 PT,E ACJ-4<K,EZ>
PT2 8A-NF8-664-010 -- PT,SUB ANF-8 (D)<D>
PT2 8A-NF8-662-010 PT,SUB ANF-8 (E)<K,EZ>
RY1 87-A91-418-010 -- RELAY,AC12V G5PA-1-M
T1 87-A60-317-010 0E TERMINAL, 1P MSC
T2 87-A60-317-010 0E TERMINAL, 1P MSC
PT2 C.B
PR51 87-A90-094-080 0E PROTECTOR,4A 491SERIES 60V
PR52 87-A90-094-080 0E PROTECTOR,4A 491SERIES 60V
PR53 87-026-681-080 0E PROTECTOR,5A 60V 491
PR54 87-026-681-080 0E PROTECTOR,5A 60V 491
PR55 87-026-681-080 0E PROTECTOR,5A 60V 491
PR56 87-026-681-080 0E PROTECTOR,5A 60V 491
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

– 11 –
DECK C.B
CON1 87-009-352-010 -- CONN,9P PH H
SFR1 87-024-581-010 0E SFR,3.3K H KVSF637A
SOL2 82-ZM1-618-410 1B SOL ASSY,27
SW2 87-036-110-010 1A SW,MICRO SPPB62
SW3 87-036-110-010 1A SW,MICRO SPPB62
SW5 87-036-110-010 1A SW,MICRO SPPB62
SW6 87-A90-248-010 0E SW,MICRO ESE11SH2CXQ
W1 82-ZM1-625-010 -- RBN-CORD,4P-5S
RELAY C.B
CON301 8A-CJ4-647-010 -- CONN ASSY,7P V RPH SHILD
CD LOAD C.B
CON6 87-099-210-010 0E CONN,5P 6216H
M1 87-045-305-010 1F MOTOR,RF-500TB DC-5V(2MA)
SW1 87-036-110-010 1A PUSH SWITCH
SW2 87-036-110-010 1A PUSH SWITCH
CD DRIVE C.B
M20 87-045-358-010 1F MOT,RF-310TA 43
M21 87-045-356-010 1F MOT,RF-310TA 30
SW1 87-A90-042-010 0E SW,LEAF MSW-17310MVP0
TUNER C.B
C701 87-010-381-080 0E CAP,ELECT 330-16V
C702 87-010-404-080 0E CAP,ELECT 4.7-50V
C703 87-012-286-080 0E CAP,U 0.01-25
C704 87-012-286-080 0E CAP,U 0.01-25
C705 87-A10-592-080 0E C-CAP,S 0.015-50 JB<D>
C706 87-A10-592-080 0E C-CAP,S 0.015-50 JB<D>
C709 87-012-195-080 0E C-CAP,U 100P-50CH
C711 87-010-260-080 0E CAP,ELECT 47-25V
C712 87-010-831-080 0E C-CAP,U,0.1-16F
C713 87-012-286-080 CAP,U 0.01-25<EZ,K>
C714 87-012-286-080 0E CAP,U 0.01-25
C715 87-012-195-080 C-CAP,U 100P-50CH<EZ,K>
C717 87-012-286-080 0E CAP,U 0.01-25
C718 87-012-179-080 0E C-CAP,U 20P-50J CH<D>
C719 87-012-286-080 0E CAP,U 0.01-25
C720 87-012-195-080 0E C-CAP,U 100P-50CH
C721 87-012-176-080 0E CAP,15P
C722 87-012-176-080 0E CAP,15P
C723 87-012-274-080 0E CHIP CAP,U 1000P-50B
C725 87-012-274-080 0E CHIP CAP,U 1000P-50B<D>
C725 87-018-131-080 CAP,TC U 1000P-50 KB<K>
C727 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C728 87-010-248-080 0E CAP,ELECT 220-10V
C729 87-012-274-080 0E CHIP CAP,U 1000P-50B
C731 87-012-286-080 0E CAP,U 0.01-25
C733 87-010-987-080 0E C-CAP,S 1500P-50 J CH<D>
C733 87-012-280-080 C-CAP,U 3300P-50 KB<EZ,K>
C734 87-010-987-080 0E C-CAP,S 1500P-50 J CH<D>
C734 87-012-280-080 C-CAP,U 3300P-50 KB<EZ,K>
C735 87-010-987-080 0E C-CAP,S 1500P-50 J CH<D>
C736 87-010-987-080 0E C-CAP,S 1500P-50 J CH<D>
C737 87-A10-592-080 0E C-CAP,S 0.015-50JB<D>
C738 87-A10-592-080 0E C-CAP,S 0.015-50JB<D>
C751 87-010-220-080 0E C-CAP,S 0.018-25 KB<D>
C752 87-010-220-080 0E C-CAP,S 0.018-25 KB<D>
C752 87-012-282-080 C-CAP,U 4700P-50 KB<EZ,K>
C753 87-012-195-080 C-CAP,U 100P-50 J CH<EZ,K>
C755 87-012-286-080 CAP,U 0.01-25<EZ,K>
C756 87-012-286-080 0E CAP,U 0.01-25
C757 87-012-188-080 0E C-CAP,U 47P-50 CH
C758 87-012-167-080 0E C-CAP,U 5P-50 CH
C761 87-010-196-080 C-CAP,S 0.1-25 ZF<EZ,K>
C762 87-012-286-080 CAP,U 0.01-25<EZ,K>
C763 87-010-829-080 0E CAP,U 0.047-16
C764 87-012-337-080 0E C-CAP,U 56P-50 CH<D>
C765 87-012-286-080 0E CAP,U 0.01-25
C766 87-010-197-080 C-CAP,S 0.01-25 KB<EZ,K>
C768 87-012-286-080 0E CAP,U 0.01-25
C769 87-010-260-080 0E CAP,ELECT 47-25V
C770 87-010-829-080 0E CAP,U 0.047-16
C771 87-010-383-080 0E CAP,ELECT 33-25V
C772 87-010-829-080 0E CAP,U 0.047-16
C773 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C774 87-010-263-080 0E CAP,ELECT 100-10V
C775 87-010-404-080 0E CAP,ELECT 4.7-50V
C776 87-012-286-080 0E CAP,U 0.01-25
C777 87-010-400-080 0E CAP,ELECT 0.47-50V<D>
C777 87-010-493-080 CAP,E 0.47-50 M 5L SRE<EZ,K>
C778 87-010-401-080 0E CAP,ELECT 1-50V
C779 87-010-401-080 0E CAP,ELECT 1-50V
C780 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C781 87-010-405-080 0E CAP,ELECT 10-50V
C782 87-010-405-080 0E CAP,ELECT 10-50V
C783 87-012-286-080 0E CAP,U 0.01-25
C784 87-012-286-080 0E CAP,U 0.01-25
C785 87-010-401-080 0E CAP,ELECT 1-50V<D>
C785 87-010-402-080 CAP,ELECT 2.2-50V<EZ,K>
C786 87-010-402-080 CAP,ELECT 2.2-50V<EZ,K>
C786 87-010-401-080 0E CAP,ELECT 1-50V<D>
C787 87-012-275-080 C-CAP,U 1200P-50 B<EZ,K>
C788 87-012-275-080 C-CAP,U 1200P-50 B<EZ,K>
C789 87-012-275-080 0E C-CAP,U 1200P-50 B
C790 87-012-275-080 0E C-CAP,U 1200P-50 B
C791 87-010-405-080 0E CAP,ELECT 10-50V
C793 87-012-273-080 0E C-CAP,U 820P-50 B
C794 87-010-406-080 0E CAP,ELECT 22-50
C795 87-010-596-080 CAP,S 0.047-16<EZ,K>
C796 87-010-403-080 0E CAP,ELECT 3.3-50V
C797 87-012-276-080 C-CAP,U 1500P-50 KB<EZ,K>
C798 87-012-276-080 C-CAP,U 1500P-50 KB<EZ,K>
C799 87-010-829-080 0E CAP,U 0.047-16
C812 87-012-286-080 0E CAP,U 0.01-25
C814 87-012-286-080 CAP,U 0.01-25<EZ,K>
C820 87-010-260-080 0E CAP,ELECT 47-25V
C821 87-012-286-080 0E CAP,U 0.01-25
C822 87-012-286-080 0E CAP,U 0.01-25
C823 87-012-286-080 0E CAP,U 0.01-25
C828 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C829 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C859 87-012-286-080 C-CAP,U 0.01-25 KB<EZ>
C861 87-012-199-080 C-CAP,U 220P-50 J CH<EZ>
C862 87-012-199-080 C-CAP,U 220P-50 J CH<EZ>
C863 87-012-270-080 C-CAP,U 470P-50 KB<EZ>
C864 87-010-405-080 CAP,E 10-50 M 11L SME<EZ>
C865 87-010-196-080 C-CAP,S 0.1-25 ZF<EZ>
C866 87-010-405-080 CAP,E 10-50 M 11L SME<EZ>
C867 87-012-286-080 C-CAP,U 0.01-25 KB<EZ>
C868 87-012-184-080 C-CAP,U 33P-50 J CH<EZ>
C869 87-012-180-080 C-CAP,U 22P-50 J CH<EZ>
C872 87-010-400-080 0E CAP,ELECT 0.47-50V<D>
C873 87-010-404-080 0E CAP,ELECT 4.7-50V<D>
C877 87-012-278-080 0E C-CAP,U 2200P-50 B<D>
C878 87-012-278-080 0E C-CAP,U 2200P-50 B<D>
C881 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F<D>
C882 87-012-172-080 0E CAPACITOR CHIP U 10P CH<D>
C883 87-010-404-080 0E CAP,ELECT 4.7-50V<D>
C884 87-010-260-080 0E CAP,ELECT 47-25V<D>
C885 87-016-460-080 0E C-CAP,S 0.22-16 KB<D>
C886 87-016-460-080 0E C-CAP,S 0.22-16 KB<D>
C887 87-012-286-080 0E CAP,U 0.01-25<D>
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.

– 12 –
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ 1.0 0.5 0.35 104
Lt
W
C888 87-010-787-080 0E CAP,U 0.022-25<D>
C889 87-010-248-080 0E CAP,ELECT 220-10V<D>
C940 87-012-286-080 C-CAP,U 0.01-25 KB<EZ,K>
C942 87-012-168-080 C-CAP,U 6P-50 D CH<EZ>
C942 87-012-172-080 C-CAP,U 10P-50 D CH<K>
C947 87-012-286-080 C-CAP,U 0.01-25 KB<EZ,K>
C949 87-A10-039-080 C-CAP,U 470P-50 J CH<EZ,K>
C952 87-012-286-080 C-CAP,U 0.01-25 KB<EZ,K>
C958 87-010-197-080 C-CAP,S 0.01-25 KB<EZ,K>
C959 87-010-196-080 0E CHIP CAPACITOR,0.1-25<D>
C959 87-010-831-080 C-CAP,U 0.1-16 ZF<EZ,K>
C960 87-010-196-080 0E CHIP CAPACITOR,0.1-25
C961 87-012-170-080 0E C-CAP,U 8P-50 CH<D>
C962 87-010-401-080 CAP,E 1-50 M 11L SME<EZ,K>
C963 87-010-196-080 0E CHIP CAPACITOR,0.1-25<D>
CF801 87-008-261-010 1A FILTER,SFE10.7MA5-A<D>
CF801 87-008-423-010 FLTR,CF SFE10.7MS3G-A<EZ,K>
CF802 87-008-261-010 1A FILTER,SFE10.7MA5-A<D>
CF802 82-785-747-010 CF,MS2 GHY R<EZ,K>
CN701 87-A60-700-010 0E CONN,13P H GRY TUC-P13X-C1<D,K>
CN701 87-A60-650-010 CONN,16P H GRY TUC-P16X-C1<EZ>
FFE801 A8-6ZA-19A-070 -- 6ZA-1 FEJNC<D>
FFE801 A8-6ZA-191-130 6ZA-1 FEENM<EZ,K>
J801 87-A60-702-010 1B TERMINAL,ANT 4P CJ-9036<D>
J801 87-033-241-010 TERMINAL,ANT 2P AJ-2039<EZ,K>
L771 87-A50-266-010 1A COIL,FM DET-2N(TOK)
L772 87-A90-053-010 1C FLTR,PCFMT-060(TOK)<D>
L772 87-A91-110-010 FLTR,PCFJZH-450(TOK)<EZ>
L772 87-A90-733-010 FLTR,PCFAZH-450(TOK)<K>
L781 87-005-847-010 COIL,2.2UH K CECS<EZ,K>
L791 87-A50-027-010 COIL,1 POLE MPX(TOK)<EZ,K>
L792 87-A50-027-010 COIL,1 POLE MPX(TOK)<EZ,K>
L832 87-005-847-080 COIL,2.2UH K CECS<EZ,K>
L851 87-005-847-080 COIL,2.2UH K CECS<EZ>
L941 87-A50-020-010 COIL,ANT LW(COI)252KHZ<EZ,K>
L942 87-A50-019-010 COIL,OSC LW(COI) 856KHZ<EZ,K>
L981 8Z-ZA1-667-010 -- COIL,AM PACK 4F(TOK)<D>
L981 8Z-ZA1-665-010 COIL,AM PACK 2(TOK)<EZ>
L981 87-NF4-651-110 COIL,AM PACK 2N(TOM)<K>
TC942 87-011-164-010 TRIMMER,CER 30P 4.5X3.9 VCT31<EZ,K>
X721 87-A70-061-010 1A VIB,XTAL 4.500MHZ CSA-309
X851 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309<EZ>
X891 87-030-394-010 1B VIB,3.5498MHZ CSA MGF228<D>
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

– 13 –
TRANSISTOR ILLUSTRATION
E C B
CC5551
CSA1585
CSB1058
CSC4115
KTA1266
KTC3198
B C E
2SB1344
2SB1370
2SB1625
2SD2025
2SD2494
2SA1318
CSD655
2SC4115
2SA933
E C B E C B
E
B
C
2SA1235
2SC2714
2SC3052
2SD1306
CMBT5401
CMBT5551
CSD1306
DTA123EKA
DTA123JK
DTA143EK
D
G
S
2SK543 (4/5)
S
G
D
2SJ461-T1
2SK2158
DTA144TK
DTC114EK
DTC114TK
KTA1298
RT1N141C
RT1N144C
RT1P141C
RT1P144C
RT1P441C

WIRING - 1 (MAIN)
– 14 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 15 –
SCHEMATIC DIAGRAM-1 (MAIN /PT1/ PT2/RELAY)

WIRING - 2 (FRONT / SW-1 / SW-2)
– 16 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 17 –
SCHEMATIC DIAGRAM - 2 (FRONT / SW-1 / SW-2 / FACE-A / FACE-B / FACE-C / DECK)

WIRING - 3 (FACE-A/ FACE-B / FACE-C)
– 18 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

WIRING - 4 (CD / CD LOAD / CD DRIVE)
– 19 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 20 –
SCHEMATIC DIAGRAM - 3 (CD / CD LOAD / CD DRIVE)
