S E R V I C E M A N U A L

SIMPLE MANUAL

•Replace this Service Manual with ”Revision Publishing” when it is issued.

XR-WVH1550

• TYPE: HC

S/M Code No. 09–997–416–4T1

COMPACT DISC STEREO SYSTEM

AMPLIFIER CASSETTE

DECK GRAPHIC

EQUALIZER CD PLAYER SPEAKER

MX-NWVH1550 FX-NH1100 GE-NAVH1200 DX-NWVH1550 SX-NAVH1200

SX-CR677

•BASICTAPEMECHANISM:2ZM–3MK2PR4NM

• BASIC CD MECHANISM: AZG–2 CS3ND

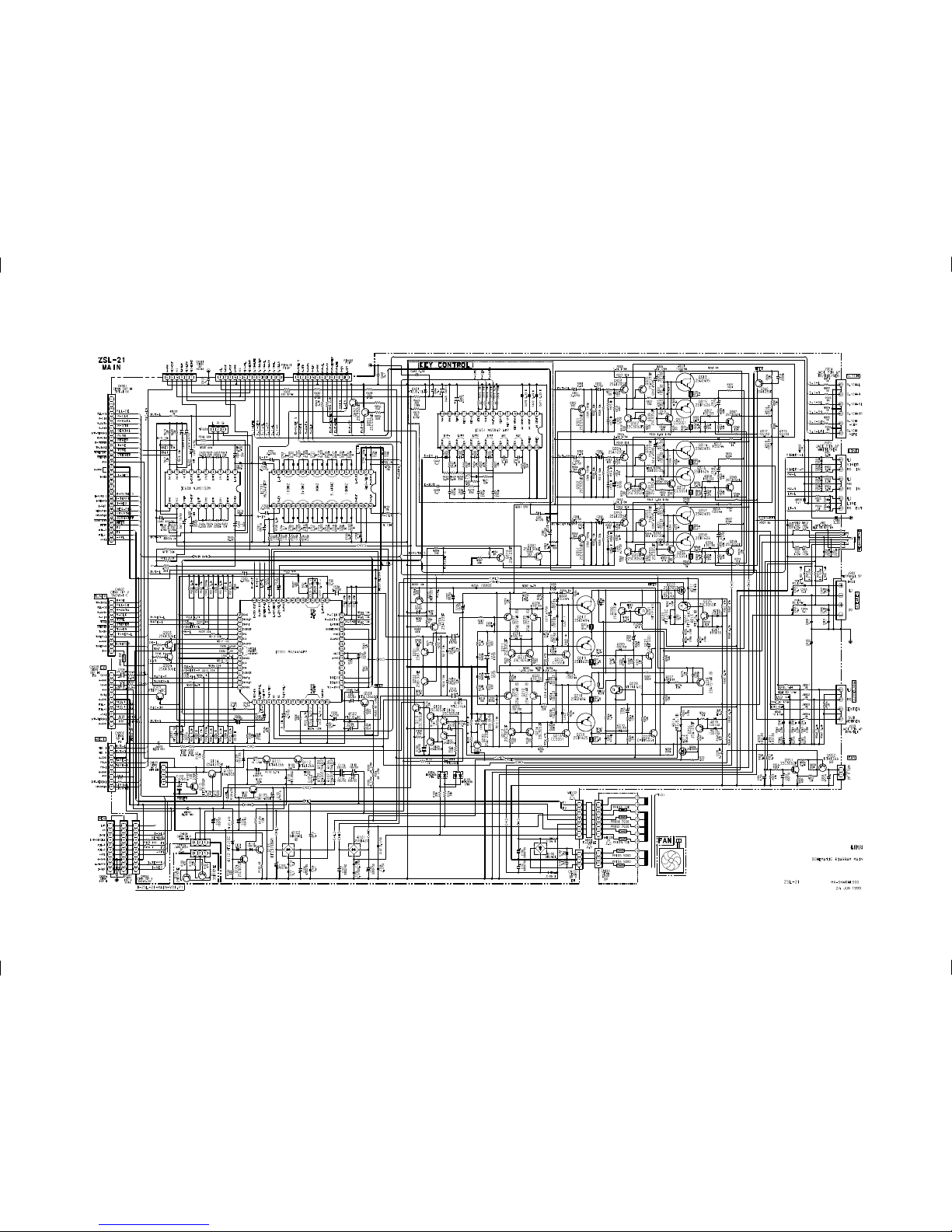

ELECTRICAL MAIN PARTS LIST-1/9(MX-NWVH1550)

NOTE: The characters in the suffix column indicate the part usage.

HCS ....................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 657 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 659 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 656 87-012-145-080 CAP, CHIP S 270P CH A...................

C 655 87-012-145-080 CAP, CHIP S 270P CH A...................

C 654 87-012-154-080 C-CAP,S 150P-50 CH A...................

C 653 87-012-154-080 C-CAP,S 150P-50 CH A...................

C 652 87-A10-060-080 C-CAP,S 0.18-16 K B A...................

C 651 87-A10-060-080 C-CAP,S 0.18-16 K B A...................

C 660 87-010-177-080 C-CAP,S 820P-50 SL A...................

C 661 87-010-177-080 C-CAP,S 820P-50 SL A...................

C 667 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 662 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 664 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 665 87-010-263-080 CAP, ELECT 100-10V A...................

C 663 87-010-374-080 CAP, ELECT 47-10V A...................

C 668 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 677 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 675 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 676 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 674 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 671 87-016-460-080 C-CAP,S 0.22-16 B A...................

C 672 87-016-460-080 C-CAP,S 0.22-16 B A...................

C 673 87-016-460-080 C-CAP,S 0.22-16 B A...................

D 651 87-070-136-080 ZENER,MTZJ5.1B A...................

IC 651 87-A20-561-040 C-IC,M65847AFP A...................

C 209 87-010-071-040 CAP,E 1-50 M 5L SRE A...................

C 201 87-010-192-080 C-CAP,S 0.022-50 F A...................

C 207 87-010-194-080 CAP, CHIP 0.047 A...................

C 205 87-010-194-080 CAP, CHIP 0.047 A...................

C 202 87-010-264-040 CAP,E 100-10 5L A...................

C 206 87-010-405-040 CAP,E 10-50 A...................

C 204 87-010-981-040 CAP,E 22-35 5L SRE A...................

C 203 87-016-081-080 C-CAP,S 0.1-16 RK A...................

C 208 87-A10-189-040 CAP,E 220-10 A...................

C 211 87-012-140-080 CAP 470P A...................

C 222 87-010-401-040 CAP,E 1-50 SME A...................

C 221 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 220 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 241 87-010-178-080 CHIP CAP 1000P A...................

C 248 87-010-192-080 C-CAP,S 0.022-50 F A...................

C 243 87-010-313-080 CAP, CHIP 18P A...................

C 244 87-010-315-080 C-CAP,S 27P-50 CH A...................

C 242 87-010-316-080 C-CAP,S 33P-50 CH A...................

C 247 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 252 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 254 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 251 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 255 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................

C 253 87-A10-189-040 CAP,E 220-10 A...................

D 201 87-017-931-080 ZENER,MTZJ5.6B A...................

D 205 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 203 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 202 87-A40-468-080 C-DIODE,HSM2836CTR A...................

D 243 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 241 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 245 87-020-465-080 DIODE,1SS133 (110MA) A...................

FB 101 87-008-372-080 FILTER, EMI BL OIRNI A...................

IC 202 87-A20-914-010 IC,SPS-442-1-F A...................

IC 201 8Z-SP1-605-010 IC,UPD780228GF-034-3BA A...................

L 101 87-005-130-080 COIL,10UH A...................

LED 201 87-A40-589-040 LED,SLR-56VCT31 RED A...................

Q 201 87-A30-087-080 C-FET,2SK2158 A...................

Q 220 87-A30-071-080 C-TR,RT1N 144C A...................

Q 241 87-026-263-080 C-TR,RN1410 A...................

Q 240 87-A30-074-080 C-TR,RT1P 141C A...................

R 224 87-003-152-080 COIL, 100UH A...................

SW 201 87-A91-342-010 SW,RTRY EC16B24104W/O D L20 A...................

X 201 87-A70-075-080 VIB,CER 4.19MHZ CRHF A...................

C 608 87-010-166-080 C-CAP,S 100P-50 SL A...................

C 604 87-010-166-080 C-CAP,S 100P-50 SL A...................

C 602 87-010-176-080 C-CAP,S 680P-50 SL A...................

C 603 87-010-186-080 CAP,CHIP 4700P A...................

C 605 87-010-321-080 CHIP CAPACITOR,82P(J) A...................

C 601 87-010-405-040 CAP,E 10-50 A...................

C 606 87-010-544-040 CAP,E 0.1-50 SME A...................

C 609 87-010-545-040 CAP,E 0.22-50 SME A...................

C 610 87-010-177-080 C-CAP,S 820P-50 SL A...................

C 614 87-010-248-040 CAP,E 220-10 SME A...................

C 615 87-010-378-040 CAP,E 10-16 A...................

C 611 87-010-406-040 CAP,E 22-50 SME A...................

C 619 87-016-526-080 C-CAP,S 0.47-16 BK A...................

CN 601 87-099-199-010 CONN,6P 6216 H A...................

D 600 87-020-465-080 DIODE,1SS133 (110MA) A...................

FB 601 87-008-372-080 FILTER, EMI BL OIRNI A...................

IC 601 87-017-888-080 IC,NJM4558MD A...................

J 602 87-A60-651-010 JACK,3.5MONO A...................

ELECTRICAL MAIN PARTS LIST-2/9(MX-NWVH1550)

J 601 87-A60-651-010 JACK,3.5MONO A...................

Q 600 87-A30-087-080 C-FET,2SK2158 A...................

C 801 87-010-170-080 S CHIP SL 220P(K) A...................

C 802 87-010-176-080 C-CAP,S 680P-50 SL A...................

C 803 87-010-187-080 CAP CHIP S5600P A...................

C 807 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 804 87-010-213-080 C-CAP,S 0.015-50 B A...................

C 806 87-010-401-040 CAP,E 1-50 SME A...................

C 809 87-012-155-080 C-CAP 180P-50CH A...................

C 810 87-010-264-040 CAP,E 100-10 5L A...................

C 812 87-010-405-040 CAP,E 10-50 A...................

C 811 87-010-552-040 CAP,E 22-16 GAS A...................

C 822 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 821 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 823 87-010-318-080 C-CAP,S 47P-50 CH A...................

D 801 87-017-931-080 ZENER,MTZJ5.6B A...................

IC 801 87-A21-051-040 C-IC,BU9990-03FS A...................

L 801 87-A50-093-010 COIL,CLOCK 5.76MHZ A...................

Q 831 87-A30-075-080 C-TR,2SA1235F A...................

Q 832 87-A30-087-080 C-FET,2SK2158 A...................

C 503 87-010-180-080 C-CER 1500P A...................

C 504 87-010-180-080 C-CER 1500P A...................

C 514 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 513 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 512 87-010-405-080 CAP, ELECT 10-50V A...................

C 511 87-010-405-080 CAP, ELECT 10-50V A...................

C 519 87-012-142-080 CAP, S 0.33-16 A...................

C 522 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 525 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 526 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 521 87-016-083-080 C-CAP,S 0.15-16 RK A...................

C 520 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 535 87-010-195-080 C-CAP,S 0.068-25 F A...................

C 537 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 532 87-010-263-080 CAP, ELECT 100-10V A...................

C 533 87-010-263-080 CAP, ELECT 100-10V A...................

C 538 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 539 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 531 87-010-405-080 CAP, ELECT 10-50V A...................

C 534 87-010-406-080 CAP, ELECT 22-50 A...................

C 536 87-012-142-080 CAP, S 0.33-16 A...................

C 545 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 540 87-010-320-080 CHIP CAP 68P A...................

C 542 87-010-320-080 CHIP CAP 68P A...................

C 541 87-010-320-080 CHIP CAP 68P A...................

C 547 87-010-401-080 CAP, ELECT 1-50V A...................

C 548 87-010-401-080 CAP, ELECT 1-50V A...................

D 532 87-A40-002-080 ZENER,MTZJ5.1C A...................

D 531 87-A40-438-080 ZENER,MTZJ4.7A A...................

IC 501 87-A21-202-040 C-IC,M62445AFP A...................

Q 501 87-026-609-080 TR,KTA1266GR A...................

Q 505 87-A30-074-080 C-TR,RT1P 141C A...................

Q 503 87-A30-257-080 C-TR,2SD1306E A...................

Q 504 87-A30-257-080 C-TR,2SD1306E A...................

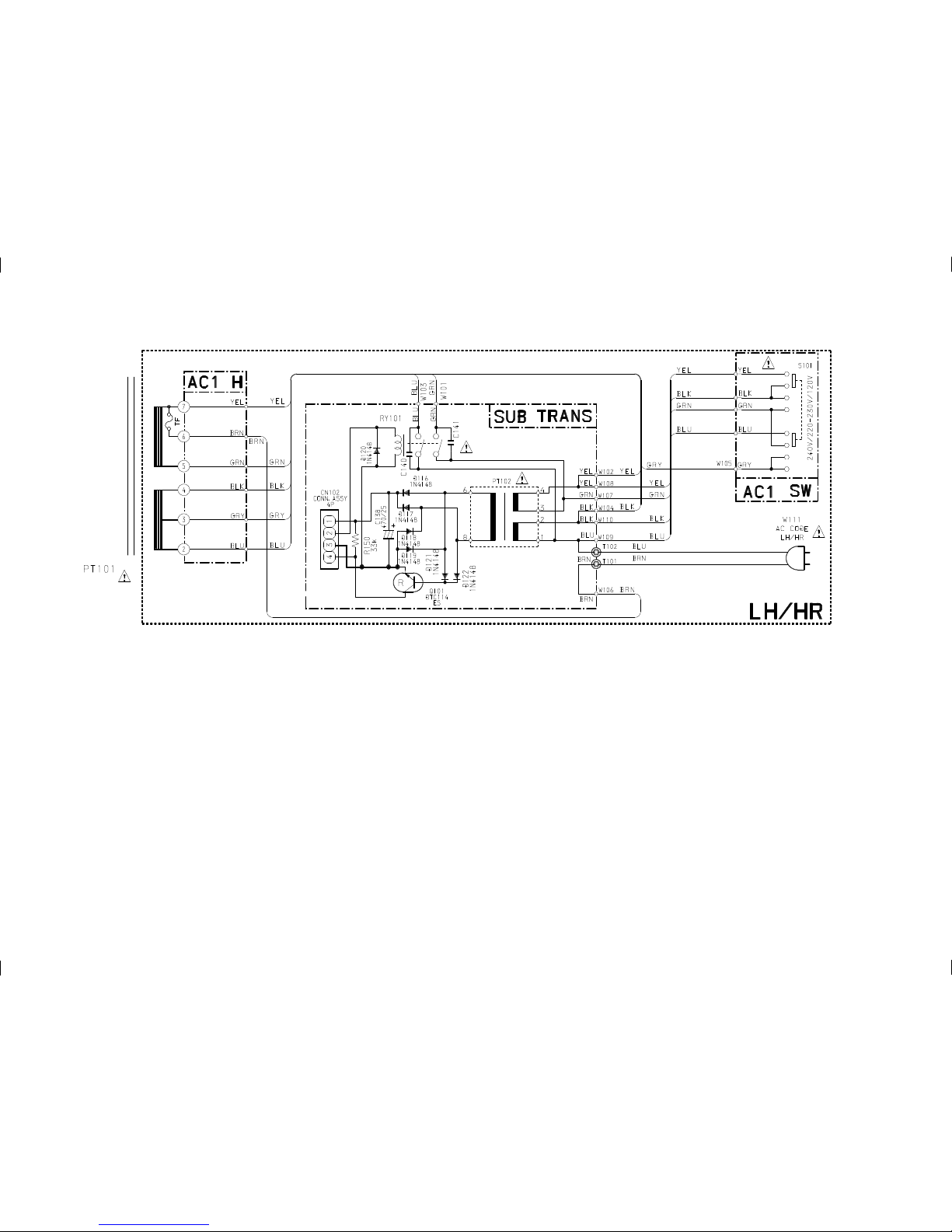

87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................

C 109 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 102 87-010-917-000 CAP,E 3300-50 M SMG A...................

C 101 87-010-917-000 CAP,E 3300-50 M SMG A...................

C 108 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 105 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 106 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 107 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 104 87-016-658-000 CAP,E 4700-35 M SMG A...................

C 103 87-016-658-000 CAP,E 4700-35 M SMG A...................

C 111 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 110 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 112 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 116 87-010-247-080 CAP, ELECT 100-50V A...................

C 113 87-010-247-080 CAP, ELECT 100-50V A...................

C 119 87-010-260-080 CAP, ELECT 47-25V A...................

C 118 87-010-263-080 CAP, ELECT 100-10V A...................

C 115 87-010-385-080 CAP, ELECT 220-25V A...................

C 114 87-010-385-080 CAP, ELECT 220-25V A...................

C 117 87-010-430-080 CAP, ELECT 100-63 A...................

C 124 87-010-112-080 CAP, ELECT 100-16V A...................

C 121 87-010-174-080 CAP CHIP SL470P (K) A...................

C 125 87-010-235-080 CAP,E 470-16 SME A...................

C 123 87-010-247-080 CAP, ELECT 100-50V A...................

C 120 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 122 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 130 87-010-399-090 CAP,E 3300-35 SME A...................

C 131 87-010-399-090 CAP,E 3300-35 SME A...................

C 132 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 133 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 190 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 900 87-010-178-080 CHIP CAP 1000P A...................

C 902 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 901 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 907 87-010-190-080 S CHIP F 0.01 A...................

C 908 87-010-190-080 S CHIP F 0.01 A...................

C 906 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 903 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

ELECTRICAL MAIN PARTS LIST-3/9(MX-NWVH1550)

C 905 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 904 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 909 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 913 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 912 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 911 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................

C 910 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 922 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 921 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 920 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 923 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 941 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 942 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 945 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 943 87-010-993-080 C-CAP,S 0.056-25 B A...................

C 944 87-010-993-080 C-CAP,S 0.056-25 B A...................

C 946 87-010-993-080 C-CAP,S 0.056-25 B A...................

CN 123 87-049-469-010 CONN,4P V A...................

CN 121 87-049-919-010 CONN,3P EH V WHT A...................

CN 131 87-049-919-010 CONN,3P EH V WHT A...................

CN 903 87-009-063-010 CONNECTOR 11P A...................

CN 902 87-009-877-010 CONN,9P FG A...................

CN 905 87-099-198-010 CONN,10P 6216 V A...................

CN 901 87-099-719-010 CONN,30P TYK-B(X) A...................

CN 907 87-A60-057-010 CONN,11P V 9604S-11C A...................

CN 906 87-A60-058-010 CONN,10P V 9604S-10C A...................

CN 904 87-A60-575-010 CONN,10P H 52303 A...................

D 102 87-017-447-010 DIODE,GBU4DL A...................

D 103 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 106 87-070-274-080 DIODE,1N4003 SEM A...................

D 108 87-070-274-080 DIODE,1N4003 SEM A...................

D 109 87-070-274-080 DIODE,1N4003 SEM A...................

D 107 87-070-274-080 DIODE,1N4003 SEM A...................

D 100 87-070-274-080 DIODE,1N4003 SEM A...................

D 104 87-A40-468-080 C-DIODE,HSM2836CTR A...................

D 105 87-A40-469-080 C-DIODE,HSM2838CTR A...................

D 101 87-A40-547-090 DIODE,D5SBA20 A...................

D 113 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 115 87-A40-004-080 ZENER,MTZJ16A A...................

D 112 87-A40-345-080 ZENER,MTZJ10C A...................

D 110 87-A40-435-080 ZENER,MTZJ30D A...................

D 130 87-017-447-010 DIODE,GBU4DL A...................

FB 501 87-003-223-010 FERRITE BEAD BLO2RN2 A...................

FB 901 87-008-372-080 FILTER, EMI BL OIRNI A...................

J 901 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM A...................

J 902 87-A60-617-010 TERMINAL,SP 4P (MSC) A...................

J 903 87-A60-652-010 JACK,PIN 4P ORN/BLK A...................

J 905 87-A60-658-010 JACK,PIN 6P WHITE/RED A...................

J 904 87-A60-684-010 JACK,PIN 6P OR/BLK/RED A...................

JW 179 87-008-372-080 FILTER, EMI BL OIRNI A...................

L 902 87-003-383-010 COIL,1UH-S A...................

L 901 87-003-383-010 COIL,1UH-S A...................

L 913 87-003-383-010 COIL,1UH-S A...................

L 912 87-003-383-010 COIL,1UH-S A...................

L 911 87-003-383-010 COIL,1UH-S A...................

PR 106 87-026-681-080 PROTECTOR,5A 60V 491 A...................

PR 105 87-026-681-080 PROTECTOR,5A 60V 491 A...................

PR 103 87-026-682-080 PROTECTOR,10A 60V491 A...................

PR 104 87-026-682-080 PROTECTOR,10A 60V491 A...................

PR 102 87-A90-195-080 PROTECTOR 7A 125V 49 A...................

PR 101 87-A90-195-080 PROTECTOR 7A 125V 49 A...................

PR 201 87-002-330-080 ICP-N5 A...................

Q 103 87-026-610-080 TR,KTC3198GR A...................

Q 107 87-A30-075-080 C-TR,2SA1235F A...................

Q 109 87-A30-075-080 C-TR,2SA1235F A...................

Q 104 87-A30-076-080 C-TR,2SC3052F A...................

Q 106 87-A30-076-080 C-TR,2SC3052F A...................

Q 108 87-A30-076-080 C-TR,2SC3052F A...................

Q 105 87-A30-083-080 TR,CSD1489B A...................

Q 111 87-026-609-080 TR,KTA1266GR A...................

Q 112 87-026-609-080 TR,KTA1266GR A...................

Q 115 87-026-610-080 TR,KTC3198GR A...................

Q 114 87-A30-075-080 C-TR,2SA1235F A...................

Q 110 87-A30-076-080 C-TR,2SC3052F A...................

Q 116 89-213-702-010 TR,2SB1370 (1.8W) A...................

Q 117 89-213-702-010 TR,2SB1370 (1.8W) A...................

R 909 87-A00-440-050 RES,220-1/2W J RP A...................

R 910 87-A00-440-050 RES,220-1/2W J RP A...................

R 911 87-A00-440-050 RES,220-1/2W J RP A...................

R 912 87-A00-440-050 RES,220-1/2W J RP A...................

R 915 87-A00-527-080 RES,10-1/4W J NAT A...................

R 914 87-A00-527-080 RES,10-1/4W J NAT A...................

R 913 87-A00-527-080 RES,10-1/4W J NAT A...................

R 916 87-A00-527-080 RES,10-1/4W J NAT A...................

R 942 87-A00-527-080 RES,10-1/4W J NAT A...................

R 941 87-A00-527-080 RES,10-1/4W J NAT A...................

R 945 87-A00-527-080 RES,10-1/4W J NAT A...................

W 101 8Z-SP1-627-010 F-CABLE,7P 2.5 280MM A...................

WH 101 87-A90-460-010 HLDR,WIRE 2.5-7P A...................

WH 102 87-A90-460-010 HLDR,WIRE 2.5-7P A...................

C 202 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 201 87-010-322-080 C-CAP,S 100P-50 CH A...................

ELECTRICAL MAIN PARTS LIST-4/9(MX-NWVH1550)

C 209 87-010-405-080 CAP, ELECT 10-50V A...................

C 212 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 211 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 214 87-010-187-080 CAP CHIP S5600P A...................

C 213 87-010-187-080 CAP CHIP S5600P A...................

C 215 87-010-405-080 CAP, ELECT 10-50V A...................

C 210 87-010-405-080 CAP, ELECT 10-50V A...................

C 216 87-010-405-080 CAP, ELECT 10-50V A...................

C 217 87-010-408-080 CAP, ELECT 47-50V A...................

C 218 87-010-408-080 CAP, ELECT 47-50V A...................

C 219 87-A10-516-080 C-CAP,S 100P-200 J CH A...................

C 226 87-010-405-080 CAP, ELECT 10-50V A...................

C 223 87-010-405-080 CAP, ELECT 10-50V A...................

C 229 87-010-407-080 CAP, ELECT 33-50V A...................

C 227 87-010-407-080 CAP, ELECT 33-50V A...................

C 221 87-016-462-080 C-CAP,S 1-16 F A...................

C 222 87-016-462-080 C-CAP,S 1-16 F A...................

C 220 87-A10-516-080 C-CAP,S 100P-200 J CH A...................

C 232 87-010-186-080 CAP,CHIP 4700P A...................

C 231 87-010-186-080 CAP,CHIP 4700P A...................

C 235 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 234 87-010-401-080 CAP, ELECT 1-50V A...................

C 233 87-010-401-080 CAP, ELECT 1-50V A...................

C 230 87-010-408-080 CAP, ELECT 47-50V A...................

C 290 87-010-188-080 CAP,CHIP 6800P A...................

D 203 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 207 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 208 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 201 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 202 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 204 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 209 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 215 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 216 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 210 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 219 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 217 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 218 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 213 87-070-136-080 ZENER,MTZJ5.1B A...................

D 214 87-070-136-080 ZENER,MTZJ5.1B A...................

D 211 87-A40-370-090 DIODE,RK46-P20 A...................

D 212 87-A40-370-090 DIODE,RK46-P20 A...................

D 225 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 226 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 221 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 227 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 222 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 220 87-A40-345-080 ZENER,MTZJ10C A...................

D 223 87-A40-488-080 DIODE,1SS244 A...................

D 224 87-A40-488-080 DIODE,1SS244 A...................

D 296 87-020-465-080 DIODE,1SS133 (110MA) A...................

Q 204 87-A30-075-080 C-TR,2SA1235F A...................

Q 202 87-A30-257-080 C-TR,2SD1306E A...................

Q 201 87-A30-257-080 C-TR,2SD1306E A...................

Q 208 87-A30-268-040 C-TR,2SA1514K(S) A...................

Q 207 87-A30-268-040 C-TR,2SA1514K(S) A...................

Q 209 87-A30-268-040 C-TR,2SA1514K(S) A...................

Q 214 87-A30-076-080 C-TR,2SC3052F A...................

Q 211 87-A30-076-080 C-TR,2SC3052F A...................

Q 212 87-A30-076-080 C-TR,2SC3052F A...................

Q 213 87-A30-076-080 C-TR,2SC3052F A...................

Q 216 87-A30-190-080 TR,CC5551 A...................

Q 215 87-A30-190-080 TR,CC5551 A...................

Q 210 87-A30-268-040 C-TR,2SA1514K(S) A...................

Q 227 87-A30-072-080 C-TR,RT1P 144C A...................

Q 228 87-A30-073-080 C-TR,RT1N 141C A...................

Q 226 87-A30-075-080 C-TR,2SA1235F A...................

Q 225 87-A30-076-080 C-TR,2SC3052F A...................

Q 221 87-A30-106-070 C-TR,CMBT5551 A...................

Q 222 87-A30-106-070 C-TR,CMBT5551 A...................

Q 229 87-A30-268-040 C-TR,2SA1514K(S) A...................

Q 230 87-A30-075-080 C-TR,2SA1235F A...................

Q 291 87-A30-074-080 C-TR,RT1P 141C A...................

Q 290 87-A30-075-080 C-TR,2SA1235F A...................

Q 295 87-A30-106-070 C-TR,CMBT5551 A...................

R 237 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 238 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 239 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 240 87-A00-262-080 RES,M/F 0.15-2W J A...................

TH 201 87-A91-081-080 C-THMS,100K-K 20P A...................

TH 202 87-A91-081-080 C-THMS,100K-K 20P A...................

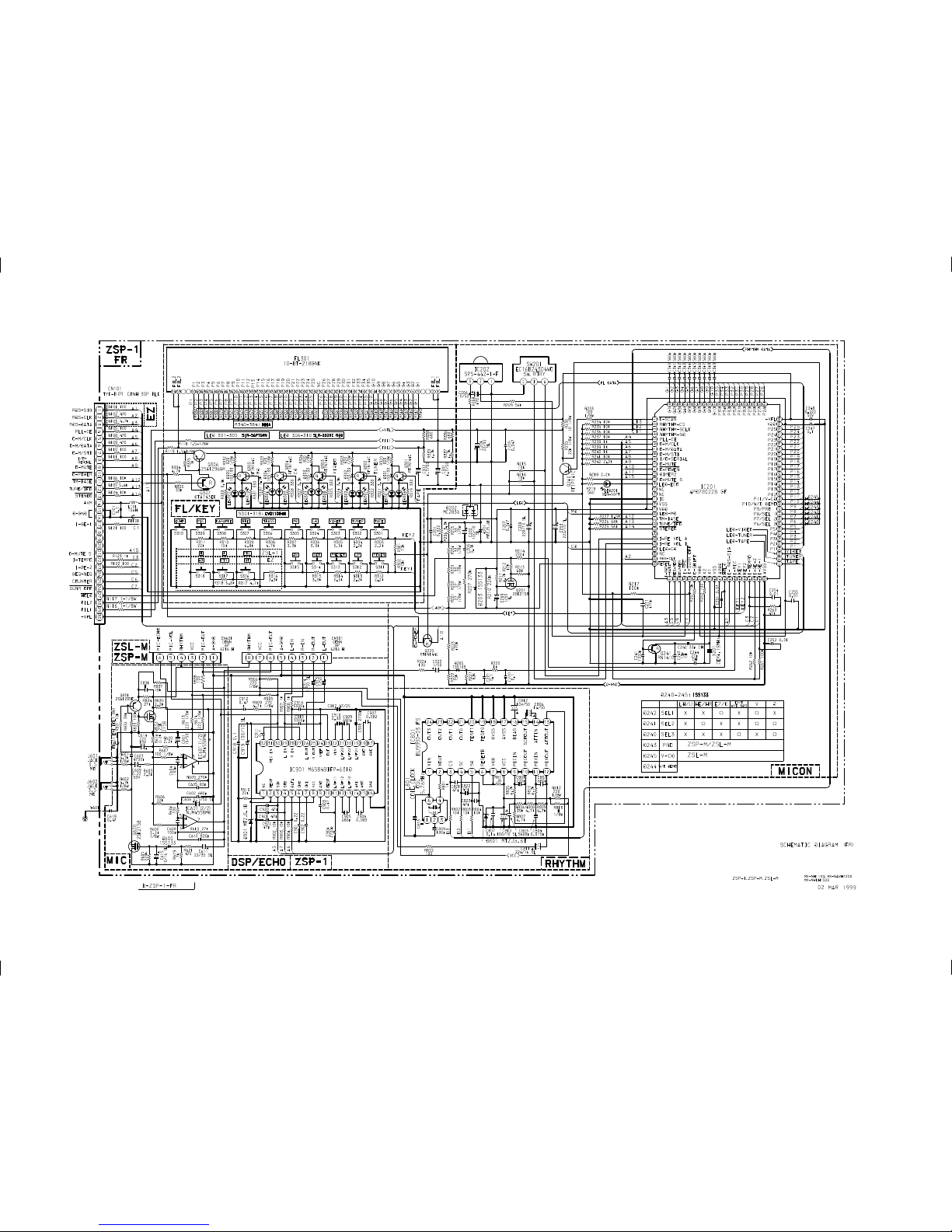

88-SX1-203-210 GUIDE,FL A...................

* 8Z-SP1-202-010 GUIDE,LED FUN A...................

C 101 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 301 87-010-404-040 CAP,E 4.7-50 SME A...................

C 302 87-010-404-040 CAP,E 4.7-50 SME A...................

C 342 87-010-175-080 CAP 560P A...................

C 346 87-010-175-080 CAP 560P A...................

C 347 87-010-175-080 CAP 560P A...................

C 340 87-010-175-080 CAP 560P A...................

C 348 87-010-175-080 CAP 560P A...................

C 344 87-010-175-080 CAP 560P A...................

ELECTRICAL MAIN PARTS LIST-5/9(MX-NWVH1550)

C 349 87-010-175-080 CAP 560P A...................

C 341 87-010-175-080 CAP 560P A...................

C 345 87-010-175-080 CAP 560P A...................

C 343 87-010-175-080 CAP 560P A...................

CN 101 87-099-720-010 CONN,30P TYK-B(P) A...................

D 305 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 301 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 302 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 304 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 303 87-020-465-080 DIODE,1SS133 (110MA) A...................

FL 301 8Z-SP1-617-010 FL,10-BT-218GNK A...................

LED 309 87-A40-606-040 LED,SLR-332VC A...................

LED 308 87-A40-606-040 LED,SLR-332VC A...................

LED 307 87-A40-606-040 LED,SLR-332VC A...................

LED 306 87-A40-606-040 LED,SLR-332VC A...................

LED 304 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

LED 301 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

LED 303 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

LED 302 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

LED 305 87-A40-619-040 LED,SLR-56PT-T31-W GRN A...................

LED 310 87-A40-606-040 LED,SLR-332VC A...................

Q 307 87-026-226-080 CHIP-TR,DTA143EK A...................

Q 301 87-A30-071-080 C-TR,RT1N 144C A...................

Q 305 87-A30-071-080 C-TR,RT1N 144C A...................

Q 304 87-A30-071-080 C-TR,RT1N 144C A...................

Q 302 87-A30-071-080 C-TR,RT1N 144C A...................

Q 303 87-A30-071-080 C-TR,RT1N 144C A...................

Q 306 89-112-965-080 TR,2SA1296 (0.75W) A...................

S 303 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 306 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 307 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 301 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 308 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 305 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 304 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 302 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 309 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 313 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 315 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 314 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 310 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 311 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 312 87-A90-095-080 SW,TACT EVQ11G04M A...................

C 603 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 604 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 605 87-010-369-080 C-CAP,S 0.033-25 K B A...................

C 606 87-010-369-080 C-CAP,S 0.033-25 K B A...................

C 609 87-010-374-080 CAP, ELECT 47-10V A...................

C 601 87-010-401-080 CAP, ELECT 1-50V A...................

C 602 87-010-401-080 CAP, ELECT 1-50V A...................

C 608 87-010-405-080 CAP, ELECT 10-50V A...................

C 607 87-010-405-080 CAP, ELECT 10-50V A...................

C 612 87-010-112-080 CAP, ELECT 100-16V A...................

C 613 87-010-173-080 C-CAP,S 390P-50 SL A...................

C 614 87-010-173-080 C-CAP,S 390P-50 SL A...................

C 610 87-010-374-080 CAP, ELECT 47-10V A...................

C 611 87-010-405-080 CAP, ELECT 10-50V A...................

C 668 87-010-190-080 S CHIP F 0.01 A...................

CN 611 87-099-194-010 CONN,6P 6216V A...................

IC 601 87-A20-804-040 C-IC,NJM2152M A...................

JW 612 87-005-372-080 COIL S 1MHM A...................

JW 613 87-005-372-080 COIL S 1MHM A...................

PIN 612 87-099-568-010 CONN,11P TUC-P11P-B1 A...................

PIN 611 87-099-570-010 CONN,13P TUC-P13P-B1 A...................

C 701 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 702 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 709 87-010-956-080 CHIP-CAP,S 0.068-25B A...................

C 707 87-012-365-080 C-CAP,S 0.027-25VBK A...................

C 708 87-012-365-080 C-CAP,S 0.027-25VBK A...................

C 705 87-016-460-080 C-CAP,S 0.22-16 B A...................

C 706 87-016-460-080 C-CAP,S 0.22-16 B A...................

C 704 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 703 87-016-669-080 C-CAP,S 0.1-25 K B A...................

C 719 87-010-178-080 CHIP CAP 1000P A...................

C 716 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 715 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 717 87-010-188-080 CAP,CHIP 6800P A...................

C 718 87-010-188-080 CAP,CHIP 6800P A...................

C 712 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 711 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 714 87-010-198-080 CAP, CHIP 0.022 A...................

C 713 87-010-198-080 CAP, CHIP 0.022 A...................

C 710 87-010-956-080 CHIP-CAP,S 0.068-25B A...................

C 720 87-010-178-080 CHIP CAP 1000P A...................

C 722 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 721 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 731 87-010-112-080 CAP, ELECT 100-16V A...................

C 738 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 735 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 736 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 737 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 730 87-010-404-080 CAP, ELECT 4.7-50V A...................

ELECTRICAL MAIN PARTS LIST-6/9(MX-NWVH1550)

IC 701 87-A20-869-040 C-IC,M62449FP A...................

C 701 87-010-260-080 CAP, ELECT 47-25V A...................

C 702 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 709 87-012-195-080 C-CAP,U 100P-50CH A...................

C 704 87-012-286-080 CAP, U 0.01-25 A...................

C 703 87-012-286-080 CAP, U 0.01-25 A...................

C 712 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 711 87-010-263-080 CAP, ELECT 100-10V A...................

C 717 87-012-286-080 CAP, U 0.01-25 A...................

C 719 87-012-286-080 CAP, U 0.01-25 A...................

C 713 87-012-286-080 CAP, U 0.01-25 A...................

C 714 87-012-286-080 CAP, U 0.01-25 A...................

C 727 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 728 87-010-248-080 CAP, ELECT 220-10V A...................

C 721 87-012-176-080 CAP 15P A...................

C 722 87-012-176-080 CAP 15P A...................

C 720 87-012-195-080 C-CAP,U 100P-50CH A...................

C 723 87-012-274-080 CHIP CAP,U 1000P-50B A...................

C 725 87-012-274-080 CHIP CAP,U 1000P-50B A...................

CN 601 87-099-028-010 CONN,11P 6216 H A...................

D 721 87-070-136-080 ZENER,MTZJ5.1B A...................

IC 721 87-070-127-110 IC,LC72131 D A...................

Q 711 87-A30-196-080 TR,2SC4115SRS A...................

X 721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 A...................

C 758 87-012-167-080 C-CAP,U 5P-50 CH A...................

C 757 87-012-188-080 C-CAP,U 47P-50 CH A...................

C 756 87-012-286-080 CAP, U 0.01-25 A...................

C 755 87-012-286-080 CAP, U 0.01-25 A...................

C 761 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 769 87-010-260-080 CAP, ELECT 47-25V A...................

C 763 87-010-829-080 CAP, U 0.047-16 A...................

C 766 87-012-286-080 CAP, U 0.01-25 A...................

C 765 87-012-286-080 CAP, U 0.01-25 A...................

C 762 87-012-286-080 CAP, U 0.01-25 A...................

C 768 87-012-286-080 CAP, U 0.01-25 A...................

C 764 87-012-337-080 C-CAP,U 56P-50 CH A...................

C 774 87-010-263-080 CAP, ELECT 100-10V A...................

C 777 87-010-400-080 CAP, ELECT 0.47-50V A...................

C 778 87-010-401-080 CAP, ELECT 1-50V A...................

C 779 87-010-401-080 CAP, ELECT 1-50V A...................

C 775 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 771 87-010-407-080 CAP, ELECT 33-50V A...................

C 770 87-010-829-080 CAP, U 0.047-16 A...................

C 772 87-010-829-080 CAP, U 0.047-16 A...................

C 773 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z A...................

C 780 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 781 87-010-405-080 CAP, ELECT 10-50V A...................

C 782 87-010-405-080 CAP, ELECT 10-50V A...................

C 785 87-010-805-080 CAP, S 1-16 A...................

C 786 87-010-805-080 CAP, S 1-16 A...................

C 789 87-012-275-080 C-CAP,U 1200P-50 B A...................

C 788 87-012-280-080 CAP, U 3300P-50 A...................

C 787 87-012-280-080 CAP, U 3300P-50 A...................

C 783 87-012-286-080 CAP, U 0.01-25 A...................

C 784 87-012-286-080 CAP, U 0.01-25 A...................

C 796 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 791 87-010-405-080 CAP, ELECT 10-50V A...................

C 794 87-010-406-080 CAP, ELECT 22-50 A...................

C 799 87-010-829-080 CAP, U 0.047-16 A...................

C 793 87-012-273-080 C-CAP,U 820P-50 B A...................

C 790 87-012-275-080 C-CAP,U 1200P-50 B A...................

C 797 87-012-276-080 CAP, CHIP SS 1500 PBK A...................

C 798 87-012-276-080 CAP, CHIP SS 1500 PBK A...................

C 795 87-A10-504-080 C-CAP,U 0.047-16 K B A...................

D 773 87-020-465-080 DIODE,1SS133 (110MA) A...................

IC 771 87-A20-913-010 IC,LA1837NL A...................

L 771 87-A50-266-010 COIL,FM DET-2N(TOK) A...................

L 772 87-A90-052-010 FLTR,CFMT-450A(TOK) A...................

L 781 87-005-847-080 COIL,2.2UH(CECS) A...................

L 791 87-A50-027-010 COIL,1 POLE MPX(TOK) A...................

L 792 87-A50-027-010 COIL,1 POLE MPX(TOK) A...................

X 771 87-030-354-010 VIB,CF BFU 450C A...................

C 819 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 813 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 814 87-012-286-080 CAP, U 0.01-25 A...................

C 812 87-012-286-080 CAP, U 0.01-25 A...................

C 829 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 828 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 820 87-010-260-080 CAP, ELECT 47-25V A...................

C 821 87-012-286-080 CAP, U 0.01-25 A...................

C 823 87-012-286-080 CAP, U 0.01-25 A...................

C 822 87-012-286-080 CAP, U 0.01-25 A...................

C 944 87-010-575-080 C-CAP,S 560P-50 UJ A...................

C 941 87-012-182-080 C-CAP,U 27P-50 CH A...................

C 943 87-012-286-080 CAP, U 0.01-25 A...................

C 940 87-012-286-080 CAP, U 0.01-25 A...................

C 945 87-012-286-080 CAP, U 0.01-25 A...................

C 947 87-012-286-080 CAP, U 0.01-25 A...................

C 959 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 956 87-010-263-080 CAP, ELECT 100-10V A...................

C 954 87-010-400-080 CAP, ELECT 0.47-50V A...................

C 952 87-012-286-080 CAP, U 0.01-25 A...................

ELECTRICAL MAIN PARTS LIST-7/9(MX-NWVH1550)

C 953 87-012-286-080 CAP, U 0.01-25 A...................

C 950 87-A10-913-080 C-CAP, 4700P-50 J CH A...................

C 960 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 962 87-010-401-080 CAP, ELECT 1-50V A...................

C 964 87-012-170-080 C-CAP,U 8P-50 CH A...................

CF 802 87-008-261-010 FILTER, SFE10.7MA5-A A...................

CF 801 87-008-261-010 FILTER, SFE10.7MA5-A A...................

D 941 87-020-465-080 DIODE,1SS133 (110MA) A...................

FFE 801 A8-8ZA-193-070 8ZA-1 YFEUNC A...................

J 801 87-A60-657-010 TERMINAL,4P HSP-154V5-02 A...................

J 940 81-754-629-010 CONNECTOR, 2P A...................

L 832 87-005-847-080 COIL,2.2UH(CECS) A...................

L 943 87-005-372-080 COIL S 1MHM A...................

L 941 87-A50-022-010 COIL,ANT SW(COI) A...................

L 944 87-A50-159-010 COIL,10MH K C2B A...................

L 942 87-A50-173-010 COIL,OSC SW-N(COI) A...................

L 981 88-NF8-625-110 COIL,AM PACK3N(TOK) A...................

Q 806 87-A30-072-080 C-TR,RT1P 144C A...................

Q 807 87-A30-072-080 C-TR,RT1P 144C A...................

Q 805 89-327-143-080 TR,2SC2714 (0.1W) A...................

Q 941 87-A30-074-080 C-TR,RT1P 141C A...................

Q 942 87-A30-075-080 C-TR,2SA1235F A...................

Q 943 87-A30-075-080 C-TR,2SA1235F A...................

Q 945 87-A30-076-080 C-TR,2SC3052F A...................

Q 949 87-A30-076-080 C-TR,2SC3052F A...................

Q 944 87-A30-076-080 C-TR,2SC3052F A...................

Q 946 87-A30-086-070 C-TR,CSD1306E A...................

Q 948 87-A30-086-070 C-TR,CSD1306E A...................

Q 947 89-503-602-080 C-FET,2SK360E A...................

Q 951 87-A30-074-080 C-TR,RT1P 141C A...................

Q 950 87-A30-086-070 C-TR,CSD1306E A...................

TC 943 87-011-164-010 CAPACITOR,TRIMMER 30P A...................

TC 941 87-011-173-010 CERAMIC TRIMMER 20P A...................

C 802 87-010-176-080 C-CAP,S 680P-50 SL A...................

C 801 87-010-176-080 C-CAP,S 680P-50 SL A...................

C 809 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 808 87-010-401-080 CAP, ELECT 1-50V A...................

C 807 87-010-401-080 CAP, ELECT 1-50V A...................

C 805 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................

C 806 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................

C 804 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................

C 803 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................

C 810 87-010-112-080 CAP, ELECT 100-16V A...................

C 817 87-010-221-080 CAP, ELECT 470-10V A...................

C 814 87-010-401-080 CAP, ELECT 1-50V A...................

C 813 87-010-401-080 CAP, ELECT 1-50V A...................

C 812 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 811 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 815 87-010-546-080 CAP, ELECT 0.33-50V A...................

C 816 87-010-546-080 CAP, ELECT 0.33-50V A...................

C 819 87-A10-800-080 C-CAP,S 6800P-16 J B CM A...................

C 818 87-A10-891-080 CAP,E 4.7-25 SME(K) A...................

C 825 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 821 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 820 87-010-374-080 CAP, ELECT 47-10V A...................

C 824 87-010-374-080 CAP, ELECT 47-10V A...................

C 829 87-010-544-080 CAP, ELECT 0.1-50V A...................

C 823 87-A10-800-080 C-CAP,S 6800P-16 J B CM A...................

C 822 87-A10-804-080 C-CAP,S 0.1-25 J B A...................

C 839 87-010-401-080 CAP, ELECT 1-50V A...................

C 830 87-010-546-080 CAP, ELECT 0.33-50V A...................

C 831 87-010-971-080 C-CAP,S 4700P-50 B J A...................

C 837 87-010-971-080 C-CAP,S 4700P-50 B J A...................

C 838 87-012-349-080 C-CAP,S 1000P-50 CH A...................

C 832 87-012-349-080 C-CAP,S 1000P-50 CH A...................

C 840 87-010-401-080 CAP, ELECT 1-50V A...................

C 846 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 847 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 845 87-012-393-080 C-CAP,S 0.22-16 R K A...................

C 849 87-012-393-080 C-CAP,S 0.22-16 R K A...................

C 848 87-012-393-080 C-CAP,S 0.22-16 R K A...................

C 844 87-012-393-080 C-CAP,S 0.22-16 R K A...................

C 843 87-A10-229-080 C-CAP,S 0.68-10 K W5 A...................

C 841 87-A10-799-080 C-CAP,S 5600P-16 J B CM A...................

C 842 87-A10-802-080 C-CAP,S 0.047-16 J B CM A...................

C 853 87-016-081-080 C-CAP,S 0.1-16 RK A...................

C 854 87-016-081-080 C-CAP,S 0.1-16 RK A...................

C 857 87-016-081-080 C-CAP,S 0.1-16 RK A...................

C 850 87-016-081-080 C-CAP,S 0.1-16 RK A...................

C 855 87-A10-801-080 C-CAP,S 0.022-16 J B CM A...................

C 856 87-A10-801-080 C-CAP,S 0.022-16 J B CM A...................

C 852 87-A10-802-080 C-CAP,S 0.047-16 J B CM A...................

C 851 87-A10-802-080 C-CAP,S 0.047-16 J B CM A...................

C 866 87-010-194-080 CAP, CHIP 0.047 A...................

C 861 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 863 87-010-263-080 CAP, ELECT 100-10V A...................

C 865 87-016-460-080 C-CAP,S 0.22-16 B A...................

C 868 87-A10-060-080 C-CAP,S 0.18-16 K B A...................

C 867 87-A10-201-080 C-CAP,S0.33-16 KB A...................

C 879 87-010-179-080 CAP,CHIP S B1200P A...................

C 878 87-010-401-080 CAP, ELECT 1-50V A...................

C 880 87-010-179-080 CAP,CHIP S B1200P A...................

ELECTRICAL MAIN PARTS LIST-8/9(MX-NWVH1550)

C 895 87-010-195-080 C-CAP,S 0.068-25 F A...................

C 896 87-010-260-080 CAP, ELECT 47-25V A...................

C 894 87-010-263-080 CAP, ELECT 100-10V A...................

C 893 87-010-401-080 CAP, ELECT 1-50V A...................

C 891 87-010-401-080 CAP, ELECT 1-50V A...................

C 892 87-010-401-080 CAP, ELECT 1-50V A...................

C 890 87-012-358-080 C-CAP,S 0.47-10 F Z A...................

CN 402 87-099-557-010 CONN,11P TUC-P11X-B1 A...................

CN 401 87-099-559-010 CONN,13P TUC-P13X-B1 A...................

D 802 87-070-136-080 ZENER,MTZJ5.1B A...................

D 801 87-A40-442-080 ZENER,MTZJ9.1A A...................

D 891 87-A40-438-080 ZENER,MTZJ4.7A A...................

D 892 87-A40-438-080 ZENER,MTZJ4.7A A...................

IC 801 87-A21-097-040 C-IC,M62463AFP A...................

IC 831 87-A21-015-040 C-IC,M62491FP A...................

Q 831 87-A30-086-040 C-TR,CSD1306E A...................

Q 894 87-A30-075-080 C-TR,2SA1235F A...................

Q 893 87-A30-076-080 C-TR,2SC3052F A...................

Q 892 87-A30-086-040 C-TR,CSD1306E A...................

Q 891 87-A30-086-040 C-TR,CSD1306E A...................

R 807 87-022-214-080 C-RES S100K-1/10WF A...................

C 952 87-010-263-080 CAP, ELECT 100-10V A...................

C 953 87-010-380-080 CAP, ELECT 47-16V A...................

C 951 87-010-401-080 CAP, ELECT 1-50V A...................

CN 951 87-A60-109-010 CONN,2P V S2M-2W A...................

D 952 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 951 87-020-465-080 DIODE,1SS133 (110MA) A...................

Q 952 87-026-609-080 TR,KTA1266GR A...................

Q 951 87-A30-076-080 C-TR,2SC3052F A...................

C 303 87-010-178-080 CHIP CAP 1000P A...................

C 304 87-010-178-080 CHIP CAP 1000P A...................

C 307 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 308 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 302 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 301 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 306 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 305 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 309 87-010-405-080 CAP, ELECT 10-50V A...................

C 319 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 313 87-010-260-080 CAP, ELECT 47-25V A...................

C 314 87-010-260-080 CAP, ELECT 47-25V A...................

C 310 87-010-405-080 CAP, ELECT 10-50V A...................

C 317 87-010-544-080 CAP, ELECT 0.1-50V A...................

C 318 87-010-544-080 CAP, ELECT 0.1-50V A...................

C 316 87-A10-596-080 C-CAP,S 100P-100 J CH A...................

C 315 87-A10-596-080 C-CAP,S 100P-100 J CH A...................

C 321 87-012-145-080 CAP, CHIP S 270P CH A...................

C 322 87-012-145-080 CAP, CHIP S 270P CH A...................

C 324 87-016-462-080 C-CAP,S 1-16 F A...................

C 323 87-016-462-080 C-CAP,S 1-16 F A...................

C 352 87-010-178-080 CHIP CAP 1000P A...................

C 357 87-010-260-080 CAP, ELECT 47-25V A...................

C 354 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 351 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 355 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 353 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 359 87-010-544-080 CAP, ELECT 0.1-50V A...................

C 358 87-A10-596-080 C-CAP,S 100P-100 J CH A...................

C 360 87-012-145-080 CAP, CHIP S 270P CH A...................

C 361 87-016-462-080 C-CAP,S 1-16 F A...................

C 381 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 391 87-010-260-080 CAP, ELECT 47-25V A...................

D 305 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 307 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 308 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 301 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 302 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 306 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 309 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 318 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 316 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 317 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 315 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 310 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 312 87-A40-488-080 DIODE,1SS244 A...................

D 311 87-A40-488-080 DIODE,1SS244 A...................

D 351 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 355 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 354 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 353 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 356 87-A40-488-080 DIODE,1SS244 A...................

Q 306 87-A30-075-080 C-TR,2SA1235F A...................

Q 305 87-A30-075-080 C-TR,2SA1235F A...................

Q 303 87-A30-075-080 C-TR,2SA1235F A...................

Q 304 87-A30-075-080 C-TR,2SA1235F A...................

Q 308 87-A30-076-080 C-TR,2SC3052F A...................

Q 309 87-A30-076-080 C-TR,2SC3052F A...................

Q 307 87-A30-076-080 C-TR,2SC3052F A...................

Q 301 89-333-266-080 CHIP TR,2SC3326B A...................

Q 302 89-333-266-080 CHIP TR,2SC3326B A...................

Q 319 87-A30-075-080 C-TR,2SA1235F A...................

Q 310 87-A30-076-080 C-TR,2SC3052F A...................

Q 318 87-A30-076-080 C-TR,2SC3052F A...................

Q 317 87-A30-076-080 C-TR,2SC3052F A...................

Q 312 87-A30-190-080 TR,CC5551 A...................

Q 311 87-A30-190-080 TR,CC5551 A...................

Q 353 87-A30-075-080 C-TR,2SA1235F A...................

Q 352 87-A30-075-080 C-TR,2SA1235F A...................

Q 354 87-A30-076-080 C-TR,2SC3052F A...................

Q 359 87-A30-076-080 C-TR,2SC3052F A...................

Q 355 87-A30-076-080 C-TR,2SC3052F A...................

Q 356 87-A30-190-080 TR,CC5551 A...................

Q 351 89-333-266-080 CHIP TR,2SC3326B A...................

Q 360 87-A30-075-080 C-TR,2SA1235F A...................

Q 381 87-A30-257-080 C-TR,2SD1306E A...................

Q 891 89-333-266-080 CHIP TR,2SC3326B A...................

Q 892 89-333-266-080 CHIP TR,2SC3326B A...................

R 331 87-022-050-080 RES,M/F 0.22-1W J A...................

R 332 87-022-050-080 RES,M/F 0.22-1W J A...................

R 333 87-022-050-080 RES,M/F 0.22-1W J A...................

R 334 87-022-050-080 RES,M/F 0.22-1W J A...................

R 367 87-022-050-080 RES,M/F 0.22-1W J A...................

R 366 87-022-050-080 RES,M/F 0.22-1W J A...................

C 138 87-010-387-080 CAP,E 470-25 SME A...................

C 140 87-A10-480-090 CAP,CER 4700P-250 M E KH A...................

C 141 87-A10-480-090 CAP,CER 4700P-250 M E KH A...................

CN 102 8Z-SP1-619-010 CONN ASSY,4P A...................

D 119 87-070-345-080 DIODE,IN4148 A...................

D 117 87-070-345-080 DIODE,IN4148 A...................

D 118 87-070-345-080 DIODE,IN4148 A...................

D 116 87-070-345-080 DIODE,IN4148 A...................

D 120 87-070-345-080 DIODE,IN4148 A...................

D 121 87-070-345-080 DIODE,IN4148 A...................

D 122 87-070-345-080 DIODE,IN4148 A...................

PT 102 8Z-NF8-663-010 PT,SUB ZNF-8(H) A...................

Q 101 87-026-245-080 TR,DTC114ES A...................

RY 101 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5 A...................

S 101 87-036-173-010 SW,SL 2-2-4 SDKG(*) A...................

T 101 87-A60-317-010 TERMINAL, 1P MSC A...................

T 102 87-A60-317-010 TERMINAL, 1P MSC A...................

ELECTRICAL MAIN PARTS LIST-9/9(MX-NWVH1550)

Popular Stereo System manuals by other brands

Sony

Sony HCD-VX88 Service manual

Philips

Philips MCM398D/12 user manual

Sony

Sony CMT-SPZ90DB operating instructions

LG OM4560 owner's manual

JVC

JVC UX-G3 instructions

Odys

Odys ODYS - LOOP instruction manual

Panasonic

Panasonic SC-AK100 operating instructions

Sharp

Sharp CD-G10000V Operation manual

Bogen

Bogen NEARSCAPES 4.1 manual

Panasonic

Panasonic SCPM29 - MINI HES W/CD PLAYER operating instructions

Meyer

Meyer LD-3 operating instructions

THOMSON

THOMSON MIC302U manual

Philips

Philips MCM530 Service manual

Sony

Sony SS-CEP50 Service manual

Cetacea Sound

Cetacea Sound CVS-II user guide

Sony

Sony MHC-V21D Service manual

Denon

Denon UCD-250 Service manual

Exibel

Exibel BDX600-UK user manual

Aiwa XR-WVH1550 User manual

Popular Stereo System manuals by other brands
