S E R V I C E M A N U A L
SIMPLE MANUAL
• Replace this Service Manual with ”Revision Publishing” when it is issued.
Z-R220
• TYPE: EZ,K
S/M Code No. 09–986–268–10A
COMPACT DISC STEREO
CASSETTE RECEIVER
• BASIC TAPE MECHANISM : TN-21ZFW-1788
• BASIC CD MECHANISM : 4ZG-1 Z3DLSH
SYSTEM
Z-R220
CD-
CASSEIVER
CX-ZR220
SPEAKER
SX-ZR20
• If requiring information about the cd mechanism, see Service Manual of 4ZG-1Z3.
(S/M Code No. 09-983-249-30T).

ELECTRICAL MAIN PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
K ......................XX....................................C.................
EZ .....................XX.....................................D................
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NF7-210-110 GUIDE,FL (*) ABCD................
88-MA5-601-010 PWB,COMB FRONT A...................
C 101 87-018-208-080 CAP 0.047-50F ABCD................
C 201 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 202 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 203 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 204 87-010-408-080 CAP, ELECT 47-50V ABCD................
C 207 87-018-208-080 CAP 0.047-50F ABCD................
C 205 87-018-208-080 CAP 0.047-50F ABCD................
C 206 87-018-208-080 CAP 0.047-50F ABCD................
C 211 87-010-248-080 CAP, ELECT 220-10V ABCD................
C 210 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 213 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 214 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCD................
C 217 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCD................
C 219 87-018-205-080 CAP, CERA-SOL 0.022 ABCD................
C 218 87-018-205-080 CAP, CERA-SOL 0.022 ABCD................
C 216 87-018-208-080 CAP 0.047-50F ABCD................
C 212 87-018-209-080 CAP, CER 0.1-50V ABCD................
C 226 87-018-113-080 CAP, CER 33P-50V ABCD................
C 221 87-018-115-080 CAP, CER 47P-50V ABCD................
C 225 87-018-149-080 CAP,TC-U 15P-50 CH ABCD................
C 224 87-018-208-080 CAP 0.047-50F ABCD................
C 220 87-018-209-080 CAP, CER 0.1-50V ABCD................
C 231 87-010-384-080 CAP, ELECT 100-25V ABCD................
C 246 87-018-117-080 CAP,TC-U 68P-50 SL ABCD................
C 241 87-018-117-080 CAP,TC-U 68P-50 SL ABCD................
C 251 87-018-208-080 CAP 0.047-50F ABCD................
C 261 87-018-209-080 CAP, CER 0.1-50V ABCD................
CON 103 87-009-353-010 CONN,10P PH H ABCD................
CON 102 87-099-015-010 CONN,13P 6216V ABCD................
CON 101 87-099-720-010 CONN,30P TYK-B(P) ABCD................
D 201 87-017-932-080 ZENER,MTJ6.2B ABCD................
D 209 87-A40-470-080 DIODE,1SS254 ABCD................
FL 301 88-MA5-637-010 FL,SVA-10MM11 ABCD................
IC 202 87-NF8-614-010 IC,SPS-442-1-W ABCD................
IC 201 88-NF9-650-010 IC,M38B57MCH-P201FP ABCD................
Q 202 87-026-372-080 TR,RN1210 ABCD................
Q 201 87-A30-198-080 TR,KTC3199GR ABCD................
Q 231 87-A30-196-080 TR,2SC4115SRS ABCD................
S 201 87-A90-535-010 SW,RTRY EC16B24304 ABCD................
S 319 87-A90-095-080 SW,TACT EVQ11G04M ABCD................
S 321 87-A90-095-080 SW,TACT EVQ11G04M ABCD................
S 322 87-A90-095-080 SW,TACT EVQ11G04M ABCD................
SFR 201 87-A90-556-080 SFR,2.2K H HOKU ABCD................
X 201 87-A70-075-080 VIB,CER 4.19MHZ CRHF ABCD................
FC 2 87-A90-505-080 FUSE CLAMP,TP00351-51 .BCD................
FC 1 87-A90-505-080 FUSE CLAMP,TP00351-51 .BCD................
T 1 87-A60-317-010 TERMINAL, 1P MSC .BCD................
T 2 87-A60-317-010 TERMINAL, 1P MSC .BCD................
WH 101 87-A90-460-010 HLDR,WIRE 2.5-7P ABCD................
C 106 87-010-260-080 CAP, ELECT 47-25V ABCD................
C 108 87-010-381-080 CAP, ELECT 330-16V ABCD................
C 107 87-010-384-080 CAP, ELECT 100-25V ABCD................
C 101 87-016-495-090 CAP,E 3300-25 SMG ABCD................
C 105 87-018-127-080 CAP, CER 470P-50V ABCD................
C 104 87-A10-011-090 CAP,E 2200-25 SMG ABCD................
C 111 87-010-247-080 CAP, ELECT 100-50V ABCD................
C 112 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 114 87-010-374-080 CAP, ELECT 47-10V ABCD................
C 113 87-010-403-080 CAP, ELECT 3.3-50V ABCD................
C 122 87-010-384-080 CAP, ELECT 100-25V ABCD................
C 123 87-010-384-080 CAP, ELECT 100-25V ABCD................
D 107 87-A40-236-080 ZENER,MTZJ24D ABCD................
D 101 87-A40-454-080 DIODE,1N5393 GW ABCD................
D 102 87-A40-454-080 DIODE,1N5393 GW ABCD................
D 104 87-A40-454-080 DIODE,1N5393 GW ABCD................
D 103 87-A40-454-080 DIODE,1N5393 GW ABCD................
D 109 87-A40-470-080 DIODE,1SS254 ABCD................
D 108 87-A40-470-080 DIODE,1SS254 ABCD................
D 117 87-070-274-080 DIODE,1N4003 SEM ABCD................
D 116 87-070-274-080 DIODE,1N4003 SEM ABCD................
D 110 87-A40-345-080 ZENER,MTZJ10C ABCD................
Q 108 87-A30-197-080 TR,KTA1267GR ABCD................
Q 107 87-A30-198-080 TR,KTC3199GR ABCD................
Q 103 87-A30-198-080 TR,KTC3199GR ABCD................
Q 109 87-A30-198-080 TR,KTC3199GR ABCD................
Q 106 87-A30-198-080 TR,KTC3199GR ABCD................
Q 105 89-113-187-080 TR,2SA1318TU ABCD................
Q 101 89-213-702-010 TR,2SB1370 (1.8W) ABCD................
Q 104 89-333-317-880 TR,2SC3331 (0.5W) ABCD................
Q 115 87-026-219-080 TR,DTA144ES (0.3W) ABCD................
Q 110 87-A30-197-080 TR,KTA1267GR ABCD................
W 101 83-NE2-618-110 F-CABEL,5P-2.5 ABCD................
WH 102 87-A90-460-010 HLDR,WIRE 2.5-7P ABCD................
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCD................

C 207 87-010-546-080 CAP, ELECT 0.33-50V ABCD................
C 208 87-010-546-080 CAP, ELECT 0.33-50V ABCD................
C 209 87-018-133-080 CAPACITOR,CER 4700P-16V ABCD................
C 213 87-010-260-080 CAP, ELECT 47-25V A...................
C 214 87-010-260-080 CAP, ELECT 47-25V A...................
C 212 87-010-403-080 CAP, ELECT 3.3-50V ABCD................
C 211 87-010-403-080 CAP, ELECT 3.3-50V ABCD................
C 219 87-010-544-080 CAP, ELECT 0.1-50V ABCD................
C 210 87-018-133-080 CAPACITOR,CER 4700P-16V ABCD................
C 213 87-A10-899-080 CAP,E 47-25 M BP SME .BCD................
C 214 87-A10-899-080 CAP,E 47-25 M BP SME .BCD................
C 220 87-010-544-080 CAP, ELECT 0.1-50V ABCD................
C 229 87-018-123-080 CAP, CER 220P-50V ABCD................
C 230 87-018-123-080 CAP, CER 220P-50V ABCD................
C 237 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCD................
D 218 87-A40-470-080 DIODE,1SS254 ABCD................
D 219 87-A40-470-080 DIODE,1SS254 ABCD................
D 220 87-A40-470-080 DIODE,1SS254 ABCD................
D 221 87-A40-470-080 DIODE,1SS254 ABCD................
D 222 87-A40-470-080 DIODE,1SS254 ABCD................
J 202 87-033-240-010 TERMINAL,SP 4P32SV1-05 ABCD................
J 201 87-A60-488-010 JACK,DIA6.3 BLK ST W/SW KM16AT ABCD................
L 201 87-003-383-010 COIL,1UH-S ABCD................
L 202 87-003-383-010 COIL,1UH-S ABCD................
Q 202 87-A30-197-080 TR,KTA1267GR ABCD................
Q 204 87-A30-197-080 TR,KTA1267GR ABCD................
Q 203 87-A30-197-080 TR,KTA1267GR ABCD................
Q 201 87-A30-197-080 TR,KTA1267GR ABCD................
Q 208 87-A30-198-080 TR,KTC3199GR ABCD................
Q 206 87-A30-198-080 TR,KTC3199GR ABCD................
Q 207 87-A30-198-080 TR,KTC3199GR ABCD................
Q 205 87-A30-198-080 TR,KTC3199GR ABCD................
Q 209 89-333-317-880 TR,2SC3331 (0.5W) ABCD................
Q 218 87-A30-197-080 TR,KTA1267GR ABCD................
Q 215 87-A30-198-080 TR,KTC3199GR ABCD................
Q 216 87-A30-198-080 TR,KTC3199GR ABCD................
Q 214 88-NF9-622-010 TR,2SB1616 ABCD................
Q 213 88-NF9-622-010 TR,2SB1616 ABCD................
Q 211 88-NF9-623-010 TR,2SD2478 ABCD................
Q 212 88-NF9-623-010 TR,2SD2478 ABCD................
Q 210 89-333-317-880 TR,2SC3331 (0.5W) ABCD................
R 249 87-A00-258-080 RES,M/F 0.22-1W J ABCD................
R 250 87-A00-258-080 RES,M/F 0.22-1W J ABCD................
C 308 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 307 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 301 87-018-195-080 CAP, CER 1200P-16V ABCD................
C 302 87-018-195-080 CAP, CER 1200P-16V ABCD................
C 304 87-018-196-080 CAP, CER 1500P-16V ABCD................
C 303 87-018-196-080 CAP, CER 1500P-16V ABCD................
C 301 87-018-197-080 CAP, CER 1800P-16V ....................
C 302 87-018-197-080 CAP, CER 1800P-16V ....................
C 315 87-010-374-080 CAP, ELECT 47-10V ABCD................
C 318 87-010-546-080 CAP, ELECT 0.33-50V ABCD................
C 317 87-010-546-080 CAP, ELECT 0.33-50V ABCD................
C 361 87-010-374-080 CAP, ELECT 47-10V ABCD................
C 360 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 402 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 401 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 404 87-018-118-080 CAP,TC-U 82P-50 B .BCD................
C 403 87-018-118-080 CAP,TC-U 82P-50 B .BCD................
C 412 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 411 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 452 87-010-382-080 CAP, ELECT 22-25V ABCD................
C 459 87-018-128-080 CAP, CERA-SOL SS 560P ABCD................
C 458 87-018-131-080 CAP, CER 1000P-50V ABCD................
C 462 87-018-126-080 CAP,TC-U 390P-50 B ABCD................
C 461 87-018-126-080 CAP,TC-U 390P-50 B ABCD................
CON 301 87-099-827-010 CONN,3P S2M-3W ABCD................
CON 351 87-099-832-010 CONN,8P S2M-8W ABCD................
D 401 87-A40-470-080 DIODE,1SS254 ABCD................
IC 301 87-017-889-010 IC,NJM4558LD ABCD................
IC 401 87-017-889-010 IC,NJM4558LD ABCD................
L 451 87-007-342-010 COIL,OSC 85K BIAS ABCD................
Q 306 87-026-218-080 TR,DTC144ES (0.2W) ABCD................
Q 303 87-A30-090-080 FET,2SK2541 ABCD................
Q 304 87-A30-090-080 FET,2SK2541 ABCD................
Q 302 87-A30-091-080 FET,2SJ460 ABCD................
Q 301 87-A30-091-080 FET,2SJ460 ABCD................
Q 308 87-A30-197-080 TR,KTA1267GR ABCD................
Q 307 87-A30-197-080 TR,KTA1267GR ABCD................
Q 305 87-A30-197-080 TR,KTA1267GR ABCD................
Q 309 87-A30-197-080 TR,KTA1267GR ABCD................
Q 310 87-A30-197-080 TR,KTA1267GR ABCD................
Q 442 87-A30-197-080 TR,KTA1267GR ABCD................
Q 443 87-A30-197-080 TR,KTA1267GR ABCD................
Q 455 87-A30-198-080 TR,KTC3199GR ..CD................
Q 451 89-333-317-880 TR,2SC3331 (0.5W) ABCD................
Q 453 89-333-317-880 TR,2SC3331 (0.5W) ABCD................
Q 454 89-333-317-880 TR,2SC3331 (0.5W) ABCD................
SFR 451 87-A90-636-080 SFR,33K H RH0638C LG ABCD................
SFR 452 87-A90-636-080 SFR,33K H RH0638C LG ABCD................
C 601 87-018-132-080 CAP, CER 2200P-16V ..CD................
C 602 87-018-132-080 CAP, CER 2200P-16V ..CD................
ELECTRICAL MAIN PARTS LIST -2

C 601 87-018-195-080 CAP, CER 1200P-16V ABCD................
C 602 87-018-195-080 CAP, CER 1200P-16V ABCD................
C 617 87-010-260-080 CAP, ELECT 47-25V ABCD................
C 616 87-010-260-080 CAP, ELECT 47-25V ABCD................
C 612 87-010-545-080 CAP, ELECT 0.22-50V ABCD................
C 613 87-010-545-080 CAP, ELECT 0.22-50V ABCD................
C 611 87-010-545-080 CAP, ELECT 0.22-50V ABCD................
C 614 87-010-545-080 CAP, ELECT 0.22-50V ABCD................
C 615 87-018-104-080 CAP,TC-U 10P-50 SL ABCD................
CN 602 87-099-194-010 CONN,6P 6216V ABCD................
CON 601 87-099-719-010 CONN,30P TYK-B(X) ABCD................
D 601 87-A40-466-080 ZENER,MTZJ2.7A ABCD................
D 602 87-A40-466-080 ZENER,MTZJ2.7A ABCD................
IC 601 87-A20-715-010 IC,M62439SP ABCD................
J 601 87-A60-398-010 JACK,PIN 2P R/W HSP-242V24 ABCD................
JW 601 87-022-481-080 RES,NF 2.7-1/4W J .B..................
C 707 87-010-112-080 CAP, ELECT 100-16V ABCD................
C 709 87-010-248-080 CAP, ELECT 220-10V ABCD................
C 701 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 706 87-018-131-080 CAP, CER 1000P-50V ABCD................
C 704 87-018-131-080 CAP, CER 1000P-50V ABCD................
C 705 87-018-131-080 CAP, CER 1000P-50V ABCD................
C 702 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCD................
C 703 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCD................
C 714 87-010-112-080 CAP, ELECT 100-16V ABCD................
C 710 87-010-112-080 CAP, ELECT 100-16V ABCD................
C 715 87-018-119-080 CAP, CER 100P-50V ABCD................
C 713 87-018-149-080 CAP,TC-U 15P-50 CH ABCD................
C 712 87-018-149-080 CAP,TC-U 15P-50 CH ABCD................
D 701 87-A40-234-080 ZENER,MTZJ5.6A ABCD................
D 702 87-A40-470-080 DIODE,1SS254 ..CD................
IC 701 87-070-127-110 IC,LC72131 D ABCD................
JW 701 87-022-481-080 RES,NF 2.7-1/4W J .B..................
L 701 87-005-847-080 COIL,2.2UH(CECS) ABCD................
Q 701 87-A30-196-080 TR,2SC4115SRS ABCD................
X 701 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 ABCD................
C 758 87-010-112-080 CAP, ELECT 100-16V ABCD................
C 753 87-010-408-080 CAP, ELECT 47-50V ABCD................
C 759 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCD................
C 762 87-010-400-080 CAP, ELECT 0.47-50V ABCD................
C 764 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 763 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 769 87-010-403-080 CAP, ELECT 3.3-50V ABCD................
C 761 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 766 87-010-407-080 CAP, ELECT 33-50V ABCD................
C 765 87-018-115-080 CAP, CER 47P-50V ABCD................
C 768 87-018-208-080 CAP 0.047-50F ABCD................
C 774 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 771 87-010-406-080 CAP, ELECT 22-50 ABCD................
C 773 87-018-130-080 CAP,TC-U 820P-50 B ...D................
C 773 87-018-131-080 CAP, CER 1000P-50V ABC.................
C 789 87-010-403-080 CAP, ELECT 3.3-50V ABCD................
C 786 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 785 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 788 87-018-132-080 CAP, CER 2200P-16V AB..................
C 787 87-018-132-080 CAP, CER 2200P-16V AB..................
C 787 87-018-196-080 CAP, CER 1500P-16V ..CD................
C 788 87-018-196-080 CAP, CER 1500P-16V ..CD................
C 783 87-018-199-080 CAP, CER 3300P ABCD................
C 784 87-018-199-080 CAP, CER 3300P ABCD................
C 790 87-010-403-080 CAP, ELECT 3.3-50V ABCD................
D 752 87-A40-470-080 DIODE,1SS254 ABCD................
IC 751 87-A20-438-010 IC,LA1837 AB..................
IC 751 87-A20-913-010 IC,LA1837NL ..CD................
L 771 87-A50-266-010 COIL,FM DET-2N(TOK) ABCD................
L 772 87-A90-733-010 FLTR,PCFAZH-450 (TOK) ABCD................
C 856 87-010-405-080 CAP, ELECT 10-50V ...D................
C 855 87-010-405-080 CAP, ELECT 10-50V ...D................
C 858 87-018-109-080 CAP, CER 22P-50V ...D................
C 859 87-018-109-080 CAP, CER 22P-50V ...D................
C 851 87-018-123-080 CAP, CER 220P-50V ...D................
C 852 87-018-123-080 CAP, CER 220P-50V ...D................
C 853 87-018-127-080 CAP, CER 470P-50V ...D................
C 857 87-018-134-080 CAPACITOR,TC-U 0.01-16 ...D................
C 860 87-018-134-080 CAPACITOR,TC-U 0.01-16 ...D................
IC 851 87-A20-502-010 IC,BU1920 ...D................
L 851 87-005-847-080 COIL,2.2UH(CECS) ...D................
Q 851 87-A30-198-080 TR,KTC3199GR ...D................
X 851 89-KT1-608-010 X,TAL,4.332MHZ ...D................
C 812 87-010-408-080 CAP, ELECT 47-50V ..CD................
C 813 87-018-131-080 CAP, CER 1000P-50V ABCD................
C 924 87-014-049-080 CAP,PP 470P-100 J ..CD................
C 923 87-018-102-080 CAP,TC-U 6.8P-50 SL ..CD................
C 922 87-018-105-080 CAP,TC-U 12P-50 SL ..CD................
C 921 87-018-134-080 CAPACITOR,TC-U 0.01-16 ABCD................
C 944 87-018-147-080 CAP,TC-U 10P-50 CH AB..................
CF 802 82-785-747-010 CF MS2 GHY R ..CD................
CF 801 87-008-261-010 FILTER, SFE10.7MA5-A AB..................
CF 801 87-008-423-010 CERAMIC FILTER, SFE10.7 ..CD................
D 922 87-A40-470-080 DIODE,1SS254 ..CD................
D 921 87-A40-470-080 DIODE,1SS254 ..CD................
D 923 87-A40-470-080 DIODE,1SS254 ..CD................
FFE 801 A8-6ZA-191-130 6ZA-1 FEENM ..CD................
ELECTRICAL MAIN PARTS LIST - 3

FFE 801 A8-8ZA-190-030 8ZA-1 FEUNM ....................
FFE 801 A8-8ZA-191-030 8ZA-1 YFEUNM AB..................
J 801 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 AB..................
J 801 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05 ..CD................
L 801 87-005-847-080 COIL,2.2UH(CECS) ABCD................
L 942 87-A50-019-010 COIL,OSC LW(COI) ..CD................
L 941 87-A50-020-010 COIL,ANT LW(COI) ..CD................
L 981 87-NF4-650-010 COIL,AM PACK 4N(TOK) AB..................
L 981 87-NF4-651-010 COIL,AM PACK2N(TOM) ..CD................
Q 801 87-026-214-080 TR,DTA114YS (0.3W) ABCD................
Q 803 89-305-352-380 TR,2SC535(B/C) ..CD................
Q 935 87-A30-012-080 FET,2SK439E ..CD................
Q 933 87-A30-164-080 TR,CSC2001K ..CD................
Q 941 87-026-269-080 TR,DTA114ES ..CD................
Q 942 87-A30-164-080 TR,CSC2001K ..CD................
TC 942 87-011-221-080 CAP, TRIMMER 30P ..CD................
82-304-743-010 TERMINAL, 1P A...................
87-A60-317-010 TERMINAL, 1P MSC ....E...............
FC 2 87-033-147-010 FUSE CLAMP A...E...............
FC 1 87-033-147-010 FUSE CLAMP A...E...............
S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 A...E...............
ELECTRICAL MAIN PARTS LIST -4

MECHANICAL PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
K ......................XX....................................C.................
EZ .....................XX.....................................D................
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NE8-032-010 BADGE,AIWA 27.5 ABCDE...............
88-MA3-015-010 PANEL,TOP 3 A.CDE...............
88-MA3-016-010 PANEL,SIDE L3 A.CDE...............
88-MA3-017-010 PANEL,SIDE R3 A.CDE...............
88-MA3-034-010 PANEL,TOP 3U .B..................
88-MA3-035-010 PANEL,SIDE L3U .B..................
88-MA3-036-010 PANEL,SIDE R3U .B..................
88-MA4-006-010 BOX,CASS L ABCDE...............
88-MA4-007-010 BOX,CASS R ABCDE...............
88-MA5-003-010 CABI,REAR H(A5) A...................
88-MA5-004-010 CABI,REAR EZ(A5) ..CD................
88-MA5-008-010 CABI,FR U(A5) .B..................
88-MA5-010-010 CABI,REAR UBNM(A5) ....................
88-MA5-015-010 CABI,REAR LH(A5) ....................
88-MA5-023-010 CABI,FR LH(A5) A.C.E...............
88-MA5-024-010 CABI,FR EZ(A5) ...D................
88-MA5-040-010 CABI,REAR ZR227(LH) ....E...............
88-MA5-041-010 CABI,REAR UBN(ZR222) .B..................
88-MA1-030-010 KNOB,RTRY MAIN ABCDE...............
88-MA4-014-010 KEY,PLAY ABC.E...............
88-MA4-015-010 KEY,PLAY (RDS) ...D................
88-MA4-017-010 KEY,CASS L ABCDE...............
88-MA4-018-010 KEY,CASS R ABCDE...............
88-MA5-005-010 KEY,DIRECT(A5) ABCDE...............
88-MA5-006-010 KEY,GEQ(A5) ABCDE...............
88-MA5-014-010 KEY,FUN(A5) ABCDE...............
88-MAR-017-010 KEY,POWER(A24) ABCDE...............
81-532-080-010 LABEL, CASS. COMPT ABCDE...............
86-MA3-042-010 WINDOW,TOP A.CDE...............
87-MAT-009-010 WINDOW,TOP(U) .B..................
88-MA4-019-010 WINDOW,CD ABCDE...............
88-MA4-022-010 WINDOW,CASS L ABCDE...............
88-MA4-023-010 WINDOW,CASS R ABCDE...............
88-MA5-011-010 PANEL,TRAY H(A5) ABCDE...............
88-MA5-033-010 WINDOW,AMP H(A5) A...................
88-MA5-034-010 WINDOW,AMP U(A5) .B..................
88-MA5-035-010 WINDOW,AMP EZ(A5) ...D................
88-MA5-036-010 WINDOW,AMP K(A5) ..C.................
88-MA5-038-010 WINDOW,AMP(ZR227) ....E...............
84-ZG1-245-210 CAP,OPTICAL ABCDE...............
82-NF7-218-010 SPR-T,CASS ABCDE...............
86-NFZ-231-010 DMPR,70 ABCDE...............
87-MA3-062-010 FOOT, H17 ABCDE...............
87-NF4-221-010 HLDR,CABLE ABCDE...............
88-MA1-207-010 HLDR,PWB ABCDE...............
88-MA1-208-010 JOINT,CABI ABCDE...............
88-MA5-203-010 HLDR,HT-SINK ABCD................
87-067-641-010 UTT2+3-8(W/O SLOT)BL ABCDE...............
87-067-688-010 BVTT+3-6 ABCDE...............
87-067-689-010 TAPPING SCREW, BVTT+3-8 ....E...............
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCDE...............
87-067-758-010 BVT2+3-12 W/O SLOT ABCDE...............
87-067-975-010 S-SCREW,IT+4-8 ABCDE...............
87-078-060-010 BVIT3PB+3-10 ABCDE...............
87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD) ABCDE...............
87-NF4-224-010 S-SCREW,IT3B+3-8 CU ....E...............
86-NF7-640-010 CONN ASSY,8P-RPB ABCDE...............
87-050-053-010 AC CORD ASSY,U-2 .B..................
87-050-079-010 AC-CORD ASSY,E A..DE...............
87-085-185-010 BUSHING, AC CORD (E) A.CDE...............
87-085-189-010 BUSHING, CORD (U) .B..................
87-A80-007-110 AC CORD ASSY,K BLK ..C.................
88-906-271-110 CABLE,FFC 6P-1.25 ABCDE...............
88-913-221-110 FF-CABLE, 13P 1.25 220MM ABCDE...............
88-MA5-632-010 PT,8MA LH A...................
88-MA5-636-010 CONN ASSY,10P MACHA ABCDE...............
C 239 87-010-402-080 CAP, ELECT 2.2-50V ABCDE...............
C 240 87-010-402-010 CAP,ELECT 2.2-50SME ABCDE...............
C 262 87-018-209-080 CAP, CER 0.1-50V A...................
C 261 87-018-209-080 CAP, CER 0.1-50V A...................
F 101 87-035-217-010 FUSE, 315MAT ..CD................
F 101 87-035-219-010 FUSE, 500MA’T’ A...E...............
F 101 87-A90-555-010 FUSE,800MA 250V T 239 .B..................
PT 101 88-MA5-635-010 PT,8MA-5K ..C.................
PT 101 88-NF9-607-010 PT,8NF9-U .B..................
PT 101 88-NF9-608-010 PT,8NF9-EKZ ...D................
82-NF7-210-110 GUIDE,FL (*) ABCD................
WH 101 87-A90-460-010 HLDR,WIRE 2.5-7P ABCD................
W 101 83-NE2-618-110 F-CABEL,5P-2.5 ABCD................
WH 102 87-A90-460-010 HLDR,WIRE 2.5-7P ABCD................
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCD................
82-304-743-010 TERMINAL, 1P A...................
87-A60-317-010 TERMINAL, 1P MSC ....E...............

ACCESSORIES LIST
NOTE: The characters in the suffix column indicate the part usage.
K ......................XX....................................C.................
EZ .....................XX.....................................D................
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
88-MA5-902-010 IB,LH(ESP)M A...................
88-MA5-903-010 IB,U(ESF)M .B..................
88-MA5-905-010 IB,K(E)M ..C.................
88-MA5-906-010 IB,E(9L)M ...D................
88-MA5-912-010 IB,LH(P)CCE 227 ....E...............
86-NFZ-738-010 RC UNIT,6AS14 A...................
87-043-106-010 WIRE, FM ANT (Z) ..CD................
87-043-115-010 ANT,FEEDER FM AB..E...............
87-099-789-010 PLUG,ADPTR IR44 A...................
87-A90-030-010 ANT,LOOP AM-NC C ABCDE...............
87-A90-312-010 PLUG,CONVERSION WTN-1157R1 ....................
88-NF9-701-010 RC UNIT,RC-6AS14 .BCDE...............

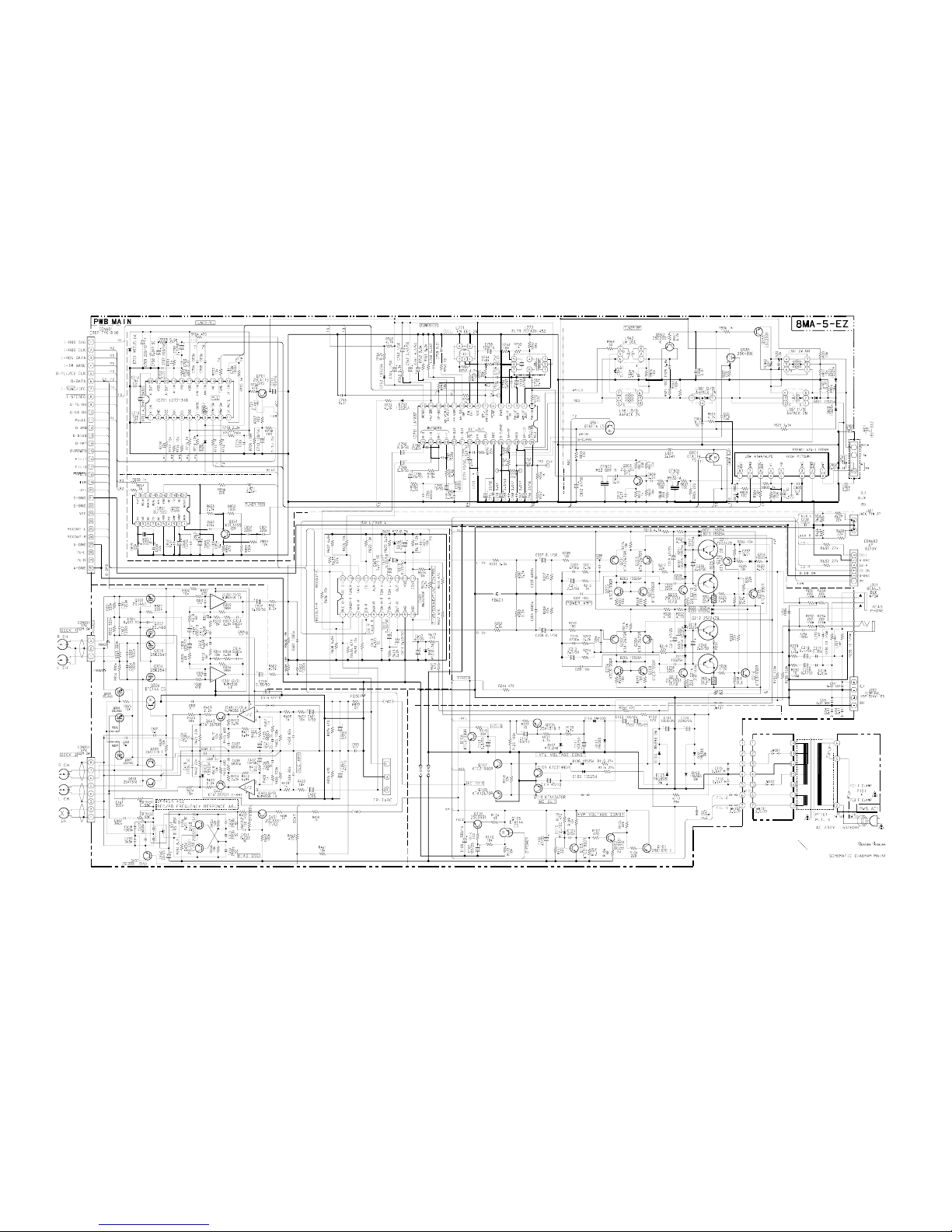

SCHEMATIC DIAGRAM _1 (MAIN : EZ)

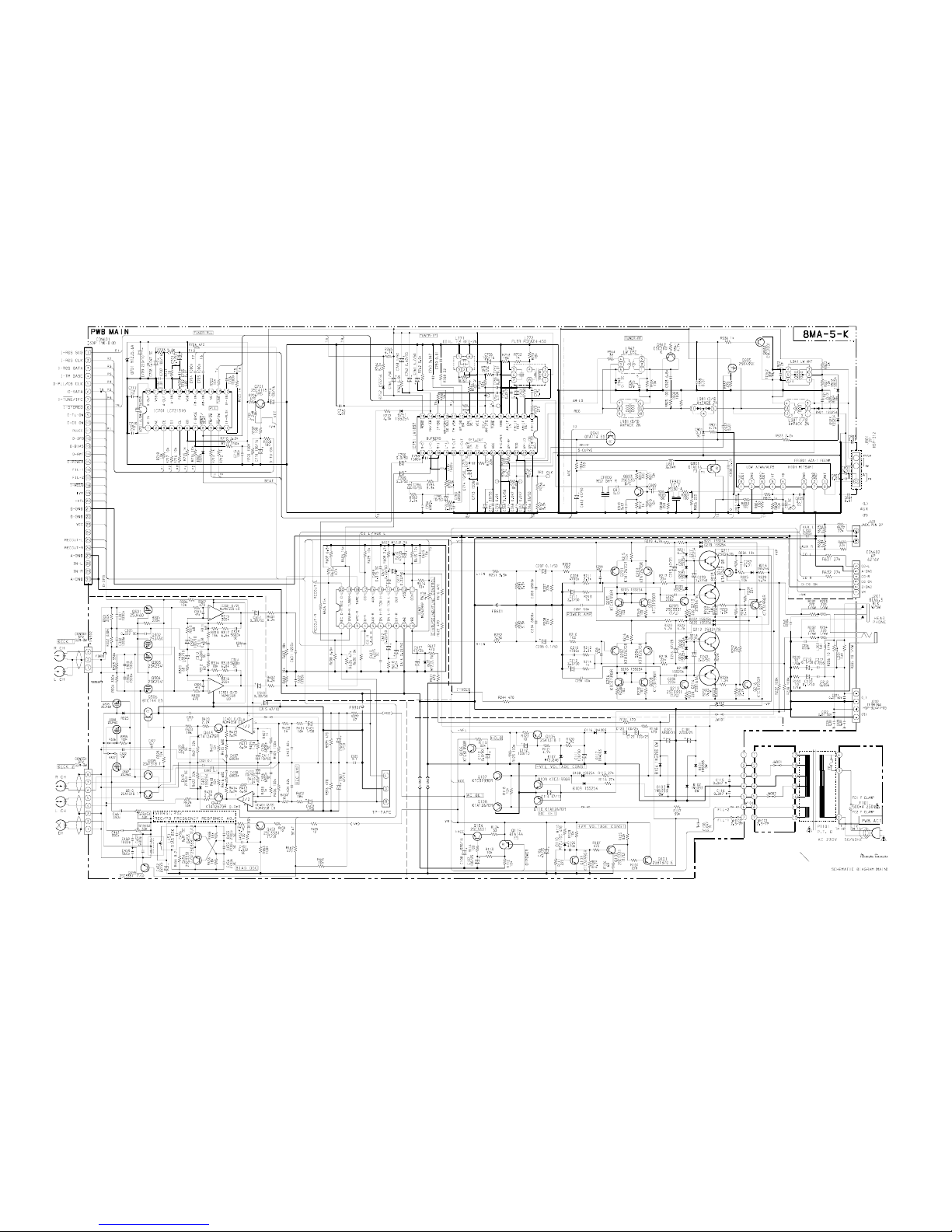

SCHEMATIC DIAGRAM _2 (MAIN : K)

SCHEMATIC DIAGRAM _3 (FRONT)

Printed in Singapore
Tokyo Japan
4
931196
