S E R V I C E M A N U A L

SIMPLE MANUAL

•Replace this Service Manual with ”Revision Publishing” when it is issued.

NSX-S555

NSX-S556

• TYPE: HR,EZ,K

COMPACT DISC STEREO SYSTEM

• BASIC TAPE MECHANISM:6ZM-3 PR2NM/2ZM-3MK2 PR4NM

• BASIC CD MECHANISM:4ZG-1 Z3RDSHM

S/M Code No. 09–992–401–7T2

ELECTRICALPARTSLIST-1/8

NOTE: The characters in the suffix column indicate the part usage.

HRJSTM(NS555) ..........XX.....................................D................

EZSTM(NS555) ...........XX......................................E...............

EZSTM(NS556) ...........XX.......................................F..............

HRJ8STM(NS555) .........XX........................................G.............

KSTE(NS555) ............XX..........................................I...........

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 503 87-010-112-040 CAP,E 100-16 ..CD..G.............

C 508 87-010-178-080 CHIP CAP 1000P ......G.............

C 502 87-010-186-080 CAP,CHIP 4700P ..CD..G.............

C 506 87-010-320-080 CHIP CAP 68P ..CD..G.............

C 504 87-010-405-040 CAP,E 10-50 ......G.............

C 504 87-010-405-080 CAP, ELECT 10-50V ..CD................

C 507 87-010-544-040 CAP,E 0.1-50 SME ..CD..G.............

C 509 87-010-544-040 CAP,E 0.1-50 SME ..CD..G.............

C 505 87-010-546-040 CAP,E 0.33-50 ..CD..G.............

J 501 87-A60-651-010 JACK,3.5MONO ..CD..G.............

Q 504 87-A30-075-080 C-TR,2SA1235F ..CD..G.............

Q 503 87-A30-076-080 C-TR,2SC3052F ....................

Q 502 87-A30-076-080 C-TR,2SC3052F ..CD..G.............

Q 505 87-A30-076-080 C-TR,2SC3052F ....................

Q 501 87-A30-087-080 C-FET,2SK2158 ..CD..G.............

VR 501 87-NB7-602-010 VR,RTRY 10KAX1 1 V ..CD..G.............

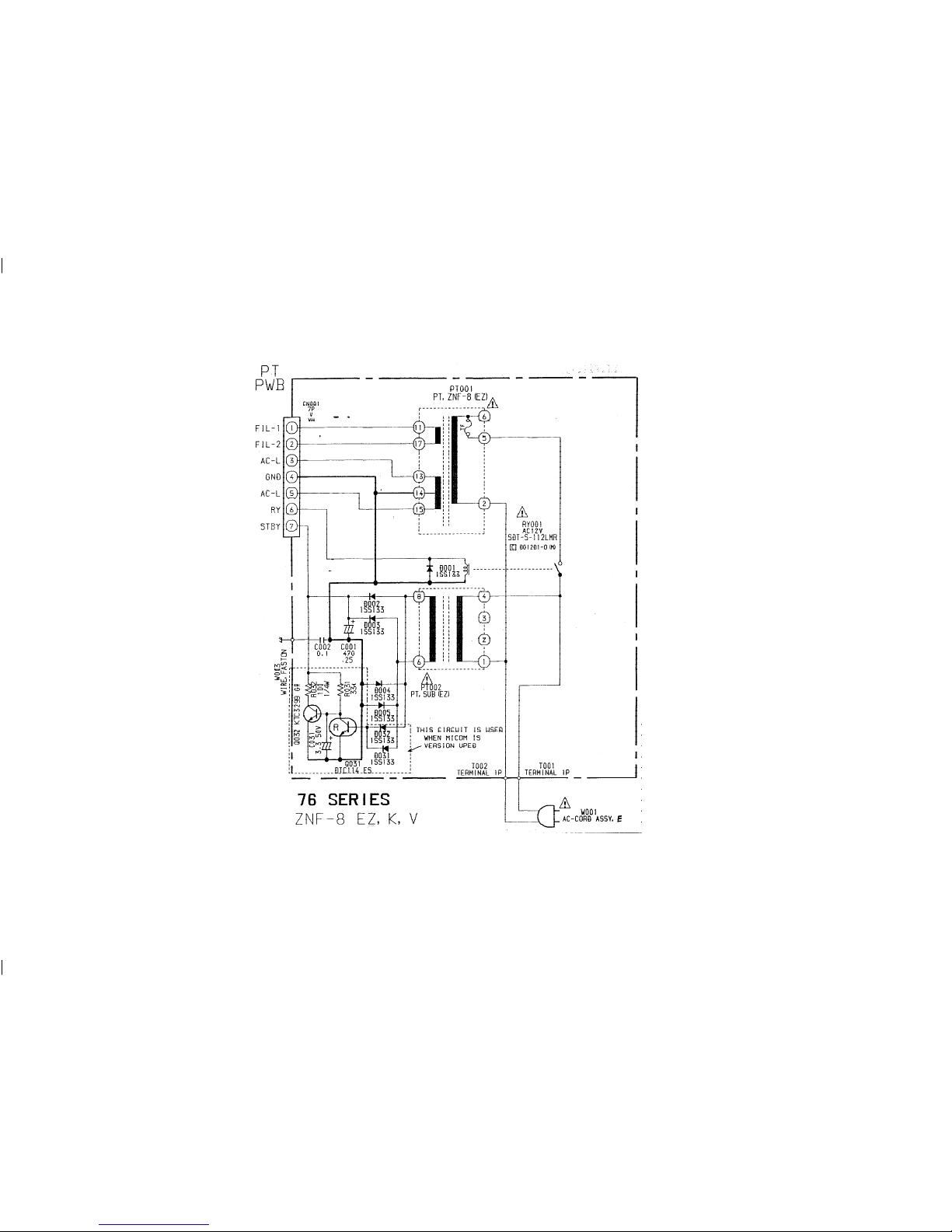

8Z-NF8-660-010 PT,SUB ZNF-8(D) ....................

C 1 87-010-387-080 CAP,E 470-25 SME AB....G.IJK.........

C 1 87-010-388-080 CAP ELECT 1000-25V SME ..CDEF..............

C 4 87-010-403-080 CAP, ELECT 3.3-50V ....................

C 2 87-018-209-010 CAP 0.1 ..CD....IJK.........

C 8 87-A10-520-090 CAP,E 3300-35 M SMG ..CD..G.............

C 9 87-A10-520-090 CAP,E 3300-35 M SMG ..CD..G.............

C 3 87-A11-148-080 CAP,TC U 0.1-50 Z F ......G.............

C 5 87-A11-148-080 CAP,TC U 0.1-50 Z F ......G.............

C 6 87-A11-148-080 CAP,TC U 0.1-50 Z F ......G.............

C 4 87-A11-148-080 CAP,TC U 0.1-50 Z F ......G.............

C 31 87-010-403-040 CAP,E 3.3-50 SME ......G.IJK.........

CN 1 87-A60-850-010 CONN,7P V VH AB..EF..IJK.........

CN 1 87-A60-851-010 CONN,9P V VH ..CD..G.............

D 6 87-017-447-010 DIODE,GBU4DL ..CD................

D 2 87-020-465-080 DIODE,1SS133 (110MA) ........IJK.........

D 6 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 7 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 3 87-020-465-080 DIODE,1SS133 (110MA) ........IJK.........

D 1 87-020-465-080 DIODE,1SS133 (110MA) ........IJK.........

D 5 87-020-465-080 DIODE,1SS133 (110MA) ........IJK.........

D 4 87-020-465-080 DIODE,1SS133 (110MA) ........IJK.........

D 6 87-A40-548-090 DIODE,D3SBA20 ......G.............

D 32 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 31 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

PR 1 87-026-682-080 PROTECTOR,10A 60V491 ......G.............

PR 2 87-026-682-080 PROTECTOR,10A 60V491 ......G.............

PR 1 87-A91-276-080 FUSE,125MA 125V F 251 ....................

PT 2 8Z-NF8-661-010 PT,SUB ZNF-8(U) AB..................

PT 2 8Z-NF8-662-010 PT,SUB ZNF-8(E) ....EF..IJK.........

PT 2 8Z-NF8-663-010 PT,SUB ZNF-8(H) ..CD..G.............

Q 1 87-026-245-080 TR,DTC114ES ....................

Q 2 87-A30-198-080 TR,KTC3199GR ....................

Q 31 87-026-245-080 TR,DTC114ES ......G.IJK.........

Q 32 87-A30-198-080 TR,KTC3199GR ......G.IJK.........

RY 1 87-045-389-010 RELAY,OSA-SS-212DM5 ....................

RY 2 87-A90-976-010 RELAY,AC12V SDT-S-112LMR ........IJK.........

RY 1 87-A90-976-010 RELAY,AC12V SDT-S-112LMR AB..EF..............

RY 1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5 ..CD..G.............

S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 ..CD..G.............

T 2 87-A60-317-010 TERMINAL, 1P MSC ABCDEFG.IJK.........

T 1 87-A60-317-010 TERMINAL, 1P MSC ABCDEFG.IJK.........

88-NF8-205-010 GUIDE,FL ABCDEFG.............

* 8Z-NF8-201-010 GUIDE,OPE ABCDEFG.............

* 8Z-NF8-202-010 GUIDE,FUN ABCDEFG.............

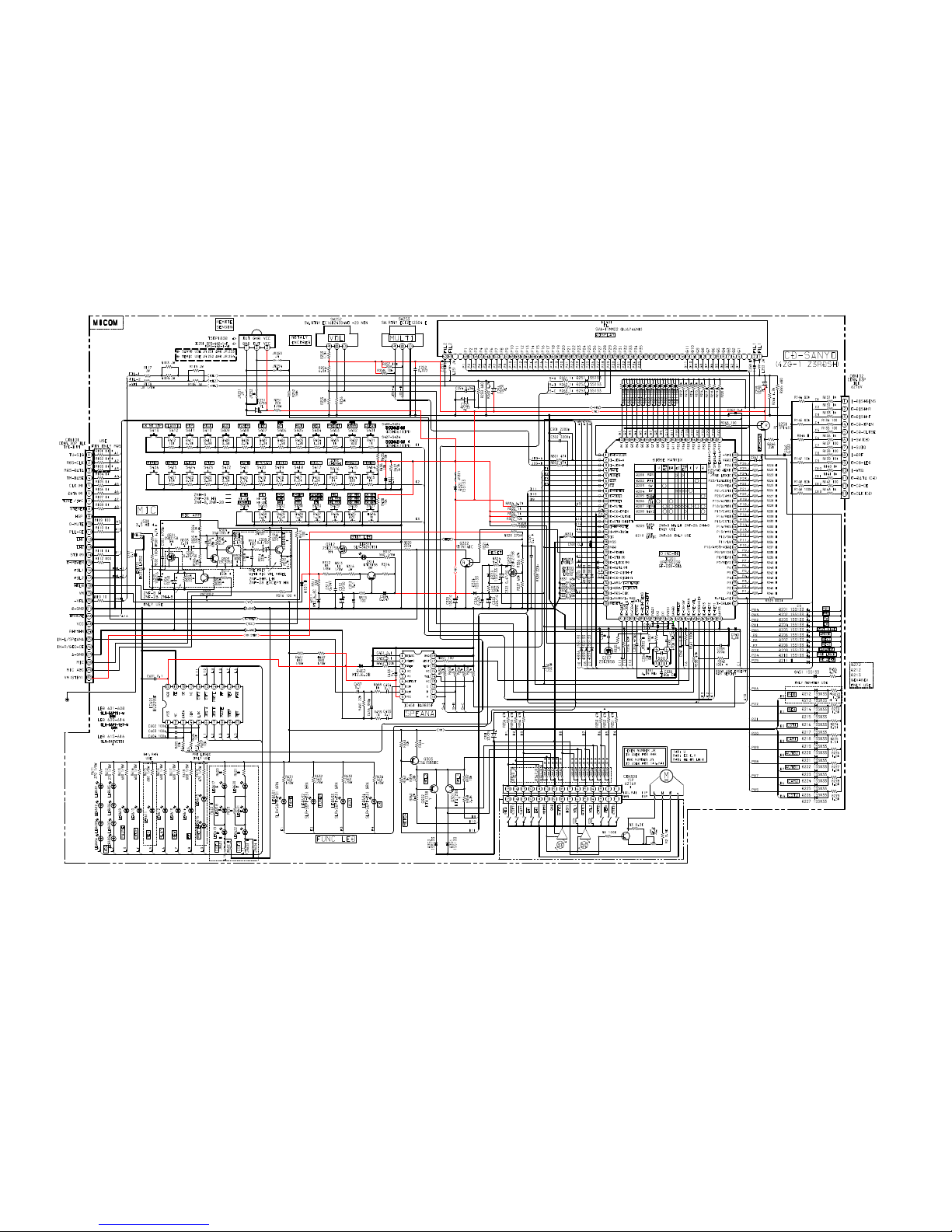

C 205 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 202 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 204 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 207 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 209 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 203 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 206 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 208 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 201 87-012-156-080 C-CAP,S 220P-50 CH ABCDEFG.............

C 211 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 210 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 254 87-010-194-080 CAP, CHIP 0.047 ABCDEFG.............

C 252 87-010-198-080 CAP, CHIP 0.022 ABCDEFG.............

C 256 87-015-699-040 CAP,E 10-50 7L ABCDEFG.............

C 251 87-015-699-040 CAP,E 10-50 7L ABCDEFG.............

C 259 87-015-699-040 CAP,E 10-50 7L ABCDEFG.............

C 255 87-A10-586-040 CAP,E 47-35 7L SR ABCDEF..............

C 255 87-A10-797-040 CAP,E 47-35 M 5L SRM ......G.............

C 262 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 260 87-010-198-080 CAP, CHIP 0.022 ABCDEFG.............

C 302 87-010-182-080 C-CAP,S 2200P-50 B ABCDEFG.............

ELECTRICALPARTSLIST-2/8

C 301 87-010-182-080 C-CAP,S 2200P-50 B ABCDEFG.............

C 311 87-010-194-080 CAP, CHIP 0.047 ABCDEFG.............

C 314 87-010-194-080 CAP, CHIP 0.047 ABCDEFG.............

C 313 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 312 87-010-405-040 CAP,E 10-50 ABCDEFG.............

C 324 87-010-194-080 CAP, CHIP 0.047 ABCDEFG.............

C 321 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 323 87-010-248-040 CAP,E 220-10 SME ABCDEF..............

C 325 87-010-263-040 CAP,E 100-10 ABCDEFG.............

C 322 87-015-694-040 E/CAP 0.47-50 ABCDEFG.............

C 323 87-016-459-040 CAP,E 470-10 SMG ......G.............

C 332 87-010-178-080 CHIP CAP 1000P ABCDEFG.............

C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 336 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 331 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 334 87-010-312-080 C-CAP,S 15P-50 CH ABCDEFG.............

C 335 87-012-140-080 CAP 470P ABCDEFG.............

C 333 87-012-140-080 CAP 470P ABCDEFG.............

C 338 87-012-155-080 C-CAP 180P-50CH ABCDEFG.............

C 339 87-012-156-080 C-CAP,S 220P-50 CH ABCDEFG.............

C 341 87-010-194-080 CAP, CHIP 0.047 ABCDEFG.............

C 340 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.............

C 351 87-010-382-040 CAP,E 22-25 SME ABCDEFG.............

C 401 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.............

C 454 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 455 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.............

C 452 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 453 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 451 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 457 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.............

C 456 87-012-158-080 C-CAP,S 390P-50 CH ABCDEFG.............

C 601 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.............

C 604 87-010-322-080 C-CAP,S 100P-50 CH ABCDEFG.............

C 603 87-010-322-080 C-CAP,S 100P-50 CH ABCDEFG.............

C 602 87-010-322-080 C-CAP,S 100P-50 CH ABCDEFG.............

C 701 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.............

CON 102 87-099-015-010 CONN,13P 6216V ABCDEFG.............

CON 101 87-099-720-010 CONN,30P TYK-B(P) ABCDEF..............

CON 101 88-NF9-658-010 CONN,30P BLK TYK-B(P) ......G.............

CON 301 87-099-013-010 CONN,11P 6216 V AB..EF..............

CON 301 87-099-017-010 CONN, 15P 6216 V ..CD..G.............

D 202 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 204 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.............

D 201 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.............

D 208 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 203 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 205 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 207 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 206 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 209 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 219 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 217 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 212 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 218 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 215 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 214 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 216 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 213 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 222 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 227 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 221 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 220 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 223 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 225 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 224 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 226 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 251 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 253 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 252 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 311 87-A40-509-080 ZENER,MTZJ6.8C ABCDEFG.............

D 321 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 324 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 323 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 333 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 334 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 332 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 335 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 336 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 331 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 351 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 352 87-020-465-080 DIODE,1SS133 (110MA) ....................

D 452 87-017-932-080 ZENER,MTJ6.2B ABCDEFG.............

D 451 87-020-465-080 DIODE,1SS133 (110MA) ....................

EMI 201 87-008-372-080 FILTER, EMI BL OIRNI ABCDEFG.............

EMI 202 87-A50-322-080 C-COIL,S BK2125 LM252 ABCDEFG.............

EMI 701 87-A50-322-080 C-COIL,S BK2125 LM252 ABCDEFG.............

FL 401 8Z-NF8-616-010 FL,SVA-11MM22 ABCDEFG.............

FL 401 8Z-NH8-603-010 FL,BJ674GNK ....................

IC 201 8Z-NF8-602-010 C-IC,UPD780228GF-031-3BA ABCDEF..............

IC 201 8Z-NF8-675-010 C-IC,UPD780228GF-037-3BA ......G.............

IC 251 87-A20-914-010 IC,SPS-442-1-F ..CDEF..............

IC 251 87-A20-951-010 IC,TSOP1838RF1 ......G.............

ELECTRICALPARTSLIST-3/8

IC 251 87-NF8-614-010 IC,SPS-442-1-W AB..................

IC 451 87-A21-023-040 C-IC,BA3835F ABCDEFG.............

IC 601 87-A21-021-040 C-IC,BU2099FV ABCDEFG.............

L 331 87-A50-434-010 COIL,CLK 4.19M(TOKO) ABCDEFG.............

LED 311 87-A40-317-080 LED,SLR-342VCT31 RED ABCDEFG.............

LED 606 87-A40-619-040 LED,SLR-56PT-T31-W GRN ....................

LED 605 87-A40-619-040 LED,SLR-56PT-T31-W GRN ....................

LED 607 87-A40-619-040 LED,SLR-56PT-T31-W GRN ....................

LED 604 87-A40-619-040 LED,SLR-56PT-T31-W GRN ....................

LED 602 87-A40-619-040 LED,SLR-56PT-T31-W GRN ....................

LED 601 87-A40-619-040 LED,SLR-56PT-T31-W GRN ....................

LED 608 87-A40-619-040 LED,SLR-56PT-T31-W GRN ....................

LED 603 87-A40-619-040 LED,SLR-56PT-T31-W GRN ....................

LED 609 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ....................

LED 614 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ....................

LED 612 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ....................

LED 611 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABCDEFG.............

LED 610 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ....................

LED 613 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ....................

LED 631 87-A40-619-040 LED,SLR-56PT-T31-W GRN ....................

LED 634 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABCDEFG.............

LED 632 87-A40-619-040 LED,SLR-56PT-T31-W GRN ....................

LED 633 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABCDEFG.............

Q 207 87-A30-087-080 C-FET,2SK2158 ABCDEFG.............

Q 251 87-A30-074-080 C-TR,RT1P 141C ABCDEFG.............

Q 302 87-A30-067-080 C-TR,2SA 1298Y ...DEFG.............

Q 301 87-A30-067-080 C-TR,2SA 1298Y ...DEFG.............

Q 301 87-A30-159-080 C-TR,KTA1298Y ABC.................

Q 302 87-A30-159-080 C-TR,KTA1298Y ABC.................

Q 303 87-A30-240-080 TR,CSA1585BC ABCDEFG.............

Q 311 87-026-610-080 TR,KTC3198GR ABCDEFG.............

Q 312 87-A30-087-080 C-FET,2SK2158 ABCDEFG.............

Q 322 87-A30-073-080 C-TR,RT1N 141C ABCDEFG.............

Q 323 87-A30-087-080 C-FET,2SK2158 ABCDEFG.............

S 409 87-A91-024-080 SW,TACT KSH0611BT ....................

S 405 87-A91-024-080 SW,TACT KSH0611BT ....................

S 404 87-A91-024-080 SW,TACT KSH0611BT ....................

S 403 87-A91-024-080 SW,TACT KSH0611BT ....................

S 406 87-A91-024-080 SW,TACT KSH0611BT ....................

S 401 87-A91-024-080 SW,TACT KSH0611BT ....................

S 408 87-A91-024-080 SW,TACT KSH0611BT ....................

S 402 87-A91-024-080 SW,TACT KSH0611BT ....................

S 407 87-A91-024-080 SW,TACT KSH0611BT ....................

S 419 87-A91-024-080 SW,TACT KSH0611BT ....................

S 410 87-A91-024-080 SW,TACT KSH0611BT ....................

S 415 87-A91-024-080 SW,TACT KSH0611BT ....................

S 414 87-A91-024-080 SW,TACT KSH0611BT ....................

S 418 87-A91-024-080 SW,TACT KSH0611BT ....................

S 413 87-A91-024-080 SW,TACT KSH0611BT ....................

S 416 87-A91-024-080 SW,TACT KSH0611BT ....................

S 417 87-A91-024-080 SW,TACT KSH0611BT ....................

S 411 87-A91-024-080 SW,TACT KSH0611BT ....................

S 412 87-A91-024-080 SW,TACT KSH0611BT ....................

S 426 87-A91-024-080 SW,TACT KSH0611BT ....................

S 428 87-A91-024-080 SW,TACT KSH0611BT ....................

S 422 87-A91-024-080 SW,TACT KSH0611BT ....................

S 425 87-A91-024-080 SW,TACT KSH0611BT ....................

S 427 87-A91-024-080 SW,TACT KSH0611BT ....................

S 423 87-A91-024-080 SW,TACT KSH0611BT ....................

S 421 87-A91-024-080 SW,TACT KSH0611BT ....................

S 424 87-A91-024-080 SW,TACT KSH0611BT ....................

S 420 87-A91-024-080 SW,TACT KSH0611BT ....................

S 434 87-A90-164-080 SW,TACT SKQAB(N) AB..................

S 432 87-A91-024-080 SW,TACT KSH0611BT ..CDEFG.............

S 430 87-A91-024-080 SW,TACT KSH0611BT ..CDEFG.............

S 431 87-A91-024-080 SW,TACT KSH0611BT ..CDEFG.............

S 434 87-A91-024-080 SW,TACT KSH0611BT ....................

SW 252 87-A90-535-010 SW,RTRY EC16B24304 ABCDEFG.............

SW 253 87-A90-950-010 SW,RTRY EC12E12504 ENCORDER ABCDEFG.............

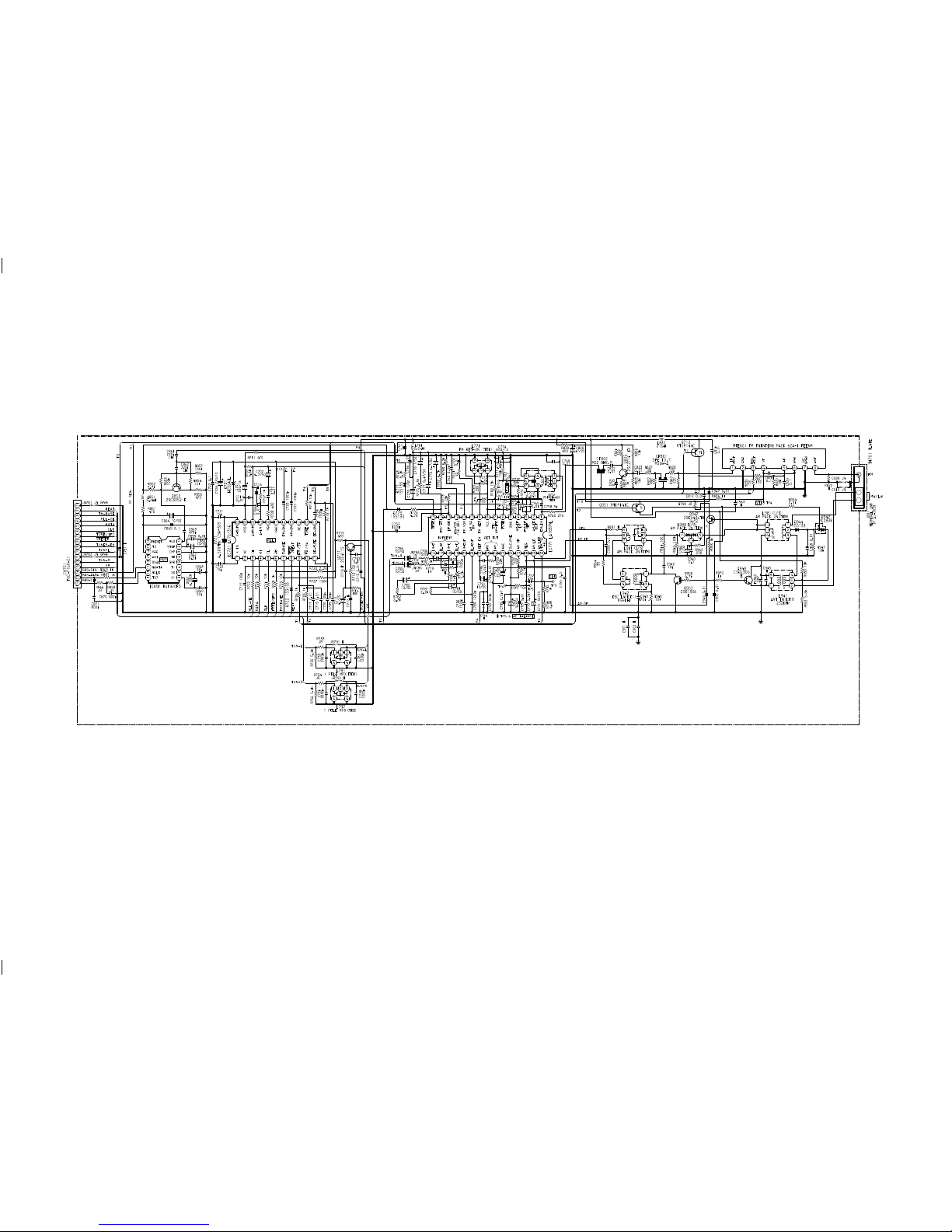

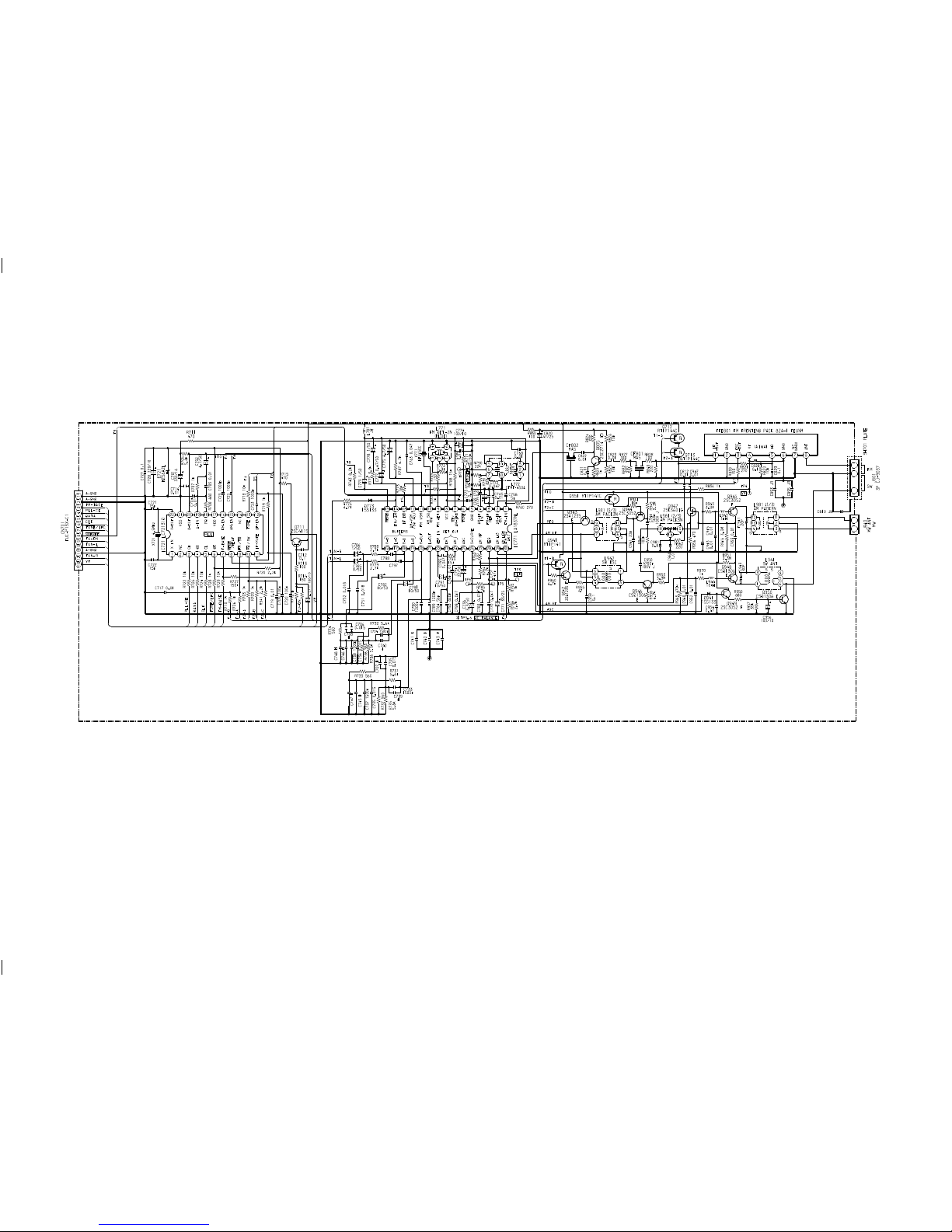

C 309 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 ........IJK.........

C 302 87-010-318-080 C-CAP,S 47P-50 CH ABCDEFG.IJK.........

C 301 87-010-318-080 C-CAP,S 47P-50 CH ABCDEFG.IJK.........

C 305 87-012-145-080 CAP, CHIP S 270P CH ABCDEFG.IJK.........

C 306 87-012-145-080 CAP, CHIP S 270P CH ABCDEFG.IJK.........

C 304 87-012-157-080 C-CAP,S 330P-50 CH ABCDEFG.IJK.........

C 303 87-012-157-080 C-CAP,S 330P-50 CH ABCDEFG.IJK.........

C 316 87-010-178-080 CHIP CAP 1000P ..CD..G.............

C 314 87-010-178-080 CHIP CAP 1000P ..CD..G.............

C 313 87-010-178-080 CHIP CAP 1000P ..CD..G.............

C 315 87-010-178-080 CHIP CAP 1000P ..CD..G.............

C 314 87-010-180-080 C-CER 1500P AB..EF..IJK.........

C 313 87-010-180-080 C-CER 1500P AB..EF..IJK.........

C 315 87-010-182-080 C-CAP,S 2200P-50 B AB..EF..IJK.........

C 316 87-010-182-080 C-CAP,S 2200P-50 B AB..EF..IJK.........

C 310 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 312 87-010-198-080 CAP, CHIP 0.022 ABCDEFG.IJK.........

C 311 87-010-198-080 CAP, CHIP 0.022 ABCDEFG.IJK.........

C 324 87-010-260-080 CAP, ELECT 47-25V ABCDEFG.IJK.........

C 325 87-010-370-080 CAP,E 330-6.3 SME ABCDEFG.IJK.........

C 328 87-010-404-080 CAP, ELECT 4.7-50V ABCDEFG.IJK.........

C 327 87-010-404-080 CAP, ELECT 4.7-50V ABCDEFG.IJK.........

ELECTRICALPARTSLIST-4/8

C 321 87-016-492-080 C-CAP,S 0.33-16 FZ ABCDEFG.IJK.........

C 322 87-016-492-080 C-CAP,S 0.33-16 FZ ABCDEFG.IJK.........

C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 ........IJK.........

C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 ........IJK.........

C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 ........IJK.........

C 335 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 336 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 ........IJK.........

C 354 87-010-175-080 CAP 560P ABCDEFG.IJK.........

C 358 87-010-183-080 C-CAP,S 2700P-50 B ABCDEFG.IJK.........

C 359 87-010-183-080 C-CAP,S 2700P-50 B ABCDEFG.IJK.........

C 357 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 356 87-010-260-080 CAP, ELECT 47-25V ABCDEFG.IJK.........

C 351 87-012-140-080 CAP 470P ABCDEFG.IJK.........

C 352 87-012-140-080 CAP 470P ABCDEFG.IJK.........

C 355 87-012-349-080 C-CAP,S 1000P-50 CH ABCDEFG.IJK.........

C 360 87-010-183-080 C-CAP,S 2700P-50 B ABCDEFG.IJK.........

C 363 87-A10-292-080 CAP,M 5600P-50 J ......G.IJK.........

C 363 87-A10-772-080 CAP,M 5600P-50 J ABCDEF..............

C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 ........IJK.........

C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 ........IJK.........

C 379 87-010-406-080 CAP, ELECT 22-50 ABCDEFG.IJK.........

C 373 87-016-083-080 C-CAP,S 0.15-16 RK ABCDEFG.IJK.........

C 374 87-016-083-080 C-CAP,S 0.15-16 RK ABCDEFG.IJK.........

C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 ........IJK.........

C 382 87-010-312-080 C-CAP,S 15P-50 CH AB..................

C 380 87-010-406-080 CAP, ELECT 22-50 ABCDEFG.IJK.........

C 388 87-012-156-080 C-CAP,S 220P-50 CH ABCDEFG.IJK.........

C 391 87-010-319-080 C-CAP,S 56P-50 CH ABCDEFG.IJK.........

C 392 87-010-319-080 C-CAP,S 56P-50 CH ABCDEFG.IJK.........

C 393 87-010-319-080 C-CAP,S 56P-50 CH ABCDEFG.IJK.........

C 394 87-010-319-080 C-CAP,S 56P-50 CH ABCDEFG.IJK.........

CN 301 87-099-827-010 CONN,3P S2M-3W ABCDEFG.IJK.........

CN 351 87-099-832-010 CONN,8P S2M-8W ABCDEFG.IJK.........

D 352 87-A40-269-080 C-DIODE,MC2836 ABCDEFG.IJK.........

IC 303 87-A20-783-040 C-IC,BA7762AFS ABCDEFG.IJK.........

L 301 87-A50-049-010 COIL,TRAP 85K(COI) ABCDEFG.IJK.........

L 302 87-A50-049-010 COIL,TRAP 85K(COI) ABCDEFG.IJK.........

L 351 87-007-342-010 COIL,OSC 85K BIAS ABCDEFG.IJK.........

Q 357 87-026-610-080 TR,KTC3198GR ABCDEFG.IJK.........

Q 359 87-026-610-080 TR,KTC3198GR ABCDEFG.IJK.........

Q 358 87-026-610-080 TR,KTC3198GR ABCDEFG.IJK.........

Q 356 87-A30-076-080 C-TR,2SC3052F ........IJK.........

Q 351 87-A30-087-080 C-FET,2SK2158 ABCDEFG.IJK.........

Q 354 87-A30-087-080 C-FET,2SK2158 ABCDEFG.IJK.........

Q 353 87-A30-087-080 C-FET,2SK2158 ABCDEFG.IJK.........

Q 355 87-A30-105-080 C-TR,RT1P 441C ABCDEFG.IJK.........

Q 383 87-A30-075-080 C-TR,2SA1235F AB..................

SFR 352 87-A90-433-080 SFR,50K H NVZ6TLTA ABCDEFG.IJK.........

SFR 351 87-A90-433-080 SFR,50K H NVZ6TLTA ABCDEFG.IJK.........

C 457 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 458 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 451 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 452 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 459 87-A10-299-080 CAP,M 0.022-50 J ......G.IJK.........

C 455 87-A10-305-080 CAP,M 0.068-50 J ......G.IJK.........

C 456 87-A10-305-080 CAP,M 0.068-50 J ......G.IJK.........

C 459 87-A11-004-080 CAP,M 0.022-50 J DE ABCDEF..............

C 465 87-A10-299-080 CAP,M 0.022-50 J ......G.IJK.........

C 460 87-A10-299-080 CAP,M 0.022-50 J ......G.IJK.........

C 466 87-A10-299-080 CAP,M 0.022-50 J ......G.IJK.........

C 465 87-A11-004-080 CAP,M 0.022-50 J DE ABCDEF..............

C 466 87-A11-004-080 CAP,M 0.022-50 J DE ABCDEF..............

C 460 87-A11-004-080 CAP,M 0.022-50 J DE ABCDEF..............

IC 451 87-A21-031-040 C-IC,BU4551BF ABCDEFG.IJK.........

87-067-579-010 TAPPING SCREW, BVT2+3-8 AB..................

87-067-703-010 TAPPING SCREW, BVT2+3-10 ....EF..IJK.........

C 9 87-010-917-090 CAP,E 3300-50 M SMG ....EF..IJK.........

C 4 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFG.IJK.........

C 5 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFG.IJK.........

C 6 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFG.IJK.........

C 3 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFG.IJK.........

C 2 87-012-369-080 C-CAP,S 0.047-50F ABCDEFG.IJK.........

C 1 87-012-369-080 C-CAP,S 0.047-50F ABCDEFG.IJK.........

C 9 87-A10-520-090 CAP,E 3300-35 M SMG ABCD..G.............

C 10 87-010-917-090 CAP,E 3300-50 M SMG ....EF..IJK.........

C 10 87-A10-520-090 CAP,E 3300-35 M SMG ABCD..G.............

C 23 87-010-247-080 CAP, ELECT 100-50V ....................

C 29 87-010-247-080 CAP, ELECT 100-50V ABCDEFG.IJK.........

C 24 87-010-247-080 CAP, ELECT 100-50V ....................

C 26 87-010-263-080 CAP, ELECT 100-10V ........IJK.........

C 28 87-010-263-080 CAP, ELECT 100-10V ABCDEFG.............

C 22 87-010-385-080 CAP, ELECT 220-25V ABCDEFG.............

C 21 87-010-385-080 CAP, ELECT 220-25V ABCDEFG.............

C 24 87-010-408-080 CAP, ELECT 47-50V ........IJK.........

C 21 87-010-408-080 CAP, ELECT 47-50V ........IJK.........

C 22 87-010-408-080 CAP, ELECT 47-50V ........IJK.........

C 23 87-010-408-080 CAP, ELECT 47-50V ........IJK.........

C 25 87-010-430-080 CAP, ELECT 100-63 ABCDEFG.IJK.........

C 27 87-012-140-080 CAP 470P ABCDEFG.IJK.........

C 30 87-010-112-080 CAP, ELECT 100-16V ABCDEFG.IJK.........

C 31 87-010-235-080 CAP,E 470-16 SME ABCDEFG.IJK.........

ELECTRICALPARTSLIST-5/8

C 33 87-010-405-080 CAP, ELECT 10-50V ..CD..G.............

C 34 87-010-405-080 CAP, ELECT 10-50V ..CD..G.............

C 61 87-010-260-080 CAP, ELECT 47-25V ABCDEFG.IJK.........

C 62 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFG.IJK.........

C 92 87-010-248-080 CAP, ELECT 220-10V ..CDEF..I...........

C 93 87-010-380-080 CAP, ELECT 47-16V ..CDEF..I...........

C 91 87-010-401-080 CAP, ELECT 1-50V ..CDEF..I...........

CN 91 87-A60-109-010 CONN,2P V S2M-2W ..CDEF..I...........

CNA 1 8Z-NB8-604-010 CONN ASSY,7P VH AB..................

CNA 1 8Z-NF8-669-010 CONN ASSY,9P VH ..CD..G.............

CNA 1 8Z-NF8-670-010 CONN ASSY,7P 480 VH ....EF..IJK.........

D 1 87-017-447-010 DIODE,GBU4DL ..CD................

D 1 87-017-654-060 DIODE,GBU6J AB..EF..............

D 9 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 8 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 3 87-070-274-080 DIODE,1N4003 SEM ABCDEFG.IJK.........

D 5 87-070-274-080 DIODE,1N4003 SEM ABCDEFG.IJK.........

D 6 87-070-274-080 DIODE,1N4003 SEM ABCDEFG.IJK.........

D 4 87-070-274-080 DIODE,1N4003 SEM ABCDEFG.IJK.........

D 7 87-A40-383-080 ZENER,MTZJ30A ABCDEFG.IJK.........

D 1 87-A40-547-090 DIODE,D5SBA20 ........IJK.........

D 1 87-A40-548-090 DIODE,D3SBA20 ......G.............

D 10 87-A40-345-080 ZENER,MTZJ10C ABCDEFG.IJK.........

D 64 87-070-274-080 DIODE,1N4003 SEM ABCDEFG.IJK.........

D 62 87-A40-269-080 C-DIODE,MC2836 ABCDEFG.IJK.........

D 61 87-A40-270-080 C-DIODE,MC2838 ABCDEFG.IJK.........

D 92 87-020-465-080 DIODE,1SS133 (110MA) ........I...........

D 91 87-020-465-080 DIODE,1SS133 (110MA) ........I...........

JW 16 87-008-372-080 FILTER, EMI BL OIRNI ..CDEFG.IJK.........

Q 1 87-026-609-080 TR,KTA1266GR ABCDEFG.IJK.........

Q 2 87-026-609-080 TR,KTA1266GR ABCDEFG.IJK.........

Q 5 87-026-610-080 TR,KTC3198GR ABCDEFG.IJK.........

Q 7 87-A30-075-080 C-TR,2SA1235F ....................

Q 8 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 6 87-A30-076-080 C-TR,2SC3052F ........IJK.........

Q 9 87-A30-196-080 TR,2SC4115SRS ABCDEFG.IJK.........

Q 4 89-213-702-010 TR,2SB1370 (1.8W) ABCDEFG.IJK.........

Q 61 87-A30-074-080 C-TR,RT1P 141C ..CDEFG.IJK.........

Q 66 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 64 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 62 87-A30-075-080 C-TR,2SA1235F ........IJK.........

Q 65 87-A30-076-080 C-TR,2SC3052F ........IJK.........

Q 63 87-A30-076-080 C-TR,2SC3052F ........IJK.........

Q 67 87-A30-076-080 C-TR,2SC3052F ........IJK.........

Q 62 87-A30-107-070 C-TR,CMBT5401 ....................

Q 92 87-026-609-080 TR,KTA1266GR ........I...........

Q 91 87-A30-076-080 C-TR,2SC3052F ABCDEFG.I...........

R 20 87-A00-261-080 RES,M/F 0.56-1W J AB..................

WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ABCDEFG.IJK.........

87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCDEFG.IJK.........

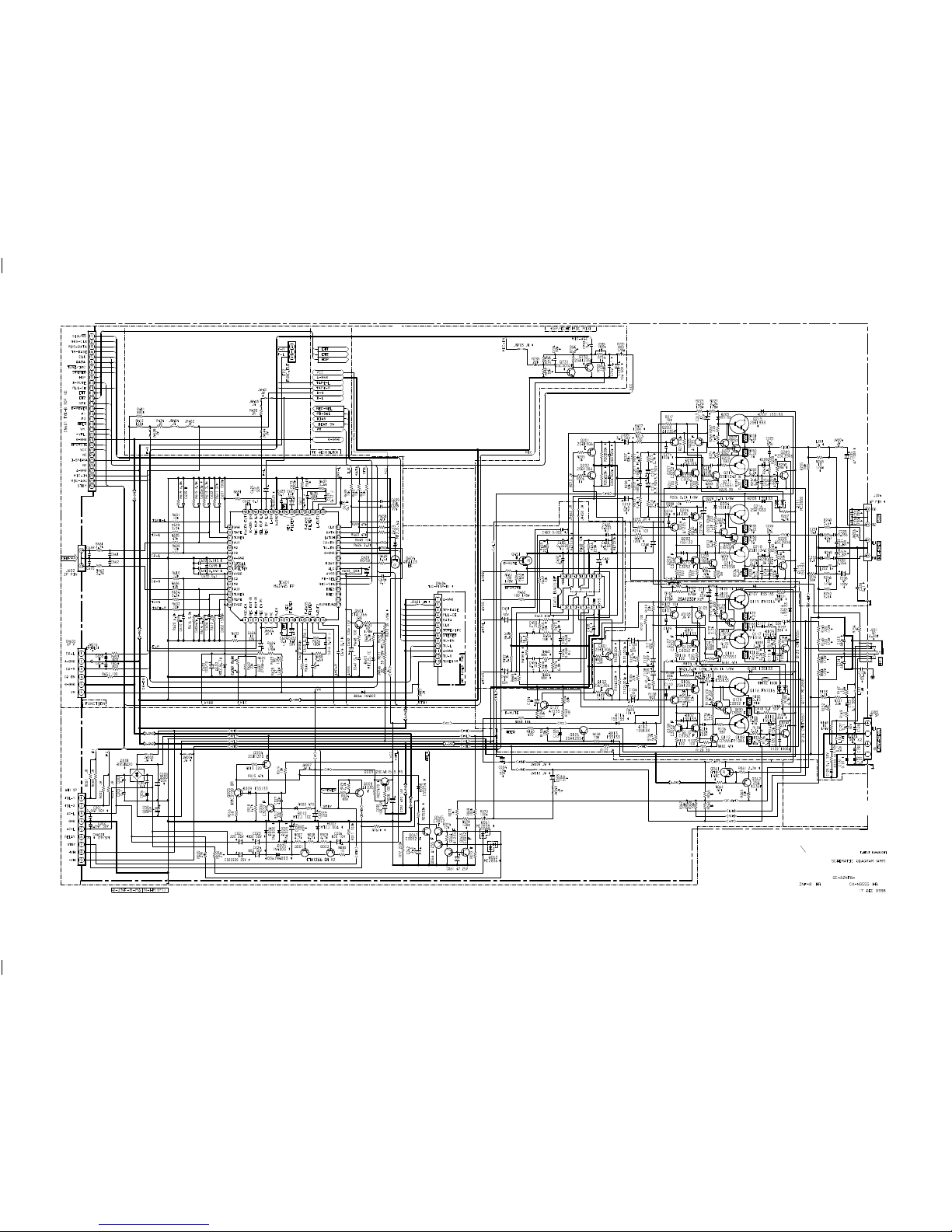

C 102 87-010-178-080 CHIP CAP 1000P ABCDEFG.IJK.........

C 101 87-010-178-080 CHIP CAP 1000P ABCDEFG.IJK.........

C 109 87-010-322-080 C-CAP,S 100P-50 CH AB..................

C 103 87-010-405-080 CAP, ELECT 10-50V ABCDEFG.IJK.........

C 104 87-010-405-080 CAP, ELECT 10-50V ABCDEFG.IJK.........

C 107 87-010-408-080 CAP, ELECT 47-50V ABCDEFG.IJK.........

C 108 87-010-408-080 CAP, ELECT 47-50V ABCDEFG.IJK.........

C 112 87-010-260-080 CAP, ELECT 47-25V ABCDEFG.IJK.........

C 111 87-010-260-080 CAP, ELECT 47-25V ABCDEFG.IJK.........

C 110 87-010-322-080 C-CAP,S 100P-50 CH AB..................

C 118 87-016-247-080 C-CAP,0.1-50 F ABCDEF..............

C 117 87-016-247-080 C-CAP,0.1-50 F ABCDEF..............

C 114 87-A10-685-080 C-CAP,S 470P-100 J CH ...DEF..............

C 113 87-A10-685-080 C-CAP,S 470P-100 J CH ...DEF..............

C 114 87-A10-812-080 C-CAP,S 220P-200 J CH ABC.................

C 113 87-A10-812-080 C-CAP,S 220P-200 J CH ABC.................

C 114 87-A10-946-080 C-CAP,S 220P-100 J CH ......G.IJK.........

C 113 87-A10-946-080 C-CAP,S 220P-100 J CH ......G.IJK.........

C 118 87-A11-185-080 C-CAP, 0.47-50 F Z ......G.IJK.........

C 117 87-A11-185-080 C-CAP, 0.47-50 F Z ......G.IJK.........

C 124 87-010-176-080 C-CAP,S 680P-50 SL ABCDEFG.IJK.........

C 123 87-010-176-080 C-CAP,S 680P-50 SL ABCDEFG.IJK.........

C 122 87-010-178-080 CHIP CAP 1000P ........IJK.........

C 121 87-010-178-080 CHIP CAP 1000P ........IJK.........

C 129 87-010-191-080 C-CAP,S 0.015-50 F ABCDEFG.IJK.........

C 128 87-012-368-080 C-CAP,S 0.1-50 F ........IJK.........

C 126 87-012-368-080 C-CAP,S 0.1-50 F ........IJK.........

C 127 87-012-368-080 C-CAP,S 0.1-50 F ........IJK.........

C 125 87-012-368-080 C-CAP,S 0.1-50 F ........IJK.........

C 130 87-010-191-080 C-CAP,S 0.015-50 F ABCDEFG.IJK.........

C 133 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 132 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 131 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFG.IJK.........

C 136 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFG.IJK.........

D 104 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 103 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 109 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 101 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 102 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 107 87-A40-488-080 DIODE,1SS244 ABCDEFG.IJK.........

D 108 87-A40-488-080 DIODE,1SS244 ABCDEFG.IJK.........

D 110 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

ELECTRICALPARTSLIST-6/8

D 112 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 115 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 114 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 113 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 111 87-A40-270-080 C-DIODE,MC2838 ABCDEFG.IJK.........

J 203 87-033-240-010 TERMINAL,SP 4P32SV1-05 AB..................

J 203 87-A60-238-010 TERMINAL,SP 4P (MSC) ..CDEFG.IJK.........

J 201 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM ABCDEF..............

J 201 87-A60-929-010 JACK,DIA6.3 BLK ST W/S TAI ......G.IJK.........

L 102 87-003-383-010 COIL,1UH-S ABCDEFG.IJK.........

L 101 87-003-383-010 COIL,1UH-S ABCDEFG.IJK.........

Q 103 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 105 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 106 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 104 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 108 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 107 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 109 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 106 87-A30-107-070 C-TR,CMBT5401 AB..................

Q 103 87-A30-107-070 C-TR,CMBT5401 AB..................

Q 105 87-A30-107-070 C-TR,CMBT5401 AB..................

Q 104 87-A30-107-070 C-TR,CMBT5401 AB..................

Q 102 87-A30-257-080 C-TR,2SD1306E ABCDEFG.IJK.........

Q 101 87-A30-257-080 C-TR,2SD1306E ABCDEFG.IJK.........

Q 110 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 115 87-A30-097-010 TR,FN 1016 ..CD..G.............

Q 116 87-A30-097-010 TR,FN 1016 ..CD..G.............

Q 118 87-A30-098-010 TR,FP 1016 ..CD..G.............

Q 117 87-A30-098-010 TR,FP 1016 ..CD..G.............

Q 119 87-A30-109-010 TR,2SD 2495 AB..................

Q 112 87-A30-190-080 TR,CC5551 ABCDEFG.IJK.........

Q 111 87-A30-190-080 TR,CC5551 ABCDEFG.IJK.........

Q 119 87-A30-215-010 TR,2SD2025 ....EF..IJK.........

Q 119 87-A30-256-010 TR,2SD1933 ....................

Q 127 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 126 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 128 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 129 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 124 87-A30-106-070 C-TR,CMBT5551 ABCDEFG.IJK.........

Q 123 87-A30-106-070 C-TR,CMBT5551 ABCDEFG.IJK.........

Q 126 87-A30-107-070 C-TR,CMBT5401 AB..................

Q 121 87-A30-108-010 TR,2SB1626 AB..................

Q 122 87-A30-108-010 TR,2SB1626 AB..................

Q 120 87-A30-109-010 TR,2SD 2495 AB..................

Q 122 87-A30-214-010 TR,2SB1344 ....EF..IJK.........

Q 121 87-A30-214-010 TR,2SB1344 ....EF..IJK.........

Q 120 87-A30-215-010 TR,2SD2025 ....EF..IJK.........

Q 121 87-A30-255-010 TR,2SB1342 ....................

Q 122 87-A30-255-010 TR,2SB1342 ....................

Q 120 87-A30-256-010 TR,2SD1933 ....................

Q 131 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 130 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

R 129 87-A00-257-080 RES,M/F 0.15-1W J ........IJK.........

R 130 87-A00-257-080 RES,M/F 0.15-1W J ........IJK.........

R 132 87-A00-257-080 RES,M/F 0.15-1W J ABCDEFG.IJK.........

R 131 87-A00-257-080 RES,M/F 0.15-1W J ABCDEFG.IJK.........

R 144 87-A00-439-050 RES,180-1/2W J RP AB..EF..IJK.........

R 145 87-A00-439-050 RES,180-1/2W J RP AB..EF..IJK.........

R 146 87-A00-439-050 RES,180-1/2W J RP AB..EF..IJK.........

R 143 87-A00-439-050 RES,180-1/2W J RP AB..EF..IJK.........

R 144 87-A00-440-050 RES,220-1/2W J RP ..CD..G.............

R 145 87-A00-440-050 RES,220-1/2W J RP ..CD..G.............

R 146 87-A00-440-050 RES,220-1/2W J RP ..CD..G.............

R 143 87-A00-440-050 RES,220-1/2W J RP ..CD..G.............

R 166 87-A00-257-080 RES,M/F 0.15-1W J ........IJK.........

R 165 87-A00-257-080 RES,M/F 0.15-1W J ........IJK.........

TH 102 87-A91-042-080 C-THMS,100K 55001 ...DEFG.IJK.........

TH 101 87-A91-042-080 C-THMS,100K 55001 ...DEFG.IJK.........

C 204 87-010-177-080 C-CAP,S 820P-50 SL ABCDEFG.IJK.........

C 203 87-010-177-080 C-CAP,S 820P-50 SL ABCDEFG.IJK.........

C 209 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFG.IJK.........

C 212 87-010-181-080 CAP,CHIP S 1800P ABCDEFG.IJK.........

C 211 87-010-181-080 CAP,CHIP S 1800P ABCDEFG.IJK.........

C 217 87-010-260-080 CAP, ELECT 47-25V ABCDEFG.IJK.........

C 218 87-010-260-080 CAP, ELECT 47-25V ABCDEFG.IJK.........

C 215 87-010-322-080 C-CAP,S 100P-50 CH ........IJK.........

C 216 87-010-322-080 C-CAP,S 100P-50 CH ........IJK.........

C 214 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFG.IJK.........

C 210 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFG.IJK.........

C 213 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFG.IJK.........

C 219 87-A10-946-080 C-CAP,S 220P-100 J CH ABCDEFG.IJK.........

C 227 87-010-186-080 CAP,CHIP 4700P ABCDEFG.IJK.........

C 228 87-010-186-080 CAP,CHIP 4700P ABCDEFG.IJK.........

C 224 87-010-190-080 S CHIP F 0.01 ABCDEFG.IJK.........

C 223 87-010-190-080 S CHIP F 0.01 ABCDEFG.IJK.........

C 229 87-010-993-080 C-CAP,S 0.056-25 B ABCDEFG.IJK.........

C 226 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFG.IJK.........

C 225 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFG.IJK.........

C 220 87-A10-946-080 C-CAP,S 220P-100 J CH ABCDEFG.IJK.........

C 234 87-010-190-080 S CHIP F 0.01 ABCDEFG.IJK.........

C 233 87-010-190-080 S CHIP F 0.01 ABCDEFG.IJK.........

C 232 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 231 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 239 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 238 87-010-322-080 C-CAP,S 100P-50 CH ABCDEFG.IJK.........

C 237 87-010-322-080 C-CAP,S 100P-50 CH ABCDEFG.IJK.........

C 230 87-010-993-080 C-CAP,S 0.056-25 B ABCDEFG.IJK.........

C 236 87-016-285-080 CAP,E 47-100SME AB.DEFG.............

C 235 87-016-285-080 CAP,E 47-100SME AB.DEFG.............

C 235 87-A10-121-080 CAP,E 47-100 REA ........IJK.........

C 236 87-A10-121-080 CAP,E 47-100 REA ........IJK.........

C 240 87-010-408-080 CAP, ELECT 47-50V AB....G.IJK.........

D 202 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 201 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 203 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 204 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 208 87-A40-488-080 DIODE,1SS244 ABCDEFG.IJK.........

D 207 87-A40-488-080 DIODE,1SS244 ABCDEFG.IJK.........

D 214 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFG.IJK.........

D 211 87-A40-270-080 C-DIODE,MC2838 ABCDEFG.IJK.........

J 204 87-A60-750-010 JACK,PIN 4P R/W BLUE AB.DEFG.IJK.........

J 205 87-A60-751-010 JACK,PIN 2P R/W BLUE ..C.................

L 202 87-003-383-010 COIL,1UH-S ABCDEFG.IJK.........

L 201 87-003-383-010 COIL,1UH-S ABCDEFG.IJK.........

Q 205 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 206 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 204 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 203 87-A30-075-080 C-TR,2SA1235F ABCDEFG.IJK.........

Q 208 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 209 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 207 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 201 87-A30-257-080 C-TR,2SD1306E ABCDEFG.IJK.........

Q 202 87-A30-257-080 C-TR,2SD1306E ABCDEFG.IJK.........

Q 210 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 219 87-A30-119-040 C-TR,2SC3906K R ABCDEFG.IJK.........

Q 211 87-A30-190-080 TR,CC5551 ABCDEFG.IJK.........

Q 212 87-A30-190-080 TR,CC5551 ABCDEFG.IJK.........

Q 218 87-A30-255-010 TR,2SB1342 ABCDEFG.IJK.........

Q 217 87-A30-255-010 TR,2SB1342 ABCDEFG.IJK.........

Q 216 87-A30-256-010 TR,2SD1933 ABCDEFG.IJK.........

Q 215 87-A30-256-010 TR,2SD1933 ABCDEFG.IJK.........

Q 224 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 226 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 225 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 227 87-A30-076-080 C-TR,2SC3052F ABCDEFG.IJK.........

Q 220 87-A30-119-040 C-TR,2SC3906K R ABCDEFG.IJK.........

R 232 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFG.IJK.........

R 234 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFG.IJK.........

R 231 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFG.IJK.........

R 233 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFG.IJK.........

R 266 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFG.IJK.........

R 265 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFG.IJK.........

C 602 87-010-180-080 C-CER 1500P ABCDEFG.IJK.........

C 601 87-010-180-080 C-CER 1500P ABCDEFG.IJK.........

C 605 87-010-318-080 C-CAP,S 47P-50 CH ABCDEFG.IJK.........

C 606 87-010-318-080 C-CAP,S 47P-50 CH ABCDEFG.IJK.........

C 619 87-010-185-080 C-CAP,S 3900P-50 B ABCDEFG.IJK.........

C 613 87-016-081-080 C-CAP,S 0.1-16 RK ABCDEFG.IJK.........

C 614 87-016-081-080 C-CAP,S 0.1-16 RK ABCDEFG.IJK.........

C 618 87-A10-304-080 CAP,M 0.056-50 J ......G.IJK.........

C 617 87-A10-304-080 CAP,M 0.056-50 J ......G.IJK.........

C 618 87-A11-008-080 CAP,M 0.056-50 J DE ABCDEF..............

C 617 87-A11-008-080 CAP,M 0.056-50 J DE ABCDEF..............

C 616 87-A11-011-080 CAP,M 0.12-50 J DE ABCDEFG.IJK.........

C 615 87-A11-011-080 CAP,M 0.12-50 J DE ABCDEFG.IJK.........

C 620 87-010-185-080 C-CAP,S 3900P-50 B ABCDEFG.IJK.........

C 627 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 621 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 622 87-010-401-080 CAP, ELECT 1-50V ABCDEFG.IJK.........

C 626 87-010-405-080 CAP, ELECT 10-50V ABCDEFG.IJK.........

C 625 87-010-405-080 CAP, ELECT 10-50V ABCDEFG.IJK.........

C 629 87-010-405-080 CAP, ELECT 10-50V ABCDEFG.IJK.........

C 624 87-A10-307-080 CAP,M 0.1-50 J ......G.IJK.........

C 623 87-A10-307-080 CAP,M 0.1-50 J ......G.IJK.........

C 623 87-A10-773-080 CAP,M 0.10-50 J ABCDEF..............

C 624 87-A10-773-080 CAP,M 0.10-50 J ABCDEF..............

C 637 87-010-183-080 C-CAP,S 2700P-50 B ABCDEFG.IJK.........

C 636 87-010-194-080 CAP, CHIP 0.047 ..CD..G.............

C 635 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 630 87-010-213-080 C-CAP,S 0.015-50 B ABCDEFG.IJK.........

C 633 87-010-263-080 CAP, ELECT 100-10V ABCDEFG.IJK.........

C 632 87-010-263-080 CAP, ELECT 100-10V ABCDEFG.IJK.........

C 639 87-010-314-080 C-CAP,S 22P-50V ABCDEFG.IJK.........

C 638 87-010-314-080 C-CAP,S 22P-50V ABCDEFG.IJK.........

C 631 87-010-992-080 C-CAP,S 0.047-25 B ABCDEFG.IJK.........

C 641 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 669 87-010-322-080 C-CAP,S 100P-50 CH ......G.IJK.........

C 677 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 678 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

C 670 87-010-322-080 C-CAP,S 100P-50 CH ......G.IJK.........

C 680 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFG.IJK.........

CN 604 87-099-570-010 CONN,13P TUC-P13P-B1 ABCDE.G.IJ..........

CN 601 87-099-719-010 CONN,30P TYK-B(X) ABCDEF..............

ELECTRICALPARTSLIST-7/8

CN 602 87-A60-131-010 CONN,6P V FE ABCDEFG.IJK.........

CN 605 87-A60-189-010 CONN,16P V TUC-P16P-B1 .....F....K.........

CN 601 88-NF9-657-010 CONN,30P H BLK TYK-B(X) ......G.IJK.........

D 601 87-A40-002-080 ZENER,MTZJ5.1C ABCDEFG.IJK.........

D 603 87-A40-234-080 ZENER,MTZJ5.6A ......G.IJK.........

D 602 87-A40-438-080 ZENER,MTZJ4.7A ABCDEFG.IJK.........

IC 601 87-A21-011-040 C-IC,M62445FP-600D ABCDEFG.IJK.........

J 602 87-A60-398-010 JACK,PIN 2P R/W HSP-242V24 ABCDEFG.IJK.........

J 602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN ....................

Q 601 87-026-609-080 TR,KTA1266GR ABCDEFG.IJK.........

Q 604 87-A30-142-040 C-TR,DTA123EKA ......G.IJK.........

C 735 87-010-178-080 CHIP CAP 1000P ......G.............

C 732 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD..G.............

C 733 87-010-196-080 CHIP CAPACITOR,0.1-25 ..CD..G.............

C 731 87-010-405-080 CAP, ELECT 10-50V ....................

C 733 87-010-544-080 CAP, ELECT 0.1-50V ....................

C 731 87-010-560-080 CAP,E 10-50 GAS ..CD..G.............

C 734 87-012-157-080 C-CAP,S 330P-50 CH ..CD..G.............

JR 703 87-012-368-080 C-CAP,S 0.1-50 F ...D..G.............

Q 732 87-A30-075-080 C-TR,2SA1235F ..CD..G.............

Q 731 87-A30-076-080 C-TR,2SC3052F ..CD..G.............

ELECTRICALPARTSLIST-8/8

MECHANICAL PARTS LIST-1/2

ÆìïL: âTâtâBâbâNâXùôé¦âAâïâtâ@âxâbâgé-òöòié=Ägùpé¦é-éóéTÄûé=Äªé¦é-éóé_é+üB

NOTE: The characters in the suffix column indicate the part usage.

HRJSTM(NS555) ..........XX.....................................D................

EZSTM(NS555) ...........XX......................................E...............

EZSTM(NS556) ...........XX.......................................F..............

HRJ8STM(NS555) .........XX........................................G.............

KSTE(NS555) ............XX..........................................I...........

¦¦+

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

82-NE6-067-010 BADGE,AIWA 30N ABCDEFGHIJK.........

86-NFZ-001-010 WINDOW,TOP ABCDEFGHIJK.........

8Z-NB8-011-010 PANEL,LEFT V-2 AB..................

8Z-NB8-011-110 PANEL,LEFT V-2 ..CDEFGHIJK.........

8Z-NF8-001-010 CABI,FR U AB..E...............

8Z-NF8-002-010 CABI,REAR USTNM .B..................

8Z-NF8-003-010 BOX,CASS 1U AB..................

8Z-NF8-004-010 BOX,CASS 2U AB..EF..............

8Z-NF8-021-010 WINDOW,CASS 1 ABCDEFGH............

8Z-NF8-022-010 WINDOW,CASS 2 ABCDEFGH............

8Z-NF8-023-010 WINDOW,DISP U AB..................

8Z-NF8-024-010 WINDOW,CD ABCDEFGH............

8Z-NF8-025-010 PANEL,TRAY U ABCDEFGHIJK.........

8Z-NF8-033-010 CABI,FR H ..CD..GH............

8Z-NF8-034-010 WINDOW,DISP H ..CD..G.............

8Z-NF8-035-010 WINDOW,DISP K ....E...............

8Z-NF8-036-010 WINDOW,DISP E .....F..............

8Z-NF8-037-010 BOX,CASS 1H ..CDEFGH............

8Z-NF8-038-010 BOX,CASS 2H ..CD..GH............

8Z-NF8-040-010 CABI,FR E .....F..............

8Z-NF8-041-010 CABI,REAR HRJSTNM ...D..G.............

8Z-NF8-042-010 CABI,REAR LHSTNM ..C.................

8Z-NF8-043-010 CABI,REAR KSTNE ........I...........

8Z-NF8-044-010 CABI,REAR EZSTNE .........J..........

8Z-NF8-046-010 CABI,REAR VJSTNM ....................

8Z-NF8-047-010 CABI,REAR USTFD A...................

8Z-NF8-053-010 WINDOW,DISP D ....................

8Z-NF8-054-010 CABI,REAR EZSTE R ..........K.........

8Z-NF8-055-010 CABI,REAR LHSTFD ....................

8Z-NF8-056-010 CABI,REAR EZSTM ....E...............

8Z-NF8-057-010 CABI,REAR EZSTM R .....F..............

8Z-NF8-058-010 CABI,REAR STM ....................

8Z-NF8-059-010 CABI,REAR LHSTM KIT .......H............

8Z-NF8-060-010 WINDOW,DISP 559KIT .......H............

8Z-NF8-064-010 CABI,REAR HRSTM ....................

8Z-NF8-065-010 CABI,REAR HRJSC1M ....................

8Z-NF9-042-010 PANEL,TOP V-2 ABCDEFGHIJK.........

8Z-NF9-043-010 PANEL,RIGHT S V-2 ABCDEFGHIJK.........

8Z-NF8-005-010 KEY,POWER ABCDEF..............

8Z-NF8-005-110 KEY,POWER ......GH............

8Z-NF8-006-010 KEY,CD ABCDEFGH............

8Z-NF8-007-010 REFLECTOR,ECO ABCDEFGH............

8Z-NF8-008-010 KEY,TIMER ABCDEFGH............

8Z-NF8-009-010 KEY,EDIT AB..EF..............

8Z-NF8-010-010 KEY,ASSY FUN ABCDEFGH............

8Z-NF8-013-010 KEY,ASSY PLAY ..CDEFGH............

8Z-NF8-016-010 KEY,ASSY PAUSE ABCDEFGH............

8Z-NF8-020-010 KEY,RDS .....F..............

8Z-NF8-026-010 KNOB,RTRY JOG ABCDEFGH............

8Z-NF8-027-010 KNOB,RTRY VOL ABCDEFGH............

8Z-NF8-028-010 KNOB,RTRY MIC ..CD..GH............

8Z-NF8-029-010 REFLECTOR,JOG ABCDEFGH............

8Z-NF8-030-010 KEY,ASSY PLAY U AB..................

8Z-NF8-048-010 KEY,EDIT H ..CDEFGH............

8Z-NF8-049-010 KEY,ECHO U AB..................

8Z-NF8-050-010 KEY,KARAOKE ..CD..GH............

8Z-NF8-063-010 KEY,TIMER D ....................

81-532-080-010 LABEL, CASS. COMPT ABCDEFGH............

87-NF6-616-010 CONN ASSY,8P RPB ..CD..GH............

84-ZG1-245-210 CAP,OPTICAL ABCDEFGHIJK.........

82-NF5-218-010 SPR-T,EJECT 1 (SIN) ABCDEFGHIJK.........

82-NF5-219-010 SPR-T,EJECT 2 (SIN) ABCDEFGHIJK.........

82-NF5-229-010 PLATE,LOCK ABCDEFGH............

86-NF9-224-010 SPR-C,LOCK ABCDEFGH............

87-064-185-010 HLDR,WIRE ..CDEFGHIJK.........

87-NF4-216-010 HLDR,LOCK 1 ABCDEFGH............

87-NF4-217-010 HLDR,LOCK 2 ABCDEF..............

87-NF4-217-110 HLDR,LOCK 2 ......GH............

87-NF4-221-010 HLDR,CABLE AB.DEFG.IJK.........

87-NF8-220-010 DMPR,150 ABCDEFGH............

88-NF5-208-010 HLDR,PWB-M N ABCDEFGHIJK.........

8Z-NB8-240-010 COVER, PL ABCDEFGHIJK.........

8Z-NF8-205-010 HLDR,HT-SINK ABCDEF..............

8Z-NF8-205-110 HLDR,HT-SINK ......GHIJK.........

8Z-NF9-204-010 PLATE,MIC ..CD..GH............

87-067-581-010 TAPPING SCREW, BVT2+3-15 ..CDEFGHIJK.........

87-067-641-010 UTT2+3-8(W/O SLOT)BL ..CDEFGHIJK.........

87-067-688-010 BVTT+3-6 ABCDEFGHIJK.........

87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCDEFGHIJK.........

87-067-758-010 BVT2+3-12 W/O SLOT ..CDEFGHIJK.........

This manual suits for next models

Table of contents

Popular Stereo System manuals by other brands

Sony

Sony HCD-VX88 Service manual

Philips

Philips MCM398D/12 user manual

Sony

Sony CMT-SPZ90DB operating instructions

LG OM4560 owner's manual

JVC

JVC UX-G3 instructions

Odys

Odys ODYS - LOOP instruction manual

Panasonic

Panasonic SC-AK100 operating instructions

Sharp

Sharp CD-G10000V Operation manual

Bogen

Bogen NEARSCAPES 4.1 manual

Panasonic

Panasonic SCPM29 - MINI HES W/CD PLAYER operating instructions

Meyer

Meyer LD-3 operating instructions

THOMSON

THOMSON MIC302U manual

Philips

Philips MCM530 Service manual

Sony

Sony SS-CEP50 Service manual

Cetacea Sound

Cetacea Sound CVS-II user guide

Sony

Sony MHC-V21D Service manual

Denon

Denon UCD-250 Service manual

Exibel

Exibel BDX600-UK user manual

Aiwa NSX-S555 - SERVICE User manual

Popular Stereo System manuals by other brands
