Aiwa Z-A60 User manual
SERVICE MANUAL
DATA
COMPACT DISC STEREO
SYSTEM
Z-A60
S/M Code No. 09-029-453-5N2
U(S)
BASIC TAPE MECHANISM : ZZM-3 YPR1NC
BASIC CD MECHANISM : BZG-5 ZD4GN1C
Z-A60
SPEAKERSYSTEM CD
CASSEIVER
SX-ZA60CX-ZA60
REMOTE
CONTROLLER
RC-ZAS02
• If requiring information about the CD mechanism, see Service Manual of BZG-5,
(S/M Code No. 09-023-353-3NA).
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
-2-
SPECIFICATIONS ...............................................................................................................................................................3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING ......................................................................4
NOTE ON BEFORE STARTING REPAIR ................................................................................................................5 ~ 6
ACCESSORIES PARTS LIST.............................................................................................................................................. 7
ELECTRICAL PARTS LIST .......................................................................................................................................8 ~ 23
TRANSISTOR ILLUSTRATION ........................................................................................................................................ 24
SCHEMATIC DIAGRAM -1/4 (MAIN-1/2, AMP SECTION)............................................................................................... 25
SCHEMATIC DIAGRAM -2/4 (MAIN-2/2, TUNER SECTION) .......................................................................................... 26
WIRING -1/4 (MAIN C.B) ................................................................................................................................................... 27
SCHEMATIC DIAGRAM -3/4 (FRONT/KEY CD/DECK SECTION)................................................................................. 28
WIRING -2/4 (FRONT C.B/KEY CD C.B) .......................................................................................................................... 29
WIRING -3/4 (DECK C.B) .................................................................................................................................................. 30
SCHEMATIC DIAGRAM -4/4 (PT SECTION) ................................................................................................................... 31
WIRING -4/4 (PT C.B)........................................................................................................................................................ 32
FL DISPLAY (BJ823GNK) ................................................................................................................................................. 33
IC BLOCK DIAGRAM....................................................................................................................................................... 34
IC DESCRIPTION .....................................................................................................................................................35 ~ 36
ELECTRICAL ADJUSTMENT.................................................................................................................................... 37 ~ 43
CD TEST MODE ................................................................................................................................................................ 44
MECHANICAL EXPLODED VIEW.................................................................................................................................. 45
MECHANICAL PARTS LIST ....................................................................................................................................46 ~ 47
COLOR NAME TABLE..................................................................................................................................................... 48
TAPE MECHANISM EXPLODED VIEW <ZZM-3 YPR1NC>.......................................................................................... 49
TAPE MECHANISM PARTS LIST <ZZM-3 YPR1NC>........................................................................................... 50 ~ 51
GENERAL SPEAKER DISASSEMBLY INSTRUCTIONS (FOR REFERENCE) ........................................................... 52
SPEAKER PARTS LIST (SX-ZA60)................................................................................................................................. 53
OTHER PARTS LIST ...............................................................................................................................................54 ~ 55
TABLE OF CONTENTS -1/1
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
-3-
SPECIFICATIONS -1/1
Main unit CX-ZA60
FM tuner section
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
AM tuner section
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
Amplifier section
Power output Rated: 80 W + 80 W (6 ohms, T.H.D. 1%, 1 kHz)
Reference: 120 W + 120 W (6 ohms, T.H.D. 10%, 1 kHz)
Total harmonic distortion 0.15 % (50 W, 1 kHz, 6 ohms, DIN AUDIO)
Inputs VIDEO/AUX/PHONO: 500 mV
Outputs SPEAKERS: accept speakers of 6 ohms or more
(stereo jack): accepts
headphones of 32 ohms or more
Cassette deck section
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz - 12500 Hz
Recording system AC bias
Heads Deck 1: Playback head x 1
Deck 2: Recording/playback
head x 1, erase head x 1
Compact disc player section
Laser Semiconductor laser (λ = 780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
General
Power requirements 120 V AC, 60 Hz
Power consumption 95 W
Dimensions of main unit 360 x 395.3 x 350.6 mm
(W x H x D) (14 1 /4 x 15 5 /8 x 13 7 /8 in.)
Weight of main unit 9.8 kg (21 lb.)
Speaker system SX-ZA60
Cabinet type 3 way, bass reflex
Speakers Woofer: 170 mm (6 3 /4 in.) cone type
Tweeter: 60 mm (2 3 /8 in.) cone type
Super tweeter: 20 mm ( 13 /16 in.) ceramic type
Impedance 6 ohms
Output sound pressure level 89 dB/W/m
Dimensions (W x H x D) 260 x 495 x 280 mm
(10 1/4x 19 1/2x 11 1/8in. )
Weight 5.5 kg (12 lbs. 2 oz.)
• Specifications and external appearance are subject to change without notice.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
-4-
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARYTOCONFIRMLASERBEAMEMISSION.BE
SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
Advarsel: Usynlig laserståling vedåbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsÊttelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING -1/1
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L'utillisationdecommandes,réglagesouprocéduresautres
que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASERAPPARAT
Precaution to replace Optical block
(KSM-2131FAM)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care
the clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK-UP ASSY PWB
SOLDER
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
-5-
NOTE ON BEFORE STARTING REPAIR -1/2
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across the
electrolytic capacitors (C101, 102) even thoughAC power cord is removed. If repair is attempted in this condition, secondary defect can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.

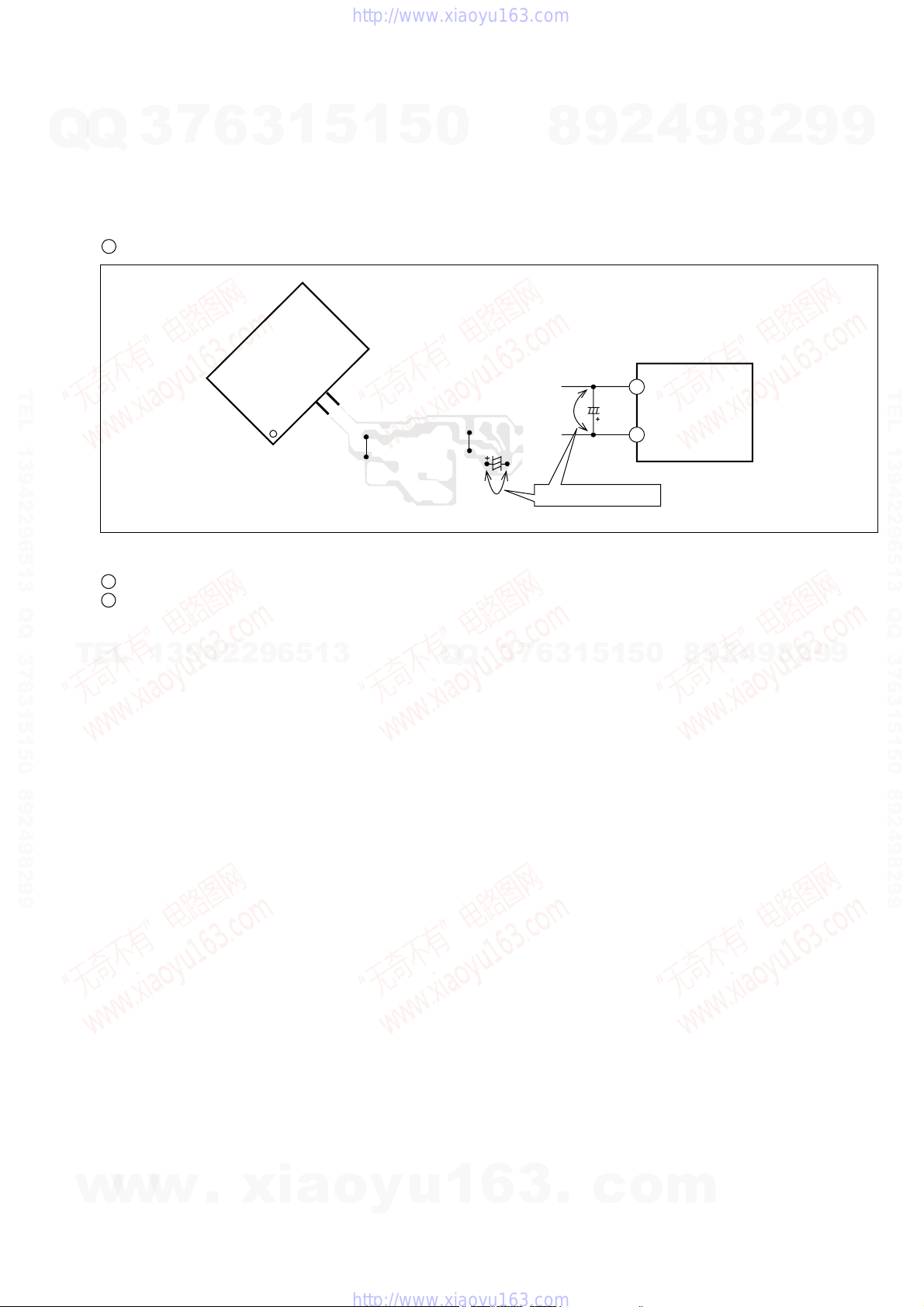

Discharge procedure
