Aiwa TV-AR295RHB User manual
COLOR TELEVISION
TV-AR295
S/M Code No. 09-001-338-2N1
RHB
SERVICE MANUAL
SPECIFICATION
Color reception systems PAL-M/PAL-N/NTSC with automatic or manual selection
Channel reception (181 channels) VHF=channels from 2 to 13
UHF=channels from 14 to 69
CATV=channels from 1 to 125
Cinescope 29 inches
Visible diagonal 67.9 cm
Electrical Power (FREE VOLTAGE) 95 to 245V AC-50/60Hz
Consumption 140 Watts
Acoustical power 7 Watts RMS per channel
Weight 34 kg
Dimensions (W x H x D) 670 x 610 x 520 mm
Design and specifications are subject to change without notice.
DATA
2
NOTICES BEFORE REPAIRING
To make the best use of this equipment, make sure to
obey the following items when repairing (or mending).
1. Do not damage or melt the tunicate of the leading
wire on the AC1 side, including the power supply
cord.
2. Do not soil or stain the letters on the spec.
inscription plates, notice labels, fuse labels, etc.
3. When repairing the part extracted from the
conducted side of the board pattern, fix it firmly
with applying bond to the pattern and the part.
4. Restore the following items after repairing.
1) Conditions of soldering of the wires (especially,
the distance on the AC1 side).
2) Conditions of wiring, bundling of wires, etc.
3) Types of the wries.
4) Attachment conditions of all types of the insulation.
5. After repairing, always measure the insulation
resistance and perform the voltage-withstand test
(See Fig-1).
1) The insulation resistance must be 7.0 to 9.5 MΩ
when applying 500V per second.
2) In the voltage withstand test, apply 3.6 KV for 3
seconds and check that the GO lamp lights.
* Breaking current set to 10 mA.
* Connect the safety checker as shown in Fig-1,
then measure the resistance and perform the test.
* Do not touch the equipment during testing.
* For details of the safety checker, refer to the supplied
Operation manual.
When servicing and checking on the TV, note the followings.
!
1. Keep the notices
As for the places which need special attentions, they
are indicated with the labels or seals on the cabinet,
chassis and parts. Make sure to keep the indications
and notices in the operation manual.
2. Avoid an electric shock.
There is a high voltage part inside. Avoid an electric
shock while the electric current is flowing.
3. Use the designated parts.
The parts in this equipment have the specific
characters of incombustibility and withstand voltage
for safety.
Therefore, the part which is replaced should be used
the part which has the same character. Especially as
to the important parts for safety which is indicated in
the circuit diagram or the table of parts as a mark,
the designated parts must be used.
4. Put parts and wires in the original position after
assembling or wiring.
There are parts which use the insulation material
such as a tube or tape for safety, or which are
assembled so that these parts do not contact with
the printed board. The inside wiring is designed not
to get closer to the pyrogenic parts and high voltage
parts. Therefore, put these parts in the original
positions.
5. Take care of the cathode-ray tube.
By setting an explosion-proof cathode-ray tube is set
in this equipment, safety is secured against
implosion.
However, when removing it or serving from
backward, it is dangerous to give a shock. Take
enough care to deal with it.
6. Avoid an X-ray.
Safety is secured against an X-ray by considering
about the cathode-ray tube and the high voltage
peripheral circuit, etc. Therefore, when repairing the
high voltage peripheral circuit, use the designated
parts and do not change the circuit. Repairing
except indicates causes rising of high voltage, and
the cathode-ray tube emits an X-ray.
7. Perform a safety check after servicing.
Confirm that the screws, parts and wiring which were
removed in order to service are put in the original
positions, or whether there are the portions which are
deteriorated around the places serviced.
Insulation resistance: 7.0 to 9.5 MΩ(500 V/s)
Voltage-withstand: 3.6 KV for 3 or more seconds

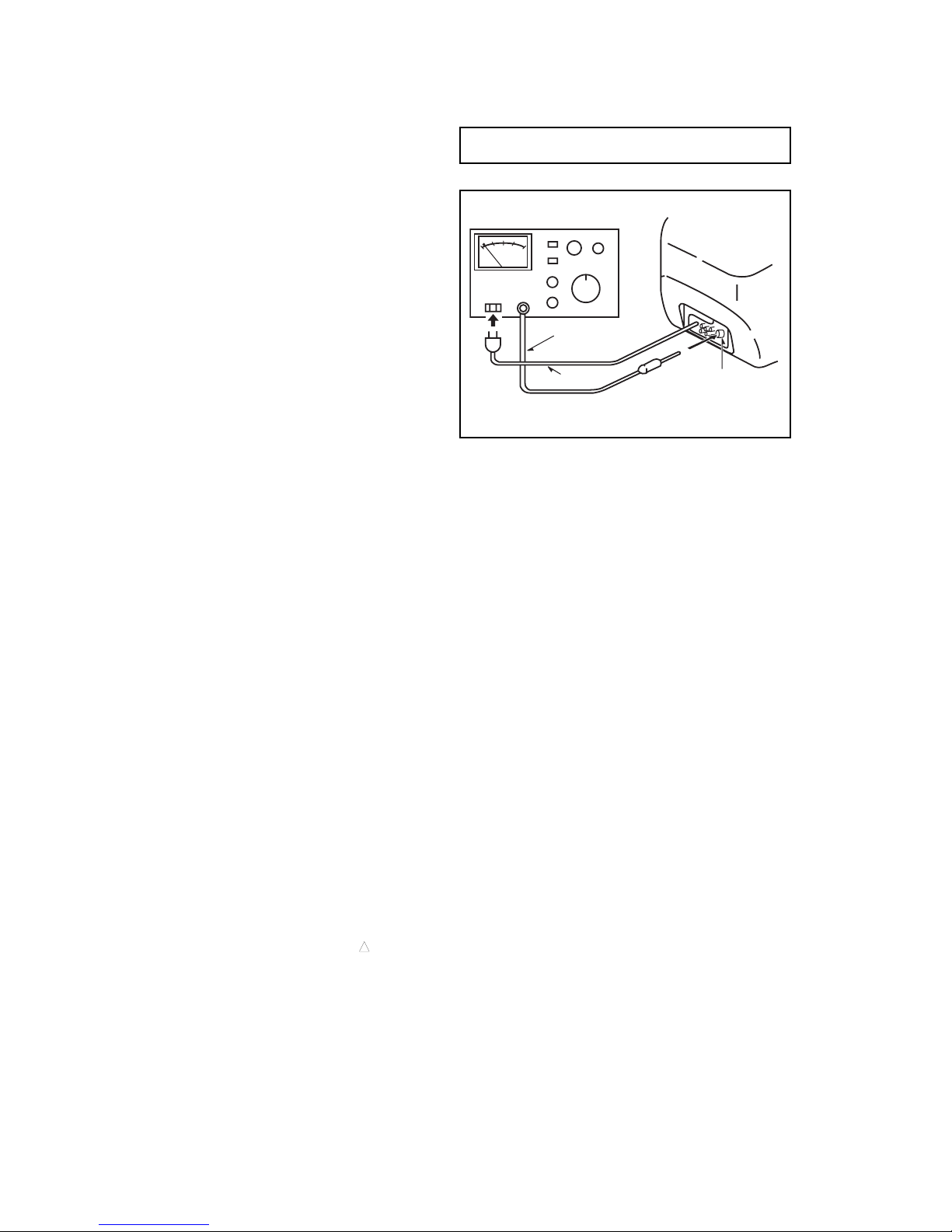

Fig-1
Safety checker (Model 7110, etc.)
Earth cable
AC cable Connect the earth cable
to the outside metal part
terminal.
3
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ELECTRICAL MAIN PARTS LIST
C1-027-218-501 CJT.PCI MAN/MONT PRINCIPAL
C1-027-218-511 CJT.PCI IA PRINCIPAL MONT
C1-027-218-521 CJT.PCI INS.SMD TV-AR295
C1-107-218-501 PCI PRINCIPAL
DIODO
D401 C1-129-314-199 DIODO SK-4F1/06 RETIFICADOR
D407 C1-129-314-199 DIODO SK-4F1/06 RETIFICADOR
D410 C1-129-314-199 DIODO SK-4F1/06 RETIFICADOR
D802 C1-129-313-999 DIODO SK-3G08 RETIFICADOR
D803 C1-129-313-999 DIODO SK-3G08 RETIFICADOR
D804 C1-129-313-999 DIODO SK-3G08 RETIFICADOR
D805 C1-129-313-999 DIODO SK-3G08 RETIFICADOR
D811 C1-129-313-899 DIODO SK-3GH06 RETIFICADOR
D819 C1-129-313-899 DIODO SK-3GH06 RETIFICADOR
D820 C1-129-313-899 DIODO SK-3GH06 RETIFICADOR
PTC801 C1-125-707-500 PTC B59205-T80-B10 T205 9r+9r
R812 C1-125-707-400 RES.COEF.NEG.NTC LIM.CORR.PICO
VR802 C1-125-708-000 VARISTOR ERZV14D471
TRANSISTOR
IC803 C1-139-999-159 PHOTO COUPLER PS-2501-1-H
Q401 C1-139-608-600 TRANSISTOR MPS-A42
Q402 C1-139-999-175 TRANSISTOR BU-2520DX
Q801 C1-139-999-335 TRANSISTOR 2SK-2699
IC
IC101 C1-149-390-999 I.C. TDA-8841/N2
IC201 C1-149-392-399 I.C. LA-7510
IC301 C1-149-389-199 I.C. TDA-8177
IC601 C1-149-380-999 I.C. TDA-7263
IC603 C1-149-388-999 I.C. TDA-9855

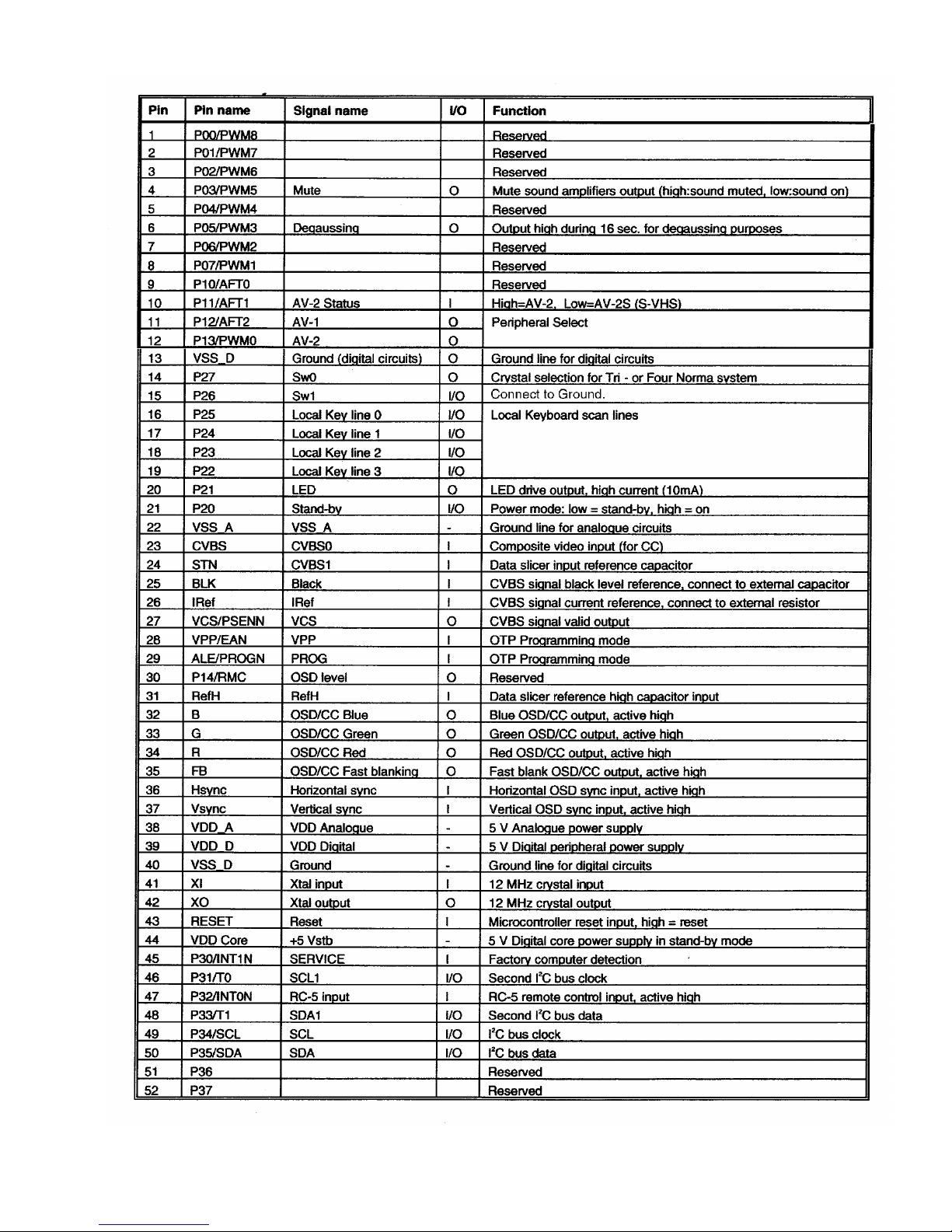

IC700 C1-149-392-699 I.C.OTP P87C770AAR/04 CTV828N
IC801 C1-146-300-103 I.C. TL-431-BCLP
IC802 C1-140-107-414 I.C. MC-44603
IC804 C1-149-376-899 I.C. 7805 (PLASTICO)
RESISTOR/FUSISTOR
R204 C1-183-533-192 RES.METAL.FILME 1/2W 330R 5% N
R205 C1-183-510-092 RES.METAL FILME 1/2W 10R 5% N
R211 C1-183-510-092 RES.METAL FILME 1/2W 10R 5% N
R225 C1-183-510-092 RES.METAL FILME 1/2W 10R 5% N
R301 C1-183-515-092 RES.METAL FILME 1/2W 15R 5% N
R303 C1-185-533-140 RES.METAL FILME 1W 330R 5% N
R304 C1-185-582-840 RES.METAL FILME 1W 0,82R 5% N
R307 C1-185-518-940 RES.METAL FILME 1W 1,8R 5% N
R403 C1-183-522-192 RES.METAL FILME 1/2W 220R 5% N
R405 C1-183-556-292 RES.METAL FILME 1/2W 5,6K 5% N
R406 C1-184-510-215 FUSISTOR 2W 1K 5%
R407 C1-185-515-340 RES.METAL FILME 1W 15K 5% N
R412 C1-183-522-497 RES.M.GLAZ.FILM 1/2W 220K 5% N
R416 C1-183-582-192 RES.METAL FILME 1/2W 820R 5% N
R419 C1-185-510-914 FUSISTOR 1W 1R 5% N
R421 C1-185-510-914 FUSISTOR 1W 1R 5% N
R422 C1-185-522-015 FUSISTOR 1W 22R 5%
R423 C1-185-510-240 RES.M.FILME 1W 1K 5% N
R424 C1-185-568-340 RES.METAL FILME 1W 68K 5% N
R430 C1-183-582-192 RES.METAL FILME 1/2W 820R 5% N
R431 C1-185-510-914 FUSISTOR 1W 1R 5% N
R439 C1-183-533-092 RES.METAL FILME 1/2W 33R 5% N
R503 C1-183-510-292 RES.METAL FILME 1/2W 1K 5% N
R504 C1-183-510-192 RES.METAL FILME 1/2W 100R 5% N
R505 C1-183-510-192 RES.METAL FILME 1/2W 100R 5% N
R506 C1-183-510-192 RES.METAL FILME 1/2W 100R 5% N
R618 C1-183-547-992 RES.METAL FILME 1/2W 4,7R 5% N
R619 C1-183-547-992 RES.METAL FILME 1/2W 4,7R 5% N
R620 C1-183-510-292 RES.METAL FILME 1/2W 1K 5% N
R658 C1-183-522-092 RES.METAL FILME 1/2W 22R 5% N
R805 C1-183-510-392 RES.METAL.FILME 1/2W 10K 5% N
R807 C1-183-522-015 RES.FUS.NAO INFL.1/2W 22R 5% N
R808 C1-183-547-292 RES.METAL FILME 1/2W 4,7K 5% N
R811 C1-184-527-340 RES.METAL FILME 2W 27K 5% N
R813 C1-182-522-214 RES.FUS.NAO INFL.1/4W 2,2K 5%
R814 C1-187-533-840 RES.METAL FILME 3W 0,33R 5% N
R816 C1-183-547-292 RES.METAL FILME 1/2W 4,7K 5% N
R817 C1-189-124-931 RES.PRECISAO 0,6W 2,49K 0,5%
R818 C1-174-051-025 RES.FIO 5W 1K 5% V-SQM
R819 C1-187-522-340 RES.METAL FILME 3W 22K 5% N
R820 C1-189-112-731 RES.PRECISAO 0,6W 127K 0,5%
R821 C1-187-522-015 FUSISTOR 3W 22R 5%
R822 C1-185-547-140 RES.METAL FILME 1W 470R 5% N
R823 C1-183-547-292 RES.METAL FILME 1/2W 4,7K 5% N
R824 C1-183-668-519 RES.COMPOS.1/2W 6,8M K
R828 C1-187-515-240 RES.METAL FILME 3W 1,5K 5% N
R830 C1-185-510-914 FUSISTOR 1W 1R 5% N
R833 C1-183-522-015 RES.FUS.NAO INFL.1/2W 22R 5% N
R834 C1-183-510-192 RES.METAL FILME 1/2W 100R 5% N
R835 C1-187-515-240 RES.METAL FILME 3W 1,5K 5% N
R836 C1-183-547-292 RES.METAL FILME 1/2W 4,7K 5% N
R840 C1-183-547-292 RES.METAL FILME 1/2W 4,7K 5% N
R841 C1-183-582-092 RES.METAL FILME 1/2W 82R 5% N
R843 C1-183-568-992 RES.METAL FILME 1/2W 6,8R 5% N
R844 C1-184-510-040 RES.METAL FILME 2W 10R 5% N
R845 C1-187-533-840 RES.METAL FILME 3W 0,33R 5% N
R846 C1-183-515-092 RES.METAL FILME 1/2W 15R 5% N
R848 C1-183-522-992 RES.METAL FILME 1/2W 2,2R 5% N
R853 C1-183-522-092 RES.METAL FILME 1/2W 22R 5% N
R854 C1-183-515-092 RES.METAL FILME 1/2W 15R 5% N
R856 C1-183-515-092 RES.METAL FILME 1/2W 15R 5% N
R857 C1-183-515-092 RES.METAL FILME 1/2W 15R 5% N
R858 C1-183-515-092 RES.METAL FILME 1/2W 15R 5% N
R859 C1-183-522-092 RES.METAL FILME 1/2W 22R 5% N
R901 C1-185-522-015 FUSISTOR 1W 22R 5%
CAP.CERAM
C406 C1-244-561-794 C.C.D.SL 560PF>=2KV J/K
C418 C1-244-471-920 CCD Y5P 470PF/1KV K
C419 C1-244-471-920 CCD Y5P 470PF/1KV K
C425 C1-244-471-920 CCD Y5P 470PF/1KV K
C808 C1-244-472-641 C.C.D.Y5P 4,7KPF/1KV K (6LR)
C809 C1-244-472-641 C.C.D.Y5P 4,7KPF/1KV K (6LR)
C810 C1-244-472-641 C.C.D.Y5P 4,7KPF/1KV K (6LR)
CAP.POLY
C407 C1-265-133-952 CAP.POLYPRO 13KPF/1600V J
C409 C1-265-474-052 CAP.POLYPRO MET.470KPF/200V J
C801 C1-265-104-070 C.POLY.100KPF/275VAC M(SUP.X2)
C845 C1-265-224-563 C.POLY.220KPF/250VAC K(SUP.X2)
C846 C1-265-224-563 C.POLY.220KPF/250VAC K(SUP.X2)
C850 C1-265-104-070 C.POLY.100KPF/275VAC M(SUP.X2)
MODULO/SINTONIZ

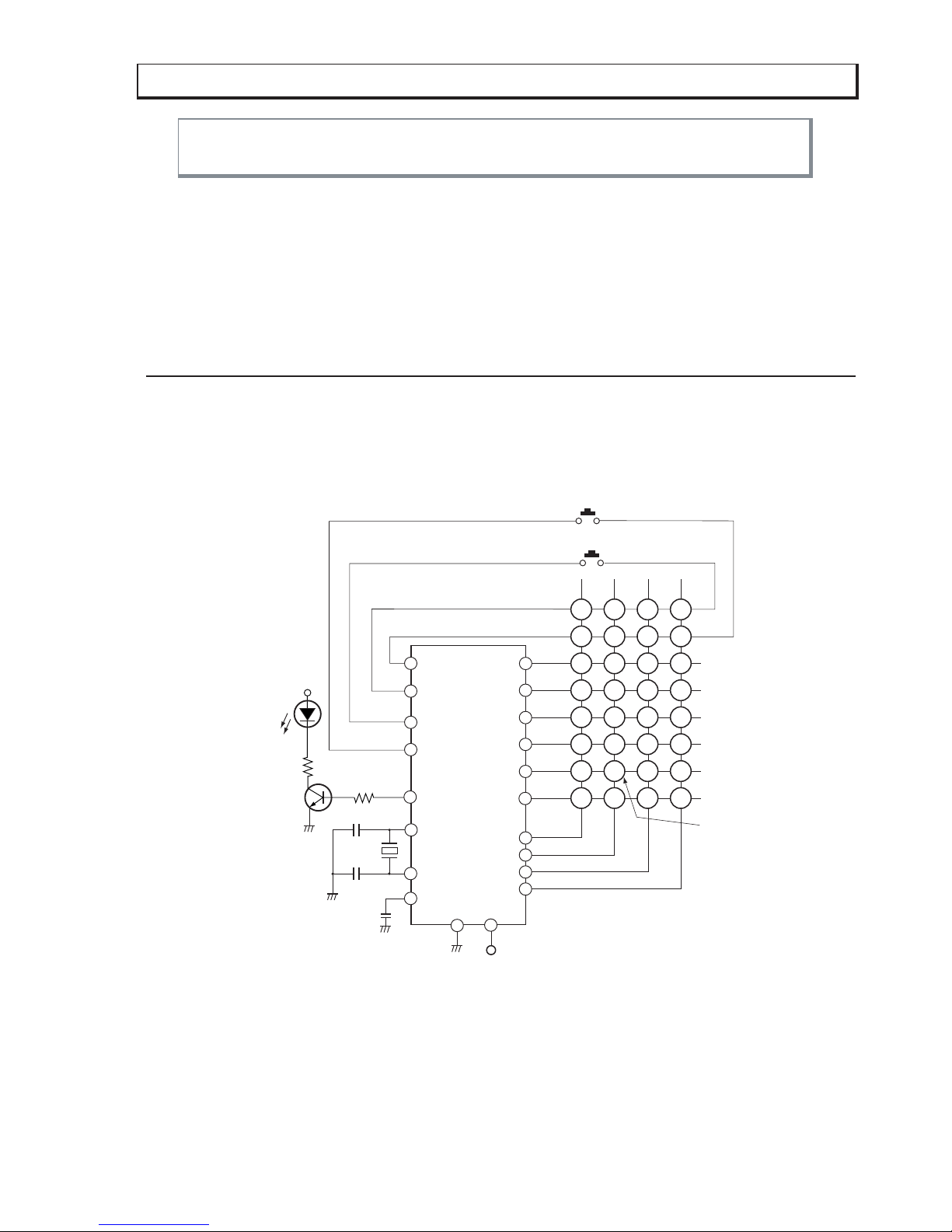

RM701 C1-271-205-300 MODULO REMOCON RPM6938 180"
TU101 C1-271-503-500 SINTONIZADOR IIC 5V ENV56D33G3
CAP.ELCO
C417 C1-291-102-419 ELCO 1000UF/25V M 12,5X25
C420 C1-291-220-017 ELCO 22UF/250V M 12,5X25
C424 C1-291-102-419 ELCO 1000UF/25V M 12,5X25
C616 C1-291-102-419 ELCO 1000UF/25V M 12,5X25
C622 C1-291-102-419 ELCO 1000UF/25V M 12,5X25
C816 C1-293-471-057 ELCO 470UF /400V
C825 C1-291-102-419 ELCO 1000UF/25V M 12,5X25
C826 C1-297-101-924 ELCO 100UF/160V (HR)
C832 C1-291-102-419 ELCO 1000UF/25V M 12,5X25
C836 C1-297-101-924 ELCO 100UF/160V (HR)
C868 C1-291-102-519 ELCO CI 1000UF/35V M 16X20
BOBINA/INDUTOR
C1-312-001-100 BOBINA LINEARIDADE 34UH
L101 C1-319-916-948 INDUTOR 18UH J
L400 C1-319-957-000 INDUTOR 15UH K
L404 C1-319-953-000 INDUTOR 33UH
L702 C1-319-917-027 INDUTOR FIXO 20UH K AXIAL
L703 C1-319-917-027 INDUTOR FIXO 20UH K AXIAL
L806 C1-319-951-100 INDUTOR 140UH
L807 C1-319-951-100 INDUTOR 140UH
L808 C1-319-951-100 INDUTOR 140UH
L809 C1-319-953-000 INDUTOR 33UH
T801 C1-319-955-400 FILTRO DE LINHA
TRANSISTOR FITADO
Q802 C1-320-030-102 TRANSISTOR BC-337/16
Q803 C1-320-030-102 TRANSISTOR BC-337/16
Q804 C1-320-030-102 TRANSISTOR BC-337/16
4
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
CAP.POLY FITADO
C101 C1-330-474-904 C.POLYMET 470KPF/63V K
C302 C1-330-224-122 C.POLYMET 220KPF/63V K
C307 C1-331-104-004 C.POLYPRO 100KPF/160V 5%
C404 C1-330-104-421 C.POLYMET 100KPF/250V J
C421 C1-330-224-122 C.POLYMET 220KPF/63V K
C804 C1-330-122-100 MYLLARCAP 1,2KPF/63V K
C819 C1-330-474-904 C.POLYMET 470KPF/63V K
C822 C1-330-473-401 CAP.POLYESTER 47KPF/250V J
TRAFO
TF401 C1-353-101-500 TRAFO DRIVE HT
FLK401 C1-355-210-000 TRAFO FLY BACK 29"
TF802 C1-356-004-500 TRAFO DE CHAVEAMENTO
CAP.CERAM FITADO
C405 C1-363-102-601 C.C.D.Y5P 1KPF>=500V K
C422 C1-363-221-600 C.C.D.Y5P 220PF>=500V K
C429 C1-363-221-600 C.C.D.Y5P 220PF>=500V K
C813 C1-363-471-600 C.C.D.Y5P/Y5E 470PF>=500V K
C818 C1-363-221-803 C.C.D.Y5P 220PF/2KV K 6LS
C820 C1-363-102-803 C.C.D.Y5P 1KPF/2KV K 6LS
C821 C1-363-331-803 C.C.D.Y5P 330PF/2KV J
C823 C1-363-102-700 C.C.D.Y5U 1K/1KV M
C824 C1-363-331-803 C.C.D.Y5P 330PF/2KV J
C829 C1-363-102-700 C.C.D.Y5U 1K/1KV M
C838B C1-369-222-803 C.C.D.GKO 2K2PF/620 M
C839 C1-363-221-600 C.C.D.Y5P 220PF>=500V K
C855 C1-363-471-600 C.C.D.Y5P/Y5E 470PF>=500V K
CAP.ELCO FITADO
C103 C1-380-470-324 ELCO 47UF/25V M
C200 C1-380-109-622 ELCO 1UF/100V M
C203 C1-380-101-328 ELCO 100UF/25V M
C208 C1-380-100-524 ELCO 10UF/50V M
C210 C1-380-109-622 ELCO 1UF/100V M
C211 C1-380-100-524 ELCO 10UF/50V M
C213 C1-380-478-622 ELCO 0,47UF/100V M
C214 C1-380-478-622 ELCO 0,47UF/100V M
C215 C1-380-478-622 ELCO 0,47UF/100V M
C304 C1-380-221-325 ELCO 220UF/25V-35V M
C401 C1-380-109-622 ELCO 1UF/100V M
C408 C1-380-229-724 ELCO 2,2UF /160V M (6X11)
C412 C1-380-229-622 ELCO 2,2UF/100V M 5x11mm
C414 C1-380-479-622 ELCO 4,7UF/100V M
C423 C1-380-100-524 ELCO 10UF/50V M
C605 C1-380-471-229 ELCO 470UF/16V M
C612 C1-380-109-622 ELCO 1UF/100V M
C613 C1-380-100-422 ELCO 10UF/50V K
C615 C1-380-229-521 ELCO 2,2UF/50V M
C620 C1-380-229-521 ELCO 2,2UF/50V M
C625 C1-380-229-521 ELCO 2,2UF/50V M
C627 C1-380-109-622 ELCO 1UF/100V M
C628 C1-380-221-325 ELCO 220UF/25V-35V M
C629 C1-380-229-521 ELCO 2,2UF/50V M
C630 C1-380-470-324 ELCO 47UF/25V M
C631 C1-380-470-324 ELCO 47UF/25V M
C632 C1-380-101-328 ELCO 100UF/25V M
C633 C1-380-109-622 ELCO 1UF/100V M
C634 C1-380-100-525 ELCO 10UF/16V M LL
C636 C1-380-100-524 ELCO 10UF/50V M
C638 C1-380-479-622 ELCO 4,7UF/100V M
C639 C1-380-479-622 ELCO 4,7UF/100V M
C640 C1-380-479-622 ELCO 4,7UF/100V M
C641 C1-380-229-521 ELCO 2,2UF/50V M
C642 C1-380-229-521 ELCO 2,2UF/50V M
C643 C1-380-100-524 ELCO 10UF/50V M
C646 C1-380-229-521 ELCO 2,2UF/50V M
C647 C1-380-221-325 ELCO 220UF/25V-35V M
C648 C1-380-479-622 ELCO 4,7UF/100V M
C650 C1-380-100-524 ELCO 10UF/50V M
C654 C1-380-100-422 ELCO 10UF/50V K
C655 C1-380-229-521 ELCO 2,2UF/50V M
C657 C1-380-101-328 ELCO 100UF/25V M
C658 C1-380-221-325 ELCO 220UF/25V-35V M
C659 C1-380-229-521 ELCO 2,2UF/50V M
C660 C1-380-229-521 ELCO 2,2UF/50V M
C661 C1-380-229-521 ELCO 2,2UF/50V M
C662 C1-380-229-521 ELCO 2,2UF/50V M
C663 C1-380-229-521 ELCO 2,2UF/50V M
C670 C1-380-229-521 ELCO 2,2UF/50V M
C700 C1-380-100-524 ELCO 10UF/50V M
C726 C1-380-100-524 ELCO 10UF/50V M
C802 C1-380-221-325 ELCO 220UF/25V-35V M
C807 C1-380-109-622 ELCO 1UF/100V M
C814 C1-380-101-328 ELCO 100UF/25V M
C817 C1-380-221-325 ELCO 220UF/25V-35V M
C830 C1-380-221-325 ELCO 220UF/25V-35V M
C831 C1-380-471-331 ELCO 470UF/35V M 10X20
C834 C1-380-101-328 ELCO 100UF/25V M
C837 C1-380-221-325 ELCO 220UF/25V-35V M
C840 C1-380-470-324 ELCO 47UF/25V M
C843 C1-380-100-524 ELCO 10UF/50V M
C844 C1-380-221-325 ELCO 220UF/25V-35V M
C847 C1-380-100-524 ELCO 10UF/50V M
C848 C1-380-471-331 ELCO 470UF/35V M 10X20
C851 C1-380-221-325 ELCO 220UF/25V-35V M
C852 C1-380-470-324 ELCO 47UF/25V M
C856 C1-380-101-328 ELCO 100UF/25V M
C857 C1-380-100-524 ELCO 10UF/50V M
C858 C1-380-479-622 ELCO 4,7UF/100V M
C860 C1-380-100-524 ELCO 10UF/50V M
C861 C1-380-100-524 ELCO 10UF/50V M
C862 C1-380-101-328 ELCO 100UF/25V M
C866 C1-380-471-229 ELCO 470UF/16V M
C874 C1-380-100-524 ELCO 10UF/50V M
RELE
RL801 C1-391-004-600 RELE SDT-SS-112DM
DIODO FITADO
D201 C1-414-621-902 DIODO 1N-4148 75V SINAL
D301 C1-410-440-015 DIODO 1N-4005 RETIFICADOR
D400 C1-414-621-902 DIODO 1N-4148 75V SINAL
D405 C1-414-621-902 DIODO 1N-4148 75V SINAL
D408 C1-411-430-807 DIODO BYV-95B RETIFICADOR
D412 C1-414-621-902 DIODO 1N-4148 75V SINAL
D601 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D602 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D603 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D604 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D605 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D606 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D607 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D608 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D609 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D610 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D611 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D612 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D613 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D614 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D801 C1-414-621-903 DIODO BAV-21
D808 C1-414-621-902 DIODO 1N-4148 75V SINAL
D808 C1-415-167-401 DIODO SK-4F1/08
D809 C1-415-167-401 DIODO SK-4F1/08
D810 C1-415-164-001 DIODO BYV-27-150
D812 C1-412-054-302 DIODO 1N-5231B ZENER 5,1V
D815 C1-414-621-902 DIODO 1N-4148 75V SINAL
D817 C1-410-440-015 DIODO 1N-4005 RETIFICADOR
D821 C1-414-621-902 DIODO 1N-4148 75V SINAL
D822 C1-414-621-902 DIODO 1N-4148 75V SINAL
D829 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D901 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
FILTRO/CRISTAL /FERRITE
CF100 C1-421-500-400 FILTRO CERAMICO SFE- 4.5MB
CF200 C1-421-506-600 FILTRO CERAMICO TPS-4.5MB
FB801 C1-427-011-200 BEAD 2X5X5MM
FB802 C1-427-010-820 FERR.BEAD BL02RN2R6T4 DP.RAD
FB803 C1-427-011-200 BEAD 2X5X5MM
FB804 C1-427-010-820 FERR.BEAD BL02RN2R6T4 DP.RAD
FB805 C1-427-011-200 BEAD 2X5X5MM
FB806 C1-427-010-820 FERR.BEAD BL02RN2R6T4 DP.RAD
FB807 C1-427-011-200 BEAD 2X5X5MM
FB808 C1-427-011-200 BEAD 2X5X5MM
FB809 C1-427-011-200 BEAD 2X5X5MM
FB810 C1-427-011-200 BEAD 2X5X5MM
SF100 C1-421-507-300 SAW FILTER M3953M
SF201 C1-421-506-800 SAW FILTER M9260
6
5 7
X500 C1-425-009-200 CRISTAL NTSC 3.579545 SE / S
X501 C1-425-009-300 CRISTAL PAL-N 3.582056 SSP / S
X502 C1-425-009-100 CRISTAL PAL-M 3.575611 SSP / S
X600 C1-421-506-100 RESSONADOR CERAMICO CSB-503F58
X700 C1-425-008-100 CRISTAL 12,0000 MHZ
CHAVE
SW701 C1-449-008-400 BLOCO CHAVES DE TOQUE C/7UNID
SW702 C1-440-505-900 CHAVE SERVICO
SW801 C1-440-090-058 CHAVE POWER
DIODO LED
LD701 C1-459-521-800 DIODO LED SLR-56VC3F
FUSIVEL
F801 C1-461-058-002 FUS.ACAO RET.20AG 4A/250V
INDUTOR FITADO
L102 C1-479-920-034 INDUTOR 0,82UH K
L200 C1-479-908-634 INDUTOR FIXO 15UH K AXIAL
L700 C1-479-906-734 INDUTOR FIXO 2,2UH K AXIAL
L701 C1-479-906-734 INDUTOR FIXO 2,2UH K AXIAL
L805 C1-479-907-634 INDUTOR FIXO 5,6UH K AXIAL
CAP.SMD
C106 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C107 C1-490-433-004 CAP.SMD NPO 33PF/50V J 0805
C108 C1-490-522-300 CAP.SMD X7R 22KPF/50V K 0805
C109 C1-490-522-300 CAP.SMD X7R 22KPF/50V K 0805
C201 C1-490-482-004 CAP.SMD NPO 82PF/50V J 0805
C202 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C204 C1-490-647-405 CAP.SMD Y5V 470KPF/25V Z 0805
C205 C1-490-510-200 CAP.SMD X7R 1KPF/50V K 0805
C206 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C207 C1-490-547-300 CAP.SMD X7R 47KPF/50V K 0805
C209 C1-490-522-420 CAP.SMD X7R 220KPF/16V K 0805
C212 C1-490-547-300 CAP.SMD X7R 47KPF/50V K 0805
C216 C1-490-510-300 CAP.SMD X7R 10KPF/50V K 0805
C217 C1-490-433-004 CAP.SMD NPO 33PF/50V J 0805
C220 C1-490-410-104 CAP.SMD NPO 100PF/50V J 0805
C221 C1-490-410-104 CAP.SMD NPO 100PF/50V J 0805
C222 C1-490-410-104 CAP.SMD NPO 100PF/50V J 0805
C300 C1-490-510-300 CAP.SMD X7R 10KPF/50V K 0805
C303 C1-490-510-200 CAP.SMD X7R 1KPF/50V K 0805
C305 C1-490-510-200 CAP.SMD X7R 1KPF/50V K 0805
C306 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C309 C1-490-422-104 CAP.SMD NPO 220PF/50V J 0805
C310 C1-490-447-100 CAP.SMD NPO 470PF/50V K 0805
C311 C1-490-447-100 CAP.SMD NPO 470PF/50V K 0805
C400 C1-490-547-200 CAP.SMD X7R 4,7KPF/50V K 0805
C402 C1-490-522-200 CAP.SMD X7R 2,2KPF/50V K 0805
C403 C1-490-410-104 CAP.SMD NPO 100PF/50V J 0805
C410 C1-490-410-104 CAP.SMD NPO 100PF/50V J 0805
C411 C1-490-510-300 CAP.SMD X7R 10KPF/50V K 0805
C413 C1-490-510-300 CAP.SMD X7R 10KPF/50V K 0805
C426 C1-490-522-420 CAP.SMD X7R 220KPF/16V K 0805
C430 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C432 C1-490-415-000 CAP SMD NPO 15PF/50V J 0805
C500 C1-490-533-200 CAP.SMD X7R 3,3KPF/50V K 0805
C501 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C502 C1-490-510-300 CAP.SMD X7R 10KPF/50V K 0805
C503 C1-490-510-300 CAP.SMD X7R 10KPF/50V K 0805
C504 C1-490-510-300 CAP.SMD X7R 10KPF/50V K 0805
C512 C1-490-510-200 CAP.SMD X7R 1KPF/50V K 0805
C600 C1-490-522-300 CAP.SMD X7R 22KPF/50V K 0805
C610 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C611 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C614 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C617 C1-490-512-400 CAP.SMD X7R 120KPF/50V K 0805
C618 C1-490-515-300 CAP.SMD X7R 15KPF/50V K 0805
C619 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C621 C1-490-512-400 CAP.SMD X7R 120KPF/50V K 0805
C626 C1-490-522-200 CAP.SMD X7R 2,2KPF/50V K 0805
C635 C1-490-547-303 CAP.SMD X7R 47KPF/25V K 0805
C637 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C644 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C645 C1-490-422-104 CAP.SMD NPO 220PF/50V J 0805
C649 C1-490-647-405 CAP.SMD Y5V 470KPF/25V Z 0805
C651 C1-490-433-004 CAP.SMD NPO 33PF/50V J 0805
C652 C1-490-410-104 CAP.SMD NPO 100PF/50V J 0805
C653 C1-490-522-420 CAP.SMD X7R 220KPF/16V K 0805
C656 C1-490-515-300 CAP.SMD X7R 15KPF/50V K 0805
C664 C1-490-433-004 CAP.SMD NPO 33PF/50V J 0805
C665 C1-490-522-200 CAP.SMD X7R 2,2KPF/50V K 0805
C666 C1-490-433-004 CAP.SMD NPO 33PF/50V J 0805
C667 C1-490-515-420 CAP.SMD X7R 150KPF/16V K 0805
C668 C1-490-533-300 CAP.SMD X7R 33KPF/50V K 0805
C669 C1-490-556-200 CAP.SMD X7R 5,6KPF/50V K 0805
C671 C1-490-533-300 CAP.SMD X7R 33KPF/50V K 0805
C672 C1-490-556-200 CAP.SMD X7R 5,6KPF/50V K 0805
C673 C1-490-422-104 CAP.SMD NPO 220PF/50V J 0805
C701 C1-490-415-104 CAP.SMD NPO 150PF/50V J 0805
C703 C1-490-433-004 CAP.SMD NPO 33PF/50V J 0805
C704 C1-490-433-004 CAP.SMD NPO 33PF/50V J 0805
C707 C1-490-433-004 CAP.SMD NPO 33PF/50V J 0805
C708 C1-490-433-004 CAP.SMD NPO 33PF/50V J 0805
C709 C1-490-433-004 CAP.SMD NPO 33PF/50V J 0805
C711 C1-490-433-004 CAP.SMD NPO 33PF/50V J 0805
C712 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C713 C1-490-415-104 CAP.SMD NPO 150PF/50V J 0805
C714 C1-490-415-104 CAP.SMD NPO 150PF/50V J 0805
C716 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C717 C1-490-418-004 CAP.SMD NPO 18PF/50V J (0805)
C718 C1-490-433-004 CAP.SMD NPO 33PF/50V J 0805
C719 C1-490-433-004 CAP.SMD NPO 33PF/50V J 0805
C720 C1-490-433-004 CAP.SMD NPO 33PF/50V J 0805
C721 C1-490-433-004 CAP.SMD NPO 33PF/50V J 0805
C725 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C727 C1-490-418-004 CAP.SMD NPO 18PF/50V J (0805)
C728 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C730 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C760 C1-490-415-104 CAP.SMD NPO 150PF/50V J 0805
C761 C1-490-415-104 CAP.SMD NPO 150PF/50V J 0805
C762 C1-490-415-104 CAP.SMD NPO 150PF/50V J 0805
C805 C1-490-447-100 CAP.SMD NPO 470PF/50V K 0805
C806 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C811 C1-490-510-200 CAP.SMD X7R 1KPF/50V K 0805
C812 C1-490-410-104 CAP.SMD NPO 100PF/50V J 0805
C828 C1-490-510-200 CAP.SMD X7R 1KPF/50V K 0805
C833 C1-490-522-300 CAP.SMD X7R 22KPF/50V K 0805
C835 C1-490-533-200 CAP.SMD X7R 3,3KPF/50V K 0805
C838 C1-490-522-300 CAP.SMD X7R 22KPF/50V K 0805
C841 C1-490-547-200 CAP.SMD X7R 4,7KPF/50V K 0805
C842 C1-490-647-405 CAP.SMD Y5V 470KPF/25V Z 0805
C849 C1-490-510-300 CAP.SMD X7R 10KPF/50V K 0805
C853 C1-490-410-410 CAP. SMD X7R 100KPF/25V K 0805
C865 C1-490-510-300 CAP.SMD X7R 10KPF/50V K 0805
C875 C1-490-510-300 CAP.SMD X7R 10KPF/50V K 0805
C908 C1-490-447-004 CAP.SMD NPO 47PF/50V J 0805
RES.SMD
C301 C1-502-500-002 RES.SMD 0R 5% 0805
R105 C1-502-568-102 RES.SMD 680R 5% 0805
R106 C1-502-539-202 RES.SMD 3,9K 0805
R109 C1-502-510-202 RES.SMD 1K 5% 0805
R111 C1-502-515-102 RES.SMD 150R 5% 0805
R112 C1-502-510-202 RES.SMD 1K 5% 0805
R113 C1-502-539-102 RES.SMD 390R 5% 0805
R114 C1-502-533-102 RES.SMD 330R 5% 0805
R200 C1-502-575-002 RES.SMD 75R 5% 0805
R201 C1-502-575-002 RES.SMD 75R 5% 0805
R203 C1-502-510-202 RES.SMD 1K 5% 0805
R206 C1-502-547-302 RES.SMD 47K 5% 0805
R209 C1-502-522-102 RES.SMD 220R 5% 0805
R210 C1-502-510-202 RES.SMD 1K 5% 0805
R212 C1-502-500-002 RES.SMD 0R 5% 0805
R213 C1-502-547-102 RES.SMD 470R 5% 0805
R214 C1-502-575-002 RES.SMD 75R 5% 0805
R215 C1-502-547-202 RES.SMD 4,7K 5% 0805
R216 C1-502-510-102 RES.SMD 100R 5% 0805
R218 C1-502-510-202 RES.SMD 1K 5% 0805
R220 C1-502-510-102 RES.SMD 100R 5% 0805
R221 C1-502-510-102 RES.SMD 100R 5% 0805
R222 C1-502-510-102 RES.SMD 100R 5% 0805
R224 C1-502-547-102 RES.SMD 470R 5% 0805
R300 C1-502-533-102 RES.SMD 330R 5% 0805
R302 C1-502-522-202 RES.SMD 2,2K 5% 0805
R305 C1-502-510-102 RES.SMD 100R 5% 0805
R306 C1-502-510-102 RES.SMD 100R 5% 0805
R308 C1-502-515-202 RES.SMD 1,5K 5% 0805
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
R309 C1-502-539-302 RES.SMD 39K 5% 0805
R310 C1-502-515-202 RES.SMD 1,5K 5% 0805
R311 C1-502-510-202 RES.SMD 1K 5% 0805
R312 C1-502-510-202 RES.SMD 1K 5% 0805
R314 C1-502-510-202 RES.SMD 1K 5% 0805
R400 C1-502-515-302 RES.SMD 15K 5% 0805
R401 C1-502-547-102 RES.SMD 470R 5% 0805
R402 C1-502-510-302 RES.SMD 10K 5% 0805
R404 C1-502-518-302 RES.SMD 18K 5% 0805
R408 C1-502-510-202 RES.SMD 1K 5% 0805
R409 C1-502-539-102 RES.SMD 390R 5% 0805
R410 C1-502-527-302 RES.SMD 27K 5% 0805
R411 C1-502-556-102 RES.SMD 560R 5% N 0805
R413 C1-502-527-302 RES.SMD 27K 5% 0805
R414 C1-502-522-302 RES.SMD 22K 5% 0805
R415 C1-502-510-302 RES.SMD 10K 5% 0805
R417 C1-502-539-202 RES.SMD 3,9K 0805
R418 C1-502-522-302 RES.SMD 22K 5% 0805
R427 C1-502-547-402 RES.SMD 470K 5% (0805)
R428 C1-502-522-302 RES.SMD 22K 5% 0805
R429 C1-502-510-402 RES.SMD 100K 5% 0805
R434 C1-502-510-302 RES.SMD 10K 5% 0805
R435 C1-502-547-202 RES.SMD 4,7K 5% 0805
R442 C1-502-568-302 RES.SMD 68K 5% 0805
R500 C1-502-582-302 RES.SMD 82K 5% 0805
R501 C1-502-522-302 RES.SMD 22K 5% 0805
R502 C1-502-522-302 RES.SMD 22K 5% 0805
R530 C1-502-547-302 RES.SMD 47K 5% 0805
R531 C1-502-547-302 RES.SMD 47K 5% 0805
R532 C1-502-533-302 RES.SMD 33K 5% 0805
R534 C1-502-547-202 RES.SMD 4,7K 5% 0805
R606 C1-502-522-202 RES.SMD 2,2K 5% 0805
R607 C1-502-510-302 RES.SMD 10K 5% 0805
R608 C1-502-522-202 RES.SMD 2,2K 5% 0805
R621 C1-502-533-302 RES.SMD 33K 5% 0805
R622 C1-502-533-302 RES.SMD 33K 5% 0805
R623 C1-502-510-202 RES.SMD 1K 5% 0805
R625 C1-502-510-202 RES.SMD 1K 5% 0805
R631 C1-502-547-002 RES.SMD 47R 5% 0805
R632 C1-502-515-202 RES.SMD 1,5K 5% 0805
R633 C1-502-547-002 RES.SMD 47R 5% 0805
R634 C1-502-515-202 RES.SMD 1,5K 5% 0805
R638 C1-502-510-202 RES.SMD 1K 5% 0805
R639 C1-502-510-202 RES.SMD 1K 5% 0805
R640 C1-502-510-402 RES.SMD 100K 5% 0805
R641 C1-502-510-402 RES.SMD 100K 5% 0805
R642 C1-502-510-402 RES.SMD 100K 5% 0805
R643 C1-502-510-402 RES.SMD 100K 5% 0805
R644 C1-502-510-302 RES.SMD 10K 5% 0805
R645 C1-502-510-202 RES.SMD 1K 5% 0805
R646 C1-502-510-202 RES.SMD 1K 5% 0805
R647 C1-502-510-402 RES.SMD 100K 5% 0805
R648 C1-502-510-402 RES.SMD 100K 5% 0805
R649 C1-502-510-302 RES.SMD 10K 5% 0805
R650 C1-502-510-402 RES.SMD 100K 5% 0805
R651 C1-502-510-402 RES.SMD 100K 5% 0805
R652 C1-502-510-102 RES.SMD 100R 5% 0805
R653 C1-502-510-102 RES.SMD 100R 5% 0805
R654 C1-502-516-102 RES.SMD 160R 5% 0805
R655 C1-502-582-202 RES.SMD 8,2K 5% 0805
R656 C1-502-510-302 RES.SMD 10K 5% 0805
R657 C1-502-522-202 RES.SMD 2,2K 5% 0805
R659 C1-502-522-202 RES.SMD 2,2K 5% 0805
R660 C1-502-522-202 RES.SMD 2,2K 5% 0805
R661 C1-502-533-302 RES.SMD 33K 5% 0805
R662 C1-502-533-302 RES.SMD 33K 5% 0805
R663 C1-502-539-102 RES.SMD 390R 5% 0805
R664 C1-502-512-202 RES.SMD 1,2K 5% 0805
R665 C1-502-539-102 RES.SMD 390R 5% 0805
R666 C1-502-512-202 RES.SMD 1,2K 5% 0805
R667 C1-502-510-102 RES.SMD 100R 5% 0805
R668 C1-502-556-202 RES.SMD 5,6K 5% N 0805
R669 C1-502-510-102 RES.SMD 100R 5% 0805
R670 C1-502-556-202 RES.SMD 5,6K 5% N 0805
R700 C1-502-527-102 RES.SMD 270R 5% 0805
R701 C1-502-510-302 RES.SMD 10K 5% 0805
R703 C1-502-510-102 RES.SMD 100R 5% 0805
R705 C1-502-510-102 RES.SMD 100R 5% 0805
R706 C1-502-510-102 RES.SMD 100R 5% 0805
R707 C1-502-510-102 RES.SMD 100R 5% 0805
R714 C1-502-547-202 RES.SMD 4,7K 5% 0805
R715 C1-502-510-102 RES.SMD 100R 5% 0805
R716 C1-502-510-102 RES.SMD 100R 5% 0805
R717 C1-502-510-102 RES.SMD 100R 5% 0805
R718 C1-502-510-102 RES.SMD 100R 5% 0805
R719 C1-502-510-102 RES.SMD 100R 5% 0805
R720 C1-502-510-102 RES.SMD 100R 5% 0805
R724 C1-502-533-202 RES.SMD 3,3K 5% 0805
R725 C1-502-533-202 RES.SMD 3,3K 5% 0805
R726 C1-502-533-102 RES.SMD 330R 5% 0805
R726 C1-502-533-202 RES.SMD 3,3K 5% 0805
R727 C1-502-510-202 RES.SMD 1K 5% 0805
R728 C1-502-510-302 RES.SMD 10K 5% 0805
R729 C1-502-510-102 RES.SMD 100R 5% 0805
R730 C1-502-547-202 RES.SMD 4,7K 5% 0805
R731 C1-502-510-102 RES.SMD 100R 5% 0805
R732 C1-502-527-302 RES.SMD 27K 5% 0805
R733 C1-502-510-102 RES.SMD 100R 5% 0805
R734 C1-502-510-302 RES.SMD 10K 5% 0805
R735 C1-502-510-102 RES.SMD 100R 5% 0805
R736 C1-502-510-102 RES.SMD 100R 5% 0805
R737 C1-502-522-302 RES.SMD 22K 5% 0805
R738 C1-502-522-302 RES.SMD 22K 5% 0805
R739 C1-502-522-302 RES.SMD 22K 5% 0805
R740 C1-502-510-102 RES.SMD 100R 5% 0805
R741 C1-502-510-102 RES.SMD 100R 5% 0805
R742 C1-502-533-202 RES.SMD 3,3K 5% 0805
R743 C1-502-547-302 RES.SMD 47K 5% 0805
R744 C1-502-510-302 RES.SMD 10K 5% 0805
R745 C1-502-510-302 RES.SMD 10K 5% 0805
R746 C1-502-510-302 RES.SMD 10K 5% 0805
R747 C1-502-510-302 RES.SMD 10K 5% 0805
R748 C1-502-510-202 RES.SMD 1K 5% 0805
R749 C1-502-547-202 RES.SMD 4,7K 5% 0805
R750 C1-502-547-202 RES.SMD 4,7K 5% 0805
R751 C1-502-547-202 RES.SMD 4,7K 5% 0805
R753 C1-502-510-302 RES.SMD 10K 5% 0805
R754 C1-502-510-102 RES.SMD 100R 5% 0805
R755 C1-502-522-302 RES.SMD 22K 5% 0805
R756 C1-502-510-302 RES.SMD 10K 5% 0805
R757 C1-502-522-302 RES.SMD 22K 5% 0805
R758 C1-502-547-202 RES.SMD 4,7K 5% 0805
R759 C1-502-547-202 RES.SMD 4,7K 5% 0805
R760 C1-502-547-202 RES.SMD 4,7K 5% 0805
R761 C1-502-547-202 RES.SMD 4,7K 5% 0805
R762 C1-502-547-202 RES.SMD 4,7K 5% 0805
R763 C1-502-510-302 RES.SMD 10K 5% 0805
R764 C1-502-510-302 RES.SMD 10K 5% 0805
R765 C1-502-510-302 RES.SMD 10K 5% 0805
R766 C1-502-510-302 RES.SMD 10K 5% 0805
R767 C1-502-510-302 RES.SMD 10K 5% 0805
R768 C1-502-510-302 RES.SMD 10K 5% 0805
R769 C1-502-533-102 RES.SMD 330R 5% 0805
R770 C1-502-533-102 RES.SMD 330R 5% 0805
R771 C1-502-533-102 RES.SMD 330R 5% 0805
R772 C1-502-510-302 RES.SMD 10K 5% 0805
R801 C1-502-510-102 RES.SMD 100R 5% 0805
R802 C1-502-568-302 RES.SMD 68K 5% 0805
R803 C1-502-533-302 RES.SMD 33K 5% 0805
R804 C1-502-515-302 RES.SMD 15K 5% 0805
R806 C1-502-518-202 RES.SMD 1,8K 5% 0805
R809 C1-502-527-202 RES.SMD 2,7K 5% 0805
R810 C1-502-582-102 RES.SMD 820R 5% 0805
R815 C1-502-582-302 RES.SMD 82K 5% 0805
R825 C1-502-527-302 RES.SMD 27K 5% 0805
R827 C1-502-510-202 RES.SMD 1K 5% 0805
R829 C1-502-533-102 RES.SMD 330R 5% 0805
R831 C1-502-512-202 RES.SMD 1,2K 5% 0805
R832 C1-502-515-102 RES.SMD 150R 5% 0805
R837 C1-502-515-202 RES.SMD 1,5K 5% 0805
R838 C1-502-547-002 RES.SMD 47R 5% 0805
R847 C1-502-522-002 RES.SMD 22R 5% 0805
R849 C1-502-515-102 RES.SMD 150R 5% 0805
R850 C1-502-522-302 RES.SMD 22K 5% 0805
R851 C1-502-515-302 RES.SMD 15K 5% 0805
R852 C1-502-522-302 RES.SMD 22K 5% 0805
R855 C1-502-522-002 RES.SMD 22R 5% 0805
R903 C1-502-547-002 RES.SMD 47R 5% 0805
R905 C1-502-518-202 RES.SMD 1,8K 5% 0805
R909 C1-502-547-002 RES.SMD 47R 5% 0805
R912 C1-502-518-202 RES.SMD 1,8K 5% 0805
R915 C1-502-547-002 RES.SMD 47R 5% 0805
R918 C1-502-518-202 RES.SMD 1,8K 5% 0805
R920 C1-502-510-202 RES.SMD 1K 5% 0805
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
DIODO SMD
D300 C1-550-100-027 DIODO ZENER SMD UDZTE17-6,8B
D403 C1-550-100-026 DIODO ZENER SMD UDZTE17-9,1B
D404 C1-550-100-017 DIODO ZENER SMD UDZTE17-4,7B
D701 C1-550-100-025 DIODO ZENER SMD UDZTE17-3,6B
D702 C1-550-100-016 DIODO SMD UDZTE-17 3,3VB
D703 C1-550-100-016 DIODO SMD UDZTE-17 3,3VB
D704 C1-550-100-016 DIODO SMD UDZTE-17 3,3VB
D806 C1-550-100-039 DIODO ZENER SMD UDZTE17-18B
D807 C1-550-100-041 DIODO ZENER SMD UDZTE17-22B
D813 C1-550-100-028 DIODO SMD UDZTE-17 10B
D814 C1-550-100-039 DIODO ZENER SMD UDZTE17-18B
D816 C1-550-100-017 DIODO ZENER SMD UDZTE17-4,7B
D825 C1-550-100-027 DIODO ZENER SMD UDZTE17-6,8B
CONECTOR
P802 C1-631-025-203 BASE CONECTORA 03VIAS
C1-631-281-202 GUIA P/FIOS 02VIAS
C1-631-281-203 GUIA P/FIOS 03VIAS
C1-631-281-205 GUIA P/FIOS 05VIAS
C1-633-208-600 CONECTOR Y/C S-VHS
C1-633-210-700 CJT.TOMADA C/9 RCA VERTICAL
C1-637-615-640 GARRA P/FUSIVEL
TRANSISTOR SMD
Q101 C1-700-100-004 TRANSISTOR SMD BC-857B
Q200 C1-700-100-003 TRANSISTOR SMD BC-847B
Q203 C1-700-100-003 TRANSISTOR SMD BC-847B
Q301 C1-700-100-003 TRANSISTOR SMD BC-847B
Q400 C1-700-100-004 TRANSISTOR SMD BC-857B
Q403 C1-700-100-003 TRANSISTOR SMD BC-847B
Q404 C1-700-100-004 TRANSISTOR SMD BC-857B
Q405 C1-700-100-003 TRANSISTOR SMD BC-847B
Q500 C1-700-100-003 TRANSISTOR SMD BC-847B
Q501 C1-700-100-003 TRANSISTOR SMD BC-847B
Q508 C1-700-100-003 TRANSISTOR SMD BC-847B
Q600 C1-700-100-003 TRANSISTOR SMD BC-847B
Q601 C1-700-100-003 TRANSISTOR SMD BC-847B
Q602 C1-700-100-003 TRANSISTOR SMD BC-847B
Q701 C1-700-100-003 TRANSISTOR SMD BC-847B
Q702 C1-700-100-003 TRANSISTOR SMD BC-847B
Q703 C1-700-100-002 TRANSISTOR SMD BC-817/16
Q704 C1-700-100-004 TRANSISTOR SMD BC-857B
Q705 C1-700-100-004 TRANSISTOR SMD BC-857B
Q706 C1-700-100-004 TRANSISTOR SMD BC-857B
Q707 C1-700-100-004 TRANSISTOR SMD BC-857B
Q708 C1-700-100-004 TRANSISTOR SMD BC-857B
Q709 C1-700-100-003 TRANSISTOR SMD BC-847B
Q710 C1-700-100-003 TRANSISTOR SMD BC-847B
Q711 C1-700-100-003 TRANSISTOR SMD BC-847B
Q805 C1-700-100-003 TRANSISTOR SMD BC-847B
IC SMD
IC602 C1-710-100-023 I.C. SMD HCF4052B M1/BU4052BCF
IC701 C1-710-100-062 I.C. SMD MN24C08MN6
PEPCI CINESCOPIO 0,1666
C1-027-214-908 CJT.PCI MONTADO
C1-027-214-918 CJT.PCI IA/SMD MONT

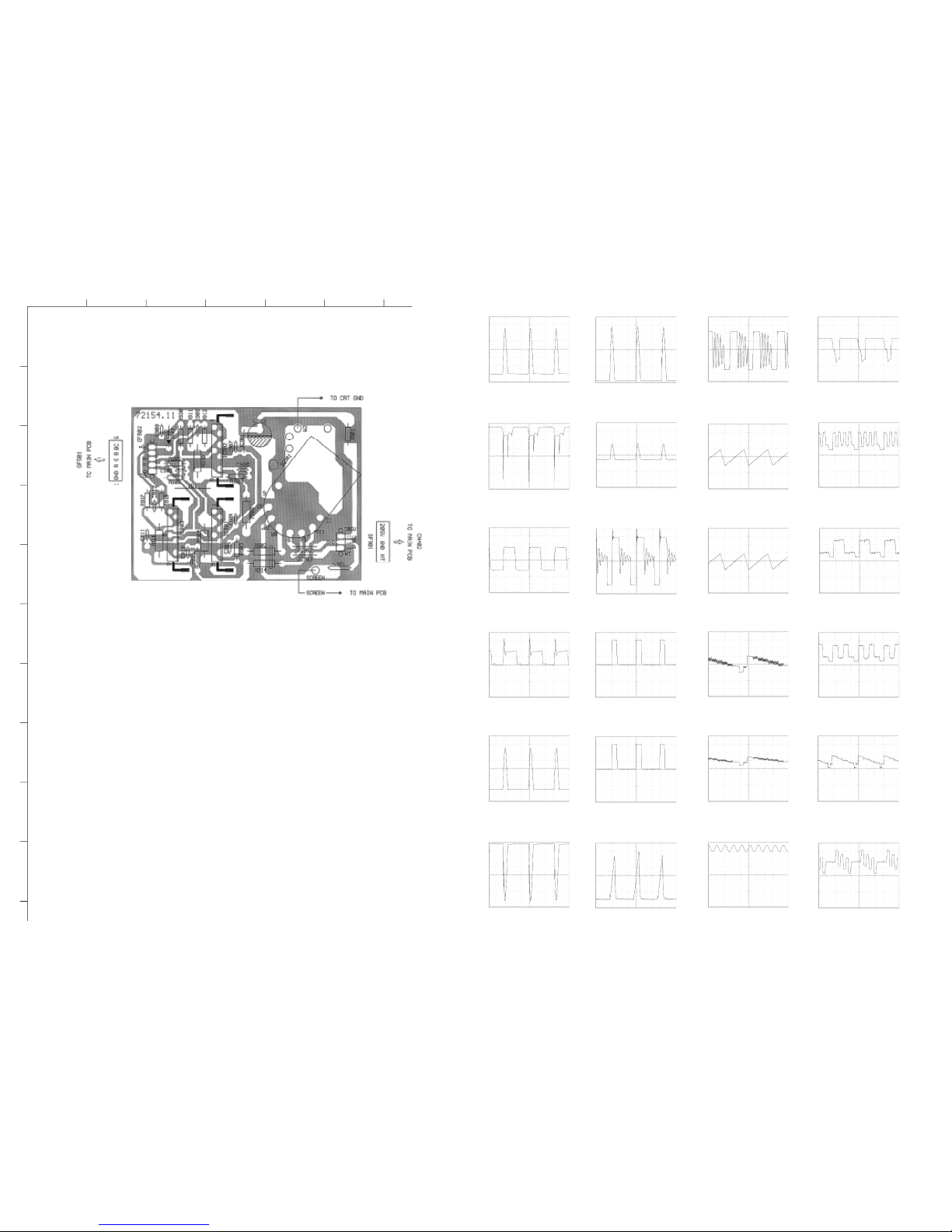

C1-107-215-411 PEPCI CINESCOPIO 0,1666
IC
IC901 C1-149-382-999 I.C. TDA-6106Q
IC902 C1-149-382-999 I.C. TDA-6106Q
IC903 C1-149-382-999 I.C. TDA-6106Q
RESISTOR/FUSISTOR
R901 C1-185-522-015 FUSISTOR 1W 22R 5%
R902 C1-183-615-219 RES.COMPOS.1/2W 1,5K 5% N
R903 C1-183-547-092 RES.METAL FILME 1/2W 47R 5% N
R904 C1-185-510-440 RES.METAL FILME 1W 100K 5%
R905 C1-183-518-292 RES.METAL FILME 1/2W 1,8K 5% N
R906 C1-183-516-292 RES.METAL FILME 1/2W 1,6K 5% N
R908 C1-183-615-219 RES.COMPOS.1/2W 1,5K 5% N
R909 C1-183-547-092 RES.METAL FILME 1/2W 47R 5% N
R910 C1-185-510-440 RES.METAL FILME 1W 100K 5%
R911 C1-183-516-292 RES.METAL FILME 1/2W 1,6K 5% N
R912 C1-183-518-292 RES.METAL FILME 1/2W 1,8K 5% N
R914 C1-183-615-219 RES.COMPOS.1/2W 1,5K 5% N
R915 C1-183-547-092 RES.METAL FILME 1/2W 47R 5% N
R916 C1-185-510-440 RES.METAL FILME 1W 100K 5%
R917 C1-183-516-292 RES.METAL FILME 1/2W 1,6K 5% N
R918 C1-183-518-292 RES.METAL FILME 1/2W 1,8K 5% N
R920 C1-183-510-292 RES.METAL FILME 1/2W 1K 5% N
CAP.ELCO
C902 C1-291-220-017 ELCO 22UF/250V M 12,5X25
CAP.POLY
C904 C1-330-104-421 C.POLYMET 100KPF/250V J
C907 C1-330-104-421 C.POLYMET 100KPF/250V J
C911 C1-330-104-421 C.POLYMET 100KPF/250V J
CAP.CERAM
C901 C1-363-102-803 C.C.D.Y5P 1KPF/2KV K 6LS
C903 C1-363-471-600 C.C.D.Y5P/Y5E 470PF>=500V K
C905 C1-361-150-300 C.C.D.N220 15PF>=50V K
C906 C1-363-471-600 C.C.D.Y5P/Y5E 470PF>=500V K
C908 C1-360-470-301 C.C.D.NPO 47PF>=50V K
C909 C1-361-150-300 C.C.D.N220 15PF>=50V K
C910 C1-363-471-600 C.C.D.Y5P/Y5E 470PF>=500V K
C912 C1-361-150-300 C.C.D.N220 15PF>=50V K
DIODO FITADO
D901 C1-412-104-302 DIODO 1N-5237B ZENER 8,2V
D901 C1-415-165-801 DIODO ZENER MTZJ-T77-8,2C
CONECTOR
GF901 C1-631-281-203 GUIA P/FIOS 03VIAS
C1-631-281-205 GUIA P/FIOS 05VIAS
SQ901 C1-638-101-012 SOQUETE P/CINESCOPIO 1SHM12S
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
98 10

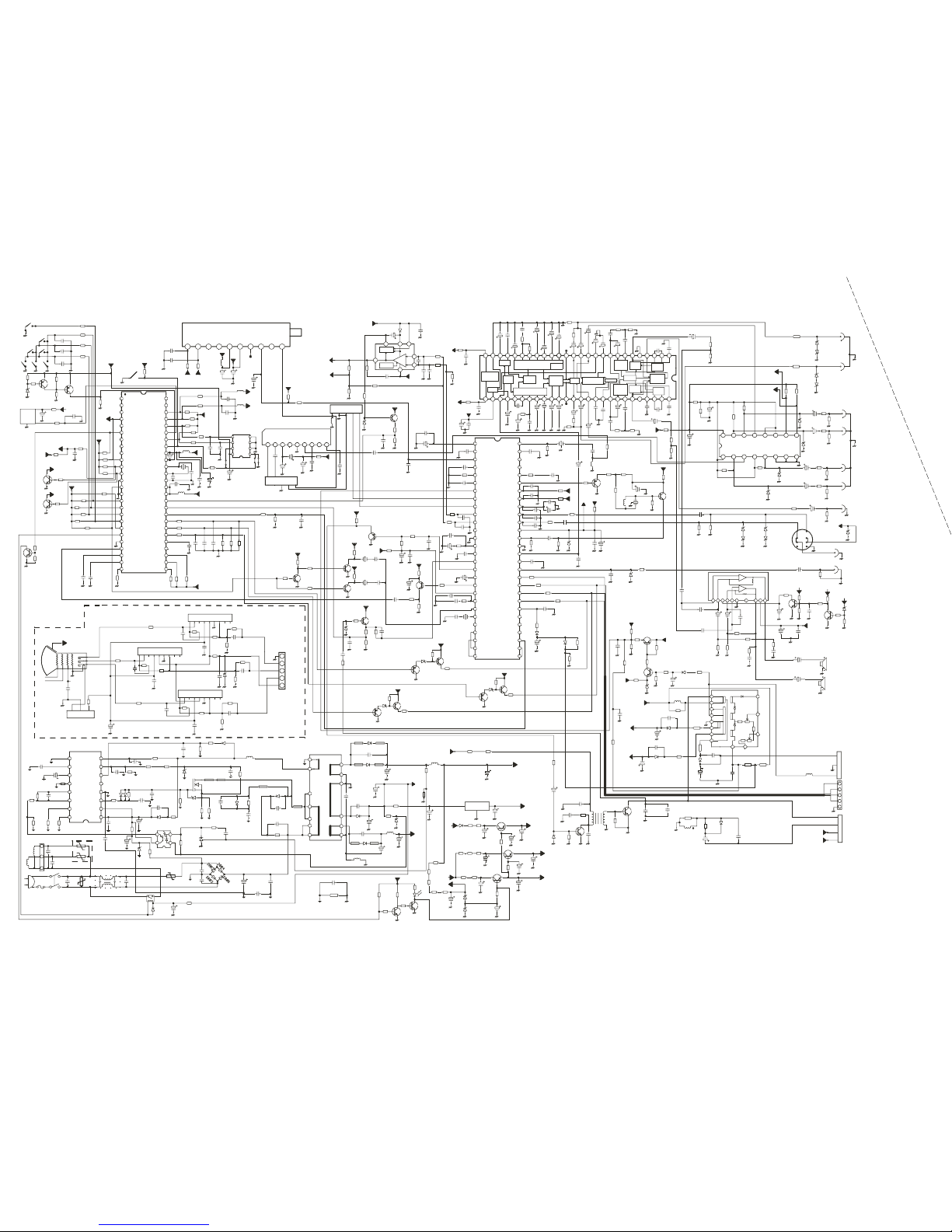

SCHEMATIC DIAGRAM-1
SVHS-L
DEGAUSS
NC
NC
SDA1
RC5
SCL1
SERVICE
+5Vstb
XTAL/OUT
XTAL/IN
OSCGND
VDDT
VDDA
F B1
R
G
B
RGBref
NC
STAND-BY
KEYb0
KEYb1
KEYb3
KEYb2
SW1
SW0
Vssd
AV2
AV1
NC
NC
NC
NC
NC
NC
NC
STN
SDA
SCL
RESET
LED
MUTE
VSS A
CVBS
PROG
VPP
VCS
BLK
IREF
V.SYNC
H.SYNC
43
44
45
46
47
48
49
50
51
52
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
2726
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
3
4
21
5
47
1
632
+
-
AMP.
POWER
GENERATOR
FLAYBACK
GENERATOR
THERMAL
TDA6106
987654321
6
FOCO
SCREEN
9
11
7
5
4
3
2
1
8
7
8
5
12
2
4
14
16
3
1
13
10
17
7805
IF
+B
AGC
TP
33V
+5V
SCL
SDA
5
4
3
21
54321
GND
MUTE
27K
27K
10987654321
+
+
-
-
DET FILT
NC
VCC
DET OUT
GND
TP
IF AGC
IF IN
IF IN
12345
6789
SECAM REF OUTPUT
R-Y OUT
B-Y IN
Y OUT
F BLANK
B IN
B-Y OUT
R-Y IN
XTAL 3.58
XTAL 4.43/3.58
COLOR PLL FILTER
G IN
R IN
BEAM CURRENT
R
VCC
CVBS SW OUT
BLK STRETCH
G
B
BLK CURRENT
H OUT
SANDCASTLE/HFLYBACK
PW2
PW1
TOP CVBS
CALDEC
AUDIO COMP
GND
GND
EW
+V DRIVE
-V DRIVE
IF
CVBS INT
SUPPLY
SVHS-Y/EXT-CVBS
SVHS-C
BANDGAP
IF
EHT
V SAWTOOTH
SDA
SCL
VIDEO OUT
V I REF PLL IF DECOUP
AGC
TUNER AGC
DE EMPHASIS
AUDIO DECOUPLING
VCO REF
VCO REF
EXT AUDIO IN
SIF
29
30
31
32
28
27
26
25
33
34
35
36
24
23
22
21
37
38
39
40
20
19
18
17
41
42
43
44
45
16
15
14
13
12
46
47
48
49
11
10
9
8
50
51
7
6
52
53
54
55
5
4
3
2
1
56
CONTROL
LEFT
BASS
CONTROL
RIGHT
BASS
SURROUND
VOLUME
MATRIX,
SUBWOOFER
CONTROL
LEFT
TREBLE
CONTROL
RIGHT
TREBLE
CROSSING
ZERO
EFFECTS
LEVEL CONTROL
VOLUME AND
AUTOMATIC
SELECT
INPUT
SELECT
LINEOUT
+
DEMATRIX
SWITCH
SAP
STEREO/
SUPPLY
TRANSCEIVER
C
2
I
LOGIC ADJUST
LEVEL
INPUT
RIGHT
CONTROL
CONTROL
LOUDNESS
LOUDNESS
LEFT
VOLUME
VOLUME
ADJUST
STEREO
DBX
DEMODU
SAP
STEREO DECODER
16
15
14
13
12
11
10
98
7
6
5
4
3
2
1
HAG3G2G1 B
G
R
TDA6106
987654321
TDA6106
987654321
8V6
+14V
+14V
9V3
+14V
-13V
P/ YOKE
B
A
9V3
P/ABL
129.5V
-13V
15V
9V3
9V3
9V3
BASE
16V
A
B
P/ Q600
P/ Q601
8V6(AUDIO)
9V3
8V6(AUDIO)
9V3
9V3
9V3
9V3
9V3
16V
IC700
PINO 4 DO
+25V
DOENTRADA
SDA
SCL
5V
5V
5V
5V
5V
+8V
IC602
IC602
JC52/98
JC53/09
P/ PINO 10
CONECTOR
JC09B
SVHS
1
5
4
3
2
5
4
3
2
1
P/PINO 10
P/PINO 9
DO
D0
ON/OFF
5V
+5V
+8V
5V
DO IC700
DO IC700
8.4V
TC4052
SERVICE
SDA
SCL
1234 657
8
910111213141516
205V
B
G
R
BLK CURR
GND
GND
HT
205V
B
G
R
BLK CURR
GND
DO IC700
CY
+16V
SCL
SCL
SDA
SDA
GNDHT
3
3
2
2
1
1
SCREEN
FOCUS
EHT
G
D
S
5V
PARA
IC603
Q602 DO
5V
5V
5V
5V
33V
VHF/UHF
ANT.
+5V
4
3
2
1
NTC800

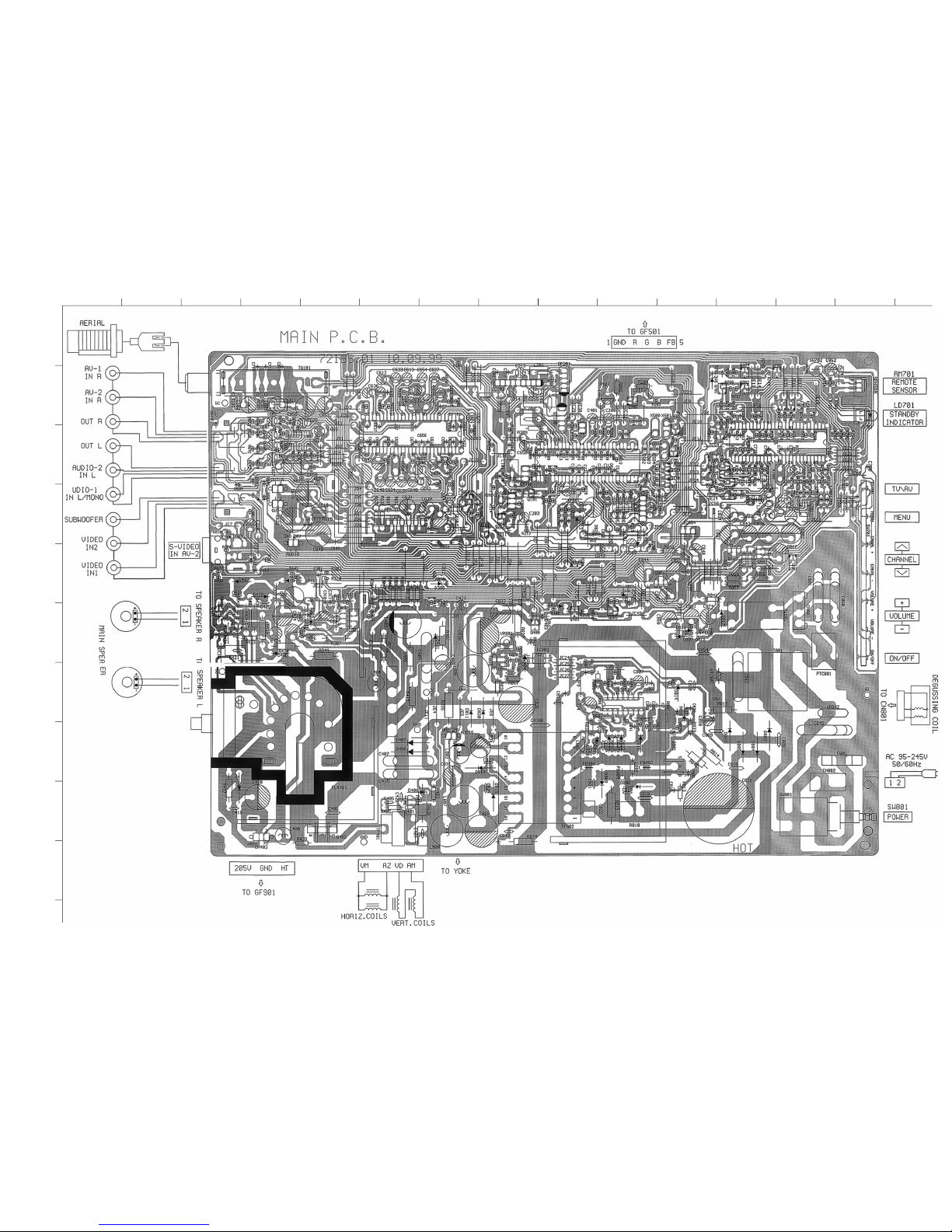

PARA
FB810FB809
FB808
FB807
R834
D822
R837
C846
C643
C647
R214
C720
IC700
C908
R413
D901
C832
C831
R205
R204
R641
L807
C868
D819
C829
SW801
R703
C701
L102
D412
R835
C828
C845
R811
R827
C834
C858
R415
FR821
R705
C417
T801
R632
FR431
D410
R620
R414
R906
R845
R417
R841
C836
R817
R407
R312
IC803
R802
D300
R307
C408
R805
R300
R828
L808
R303
C305
IC301
C202
D812
C303
R418
R442
R424
C848
R822
C838B
C819
R111
C825
R112
R718
D810
C841
Q708
R719
L101
R430
R905
R210
C905
R770
R739
R669
C421
R423
C420
C419
D704
C721
C418
FR421
FR422
R720
C615
D408
C310
R729
R439
R832
TF401
C874
C414
D815
D405
R831
R829
C719
C823
R902
FR830
R815
IC801
C850
L806
IC901
RL801
R621
C826
D811
C648
Q711
C824
R114
FLK401
R308
C616
C309
R304
R700
R404
C403
R311
C203
C632
Q401
C838
C862
R402
R403
D814
R701
R401
Q400
FR813
C855
R211
C820
D808
FB804
C614
C200
C217
D809
C821
C822
R818
C818
D820
C201
C718
R819
R759
C856
FB802
R106
R225
R814
FB806
R606
Q801
C610
C806
D817
X600
C612
C813
C212
FR807
D821
C811
R806
C805
R826
C812 R825
R804
R809
IC804
C840
Q707
C814
R105
R748
D701
R803
C708
C707
C400
D806
D801
L805
C839
R737
C807 FR833
C401
C833
R400
C306
Q402
C402
D816
C842
C700
C673
D404
R200R201
C611
C211
R309
C307
C711
FR419
C101
C653
X700
TU101
D829
C645
C613
C654
R904
C500
C501
C717
C727
L703
C857
C405
C716
R435
D613
C652
R849
R222
R221
L403
C107
R500
D401
C502
R209
C409
FR406
C429
R619
Q404
D605
X500
C407
R851
C619
R659
D606
R646
R728
R732
R715
R502
R749
R736
R735
R734
C214
D602
D403
C207
R666
C655
R640
C657
R643
R647
C666
C664
D601
L701
R648
R653
R652
R644
L700
L702
R670
D604
C704
C703
R716
R717
R408 Q403
C659
C656
D603
R633
C618
C410
C853
C208
R409
R411
R607
R410
R412
Q501
Q500
R634
C665
R631
R531
C620
X502
D610
X501
R852
C504
C503
R608
D609
D608
D607
D612
D611
D614
R668
C621
C646
C302
Q709
D702
R706
R769
R530
R501
R738
C103
D703
R667
C625
C644
C709
C605
Q710
R848
R656
C651
Q200
R771
R203
C650
C865
C852
R109
R707
CF100
Q405
L200 CF200
Q203
R224
C729
SF100
D407
Q706
R724
R731
C866
R228
C631
C849
C726
R772
R844
C213
R843
L400
R220
C106
R113
R740
R305
R639
C626
C404
R733
C411
R657
R725
R405
R726
R741
C205
C206
R306
C617
C300
SF201
D818
C712
R730
R314
R215
C649
R757
C640
C627
C628
C629
R434
C222
Q101
C311
R213
C204
R503
C221
C220
C426
IC601
C209
C630
R663
Q301
R216
R664
L809
R856
Q805
R857
R504
R505
Q804
C512
C728
C622
C851
C714
C639
C844
C847
R855
C215
C216
R858
R622
C713
C658
C802
Q705
R859
R768
Q803
Q802
C412
IC201
R506
Q602
C837
C730
C875
L404
C725
D400
R838
C422
R767
C830
C109
IC101
Q702
R747
F801
C816
C843
IC603
R824
C808
C809
C810
R820
C804
R810
C835
IC802
R416
C413
C909
R912
R911
C912
R918
R917
C903
R903
C904
C911
R915
C910 R916
IC903
R914
C907
R909
C906 R910
IC902
R908
C902
R901
C901
C108
C642
R650
D201
C817
R847
R920
R310
R745
R744
R618
C860
R850
R840R836
R823
FB805FB803
R846
R853
R816
R808
D813 C861
R801
D807
R427
C600
C432
C430
D825
C304
R206
C210
R218
R428
R429
Q701
C423
D301
R746
R854
R754
C762
C760
C761
FB801
R743
R742
Q703
PTC801
P802
R766
C425
C633
WP/A0
A1
A2
Vss
VCC
PTC/WP
SCL
SDA
4
3
8
72
1
6
5
IC701
C634
R765
C635
R654
Q704
C636
R764
R658
R651
C663
C660
R625
R623
R665
C641
R302
Q601
C406
R762
R761
R760
R756
R755
R758
R753
R751
C637
R655
C424
R750
R660
C671
C672 C669
C667
R714
R763
C801
R532
C638
R534
C668
Q508
R727
LD701
R662
R638
C661
R642
R649
R645
R661
Q600
C662
C670
VR802
L
R
FALANTE
FALANTE
ALTO
ALTO
A/V
TV OUT L
SUBW00FER
SW702
L-IN-2
L-IN-1
R-IN-2
R-IN-1
IC602
TV OUT R
VIDEO IN 1
VIDEO IN 2
1
2
3
**
CANAL- CANAL+
MENUVOL+ VOL- TP
100(N)
1N4148
1K5
220KpF/250VAC
10uF/50V
220uF/10V
75
33pF/50V
47pF/50V
27K
8V2
1000uF/25V
470uF/35V
10
330(N)
100K
1mH
1000uF/35V
MR852
1KpF/1KV
100
150pF/50V 0.8uH
1N4148
1K5/3W
1KpF/50V
220KpF/250VAC
27K/2W
1K
100uF/25V
4.7uF/50V
10K
22/3W
100
1000uF/16V
1K5
1/1W
BYD33G
1K(N)
22K
1K6
0.33/3W
3K9
82(N)
100uF/160V(HR)
2K49(0.5%)
15K/1W
1K
PS2501-H
68K
6V8
1R8/1W
2.2uF/160V
10K(N)
330
1K5/3W
1mH
330/1W
1KpF/25V
TDA8177
100KpF/25V
5V1
1KpF/25V
22K
68K
68K/1W
470uF/35V
470/1W
2K2pF/250VAC
470KpF/63V(Poly)
150
1000uF/25V
1K
100
BYV27-150
4K7pF/50V
BC857B
100
18uH
820(N)
1K8
1K
15pF/50V
330
22K
100
220KpF/63V
1K/1W
22uF/250V
470pF/1KV
3V3
33pF/50V
470pF/1KV
1/1W
22/1W
100
2.2uF/50V
BYV95B
470pF/50V
100
33(N)
150
DRIVE_HORIZONTAL
10uF/25V
4.7uF/50V
1SS355
1N4148
1K2
330
33pF/50V
1KpF/1KV
1K5(COMPOSICAO)
1R
82K
TL431B
100KpF/250VAC
140uH
TDA6106
33K
100uF/160V(HR)
BYM26D
4.7uF/50V
BC847B
330pF/2KV
330
1K5
1000uF/25V
220pF/50V
0.82/1W
270
18K
100pF/50V
1K
100uF/16V
100uF/25V
MPSA42
22KpF/50V
100uF/16V
10K
220(N)
18V
10K
470
BC857B
2K2
470pF/500V/K/Y5P
10(N)
1KpF/2KV
BYV96D
100KpF/50V
1uF/100V
33pF/50V
BYV96D
330pF/2KV
47KpF/250V(P)
1K/5W
220pF/1KV
BYM26D/MR856
82pF/50V
33pF/50V
22K/3W
4K7
100uF/16V
3K9
10(N)
0.33/3W
2K2
FS14SM12/2SK2699
100KpF/25V
100KpF/25V(Z5V)
1N4005
CSB503F58
1uF/50V
470pF/500V/K/Y5P
47KpF/50V
22R
1N4148
1KpF/50V
1k8
470pF/50V
330
100pF/50V
27K
15K
2K7
7805
47uF/25V
BC857B
100uF/25V
680
1K
3V6
33K
33pF/50V
33pF/50V
4K7pF/50V(M)
18V
BAV21
5.6uH
220pF/100V
22K
1uF/50V
22R
1uF/100V
22KpF/50V
15K
100KpF/25V
BU2520DX
2K2pF/50V
4V7
470KpF/16V
10uF/50V
220pF/50V
4V7
7575
100KpF/25V
10uF/50V
39K(1%)
100KpF/160V(PP)
33pF/50V
1/1W
470KpF/63V(POLY)
220KpF(P)
12MHz
8V2
220pF/50V
10uF/K/50V
10uF/K/50V
100K/1W
3K3pF/50V(M)
100KpF/25V
18pF/50V
18pF/50V
20uH
10uF/50V
1KpF/500V
100KpF/25V
4K7
8V2
100pF/50V
150
100
100
34uH
33pF/50V
82K
BYD33G
10KpF/50V
220
470KpF/200V
1K/2W
220pF/500V
4R7(N)
BC857B
8V2
NTSC-M
13KpF/1K6V
15K
100KpF/50V
2K2
8V2
1K
10K
27K
100
22K
4K7
100
100
10K
0.47uF/100V
8V2
9V1
47KpF/50V(M)
1K2
2.2uF/50V
100K
100uF/16V
100K
100K
33pF/50V
33pF/50V
8V2
2.2uH
100K
100
100
10K
2.2uH
20uH
5K6
8V2
33pF/50V
33pF/50V
100
100
1K BC847B
2.2uF/50V
15KpF(P)
8V2
47
15KpF(P)
100pF/50V
100KpF/25V(P)
10uF/50V
390
560
10K
27K
220K(VM)
BC847B
BC847B
1K5
2K2pF(P)
47
47K
2.2uF/50V
PALM
8V2
PALN
22K
10KpF/50V
10KpF/50V
2K2
8V2
8V2
8V2
8V2
8V2
8V2
5K6
120KpF(P)
2.2uF/50V
220KpF/63V(P)
BC847B
3V3
100
330
47K
22K
22K
47uF/16V
3V3
100
2.2uF/50V
100KpF/25V
33pF/50V
470uF/16V
BC847B
2R2(N)
10K
33pF/50V
BC847B
330
1K
10uF/50V
10KpF/50V
47uF/10V
1K
100
SFE4.5MB
BC847B
15uH TPS4.5MC
BC847B
470
100uF/16V
M3951
BYD33G
BC857B
3K3
100
470uF/16V
2M2
47uF/25V
10KpF/50V
10uF/25V
10K
10/2W
0.47uF/100V
6R8(N)
15uH
100
100KpF/25V(M)
390
100
100
1K
2K2pF(P)
100KpF/250V(P)
100
10KpF/50V
2K2
3K3
5K6(N)
3K3
100
1KpF/50V
100KpF/25V(M)
100
120KpF(P)
10KpF/50V
M9260
1N4148
100KpF/25V(P)
4K7
1K
4K7
470KpF/16V
22K
4.7uF/50V
1uF/100V
220uF/10V
2.2uF/50V
10K
100pF/50V
BC857B
470pF/50V
470
470KpF/16V
1K(N)
100pF/50V
100pF/50V
220KpF/16V
TDA7263
220KpF/16V
47uF/25V
390
BC847B
100
1K2
33uH
15(N)
BC847B
15(N)
100(N)
100(N)
BC337/16
1KpF/50V
100KpF/25V
1000uF/25V
220uF/16V
150pF/50V
4.7uF/50V
220uF/16V
10uF/50V
22
0.47uF/100V
10KpF/50V
15(N)
33K
150pF/50V
220uF/16V
220uF/16V
BC857B
22(N)
10K
BC337/16
BC337/16
2.2uF/100V
LA7510
100(N)
BC847B
220uF/16V
100KpF
10KpF/50V
33uH
100KpF/25V(P)
1SS355
47
220pF/500V
10K
220uF/16V
22KpF/50V
TDA8841
BC847B
10K
220V/5A(20AG)
470uF/400V
10uF/50V
TDA9855
5251504948474645444342414039383736353433323130292827
26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
6M8
4K7pF/1KV
4K7pF/1KV
4K7pF/1KV(Y5P)
127K(0.5%)
1K2/63V(J)(N)
820
3K3pF/50V
MC44603P
820(N)
10KpF/50V
15pF/50V
1K8
1K6
15pF/50V
1K8
1K6
470pF/500V 47
100KpF/250V(P)
100KpF/250V(P)
47
470pF/500V
100K/1W
TDA6106
1K5(COMPOSICAO)
100KpF/250V(P)
47
470pF/500V
100K/1W
TDA6106
1K5(COMPOSICAO)
22uF/250V
22/1W(FUSISTOR)
1KpF/2KV
22KpF/50V
2.2uF/50V
100K
1N4148
220uF/16V
22
1K
1K5
10K
10K
4R7(N)
10uF/50V
22K
4K7(N)4K7(N)
4K7(N)
15(N)
22(N)
4K7(N)
4K7(N)
BZX79B10(N)
10uF/50V
100
BZX79B22(N)
470K
22KpF/50V
15pF/50V
100KpF/25V
BZX79C6V8
220uF/35V
47K
1uF/50V
1K
22K
100K
BC847B
10uF/16V
1N4005
10K
15(N)
100
150pF/50V
150pF/50V
150pF/50V
47K
3K3
BC817-16
D.G.COIL
10K
470pF/1KV
1uF/50V
PCF8598
10uF/16V(LL)
10K
47KpF(P)
160
BC857B
10uF/50V
10K
22(N)
100K
2.2uF/50V
2.2uF/50V
1K
1K
390
2.2uF/50V
2K2
BC847B
560pF/2KV
4K7
4K7
4K7
10K
22K
4K7
10K
4K7
100KpF(P)
8K2
1000uF/16V
4K7
2K2
33KpF(P)
5K6pF(P) 5K6pF(P)
150KpF(P)
4K7
10K
100KpF/250VAC
33K
4.7uF/50V
4K7
33KpF(P)
BC847B
1K
33K
1K
2.2uF/50V 100K
10K
1K
33K
BC847B 2.2uF/50V
2.2uF/50V
300K
(
VI
DEO)
(
AUDIO)
+129,5V
14V
+129,5V
32V
16V 9,3V
/NM24C09
TP-L
TP-R
+5V
+25V
D802,D803,D804,D805=BYM56D
RECEPT
R/C
P87C770AAR/04
8.6V
8.6V
TF802
1234567
8910 11 12 13 14
A
B
C
D
E
F
G
H
I
J
1211
WIRING-1 (MAIN C.B)
PARTS SIDE
The white section shows pattern in this PWB diagram.
1413
WIRING-2 (NC C.B)
123456
A
B
C
D
E
F
G
H
I
J

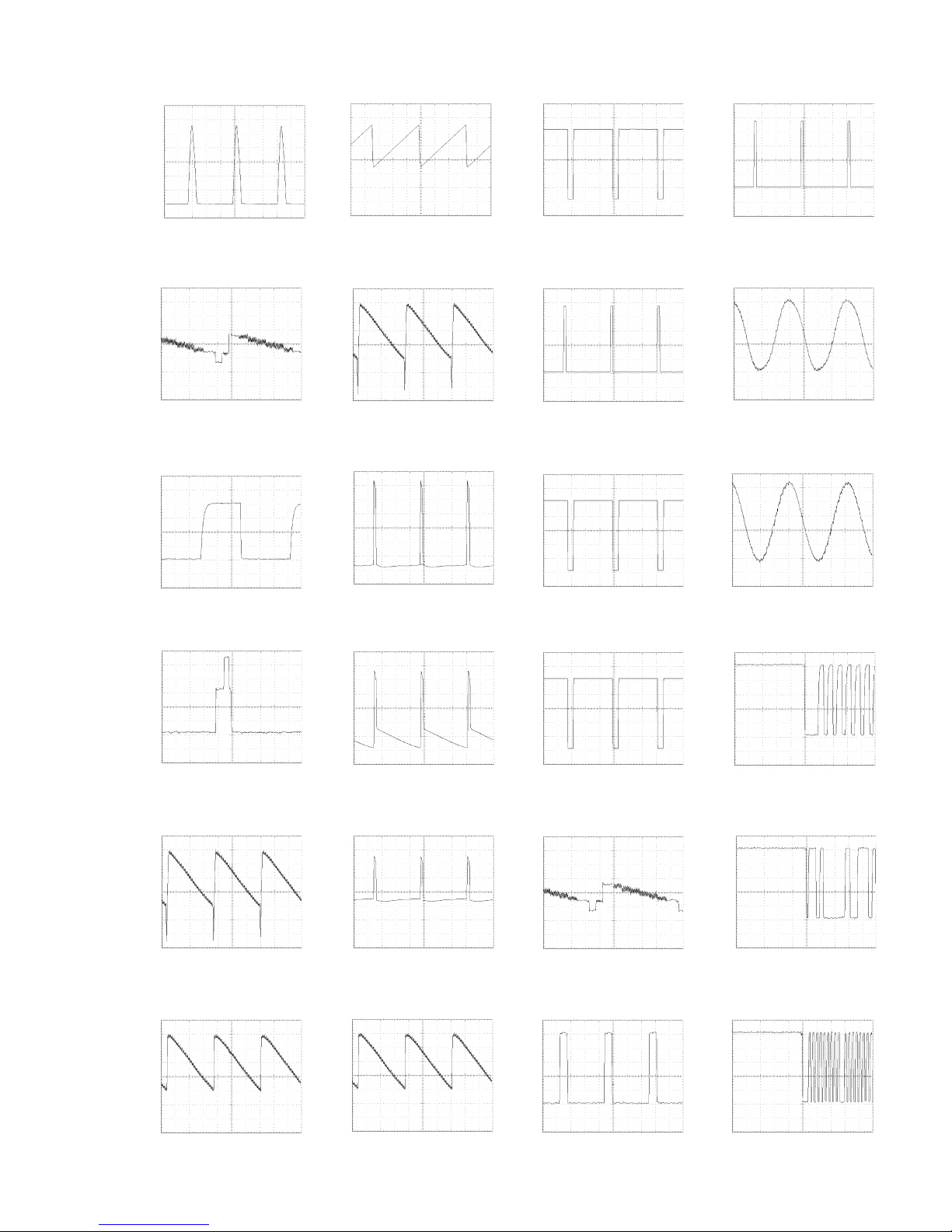

WAVEFORMS
1 Q402 COLETOR
20.0V/Div, 20.0µsec/Div
2 Q402 BASE
2.0V/Div, 20.0µsec/Div
3 Q401 BASE
500mV/Div, 20.0µsec/Div
4 Q401 COLETOR
50.0V/Div, 20.0µsec/Div
5 FLY BACK PINO 4
5.0V/Div, 20.0µsec/Div
6 FLY BACK PINO 6
20.0V/Div, 20.0µsec/Div
7 FLY BACK PINO 7
20.0V/Div, 20.0µsec/Div
8 FLY BACK PINO 9
50.0V/Div, 20.0µsec/Div
9 Q801 DRAIN
50.0V/Div, 10.0µsec/Div
10 Q801 GATE
5.0V/Div, 10.0µsec/Div
11 IC802 PINO 3
5.0V/Div, 10.0µsec/Div
12 IC802 PINO 7
100mV/Div, 10.0µsec/Div
13 IC802 PINO 8
200mV/Div, 10.0µsec/Div
14 IC802 PINO 10
1.0V/Div, 10.0µsec/Div
15 IC803 PINO 3
1.0V/Div, 10.0µsec/Div
16 IC101 PINO 16
1.0V/Div, 10.0µsec/Div
17 IC101 PINO 13
1.0V/Div, 10.0µsec/Div
18 IC101 PINO 15
500mV/Div, 1.0msec/Div
19 IC101 PINO 18
2.0V/Div, 20.0µsec/Div
20 IC101 PINO 19
1.0V/Div, 20.0µsec/Div
21 IC101 PINO 20
1.0V/Div, 20.0µsec/Div
22 IC101 PINO 21
1.0V/Div, 20.0µsec/Div
23 IC101 PINO 27, 28
1.0V/Div, 20.0µsec/Div
24 IC101 PINO 29, 31
500mV/Div, 20.0µsec/Div
GND→GND→
GND→
GND→
GND→
GND→
GND→GND→
GND→
GND→
GND→
GND→GND→
GND→
GND→
GND→
GND→
GND→
GND→
GND→
GND→
GND→
GND→
GND→
PARTS SIDE
The white section shows pattern in this PWB diagram.
15
25 IC101 PINO 30, 32
500mV/Div, 20.0µsec/Div
26 IC101 PINO 38
1.0V/Div, 10.0µsec/Div
27 IC101 PINO 40
2.0V/Div, 10.0µsec/Div
28 IC101 PINO 41
1.0V/Div, 10.0µsec/Div
29 IC101 PINO 46
200mV/Div, 5.0msec/Div
30 IC101 PINO 47
200mV/Div, 5.0msec/Div
31 IC101 PINO 51
1.0V/Div, 5.0msec/Div
32 IC301 PINO 1
500mV/Div, 20.0µsec/Div
33 IC301 PINO 3
500mV/Div, 20.0µsec/Div
34 IC301 PINO 5
10.0V/Div, 5.0msec/Div
35 IC301 PINO 6
10.0V/Div, 5.0msec/Div
36 IC301 PINO 7
200mV/Div, 5.0msec/Div
37 IC700 PINO 16
1.0V/Div, 5.0msec/Div
38 IC700 PINO 17
1.0V/Div, 5.0msec/Div
39 IC700 PINO 18
1.0V/Div, 5.0msec/Div
40 IC700 PINO 19
1.0V/Div, 5.0msec/Div
41 IC700 PINO 23
1.0V/Div, 10.0µsec/Div
42 IC700 PINO 36
1.0V/Div, 20.0µsec/Div
43 IC700 PINO 37
1.0V/Div, 5.0msec/Div
44 IC700 PINO 41
1.0V/Div, 20.0nsec/Div
45 IC700 PINO 42
1.0V/Div, 20.0nsec/Div
46 IC700 PINO 46
500mV/Div, 20.0µsec/Div
47 IC700 PINO 48
1.0V/Div, 50.0µsec/Div
50 IC700 PINO 49
1.0V/Div, 50.0µsec/Div
GND→
GND→
GND→GND→GND→GND→
GND→
GND→
GND→GND→
GND→GND→
GND→GND→
GND→GND→
GND→
GND→
GND→
GND→
GND→
GND→
GND→
GND→
16

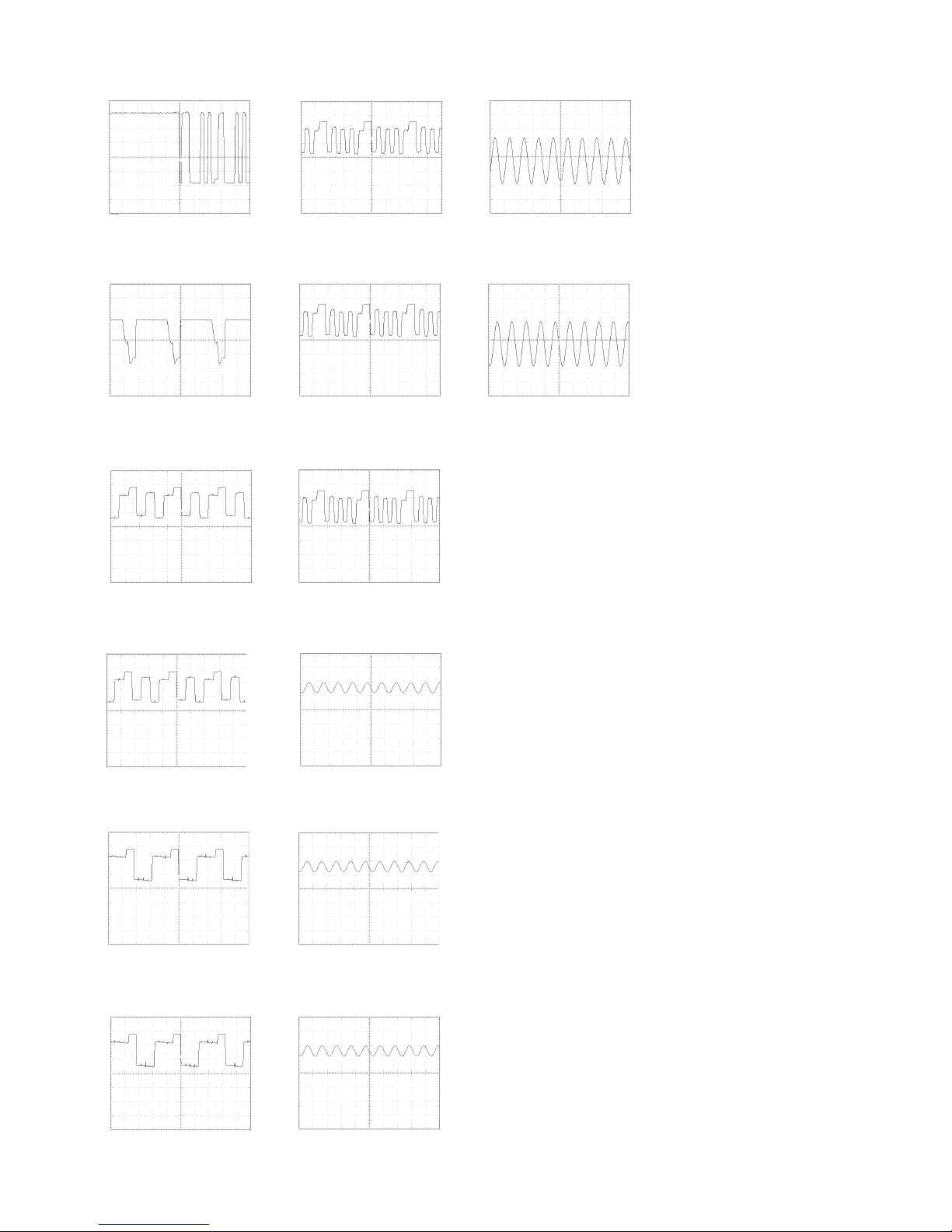

51 IC700 PINO 50
1.0V/Div, 50.0µsec/Div
52 IC901 PINO 5
2.0V/Div, 20.0µsec/Div
53IC901 PINO 8
50.0V/Div, 20.0µsec/Div
54 IC901 PINO 9
50.0V/Div, 20.0µsec/Div
56 IC902 PINO 8
50.0V/Div, 20.0µsec/Div
57 IC902 PINO 9
50.0V/Div, 20.0µsec/Div
58 IC903 PINO 8
50.0V/Div, 20.0µsec/Div
59 IC903 PINO 9
50.0V/Div, 20.0µsec/Div
60 IC603 PINO 6
50.0V/Div, 20.0µsec/Div
61 IC603 PINO 14
1.0V/Div, 1.0msec/Div
62 IC603 PINO 39
1.0V/Div, 1.0msec/Div
63 IC603 PiINO 47
1.0V/Div, 1.0msec/Div
64 IC601 PINO 8
5.0V/Div, 1.0msec/Div
65 IC601 PINO 10
5.0V/Div, 1.0msec/Div
GND→
GND→GND→
GND→
GND→GND→
GND→
GND→
GND→
GND→
GND→
GND→
GND→
GND→
17
VOLTAGE CHART
MEDIDAS DE TENS’ES
NOS IC’S
IC700(MICRO):
PINO 1 NC
PINO 2 NC
PINO 3 NC
PINO 4 62.92mV
PINO 5 NC
PINO 6 63.93mV
PINO 7 NC
PINO 8 NC
PINO 9 NC
PINO 10 0.56mV
PINO 11 64.24mV
PINO 12 64.21mV
PINO 13 -0.15mV
PINO 14 46.49mV
PINO 15 -0.62mV
PINO 16 4.359V
PINO 17 4.359V
PINO 18 4.359V
PINO 19 4.359V
PINO 20 47.84mV
PINO 21 3.568V
PINO 22 -1.51mV
PINO 23 2.6844V
PINO 24 1.0897V
PINO 25 2.3160V
PINO 26 2.2966V
PINO 27 4.9V
PINO 28 4.971V
PINO 29 238.7mV
PINO 30 0.95V
PINO 31 2.1541V
PINO 32 5.6mV
PINO 33 1.73mV
PINO 34 1.75mV
PINO 35 27.29mV
PINO 36 0.8496mV
PINO 37 236.36mV
PINO 38 4.979V
PINO 39 4.979V
PINO 40 -1.05mV
PINO 41 2.3729V
PINO 42 2.346V
PINO 43 1.47mV
PINO 44 4.977V
PINO 45 4.965V
PINO 46 4.213V
PINO 47 4.908V
PINO 48 4.16V
PINO 49 4.467V
PINO 50 4.453V
PINO 51 NC
PINO 52 NC
IC101(TDA8841):
PINO 1 -1.12mV
PINO 2 3.707V
PINO 3 NC
PINO 4 NC
PINO 5 2.4588V
PINO 6 2.019V
PINO 7 4.489V
PINO 8 4.45V
PINO 9 6.680V
PINO 10 1.1387V
PINO 11 3.756V
PINO 12 8.077V
PINO 13 3.882V
PINO 14 -1.10mV
PINO 15 3.0565V
PINO 16 11.9mV
PINO 17 3.388V
PINO 18 5.542V
PINO 19 3.487V
PINO 20 3.26V
PINO 21 3.203V
PINO 22 2.097V
PINO 23 NC
PINO 24 NC
PINO 25 NC
PINO 26 43.37mV
PINO 27 2.7575V
PINO 28 2.7575V
PINO 29 2.3130V
PINO 30 2.3114V
PINO 31 2.3132V
PINO 32 2.3112V
PINO 33 0.3033V
PINO 34 2.498V
PINO 35 2.504V
PINO 36 4.842V
PINO 37 7.92V
PINO 38 2.6478V
PINO 39 4.946V
PINO 40 3.1954V
PINO 41 0.8216V
PINO 42 3.597V
PINO 43 3.942V
PINO 44 -1.01mV
PINO 45 NC
PINO 46 0.6043V
PINO 47 0.639V
PINO 48 4.625V
PINO 49 4.625V
PINO 50 1.972V
PINO 51 3.808V
PINO 52 3.864V
PINO 53 4.32V
PINO 54 1.2848V
PINO 55 2.8919V
PINO 56 3.987V
IC603 (TDA9855):
PINO 1 4.357V
PINO 2 4.354V
PINO 3 4.357V
PINO 4 4.358V
PINO 5 0.98mV
PINO 6 4.358V
PINO 7 4.339V
PINO 8 4.353V
PINO 9 4.361V
PINO 10 6.260V
PINO 11 4.357V
PINO 12 4.353V
PINO 13 4.355V
PINO 14 4.355V
PINO 15 4.356V
PINO 16 4.212V
PINO 17 4.284V
PINO 18 4.319V
PINO 19 4.362V
PINO 20 3.748V
PINO 21 2.5265V
PINO 22 4.357V
PINO 23 54.80mV
PINO 24 4.357V
PINO 25 1.72mV
PINO 26 4.470V
PINO 27 4.473V
PINO 28 8.915V
PINO 29 4.346V
PINO 30 8.659V
PINO 31 4.356V
PINO 32 4.40V
PINO 33 4.356V
PINO 34 3.713V
PINO 35 7.401V
PINO 36 4.386V
PINO 37 4.375V
PINO 38 4.366V
PINO 39 4.366V
PINO 40 4.361V
PINO 41 4.358V
PINO 42 4.362V
PINO 43 4.363V
PINO 44 4.366V
PINO 45 4.359V
PINO 46 4.349V
PINO 47 4.365V
PINO 48 NC
PINO 49 4.367V
PINO 50 4.366V
PINO 51 4.360V
PINO 52 4.363V
IC601 (TDA7263):
PINO 1 1.668V
PINO 2 1.7066V
PINO 3 14.573V
PINO 4 1.7018V
PINO 5 1.59V
PINO 6 GND
PINO 7 NC
PINO 8 13.064V
PINO 9 26.655V
PINO 10 13.019V
IC602 (BU4052BP):
PINO 1 4.439V
PINO 2 4.396V
PINO 3 4.441V
PINO 4 4.399V
PINO 5 4.399V
PINO 6 GND
PINO 7 GND
PINO 8 GND
PINO 9 8.872V
PINO 10 8.873V
PINO 11 4.445V
PINO 12 4.445V
PINO 13 4.447V
PINO 14 4.403V
PINO 15 4.404V
PINO 16 8.887V
IC301 (TDA8177):
PINO 1 14.459V
PINO 2 28.671V
PINO 3 1.8435V
PINO 4 0.06mV
PINO 5 13.953V
PINO 6 29.366V
PINO 7 14.478V
IC201 (LA7510):
PINO 1 4.395V
PINO 2 4.935V
PINO 3 7.285V
PINO 4 3.550V
PINO 5 -1.78mV(GND)
PINO 6 3.603V
PINO 7 9.384V
PINO 8 NC
PINO 9 7.189V
IC701 (MN24C08MN6):
PINO 1 O.25mV
PINO 2 NC
PINO 3 NC
PINO 4 NC
PINO 5 4.19V
PINO 6
PINO 7
PINO 8 4.987V
18
IC901 (TDA6106):
PINO 1 NC
PINO 2 NC
PINO 3 2.6311V
PINO 4 GND
PINO 5 5.642V
PINO 6 208.04V
PINO 7 NC
PINO 8 137.4V
PINO 9 136.9V
IC902 (TDA6106):
PINO 1 NC
PINO 2 NC
PINO 3 2.6320V
PINO 4 GND
PINO 5 5.648V
PINO 6 208.04V
PINO 7 NC
PINO 8 133.04V
PINO 9 133.18V
IC903 (TDA6106):
PINO 1 NC
PINO 2 NC
PINO 3 2.6055V
PINO 4 GND
PINO 5 5.645V
PINO 6 208.04V
PINO 7 NC
PINO 8 121.37V
PINO 9 121.19V
IC802 (MC44603):
PINO 1 16.473V
PINO 2 16.472V
PINO 3 3.381V
PINO 4 0.15mV
PINO 5 GND
PINO 6 0.7471V
PINO 7 75.91mV
PINO 8 179.41mV
PINO 9 GND
PINO 10 2.6154V
PINO 11 2.4158V
PINO 12 276.62mV
PINO 13 2.9252V
PINO 14 2.5072V
PINO 15 2.4982V
PINO 16 2.5105V
IC804 (7805):
PINO 1 11.987V(IN)
PINO 2 GND
PINO 3 4.985V(OUT)
IC803 (PS2501H):
PINO 1 3.203V
PINO 2 2.557V
PINO 3 1.604V
PINO 4 16.473V
MEDIDAS DE TENS’ES
EM TRANSISTORES
Q804:
EMISSOR 8.944V
BASE 9.594V
COLETOR 11.169V
Q803:
EMISSOR 8.937V
BASE 9.594V
COLETOR 10.361V
Q802:
EMISSOR 9.602V
BASE 10.2V
COLETOR 13.634V
Q704:
EMISS0R 4.986V
BASE 4.343V
COLETOR 4.965V
Q705:
EMISSOR 4.984V
BASE 4.963V
COLETOR 3.39mV
Q200:
EMISSOR 1.9588V
BASE 2.6185V
COLETOR 9.521V
Q101:
EMISSOR 3.69V
BASE 3.02V
COLETOR 0.010mV
Q203:
EMISSOR 2.7221V
BASE 3.373V
COLETOR 9.402V
Q805:
EMISSOR 1.86mV
BASE 0.6612V
COLETOR 75.73mV
Q602:
EMISSOR 48.46mV
BASE -0.47V
COLETOR 14.541V
Q301:
EMISSOR 0.27V
BASE -0.39V
COLETOR 9.602V
19
IC DESCRIPTION
IC, P87C770AAR/04 (IC700)
20
IC BLOCK DIAGRAMS
IC, TDA-8841/N2 (IC101)
IC, MC-44603 (IC802)
21
ELECTRICAL ADJUSTMENT
INTRODUCTION
Note:
It is necessary to pre-heat the TV during 15 minutes, before its calibration.
1) Important recommendations
2) Definitions of the terms
3) Geometry of the Image
4) White alance
5) Screen adjustment
6) AGC adjustment
7) Stereo Decoder adjustment
8) Automatic adjustment of separation
How to select the FACTORY ODE
a) Press the key SW702 on the MAIN PCB or use a remote control with protocol RC5 and
system 7.
a1)Remote control reconstruction method.
Connect a SW between pins 13 and 16 of the IC:
Pressing the SW will display the test mode screen on TV.
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
17 18 19 20
21 22 23 24
25 26 27 28
29 30 31 32
20
19
18
17
16
1
2
4
3
7
10
15
5
8
6
9
14
13
12
11
D64GS
KI/O5
KI/O6
KI/O7
S1/LED
REM
S0
XOUT
XIN
VDD
VSS
RESET
KI/O4
KI/O3
KI/O2
KI/O1
KI/O0
KI3
KI2
KI1
KI0
Service Key
S0
Fuse
MHz
+B
+B
S1
22
c) Adjust the selected option pressin the key VOL or VOL of the remote control or of the
television front panel.
c1) VOL - increases re isters (MAX.).
c2) VOL - decreases re isters (MIN.).
d) To exit the FACTORY MODE, use the key OSD/OUT of the remote control.
1. Important recommendations
1.1 efore beginning the adjustments, the TV set should be a pre-heated during at least 15
minutes.
1.2 The positioning of the TV set should obey the magnetic parameters of South America that it
is -120 vertical mG. In the practice, this is gotten with a relative precision, positioning the TV
set with the face (screen) of the CRT pointing to the geographical East.
Select the adjustment options pressin the key CH or CH of the remote control or
of the television front panel.
b)
Note: All the adjustment options can be selected directly by the remote control
numeric keys.
23
2. Definitions of the terms
Reg. # Description Name
02 Adjustment of the AGC delay. AGC
03 Adjustment of the vertical slope. VSL
04 Adjustment of the hei ht. VAM
05 Adjustment of the vertical position VSH
06 Adjustment of the center linearity SC
07 Adjustment of the Pin Cushion PW
08 Adjustment of the eometric distortion of the vertical lines in the
ima e corner
CP
09 Adjustment of the width EW
10 Adjustment of the horizontal position HSH
11 Adjustment of the eometric trapezoidal distortion in the
direction east-west
TC
12 Adjustment of the white balance WPR
13 Adjustment of the white balance WPG
14 Adjustment of the white balance WPB
15 Adjustment of cathode amplitude level - CRT (*). CL
16
Adjustment of vertical zoom (the re ister has to be in 25)
VX
17
Adjustment of vertical scroll (the re ister has to be in 31)
VSC
18
Adjustment of the position in the vertical direction of text insertion
in the screen in the C.C mode
VOT
19 Adjustment of the position in the horizontal direction of text
insertion in the screen in the C.C mode
TAS
20 Preset of the function C.C (**) OEA
21
Adjustment of the stereo separation.
ALW
22 Adjustment of the stereo separation. ALS
23 Adjustment of reference electric current of the stereo decoder
(**)
TCA
24 Adjustment of the time constant of the AVL circuit ATT
25 Adjustment of audio input level of the stereo decoder LA
26 Adjustment of bri htness pattern BRI
27
Adjustment of color pattern
COL
28 Adjustment of contrast pattern CON
29 Adjustment of tint pattern HUE
30 Adjustment of sharpness pattern PEA
31
Adjustment of volume pattern
VOL
32
Adjustment of balance pattern
BAL
33 Adjustment of bass pattern BAS
34 Adjustment of treble pattern TRE
35 Adjustment of subwoofer pattern SWF
36 Luminance delay (*) YDL
96 Option re ister for of color system definition SYS
97 General options OPT
98 Initialization of EEPROM INI
99 Adjustment of screen VSD
(To continue...)
Reference
adjustment value
04 Fixed
218 Fixed
00
00
* After replacin EEPROM (IC701), set to the reference adjustment values, and then perform
15
20
31
31
12
32 Fixed
32 Fixed
32 Fixed
32
32 Fixed
32
32
32
07 Fixed
25
31
31
15
32
15 Fixed
15 Fixed
03 Fixed
01 Fixed
07 Fixed
32 Fixed
32 Fixed
63 Fixed
32 Fixed
50 Fixed
25 Fixed
31 Fixed
31 Fixed
50 Fixed
31 Fixed
08 Fixed
24
Options Register for of color system definition SYS (96)
4 (24) 5 (25) 6 (26)
7 (27)
Op3
Op3
SliceLevel
Op3
COR
Op3
FCO
Op3SinglePal (20)
10
Enabled Disabled
Op3SinglePalN (21)
10
Enabled Disabled
Op3NotSingleNorma (22)
10
MultiNorma
Sin leNorma
Op3BlackStretch (23)
10
Enabled Disable
Op3BlueStretch (24)
10
Enabled Disable
Op3SliceLevel (25)
10
Set to 50% (needed for
Brazil)
Vert. Slice level set to
70% (normal)
Op3COR (26)
10
Noise corin function
enabled
No noise corin
function available
Op3FCO (27)
10
Color killin disabled Normal color killin
function
(...Continued)
Note:
* These registers don't actuate when an IC TDA8375A or TDA8374A is used.
* * The register 20 (OEA) should be obligatorily adjusted to the value 32.
* * The register 23 (TCA) should be obligatorily adjusted to the value 03.
BlueStretch
0 (20)
Op3
Sin lePalN
e
3 (23)
Op3
BlackStretch
1 (21)
Op3
Sin lePalN
2 (22)
Op3
NotSin l
Norma
(Example)
96 SYS 04 (00-255)
00000100
2625
Options Register OPT (97)
Option Byte OPT
1 (21)
2 (22)
4 (24)
5 (25) 6 (26)
OpSurround
OpAVL
OpSubwoofer
7 (27)
O NoEVG
OpMeshing (20)
1 0
Menu’s in meshing display Normal Menu display
OpAV2 (21)
1 0
AV-2 a ailable No AV-2
OpTDA88/83 (22)
1 0
TDA837X TDA884X
OpLatAm (23)
1 0
LatAm Tuning USA Tuning
OpS rro nd (24)
1 0
Surround control
1
No Surround control,
see OpSubwoofer
OpAVL (25)
1 0
AVL ou HBL function AVL/HBL function
disabled
OpS bwoofer (26)
1 0
Subwoofer control
1
No Subwoofer control
OpNoEVG (27)
1 0
Vertical guard disabled Vertical guard enabled
1
= Subwoofer control has higher priority than surround.
TDA88/83
0 (20)
OpMeshing
3 (23)
OpLatAm
OpAV2
(Example) 97 OPT 218 (00-255)
11011010
5. Screen adjustment
3. Geometry o the Image
a) Using the PM - 5515 generator, apply the crosshatch pattern with circle.
b) Adjust the following items:
Vertical slope (VSL);
Height (VAM);
Vertical position (VSH);
Center Linearity (SC);
Horizontal position (HSH)
Adjust the abo e items, until obtaining the best circle symmetry and positioning, as well as the minor
image geometric distortion.
4. White balance
Note:
The cut point doesn’t need adjustment, because it’s automatically made by
the C101.
The white adjustment is already pre-adjusted and incised in the C101 and,
thus, its adjustment is not necessary.
Otherwise, if it is necessary to change the temperature of the white pattern, proceed in the following way:
a) Enter in the ser ice mode.
b) Select ia CH or CH the WPR (12), WPG (13) and WPB (14) functions.
c) Increase or decrease the function ia VOL or ia VOL respecti ely.
a) Select the register 99 (VSD).
b) Press VOL or VOL to access and adjust the screen control localized on the FBT, until the
horizontal line be slightly isible on the screen center.
c) Press CH or CH .
6. AGC adjustment
Apply a PHILIPS pattern with 60dBµV of intensity and adjust so that TP AGC or C103 (+)
terminal become 4V.
a) Select the register 02 (AGC)
2827

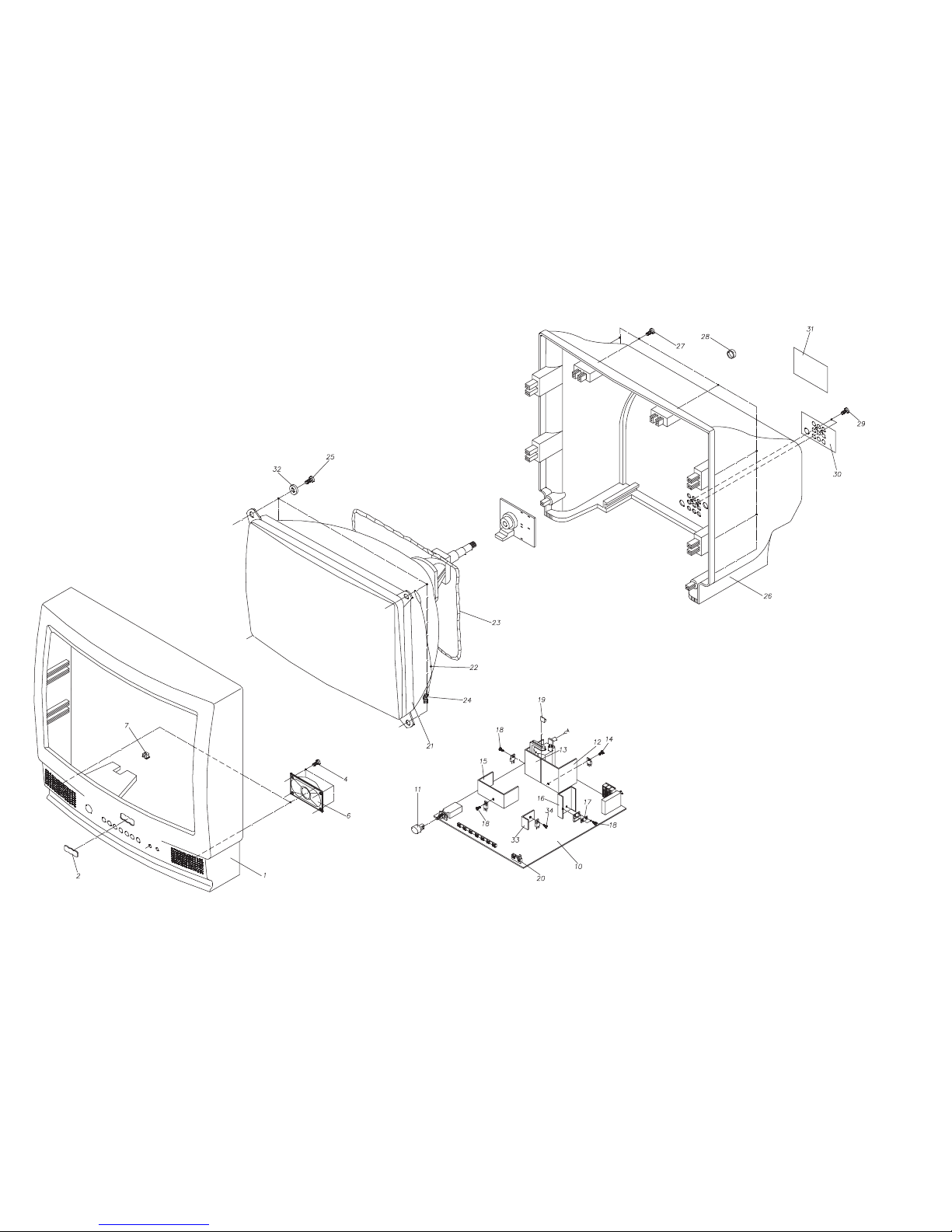

MECHANICAL EXPLODED VIEW 1/1
This manual suits for next models
1
Table of contents
Other Aiwa TV manuals
