Aiwa TV-F2100 User manual

SERVICE MANUAL
DATA
COLOR TELEVISION
TV-F2100
HT,NH
S/M Code No. 09-008-432-1R2
REVISION
• This Service Manual is the “Revision Publishing” and replaces “Simple
Manual” TV-F2100 (NH), (S/M Code No. 09-007-432-1T2).
• This Service Manual does not include “ADJUSTMENT”. This item will be
issued in the next Supplement.
TYPE
NH1M
NH1C1M
HT1M

– 2 –
SPECIFICATIONS
Tuner System Frequency synthesized tuner
TV System NTSC-M
Channel Coverage VHF: 2 to 13
UHF: 14 to 69
CATV: 5A, A-1 to A-5, A to W,
W+1 to W+84
Program Memory 181
Antenna Input 75 ohms, unbalanced
Picture Tube 21 in
Screen Size 406 (W) x 305 (H) mm
(16 x 121/8in.)
508 mm (diagonal) (20 in.)
Video Input 1 Vp-p 75 ohms
Audio Input 0.5 Vrms., 33 k ohms more
Speaker 120 x 60 mm (43/4 x 23/8in.)
Operating Voltage NH: 110-240 V AC, 50/60 Hz
HT: 110 V AC, 50/60 Hz
Power Consumption 110 W
Phones Jack Stereo-mini jack
Operating Temperature 5 °C – 40 °C
Operating Humidity 35 % – 80 %
Dimensions 610 (W) x 440 (H) x 485 (D) mm
(241/8x 173/8x 191/8in.)
Weight 24.1 kg (53.02 lbs.)
• Design and specifications are subject to change without
notice.
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8A-JE7-955-010 RC UNIT,RC-AVT01<NH1M,NH1C1M>
1 8A-JE7-960-010 RC UNIT,RC-AVT06<HT>
2 8A-JE5-904-010 IB,NH (ES) -F2500/2100<NH1M>
2 8A-JE5-906-010 IB,HT (E/CH) -F2500/2100<HT>
2 8A-JE5-907-010 IB,NH (E) -F2500/2100<NH1C1M>
3 87-B30-311-010 ADAPTOR,300 75 TSN-02
4 87-A91-015-010 PLUG,CONVERSION JT-0475A
!

– 3 –
NOTICES BEFORE REPAIRING
To make the best use of this equipment, make sure to
obey the following items when repairing (or mending).
1. Do not damage or melt the tunicate of the leading
wire on the AC1 side, including the power supply
cord.
2. Do not soil or stain the letters on the spec.
inscription plates, notice labels, fuse labels, etc.
3. When repairing the part extracted from the
conducted side of the board pattern, fix it firmly
with applying bond to the pattern and the part.
4. Restore the following items after repairing.
1) Conditions of soldering of the wires (especially,
the distance on the AC1 side).
2) Conditions of wiring, bundling of wires, etc.
3) Types of the wries.
4) Attachment conditions of all types of the insulation.
5. After repairing, always measure the insulation
resistance and perform the voltage-withstand test
(See Fig-1).
1) The insulation resistance must be 3.8 to 5.6 MΩ
when applying 500V per second.
2) In the voltage withstand test, apply 1 kV for 1
minute and check that the GO lamp lights.
* Breaking current set to 10 mA.
* Connect the safety checker as shown in Fig-1,
then measure the resistance and perform the test.
* Do not touch the equipment during testing.
* For details of the safety checker, refer to the supplied
Operation manual.

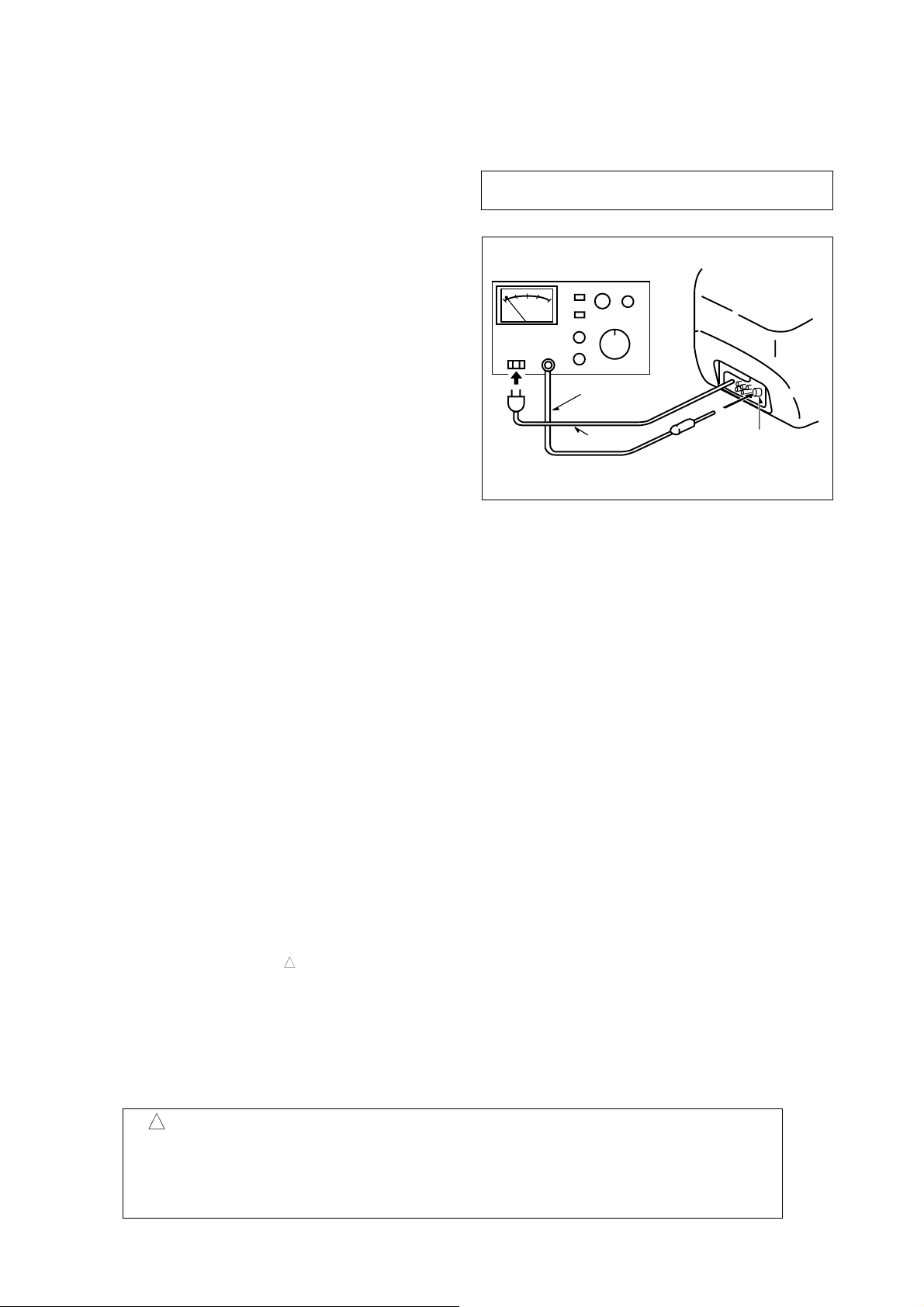

Fig-1
Safety checker (Model 7110, etc.)
Earth cable
AC cable Connect the earth cable
to the outside metal part
terminal.
Insulation resistance: 3.8 to 5.6 MΩ(500 V/s)
Voltage-withstand: 1 kV for 1 minute
Safety Components Symbol
This symbol is given to important parts which serve to maintain the safety of the product, and which
are made to confirm to special Safety Specifications.
Therefore, when replacing a component with this symbol make absolutely sure that you use a
designated part.
!
When servicing and checking on the TV, note the followings.
board. The inside wiring is designed not to get close to
the pyrogenic parts and high voltage parts. Therefore,
put these parts in the original positions.
5. Take care of the cathode-ray tube.
By setting an explosion-proof cathode-ray tube in this
equipment, safety is secured against implosion.
However, when removing it or servicing from the
back, it gives out shock that is dangerous. Take
enough care to deal with it.
6. Avoid an X-ray.
Safety is secured against an X-ray by giving
considerations to the cathode-ray tube and the high
voltage peripheral circuit, etc. Therefore, when
repairing the high voltage peripheral circuit, use the
designated parts and do not change the circuit.
Repairing, except indicates, causes rising of high
voltage, and the cathode-ray tube emits an X-ray.
7. Perform a safety check after servicing.
Confirm that the screws, parts and wiring which were
removed in order to service are put in the original
positions, or whether there are deteriorated portions
around the places serviced.
1. Keep the notices.
As for the places which need special attentions, they
are indicated with labels or seals on the cabinet,
chassis and parts. Make sure to keep the indications
and notices in the operation manual.
2. Avoid an electric shock.
There is a high voltage part inside. Avoid an electric
shock while the electric current is flowing.
3. Use the designated parts.
The parts in this equipment have the specific
characteristics of incombustibility and withstand voltage
for safety.
Therefore, use a part which has the same character
as the replaced part. Especially as to the important
parts for safety which is indicated in the circuit
diagram or the table of parts with a mark, the
designated parts must be used.
4. Put parts and wires in the original position after
assembling or wiring.
There are parts which use the insulation material such
as a tube or tape for safety, or which are assembled so
that these parts do not make contact with the printed
!

– 4 –
Anode cap
CRT GND
Hook CRT
CRT GND
Grip
DISASSEMBLY INSTRUCTIONS

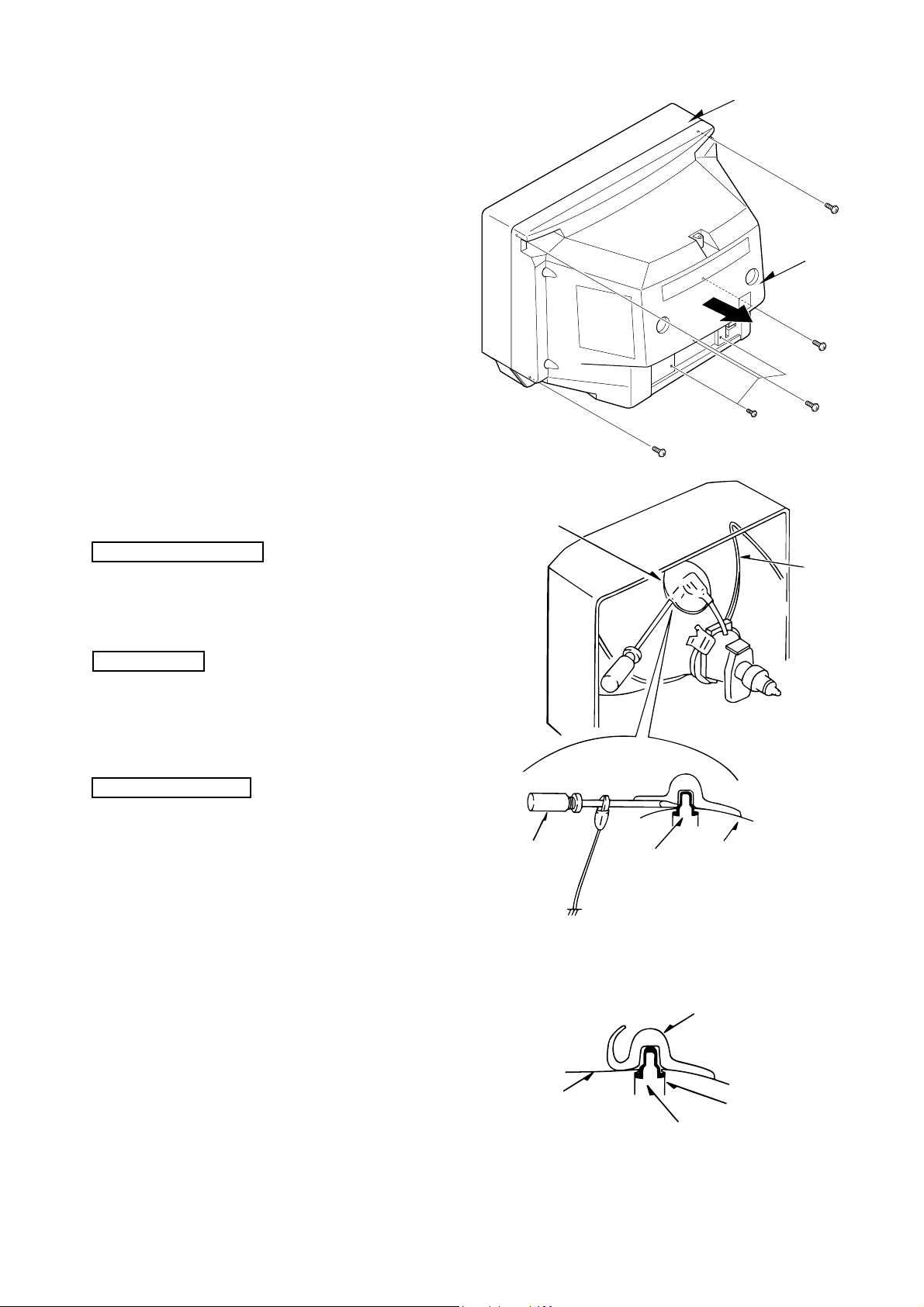

1. REAR CABINET REMOVAL
(1) Remove four screws 1, and three screws 2, then
remove the rear cabinet in the direction of the arrow.
(See Figure1-1)
Figure 1-1

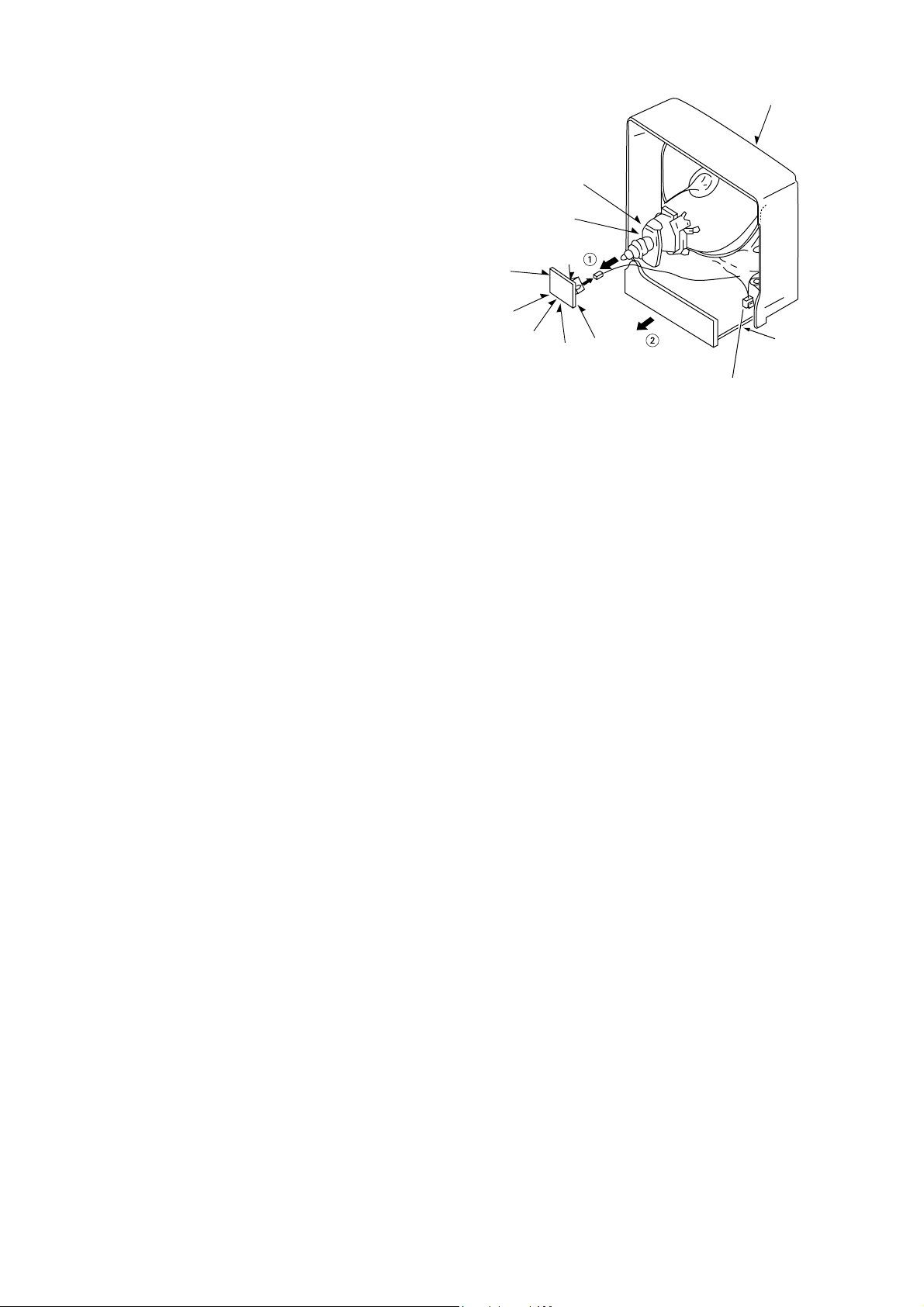

2. HIGH-VOLTAGE CAP (ANODE CAP) REMOVAL
2-1. Cautions before Removing
Discharge the anode voltage
(1) The anode voltage is not discharged completely from the
CRT of this unit even after the power is turned off. Be
sure to discharge the residual anode voltage before
removing the anode cap.
Do not use pliers
(2) Do not use pliers, etc. to remove the anode cap. If you
usedpliersandbentthehooktoremovethecap,thespring
characteristics of the hook could be lost, and when
reinstalled, the cap would come off from the CRT anode
button easily, causing an accident.
Do not turn the anode cap
(3) If the anode cap is turned in the direction of its
circumference, the hook is likely to come off.
2-2. Anode Cap Removal
Discharge the anode voltage. (See Figure 2-1)
(1) Connect a flat-bladed screwdriver to the CRT GND via
an alligator clip.
(2) Use a tester to check theendofthescrewdriverandground
of the TV for continuity.
(3) Touch the hook with the end of the screwdriver.
Caution : Be careful not to damage the anode cap.
(4) Turn over the anode cap.
Caution : Be careful not to damage the anode cap.
Figure 2-1
Figure 2-2
Anode cap
CRT
Hook
Anode button
Front cabinet
Rear cabinet
1
1
1
1
2

–5 –

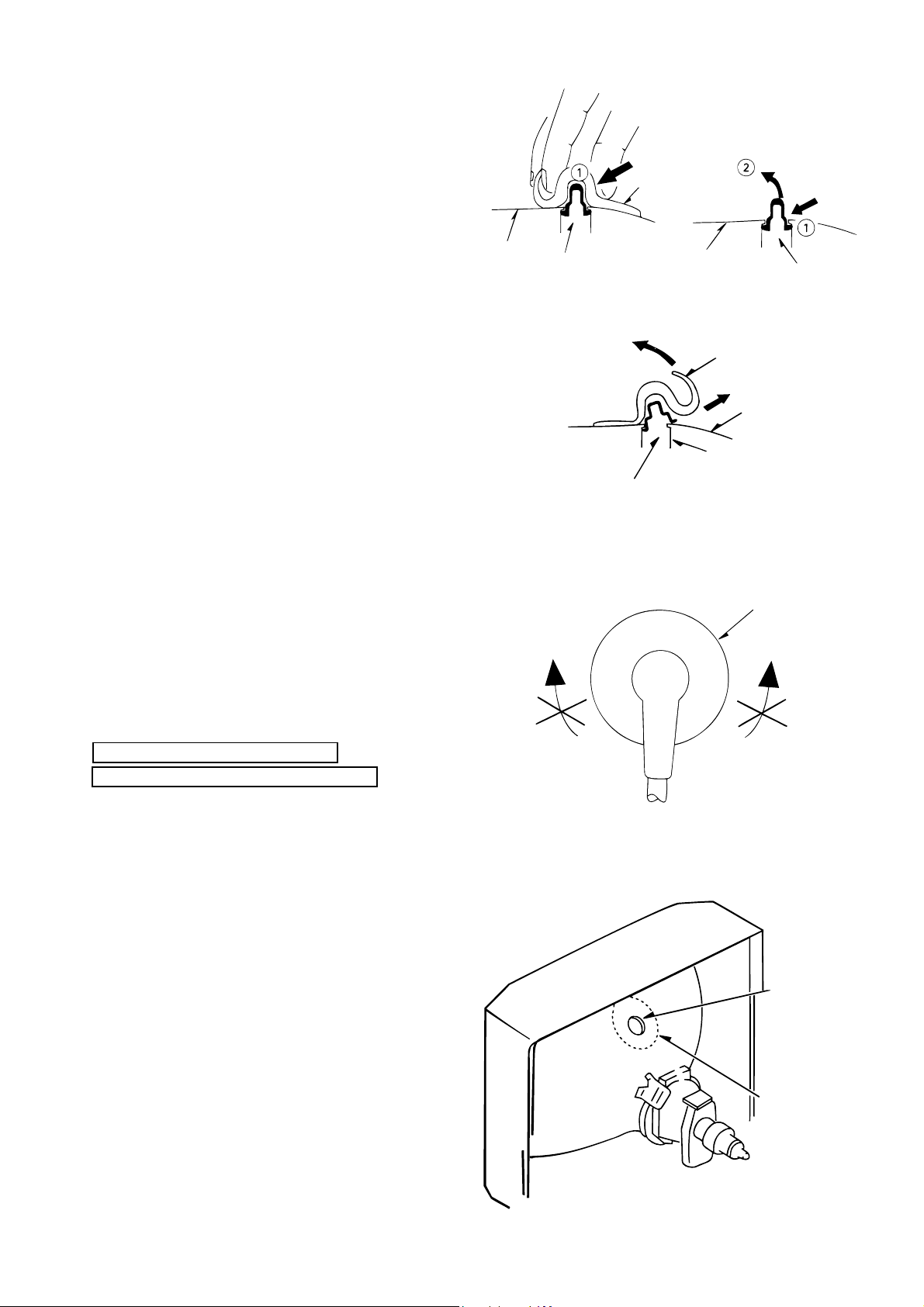

(5) Push the anode cap with your thumb in the direction of
arrow 1as shown in the figure, then lift the cap in the
direction of arrow 2to release the hook on one side.
(See Figure 2-3)
(6) Turn over the anode cap on the side where the hook was
released and pull out the cap in the direction opposite to
that on which the cap was pushed. (See Figure 2-4)
Caution : Do not pull out the anode cap straight up.
:Do not pull the cap forcibly. After removing
the cap, check that the hook is not deformed.
Figure 2-3
3. ANODE CAP REINSTALLTION
Observe the cautions carefully so that no accident occurs
due to a defect in installing the anode cap and so it does
not come off.
3-1. Caution before Reinstalling
Never turn the anode cap after installing it
Never re-use the hook when it has been deformed
(1) If the anode cap is turned after it is installed, it may come
off. Therefore, arrange the high-voltage cable before
attaching the anode cap. (See Figure 3-1)
(2) If you have attached the anode cap before arranging the
high-voltage cable, arrange the cable carefully so the cap
does not turn.

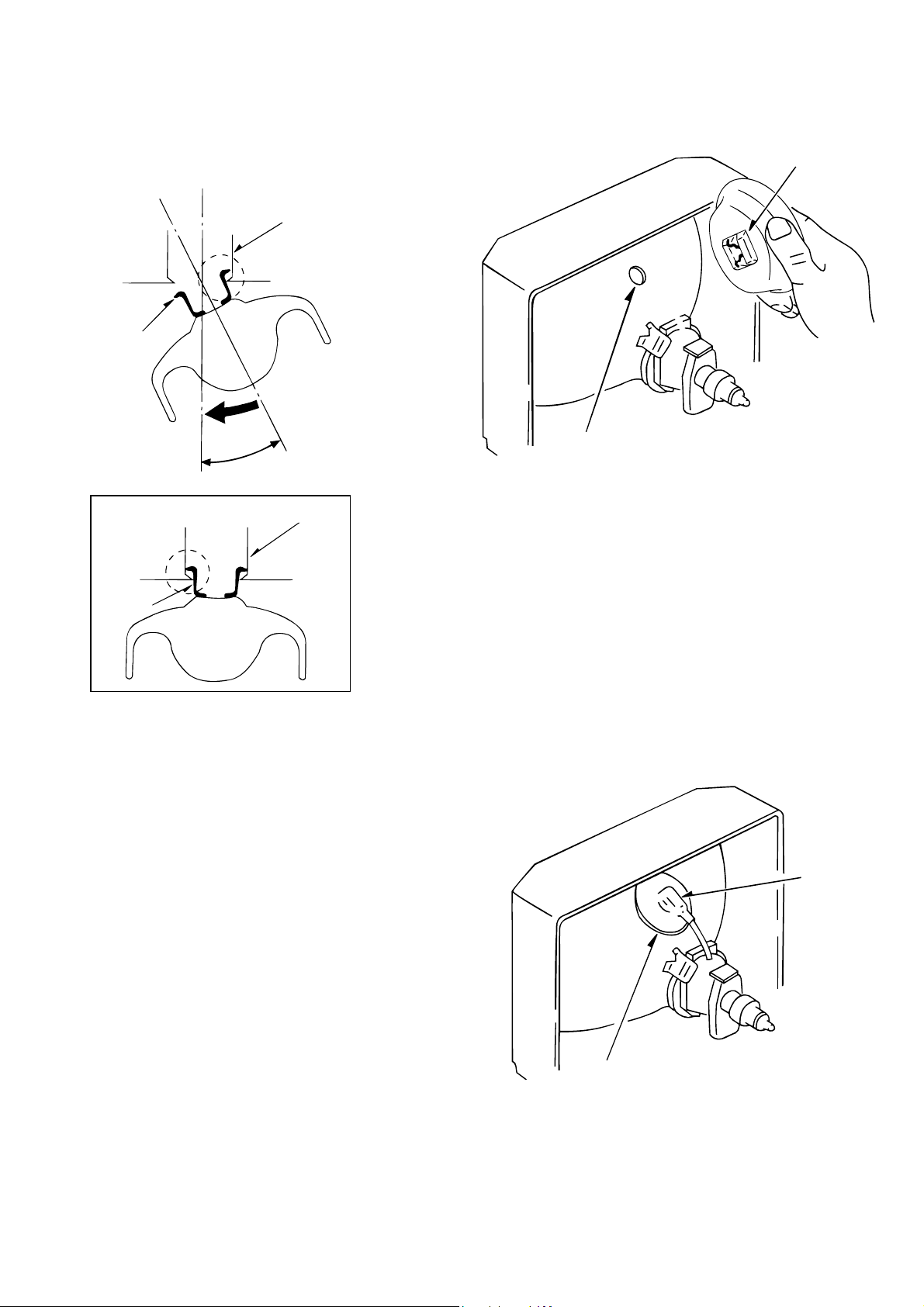

3-2. Anode cap reinstallation
(1) Use a clean cloth moistened slightly with alcohol to clean
the installation section. (See Figure 3-2)
Caution : Check that the installation section is free from
dust, foreign matter, etc.
(2) Coat the anode cap installation circumference with an
appropriate amount of the specified silicone grease (KS-
650N).
Caution : Be careful that silicone grease does not enter
the anode button.
CRT CRT
Anode cap
Hook Hook
Anode cap
Hook
Anode button
CRT
Left Right
Anode cap
Anode button
Installation
section
Figure 2-4
Figure 3-1
Figure 3-2

–6 –
(3) Eliminate twisting, etc. of the high-voltage cable and
arrange it so that no twisting occurs. (See Figure 3-3)
Caution : If the cable is not arranged correctly, the anode
capcould turnandcauseaninstallationdefect.
(4) Turn over the rubber cap symmetrically on the left and
right. (See Figure 3-4)
Caution : Take great care not to damage the anode cap.
Figure 3-3
(5) Fit your forefinger over the projection at the center of the
cap and hold the cap between your thumb and middle
finger. (See Figure 3-5)
Figure 3-4
Figure 3-5
High-voltage cable Anode cap

–7 –
(6) Apply the hook on one side to the anode button as shown
on the figure. (See Figure 3-6)
Caution : Check that the hook is held securely.
(7) Apply the hook on the other side to the anode button as
shown in Figure 3-7.
(8) Pull the anode cap slightly with the rubber cap turned
over and visually check that the hook is engaged securely.
(9) Release your hand from the rubber cap of the anode cap.
Caution : Cover the anode cap so that it does not lift.
(10) Hold the skirt of the andoe cap slightly to improve the
close contact between the cap and CRT.
(11) Check that the anode cap is in close contact with the CRT.
(See Figure 3-8)
Figure 3-8
Figure 3-7
Figure 3-6
Anode button
Skirt
Hook
Anode button
Anode button
Hook
Anode button
Hook
30°

–8 –
4. NK C.B REMOVAL
(1) Disconnect CN903 (CRT GND).
(2) Disconnect CN901, CN902, CN951, CN952.
(3) Remove the NK C.B. in the direction of arrow 1.
(See Figure 4-1)
5. MAIN C.B REMOVAL
(1) Remove connector (CN404).
(2) Remove connector (CN807).
(3) Remove connector (CN882).
(4) Pull out the MAIN C.B. in the direction of the arrow 2
(See Figure 4-1).
Figure 4-1
CN882
(Power Cord)
Front cabinet
AUDIO C.B
CN404(Speakers)
CN951
NK C.B
CN901
CN903
CN807
(Degauss
cord)
CN902
CN952
MAIN
C.B

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 9 –
ELETRICAL MAIN PARTS LIST
IC
8A-JE7-625-010 IC,M37272M8-503SP<HT>
8A-JE7-623-010 IC,M37272MA-055SP<NH1M,NH1C1M>
87-A91-538-010 RCR UNIT,SBX1981-72P
87-A21-378-010 IC,S-24C04BDP-1A
87-A20-611-080 IC,M51943BSL-700A<NH1M>
87-001-536-010 IC,NJM78M05FA
8Z-JBJ-605-010 IC,TA1268N
87-A21-103-040 C-IC,MM1454XFBE
87-A21-022-040 C-IC,BA3880FS
87-A21-554-010 IC,TA1216AN
87-A21-283-010 IC,AN5277
87-A21-220-010 IC,MM1311AD
87-A21-219-010 IC,TC90A45P
87-070-237-010 IC,LA7832
87-070-417-010 IC,NJM4558 DD
8Z-JBH-605-010 IC,CXA2104S
87-A21-344-010 IC,STR-F6656
87-A21-457-010 IC,SE120N
87-020-969-010 IC,NJM78M09FA
87-A20-389-010 IC,NJM7809FA
87-A21-133-080 IC,BMR-010D<HT,NH1C1M>
TRANSISTOR
87-A30-065-080 TR,2SC2785FE
87-026-269-080 TR,DTA114ES
87-A30-066-080 TR,2SA1175FE
87-026-219-080 TR,DTA144ES (0.3W)
87-026-218-080 TR,DTC144ES (0.2W)
89-324-122-080 TR,2SC2412K
89-110-372-080 TR,2SA1037(140MHZ 200MW)
87-A30-062-080 C-TR,KRC104S
89-324-820-080 TR,2SC2482
87-A30-364-010 TR,2SD2578-CA
87-A30-363-010 TR,2SD2531
89-110-154-080 TR,2SA1015Y
89-318-155-080 TR,2SC1815 (0.4W)
87-026-463-080 TR,2SA933S (0.3W)<NH1M>
87-A30-216-080 TR,2SA933AS(R)<HT,NH1C1M>
89-110-913-080 TR,2SA1091-O
87-A30-344-010 TR,2SC5147D
87-026-462-080 TR,2SC1740SRS (0.3W)
89-407-742-080 TR,2SD774
89-118-370-010 TR,2SA1837
89-347-930-010 TR,2SC4793
87-A30-524-080 TR,2SC2925-T
DIODE
87-017-932-080 ZENER,MTJ6.2B
87-020-465-080 DIODE,1SS133 (110MA)
87-002-743-080 ZENER,MTZJ 33B
87-A40-235-080 ZENER,MTZJ9.1C
87-A40-690-080 ZENER,MTZJ11B
87-A40-286-080 DIODE,RGP10JE-5025
87-A40-348-080 ZENER,MTZJ3.3A
87-A40-234-080 ZENER,MTZJ5.6A
87-A40-318-080 ZENER,RM26 V1
87-070-092-080 DIODE,S5566B
87-A40-735-090 DIODE,ERC06-15
87-A40-001-080 ZENER,MTZJ12C
87-017-593-090 DIODE,RGP15J
87-017-654-060 DIODE,GBU6J
87-A40-828-080 DIODE,AK 04
87-A40-825-090 DIODE,RN 1Z
87-A40-734-010 DIODE,FML-G12S
87-A40-927-080 DIODE,1SS119-041 TA<HT,NH1C1M>
87-017-650-080 DIODE,1SS119<NH1M>
87-A40-553-080 DIODE,1N4003 LES
87-A40-503-080 ZENER,MTZJ39B
87-A40-785-080 DIODE,SB040
87-A40-856-080 DIODE,UF4007
87-A40-850-090 DIODE,RL4A
MAIN C.B
C1 87-010-405-080 CAP, ELECT 10-50V
C2 87-018-209-080 CAP, CER 0.1-50V
C3 87-018-134-080 CAPACITOR,TC-U 0.01-16
C4 87-018-127-080 CAP, CER 470P-50V
C5 87-010-401-080 CAP, ELECT 1-50V
C6 87-018-209-080 CAP, CER 0.1-50V
C7 87-010-248-080 CAP, ELECT 220-10V
C8 87-018-123-080 CAP, CER 220P-50V
C9 87-010-401-080 CAP, ELECT 1-50V
C10 87-018-131-080 CAP, CER 1000P-50V
C11 87-018-134-080 CAPACITOR,TC-U 0.01-16
C12 87-018-119-080 CAP, CER 100P-50V
C13 87-018-119-080 CAP, CER 100P-50V
C14 87-010-263-080 CAP, ELECT 100-10V
C15 87-018-119-080 CAP, CER 100P-50V
C16 87-018-131-080 CAP, CER 1000P-50V
C17 87-018-128-080 CAP, CERA-SOL SS 560P
C18 87-018-109-080 CAP, CER 22P-50V
C19 87-018-109-080 CAP, CER 22P-50V
C20 87-018-119-080 CAP, CER 100P-50V
C21 87-018-109-080 CAP, CER 22P-50V
C22 87-018-109-080 CAP, CER 22P-50V
C23 87-018-123-080 CAP, CER 220P-50V
C24 87-018-209-080 CAP, CER 0.1-50V
C25 87-018-119-080 CAP, CER 100P-50V
C101 87-010-404-080 CAP, ELECT 4.7-50V
C104 87-010-248-080 CAP, ELECT 220-10V
C105 87-018-134-080 CAPACITOR,TC-U 0.01-16
C106 87-A10-207-080 CAP,TCS 0.01-50KBUP050
C112 87-018-109-080 CAP, CER 22P-50V
C113 87-018-109-080 CAP, CER 22P-50V
C201 87-018-134-080 CAPACITOR,TC-U 0.01-16
C202 87-018-134-080 CAPACITOR,TC-U 0.01-16
C203 87-010-400-080 CAP, ELECT 0.47-50V
C204 87-018-134-080 CAPACITOR,TC-U 0.01-16
C205 87-010-237-080 CAP, ELECT 1000-16V
C206 87-A10-287-080 CAP,M 2200P-50 J
C207 87-010-400-080 CAP, ELECT 0.47-50V
C208 87-018-134-080 CAPACITOR,TC-U 0.01-16
C209 87-010-385-080 CAP, ELECT 220-25V
C210 87-A11-080-080 CAP,TC U 47P-50 J CH
C211 87-A11-080-080 CAP,TC U 47P-50 J CH
C212 87-A11-080-080 CAP,TC U 47P-50 J CH
C213 87-A11-082-080 CAP,TC U 56P-50 J CH
C214 87-018-134-080 CAPACITOR,TC-U 0.01-16
C229 87-018-149-080 CAP,TC-U 15P-50 CH
C301 87-010-403-080 CAP, ELECT 3.3-50V
C302 87-018-134-080 CAPACITOR,TC-U 0.01-16
C305 87-018-126-080 CAP,TC-U 390P-50 B
C306 87-010-405-080 CAP, ELECT 10-50V
C307 87-A10-299-080 CAP,M 0.022-50 J
C308 87-010-401-080 CAP, ELECT 1-50V
C309 87-018-147-080 CAP,TC-U 10P-50 CH
C311 87-018-209-080 CAP, CER 0.1-50V
C312 87-018-209-080 CAP, CER 0.1-50V
C313 87-018-209-080 CAP, CER 0.1-50V
C314 87-018-134-080 CAPACITOR,TC-U 0.01-16
C315 87-018-123-080 CAP, CER 220P-50V
C316 87-A10-378-080 CAP,E 2.2-50 K SH
C317 87-010-402-080 CAP, ELECT 2.2-50V
C318 87-018-134-080 CAPACITOR,TC-U 0.01-16
C319 87-010-237-080 CAP, ELECT 1000-16V
!!

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 10 –
C321 87-010-404-080 CAP, ELECT 4.7-50V
C322 87-A10-295-080 CAP,M 0.01-50 J
C323 87-016-280-080 CAP,E 3.3-50 M BP SME
C324 87-018-134-080 CAPACITOR,TC-U 0.01-16
C325 87-018-134-080 CAPACITOR,TC-U 0.01-16
C326 87-A10-307-080 CAP,M 0.1-50 J
C327 87-018-134-080 CAPACITOR,TC-U 0.01-16
C328 87-010-405-080 CAP, ELECT 10-50V
C329 87-018-134-080 CAPACITOR,TC-U 0.01-16
C330 87-010-401-080 CAP, ELECT 1-50V
C331 87-010-544-080 CAP, ELECT 0.1-50V
C332 87-018-134-080 CAPACITOR,TC-U 0.01-16
C334 87-018-209-080 CAP, CER 0.1-50V
C335 87-015-997-010 CAP, ELECT 2200UF-16V
C336 87-018-134-080 CAPACITOR,TC-U 0.01-16
C337 87-018-130-080 CAP,TC-U 820P-50 B
C338 87-010-405-080 CAP, ELECT 10-50V
C339 87-018-134-080 CAPACITOR,TC-U 0.01-16
C340 87-018-118-080 CAP,TC-U 82P-50 B
C341 87-018-118-080 CAP,TC-U 82P-50 B
C342 87-018-150-080 CAP,TC-U 18P-50 CH
C343 87-A10-307-080 CAP,M 0.1-50 J
C344 87-A10-307-080 CAP,M 0.1-50 J
C501 87-010-404-080 CAP, ELECT 4.7-50V
C504 87-010-393-080 CAP, ELECT 100-35V
C505 87-018-131-080 CAP, CER 1000P-50V
C508 87-010-398-090 CAP,E 2200-35V
C509 87-A11-245-080 CAP,M/P 0.1-100 J TF-ECQV
C510 87-010-405-080 CAP, ELECT 10-50V
C605 87-A11-336-090 CAP,M/P 0.01-1.6K H ECWH(VB)
C607 87-A12-050-090 CAP,M/P 0.013-800 H ECWH(VB)
C608 87-A10-859-010 CAP,CER 390P-2K K R LONG
C609 87-A11-278-090 CAP,M/P 0.47-250 J ECWF(SR)
C610 87-A10-867-090 CAP,CER 2200P-2K K R
C611 87-010-963-080 CAP,E 2.2-160 SME
C612 87-010-976-080 CAP,CER 1000P-500 B
C613 87-016-373-080 CAP,E 10-250
C614 87-010-976-080 CAP,CER 1000P-500 B
C615 87-A10-843-080 CAP,CER 680P-1K K R
C616 87-A10-843-080 CAP,CER 680P-1K K R
C617 87-A12-082-090 CAP,E 1000-35 SMG
C618 87-A10-301-080 CAP,M 0.033-50 J
C619 87-A11-987-080 CAP,CER 6800P-250 K R HR
C620 87-010-395-080 CAP,E 330-35 SME
C621 87-018-131-080 CAP, CER 1000P-50V
C622 87-A11-124-080 CAP,TC U 2200P-50 K B
C623 87-A12-171-080 CAP,E 4.7-50 K SH
C624 87-010-976-080 CAP,CER 1000P-500 B
C626 87-010-401-080 CAP, ELECT 1-50V
C627 87-A11-984-080 CAP,CER 270P-500 K B DD10
C629 87-A10-469-080 CAP,CER 2200P-500 K B DD10
C630 87-010-405-080 CAP, ELECT 10-50V
C631 87-010-263-080 CAP, ELECT 100-10V
C655 87-A11-354-090 CAP,E 100-160 M SMG
C714 87-010-221-080 CAP, ELECT 470-10V
C720 87-015-464-080 CAP,E 4.7-16 BP
C721 87-A10-292-080 CAP,M 5600P-50 J
C722 87-A10-296-080 CAP,M 0.012-50 J
C723 87-010-401-080 CAP, ELECT 1-50V
C724 87-010-404-080 CAP, ELECT 4.7-50V
C725 87-010-405-080 CAP, ELECT 10-50V
C726 87-010-404-080 CAP, ELECT 4.7-50V
C727 87-010-112-080 CAP, ELECT 100-16V
C728 87-015-464-080 CAP,E 4.7-16 BP
C729 87-010-404-080 CAP, ELECT 4.7-50V
C730 87-015-464-080 CAP,E 4.7-16 BP
C731 87-A10-288-080 CAP,M 2700P-50 J
C733 87-016-301-080 CAP,TN 3.3-16K DN
C734 87-015-464-080 CAP,E 4.7-16 BP
C735 87-016-302-080 CAP,TN 10-16K DN
C736 87-010-401-080 CAP, ELECT 1-50V
C737 87-018-134-080 CAPACITOR,TC-U 0.01-16
C801 87-010-408-080 CAP,E 47-50 M 11L
C802 87-018-131-080 CAP, CER 1000P-50V
C804 87-A10-474-090 CAP,PP 0.01-1.25K J PHS
C805 87-A12-117-010 CAP,CER 560P-1K
C806 87-A12-349-090 CAP,E 470-400 M<NH1M,NH1C1M>
C806 87-A12-412-090 CAP,E 560-315 M<HT>
C808 87-010-384-080 CAP, ELECT 100-25V
C809 87-018-127-080 CAP, TC U 470P-50 K B
C810 87-018-130-080 CAP, TC U 820P-50 K B
C814 87-010-260-080 CAP, ELECT 47-25V
C816 87-010-405-080 CAP, ELECT 10-50V
C817 87-010-398-090 CAP,E 2200-35V
C818 87-018-209-080 CAP, CER 0.1-50V
C820 87-010-405-080 CAP, ELECT 10-50V
C821 87-010-405-080 CAP, ELECT 10-50V
C822 87-018-209-080 CAP, CER 0.1-50V
C824 87-010-237-080 CAP, ELECT 1000-16V
C827 87-A12-290-080 CAP,CER 220P-2K
C829 87-010-384-080 CAP, ELECT 100-25V
C831 87-010-405-080 CAP, ELECT 10-50V
C834 87-A10-733-090 CAP,E 220-160 SK
C835 87-A12-292-010 CAP,CER 330P-2K
C838 87-010-397-010 CAP,1000-35
C844 87-A12-170-010 CAP,CER 1000P-4K
C845 87-A12-170-010 CAP,CER 1000P-4K
CF201 84-LB3-626-080 FLTR,TPS4.5MB2
CF202 84-LB3-627-080 FLTR,SFSH 4.5MDB SIF
CN1 87-009-195-010 CONN,5P B5BEH
CN601 87-099-762-010 CONN,5P TBL-P V BOSS
CN701 87-A60-628-010 CONN,11P V 2MM JMT
CN705 87-009-262-010 CONN,8P 52147 MXJ
CN706 87-099-186-010 CONN,6P EH V WHT
CN807 82-481-649-010 CONN,2P V VT-50P
CNA101 8Z-JE7-660-010 CONN ASSY,1P PS-MAIN
CNA602 8Z-JE7-661-110 CONN ASSY,5P V WHT TV-NK
CNA603 8Z-JE7-665-010 CONN ASSY,1P FBT-PS
CNA704 8A-JE7-617-010 CONN ASSY,6P V WHT TV-NK-2
CNA801 8A-JE7-619-010 CONN ASSY,3P V MAIN-PS
CNA803 8A-JE7-618-010 CONN ASSY,2P MAIN-PS
D1 87-070-110-010 LED,SLP-181B-51 RED
FB7 87-008-372-080 FLTR, EMI BL01 RN1
FB301 87-003-320-080 F-BEAD,-9.0FBR07HA121NB
FB601 87-003-223-080 FERRITE BEAD BL02RN2
FB801 87-003-320-080 F-BEAD,FBR07HA121NB
FB802 87-003-320-080 F-BEAD,FBR07HA121NB
FB803 87-003-320-080 F-BEAD,FBR07HA121NB
FB804 87-003-320-080 F-BEAD,FBR07HA121NB
FB805 87-003-320-080 F-BEAD,FBR07HA121NB
FB806 87-003-320-080 F-BEAD,FBR07HA121NB
FB807 87-003-320-080 F-BEAD,FBR07HA121NB
FR607 87-A00-652-090 RES,FUSE 0.33-1W J RF 1SL12.5
FR608 87-A00-628-090 RES,FUSE 0.68-1W J RF 1SL12.5
FR610 87-A00-628-090 RES,FUSE 0.68-1W J RF 1SL12.5
HL1 84-LB3-216-010 HLDR,LED
J702 87-A60-324-110 JACK,PIN 6P Y-W-R W/SW
L2 87-005-614-080 COIL 100UH LAV35 J
L3 87-005-614-080 COIL 100UH LAV35 J
L101 87-005-614-080 COIL 100UH LAV35 J
L201 8Z-JBR-612-010 COIL,SIF 4.5MHZ 504BN
L203 87-005-612-080 COIL,68UH J LAV35
L204 87-003-282-080 COIL,12UH
L205 8Z-JBH-610-010 COIL,PIF-SQ57EL349A 45.75MHZ
L206 87-005-614-080 COIL 100UH LAV35 J
L207 87-003-147-080 COIL, 22UH
L208 87-003-143-080 COIL 4.7 UH
L301 87-003-097-080 COIL,1UH
L302 87-005-614-080 COIL 100UH LAV35 J
L303 87-005-614-080 COIL 100UH LAV35 J
!
!
!
!
!
!
!
!
!
!

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 11 –
L304 87-003-282-080 COIL,12UH
L603 87-005-757-010 COIL,3.3MH
L604 87-A50-616-080 COIL,2.2MH J LHL10
L605 8Z-JE7-608-010 COIL,HLC ZJE-7
L701 87-005-614-080 COIL 100UH LAV35 J
L801 87-A50-636-010 COIL,390UH RCH110
L803 87-A50-176-080 COIL,33UH-PJ87
LF803 8A-JE7-643-010 FLTR,LINE ELF18D286B
PR601 87-A90-764-080 PROTECTOR,1.25A 60V491
PR801 87-A90-090-080 PROTECTOR,1.5A 491 SERIES 60V
PR802 87-A90-195-080 PROTECTOR,7A 491 SERIES 60V
PR803 87-A90-473-080 PROTECTOR,3.5A 491 SERIES 60V
PS801 87-A90-717-010 P-COUPLER,PC123FY2
PT801 8A-JE7-622-010 PT,U SW AJE-7
R315 87-025-380-080 RES,M/F 15K-1/6W F
R316 87-025-427-080 RES,M/F 27K-1/6W F
R508 87-A00-541-090 RES,M/F 390-1W J RSF(S)
R604 87-A00-565-090 RES,M/F 1.2K-7W J RSU7
R612 87-A00-629-090 RES,M/F 5.6-1W J RSF(S)
R626 87-A00-676-090 RES,M/F 100-7W J RSV7
R723 87-A00-130-080 RES,M/F 62K-1/6W F
R802 87-A00-160-090 RES,M/F 33-2W J RSF(S)
R803 87-A00-356-090 RES,M/F 22-2W J RSS2X
R804 87-A00-332-090 RES,CEM 1-10W J RGC
R805 87-A00-170-090 RES,M/F 82K-3W J RSF(S)
R806 87-A00-749-090 RES,M/F 33K-5W J RSS5
R811 87-A00-679-090 RES,CEM 0.15-5W J RGC5
R824 87-A00-718-090 RES,M/F 680-1W J RSF (S)
R833 87-A00-199-090 RES,M/F 12K-3W J RSF(S)
R834 87-A00-223-090 RES,M/F 47K-2W J RSF(S)
R844 87-A00-254-090 RES,M/F 0.68-2W J
R848 87-A00-332-090 RES,CEM 1-10W J RGC
RY801 87-A91-390-010 RELAY,AC12V G5PA-1-8
S2 87-A91-525-080 SW,TACT SKQNLA
S3 87-A91-525-080 SW,TACT SKQNLA
S4 87-A91-525-080 SW,TACT SKQNLA
S5 87-A91-525-080 SW,TACT SKQNLA
S6 87-A91-525-080 SW,TACT SKQNLA
S7 87-A91-525-080 SW,TACT SKQNLA
S801 87-A91-410-010 SW,AC PUSH 1-1-1 ESB92SH1B
SFR501 87-024-430-080 SFR,2.2K RH063EC
SFR601 87-024-434-080 SFR,22K RH063EC
SFR602 87-024-429-080 SFR,1K RH063EC
SFR603 87-A90-385-080 SFR,22K H DIA6 EVM
SWF201 8Z-JBH-633-010 FLTR,SAW M1969-M
T601 8Z-JE7-606-010 FBT,D ZJE-7
T602 85-JT2-653-010 PT,HDT-TV141-2
TH801 87-A91-405-010 POS-THMS,T209-B80-A10
TU101 8Z-JBE-610-010 TU UNIT,USA ENV56D74G3
X1 87-A70-124-080 VIB,CER 8.0MHZ
X301 87-A70-007-080 VIB,XTAL 3.58MHZ AQC-1001
X302 87-030-327-010 VIB,CER CSB503F30
AUDIO C.B
C401 87-010-404-080 CAP, ELECT 4.7-50V
C402 87-A10-295-080 CAP,M 0.01-50 J
C403 87-A10-295-080 CAP,M 0.01-50 J
C404 87-A10-307-080 CAP,M 0.1-50 J
C405 87-010-404-080 CAP, ELECT 4.7-50V
C406 87-010-260-080 CAP, ELECT 47-25V
C407 87-010-197-080 CAP, CHIP 0.01 DM
C408 87-010-405-080 CAP, ELECT 10-50V
C409 87-010-404-080 CAP, ELECT 4.7-50V
C410 87-010-404-080 CAP, ELECT 4.7-50V
C411 87-010-404-080 CAP, ELECT 4.7-50V
C413 87-A10-295-080 CAP,M 0.01-50 J
C414 87-A10-305-080 CAP,M 0.068-50 J
C415 87-A10-293-080 CAP,M 6800P-50 J
C416 87-010-260-080 CAP, ELECT 47-25V
C417 87-010-404-080 CAP, ELECT 4.7-50V
C418 87-010-197-080 CAP, CHIP 0.01 DM
C419 87-010-404-080 CAP, ELECT 4.7-50V
C420 87-010-404-080 CAP, ELECT 4.7-50V
C421 87-010-404-080 CAP, ELECT 4.7-50V
C422 87-A10-293-080 CAP,M 6800P-50 J
C424 87-010-260-080 CAP, ELECT 47-25V
C425 87-A10-305-080 CAP,M 0.068-50 J
C426 87-A10-295-080 CAP,M 0.01-50 J
C427 87-010-404-080 CAP, ELECT 4.7-50V
C428 87-010-189-080 C-CAP,S 8200P-50 B
C429 87-012-365-080 C-CAP,S 0.027-25VBK
C430 87-010-401-080 CAP, ELECT 1-50V
C431 87-010-189-080 C-CAP,S 8200P-50 B
C432 87-010-197-080 CAP, CHIP 0.01 DM
C433 87-010-260-080 CAP, ELECT 47-25V
C434 87-012-365-080 C-CAP,S 0.027-25VBK
C435 87-010-401-080 CAP, ELECT 1-50V
C436 87-010-401-080 CAP, ELECT 1-50V
C437 87-010-401-080 CAP, ELECT 1-50V
C438 87-010-178-080 CHIP CAP 1000P
C439 87-A10-307-080 CAP,M 0.1-50 J
C440 87-A10-307-080 CAP,M 0.1-50 J
C441 87-A10-307-080 CAP,M 0.1-50 J
C442 87-010-401-080 CAP, ELECT 1-50V
C443 87-010-405-080 CAP, ELECT 10-50V
C444 87-010-405-080 CAP, ELECT 10-50V
C445 87-010-405-080 CAP, ELECT 10-50V
C446 87-010-405-080 CAP, ELECT 10-50V
C447 87-010-405-080 CAP, ELECT 10-50V
C448 87-010-197-080 CAP, CHIP 0.01 DM
C449 87-010-402-080 CAP, ELECT 2.2-50V
C450 87-010-247-080 CAP, ELECT 100-50V
C451 87-010-388-080 CAP ELECT 1000-25V SME
C452 87-010-388-080 CAP ELECT 1000-25V SME
C453 87-010-178-080 C-CAP,S 1000P-50 KB
C454 87-010-399-090 CAP,E 3300-35 SME
C455 87-010-393-080 CAP, ELECT 100-35V
C460 87-010-197-080 CAP, CHIP 0.01 DM
C464 87-010-260-080 CAP, ELECT 47-25V
C465 87-010-178-080 C-CAP, 1000P-50K
C466 87-A10-295-080 CAP,M 0.01-50 J
C467 87-010-401-080 CAP, ELECT 1-50V
C468 87-A10-295-080 CAP,M 0.01-50 J
C469 87-A10-295-080 CAP,M 0.01-50 J
C470 87-010-154-080 CAP CHIP 10P
C471 87-012-155-080 C-CAP 180P-50CH
C472 87-A10-295-080 CAP,M 0.01-50 J
C473 87-A10-295-080 CAP,M 0.01-50 J
C474 87-A10-295-080 CAP,M 0.01-50 J
C475 87-010-178-080 C-CAP, 1000P-50K
C476 87-010-260-080 CAP, ELECT 47-25V
C477 87-010-316-080 C-CAP,S 33P-50 CH
C478 87-010-316-080 C-CAP,S 33P-50 CH
C479 87-010-318-080 C-CAP,S 47P-50 CH
C480 87-010-316-080 C-CAP,S 33P-50 CH
C481 87-010-316-080 C-CAP,S 33P-50 CH
C482 87-010-196-080 CHIP CAPACITOR,0.1-25
C483 87-010-260-080 CAP, ELECT 47-25V
C484 87-010-197-080 CAP, CHIP 0.01 DM
C486 87-010-197-080 CAP, CHIP 0.01 DM
C487 87-010-196-080 CHIP CAPACITOR,0.1-25
C488 87-010-384-080 CAP, ELECT 100-25V
C489 87-010-197-080 CAP, CHIP 0.01 DM
C492 87-010-197-080 CAP, CHIP 0.01 DM
C493 87-A10-307-080 CAP,M 0.1-50 J
C494 87-A10-307-080 CAP,M 0.1-50 J
C495 87-010-400-080 CAP, ELECT 0.47-50V
C496 87-010-400-080 CAP, ELECT 0.47-50V
C497 87-010-405-080 CAP, ELECT 10-50V
!
!
!
!
!
!
!
!
!
!
!
!
!

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 12 –
C738 87-A10-307-080 CAP,M 0.1-50 J
C751 87-010-545-080 CAP, ELECT 0.22-50V
C752 87-010-402-080 CAP, ELECT 2.2-50V
C753 87-010-545-080 CAP, ELECT 0.22-50V
C754 87-010-402-080 CAP, ELECT 2.2-50V
C755 87-010-197-080 CAP, CHIP 0.01 DM
C756 87-010-545-080 CAP, ELECT 0.22-50V
C757 87-010-402-080 CAP, ELECT 2.2-50V
C758 87-010-545-080 CAP, ELECT 0.22-50V
C759 87-010-402-080 CAP, ELECT 2.2-50V
C760 87-010-197-080 CAP, CHIP 0.01 DM
C761 87-010-314-080 C-CAP,S 22P-50V
C762 87-010-314-080 C-CAP,S 22P-50V
C763 87-010-405-080 CAP, ELECT 10-50V
C764 87-010-401-080 CAP, ELECT 1-50V
C765 87-010-382-080 CAP, ELECT 22-25V
C766 87-010-402-080 CAP, ELECT 2.2-50V
C767 87-010-401-080 CAP, ELECT 1-50V
C768 87-010-402-080 CAP, ELECT 2.2-50V
C769 87-010-405-080 CAP, ELECT 10-50V
C770 87-010-405-080 CAP, ELECT 10-50V
C780 87-010-405-080 CAP, ELECT 10-50V
C781 87-010-405-080 CAP, ELECT 10-50V
CN401 87-009-314-010 CONN 8P 51048
CN404 87-049-469-010 CONN,4P V
CN405 87-009-317-010 CONN,11P 51048
CN409 87-009-033-010 CONNECTOR, 5P
CNA402 8A-JE7-610-010 CONN ASSY,6P V WHT AU-MAIN
CNA403 8A-JE7-611-010 CONN ASSY,11P V WHT AU-VD
CNA408 8Z-JE7-663-010 CONN ASSY,2P COMB-NK
DL401 87-A91-598-010 DELAY LINE,350NS EQFK5-MT
FR401 87-A00-478-090 RES,FUSE 2.2-1W J
FR402 87-A00-478-090 RES,FUSE 2.2-1W J
J401 87-A60-420-010 JACK,3.5 ST (MSC)
J402 87-A60-875-010 JACK,PIN 3P +S YKC22-0477
L401 87-005-614-080 COIL 100UH LAV35 J
L403 87-005-614-080 COIL 100UH LAV35 J
L404 87-005-614-080 COIL 100UH LAV35 J
L405 87-003-284-080 COIL,27UH LAL02
L406 87-003-284-080 COIL,27UH LAL02
L407 87-A50-555-010 COIL,100UH K 7212M-101K
R432 87-A00-728-090 RES,M/F 2.2—7W K RSV7
R447 87-A00-667-090 RES,M/F 680-2W J RSF(S)
R448 87-A00-667-090 RES,M/F 680-2W J RSF(S)
W401 8A-JE7-612-010 F-CABLE,8P 2.0 70MM
W405 8A-JE7-613-010 F-CABLE,11P 2.0 70MM
PS C.B
C881 87-A11-353-010 CAP,M/P 0.22-275 M
C882 87-A12-170-010 CAP,CER 1000P-4K
C883 87-A11-353-010 CAP,M/P 0.22-275 M
C885 87-A12-170-010 CAP,CER 1000P-4K
C887 87-A12-347-080 CAP ELECT 560-50 M LXV
CN881 87-A61-299-010 CONN,4P B 5-VB
CN882 87-099-674-010 CONN,2P VA V
CN883 87-A61-126-080 MALE, 1P TP42097
CN884 87-A60-937-010 CONN,2P V VH
CN885 87-A61-126-080 MALE, 1P TP42097
D881 87-A90-965-010 VR1S,TNR15G471K<NH1M,NH1C1M>
D881 87-A90-966-010 VR1S,TNR15G221K<HT>
F881 87-035-459-010 FUSE, 5A 250V
FC881 87-033-213-080 CLAMP, FUSE
FC882 87-033-213-080 CLAMP, FUSE
LF881 8A-JE7-642-010 FLTR,LINE ELF18D293M<NH1M,NH1C1M>
LF881 87-A91-804-010 FLTR,LINE PLH10A1612R1P02B1<HT>
LF882 8A-JE7-642-010 FLTR,LINE ELF18D293M<NH1M,NH1C1M>
LF882 87-A91-634-010 FLTR,LINE ELF18D450K<HT>
PT881 8A-JE7-624-010 PT,NH ZTP3446(STBY)
R881 87-A00-543-080 RES,SD 8.2M 1W J RCR60
NK C.B
C901 87-010-405-080 CAP, ELECT 10-50V
C902 87-010-968-080 CAP,CER 680P-2K K B
C903 87-010-405-080 CAP, ELECT 10-50V
C906 87-010-400-080 CAP, ELECT 0.47-50V
C907 87-010-235-080 CAP,E 470-16 SME
C908 87-018-129-080 CAP, CER 680P-50V
C909 87-018-129-080 CAP, CER 680P-50V
C910 87-018-129-080 CAP, CER 680P-50V
C911 87-018-127-080 CAP, CER 470P-50V
C912 87-018-127-080 CAP, CER 470P-50V
C913 87-018-127-080 CAP, CER 470P-50V
C914 87-A10-052-080 CAP,E 2.2-250
C915 87-010-260-080 CAP, ELECT 47-25V
C916 87-018-134-080 CAPACITOR,TC-U 0.01-16
C917 87-010-970-090 CAP,CER 4700P-2K B F
C951 87-010-381-080 CAP, ELECT 330-16V
C954 87-010-405-080 CAP, ELECT 10-50V
C955 87-010-405-080 CAP, ELECT 10-50V
C956 87-010-405-080 CAP, ELECT 10-50V
C959 87-A10-050-010 CAP,CER 4700P-500
C960 87-010-221-080 CAP, ELECT 470-10V
C961 87-A12-168-080 CAP,E 33-160 M SMG
C962 87-A12-010-080 CAP,M/P 0.047-250 J ECQE2
C963 87-A10-283-080 CAP,M 1000P-50 J
C964 87-A10-283-080 CAP,M 1000P-50 J
C965 87-010-963-080 CAP,E 2.2-160 SME
C966 87-A12-014-080 CAP,M/P 0.1-250 J ECQE2
C967 87-A10-303-080 CAP,M 0.047-50 J
C968 87-010-221-080 CAP, ELECT 470-10V
CN901 87-009-034-010 CONN,6P PH V
CN902 87-009-195-010 CONN,5P B5BEH
CN903 87-A61-126-080 MALE, 1P TP42097
CN904 87-A61-060-080 CONN,1P V RED TP00706
CN951 87-009-030-010 CONNECTOR 2P PH M
CN952 87-099-043-010 CONN 2P EH
L901 87-005-614-080 COIL 100UH LAV35 J
L902 87-005-614-080 COIL 100UH LAV35 J
L903 87-005-614-080 COIL 100UH LAV35 J
L951 87-005-482-080 COIL,56UH FLR50 J
L952 87-005-481-080 COIL,47UH J FLR50
R901 87-A00-242-090 RES,M/F 8.2K-3W J RS
R902 87-A00-242-090 RES,M/F 8.2K-3W J RS
R903 87-A00-242-090 RES,M/F 8.2K-3W J RS
R968 87-022-382-090 RES,M/O 120-2W J
R969 87-A00-638-080 RES,M/F 47-1/2W J SPR
R970 87-A00-634-080 RES,M/F 2.7-1/4W J SPR
R971 87-A00-636-080 RES,M/F 560-1/4W J SPR
R973 87-A00-637-080 RES,M/F 1K-1/4W J SPR
R974 87-022-556-090 RES,M/O 180-3W J
R976 87-A00-636-080 RES,M/F 560-1/4W J SPR
R977 87-A00-634-080 RES,M/F 2.7-1/4W J SPR
R978 87-A00-635-080 RES,M/F 47-1/4W J SPR
SO901 8A-JE7-670-010 SOCKET,CRT 11P HPS1521-013411
S-JACK C.B
C771 87-010-322-080 C-CAP,S 100P-50 CH
C772 87-010-197-080 CAP, CHIP 0.01 DM
CNA771 8Z-JE5-631-010 CONN ASSY,5P S-JK
J771 87-A61-174-010 JACK,Y/CYKF51-5558
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

– 13 –

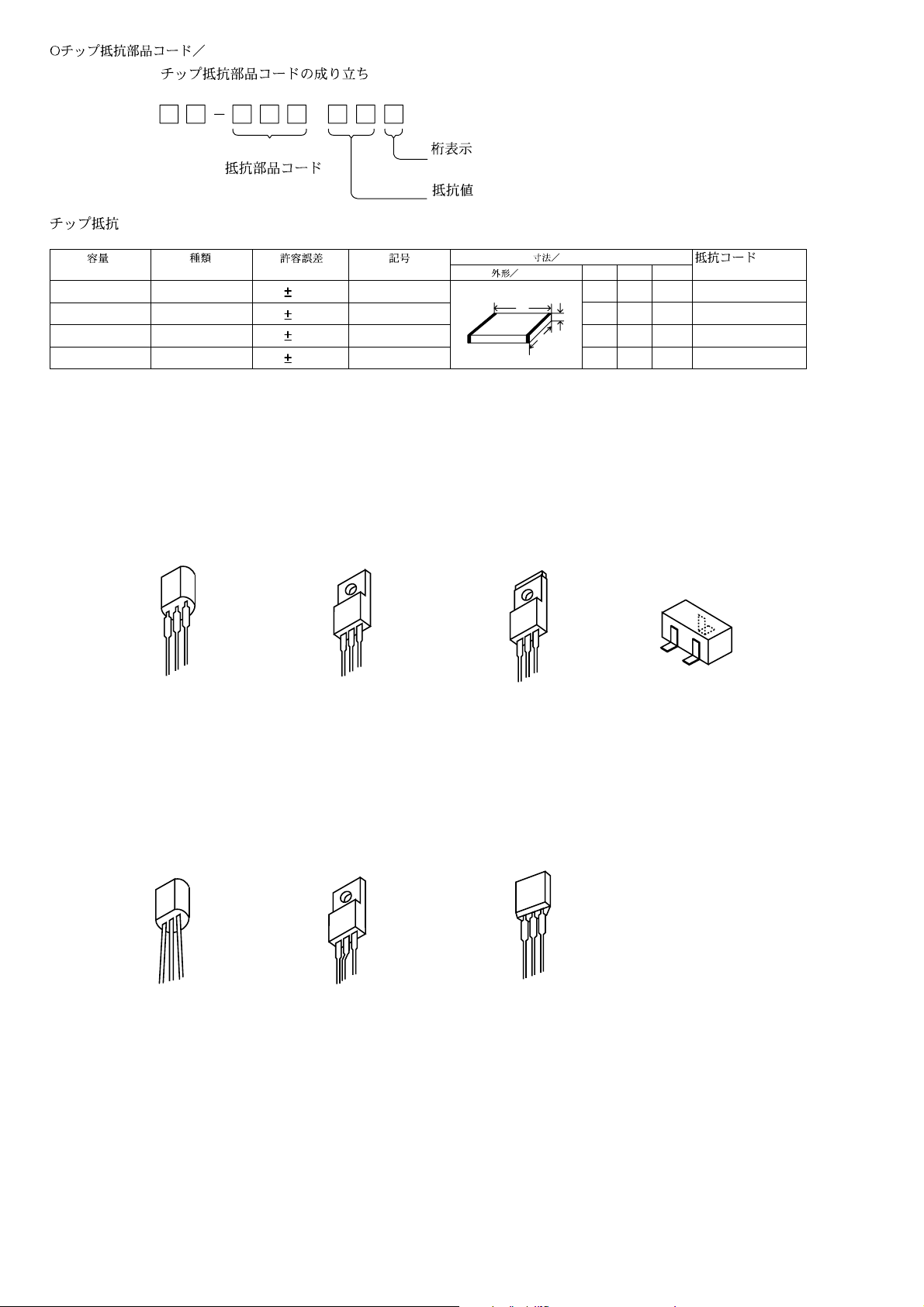

TRANSISTOR ILLUSTRATION
E C B
2SA1091-O
2SC1815
2SC2482
2SA1837
2SC4793
2SD2531
2SA933S
2SA933AS(R)
2SA1175FE
2SC1740SRS
2SC2785FE
B C E
E
B
C
E C B
2SA1037
2SC2412K
KRC104S
2SD2578-CA
B C E
B C E
2SC5147D
2SA1015Y
2SC2925-T
E C B
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
2SD774
DTA114ES
DTA144ES
DTC144ES

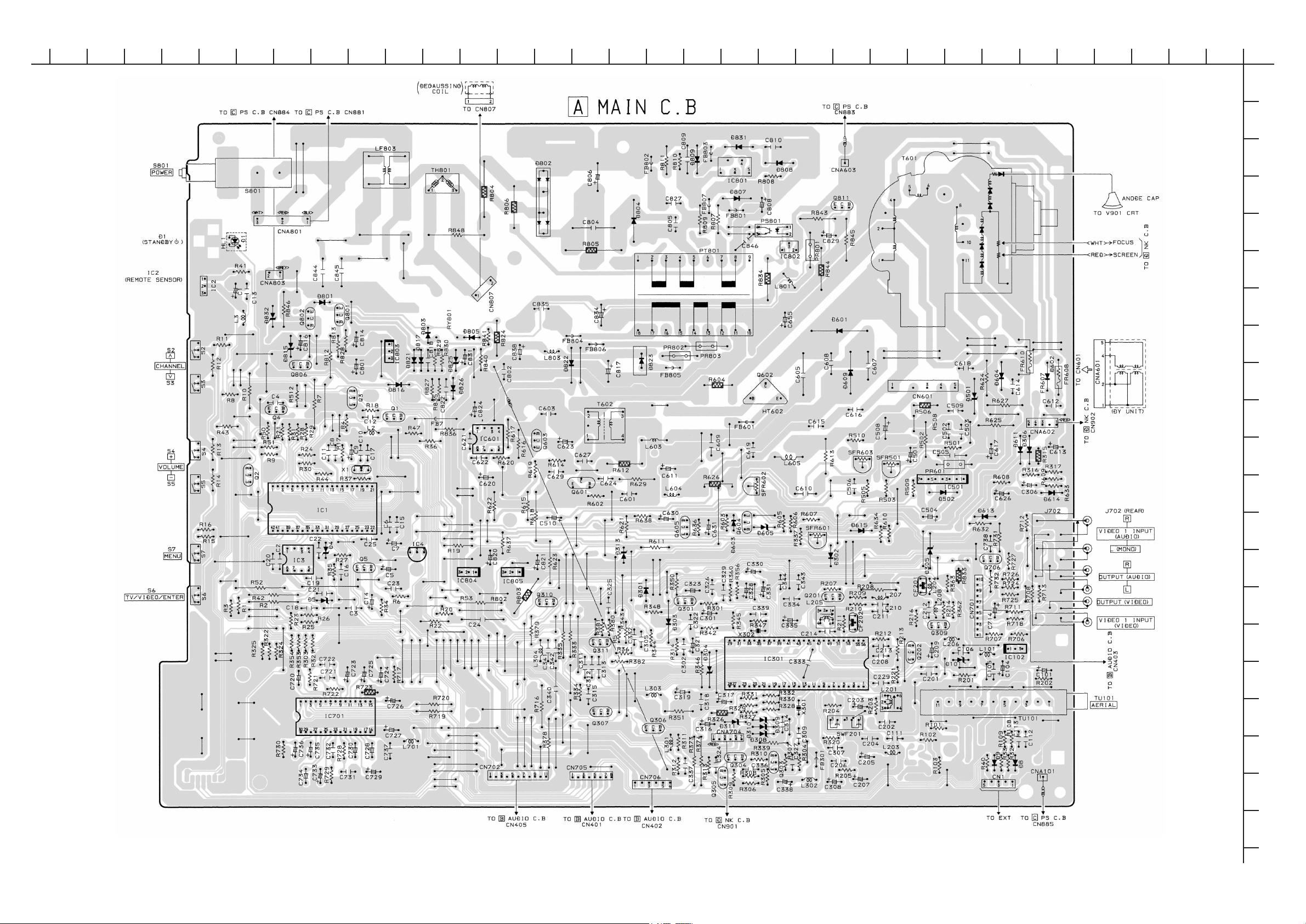

WIRING – 1 (MAIN)
– 14 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 15 –

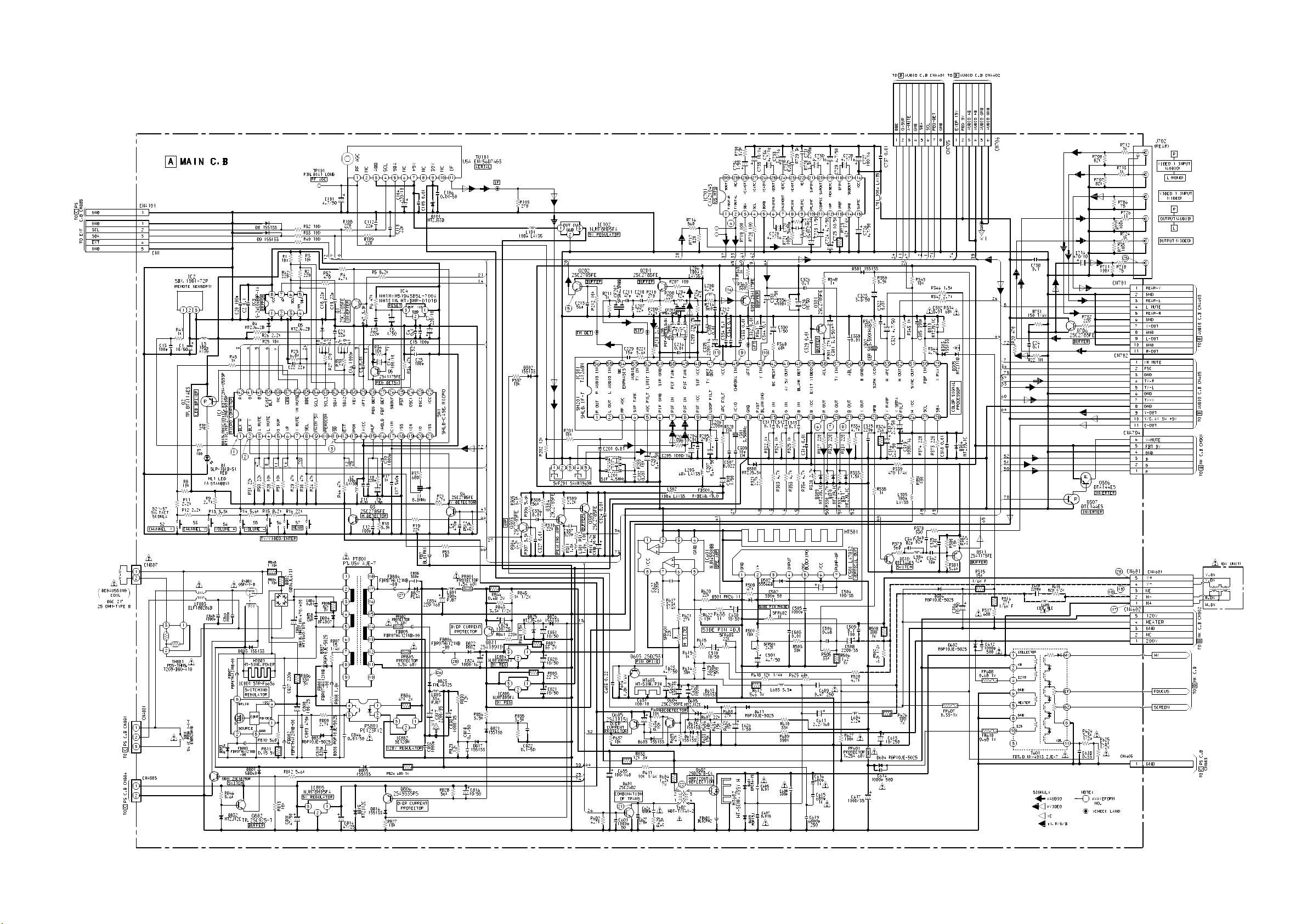

SCHEMATIC DIAGRAM – 1 (MAIN)

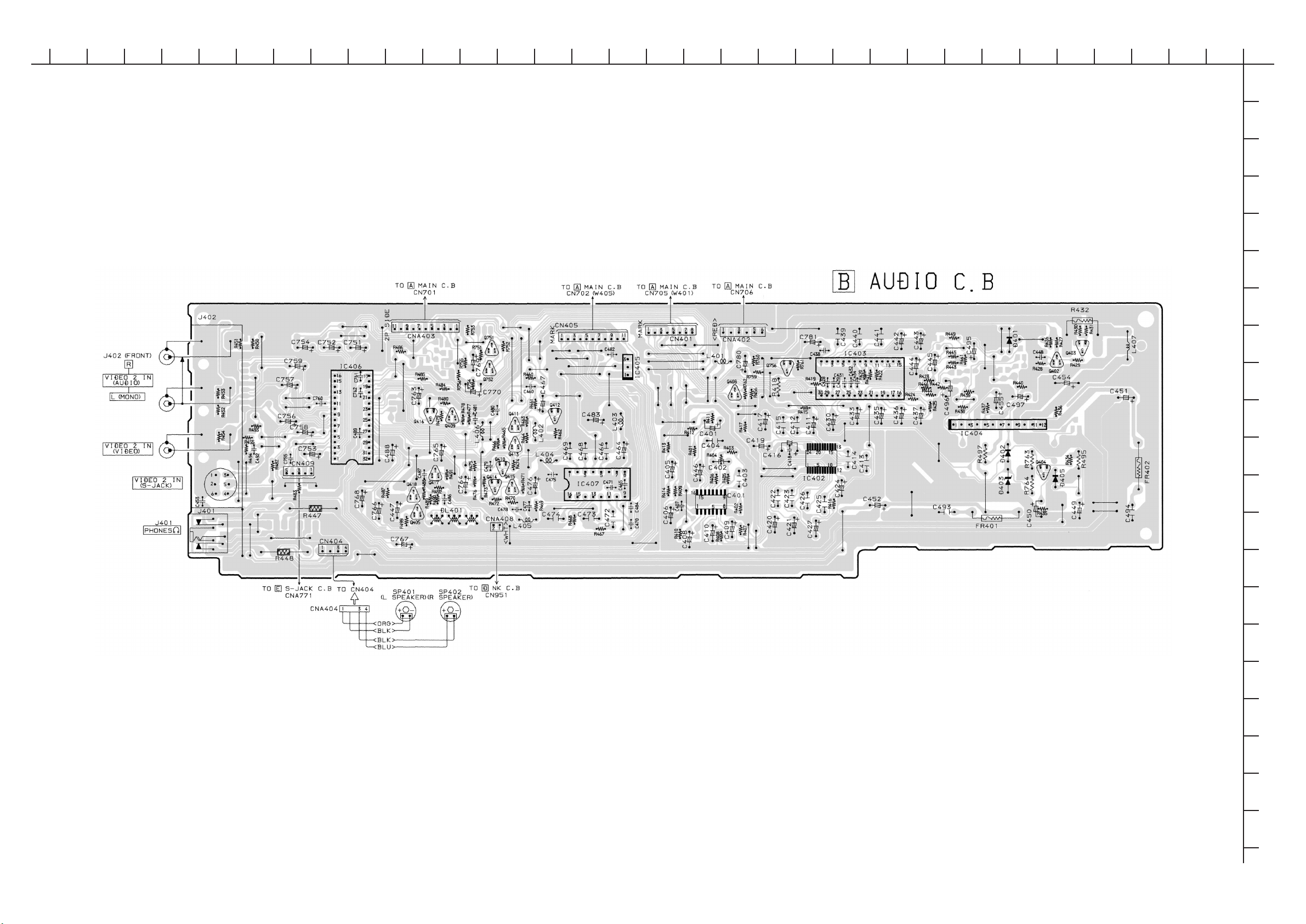

WIRING – 2 (AUDIO)
– 16 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 17–

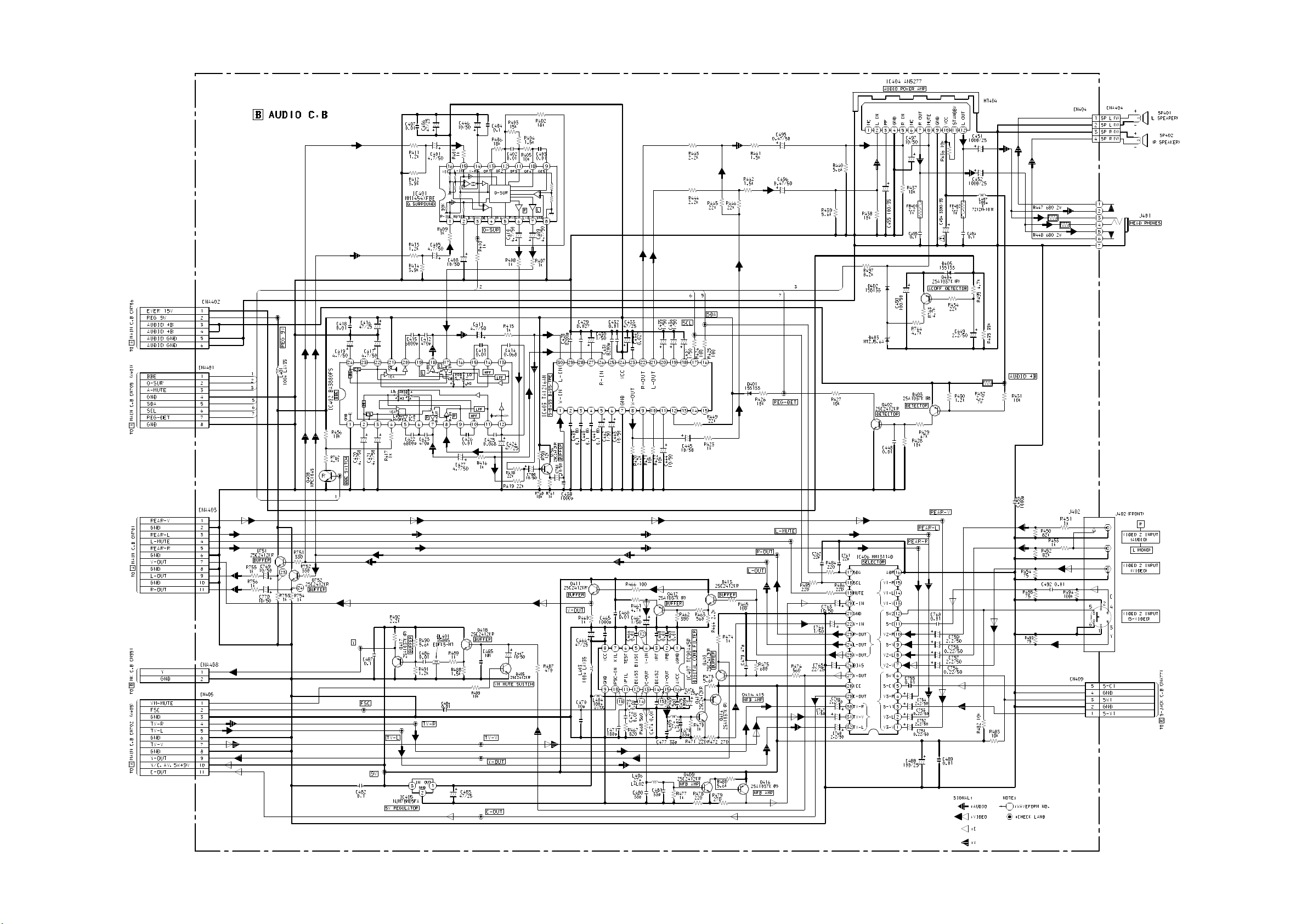

SCHEMATIC DIAGRAM– 2 (AUDIO)

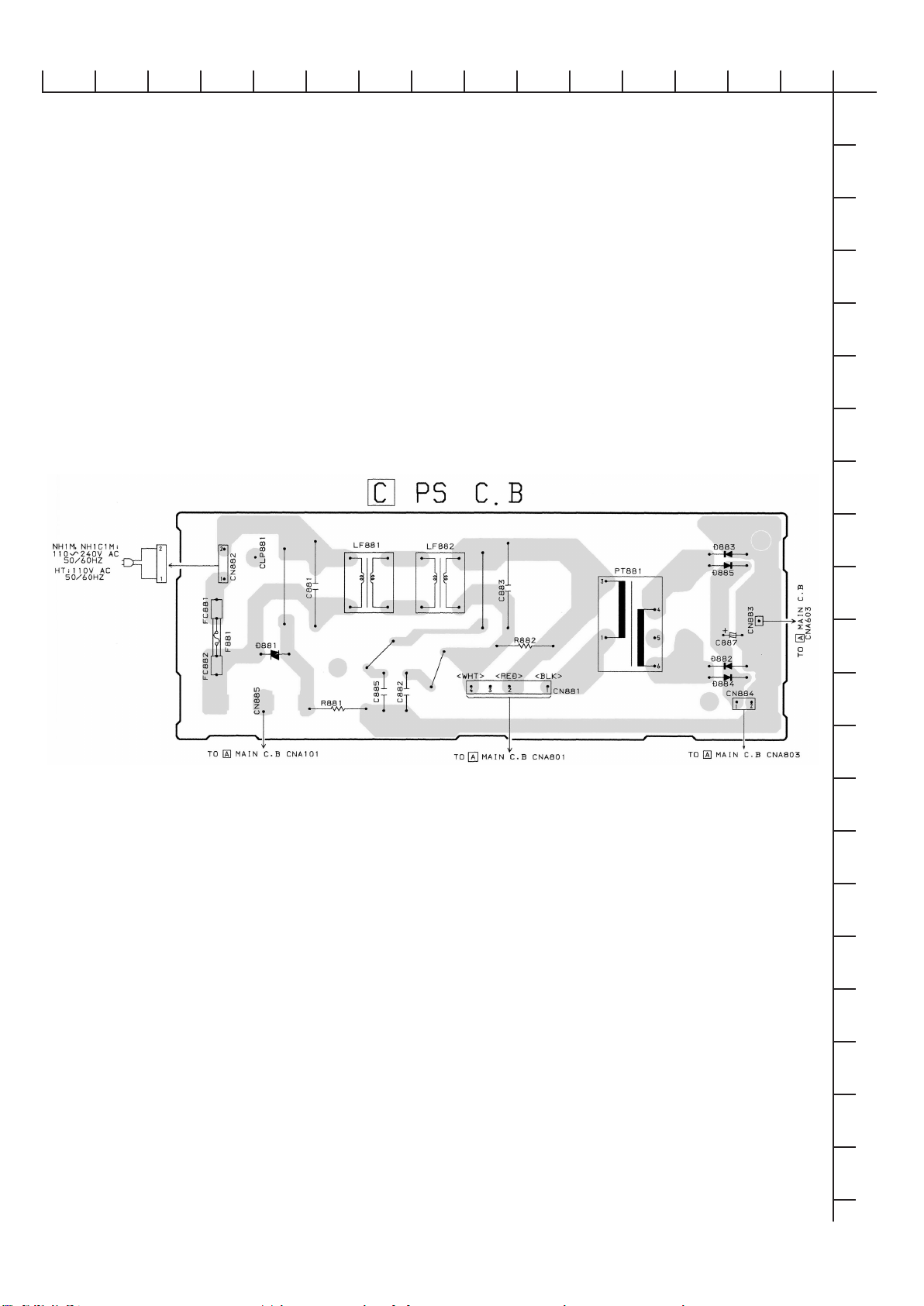

WIRING – 3 (PS)
– 18 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 19 –

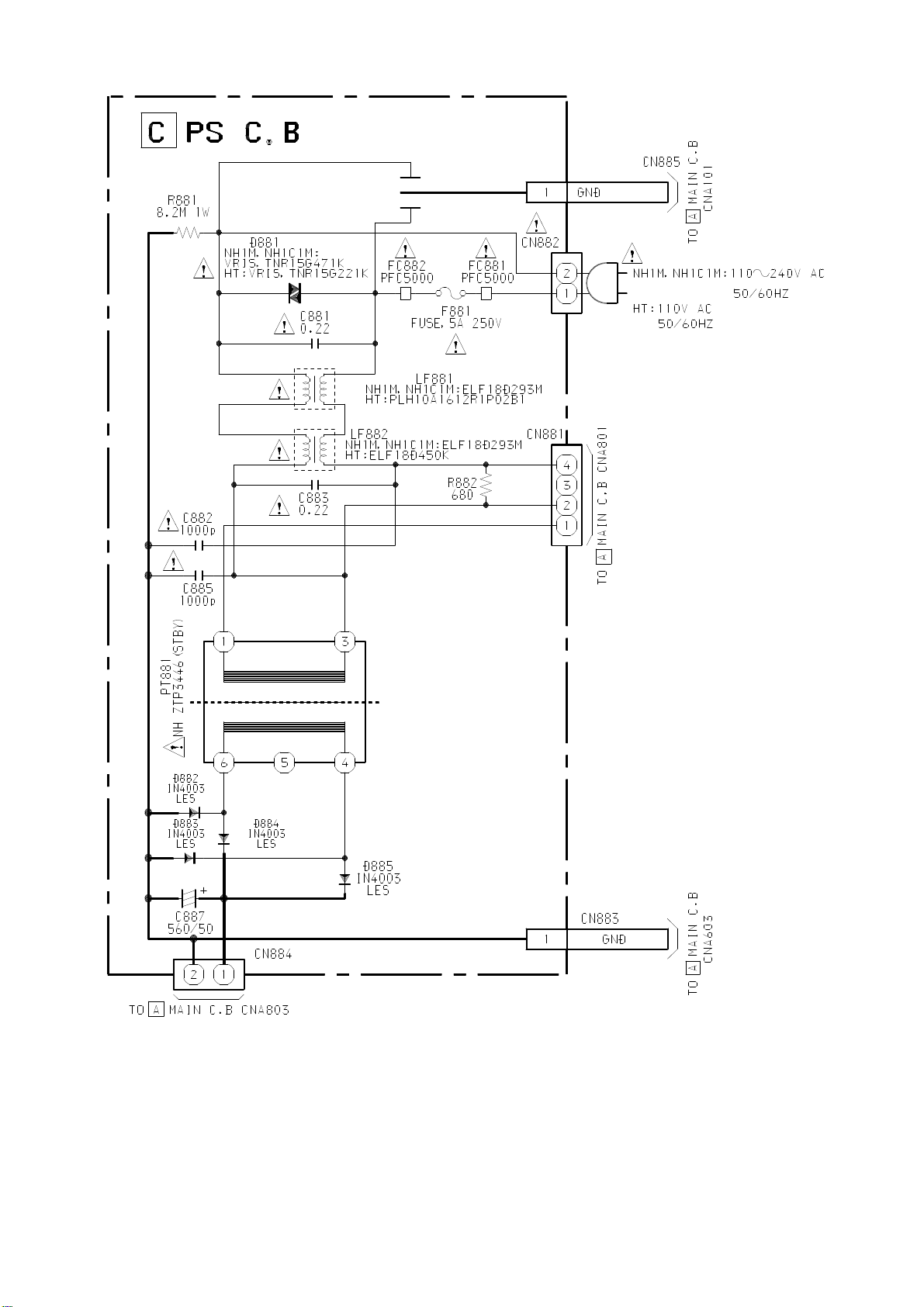

SCHEMATIC DIAGRAM – 3 (PS)

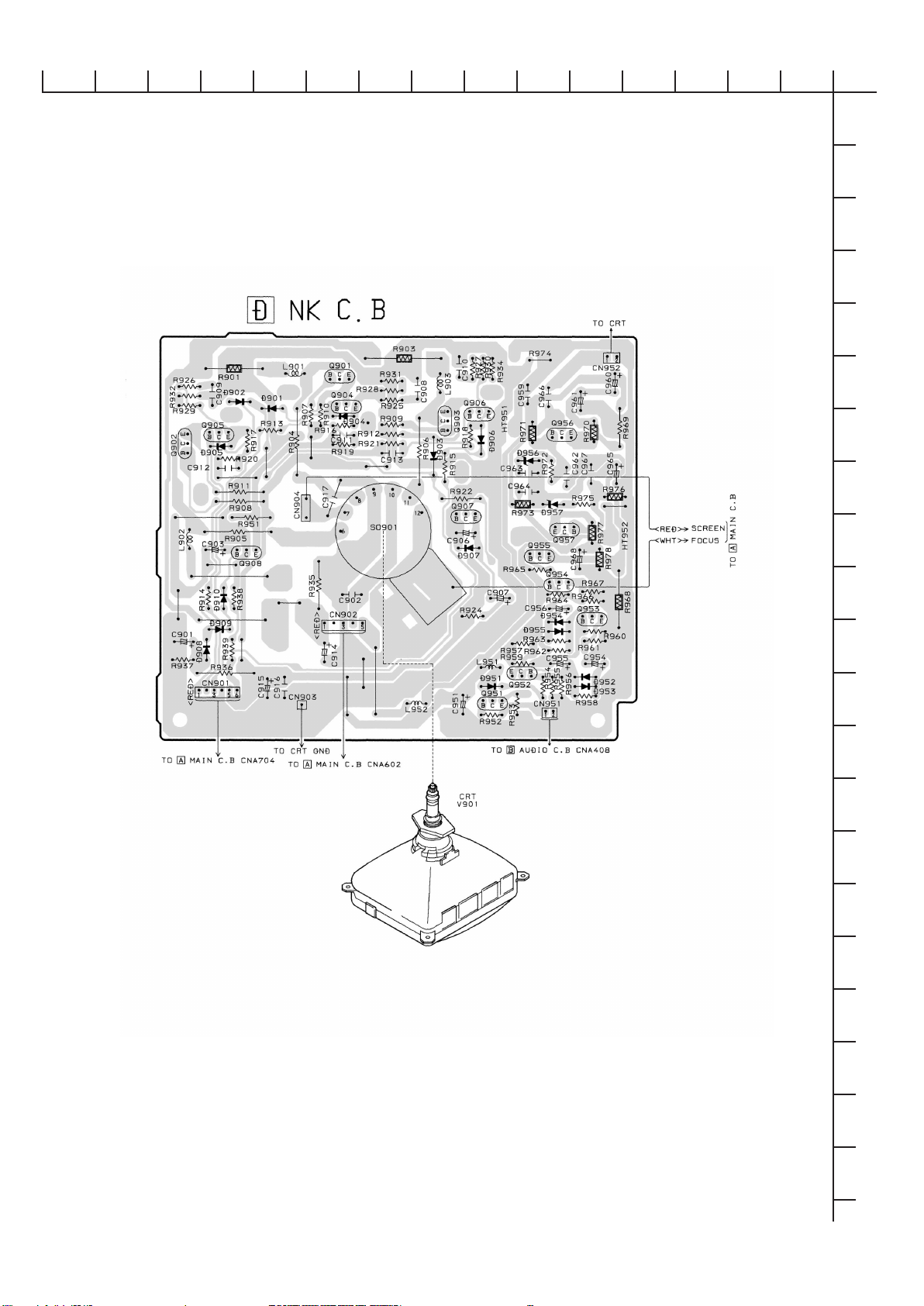

WIRING – 4 (NK)
– 20 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
Other manuals for TV-F2100
1
Table of contents
Other Aiwa TV manuals
