SERVICE MANUAL
DATA
COLOR TELEVISION
TV-FS2180 SHR
S/M Code No. 09-005-429-7R1
REVISION
•This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-002-429-7T1).
•This Service Manual does not include “DISASSEMBLY INSTRUCTIONS” and
“ADJUSTMENT”. These items will be issued in the next Supplement.
All manuals and user guides at all-guides.com
all-guides.com

– 2 –
SPECIFICATIONS
Tuner System Frequency synthesized tuner
TV System PAL (B/G, H, I, D/K)
SECAM (B/G, I, D/K, K1)
NTSC (M)
Channel Coverage VHF: E2 to E12, R1 to R12
UHF: 21 to 69
CATV: S1 to S41
Program Memory 100 TV stations
Antenna Input 75 ohms, unbalanced
Picture Tube 21"
Screen Size 406 (W) X 305 (H) mm
(16 X 121/8in.)
508 mm (diagonal) (20 in.)
Video Input / Output 1 Vp-p 75 ohms
Audio Input -8 dBs., more than 33 k ohms
Audio Output -8 dBs., less than 2.2 k ohms
7 W + 7 W (10 % Harmonic distortion)
Speaker 60 X 120 mm (23/8X 43/4in.)
Operating Voltage 110 - 240 V AC, 50 / 60 Hz
Power Consumption 98 W (Standby mode: 9W)
Phones Jack Stereo-mini jack
Operating Temperature 5 °C – 40 °C
Operating Humidity 35 % – 80 %
Dimensions 610 (W) X 440 (H) X 485 (D) mm
(241/8x 173/8x 191/8in.)
Weight 26.5 kg (58.3 lbs.)
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
• Design and specifications are subject to change without
notice.
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8A-JEA-951-010 RC UNIT,RC-ZVT25
2 8A-JEH-901-010 IB,SH/SHR (E/CH/A/P) -FS2180
3 8A-JEH-902-010 WARR-CARD,FS2180
4 86-LB3-610-010 ANT ASSY,TV 5 SEC.( PAL)
All manuals and user guides at all-guides.com

– 3 –

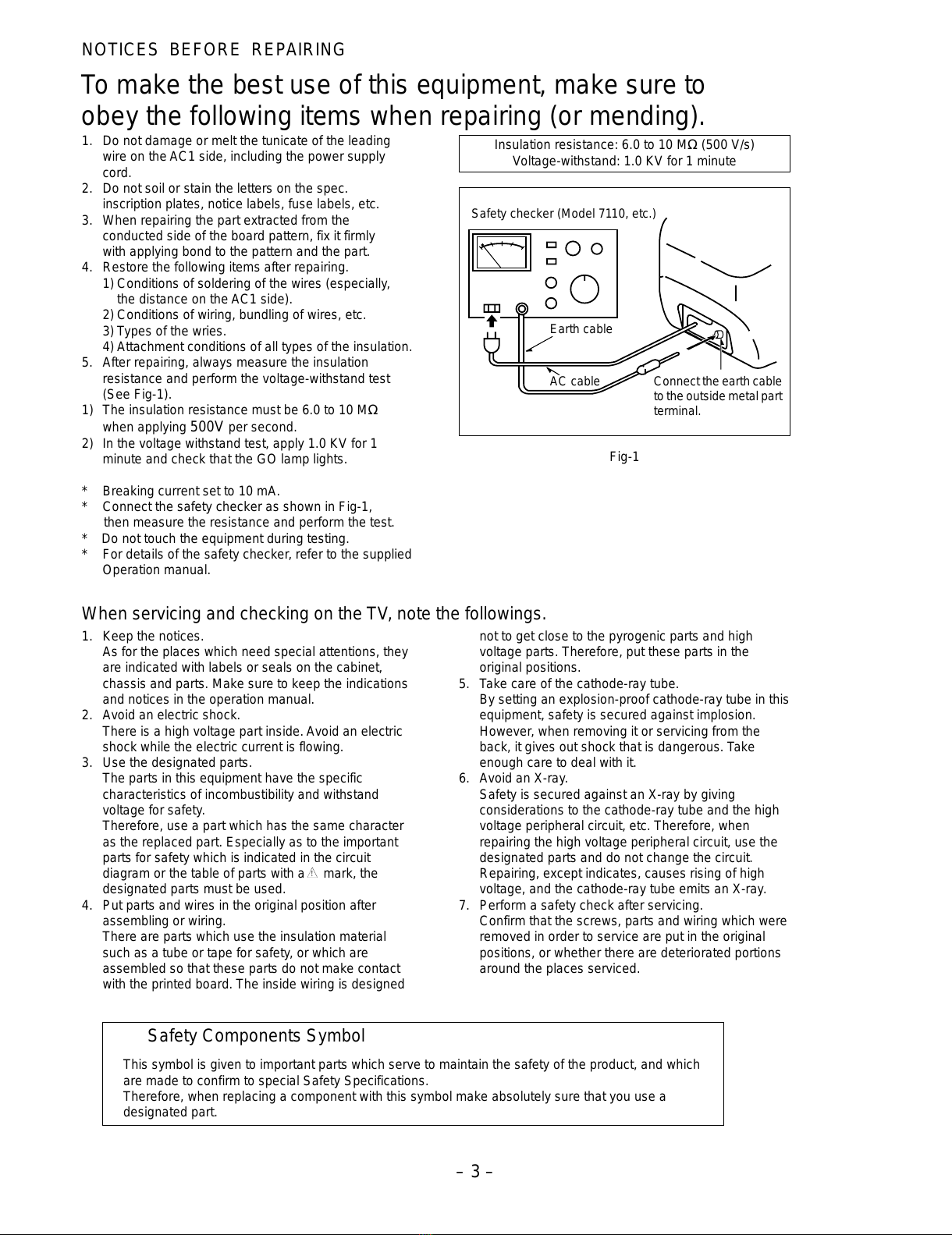

When servicing and checking on the TV, note the followings.
NOTICES BEFORE REPAIRING
To make the best use of this equipment, make sure to
obey the following items when repairing (or mending).
1. Do not damage or melt the tunicate of the leading
wire on the AC1 side, including the power supply
cord.
2. Do not soil or stain the letters on the spec.
inscription plates, notice labels, fuse labels, etc.
3. When repairing the part extracted from the
conducted side of the board pattern, fix it firmly
with applying bond to the pattern and the part.
4. Restore the following items after repairing.
1) Conditions of soldering of the wires (especially,
the distance on the AC1 side).
2) Conditions of wiring, bundling of wires, etc.
3) Types of the wries.
4) Attachment conditions of all types of the insulation.
5. After repairing, always measure the insulation
resistance and perform the voltage-withstand test
(See Fig-1).
1) The insulation resistance must be 6.0 to 10 MΩ
when applying 500V per second.
2) In the voltage withstand test, apply 1.0 KV for 1
minute and check that the GO lamp lights.
* Breaking current set to 10 mA.
* Connect the safety checker as shown in Fig-1,
then measure the resistance and perform the test.
* Do not touch the equipment during testing.
* For details of the safety checker, refer to the supplied
Operation manual.
not to get close to the pyrogenic parts and high
voltage parts. Therefore, put these parts in the
original positions.
5. Take care of the cathode-ray tube.
By setting an explosion-proof cathode-ray tube in this
equipment, safety is secured against implosion.
However, when removing it or servicing from the
back, it gives out shock that is dangerous. Take
enough care to deal with it.
6. Avoid an X-ray.
Safety is secured against an X-ray by giving
considerations to the cathode-ray tube and the high
voltage peripheral circuit, etc. Therefore, when
repairing the high voltage peripheral circuit, use the
designated parts and do not change the circuit.
Repairing, except indicates, causes rising of high
voltage, and the cathode-ray tube emits an X-ray.
7. Perform a safety check after servicing.
Confirm that the screws, parts and wiring which were
removed in order to service are put in the original
positions, or whether there are deteriorated portions
around the places serviced.
Fig-1
Insulation resistance: 6.0 to 10 MΩ(500 V/s)
Voltage-withstand: 1.0 KV for 1 minute
1. Keep the notices.
As for the places which need special attentions, they
are indicated with labels or seals on the cabinet,
chassis and parts. Make sure to keep the indications
and notices in the operation manual.
2. Avoid an electric shock.
There is a high voltage part inside. Avoid an electric
shock while the electric current is flowing.
3. Use the designated parts.
The parts in this equipment have the specific
characteristics of incombustibility and withstand
voltage for safety.
Therefore, use a part which has the same character
as the replaced part. Especially as to the important
parts for safety which is indicated in the circuit
diagram or the table of parts with a mark, the
designated parts must be used.
4. Put parts and wires in the original position after
assembling or wiring.
There are parts which use the insulation material
such as a tube or tape for safety, or which are
assembled so that these parts do not make contact
with the printed board. The inside wiring is designed
!
Safety checker (Model 7110, etc.)
Earth cable
AC cable Connecttheearthcable
tothe outsidemetal part
terminal.
Safety Components Symbol
This symbol is given to important parts which serve to maintain the safety of the product, and which
are made to confirm to special Safety Specifications.
Therefore, when replacing a component with this symbol make absolutely sure that you use a
designated part.
All manuals and user guides at all-guides.com

– 4 –

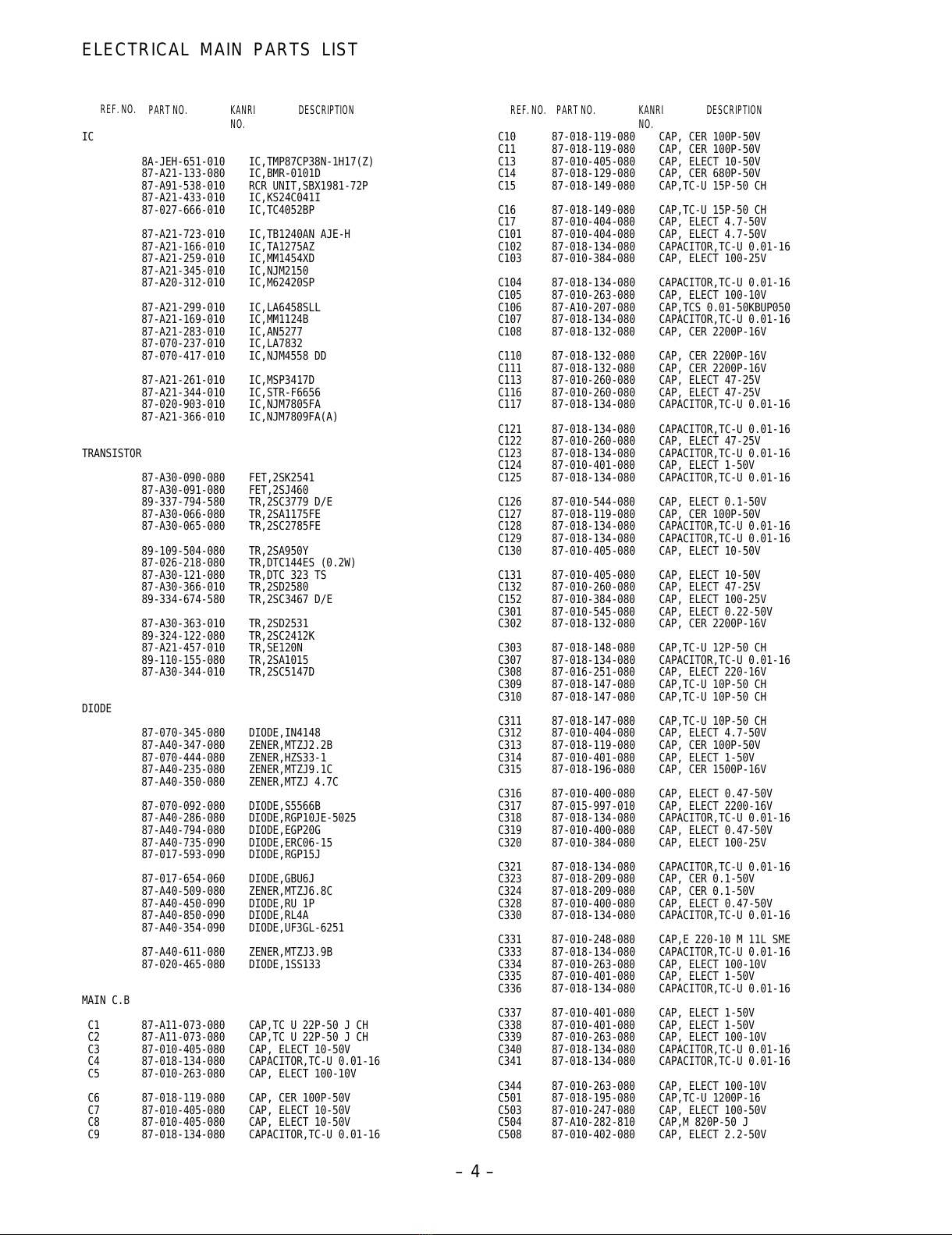

ELECTRICAL MAIN PARTS LIST
DESCRIPTION
REF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8A-JEH-651-010 IC,TMP87CP38N-1H17(Z)
87-A21-133-080 IC,BMR-0101D
87-A91-538-010 RCR UNIT,SBX1981-72P
87-A21-433-010 IC,KS24C041I
87-027-666-010 IC,TC4052BP
87-A21-723-010 IC,TB1240AN AJE-H
87-A21-166-010 IC,TA1275AZ
87-A21-259-010 IC,MM1454XD
87-A21-345-010 IC,NJM2150
87-A20-312-010 IC,M62420SP
87-A21-299-010 IC,LA6458SLL
87-A21-169-010 IC,MM1124B
87-A21-283-010 IC,AN5277
87-070-237-010 IC,LA7832
87-070-417-010 IC,NJM4558 DD
87-A21-261-010 IC,MSP3417D
87-A21-344-010 IC,STR-F6656
87-020-903-010 IC,NJM7805FA
87-A21-366-010 IC,NJM7809FA(A)

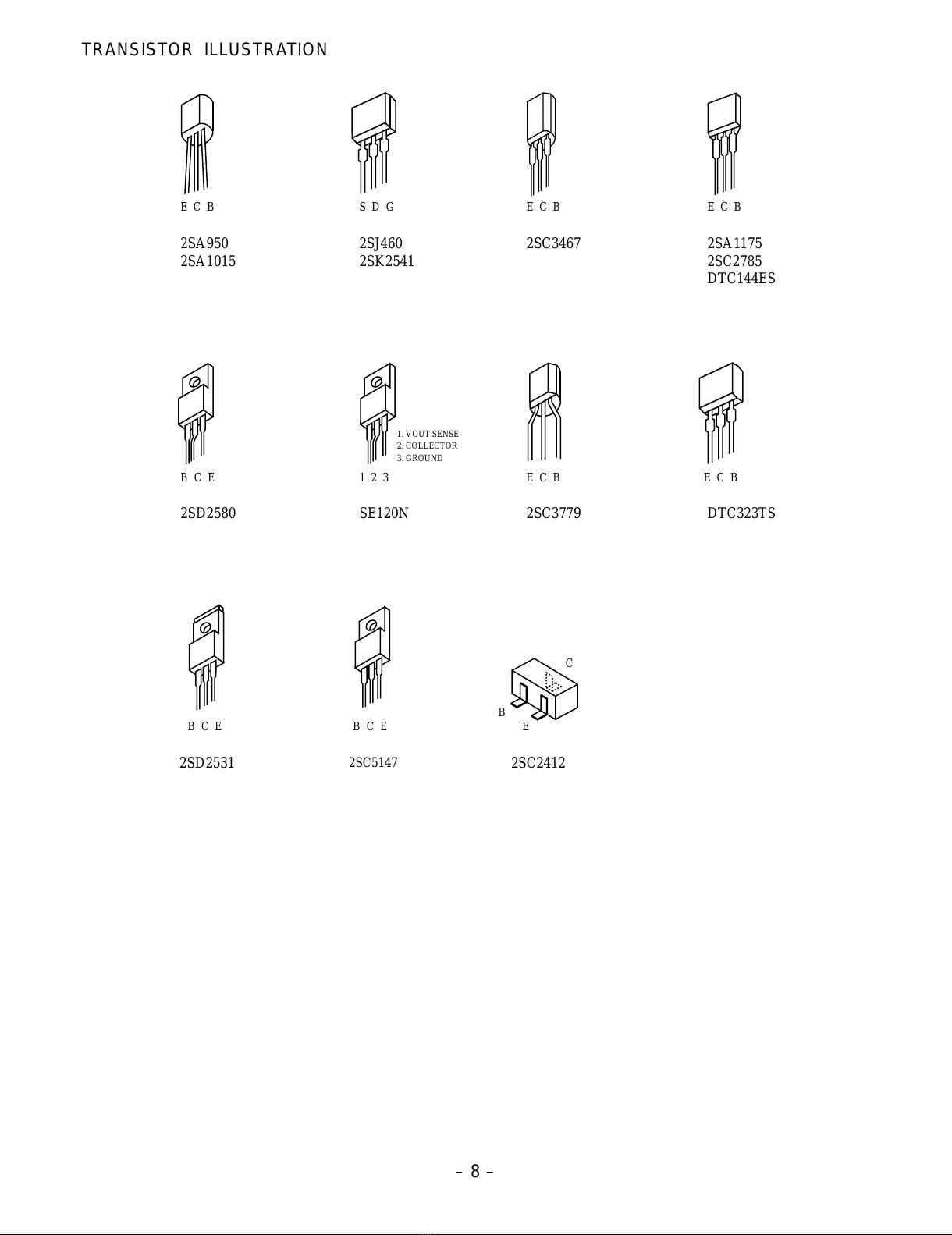

TRANSISTOR
87-A30-090-080 FET,2SK2541
87-A30-091-080 FET,2SJ460
89-337-794-580 TR,2SC3779 D/E
87-A30-066-080 TR,2SA1175FE
87-A30-065-080 TR,2SC2785FE
89-109-504-080 TR,2SA950Y
87-026-218-080 TR,DTC144ES (0.2W)
87-A30-121-080 TR,DTC 323 TS
87-A30-366-010 TR,2SD2580
89-334-674-580 TR,2SC3467 D/E
87-A30-363-010 TR,2SD2531
89-324-122-080 TR,2SC2412K
87-A21-457-010 TR,SE120N
89-110-155-080 TR,2SA1015
87-A30-344-010 TR,2SC5147D
DIODE
87-070-345-080 DIODE,IN4148
87-A40-347-080 ZENER,MTZJ2.2B
87-070-444-080 ZENER,HZS33-1
87-A40-235-080 ZENER,MTZJ9.1C
87-A40-350-080 ZENER,MTZJ 4.7C
87-070-092-080 DIODE,S5566B
87-A40-286-080 DIODE,RGP10JE-5025
87-A40-794-080 DIODE,EGP20G
87-A40-735-090 DIODE,ERC06-15
87-017-593-090 DIODE,RGP15J
87-017-654-060 DIODE,GBU6J
87-A40-509-080 ZENER,MTZJ6.8C
87-A40-450-090 DIODE,RU 1P
87-A40-850-090 DIODE,RL4A
87-A40-354-090 DIODE,UF3GL-6251
87-A40-611-080 ZENER,MTZJ3.9B
87-020-465-080 DIODE,1SS133
MAIN C.B
C1 87-A11-073-080 CAP,TC U 22P-50 J CH
C2 87-A11-073-080 CAP,TC U 22P-50 J CH
C3 87-010-405-080 CAP, ELECT 10-50V
C4 87-018-134-080 CAPACITOR,TC-U 0.01-16
C5 87-010-263-080 CAP, ELECT 100-10V
C6 87-018-119-080 CAP, CER 100P-50V
C7 87-010-405-080 CAP, ELECT 10-50V
C8 87-010-405-080 CAP, ELECT 10-50V
C9 87-018-134-080 CAPACITOR,TC-U 0.01-16
C10 87-018-119-080 CAP, CER 100P-50V
C11 87-018-119-080 CAP, CER 100P-50V
C13 87-010-405-080 CAP, ELECT 10-50V
C14 87-018-129-080 CAP, CER 680P-50V
C15 87-018-149-080 CAP,TC-U 15P-50 CH
C16 87-018-149-080 CAP,TC-U 15P-50 CH
C17 87-010-404-080 CAP, ELECT 4.7-50V
C101 87-010-404-080 CAP, ELECT 4.7-50V
C102 87-018-134-080 CAPACITOR,TC-U 0.01-16
C103 87-010-384-080 CAP, ELECT 100-25V
C104 87-018-134-080 CAPACITOR,TC-U 0.01-16
C105 87-010-263-080 CAP, ELECT 100-10V
C106 87-A10-207-080 CAP,TCS 0.01-50KBUP050
C107 87-018-134-080 CAPACITOR,TC-U 0.01-16
C108 87-018-132-080 CAP, CER 2200P-16V
C110 87-018-132-080 CAP, CER 2200P-16V
C111 87-018-132-080 CAP, CER 2200P-16V
C113 87-010-260-080 CAP, ELECT 47-25V
C116 87-010-260-080 CAP, ELECT 47-25V
C117 87-018-134-080 CAPACITOR,TC-U 0.01-16
C121 87-018-134-080 CAPACITOR,TC-U 0.01-16
C122 87-010-260-080 CAP, ELECT 47-25V
C123 87-018-134-080 CAPACITOR,TC-U 0.01-16
C124 87-010-401-080 CAP, ELECT 1-50V
C125 87-018-134-080 CAPACITOR,TC-U 0.01-16
C126 87-010-544-080 CAP, ELECT 0.1-50V
C127 87-018-119-080 CAP, CER 100P-50V
C128 87-018-134-080 CAPACITOR,TC-U 0.01-16
C129 87-018-134-080 CAPACITOR,TC-U 0.01-16
C130 87-010-405-080 CAP, ELECT 10-50V
C131 87-010-405-080 CAP, ELECT 10-50V
C132 87-010-260-080 CAP, ELECT 47-25V
C152 87-010-384-080 CAP, ELECT 100-25V
C301 87-010-545-080 CAP, ELECT 0.22-50V
C302 87-018-132-080 CAP, CER 2200P-16V
C303 87-018-148-080 CAP,TC-U 12P-50 CH
C307 87-018-134-080 CAPACITOR,TC-U 0.01-16
C308 87-016-251-080 CAP, ELECT 220-16V
C309 87-018-147-080 CAP,TC-U 10P-50 CH
C310 87-018-147-080 CAP,TC-U 10P-50 CH
C311 87-018-147-080 CAP,TC-U 10P-50 CH
C312 87-010-404-080 CAP, ELECT 4.7-50V
C313 87-018-119-080 CAP, CER 100P-50V
C314 87-010-401-080 CAP, ELECT 1-50V
C315 87-018-196-080 CAP, CER 1500P-16V
C316 87-010-400-080 CAP, ELECT 0.47-50V
C317 87-015-997-010 CAP, ELECT 2200-16V
C318 87-018-134-080 CAPACITOR,TC-U 0.01-16
C319 87-010-400-080 CAP, ELECT 0.47-50V
C320 87-010-384-080 CAP, ELECT 100-25V
C321 87-018-134-080 CAPACITOR,TC-U 0.01-16
C323 87-018-209-080 CAP, CER 0.1-50V
C324 87-018-209-080 CAP, CER 0.1-50V
C328 87-010-400-080 CAP, ELECT 0.47-50V
C330 87-018-134-080 CAPACITOR,TC-U 0.01-16
C331 87-010-248-080 CAP,E 220-10 M 11L SME
C333 87-018-134-080 CAPACITOR,TC-U 0.01-16
C334 87-010-263-080 CAP, ELECT 100-10V
C335 87-010-401-080 CAP, ELECT 1-50V
C336 87-018-134-080 CAPACITOR,TC-U 0.01-16
C337 87-010-401-080 CAP, ELECT 1-50V
C338 87-010-401-080 CAP, ELECT 1-50V
C339 87-010-263-080 CAP, ELECT 100-10V
C340 87-018-134-080 CAPACITOR,TC-U 0.01-16
C341 87-018-134-080 CAPACITOR,TC-U 0.01-16
C344 87-010-263-080 CAP, ELECT 100-10V
C501 87-018-195-080 CAP,TC-U 1200P-16
C503 87-010-247-080 CAP, ELECT 100-50V
C504 87-A10-282-810 CAP,M 820P-50 J
C508 87-010-402-080 CAP, ELECT 2.2-50V
All manuals and user guides at all-guides.com

– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C512 87-A10-011-090 CAP,E 2200-25 SMG
C513 87-018-127-080 CAP, CER 470P-50V
C601 87-A10-406-010 CAP,CER 270P-2K K BN DE
C603 87-A10-052-080 CAP,E 2.2-250 V
C606 87-016-515-080 CAP,CER 1000P-1K B
C607 87-010-397-090 CAP,E 1000-35 SME
C609 87-010-957-080 CAP,E330-25 M SMG
C616 87-018-132-080 CAP, CER 2200P-16V
C617 87-010-976-080 CAP,CER 1000P-500 B
C618 87-010-974-080 CAP,CER 220P-500 B
C619 87-016-215-080 CAP,E 1-160 M TWSS
C801 87-A10-688-090 CAP,M/P 0.22-275 K (B81133)
C802 87-A10-688-090 CAP,M/P 0.22-275 K (B81133)
C805 87-012-370-010 CAP,CER 3300P-250NS
C807 87-A12-301-090 CAP,E 470-400 M
C809 87-018-131-080 CAP, CER 1000P-50V
C810 87-010-384-080 CAP, ELECT 100-25V
C811 87-018-127-080 CAP, CER 470P-50V
C812 87-018-129-080 CAP, CER 680P-50V
C813 87-A10-626-090 CAP,M/P 0.01-1250 J
C814 87-A11-779-090 CAP,M/P 1000P-1.6K J ECWH(VB)
C815 87-A11-779-090 CAP,M/P 1000P-1.6K J ECWH(VB)
C816 87-A11-260-090 CAP,M/P 1000P-1.6 K
C817 87-A10-731-090 CAP,E 220-160 M KMF
C818 87-A12-053-090 CAP,E 100-160 M SME
C822 87-A10-859-010 CAP,CER 390P-2K K R
C823 87-016-051-090 CAP,E 2200-35 M SMG
C824 87-010-397-090 CAP,E 1000-35 SME
C826 87-010-235-080 CAP,E 470-16 SME
C827 87-010-405-080 CAP, ELECT 10-50V
C828 87-010-405-080 CAP, ELECT 10-50V
C829 87-A10-469-080 CAP,CER 2200P-500 K B DD10
C830 87-010-405-080 CAP, ELECT 10-50V
C831 87-010-405-080 CAP, ELECT 10-50V
C832 87-010-405-080 CAP, ELECT 10-50V
C833 87-010-405-080 CAP, ELECT 10-50V
C901 87-010-405-080 CAP, ELECT 10-50V
C902 87-010-401-080 CAP, ELECT 1-50V
C903 87-010-401-080 CAP, ELECT 1-50V
C904 87-010-221-080 CAP, ELECT 470-10V
C905 87-010-405-080 CAP, ELECT 10-50V
C906 87-010-405-080 CAP, ELECT 10-50V
C907 87-010-405-080 CAP, ELECT 10-50V
C908 87-010-401-080 CAP, ELECT 1-50V
C909 87-010-401-080 CAP, ELECT 1-50V
C910 87-010-401-080 CAP, ELECT 1-50V
C911 87-010-401-080 CAP, ELECT 1-50V
C912 87-010-260-080 CAP, ELECT 47-25V
C913 87-018-134-080 CAPACITOR,TC-U 0.01-16
C914 87-018-134-080 CAPACITOR,TC-U 0.01-16
C915 87-018-133-080 CAPACITOR,CER 4700P-16V
C916 87-018-133-080 CAPACITOR,CER 4700P-16V
CF201 87-A90-224-080 FLTR, TPS6.0MB
CF202 87-008-578-080 FLTR,TPS6.5MB2
CF203 84-LB3-626-080 FLTR,TPS4.5MB2
CF204 87-008-577-080 FLTR,TPS5.5MB2
CF205 87-008-574-080 FLTR,SFSH4.5MCB
CN1 87-099-407-010 CONN,7P EH V WHT
CN101 87-A60-734-010 CONN,8P JL-BT
CN102 87-A60-732-010 CONN,6P JL-BT
CN601 87-099-762-010 CONN,5P TBL-P V BOSS
CN603 87-A60-003-010 CONN,2P V TBL-P BOSS
CN801 87-099-674-010 CONN,2P VA V
CN802 82-481-649-010 PLUG,2P MINI(*)
CNA301 84-LB2-631-010 CONN ASSY,5P TN-4
CNA501 8A-JEA-660-010 CONN ASSY,5P MAIN-PIN
CNA600 8A-JEH-660-010 CONN ASSY,2P MAIN-PIN
CNA604 8A-JEH-661-010 CONN ASSY,1P BLK MAIN-PIN
CNA801 8Z-JB9-663-010 CONN ASSY,8P V AU PW 200
CNA802 8Z-JB4-658-010 CONN ASSY,5P MAIN-NK 20'/21'
CNA901 8Z-JB9-662-010 CONN ASSY,6P V AU L/R 300
CNA903 8Z-JB9-661-010 CONN ASSY,10P MAIN-AUDIO
D9 87-A40-422-010 LED,SLP-581D-51 Y-G/R
D801 87-A90-965-010 VRIS,TNR15G471K
F801 87-035-458-010 FUSE,4A 250V T W/C
FB1 87-003-320-080 F-BEAD,FBR07HA121NB
FB501 87-003-320-080 F-BEAD,FBR07HA121NB
FB601 87-003-320-080 F-BEAD,FBR07HA121NB
FB801 87-003-320-080 F-BEAD,FBR07HA121NB
FB802 87-003-320-080 F-BEAD,FBR07HA121NB
FB805 87-003-320-080 F-BEAD,FBR07HA121NB
FB806 87-003-320-080 F-BEAD,FBR07HA121NB
FC801 87-033-213-080 CLAMP, FUSE
FC802 87-033-213-080 CLAMP, FUSE
FR601 87-A00-063-060 RES,FUSE 2.2-1/2W J R-TYPE
FR603 87-029-150-090 RES,FUSE 3.9-2W J
FR604 87-A00-486-090 RES,FUSE 1.5-2W J
FR606 87-A00-652-090 RES,FUSE 0.33-1W J RF
FR803 87-025-538-090 RES,M/O 68-3W J
J901 87-A60-324-110 JACK,PIN 6P Y-W-R W/SW
J902 87-A61-021-010 JACK,PIN 3P W/SW YKC21-5734
L1 87-003-147-080 COIL, 22UH
L2 87-003-152-080 COIL, 100UH
L104 87-003-106-080 COIL,0.33UH K
L108 87-003-146-080 COIL, 15UH
L109 87-003-282-080 COIL,12UH
L110 87-003-146-080 COIL,15UH LAL02
L111 87-003-282-080 COIL,12UH
L112 87-005-481-080 COIL,47UH
L113 87-003-098-080 COIL,2.2UH
L114 87-A50-530-010 COIL,VCO38.0MHZ
L301 87-005-444-080 COIL 100UH,K
L801 87-A50-636-010 COIL,390UH RCH110
LF801 87-JB8-651-010 FLTR,LINE SS24H-K15070
LF802 87-JB8-651-010 FLTR,LINE SS24H-K15070
PR801 87-A90-090-080 PROTECTOR,1.5A 491SERIES 60V
PR803 87-A90-094-080 PROTECTOR,4A 491SERIES 60V
PR804 87-A90-094-080 PROTECTOR,4A 491SERIES 60V
PS801 87-A91-407-010 P-COUPLER,ON3171-R
PS802 87-A91-407-010 P-COUPLER,ON3171-R
PT801 8Z-JBA-621-010 PT,SW ZJB-SH-7 M
R101 87-A00-164-090 RES,M/F 12K-2W J RSF(S)
R317 87-A00-308-090 RES,M/F 47-3W J RSF(S)
R511 87-A00-541-090 RES,M/F 390-1W J RSF(S)
R515 87-A00-675-090 RES,M/F 1.3-1W J RSF(S)
R612 87-A00-238-090 RES,M/F 3.3K-5W J RSV5
R802 87-A00-552-010 RES,CEM 1.0-10W J MPC722
R803 87-A00-552-010 RES,CEM 1.0-10W J MPC722
R804 87-A00-543-080 RES,SD 8.2M-1W J RCR60
R807 87-A00-639-090 RES,CEM 0.15-5W K BPR
R808 87-A00-573-090 RES,CEM 0.33-5W J MPC71
R816 87-A00-170-090 RES,M/F 82K-3W J RSF(S)
R817 87-A00-223-090 RES,M/F 47K-2W J RSF(S)
R827 87-A00-673-090 RES,M/F 82K-5W J RSS5L30
R830 87-A00-752-090 RES,M/F 8.2-5W J
S1 87-A91-525-080 SW,TACT SKQNLA
S2 87-A91-525-080 SW,TACT SKQNLA
S3 87-A91-525-080 SW,TACT SKQNLA
S4 87-A91-525-080 SW,TACT SKQNLA
S5 87-A91-525-080 SW,TACT SKQNLA
S6 87-A91-525-080 SW,TACT SKQNLA
S501 87-A90-567-010 SW,LVR 4-1-3 EVQRAAL10
S801 87-A91-410-010 SW,AC PUSH 1-1-1 ESB92SH1B
SWF201 87-A91-515-010 FLTR,SAW TSB5388P
SWF202 87-A91-556-010 FLTR,SAW TSF6364U
T601 8A-JEA-606-010 FBT,SH NX4014 AJE-A
T602 85-JT2-653-010 PT,HDT-TV141-2
THP801 87-A91-405-010 POS-THMS,T209-B80-A10
TU101 87-A91-495-010 TU UNIT, ENV59D58G3-38.0MHZ
X1 87-030-300-080 VIB,XTAL 8.00MHZ
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
All manuals and user guides at all-guides.com

– 6 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
X301 87-A70-054-080 VIB,XTAL 4.43MHZ AQC-1018

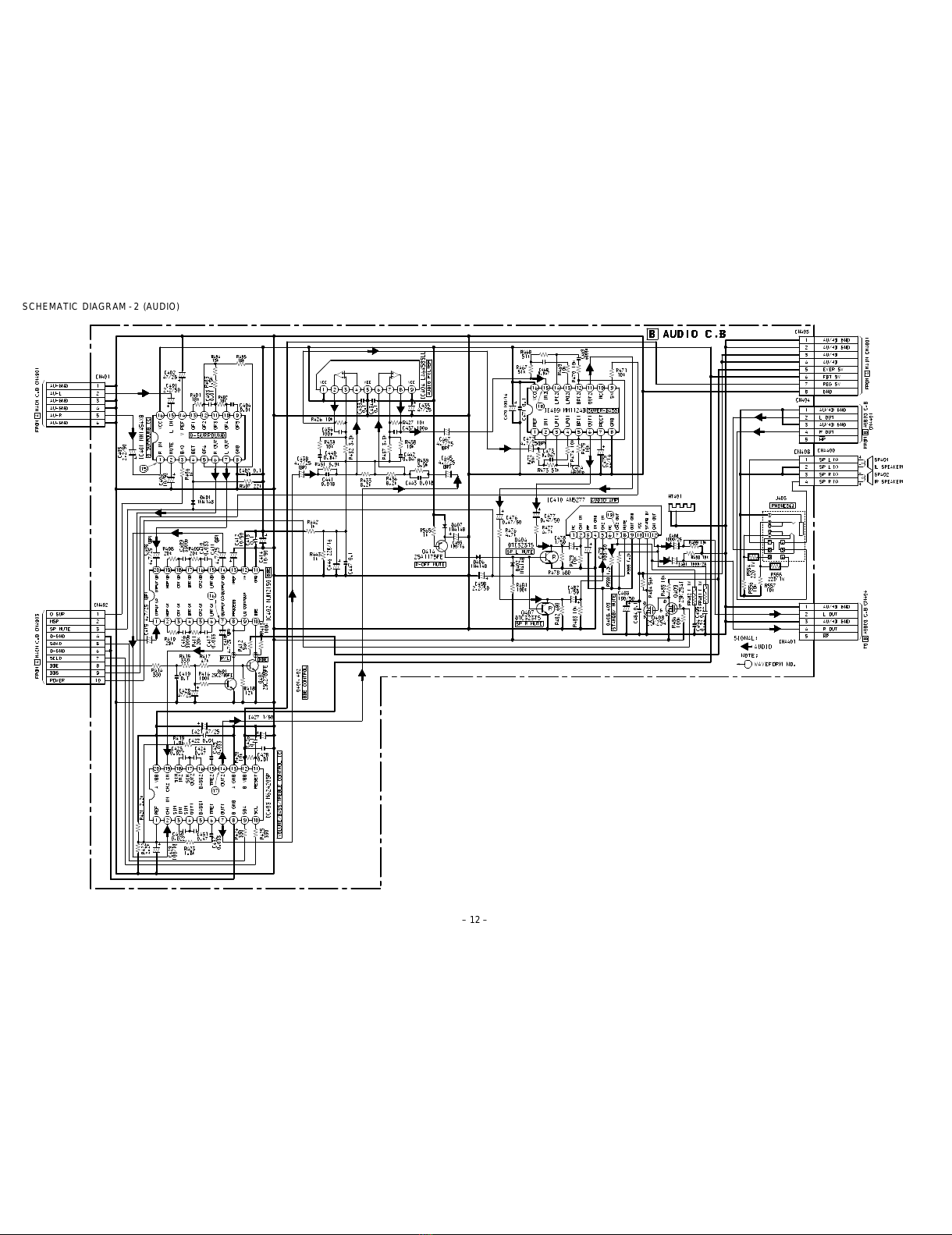

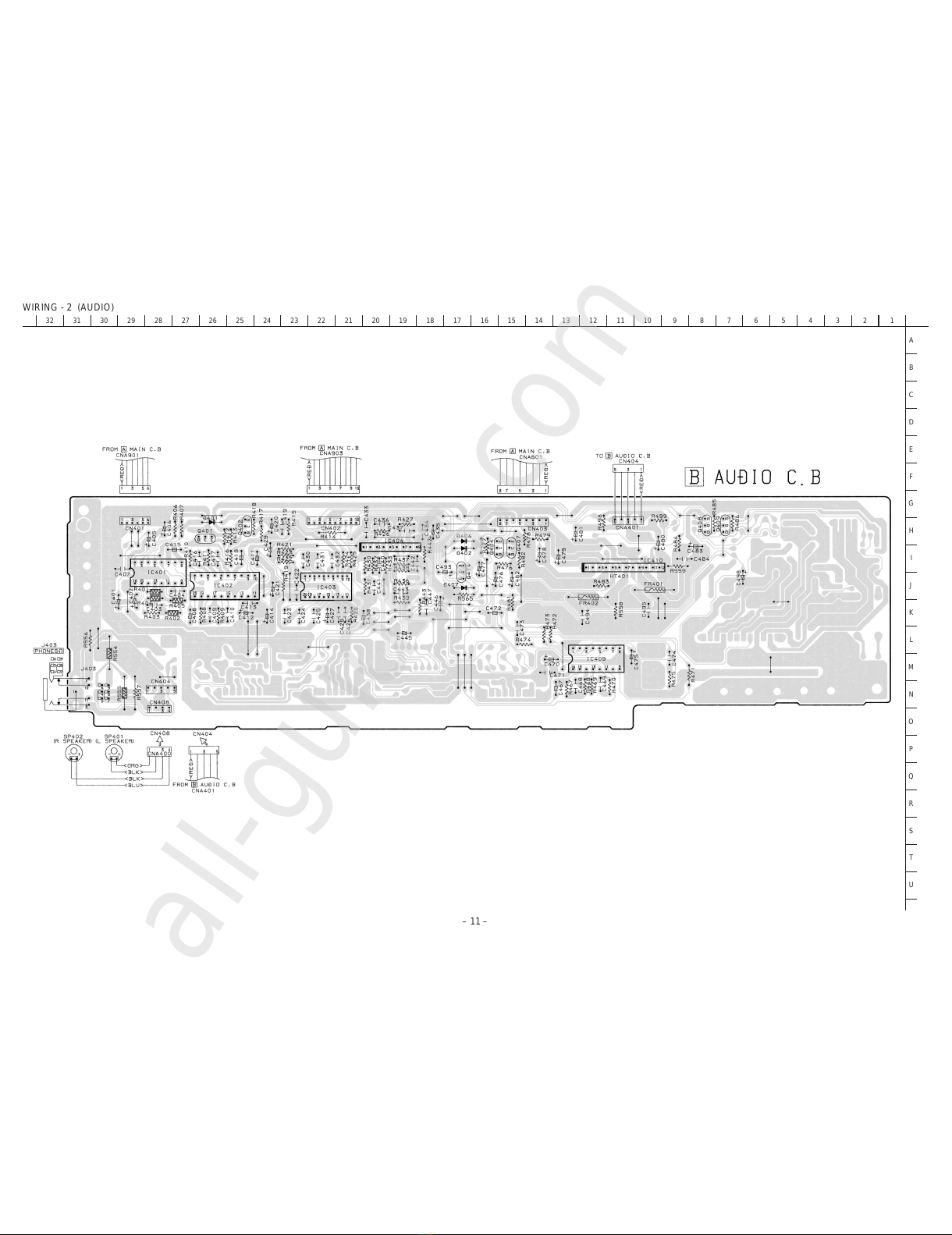

AUDIO C.B
C401 87-010-402-080 CAP, ELECT 2.2-50V
C402 87-010-260-080 CAP, ELECT 47-25V
C403 87-018-134-080 CAPACITOR,TC-U 0.01-16
C405 87-010-402-080 CAP, ELECT 2.2-50V
C406 87-010-405-080 CAP, ELECT 10-50V
C407 87-A11-148-080 CAP,TC U 0.1-50 Z F
C408 87-010-367-080 CAP,E 4.7-25 BP
C411 87-010-367-080 CAP,E 4.7-25 BP
C412 87-010-405-080 CAP, ELECT 10-50V
C413 87-A11-148-080 CAP,TC U 0.1-50 Z F
C414 87-010-405-080 CAP, ELECT 10-50V
C415 87-010-367-080 CAP,E 4.7-25 BP
C418 87-010-367-080 CAP,E 4.7-25 BP
C419 87-A11-148-080 CAP,TC U 0.1-50 Z F
C420 87-010-260-080 CAP, ELECT 47-25V
C421 87-010-260-080 CAP, ELECT 47-25V
C422 87-018-134-080 CAPACITOR,TC-U 0.01-16
C426 87-A11-148-080 CAP,TC U 0.1-50 Z F
C427 87-010-401-080 CAP, ELECT 1-50V
C428 87-018-134-080 CAPACITOR,TC-U 0.01-16
C429 87-010-263-080 CAP, ELECT 100-10V
C433 87-A11-148-080 CAP,TC U 0.1-50 Z F
C434 87-A11-148-080 CAP,TC U 0.1-50 Z F
C435 87-010-260-080 CAP, ELECT 47-25V
C436 87-018-119-080 CAP, CER 100P-50V
C437 87-018-119-080 CAP, CER 100P-50V
C438 87-010-367-080 CAP,E 4.7-25 BP
C440 87-A11-147-080 CAP,TC U 0.047-50 Z F
C442 87-A11-147-080 CAP,TC U 0.047-50 Z F
C445 87-010-367-080 CAP,E 4.7-25 BP
C446 87-010-101-080 CAP, ELECT 220-16
C447 87-A11-148-080 CAP,TC U 0.1-50 Z F
C467 87-010-367-080 CAP,E 4.7-25 BP
C470 87-010-112-080 CAP, ELECT 100-16V
C471 87-A11-148-080 CAP,TC U 0.1-50 Z F
C472 87-010-367-080 CAP,E 4.7-25 BP
C475 87-010-379-080 CAP, ELECT 22-16V
C476 87-010-400-080 CAP, ELECT 0.47-50V
C477 87-010-400-080 CAP, ELECT 0.47-50V
C478 87-010-401-080 CAP, ELECT 1-50V
C479 87-010-247-080 CAP, ELECT 100-50V
C480 87-010-388-080 CAP ELECT 1000-25V SME
C481 87-010-388-080 CAP ELECT 1000-25V SME
C482 87-010-401-080 CAP, ELECT 1-50V
C483 87-010-247-080 CAP, ELECT 100-50V
C484 87-A11-148-080 CAP,TC U 0.1-50 Z F
C493 87-010-112-080 CAP, ELECT 100-16V
C498 87-010-402-080 CAP, ELECT 2.2-50V
CN401 87-009-034-010 CONN,6P PH V
CN403 87-099-408-010 CONN,8P EH V WHT
CN404 87-009-195-010 CONN,5P B5BEH
CNA400 8Z-JBX-602-010 CONN ASSY,4P SP 205-0.5
CNA401 8Z-JB4-660-010 CONN ASSY,5P 401-481 AUDIO
FR401 87-A00-084-090 RES,FUSE 1-1W J
FR402 87-A00-084-090 RES,FUSE 1-1W J
J403 87-A61-275-010 JACK,3.5 BLK ST 2 SW P
R401 87-025-381-080 RES,M/F 18K-1/6W F
R402 87-025-424-080 RES,M/F 10K 1/6W F
R404 87-025-380-080 RES,M/F 15K-1/6W F
R405 87-025-381-080 RES,M/F 18K-1/6W F
PIN C.B
C651 87-A11-336-090 CAP,M/P 0.01-1.6K H ECWH(VB)
C652 87-A11-999-090 CAP,M/P 0.012-800 H ECWH(V)
C653 87-A11-260-090 CAP,M/P 1000P-1.6K H ECWH(VR)
C654 87-A10-867-090 CAP,CER 2200P-2K K R
C655 87-A10-460-010 CAP,PP 0.56-250 J PMS
C656 87-010-963-080 CAP,E 2.2-160 SME
C658 87-016-217-080 CAP,E 4.7-160
C659 87-010-976-080 CAP,CER 1000P-500 B
C660 87-018-131-080 CAP, CER 1000P-50V
C661 87-010-405-080 CAP, ELECT 10-50V
C662 87-010-405-080 CAP, ELECT 10-50V
C663 87-010-395-080 CAP,E 330-35 SME
C665 87-A11-124-080 CAP,TC U 2200P-50 K B
CN651 87-A61-126-080 MALE,1P TP42097
CN652 87-A60-003-010 CONN,2P V TBL-P BOSS
CN653 87-009-195-010 CONN,5P V WHT EH
L651 87-A50-607-080 COIL,3.9MH K LHL10
L652 8Z-JE7-608-010 COIL,HLC ZJE-7
L653 87-005-757-010 COIL,3.3MH
R652 87-A00-537-090 RES,M/F 100-5W J RSV5
R653 87-A00-629-090 RES,M/F 5.6-1W J RSF(S)
SFR651 87-024-434-080 SFR,22K RH063EC
SFR652 87-024-429-080 SFR,1K RH063EC
SFR653 87-024-435-080 SFR,33K H RH063MC
NK C.B
C901 87-010-405-080 CAP,E 10-50 M 11L SME
C902 87-010-968-080 CAP,CER 680P-2K KB
C903 87-010-405-080 CAP,E 10-50 M 11L SME
C906 87-010-400-080 CAP,E 0.47-50 M 11L SME
C907 87-010-235-080 CAP,E 470-16 M SME
C908 87-018-129-080 CAP,TC U 680P-50 KB UP050
C909 87-018-129-080 CAP,TC U 680P-50 KB UP050
C910 87-018-129-080 CAP,TC U 680P-50 KB UP050
C911 87-018-127-080 CAP,TC U 470P-50 KB UP050
C911 87-018-127-080 CAP,TC U 470P-50 KB UP050
C912 87-018-127-080 CAP,TC U 470P-50 KB UP050
C913 87-018-127-080 CAP,TC U 470P-50 KB UP050
C914 87-A10-052-080 CAP,E 2.2-250
C915 87-010-260-080 CAP,E 47-25 M 11L SME
C916 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C917 87-010-970-090 CAP,CER 4700P-2K K B DE
CN901 87-049-590-010 CONN,5P V WHT 8283
CN902 87-009-195-010 CONN,5P V WHT EH
CN903 87-A61-126-080 MALE,1P TP42097
CN904 87-A61-060-080 CONN,1P V RED TP00706
L901 87-005-614-080 COIL,100UH J LAV35
L902 87-005-614-080 COIL,100UH J LAV35
L903 87-005-614-080 COIL,100UH J LAV35
L904 87-005-608-080 COIL,33UH J LAV35
R901 87-A00-242-090 RES,M/F 8.2K-3W J RSF(S)
R902 87-A00-242-090 RES,M/F 8.2K-3W J RSF(S)
R903 87-A00-242-090 RES,M/F 8.2K-3W J RSF(S)
S901 86-LBR-670-010 SOCKET,CRT 9P HPS1521

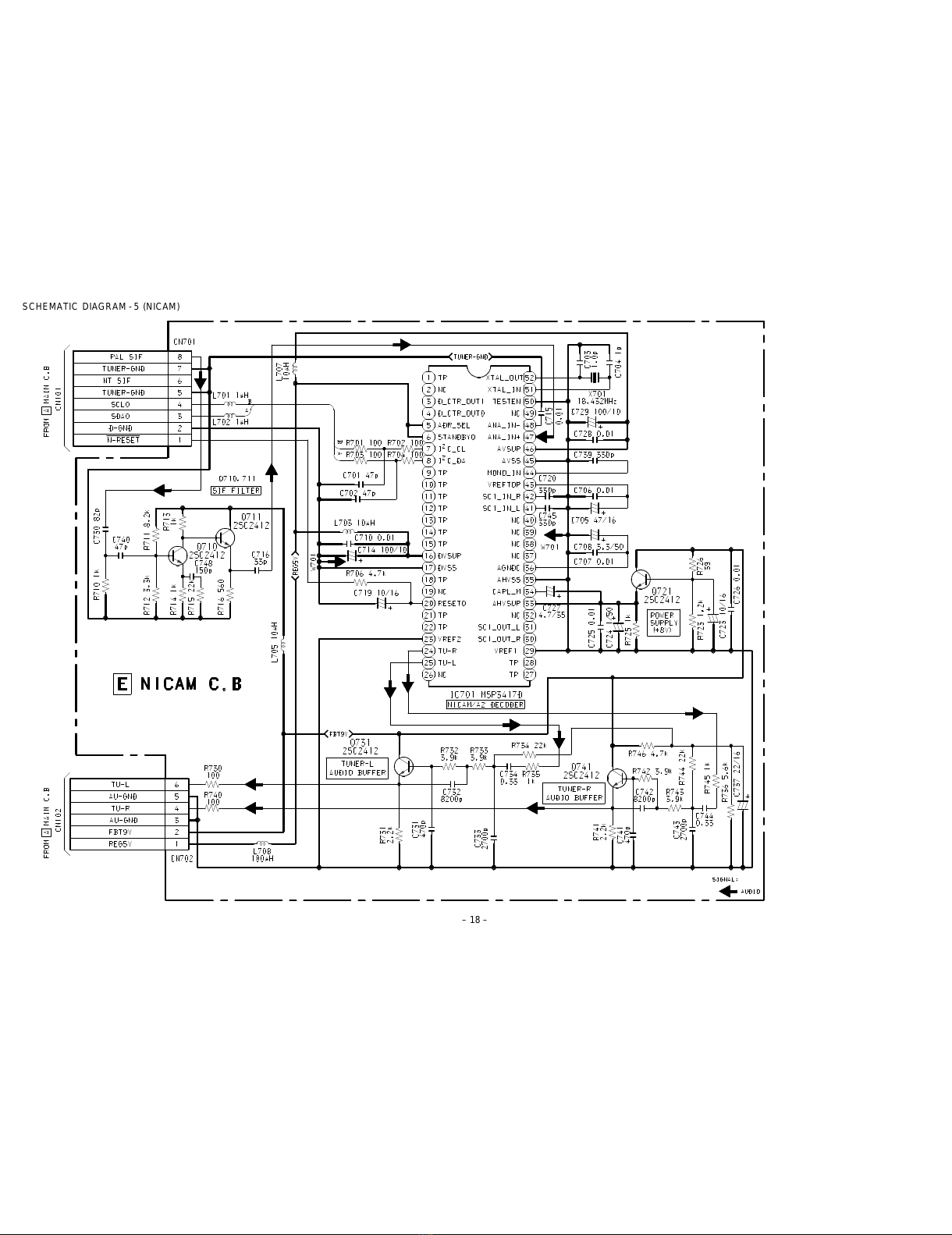

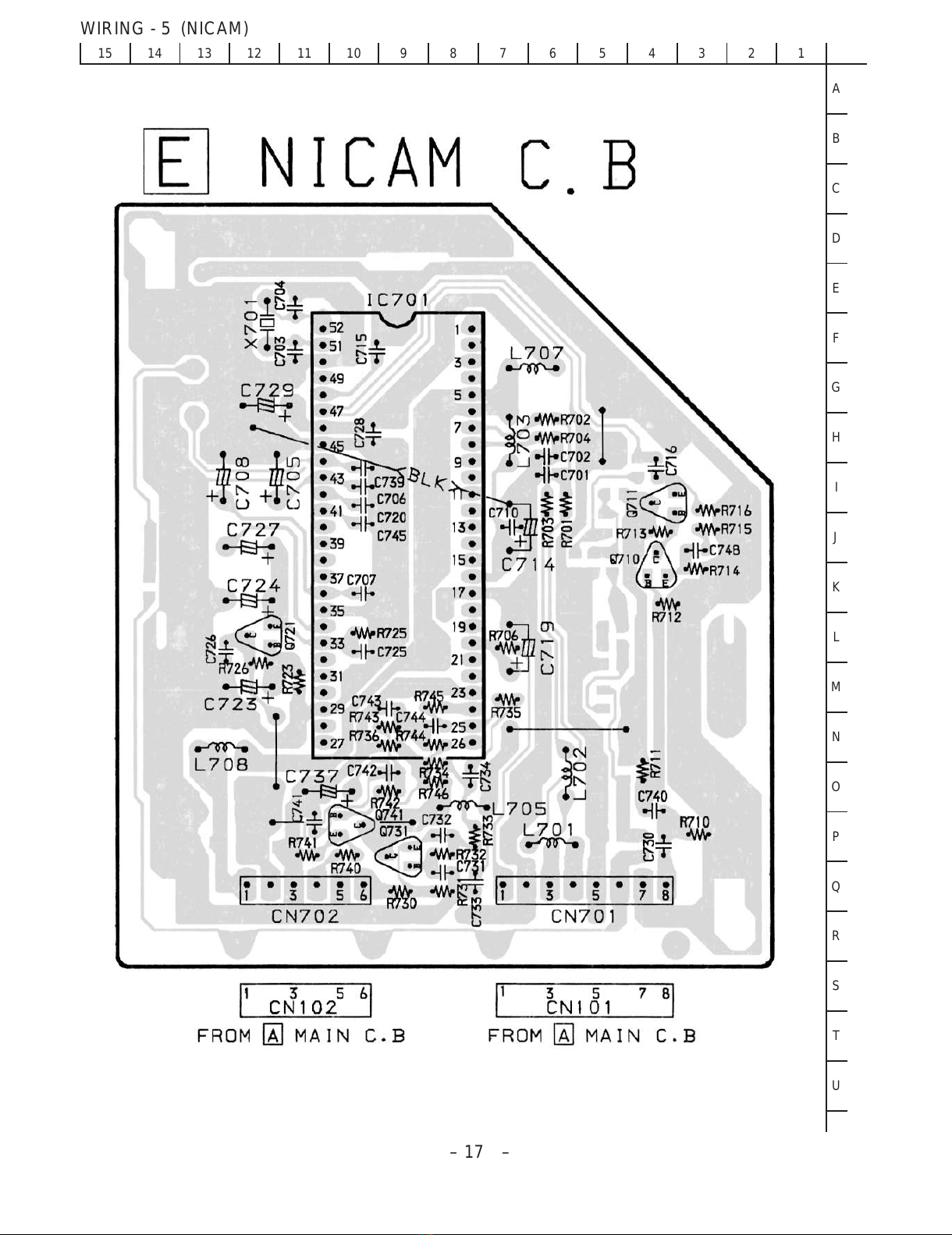

NICAM C.B
C701 87-010-318-080 C-CAP,S 47P-50 CH
C702 87-010-318-080 C-CAP,S 47P-50 CH
C703 87-010-145-080 C-CAP,S 1P-50 CH
C704 87-010-145-080 C-CAP,S 1P-50 CH
C705 87-010-553-080 CAP,E 47-16
C706 87-010-197-080 CAP, CHIP 0.01 DM
C707 87-010-197-080 CAP, CHIP 0.01 DM
C708 87-010-496-080 CAP,E 3.3-50 5L
C709 87-010-197-080 CAP, CHIP 0.01 DM
C710 87-010-197-080 CAP, CHIP 0.01 DM
C714 87-010-555-080 CAP,E 100-10 GAS
C715 87-010-197-080 CAP, CHIP 0.01 DM
C716 87-010-316-080 C-CAP,S 33P-50 CH
C719 87-010-498-080 CAP,E 10-16 GAS
C720 87-012-157-080 C-CAP,S 330P-50 CH
All manuals and user guides at all-guides.com
all-guides.com

– 7 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
88
A

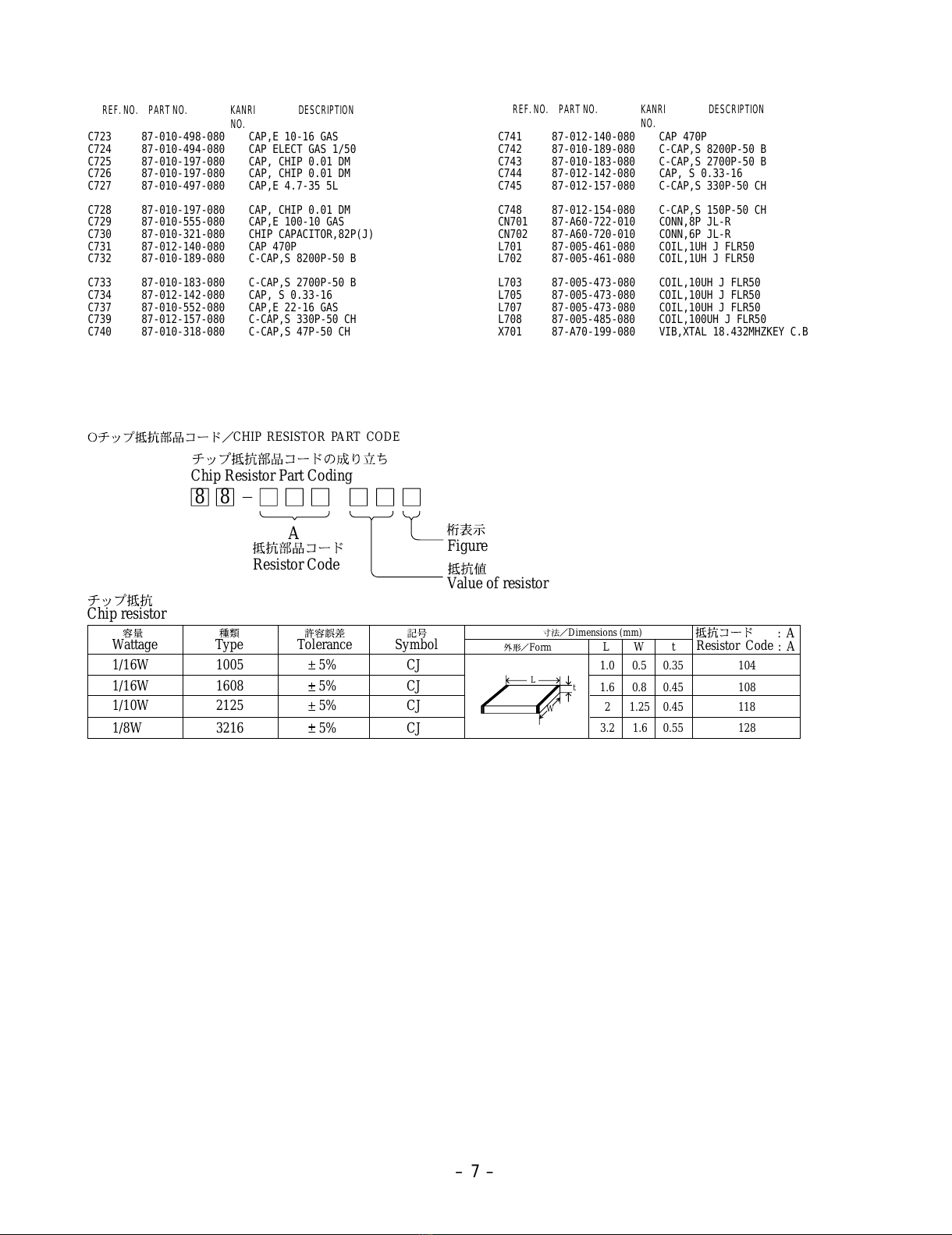

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
C723 87-010-498-080 CAP,E 10-16 GAS
C724 87-010-494-080 CAP ELECT GAS 1/50
C725 87-010-197-080 CAP, CHIP 0.01 DM
C726 87-010-197-080 CAP, CHIP 0.01 DM
C727 87-010-497-080 CAP,E 4.7-35 5L
C728 87-010-197-080 CAP, CHIP 0.01 DM
C729 87-010-555-080 CAP,E 100-10 GAS
C730 87-010-321-080 CHIP CAPACITOR,82P(J)
C731 87-012-140-080 CAP 470P
C732 87-010-189-080 C-CAP,S 8200P-50 B
C733 87-010-183-080 C-CAP,S 2700P-50 B
C734 87-012-142-080 CAP, S 0.33-16
C737 87-010-552-080 CAP,E 22-16 GAS
C739 87-012-157-080 C-CAP,S 330P-50 CH
C740 87-010-318-080 C-CAP,S 47P-50 CH
C741 87-012-140-080 CAP 470P
C742 87-010-189-080 C-CAP,S 8200P-50 B
C743 87-010-183-080 C-CAP,S 2700P-50 B
C744 87-012-142-080 CAP, S 0.33-16
C745 87-012-157-080 C-CAP,S 330P-50 CH
C748 87-012-154-080 C-CAP,S 150P-50 CH
CN701 87-A60-722-010 CONN,8P JL-R
CN702 87-A60-720-010 CONN,6P JL-R
L701 87-005-461-080 COIL,1UH J FLR50
L702 87-005-461-080 COIL,1UH J FLR50
L703 87-005-473-080 COIL,10UH J FLR50
L705 87-005-473-080 COIL,10UH J FLR50
L707 87-005-473-080 COIL,10UH J FLR50
L708 87-005-485-080 COIL,100UH J FLR50
X701 87-A70-199-080 VIB,XTAL 18.432MHZKEY C.B
All manuals and user guides at all-guides.com

– 8 –
TRANSISTOR ILLUSTRATION
SE120N
1 2 3
1. VOUT SENSE
2. COLLECTOR
3. GROUND
2SA950
2SA1015
S D G
2SJ460
2SK2541
E C B
2SC3467
2SC3779
E C B E C B
DTC323TS2SD2580
B C E
B C E
2SD2531
E C B
2SA1175
2SC2785
DTC144ES
E C B
E
B
C
2SC2412
2SC5147
B C E
All manuals and user guides at all-guides.com

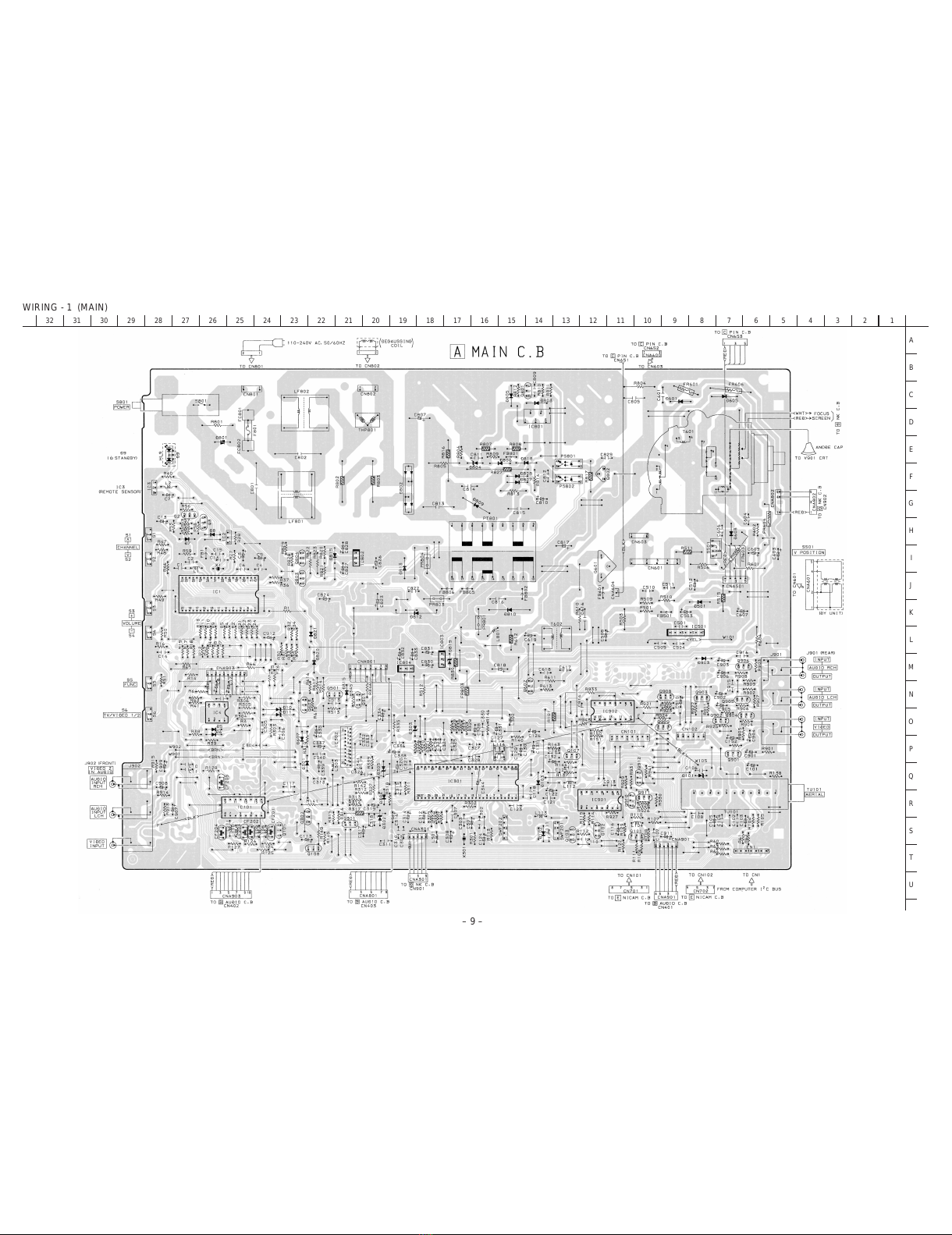

WIRING - 1 (MAIN)
– 9 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
All manuals and user guides at all-guides.com

– 10 –

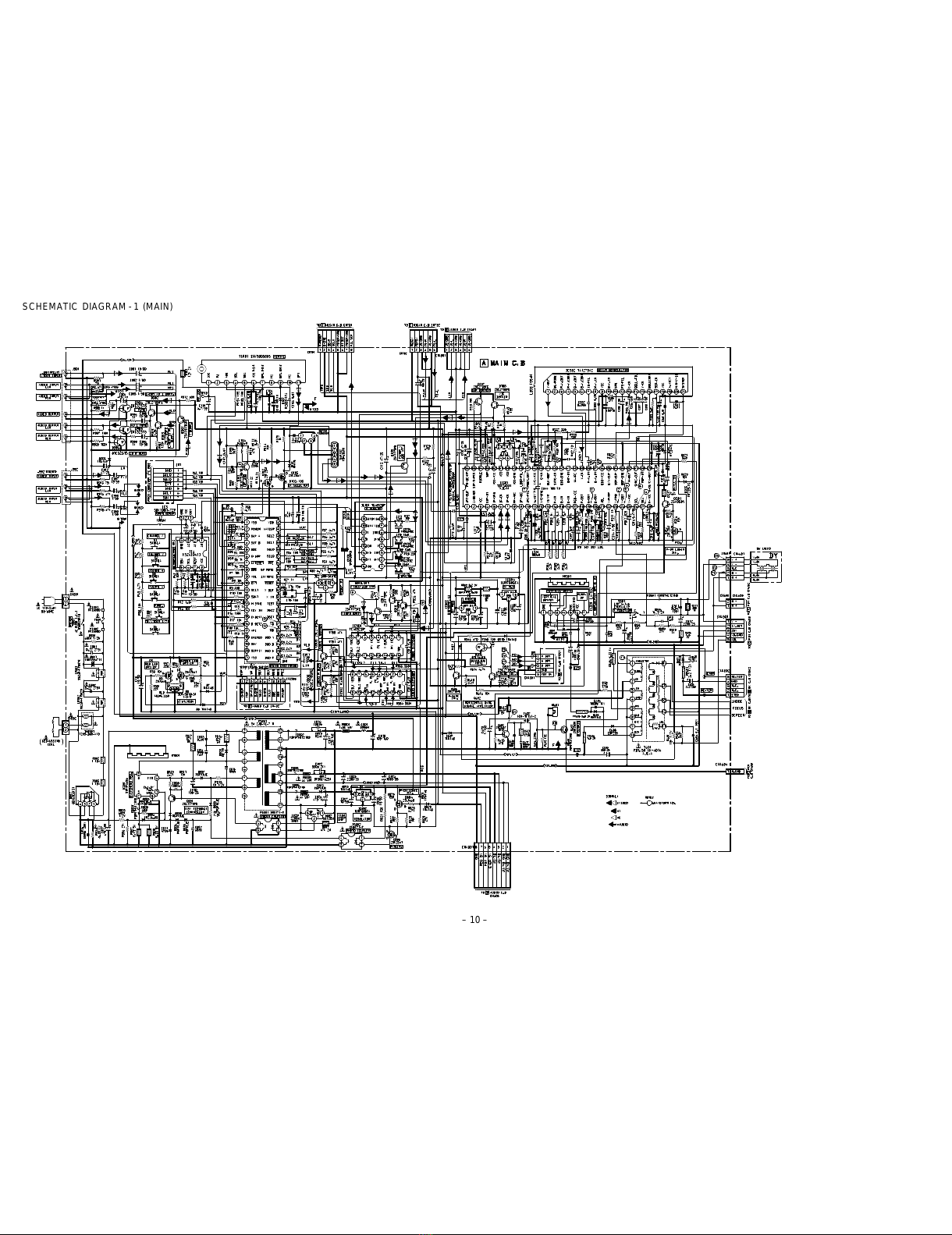

SCHEMATIC DIAGRAM-1 (MAIN)
All manuals and user guides at all-guides.com

WIRING - 2 (AUDIO)
– 11–
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
All manuals and user guides at all-guides.com
all-guides.com

– 12 –
SCHEMATIC DIAGRAM- 2 (AUDIO)
All manuals and user guides at all-guides.com

WIRING - 3 (PIN)
– 13 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

– 14 –
SCHEMATIC DIAGRAM- 3 (PIN)
All manuals and user guides at all-guides.com

WIRING - 4 (NK)
– 15 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

– 16 –
SCHEMATIC DIAGRAM - 4 (NK)
All manuals and user guides at all-guides.com
all-guides.com

WIRING - 5 (NICAM)
– 17 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

– 18 –
SCHEMATIC DIAGRAM- 5 (NICAM)
All manuals and user guides at all-guides.com

– 19 –
IC BLOCK DIAGRAM
All manuals and user guides at all-guides.com

– 20 –
All manuals and user guides at all-guides.com
