S E R V I C E M A N U A L

SIMPLE MANUAL

•Replace this Service Manual with ”Revision Publishing” when it is issued.

HV-MC70

• TYPE: KE

VIDEO CASSETTE PLAYER

• BASIC VIDEO MECHANISM:D33P2LRN106A

S/M Code No. 09–998–418–4T1

ELECTRICAL PARTS LIST-1/5

NOTE: The characters in the suffix column indicate the part usage.

KEJM ...................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................

87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................

C 905 87-A10-480-090 CAP,CER 4700P-250 M E KH A...................

C 904 87-A10-480-090 CAP,CER 4700P-250 M E KH A...................

C 903 87-A10-480-090 CAP,CER 4700P-250 M E KH A...................

C 906 87-A10-480-090 CAP,CER 4700P-250 M E KH A...................

C 907 87-A10-923-090 CAP,E 100-400 SMG 0.545A(RMS) A...................

C 901 87-A11-352-010 CAP,M/P 0.1-275 M ECQUL A...................

C 902 87-A11-352-010 CAP,M/P 0.1-275 M ECQUL A...................

C 908 87-A11-753-080 CAP,M/P 0.022-630 K ECQE(F) A...................

C 914 87-010-178-080 CHIP CAP 1000P A...................

C 913 87-010-190-080 S CHIP F 0.01 A...................

C 919 87-010-387-080 CAP,E 470-25 SME A...................

C 917 87-010-409-080 CAP,E 220-50 SME A...................

C 912 87-016-501-080 CAP,E 47-35 SXE A...................

C 911 87-A10-279-080 CAP,M 470P-50 J A...................

C 918 87-A11-774-080 CAP,E 470-25 M ZL A...................

C 916 87-A11-775-080 CAP,E 100-50 M ZL A...................

C 910 87-A11-794-080 CAP,CER 100P-2K K B A...................

C 920 87-010-101-080 CAP, ELECT 220-16 A...................

C 923 87-010-381-080 CAP, ELECT 330-16V A...................

C 921 87-010-401-080 CAP, ELECT 1-50V A...................

C 927 87-A10-303-080 CAP,M 0.047-50 J A...................

C 922 87-A11-772-080 CAP,E 1000-10 M ZL A...................

D 907 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 908 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 901 87-070-173-010 DIODE,S1WBA60 A...................

D 903 87-A40-172-080 DIODE,EG01Z A...................

D 902 87-A40-368-080 DIODE,EG01C A...................

D 916 87-A40-184-090 DIODE,RK34(F) A...................

D 912 87-A40-369-090 DIODE,RN3Z A...................

D 914 87-A40-553-080 DIODE,1N4003 LES A...................

D 913 87-A40-553-080 DIODE,1N4003 LES A...................

D 911 87-A40-553-080 DIODE,1N4003 LES A...................

D 915 87-A40-553-080 DIODE,1N4003 LES A...................

D 910 87-A40-628-080 DIODE,EN01Z A...................

F 901 87-035-454-010 FUSE,1.6A 250V T W/C A...................

FB 901 87-003-223-080 FERRITE BEAD BL02RN2 A...................

FC 901 87-033-213-080 CLAMP, FUSE A...................

FC 902 87-033-213-080 CLAMP, FUSE A...................

IC 902 87-A20-389-010 IC,NJM7809FA A...................

IC 903 87-A20-649-080 IC,HA17431VP A...................

IC 901 87-A21-186-010 IC,STR-F6552 A...................

ICF 906 87-001-211-080 ICP-N50 A...................

ICF 908 87-A91-337-080 PROTECTOR,IC ICP-N75 A...................

ICF 907 87-A91-337-080 PROTECTOR,IC ICP-N75 A...................

L 902 87-A50-180-080 COIL,22UH K LHL10 A...................

L 903 87-A50-193-080 COIL,10UH K LHL10 A...................

L 901 87-A50-444-080 COIL,22UH K LHL08 A...................

LF 901 87-A90-418-010 FLTR,22MH SS10V-04220 A...................

PR 901 87-A90-393-080 PROTECTOR,0.5A 491SERISE 60V A...................

PS 901 87-A90-717-010 P-COUPLER,PC123FY2 A...................

PT 901 8Z-JPV-607-010 PT,KE ZJP-V SWT A...................

Q 907 87-026-227-080 CHIP-TR,DTA114EK A...................

Q 906 87-026-235-080 CHIP-TR,DTC114EK A...................

Q 904 87-026-235-080 CHIP-TR,DTC114EK A...................

Q 905 87-A30-217-010 TR,2SB1436(R) A...................

Q 903 87-A30-219-080 TR,2SB1443(Q) A...................

R 902 87-022-565-090 RES,M/O 47K-1W J A...................

R 908 87-A00-558-090 RES,M/F 56K-2W J A...................

R 917 87-A00-595-090 RES,M/F 0.33-2W J A...................

R 932 87-025-365-080 RES,M/F 680-1/6WJ F A...................

R 933 87-025-365-080 RES,M/F 680-1/6WJ F A...................

R 931 87-A00-279-080 RES,M/F 75-1/6W F A...................

TM 901 87-A60-317-010 TERMINAL, 1P MSC A...................

TM 902 87-A60-317-010 TERMINAL, 1P MSC A...................

W 901 87-A80-088-010 AC CORD ASSY,E BLK A...................

C 607 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 601 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 602 87-010-311-080 CAP 12P A...................

C 603 87-010-311-080 CAP 12P A...................

C 606 87-010-314-080 C-CAP,S 22P-50V A...................

C 605 87-012-150-080 C-CAP,S 20P-50 CH A...................

C 611 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 610 87-010-260-080 CAP, ELECT 47-25V A...................

C 701 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 704 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 705 87-015-676-080 ELECTROLYTIC CAPACITOR, 47U-6. A...................

C 714 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 710 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 713 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 712 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 711 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 724 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 725 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 720 87-010-197-080 CAP, CHIP 0.01 DM A...................

ELECTRICAL PARTS LIST-2/5

C 721 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 722 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 732 87-010-198-080 CAP, CHIP 0.022 A...................

C 731 87-010-198-080 CAP, CHIP 0.022 A...................

C 751 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 773 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 772 87-010-260-080 CAP, ELECT 47-25V A...................

C 770 87-010-384-080 CAP, ELECT 100-25V A...................

C 771 87-A11-136-080 CAP,TC U 0.022-50 K B A...................

C 783 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 782 87-010-260-080 CAP, ELECT 47-25V A...................

C 780 87-010-408-080 CAP, ELECT 47-50V A...................

C 803 87-010-175-080 CAP 560P A...................

C 805 87-010-178-080 CHIP CAP 1000P A...................

C 806 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 809 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 804 87-010-260-080 CAP, ELECT 47-25V A...................

C 808 87-010-260-080 CAP, ELECT 47-25V A...................

C 802 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 801 87-010-405-080 CAP, ELECT 10-50V A...................

C 812 87-010-178-080 CHIP CAP 1000P A...................

C 813 87-010-178-080 CHIP CAP 1000P A...................

C 827 87-010-178-080 CHIP CAP 1000P A...................

C 820 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 842 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 846 87-010-384-080 CAP, ELECT 100-25V A...................

C 847 87-A11-144-080 CAP,TC U 0.1-50 K B A...................

CN 606 87-009-313-010 CONN 7P 51048 A...................

CN 608 87-009-345-010 CONN,2P PH H A...................

CN 604 87-099-195-010 CONN,7P 6216 V A...................

CN 601 87-099-566-010 CONN,7P TUC-P7P-B1 A...................

CN 602 87-A60-133-010 CONN,8P V FE A...................

CN 605 87-A60-582-010 CONN,5P V BGE TKX-P05P-X1 A...................

CN 603 87-A60-603-010 CONN,8P V GRA TMC-J08P-A1 A...................

CN 607 8Z-JU4-801-010 CONN,2P V TMC-T02X-C1 A...................

D 608 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 609 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 604 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 607 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 602 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 606 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 610 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 611 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 730 87-A40-597-010 LED,GL451V A...................

D 813 87-A40-553-080 DIODE,1N4003 LES A...................

D 815 87-A40-553-080 DIODE,1N4003 LES A...................

D 812 87-A40-553-080 DIODE,1N4003 LES A...................

D 814 87-A40-553-080 DIODE,1N4003 LES A...................

D 821 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 834 87-A40-553-080 DIODE,1N4003 LES A...................

D 832 87-A40-553-080 DIODE,1N4003 LES A...................

D 833 87-A40-553-080 DIODE,1N4003 LES A...................

D 831 87-A40-553-080 DIODE,1N4003 LES A...................

D 845 87-A40-509-080 ZENER,MTZJ6.8C A...................

D 841 87-A40-553-080 DIODE,1N4003 LES A...................

D 842 87-A40-553-080 DIODE,1N4003 LES A...................

D 843 87-A40-553-080 DIODE,1N4003 LES A...................

D 844 87-A40-553-080 DIODE,1N4003 LES A...................

HL 601 8Z-JU4-201-010 HLDR,LED A...................

HL 603 8Z-JU4-202-010 HLDR,SENSOR A...................

HL 602 8Z-JU4-202-010 HLDR,SENSOR A...................

IC 605 87-A20-676-040 C-IC,S-80827ANNP-EDQ A...................

IC 602 87-A91-171-010 RCR UNIT,NJL65V380 A...................

IC 601 8Z-JPV-605-010 C-IC,CXP88132-***Q A...................

IC 801 87-070-242-010 IC,LA7123 A...................

IC 840 87-002-394-010 IC,LB1641 A...................

L 705 87-003-102-080 COIL, 10UH A...................

L 704 87-003-102-080 COIL, 10UH A...................

L 701 87-005-432-080 COIL,10UH A...................

L 712 87-003-102-080 COIL, 10UH A...................

L 711 87-003-102-080 COIL, 10UH A...................

L 772 87-003-102-080 COIL, 10UH A...................

L 771 87-005-432-080 COIL,10UH A...................

L 782 87-003-102-080 COIL, 10UH A...................

L 781 87-005-430-080 COIL,6.8UH FLR50 A...................

L 801 87-003-102-080 COIL, 10UH A...................

L 840 87-005-432-080 COIL,10UH A...................

PS 601 8Z-JU1-603-010 SNSR,GP1S566 A...................

PS 602 8Z-JU1-603-010 SNSR,GP1S566 A...................

Q 601 87-026-235-080 CHIP-TR,DTC114EK A...................

Q 711 87-026-210-080 CHIP-TR,DTC144EK A...................

Q 710 87-026-210-080 CHIP-TR,DTC144EK A...................

Q 730 87-A30-270-010 P-TR,PT493F A...................

Q 732 87-A30-270-010 P-TR,PT493F A...................

Q 834 87-026-210-080 CHIP-TR,DTC144EK A...................

Q 832 87-026-210-080 CHIP-TR,DTC144EK A...................

Q 831 87-A30-219-080 TR,2SB1443(Q) A...................

Q 833 87-A30-219-080 TR,2SB1443(Q) A...................

R 843 87-029-077-010 FUSING RESISTOR, 10, 1/2W A...................

S 601 87-A91-237-010 SW,RTRY MMS00420ZMB0 A...................

S 602 87-A91-238-010 SW,MICRO MPU10252MLB4 A...................

VR 601 87-024-438-080 SFR220K,RH063EC A...................

ELECTRICAL PARTS LIST-3/5

W 601 88-JU8-616-010 FF-CABLE, 7P 1.25 120MM A...................

W 602 8Z-JU4-608-010 FF-CABLE, 8P 1.25 120MM A...................

W 603 8Z-JU4-618-010 F-CABLE,7P 2.0 130MM FR A...................

X 602 87-030-364-010 VIB,XTAL 32.768K CT A...................

X 601 87-A70-090-080 VIB,XTAL 16MHZ AT-49 A...................

C 108 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 105 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 107 87-015-677-080 CAP,E 100-6.3 7L A...................

C 106 87-015-694-080 CAP,E 0.47-50 7L A...................

C 101 87-015-697-080 CAP,E 3.3-50 7L A...................

C 115 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 119 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 113 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 116 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 110 87-010-213-080 C-CAP,S 0.015-50 B A...................

C 112 87-010-313-080 CAP, CHIP 18P A...................

C 114 87-010-993-080 C-CAP,S 0.056-25 B A...................

C 111 87-015-694-080 CAP,E 0.47-50 7L A...................

C 127 87-010-186-080 CAP,CHIP 4700P A...................

C 124 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 122 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 126 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 128 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 121 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 125 87-010-263-080 CAP, ELECT 100-10V A...................

C 123 87-010-263-080 CAP, ELECT 100-10V A...................

C 120 87-010-401-080 CAP, ELECT 1-50V A...................

C 130 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 134 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 137 87-010-312-080 C-CAP,S 15P-50 CH A...................

C 138 87-010-321-080 CHIP CAPACITOR,82P(J) A...................

C 133 87-015-681-080 CAP,E 10-16 7L A...................

C 136 87-015-694-080 CAP,E 0.47-50 7L A...................

C 148 87-010-178-080 CHIP CAP 1000P A...................

C 144 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 143 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 147 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 145 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 146 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 149 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 140 87-015-677-080 CAP,E 100-6.3 7L A...................

C 142 87-015-696-080 CAP,E 2.2-50 7L A...................

C 141 87-018-214-080 CAP TC U 0.1-50F A...................

C 158 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 154 87-010-315-080 C-CAP,S 27P-50 CH A...................

C 153 87-010-319-080 C-CAP,S 56P-50 CH A...................

C 157 87-012-140-080 CAP 470P A...................

C 156 87-012-153-080 C-CAP,S 120P-50 CH A...................

C 152 87-012-154-080 C-CAP,S 150P-50 CH A...................

C 159 87-015-681-080 CAP,E 10-16 7L A...................

C 163 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 164 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 162 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 165 87-010-320-080 CHIP CAP 68P A...................

C 161 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 160 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................

IC 101 87-A21-280-010 C-IC,TA1277F A...................

L 108 87-003-152-080 COIL, 100UH A...................

L 107 87-003-286-080 COIL,56UH LAL02 A...................

L 101 87-005-432-080 COIL,10UH A...................

L 106 87-005-432-080 COIL,10UH A...................

L 104 87-005-440-080 COIL,47UH FLR50 A...................

L 103 87-005-440-080 COIL,47UH FLR50 A...................

Q 108 87-026-210-080 CHIP-TR,DTC144EK A...................

Q 106 87-026-210-080 CHIP-TR,DTC144EK A...................

Q 107 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................

Q 102 89-324-122-080 TR,2SC2412K A...................

Q 112 87-026-210-080 CHIP-TR,DTC144EK A...................

Q 115 87-026-210-080 CHIP-TR,DTC144EK A...................

Q 111 87-026-210-080 CHIP-TR,DTC144EK A...................

X 101 8Z-JU4-613-080 VIB,XTAL 4.43MHZ TA1277 A...................

X 102 8Z-JU4-614-080 VIB,XTAL 3.58MHZ TA1277 A...................

C 306 87-010-178-080 CHIP CAP 1000P A...................

C 303 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 305 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 302 87-010-405-080 CAP, ELECT 10-50V A...................

C 304 87-010-754-080 CAP,E220-10 SRA 7L A...................

C 309 87-015-674-080 CAP 22U-6.3V A...................

C 316 87-010-178-080 CHIP CAP 1000P A...................

C 315 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 310 87-010-193-080 CHIP CAPACITOR,0.033 A...................

C 318 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 311 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 312 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 313 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 317 87-010-406-080 CAP, ELECT 22-50 A...................

C 319 87-015-674-080 CAP 22U-6.3V A...................

C 314 87-015-695-080 CAP,E 1-50 7L A...................

C 329 87-010-189-080 C-CAP,S 8200P-50 B A...................

C 328 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 326 87-010-197-080 CAP, CHIP 0.01 DM A...................

ELECTRICAL PARTS LIST-4/5

C 325 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 327 87-010-260-080 CAP, ELECT 47-25V A...................

C 324 87-010-805-080 CAP, S 1-16 A...................

C 323 87-010-805-080 CAP, S 1-16 A...................

C 322 87-010-805-080 CAP, S 1-16 A...................

C 320 87-015-696-080 CAP,E 2.2-50 7L A...................

C 333 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 330 87-015-684-080 CAP,E 47-16 7L A...................

C 331 87-018-132-080 CAP, CER 2200P-16V A...................

C 332 87-A11-760-080 CAP,M 0.056-100 J ECQB A...................

CN 302 87-A60-258-010 CONN,2P V TMC-E02X A...................

CN 301 87-A60-876-010 CONN,6P V FM22.5-BTR A...................

IC 301 87-001-854-010 IC,BA7755AF A...................

L 302 87-005-432-080 COIL,10UH A...................

L 303 87-005-440-080 COIL,47UH FLR50 A...................

L 301 8Z-JU4-612-010 COIL,BIAS OSC 70KHZ A...................

Q 308 87-026-235-080 CHIP-TR,DTC114EK A...................

Q 306 87-026-235-080 CHIP-TR,DTC114EK A...................

Q 309 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................

Q 310 87-026-210-080 CHIP-TR,DTC144EK A...................

Q 311 87-A30-099-080 TR,2SC3708S/T A...................

C 402 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 403 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 405 87-010-263-080 CAP, ELECT 100-10V A...................

C 404 87-010-263-080 CAP, ELECT 100-10V A...................

C 456 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 453 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 454 87-010-260-080 CAP, ELECT 47-25V A...................

C 451 87-010-371-080 CAP, ELECT 470-6.3V A...................

C 455 87-010-384-080 CAP, ELECT 100-25V A...................

C 452 87-010-384-080 CAP, ELECT 100-25V A...................

J 401 87-A60-323-010 JACK,PIN 4P Y-BLK A...................

L 401 87-005-440-080 COIL,47UH FLR50 A...................

L 402 87-005-440-080 COIL,47UH FLR50 A...................

L 451 87-005-440-080 COIL,47UH FLR50 A...................

Q 452 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................

Q 451 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................

RF 401 87-A91-382-010 RF MOD UNIT, NJH3032E203 A...................

CN 871 87-099-201-010 CONN,8P 6216 H A...................

S 875 87-A90-164-080 SW,TACT SKQAB(N) A...................

S 876 87-A90-164-080 SW,TACT SKQAB(N) A...................

S 877 87-A90-164-080 SW,TACT SKQAB(N) A...................

S 873 87-A90-164-080 SW,TACT SKQAB(N) A...................

S 871 87-A90-164-080 SW,TACT SKQAB(N) A...................

S 872 87-A90-164-080 SW,TACT SKQAB(N) A...................

S 874 87-A90-164-080 SW,TACT SKQAB(N) A...................

C 871 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 872 87-015-676-080 ELECTROLYTIC CAPACITOR, 47U-6. A...................

CN 872 87-A60-689-010 CONN,7P H GRY TUC-P07X-C1 A...................

D 878 87-017-733-080 LED,SEL1250SM A...................

D 879 87-A40-263-080 LED,SLH-56PCT31 GRN A...................

D 877 87-A40-263-080 LED,SLH-56PCT31 GRN A...................

D 876 87-A40-263-080 LED,SLH-56PCT31 GRN A...................

D 875 87-A40-263-080 LED,SLH-56PCT31 GRN A...................

D 889 87-017-733-080 LED,SEL1250SM A...................

D 887 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 888 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 883 87-A40-263-080 LED,SLH-56PCT31 GRN A...................

D 884 87-A40-263-080 LED,SLH-56PCT31 GRN A...................

D 885 87-A40-263-080 LED,SLH-56PCT31 GRN A...................

D 880 87-A40-263-080 LED,SLH-56PCT31 GRN A...................

D 881 87-A40-263-080 LED,SLH-56PCT31 GRN A...................

D 882 87-A40-263-080 LED,SLH-56PCT31 GRN A...................

IC 871 87-070-289-040 IC,BU 2092F A...................

L 871 87-003-102-080 COIL, 10UH A...................

Q 875 87-026-235-080 CHIP-TR,DTC114EK A...................

C 6 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 8 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 9 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 14 87-010-178-080 CHIP CAP 1000P A...................

C 17 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 16 87-010-805-080 CAP, S 1-16 A...................

C 15 87-015-677-080 CAP,E 100-6.3 7L A...................

C 13 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................

C 20 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 54 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 58 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 57 87-012-145-080 CAP, CHIP S 270P CH A...................

C 68 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 60 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 61 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 69 87-010-263-080 CAP, ELECT 100-10V A...................

C 66 87-010-315-080 C-CAP,S 27P-50 CH A...................

C 67 87-010-316-080 C-CAP,S 33P-50 CH A...................

C 62 87-010-317-080 C-CAP,S 39P-50 CH A...................

C 65 87-012-158-080 C-CAP,S 390P-50 CH A...................

CN 2 8Z-JU9-801-010 CONN,3P V GF120 A...................

D 2 87-020-465-080 DIODE,1SS133 (110MA) A...................

IC 2 87-A21-279-040 C-IC,TA1249F A...................

L 1 87-005-440-080 COIL,47UH FLR50 A...................

L 57 87-003-146-080 COIL,15UH LAL02 A...................

L 54 87-003-148-080 COIL BIAS 33UH A...................

ELECTRICAL PARTS LIST-5/5

L 58 87-003-149-080 COIL,47UH A...................

L 53 87-003-149-080 COIL,47UH A...................

L 56 87-003-154-080 COIL,220UH A...................

Q 1 89-324-122-080 TR,2SC2412K A...................

Q 55 87-026-210-080 CHIP-TR,DTC144EK A...................

Q 58 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................

Q 54 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................

Q 59 89-324-122-080 TR,2SC2412K A...................

Q 52 89-324-122-080 TR,2SC2412K A...................

Q 62 89-324-122-080 TR,2SC2412K A...................

Q 60 89-324-122-080 TR,2SC2412K A...................

CNA 871 8Z-JPV-606-010 CONN ASSY,2P MA-SW A...................

S 879 87-036-087-010 SLIDE SWITCH, 1-3 A...................

CN 851 87-009-313-010 CONN 7P 51048 A...................

D 851 87-A40-263-080 LED,SLH-56PCT31 GRN A...................

S 851 87-A90-164-080 SW,TACT SKQAB(N) A...................

S 854 87-A90-164-080 SW,TACT SKQAB(N) A...................

S 853 87-A90-164-080 SW,TACT SKQAB(N) A...................

S 852 87-A90-164-080 SW,TACT SKQAB(N) A...................

MECHANICAL PARTS LIST-1/1

NOTE: The characters in the suffix column indicate the part usage.

KEJM ...................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

82-NE6-067-010 BADGE,AIWA 30N A...................

84-JP9-021-110 PLATE,FOOT HAIR A...................

84-JP9-202-010 SPR-T,DOOR A...................

87-JU8-210-010 SPR-T,SHUTTLE A...................

8Z-JPV-001-010 CABI,FR V A...................

8Z-JPV-002-010 DOOR,CASS V A...................

8Z-JPV-003-010 WINDOW,FR V A...................

8Z-JPV-004-010 BTN,REPEAT A...................

8Z-JPV-005-010 KNOB,SL V A...................

8Z-JPV-006-010 KEY,POWER V A...................

8Z-JU4-006-010 KEY,MAIN A...................

8Z-JU4-007-010 KEY,REC A...................

8Z-JU4-008-010 CAP, RING A...................

8Z-JU4-012-010 KEY,PAUSE A...................

8Z-JU9-002-010 CAP, SHUTTLE 9 A...................

8Z-JU9-003-010 KNOB,RTRY SHUTTLE 9 A...................

81-JUK-045-010 FELT,FOOT 8-8 A...................

87-JU8-205-110 PLATE,E-SIDE A...................

8Z-JU4-013-010 CABI,STEEL A...................

8Z-JU4-206-010 PLATE,MECHA A...................

87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................

87-067-660-010 TAPPING SCREW, BVT2+3-8 A...................

87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................

87-067-761-010 TAPPING SCREW, BVT2+3-10 A...................

87-761-096-410 VFT2+3-10 GLD A...................

87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................

87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................

W 901 87-A80-088-010 AC CORD ASSY,E BLK A...................

W 601 88-JU8-616-010 FF-CABLE, 7P 1.25 120MM A...................

W 602 8Z-JU4-608-010 FF-CABLE, 8P 1.25 120MM A...................

W 603 8Z-JU4-618-010 F-CABLE,7P 2.0 130MM FR A...................

ACCESSORIES / PACKAGE LIST-1/1

NOTE: The characters in the suffix column indicate the part usage.

KEJM ...................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-JPV-901-010 IB,KE(ECRAP) MC70-M A...................

87-034-796-010 CORD,RF PAL S A...................

8Z-JPV-608-010 RC UNIT,RC-ZVP01 A...................

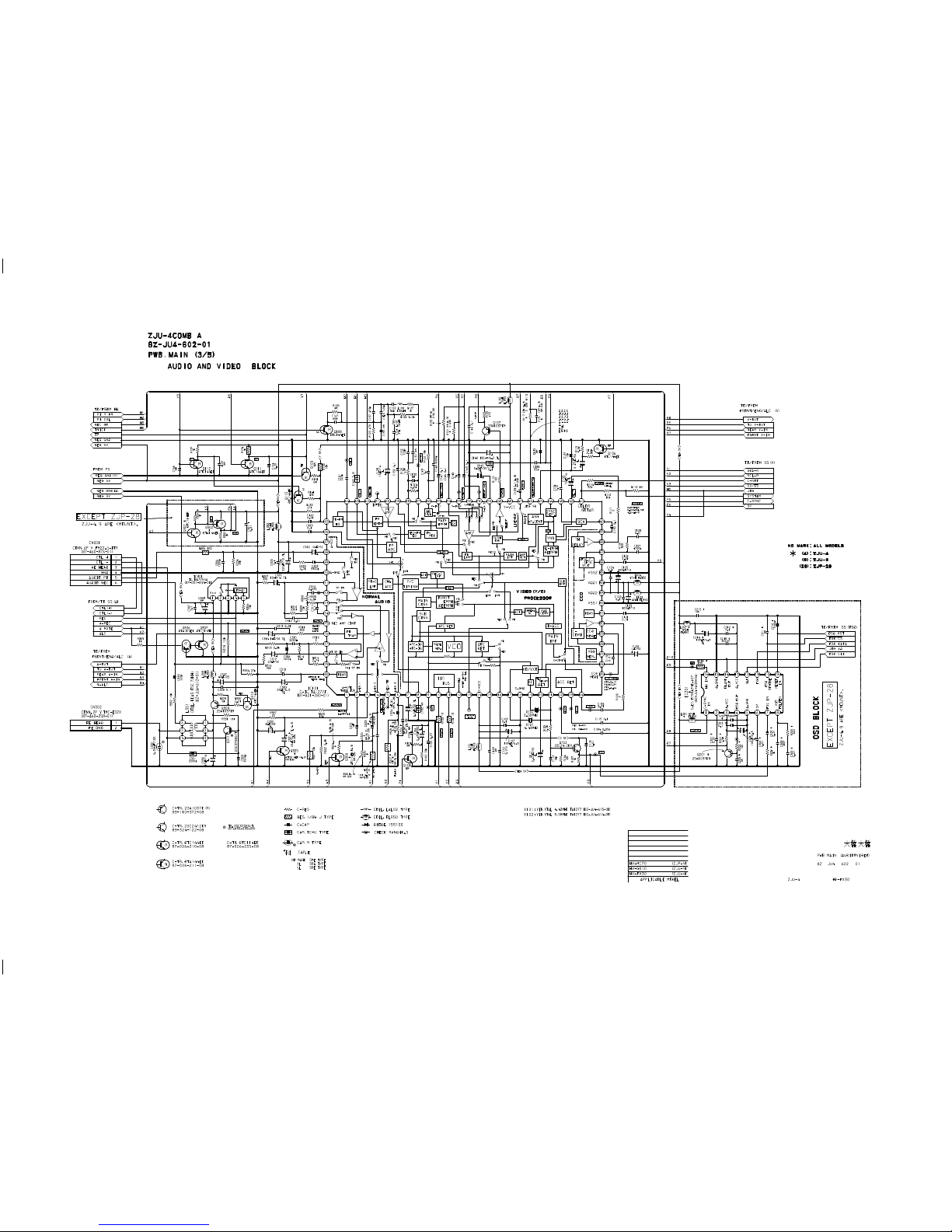

SCHEMATIC DIAGRAM _1 (AUDIO & VIDEO)

SCHEMATIC DIAGRAM _2 (FRONT/LED)

SCHEMATIC DIAGRAM _3 (SERVO-SYSCON)

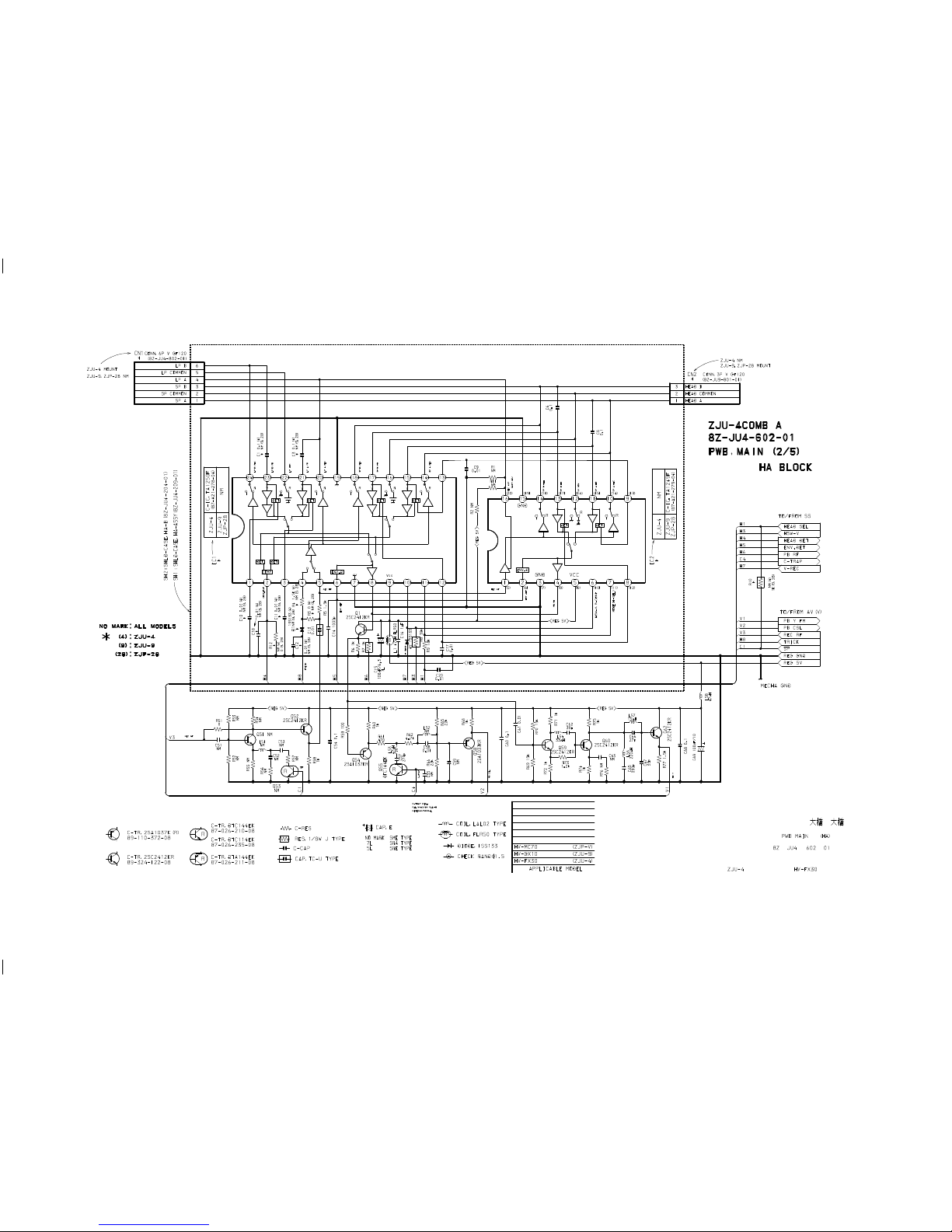

SCHEMATIC DIAGRAM _4 (HA)

SCHEMATIC DIAGRAM _5 (TUNER)

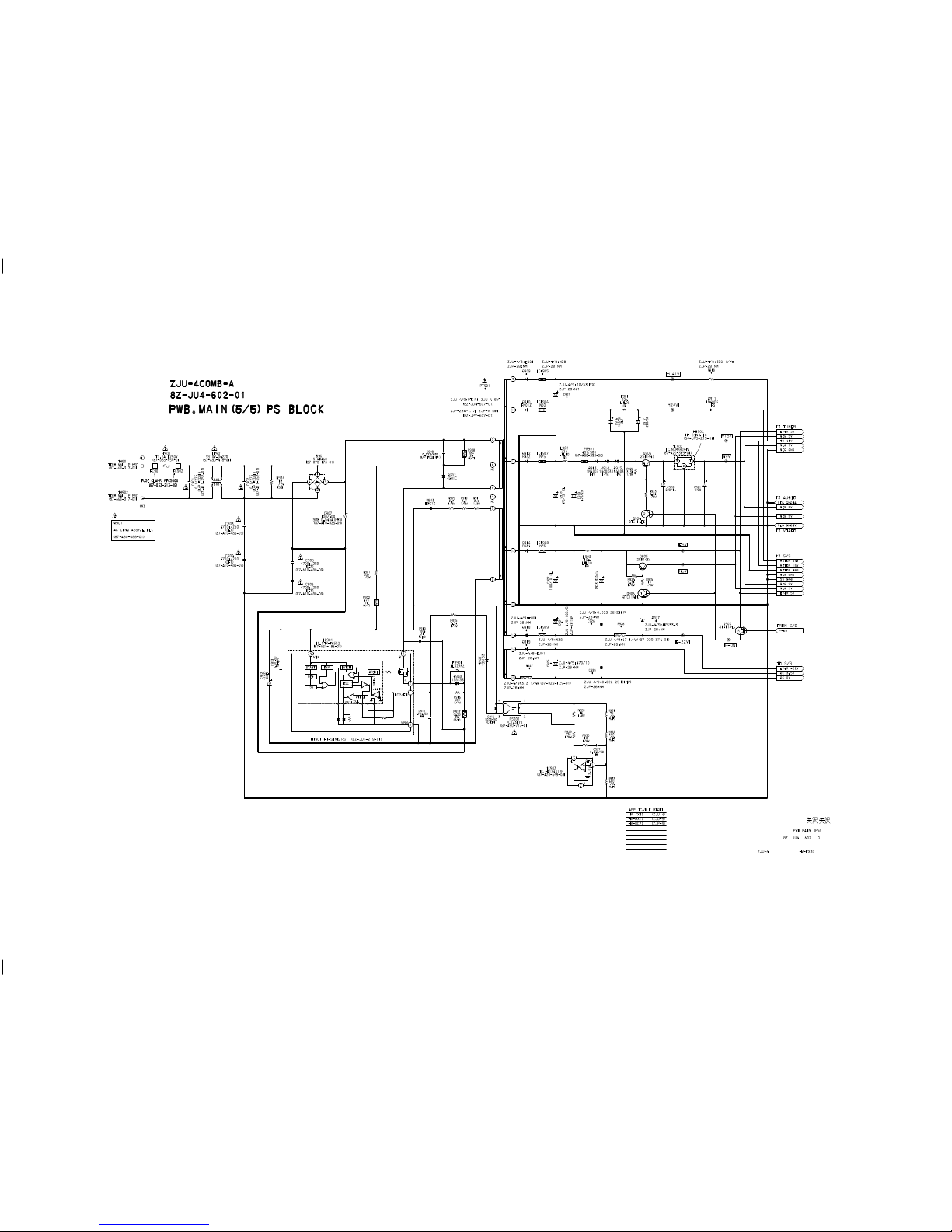

SCHEMATIC DIAGRAM _6 (PS)

PrintedinSingapore

Tokyo Japan

9820527

Other manuals for HV-MC70

Popular VCR System manuals by other brands

Sanyo

Sanyo VHR-M262EV Service manual

FUNAI

FUNAI F220LB owner's manual

JVC

JVC HR-V210EY quick start guide

Toshiba

Toshiba M661 owner's manual

FUNAI

FUNAI FT4120 owner's manual

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DV-F562 Series Service manual

JVC

JVC HR-DD855EK instructions

JVC

JVC HR-J695MS Service manual

Sharp

Sharp VC-MH722LM Operation manual

Sony

Sony SLV-SE420K operating instructions

Samsung

Samsung SV-G12K/AFR owner's manual

Panasonic

Panasonic AG-TL350P operating instructions

RCA

RCA VR342 user guide

Philips

Philips VR888 Specifications

Panasonic

Panasonic NV-SJ230A operating instructions

Sony

Sony SLV-750HF - Hi Fi Stereo Vhs Vcr operating instructions

Panasonic

Panasonic AG-6740P operating instructions

Mitsubishi Electric

Mitsubishi Electric HS 7424EDC specification

Aiwa HV-MC70 User manual

Popular VCR System manuals by other brands
