SERVICE MANUAL
DATA
HV-MC70 KER
VIDEO CASSETTE PLAYER
SIMPLE
S/M Code No. 09-003-418-4T2
• Replace this Service manual with “Revision Publishing” when it is issued.
BASIC VIDEO MECHANISM : D33P2LRN106A

ELECTRICAL MAIN PARTS LIST - 1/5
NOTE: The characters in the suffix column indicate the part usage.
KERJJM .................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
C 905 87-A10-480-090 CAP,CER 4700P-250 M E KH A...................
C 906 87-A10-480-090 CAP,CER 4700P-250 M E KH A...................
C 904 87-A10-480-090 CAP,CER 4700P-250 M E KH A...................
C 903 87-A10-480-090 CAP,CER 4700P-250 M E KH A...................
C 907 87-A10-923-090 CAP,E 100-400 SMG 0.545A(RMS) A...................
C 901 87-A11-352-010 CAP,M/P 0.1-275 M ECQUL A...................
C 902 87-A11-352-010 CAP,M/P 0.1-275 M ECQUL A...................
C 908 87-A11-753-080 CAP,M/P 0.022-630 K ECQE(F) A...................
C 914 87-010-178-080 CHIP CAP 1000P A...................
C 913 87-010-190-080 S CHIP F 0.01 A...................
C 919 87-010-387-080 CAP,E 470-25 SME A...................
C 917 87-010-409-080 CAP,E 220-50 SME A...................
C 912 87-016-501-080 CAP,E 47-35 SXE A...................
C 911 87-A10-279-080 CAP,M 470P-50 J A...................
C 918 87-A11-774-080 CAP,E 470-25 M ZL A...................
C 916 87-A11-775-080 CAP,E 100-50 M ZL A...................
C 910 87-A11-794-080 CAP,CER 100P-2K K B A...................
C 920 87-010-101-080 CAP, ELECT 220-16 A...................
C 923 87-010-381-080 CAP, ELECT 330-16V A...................
C 921 87-010-401-080 CAP, ELECT 1-50V A...................
C 927 87-A10-303-080 CAP,M 0.047-50 J A...................
C 922 87-A11-772-080 CAP,E 1000-10 M ZL A...................
D 908 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 907 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 901 87-070-173-010 DIODE,S1WBA60 A...................
D 903 87-A40-172-080 DIODE,EG01Z A...................
D 902 87-A40-368-080 DIODE,EG01C A...................
D 916 87-A40-184-090 DIODE,RK34(F) A...................
D 912 87-A40-369-090 DIODE,RN3Z A...................
D 914 87-A40-553-080 DIODE,1N4003 LES A...................
D 913 87-A40-553-080 DIODE,1N4003 LES A...................
D 911 87-A40-553-080 DIODE,1N4003 LES A...................
D 915 87-A40-553-080 DIODE,1N4003 LES A...................
D 910 87-A40-628-080 DIODE,EN01Z A...................
F 901 87-035-454-010 FUSE,1.6A 250V T W/C A...................
FB 901 87-003-223-080 FERRITE BEAD BL02RN2 A...................
FC 901 87-033-213-080 CLAMP, FUSE A...................
FC 902 87-033-213-080 CLAMP, FUSE A...................
IC 902 87-A20-389-010 IC,NJM7809FA A...................
IC 903 87-A20-649-080 IC,HA17431VP A...................
IC 901 87-A21-186-010 IC,STR-F6552 A...................
ICF 906 87-001-211-080 ICP-N50 A...................
ICF 907 87-A91-337-080 PROTECTOR,IC ICP-N75 A...................
ICF 908 87-A91-337-080 PROTECTOR,IC ICP-N75 A...................
L 902 87-A50-180-080 COIL,22UH K LHL10 A...................
L 903 87-A50-193-080 COIL,10UH K LHL10 A...................
L 901 87-A50-444-080 COIL,22UH K LHL08 A...................
LF 901 87-A90-418-010 FLTR,22MH SS10V-04220 A...................
PR 901 87-A90-393-080 PROTECTOR,0.5A 491SERISE 60V A...................
PS 901 87-A90-717-010 P-COUPLER,PC123FY2 A...................
PT 901 8Z-JPV-607-010 PT,KE ZJP-V SWT A...................
Q 907 87-026-227-080 CHIP-TR,DTA114EK A...................
Q 906 87-026-235-080 CHIP-TR,DTC114EK A...................
Q 904 87-026-235-080 CHIP-TR,DTC114EK A...................
Q 905 87-A30-217-010 TR,2SB1436(R) A...................
Q 903 87-A30-219-080 TR,2SB1443(Q) A...................
R 902 87-022-565-090 RES,M/O 47K-1W J A...................
R 908 87-A00-558-090 RES,M/F 56K-2W J A...................
R 917 87-A00-595-090 RES,M/F 0.33-2W J A...................
R 932 87-025-365-080 RES,M/F 680-1/6WJ F A...................
R 933 87-025-365-080 RES,M/F 680-1/6WJ F A...................
R 931 87-A00-279-080 RES,M/F 75-1/6W F A...................
TM 901 87-A60-317-010 TERMINAL, 1P MSC A...................
TM 902 87-A60-317-010 TERMINAL, 1P MSC A...................
W 901 87-A80-088-010 AC CORD ASSY,E BLK A...................
C 601 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 607 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 602 87-010-311-080 CAP 12P A...................
C 603 87-010-311-080 CAP 12P A...................
C 611 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 610 87-010-260-080 CAP, ELECT 47-25V A...................
C 701 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 704 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 705 87-015-676-080 ELECTROLYTIC CAPACITOR, 47U-6. A...................
C 712 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 713 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 711 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 710 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 714 87-010-197-080 CAP, CHIP 0.01 DM A...................

ELECTRICAL MAIN PARTS LIST - 2/5
C 724 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 721 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 720 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 722 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 725 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 731 87-010-198-080 CAP, CHIP 0.022 A...................
C 732 87-010-198-080 CAP, CHIP 0.022 A...................
C 751 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 773 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 772 87-010-260-080 CAP, ELECT 47-25V A...................
C 770 87-010-384-080 CAP, ELECT 100-25V A...................
C 771 87-A11-136-080 CAP,TC U 0.022-50 K B A...................
C 783 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 782 87-010-260-080 CAP, ELECT 47-25V A...................
C 780 87-010-408-080 CAP, ELECT 47-50V A...................
C 781 87-A11-132-080 CAP,TC U 0.01-50 K B A...................
C 803 87-010-175-080 CAP 560P A...................
C 805 87-010-178-080 CHIP CAP 1000P A...................
C 806 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 809 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 804 87-010-260-080 CAP, ELECT 47-25V A...................
C 808 87-010-260-080 CAP, ELECT 47-25V A...................
C 802 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 801 87-010-405-080 CAP, ELECT 10-50V A...................
C 813 87-010-178-080 CHIP CAP 1000P A...................
C 812 87-010-178-080 CHIP CAP 1000P A...................
C 827 87-010-178-080 CHIP CAP 1000P A...................
C 828 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 820 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 842 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 846 87-010-384-080 CAP, ELECT 100-25V A...................
C 845 87-A11-132-080 CAP,TC U 0.01-50 K B A...................
C 847 87-A11-144-080 CAP,TC U 0.1-50 K B A...................
CN 608 87-009-030-010 CONNECTOR 2P PH M _ A...................
CN 606 87-009-313-010 CONN 7P 51048 A...................
CN 604 87-099-195-010 CONN,7P 6216 V A...................
CN 601 87-099-566-010 CONN,7P TUC-P7P-B1 A...................
CN 602 87-A60-133-010 CONN,8P V FE A...................
CN 605 87-A60-582-010 CONN,5P V BGE TKX-P05P-X1 A...................
CN 603 87-A60-603-010 CONN,8P V GRA TMC-J08P-A1 A...................
CN 607 8Z-JU4-801-010 CONN,2P V TMC-T02X-C1 A...................
D 607 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 604 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 608 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 606 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 609 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 602 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 610 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 611 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 628 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 730 87-A40-597-010 LED,GL451V A...................
D 815 87-A40-553-080 DIODE,1N4003 LES A...................
D 814 87-A40-553-080 DIODE,1N4003 LES A...................
D 813 87-A40-553-080 DIODE,1N4003 LES A...................
D 812 87-A40-553-080 DIODE,1N4003 LES A...................
D 821 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 834 87-A40-553-080 DIODE,1N4003 LES A...................
D 832 87-A40-553-080 DIODE,1N4003 LES A...................
D 831 87-A40-553-080 DIODE,1N4003 LES A...................
D 833 87-A40-553-080 DIODE,1N4003 LES A...................
D 845 87-A40-509-080 ZENER,MTZJ6.8C A...................
D 841 87-A40-553-080 DIODE,1N4003 LES A...................
D 844 87-A40-553-080 DIODE,1N4003 LES A...................
D 843 87-A40-553-080 DIODE,1N4003 LES A...................
D 842 87-A40-553-080 DIODE,1N4003 LES A...................
HL 601 8Z-JU4-201-010 HLDR,LED A...................
HL 603 8Z-JU4-202-010 HLDR,SENSOR A...................
HL 602 8Z-JU4-202-010 HLDR,SENSOR A...................
IC 605 87-A20-676-040 C-IC,S-80827ANNP-EDQ A...................
IC 602 87-A91-171-010 RCR UNIT,NJL65V380 A...................
IC 601 8Z-JPV-605-010 C-IC,CXP88132-***Q A...................
IC 801 87-070-242-010 IC,LA7123 A...................
IC 840 87-002-394-010 IC,LB1641 A...................
L 705 87-003-102-080 COIL, 10UH A...................
L 704 87-003-102-080 COIL, 10UH A...................
L 701 87-005-432-080 COIL,10UH A...................
L 711 87-003-102-080 COIL, 10UH A...................
L 712 87-003-102-080 COIL, 10UH A...................
L 772 87-003-102-080 COIL, 10UH A...................
L 771 87-005-432-080 COIL,10UH A...................
L 782 87-003-102-080 COIL, 10UH A...................
L 781 87-005-430-080 COIL,6.8UH FLR50 A...................
L 801 87-003-102-080 COIL, 10UH A...................
L 840 87-005-432-080 COIL,10UH A...................
PS 601 8Z-JU1-603-010 SNSR,GP1S566 A...................
PS 602 8Z-JU1-603-010 SNSR,GP1S566 A...................
Q 601 87-026-235-080 CHIP-TR,DTC114EK A...................

ELECTRICAL MAIN PARTS LIST - 3/5
Q 711 87-026-235-080 CHIP-TR,DTC114EK A...................
Q 710 87-026-235-080 CHIP-TR,DTC114EK A...................
Q 730 87-A30-270-010 P-TR,PT493F A...................
Q 732 87-A30-270-010 P-TR,PT493F A...................
Q 828 87-A30-062-080 C-TR,KRC104S A...................
Q 832 87-A30-062-080 C-TR,KRC104S A...................
Q 834 87-A30-062-080 C-TR,KRC104S A...................
Q 831 87-A30-219-080 TR,2SB1443(Q) A...................
Q 833 87-A30-219-080 TR,2SB1443(Q) A...................
S 601 87-A91-237-010 SW,RTRY MMS00420ZMB0 A...................
S 602 87-A91-238-010 SW,MICRO MPU10252MLB4 A...................
VR 601 87-024-438-080 SFR220K,RH063EC A...................
W 601 88-JU8-616-010 FF-CABLE, 7P 1.25 120MM A...................
W 602 8Z-JU4-608-010 FF-CABLE, 8P 1.25 120MM A...................
W 603 8Z-JU4-618-010 F-CABLE,7P 2.0 130MM FR A...................
X 601 87-A70-090-080 VIB,XTAL 16MHZ AT-49 A...................
C 108 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 105 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 107 87-015-677-080 CAP,E 100-6.3 7L A...................
C 106 87-015-694-080 CAP,E 0.47-50 7L A...................
C 101 87-015-697-080 CAP,E 3.3-50 7L A...................
C 115 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 113 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 119 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 116 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 110 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 112 87-010-313-080 CAP, CHIP 18P A...................
C 114 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 111 87-015-694-080 CAP,E 0.47-50 7L A...................
C 127 87-010-186-080 CAP,CHIP 4700P A...................
C 122 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 124 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 128 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 126 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 121 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 125 87-010-263-080 CAP, ELECT 100-10V A...................
C 123 87-010-263-080 CAP, ELECT 100-10V A...................
C 120 87-010-401-080 CAP, ELECT 1-50V A...................
C 130 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 134 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 137 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 138 87-010-321-080 CHIP CAPACITOR,82P(J) A...................
C 133 87-015-681-080 CAP,E 10-16 7L A...................
C 136 87-015-694-080 CAP,E 0.47-50 7L A...................
C 148 87-010-178-080 CHIP CAP 1000P A...................
C 145 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 144 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 147 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 146 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 143 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 149 87-010-198-080 CAP, CHIP 0.022 A...................
C 140 87-015-677-080 CAP,E 100-6.3 7L A...................
C 142 87-015-696-080 CAP,E 2.2-50 7L A...................
C 141 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................
C 158 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 154 87-010-315-080 C-CAP,S 27P-50 CH A...................
C 153 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 157 87-012-140-080 CAP 470P A...................
C 156 87-012-153-080 C-CAP,S 120P-50 CH A...................
C 152 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 159 87-015-681-080 CAP,E 10-16 7L A...................
C 163 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 162 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 164 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 165 87-010-320-080 CHIP CAP 68P A...................
C 161 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 160 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
IC 101 87-A21-280-010 C-IC,TA1277F A...................
L 108 87-003-152-080 COIL, 100UH A...................
L 107 87-003-286-080 COIL,56UH LAL02 A...................
L 101 87-005-432-080 COIL,10UH A...................
L 106 87-005-432-080 COIL,10UH A...................
L 103 87-005-440-080 COIL,47UH FLR50 A...................
L 104 87-005-440-080 COIL,47UH FLR50 A...................
Q 102 87-A30-060-080 C-TR,KTC3875GR A...................
Q 107 87-A30-061-080 C-TR,KTA1504GR A...................
Q 108 87-A30-062-080 C-TR,KRC104S A...................
Q 106 87-A30-062-080 C-TR,KRC104S A...................
Q 115 87-A30-062-080 C-TR,KRC104S A...................
Q 111 87-A30-062-080 C-TR,KRC104S A...................
Q 112 87-A30-062-080 C-TR,KRC104S A...................
X 101 8Z-JU4-613-080 VIB,XTAL 4.43MHZ TA1277 A...................
X 102 8Z-JU4-614-080 VIB,XTAL 3.58MHZ TA1277 A...................
C 306 87-010-178-080 CHIP CAP 1000P A...................
C 303 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 305 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

ELECTRICAL MAIN PARTS LIST - 4/5
C 302 87-010-405-080 CAP, ELECT 10-50V A...................
C 304 87-010-754-080 CAP,E220-10 SRA 7L A...................
C 309 87-015-681-080 CAP,E 10-16 7L A...................
C 316 87-010-178-080 CHIP CAP 1000P A...................
C 315 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 310 87-010-193-080 CHIP CAPACITOR,0.033 A...................
C 318 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 311 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 312 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 313 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 317 87-010-406-080 CAP, ELECT 22-50 A...................
C 319 87-015-674-080 CAP 22U-6.3V A...................
C 314 87-015-695-080 CAP,E 1-50 7L A...................
C 329 87-010-189-080 C-CAP,S 8200P-50 B A...................
C 328 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 326 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 325 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 327 87-010-260-080 CAP, ELECT 47-25V A...................
C 322 87-010-805-080 CAP, S 1-16 A...................
C 320 87-015-695-080 CAP,E 1-50 7L A...................
C 333 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 330 87-015-684-080 CAP,E 47-16 7L A...................
C 331 87-018-132-080 CAP, CER 2200P-16V A...................
C 332 87-A11-760-080 CAP,M 0.056-100 J ECQB A...................
CN 302 87-A60-258-010 CONN,2P V TMC-E02X A...................
CN 301 87-A60-876-010 CONN,6P V FM22.5-BTR A...................
IC 301 87-001-854-010 IC,BA7755AF A...................
L 302 87-005-432-080 COIL,10UH A...................
L 303 87-005-440-080 COIL,47UH FLR50 A...................
L 301 8Z-JU4-612-010 COIL,BIAS OSC 70KHZ A...................
Q 306 87-026-227-080 CHIP-TR,DTA114EK A...................
Q 307 87-026-239-080 TR,DTC114TK (0.2W) A...................
Q 309 87-A30-061-080 C-TR,KTA1504GR A...................
Q 310 87-A30-062-080 C-TR,KRC104S A...................
Q 311 87-A30-099-080 TR,2SC3708S/T A...................
C 402 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 403 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 404 87-010-263-080 CAP, ELECT 100-10V A...................
C 405 87-010-263-080 CAP, ELECT 100-10V A...................
C 453 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 456 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 454 87-010-260-080 CAP, ELECT 47-25V A...................
C 451 87-010-371-080 CAP, ELECT 470-6.3V A...................
C 455 87-010-384-080 CAP, ELECT 100-25V A...................
C 452 87-010-384-080 CAP, ELECT 100-25V A...................
J 401 87-A60-323-010 JACK,PIN 4P Y-BLK A...................
L 402 87-005-440-080 COIL,47UH FLR50 A...................
L 401 87-005-440-080 COIL,47UH FLR50 A...................
L 451 87-005-440-080 COIL,47UH FLR50 A...................
Q 451 87-A30-061-080 C-TR,KTA1504GR A...................
Q 452 87-A30-061-080 C-TR,KTA1504GR A...................
RF 401 87-A91-382-010 RF MOD UNIT, NJH3032E203 A...................
CN 871 87-099-201-010 CONN,8P 6216 H A...................
D 871 87-020-465-080 DIODE,1SS133 (110MA) A...................
S 874 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 872 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 871 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 876 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 875 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 877 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 873 87-A90-164-080 SW,TACT SKQAB(N) A...................
C 871 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 872 87-015-676-080 ELECTROLYTIC CAPACITOR, 47U-6. A...................
CN 872 87-A60-689-010 CONN,7P H GRY TUC-P07X-C1 A...................
D 878 87-017-733-080 LED,SEL1250SM A...................
D 877 87-A40-263-080 LED,SLH-56PCT31 GRN A...................
D 876 87-A40-263-080 LED,SLH-56PCT31 GRN A...................
D 875 87-A40-263-080 LED,SLH-56PCT31 GRN A...................
D 879 87-A40-263-080 LED,SLH-56PCT31 GRN A...................
D 889 87-017-733-080 LED,SEL1250SM A...................
D 887 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 888 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 884 87-A40-263-080 LED,SLH-56PCT31 GRN A...................
D 882 87-A40-263-080 LED,SLH-56PCT31 GRN A...................
D 881 87-A40-263-080 LED,SLH-56PCT31 GRN A...................
D 883 87-A40-263-080 LED,SLH-56PCT31 GRN A...................
D 885 87-A40-263-080 LED,SLH-56PCT31 GRN A...................
D 886 87-A40-263-080 LED,SLH-56PCT31 GRN A...................
D 880 87-A40-263-080 LED,SLH-56PCT31 GRN A...................
D 890 87-A40-263-080 LED,SLH-56PCT31 GRN A...................
IC 871 87-070-289-040 IC,BU 2092F A...................
L 871 87-003-102-080 COIL, 10UH A...................
Q 875 87-026-235-080 CHIP-TR,DTC114EK A...................
C 8 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 6 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 9 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 14 87-010-178-080 CHIP CAP 1000P A...................

ELECTRICAL MAIN PARTS LIST - 5/5
C 17 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 16 87-010-805-080 CAP, S 1-16 A...................
C 15 87-015-677-080 CAP,E 100-6.3 7L A...................
C 13 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 20 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 54 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 58 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 57 87-012-145-080 CAP, CHIP S 270P CH A...................
C 68 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 60 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 61 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 69 87-010-263-080 CAP, ELECT 100-10V A...................
C 66 87-010-315-080 C-CAP,S 27P-50 CH A...................
C 67 87-010-316-080 C-CAP,S 33P-50 CH A...................
C 62 87-010-317-080 C-CAP,S 39P-50 CH A...................
C 65 87-012-158-080 C-CAP,S 390P-50 CH A...................
CN 2 8Z-JU9-801-010 CONN,3P V GF120 A...................
D 2 87-020-465-080 DIODE,1SS133 (110MA) A...................
IC 2 87-A21-279-040 C-IC,TA1249F A...................
L 1 87-005-440-080 COIL,47UH FLR50 A...................
L 57 87-003-146-080 COIL,15UH LAL02 A...................
L 54 87-003-148-080 COIL BIAS 33UH A...................
L 53 87-003-149-080 COIL,47UH A...................
L 58 87-003-149-080 COIL,47UH A...................
L 56 87-003-154-080 COIL,220UH A...................
Q 1 87-A30-060-080 C-TR,KTC3875GR A...................
Q 55 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 52 87-A30-060-080 C-TR,KTC3875GR A...................
Q 58 87-A30-061-080 C-TR,KTA1504GR A...................
Q 54 87-A30-061-080 C-TR,KTA1504GR A...................
Q 59 89-324-122-080 TR,2SC2412K A...................
Q 62 87-A30-060-080 C-TR,KTC3875GR A...................
Q 60 89-324-122-080 TR,2SC2412K A...................
CNA 871 8Z-JPV-606-010 CONN ASSY,2P MA-SW A...................
S 879 87-036-087-010 SLIDE SWITCH, 1-3 A...................
CN 851 87-009-313-010 CONN 7P 51048 A...................
D 851 87-A40-263-080 LED,SLH-56PCT31 GRN A...................
S 852 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 854 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 853 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 851 87-A90-164-080 SW,TACT SKQAB(N) A...................

MECHANICAL PARTS LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
KERJJM .................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NE6-067-010 BADGE,AIWA 30N A...................
84-JP9-021-110 PLATE,FOOT HAIR A...................
84-JP9-202-010 SPR-T,DOOR A...................
87-JU8-210-010 SPR-T,SHUTTLE A...................
8Z-JPV-001-210 CABI,FR V A...................
8Z-JPV-002-010 DOOR,CASS V A...................
8Z-JPV-004-010 BTN,REPEAT A...................
8Z-JPV-005-010 KNOB,SL V A...................
8Z-JPV-006-010 KEY,POWER V A...................
8Z-JPV-009-010 PLATE,WIN V A...................
8Z-JPV-010-010 WINDOW,FR 2 A...................
8Z-JU4-006-110 KEY,MAIN A...................
8Z-JU4-007-010 KEY,REC A...................
8Z-JU4-008-010 CAP, RING A...................
8Z-JU4-012-010 KEY,PAUSE A...................
8Z-JU9-002-010 CAP, SHUTTLE 9 A...................
8Z-JU9-003-110 KNOB,RTRY SHUTTLE 9 A...................
81-JUK-045-010 FELT,FOOT 8-8 A...................
8Z-JPV-201-010 HLDR,FLY/REC A...................
8Z-JU4-013-010 CABI,STEEL A...................
8Z-JU4-206-010 PLATE,MECHA A...................
87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................
87-067-660-010 TAPPING SCREW, BVT2+3-8 A...................
87-067-688-010 BVTT+3-6 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
87-067-761-010 TAPPING SCREW, BVT2+3-10 A...................
87-761-096-410 VFT2+3-10 GLD A...................
87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
W 901 87-A80-088-010 AC CORD ASSY,E BLK A...................
W 601 88-JU8-616-010 FF-CABLE, 7P 1.25 120MM A...................
W 602 8Z-JU4-608-010 FF-CABLE, 8P 1.25 120MM A...................
W 603 8Z-JU4-618-010 F-CABLE,7P 2.0 130MM FR A...................

ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
KERJJM .................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-JPV-901-110 IB,KE(ECRAP) MC70-M A...................
87-034-796-010 CORD,RF PAL S A...................
8Z-JPV-608-010 RC UNIT,RC-ZVP01 A...................

SCHEMATIC DIAGRAM - 1 (AUDIO / VIDEO)
KRC104S
Q107
KTA1504GR
Q108
KRC104S
Q111
KRC104S
Q112
KRC104S
Q115
KRC104S
Q310
KRC104S
Q309
KTA1504GR
Q102
KTC3875GR

SCHEMATIC DIAGRAM - 2 (FRONT/LED)

SCHEMATIC DIAGRAM - 3 (SERVO-SYSCON)
Q832
KRC104S
Q832
KRC104S
Q832
KRC104S

SCHEMATIC DIAGRAM - 4 (HA)
Q1
KTC3875GR
Q52
KTC3875GR
Q54
KTA1504GR
Q58
KTA1504GR
Q62
KTC3875GR

SCHEMATIC DIAGRAM - 5 (TUNER)
Q451
KTA1504GR
Q452
KTA1504GR

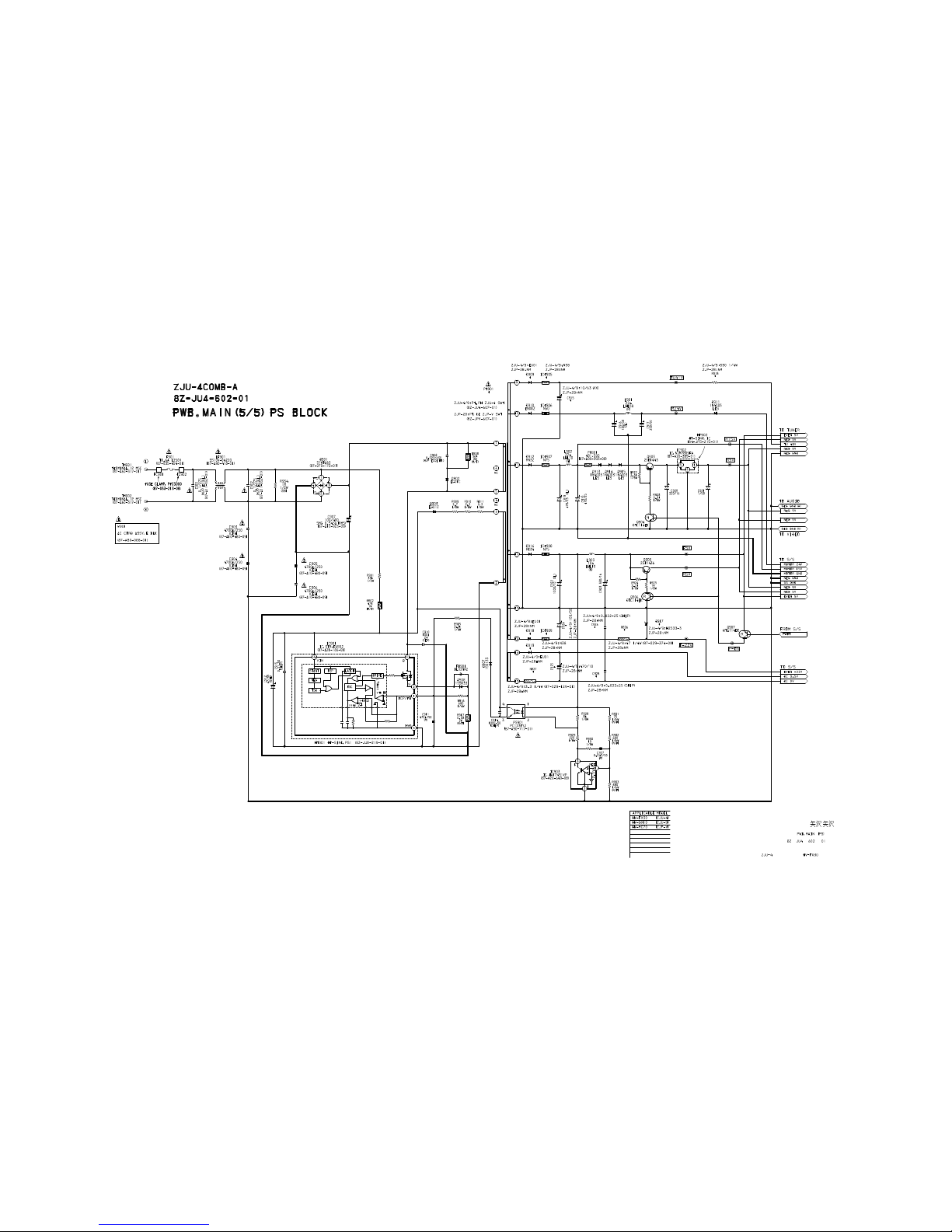

SCHEMATIC DIAGRAM _6 (PS)

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
Printed in Singapore9820527

SERVICE MANUAL
DATA
VIDEO CASSETTE RECORDER BASIC CD MECHANISM : D33 P2LRN106A
HV-MC70 KER
S/M Code No. 09-004-418-4S1
SUPPLEMENT
• This Service Manual is the "Supplement" and replaces "Simple Manual",
(S/M Code No. 09-003-418-4T2).
• This Service Manual contains information about the difference between
HV-MC70 (KER) and HV-MC70 (KE). If requiring other information, see
Service Manual of HV-MC70 (KE). (S/M Code No. 09-99B-418-4R1)
• If requiring information about the mechanism, see Service Manual of D33,
(S/M Code No. 09-99B-336-8N2).

– 2 –
Recording/playback system
Video head: Rotary 2 head helical scanning system
Audio head: Stationary head
Video signal PAL/MESECAM color signal,
625 lines,50 fields
NTSC color signal,525 lines,60 fields
Recording/playback time
PAL/MESECAM 5 hours max. with E-300 tape,SP
10 hours max. with E-300 tape,LP
NTSC 3.58/4.43 3 hours max. with T-180 tape,SP
6 hours max. with T-180 tape,LP
(Playback only)
9 hours max. with T-180 tape,EP
Tape speed
PAL/MESECAM 23.39 mm/sec.,SP
11.70 mm/sec.,LP
NTSC 33.35 mm/sec.,SP
16.67 mm/sec.,LP (Playback only)
11.12 mm/sec.,EP
Tape width 12.65 mm
Usable cassettes VHS video cassettes
RF output UHF channel between E30 and E39
(PAL G/K) Factory preset: E36
RF output level 72dBu,75 ohms
Video input level 0.5-2.0Vp-p,75ohms, unbalanced
Video output level 1.0Vp-p,75ohms, unbalanced
Horizontal resolution PAL 230 lines (nominal)
NTSC 220 lines (nominal)
Video S/N 43dBs (nominal)
Audio input level -8dBs, 22 Kohms or more
Audio output level -8dBs, less than 2.2 Kohms,unbalanced
Operating temperature 5°C — 40°C
Power requirements 110V – 240V AC, 50/60 Hz
Power consumption 12 watts
Dimensions 360 (W) x 276 (D) x 98 (H) mm
(141/4x 107/8x 37/8in.)
Weight Approx. 3.5 kg (7.7 Ibs.)
SPECIFICATIONS
• Design and specifications are subject to change without notice.

– 3 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-279-040 C-IC,TA1249F
87-A21-280-010 C-IC,TA1277F
87-001-854-010 IC,BA7755AF
87-070-289-040 C-IC,BU2092F
8Z-JPV-605-010 C-IC,CXP88132-194Q
87-A91-171-010 RCR UNIT,NJL65V380
87-A20-676-040 C-IC,S-80827ANNP-EDQ
87-070-242-010 IC,LA7123
87-002-394-010 IC,LB1641
87-A21-186-010 IC,STR-F6552
87-A20-389-010 IC,NJM7809FA
87-A20-649-080 IC,HA17431VP
TRANSISTOR
89-324-122-080 C-TR,2SC2412K
87-026-239-080 C-TR,DTC114TK
87-026-210-080 CHIP-TR,DTC144EK
87-A30-060-080 C-TR,KTC3875GR
87-026-235-080 CHIP-TR,DTC114EK
87-A30-099-080 TR,2SC3708S/T
87-A30-061-080 C-TR,KTA1504GR
87-A30-219-080 TR,2SB1443(Q)
87-A30-217-010 TR,2SB1436(R)
87-026-227-080 CHIP-TR,DTA114EK
87-A30-062-080 C-TR,KRC104S
DIODE
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-003-080 ZENER,MTZJ4.3A
87-A40-597-010 LED,GL451V
87-A40-574-080 ZENER,MTZJ3.0A
87-A40-530-080 DIODE,RB721Q-40
87-A40-553-080 DIODE,1N4003 LES
87-A40-509-080 ZENER,MTZJ6.8C
87-070-173-010 DIODE,S1WBA60
87-A40-368-080 DIODE,EG01C
87-A40-172-080 DIODE,EG01Z
87-A40-367-080 DIODE,EU01
87-A40-628-080 DIODE,EN01Z
87-A40-369-090 DIODE,RN3Z
87-A40-184-090 DIODE,RK34(F)
87-A40-353-080 ZENER,HZS33-3
MAIN C.B
C6 87-010-196-080 CHIP CAPACITOR,0.1-25
C8 87-010-196-080 CHIP CAPACITOR,0.1-25
C9 87-010-197-080 CAP, CHIP 0.01 DM
C13 87-018-134-080 CAPACITOR,TC-U 0.01-16
C14 87-010-178-080 CHIP CAP 1000P
C15 87-015-677-080 CAP,E 100-6.3 7L
C16 87-010-805-080 CAP, S 1-16
C17 87-010-197-080 CAP, CHIP 0.01 DM
C20 87-010-197-080 CAP, CHIP 0.01 DM
C54 87-010-196-080 CHIP CAPACITOR,0.1-25
C57 87-012-145-080 CAP, CHIP S 270P CH
C58 87-010-197-080 CAP, CHIP 0.01 DM
C60 87-010-196-080 CHIP CAPACITOR,0.1-25
C61 87-010-197-080 CAP, CHIP 0.01 DM
C62 87-010-317-080 C-CAP,S 39P-50 CH
C65 87-012-158-080 C-CAP,S 390P-50 CH
C66 87-010-315-080 C-CAP,S 27P-50 CH
C67 87-010-316-080 C-CAP,S 33P-50 CH
C68 87-010-196-080 CHIP CAPACITOR,0.1-25
C69 87-010-263-080 CAP, ELECT 100-10V
C101 87-015-697-080 CAP,E 3.3-50 7L
C105 87-010-197-080 CAP, CHIP 0.01 DM
C106 87-015-694-080 CAP,E 0.47-50 7L
C107 87-015-677-080 CAP,E 100-6.3 7L
C108 87-010-196-080 CHIP CAPACITOR,0.1-25
C110 87-010-213-080 C-CAP,S 0.015-50 B
C111 87-015-694-080 CAP,E 0.47-50 7L
C112 87-010-313-080 CAP, CHIP 18P
C113 87-010-197-080 CAP, CHIP 0.01 DM
C114 87-010-993-080 C-CAP,S 0.056-25 B
C115 87-010-196-080 CHIP CAPACITOR,0.1-25
C116 87-010-197-080 CAP, CHIP 0.01 DM
C119 87-010-197-080 CAP, CHIP 0.01 DM
C120 87-010-401-080 CAP, ELECT 1-50V
C121 87-010-197-080 CAP, CHIP 0.01 DM
C122 87-010-196-080 CHIP CAPACITOR,0.1-25
C123 87-010-263-080 CAP, ELECT 100-10V
C124 87-010-196-080 CHIP CAPACITOR,0.1-25
C125 87-010-263-080 CAP, ELECT 100-10V
C126 87-010-197-080 CAP, CHIP 0.01 DM
C127 87-010-186-080 CAP,CHIP 4700P
C128 87-010-197-080 CAP, CHIP 0.01 DM
C130 87-010-196-080 CHIP CAPACITOR,0.1-25
C133 87-015-681-080 CAP,E 10-16 7L
C134 87-010-197-080 CAP, CHIP 0.01 DM
C136 87-015-694-080 CAP,E 0.47-50 7L
C137 87-010-312-080 C-CAP,S 15P-50 CH
C138 87-010-321-080 CHIP CAPACITOR,82P(J)
C140 87-015-677-080 CAP,E 100-6.3 7L
C141 87-A11-148-080 CAP,TC U 0.1-50 Z F
C142 87-015-696-080 CAP,E 2.2-50 7L
C143 87-010-196-080 CHIP CAPACITOR,0.1-25
C144 87-010-196-080 CHIP CAPACITOR,0.1-25
C145 87-010-196-080 CHIP CAPACITOR,0.1-25
C146 87-010-196-080 CHIP CAPACITOR,0.1-25
C147 87-010-196-080 CHIP CAPACITOR,0.1-25
C148 87-010-178-080 CHIP CAP 1000P
C149 87-010-198-080 C-CAP,S 0.022-25 K B
C152 87-012-154-080 C-CAP,S 150P-50 CH
C153 87-010-319-080 C-CAP,S 56P-50 CH
C154 87-010-315-080 C-CAP,S 27P-50 CH
C156 87-012-153-080 C-CAP,S 120P-50 CH
C157 87-012-140-080 CAP 470P
C158 87-010-196-080 CHIP CAPACITOR,0.1-25
C159 87-015-681-080 CAP,E 10-16 7L
C160 87-018-134-080 CAPACITOR,TC-U 0.01-16
C161 87-012-156-080 C-CAP,S 220P-50 CH
C162 87-010-197-080 CAP, CHIP 0.01 DM
C163 87-010-196-080 CHIP CAPACITOR,0.1-25
C164 87-010-197-080 CAP, CHIP 0.01 DM
C165 87-010-320-080 CHIP CAP 68P
C302 87-010-405-080 CAP, ELECT 10-50V
C303 87-010-184-080 CHIP CAPACITOR 3300P(K)
C304 87-010-754-080 CAP,E220-10 SRA 7L
C305 87-010-196-080 CHIP CAPACITOR,0.1-25
C306 87-010-178-080 CHIP CAP 1000P
C307 87-010-196-080 CHIP CAPACITOR,0.1-25
C309 87-015-674-080 CAP 22U-6.3V
C310 87-010-193-080 CHIP CAPACITOR,0.033
C311 87-010-196-080 CHIP CAPACITOR,0.1-25
C312 87-010-197-080 CAP, CHIP 0.01 DM
C313 87-010-197-080 CAP, CHIP 0.01 DM
C314 87-015-695-080 CAP,E 1-50 7L
C315 87-010-182-080 C-CAP,S 2200P-50 B
C316 87-010-178-080 CHIP CAP 1000P
C317 87-010-406-080 CAP, ELECT 22-50
C318 87-010-196-080 CHIP CAPACITOR,0.1-25
C319 87-015-674-080 CAP 22U-6.3V
C320 87-015-696-080 CAP,E 2.2-50 7L
C322 87-010-805-080 CAP, S 1-16
C326 87-010-197-080 CAP, CHIP 0.01 DM

– 4 –
C327 87-010-260-080 CAP, ELECT 47-25V
C328 87-010-196-080 CHIP CAPACITOR,0.1-25
C329 87-010-189-080 C-CAP,S 8200P-50 B
C330 87-015-684-080 CAP,E 47-16 7L
C331 87-018-132-080 CAP, CER 2200P-16V
C332 87-A11-760-080 CAP,M 0.056-100 J ECQB
C333 87-012-156-080 C-CAP,S 220P-50 CH
C404 87-010-263-080 CAP, ELECT 100-10V
C405 87-010-263-080 CAP, ELECT 100-10V
C451 87-010-371-080 CAP, ELECT 470-6.3V
C452 87-010-384-080 CAP, ELECT 100-25V
C453 87-010-196-080 CHIP CAPACITOR,0.1-25
C402 87-010-196-080 CHIP CAPACITOR,0.1-25
C403 87-010-196-080 CHIP CAPACITOR,0.1-25
C454 87-010-260-080 CAP, ELECT 47-25V
C455 87-010-384-080 CAP, ELECT 100-25V
C456 87-010-196-080 CHIP CAPACITOR,0.1-25
C601 87-010-196-080 CHIP CAPACITOR,0.1-25
C602 87-010-311-080 CAP 12P
C603 87-010-311-080 CAP 12P
C607 87-010-196-080 CHIP CAPACITOR,0.1-25
C609 87-010-197-080 CAP, CHIP 0.01 DM
C610 87-010-260-080 CAP, ELECT 47-25V
C611 87-010-197-080 CAP, CHIP 0.01 DM
C701 87-010-196-080 CHIP CAPACITOR,0.1-25
C704 87-010-197-080 CAP, CHIP 0.01 DM
C710 87-010-197-080 CAP, CHIP 0.01 DM
C711 87-010-197-080 CAP, CHIP 0.01 DM
C712 87-010-197-080 CAP, CHIP 0.01 DM
C713 87-010-197-080 CAP, CHIP 0.01 DM
C714 87-010-197-080 CAP, CHIP 0.01 DM
C720 87-010-197-080 CAP, CHIP 0.01 DM
C721 87-010-197-080 CAP, CHIP 0.01 DM
C722 87-010-197-080 CAP, CHIP 0.01 DM
C724 87-010-197-080 CAP, CHIP 0.01 DM
C725 87-010-197-080 CAP, CHIP 0.01 DM
C731 87-010-198-080 CAP, CHIP 0.022
C732 87-010-198-080 CAP, CHIP 0.022
C741 87-010-178-080 CHIP CAP 1000P
C746 87-010-196-080 CHIP CAPACITOR,0.1-25
C751 87-010-196-080 CHIP CAPACITOR,0.1-25
C770 87-010-384-080 CAP, ELECT 100-25V
C771 87-010-198-080 CAP, CHIP 0.022
C772 87-010-260-080 CAP, ELECT 47-25V
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C780 87-010-408-080 CAP, ELECT 47-50V
C781 87-010-197-080 CAP, CHIP 0.01 DM
C782 87-010-260-080 CAP, ELECT 47-25V
C783 87-010-197-080 CAP, CHIP 0.01 DM
C801 87-010-405-080 CAP, ELECT 10-50V
C802 87-010-403-080 CAP, ELECT 3.3-50V
C803 87-010-175-080 CAP 560P
C804 87-010-260-080 CAP, ELECT 47-25V
C805 87-010-178-080 CHIP CAP 1000P
C806 87-010-184-080 CHIP CAPACITOR 3300P(K)
C808 87-010-260-080 CAP, ELECT 47-25V
C809 87-010-196-080 CHIP CAPACITOR,0.1-25
C812 87-010-178-080 CHIP CAP 1000P
C813 87-010-178-080 CHIP CAP 1000P
C820 87-010-197-080 CAP, CHIP 0.01 DM
C824 87-010-186-080 CAP,CHIP 4700P
C827 87-010-178-080 CHIP CAP 1000P
C830 87-010-405-080 CAP, ELECT 10-50V
C831 87-010-405-080 CAP, ELECT 10-50V
C832 87-010-405-080 CAP, ELECT 10-50V
C842 87-010-197-080 CAP, CHIP 0.01 DM
C845 87-010-197-080 CAP, CHIP 0.01 DM
C846 87-010-384-080 CAP, ELECT 100-25V
C847 87-010-196-080 CHIP CAPACITOR,0.1-25
C901 87-A11-352-010 CAP,M/P 0.1-275 M ECQUL
C902 87-A11-352-010 CAP,M/P 0.1-275 M ECQUL
C903 87-A10-480-090 CAP,CER 4700P-250 M E KH
C904 87-A10-480-090 CAP,CER 4700P-250 M E KH
C905 87-A10-480-090 CAP,CER 4700P-250 M E KH
C906 87-A10-480-090 CAP,CER 4700P-250 M E KH
C907 87-A10-923-090 CAP,E 100-400 SMG 0.545A(RMS)
C908 87-A11-753-080 CAP,M/P 0.022-630 K ECQE(F)
C910 87-A11-794-080 CAP,CER 100P-2K K B
C911 87-A10-279-080 CAP,M 470P-50 J
C912 87-016-501-080 CAP,E 47-35 SXE
C913 87-010-190-080 S CHIP F 0.01
C914 87-010-178-080 CHIP CAP 1000P
C916 87-A11-775-080 CAP,E 100-50 M ZL
C917 87-010-409-080 CAP,E 220-50 SME
C918 87-A11-774-080 CAP,E 470-25 M ZL
C919 87-010-387-080 CAP,E 470-25 SME
C920 87-010-101-080 CAP, ELECT 220-16
C921 87-010-401-080 CAP, ELECT 1-50V
C922 87-A11-772-080 CAP,E 1000-10 M ZL
C923 87-010-381-080 CAP, ELECT 330-16V
C927 87-A10-303-080 CAP,M 0.047-50 J
CN2 8Z-JU9-801-010 CONN,3P V GF120
CN301 87-A60-876-010 CONN,6P V FM22.5-BTR
CN302 87-A60-258-010 CONN,2P V TMC-E02X
CN601 87-099-566-010 CONN,7P TUC P7P-B1
CN602 87-A60-133-010 CONN,8P V FE
CN603 87-A60-603-010 CONN,8P V GRA TMC-J08P-A1
CN604 87-099-195-010 CONN,7P 6216 V
CN605 87-A60-582-010 CONN,5P V BGE TKX-P05P-X1
CN606 87-009-313-010 CONN 7P 51048
CN607 8Z-JU4-801-010 CONN,2P V TMC-T02X-C1
CN608 87-009-030-010 CONNECTOR 2P PH M
F901 87-035-454-010 FUSE,1.6A 250V T W/C
FB901 87-003-223-080 FERRITE BEAD BL02RN2
FC901 87-033-213-080 CLAMP, FUSE
FC902 87-033-213-080 CLAMP, FUSE
HL601 8Z-JU4-201-010 HLDR,LED
HL602 8Z-JU4-202-010 HLDR,SENSOR
HL603 8Z-JU4-202-010 HLDR,SENSOR
ICF906 87-001-211-080 ICP-N50
ICF907 87-A91-337-080 PROTECTOR,IC ICP-N75
ICF908 87-A91-337-080 PROTECTOR,IC ICP-N75
J401 87-A60-323-010 JACK,PIN 4P Y-BLK
L1 87-005-440-080 COIL,47UH FLR50
L53 87-003-149-080 COIL,47UH
L54 87-003-148-080 COIL BIAS 33UH
L56 87-003-154-080 COIL,220UH
L57 87-003-146-080 COIL,15UH LAL02
L58 87-003-149-080 COIL,47UH
L101 87-005-432-080 COIL,10UH
L103 87-005-440-080 COIL,47UH FLR50
L104 87-005-440-080 COIL,47UH FLR50
L106 87-005-432-080 COIL,10UH
L107 87-003-286-080 COIL,56UH LAL02
L108 87-003-152-080 COIL, 100UH
L301 8Z-JU4-612-010 COIL,BIAS OSC 70KHZ
L302 87-005-432-080 COIL,10UH
L303 87-005-440-080 COIL,47UH FLR50
L401 87-005-440-080 COIL,47UH FLR50
L402 87-005-440-080 COIL,47UH FLR50
L451 87-005-440-080 COIL,47UH FLR50
L701 87-005-432-080 COIL,10UH
L704 87-003-102-080 COIL, 10UH
L705 87-003-102-080 COIL, 10UH
L711 87-003-102-080 COIL, 10UH
L712 87-003-102-080 COIL, 10UH
L771 87-005-432-080 COIL,10UH
L772 87-003-102-080 COIL, 10UH
L781 87-005-430-080 COIL,6.8UH K FLR50
L782 87-003-102-080 COIL, 10UH
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
!
!
!
!
!
!
!
!
!
!
!

– 5 –
L801 87-003-102-080 COIL, 10UH
L840 87-005-432-080 COIL,10UH
L901 87-A50-444-080 COIL,22UH K LHL08
L902 87-A50-180-080 COIL,22UH K LHL10
L903 87-A50-193-080 COIL,10UH K LHL10
LF901 87-A90-418-010 FLTR,22MH SS10V-04220
PR901 87-A90-393-080 PROTECTOR,0.5A 491SERISE 60V
PS601 8Z-JU1-603-010 SNSR,GP1S566
PS602 8Z-JU1-603-010 SNSR,GP1S566
PS901 87-A90-717-010 P-COUPLER,PC123FY2
PT901 8Z-JU4-607-010 PT,PH ZJU-4 SWT
Q730 87-A30-270-010 P-TR,PT493F
Q732 87-A30-270-010 P-TR,PT493F
R843 87-029-077-010 FUSING RESISTOR, 10, 1/2W
R902 87-022-565-090 RES,M/O 47K-1W J
R908 87-A00-558-090 RES,M/F 56K-2W J
R917 87-A00-595-090 RES,M/F 0.33-2W J
R931 87-A00-279-080 RES,M/F 75-1/6W F
R932 87-025-365-080 RES,M/F 680-1/6WJ F
R933 87-025-365-080 RES,M/F 680-1/6WJ F
RF401 87-A91-382-010 RF MOD UNIT,NJH3032E203
S601 87-A91-237-010 SW,RTRY MMS00420ZMB0
S602 87-A91-238-010 SW,MICRO MPU10252MLB4
TM901 87-A60-317-010 TERMINAL, 1P MSC
TM902 87-A60-317-010 TERMINAL, 1P MSC
W601 88-JU8-616-010 FF-CABLE, 7P 1.25 120MM
W602 8Z-JU4-608-010 FF-CABLE, 8P 1.25 120MM
W603 8Z-JU4-618-010 F-CABLE,7P 2.0 130MM FR
W901 87-A80-088-010 AC CORD ASSY,E BLK
X101 8Z-JU4-613-080 VIB,XTAL 4.43MHZ TA1277
X102 8Z-JU4-614-080 VIB,XTAL 3.58MHZ TA1277
X601 87-A70-090-080 VIB,XTAL 16MHZ AT-49
VR601 87-024-438-080 SFR,220K H RH063MC
FR1 C.B
CN871 87-099-201-010 CONN,8P 6216 H
S871 87-A90-164-080 SW,TACT SKQAB(N)
S872 87-A90-164-080 SW,TACT SKQAB(N)
S873 87-A90-164-080 SW,TACT SKQAB(N)
S874 87-A90-164-080 SW,TACT SKQAB(N)
S875 87-A90-164-080 SW,TACT SKQAB(N)
S876 87-A90-164-080 SW,TACT SKQAB(N)
S877 87-A90-164-080 SW,TACT SKQAB(N)
FR2 C.B
CN851 87-009-313-010 CONN 7P 51048
D852 87-A40-263-080 LED,SLH-56PCT31 GRN
S851 87-A90-164-080 SW,TACT SKQAB(N)
S852 87-A90-164-080 SW,TACT SKQAB(N)
S853 87-A90-164-080 SW,TACT SKQAB(N)
S854 87-A90-164-080 SW,TACT SKQAB(N)
LED C.B
C872 87-015-676-080 CAP,E 47-6.3 M
CN872 87-A60-689-010 CONN,7P H GRY TUC-PO7X-C1
D875 87-A40-263-080 LED,SLH-56PCT31 GRN
D876 87-A40-263-080 LED,SLH-56PCT31 GRN
D877 87-A40-263-080 LED,SLH-56PCT31 GRN
D878 87-017-733-080 LED,SEL1250SMTP5 RED
D879 87-A40-263-080 LED,SLH-56PCT31 GRN
D880 87-A40-263-080 LED,SLH-56PCT31 GRN
D881 87-A40-263-080 LED,SLH-56PCT31 GRN
D882 87-A40-263-080 LED,SLH-56PCT31 GRN
D883 87-A40-263-080 LED,SLH-56PCT31 GRN
D884 87-A40-263-080 LED,SLH-56PCT31 GRN
D885 87-A40-263-080 LED,SLH-56PCT31 GRN
D886 87-A40-263-080 LED,SLH-56PCT31 GRN
D889 87-017-733-080 LED,SEL1250SMTP5 RED
D890 87-A40-263-080 LED,SLH-56PCT31 GRN
L871 87-003-102-080 COIL,10UH J LAL02
SW C.B
CNA871 8Z-JPV-606-010 CONN ASSY,2P MA-SW
S879 87-036-087-010 SW,SL 1-1-3 SSSU
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
!
!
!
!
!
!

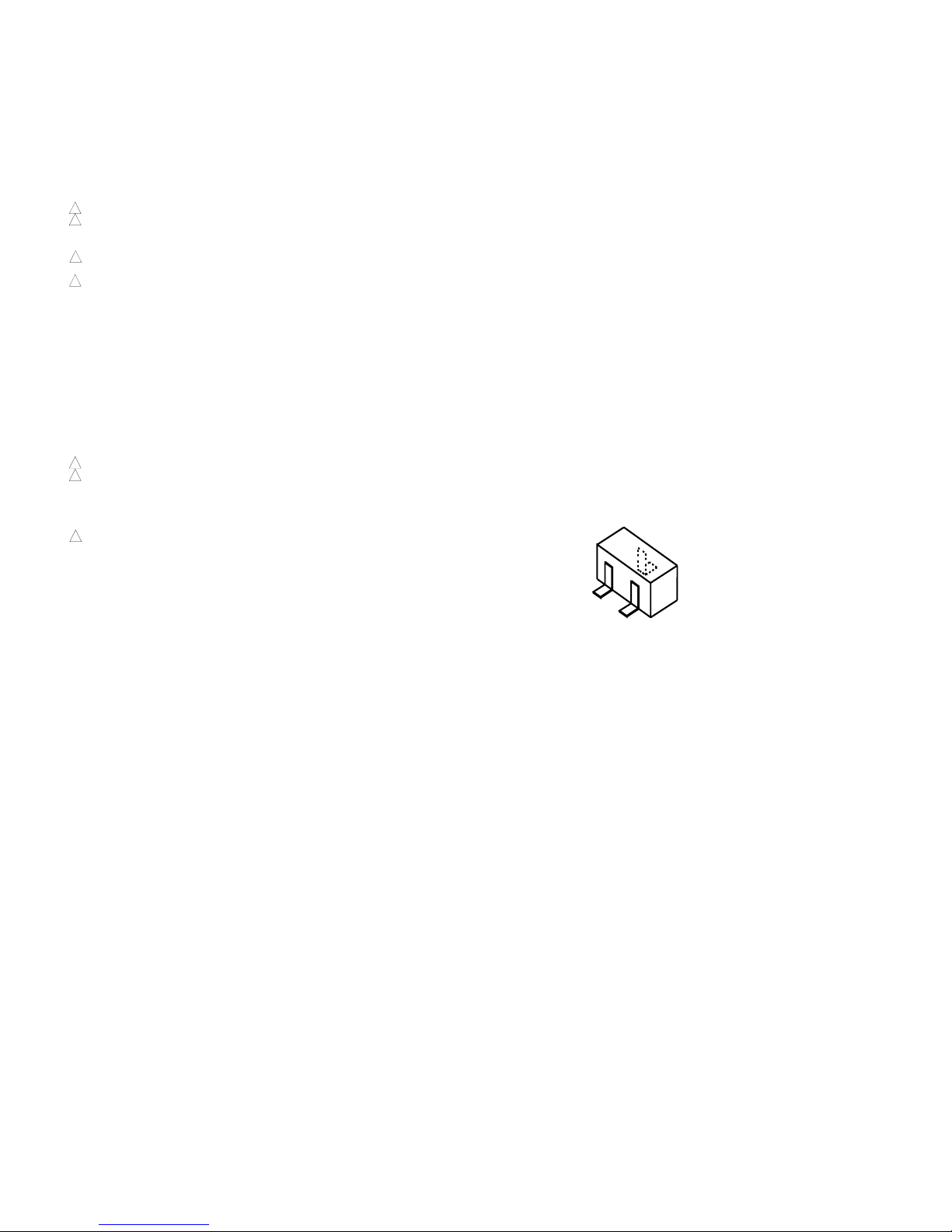

TRANSISTOR ILLUSTRATION
E
B
C
DTC114TK
KTC3875
KTA1504
KRC104S
