S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with ”Revision Publishing” when it is issued.
HV-FX7400
• TYPE: EHM
S/M Code No. 09–994–413–9T1
STEREOVIDEO
CASSETTERECORDER

ELECTRICAL MAIN PARTS LIST - 1/8
NOTE: The characters in the suffix column indicate the part usage.
EHM ....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
CN 50 87-A60-830-010 CONN,15P 15PV-FJ A...................
D 53 87-A40-353-080 ZENER,HZS33-3 A...................
ICF 50 87-001-196-080 FUSE, ICP-N10 A...................
ICF 51 87-002-330-080 ICP-N5 A...................
Q 54 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 51 87-026-223-080 TR,DTC143TK A...................
Q 56 87-026-227-080 CHIP-TR,DTA114EK A...................
Q 58 87-026-227-080 CHIP-TR,DTA114EK A...................
Q 53 87-026-235-080 CHIP-TR,DTC114EK A...................
Q 55 87-A30-216-080 TR,2SA933AS(R) A...................
Q 50 87-A30-217-010 TR,2SB1436(R) A...................
Q 52 87-A30-218-080 TR,2SB1237(Q) A...................
Q 59 87-A30-220-080 TR,2SC1741AS(R) A...................
Q 57 87-A30-220-080 TR,2SC1741AS(R) A...................
Q 62 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 64 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 66 87-026-227-080 CHIP-TR,DTA114EK A...................
Q 67 87-026-227-080 CHIP-TR,DTA114EK A...................
Q 60 87-026-235-080 CHIP-TR,DTC114EK A...................
Q 68 87-026-235-080 CHIP-TR,DTC114EK A...................
Q 63 87-A30-216-080 TR,2SA933AS(R) A...................
Q 61 87-A30-217-010 TR,2SB1436(R) A...................
Q 65 87-A30-218-080 TR,2SB1237(Q) A...................
Q 69 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................
R 90 87-029-115-010 FUSE RESISTER 10 OHM 1/4W A...................
C 108 87-010-079-080 100UF,6.3V ELECTROLYTIC A...................
C 107 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 105 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 103 87-010-311-080 CAP 12P A...................
C 104 87-010-311-080 CAP 12P A...................
C 102 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 101 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 106 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 109 87-016-040-080 CAP,0.047F-5.5FM A...................
C 110 87-010-079-080 100UF,6.3V ELECTROLYTIC A...................
C 113 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 114 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 119 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 112 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 115 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 117 87-010-405-080 CAP, ELECT 10-50V A...................
C 118 87-010-405-080 CAP, ELECT 10-50V A...................
C 116 87-015-681-080 CAP,E 10-16 7L A...................
C 111 87-015-696-080 CAP,E 2.2-50 7L A...................
C 128 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 124 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 120 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 123 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 127 87-010-374-080 CAP, ELECT 47-10V A...................
C 129 87-010-405-080 CAP, ELECT 10-50V A...................
C 122 87-010-550-040 CAP,E 100-6.3 GAS A...................
C 121 87-015-677-080 CAP,E 100-6.3 7L A...................
C 125 87-015-681-080 CAP,E 10-16 7L A...................
C 135 87-010-178-080 CHIP CAP 1000P A...................
C 134 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 131 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 132 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 133 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 130 87-010-263-080 CAP, ELECT 100-10V A...................
C 136 87-010-374-080 CAP, ELECT 47-10V A...................
C 137 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 138 87-010-405-080 CAP, ELECT 10-50V A...................
C 139 87-010-805-080 CAP, S 1-16 A...................
C 146 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 149 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 147 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 148 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 140 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 159 87-010-178-080 CHIP CAP 1000P A...................
C 150 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 151 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 158 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 152 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 153 87-010-260-080 CAP, ELECT 47-25V A...................
C 156 87-010-498-040 CAP,E 10-16 GAS A...................
C 155 87-010-498-040 CAP,E 10-16 GAS A...................
C 154 87-010-498-080 CAP,E 10-16 GAS A...................
C 157 87-015-689-080 CAP,E 10-35 7L A...................
C 163 87-010-175-080 CAP 560P A...................
C 162 87-010-178-080 CHIP CAP 1000P A...................
C 165 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 161 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 160 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 166 87-010-198-080 CAP, CHIP 0.022 A...................
C 168 87-010-260-080 CAP, ELECT 47-25V A...................
C 164 87-010-263-080 CAP, ELECT 100-10V A...................

ELECTRICAL MAIN PARTS LIST - 2/8
C 167 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 169 87-015-684-080 CAP,E 47-16 7L A...................
C 173 87-010-078-080 CAP,E 47-6.3 5L A...................
C 176 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 170 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 171 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 172 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 174 87-010-281-080 CAP, ELECT 22-35 SRE A...................
C 177 87-010-553-040 CAP,E 47-16 GAS A...................
C 175 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 183 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 188 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 182 87-010-263-080 CAP, ELECT 100-10V A...................
C 184 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 186 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 187 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 185 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 191 87-010-178-080 CHIP CAP 1000P A...................
C 190 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 192 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 193 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
CN 102 87-099-843-010 CONN,15 5085 PLUG A...................
CN 101 87-A60-386-010 CONN,18P V BLK 5085 PLUG A...................
CN 103 87-A60-583-010 CONN,10P V TKC-G10P A...................
CN 105 87-A60-635-010 CONN,19P 19P-250K-1.25FJNA A...................
D 102 87-017-079-080 ZENER,HZS4A3 A...................
D 104 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 106 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 107 87-070-274-080 DIODE,1N4003 SEM A...................
D 109 87-070-274-080 DIODE,1N4003 SEM A...................
D 103 87-070-274-080 DIODE,1N4003 SEM A...................
D 105 87-070-274-080 DIODE,1N4003 SEM A...................
D 101 87-A40-002-080 ZENER,MTZJ5.1C A...................
D 115 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 116 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 110 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 118 87-070-274-080 DIODE,1N4003 SEM A...................
D 114 87-A40-597-010 LED,GL451V A...................
FL 101 8Z-JU1-602-010 FL,10-MT-113 G A...................
H 101 8Z-JU1-604-010 SNSR,HW-300B-15 -H2 A...................
HL 101 8Z-JU1-203-010 HLDR,FL A...................
HL 102 8Z-JU1-205-010 HLDR,LED A...................
HL 103 8Z-JU1-206-010 HLDR,SENSOR A...................
HL 104 8Z-JU1-206-010 HLDR,SENSOR A...................
HL 105 8Z-JU1-207-010 HLDR,HALL SNSR A...................
IC 105 87-001-982-010 IC,TA7291S A...................
IC 107 87-017-375-080 IC,TC4094BF * A...................
IC 108 87-017-375-080 IC,TC4094BF * A...................
IC 104 87-070-242-010 IC,LA7123 A...................
IC 102 87-A20-676-040 C-IC,S-80827ANNP-EDQ A...................
IC 106 87-A21-146-010 IC,TB6515AP A...................
IC 103 87-A21-217-040 C-IC,S-24C08AFJA-TB-01 A...................
IC 101 8Z-JU1-610-010 C-IC,TMP93CW76F(EH) A...................
ICF 102 87-001-132-080 ICP-N38 A...................
ICF 101 87-001-132-080 ICP-N38 A...................
L 101 87-005-432-080 COIL,10UH A...................
L 109 87-005-432-080 COIL,10UH A...................
L 103 87-005-440-080 COIL,47UH FLR50 A...................
L 107 87-005-684-080 COIL,10UH A...................
L 108 87-005-684-080 COIL,10UH A...................
L 105 87-005-684-080 COIL,10UH A...................
L 104 87-005-684-080 COIL,10UH A...................
L 106 87-005-684-080 COIL,10UH A...................
L 102 87-005-684-080 COIL,10UH A...................
L 110 87-005-432-080 COIL,10UH A...................
L 111 87-005-432-080 COIL,10UH A...................
L 113 87-005-684-080 COIL,10UH A...................
L 112 87-005-684-080 COIL,10UH A...................
L 114 87-005-684-080 COIL,10UH A...................
M 101 8Z-JU1-609-010 STATOR,DMNVS A...................
PS 101 8Z-JU1-603-010 SNSR,GP1S566 A...................
PS 102 8Z-JU1-603-010 SNSR,GP1S566 A...................
Q 107 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 109 87-A30-219-080 TR,2SB1443(Q) A...................
Q 102 87-A30-219-080 TR,2SB1443(Q) A...................
Q 105 87-A30-270-010 P-TR,PT493F A...................
Q 106 87-A30-270-010 P-TR,PT493F A...................
Q 101 89-109-521-080 TR,2SA952 (0.6W) A...................
Q 108 89-324-122-080 TR,2SC2412K A...................
Q 104 89-324-122-080 TR,2SC2412K A...................
Q 103 89-324-122-080 TR,2SC2412K A...................
Q 112 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 111 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 110 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 113 89-324-122-080 TR,2SC2412K A...................
S 101 8Z-JU1-605-010 SW,RTRY MODE SWITCH A...................
S 102 8Z-JU1-606-010 SW,LEAF REC SWITCH A...................
X 102 87-030-364-010 VIB,XTAL 32.768K CT A...................
X 101 87-A70-090-080 VIB,XTAL 16MHZ AT-49 A...................
C 809 87-010-178-080 CHIP CAP 1000P A...................
C 807 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 803 87-010-197-080 CAP, CHIP 0.01 DM A...................

ELECTRICAL MAIN PARTS LIST - 3/8
C 804 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 801 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 805 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 806 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 819 87-010-178-080 CHIP CAP 1000P A...................
C 810 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 815 87-010-194-080 CAP, CHIP 0.047 A...................
C 811 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 816 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 818 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 813 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 817 87-010-374-080 CAP, ELECT 47-10V A...................
C 812 87-010-382-080 CAP, ELECT 22-25V A...................
C 814 87-010-405-080 CAP, ELECT 10-50V A...................
C 822 87-010-178-080 CHIP CAP 1000P A...................
C 827 87-010-178-080 CHIP CAP 1000P A...................
C 825 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 828 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 820 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 829 87-010-374-080 CAP, ELECT 47-10V A...................
C 821 87-010-374-080 CAP, ELECT 47-10V A...................
C 826 87-010-374-080 CAP, ELECT 47-10V A...................
C 824 87-010-408-080 CAP, ELECT 47-50V A...................
C 823 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 830 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 852 87-010-180-080 C-CER 1500P A...................
C 856 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 857 87-010-193-080 CHIP CAPACITOR,0.033 A...................
C 851 87-010-263-080 CAP, ELECT 100-10V A...................
C 854 87-010-805-080 CAP, S 1-16 A...................
C 855 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 853 87-A10-468-080 CAP,E 10-10 M 7L BP SRA A...................
C 860 87-010-197-080 CAP, CHIP 0.01 DM A...................
CN 803 87-099-668-010 CONN,9P TUC-P 9P-B1 A...................
CN 801 87-A60-636-010 CONN,19P 19RK-1.25FJN A...................
CN 802 87-A60-834-010 CONN,11P 11RK-1.25FJN A...................
D 801 87-020-465-080 DIODE,1SS133 (110MA) A...................
FB 803 87-008-372-080 FILTER, EMI BL OIRNI A...................
FB 851 87-008-372-080 FILTER, EMI BL OIRNI A...................
IC 801 87-A20-371-080 IC,KA33V A...................
IC 851 87-A20-562-010 IC,SDA5650P-DIP-14 A...................
L 801 87-005-430-080 COIL,6.8UH FLR50 A...................
L 802 87-005-432-080 COIL,10UH A...................
L 804 87-005-440-080 COIL,47UH FLR50 A...................
L 803 87-005-440-080 COIL,47UH FLR50 A...................
L 851 87-005-432-080 COIL,10UH A...................
Q 801 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 805 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 803 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 807 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 802 87-A30-216-080 TR,2SA933AS(R) A...................
Q 806 87-A30-216-080 TR,2SA933AS(R) A...................
Q 808 87-A30-218-080 TR,2SB1237(Q) A...................
Q 804 87-A30-219-080 TR,2SB1443(Q) A...................
Q 812 89-324-122-080 TR,2SC2412K A...................
Q 811 89-324-122-080 TR,2SC2412K A...................
Q 813 89-324-122-080 TR,2SC2412K A...................
Q 851 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................
TU 801 8Z-JU1-641-010 TU UNIT,BG PAL SIF A...................
88-907-141-110 FF-CABLE, 7P 1.25 140MM A...................
C 303 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 305 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 308 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 306 87-010-263-080 CAP, ELECT 100-10V A...................
C 309 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 304 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 301 87-010-405-080 CAP, ELECT 10-50V A...................
C 312 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 318 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 317 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 311 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 314 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 315 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 310 87-010-316-080 C-CAP,S 33P-50 CH A...................
C 313 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 319 87-015-677-080 CAP,E 100-6.3 7L A...................
C 316 87-015-695-080 CAP,E 1-50 7L A...................
C 323 87-010-186-080 CAP,CHIP 4700P A...................
C 325 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 320 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 322 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 324 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 327 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 329 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 328 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 326 87-010-405-080 CAP, ELECT 10-50V A...................
C 321 87-015-677-080 CAP,E 100-6.3 7L A...................
C 335 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 331 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 332 87-010-370-080 CAP,E 330-6.3 SME A...................

ELECTRICAL MAIN PARTS LIST - 4/8
C 334 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 333 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z A...................
C 336 87-018-209-080 CAP, CER 0.1-50V A...................
C 338 87-018-209-080 CAP, CER 0.1-50V A...................
C 349 87-010-153-080 C-CAP,S 9P-50 CH A...................
C 340 87-010-178-080 CHIP CAP 1000P A...................
C 343 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 345 87-010-320-080 CHIP CAP 68P A...................
C 344 87-010-405-080 CAP, ELECT 10-50V A...................
C 347 87-012-140-080 CAP 470P A...................
C 346 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 342 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 348 87-012-155-080 C-CAP 180P-50CH A...................
C 358 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 353 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 356 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 351 87-018-123-080 CAP, CER 220P-50V A...................
C 350 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 352 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 365 87-010-178-080 CHIP CAP 1000P A...................
C 369 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 360 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 363 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 362 87-010-263-080 CAP, ELECT 100-10V A...................
C 368 87-010-313-080 CAP, CHIP 18P A...................
C 367 87-010-313-080 CAP, CHIP 18P A...................
C 361 87-010-374-080 CAP, ELECT 47-10V A...................
C 366 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 379 87-010-178-080 CHIP CAP 1000P A...................
C 374 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 375 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 378 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 376 87-010-263-080 CAP, ELECT 100-10V A...................
C 377 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 371 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 381 87-010-178-080 CHIP CAP 1000P A...................
C 392 87-010-321-080 CHIP CAPACITOR,82P(J) A...................
C 403 87-010-186-080 CAP,CHIP 4700P A...................
C 404 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 408 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 402 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 409 87-012-155-080 C-CAP 180P-50CH A...................
C 405 87-015-677-080 CAP,E 100-6.3 7L A...................
C 411 87-010-178-080 CHIP CAP 1000P A...................
C 415 87-010-186-080 CAP,CHIP 4700P A...................
C 414 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 410 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 413 87-015-677-080 CAP,E 100-6.3 7L A...................
C 458 87-010-178-080 CHIP CAP 1000P A...................
C 457 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 454 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 453 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 452 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 455 87-010-263-080 CAP, ELECT 100-10V A...................
C 451 87-010-382-080 CAP, ELECT 22-25V A...................
C 450 87-010-401-080 CAP, ELECT 1-50V A...................
C 456 87-010-405-080 CAP, ELECT 10-50V A...................
C 459 87-010-406-080 CAP, ELECT 22-50 A...................
C 466 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 465 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 461 87-010-193-080 CHIP CAPACITOR,0.033 A...................
C 468 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 462 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 460 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 464 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 469 87-010-382-080 CAP, ELECT 22-25V A...................
C 467 87-010-382-080 CAP, ELECT 22-25V A...................
C 463 87-010-405-080 CAP, ELECT 10-50V A...................
C 472 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 471 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 478 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 474 87-010-260-080 CAP, ELECT 47-25V A...................
C 470 87-010-382-080 CAP, ELECT 22-25V A...................
C 479 87-010-382-080 CAP, ELECT 22-25V A...................
C 476 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 473 87-012-365-080 C-CAP,S 0.027-25VBK A...................
C 481 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 480 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 482 87-010-260-080 CAP, ELECT 47-25V A...................
CN 303 87-099-668-010 CONN,9P TUC-P 9P-B1 A...................
CN 301 87-A60-582-010 CONN,5P V BGE TKX-P05P-X1 A...................
CN 302 87-A60-842-010 CONN,18P V BLK FMN-BTRK A...................
CN 450 87-A60-132-010 CONN,7P V FE A...................
IC 301 87-A21-147-010 C-IC,TA1278AF A...................
IC 401 8Z-JU1-601-040 C-IC,TC90A24F-406 A...................
IC 450 87-001-854-010 IC,BA7755AF A...................
L 301 87-005-432-080 COIL,10UH A...................
L 304 87-005-432-080 COIL,10UH A...................
L 303 87-005-440-080 COIL,47UH FLR50 A...................
L 302 87-005-440-080 COIL,47UH FLR50 A...................
L 305 87-005-693-080 COIL,56UH A...................
L 306 87-005-697-080 COIL,120UH A...................

ELECTRICAL MAIN PARTS LIST - 5/8
L 311 87-005-432-080 COIL,10UH A...................
L 310 87-005-440-080 COIL,47UH FLR50 A...................
L 313 87-005-488-080 COIL,180UH J FLR50 A...................
L 315 87-005-684-080 COIL,10UH A...................
L 314 87-005-688-080 COIL,22UH A...................
L 401 87-005-440-080 COIL,47UH FLR50 A...................
L 402 87-005-440-080 COIL,47UH FLR50 A...................
L 450 87-005-432-080 COIL,10UH A...................
L 451 87-005-440-080 COIL,47UH FLR50 A...................
L 453 87-005-440-080 COIL,47UH FLR50 A...................
L 454 8Z-JU1-643-010 COIL,OSC FE ZJU1 A...................
L 452 8Z-JU1-644-010 COIL,OSC AE ZJU1 A...................
Q 305 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 308 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................
Q 307 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................
Q 309 89-324-122-080 TR,2SC2412K A...................
Q 301 89-324-122-080 TR,2SC2412K A...................
Q 314 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 319 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 312 87-026-227-080 CHIP-TR,DTA114EK A...................
Q 316 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................
Q 318 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................
Q 311 89-324-122-080 TR,2SC2412K A...................
Q 315 89-324-122-080 TR,2SC2412K A...................
Q 313 89-324-122-080 TR,2SC2412K A...................
Q 321 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 320 87-026-211-080 TR,DTA144EK A...................
Q 323 87-026-211-080 TR,DTA144EK A...................
Q 401 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................
Q 450 87-026-235-080 CHIP-TR,DTC114EK A...................
Q 453 87-026-235-080 CHIP-TR,DTC114EK A...................
Q 455 87-A30-099-080 TR,2SC3708S/T A...................
Q 451 87-A30-099-080 TR,2SC3708S/T A...................
Q 454 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................
Q 452 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................
X 301 87-A70-188-080 VIB,XTAL 4.43MHZ TA1278 A...................
C 553 87-010-370-080 CAP,E 330-6.3 SME A...................
C 556 87-010-401-080 CAP, ELECT 1-50V A...................
C 558 87-010-405-080 CAP, ELECT 10-50V A...................
C 555 87-010-405-080 CAP, ELECT 10-50V A...................
C 565 87-010-382-080 CAP, ELECT 22-25V A...................
C 563 87-010-382-080 CAP, ELECT 22-25V A...................
C 560 87-010-405-080 CAP, ELECT 10-50V A...................
C 576 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 577 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 574 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 575 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 573 87-010-263-080 CAP, ELECT 100-10V A...................
C 572 87-010-382-080 CAP, ELECT 22-25V A...................
C 578 87-010-805-080 CAP, S 1-16 A...................
C 587 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 586 87-010-263-080 CAP, ELECT 100-10V A...................
C 582 87-015-681-080 CAP,E 10-16 7L A...................
C 580 87-015-681-080 CAP,E 10-16 7L A...................
C 585 87-015-681-080 CAP,E 10-16 7L A...................
C 588 87-015-695-080 CAP,E 1-50 7L A...................
C 583 87-015-695-080 CAP,E 1-50 7L A...................
C 597 87-010-071-080 CAP, ELECT 1-50 M 5L SRE A...................
C 599 87-010-244-080 CAP ELECT 16-22 A...................
C 594 87-010-382-080 CAP, ELECT 22-25V A...................
C 595 87-010-401-080 CAP, ELECT 1-50V A...................
C 590 87-015-695-080 CAP,E 1-50 7L A...................
C 684 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 683 87-010-263-080 CAP, ELECT 100-10V A...................
CN 551 87-099-573-010 CONN,18P TUC-P18P-B1 A...................
CN 552 87-A60-832-010 CONN,11P 11P-250K-1.25FJNA A...................
IC 551 87-A21-148-010 C-IC,TA1246AF A...................
L 552 87-005-432-080 COIL,10UH A...................
L 551 87-005-432-080 COIL,10UH A...................
L 553 87-005-432-080 COIL,10UH A...................
C 701 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 702 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 706 87-010-263-080 CAP, ELECT 100-10V A...................
C 707 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 703 87-010-550-040 CAP,E 100-6.3 GAS A...................
C 752 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 754 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 753 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 751 87-010-318-080 C-CAP,S 47P-50 CH A...................
CN 701 87-099-841-010 CONN,15P 5085 RECE A...................
CN 751 87-A60-388-010 CONN,18P H BLK 5085 RECE A...................
D 751 87-017-350-080 LED,SEL1550CM A...................
HL 702 8Z-JU1-202-010 HLDR,JOG A...................
IC 702 87-A21-221-040 C-IC,TC4021BF A...................
IC 701 87-A91-074-010 RCR UNIT,NJL68H380 A...................
J 751 87-A60-369-010 JACK,PIN 3P 15 VT B A...................
L 703 87-005-684-080 COIL,10UH A...................
Q 752 87-026-210-080 CHIP-TR,DTC144EK A...................
S 701 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 704 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 703 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 702 87-A90-164-080 SW,TACT SKQAB(N) A...................

ELECTRICAL MAIN PARTS LIST - 6/8
S 705 87-A91-307-010 SW,JOG RJS-Y0003-02 A...................
S 757 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 759 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 751 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 755 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 753 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 754 87-A90-164-080 SW,TACT SKQAB(N) A...................
C 914 87-010-180-080 C-CER 1500P A...................
C 916 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 915 87-010-405-080 CAP, ELECT 10-50V A...................
C 913 87-012-140-080 CAP 470P A...................
C 912 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 927 87-010-145-080 C-CAP,S 1P-50 CH A...................
C 928 87-010-145-080 C-CAP,S 1P-50 CH A...................
C 924 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 923 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 929 87-010-315-080 C-CAP,S 27P-50 CH A...................
C 926 87-010-316-080 C-CAP,S 33P-50 CH A...................
C 920 87-010-805-080 CAP, S 1-16 A...................
C 931 87-010-178-080 CHIP CAP 1000P A...................
C 934 87-010-180-080 C-CER 1500P A...................
C 938 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 939 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 930 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 937 87-010-405-080 CAP, ELECT 10-50V A...................
C 933 87-010-405-080 CAP, ELECT 10-50V A...................
C 935 87-012-140-080 CAP 470P A...................
C 947 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 946 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 940 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 945 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 949 87-010-405-080 CAP, ELECT 10-50V A...................
C 948 87-010-405-080 CAP, ELECT 10-50V A...................
C 950 87-010-180-080 C-CER 1500P A...................
C 954 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 953 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 955 87-010-406-080 CAP, ELECT 22-50 A...................
C 956 87-010-406-080 CAP, ELECT 22-50 A...................
C 959 87-010-805-080 CAP, S 1-16 A...................
C 951 87-012-140-080 CAP 470P A...................
C 964 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 963 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 962 87-012-154-080 C-CAP,S 150P-50 CH A...................
CN 901 87-099-670-010 CONN,9P TUC-P9X-B1 A...................
D 901 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 902 87-070-274-080 DIODE,1N4003 SEM A...................
IC 901 87-A21-261-010 IC,MSP3417D A...................
L 902 87-005-425-080 COIL,2.7UH K A...................
L 901 87-005-425-080 COIL,2.7UH K A...................
L 903 87-005-432-080 COIL,10UH A...................
L 904 87-005-688-080 COIL,22UH A...................
Q 902 89-324-122-080 TR,2SC2412K A...................
Q 901 89-324-122-080 TR,2SC2412K A...................
X 901 87-A70-199-080 VIB,XTAL 18.432MHZ A...................
C 607 87-015-684-080 CAP,E 47-16 7L A...................
C 609 87-015-696-080 CAP,E 2.2-50 7L A...................
C 608 87-015-696-080 CAP,E 2.2-50 7L A...................
C 606 87-015-696-080 CAP,E 2.2-50 7L A...................
C 605 87-015-696-080 CAP,E 2.2-50 7L A...................
C 604 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 600 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 603 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 601 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 614 87-010-805-080 CAP, S 1-16 A...................
C 619 87-015-696-080 CAP,E 2.2-50 7L A...................
C 616 87-015-696-080 CAP,E 2.2-50 7L A...................
C 618 87-015-696-080 CAP,E 2.2-50 7L A...................
C 610 87-015-696-080 CAP,E 2.2-50 7L A...................
C 611 87-015-696-080 CAP,E 2.2-50 7L A...................
C 617 87-015-696-080 CAP,E 2.2-50 7L A...................
C 612 87-A10-205-080 CAP,E 470-6.3 SRG A...................
C 613 87-A10-205-080 CAP,E 470-6.3 SRG A...................
C 622 87-010-060-080 ELECTROLYTIC 100-16V A...................
C 623 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 621 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 626 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 628 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 625 87-010-529-080 CAP,E 1-50 BP A...................
C 629 87-015-677-080 CAP,E 100-6.3 7L A...................
C 627 87-015-682-080 CAP,E 22-16 7L A...................
C 624 87-015-682-080 CAP,E 22-16 7L A...................
C 620 87-015-682-080 CAP,E 22-16 7L A...................
C 637 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 639 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 638 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 633 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 634 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 631 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 636 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 635 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 632 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 630 87-015-695-080 CAP,E 1-50 7L A...................

ELECTRICAL MAIN PARTS LIST - 7/8
C 647 87-010-178-080 CHIP CAP 1000P A...................
C 648 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 642 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 643 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 649 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 644 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 640 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 641 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 645 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 653 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 650 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 651 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 655 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 657 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 656 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 654 87-012-154-080 C-CAP,S 150P-50 CH A...................
C 662 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 665 87-015-696-080 CAP,E 2.2-50 7L A...................
C 664 87-015-696-080 CAP,E 2.2-50 7L A...................
CN 600 87-099-670-010 CONN,9P TUC-P9X-B1 A...................
CN 602 87-A60-417-010 CONN,21P V BLK 0350535000 A...................
CN 601 87-A60-417-010 CONN,21P V BLK 0350535000 A...................
D 603 87-017-130-080 ZENER,HZS12A1 A...................
D 600 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 602 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 601 87-027-406-080 ZENER,HZ3A3 (200MA) A...................
FB 600 87-003-223-080 FERRITE BEAD BL02RN2 A...................
IC 600 87-A20-943-080 C-IC,LA7157M A...................
J 600 87-A60-368-010 JACK,PIN 2P JK020123 A...................
L 601 87-005-440-080 COIL,47UH FLR50 A...................
L 600 87-005-440-080 COIL,47UH FLR50 A...................
Q 603 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 601 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 605 87-026-210-080 CHIP-TR,DTC144EK A...................
Q 602 87-026-211-080 TR,DTA144EK A...................
Q 604 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................
Q 600 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................
CN 501 87-099-562-010 CONN,18P TUC-P18X-B1 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
C 1 87-A10-374-010 CAP,M/P 0.1-275 K RMR A...................
C 8 87-A10-480-090 CAP,CER 4700P-250 M E KH A...................
C 7 87-A10-480-090 CAP,CER 4700P-250 M E KH A...................
C 9 87-A10-898-090 CAP,E 56-400 SMG 0.43A(RMS) A...................
C 15 87-010-190-080 S CHIP F 0.01 A...................
C 14 87-016-501-080 CAP,E 47-35 SXE A...................
C 13 87-A11-194-080 CAP,CER 47P-2K K SL A...................
C 10 87-A11-196-080 CAP,M/P 0.022-400 K MMC A...................
C 25 87-010-101-080 CAP, ELECT 220-16 A...................
C 29 87-010-247-080 CAP, ELECT 100-50V A...................
C 28 87-010-377-090 CAP,E 3300-10 M SME A...................
C 24 87-010-387-080 CAP,E 470-25 SME A...................
C 26 87-010-401-080 CAP, ELECT 1-50V A...................
C 22 87-010-409-080 CAP,E 220-50 SME A...................
C 20 87-010-866-080 CAP, ELECT 10-63 A...................
C 27 87-A10-491-080 CAP,E 2200-10 KMF A...................
C 23 87-A10-493-080 CAP,E 1000-25 KMF A...................
C 21 87-A11-195-080 CAP,E 330-50 KMF A...................
C 30 87-010-221-080 CAP, ELECT 470-10V A...................
CN 1 87-A60-831-010 CONN,15P 15R-FJ A...................
D 8 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 1 87-070-173-010 DIODE,S1WBA60 A...................
D 3 87-A40-172-080 DIODE,EG01Z A...................
D 2 87-A40-368-080 DIODE,EG01C A...................
D 24 87-070-274-080 DIODE,1N4003 SEM A...................
D 23 87-070-274-080 DIODE,1N4003 SEM A...................
D 25 87-A40-184-090 DIODE,RK34(F) A...................
D 27 87-A40-367-080 DIODE,EU01 A...................
D 20 87-A40-367-080 DIODE,EU01 A...................
D 26 87-A40-367-080 DIODE,EU01 A...................
D 22 87-A40-369-090 DIODE,RN3Z A...................
D 21 87-A40-628-080 DIODE,EN01Z A...................
F 1 87-035-454-010 FUSE,1.6A 250V T W/C A...................
FB 1 87-003-223-080 FERRITE BEAD BL02RN2 A...................
FC 1 87-033-213-080 CLAMP, FUSE A...................
FC 2 87-033-213-080 CLAMP, FUSE A...................
IC 3 87-A20-389-010 IC,NJM7809FA A...................
IC 2 87-A20-649-080 IC,HA17431VP A...................
IC 1 87-A21-186-010 IC,STR-F6552 A...................
ICF 1 87-001-132-080 ICP-N38 A...................
ICF 5 87-001-132-080 ICP-N38 A...................
ICF 4 87-001-132-080 ICP-N38 A...................
ICF 3 87-001-211-080 ICP-N50 A...................
ICF 6 87-A91-337-080 PROTECTOR,IC ICP-N75 A...................
ICF 2 87-A91-337-080 PROTECTOR,IC ICP-N75 A...................
J 1 87-A60-021-010 JACK,AC E HJC-028 A...................
L 2 87-A50-180-080 COIL,22UH K LHL10 A...................
L 1 87-A50-193-080 COIL,10UH K LHL10 A...................
L 3 87-A50-444-080 COIL,22UH K LHL08 A...................
LF 3 87-A90-470-010 FLTR,33MH SS10V-03330 A...................
LF 2 87-A90-470-010 FLTR,33MH SS10V-03330 A...................
LF 1 87-A90-491-010 FLTR,20UH SU9VD-07020 A...................
PS 1 87-A90-717-010 P-COUPLER,PC123FY2 A...................

ELECTRICAL MAIN PARTS LIST - 8/8
PT 1 8Z-JU1-630-010 PT,E ZJU-1 SWT A...................
R 1 87-022-565-090 RES,M/O 47K-1W J A...................
R 2 87-A00-410-090 RES,M/F 100K-1W J A...................
R 3 87-A00-558-090 RES,M/F 56K-2W J A...................
R 14 87-A00-254-090 RES,M/F 0.68-2W J A...................
R 25 87-025-365-080 RES,M/F 680-1/6WJ F A...................
R 26 87-025-365-080 RES,M/F 680-1/6WJ F A...................
R 24 87-A00-279-080 RES,M/F 75-1/6W F A...................
R 42 87-029-132-090 RESTOR FUSE 4.7-1/4W A...................
R 41 87-029-374-010 RES,FUSE 47-1/4W A...................

NOTE: The characters in the suffix column indicate the part usage.
EHM ....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NE6-067-010 BADGE,AIWA 30N A...................
84-JP9-202-010 SPR-T,DOOR A...................
8Z-JU1-008-010 KEY,CONT A...................
8Z-JU1-009-010 KEY,PAUSE A...................
8Z-JU1-010-010 BTN,PB A...................
8Z-JU1-011-010 CAP, RING A...................
8Z-JU2-007-010 KEY,POWER 2 A...................
8Z-JU2-014-010 KEY,DEMO 2 A...................
8Z-JU2-015-010 KEY,REC 2 A...................
8Z-JU2-026-010 WINDOW,DSPLY 4 A...................
8Z-JU3-001-010 CABI,FR A...................
8Z-JU3-005-010 DOOR,CASS 3 A...................
81-JUK-045-010 FELT,FOOT 8-8 A...................
8Z-JU1-003-010 CABI,STEEL A...................
8Z-JU1-215-010 HLDR,STAY A...................
8Z-JU3-004-010 PANEL,RE 5 A...................
8Z-JU2-012-010 KNOB,RTRY SHUTTLE A...................
8Z-JU2-013-010 KNOB,RTRY JOG A...................
87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................
87-067-660-010 TAPPING SCREW, BVT2+3-8 A...................
87-067-688-010 BVTT+3-6 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
87-078-070-010 BVIT3B+4-12 A...................
87-078-180-010 BVT2+3.5-12(BLK) A...................
87-B10-089-410 VT2+3-12 W/O GOLD A...................
88-907-141-110 FF-CABLE, 7P 1.25 140MM A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.
EHM ....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-JU2-903-010 IB,EH EGDSI-FX7500/ 7400 M A...................
87-050-076-010 AC CORD SET ASSY,E A...................
87-A80-032-010 CORD,PIN 2P RED-WHT A...................
87-B30-106-010 CORD,RF PAL/UJ0502 A...................
88-JU2-671-010 RC UNIT,RC-8VR05 A...................
ACCESSORIES / PACKAGE LIST - 1/1

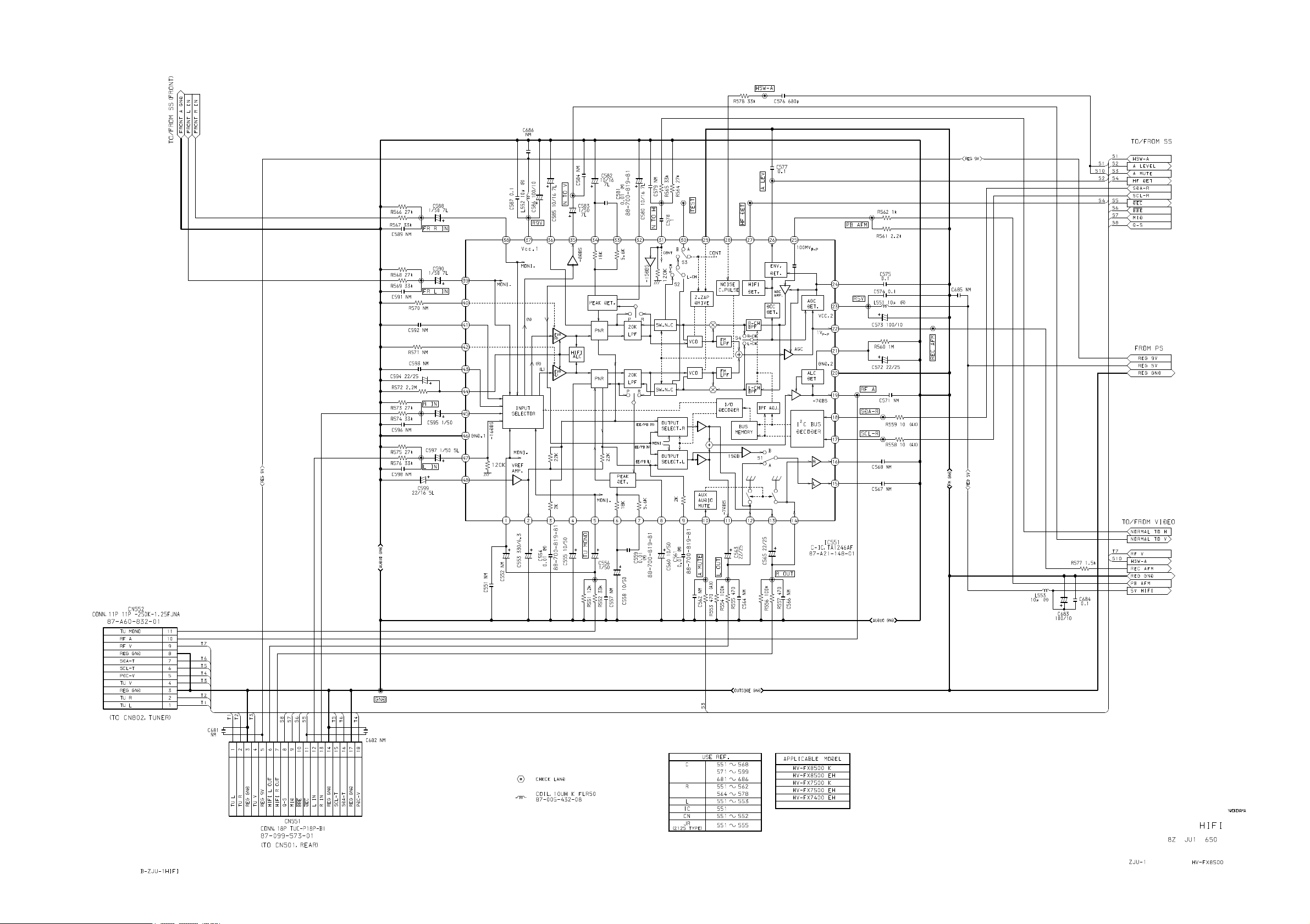

SCHEMATIC DIAGRAM _1 (MAIN : HI-FI SECTION)

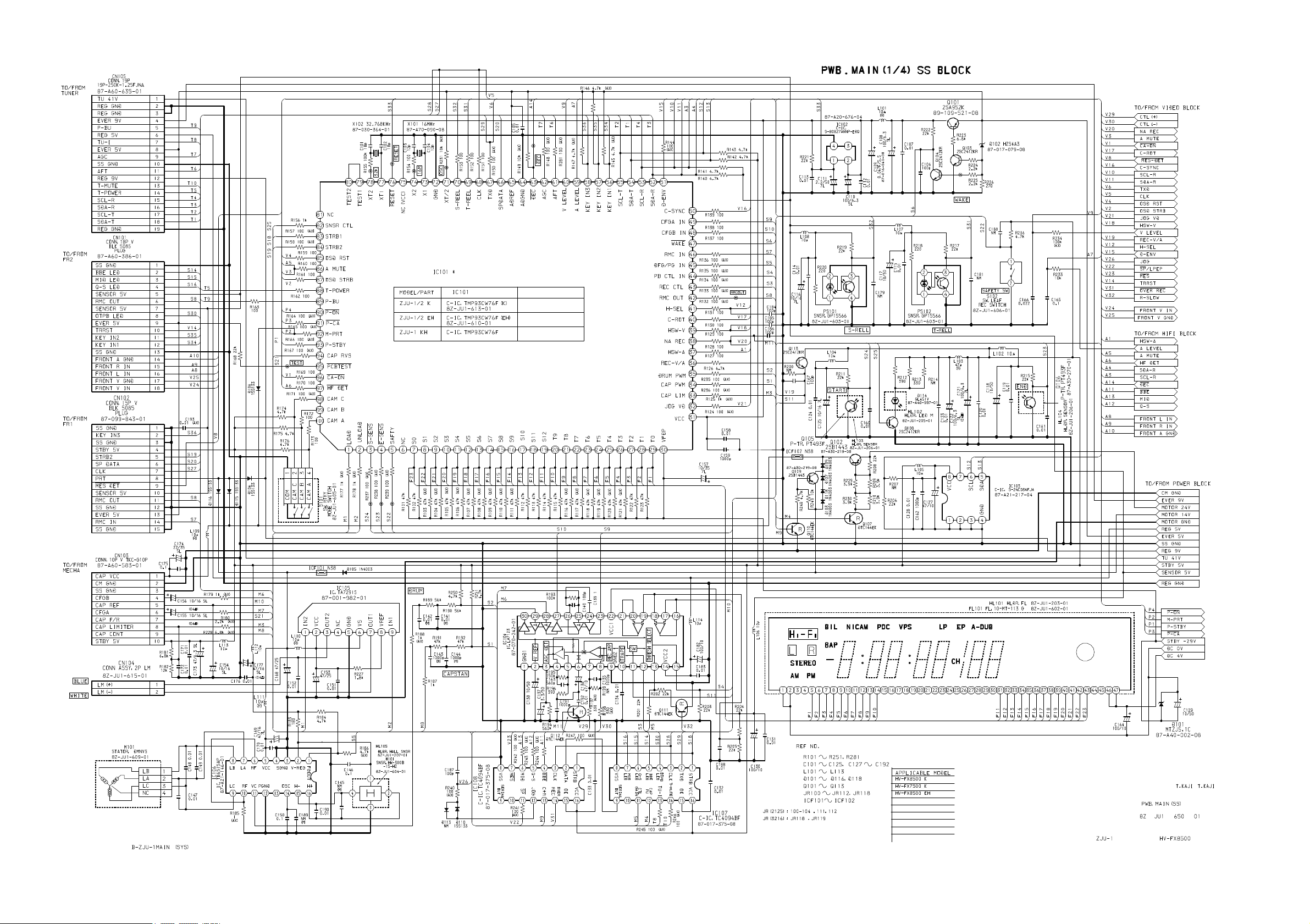

SCHEMATIC DIAGRAM _2 (MAIN : SYSTEM SECTION)

SCHEMATIC DIAGRAM _3 (MAIN : VIDEO SECTION)

SCHEMATIC DIAGRAM _4 (MAIN : PS SECTION)

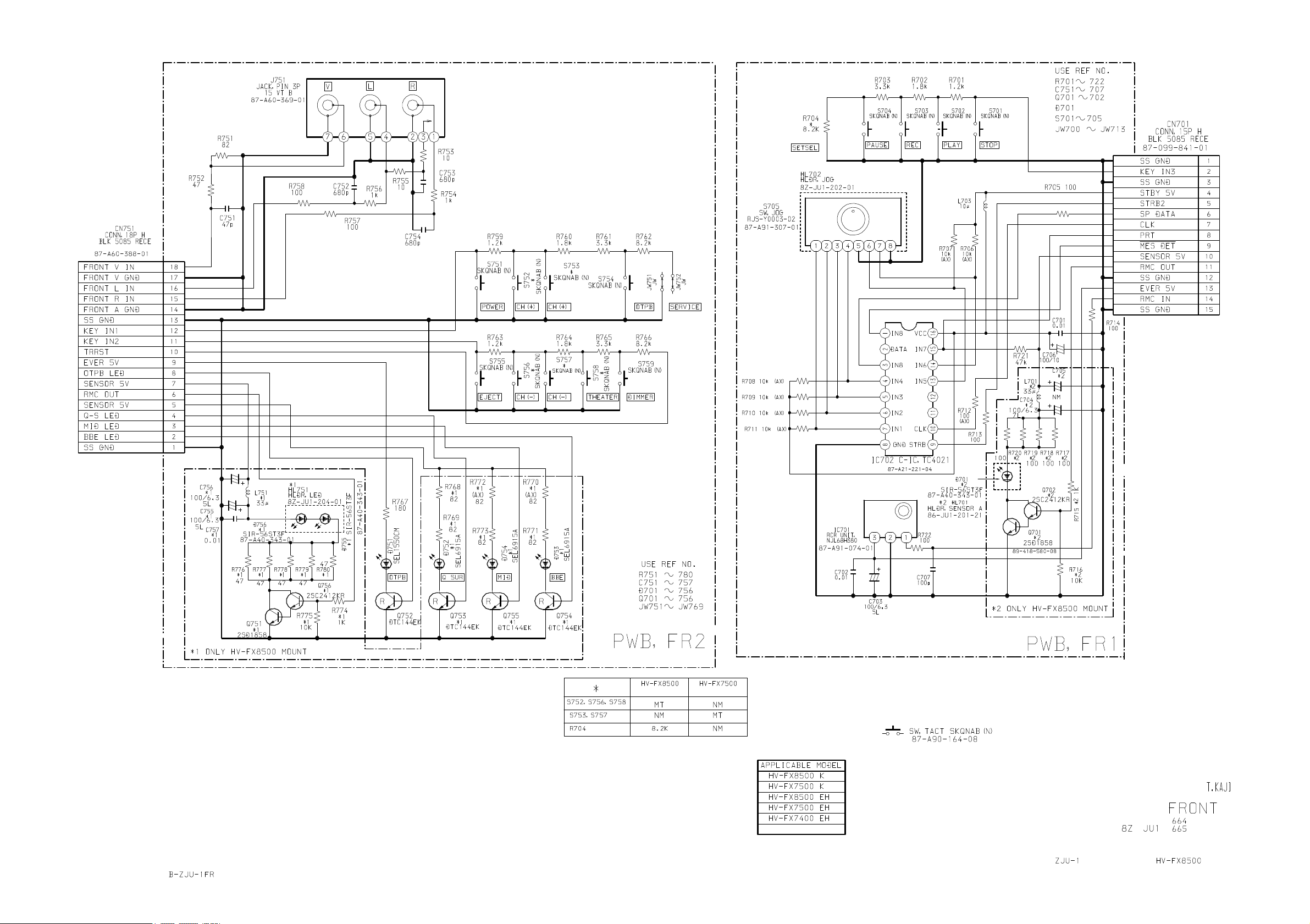

SCHEMATIC DIAGRAM _5 (FRONT)

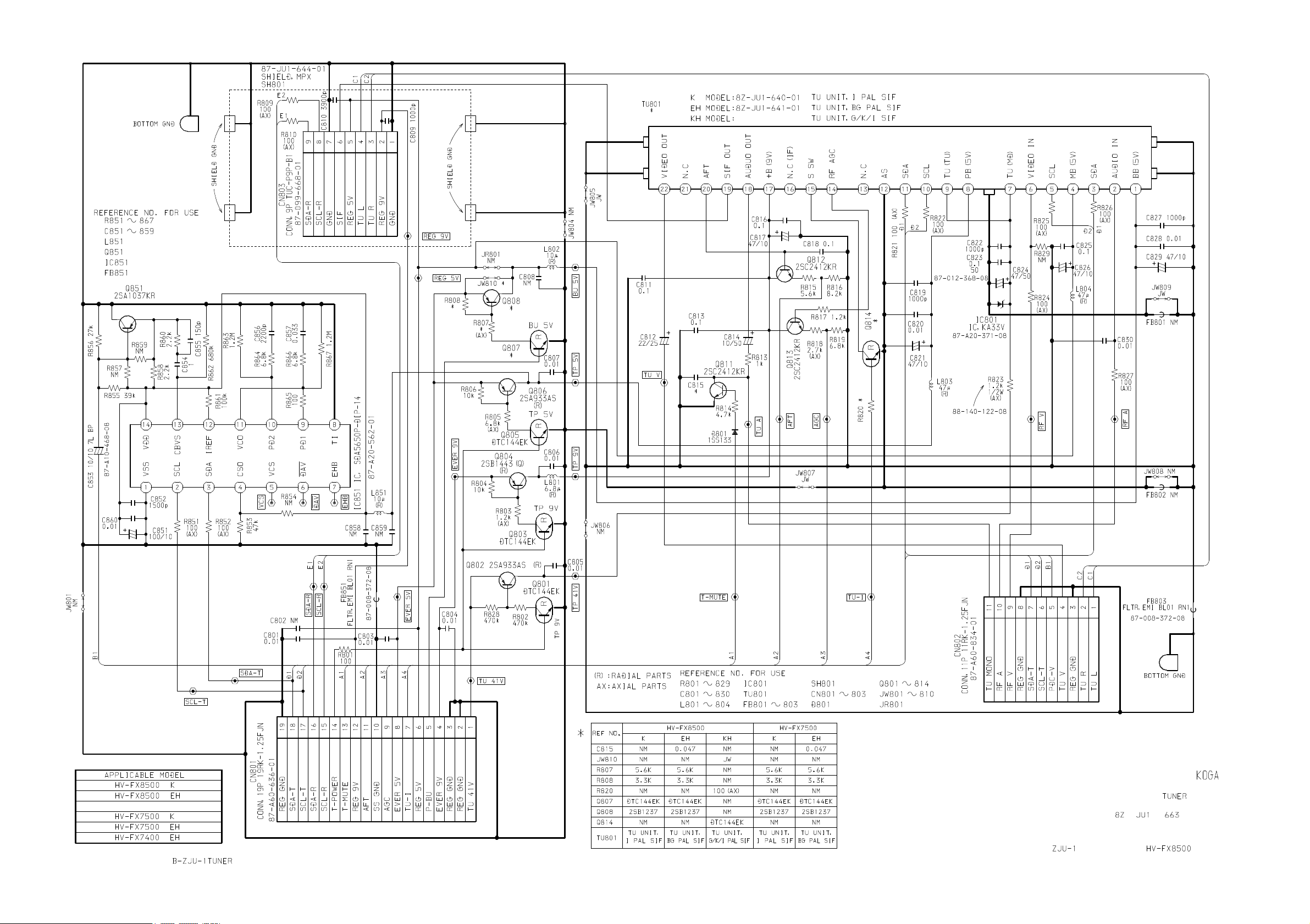

SCHEMATIC DIAGRAM _6 (TUNER)

SCHEMATIC DIAGRAM _7 (MPX)

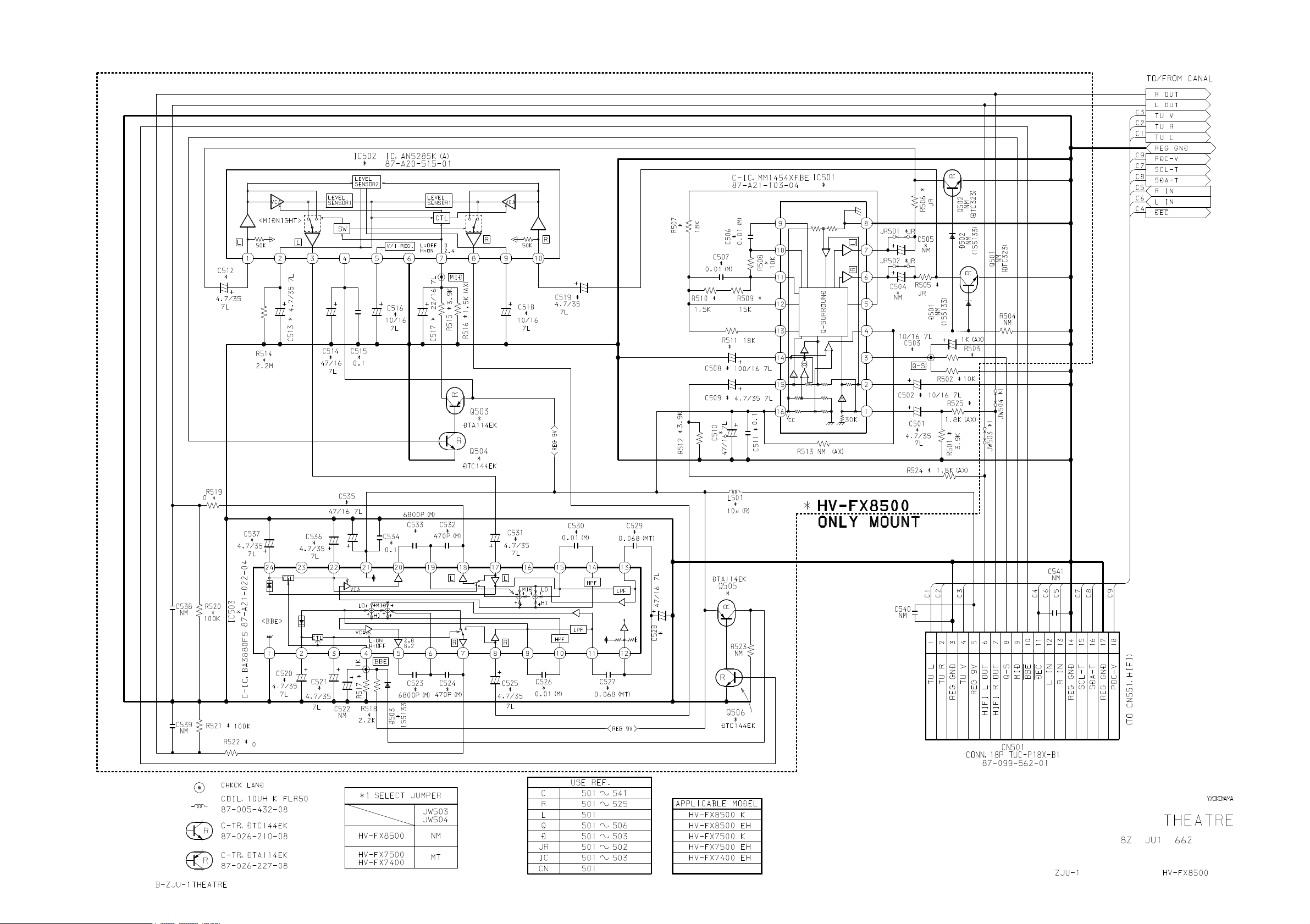

SCHEMATIC DIAGRAM _8 (THEATRE)

SCHEMATIC DIAGRAM _9 (CA)
