AJA HD10AMA Original operating instructions

Installation & Operation Guide
Version 1.0r2
Published: July 10, 2014
HD10AMA Mini-Converter
HD/SD 4-Channel Analog Embedder/Disembedder

HD10AMA Mini-Converter v1.0r2 www.aja.com
2
Table of Contents
Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Contacting Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
HD10AMA Simplified Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
HD10AMA I/O Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
User Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Chapter 2: Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Internal Aux Jumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
DIP Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
DIP Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Switches 3 and 4 Channel Mapping For Embedded Groups. . . . . . . . . . . . . . . . . . . . 10
Switches 5 and 6 Channel Mapping For Disembedding Groups . . . . . . . . . . . . . . . . 11
Audio Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Appendix A: Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Appendix B: Safety and Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Federal Communications Commission (FCC) Compliance Notices . . . . . . . . . . . . . . . . . . 14
Class A Interference Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
FCC Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Canadian ICES Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
European Union and European Free Trade Association (EFTA)
Regulatory Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

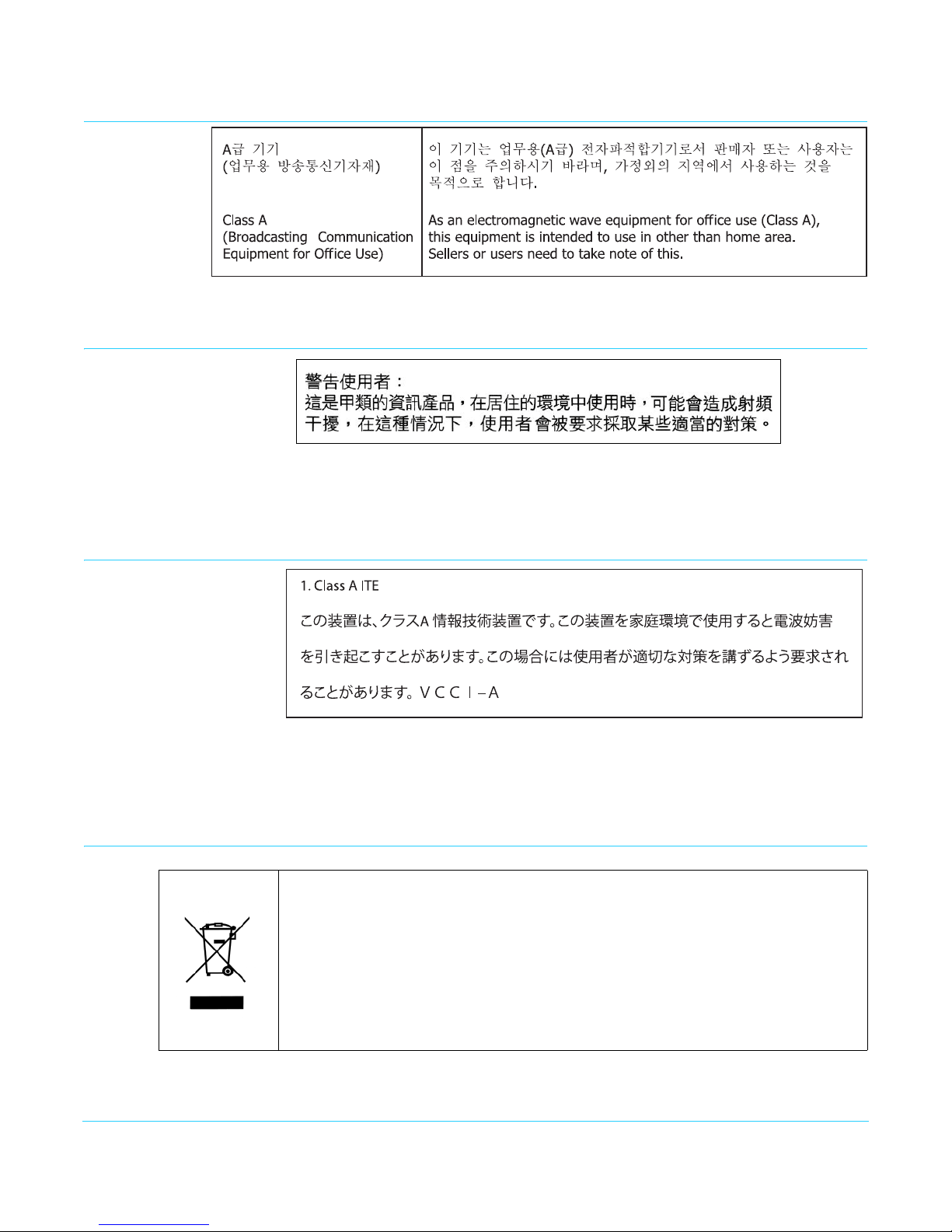

Korean KCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Taiwan Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Japanese Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Recycling Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Translated Warning and Caution Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Before Operation Please Read These Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

HD10AMA Mini-Converter v1.0r2 www.aja.com
3
Notices
Trademarks
AJA®, lo®, Ki Pro®, KONA®, KUMO®,T-TAP®, Because it matters.® and ROI® are registered
trademarks of AJA Video Systems, Inc. in the United States. AJA and Ki Pro are trademarks
of AJA Video Systems, Inc. registered in other countries. AJA Control Room™, CION™,
Corvid Ultra™, FiDO™, Science of the Beautiful™, TruScale™, TruZoom™, V2Analog™ and
V2Digital™ are trademarks of AJA Video Systems, Inc.
AirPort, Apple, Apple logo, AppleShare, AppleTalk, FireWire, iPod, iPod touch, Mac and
Macintosh are registered trademarks of Apple Inc. Final Cut Pro, QuickTime and
QuickTime logo are trademarks of Apple Inc.
Avid, Avid DNxHD and Media Composer are registered trademarks of Avid Technology,
Inc.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing, LLC.
DVI is a registered trademark of DDWG.
TASCAM is a registered trademark of TEAC Corporation.
All other trademarks are the property of their respective holders.
Copyright
Copyright © 2014 AJA Video Systems, Inc. All rights reserved. All information in this
manual is subject to change without notice. No part of the document may be
reproduced or transmitted in any form, or by any means, electronic or mechanical,
including photocopying or recording, without the express written permission of AJA
Video Systems, Inc.
Contacting Support
When calling for support, have all information at hand prior to calling.
To contact AJA for sales or support, use any of the following methods:
Telephone: [phone]
FAX: [phone]
Web: http://www.aja.com
Support Email: [email protected]
Sales Email: [email protected]

HD10AMA Mini-Converter v1.0r2 www.aja.com
4
Chapter 1: Introduction

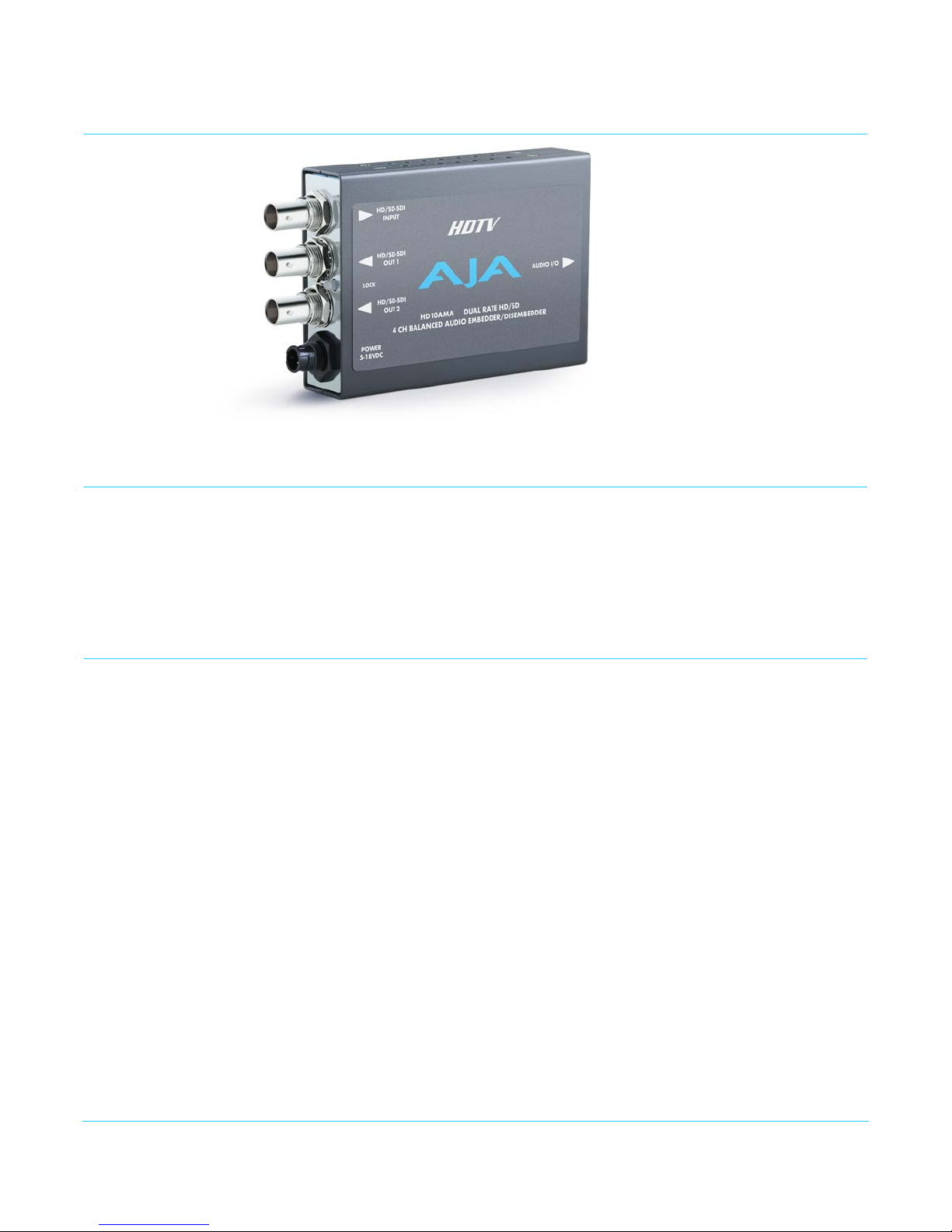

Overview
The HD10AMA is a dual rate 4 channel analog audio Embedder/Disembedder. The
Disembedder is always functional providing 4 outputs. The Embedder is user selectable,
on a channel pair basis, to either “pass” input audio or embed input audio from the
breakout cable. Analog audio levels are selectable. The HD10AMA automatically detects
and configures to the input video standard.
Features
• Dual rate HD-SDI/SDI Embedder/Disembedder
• 4 Channel Balanced Analog Audio I/O
• Supplied XLR breakout cable
• HD/SD SDI input, 2 HD/SD SDI outputs
• Dipswitch configuration
• Uses universal input +5V power supply AJA model DWP-U-R1 (included)

HD10AMA Mini-Converter v1.0r2 www.aja.com
5

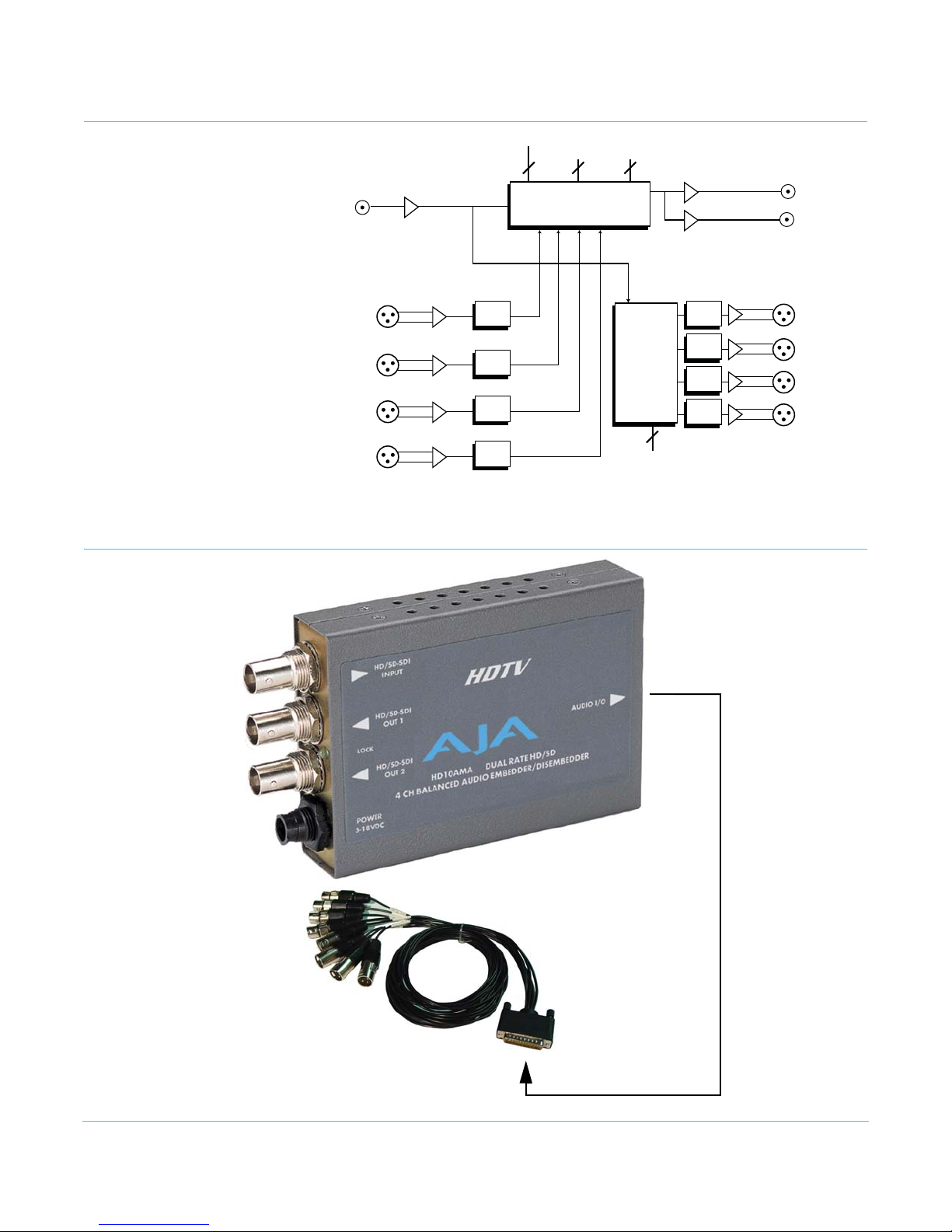

HD10AMA Simplified Block Diagram
HD10AMA I/O Connections
EQ
Cable Driver
Cable Driver
Embed 1/2, 3/4
Embed and Pass-through
Packet Processor
Embed to
Group 1,2,3,4
Aux
Jumper
Analog Input 1
(Ch 1)
XLR Breakout Cable XLR Breakout Cable
HD-SDI Out 1
HD-SDI In
HD-SDI Out 2
Analog Input 2
(Ch 2)
Analog Input 3
(Ch 3)
Analog Input 4
(Ch 4)
Analog Output 1
(Ch 1)
Analog Output 2
(Ch 2)
Analog Output 3
(Ch 3)
Analog Output 4
(Ch 4)
Dis-
Embedder
Disembed
from Group
1,2,3,4
DAC
DAC
DAC
DAC
ADC
ADC
ADC
ADC
Configuration
Determined by
DIP switch on
other side of
Converter
Analog I/O
+ 5 VDC
Power
Input
HD/SD-SDI Input
HD/SD-SDI
HD/SD-SDI
Output 1
Output 2
BNC
BNC
BNC
D-connector
(attaches to
supplied cable)
Cable
Not Shown
To Scale

HD10AMA Mini-Converter v1.0r2 www.aja.com
6
User Controls
The HD10AMA has an 8-switch DIP accessible through a cut-out in the bottom of the
unit. The DIP switches are used to configure how the unit’s audio embedding and
disembedding functions, and adjust audio levels.
The HD10AMA also has a jumper on the internal circuit board, accessible by removing
the outer shell case of the HD10AMA, used in conjunction with the DIP switches 1 and 2
to select certain functions.
The combination of the AUX jumper setting and the DIP switch settings determines the
overall operation of the HD10AMA.
The exact functions of the DIP switch and the jumper settings are described in
“Operation” on page 8.
Installation
Typically, HD10AMA installation consists of the following:
1. Disconnect +5VDC from the converter.
2. Set the DIP switches and, if necessary, the internal jumper, for the desired equipment
configuration.
3. Connect video equipment to the converter BNCs.
4. Connect the breakout audio cable to the converter.
5. Connect audio equipment to the breakout cable (see Figure 1 for pinouts).
6. Apply power to the converter.
1 2 3 4 5 6 7 8
DIP Switch Setting
LEFT RIGHT

HD10AMA Mini-Converter v1.0r2 www.aja.com
7

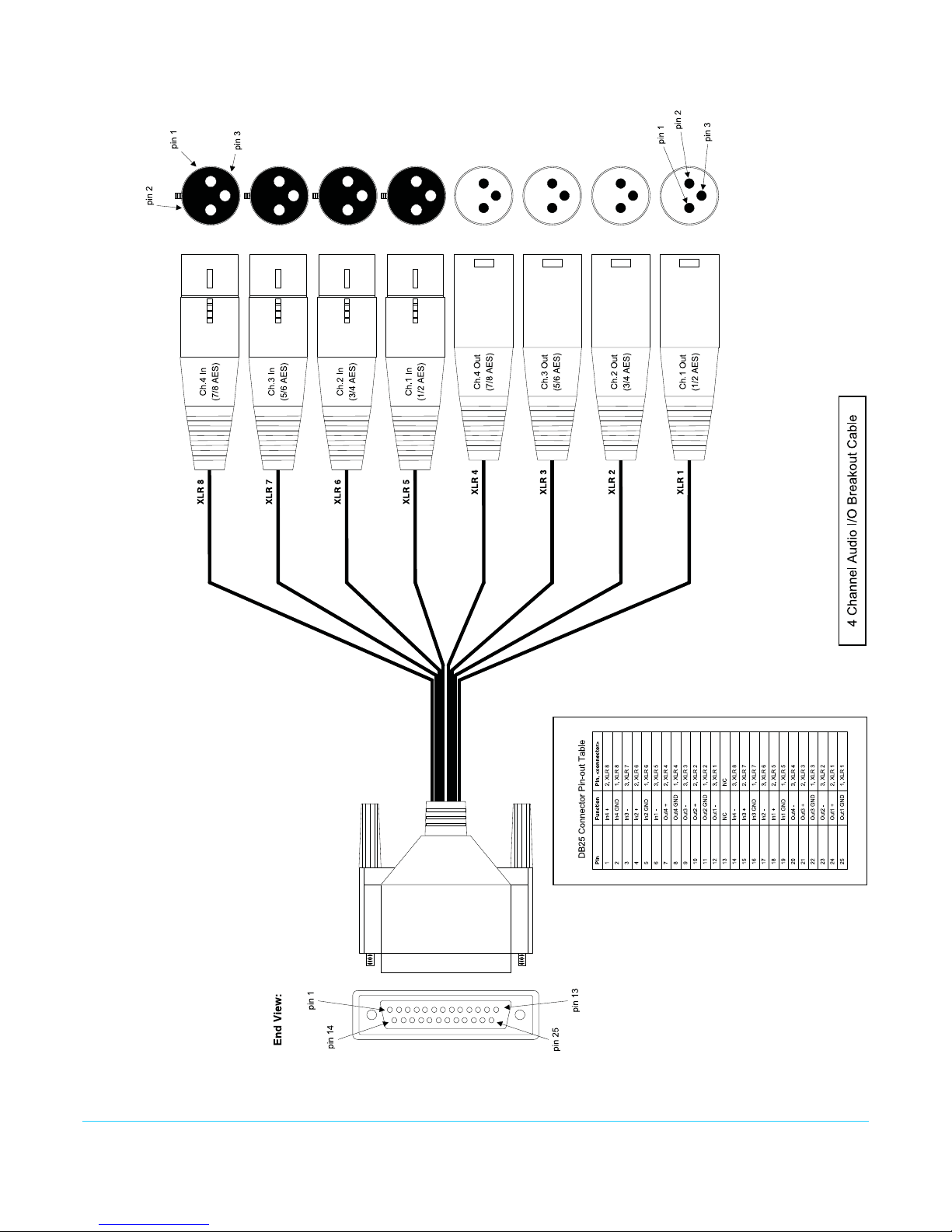

Figure 1. Breakout Cable Pinouts

HD10AMA Mini-Converter v1.0r2 www.aja.com
8
Chapter 2: Operation
Internal Aux Jumper
The AUX Jumper inside the HD10AMA case is used to pass or delete all incoming ancillary
data packets in both the horizontal and vertical ancillary data spaces. In the default
position (OPEN), ancillary data packets are preserved and passed through whenever
possible (i.e., when audio packets for that group are not being embedded). This jumper
setting affects the functions of DIP switches 1 and 2.
To change this setting, open the case by removing the four Phillips screws that fasten the
back half of the case shell (the half having the DIP switch access hole).

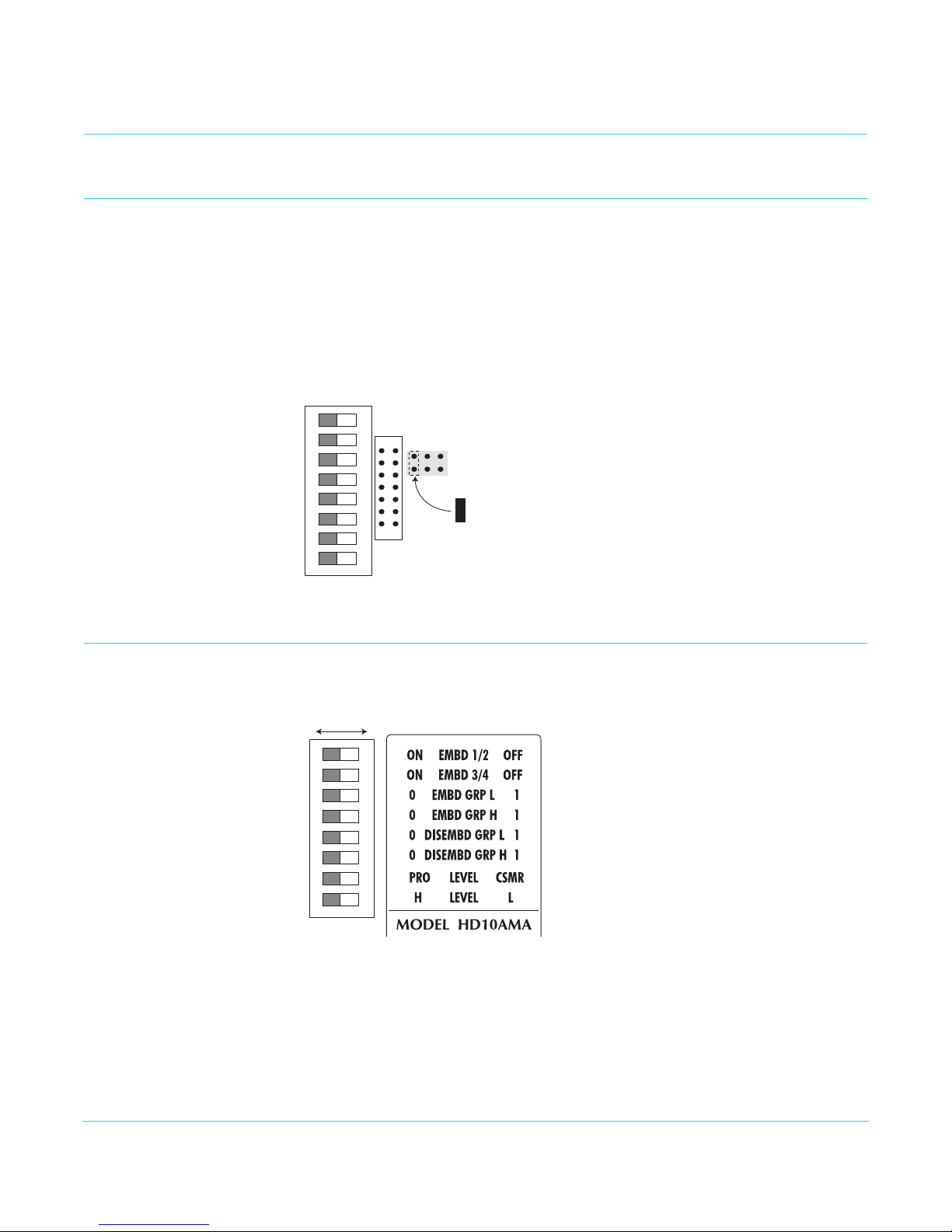

Figure 2. Internal Aux Jumper Location
DIP Switches
The HD10AMA DIP switches configure the audio embedding and disembedding
functions, and adjust audio levels.
1 2 3 4 5 6 7 8
Place AUX Jumper
Here to CLOSE
(Factory Default is OPEN)
1 2 3 4 5 6 7 8
DIP Switch Setting
LEFT RIGHT

HD10AMA Mini-Converter v1.0r2 www.aja.com
9
DIP Switch Settings DIP switch settings used to configure various functions are described below.
Table 1. HD10AMA DIP Switch Setting Descriptions
SWITCH FUNCTION DIP Set LEFT (default) DIP Set RIGHT
1Audio Embedding
for Channels 1/2
(EMBD 1/2)
(ON) Overwrite or embed
new channel 1/2 packets.
(OFF) If AUX Jumper is OPEN
(default): Pass any channel 1/2
packets from input SDI.
If AUX Jumper is CLOSED:
Delete all packets from input
SDI.
2Audio Embedding
for Channels 3/4
(EMDB 3/4)
(ON) Overwrite or embed
new channel 3/4 packets.
(OFF) If AUX Jumper is OPEN
(default): Pass any channel 3/4
packets from input SDI.
If AUX Jumper is CLOSED:
Delete all packets from input
SDI.
3Channel Mapping
For Low Embedded
Groups
(EMBD GRP L)
Switches 3 and 4 operate together to determine
Embedded channel mapping.
1represents a Left DIP switch position
0represents a Right DIP switch position
Refer to Table 2, “Embedded Output Channel Mapping,”
on page 10 for specific settings.
4Channel Mapping
For High Embedded
Groups
(EMBD GRP H)
5Channel Mapping
For Low
Disembedding
Groups
(DISEMBD GRP L)
Switches 5 and 6 operate together to determine
Disembedded channel mapping.
1represents a Left DIP switch position
0represents a Right DIP switch position
Refer to Table 3, “Disembedded Input Channel
Mapping,” on page 11 for specific settings.
6Channel Mapping
For High
Disembedding
Groups
(DISEMBD GRP H)
7Professional Or
Consumer Audio
Levels (LEVEL).
Affects all 4 Inputs
and Outputs
Use Professional Levels
(PRO)
Use Consumer Levels
(CSMR)
Switches 7 and 8 operate together to determine
audio levels. See Table 4, “Output Level Selection
Matrix For Switches 7 and 8,” on page 12.
8High or Low Audio
Levels (LEVEL).
Affects all 4 Inputs
and Outputs
Use High Levels (H)Use Low Levels (L)
Switches 7 and 8 operate together to determine
audio levels. See Table 4, “Output Level Selection
Matrix For Switches 7 and 8,” on page 12.

HD10AMA Mini-Converter v1.0r2 www.aja.com
10
Switches 3 and 4
Channel Mapping
For Embedded
Groups
The following table shows how combinations of setting these two switches affects
embedded channel mapping.
Table 2. Embedded Output Channel Mapping
DIP SW 3
EMBD GRP L
DIP SW 4
EMBD GRP H
Audio
Input
Channel
SDI
Embedded
Output Group
SDI Embedded
Output
Channel
Left (0)Left (0)1 —> 1 1
2 —> 2
3 —> 3
4 —> 4
Right (1)Left (0)1 —> 2 5
2 —> 6
3 —> 7
4 —> 8
Left (0)Right (1)1 —> 3 9
2 —> 10
3 —> 11
4 —> 12
Right (1)Right (1)1 —> 413
2 —> 14
3 —> 15
4 —> 16

HD10AMA Mini-Converter v1.0r2 www.aja.com
11
Switches 5 and 6
Channel Mapping
For Disembedding
Groups
The following table shows how combinations of setting these two switches affects
disembedding channel mapping.
Audio Levels Professional audio equipment has much higher levels than consumer equipment: a 0 VU
reading corresponds to +4 dBu. Connecting a professional +4 dBu device to a consumer
audio input (-7 to -8 dBu) may produce dangerous overloading, whereas the output of a
consumer device probably does not have sufficient power to drive a professional audio
input. With consumer and semi-professional audio equipment, a VU reading of 0 dB is
typically referenced to -10 dBV, which is equivalent to -7.78 dBu.
Table 3. Disembedded Input Channel Mapping
DIP SW 5
DISEMBD
GRP L
DIP SW 6
DISEMBD
GRP H
SDI
Embedded
Input Group
SDI Embedded
Input Channel
Audio Output
Channel
Left (0)Left (0) 1 1 —> 1
2 —> 2
3 —> 3
4 —> 4
Right (1)Left (0) 2 5 —> 1
6 —> 2
7 —> 3
8—> 4
Left (0)Right (1) 3 9 —> 1
10 —> 2
11 —> 3
12 —> 4
Right (1)Right (1) 4 13 —> 1
14 —> 2
15 —> 3
16 —> 4

HD10AMA Mini-Converter v1.0r2 www.aja.com
12
The following table shows the combinations of DIP switch settings required to configure
the audio output levels shown.
Table 4. Output Level Selection Matrix For Switches 7 and 8
DIP SW 7 DIP SW 8 In/Out Level Range Nominal
(-20dBFS)
Full Scale
(0dBFS)
Left
(PRO)
Left
(H)
Professional High (US) +4dBu +24dBu
Left
(PRO)
Right
(L)
Professional Low (European) -2dBu +18dBu
Right
(CSMR)
Left
(H)
Consumer High -8dBu +12dBu
Right
(CSMR)
Right
(L)
Consumer Low -14dBu +6dBu

HD10AMA Mini-Converter v1.0r2 www.aja.com
13
Appendix A: Specifications
Formats (Automatic Configuration)
• HD SMPTE 292/296M
• SD SMPTE 259M
Video Input • HD/SD-SDI, 1x BNC
Video Outputs • HD/SD-SDI, 2x BNC
Audio Inputs • 4 x Balanced Analog Audio, XLR
Audio Outputs • 4 x Balanced Analog Audio, XLR
Audio Levels
(Full Scale Digital)
See Output Level Selection Matrix presented earlier.
Audio Converters •24bit
Embedded Audio • SMPTE 272M (SD): 20-bit, 48KHz synchronous
• SMPTE 299M (HD): 24 bit, 48KHz synchronous
Video Processing Delay •HDMode:7mS
•SDMode:19mS
Audio Processing Delay • Disembed Delay: 920 uS
• Embed Delay: 1200uS
User Controls External DIP switch:
• Embedder on/off, Ch pairs 1/2 - 3/4
• Input group select, 1-4
• Output Group Select, 1-4
• Audio Level: Pro/Consumer, High/Low
Size • 5.8" x 3.1" x 1 (147 x 79 x 25mm)
Power • Uses AJA Power Supply model DWP-U-R1 (included)
• 100-240V, 50/60Hz Universal Input
• +5V DC regulated, 7.5 watt capacity

HD10AMA Mini-Converter v1.0r2 www.aja.com
14
Appendix B: Safety and Compliance
Federal Communications Commission (FCC) Compliance Notices
Class A Interference
Statement
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Canadian ICES Statement
Canadian Department of Communications Radio Interference Regulations
This digital apparatus does not exceed the Class A limits for radio-noise emissions from a
digital apparatus as set out in the Radio Interference Regulations of the Canadian
Department of Communications. This Class A digital apparatus complies with Canadian
ICES-003.
Règlement sur le brouillage radioélectrique du ministère des Communications
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils
numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du
ministère des Communications du Canada. Cet appareil numérique de la Classe A est
conforme à la norme NMB-003 du Canada.

HD10AMA Mini-Converter v1.0r2 www.aja.com
15
European Union and European Free Trade Association (EFTA)
Regulatory Compliance
This equipment may be operated in the countries that comprise the member countries
of the European Union and the European Free Trade Association. These countries, listed
in the following paragraph, are referred to as The European Community throughout this
document:
AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA,
FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA,
LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA,
SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY,
SWITZERLAND
Declaration of
Conformity
Marking by this symbol indicates compliance with the Essential Requirements of the EMC
Directive of the European Union 2004/108/EC.
Safety: CB- IEC 60065:2001 + A1:2005
NRTL - UL 60065:2003 R11.06, CSA C22.2 NO. 60065:2003 + A1:06
GS - EN 60065:2002 + A1
Additional licenses issued for specific countries available on request.
Emissions: EN 55103-1: 1996
EN61000-3-2:2006, EN61000-3-3:1995 +A1:2001 +A2:2005
Immunity: EN 55103-2: 1996
EN61000-4-2:1995 + A1:1999 + A2:2001, EN61000-4-3:2006, EN61000-4-4:2004,
EN 61000-4-5: 2005, EN 610004-6:2007, EN61000-4-11:2004
The product is also licensed for additional country specific standards as required for the
International Marketplace.
Warning!
This is a Class A product. In a domestic environment, this product may cause radio
interference, in which case, the user may be required to take appropriate measures.
Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen
können bei Betrieb dieses Gerätes Rundfunkstörungen auftreten, in welchen Fällen
der Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist.
Attention! Ceci est un produit de Classe A. Dans un environnement domestique, ce
produit risque de créer des interférences radioélectriques, il appartiendra alors à
l?utilisateur de prendre les mesures spécifiques appropriées.

HD10AMA Mini-Converter v1.0r2 www.aja.com
16
Korean KCC Compliance Statement
Taiwan Compliance Statement
This is a Class A product based on the standard of the Bureau of Standards, Metrology
and Inspection (BSMI) CNS 13438, Class A.
Japanese Compliance Statement
This is a Class A product based on the standard of the VCCI Council (VCCI V-3/2008.04). If
this equipment is used in a domestic environment, radio interference may occur, in
which case, the user may be required to take corrective actions.
Recycling Notice
This symbol on the product or its packaging indicates that this product must not be
disposed of with your other household waste. Instead, it is your responsibility to
dispose of your waste equipment by handing it over to a designated collection point
for the recycling of waste electrical and electronic equipment. The separate collection
and recycling of your waste equipment at the time of disposal will help conserve
natural resources and ensure that it is recycled in a manner that protects human
health and the environment. For more information about where you can drop off your
waste for recycling, please contact your local authority, or where you purchased your
product.

HD10AMA Mini-Converter v1.0r2 www.aja.com
17
Translated Warning and Caution Messages
The following caution statements, warning conventions, and warning messages apply to
this product and manual.
Before Operation Please Read These Instructions
Warning!
Read and follow all warning notices and instructions marked on the product or
included in the documentation.
Avertissement ! Lisez et conformez-vous à tous les avis et instructions
d'avertissement indiqués sur le produit ou dans la documentation.
Warnung! Lesen und befolgen Sie die Warnhinweise und Anweisungen, die auf dem
Produkt angebracht oder in der Dokumentation enthalten sind.
¡Advertencia! Lea y siga todas las instrucciones y advertencias marcadas en el
producto o incluidas en la documentación.
Aviso! Leia e siga todos os avisos e instruções assinalados no produto ou incluídos na
documentação.
Avviso! Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o inclusi
nella documentazione.
Warning!
Do not use this device near water and clean only with a dry cloth.
Avertissement! N'utilisez pas cet appareil près de l'eau et nettoyez-le seulement avec
un tissu sec..
Warnung! Das Gerät nicht in der Nähe von Wasser verwenden und nur mit einem
trockenen Tuch säubern.
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un
paño seco.
Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano
seco.
Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un
panno asciutto.

HD10AMA Mini-Converter v1.0r2 www.aja.com
18
Warning!
Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
Avertissement ! Ne bloquez aucune ouverture de ventilation. Suivez les instructions
du fabricant lors de l'installation.
Warnung! Die Lüftungsöffnungen dürfen nicht blockiert werden. Nur gemäß den
Anweisungen des Herstellers installieren.
¡Advertencia! No bloquee ninguna de las aberturas de la ventilación. Instale de
acuerdo con las instrucciones del fabricante.
Aviso! Não obstrua nenhuma das aberturas de ventilação. Instale de acordo com as
instruções do fabricante.
Avviso! Non ostruire le aperture di ventilazione. Installare in conformità con le
istruzioni del fornitore.
Warning!
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
Avertissement ! N'installez pas l'appareil près d'une source de chaleur telle que des
radiateurs, des bouches d'air de chauffage, des fourneaux ou d'autres appareils
(amplificateurs compris) qui produisent de la chaleur.
Warnung! Nicht in der Nähe von Wärmequellen wie Heizkörpern, Heizregistern, Öfen
oder anderen Wärme erzeugenden Geräten (einschließlich Verstärkern) aufstellen.
¡Advertencia! No instale cerca de fuentes de calor tales como radiadores, registros de
calor, estufas u otros aparatos (incluidos amplificadores) que generan calor.
Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de
calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor.
Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda,
stufe o altri apparecchi (amplificatori compresi) che emettono calore.

HD10AMA Mini-Converter v1.0r2 www.aja.com
19
Warning!
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
Avertissement! La sécurité de la prise polarisée ou de la prise de type mise à la terre
ne doit en aucun cas être empêchée de fonctionner. Une prise polarisée a deux
broches, l'une étant plus large que l'autre. Une prise de type mise à la terre a deux
broches et une troisième broche pour la mise à la terre. La broche large ou la
troisième broche sont fournies pour votre sécurité. Si la prise fournie ne s'insère pas
dans votre prise femelle, consultez un électricien pour le remplacement de la prise
femelle obsolète.
Warnung! Der Sicherheitszweck des gepolten bzw. Schukosteckers ist zu
berücksichtigen. Ein gepolter Stecker verfügt über zwei Pole, von denen einer breiter
als der andere ist. Ein Schukostecker verfügt neben den zwei Polen noch über einen
dritten Pol zur Erdung. Der breite Pol bzw. der Erdungspol dienen der Sicherheit.
Wenn der zur Verfügung gestellte Stecker nicht in Ihren Anschluss passt, konsultieren
Sie einen Elektriker, um den veralteten Anschluss zu ersetzen.
¡Advertencia! No eche por tierra la finalidad del tipo de enchufe polarizado con
conexión a tierra. Un enchufe polarizado tiene dos espigas, una más ancha que la
otra. Un enchufe con conexión a tierra tiene dos espigas iguales y una tercera espiga
que sirve para la conexión a tierra. La expiga ancha, o la tercera espiga, sirven para su
seguridad. Si el enchufe suministrado no encaja en el tomacorriente, consulte con un
electricista para reemplazar el tomacorriente obsoleto.
Aviso! Não anule a finalidade da segurança da ficha polarizada ou do tipo ligação
terra. Uma ficha polarizada tem duas lâminas sendo uma mais larga do que a outra.
Uma ficha do tipo de ligação à terra tem duas lâminas e um terceiro terminal de
ligação à terra. A lâmina larga ou o terceiro terminal são fornecidos para sua
segurança. Se a ficha fornecida não couber na sua tomada, consulte um electricista
para a substituição da tomada obsoleta.
Avviso! Non compromettere la sicurezza della spina polarizzata o con messa a terra.
Una spina polarizzata ha due spinotti, di cui uno più largo. Una spina con messa a
terra ha due spinotti e un terzo polo per la messa a terra. Lo spinotto largo o il terzo
polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa
di corrente, contattare un elettricista per la sostituzione della presa obsoleta.

HD10AMA Mini-Converter v1.0r2 www.aja.com
20
Warning!
Since the Mains plug is used as the disconnection for the device, it must remain
readily accessible and operable.
Avertissement! Puisque la prise principale est utilisée pour débrancher l'appareil, elle
doit rester aisément accessible et fonctionnelle.
Warnung! Da der Netzstecker als Trennvorrichtung dient, muss er stets zugänglich
und funktionsfähig sein.
¡Advertencia! Puesto que el enchufe de la red eléctrica se utiliza como dispositivo de
desconexión, debe seguir siendo fácilmente accesible y operable.
Aviso! Dado que a ficha principal é utilizada como a desconexão para o dispositivo,
esta deve manter-se prontamente acessível e funcional.
Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di sconnessione,
deve rimane prontamente accessibile e operabile.
Warning!
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the device.
Avertissement! Protégez le cordon d'alimentation pour que l'on ne marche pas
dessus ou qu'on le pince, en particulier au niveau des prises mâles, des réceptacles de
convenance, et à l'endroit où il sort de l'appareil.
Warnung! Vermeiden Sie, dass auf das Netzkabel getreten oder das Kabel geknickt
wird, insbesondere an den Steckern, den Steckdosen und am Kabelausgang am
Gerät.
¡Advertencia! Proteja el cable de energía para que no se le pise ni apriete, en especial
cerca del enchufe, los receptáculos de conveniencia y el punto del que salen del
equipo.
Aviso! Proteja o cabo de alimentação de ser pisado ou de ser comprimido
particularmente nas fichas, em tomadas de parede de conveniência e no ponto de
onde sai do dispositivo.
Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e
che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in
cui esce dal dispositivo.
