Akai ASB-66 User manual

16
BEFORE WE BEGIN
Thank you for purchasing the AKAI ASB-66 SOUND BAR BLUETOOTH WITH MEMORY
CARD READER AND USB PORT.
This is your assurance of quality, performance and value. Our engineers have included many useful
and convenient features in this product. Please be sure to read this instruction Manual completely
to make sure you are getting the maximum benefit from each feature.
This product was manufactured using the highest quality components and standards of
workmanship. It was tested by inspectors and found to be in perfect working order before it left our
factory. For future reference, record the serial number in the space provided.
Model No: AKAI ASB-66:
Serial Number: _________________________________________________________
WARNINGS
TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
LIGHTNING FLASH WITH ARROWHEAD SYMBOL -
Within an equilateral triangle, is intended to alert the user to the presence of uninsulated
dangerous voltage within the products enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
EXCLAMATION POINT - within an equilateral triangle is used to indicate that a specific
component shall be replaced only by the component specified in that documentation for safety
reason.
SAFETY INTRUCTIONS
1. READ INSTRUCTIONS --- All the safety and operating instructions should be read before the product is
operated, followed and retained for future reference.
2. HEED WARNINGS --- All warnings on the product and in the operating instructions should be adhered
to.
3. CLEANING --- Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
4. WATER AND MOISTURE --- Do not use this product near water - for example, near a bath tub, wash
bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
5. ACCESSORIES --- Do not place this product on an unstable cart, stand, tripod, bracket, or
table. The product may fall, causing serious injury to a child or adult and serious damage to
the product. Use only with a cart, stand, tripod, bracket, or table recommended by the
manufacturer, or sold with the product. Any mounting of the product should follow the
manufacturer instructions, and should use a mounting accessory recommended by the
manufacturer. A Product and Cart Combination should Be Moved with Care - Quick stops,
excessive force and uneven surfaces may cause the product and cart combination to overturn.

17
SAFETY INTRUCTIONS
6. VENTILATION --- Slots and openings in the cabinet are provided for ventilation and to ensure reliable
operation of the product and to protect it from overheating, and these openings must not be blocked or
covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar
surface. This product should not be placed in a built-in installation, such as a bookcase or rack, unless proper
ventilation is provided or the manufacturer* instructions have been adhered to.
7. POWER SOURCES --- This product should be operated only from the type of power source indicated on
the marking label. If you are not sure of the type of power supply to your home, consult your product dealer
or local power company. For products intended to operate from battery power, or other sources, refer to the
operating instructions.
8. POWER-CORD PROTECTION --- Power-supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where exit from the product.
9. NON-USE PERIODS --- The power cord of the product should be unplugged from the outlet when left
unused for long periods of time.
10. LIGHTNING --- For added protection for this product during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or
cable system. This will present damage to the product due to lightening and power-line surges.
11. POWER LINES --- An outside antenna system should not be located in the vicinity of overhead power
lines or other electric light or power circuits, or where it can fall into such power lines or other electric light or
power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna
system, extreme care should be taken to keep from touching such power lines or circuits as contact with
them might be fatal.
12. OVERLOADING --- Do not overload wall outlets, extension cords, or integral convenience receptacles
as this can result in a risk of fire or electric shock.
13. OBJECT AND LIQUID ENTRY --- Never push objects of any kind into this product through openings as
they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never
spill liquid of any kind on the product.
14. SERVICING --- Do not attempt to service this product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer to all servicing to qualified service personnel.
15. DAMAGES REQUIRING SERVICE --- Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions.
a) When the power-supply cord or plug is damaged.
c) If the product has been exposed to rain or water.
b) If liquid has been spilled, or objects have fallen into the product.
d) If the product does not operate normally by following the operating instructions. Adjust only those controls
that are covered by the operating instructions as an improving adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to restore the product to its normal
operation.
e) When the product exhibits a distinct change in performance - this indicates a need for service.
16. REPLACEMENT PARTS --- When replacement parts are required, be sure the service technician has
used replacement parts specified by the manufacturer or have the same characteristics as the original part,
Unauthorized substitutions may result in fire electric shock and other hazards.
17. HEAT --- the product should be situated away from sources such as radiators, heat registers, stoves or
other products that produce heat.

18
ESTABLISH A SAFE SOUND LEVEL
Over time your hearing will adapt to continuous loud sounds and will give the impression that the
volume has in fact been reduced. What seems normal to you may in fact be harmful. To guard
against this before your hearing adapts, set the volume to a low level.
Slowly increase the level until you can hear comfortably and clearly and without distortion. Damage
to your hearing is accumulative and is irreversible. Any ringing or discomfort in the ears indicates
that the volume is too loud. Once you have established a comfortable listening level, do not increase
the sound level.
PREPARATION FOR USE
Unpacking and set up
•Carefully remove all the components from the carton and remove all packing materials from
the components. Make sure noting is accidentally discarded with the packing materials.
•Save the carton and the packing materials, if possible, in the unlikely event that the unit ever
needs to be returned for service. Using the original carton and packing material is the only
proper way to protect the unit from shipping damage.
•Unwind the AC power cord on the back of the main unit and extend it to its full length.
The Sound BAR Remote Control Audio Cable User Manual
Wall Mounting Accessories

19
CONNECTIONS
1. Check if the power voltage, as shown on the type plate located on the back of the set,
corresponds to your local AC power supply. If it does not, consult your dealer or service centre.
2. Connect the power cord to the wall outlet. The power supply is now connected and ready for use.
Power cord
3. To switch off completely, turn off the main power STANDBY button and unplug the power cord
from the wall outlet.
•The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
NOTE: If not any audio signal inputs to the unit in about one hour, the unit will enter to
STANDBY mode automatically (except at FM mode).

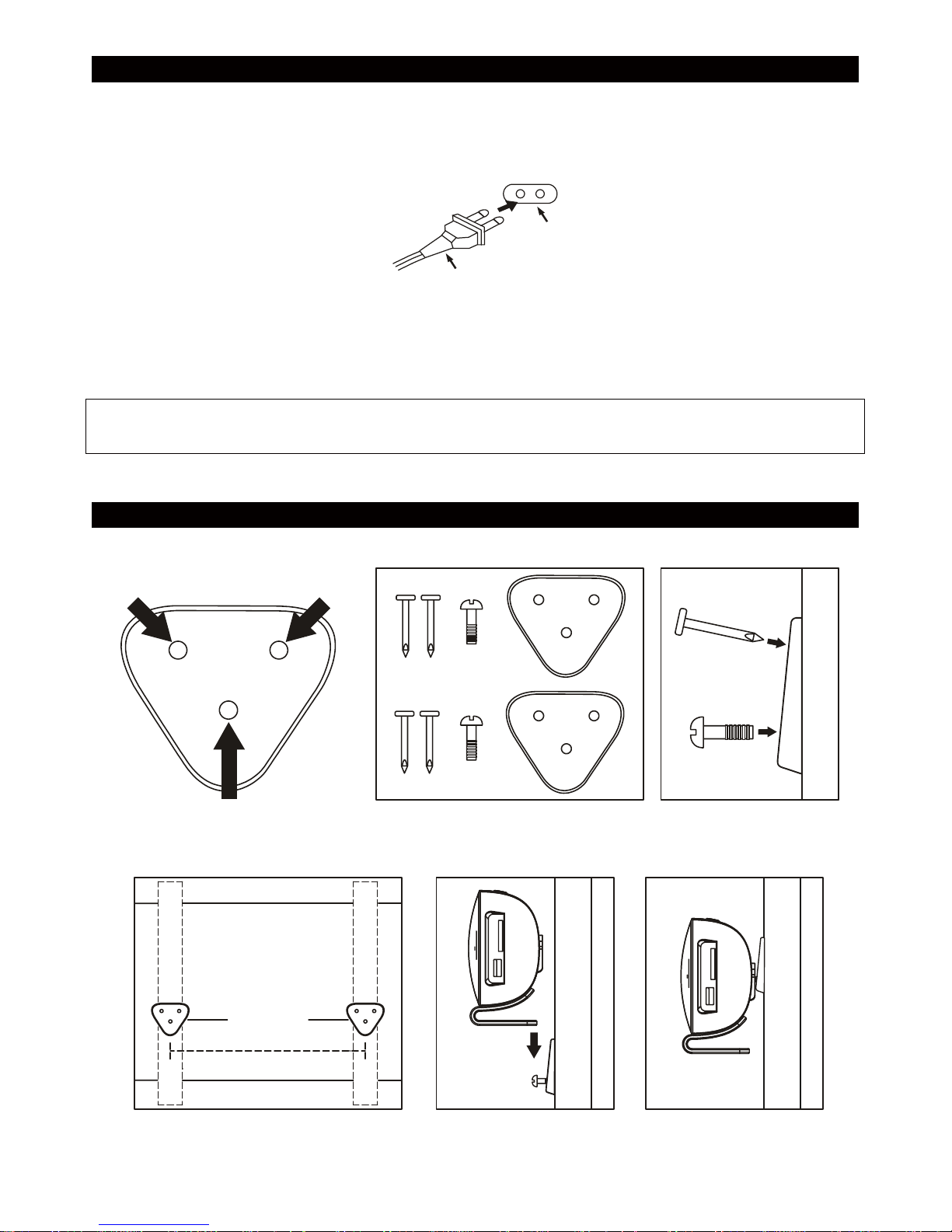

WALL MOUNTING
AccessoriesDrill hole for screw
For nail For nail
Fig 1
Fig 2 Fi
g
3
16"
WALL MOUNT
BRACKET
WALL
STUD
STUD
Fig 4
outlet

20
CONNECTIONS WITH OTHER DEVICES
AUDIO IN
1. Connect the AUX IN jacks on the unit to audio source, for example, DVD player with an RCA
cable.
2. Power on the unit and the audio device.
3. Press the MODE button repeatedly to switch to AUX mode.
4. Use the native controls on the connected audio device to begin playing music through the
connected unit.
LINE IN
Follow steps to connect the unit to another audio device:
1. Connect the device into the unit’s LINE IN jack with the LINE OUT cable.
2. Press the STANDBY button to turn the unit on.
3. Press the MODE button repeatedly to switch the unit to Line mode.
4. Power on the device and begin play.
OPTICAL INPUT
1. Connect a Digital Optical Audio Cable to the optical output on the audio source and to OPTICAL
IN on the unit.
2. Power on the unit and the audio source.
3. Press the MODE button repeatedly to switch to OPT IN Mode.
4. Audio from the connected audio source will now be played through the unit.

21
DESCRIPTION OF UNIT AND CONTROLS
1
2
3
4
5
67 8910
11 12 13 11
14 15 16
1. VOLUME - BUTTON
2. VOLUME + BUTTON
3. STANDBY BUTTON
4. MODE BUTTON
5. PAIR/PLAY/PAUSE BUTTON
6. SD/MMC CARD SLOT
7. USB PORT
8. LCD DISPLAY
9. BLUETOOTH INDICATOR
10. REMOTE SENSOR
11. HANGING HOLES
12. FM ANTENNA
13. AC CORD
14. OPTICAL IN JACK
15. AUX IN JACKS
16. LINE IN JACK

22

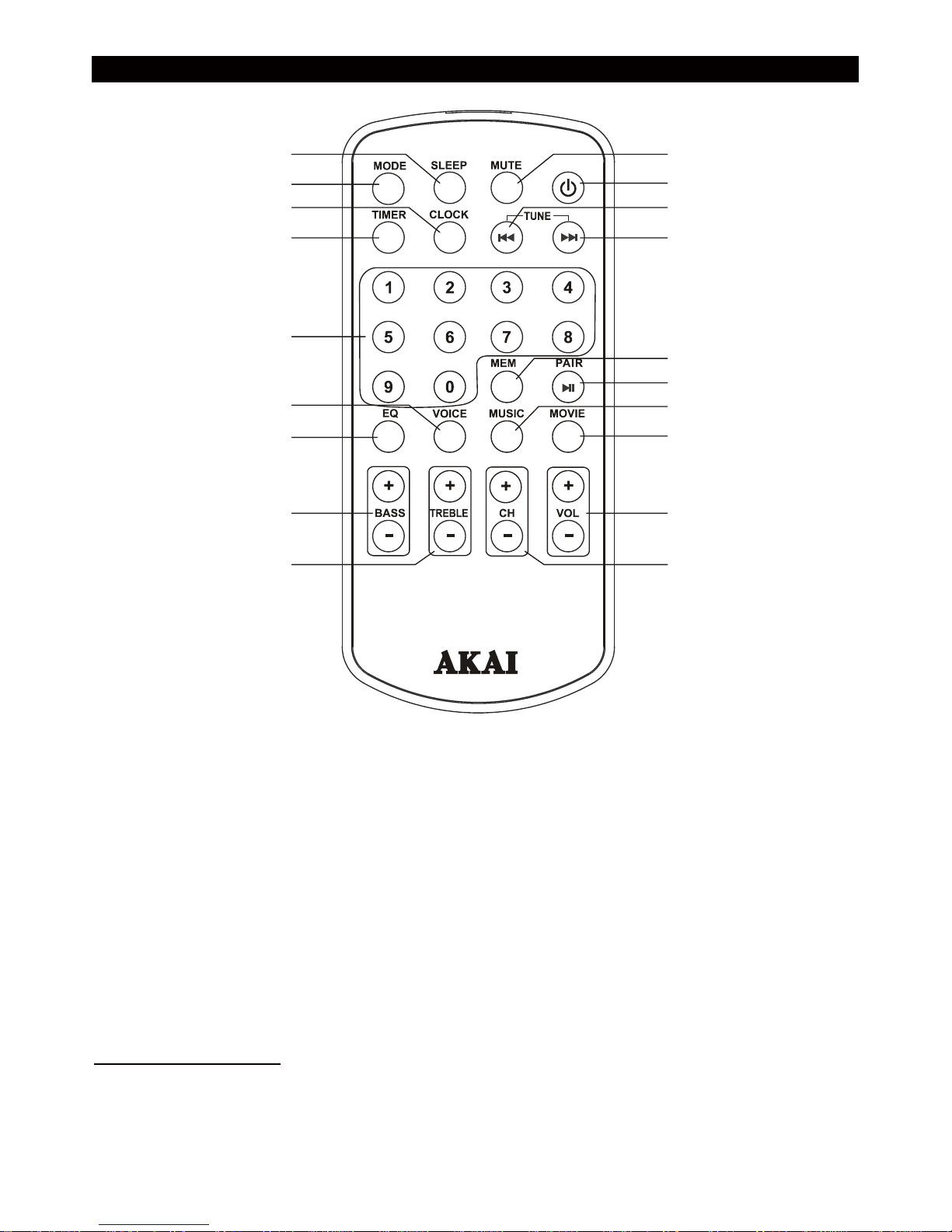

DESCRIPTION OF REMOTE CONTROL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1. SLEEP BUTTON
2. MODE BUTTON
3. CLOCK BUTTON
4. TIMER BUTTON
5. NUMERIC BUTTONS
6. VOICE BUTTON
7. EQ BUTTON
8. BASS +/- BUTTONS
9. TREBLE +/- BUTTONS
10. MUTE BUTTON
11. STANDBY BUTTON
12. TUNING/SKIP/SEARCH BACKWARD
BUTTON
13. TUNING/SKIP/SEARCH FORWARD
BUTTON
14. MEM BUTTON
15. PAIR/PLAY/PAUSE BUTTON
16. MUSIC BUTTON
17. MOVIE BUTTON
18. VOL +/- BUTTONS
19. CH+/- BUTTONS
IR REMOTE SENSOR
- Even if the remote control is operated within the effective range, its operation may be impossible if
there are any obstacles between the appliance and the remote control.
- If the remote control is operated near other appliances which generate infrared rays, or if other
remote control devices using infrared rays are used near the appliance, it may operate incorrectly.

23

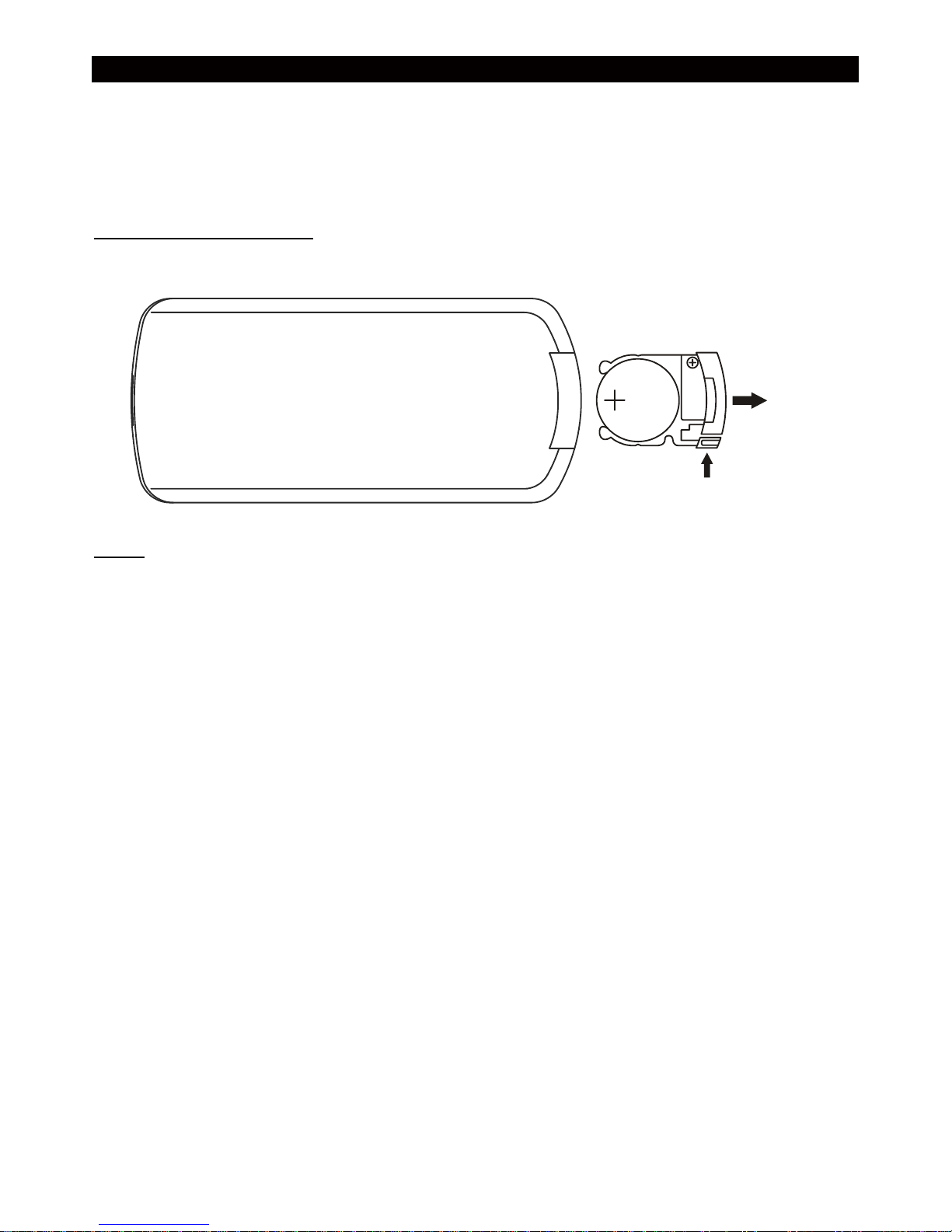

BATTERY INSTALLATION
Insert a CR2025 size battery into the battery compartment. Be sure that the battery is inserted
correctly to avoid damage to the remote control. Always remove the battery when the remote
control will not be used for a long period of time, as this will cause leakage to the battery and
subsequently damage to your set.
BATTERY INSTALLATION
Slide out cover and install single CR2025 battery with polarities as shown:
Notes:
If the distance required between the remote control and the appliance decreases, the batteries are
exhausted. In this case replace the batteries with new one.
LITHIUMBATTERY
CR2025
3V

24
CLOCK SETTING- TIMER & SLEEP OPTIONS
HOW TO SET TIME?
At the STANDBY mode, press and hold the CLOCK button on the remote until HOUR flashes on
the screen; use the TUNING/SKIP/SEARCH buttons on the remote to adjust the hour and
confirm your adjustment by pressing the CLOCK button on the remote; Minute starts blinking on
the screen, press the TUNING/SKIP/SEARCH buttons on the remote to set the minute
accordingly, press the CLOCK button on the remote again to confirm your setting.
During playback, press CLOCK button on the remote to check the current time.
Note: The time only could be set at standby mode.
TIMER SETTING
1. At standby mode, press and hold the TIMER button on the remote. The hour will begin blinking
on the screen with the flashing timer icon “T”.
2. Press the TUNING/SKIP/SEARCH buttons on the remote to adjust the hour.
3. Press the TIMER button to confirm. The minute on the display will begin blinking.
4. Press the TUNING/SKIP/SEARCH buttons on the remote to adjust the minute.
5. Press the TIMER button on the remote to confirm your setting.
6. Once the set time is reached, the unit will power on to the radio automatically.
7. The timer function can be deactivated or activated by short pressing the TIMER button on the
remote.
SLEEP TIMER SETTING
You can set the sleep timer at power on modes as following instructions:
During playback, press the SLEEP button on the remote control repeatedly to cycle through the
sleep time options, Release the SLEEP button when your desired sleep time shows on the screen.
Once the sleep time is expired, the unit will be switched off.
During playback, press SLEEP button once to check the remaining sleep time.
SOUND SETTINGS
MUTE THE UNIT
During playback, press the MUTE button on the remote to switch off the audio. Press the button
again to resume the audio.
VOLUME LEVEL/TREBLE/BASS ADJUSTMENT
Press the VOLUME +/- buttons or TREBLE +/- buttons or BASS +/- buttons on the remote to
adjust the volume output level or treble effect or bass effect.
EQ EFFECTS
During playback, press EQ button on the remote repeatedly to cycle through the EQ options as
following (The factory default EQ mode is FLAT.): CLASSIC ÎROCK ÎPOP ÎJAZZ ÎFLAT
When your desired EQ effect displays on the screen, release the EQ button.
PROFESSIONAL AUDIO MODES
During playback, press the VOICE, MUSIC or MOVIE buttons on the remote to switch among
voice, music and movie audio modes for getting high sound quality. The audio modes can reveal the
characters and details of the sound of the voice, music and movie and make you liked being there.

25
GENERAL OPERATION
1. Press STANDBY once for power on.
2. Press MODE to enter the next mode as shown as follows (the factory default mode is FM.):
LINE ÎAUX ÎUSB ÎCARD ÎOPT IN ÎBT ÎFM
3. Press STANDBY to power off.
FM RADIO OPERATION
TUNING THE FM RADIO
1. Power on the unit, switch to FM (RADIO) mode by pressing MODE button repeatedly.
2. Press the TUNING/SKIP/SEARCH buttons on the remote to fine tune radio station. Press and
hold the TUNING/SKIP/SEARCH buttons on the remote to auto search radio station forward
or backward respectively (When an available station will be found, the unit will broadcast it
immediately and the searching will be stopped). During auto searching, press the
TUNING/SKIP/SEARCH buttons on the remote to stop the searching.
3. At radio mode, it is possible to access the frequency via numeric buttons on the remote control.
For example, press buttons 8, 9 and 8 to get to 89.8 MHz.
STORING YOUR FAVORITE RADIO STATION
1. During playback, press the MEM button on the remote for storing the current station until a
memory cell number flashes on the screen.
2. Use the CH+ or CH- buttons on the remote to select the corresponding memory cell for storing
the station.
3. Confirm your selection by pressing the MEM button on the remote.
4. During radio playback, press the CH+ or CH- buttons on the remote repeatedly to recall the
stored stations.
USB & CARD READER OPERATION
USB & SD/MMC CARD PLAYBACK
1. Power on the unit, insert an USB or a SD/MMC card into their respective slot unit.
2. Press MODE button repeatedly to switch to USB or card mode. The playback will start
automatically from the first track.
3. Press the TUNING SKIP/SEARCH FORWARD button on the remote to skip to the next track;
press and hold to search through the track forward.
4. Press the TUNING SKIP/SEARCH BACKWARD button on the remote to skip to the previous
track; press and hold to search through the track backward.
5. Use the numeric buttons to select your desired track number and playback will start automatically.

26
BLUETOOTH OPERATION
ABOUT PAIRING
Pairing is the term used when two Bluetooth devices are connected wirelessly for the first time. This
allows the devices to see each other and sets up a one to one communication channel between both
devices.
This unit can receive stereo audio signal from a BLUETOOTH stereo audio source device.
1. Power on the unit, switch to BLUETOOTH mode by pressing MODE button repeatedly.
2. LED indicator rapid blinking while it is pairing.
3. Enable the Bluetooth of the Bluetooth audio source device.
4. Pair and connect to ASB-66 (the unit) on the audio source device. If prompted for pass code,
enter “0000”.
5. Pairing successful (LED indicator blue), ready to stream music.
6. During playback, press PLAY/PAUSE button to cease or resume the playback.
7. During playback, press TUNING/SKIP/SEARCH FORWARD button to skip to the next track;
press TUNING/SKIP/SEARCH BACKWARD button twice to skip to the previous track.
8. During playback, press and hold TUNING/SKIP/SEARCH buttons to search through the
current track forward or backward.
Note:
yPairing mode is exited about 1.5 minutes.
yThe above are generic steps to pair a BLUETOOTH device, for more specific instructions on
BLUETOOTH connectivity for your device, please consult your manufacturer’s manual.
yAKAI ASB-66 has an automatic Bluetooth connection function, Bluetooth pairing and connecting
are only required for the first time with your smartphone/iPad/Laptop or any other devices
with Bluetooth. After the 1st time connection, ASB-66 can detect your smartphone/iPad/
Laptop or any other devices which have previously been connected, Bluetooth connection will
then be done automatically without needs of repairing.
RE-CONNECT TO THE BLUETOOTH AUDIO SOURCE DEVICE
If the device is already paired with the ASB-66, but became unconnected even with both Bluetooth
devices turned on. You can re-connect them by following steps:
1. Press and hold the PAIR button on the unit or on the remote to re-link the audio source device.
The Bluetooth indicator will blink for about 1.5 minutes for connecting.
2. Select ASB-66 on the audio source device for connecting. Bluetooth indicator will turn to solid
blue if the ASB-66 and the device have been re-connected successfully

27
TROUBLE SHOOTING GUIDE
If a fault occurs, first check the points listed below before taking the set to repair.
Do not open the set as there is a risk of electric shock. If you are unable to remedy a problem by
following these hints, consult your dealer or service center.
WARNING: under no circumstances should you try to repair the set yourself, as this will invalidate
the warranty.
Symptom Possible Cause Solution
Radio sound distorted. 1. The station is not tuned
in.
2. There is a poor signal in
the area.
1. Fine tune the station.
2. Unwind the wire antenna for best
reception
No radio sound. 1. The unit is not at tuner
mode.
2. The volume has been
muted or is on the
minimum setting.
1. Press MODE button repeatedly
until switching to tuner.
2. Adjust the volume level or press
the MUTE button to resume audio.
No Sound at Bluetooth
mode.
1. The unit is not connected
with the audio source
device.
2. The unit is placed out of
the range
3. The volume has been
muted or is on the
minimum setting.
1. Follow the manual to connect the
audio source device to the unit.
2. Relocate the unit within Bluetooth
operating range.
3. Adjust the volume level or press
the MUTE button to resume audio.
Sound is distorted at
Bluetooth/AUX/Line/OPT in
modes.
Sound source is distorted. If the original sound source of the
external device is poor quality or with
distortion and noise, it will be easily
noticed with high-power speakers.
Try a different audio source.
No sound at AUX/Line/OPT
in modes.
1. The unit is not connected
the external appliance
properly.
2. The volume has been
muted or is on the
minimum setting.
1. Follow the manual to reconnect
the audio appliance to the unit.
2. Adjust the volume level or press
MUTE button to resume audio.

28
SPECIFICATIONS TECHNIQUES
AUTRES CARACTERISTIQUES
Model ASB-66
Powersupply 100~230 V, 50/60 Hz
Powerconsumption 50 W
Standby mode consumption ˘1W
Outputpower 200W (2 x 40W + 120W) ; [50W (2 x 10W + 30W) RMS]
Radio section
Frequency ranges FM 87.5 ~ 108 MHz
10PRESETS
CONNECTIONS
USB USB compatible Port VERSION 2.0
MEMORY CARD SD/MMC/SDHC
INPUT AUXILIARY RCA
AUDIO STEREO 3.5MM
AUDIO OPTICAL IN
BLUETOOTH VERSION 2.1
ACCESSORIES Multifunction Remote Control
(Battery: 1 x CR2025 –included)
AudioCable
Wall Mounting Accessories
User Manual
Netweight 2.57 kg
Dimensions unit 941.8x60.5x110.5 mm
IMPORTANT:
Due to continual revision and improvement on our products design, specifications are
subject to change without further notice.

29
END OF LIFE DISPOSAL
This unit complies with European Council Directive 2006 / 95 CE
(Electromagnetic Compatibility & Low Voltage Directives)
Warning! This logo set on the product means that the recycling of this apparatus
comes within the framework of the Directive 2002/96/CE of January 27, 2003
concerning the Waste of Electrical and Electronic Equipment (WEEE).
This symbol means that used electrical and electronic products should not be mixed
with general household waste. There is a separate collection system for these products.
If you want to dispose of this equipment, please do not use the ordinary dust bin!
-The presence of dangerous substances in the electrical and electronic equipments can have
potential consequences on the environment and human health in the cycle of reprocessing this
product.
-Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled
waste. Used electrical and electronic equipment must be treated separately and in accordance with
legislation that requires proper treatment, recovery and recycling of used electrical and electronic
equipment.
-Local authorities and resellers have set special procedures for the purpose of collecting and
recycling this product (please contact your local authority for further details). You have the
obligation to use the selective waste collection systems put in place by your local authority.
-If your used electrical or electronic equipment has batteries or accumulators, please dispose of
these separately beforehand according to local requirements.
-By disposing of this product correctly you will help ensure that the waste undergoes the necessary
treatment, recovery and recycling and thus prevent potential negative effects on the environment
and human health which could otherwise arise due to inappropriate waste handling.
