Akai ASB-6WSW User manual

EN - ENGLISH

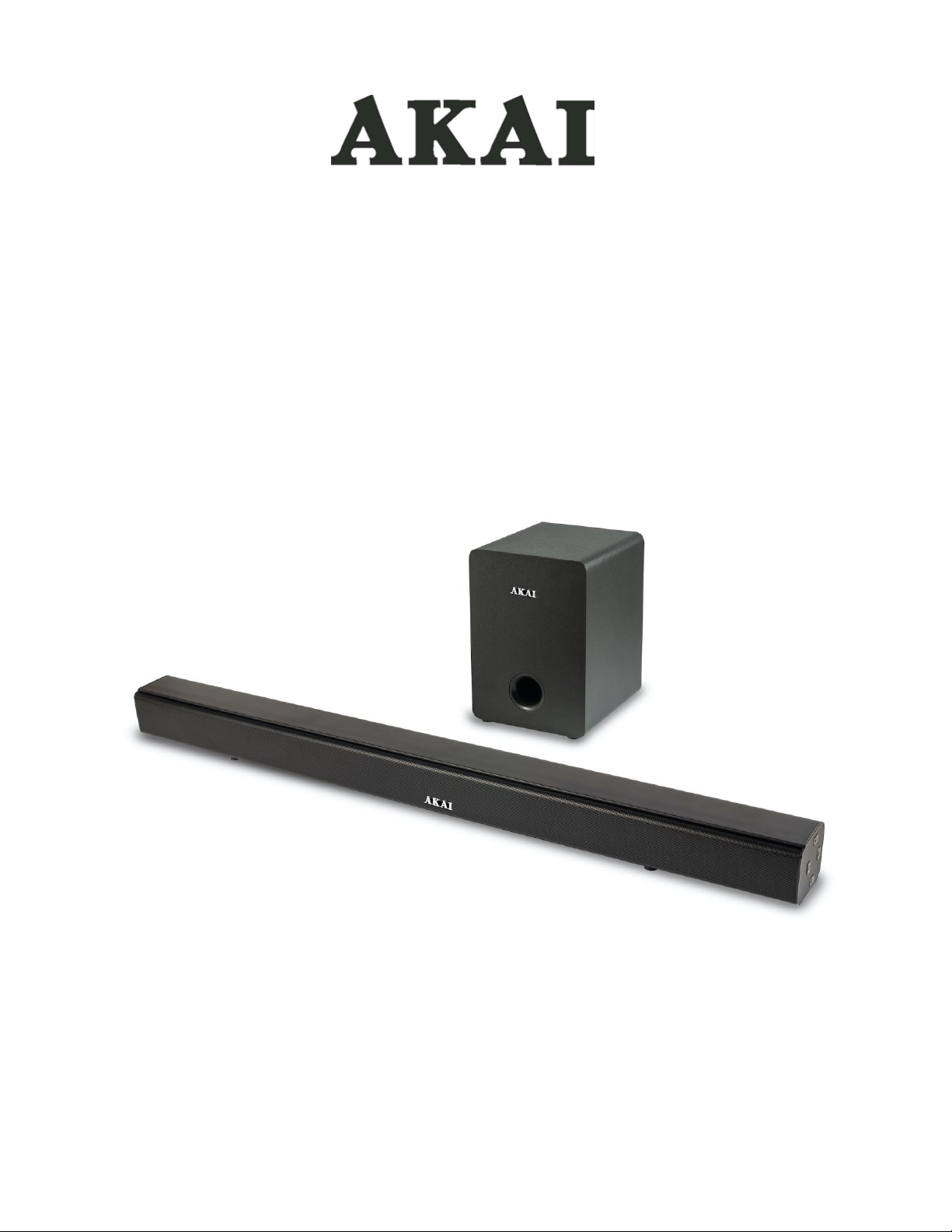

2.1 Channel Soundbar
Model：ASB-6WSW
User Manual
Thank you for
purchasing this soundbar. Please read this instruction manual carefully before using this product to ensure
proper use. Keep this manual in a safe place for future reference.
A compact yet powerful Bluetooth soundbar with sleek looks and excellent audio response. 4
inbuilt speakers and 2 passive radiators with 1 wireless subwoofer provide clarity across a

EN - ENGLISH
broad frequency range, with crisp highs and deep bass that belie the unit’s size. An integral
USB port enables playback of MP3 files directly from compatible media, with further flexible
input options including Aux, Bluetooth, HDMI(ARC), Optical, FM. A convenient and cost-
effective TV audio upgrade that doesn’t compromise on performance.
•Slender and stylish glossy black design
•4 speakers for crisp, clear sound with deep bass
•Inbuilt 2.1 channel amplifier with 3 EQ presets
•Versatile input options to support a range of devices
•USB port for MP3 media playback
•Keyhole slots for wall mounting
•Remote control and Aux cable included
Matters that Need Attention
1.Don’t put this product under high temperature wet environment and it will be worse when
it is in the rain or crash strongly.
2.To reduce the risk or electronic shock or fire, do not remove the cabinet cover simply
contact a service professional.
3.In the rear occurrence of malfunction,do not attempt to repair the unit on your own.
Contact a certified service professional for a proper diagnosis and repair.
4.If fragments or liquids fall into device box, please cut off the power right away. And it can
be used only after professional staff checks it.
5.Don’t install the unit in or near a place where it may come in contact with rain, moisture or
other liquids.
Technical Specifications and Features
Audio output: 70W RMS
Speaker drivers: 4 x 2" 10W units and 2 x bass diaphragm units + 1 x 5.25" 30W subwoofer
units
Bluetooth version: 5.0
Bluetooth range: Up to 10m
FM frequency range: 87.5MHz-108MHz
Connections: USB, OPTICAL, HDMI(ARC), AUX (3.5mm), DC IN
Power supply: Soundbar 19V 1.5A
Subwoofer AC 100-240V~50/60Hz
Dimensions：Soundbar 800 x 60 x 65mm
Subwoofer 220x193x270 mm
A. Connections

EN - ENGLISH
1. USB IN: Use to connect a flash drive for direct MP3 playback (FAT32 format and 64GB
max).
2. OPTICAL IN: Use to connect compatible devices using an optical cable (not provided).
3.HDMI(ARC): Use to connect compatible devices using a HDMI cable (not provided).
4. AUX IN: Use to connect compatible devices using the 3.5mm –3.5mm stereo jack cable
(provided).
5. DC IN: Use to connect the DC power supply.
B. LED display
1. Red LED: Standby mode 2. BT: Bluetooth mode
3. USB: USB media mode 4. AUX: Auxiliary input mode
5. OPT: Optical mode 6. FM: FM frequency
7.ARC: HDMI(ARC)mode

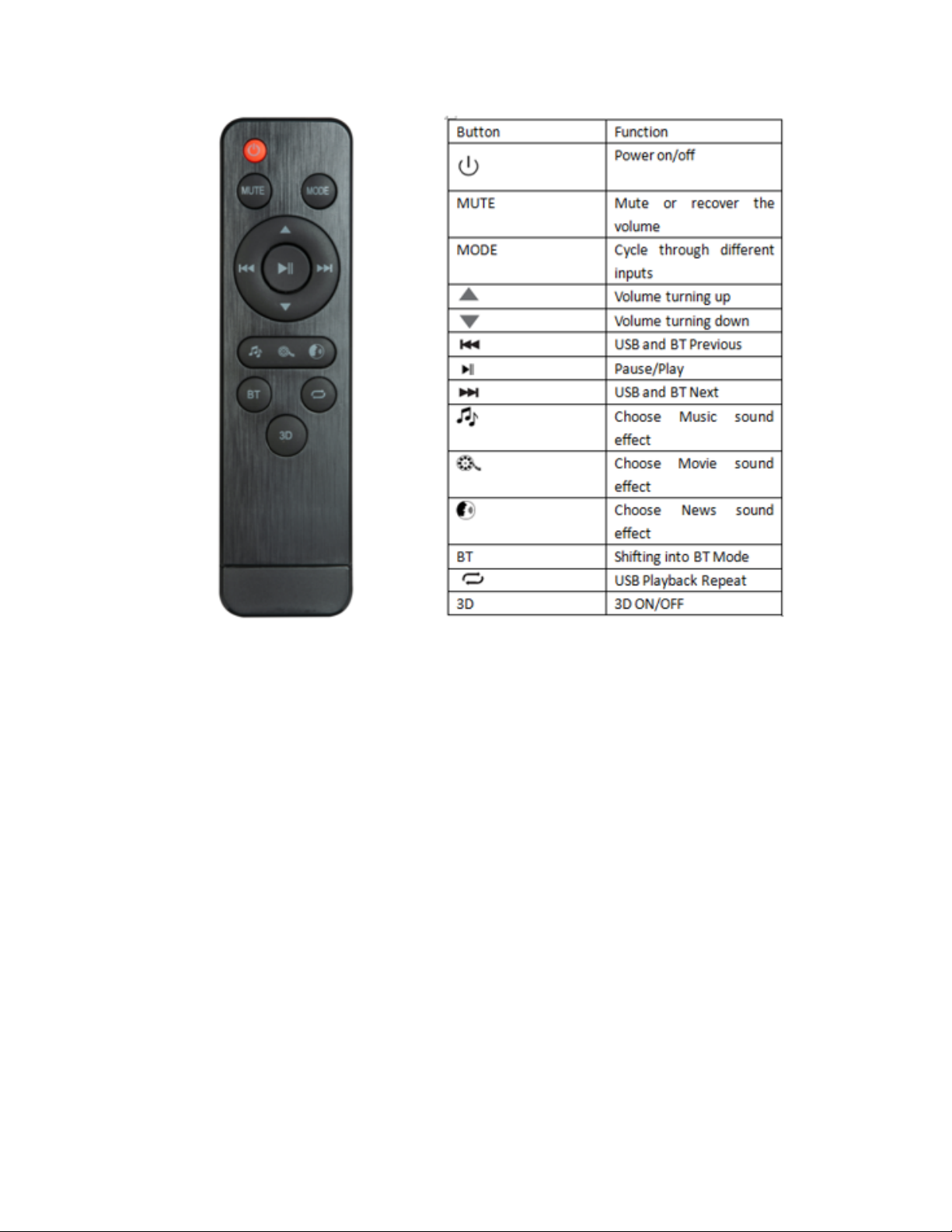

C.Remote Control

EN - ENGLISH
Subwoofer connected with Soundbar Method
Please long press the button "Play/pause" on the remote to choose the mode CH1 or CH2 then
the LED display will show it accordingly. Meantime, short press the button "Pair" on the
remote, blue light blink once means that CH1 signal from the main unit is receiving by
wireless subwoofer, and blink twice means the CH2 signal from main unit is receiving by
wireless subwoofer. After that, the receiving RED LED light will be fixed, which means the
wireless subwoofer is connected with main unit successfully; the LED light turn off which
means the subwoofer disconnection with main unit.
Input Functions
•Power on/off: Press the Power on/off button on the remote control or soundbar control panel
to turn the unit on and off.
•AUX in: Connect a compatible device using 3.5mm –3.5mm stereo jack cable provided,
then press the MODE button on the remote control or soundbar control panel repeatedly until
AUX is displayed on the LED display. Ensure the connected device is producing an audio
signal, then adjust the volume of the soundbar using the Volume up and Volume down buttons
on the remote control or soundbar control panel.

EN - ENGLISH
•Bluetooth: Press the BT button on the remote control or repeatedly pressing the MODE
button on the soundbar control panel until BT is shown on the LED display. The LED display
will flash to indicate that the soundbar is in Bluetooth pairing mode. Ensure that the device
you wish to connect is also in pairing mode and search for ASB-6SDW in its device list.
When the two devices are paired, the LED display on the soundbar will stop flashing and
remain constant. (The soundbar will now automatically re-pair with this device whenever it is
within range and has Bluetooth turned on.)
•USB media mode: The soundbar is compatible with USB flash drives of up to 64GB in size
and can play MP3 audio files directly. Simply insert a compatible drive into the USB port on
the back of the soundbar and the unit will automatically switch to USB mode and play the first
compatible track.
USB repeat mode (accessed via the remote control) enables single track repeat (press once)
and all track repeat (press twice).
The media player also has a memory function that will recall and continue from the last-
played point when a USB flash drive that has previously been used with the soundbar is
reinserted.
•HDMI(ARC): Connect a HDMI ARC compatible device to the HDMI ARC port on the
soundbar using a standard HDMI cable (not supplied),then press the MODE button on the
remote control or soundbar control panel repeatedly until ARC is displayed on the LED
display. Ensure HDMI ARC is selected as the TV’s audio output, then adjust the volume of
the soundbar using the Volume up and Volume down buttons on the remote control or
soundbar control panel.
•Optical in: Connect a compatible device to the OPTICAL port on the soundbar using a
digital optical cable (not supplied),then press the MODE button on the remote control or
soundbar control panel repeatedly until OPT is displayed on the LED display. Ensure Optical
SPDIF is selected as the TV’s audio output, then adjust the volume of the soundbar using the
Volume up and Volume down buttons on the remote control or soundbar control panel.
•FM: Select FM mode by pressing the MODE button on the remote control or soundbar. The
display will show an FM radio frequency. To perform a channel scan, press Play/Pause button
on the remote control or the soundbar. The soundbar will now scan through the FM frequency,
automatically saving any stations with a strong enough signal. You can now scroll back and
forward through the saved channels using the “previous” or “forward” buttons on the remote
control or the soundbar.
•Equalizer modes: The soundbar has 3 equalizer presets, tailored to complement various
styles of music. Press the EQ button on the remote to choose between Music (EQ1),
Movie(EQ2), News (EQ3).

EN - ENGLISH
•Wall mounting: The soundbar has two keyhole slots on the back to enable wall mounting,
using the fixings provided or a compatible soundbar bracket (not supplied).
1. Firmly fix 1 dowel into each hole in the wall if necessary.
Solid wall (i.e. solid brick, solid concreate, solid wood)
Drywall, plaster wall, lath wall etc.
2. Put the speaker onto the screws in the wall.
Accessories:
User manual x 1
Remote control x 1
AC adaptor x 1
Aux-In cable x 1
DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT
This symbol on the product or packaging means that the product should not be treated as
household waste. Do not throw garbage at the end of its life, but take it to a collection center
for recycling. in this way you will help to protect the environment and be able to prevent any
negative consequences that it would have on the environment and human health.
To find your nearest collection center:
- Contact local authorities

EN - ENGLISH
- Access the website: www.mmediu.ro
- Request additional information from the store where you purchased the product.

RO - ROMANA
Soundbar 2.1 CH
Model：ASB-6WSW
Manualul utilizatorului
Multumim ca ati achizitionat acest produs. Va rugam sa cititi cu atentie manualul de instructiuni. Pastrati acest manual
intr-un loc sigur, pentru referinte ulterioare.
Un soundbar compact dar puternic, cu aspect elegant si cu raspuns audio excelent. Cele 4
difuzoare incastrate si cele 2 emitatoare pasive cu 1 subwoofer, asigura o claritate a sunetului

RO - ROMANA
intr-o gama larga de frecvente cu sunete inalte si bass profund care contrazic marimea
aparatului. Un port USB integral permite redarea fisierelor MP3 direct din sistemul media
compatibil, cu optiuni flexibile de intrare care includ Aux, Bluetooth, HDMI (ARC), Optic,
FM. O imbunatatire convenabila si rentabila a sistemului audio pentru TV, care nu
compromite performanta.
• Design subtire si elegant, de culoare negru lucios
• 4 difuzoare pentru un sunet clar, limpede, cu bass puternic
• Amplificator incorportat, cu 2.1 canale, cu 3 moduri EQ presetate
• Optiuni de intrare versatile pentru o gama larga de dispozitive
• Port USB pentru redare fisiere MP3
• Fante pentru montarea pe perete
•Telecomanda si cablu auxiliar, incluse
Observatii
1.Nu expuneti acest produs la temperaturi ridicate, in medii umede, si nici nu-l lasati in
ploaie sau nu-l distrugeti.
2.Pentru a reduce riscul de electrocutare, nu desfaceti carcasa; contactati un service autorizat.
3.In caz de functionare defectoasa, nu incercati sa reparati singur aparatul. Contactati un
service autorizat pentru o diagnoza si reparatiile corespunzatoare.
4.Daca pe aparat se varsa lichide sau in interorul acestuia cad obiecte, opriti imediat
alimentarea cu energie electrica. Aparatul poate fi folosi din nou dupa o verificare atenta
efectuata de personal calificat.
5.Nu instalati aparatul in sau in apropierea unui loc unde poate intra in contact cu ploaia,
umezeaza sau alte lichide.
Specificatii tehnice si caracteristici
Iesire audio: 70W RMS
Difuzoarele: 4 x 2" 10W unitati si 2 x bass unitati diafragma + 1 x 5.25" 30W unitate
subwoofer
Versiune Bluetooth: 5.0
Raza Bluetooth: pana la 10m
Frecventa FM: 87.5MHz-108MHz
Conexiuni: USB, OPTICAL, HDMI(ARC), AUX (3.5mm), DC IN
Alimentare cu energie: Soundbar 19V 1.5A
Subwoofer AC 100-240V~50/60Hz
Dimensiuni：Soundbar 800 x 60 x 65mm
Subwoofer 220x193x270 mm
A. Conexiuni

RO - ROMANA
1. INTRARE USB: Folositi pentru a conecta un stick pentru redare directa a fisierelor MP3
(format FAT32 si maxim 64GB).
2. INTRARE OPTICA: Folositi pentru conectare cu dispozitive compatibile, folosind un
cablu optic (nu este furnizat).
3. HDMI(ARC): Folositi pentru conectare cu dispozitive compatibile, folosind un cablu
HDMI (nu este furnizat).
4. INTRARE AUX-IN: Folositi pentru conectare cu dispozitive compatibile folosind un
cablu stereo cu mufa de 3.5mm (furnizat).
5. INTRARE DC: Folositi pentru conectare la o sursa de alimentare DC.
B. Afisaj LED
1. LED rosu: Modul Standby mode 2. BT: Mod Bluetooth
3. USB: Mod media USB 4. AUX: Mod intrare Aux
5. OPT: Mod optic 6. FM: Frecventa FM
7.ARC: Mod HDMI(ARC)
C.Telecomanda

RO - ROMANA
Buton
Functie
Pornire/oprire
MUTE
Fara sonor sau reluare sonor
MOD
Comuta intre moduri diferite
Marire volum
Micsorare volum
USB si BT anterior
Pauza/Redare
USB si BT urmator
Selectare efecte muzica
Selectare efecte film
BT
Comutare in modul BT
Repetare redare USB
3D
PORNIRE/OPRIRE 3D
Metoda de conectare a Subwoofer-ului cu Soundbar-ul
Apasati lung butonul "Play/pause" (redare/pauza) de pe telecomanda, pentru a alege modul
CH1 sau CH2, iar afisajul LED va arata canalul corespunzator. Intre timp, apasati scurt
butonul “Pair” (imperechere) de pe telecomanda, iar lumina albastra va licari o data, ceea ce
inseamna ca semnalul pentru CH1 al unitatii principale este primit wireless de la subwoofer;
cand licare de doua ori, inseamna ca semnalul pentru CH2 al unitatii principale este primit
wireless de la subwoofer. Dupa imperechere, LED-ul rosu va ramane aprins, ceea ce
inseamna ca subwooferul este conectat la unitatea principala; lumina LED oprita inseamna ca
subwooferul este deconectat de la unitatea principala.
Functii intrare
•Oprire/Pornire: Apasati butonul de pornire/oprire de pe telecomanda sau de pe panoul de
control al soundbar-ului pentru a porni si opri aparatul.

RO - ROMANA
•Intrare AUX: Conectati un dispozitiv compatibil, folosind un cablu stereo cu mufa de
3.5mm –cablul este furnizat, apoi apasati butonul MODE de pe telecomanda sau de pe
panoul de control al soundbar-ului, in mod repetat, pana cand pe afisajul LED arata AUX.
Asigurati-va ca dispozitivul conectat produce un semnal audio, apoi reglati volumul
soundbar-ului folosind butoanele “Volume up” (Marire volum) si “Volume down”
(Micsorare volum) de pe telecomanda sau de pe panoul de control al soundbar-ului.
•Bluetooth: Apasati butonul BT de pe telecomanda sau apasati in mod repetat butonul
MODE de pe panoul de control al soundbar-ului pana cand pe afisajul LED arata BT.
Afisajul LED va licari, pentru a indica ca soundbar-ul se afla in modul de imperechere
Bluetooth. Asigurati-va ca dispozitivul pe care doriti sa-l conectati se afla, de asemenea, in
modul de imperechere si cautati ASB-6WSW in lista de pe dispozitiv. Cand cele doua
dispozitive sunt conectate, afisajul LED de pe soundbar nu va mai licari si va ramane aprins
constant. (Soundbar-ul va fi reconectat automat cu acest dispozitiv de cate ori este in raza de
actiune si are functia Bluetooth pornita).
•Mod redare USB: Soundbarul este compatibil cu stick-uri USB de pana la 64GB si poate
reda direct fisiere audio MP3. Doar introduceti un stick compatibil in portul USB de pe
spatele soundbarului si aparatul va intra automat in modul USB si va reda prima melodie
compatibila.
Modul de repetare USB (accesat prin telecomanda), permite repetarea unei singure melodii
(apasati o data) si repetarea tuturor melodiilor (apasati de doua ori).
Playerul media are, de asemenea, functie de memorie, care va continua redarea de la ultima
melodie la care a ramas cand stickul USB a fost folosit anterior.
•HDMI(ARC): Conectati un dispozitiv compatibil HDMI ARC la portul HDMI ARC al
sound-barului, folosind un cablu HDMI (nu este furnizat), apoi apasati butonul MODE de pe
telecomanda sau de pe panoul de control al soundbar-ului, in mod repetat, pana cand pe
afisajul LED apare ARC. HDMI ARC trebuie selectat ca iesire audio pentru TV, apoi reglati
volumul soundbar-ului folosind butoanele “Volume up” (Marire volum) si “Volume down”
(Micsorare volum) de pe telecomanda sau de pe panoul de control al soundbar-ului.
•Intrare optica: Conectati un dispozitiv compatibil la portul OPTICAL de pe soundbar,
folosind un cablu optic (nu este furnizat), apoi apasati butonul MODE de pe telecomanda sau
de pe panoul de control al soundbar-ului, in mod repetat, pana cand pe afisajul LED apare
OPT. SPDIF trebuie selectat ca sursa de iesire audio a TV, apoi reglati volumul soundbar-
ului, folosind butoanele “Volume up” (Marire volum) si “Volume down” (Micsorare volum)
de pe telecomanda sau de pe panoul de control al soundbar-ului.
•FM:Selectati modul FM, prin apasarea butonului MODE de pe telecomanda sau soundbar.
Afisajul va arata o frecventa radio FM. Pentru a efectua o scanare a programelor, apasati

RO - ROMANA
butonul Play/Pause de pe telecomanda sau de pe soundbar. Soundbar-ul va scana frecventele
FM, memorand automat orice posturi cu un semnal sufficient de puternic. Puteti sa derulati
inainte si inapoi prin posturile memorate, folosind butoanele “anterior” sau “urmator” de pe
telecomanda sau de pe soundbar.
•Moduri Egalizator: Soundbar-ul are trei tipuri de egalizator presetate, croite sa se
potriveasca diverselor stiluri de muzica. Apasati butonul EQ de pe telecomanda pentru a
alege intre Music/Muzica (EQ1), Movie/Film (EQ2), News/Stiri (EQ3).
•Montare pe perete: Soundbar-ul are doua fante situate pe partea din spate, pentru a inlesni
montarea pe perete, folosind suruburile de fixare furnizate sau o consola compatibila cu
soundbar-ul (nu este disponibila).
1. Fixati bine cate un diblu in fiecare gaura din perete, daca este necesar.
Perete solid (ex. caramida solida, beton solid, lemn solid)
Perete de rigips, de ipsos, lambriu etc.
2. Puneti soundbarul pe suruburile fixate in perete.
Accesorii:
Manualul utilizatorului x 1
Telecomanda x 1
Incarcator AC x 1
Cablu AUX-In x 1
DEZAFECTAREA ECHIPAMENTELOR ELECTRICE SI ELECTRONICE UZATE

RO - ROMANA
Acest simbol prezent pe produs sau pe ambalaj semnifică faptul că produsul respectiv nu trebuie tratat
ca un deşeu menajer obişnuit. Nu aruncaţi aparatul la gunoiul menajer la sfârşitul duratei de funcţionare, ci
duceţi-l la un centru de colectare autorizat pentru reciclare. În acest fel veţi ajuta la protejarea mediului
înconjurător şi veţi putea împiedica eventualele consecinţe negative pe care le-ar avea asupra mediului
înconjurător şi sănătăţii umane.
Pentru a afla adresa celui mai apropiat centru de colectare:
Contactaţi autorităţile locale;
Accesaţi pagina de internet: www.mmediu.ro;
Solicitaţi informaţii suplimentare de la magazinul de unde aţi achiziţionat produsul.

RO - ROMANA
EU Declaration of Conformity
We, INTERVISION TRADING RO SRL, declare under sole responsibility that the
following products:
Brand name:AKAI
Type: SOUNDBAR WITH ACTIVE SUBWOOFER
Descriptions: ASB-6WSW
to which this declaration related is in conformity with the essential requirements of the
following directives of the Council of the European Communities:
EUROPEAN COMMUNITY DIRECTIVE 2014/35/EU
EUROPEAN COMMUNITY DIRECTIVE 2014/53/EU
EUROPEAN COMMUNITY DIRECTIVE 2011/65/EU
The products are compliant with the following standards:
EN 50663:2017
EN 62368-1:2014+A11:2017
EN 300328 V2.1.1 (2016-11)
EN 301 489-1 V2.1.1 (2017-02)
EN 301 489-17 V3.1.1 (2017-02)
EN 55032:2015
EN 55035:2017
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 55024:2010+A1:2015
For and on behalf of Intervision Trading Ro SRL,
Signature: __________________________
Printed name and Position: CIOBANU DORIN –GENERAL MANAGER
Date: 20th September, 2019
Place: Pitesti, Romania

RO - ROMANA
DECLARATIE DE CONFORMITATE EU
Noi, INTERVISION TRADING RO SRL, declaram pe propria raspundere ca
urmatoarele produse:
Marca: AKAI
Model: ASB-6WSW
Descriere: BARA DE SUNET CU SUBWOOFER ACTIV
la care se refera aceasta declaratie, respecta cerintele de protectie cuprinse in urmatoarele
standarde si norme de siguranta ale Consiliului Comunitatilor Europene:
EUROPEAN COMMUNITY DIRECTIVE 2014/35/EU
EUROPEAN COMMUNITY DIRECTIVE 2014/53/EU
EUROPEAN COMMUNITY DIRECTIVE 2011/65/EU
Produsele sunt in conformitate cu urmatoarele standarde:
EN 50663:2017
EN 62368-1:2014+A11:2017
EN 300328 V2.1.1 (2016-11)
EN 301 489-1 V2.1.1 (2017-02)
EN 301 489-17 V3.1.1 (2017-02)
EN 55032:2015
EN 55035:2017
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 55024:2010+A1:2015
Pentru si in numele Intervision Trading Ro SRL,
Semnatura: __________________________
Nume complet si functia: CIOBANU DORIN –DIRECTOR GENERAL
Data: 20 septembrie 2019
Locul: Pitesti, Romania
