EXG 400 X Grain bag unloader
EXG400 X Grain bag unloader
USER’S MANUAL
OPERATION, MAINTENANCE AND SPARE PARTS
Code: 188000
Edition: Mach 20107
Review: 2017/006

Due to the continuing
improvements in the design
and manufacture of
AKRON® products,
MICRÓN FRESAR S.R.L.
reserves the right to modify
components and/or
specifications without prior
notice.
USER’S MANUAL
OPERATION, MAINTENANCE AND SPARE PARTS
Code: 188000
Edition: Mach 20107
Review: 2017/006

4EXG 400 X GRAIN BAG UNLOADER

INTRODUCTION
5

6EXG 400 X GRAIN BAG UNLOADER

7
EXG 400 X GRAIN BAG UNLOADER
1. INTRODUCTION
The present user’s manual describes the functions and components of the
AKRON®
grain extractor
model EXG 400 X. It gives detailed safety instructions and providesrecommendations for its operation,
also offering a general maintenance guide for the machine.
The information provided in this manual is fundamental for the efficient and safe operation of the
machine. This documentation is included with the machine in order to guarantee its optimal operation.
That is why this manual should be available at all times either together with the machine or at least
within the operators' and supervisors' reach.
1-a. The Purpose of the Machine
The EXG 400 X grain bag unloader has been designed to safely unload grain and oilseeds that have
been stored in chamber conditions in standard grain bags during the recommended period for each
grain type, and store them in grain carts or tucks.
The simple concept of design of this machine requires very little maintenance and ensures a good
operation under different conditions. However, it is important to highlight that this grain extractor is
exclusively designed to work with grain bags, and that the warranty will be valid as long as the machine
is used according to the instructions for use detailed in this manual.
Before operating, servicing or repairing this machine, the instructions given in the present manual and
in any other documentation supplied by the manufacturer must be followed. Special attention must be
paid to safety precautions and recommendations, and to compliance with the pertinent local
Occupational Health & Safety laws in force.
Any arbitrary modification carried out on the machine or its components will release the manufacturer
from any responsibility arising from damage or injury that may occur as a result of such modification.
INTRODUCTION

8EXG 400 X GRAIN BAG UNLOADER

GENERAL INDEX
9

10 EXG 400 X GRAIN BAG UNLOADER

11
EXG 400 X GRAIN BAG UNLOADER
GENERAL INDEX
2. GENERAL INDEX
1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1-a The Purpose of the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2. Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3. Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3-a Attitude Toward Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3-b "ATT NTION" Symbol and Signal Words . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3-c Personal Protective quipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3-d Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3-e Risk Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
4. Receiving the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
4-a. Grain extractor identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
4-b. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
4-c. Operating Principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
5. Preparation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
5.a Operation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
5.b Position changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
5.c Recommendations to Make xtraction asier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
5.d Previous Controls on the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
5.e Machine Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
5.f Grain Bag Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
5.g Final Adjustments on the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
6. Set up for extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
6.a. General Comments on the Storage in Grain bags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
6-b Operation Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
6-c Operation Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
6-d Protection against Overloads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
6-e Interruptions during xtraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
6-f xtraction at the nd of the Bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
6-g Unwinding the Bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
7. Maintenance Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
7-a Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
7-b. Maintenance after Receiving the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
7-c Parts breakdown for repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
7-d Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
7-e Prevention of Wear on Flexible Pipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
7-f Tire Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

12 EXG 400 X GRAIN BAG UNLOADER
8. Machine Transportation and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
8-a Preparation of the Machine for Transportation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
8-b Transportation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
8-c Machine Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
8.d. xtractor Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
9. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
10. Product Dismantling and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
11. Guarantee Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
12. Spare Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
12-a Information for Obtaining Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
13.Parts subject to normal wear and tear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97
14. User’s Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

SAFETY
13

14 EXG 400 X GRAIN BAG UNLOADER

3. SAFETY
ven though the machine's operation is simple
and safe, it is essential that all grain cart loading,
unloading and transport operators and
supervisors have an in-depth knowledge of the
contents of this user's manual. In this way,
situations of danger will be avoided for the
operator, for third parties and for goods in the
surrounding area.
There must be a written record of when the
operators are trained in every detail of the
machine's operation.
3-a. Attitude Toward Safety
Just as with the operation of any other machine,
the most important factor for preventing
accidents of any kind is the positive attitude of
operators and supervisors toward safety. As well
as following the manufacturer's
recommendations, the habit must be developed
of foreseeing and analyzing every possible
contingency that could arise during the
operation of the machine. ven though it is
impossible to foresee all possible situations, this
habit helps to prevent the majority of hazardous
situations.
3-b. "ATTENTION" Symbol and Signal
Words
Throughout the present manual, the
"Attention" symbol is used to indicate
risk situations for the operator, the
machine, other equipment or other
people.
This symbol will appear together with certain
signal words depending on the relative
seriousness of each risk situation.
DANGER: This identifies an imminent
hazardous situation whose consequences may
cause death or serious injuries if not avoided.
WARNING: This identifies a potential
hazardous situation whose consequences may
cause death or slight to moderate injuries if not
avoided.
IMPORTANT: This describes a particular
situation where the machine could be
damaged or its normal operation could be
affected.
3-c. Personal Protective Equipment
Micrón Fresar S. R. L. recommends the use of
the following Personal Protective quipment in
order to avoid any possible injury:
3-d. Safety Warnings
On different parts of the machine and on its
accessories you will find decals with accident
prevention symbols, which must be considered
as part and extension of the instructions detailed
in this manual. Special care must be taken to
ensure these decals are present and legible
during the entire working life of the machine.
If for any reason any of these gets lost or
becomes illegible through wear, it is important to
substitute it immediately indicating its
corresponding code. To ask for a replacement
decal, please contact either the manufacturer
using the information given in 4-b. "Contact
information", or your local Technical
Representative.
3-e. Risk Analysis
The risk situations that typically arise during the
operation of this machine are detailed below.
Recommendations are made that are of vital
importance for the safety of the machine
operators, of other workers nearby, and the
machine itself.
The pictograms used are taken from IRAM
standard 8075 "Tractors, agricultural and
forestry and green space maintenance
machinery - Safety signs and hazard pictograms

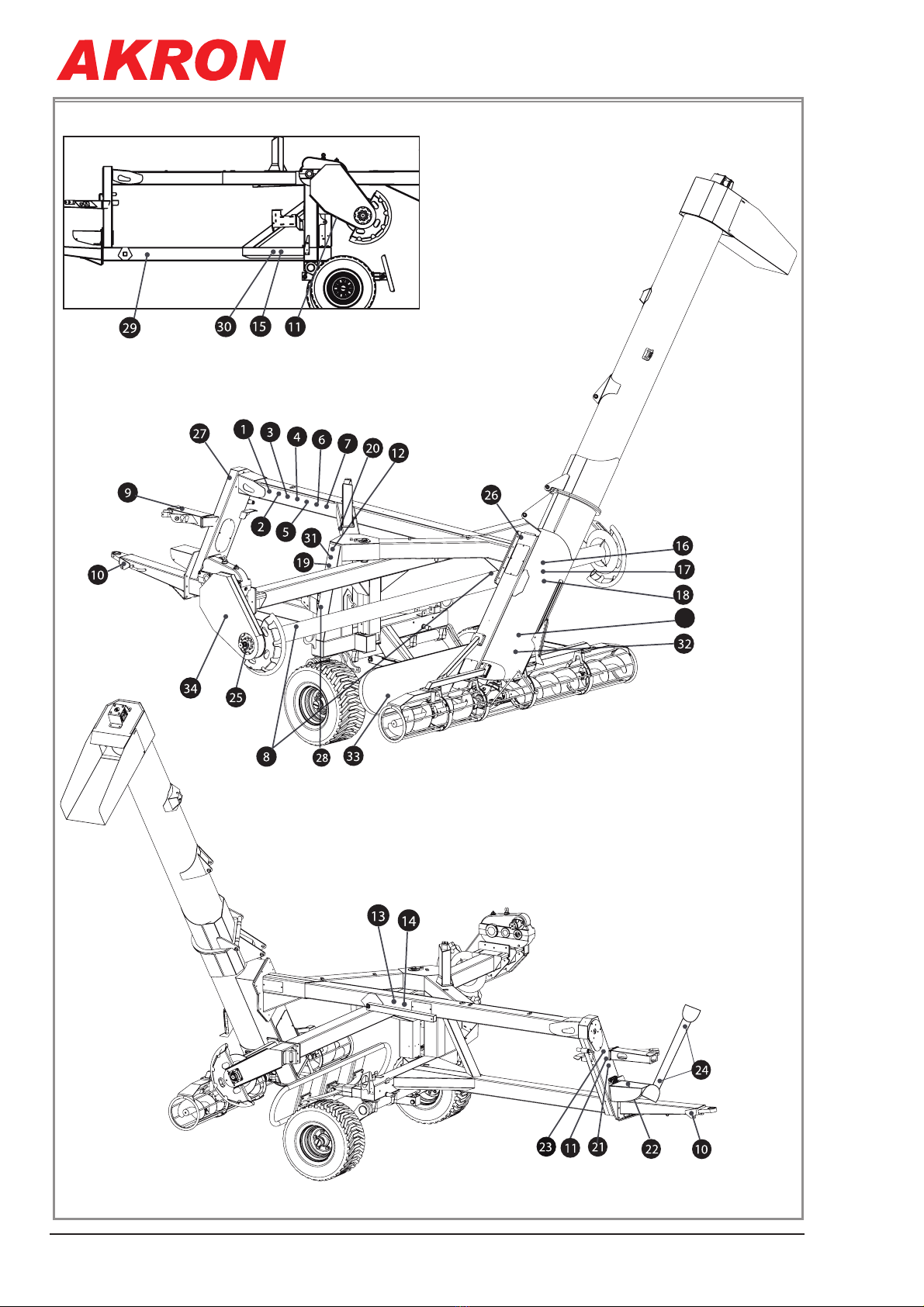

- General principles and features". For more
details, their location on the machine is shown in
the following picture.
15
EXG 400 X GRAIN BAG UNLOADER
SAFETY
Situation
Personal Protective Equipment
Tractor
driver
Machine
operator

16 EXG 400 X GRAIN BAG UNLOADER
DECALS
# IMAGE CODE NAME QTY
1 114138
Risk situations:
·During machine transport
Particular recommendations:
· When transporting the grain cart, stay below the speed limit for safety reasons.
1
2114200
Risk situations:
· During machine transport, During the discharge process
Particular recommendations:
· Do not climb or travel on the machine structure.
1
3114181
Risk situations:
· During the discharge process
Particular recommendations:
· Keep a safe distance away from the machine.
1
4016135
Risk situations:
· When operating the machine
Particular recommendations:
·Observe the warnings indicated in the pictogram in order to avoid accidents.
1
5114112
Risk situations:
·When operating the machine or performing maintenance tasks
Particular recommendations:
·Carefully read the operator's manual so as to become acquainted with its
features and operation.
1
6114122
Risk situations:
·When performing maintenance tasks.
Particular recommendations:
· Stop the engine and remove the key before performing maintenance or
preparation tasks.
1
7 182120 NOTICE 1
8
080112/
110 Roll rotation direction in operation mode. 1
9065822 Cardan coupling position 1
10 114186 Tying for transport 2
11 114152
Risk situations:
· During the discharge process
Particular recommendations:
· Do not open or take away the safety protections while the motor is running.
1
12 114178
Risk situations:
·When handling the hydraulic circuit.
Particular recommendations:
· Check circuit for proper operation.
·Check flexible pipes' condition.
1
13 187139
Risk situations:
·when handling the roll.
Particular recommendations:
·Avoid hand crushing when turning the roll into operating position.
1
14 187140
Risk situations:
·when handling the roll.
Particular recommendations:
·Avoid arm crushing while the roll is operating.
1
15 187132 Switch valvle. 1

17
EXG 400 X GRAIN BAG UNLOADER
# IMAGE CODE NAME QTY
16 114162
Risk situations:
· During the discharge process.
Particular recommendations:
·Do not stand within reach of the auger or introduce your hand while the motor
is running.
1
17 180108 Cutting blade.1
18 182130
Risk situations:
· Machine tune-up.
Particular recommendations:
· Caution during the operation process.
1
19 180100
·Risk situations:
When transporting the machine.
·Particular recommendations:
Avoid contact with power lines, especially when the auger tube is unfolded.
1
20 135133 nd of bag. 20
21 014128 Maximum 540 rpm. 1
22 114132
Risk situations:
·When operating the machine or performing maintenance tasks.
· During the process of grain discharge.
Particular recommendations:
·Never use the driveshaft without its protector.
·Never cross over the driveshaft while it is coupled.
·Use, maintain or repair the coupling according to.
1
23 114290 Identification plate. 1
24 065823/
824
Machine's side - cod. 065824.
Tractor's side - cod. 065823. 1
25 180129 Roll coupling and uncoupling. 1
26 187134 Maintenance. 1
27 187135 Maintenance. 1
28 187138 Transport/ Operating height shims. 1
29 187141 Mechanical jack. 1
30 180127 Flow control valve. 1
31 180122 Maintenance. 1
32
33
087136
087137 Patent Pending 1
34 087195 Reflective triangle 1
SAFETY

18 EXG 400 X GRAIN BAG UNLOADER
35
SEE INSIDE

RECEIVING THE MACHINE
19

20 EXG 400 X GRAIN BAG UNLOADER
