Aktakom ATK-2209 User manual

ATK-2209
Clamp Meter
User’s Manual
www.tmatlantic.com

CONTENTS
Title Page
I. SAFETY INFORMATION.............................................................1
II. TECHNICAL SPECIFICATIONS..................................................2
2-1 Environment Conditions ..............................................................2
2-2 Maintenance................................................................................2
2-3 Features......................................................................................2
2-4 General Specifications ................................................................4
2-5 Measurement Specifications .......................................................4
III. PARTS & CONTROLS ................................................................ 7
3-1 Description of Parts & Control .....................................................7
IV. OPERATING INSTRUCTION ......................................................9
4-1 AC+DC Voltage Measurement .................................................... 9
4-2 AC Current Measurement ......................................................... 10
4-3 1φAC Power KW, HP, KVA, KVAR, PF (Power Factor) and θ
(Phase Angle) Measurement ..................................................... 10

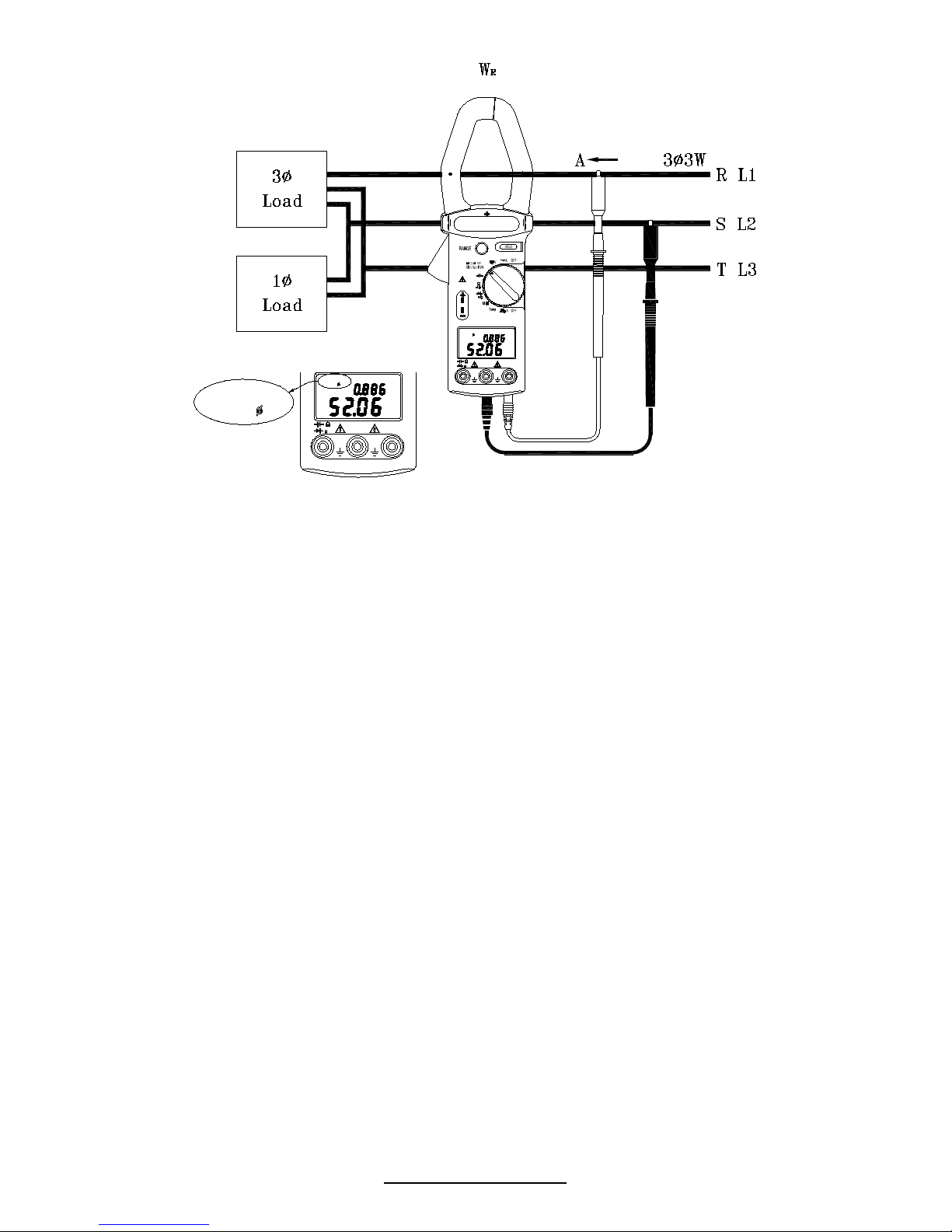

4-4 3φ3W AC Power KW, HP, KVA, KVAR, PF (Power Factor) and
θ
(Phase Angle) Measurement ..................................................... 11
4-5 3φ4W AC Power KW, HP, KVA, KVAR, PF (Power Factor) and
θ (Phase Angle) Measurement ................................................. 15
4-6 Resistance & Continuity Measurement...................................... 18
4-7 Capacitance Measurement ....................................................... 19
4-8 Diode & Continuity Measurement .............................................. 19
4-9 Temperature Measurement....................................................... 19
4-10 AC+DC Micro-Ampere Measurement ...................................... 19
4-11 To disable Auto Power Off function ......................................... 19
V. BATTERY REPLACEMENT....................................................... 20

www.tmatlantic.com
1
I. SAFETY INFORMATION

Read the following safety information carefully before operating the meter.

To avoid damages to the instrument, do not exceed the maximum limits of the
input values shown in the technical specification tables.

Do not use the meter or test leads if they look damaged.

Use extreme caution when working around bare conductors or bus bars. Accidental
contact with the conductor could result in electric shock.

Use the meter only as specified in this manual; otherwise, the protection
provided by the meter may be impaired.

Read the operating instructions before use and follow all safety information.

Caution when working with voltages above 60VDC or 30VAC RMS. Such
voltages cause a shock hazard.

Before taking resistance measurements or testing acoustic continuity,
disconnect circuit from main power supply and all loads from circuit.

U.S. Pat. No. Des. 447,070
Safety symbols
Caution refer to this manual before using the meter.
Dangerous voltages.
Meter is protected throughout by double insulation or
reinforced insulation.
When servicing, use only specified replacement parts.
Comply with EN-61010-1, IEC 1010-2-32

www.tmatlantic.com
2
II. TECHNICAL SPECIFICATIONS
2-1 Environment Conditions :
Installation categories III
Pollution degree 2
Altitude up to 2000 meters
Indoor use only
Relatively humidity 80% max.
Operation ambient 0 ～50℃
2-2 Maintenance :
Repairs or servicing not covered in this manual should only be performed
by qualified personnel.
Periodically wipe the case with a dry cloth. Do not use abrasives or
solvents on this instrument.
2-3 Features ：
2-3-1 HVAC :
Check current draw in motors and compressors.
Use MAX/MIN/Recording in the temperature mode to assess the
efficiency.
Test run/start capacitors.
To identify low voltage control signals.
Measure flame safeguard device current draw.
To identify power sources
Analyze temperature and power data with the aid of the time stamp.
Insulation test up to 100MΩ.
2-3-2 Electrical :
Check for energized circuits and balance loads.
1φ/3φ(3P3W/3P4W) power analyzer.
Evaluate electrical contacts.
Capture in-rush current readings of motor.
Determine peak power demand periods.
Verify the stability of voltage.
Monitor motors and other loads for excess heat.
Check motor run/start capacitor values.

www.tmatlantic.com
3
2-3-3 Function :
 True RMS. ACV, ACA.
 9999 counts dual display LCD with unit sign.
 Trms ACA : 0.01A to 999.9A.
(Auto/Manual : 99.99A, 999.9A )
Trms ACV : 2.0mV to 600.0V.
(Auto/Manual : 999.9mV, 9.999V, 99.99V 600.0V)
1φ/3φAC KVA : 10VA to 600.0KVA. (Auto Ranges)
1φ/3φAC KVAR: 10VAR to 600.0KVAR. (Auto Ranges)
1φ/3φAC KW : 10W to 600.0KW. (Auto Ranges)
1φ/3φAC HP : 0.01HP to 800.0HP. (Auto Ranges)
1φ/3φPhase Angle (
θ
): -60° ~ 0° ~ +60° (>60° only for reference)
DCV : 2.0mV to 600.0V.
(Auto/Manual : 999.9mV, 9.999V, 99.99V, 600.0V)
AC+DC Trms µA: 0.20µA to 999.9µA.
(Auto/Manual : 99.99µA, 999.9µA)
Frequency : 40.0Hz to 999.9Hz
Capacitance : 1nF to 7000µF
(Auto/Manual : 10.000µF, 100.00µF, 1000.0µF, 7000µF)
Temperature : -50.0℃to 900.0℃/ -58.0℉to 999.9℉
Resistance : 0.1Ωto 99.99 MΩ.
(Auto/Manual : 999.9Ω, 9.999KΩ, 99.99KΩ,
999.9KΩ, 9.999MΩ, 99.99MΩ)
Continuity : <40.0Ωon 999.9ΩRange.
Diode : 1mV to 2.000V. (continuity < 40mV)
Power Factor (PF) : cos
θ
only for reference
1φ/3φDual KW+HP, KW+PF, KW+KVAR, KVA+θand A+V, 5 types
display.
Dual display A+Hz, V+Hz.
Data hold mode (there are 5 types display in KW function).
Auto Power Off and to disable Auto Power off function.

www.tmatlantic.com
4
2-4 General Specifications :
Maximum voltage between any terminal and earth ground：600Vrms.
Numerical dual display：Dual display 4 digits LCD maximum reading
9999.(10,000 Count Reading)
Battery life ：approx. 32hr
Low battery indication：The
+
is displayed when the battery voltage
drops below the operating voltage.
Auto power off time
：
approx. 30 minutes. (To disable Auto Power Off,
please refer to 4-11)
Sampling rate
：
2.5 times / sec ( Digital display )
1 times /6 sec ( on KW, KVA )
Jaw opening diameter
：Cables φ42mm.
Operating temperature ：0℃to 50℃(32℉to 122℉)
and humidity R.H. < 80% non-condensing.
Temperature coefficient :0.1× (specified accuracy)/
℃
(<18 or >28
℃
, <64 or >82
℉
)
Storage temperature ：-10℃to 60℃(14℉to 140℉)
and humidity R.H. < 70% non-condensing.
Dimensions ：228(L) x 76(W) x 39mm(H).
Weight ：Approx. 465g.
Accessories ：Carrying case, Test leads, Battery (one 006p 9V),
One pair of alligator clip & Instruction manual.
2-5 Measurement Specifications :
Accuracy : ±(％of reading ＋number of digits) at 18℃
to
28℃( 64℉to 82℉) with relative humidity to 80％.
The current error is specified within the largest circle which
can be drawn inside the jaw.
AC Current (50Hz to 400Hz) : Trms
Range Resolution Accuracy Sensitivity
Overload
Protection
99.99A
10mA
± 2% ± 20dgts (50, 60Hz)
± 4 % ± 20dgts (40~400Hz)
0.10A
1000A
999.9A
100mA 1.0A

www.tmatlantic.com
5
µA Trms : (AC+DC) (Burden Voltage : 5mV/µA)
Range
Resolution
Accuracy
Sensitivity
Overload Protection
99.99 µ A
10nA
± 1 % ± 20dgts
0.20µA
600V
999.9 µ A
100nA
2.0µA
AC Voltage (50Hz to 400Hz) : Trms
Range Resolution Accuracy Sensitivity
Overload
Protection
999.9mV 0.1mV
± 1% ± 20dgts (50, 60Hz)
± 2 % ± 20dgts (40~100Hz)
2.0mV
600V
9.999V
1mV
± 1% ± 20dgts (50, 60Hz)
± 2 % ± 20dgts (40~400Hz)
0.020V
99.99V
10mV
0.20V
600.0V
100mV
2V
Input impedance : 3M
Ω
DC Voltage :
Range
Resolution
Accuracy
Sensitivity
Overload Protection
999.9mV
0.1mV
± 1.0% ± 20dgts
2.0mV
600V
9.999V
1mV
0.020V
99.99V
10mV
0.20V
600.0V
100mV
2V
Input impedance : 3M Ω
Resistance (Continuity<40Ωon the 999.9Ωrange) :
Range
Resolution
Accuracy
Overload Protection
999.9
Ω
100m
Ω
±1% ± 10 dgts 600V
9.999K
Ω
1
Ω
99.99K
Ω
10
Ω
999.9K
Ω
100
Ω
MΩ:
Range
Resolution
Accuracy
Overload Protection
9.999M
Ω
1K
Ω
±5% ± 10 dgts 600V
99.99M
Ω
10K
Ω
Capacitance :
Range
Resolution
Accuracy
Overload Protection
10.000 µ F
1nF
±1.5% ± 5 dgts 600V
100.00 µ F
10nF
1000.0 µ F
100nF
7000
µ
F
1
µ
F
±
2.5%
±
15 dgts

www.tmatlantic.com
6
Diode (Continuity<40mV) :
Range
Resolution
Accuracy
Overload Protection
2.000V
1mV
± 2 % ± 1 dgt
600V
Temperature (K-Type thermocouple) :
Range
Resolution
Accuracy
Overload Protection
-50
℃
to 900
℃
0.1
℃
±1% ± 1
℃
30VAC or 60VDC
-58
℉
to 1000
℉
0.1
℉
±1% ± 2
℉
1 φ /3 φ TRUE Power (KW) : (PF>0.5 or
θ
<60
º)
Range
Resolution
Accuracy
Overload Protection
60.00KW (<100A)
10W
± 5%rdg ± 20 dgts
(50, 60Hz)
600VAC/
1000AAC
600.0KW (>100A)
100W
1 φ /3 φ Horse Power (HP) : (PF>0.5 or
θ
<60
º)
Range
Resolution
Accuracy
Overload Protection
80.00HP (<100A)
0.01HP
± 5%rdg ± 20 dgts
(50, 60Hz)
600VAC/
1000AAC
800.0HP (>100A)
0.1HP
1 φ /3 φ Reactive Power (KVAR) : (PF>0.5 or
θ
<60
º)
Range
Resolution
Accuracy
Overload Protection
60.00KVAR (<100A)
10VAR
± 5%rdg ± 20 dgts
(50, 60Hz)
600VAC/1000AAC
600.0KVAR (>100A)
100VAR
1 φ /3 φ Apparent Power (KVA) :
Range
Resolution
Accuracy
Overload Protection
60.00KVA (<100A)
10VA
± 2.5%rdg ± 20 dgts
600VAC/1000AAC
600.0KVA (>100A)
100VA
1 φ /3 φ Phase Angle ( 50Hz, 60Hz) :
Range
Resolution
Accuracy
Sensitivity
-60° ~ 0° ~ +60°
0.1º
± 6.0º
ACV>100V, ACA>10A
Frequency :
Range
Resolution
Accuracy
Sensitivity
40Hz/1KHz
0.1Hz
±
0.5%rdg
±
2 dgts
ACV>1.2V, ACA>6A

www.tmatlantic.com
7
III. PARTS & CONTROLS
3-1 Description of Parts & Control
6
5
10 8 9
MX / MN
Temp
Type K
ACOM V
R
lag
WL123
mKW
¢X
KVAR
¢X
F
MNMX H
3 4W
3 3W
n
PF
h:mm:s
%
hp Hz
CAT IIICAT III
600V600V
3
4
7
1
2
KVARC
M F
lead
(Figure-1)

www.tmatlantic.com
8
(1). Transformer jaws (+ mark face to source) :
Pick up the AC current flowing through the conductor.
(2). Jaw opening trigger.
(3). Data Hold (MX/MN) key :
a. Data Hold mode :
Press it to hold the measured value.
Press again to release. (capacitance function not included)
b. Maximum and Minimum
 Select the desired ACA, ACV, DCV, ℃/℉or µA function and perform the
measuremen.
 Keep pressing " MX/MN " key for 2 seconds. Shows "  " and "MX MN"
marks on LCD. At this moment, the Auto Power Off function is
automatically disabled.
 Press " MX/MN " key. Shows "MX" on LCD. The recorded Maximum value
and time displayed.
 Press " MX/MN " key. Shows "MN" on LCD. The recorded Minimum value
and time displayed.
 Press " MX/MN " key. Shows "MX MN" on LCD. The current value and time
displayed.
 Step    can be cycled.
 Keep pressing " MX/MN " key for 2 seconds to release.
Note : The default time setting is "minute : second". If over 60 minutes, it
will be "hour : minute
º
". The Maximum of time period is 100 hours.
(4). Function selector :
For selection of desired function.
(5). RANGE key :
a. In ACA, ACV, DCV, µA, Capacitance and Resistance function.
Press the key to launch. Shows on LCD.
Press the key again to select the desired range.
Keep pressing the key for 2 seconds to exit Manual Range but
Autorange mode. mark will disappear.
b. In 1φ/3φKW/HP/KVA function.
Press “HOLD” key to keep the measured value in memory.
Press “RANGE” key to view the KW+HP, KW+PF, KW+KVAR, KVA+θ
and A+V dual display.
Press “HOLD” key to exit this mode (1φ).
c. In Temp function.

www.tmatlantic.com
9
Press RANGE key to select ℃or ℉.
(6). Temperature input jack. Only Type K thermocouple input is accepted.
(7).
LCD display :
4 digits with indications for measurement values, unit symbols, decimal point,
polarity, over range, and low battery ; etc.
(8). COM Jack :
Connect black test lead for Voltage, Power, Capacitance, Resistance, Diode,
Continuity and Micro ampere measurement.
(9). " V " Jack :
Connect red test lead for Voltage and Power measurement as a positive
terminal.
(10). “
Ω
µA” jack :
Connect red test lead for Capacitance, Resistance, Diode, Continuity and
Micro ampere
measurement as a positive terminal.
IV. OPERATING INSTRUCTION
4-1 AC+DC Voltage Measurement
WARNING
Maximum input is 600V.
Do not attempt to take any voltage
measurement that exceeds limit. Exceeding limit could cause electrical
shock and damage to the clamp meter.
 Set the rotary switch to the "V" position.
 Insert the test leads into the jack. (Black to COM and Red to V)
 Connect the test leads in PARALLEL to the measured circuit.
The meter will automatically switch to ACV or DCV.
NOTE
The sensitivity for voltage measurement is 1
.2V, and the frequency
range is 40 - 1KHz. If the frequency is less than 40 Hz, the LCD may
show .Hz .

www.tmatlantic.com
10
4-2 AC Current Measurement
 Set the rotary switch to the "~A" position.
 Press the trigger to open the jaw and fully close the conductor.
NOTE
The sensitivity for current frequency measurement is 6A, and the
frequency range is 40 ~ 400H
z. If the frequency is less than 40 Hz, the
LCD may show .Hz .
4-3 1 φ AC Power KW, HP, KVA, KVAR, PF (Power Factor) and θ (Phase Angle)
Measurement
600V 600V
CAT III
A
VCOM
CAT III
KW
KW
CAT III
COM V
A
CAT III
600V600V
lag
lag
Temp
Type K
MX / MN
(Figure-2)
 Set the rotary switch to the "KW/KVA" position (refer to figure 2).
 Insert the test leads into the jack. (Black to COM and Red to V)
 Connect the Black lead (COM) to the neutral line.
 Connect the Red lead (V) to the power line and clamp the same conductor
where V (red) terminal is connected.
 Press “RANGE” key to select KW+HP (Horse Power), KW+PF (Power
Factor), KW+KVAR, KVA+θ(Phase Angle) or A+V 5 types display.

www.tmatlantic.com
11

PF KW
KVA
=
= cosθ(θ=Phase Angle)
HP (Horse Power) : HP = 746 Watts
KVA (Apparent Power) : KVA = (V*A)/1000
KVAR (Reactive Power) : KVAR=
(KVA) (KW)
2 2
−
=KVA*sinθ
NOTE
1.The "+" sign printed on Panel must face to
the power source for
accurate measurement.
2.If the power supply of the de
vice under test is switching mode, the
meter KW, PF and
θ
reading maybe incorrect.
4-4 3 φ 3W AC Power KW, HP, KVA, KVAR, PF (Power Factor) and θ (Phase
Angle) Measurement
 First, measure WRS(L1L2) (refer to figure 3).
a. Set the rotary switch to the “ V”.
b. Keep pressing “HOLD” key then set the rotary switch to “KW/KVA”, the
3φ3W and WL12 symbol appear.
c. Insert the test leads into the jack.
d. Select a phase (eg. S or L2) as COM and connect the test probe of the
COM (black) terminal to that phase (eg. S or L2).
e. Connect the test probe of V (red) terminal to the second phase (eg. R or L1).
f. Clamp the same phase as step e. (eg. R or L1).
g. The power clamp will automatically select proper range.
h. Wait until the reading is stable (about 6 seconds). Press “HOLD” key to
store the measured value. The WL23 symbol will appear.

www.tmatlantic.com
12
WL12
3 3W
3 3W
WL12
lag
lag
3 3W
WL12
MX / MN
Type K
KW
CAT III
COM V A
CAT III
Temp
600V600V
600V 600V
CAT III
A VCOM
CAT III
KW
(Figure-3)
 Second, measure WTS(L3L2) (refer to figure 4).
a. Disconnect the test probe from the phase where jaws is clamp on in
previous measurement.
b. Connect the test probe to the third phase (eg. T or L3).
c. Camp the third phase where test probe is connected to (eg. T or L3)
d. The power clamp will automatically select proper range.
e. Wait until the reading is stable (about 6 seconds). Press the “HOLD” key
to store the measured value.

www.tmatlantic.com
13
3 3W
WL 23
WL 23
3 3W
lag
lag
WL 23
3 3W KW
CAT III
COM V
A
CAT III
600V
600V
MX / MN
600V 600V
CAT III
A
VCOM
CAT III
KW
Temp
Type K
(Figure-4)
 The power clamp will process those two sets of data (WL12 ,WL23), and
show the result on the LCD. WL123 symbol will be shown to indicate the
watt of 3φ3W power (refer to figure 5).
At this moment, the watt of 3φ3W power is stored to the memory.
KW
CAT III
COM V
A
CAT III
600V
600V
lag
3 3W
WL123
(Figure-5)
 If willing to read the details of that singly data record, press “ HOLD ”
key to select desired
WL12 , WL23 or WL123 display then press “RANGE”
key to select KW+HP (Horse Power), KW+PF (Power Factor),
KW+KVAR, KVA+θ(Phase Angle) or A+V 5 types display.
 W3
φ
3W = WRS(L1L2) + WTS(L3L2)
KVA K WKVAR
W W W3 3 23 3
2
3 3 φ φ φ
= +

www.tmatlantic.com
14
PF KW
KVA
W
W
W
3 3
3 3
3 3
φ
φ
φ
=
Set the rotary switch to other position exit this mode and clear the
stored data.
NOTE
Once a phase is selected as COM, users can not change this selection in
the subsequent measurement. For example, if S (or L2) phase is
selected, S (or L2) phase is always connected
to the COM during
measurement of WRS (or WL1L2) and WTS (or WL3L2) in 3φ3W unbalanced
power.
NOTE
1. The "+" sign printed on Panel must face the power source for accurate
measurement.
2. If the device under test is switching mode power, the meter KW, PF
and θreading maybe incorrect.
NOTE
In the 3φ3W unbalanced power measurement, one of WRS or WTS could
be negative. Users must make sure all the connections and clamping are
correct to obtain correct power.

www.tmatlantic.com
15
4-5 3 φ 4W AC Power KW, HP, KVA, KVAR, PF (Power Factor) and θ (Phase
Angle) Measurement
 First, measure WR(L1) (refer to figure 6).
a. Set the rotary switch to the “ V” position.
b. Press and hold down the “RANGE” key then set the rotary switch to
“KW/KVA” position, the 3φ4W and WL1 symbols appear.
c. Insert the test leads into the input jack.
d. Connect the neutral line to the COM (black) terminal.
e. Connect the test probe of the V (red) terminal to the first phase (eg. R or L1).
f. Clamp on to the same phase (eg. R or L1).
g. The power clamp meter will automatically select proper range.
h. Wait until the reading is stable (about 6 seconds), press the “HOLD” key,
and WL1 symbol will disappear and WL2 symbol appears to instruct users
to take measurement of WS(L2).
lag
lag
WL1
3 4W
WL1
3 4W
WL1
3 4W
CAT III
A VCOM
CAT III
KW
KW
CAT III
COM V A
CAT III
600V600V
MX / MN
Type K
Temp
600V 600V
(Figure-6)
 Second, measure WS(L2) (refer to figure 7)
a. Disconnect the test probe from the phase where jaws is clamp on in
previous measurement.
b. Connect the test probe of the V (red) terminal to the second phase (eg.
S or L2).

www.tmatlantic.com
16
c. Clamp the phase where test probe is connected to (eg. S or L2 phase)
d. The power clamp will automatically select proper range.
e. Wait until the reading is stable (about 6 seconds), press the “HOLD” key
and WL2 symbol will disappear. WL3 symbol will appear to instruct users
to take measurement of WT(L3).
Type K
Temp
600V 600V
CAT III
A
VCOM
CAT III
KW
lag
lag
WL 2
3 4W
3 4W
WL 2
3 4W
WL 2
KW
CAT III
COM V
A
CAT III
600V
600V
MX / MN
(Figure-7)
 Third, measure WT(L3) (refer to figure 8)
a. Disconnect the test probe from the phase where jaws clamped in
previous measurement.
b. Connect the test probe of the V (red) terminal to the third phase (eg. T
or L3 phase).
c. Clamp the phase where test probe is connected to (eg. T or L3).
d. The power clamp will automatically select proper range.
e. Wait until the reading is stable (about 6 seconds), press the “HOLD” key
and WL3 symbol will disappear.

www.tmatlantic.com
17
lag
lag
WL 3
3 4W
WL 3
3 4W
WL 3
3 4W
KW
CAT III
COM V
A
CAT III
600V600V
Temp
Type K
MX / MN
600V 600V
CAT III
A VCOM
CAT III
KW
(Figure-8)
 The power clamp will process these three sets of data (W
L1,
W
L2
W
L3
) and show
the result on the LCD. WL
123
symbol will be shown to indicate the watt of 3
φ
4W power (refer to figure 9).
At this moment, the of 3φ4W power are stored in the memory.
600V 600V
CAT III
AVCOM
CAT III
KW
3 4W
WL123
lag
(Figure-9)

www.tmatlantic.com
18
 If willing to read the details of that singly data record, please “ HOLD ”
key to select desired WL1, WL2, WL3 or WL123 display then
press
“RANGE” key to select KW+HP (Horse Power), KW+PF (Power Factor),
KW+KVAR, KVA+θ(Phase Angle) or A+V 5 types display.
 W3
φ
4W = WR(L1) + WS(L2) WT(L3)
KVA K WKVAR
W W W3 4 23 4
2
3 4
φ φ φ
= +
PF KW
KVA
W
W
W
3 4
3 4
3 4
φ
φ
φ
=
Set the rotary switch to other position exit this mode and clear the
stored data.
NOTE
1.
The "+" sign printed on Panel must face the power source for
accurate measurement.
2. If the device under test is switching mode power, the meter KW, PF
and θreading maybe incorrect.
NOTE
In the 3φ4W power measurement, all three WRor WSand WTmust be
positive. If users find one negative power, check the connection of test
leads and clamping of jaw. Make sure all the connections and clamping
are correct to obtain correct power.
4-6 Resistance & Continuity Measurement
WARNING
Before taking any in circuit resistance measurement, remove Power form the
circuit being tested and discharge all capacitors.
 Before taking resistance measurements, make sure the circuit is not live and
discharge any capacitors present in the circuit.
 Set the rotary switch to the "
Ω
, " or "M
Ω
" range.
 Insert the test leads into the input jack. (Black to COM and Red to Ω).
 Connect the test leads to the circuit being measured and read the displayed
value.
 When the reading is below 40
Ω,
it will be indicated by a continuous beeping.
