Electric Heat Gun WDH-BGC30 (30 kW)
with integrated fan
Dear Customer,
You have chosen a high-quality product. To ensure that you get a lot of enjoyment from this product, here are a few
more tips:
Information relevant to energy consumption:
This product is only suitable for well-insulated rooms or for occasional use.
In case of any problems:
We hope that the unit meets your expectations! If, despite the greatest possible care, there should ever be cause
for complaint, please contact us briefly, as we are very concerned about your satisfaction and would like to clear up
any misunderstanding.

Aktobis AG, Borsigstr. 20, D-63110 Rodgau / Germany
www.AKTOBIS.de
Email: [e-mail]
During the first operation:
As the heating elements are covered with a light film of oil at the factory for reasons of protection, you will notice a
slight smell of burning and possibly also some smoke during the first operation. This is quite normal at first and is
caused by the fact that the oil film is now burnt by the heating elements during operation.
Important safety instructions:
- Only use the recommended voltage for operating the unit !
- The heater is not suitable for use outdoors or in other wet or damp environments !
- Please note that the heater can become very hot during operation, so keep a sufficient distance from
flammable or easily combustible objects at all times !
- Do not place the heater directly next to a power socket !
- Do not use a timer or automatic on/off switch in conjunction with this heater !
- Never use the heater on moving surfaces, objects or vehicles ! There is a risk that the heater may tip over.
- It is recommended to use a separate power source (socket) only for the supply of the heater. (Please do not
use multiple sockets to operate the heater) !
- Furthermore, please ensure that the power cable is always laid with sufficient distance to the heat source.
- Supervise the heater when children are near the appliance !
- Be aware of electricity, never walk into or insert objects into the appliance ! Never reach near the plug or socket
with wet hands !
- Never touch the heater or the power cables with wet hands!
- Do not place any objects on the heater !
- Do not block the supply and/or exhaust air of the unit and please ensure sufficient space/clearance around the
unit !
- Ensure that there is sufficient air supply to the unit, otherwise it can lead to a reduction in performance and, in
the worst case, to overheating and/or fire !
- Only qualified personnel or electricians are allowed to open the unit !
- Make sure that no moisture gets into or onto the unit !
- Make sure that the power cable is completely unfolded before connecting it to the socket !
- Make sure that the plug is cleanly and properly connected to the socket before using the appliance !
- Make sure that highly flammable substances (e.g. gases/oils etc.) are never in the vicinity of the unit !
- If the connecting cable of this appliance is damaged, it must be replaced by the manufacturer or its after-sales
service or a similarly qualified person in order to avoid hazards.
- This appliance is not intended to be used by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and/or knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
- If you are not going to use the unit for a long time, switch it off and disconnect the mains plug !
Please switch off the unit immediately and disconnect it from the mains/power supply if anything
seems to be wrong !!! In this case, please contact a specialist and do not try to repair the unit
yourself !!!
Example: Fan does not run during operation, you notice sparks or the fuse has blown.

Aktobis AG, Borsigstr. 20, D-63110 Rodgau / Germany
www.AKTOBIS.de
Email: [e-mail]
Features and benefits:
Thermostat for regulating and setting the desired temperature (heating switches off - fan continues to run)
Overheating protection and protection against dripping water
Pure fan operation also possible without heating function
Stepless temperature control (0 ~ 85°C)
Assembly:
Figure 1: Mounting the feet
The housing of the heat gun has two openings (B) on both sides (left and right) for attaching the V-shaped feet (A).
Make sure that the shorter end of the feet is facing backwards. Take two M8 x 40mm screws (D) and slide a
washer (C) onto each. Now insert the screws through the mounting holes of the feet and slide a washer (E) onto
each of the screws. Now screw the feet to the enclosure by fixing the screws in the holes (B). Do this for both
sides.
Figure 2: Mounting the axle and wheels
Take the wheel axle (F) and guide it through the holes at the lower end of the feet so that the axle protrudes
equally on both sides. Secure the position of the axle by inserting a cotter pin (G) through the holes provided on
both sides and fastening it (see picture 2). Now put a washer (H), a wheel (J) and again a washer (H) on each of
the protruding sides of the axle. Now screw a nut (L) to the end of each axle and tighten it well.
Figure 3: Mounting the transport handle
Take the four M5 x 50mm screws (Q) and slide a washer (P) over each one. Place the U-shaped transport handle
(M) on the feet (N) as shown in the picture and align the transport handle so that the two holes in the transport
handle overlap with the two holes in the feet. Now take the four screws and insert two on each side through the
holes to connect the transport handle to the feet. Then slide a washer (P) and a spring washer (T) onto the
protruding ends of the screws. Finally, attach a nut (S) to each end of the bolt and tighten it well so that everything
is firmly and securely connected and mounted.
Now you can put your heat gun into operation !

Aktobis AG, Borsigstr. 20, D-63110 Rodgau / Germany
www.AKTOBIS.de
Email: [e-mail]

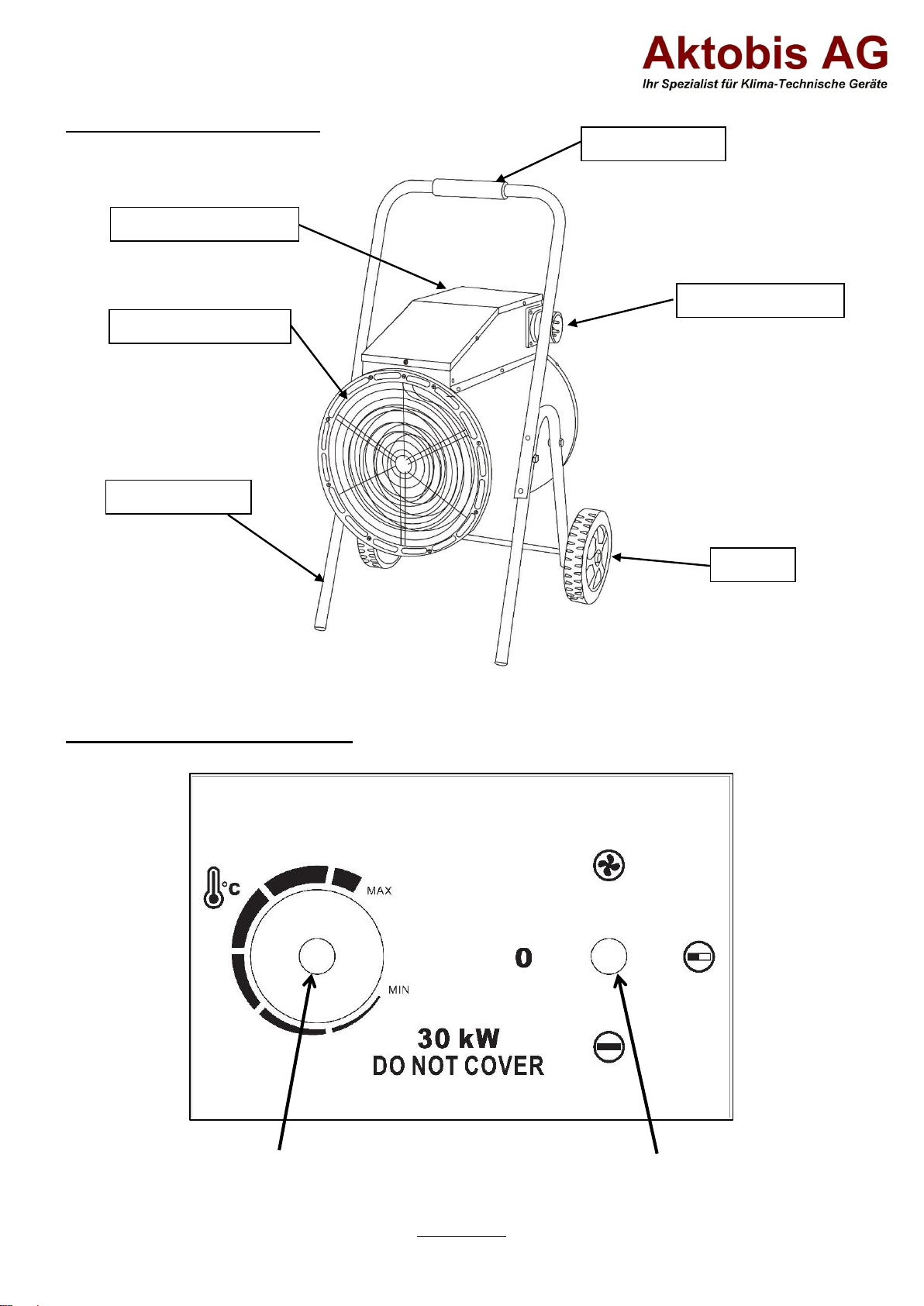

Description of the unit parts:
Description of the control panel:
1. Operating strength adjustment knob 2. Thermostat control dial
Power connection
Transport handle
Wheels
Front cover (grill)
Stand bracket
Rear = control panel

Aktobis AG, Borsigstr. 20, D-63110 Rodgau / Germany
www.AKTOBIS.de
Email: [e-mail]
Instructions for use:
1. Commissioning
1.1. You need a suitable power cable for connection. This connection cable is not included in the scope of
delivery, please use a connection cable with the following specification for this purpose:
(1) Five-pole power connection 380V/415V (50/60Hz, 63A)
(2) Five-core power cable H07RN-F (5G 10 mm²)
(3) Five-pole power plug 380V/415V (50/60Hz, 63A)
1.2. Connect the power cable properly to the heater. To do this, open the protective flap of the five-pole power
connection (see fig. below). Now connect the plug head of the power cable to the socket provided for this
purpose on your unit. It is important that the power connection is firmly and properly seated in the connection
socket of the unit. Finally, connect the power plug properly to a power socket.
1.3.Select the desired unit power with the operating power adjustment knob (left-hand knob).
= Off
= Fan operation
= Level 1 (small operating power with 15 kW heating power)
= Level 2 (high operating power with 30 kW heating power)

Aktobis AG, Borsigstr. 20, D-63110 Rodgau / Germany
www.AKTOBIS.de
Email: [e-mail]
1.4.Now set the desired temperature switch-off point (0 ~ 85° C) with the stepless thermostat control dial (right-
hand knob). It is best to do this as follows: Turn the thermostat knob to the highest temperature (MAX.) and
let the heater run until your desired temperature value is reached. Now turn (adjust) the control downwards
towards the minimum until the heating function switches off automatically. Now leave the control dial
(thermostat) in this position and whenever it gets colder in the room, the heating rod automatically starts to
heat and when the adjusted temperature is reached again, the heating rod automatically switches off again!
Note: The fan of the heater is not controlled by the thermostat. If the selected target temperature is reached, the
heating element switches off automatically, but the fan continues to run !
2. Switch off
To switch off the unit, turn the stepless thermostat control knob (right-hand knob) to minimum (MIN) and let the unit
run in fan mode for about 5 minutes to allow it to cool down. Afterwards, also turn the operating strength
adjustment knob to "0" to switch off the unit completely.
3. Cleaning & Storage
Please always unplug the heater from the mains and allow it to cool down completely before carrying out any
cleaning activities on your heater !
3.1 Cleaning the housing:
- Use a soft and damp cloth to clean the outside of the housing.
- Use only mild cleaning agents to clean your heater and no aggressive cleaning agents, these can damage your
appliance !
- Please make sure that no water gets inside your heater at any time !
3.2 Storage:
- We recommend that you repack the unit in its original box for storage.
- Store the heater in a dry and sufficiently ventilated place/space.
4. Other operating instructions
4.1.Do not disconnect the mains plug by pulling on the power cable !
4.2.Do not use insect repellent, oil spray, paint spray, etc. near the heater. This may cause damage to the unit or
even fire or explosion !
4.3.Do not place the appliance on sloping or uneven ground !
4.4.Please always keep a sufficient distance to the wall to avoid possible overheating of the appliance.
4.5.For an effective and economical heating operation, please close all doors and windows in the room of the
heater !

Aktobis AG, Borsigstr. 20, D-63110 Rodgau / Germany
www.AKTOBIS.de
Email: [e-mail]
Technical data:
Model designation: WDH-BGC30
Voltage: 400V ~ 50Hz
Max. Power consumption: 30 kW
Connection: 63 A
Heating stages: 2 ( 1 = 15 kW, 2 = 30 kW )
Thermostat: Stepless adjustment ( 0 ~ 85 °C)
Air flow rate: Approx. 3,480 m3/h
Rated heat output: 30.0 kW
Minimum heat output: 15.0 kW
Max. cont. heat output: 30.0 kW
Auxiliary power consumption elmax: N/A
Auxiliary power consumption elmin: N/A
Auxiliary power consumption elSB: N/A
Type of temperature control: With mechanical thermostat
Protection class: IP20
Dimension (H/W/D): 860 x 565 x 645 mm
Weight: 31.2 kg
There may be deviations in the technical data!
Other
Warranty statement:
Notwithstanding the statutory warranty claims, the manufacturer grants a warranty in accordance with the laws of
your country, but at least 1 year (in Germany 2 years for private individuals). The warranty begins on the date of
sale of the appliance to the end user.
The guarantee only covers defects that are due to material or manufacturing faults.
Warranty repairs may only be carried out by an authorised customer service. To make a warranty claim, please
enclose the original sales receipt (with date of sale).
Excluded from the guarantee are:
- Normal wear
- Improper applications, such as overloading the appliance or non-approved accessories.
- Damage due to external influences, use of force or foreign objects
- Damage caused by non-observance of the operating instructions, e.g. connection to an incorrect mains voltage
or non-observance of the assembly instructions.
- Completely or partially dismantled units

Aktobis AG, Borsigstr. 20, D-63110 Rodgau / Germany
www.AKTOBIS.de
Email: [e-mail]
Conformity:
The electric heater has been tested and itself and/or parts thereof have been manufactured under the following
(safety) standards:
CE (LVD + EMC) conformity, of course.
CE (LVD) Conformity tested according to: EN 60335-2-30:2009+A11:2012
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
+A1:2019+A14:2019+A2:2019
EN 62233:2008
CE (EMC) conformity tested according to: EN 55014-1:2006+A1+A2
EN 55014-2:2015
EN 61000-3-12:2011
EN 61000-3-3:2013
Correct disposal of this product:
Within the EU, this symbol indicates that this product should not be disposed of with household waste.
Waste equipment contains valuable recyclable materials that should be recycled. Furthermore, the
environment or human health should not be polluted by uncontrolled waste disposal. Therefore,
please dispose of old appliances via suitable collection systems or send the appliance for disposal to
the place where you purchased it. They will then recycle the appliance.
We hope you enjoy using this device:
Keep these instructions for use in a safe place !
