Ferm JSM1020 User manual

© 2009 Ferm B.V. 0912-05
www.ferm.com
PENDULUM ACTION JIGSAW
JSM1020
EN Original instructions 06
DE Übersetzung der
Originalbetriebsanleitung 10
NL Vertaling van de oorspronkelijke
gebruiksaanwijzing 14
FR Traduction de la notice originale 19
ES Traducción del manual original 23
PT Tradução do manual original 28
IT Traduzione delle istruzioni
originali 32
SV Översättning av bruksanvisning
i original 37
FI Alkuperäisten ohjeiden käännös 41
NO Oversatt fra orginal veiledning 45
DA Oversættelse af den originale
brugsanvisning 49
HU Eredeti használati utasítás
fordítása 53
CS Překlad püvodního návodu k
používání 57
SK Prevod izvirnih navodil 61
SL Preklad pôvodného návodu na
použitie 65
PL Tłumaczenie instrukcji
oryginalnej 69
LT Originalios instrukcijos vertimas 74
LV Instrukciju tulkojums no
oriģinālvalodas 78
ET Algupärase kasutusjuhendi
tõlge 82
RO Traducere a instrucțiunilor
originale 86
HR Prevedeno s izvornih uputa 90
SR Prevod originalnog uputstva 94
RU Перевод исходных инструкций 98
UA Переклад оригінальних
інструкцій 103
EL Μετάφραση του πρωτοτύπου
των οδηγιών χρήσης 108
BG Превод на оригиналната
инструкция 112

4
7
6
15
17
16
8
3
10
5
9
1 14 112
13
12
8
A

2112
13
20 6
18
19
C
B

15
7
27
15
7
27
E
D

17
1928
F

6
EN
● Wear safety goggles, hearing protection and
if necessary other protective means, such as
safety gloves, safety shoes, etc.
● Before use, remove all nails and other metal
objects from the workpiece.
● Make sure that the workpiece is properly
supported or xed.
● Do not use the machine without the guard.
● Inspect the saw blade before each use.
Do not use saw blades which are bent, cracked,
or otherwise damaged.
● Make sure that the saw blade is properly
mounted.
● Only use saw blades that are suitable for use
with the machine.
● Only use saw blades with the correct
dimensions.
● Do not use other accessories than saw blades.
● Do not use saw blades made of HSS steel.
● Do not use the machine on workpieces
requiring a maximum sawing depth that
exceeds the maximum sawing depth of the
saw blade.
● Hold the machine by the insulated gripping
surfaces where the saw blade may contact
hidden wiring or the mains cable. If the saw
blade contacts a ‘live‘ wire, the exposed metal
parts of the machine can also become ‘live‘.
Risk of electric shock.
● Let the machine run at no load in a safe area
after mounting the saw blade. If the machine
vibrates strongly, immediately switch off the
machine, remove the mains plug from the
mains, and try to solve the problem.
● Beware that the saw blade continues to rotate
for a short period after switching off the
machine. Do not attempt to bring the saw
blade to a standstill yourself.
Kickback
Kickback is the upward and backward movement
of the saw blade when the saw blade unexpectedly
touches an object. Securely hold the machine
during use. Keep your attention focused on the
operation.
Kickback is usually caused by:
- unintentionally touching hard objects or
materials with the rotating saw blade;
- a blunt saw blade;
- a saw blade that is not properly mounted;
- sawing into a previous cut;
- a lack of attention to the operation;
- an instable stance.
PENDULUM ACTION JIGSAW
JSM1020
Thank you for buying this Ferm product.
By doing so you now have an excellent product,
delivered by one of Europe‘s leading suppliers.
All products delivered to you by Ferm are
manufactured according to the highest standards
of performance and safety. As part of our
philosophy we also provide an excellent customer
service, backed by our comprehensive warranty.
We hope you will enjoy using this product for
many years to come.
SAFETY WARNINGS
1WARNING
Read the enclosed safety warnings,
the additional safety warnings and
the instructions.
Failure to follow the safety warnings
and the instructions may result in electric
shock, re and/or serious injury.
Keep the safety warnings and the
instructions for future reference.
The following symbols are used in the user
manual or on the product:
1
Read the user manual.
2
Risk of personal injury.
5 Wear safety goggles.
Wear hearing protection.
A
Wear a dust mask.
BCaution: Laser beam! Do not look
directly into the laser beam. Do not point
the laser beam at humans or animals.
8Do not dispose of the product in
unsuitable containers.
9The product is in accordance with the
applicable safety standards in the
European directives.
Additional safety warnings for jigsaws
● Do not work materials containing asbestos.
Asbestos is considered carcinogenic.

7
EN
- using the tool for different applications, or with
different or poorly maintainted accessories,
may signicantly increase the exposure level
- the times when the tool is switched off or when
it is running but not actually doing the job, may
signicantly reduce the exposure level
Protect yourself against the effects of vibration by
maintaining the tool and its accessories, keeping
your hands warm, and organizing your work
patterns

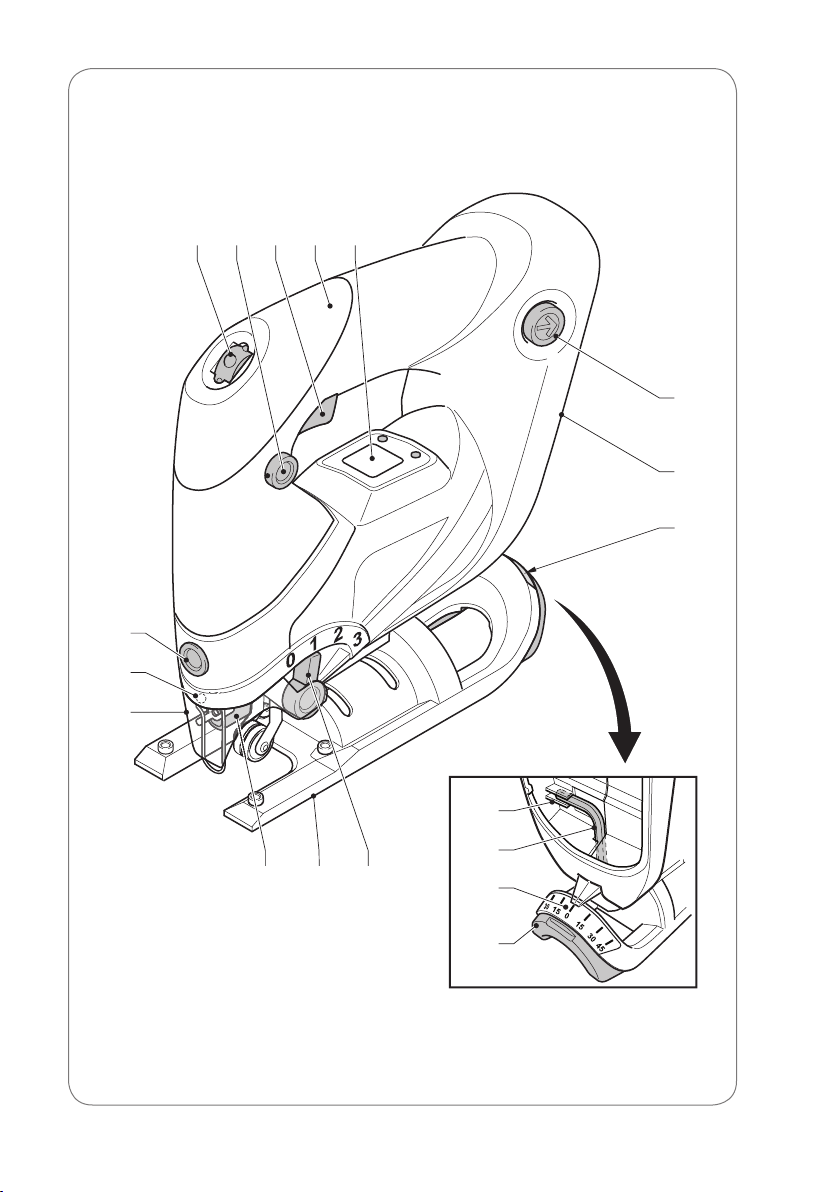

DESCRIPTION (FIG. A)
Your pendulum action jigsaw has been designed
for sawing wood, metal, plastics, ceramics,
rubber, etc. to any required size and in any
required shape.
1. On/off switch
2. Lock-off button
3. Speed adjustment wheel
4. Pendulum action switch
5. Guard
6. Saw blade holder
7. Saw shoe
8. Scale for mitre angle
9. Work light
10. Work light switch
11. LCD display
12. Battery connection
13. Battery release button
14. Grip
15. Allen key
16. Allen key holder
17. Storage system for saw blades
ASSEMBLY
3Before assembly, always switch off the
machine and remove the battery.

Refer to the table below to select the required
saw blade.
Saw blade Material
Coarse Wood
Medium Wood
Fine Steel, aluminium, plastic
Very ne Wood (curves)
2Do not attempt to remove the guard from
the machine.
Additional safety warnings for lasers
● Do not look directly into the laser beam.
● Do not point the laser beam humans or animals.
● Do not point the laser beam at strongly
reecting material.
● Do not insert hard objects into the laser optics.
● Clean the laser optics with a soft, dry brush.
● Only have the laser repaired by a qualied
technician.
Electrical safety
3Always check the output voltage of the
battery corresponds to the input voltage
of the machine.
● Do not use the machine if the battery is
damaged.
TECHNICAL DATA
JSM1020
Input voltage V= 18
No-load speed min-1 700 - 2,400
Max. sawing depth
Wood mm 70
Metal mm 10
Max. sawing stroke mm 18
Mitre angle ° 45
Number of pendulum positions 4
Weight kg 1.7
NOISE AND VIBRATION
JSM1020
Sound pressure (Lpa) dB(A) 79
Acoustic power (Lwa) dB(A) 90
Uncertainty (K) dB(A) 3
Vibration (wood) m/s26.59
Vibration (metal) m/s210.6
Uncertainty (K) m/s21.5
2
Wear hearing protection.
Vibration level
The vibration emission level stated in this instruction
manual has been measured in accordance with a
standardised test given in EN 60745; it may be used
to compare one tool with another and as a
preliminary assessment of exposure to vibration
when using the tool for the applications mentioned

8
EN
● The upper part (24) of the LCD display (11)
indicates the charging status of the battery.
The charging status bar consists of 10 bars
(1 bar = 10% of the charging status).
● The middle part (25) of the LCD display (11)
indicates the remaining time before the battery
must be recharged (only for Li-Ion batteries).
● The lower part (26) of the LCD display (11)
indicates whether the display light is switched
on or switched off.
● If necessary, press the display light switch (23)
again to switch off the display light.
● Press the display switch (22) again to switch
off the LCD display (11).

The speed adjustment wheel is used for setting
the speed. The speed adjustment wheel can be
set to 6 positions. The ideal speed depends on
the prole and the teeth of the saw blade and on
the material to be worked.
2
Do not set the speed during use.
● Turn the speed adjustment wheel (3) to the
required position.
- For hard materials, use a saw blade with
ne teeth and select a lower speed.
- For soft materials, use a saw blade with
coarse teeth and select a higher speed.

The mitre angle is variable between 0° and 45°.
The mitre angle can be read from the scale (8).
2
Do not set the mitre angle during use.
● Slacken the Allen screws (27) using the Allen
key (15).
● Tilt the saw shoe (7) to the required position.
● Tighten the Allen screws (27) using the Allen
key (15).

The pendulum action switch is used to set the
way in which the teeth of the saw blade grip the
material. The pendulum action switch can be set
to 4 positions.
2Do not set the pendulum position during
use.
Mounting
● Raise the saw blade lock (18) and keep it
raised in the open position.
● Insert the saw blade (19) in the saw blade
holder (6) as far as possible. The teeth of the
saw blade (19) must point upward and forward.
The smooth side of the saw blade must engage
in the slot of the guide roller (20).
● Lower the saw blade lock (18) to the closed
position.
Removing
● Raise the saw blade lock (18) and keep it
raised in the open position.
● Remove the saw blade (19) from the saw
blade holder (6).
● Lower the saw blade lock (18) to the closed
position.

The machine must be used with one of the
following batteries:
- 18V Li-Ion battery
- 18V NiMH battery
● To mount the battery, insert the battery (21)
into the battery connection (12).
● To remove the battery, keep the battery
release buttons (13) pressed and remove the
battery (21) from the battery connection (12).
USE

● To switch on the machine, keep the lock-off
button (2) pressed and simultaneously press
the on/off switch (1).
● To switch off the machine, release the on/off
switch (1).

The work light provides additional lighting on the
work area.
● To switch on the work light (9), press the work
light switch (10).
● To switch off the work light (9), press the work
light switch (10) again.

The machine is equipped with an LCD display.
● Press the display switch (22) to switch on the
LCD display (11).
● If necessary, press the display light switch (23)
to switch on the display light.

9
EN
● Turn the pendulum action switch (4) to required
position according to the material to be worked.
Refer to the table below to select the required
position.
Material Pendulum position
Wood 1-3
Plastics 1
Aluminium 0-1
Steel 0
Ceramics 0
Rubber 0
Hints for optimum use
● Clamp the workpiece. Use a clamping device
for small workpieces.
● Draw a line to dene the direction in which to
guide the saw blade.
● Firmly hold the machine by the grip.
● Set the sawing speed.
● Set the mitre angle.
● Set the pendulum position.
● Switch on the machine.
● Wait until the machine has reached full speed.
● Place the saw shoe on the workpiece.
● Slowly move the machine along the pre-drawn
line, rmly pressing the saw shoe against the
workpiece.
● Do not apply too much pressure on the
machine. Let the machine do the work.
● Switch off the machine and wait for the
machine to come to a complete standstill
before putting the machine down.
CLEANING AND MAINTENANCE
3Before cleaning and maintenance,
always switch off the machine and
remove the battery.
● Regularly clean the housing with a soft cloth.
● Keep the ventilation slots free from dust and
dirt. If necessary, use a soft, moist cloth to
remove dust and dirt from the ventilation slots.
● Regularly clean the saw blade to avoid
inaccuracies during use.
● Regularly lubricate the guide roller.

Worn or damaged saw blades must be replaced
immediately.
2Only use sharp and undamaged saw
blades.
● To remove the old saw blade (19), proceed as
described in the section „Mounting and
removing the saw blade“.
● To mount the new saw blade (19), proceed as
described in the section „Mounting and
removing the saw blade“.
STORAGE

The machine is equipped with a special storage
system for saw blades.
● Slightly raise the cover (28) and slide it
backward to open the storage system (17).
● Place the saw blade (19) into the storage
system (17).
● Slide the cover (28) forward to close the
storage system (17).
WARRANTY
Consult the enclosed warranty terms.
ENVIRONMENT
Disposal
8
The product, the accessories, and the packaging
must be sorted for environmentally friendly
recycling.
Only for EC countries
Do not dispose of power tools into domestic waste.
According to the European Guideline 2002/96/EC
for Waste Electrical and Electronic Equipment
and its implementation into national right, power
tools that are no longer usable must be collected
separately and disposed of in an environmentally
friendly way.
The product and the user manual are subject to
change. Specications can be changed without
further notice.

10
DE
PENDELHUBSTICHSÄGE
JSM1020
Vielen Dank für den Kauf dieses Ferm Produkts.
Hiermit haben Sie ein ausgezeichnetes Produkt
erworben, dass von einem der führenden
Lieferanten Europas geliefert wird.
Alle von Ferm an Sie gelieferten Produkte sind
nach den höchsten Standards von Leistung und
Sicherheit gefertigt. Teil unserer Firmenphilosophie
ist es auch, Ihnen einen ausgezeichneten
Kundendienst anbieten zu können, der von
unserer umfassenden Garantie unterstützt wird.
Wir hoffen, dass Sie viele Jahre Freude an diesem
Produkt haben.
SICHERHEITSHINWEISE
1ACHTUNG
Lesen Sie die beiliegenden
Sicherheitsanweisungen, die
zusätzlichen Sicherheitsanweisungen
sowie die Bedienungsanleitung.
Das Nichtbeachten der Sicherheits-
anweisungen und der Bedienungs-
anleitung kann zu einem Stromschlag,
Feuer und/oder schweren Verletzungen
führen.
Bewahren Sie die Sicherheitsanwei-
sungen und die Bedienungsanleitung
zur künftigen Bezugnahme auf.
Folgende Symbole werden im Benutzerhandbuch
oder auf dem Produkt verwendet:
1
Lesen Sie das Benutzerhandbuch.
2
Gefahr von Personenverletzungen.
5 Tragen Sie eine Schutzbrille.
Tragen Sie einen Gehörschutz.
A
Tragen Sie eine Staubmaske.
B Vorsicht: Laserstrahl! Schauen Sie nicht
direkt in den Laserstrahl. Richten Sie
den Laserstrahl nicht auf Personen oder
Tiere.
8Entsorgen Sie das Produkt nicht in hierfür
nicht vorgesehenen Abfallbehältern.
9Das Produkt entspricht den geltenden
Sicherheitsnormen der europäischen
Richtlinien.
Zusätzliche Sicherheitshinweise für Stichsägen
● Bearbeiten Sie keine asbesthaltigen Materialien.
Asbest wird als krebserregend eingestuft.
● Tragen Sie eine Schutzbrille, einen Gehörschutz
und gegebenenfalls weitere Schutzausrüstung
wie Sicherheitshandschuhe, Sicherheitsschuhe,
usw.
● Entfernen Sie vor dem Gebrauch alle Nägel
und sonstigen Metallgegenstände aus dem
Werkstück.
● Vergewissern Sie sich, dass das Werkstück
richtig gestützt bzw. xiert ist.
● Verwenden Sie die Maschine nicht ohne
Schutzvorrichtung.
● Überprüfen Sie das Sägeblatt vor jedem
Gebrauch. Verwenden Sie keine verbogenen,
gerissenen oder anderweitig beschädigten
Sägeblätter.
● Vergewissern Sie sich, dass das Sägeblatt
richtig angebracht ist.
● Verwenden Sie nur Sägeblätter, die für den
Gebrauch mit der Maschine geeignet sind.
● Verwenden Sie nur Sägeblätter mit den
richtigen Maßen.
● Verwenden Sie kein anderes Zubehör als
Sägeblätter.
● Verwenden Sie keine aus HSS-Stahl
bestehenden Sägeblätter.
● Verwenden Sie die Maschine nicht auf
Werkstücken, bei denen eine maximale
Sägetiefe erforderlich ist, die die maximale
Sägetiefe des Sägeblatts überschreitet.
● Halten Sie die Maschine an den isolierten
Griffächen, falls die Gefahr besteht, dass das
Sägeblatt versteckte Leitungen oder das
Netzkabel berühren könnte. Falls das Sägeblatt
einen spannungsführenden Draht berührt,
können die freiliegenden Metallteile der
Maschine ebenfalls spannungsführend werden.
Gefahr eines Stromschlags.
● Lassen Sie die Maschine nach dem Anbringen
des Sägeblatts in einem sicheren Bereich im
Leerlauf laufen. Vibriert die Maschine stark,
schalten Sie sie sofort aus, ziehen Sie den
Netzstecker aus der Steckdose und versuchen
Sie, das Problem zu beheben.
● Seien Sie sich darüber im Klaren, dass das
Sägeblatt nach dem Abschalten der Maschine
noch etwas nachläuft. Versuchen Sie nicht, das
Sägeblatt selbst zum Stillstand zu bekommen.
