Alamo MACHETE2 User manual

© 2012 Alamo Group Inc.
ALAMO INDUSTRIAL
1502 E. Walnut
Seguin, Texas 78155
210-372-3551
®
®
PART'S MANUAL
An Operator's Manual was shipped with the equipment in the Manual Canister.
This Operator's Manual is an integral part of the safe operation of this machine
and must be maintained with the unit at all times. READ, UNDERSTAND, and
FOLLOW the Safety and Operation Instructions contained in this manual before
operating the equipment. If the Operator's Manual is not with the equipment,
contact your dealer or Alamo Industrial (800-356-6286) to obtain a Free copy
before operating the equipment.
Rev 02-12 Part No. 02986941P
Boom Arm Mower

TO THE OWNER/OPERATOR/DEALER
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recog-
nizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with
all its safety equipment properly attached to minimize the chance of accidents.
BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration Form in full and return
it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card and on the Warranty Form that
you retain. The use of "will-t" parts will void your warranty and can cause catastrophic failure with possible injury or death.

BOLT TORQUE
Mounting procedures for mowers will require a signicant amount of bolt nut and washer installation.
Frame and structure mounting bolts should be installed using Red Loctite, and torqued to the dry values
listed in the torque chart based on the bolt size and hardness.
Other structures such as pump mounting bolts should be installed with Blue Loctite and torqued to the dry
values indicated in the chart.
Bolt tightness should be completed with and checked with a suitable torque wrench.
Torque checks should be completed throughout the life of the mower in accordance with the maintenance
chart provided in this manual.
Loose bolts on a frame or in a casting may be a result of:
● Vibration from the mower due to imbalance of the mower blades
● Pulled threads due to over tightening
● Distortion of the hole due to under tightening during installation
Bolts broken or sheared in the mounting structure or tractor may be the result of:
● Improper alignment of the Mounting Plate or Structure such that it is not sitting at on the mating
surface
● Distortion of the bolt due to over-tightening
● Under tightening of the bolts
Check the bolt torque during installation and prior to delivery with a suitable torque wrench.

PARTS
SECTION
Parts Section – 1

Parts Section – 2
For maximum safety and to guarantee optimum product reliability, always use
genuine Alamo Industrial Parts. The use of inferior replacement parts may cause
premature or catastrophic failure which could result in serious injury or death.
Direct any questions regarding parts to:
The following instructions are offered to help eliminate needless delay and error in processing
purchase orders for the equipment in this section.
1. The Parts Section is prepared in logical sequence and grouping of parts that belong to the
basic machine featured in this manual. Part Numbers and Descriptions are given to help locate
the parts and quantities required.
2. The Purchase Order must include the name and address of the person or organization ordering
the parts, who should be charged, and if possible, the serial number of the machine for which
the parts are ordered.
3. The Purchase Order must clearly list the quantity of each part, the complete and correct part
number (be sure to include all periods), and the basic name of the part.
4. The Manufacturer reserves the right to substitute parts where applicable.
5. Some parts are unlisted items which are special production items not normally stocked and
are subject to special handling. Request a quotation for such parts before sending a Purchase
Order.
6. The Manufacturer reserves the right to change prices without prior notice.
PARTS ORDERING GUIDE
ALAMO INDUSTRIAL
1502 E. Walnut
Seguin, Texas 78155
830-379-1480
®
®
©2012 Alamo Group Inc.

PART NAME INDEX
48 IN FLAIL AXE - HEAD ASY (PART 1)................................................................................................................................................. 5
48 IN FLAIL AXE - HEAD ASY (PART 2)................................................................................................................................................. 7
48 IN FLAIL AXE - HEAD ASY (PART 3)................................................................................................................................................. 9
50 IN ROTARY - BLADE BAR - HEAD ASY (SOLID MNT)................................................................................................................. 11
50 IN ROTARY - BLADE BAR - HEAD SUB-ASY (SOLID MNT)........................................................................................................ 13
50 IN ROTARY - BLADE BAR - HEAD ASY (SWIVEL MNT)............................................................................................................. 15
50 IN ROTARY - BLADE BAR - HEAD SUB-ASY (SWIVEL MNT).................................................................................................... 17
50 IN ROTARY - BLADE BAR ASY......................................................................................................................................................... 19
50 IN ROTARY - BLADE PAN - HEAD ASY (SOLID MNT)................................................................................................................. 21
50 IN ROTARY - BLADE PAN - HEAD SUB-ASY (SOLID MNT)........................................................................................................ 23
50 IN ROTARY - BLADE PAN - HEAD ASY (SWIVEL MNT).............................................................................................................. 25
50 IN ROTARY - BLADE PAN - HEAD SUB-ASY (SWIVEL MNT)..................................................................................................... 27
50 IN ROTARY - BLADE PAN ASY......................................................................................................................................................... 29
60 IN GRASS FLAIL - HEAD ASY (SOLID MNT).................................................................................................................................. 31
60 IN ROTARY - BLADE BAR ASY......................................................................................................................................................... 33
60 IN ROTARY - HEAD ASY (SOLID MNT)........................................................................................................................................... 35
60 IN ROTARY - HEAD SUB-ASY (SOLID MNT).................................................................................................................................. 37
60 IN ROTARY - HEAD ASY (SWIVEL MNT)....................................................................................................................................... 39
60 IN ROTARY - HEAD SUB-ASY (SWIVEL MNT).............................................................................................................................. 41
ROTARY - MOTOR AND SPINDLE ASY................................................................................................................................................ 43
ROTARY - MOTOR ASY (PART 1).......................................................................................................................................................... 45
ROTARY - MOTOR ASY (PART 2).......................................................................................................................................................... 47
ROTARY - SPINDLE ASY......................................................................................................................................................................... 49
BOOM ASY - 18 FT BOOM (PAGE 1)...................................................................................................................................................... 51
BOOM ASY - 18 FT BOOM (PAGE 2)...................................................................................................................................................... 53
BOOM ASY - 22 FT BOOM (PART 1)...................................................................................................................................................... 55
BOOM ASY - 22 FT BOOM (PART 2)...................................................................................................................................................... 57
BOOM ASY - 25 FT BOOM (PART 1)...................................................................................................................................................... 59
BOOM ASY - 25 FT BOOM (PART 2)...................................................................................................................................................... 61
BUZZ BAR ASY - 48 IN (PART 1)............................................................................................................................................................ 63
BUZZ BAR ASY - 48 IN (PART 2)............................................................................................................................................................ 65
BUZZ BAR ASY - 69 IN (PART 1)............................................................................................................................................................ 67
BUZZ BAR ASY - 69 IN (PART 2)............................................................................................................................................................ 69
BUZZ BAR ASY - 90 IN (PART 1)............................................................................................................................................................ 71
BUZZ BAR ASY - 90 IN (PART 2)............................................................................................................................................................ 73
BUZZBAR AND GRASS FLAIL MOTOR ASSEMBLY.......................................................................................................................... 75
BUZZ BAR SPINDLE ASSEMBLY........................................................................................................................................................... 77
COMMON CRATE COMPONENTS......................................................................................................................................................... 79
DECALS - 18-22-25 FT BOOM.................................................................................................................................................................. 81
DECALS - HYD TANK AND PUMP......................................................................................................................................................... 83
©2012 Alamo Group Inc. Parts Section -3
Machete 2 HF (11-08) Rev 02-12

PART NAME INDEX
FILTER ASY................................................................................................................................................................................................ 84
HIGH FRAME MOUNT ASY - 2WD......................................................................................................................................................... 85
HIGH FRAME MOUNT ASY - 4WD......................................................................................................................................................... 87
HIGH FRAME MOUNT SUB-ASY............................................................................................................................................................ 89
HOSE ROUTING - 18 FT BOOM............................................................................................................................................................... 91
HOSE ROUTING - 18 FT BOOM NOTES................................................................................................................................................. 92
HOSE ROUTING - 22 FT BOOM............................................................................................................................................................... 93
HOSE ROUTING - 22 FT BOOM NOTES................................................................................................................................................. 94
HOSE ROUTING - 25 FT BOOM............................................................................................................................................................... 95
HOSE ROUTING - 25 FT BOOM NOTES................................................................................................................................................. 96
HOSE ROUTING - HYDRAULIC KIT...................................................................................................................................................... 97
HYDARULIC CYLINDER ASY - DIPPER 22-25 FT BOOM.................................................................................................................. 99
HYDARULIC CYLINDER ASY - LIFT BOOM...................................................................................................................................... 100
HYDRAULIC CYLINDER ASY - HEAD SWIVEL (OPTIONAL)........................................................................................................ 101
HYDRAULIC CYLINDER ASY - SWING.............................................................................................................................................. 102
HYDRAULIC CYLINDER ASY - TILT.................................................................................................................................................. 103
HYDRAULIC TANK SUB-ASY.............................................................................................................................................................. 105
HYDRAULIC TANK W/PUMP AND ELECT VALVE ASY................................................................................................................. 107
JOYSTICK CONSOLE ASY..................................................................................................................................................................... 109
PUMP ASY - SERVO CONTROLLED (PART 1)................................................................................................................................... 111
PUMP ASY - SERVO CONTROLLED (PART 2)................................................................................................................................... 113
PUMP ASY - VARIABLE DISPLACEMENT......................................................................................................................................... 115
PUMP-TANK-VALVE COVER............................................................................................................................................................... 117
VALVE - PARTS - OPEN & CLOSED CENTER.................................................................................................................................... 119
VALVE ASSEMBLY - ELECTRO-HYDRAULIC VALVE................................................................................................................... 121
WIRE HARNESS ELECT-HYD VALVE................................................................................................................................................. 123
©2012 Alamo Group Inc. Parts Section -4
Machete 2 HF (11-08) Rev 02-12

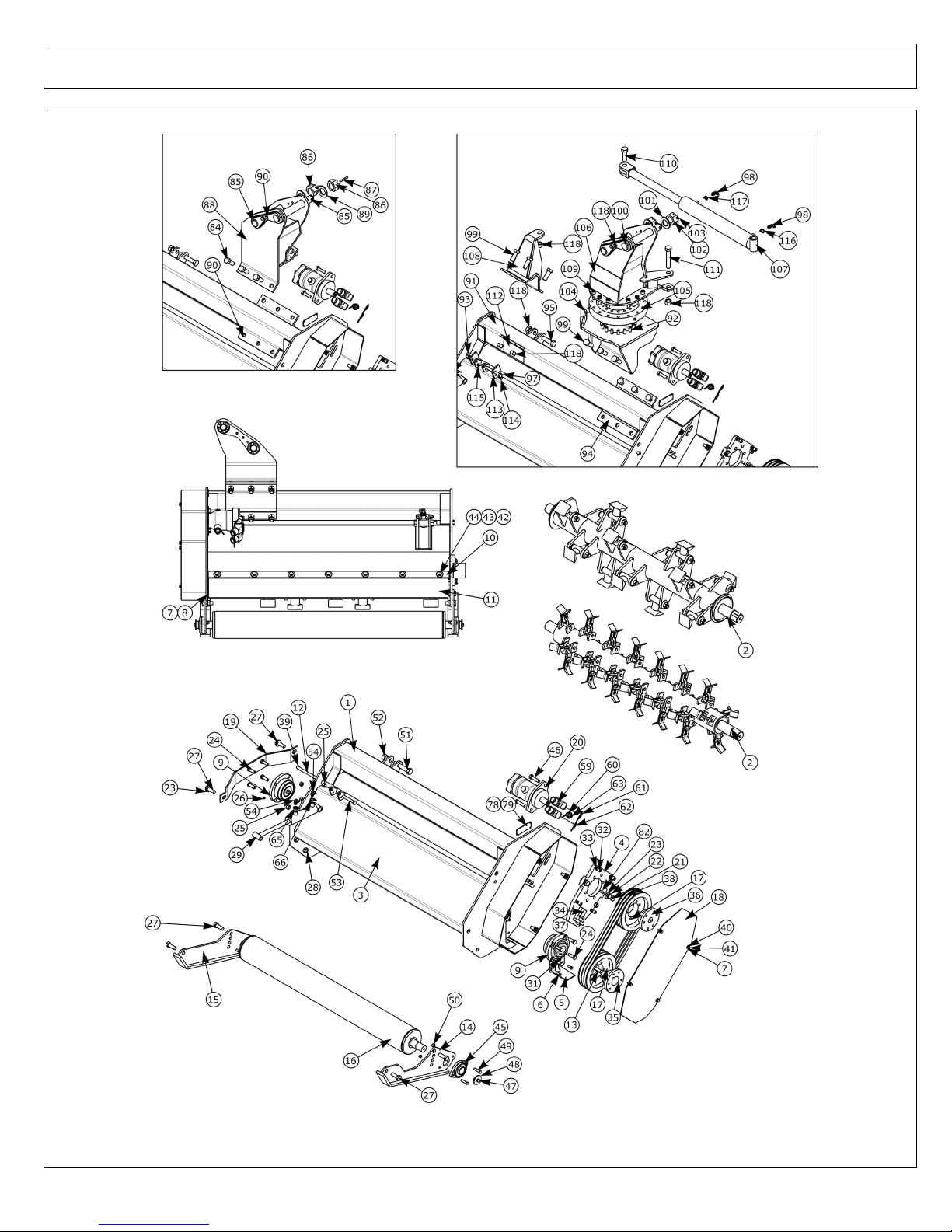

48 IN FLAIL AXE - HEAD ASY (PART 1)
©2012 Alamo Group Inc. Parts Section -5
Machete 2 HF (11-08) Rev 02-12

48 IN FLAIL AXE - HEAD ASY (PART 1)
Continued...
ITEM PART NO. QTY. DESCRIPTION
1 02970301 1 WLDMT, FLAIL AXE HEAD
2 02957655M 1 ASY, CUTTERSHAFT, 48" F/A
02989696 1 ASY, CTRSHFT, SHD, EXT SERV. KNIVES
3 02970465 1 WLDMT DOOR, 48" FLAIL AXE
4 02973256 1 WLDMT, MOTOR MOUNT
5 02970709 1 PLATE, COVER FLAIL AXE
6 10119000 2 HHCS 5/16 NC 1 PL5
7 00023500 6 FLATWASHER 5/16, TYPE AW, ZP
8 00750940 2 NUT, TOPLOCK 5/16 NC PL B
9 02958131A 2 FLANG BEARING ASY
10 02956714 1 CLAMP BAR
11 02956712 1 RUBBER FLAP
12 02970326 1 ROD-HINGE, F/A DOOR
13 02958198 1 1/2 X 1/2 X 1 7/8 LG
14 02970585 1 WLDM SKIDSHOE INSIDE FLAIL AXE
15 02956748 1 SKID SHOE WLDMT
16 02970540 1 WLDMT - REAR ROLLER
17 02967325 2 PULLEY, 3G5V - 8.50 DIA
18 02970325 1 PLATE-BELT & PULLEY COVER
19 02972442 1 FLAIL AXE BEARING GUARD
20 02970763 1 PISTON MOTOR
21 02675800 2 HHCS 5/8 X 1-1/2 PL GR5
22 00010300 2 HIGH ALLOY, L/W 5/8 YZ KG
23 00001400 4 FLATWASHER 5/8 PL STD
24 02892000 8 HHCS 1/2NC 1-1/2 LG PL8
25 00001800 11 LOCKNUT TLM 1/2 NC PLB
26 00752670 1 GREASE FITTING 1/4-28 BOLT THD
27 00008300 6 BOLT, HHCS 5/8" NC X 1-3/4" PL5
28 00695100 5 LOCKNUT TOPLOCK 5/8NC PLB
29 02970710A 1 CYL, DOOR, 48" F/A
31 000941 1 GREASE ZERK 1/4-28 90 BOLT THD
32 02970583 4 SHCS 3/8 NF 1-1/2 PL GR5
33 23504500 8 JAMNUT 3/8 NF
34 03200925 1 CARR 5/8 NC X 3 PL GR5
35 02967328 1 BUSHIN, QD HUB SF 1-15/16 ID
36 02970725 1 BUSHIN, QD HUB SF 1-1/8 ID
37 00013500 3 NUT, 3/8 NC JAMNUT
38 02970539 3 V BELT
39 02956768 2 PIN, ROLL 5/32X1
40 00011700 4 HIGH ALLOY, L/W 5/16 YZ KG
41 00035900 4 HHCS 5/16 NC X 3/4 GR5
©2012 Alamo Group Inc. Parts Section -6
Machete 2 HF (11-08) Rev 02-12

48 IN FLAIL AXE - HEAD ASY (PART 2)
©2012 Alamo Group Inc. Parts Section -7
Machete 2 HF (11-08) Rev 02-12

48 IN FLAIL AXE - HEAD ASY (PART 2)
Continued...
ITEM PART NO. QTY. DESCRIPTION
42 000642 7 LOCKNUT TLM 1/2 NC PLB
43 00002700 7 FLATWASHER, 1/2 PL STD
44 00019300 7 HHCS 1/2 X 1-1/2 NF GR5 PL
45 02957041 2 ROLLER BEARING & FLANGE
46 00013300 2 BOLT, HHCS 1/2" NC X 2" PL5
47 02972949 2 BOLT, HHCS 3/8 NC 1-1/4 PL8
48 02970586 2 WASHER, 2 X 7/16 X 3/16
49 02977955 4 HHCS 3/8NC 1-1/2 PL GR8
50 00015800 4 LOCKNUT TLM 3/8 NC PLC
51 00003300 1 HHCS 3/4" X 4" LG
52 00037200 7 NUT 3/4 NC LOCKNUT
53 00605600 1 HHCS 1/2 X 3-1/4 NC PL
54 02960018 2 ADP, HYD, ELBOW, 4MB-4MJ90
59 02043600 2 ADP, HYD ELBOW 16MB - 16MJ 45
60 00696800 1 ADP HYD STGHT 8MB-8MJ
61 02968896 1 PLASTIC TIE, ORANGE, 11LG
62 02968894 1 PLASTIC TIE, RED, 11LG
63 02968895 1 PLASTIC TIE, BLUE, 11LG
65 02968836 1 PLASTIC TIE, YELLOW
66 02968837 1 PLASTIC TIE, YELLOW & WHITE
67 002369 1 DECAL, DANGER, MULTI-HAZARD
68 02965141 1 DECAL, DANGER BOOM FLAILS
69 02967668 1 DECAL, THROWN OBJECTS
70 02967867 1 DECAL, DANGER SAFETY SHIELD
71 00725739 1 DECAL WARN. SHEILD&GUARDS
72 00758194 1 DECAL, WARNING, BELT SHIELD
73 02925100 1 DECAL, REPLACEMENT PARTS
74 000108 1 DECAL, INSTRUC, FLAIL OPER
75 000678 1 DECAL, GREASE FITTING INSIDE
76 00757139 1 DECAL, LOGO (ALAMO BY T.K.)
77 02970887 1 DECAL, LOGO, FLAIL AXE 48"
78 3710151 4 METAL TACK
79 02971501 1 PLATE, S/N FLAIL AXE 48"
81 02979551 1 DECAL, ALAMO INDUSTRIAL LOGO
82 03200521 1 KEY, STEP, 1/4X5/16X1
83 02970324 1 PLATE-CLAMP, HITCHPOST
84 02918600 6 HHCS 3/4 NC 2 PL8
85 02981757 2 WELDMENT, PIN, HITCH POST
86 02971701 2 NUT, SLOTTED 1-3/8 12NF PLB
87 165020 2 PIN, COTTER 5/16 X 2-1/2 PL
88 02986218 1 WELDMENT, HITCHPOST
©2012 Alamo Group Inc. Parts Section -8
Machete 2 HF (11-08) Rev 02-12

48 IN FLAIL AXE - HEAD ASY (PART 3)
©2012 Alamo Group Inc. Parts Section -9
Machete 2 HF (11-08) Rev 02-12

48 IN FLAIL AXE - HEAD ASY (PART 3)
Continued...
ITEM PART NO. QTY. DESCRIPTION
88 02986218 1 WELDMENT, HITCHPOST
89 02971702 2 FLATWASHER, 1-3/8 TYPE B PL NARROW
90 00011400 2 BOLT, HHCS 3/8 NC 1 PL5
91 02970301 1 WLDMT, FLAIL AXE HEAD
92 02892000 23 HHCS 1/2NC 1-1/2 LG PL8
93 00001800 11 LOCKNUT TLM 1/2 NC PLB
94 02970324 1 PLATE-CLAMP, HITCHPOST
95 00003300 1 HHCS 3/4" X 4" LG
96 00037200 13 NUT 3/4 NC LOCKNUT
97 00008200 1 BOLT, HHCS 1/2" NC X 3-3/4" PL5
98 02960018 4 ADP, HYD, ELBOW, 4MB-4MJ90
99 02918600 10 HHCS 3/4 NC 2 PL8
100 02981757 2 WELDMENT, PIN, HITCH POST
101 02971702 2 FLATWASHER, 1-3/8 TYPE B PL NARROW
102 02971701 2 NUT, SLOTTED 1-3/8 12NF PLB
103 165020 2 PIN, COTTER 5/16 X 2-1/2 PL
104 02984370 1 ADP, SWIVEL, FLAIL AXE
105 02981318 1 BEARING, 12OD X 5.8ID
106 02985319 1 WELDMENT, HITCH POST
107 02981315 1 CYLINDER, 2.5B X 1.5R X 14.38S
108 02984374 1 WLDMNT, SWIVEL, CYL BRKT
109 02981820 12 SHCS 1/2 NC X 1 1/2" LG PL8
110 02963646 1 HHCS 3/4 NC 2-1/2 PL8
111 00754105 1 HHCS 3/4 NC 4 1/2 PL8
112 02984382 1 CLAMP, PLATE, SWIVEL
113 02984470 2 STOP, FLAIL AXE SWIVEL
114 00021400 2 BOLT, HHCS 1/4" NC X 3/4" PL
115 02959924 2 NUT, TOPLOCK 1/4 NC PLB
116 02968832 1 PLASTIC TIE, GREEN
117 02968833 1 PLASTIC TIE, GREEN & WHITE
118 00011400 2 BOLT, HHCS 3/8 NC 1 PL5
©2012 Alamo Group Inc. Parts Section -10
Machete 2 HF (11-08) Rev 02-12

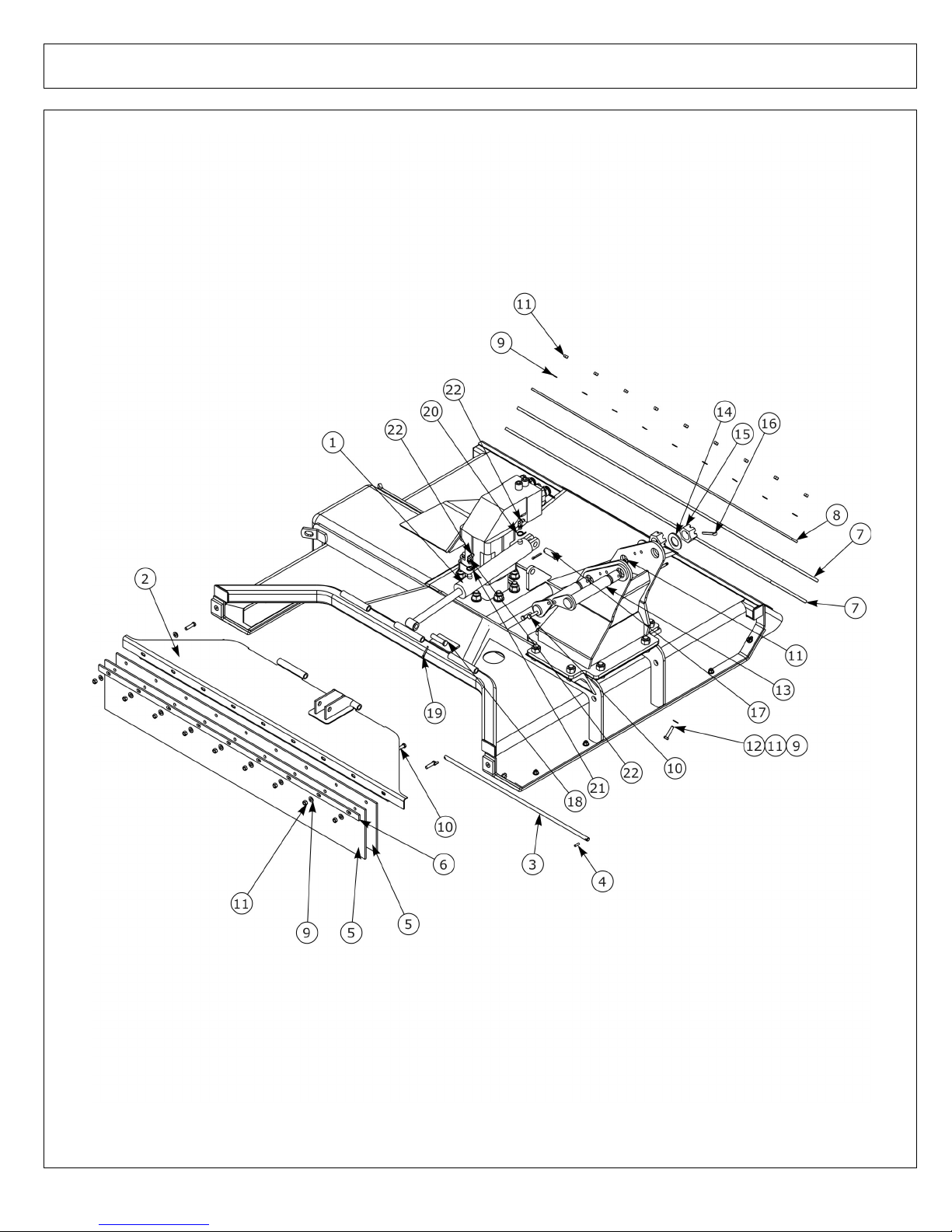

50 IN ROTARY - BLADE BAR - HEAD ASY (SOLID MNT)
©2012 Alamo Group Inc. Parts Section -11
Machete 2 HF (11-08) Rev 02-12

50 IN ROTARY - BLADE BAR - HEAD ASY (SOLID MNT)
Continued...
ITEM PART NO. QTY. DESCRIPTION
02986704 1 ASY, 50" ROT, PISTON, BAR
1 02961480A 1 HYD CYLINDER 2BORE X 9-1/4 STROKE
2 02982914 1 WELDMENT, DOOR
3 02982915 1 ROD, HINGE
4 99338S 2 PIN ROLL 1/4 X 3/4
5 02982919 2 FLAP, 8 1/2 X 52 X 1/4 THK
6 02982918 1 BAR, HOLD DOWN, FLAP
7 02982920 2 FLAP, REAR 10 X 53 X 3/8 THK
8 02982921 1 BAR, CLAMP, REAR
9 00011100 36 FLATWASHER 3/8 STD
10 00023100 11 HHCS 3/8 X 1-1/2 NC PL GR5
11 00015800 34 LOCKNUT TLM 3/8 NC PLC
12 00007000 9 HHCS 3/8 NC 1-3/4 PL5
13 02981757 2 WELDMENT, PIN, HITCH POST
14 02971702 2 FLATWASHER, 1-3/8 TYPE B PL NARROW
15 02971701 2 NUT, SLOTTED 1-3/8 12NF PLB
16 165020 2 PIN, COTTER 5/16 X 2-1/2 PL
17 651102 1 PIN-DRILLED
18 02976448 1 PIN - MACHINED HEAD
19 00755153 2 PIN, COTTER 3/16 X 1-1/2 PL
20 02968837 1 PLASTIC TIE, YELLOW & WHITE
21 02968836 1 PLASTIC TIE, YELLOW
22 02960018 2 ADP, HYD, ELBOW, 4MB-4MJ90
©2012 Alamo Group Inc. Parts Section -12
Machete 2 HF (11-08) Rev 02-12

50 IN ROTARY - BLADE BAR - HEAD SUB-ASY (SOLID MNT)
©2012 Alamo Group Inc. Parts Section -13
Machete 2 HF (11-08) Rev 02-12

50 IN ROTARY - BLADE BAR - HEAD SUB-ASY (SOLID MNT)
Continued...
ITEM PART NO. QTY. DESCRIPTION
02986704 1 ASY, 50" ROT, PISTON, BAR
1 00015800 18 LOCKNUT TLM 3/8 NC PLC
2 02891800 4 HHCS 1/2 NC 1-3/4 PL8
3 00019600 4 LOCKWASHER 1/2 HEAVY
4 02982907 2 SKID SHOE
5 02981411 1 WELDMENT, DECK 50" HEAD
6 02961038 1 GASKET
7 02982906 1 ASY, BLADE BAR W/BLADES
8 02964861 4 SHCS 3/4 NC 4" LG PL8
9 15B600 14 WASHER 3/8 SAE P
10 00003901 4 LOCKWASHER 3/4 HEAVY
11 00059700 14 FSCS 3/8 NC X 1-1/4
12 02968859A 1 ASSEMBLY, SPINDLE HOUSING-SPLINED
13 03200269 8 HHCS 3/4 NC 3 PL8
14 02963645 8 HHCS 3/4 NC 1-3/4 PL8
15 00037200 16 NUT 3/4 NC LOCKNUT
16 5312316 16 FLATWASHER 3/4 HARDENED
17 02986200 1 WELDMENT, HITCH POST
18 02979881 1 MOTOR PISTON 4.91 CID
19 02981819 2 ADP HYD STGHT 16FLH-16MJ SPCL
20 02968894 1 PLASTIC TIE, RED, 11LG
21 02968896 1 PLASTIC TIE, ORANGE, 11LG
22 02980236 8 HHCS 7/16 NC X 4 1/2"LG PL5
23 00022200 8 LOCKWASHER 7/16 PL
24 02968895 1 PLASTIC TIE, BLUE, 11LG
25 02972817 1 ADP HYD ELBOW 10MB - 8MJ 45 DEG
©2012 Alamo Group Inc. Parts Section -14
Machete 2 HF (11-08) Rev 02-12

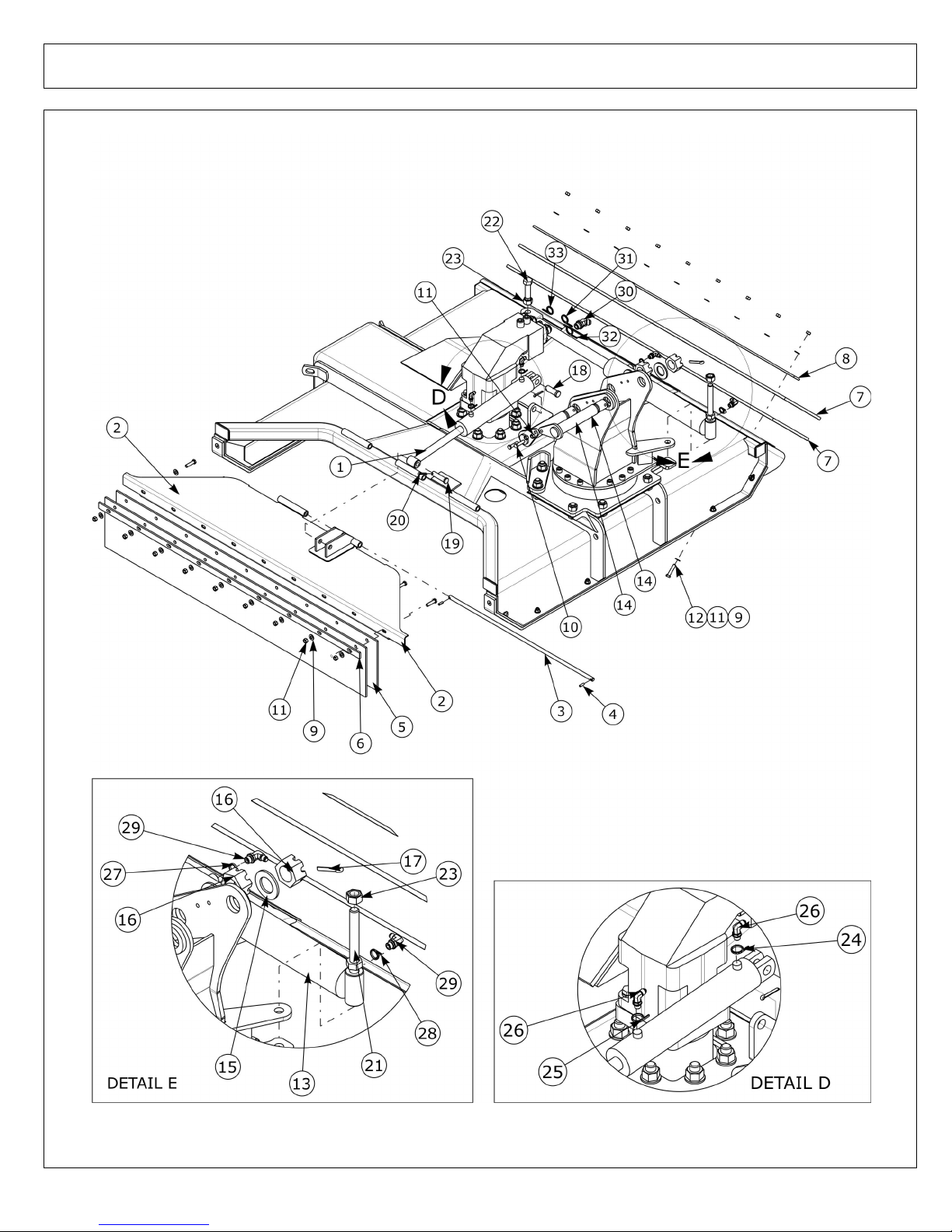

50 IN ROTARY - BLADE BAR - HEAD ASY (SWIVEL MNT)
©2012 Alamo Group Inc. Parts Section -15
Machete 2 HF (11-08) Rev 02-12

50 IN ROTARY - BLADE BAR - HEAD ASY (SWIVEL MNT)
Continued...
ITEM PART NO. QTY. DESCRIPTION
02986197 1 ASY, 50" ROT, PISTON, BAR, SW
1 02961480A 1 HYD CYLINDER 2BORE X 9-1/4 STROKE
2 02982914 1 WELDMENT, DOOR
3 02982915 1 ROD, HINGE
4 99338S 2 PIN ROLL 1/4 X 3/4
5 02982919 2 FLAP, 8 1/2 X 52 X 1/4 THK
6 02982918 1 BAR, HOLD DOWN, FLAP
7 02982920 2 FLAP, REAR 10 X 53 X 3/8 THK
8 02982921 1 BAR, CLAMP, REAR
9 00011100 36 FLATWASHER 3/8 STD
10 00023100 11 HHCS 3/8 X 1-1/2 NC PL GR5
11 00015800 20 LOCKNUT TLM 3/8 NC PLC
12 00007000 9 HHCS 3/8 NC 1-3/4 PL5
13 02981315 1 CYLINDER, 2.5B X 1.5R X 14.38S
14 02981757 2 WELDMENT, PIN, HITCH POST
15 02971702 2 FLATWASHER, 1-3/8 TYPE B PL NARROW
16 02971701 2 NUT, SLOTTED 1-3/8 12NF PLB
17 165020 2 PIN, COTTER 5/16 X 2-1/2 PL
18 651102 1 PIN-DRILLED
19 02976448 1 PIN - MACHINED HEAD
20 00755153 2 PIN, COTTER 3/16 X 1-1/2 PL
21 00754105 1 HHCS 3/4 NC 4-1/2 PL8
22 02963646 3 HHCS 3/4 NC 2-1/2 PL8
23 00037200 18 NUT 3/4 NC LOCKNUT
24 02968837 1 PLASTIC TIE, YELLOW & WHITE
25 02968836 1 PLASTIC TIE, YELLOW
26 02960018 2 ADP, HYD, ELBOW, 4MB-4MJ90
27 02968832 1 PLASTIC TIE, GREEN
28 02968833 1 PLASTIC TIE, GREEN & WHITE
29 03200762 2 ADP, HYD 6MB-4MJ 90
30 02972817 1 ADP HYD ELBOW 10MB - 8MJ 45 DEG
31 02968894 1 PLASTIC TIE, RED, 11LG
32 02968895 1 PLASTIC TIE, BLUE, 11LG
33 02968896 1 PLASTIC TIE, ORANGE, 11LG
©2012 Alamo Group Inc. Parts Section -16
Machete 2 HF (11-08) Rev 02-12

50 IN ROTARY - BLADE BAR - HEAD SUB-ASY (SWIVEL MNT)
©2012 Alamo Group Inc. Parts Section -17
Machete 2 HF (11-08) Rev 02-12
