Albrecht INDIVIDUAL CDS JOINT FOR DYNAMIC REDRESSION User manual

USER INSTRUCTIONS
INDIVIDUAL
CDS® JOINTS FOR DYNAMIC REDRESSION, CDS® JOINT 360°, CDS®
ADAPTER JOINT 360°,
CDS® JOINT 360° PLUS, CDS® ADAPTER JOINT 360° PLUS, CDS® NANO
JOINT,
CDS® NANO ADAPTER JOINT, CDS® NANO HYBRID JOINT, CDS ® MICRO
JOINT,
FUNCTIONAL JOINTS, ROM NANO ADAPTER JOINT, FOLLOWER,
CONIUNGI CONNECTION UNIT, NANO HAND PIECE

Individual
Instructions For Use
00800 03032900 – INTERNATIONAL SERVICE HOTLINE
2
Contents
1. Introduction .........................................................................................5
1.1. Foreword ...........................................................................................5
1.2. Customer information ........................................................................5
1.3. Mode of operation.............................................................................6
1.4. Intended use......................................................................................6
1.5. Scope of supply .................................................................................6
1.6. Declaration of conformity ...................................................................6
1.7. Indications ........................................................................................7
1.8. Contra-indications .............................................................................8
1.9. Safety instructions..............................................................................8
1.10. Warranty..........................................................................................9
2. CDS®Joint / CDS®Nano joint ..............................................................10
2.1. Selection of joints according to position of use and direction of action 10

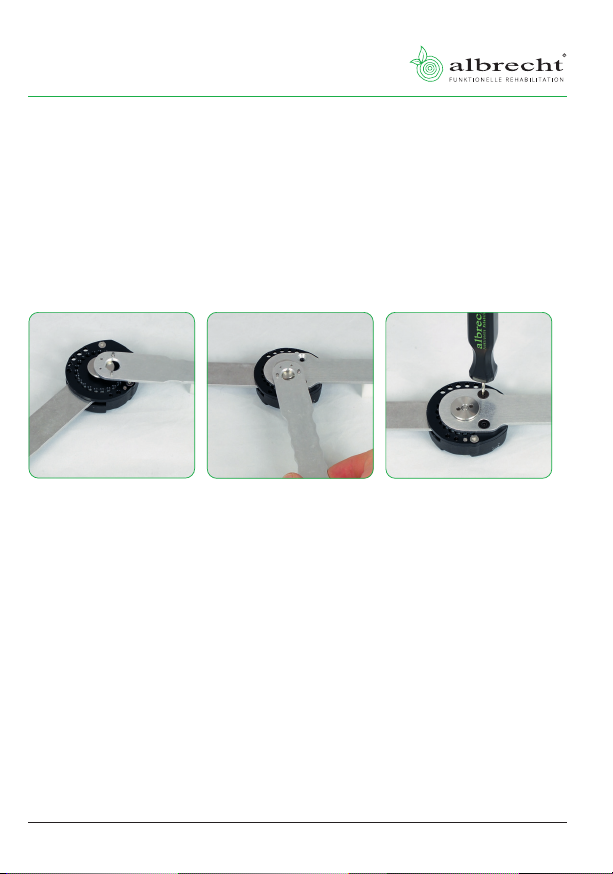

2.2. Install the anchor on the joint ........................................................... 11
2.2.1. CDS®Joint (max. torque approx. 5.2 Nm) ..................................... 11

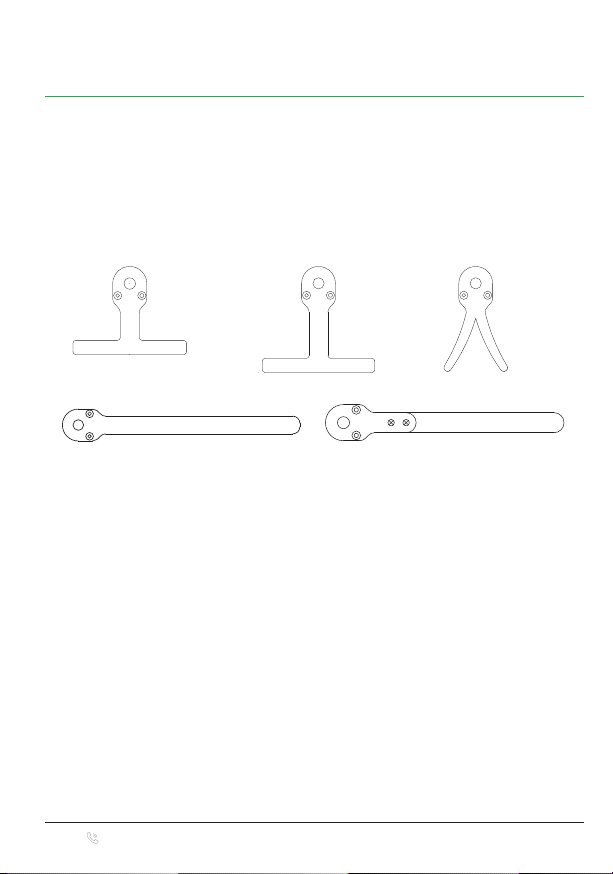

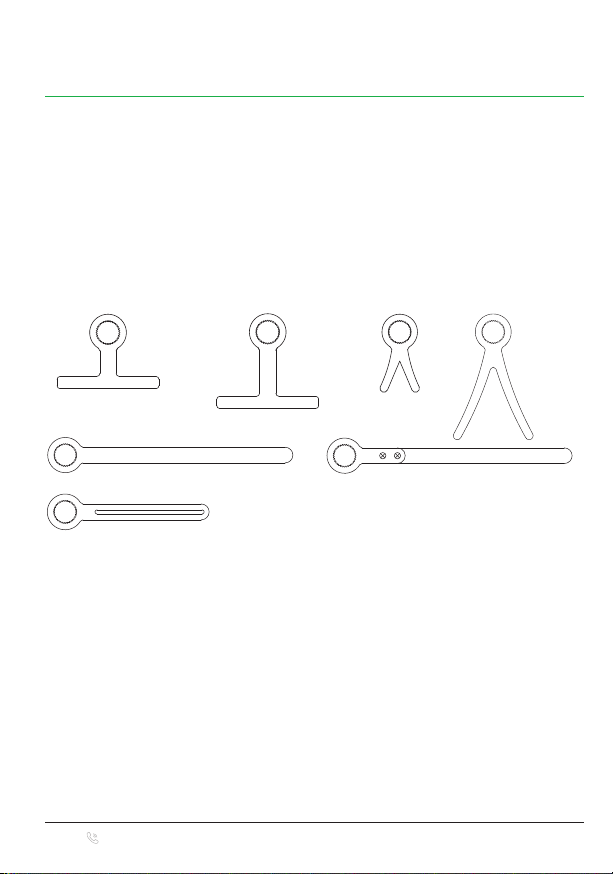

2.2.2. Optional anchors for the CDS®joints............................................ 12
2.2.3. CDS®Nano joint (max. torque approx. 2.2 Nm) ............................ 13
2.2.4. Optional anchors for the CDS®Nano joints................................... 14
2.3. Adjust and set the CDS®Joints /
CDS®Nano joints................................................................................... 15
2.3.1. Irons and holes of the pivot supports and anchors......................... 15
2.4. Spring tension .................................................................................16

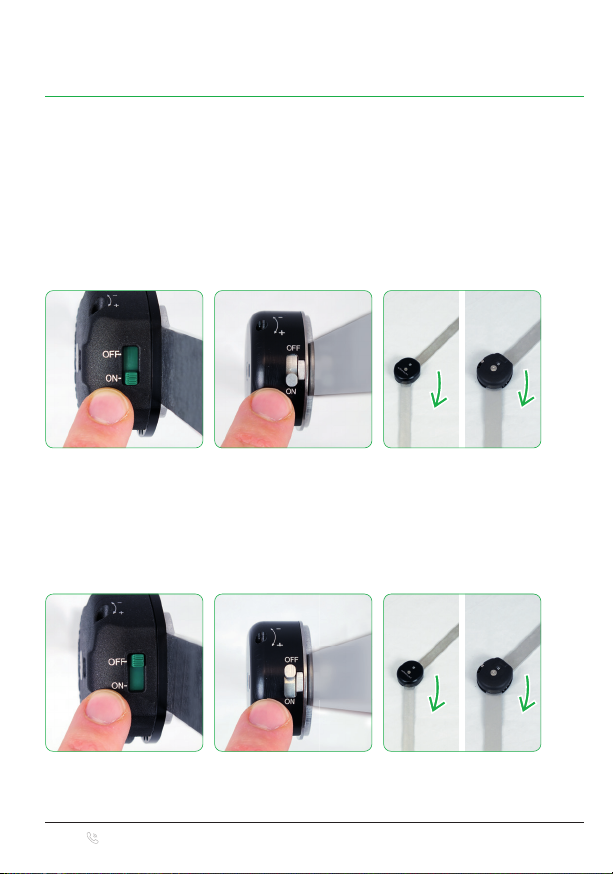

2.4.1. Activating the spring tension .......................................................16
2.4.2. De-activating the spring tension .................................................. 16

Instructions For Use
www.albrechtgmbh.com 3

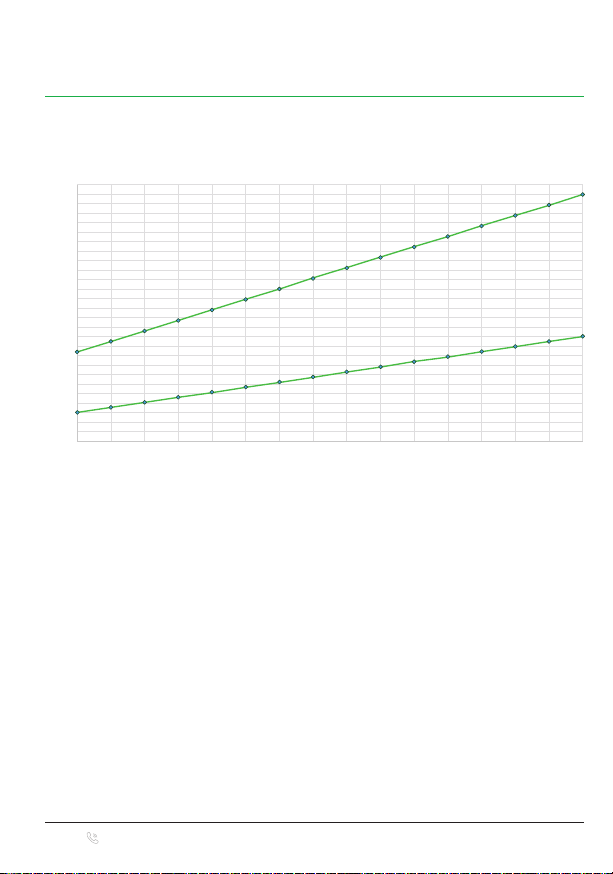

2.4.3. Set and adjust the spring tension to the strength required by the
patient ............................................................................................... 17

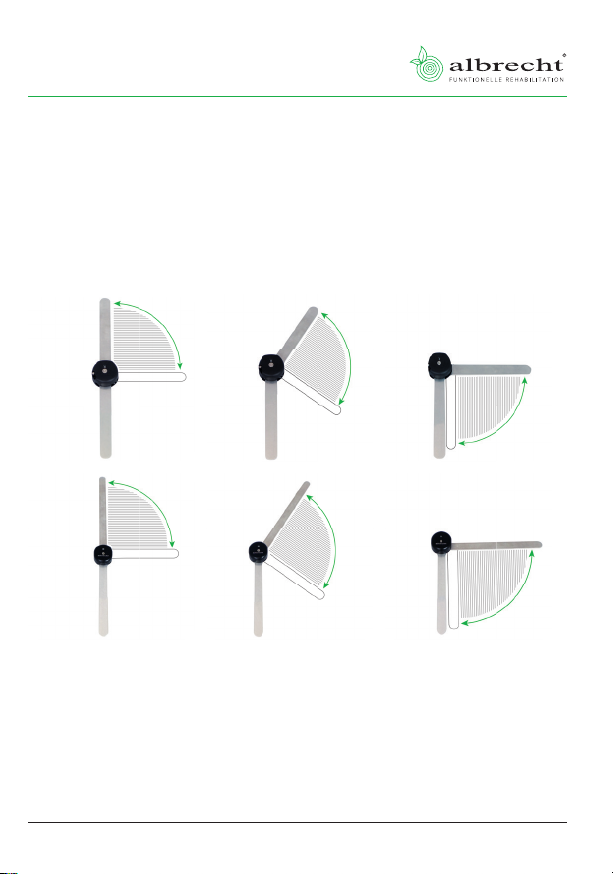

2.5. Redression range .............................................................................19
2.5.1. Adjust or change the position of
the redression range on the CDS®Joints ...............................................20
2.5.2. Adjust or change the position of
the redression range on the CDS®Nano joints.......................................21
2.6. Options for limiting CDS®joints ........................................................22
2.6.1. Adjusting the limiter with stop screw............................................22
2.6.2. Adjusting the limiter with stop wedge..........................................23
2.7. Setting the fine adjustment for
CDS®Joint 360° plus and CDS®Adapter joint 360° plus ...........................24
3. CDS®Nano Hybrid joint......................................................................25
3.1. Adjust or change the position of
the redression range on the CDS®Nano hybrid joints ...............................25
3.2. Activating the spring tension ...........................................................26
3.3. Deactivation of spring tension ..........................................................26
3.4. Adjust the spring tension to the strength required by the patient .......27
4. CDS ®Micro joint ................................................................................29
4.1. Adjusting and changing the spring tension
(max. torque approx. 0.4 Nm).................................................................29
5. ROM Nano adapter joint ....................................................................30
5.1. Remove the cover.............................................................................30
5.2. Adjusting the extension stop ............................................................31
5.3. Adjusting the flexion stop................................................................. 31
5.4. Immobilise.......................................................................................32

Individual
Instructions For Use
00800 03032900 – INTERNATIONAL SERVICE HOTLINE
4
5.5. Install the cover ...............................................................................32
6. Coniungi connection unit ..................................................................33
6.1. Disconnect the Coniungi connection unit ..........................................33
6.2. Connect the Coniungi connection unit .............................................33
6.3. Coniungi drilling templates ...............................................................34
6.3.1. Drilling template 16 mm ..............................................................34
6.3.2. Drilling template 24 mm..............................................................34
6.4. Coniungi connection support ..........................................................35
7. Nano hand piece ................................................................................36
7.1. Mounting the Nano hand piece and adjusting
the palm plate........................................................................................36
7.2. Adjusting the finger plate .................................................................37
7.3. Optional disassembly of thumb plate .................................................38
8. Cleaning, servicing and disinfecting ..................................................39
8.1. Pads and straps ................................................................................39
8.2. Supports (joints) ..............................................................................39
9. Technical data / materials ...................................................................40
10. Disclosure.......................................................................................... 41
11. Disposal ............................................................................................. 41
Duty to report ........................................................................................ 41

Instructions For Use
www.albrechtgmbh.com 5
1. Introduction
Note: In the following, the various CDS®
Joints (CDS®Joint 360°, CDS®Joint 360° plus,
CDS®Adapter joint 360°, CDS®Adapter joint
360° plus) are collectively referred to as CDS®
Joints .
CDS®Nano joints (CDS®Nano joint, CDS®
Nano adapter joint) are combined under the
generic term CDS®Nano joint .
CDS® Followers (CDS®FFollowers, CDS® Adapter
followers) are combined under the generic
term CDS® followers.
CDS® Nano followers (CDS® Nano followers,
CDS® Nano Adapter followers) are combined
under the generic term CDS® Nano followers
.
1.1. Foreword
The individual range of the albrecht GmbH
includes:
• CDS®Joint
• CDS®Nano joint
• CDS®Nano hybrid Joint
• CDS ®Micro joint
• ROM Nano adapter joint
• Various anchors for CDS®joints
• Various anchors for CDS®nano joints
• CDS ®Follower
• CDS®Nano Follower
• Coniungi connection unit
• Nano Hand piece
• CDS ®Straightening set
CDS®Joint /CDS® Nano joint /
CDS® Nano hybrid joint /CDS® Micro joint
Dynamic redression joints are used for
the treatment of both orthopaedic and
neurological joint contractures. The shortening
of the tissue surrounding the joint results in
movement restrictions, which significantly
affect the daily life of the patients concerned.
Therefore the aim of our CDS®treatment
plan is to eliminate movement deficits and
thus support a return to an "active life" by
means of suitably-dosed continuous treatment
without pain.
ROM Nano adapter joint
Functional joints are used to relieve and
stabilise the joint and ligamentous apparatus
after trauma and surgical procedures. Their
job is to protect joints and ligaments during
rehabilitation without stiffening them.
The joints provide protection and management
during the healing process and allow a
gradual, controlled return to full physiological
mobility.
1.2. Customer information
For your own safety, please read these
instructions slowly and carefully before using
the devices of the individual range. Only if
all instructions and procedures have been
thoroughly read and understood can proper
use and operation for the purpose intended
be possible. If something is not clear in the

Individual
Instructions For Use
00800 03032900 – INTERNATIONAL SERVICE HOTLINE
6
instructions for use or if directions, operations
or safety information are not completely clear,
please contact the responsible specialist dealer
or go directly to albrecht GmbH before using
the device. This applies in particular to the
safety instructions.
1.3. Mode of operation
CDS®Joint /CDS® Nano joint /
CDS® Nano hybrid joint /CDS® Micro joint
The CDS®Joint /CDS® Nano joint /CDS®
Nano hybrid joint and/CDS® Micro joint are
based on the CDS®principle and are used to
treat joint movement deficits. Thanks to the
dynamic continuous pull, the joint stimulates
the growth of the shortened tissue.
ROM Nano adapter joint
The ROM Nano adapter joint stabilises and
relieves the joint during conservative and post-
operative rehabilitation.
The ROM Nano adapter joint can be
adjusted in 10° increments (from -10° to
100°). Thus, a physiological stretching is
possible.
1.4. Intended use
The products of the Individual range are
intended to be used exclusively for the orthotic
treatment of joints.
1.5. Scope of supply
After receiving the device, please check that it
is complete.
• Product
• Instructions For Use
Additionally for the CDS®Joint /CDS®
Nano joint /
CDS® Nano hHybrid Joint
• Hexagon-head screwdriver from albrecht
GmbH
1.6. Declaration of conformity
The albrecht GmbH company, as the
manufacturer solely responsible, declares that
the CDS®Joint /
CDS®Nano joint /CDS® Nano hybrid joint /
CDS® Micro joint /
ROM Nano adapter joint / CDS®Follower /
CDS®Nano follower / Coniungi joint / Nano
hand piece conforms to the Regulation (EU)
2017/745 concerning medical devices.

Instructions For Use
www.albrechtgmbh.com 7
1.7. Indications
The doctor decides on the treatment based on
his diagnosis.
In general, the device is used is to treat the
following problems:
CDS®Joint /CDS®Nano joint /CDS®NNano
hybrid joint
• Joint contraction, among other things, as
a result of:
– vegetative state
– cerebral palsy
– genetic syndrome
– epilepsy
– spina bifida
– near-drowning
– burns
– stroke
– spinal cord Injury
– paralysis
– cranial brain trauma
– capsular ligament Injury
– surgical procedure
– before and after joint replacement
– in osteoarthritis and chronic polyarthritis
– radius fractures
– radial head dislocation
– crack infrastructure
– ulna fractures
• For preventing new contractures after
arthrolysis
• muscle fibre fracture of the quadriceps
• patellar tendon tear
• quadriceps weakness
• conservative, postoperative for all
indications in which an active stretching of
the knee is contra-indicated
• knee stretch deficit after lower leg
amputation
• treatment after biceps tendon rupture
• spasticity after surgery on central nervous
system
• hereditary spastic paraparese
• muscle dystrophy
• arthrogryposis multiplex congenita
• habitual forefoot
ROM Nano adapter joint
• collateral ligament injury
• crucifix rupture
• meniscus Injury
• after quadriceps tendon rupture
• femur condylene fracture
• patella fracture
• tibia head fracture
• after meniscus reconstruction
• after micro-fracturing, pridiate drilling
• after abrasion chondroplasty
• after cartilage transplantation
• after change-over osteotomy
• after implantation of a collagen meniscus
implant
• patella luxation
• At medium instability of the knee joint
• genu recurvatum
• mild to moderate instability of the elbow
joint
• post-traumatic and post-operative

Individual
Instructions For Use
00800 03032900 – INTERNATIONAL SERVICE HOTLINE
8
immobilisation
• managed movement of the elbow joint
CDS ®Micro joint
• Joint contraction, among other things, as
a result of:
–surgical procedure
–in osteoarthritis and chronic polyarthritis
–burns
–stroke
–spinal cord Injury
–paralysis
–cranial brain trauma
–capsular ligament Injury
–before and after joint replacement
• In case of cutting injury
• After tendon seam
• In Dupuytren's disease
• For preventing new contractures after
arthrolysis
for all other indications, the doctor must be
consulted.
1.8. Contra-indications
CDS®Joint /CDS® Nano joint /
CDS® Nano hybrid joint /CDS® Micro joint
• Bony blockages, osteoporosis,
thrombophlebitis
ROM Nano adapter joint
• Circulatory disorder
• Varicosis
The orthosis is only intended to be in contact
with intact skin.
1.9. Safety instructions
The optimal effect of the CDS®Joint /
CDS® Nano joint /CDS® Nano hybrid joint /
CDS® Micro joint /ROM Nano adapter joint /
Coniungi connector / Nano handpiece / CDS®
follower / CDS®Nano co-rotor is only achieved
with correct application.
• The products of the Individual range may
only be used in an intact, complete and
mechanically perfect condition. This must be
checked by the user before each application.
• Undoing or removing one or more straps, as
well as excessively loosening the strap while
using the Nano handpiece, will reduce the
therapeutic effect of the orthosis and may
cause injury.
• Before delivery of the orthosis, the
connecting screws between the middle part
and the connection support of the CDS®
Adapter joint and CDS®Nano adapter
joint must be secured with LOCTITE® 243
medium strength.
• The products of the Individual range must
not be worn on open wounds.
• The skin should be free of oils, fats, gels
or other residues to avoid skin or material
structure reactions.
• The orthoses with the added parts of the
individual range should be tight, but not
too tight, in order not to restrict blood
circulation and to prevent damage to the
nervous system and lymphatic vessels.
Excessive compression should therefore be

Instructions For Use
www.albrechtgmbh.com 9
avoided.
• The devices of the individual range are not
intended for single use, but for multiple use
by only one person.
• The products of the individual range are not
supplied sterile.
• If you experience an allergic reaction,
contact your doctor immediately.
• Keep in mind that parts of the individual
range that are exposed to direct sunlight
may heat up. If necessary, protect the device
from direct sunlight.
• Currently, there is no flammability test. Use
caution when handling open flames such
as lighters and cigarettes in the immediate
vicinity of the devices of the individual
range.
1.10. Warranty
We guarantee the devices of the individual
range for the application period of 3 months.
The CDS®joint /CDS® Nano joint/CDS® Nano
hybrid joint/CDS®Mikrojoint/ROM Nano
adapter joint /Coniungi connection element/
Nano hand piece/CDS®Follower/CDS®Nano
follower is a medical medical rehabilitation
device. If individual joints or assemblies are
used, they must be used in accordance with
their intended purpose. The manufacturer can
no longer assume any guarantee for changes
or modifications (e.g. additional mounting
holes) of the individual parts or components.
The removal of or damage to the quality
management seal will invalidate the warranty.

Individual
Instructions For Use
00800 03032900 – INTERNATIONAL SERVICE HOTLINE
10
2. CDS®Joint / CDS®Nano joint
2.1. Selection of joints according to position of use and direction
of action
Remarks
—For treatment in the direction
of flexion: The CDS®Joints
and
CDS®Nano joints are basically
extension joints. For the
flexion a right joint is needed
instead of the left one (and
vice versa).
—For a hand or ankle joint
fitting, the joint is rotated
180° so that the anchor is
positioned distally.
An-
chor
Sup-
port
Right
joint
(Extension)
Anchor
Support
Left
joint
(Extension)
R L

Instructions For Use
www.albrechtgmbh.com 11
2.2. Install the anchor on the joint
2.2.1. CDS®Joint (max. torque approx. 5.2 Nm)
1 Loosen the central screw on the joint using the lock nut wrench.
2 Secure the anchor to the joint using the central screw.
3 Use the black countersunk screws to position the anchor in the position you
want.
223311

Individual
Instructions For Use
00800 03032900 – INTERNATIONAL SERVICE HOTLINE
12
2.2.2. Optional anchors for the CDS®joints
1 T-anchor short
2 T-anchor long
3 V-anchor
4 Straight anchor
5 Adapter anchor straight
1
1
4
4
5
5
2
2
3
3
Note: The explained steps must be performed immediately with any
anchor that is assembled for the corresponding joint. For simplicity, only
the straight anchor is shown.
Note: For each individual special construction joint there is a suitable
follower from albrecht GmbH.

Instructions For Use
www.albrechtgmbh.com 13
2.2.3. CDS®Nano joint (max. torque approx. 2.2 Nm)
1 Loosen the central screw on the joint using the screwdriver supplied.
2 Make sure that the Teflon washer is positioned correctly. The Teflon disc
causes pressure on the joint support, which prevents the joint support from
having too much play.
3 Position the anchor on the toothing and fix it in the desired position using the
central screw.
223311

Individual
Instructions For Use
00800 03032900 – INTERNATIONAL SERVICE HOTLINE
14
2.2.4. Optional anchors for the CDS®Nano joints
1 Nano T - anchor short
2 Nano T anchor long
3 Nano V - anchor short
4 Nano V anchor long
5 Nano anchor straight
6 Nano adapter anchor straight
7 Nano anchor straight elongated
hole
1
1
5
5
7
7
6
6
2
2
3
3
4
4
Note: The explained steps must be performed immediately with any
anchor that is assembled for the corresponding joint. For simplicity, only
the straight anchor is shown.
Note: For each individual special construction joint there is a suitable
follower from albrecht GmbH.

Instructions For Use
www.albrechtgmbh.com 15
2.3. Adjust and set the CDS®Joints /
CDS®Nano joints
2.3.1. Irons and holes of the pivot supports and anchors
The individual special joints and the various anchors are supplied with straight,
non-curved or recessed supports and can be individually processed and adapted
by you.
The following points must be observed when adjusting :
• When you bend the aluminium supports, be sure to heat the aluminium
slightly for the bending operation.
• Always use a round bending iron.
• Bend in several small steps (max. 20° steps).
• Do not bend in close proximity to the joint to avoid damage to the joint
(minimum distance: 5 mm)
• Very small bending radii must be avoided to prevent breakage of the support.
• Multiple corrections and changes to the bend direction must be avoided.
• A maximum bend angle of 90° must not be exceeded.
• When drilling the supports, you should follow the detailed instructions,
especially with VA material. You should always use a HSS/E drill bit to machine
the material and drill at a speed of 400-500 revolutions per minute to prevent
the material from hardening. Suitable HSS/E drills can also be purchased from
albrecht GmbH.

Individual
Instructions For Use
00800 03032900 – INTERNATIONAL SERVICE HOTLINE
16
2.4. Spring tension
2.4.1. Activating the spring tension
1 To activate the spring tension, set the switch to "on".
2 Move the joint to Extension or Flexion against the desired direction of action of the spring
force until you feel a slight resistance. Overcome this to activate the spring force.
1
1
1
1
2
2
2.4.2. De-activating the spring tension
Before putting on or taking off the brace, you must deactivate the spring tension.
1 Set the switch to "off".
2 Move the joint to Extension or Flexion against the desired direction of action of the spring
force. This movement adjusts the position of the activation mechanism. The patient can
reactivate the spring force in this position. (See 2.4.1)
1
1
1
1
2
2
Activating or deactivating the spring tension does not change the strength of the spring tension.

Instructions For Use
www.albrechtgmbh.com 17
2.4.3. Set and adjust the spring tension to the strength required
by the patient
1 The set spring force is indicated by a scale from 0 to 15 and can be seen
through the viewing window on the CDS®housing,. The areas above 15 and
below 0 are marked in red.
To prevent damage to the CDS®Joint / CDS®Nano joint, do not rotate
into the red area of the joint viewing window .
2 Insert the tool into the hole on the side of the joint up to the stop. Turning
it clockwise or in the + direction increases spring tension, turning it
counterclockwise or in the - direction decreases spring tension.
2211
If two joints are used, the spring tension must be the same for both joints.
The spring tension can be adjusted to the course of treatment.
Activating or deactivating the spring tension does not change the strength of the
spring tension.
The spring force may only be adjusted in consultation with the attending
physician.

Individual
Instructions For Use
00800 03032900 – INTERNATIONAL SERVICE HOTLINE
18
0
0,2
0,4
0,6
0,8
1
1,2
1,4
1,6
1,8
2
2,2
2,4
2,6
2,8
3
3,2
3,4
3,6
3,8
4
4,2
4,4
4,6
4,8
5
5,2
5,4
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Einstellungsstufen
CDS®Nano Gelenk
CDS®Gelenk
Drehmoment in Nm bei Beugung 90°
Drehmoment in Nm

Instructions For Use
www.albrechtgmbh.com 19
2.5. Redression range
The redression range of the CDS®Housing is 90°.
With the CDS®joint / CDS®Nano joint, the position of this redression area can
be freely selected by means of an adjustable joint support. This means that
the CDS®Joint / CDS®Nano joint can be used as both an extension joint and a
flexion joint. This also makes it possible to deal with extreme flexibility deficits,
for example.

Individual
Instructions For Use
00800 03032900 – INTERNATIONAL SERVICE HOTLINE
20
2.5.1. Adjust or change the position of
the redression range on the CDS®Joints
1 Remove the two black countersunk screws.
2 You can adjust the position of the redression range in 15° increments.
3 Replace and tighten the countersunk screws again.
1
1
2
2
1
1
3
3
