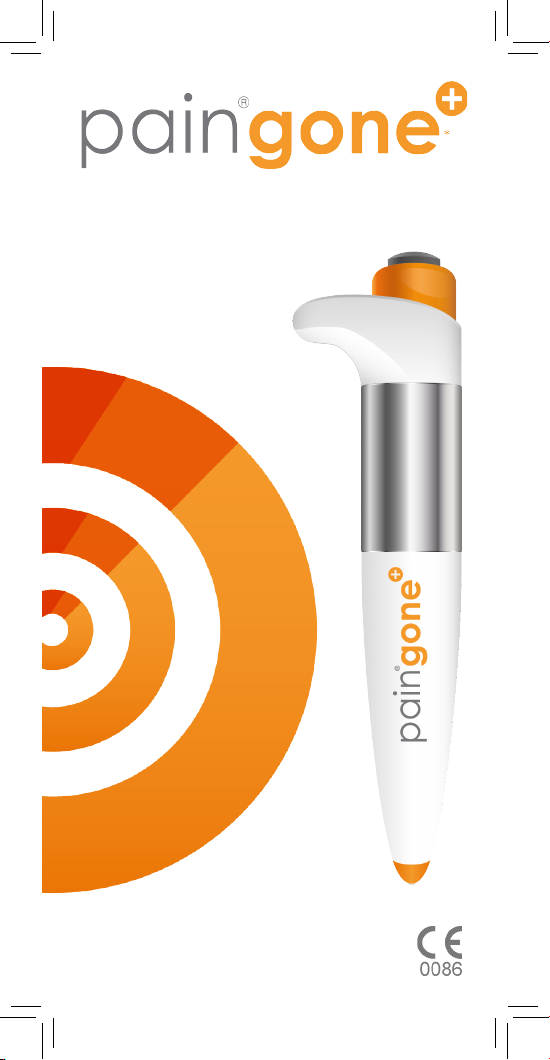

Paingone Paingone Plus User manual

Fast,
Simple,
Drug-Free
Pain Relief
*Paingone is a registered trademark and the name does
not imply efcacy. For the temporary relief of pain as part of
current medication programme.

2
DO NOT USE PAINGONE PLUS:
• If you use a pacemaker
• If you suffer from heart rhythm problems
• During pregnancy
• If you suffer from epilepsy
• On children
• If you experience any irritation, itching or
marking of the skin or any other adverse
symptoms during or after application
Please consult your doctor if you are
concerned about the applicability of this
product in relation to your own condition
or if you are already taking steroids,
warfarin or similar medication
Paingone Plus is not intended to
replace current medication, diagnose or
cure any conditions
DO NOT APPLY PAINGONE
PLUS:
• On the carotid sinus nerves, laryngeal or
pharyngeal muscles in the front/side of
your neck
• Over the heart or directly over metal
Implants
• In and around your eyes
• On open wounds
• On wet skin or in damp surroundings
• While driving
• Close to oxygen or inammable liquids
• If the plastic body of the device is broken
in any way or the interior exposed.
Failure to follow these warnings could result
in serious injury

3
CAUTIONS
• Read instructions before use
• Keep instructions in a safe place
• Keep out of reach of children
Thank you for your purchase of the
Paingone Plus
It’s here to help you whenever and
wherever you need relief. This guide will tell
you how to get started and how to get the
most out of your device.
What is Paingone Plus ?
Paingone Plus is a low frequency
TENS (Transcutaneous Electrical Nerve
Stimulation) therapy device powered
by battery. This therapy relieves pain by
sending mild electrical impulses through the
skin into the nerve bres.
Mechanism of Action
Paingone Plus is placed directly on the
area you wish to use it or, alternatively, an
acupuncture point. Holding the activating
button results in the generation of electrical
impulses that are transferred to the skin
via the contact electrode. Pain relief is
achieved via TENS therapy.

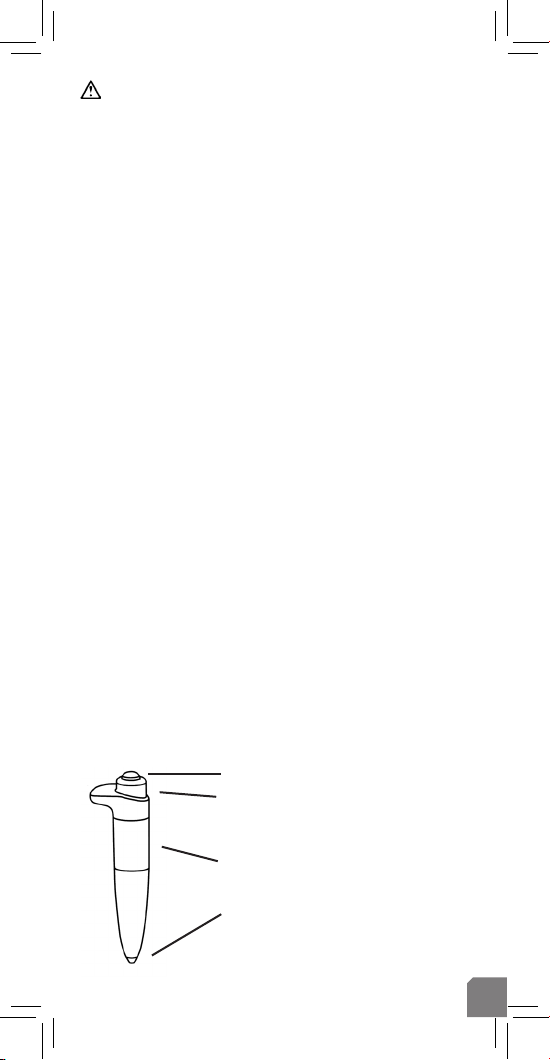

Paingone Plus Overview
1. Power Button
2. Removable Battery
Cover
3. Metal contact plate
4. Tip of device (contact
electrode)

4
Inserting the battery
Your Paingone Plus comes supplied with 1x
AAA battery. The battery is located in the
foam layer underneath the device.
Remove the battery cover on the device
(2) by twisting it anti-clockwise. Insert the
battery with the positive (+) tip going in rst.
If the battery is inserted incorrectly the
device will not work.
Replace the battery cover, twisting it gently
in a clockwise direction until it is rmly
secured.
Your Paingone Plus is now ready to use
Applying Paingone Plus

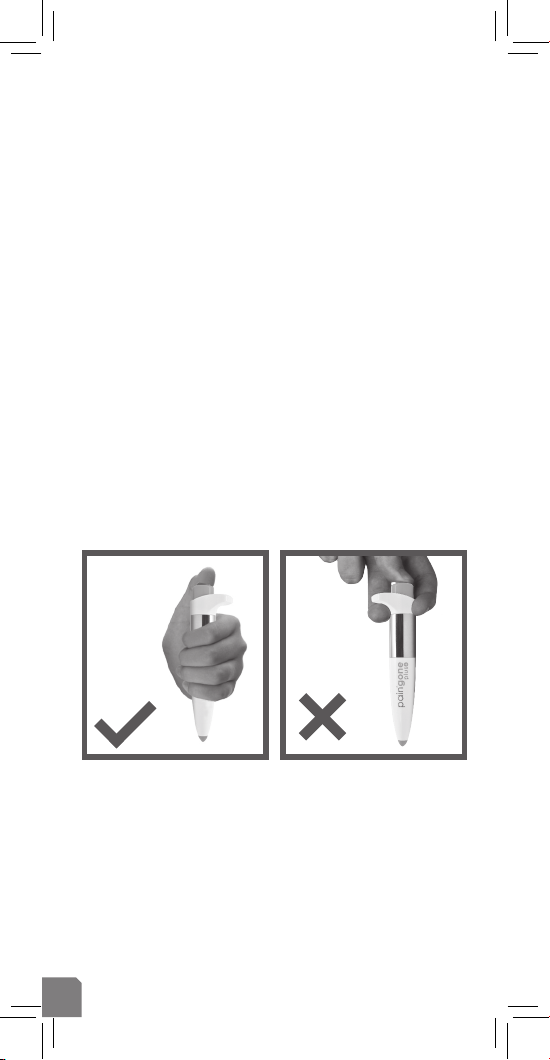

Hold Paingone Plus in your hand and rmly
wrap your ngers around the metal contact
plate (3)
Now place the tip (4) of the device directly
on the point you wish to use it. Press and
hold the Power Button (1) for 30 seconds.
Paingone Plus will emit controlled electrical
pulses. You may feel these pulses against
your skin, although some people do not feel
anything.

5
After 30 seconds, simply release the Power
Button (1). This will deactivate the device
and the electrical pulses will stop.
You can treat larger areas by moving the
device along the line of pain as it delivers
the pulses. Note that Paingone Plus can
also be applied over light clothing.
For best results use Paingone Plus several
times a day or as often as required. You
cannot overdose on Paingone Plus.
Maintenance
To clean, simply wipe with a soft, slightly
damp cloth and allow to dry before re-use.
Replace the battery when the device
ceases to emit electrical pulses. One
AAA battery can provide approximately
800 applications. This represents about 8
months’ use, based on 3 applications per
day (performance may vary depending on
battery used).
12 month replacement warranty
Register your Paingone Plus online within
1 month of purchase. In addition to
the 12-month manufacturer warranty,
you will benet from a further 12-month
replacement warranty in case of
manufacturing fault.

6
If your Paingone Plus develops a fault within
the warranty period, simply return the
device with a copy of the purchase receipt
to:
Medi-Direct International Ltd
Unit 24, Wilford Business Park,
Ruddington Lane, Nottingham
NG11 7EP, UK
A replacement will be sent to you free of
charge. Cover is from the date of receipt. A
replacement cannot be given if we believe
the malfunction is due to misuse.
Warranty Registration
Please visit www.paingone.com/warranty
to register your extended Paingone Plus
warranty and for full terms and conditions
and return address details.

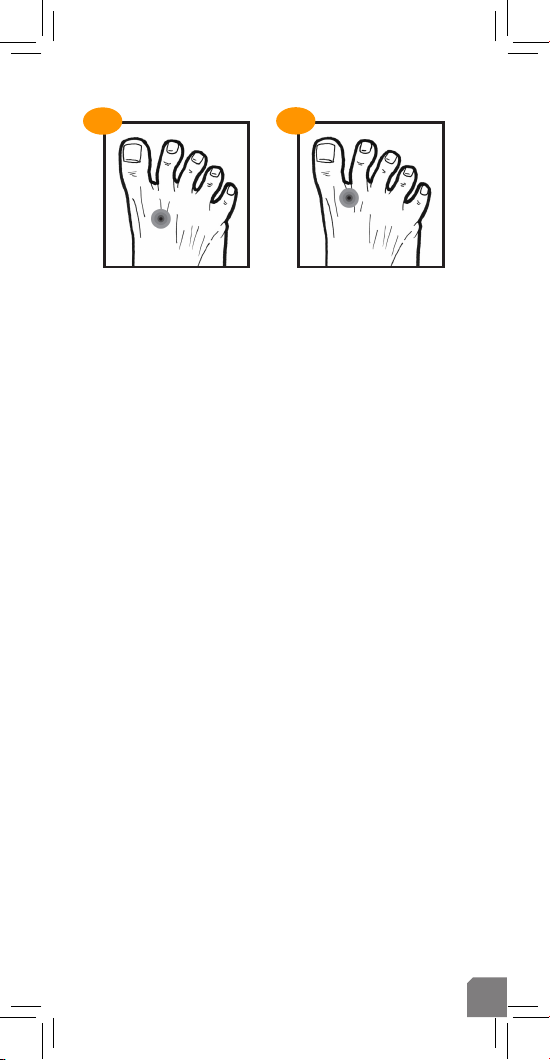

Non-Invasive acupuncture
Follow this simple guide to nd your
condition and locate the relevant points of
acupuncture. When more than three
points are listed, start by trying out the rst
three points. If the effect is not satisfactory,
vary the points until you nd the best
combination for you. Allow 30 seconds’ per
acupoint. For migraine or headache, you
should apply stimulation to the opposite of
the body. If the headache or migraine is on
the right side of the head, you should apply
stimulation to the left side of your body, for
example, on the left arm or the left hand.

7
Head
• Head injury or pain: 8, 3, 7, 6, 2, 10, 1, 11, 20, 23
• Headaches:
- in general: 1, 3, 7, 4, 6, 2, 10, 11, 19, 20
- migraine: 1, 7, 12
• Throat: 10, 3, 14, 1, 7, 12
• Toothache: 4, 1, 18, 21
• Ears: 3, 1
Trunk
• (Nocturnal) leg cramps: 4
• Chest: 3, 2, 1, 7
• Abdomen:
- upper: 5, 6
- lower: 9, 5, 6, 2, 19
• Ovaries and uterus: 8, 13, 5, 6
• Hernia: 5, 6, 19
• Sciatica: 9, 4, 5, 6, 24, 22
• Muscle cramps: 25, 26
• Lungs: 7
• Stomach: 8, 5, 6, 2
• Menstruation: 13, 5, 2, 15, 26, 19
• Neck: 8, 1, 7, 16, 17, 26, 23
• Backache:
- in general: 9, 4, 5, 6, 17, 20, 22, 23
- upper back: 17, 22, 23, 9, 4
- lower back: 4, 5, 6, 20
• Muscle pain brought on by straining or twisting: 4
• Lumbago: 9, 4, 5, 6, 14, 1, 7, 24
• Testicles: 4, 5, 6
• Urinary tract /genitals: 13, 25, 26, 19
• Neck whiplash: 8, 4, 1, 7
• Neuralgia: 4
Arms and legs
• Arms: 8, 3, 2, 12, 17, 23
• Arthritis/arthrosis, gout: Use paingone plus+ at the site
of the pain
• Legs: 9, 4, 5, 6
• Thighs: 9
• Elbows: 8, 3, 2, 14, 1, 23
• Ankles: 4, 5, 6, 1, 25, 18, 19, 20
• Hands: 3, 2, 10, 1, 12
• Hips: 4, 5, 6
• Knees: 9
• Armpits: 2, 12
• Forearms: 8, 2, 10, 1, 12
• Wrists: 7, 3, 12
• Shoulders: 8, 3, 2, 14, 1, 7, 17, 26
• Fingers: 10, 3, 2, 1, 12
• Feet: 4, 5, 6, 1, 25, 18, 19, 20

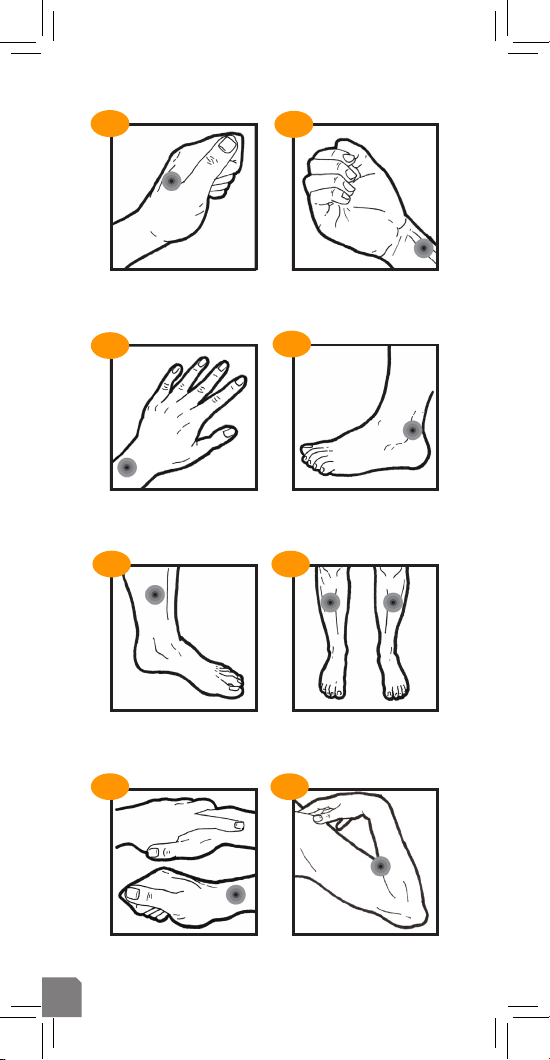

SUMMARY OF INDICATIONS
Acupoints

8
12
3
7
5
4
8
6

9
11
9
13
12
14
15 16
10

10
23
21
24
22
19
17
20
18

11
25 26
Troubleshoong
The device is not emitting any pulse
a) Check that you are holding the device
correctly, being sure to make contact
with the metal ring. See page 4 for
further details.
b) Check that the battery has been
inserted the correct way. See the
symbol on the reverse of the device for
an illustration of the correct polarity.
c) The battery may no longer contain any
charge. Insert a new battery.
d) If you believe the device suffers from
a manufacturing fault, DO NOT attempt
to repair the device. Return to the point
of purchase. Devices with manufacturing
faults are covered by a 12-month
replacement guarantee.

12
Symbols
Protecon against electric shock. Type BF
applied part according to European Norm EN
60601-1.
CE marking of conformity to the European
Medical Device Direcve 93/42/EEC under the
supervision of Noed Body Number 0086
Brish Standards Instuon (BSI).
Manufacturer’s name and address
Aenon, consult accompanying documents
Protected against solid foreign objects of
12.5mm diameter and greater.
Protected against vercally falling water drops
when enclosure lted up to 15°
IP22
Idencaon of month & year of manufacture.
LOT is given as yyyy-mm.
The baery should not be disposed of in normal
household waste but returned via baery collecon
point.
The equipment should not be disposed in the
normal waste stream.
Medi-Direct Internaonal Ltd
Unit 24, Wilford Business Park,
Ruddington Lane, Nongham, NG11 7EP, UK
www.paingone.com
© Copyright, 2017, Medi-Direct Internaonal Ltd. All rights reserved. Copying
or other reproducon of this document is prohibited without the prior
wrien consent of Medi-Direct Internaonal Ltd.
ON/OFF
Baery direcon

13
Technical Informaon
Descripon: Hand-held low-frequency electrical smulator
Device Name: Paingone Plus
Classicaon: Class IIa Medical Device (CE 0086)
Applicaons: Paingone Plus is designed for pain relief via
TENS therapy
Product Specicaon
Dimensions: 149mm in length x 40mm in width.
Energy Output: 2.4 mJ at 1000Ω
Output voltage in air: 32KV max peak
Output voltage on skin (1000Ω): 660V max peak
(or 600 ± 10%)
Pulse length: 40μs ± 20% on 1000Ω
Frequency: 2.5Hz ± 20%
Power Requirements: 1x AAA Baery
Operang Life: One AAA baery can provide
Approximately 800 applicaons. This represents
about 8 months’ use, based on 3 applicaons per
day
Expected Life Cycle: 24 months
Maintenance: Paingone Plus does not require sterilizaon
or disinfecon. Paingone Plus may be cleaned externally
using a so slightly damp cloth.
Electromagnec Compability: Paingone is a medical
device; its operaon does not aect,
and is not aected by, other electrical equipment.
Environmental condions of transport and storage:
-20°C + 5°C
+5°C to 35°C at a relave humidity up to 90%, non
condensing;
> 35°C to 50°C at a water vapour pressure up to 50 hPa.
Environmental condions during use:
-20°C + 40°C
Maximum relave humidity of 70%;
Pressure Range: 700 hPa to 1,060 hPa.
Baery direcon

www.medi-direct.co.uk
[email protected] R.2017 - 04
