ALC AWF51 SightHD User manual

Wireless Made Simple.
720p Outdoor
Wi-Fi Camera
Remote Monitoring Anytime from Anywhere
QUICK START GUIDE
Model AWF51

Infrared
LED
Thumb screw
Camera
Stand T-Bolt
Outdoor camera with
multi-position stand
AC power adapter
Power extension cord
microUSB / RJ45 cable
(for optional manual
connection)
Camera installation
screw pack
Quick Start Guide
IN THE BOX
Phillips head screwdriver or drill
may be required for installation

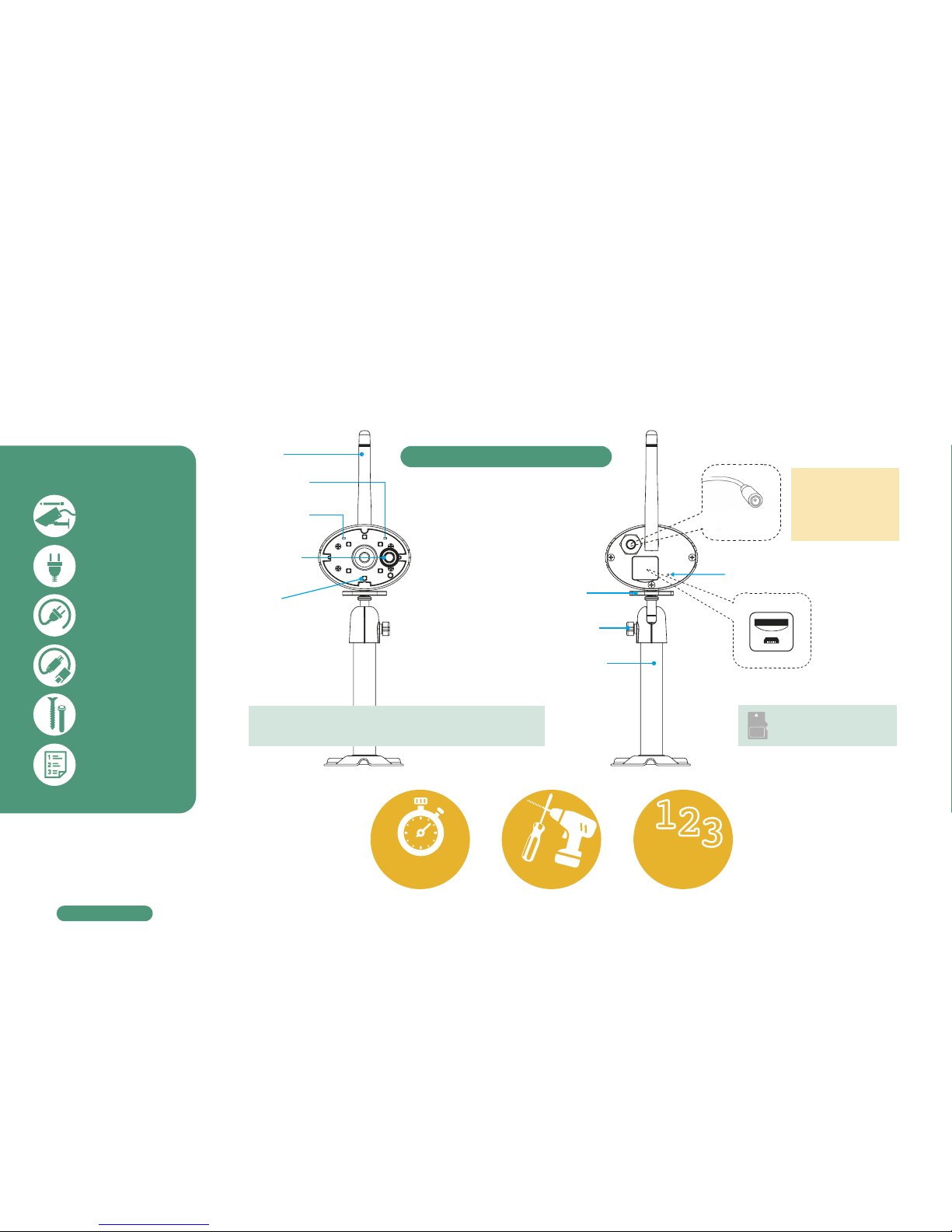

Let’s Get Started
Model AWF51
Quick Simple
Set Up
Tools
Antenna
Power Indicator
Signal Indicator
microSD Card Slot*
microUSB port
Reset
Tip: Plan the location of
your cameras for optimal
viewing and proximity to AC
Power outlets, (1) power
extension cable is included.
Indoor/Outdoor Camera
Multi-position
Camera Stand
Passive
Infrared Sensor
NOTE: Avoid installing in a location which requires the wireless signal to pass through
cement, concrete and metal structures. This will reduce the transmission range.
*microSD card (not included) is
required to record video to camera.
Power Cable

LIVE VIEWING
Surface Mount
CAMERA MOUNTING
NOTE: Cameras are IP66 rated for indoor/outdoor use. For outdoor use it is recommended to install
camera under shelter to protect from direct exposure to sunlight and other environmental elements. Avoid
pointing a camera directly at any bushes or tree branches or objects that may naturally move due to winds.
Recommendations for
best system performance:
• iOS 6.0 or above.
• Android: 1.5G dual core processor or
above / 960x540 pixel or above.
• Storage: Class 10 microSD memory card
(up to 32 GB).
• Bandwidth: 1Mbps or above
upload/download speed suggested.
REMOTE VIEWING
1
2
FREE APP DOWNLOAD
From your smart device, DOWNLOAD and
INSTALL the free ALC SightHD App.
Smart device will scan and detect camera. Once found,
the screen will show a LIVE VIEW briey before moving on
to a set up screen.
Plug camera into an electrical outlet (allow the
camera up to 60 seconds to boot up).
Tap ADD camera on screen for direct wireless
connection of camera to App.
SightHD
3
4
5
6
7
Enter a NAME for your camera and provide a PASSWORD;
the DID code from your system is automatically detected
and automatically lled.
Select your local Wi-Fi network and enter your Network
password to complete the connection.
Tap Wi-Fi SETTING to proceed to the next step.
SMART DEVICE SETUP
CAMERA INSTALLATION + SETUP
1 2 43
For detailed installation and setup, please refer to the
Model AWF51 complete User’s Guide available on our website:
www.atomslabs.com/support
SCAN
TO VIEW
COMPLETE
USER’S GUIDE
AtomsLabs.com
Wireless
Made Simple.
Secure the multi-position
camera stand to a stable
surface, ceiling or wall.
Loosen the T-Bolt on the camera
stand and adjust viewing angle using
the Thumb Screw to rotate position.
Align hole on bottom of camera
with T-Bolt to install camera.
Screw antenna into rear of camera.
Plug into electric outlet when
ready to install App (Step 2 in
REMOTE VIEWING section).
SNAP SHOT
LIVE VIEW
1
Select the TIME INTERVAL for the event list.
2
3Tap the FILE that you want to playback from the list.
Tap SETTINGs icon to see
Advanced Feature options
• Sensitivity Setting
(Motion Recording)
• Email Setting
• SDCard Setting
• Recording Setting
1Tap preview PICTURE
PLAYBACK
Tap to turn volume ON/OFF
in the in Live View mode.
Tap to RETURN to the
main page.
LIVE VIEW RECORDING
on microSD CARD*
Motion Recording
NOTE: Screen shots and icons may vary due to continuous updates to App and software development.
Tap to CAPTURE screen images in
Live View. Images automatically
save to smartphone’s camera roll
or gallery.
Tap to RECORD. One-minute recordings
save to microSD card slot on the rear of
camera, see diagram page for location
(microSD card not included).
NOTE: Do not submerge in water, monitor near water. STRANGULATION HAZARD: Infants have STRANGLED in power cords.
Keep power cords more than 3 feet away from cribs. When using your equipment, always follow basic safety precautions to reduce
the risk of re, electric shock and injury to persons. Illustrations are for reference only. Actual product specications may vary.
For additional precautions and product information, please see owner’s manual at www.atomslabs.com/support
Tap CAMERA SETTING icon and then EVENT LIST icon
1
2Manually RECORD video from Live View by
tapping Record icon. Recording will stop
after 1 minute.
To set MOTION ACTIVATED RECORDING,
Go to Advanced Features in App >
SENSITIVITY SETTINGS to select options.
Lift cover and insert a microSD card into
the rear of camera.
ADVANCED FEATURES
SETTINGS
microSD Card Slot*
*microSD card (not included) is
required to record video to camera. Camera 2 (Live Video)
Connected
Camera 2
Camera 2
ASAU-xxxx-xxxx-xxxx
******
Camera 2 (Live Video)
Camera 2 (Live Video)
Connected
1280x720
P2P, N=1, 15.00FPS
Select event lter
Connected
1280x720
P2P, N=1, 15.00FPS

ONE-YEAR LIMITED WARRANTY
IMPORTANT: Evidence of original purchase is required for warranty service.
WARRANTOR: Atoms Labs LLC (“ALC”) ELEMENTS OF WARRANTY: The ALC warranty covers the product for one (1) year
from the documented date of purchase. The purchase date must be documented with either an original sales receipt from the
rst retailer selling the product or by credit card receipts or statements.
WARRANTY DURATION: This warranty to the original user shall terminate & be of no further effect 12 months after the date
of original retail sale. The warranty is invalid if the Product is (A) damaged or not maintained as reasonable or necessary, (B)
modied, altered, or used as part of any conversion kits, sub-assemblies, or any congurations not sold by ALC, (C) improperly
installed, (D) serviced or repaired by someone other than an authorized ALC service center for a defect or malfunction covered
by this warranty, (E) used in any conjunction with equipment or parts or as part of any system not manufactured by ALC, or (F)
installed or programmed by anyone other than as detailed by the owner’s manual for this product.
STATEMENT OF REMEDY: If the product is under warranty, ALC will either, at its option, repair or replace the defective unit &
return it to you without charge for parts, service, or any other cost. ALC, at its option, may replace the unit with a new or
refurbished unit.
THE LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE & ENTIRE WARRANTY PERTAINING TO THE PRODUCT
& IS IN LIEU OF & EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER EXPRESS,
IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT COVER OR PROVIDE
FOR THE REIMBURSEMENT OR PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow
this exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you.
LEGAL REMEDIES: This warranty gives you specic legal rights, & you may also have other rights which vary from state to
state. This warranty is void outside the United States of America & Canada.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after following the instructions in the owner’s manual you
are certain that the Product is defective, pack the Product carefully (preferably in its original packaging). The Product should
include all parts & accessories originally packaged with the Product. Include evidence of original purchase & a note describing the
defect that has caused you to return it. The Product should be shipped freight prepaid, by traceable means, to warrantor at:
Atoms Labs, LLC
1040 Trade Avenue Customer Support: 844-767-8544
DFW Airport, TX 75261 9:00 am to 6:00 pm (CST)–Monday through Friday
ALC appreciates your support and feedback! If you come across software bugs or ways we could improve our products,
we would love to hear about them! Please email us at [email protected] and you will hear back from us within
(2) business days.
FCC Compliance Statement: This device complies
with Part 15 of the FCC rules. Operation is subjected
to the following two conditions: (1)this device may not
cause harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired operation.
Products with CE Marking comply with EMC Directive
(2004/108/EC); Low Voltage Directive (73/23/EEC);
R&TTE (1999/5/EC); ROHS Directive (2011/65/EU) issued by the
Commission of the European Community. Compliance with these
directives implies conformity to the following European Norms:
EMC: EN 301 489 LVD: EN 60950 Radio: EN 300 328
If the camera system no longer functions or can no longer be repaired, it must be disposed of according to the valid
statutory regulations. Disposal of spent batteries/accumulators:
You are required by law (Battery Ordinance) to return all spent batteries and accumulators. Disposing of spent
batteries/accumulators with common household waste is prohibited! Batteries/accumulators that contain hazardous
substances are marked with the symbols on the side. These symbols indicate that it is prohibited to dispose of these
batteries/accumulators in the household waste. The abbreviations for the respective heavy metals are: Cd=cadmium,
Hg=mercury, Pb=lead. You can return spent batteries and accumulators that can no longer be charged to the
designated collection points in your community, outlets or wherever batteries or accumulators are sold. Following
these instructions will allow you to fulll the legal requirements and contribute to the protection of our environment!
Use of audio or video equipment for recording the image of a person without their knowledge and consent is prohibited in certain states or
jurisdictions. The end-user assumes all liability for compliance with applicable state, local and federal laws. Wireless cameras require a wired
connection to AC power outlet. Network conditions and environmental factors can adversely affect wireless signal range. Actual night vision range
and image clarity depends on installation location, viewing area and light reection / absorption. Lithium-ion battery must be recycled or disposed
of properly. Photography and illustration may differ slightly from actual product.
