Alcatel-Lucent 8340 User manual

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 -10/2013

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 1
Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-
Lucent. All other trademarks are the property of their respective owners. The information
presented is subject to change without notice. Alcatel-Lucent assumes no responsibility
for inaccuracies contained herein.
Copyright© 2013 Alcatel-Lucent. All rights reserved.

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 2
Regulatory information European Union
Declaration of Conformity
This equipment is in compliance with the essential requirements of R&TTE Directive
1999/5/EC.The Declaration of Conformity may be obtained from your installer.
PRODUCT DISPOSAL INFORMATION (EN)
For countries in the European Union
The symbol depicted here has been affixed to your product
in order to inform you that electrical and electronic
products should not be disposed of as municipal waste.
Electrical and electronic products including the cables, plugs and
accessories should be disposed of separately in order to allow proper
treatment, recovery and recycling. These products should be brought to
a designated facility where the best available treatment, recovery and
recycling techniques is available. Separate disposal has significant
advantages: valuable materials can be re-used and it prevents the
dispersion of unwanted substances into the municipal waste stream.
This contributes to the protection of human health and the environment.
Please be informed that a fine may be imposed for illegal disposal of electrical and
electronic products via the general municipal waste stream.
In order to facilitate separate disposal and environmentally sound recycling arrangements
have been made for local collection and recycling. In case your electrical and electronic
products need to be disposed of please refer to your supplier or the contractual
agreements that your company has made upon acquisition of these products.
For countries outside the European Union
Disposal of electrical and electronic products in countries outside the European Union
should be done in line with the local regulations. If no arrangement has been made with
your supplier, please contact the local authorities for further information.
Exposure to Radio Frequency (RF) Signals - All Countries:
This device with internal antennas must provide a separation distance of at least 20 cm
from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.
Regulatory information United States
This device contains functions which are not operational in US territories
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 3
must accept any interference received, including interference that may cause undesired
operation.
Modifications not expressly approved by the manufacturer could void the user’s authority
to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the equipment.
Increase the separation between the equipment and receiver.
Consult the dealer or an experienced radio/TV technician for help.”
Privacy of communications may not be ensured when using this equipment.
Exposure to Radio Frequency (RF) Signals:
This base station is a radio transmitter and receiver. It is designed and manufactured not
to exceed the emission limits for exposure to radio frequency (RF) energy set by the OET
Bulletin 65 Supplement C. These limits are part of comprehensive guidelines and
establish permitted levels of RF energy for the general population. The guidelines are
based on the safety standards previously set by international standards bodies. These
standards include a substantial safety margin designed to assure the safety of all
persons, regardless of age and health.
This device with internal antennas must provide a separation distance of at least 20 cm
from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 4
Regulatory information Canada
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Exposure to Radio Frequency (RF) Signals:
This wireless device is a radio transmitter and receiver. It is designed and manufactured
not to exceed the emission limit for exposure to radio frequency (RF) energy set by the
Ministry of Health (Canada), Safety Code 6. These limits are part of comprehensive
guidelines and established permitted levels of RF energy for the general population.
These guidelines are based on the safety standards previously set by international
standards bodies. These standards include a substantial safety margin designed to
assure the safety of all persons, regardless of age and health.
This device with internal antennas must provide a separation distance of at least 20 cm
from all persons.
This device and its antenna must not be co-located or operating in conjunction with any
other antenna or transmitter.
Privacy of communications may not be ensured when using this equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 5

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 6
Contents:
18340 SMART IP-DECT AP GENERAL.........................................................................9
1.1 GENERAL...........................................................................................................9
1.2 COUNTRY SELECTION .....................................................................................9
1.3 SITE REQUIREMENTS.....................................................................................10
1.4 TEMPERATURE RANGES ...............................................................................10
1.5 CABLE SPECIFICATIONS FOR 8340 Smart IP-DECT AP Types.....................11
1.6 CABLING SAFETY REGULATIONs..................................................................11
1.7 INTERNAL ELECTRICAL ISOLATION..............................................................12
1.8 G.729 DAUGHTER BOARD..............................................................................12
1.9 VISUAL CHECK................................................................................................12

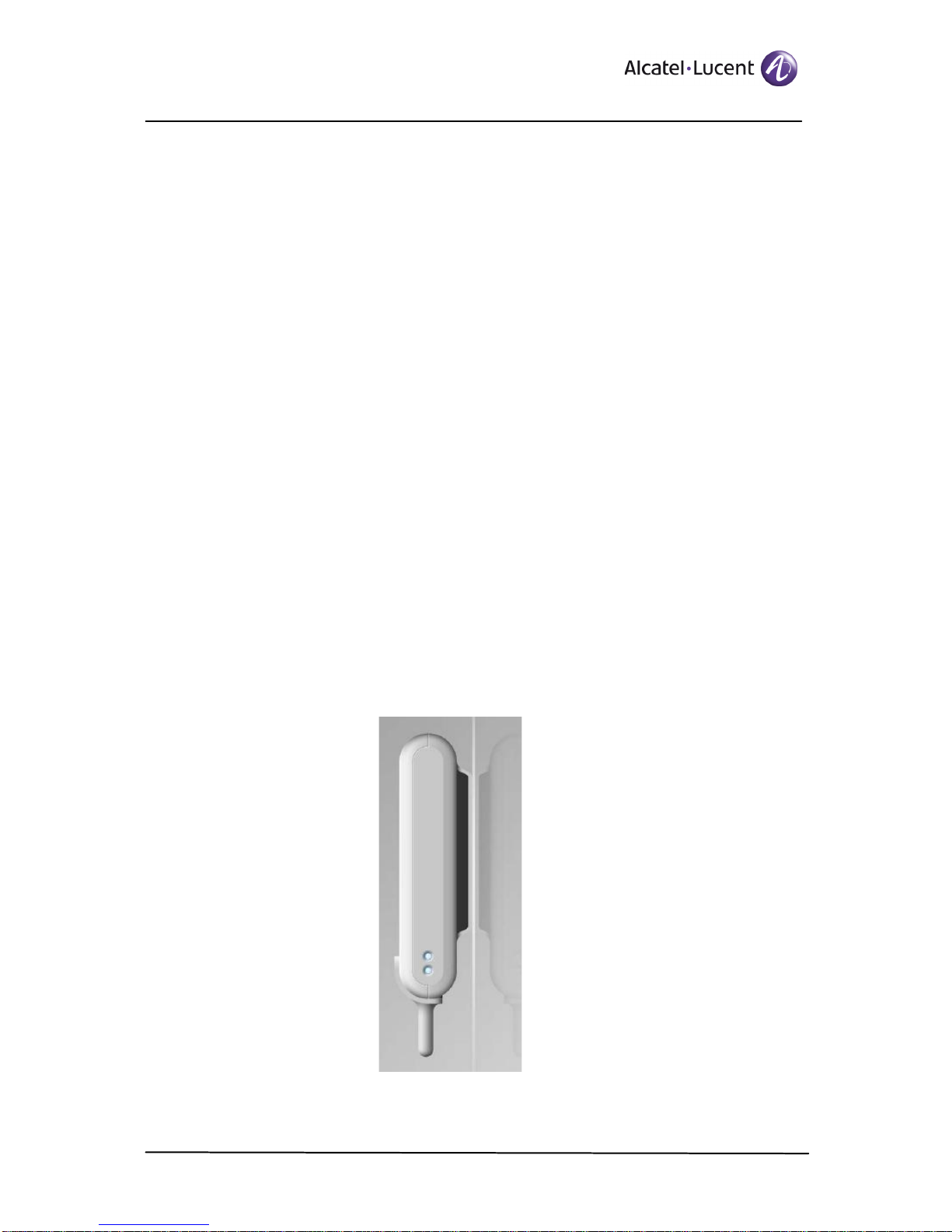

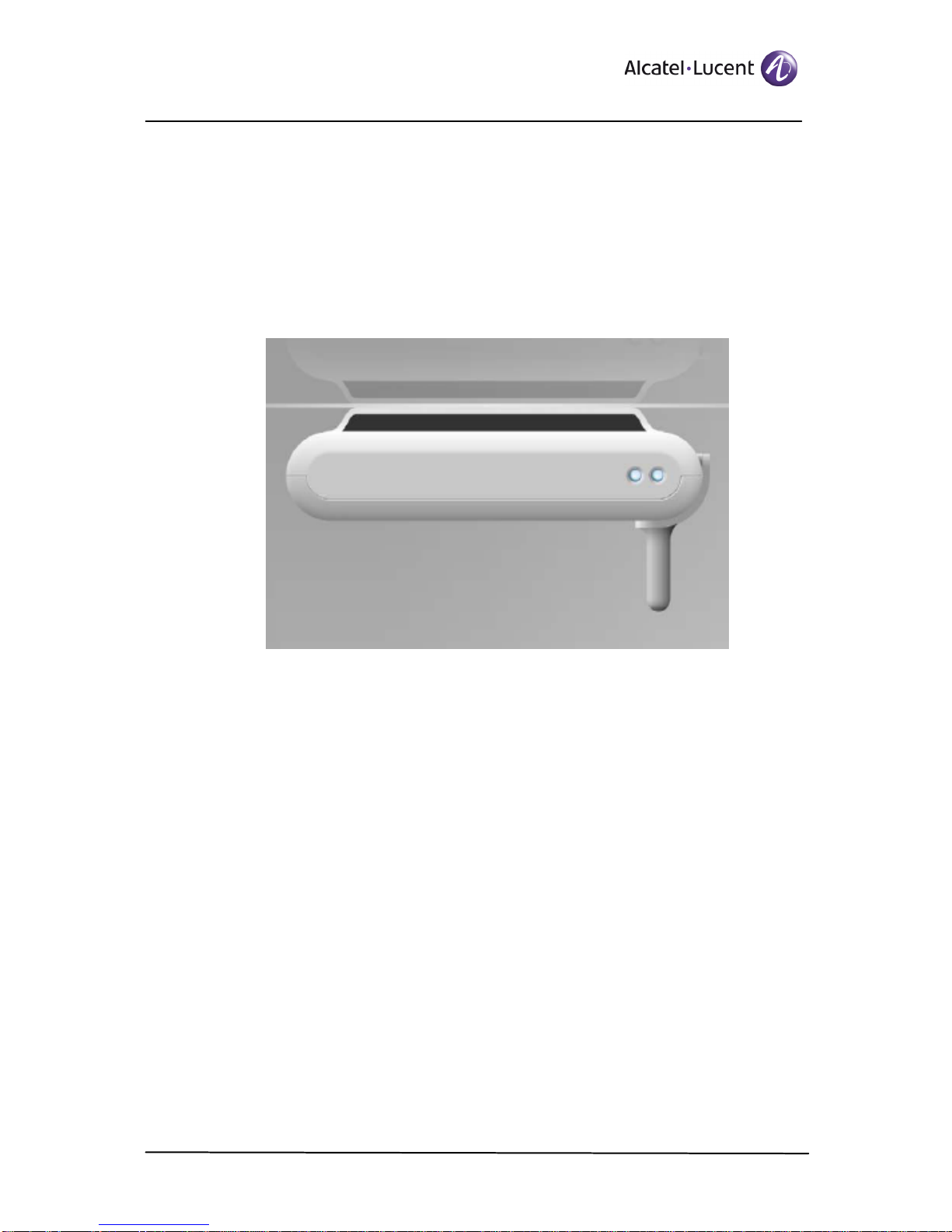

1.10 HORIZONTAL OR VERTICAL MOUNTING.......................................................12
1.11 INSTALLATION PROCEDURES.......................................................................13
1.12 UNPACKING.....................................................................................................14
2ADJUSTING THE ANTENNA POSITION...................................................................15
3MOUNTING THE G.729 DAUGHTERBOARD............................................................19
4MOUNTING THE 8340 Smart IP-DECT AP AGAINST A WALL/CEILING.................21
5LEDs..........................................................................................................................24
5.1 LED Status........................................................................................................24
5.2 LED Colours......................................................................................................25
ASPECIFICATIONS 26

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 7
PREFACE
This manual is applicable for the 8340 SMART IP-DECT AP, DECT Transceiver.
Please note that some product models or features described in this manual may not
be available in all world regions.”
No legal rights can be obtained from information in this manual.
Important:
The equipment described in this manual should be installed and maintained only by
professional and qualified engineers in accordance with the procedures and
instructions described in this manual.

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 8

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 9
1 8340 SMART IP-DECT AP GENERAL
1.1 GENERAL
This installation Manual is valid for installing a DECT transceiver (8340 Smart IP-DECT
AP) to a wall in horizontal or vertical position. The 8340 Smart IP-DECT AP is designed
for indoor use. When installing an 8340 Smart IP-DECT AP outdoors, please use the
dedicated Outdoor Cabinet and appropriate outdoor cabling
Note that there are two types of DECT Transceivers:
8340 Smart IP-DECT AP Integrated antennas.
8340 Smart IP-DECT AP External antennas.
Note: The 8340 Smart IP-DECT AP External antennas must always be installed/used in
the outdoor cabinet! For more information consult the manual for the Outdoor
Cabinet for 8340 Smart IP-DECT AP.
1.2 COUNTRY SELECTION
Country settings are pre-determined by the DAP Controller and this ensures that the 8340
Smart IP-DECT AP only operates according to local country regulations. It is not possible
for any 3rd party or end user to alter these settings or download software that controls the
RF parameters.
The variant sold in each country can only operate in the frequency band allowed in that
country. This is ensured by only delivering the correct DAP controller version for each
country.
When the OmniPCX Enterprise is used with the DECT Access Points, there are three
types of DAP Controllers available for the 8340 Smart IP-DECT AP:
DAP Controller –International.
This version is used in EMEA countries and countries that use the European
frequencies and power levels. In these countries, only the DAP Controller -
International will be delivered, so no other frequencies than the European
frequencies and power levels are possible in this region.
DAP Controller - North America
This version is used in North America and can only use the North American
frequencies and power levels. In these countries, only the DAP Controller –North
America will be delivered, so no other frequencies than the North American
frequencies and power levels are possible in this region.
DAP Controller - Selective Countries.
This version is used in countries with frequency ranges other than EMEA or North
America.

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 10
Note: In North America, only the “DAP Controller - North America” will be delivered, so
no other frequencies than the North America frequencies and power levels are
possible in North America.
Note: In Europe, only the “DAP Controller - International” will be delivered, so no other
frequencies than the European frequencies and power levels are possible in
Europe.
When the OmniPCX Office is used with the DECT Access Points, there is only one type
of DAP Controller available for the 8340 Smart IP-DECT AP. This DAP Controller is
worldwide and integrated in the OmniPCX Office.
1.3 SITE REQUIREMENTS
Usually the Cabinets will be fixed to existing walls in the positions determined by the Site
Survey.
Do not mount the 8340 Smart IP-DECT AP to a metal wall!
1.4 TEMPERATURE RANGES
The temperature ranges of the 8340 Smart IP-DECT AP:
Temperature range 8340 Smart IP-DECT AP: 0to 45C.
The 8340 Smart IP-DECT AP should not be exposed to sunlight!
The outside temperature range for the 8340 Smart IP-DECT AP (all types) mounted in the
Outdoor Cabinet is as follows:
Minimum outside temperature: -20C
Maximum outside temperature: 45C
The Outdoor Cabinet should not be exposed to sunlight!

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 11
1.5 CABLE SPECIFICATIONS FOR 8340 Smart IP-DECT AP
Types
The cabling to the 8340 Smart IP-DECT AP External antennas should be “Category 5” or
“Category 6” Ethernet cabling. The interface is defined as an SELV interface according
EN60950-1. For this reason the safety restriction as given in the next chapter should be
respected:
The power for the 8340 Smart IP-DECT AP External antennas must be supplied via the
Ethernet cable, PoE (IEEE 802.3af). There is no room for a Mains Power adaptor inside
the Outdoor Cabinet.
Note: “Category 7” cabling is not supported!
Note: PoE source must comply with clause 2.5 (Limited Power Source) per EN 60950-1
1.6 CABLING SAFETY REGULATIONs
Please read the following notes carefully:
Note: When you are going to install an 8340 Smart IP-DECT AP External antennas
outdoors, it should always be installed in an Outdoor Box.
Note: The cabling and/or the 8340 Smart IP-DECT AP External antennas may never be
exposed to over-voltages (e.g. lightning) without proper protection.
Therefore mind the following notes:
Note: When the 8340 Smart IP-DECT AP is installed in the Outdoor Cabinet, and the
Outdoor Cabinet is mounted against a wall, lead the cable directly indoors. This
avoids that the cable becomes sensitive to over-voltage. In that case, no lightning
protection is needed. It is strongly recommended to use shielded Cat 5 cable.
Make sure that the shield of the cable is connected to a proper “ground”.
Note: When the 8340 Smart IP-DECT AP is installed in the Outdoors and cabling runs
outdoors, the cabling will be exposed to lightning and over-voltage. You must use
lightning arrestors/protectors which comply with the local regulations and
legislation. Furthermore, the cabling outdoors, must be shielded Cat. 5 cabling.
Make sure that the shield of the cable is connected to a proper “ground”.

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 12
1.7 INTERNAL ELECTRICAL ISOLATION
The 8340 Smart IP-DECT AP external antennas provides internal isolation (1,5 kV)
between the Ethernet connection and the internal electrical components, including the
antenna’s and antenna connector in the 8340 Smart IP-DECT AP external antennas in
the 8340 Smart IP-DECT AP.
1.8 G.729 DAUGHTER BOARD
By default the G.729 Daughter Board is installed on the 8340 Smart IP-DECT AP. The
8340 Smart IP-DECT AP does support the G.729 codec, G.711u law and G.711a law.
Installation of the Daughter Board is described in chapter 3. MOUNTING THE G.729
DAUGHTERBOARD.
1.9 VISUAL CHECK
The equipment must be carefully unpacked and examined for any visible sign of damage.
Anything not in order should be reported back to the supplier, as soon as possible, to
avoid delays during installing due to missing equipment.
1.10 HORIZONTAL OR VERTICAL MOUNTING
The 8340 Smart IP-DECT AP can be mounted horizontally or vertically. When mounting
vertically, you don’t need to change the antenna position.
Figure 1. 8340 Smart IP-DECT AP in vertical position.

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 13
When the 8340 Smart IP-DECT AP is mounted horizontally, the antenna position must be
changed (see chapter 2).
Figure 2. 8340 Smar IP-DECT AP mounted horizontally
1.11 INSTALLATION PROCEDURES
The installation of an Outdoor Cabinet comprises the installation of:
Adjusting the Antenna position (if necessary).
Mounting the G.729 Daughter Board (if applicable)
Mounting the 8340 Smart IP-DECT AP against the wall.
Connecting directional antennas, if necessary.
Note: The minimum distance between 8340 Smart IP-DECT APs (DECT Access Points)
must be more than 1 meter. (However, it is strongly recommended to respect a
minimum distance of 5 meters between the 8340 Smart IP-DECT APs.)

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 14
1.12 UNPACKING
PROCEDURE: “Unpacking”.
Actions
1. Open the card board box and take the 8340 Smart IP-DECT AP out.
2. Check the 8340 Smart IP-DECT AP for any damage.
3. Continue with one of the following Chapters:
When you mount the 8340 Smart IP-DECT AP vertically, the antenna position
will normally be OK, and when you do not need to install the G.729 Daughter
Board, continue with Chapter 4MOUNTING THE 8340 Smart IP-DECT AP
AGAINST A WALL.
When you mount the 8340 Smart IP-DECT AP horizontally, you must change the
antenna position. Consult Chapter 2. ADJUSTING THE ANTENNA POSITION.
When you require G.729 codec support, you will have to install the G.729
Daughter Board. Consult Chapter 3. MOUNTING THE G.729
DAUGHTERBOARD.

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 15
2 ADJUSTING THE ANTENNA POSITION
This chapter is not applicable for the 8340 Smart IP-DECT AP External antennas.
Note: You only need to change the antenna position when you mount the 8340 Smart
IP-DECT AP horizontally! In all other cases you don’t need to change the antenna
position.
Figure 3. 8340 Smart IP-DECT AP mounted horizontally
PROCEDURE: “Adjusting the Antenna position”.
Note: Antenna position can be changed once. You should not change it back!
Actions
1. Remove the two screws from the rear side of the cabinet.

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 16

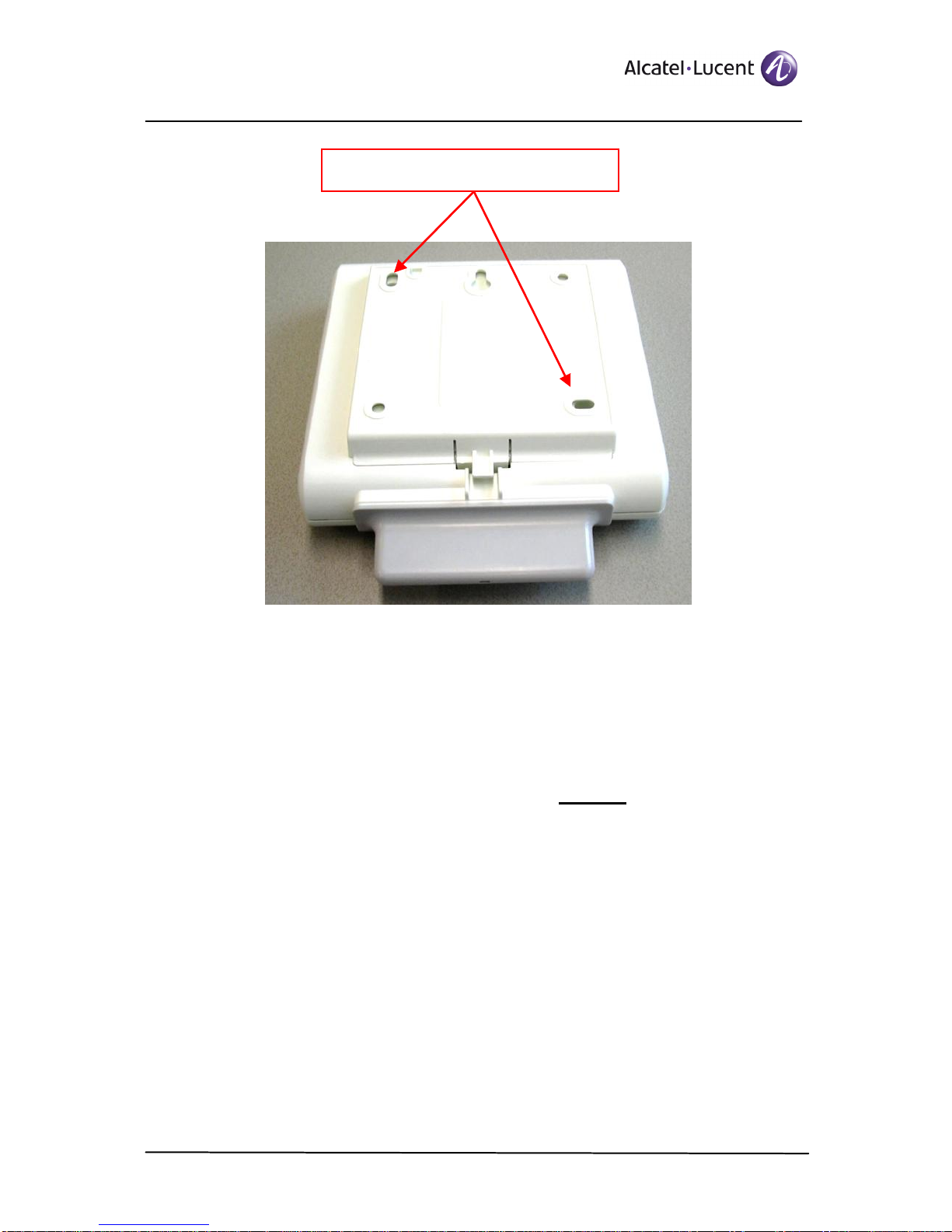

Figure 4. Rear side of Cabinet.
2. Open the cabinet CAREFULLY! Make sure that you shift the cover of the antenna’s
carefully from the antenna’s.
3. Take the antenna cover from the 8340 Smart IP-DECT AP cover.
4. To put the antennas in vertical position, bend them carefully as shown in Figure 5.
Bend Antennas carefully into vertical position.
Screws are inside these holes

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 17

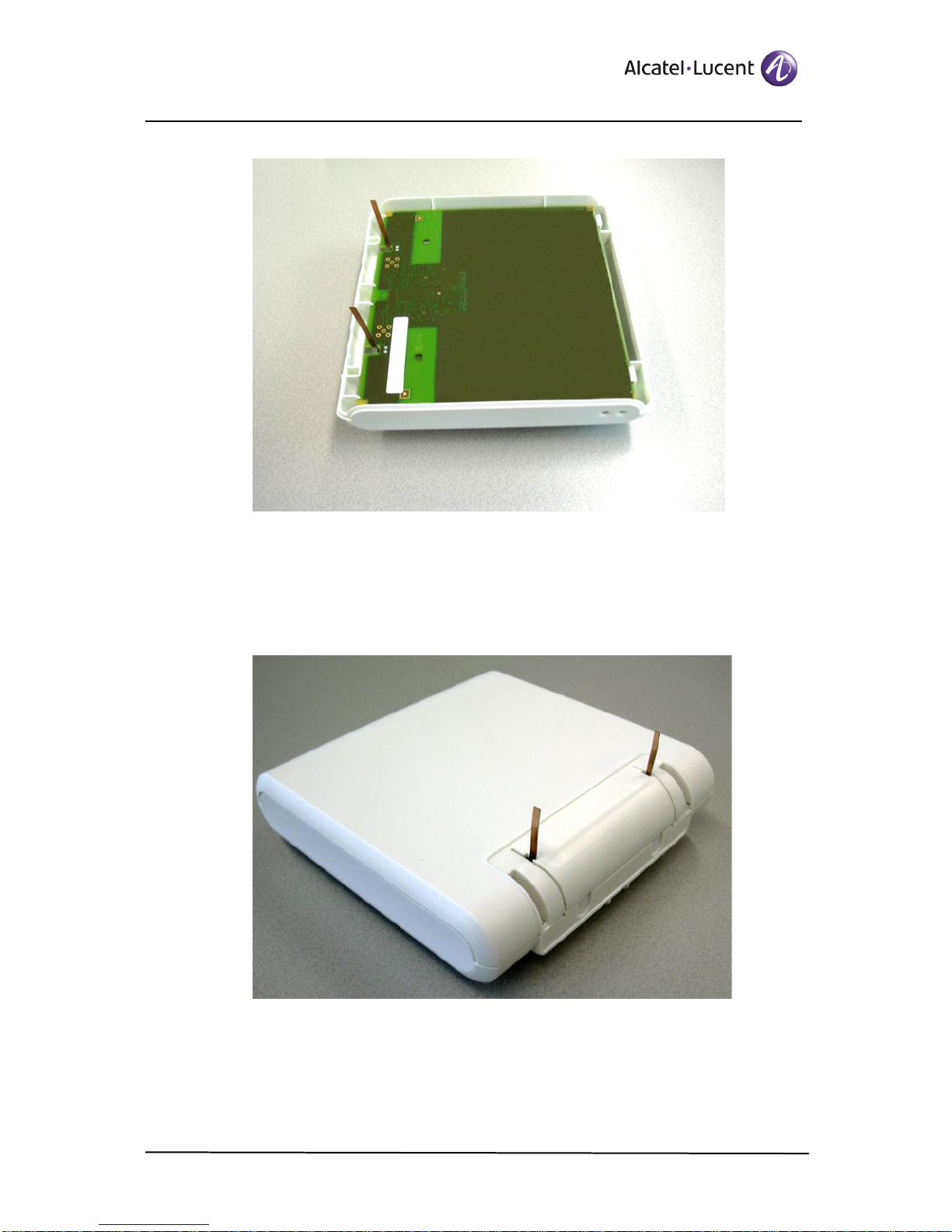

Figure 5. Bend Antennas carefully into vertical position.
5. After the antennas are put in the vertical position, close the 8340 Smart IP-DECT AP
cabinet again. In other words, put the 8340 Smart IP-DECT AP cover back into
position and secure the screws at the rear side of the cabinet. See Figure 6.
Antennas locked into Cover.
Figure 6. Antennas locked into Cover.

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 18
6. Make sure that the antennas are properly locked into the locks in the 8340 Smart IP-
DECT AP cover.
Figure 7. Detail of Antenna in lock.
7. Move the antenna cover carefully over the antennas in the vertical position and make
sure that the antennas do not bend. When the antenna cover is in its position, push it
further into its position in the 8340 Smart IP-DECT AP cabinet to fix it.
Figure 8. Cover installed.
8. Now your 8340 Smart IP-DECT AP is ready to be installed.

Alcatel-Lucent 8340 Smart IP-DECT AP
Installation Manual
8AL90850USBAed01 19
3 MOUNTING THE G.729 DAUGHTERBOARD
Follow the step-by-step procedure below, to install the G.729 daughter board.
PROCEDURE: “Installing the G.729 Daughter Board”.
Actions
1. Make sure that you have the G.729 Daughter board.
2. Open the cabinet. Use steps 1 and 2 in Chapter 2.
3. Take the PCB out of the cabinet.
Note: Mind the light conductor for the LEDs. It can drop off!
Figure 9. Light conductor for LEDs
4. Now you should have the 8340 Smart IP-DECT AP PWB and the G.729 Daughter
Board as separate items.
5. Remove the protection foil from the sticky part on the G.729 Daughter Board.
LED Light conductor
