OmniSwitch 6850 Series
The OmniSwitch 6850 Series is an advanced fixed
configuration family of Ethernet switches. These switches
provide wire rate Layer 2 forwarding and Layer 3 routing with
advanced services.
They are fixed configuration, triple-speed (10/100/1000)
switches that provide increased network performance,
improved application response times, secure the LAN, and
enhance user productivity by maximizing mobility, network
capacity, and services over existing category 5/5E/6 cabling.
Refer to the User Manual CD for additional hardware and
software OmniSwitch documentation.
Console
OmniSwitch6850-24
OK PRI PWR BPS
USB
CLASS1LASERPRODUCT
USB
USB
Console
OmniSwitch6850-P24L
OK PRI PWR BPS
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
CLASS1LASERPRODUCT
24
23
22
21
USB
Console
OmniSwitch6850-24L
OK PRI PWR BPS
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
CLASS1LASERPRODUCT
24
23
22
21
USB
Console
OmniSwitch6850-48L
OK PRI PWR BPS
CLASS1LASERPRODUCT
1234
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2526 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
USB
Console
OmniSwitch6850-P48L
OK PRI PWR BPS
CLASS1LASERPRODUCT
1234
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 3536 37 38 39 40 41 42 43 44 45 46 47 48
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
23 24
1 3 5 79 11 13 15 17 19 21 25
10 12 14 16 18 20 22 24
2 4 6 8
USB
Console
OmniSwitch6850-U24X
25
26
25 26
OK PRI PWR BPS
CLASS1LASERPRODUCT
Console
OmniSwitch6850-48
OK PRI PWR BPS
CLASS1LASERPRODUCT
1234
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 3132 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
1 2 3 4 5 6 7 8 9 1011 12 13 14 1516 17 18 19 20 21 22 23 24
CLASS1LASERPRODUCT
24
23
22
21
USB
Console
OmniSwitch6850-24X
25
26
25 26
OK PRI PWR BPS
CLASS1LASERPRODUCT
USB
Console
OmniSwitch6850-48X
OK PRI PWR BPS
CLASS1LASERPRODUCT
50
50
49
49
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 4142 43 44 45 46 47 48
Console
OmniSwitch6850-P24
OK PRI PWR BPS
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
CLASS1LASERPRODUCT
24
23
22
21
USB
Console
OmniSwitch6850-P48
OK PRI PWRBPS
CLASS1LASERPRODUCT
1234
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
USB
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
CLASS1LASERPRODUCT
24
23
22
21
USB
Console
OmniSwitch6850-P24X
25
26
25 26
OK PRI PWR BPS
CLASS1LASERPRODUCT
Console
OmniSwitch6850-P48X
OK PRI PWR BPS
CLASS1LASERPRODUCT
50
50
49
49
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
USB
OmniSwitch 6850-24L
OmniSwitch 6850-24
OmniSwitch 6850-48
OmniSwitch 6850-24X
OmniSwitch 6850-48X
OmniSwitch 6850-P24X
OmniSwitch 6850-P48X
OmniSwitch 6850-P48
OmniSwitch 6850-P24
OmniSwitch 6850-48L
OmniSwitch 6850-P24L
OmniSwitch 6850-P48L
OmniSwitch 6850-U24X

2 OmniSwitch 6850 Series June 2007
Related Documentation
The following are the titles and descriptions of all the
OmniSwitch 6850 Series user documentation included in the
User Manual CD:
•OmniSwitch 6850 Series Getting Started Guide
Describes the hardware and software procedures for
getting an OmniSwitch 6850 Series switch up and
running. Also provides information on fundamental
aspects of OmniSwitch hardware components and
software architecture.
•OmniSwitch 6850 Series Hardware Users Guide
Complete technical specifications and procedures for
all OmniSwitch 6850 Series hardware, including
chassis, power supplies, fans, combo ports, stacking
procedures, optional backup power supplies, etc.
•OmniSwitch CLI Reference Guide
Complete reference to all CLI commands supported on
the OmniSwitch 6850 Series. Includes syntax
definitions, default values, examples, usage
guidelines, and CLI-to-MIB variable mappings.
•OmniSwitch 6800/6850/9000 Switch Management
Guide
Includes procedures for readying a switch for
integration into a network. Topics include the software
directory architecture, image rollback protections,
authenticated switch access, managing switch files,
system configuration, using SNMP, and using web
management software (WebView).
•OmniSwitch 6800/6850/9000 Network Configuration
Guide
Includes network configuration procedures and
descriptive information on all the major software
features and protocols included in the base software
package. Chapters cover Layer 2 information (Ether-
net and VLAN configuration), Layer 3 information
(static routes), security options (authenticated
VLANs), Quality of Service (QoS), and link
aggregation.
•OmniSwitch 6800/6850/9000 Advanced Routing
Configuration Guide
Includes network configuration procedures and
descriptive information on all the software features and
protocols included in the advanced routing software
package. Chapters cover multicast routing (DVMRP
and PIM-SM) and OSPF.
•OmniSwitch Transceivers Guide
Includes information on Small Form Factor Pluggable
(SFPs) and 10 Gbps Small Form Factor Pluggables
(XFPs) transceivers.

June 2007 Installing the Hardware 3
Items Required
In addition to the materials and components provided in the
OmniSwitch 6850 Series shipment, you must provide the
following items in order to complete this installation:
•Grounding wrist strap
•Phillips screwdriver
•Serial cable
•Rack mount screws, if applicable
Site Preparation
Environmental Requirements
OmniSwitch 6850 Series switches have the following environ-
mental and airflow requirements:
•The installation site must maintain a temperature
between 0° and 45° Celsius (32° and 113° Fahrenheit)
and not exceed 95 percent maximum humidity (non-
condensing) at any time.

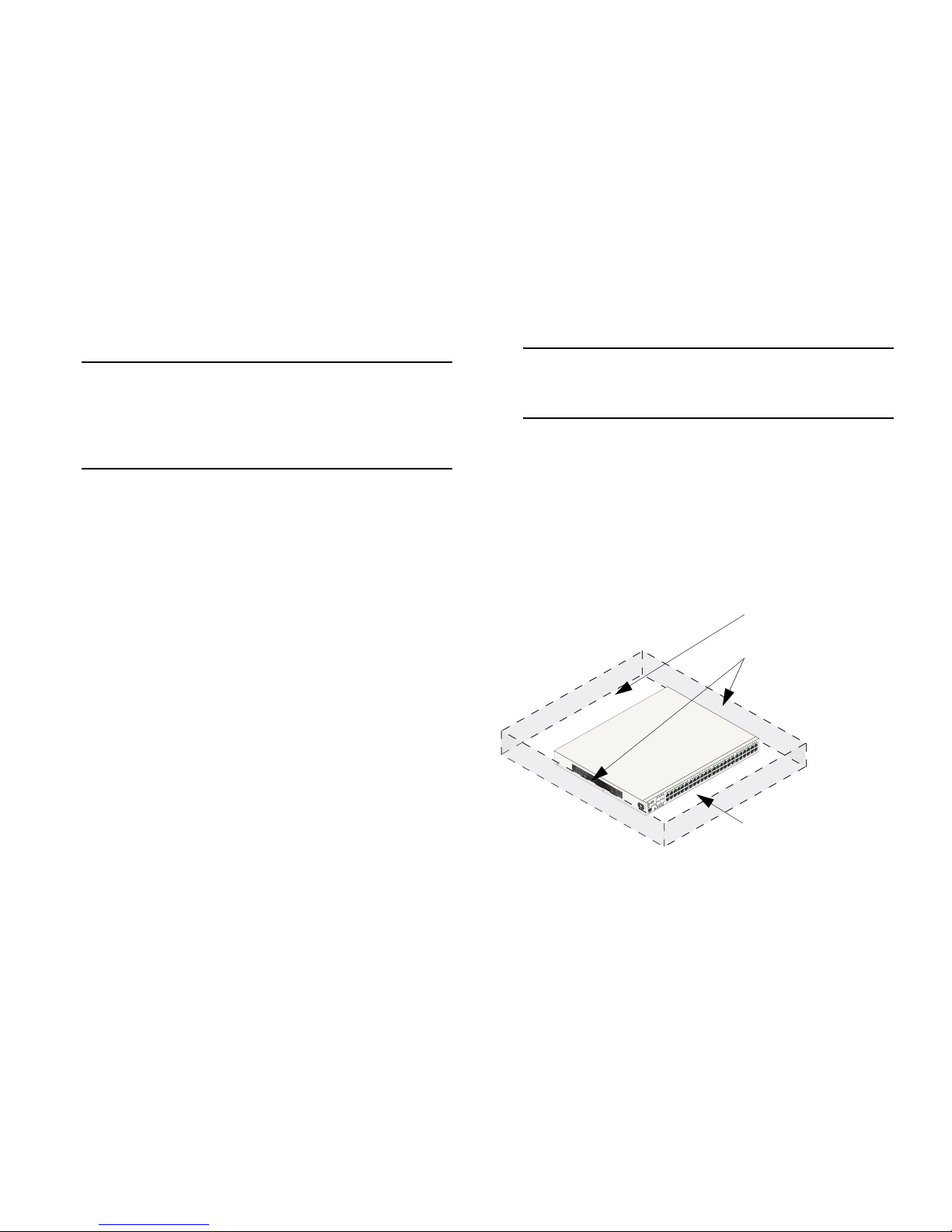

•Be sure to allow adequate room for proper air
ventilation and access at the front, back, and sides of
the switch. No clearance is necessary at the top or
bottom of the chassis. Refer to page 6 for minimum
clearance requirements.
Electrical Requirements
OmniSwitch 6850 Series switches have the following general
electrical requirements:
•Each switch requires one grounded AC power source.
•Grounded AC power source must be 110V for North
American installations (220V international).
•Each supplied AC power cord is approximately 2
meters (6.5 feet) long. Do not use extension cords.
NEBS GR-1089 Compliance Requirements
The following notes and warnings apply to all NEBS
compliant platforms.
Grounding requirements: To ground the equipment prop-
erly, connect a Panduit Corporation UL listed Lug, P/N:
LCD8-10AL to the two threaded holes located on the rear of
each chassis and power supply module. All connections should
be made using 8AWG copper conductors.
Use Panduit Corporation, P/N: CT-940CH for crimping. (Each
Module must have its own grounding conductor.)
(GR-1089 requires treatment of ground connections and
painted surfaces as needed during installation.)
Installing the Hardware

4 Installing the Hardware June 2007
All surfaces that are used for intentionally grounding the EUT
shall be brought to a bright finish and an anti oxidant solution
must be applied to the surfaces being joined.
Non-conductive coatings (such as lacquer and enamel) must be
removed from threads and other contact surfaces to assure
electrical conductivity.
(Thread forming screws with paint piercing washers may be
used for this purpose during installation)
Warning. The intra-building interfaces of this platform,
including Gigabit Ethernet, are suitable for connection to
intra-building or unexposed wiring or cabling only with
shielded and grounded cables at both ends. The intra-building
ports of the equipment must not be metallically connected to
interfaces that connect to the OSP or its wiring.
Note. All bare conductors must be coated with an appro-
priate antioxidant compound before crimp connections are
made. All unplated connectors, braided strap, and bus bars
are to be brought to a bright finish and then coated with an
antioxidant before connecting them.
Weight Considerations
A single OS6850 weighs approximately 14 lbs
(6.24 Kgs). A stack of eight OS6850 switches weighs
approximately 112 lbs (50 Kgs).

June 2007 Installing the Hardware 5
Items Included
Your OmniSwitch 6850 Series switch order includes the
following items:
•OmniSwitch 6850 Series chassis
•Rack mount flanges with attachment screws (rack
mount flanges may be pre-installed on some orders)
•Power cord (country-specific)
•Documentation CD containing a complete set of user
guides for the switch and switch software. Refer to
“Related Documentation” on page 2 for a complete list of
included documentation.
Depending on the items ordered for your specific network
requirements, the following optional items may also be
included:
•Stacking cables (per order)
•SFPs (per order)
•10-Gigabit XFPs (per order)
•Backup power supply components and cables
(per order)
Unpacking and Initial Setup
Unpacking the Chassis
To protect your OmniSwitch chassis and hardware compo-
nents from electrostatic discharge (ESD) and physical damage,
read all unpacking recommendations and instructions care-
fully before beginning.
Recommendations
•Unpack your OmniSwitch chassis as close as possible
to the location where it will be installed.
•Depending on your order, Small Form-Factor Plugga-
bles (SFPs), stacking cables and backup power supply
components may be packaged separately. In order to
greatly reduce exposure to electrostatic discharge
(ESD) and physical damage, do not unpack these items
until they are ready to be installed.
Instructions
1Carefully cut the tape along the seam at the top of the
box containing the chassis.
2Lift the box’s top flaps. Remove any smaller boxes or
pouches that are enclosed and set them aside.
3Lift the chassis out of the packaging.

6 Installing the Hardware June 2007
4Carefully remove any foam pads and protective plastic
from the switch chassis.
Note. Alcatel-Lucent provides factory-installed blank
cover plates for empty backup power supply or 10-Giga-
bit expansion module bays. Do not remove these cover
plates unless a backup power supply or expansion module
is to be installed immediately at the corresponding bay.
5If you are installing multiple switches in a stacked
configuration, repeat steps 1 through 4 for the remaining
switches that will make up the stack.
6Once all OmniSwitch 6850 Series switches have been
removed from their packaging, continue to “Setting Up
the Switch.”
Setting Up the Switch
Note. Due to their airflow and access requirements,
OmniSwitch 6850 Series switches cannot be wall-
mounted.
Airflow Considerations
Be sure that your switch is placed in a well-ventilated, static-
free environment. Always allow adequate clearance at the
front, rear, and sides of the switch.
The following diagram shows recommended minimum clear-
ances for adequate chassis airflow and access to components at
the rear of the chassis:
OmniSwitch6850-48
USB
CLASS1LASER PRODUCT
OK
1234
PRI PWR BPS
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
Rear. 5 inches minimum
at rear of chassis.
Front. 6 inches minimum
at front of chassis for
cable access and LED
visibility.
Sides. 2 inches minimum
at left and right sides for
chassis airflow.
Chassis Top View

June 2007 Installing the Hardware 7
Never obstruct the air vents located at the left and right sides
of the chassis.
Note. Clearance is not required at the top and bottom of
the chassis. For detailed chassis airflow diagrams, refer to
the OmniSwitch 6850 Series Hardware Users Guide.
Installation Options
There are two ways in which the OmniSwitch 6850 Series
switches can be installed:
•Tabletop installation
•Rack-mount installation
For information on setting up a switch as a tabletop unit, refer
to “Installing the Switch on a Tabletop or Bench.” For infor-
mation on rack-mounting the switch, refer to
“Rack-Mounting the Switch” on page 8.
Installing the Switch on a Tabletop or
Bench
OmniSwitch 6850 Series switches can be installed freestand-
ing as tabletop units. Place your switch on a stable, flat, and
static-free surface.
Note. OmniSwitch 6850 Series switches must be placed
“right side up.” Never attempt to operate a switch posi-
tioned on its side.
Tabletop Mounting Steps
To install the switch as a tabletop unit, follow the steps below:
1Position the chassis on the table or bench where it is to
be installed.
2Be sure that adequate clearance has been provided for
chassis airflow and access to the front, back, and sides of
the switch. For recommended clearances, refer to page 6.
Also, be sure that you have placed the chassis within reach
of all required AC power sources.
If you are placing multiple switches in a stacked configu-
ration, carefully stack the remaining switches, one on top
of the other. Up to eight switches may be stacked to form
a single virtual chassis. Be sure to maintain adequate
clearance at the front, rear, left, and right side of all
switches (see page 6). Also, be sure that you have placed
all switches in the stack within reach of required AC
power sources.
Note. Ifyou are installing a single(i.e.,standalone)
switch, continue to “Connections and Cabling” on page 11
for additional setup procedures.

8 Installing the Hardware June 2007
Rack-Mounting the Switch
Refer to the important guidelines below before installing the
OmniSwitch chassis in a rack.
•It is recommended that two people install the switch in
the rack—one person to hold the chassis and position it
in the rack, and a second person to secure the chassis to
the rack using attachment screws (not supplied).
•Alcatel-Lucent provides two rack-mount flanges with
each OmniSwitch 6850 Series switch. These flanges
support standard 19-inch rack mount installations.
These flanges must be attached to the chassis before
the switch can be rack mounted.
Note. If you are installing the switch in a 23-inch wide
rack, Alcatel-Lucent offers optional 23-inch rack-mount-
ing hardware. For more information, contact your Alcatel-
Lucent representative.
•Alcatel-Lucent does not provide rack-mount screws.
Use the screws supplied by the rack vendor.
•To prevent a rack from becoming top heavy, it is
recommended that you install heavier equipment at the
bottom of the rack whenever possible.
•If you are installing the switch in a relay rack, be sure
to install and secure the rack as per the rack manufac-
turer’s specifications.
•Review page 6 for important chassis airflow and access
recommendations before installing.
Rack Mounting Steps
To rack-mount the switch, follow the steps below:
Note. Rack-mount flanges may come factory-installed in
some cases. If this is the case, skip steps 1 and 2 below.
1Align the holes in the provided rack-mount flanges
with the four threaded holes in the OmniSwitch chassis.
These threaded holes are located in the left and right sides
of the chassis, near the front panel.
2Attach the flanges to the chassis using the provided
Phillips-head screws. Be sure to tighten each of the screws
firmly using a Phillips screwdriver.

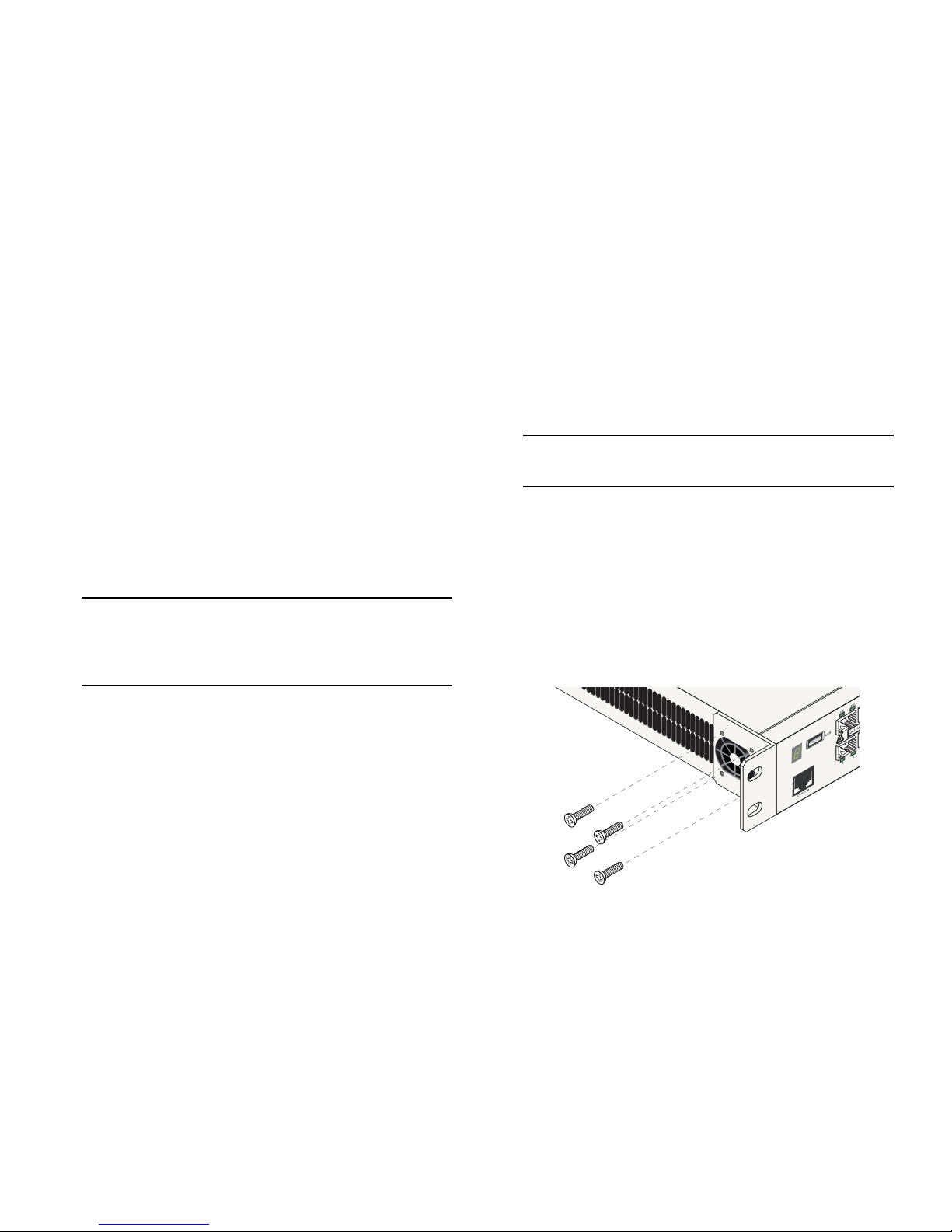

Attaching a Rack-Mount Flange
45
46
Co n s o l e

June 2007 Installing the Hardware 9
3After the rack-mount flanges are secured to the chas-
sis, mark the holes on the rack where the switch is to be
installed.
4Lift and position the switch until the rack-mount
flanges are flush with the rack post.
5Align the holes in the flanges with the rack holes that
were marked in step 3.
6Once the holes are aligned, insert a rack-mount screw
(not provided) through the bottom hole of each flange.
Tighten both screws until they are secure.
Attaching the Switch to the Rack
Note. Be sure to install the screws in the bottom hole of
each flange, as shown, before proceeding.
7Once the screws at the bottom of each flange are
secure, install the remaining two rack-mount screws. Be
sure that all screws are securely tightened.
8If you are installing multiple switches in a rack to form
a stacked configuration, repeat steps 1 through 7 for all
switches in the stack.
Note. When rack mounting multiple switches in a stacked
configuration, be sure to place all switches in vertically-
adjacent rack positions. This will ensure that all required
stacking cables will have adequate length for the installa-
tion.

10 Installing the Hardware June 2007
Installing Combo Port SFPs
OmniSwitch 6850 Series switches offer Gigabit Ethernet
combo ports, located on the front panel. These combo ports
support hot-swappable fiber Small Form-Factor Pluggables
(SFPs). For instructions on installing and removing combo
port SFPs, refer to the instruction card provided with the SFP
product.
Note. Combo port preferences are user-configurable via
the system software. Refer to the “Configuring Ethernet
Ports” chapter in the OmniSwitch 6800/6850/9000
Network Configuration Guide for complete details.
Note. For further details regarding supported SFP and
XFP transceivers, refer to the OmniSwitch Transceivers
Guide.
Installing Backup Power Supply
Components
For detailed information on installing backup power supply
components—including the backup power supply, connector
cables, and power cords—refer to the OmniSwitch 6850 Series
Hardware Users Guide.
For information on connecting stacked switches, refer to the
OmniSwitch 6850 Series Hardware Users Guide.

June 2007 Connections and Cabling 11
Once your switch is properly set up and all the required hard-
ware components are installed, you should connect all network
and management cables required for your network applica-
tions. Connections may include:
•RJ-45 cable connection to the console port
•Single mode or multimode fiber cables to combo port
SFPs as required by your network
•Ethernet cables to 10/100/1000 or 10/100 Ethernet
ports as required by your network
Connecting the Serial Cable
The console port, located on the chassis front panel, provides a
serial connection to the switch and is required when logging
into the switch for the first time. By default, this RJ-45
connector provides a DTE console connection.
Note. For stacked configurations, the serial cable should
be connected to primary management module. If you are
connecting the serial cable to a stack, it is advisable to
wait until the stack has booted and the primary module has
been dynamically assigned. Refer to the OmniSwitch 6850
Series Hardware Users Guide for more information.
Serial Connection Default Settings
The default settings for the serial connection are as follows:
Note. For information on modifying these settings, refer to
the OmniSwitch 6850 Series Hardware Users Guide.
Connections and Cabling
baud rate 9600
parity none
data bits (word size) 8
stop bits 1

12 Booting OmniSwitch 6850 Series Switches June 2007
Booting a Standalone Switch
The OmniSwitch 6850 Series switch does not use an on/off
switch. The power cord is the switch’s only connect/discon-
nect device. The power connector socket is located on the
switch’s rear panel. For more information, refer to the
OmniSwitch 6850 Series Hardware Users Guide.
To boot the switch, plug the power cord (provided) into the
power connector socket at the switch’s rear panel. Next, plug
the power cord into an easily-accessible power source, such as
a grounded AC outlet or an Uninterruptible Power Supply
(UPS).
The switch immediately begins the boot process. Allow a few
moments for the switch to boot completely, then verify the
status of all LEDs on the switch’s front panel. A successful
boot for a standalone switch displays the following LED
states:
Booting OmniSwitch 6850
Series Switches
LED States for a Standalone Switch
OK Solid green
PRI Solid green
PWR Solid green
BPS Solid amber, if BPS attached is failed;
off, if no operational BPS is attached;
solid green if an operational BPS is
attached and operating normally.
XFP1 Off (applies to all OmniSwitch 6850
Series switches except for the
OmniSwitch 6850-24X,
OmniSwitch 6850-P24X,
OmniSwitch 6850-48X,
OmniSwitch 6850-P48X, and
OmniSwitch 6850-U24X).
XFP2 Off (applies to all OmniSwitch 6850
Series switches except for the
OmniSwitch 6850-24X,
OmniSwitch 6850-P24X,
OmniSwitch 6850-48X,
OmniSwitch 6850-P48X, and
OmniSwitch 6850-U24X).
Slot Indicator 1–8 (non-blinking), depending on the
slot number value in the boot.slot.cfg
file. See the OmniSwitch 6850 Series
Hardware Users Guide for detailed
information. The default value is 1.
LED States for a Standalone Switch

June 2007 Booting OmniSwitch 6850 Series Switches 13
If any of the LED state differs from the states shown in the
table above, refer to the OmniSwitch 6850 Series Hardware
Users Guide for more information. Contact Alcatel-Lucent
Customer Support if the unexpected LED state persists.
For information on booting stacked configurations and
dynamic slot numbering, refer to the OmniSwitch 6850 Series
Hardware Users Guide.

14 Your First Login Session June 2007
Once the switch or stack has successfully booted and you have
accessed your computer’s terminal emulation software via the
console port, you are ready to log in to the switch’s Command
Line Interface (CLI) and configure basic information.
Complete the following steps during your first login session:
•Log in to the switch or stack
•Unlock session types
•Change the login password
•Set the date and time
•Set optional system information
•Save your changes
Note. You must be connected to the switch via the console
port before initiating your first login session. If you are
using OmniSwitch 6850 Series switches in a stacked
configuration, you must be connected to the console port
of the stack’s primary switch.
Logging in to the Switch
When you first log in to the switch or stack, you will be
prompted for a login (i.e., user) name and password. During
this first login session, only one user name option and one
password option is available:
•Login (i.e., user name)—admin
•Password—switch
To log in to the switch or stack, enter admin at the login
prompt:
login: admin
Next, enter the factory default password, switch, at the pass-
word prompt:
password: switch
Your First Login Session

June 2007 Your First Login Session 15
The default welcome banner, which includes information such
as the current software version and system date, displays—
followed by the CLI command prompt:
Welcome to the Alcatel-Lucent OmniSwitch 6850 Series
Software Version 6.1.5.281.R01 Development, March 16, 2007.
Copyright(c), 1994-2007 Alcatel-Lucent All Rights reserved.
OmniSwitch(TM) is a trademark of Alcatel-Lucent registered
in the United States Patent and Trademark Office.
->
More Information on User Accounts. A user account
includes a login name, password, and user privileges.
Privileges determine whether the user has read or write
access to the switch and which commands the user is
authorized to execute.
For detailed information on setting up and modifying user
accounts and user privileges, refer to the “Managing
Switch User Accounts” chapter of your OmniSwitch 6800/
6850/9000 Switch Management Guide.
Assigning an IP Address to the
Switch
Assigning an IP address to your OmniSwitch 6850 Series
switch is an important step in the setup process.
Remote sessions such as Telnet, FTP, and WebView require
an IP address. The IP address for these session types serves as
a destination point for the remote session. Therefore, before
the switch can support any remote login sessions, a valid IP
address must be configured.
To assign an IP address to a switch, simply assign an IP
address to the switch’s default VLAN 1 by entering the
ip interface command at the CLI prompt. Be sure that the
command begins with the command syntax:
-> ip interface address
exactly as shown, followed by the IP address. For example:
-> ip interface vlan_1 address 172.2.120.1
vlan 1
For information on assigning IP addresses in a stacked
configuration, refer to the OmniSwitch 6850 Hardware Users
Guide.

16 Your First Login Session June 2007
Unlocking Session Types
Security is a key feature on OmniSwitch 6850 Series switches.
As a result, when you access the switch for the first time, you
must use a direct console port connection. All other session
types (Telnet, FTP, WebView, SNMP, etc.) are “locked out”
until they are manually unlocked by the user.
The CLI command used to unlock session types is
aaa authentication.
Note. When you unlock session types, you are granting
switch access to non-local sessions (e.g., Telnet). As a
result, users who know the correct user login and pass-
word will have remote access to the switch. For more
information on switch security, refer to the “Managing
Switch User Accounts” chapter of your OmniSwitch 6800/
6850/9000 Switch Management Guide.
Unlocking All Session Types
To unlock all session types, enter the following command
syntax at the CLI prompt:
-> aaa authentication default local
Unlocking Specified Session Types
You can also unlock session types on a one-by-one basis. For
example, to unlock Telnet sessions only, enter the following
command:
-> aaa authentication telnet local
To unlock WebView (HTTP) sessions only, enter the follow-
ing command:
-> aaa authentication http local
You cannot specify more than one session type in a single
command line. However, you can still unlock multiple session
types by using the aaa authentication command in succes-
sion. For example:
-> aaa authentication http local
-> aaa authentication telnet local
-> aaa authentication ftp local
