Introduction
This document describes the services offered by a Premium or Smart DeskPhone attendant set
connected to an OXO Connect or OXO Connect Evolution.
The following terminals can be connected to OXO Connect:
•Alcatel-Lucent 8088 Smart DeskPhoneV2 (8088).
•Alcatel-Lucent 8078s Bluetooth® Premium DeskPhone (8078s BT).
•Alcatel-Lucent 8078s Premium DeskPhone (8078s).
•Alcatel-Lucent 8068s Bluetooth® Premium DeskPhone (8068s BT).
•Alcatel-Lucent 8068s Premium DeskPhone (8068s).
•Alcatel-Lucent 8058s Premium DeskPhone (8058s).
•Alcatel-Lucent 8039s Premium DeskPhone (8039s).
The following terminals can be connected to OXO Connect Evolution:
•Alcatel-Lucent 8088 Smart DeskPhoneV2 (8088).
•Alcatel-Lucent 8078s Bluetooth® Premium DeskPhone (8078s BT).
•Alcatel-Lucent 8078s Premium DeskPhone (8078s).
•Alcatel-Lucent 8068s Bluetooth® Premium DeskPhone (8068s BT).
•Alcatel-Lucent 8068s Premium DeskPhone (8068s).
•Alcatel-Lucent 8058s Premium DeskPhone (8058s).
This guide covers the specific functions of the Premium or Smart DeskPhone attendant set:
•Restricted service.
•Reserving a group of outside lines for exclusive operator use.
•Diverting operator calls to another number.
•Broadcasting background music on the external loudspeaker.
•Answering a night call.
•Programming.
Refer to the phones user manual for a full description of the deskphone (8AL90340ENADed01).
The operator station receives incoming calls and routes them to the appropriate extensions within the
system.
Depending on the amount of traffic handled, your system can have one or more operator stations:
•Grouped: all stations ring simultaneously.
•Assigned to specific time periods: only stations currently operational will ring.
This option is set up by your installation technician.
The labels and icons displayed depend on the type and the skin of the set. The label is not displayed if
the corresponding feature is not configured on your telephone system. Depending on the size of the
display, some labels may be truncated. All labels are displayed in color and are italicized. This icon
describes a succession of actions or labels you have to do or select: .
This icon describes the consequence of an action: .

Attendant set
8AL90384ENAAed01
3 /28
Phone description 4
Status icons/ Call icons 9
Permanent features keys 10
Keyboard 11
Setting restricted service 12
Reserving a group of lines 12
Manually diverting operator calls to another number 13
Broadcasting background music on the external loudspeaker 13
Answering a night call 14
Using a headset 14
When you return, consult your general voice mailbox 15
Accessing programming 16
Programming date and time (Clock) 16
Programming system directory (ComSpD) 16
Accessing the subscriber function 17
Subscriber name (Name) 17
Resetting a subscriber password (ResCod) 18
Subscriber display language (Lang) 18
Subscriber personal directory (PerSPD) 18
Subscriber discrimination criteria (Barrng) 19
Enable the CLASS service 19
Accessing the 'Expert' function 20
Table of business codes (Accoun) 20
Direct numbers of extensions (PubNum) 21
Greeting messages and Music on Hold (MOH) 21
DECT cordless telephones 23
Changing the operator password (Passwd) 23
Resetting the system (RstSys) 23
Voice message service 24
Software license agreements 26
Safety Instructions 27
Regulatory Statements 28

Attendant set
8AL90384ENAAed01
4 /28
Getting to know your telephone
Phone description
8088 Smart Deskphone
This phone is part of the IP phone range. With its large color touchscreen display, the 8088 Smart DeskPhone
delivers a great user experience and great conversation convenience with an outstanding audio quality in
either hands-free mode or using the comfort handset. Additionally, the DeskPhone improves your experience
with its Bluetooth® handset. The phone can automatically adjust the display brightness depending on the
lighting conditions to improve user experience and achieve power savings (ambient light sensor).
Navigation
1
LED
Flashing blue: incoming call / Arrival of a
new call.
Select a page by pressing the corresponding tab on the
screen. The selected page is highlighted.
Make your selection by pressing the label on the screen.
2
Embedded HD Video camera with shutter.
Swipe the shutter right or left to use or hide
the camera. The 8088 Smart DeskPhone
can be provided with or without an
embedded camera.
Scroll a list (features, call log, contact,...) by pressing the
up or down arrow or by sliding the finger up or down on
the screen.
3
Color touchscreen display with auto
brightness adjustment which improves the
user experience and achieves power
savings (ambient light sensor).
Manage your call forwarding by pressing the forward icon.
Stationary arrow: no forwarding activated.
Rotating arrow: forwarding activated.
4
Permanent feature keys: quick access to
the phone's main features.
Use the 'OK' softkey to validate your choices and options
while programming or configuring.
5
•Bluetooth® wireless handset.
•Wired handset.
•
•Use the 'Back/Exit' icon to go back to the previous step.
6
3.5 mm, 4 pole jack (TRRS standards:
CTIA).
Redial key: to access the 'Redial' feature.
•Last number redial (short press).
•Call back one of the last 8 numbers dialed (long
press).
7
Microphone.
Programmable keys (F1 and F2 keys).
A service or a direct call can be associated to these keys.
8
Loudspeaker.
9
An adjustable and stable foot.

Attendant set
8AL90384ENAAed01
5 /28
8078s Bluetooth/ 8078s Premium DeskPhone
This phone is part of the IP phone range. With its 5-inch-touch-color display, the 8078s Premium
DeskPhone delivers a great user experience and increased comfort with outstanding super wideband
audio quality (HD audio) both in hands-free mode and when using the comfort handset. Additionally, the
8078s Bluetooth® Premium DeskPhone improves your experience with its Bluetooth® handset or other
Bluetooth® accessories. The 8078s Bluetooth® Premium DeskPhone is 'Bluetooth® Smart Ready'. You
can personalize the phone by selecting a theme (skin). It is compatible with remote working. By this way,
it is perfect for use at your office in your enterprise or at home (remote working).
Navigation
1
LED
Flashing blue: incoming call / appointment
alarm.
Select a page by pressing the corresponding tab on the
screen. The selected page is highlighted.
Make your selection by pressing the label on the screen.
2
Color touchscreen display with auto
brightness adjustment which improves the
user experience and achieves power
savings (ambient light sensor).
Scroll a list (features, call log, contact, …) by pressing the
up and down arrow on the screen, or on the keyboard.
3
Permanent feature keys: quick access to
the phone's main features.
Manage your call forwarding by pressing the forward icon.
Stationary arrow: no forwarding activated.
Blinking or rotating arrow according to the skin:
forwarding activated.
4
Bluetooth® wireless handset (8078s BT).
Wired handset (super wideband or wide
band audio quality).
Use the 'OK' softkey to validate your choices and options
while programming or configuring.
5
3.5 mm, 4 pole jack (TRRS standards:
CTIA).
Use the 'Back/Exit' icon to go back to the previous step.
6
Magnetic alphabetic keyboard.
Use the 'setting' icon to quick access to the user local
menu.
7
An adjustable and stable foot.
Use the 'Bluetooth®' softkey to open Bluetooth® settings.
8
Super wideband loudspeaker for optimized
sound.

Attendant set
8AL90384ENAAed01
6 /28
8068s Bluetooth/ 8068s Premium DeskPhone
This phone is part of the IP phone range. With its color display associated with ten dedicated function keys
and an intuitive navigation key, the 8068s Premium DeskPhone delivers a great user experience and
increased conveniencewith an outstanding superwideband audio quality (HD audio) in both hands-freemode
and when using the comfort handset. Additionally, the 8068s Bluetooth® Premium DeskPhone improves your
experience with its Bluetooth® handset or other Bluetooth® accessories. The 8068s Bluetooth® Premium
DeskPhone is 'Bluetooth® Smart Ready'. You can personalize the phone by selecting a theme (skin). It is
compatible with remote working. By this way, it is perfect for use at your office in your enterprise or at home
(remote working).
Navigation
1
LED
Flashing blue: incoming call / appointment alarm.
OK key: use this key to validate your choices
and options while programming or configuring.
Left-right navigator: in idle state, use this key
to move from one page to another. In
conversation, use this key to move between
tabs of current calls (call in progress, calls on
hold, incoming call). In the text edition, use this
key to navigate into the text box.
Up-down navigator: used to scroll through the
content of a page.
2
Color display with auto brightness adjustment
which enhances user experience and saves power
(ambient light sensor).
3
10 dedicated functions keys.
4
Navigation.
Permanent feature keys: quick access to the
phone's main features.
Back/Exit key: use this key to go back to the
previous step. Use this key to go back to the
homepage (long press).
6
Bluetooth® wireless handset (8068s BT).
Wired handset (super wideband or wide band
audio quality).
7
3.5 mm, 4 pole jack (TRRS standards: CTIA).
Manage your call forwarding by pressing the
key associated with the forward icon.
Stationary arrow: no forwarding activated.
Blinking or rotating arrow according to the
skin: forwarding activated.
8
Magnetic alphabetic keyboard.
9
An adjustable and stable foot.
10
Super wideband loudspeaker for optimized sound.

Attendant set
8AL90384ENAAed01
7 /28
8058s Premium DeskPhone
This phone is part of the IP phone range. In addition to a color display associated to 6 dedicated function
keys and an intuitive navigation key, the 8058s Premium DeskPhone provides 4 programmable softkeys
as a smart add-on module, for a quick access to your favorite contacts or features. It provides a super
wideband audio quality (HD audio) for telephone calls both in hands-free mode and using the comfort
handset. You can personalize the phone by selecting a theme (skin). It is compatible with remote
working. By this way, it is perfect for use at your office in your enterprise or at home (remote working).
User interface with virtual
add-on. 4 programmable
softkeys are displayed and
can be used as a smart
add-on module.
User interface without
virtual add-on.
Navigation
1
LED
Flashing blue: incoming call / appointment alarm.
OK key: use this key to validate your choices and
options while programming or configuring.
Left-right navigator: in idle state, use this key to
move from one page to another. In conversation,
use this key to move between tabs of current calls
(call in progress, calls on hold, incoming call). In
the text edition, use this key to navigate into the
text box.
Up-down navigator: used to scroll through the
content of a page.
2
Color display with auto brightness adjustment
which enhances user experience and saves power
(ambient light sensor).
3
6 dedicated functions keys.
4
Virtual add-on: 4 programmable softkeys with LED
(optional).
5
Navigation.
Back/Exit key: use this key to go back to the
previous step. Use this key to go back to the
homepage (long press).
6
Permanent feature keys: quick access to the
phone's main features.
7
Wired handset (super wideband or wide band
audio quality).
8
3.5 mm, 4 pole jack (TRRS standards: CTIA).
Manage your call forwarding by pressing the key
associated with the forward icon.
Stationary arrow: no forwarding activated.
Blinking or rotating arrow according to the
skin: forwarding activated.
9
Magnetic alphabetic keyboard.
10
An adjustable and stable foot.
11
Super wideband loudspeaker for optimized sound.
The virtual add-on is optional and depends on the display mode defined by your administrator. Contact
your administrator for more information.

Attendant set
8AL90384ENAAed01
8 /28
8039s Premium DeskPhone

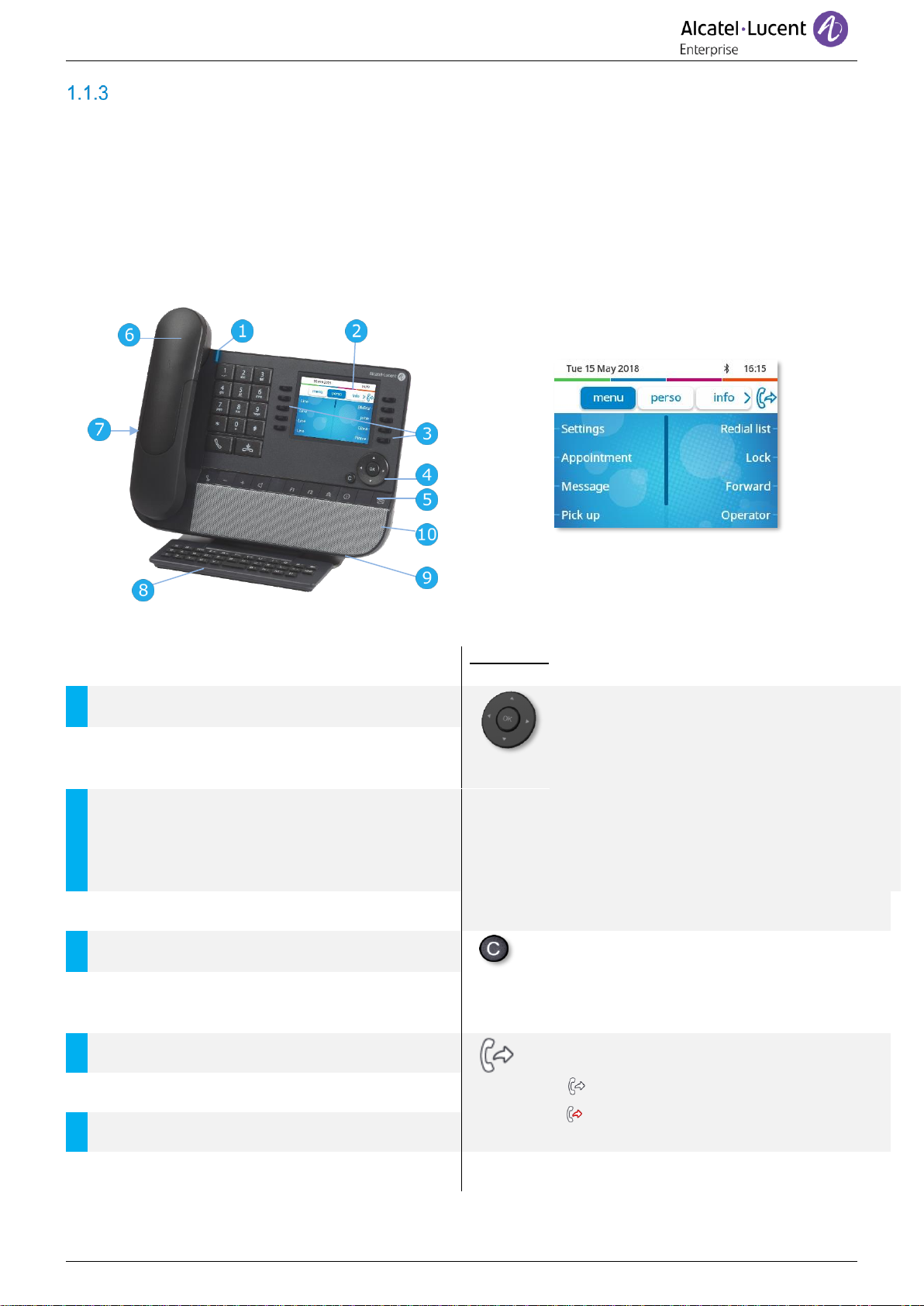

This phone is part of the digital phone range. In addition to a clear monochrome display associated with ten
dedicated function keys and an intuitive navigation key, the 8039s Premium DeskPhone provides a rich
digital-communication experience and increased comfort with an outstanding audio quality both in hands-free
mode and using the comfort handset.
Navigation
1
LED
Flashing blue: incoming call / Appointment alarm.
OK key: use this key to validate your
choices and options while programming or
configuring.
Left-right navigator: in idle state, use this
key to move from one page to another. In
conversation, use this key to move between
tabs of current calls (call in progress, calls
on hold, incoming call). In the text edition,
use this key to navigate into the text box.
Up-down navigator: used to scroll through
the content of a page.
2
Monochrome backlit screen.
3
10 dedicated functions keys.
4
Navigation.
5
Permanent feature keys: quick access to the
phone's main features.
6
Wired handset.
7
3.5 mm, 4 pole jack (TRRS standards: CTIA).
back/Exit key: use this key to go back to
the previous step. Use this key to go back
to the homepage (long press).
8
Magnetic alphabetic keyboard.
9
An adjustable and stable foot.
10
Loudspeaker.
Manage your call forwarding by pressing
the key associated with the forward icon.
Stationary white icon: no forwarding
activated.
Rotating arrow: forwarding activated.

Attendant set
8AL90384ENAAed01
9 /28
Status icons/ Call icons
Icons giving information about some specific configurations of the phone or about call status are
displayed in the top bar of the screen.
Status icons
Depending on the size of the display, all status icons may not be displayed simultaneously. Which icons
are displayed depends on their priority. The following icons are listed according to their priority, from the
highest to the lowest. Depending on your phone, some status icons are never displayed.
Silent mode.
Telephone locked.
Headset connected.
Handsfree connected
Appointment programmed.
Bluetooth ® accessory paired.
Active Bluetooth ® connection.
Wi-Fi enabled.
Speakerphone activated and computer connected to the deskphone.
Your phone is upgrading.
Connection problem with the server for upgrade.
Call icons
Incoming call icon.
Call in progress icon.
Call holding icon.
Your contact ended the conversation.

Attendant set
8AL90384ENAAed01
10 /28
Permanent features keys
They are located just above the loudspeaker.
8078s
8068s
8058s
8039s
8088
Description
•Mute and interphony key.
During a call, press this key to stop your contact from hearing you. When idle,
press this key to switch the phone to interphony mode. When you receive a call,
the phone hooks off automatically and you go straight into hands-free mode.
When activated, this key is lit blue.
•Turn down the volume (ringing or call state).
•Decrease the brightness (idle state).
•Decrease the contrast (idle state).
•Turn up the volume (ringing or call state).
•Increase the brightness (idle state).
•Increase the contrast (idle state).
•Pressing this key answers an incoming call in hands-free mode (when activated,
the key is lit blue). When a call is in progress, pressing this key switches from
hands-free mode to headset or handset mode. If the headset is connected, you
automatically answer the call with the headset. A long press activates the
loudspeaker when a call is in progress via the handset or headset.
•Programmable keys (F1 and F2 keys).Lit when the function associated with the
key is activated. A service or a direct call can be associated to these keys.
•Redial key: to access the 'Redial' feature.
oLast number redial (short press).
oCall back one of the last 8 numbers dialed (long press).
•Quick access to user local menu (long press).
•Used to obtain information on functions of the 'menu' page and to program key
of the 'perso' page (short press).
Messaging key to access the messaging portal (call log, voice messages and text
messages).
This key flashes blue when there is a new event such as a new voice message, a
new instant message or a new event in the call log. The key remains lit until all
events are acknowledged or deleted.
•Ignore incoming call.
•Hang up the ongoing call.
•Terminate a programming.
Show or hide the keypad. use the keypad to enter digits and letters.
Android™ settings
Use this key to adjust the display of the phone, configure Bluetooth®, customize the
alpha keypad, or set time and date.
Return to the homepage at any time.
The home key is red when the connection is lost with the call server.

Attendant set
8AL90384ENAAed01
11 /28

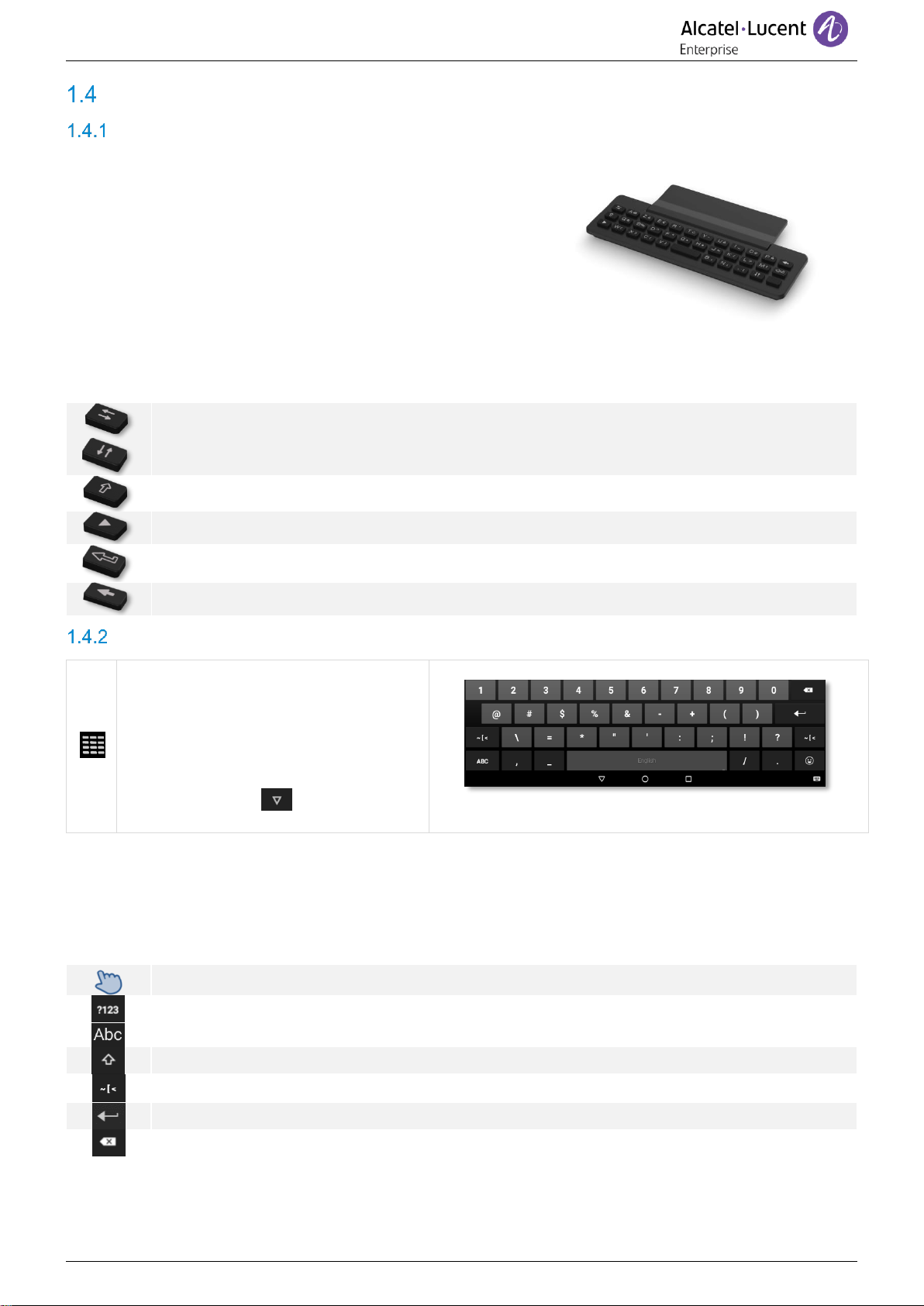

Keyboard
Magnetic alphabetic keyboard (8078s, 8068s, 8058s, 8039s Premium DeskPhone)
Your set is provided with a magnetic alphabetic keyboard. The
keyboard depends on your country and languages. The
magnetic keyboard is automatically fixed on the base of the
set. It is connected to the corresponding connector behind the
phone. Country variants: AZERTY, QWERTZ, QWERTY
(international), QWERTY (nordic).
Use the keyboard to enter names while configuring the phone.
Access directly the dial by name feature by entering the name of your contact on the keyboard.
Below is a list of the function keys that allow you to access all the symbols.
Cursor moving keys (left, right, up and down). Allows you to navigate edit boxes. Press the
Alt key to access the left and up directions.
Caps lock: to write text in capital letters.
Alt key: to access specific and punctuation characters.
Enter key: to validate edited text.
Backspace key: to delete one character in an edit box.
alphabetic keypad (8088 Smart DeskPhone)
Show or hide the keypad. use the
keypad to enter digits and letters.
At any time, you can show or hide the
keypad by selecting this key. You can
use also the arrow at the bottom of the
keypad to hide it ( ).
Use the keyboard to enter names while configuring the phone. Access directly the dial by name feature
by entering the name of your contact on the keyboard.
Below is a list of the function keys that allow you to access all the symbols. All illustrations are for
illustration purposes only and may be different with the actual display.
Move the cursor by touching the text area.
Numbers and symbols keypad.
Alphabetic keypad to enter letter.
Caps lock: to write text in capital letters.
Alt key: to access specific and punctuation characters.
Enter key: to validate edited text.
Backspace key: to delete one character in an edit box.

Attendant set
8AL90384ENAAed01
12 /28
Operator station (OS) functions
Setting restricted service
This function sets the system to restricted service.
All incoming calls are directed to a general ring or a programmed number:
•Access the 'Perso' page.
•Night
The label depends on the system configuration and can be defined by the administrator.
Depending on the configuration, the F1 key can be used for this feature.
•Operator password.
Display and tone indicate service active.
Key icon indicates service active .
To restore normal service, repeat operation.
If an outside number has been entered by the installation technician, selection of restricted service will
automatically divert calls received by the operator to the defined outside number.
Reserving a group of lines
For maximum availability of the operator station, thus assuring optimum reception of incoming calls, a
group of outside lines can be reserved which will only be available to the operator station(s):
•Access the 'Perso' page.
•Reserv
•Operator password.
Display and tone indicate service active.
Key icon indicates service active .
To cancel the line reservation, repeat operation.

Attendant set
8AL90384ENAAed01
13 /28
Manually diverting operator calls to another number
During a period of absence, the operator can divert all calls received (incoming calls and internals calls
dialling 9) to another number:
•Access the 'Perso' page.
Forward
Use one of the following:
oEnter number
Dial the destination number.
oRedial list
Select one of the last numbers dialed.
oSpeed dial
Select a speed dial destination number.
oIndiv.rep.
Select the destination number through the individual repertory.
•Operator password.
Key icon indicates service active .
To cancel the diversion
•Forward
•Operator password.
Broadcasting background music on the external loudspeaker
•Access the 'Perso' page.
•Music
The label depends on the system configuration and can be defined by the administrator.
•Operator password.
Display and tone indicate service active.
Key icon indicates service active .

Attendant set
8AL90384ENAAed01
14 /28
Answering a night call
An incoming night call is indicated in the same way as an ordinary call:
•Your telephone rings.
•The night call name or number is displayed.
•Use one of the following:
oUnhook the handset.
oPress the on-hook/off-hook key of the Bluetooth® device (Bluetooth® Wireless
handset).
oHands-free.
oPress the key next to the incoming call icon.
Using a headset
To use a headset instead of your handset, connect a headset to your phone and activate the headset
mode.
To activate or deactivate headset mode:
•Reach the 'Menu' page.
•Settings Phone ForcedHead
•ON/OFF Activating/deactivating forced headset.
Answering or making a call:
•Hands-free.
•End the call.
To activate or deactivate the loudspeaker during a conversation:
•During a conversation.
•Hands-free.
To answer in interphony mode:
•Corresponding LED lights up.
•Cancel interphony mode.

Attendant set
8AL90384ENAAed01
15 /28
When you return, consult your general voice mailbox
The light indicates that messages have been received.
•/
•Genmailbox
•Operator password.
•Display number of new and old messages.
•Select message.
•Validate.
•Display name of sender, with date, time and ranking of message.
•Play: listen to message.
•Clear: erase message.
•Send IM:send instant message to the contact.
•Send copy:send a copy of a message.

Attendant set
8AL90384ENAAed01
16 /28
Programming functions
Accessing programming
Your OXO Connect system's operator station can access the general programming services.
•Access the 'Perso' page.
•Operator
•Operator password.
Access programming function.
To exit mode: .
Programming date and time (Clock)
•In programming function.
•Clock.
•Enter date and time.
Depending on your phone, use the left/right navigation keys or touch the text area to move the
cursor and modify the value.
Clear: delete a character.
•Validate.
Programming system directory (ComSpD)
This function can be used to program system short numbers, accessible to all system users:
•Reach the 'Menu' page.
•Speed dial
Display gives first short number.
•Modify
•Enter name (max. 16 characters).
•Validate.
•Enter the first name.
•Validate.
•Enter number (max. 21 digits).
•Validate.
•Programmed short number is displayed.
To enter another short number:
•Use one of the following:
oSelect another short number.
oNew

Attendant set
8AL90384ENAAed01
17 /28
Setting various subscriber telephone
parameters
Accessing the subscriber function
This feature is accessible from the programming function mode:
•Access the 'Perso' page.
•Operator
•Operator password.
Access programming function.
This function provides access to the various parameters defined for a system user or subscriber,
identified by an extension number:
•Subscriber
•Enter extension n to be programmed.
Access to 'Subscriber' programming function.
To exit mode: .
Subscriber name (Name)
•In 'Subscriber' function.
•Name
•Depending on your phone, use navigation keys or touch the area.
oName: enter name.
o1st name: enter the first name.
Depending on your phone, use the left/right navigation keys or touch the text area to move the
cursor and modify the value.
Clear: delete a character.
•Validate.
To enter a name with special characters (Unicode characters)
•In 'Subscriber' function.
•Unicode Name
•Depending on your phone, use navigation keys or touch the area.
oUni Name: enter name.
oUni 1stName: enter the first name.
Depending on your phone, use the left/right navigation keys or touch the text area to move the
cursor and modify the value.
Clear: delete a character.
•Validate.

Attendant set
8AL90384ENAAed01
18 /28
Resetting a subscriber password (ResCod)
This function is used to cancel a subscriber's password and restore the default password (default
password is defined by your administrator):
•In 'Subscriber' function.
•Pwdreset
•Validate.
Subscriber display language (Lang)
This function is used to specificy the display language for the selected subscriber.
Pressing this key scrolls the various languages available:
•In 'Subscriber' function.
•Language
•Select the language of your choice.
•Validate.
Subscriber personal directory (PerSPD)
This function is used to create the personal directory of the selected subscriber:
•In 'Subscriber' function.
•Indiv.rep. Display gives first number.
•Modify
Enter name (max. 6 characters).
Depending on your phone, use the left/right navigation keys or touch the text area to move the
cursor and modify the value.
Clear: delete a character.
•Validate.
Enter public number (max. 19 digits).
Depending on your phone, use the left/right navigation keys or touch the text area to move the
cursor and modify the value.
Clear: delete a character.
•Validate.

Attendant set
8AL90384ENAAed01
19 /28
Subscriber discrimination criteria (Barrng)
This function is used to define discrimination criteria for each subscriber:
•In 'Subscriber' function.
•Barring Selection displayed on first line.
•Selection the key associated with the discrimination criteria.
•Validate.
This function is used to describe discrimination criteria for each subscriber.
Enable the CLASS service
Enabling the CLASS service is used to display information (caller name, number, etc.) on the display of
an analogue set.
•In 'Subscriber' function.
•Terminal
•Class
•Select the 'CLASS' service.
•Validate.
The CLASS service is selected when the 'CLASS' label is displayed on the screen.

Attendant set
8AL90384ENAAed01
20 /28
Complementary 'Expert' functions
Accessing the 'Expert' function
This feature is accessible from the programming function mode:
•Access the 'Perso' page.
•Operator
•Operator password.
Access programming function.
To acces the 'Expert' function:
•Expert
Access to 'Expert' programming function.
To exit mode: .
Table of business codes (Accoun)
This function is used to define the table of business codes enabling a subscriber to charge his/her calls
to a business account:
•In 'Expert' function.
•Account code
•Add
Create an entry.
oCode
Max. 16 digits.
oName
Max. 16 characters.
oParameter1
oParameter2
•Validate.
Parameter1
•UserID
Indicate whether identity required or not.
•Protected
Indicate whether password required or not.
Parameter2
•Barring
Indicate discrimination category.
•Mask
Indicate number of masked digits.
Barrng': discrimination category: none, 1 to 16, that of subscriber (SET) or that of user (GUEST).
Barrin: number of digits: DEF (default value: 4), all, none, 1 to 9.
