SpeedTouch™
570/570i
Wireless ADSL Routers
Setup and User’s Guide
500
SERIES

3EC 17766 BAAA TCZZA Ed. 01
SpeedTouch™ 570
Setup and User’s Guide

3EC 17766 BAAA TCZZA Ed. 01
Status Released
Change Note PeckelbeenS
Short Title CD-UG ST570 R2.0
Copyright © 2002 THOMSON multimedia. All rights reserved. Passing on, and copying of this docu-
ment, use and communication of its contents is not permitted without written authorization
from THOMSON multimedia. The content of this document is furnished for informational
use only, may be subject to change without notice, and should not be construed as a commit-
ment by THOMSON multimedia. THOMSON multimedia assumes no responsibility or
liability for any errors or inaccuracies that may appear in this document.

3EC 17766 BAAA TCZZA Ed. 01 5
Contents
1 SpeedTouch™570 Installation ...................................... 7
1.1 Getting Acquainted with the SpeedTouch™570.............................................. 8
1.2 Preparing the SpeedTouch™570 ..................................................................... 10
1.3 Wireless Connectivity ....................................................................................... 13
1.3.1. First-time Wireless Client Connectivity ...................................................................................15
1.3.2. Connecting other Wireless Clients ...........................................................................................16
1.4 SpeedTouch™570 Configuration Setup .......................................................... 18
1.4.1. Configuration Setup for MS Windows OSs ............................................................................. 19
1.4.2. Configuration Setup for other OSs ............................................................................................24
1.5 SpeedTouch™570 Internet Connectivity........................................................ 26
2 SpeedTouch™570 Web Interface .............................. 29
2.1 System Tasks ...................................................................................................... 32
2.2 Other Places Tasks ............................................................................................ 36
3 Troubleshooting and Specifications ........................... 43

3EC 17766 BAAA TCZZA Ed. 01
6

1 SpeedTouch™570 Installation
3EC 17766 BAAA TCZZA Ed. 01 7
1 SpeedTouch™570 Installation
Introduction Thank you for purchasing the SpeedTouch™570 Wireless ADSL router!
With the SpeedTouch™570 two cutting-edge technologies are combined: ADSL and
the Wireless LAN (WLAN). With this answer to the increasing popularity of both tech-
nologies, users can connect to your (Wireless) network and surf the Internet at high
speed without the need for any expensive wiring installation.
In this Setup and User's
Guide
This Setup and User's Guide will assist you in getting acquainted with the Speed-
Touch™570 and quickly connecting wired and wireless users to the Internet.
Terminology For readability, both the SpeedTouch™570 and SpeedTouch™570i will be referred to as
SpeedTouch™570 in this Setup and User's Guide.
Quick installation and
Safety instructions
Prior to connecting the SpeedTouch™570 , read the SpeedTouch™ Quick Installation
Guide and Safety instructions.
Documentation and
software updates
Due to the continuous evolution of DSL technology, existing products are regularly
upgraded.
For more information on the newest technological breakthroughs, software upgrades
and documents, please consult the SpeedTouch™ web sites at:
•http://www.speedtouch.com

3EC 17766 BAAA TCZZA Ed. 01
1 SpeedTouch™570 Installation
8
1.1 Getting Acquainted with the SpeedTouch™570
Introducing the
SpeedTouch™
Prior to proceeding, please make sure to read first the SpeedTouch™ Quick Installation
Guide . It provides important package content and safety information.
Check whether all items are present in your package.
In the event of damaged or missing items, please contact your local product dealer for
more information.

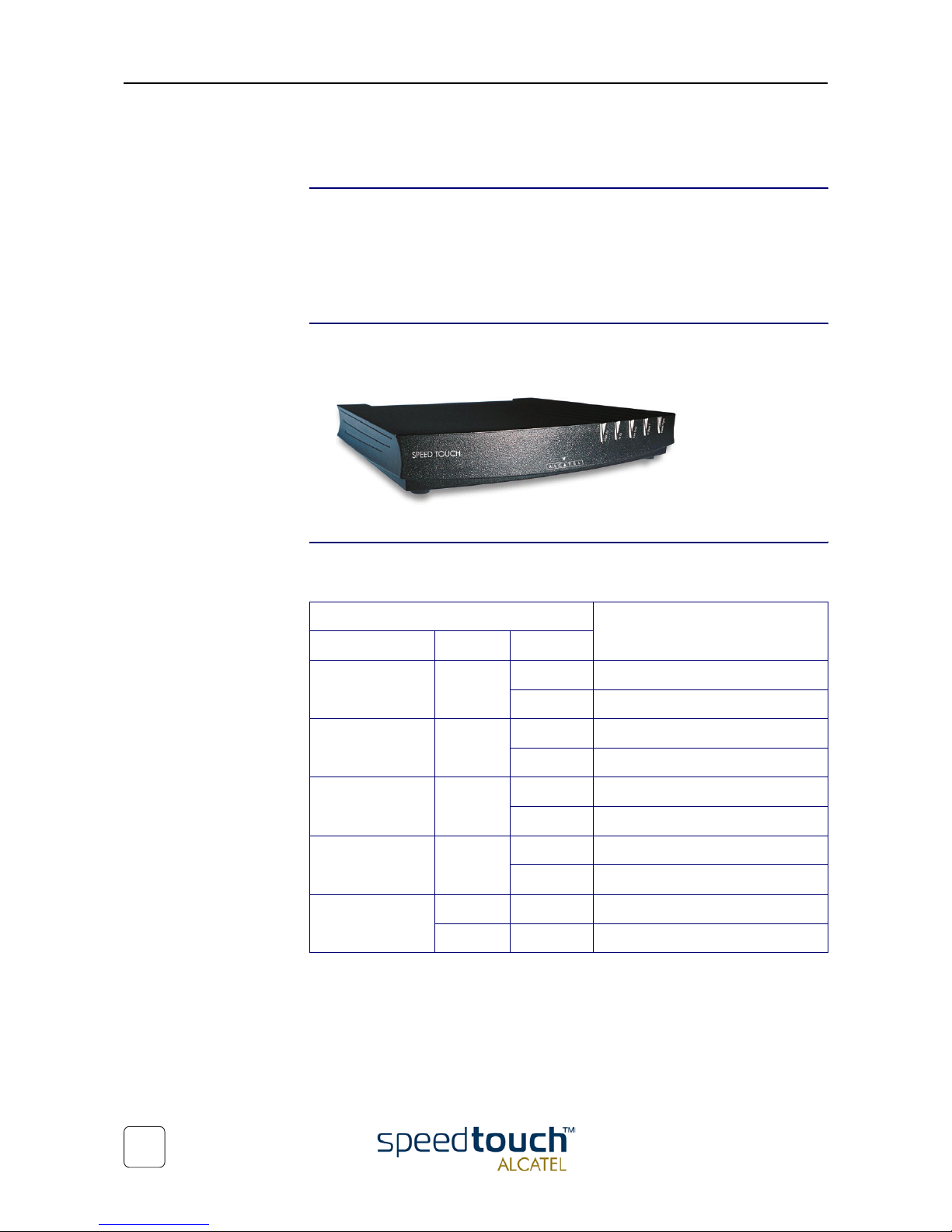

The SpeedTouch™570 You SpeedTouch™ is presented in a slim line box:
SpeedTouch™ LEDs The SpeedTouch™570 is equipped with 5 LEDs on its front panel, indicating the state of
the device during operation:
Indicator Description
Name Color State
LAN Green Flashing Wireless LAN traffic activity
Off No Wireless LAN activity
Line TX Green Flashing Cell transmission on DSL line
Off No transmission activity
Line RX Green Flashing Cell reception from DSL line
Off No reception activity
Line Sync Green Flashing Initialization of DSL line
On DSL line synchronized
PWR/Alarm Green On Power on, normal operation
Amber Flashing WLAN client registration

1 SpeedTouch™570 Installation
3EC 17766 BAAA TCZZA Ed. 01 9
SpeedTouch™570 back
panel layout
Ethernet port LED
functionality
The Ethernet port on the rear panel has two LEDs:
A Power button D Defaults button
B Power inlet E 10/100Base-T Ethernet port
C WLAN Registration button F DSL line port
BACDE F
Indicator Description
Name LED
Status
A 10/100Base-T Off 10Base-T Ethernet connection.
Solid 100Base-T Ethernet connection.
BIntegrity
Activity
Off No connection on this port.
Solid Ethernet link up.
Flashing Data is flowing from/to this port.
BA

3EC 17766 BAAA TCZZA Ed. 01
1 SpeedTouch™570 Installation
10
1.2 Preparing the SpeedTouch™570
Wall fixing assembly Part of the package is a wall mounting assembly which allows you to conveniently mount
the SpeedTouch™570 on a wall.
Before you start, check for the following items:
•The wall fixing assembly
•2 screws and 2 wall plugs
•1 Velcro sticker.
To prepare the wall fixing assembly and the SpeedTouch™570 , proceed as follows:
Step Action
1Mark two hole horizontal positions, 134 mm (5.36 inches) apart:
2Drill the marked holes with a 6mm (0.24 inches) diameter drill bit to a
minimum depth of 35mm (1.38 inches).
3Insert the wall plugs in the drilled holes, position the wall fixing assembly over
the holes, insert the screws in the wall plugs and tighten them firmly:
4Place the Velcro sticker on the wall fixing assembly in the marked area.

1 SpeedTouch™570 Installation
3EC 17766 BAAA TCZZA Ed. 01 11
Two variants Two ADSL variants of the SpeedTouch™570 Wireless ADSL Routers exist:
•The SpeedTouch™570 :
The ADSL/POTS variant connecting to an analog POTS(*) line
•The SpeedTouch™570 i :
The ADSL/ISDN variant connecting to a digital ISDN(**) line.
You can identify your variant by checking the identification label located on the bottom
of your SpeedTouch™570 .
Use only the SpeedTouch™570 variant which is appropriate for the DSL service deliv-
ered to your premises. Check with your Service Provider to determine whether your
SpeedTouch™570 is adapted to ADSL service requirements.
(*) Plain Old Telephone Service (POTS)
(**) Integrated Services Digital Network (ISDN)
ADSL service The appropriate DSL service must be available your premises.
•ADSL service must be enabled on your telephone line
•As both telephone and ADSL service are simultaneously available from the same
copper pair, you will need a central splitter or distributed filters for de coupling
ADSL and telephone signals.
Always contact your Service Provider when installing splitter/filters!
Public telephone lines carry voltages that can cause electric shock. Only install splitter/
filters yourself if these are qualified for that purpose. Other splitter/filters may only be
installed by qualified service personnel.
Connect the ADSL line The DSL port on the SpeedTouch™570 is marked “Line”.
Use the DSL cable provided to wire the SpeedTouch™570 DSL port to your telephone
wall outlet.
5Position the SpeedTouch™570 over the two hooks and slide the box down
into place so that it is attached to the Velcro:
Step Action

3EC 17766 BAAA TCZZA Ed. 01
1 SpeedTouch™570 Installation
12
Connect the power
supply
Always check first whether the power supply adapter provided is suitable for the local
power specifications. Contact your Service Provider in case of any doubt.
The power inlet on the SpeedTouch™570 is marked “DC”.
Plug the adapter's coaxial jack into the SpeedTouch™570's power inlet.
Turn on the
SpeedTouch™570
Once all previous steps are completed, you can turn the SpeedTouch™570 on (I) with
the power switch.
The SpeedTouch™570 is ready for service as soon as the start-up procedures are
completed, the Power On Self Test (POST) is passed and both Power/Alarm and Line
Sync LEDs on the front panel are constantly lit green.
For troubleshooting startup failures, see chapter “3 Troubleshooting and Specifications”
on page 43.
Local networking setup The SpeedTouch™570 offers two local networking solutions:
•Wireless Ethernet
The SpeedTouch™570 Wireless Ethernet allows multiple PCs to connect to your
local network.
To be able to connect the PCs, you must install a Wireless Ethernet client adapter
(WLAN client) on each PC you want to connect via the Wireless Ethernet.
For more information on how to proceed for associating and registering WLAN
clients, see “1.3 Wireless Connectivity” on page 13.
•Wired Ethernet
The SpeedTouch™570's Ethernet port on the back panel allows you to connect
the SpeedTouch™570 to an existing 10 or 100Base-T Ethernet network or a
single computer with installed Ethernet card.
•To connect the SpeedTouch™570 to a single computer, you can simply use
the included straight-through Ethernet cable to connect both Ethernet
ports.
•For building a wired Ethernet network of multiple PCs, you must connect
the SpeedTouch™570 to a hub or a switch.
Note If a hub or switch is used for wired Ethernet networking, please follow the
installation instructions supplied with the hub for connections and Ethernet
cabling.
Internet connection
setup
To continue with preparing the SpeedTouch™570 for Internet connectivity, see
“1.4 SpeedTouch™570 Configuration Setup” on page 18.

1 SpeedTouch™570 Installation
3EC 17766 BAAA TCZZA Ed. 01 13
1.3 Wireless Connectivity
Introduction The SpeedTouch™570 features a Wireless LAN Access Point which behaves as a hub
and allows wireless connectivity between several devices and the local (W)LAN and -
via the SpeedTouch™570 DSL router - to the public network, e.g. the Internet.
WLAN technology enables these devices to communicate with each other in a locally
mobile fashion, without the need for a wired environment.
Wireless basics The WLAN's 'radio' link is a shared medium. As no physical connection exists between
the SpeedTouch™570 and wireless clients, a name must be given to allow unique identi-
fication of your WLAN radio link. This is done by the Service Set ID (SSID). Wireless
clients must be part of this SSID environment in order to be able to communicate with
other clients on the (W)LAN - including the SpeedTouch™570 .
The IEEE802.11b standard for WLANs allows several WLAN networks using different
radio channels to be co-located. Several channels are available for use which are associ-
ated to a slightly different frequency in the allowed range. The SpeedTouch™570
supports operation on all allowed channels and is able to select the best radio channel
at each start-up.
Wireless security Since the SpeedTouch™570 (W)LAN environment is a radio environment, precautions
must be taken to ensure that your wireless network is safe from malicious intruders. In
addition to providing the possibility of giving a personalized SSID name to the wireless
network, the SpeedTouch™570 features a physical registration mechanism, an Access
Control List (ACL) and enhanced Wired Equivalent Privacy (WEP) 64- or 128-bits
encryption to secure your network and to control wireless client access.
Wireless client
requirements
Only WLAN client adapters compliant to IEEE802.11b DSSS, will be able to communi-
cate with the SpeedTouch™570 , and with the other members of the SpeedTouch™570
(W)LAN environment.
It is advisable that the WLAN client adapter is Wireless Ethernet Compatibility Alliance
(WECA) Wi-Fi™ (*) certified to ensure smooth interoperability.
To use SpeedTouch™570 's encryption security features, the WLAN client adapters
should at least support 64-bit WEP encryption.
(*) Wireless-Fidelity (Wi-Fi)
Recommended
Wireless client
adapters
Only WLAN client adapters compliant to IEEE802.11b DSSS, will be able to communi-
cate with the SpeedTouch™570, hence with other members of the SpeedTouch™570
Wireless LAN environment.
It is advisable that the WLAN client adapter is Wireless Ethernet Compatibility Alli-
ance (WECA) Wi-Fi certified to ensure smooth interoperability.

3EC 17766 BAAA TCZZA Ed. 01
1 SpeedTouch™570 Installation
14
Default configuration When the SpeedTouch™570 leaves the factory and after every Push-to-Defaults, the
SpeedTouch™570 wireless configuration returns to its initial default settings.
These settings are as follows:
•The default SSID is printed on the identification label located on the bottom of
your SpeedTouch™570:
This unique SSID consists of the word “SpeedTouch” followed by the 6 last char-
acters of the SpeedTouch™570 WLAN access point MAC address, without any
spaces.
•By default SpeedTouch™570 automatically selects the best DSSS radio channel
number at each start-up.
•The 'Registration' button is activated by default.
•Access Control List is empty and locked by default.
•WEP encryption is disabled by default.

1 SpeedTouch™570 Installation
3EC 17766 BAAA TCZZA Ed. 01 15
1.3.1. First-time Wireless Client Connectivity
Initial SpeedTouch™570
wireless configuration
When the SpeedTouch™570 leaves the factory and after every Push-to-Defaults, the
SpeedTouch™570 wireless configuration returns to its initial default settings.
These settings are as follows:
•The SSID is as printed on the identification label located on the bottom of your
SpeedTouch™570 .
•The DSSS radio channel number is set to “automatic”.
•The 'Registration' button is activated.
•The Access Control List is empty and locked.
•WEP encryption is disabled.
Preconditions for a
successful first-time
WLAN client
registration
Make sure that:
•The SpeedTouch™570 is powered on and ready for service.
•The SpeedTouch™570 is in its default configuration.
If needed, perform a push-to-defaults via its default button.
•The WLAN client adapter is installed on your computer.
By default the WLAN client adapter’s IP configuration is set to dynamically obtain
its IP configuration (DHCP).
•The WLAN client is correctly configured for the default SpeedTouch™570 SSID,
hence associated to the SpeedTouch™570 WLAN. Depending on your WLAN
client a wireless icon may become green or a message similar to the following may
pop up: “Successfully joined Wireless network SpeedTouch012345".
Note Some WLAN clients do not automatically join a WLAN. If so, follow the
instructions for the WLAN client software to initiate the association.
Registering the first
WLAN client
Proceed as follows:
Step Action
1Make sure that all preconditions mentioned above are met.
2Push the red Registration button on the SpeedTouch™570 back panel.
3Make sure the WLAN client is correctly associated again to the Speed-
Touch™570 WLAN. Depending on your WLAN client adapter a wireless icon
may become green or a message similar to the following may pop up:
“Successfully joined Wireless network SpeedTouch012345".
Note Some WLAN clients do not automatically join a WLAN. If so,
follow the instructions for the WLAN client software to initiate
the association.
4As a result the WLAN client is associated to the default SpeedTouch™570
Wireless environment and registered to the Access Control List.

3EC 17766 BAAA TCZZA Ed. 01
1 SpeedTouch™570 Installation
16
1.3.2. Connecting other Wireless Clients
Before you connect
other WLAN clients
Before associating and registering further WLAN clients, it is recommended that you
first proceed with the configuration setup procedures as described in section
“1.4 SpeedTouch™570 Configuration Setup” on page 18.
For enhanced security, after going through the SpeedTouch™570 configuration setup
procedures, you are able to “personalize” the SpeedTouch™570 Wireless configuration
by configuring another SSID, and optionally enabling WEP encryption.
After re-associating the first WLAN client adapter with the “personalized” Wireless
configuration, you can register the remaining WLAN clients allowed to join your
WLAN.
For more information on the configuration of the SpeedTouch™570 Wireless configu-
ration, see chapter “2 SpeedTouch™570 Web Interface” on page 29.
Preconditions Make sure that:
•The SpeedTouch™570 is powered on and ready for service.
•The SpeedTouch™570 has been configured by the SpeedTouch™ Setup wizard or
via uploading the appropriate configuration profile file.
•Optionally, the SpeedTouch™570 WLAN settings have been personalized.
Further make sure that:
•The WLAN client adapter is installed on your computer.
Depending on the personalized WLAN configuration:
•In case WEP encryption is enabled on the SpeedTouch™570 , you must configure
the WLAN client for using the same WEP key.
•Configure the WLAN client for the SpeedTouch™570 SSID, hence associated to
the SpeedTouch™570 WLAN.
•Depending on the registration button and Access Control List configuration:
•In case the registration button is disabled and the Access Control List
unlocked, no further actions are needed for the WLAN client to access the
SpeedTouch™570 WLAN network.
•In case the registration button is disabled and the Access Control List
locked, you must manually add the WLAN client to the Access Control List
as described in “ Wireless” on page 40.
•In case the registration button is enabled and the Access Control List
locked, you must follow the procedure below to register the WLAN client
to the SpeedTouch™570 Access Control List.

1 SpeedTouch™570 Installation
3EC 17766 BAAA TCZZA Ed. 01 17
Registering Wireless
clients
In case the registration button is enabled, you must register pending WLAN clients as
follows:
Step Action
1Make sure that all preconditions mentioned above are met.
2Push the red Registration button on the SpeedTouch™570 back panel or click
the 'Registration' button on the SpeedTouch™570 Wireless web page via an
already registered and connected computer.
3Make sure the WLAN client is correctly associated again to the Speed-
Touch™570 WLAN. Depending on your WLAN client adapter a wireless icon
may become green or a message similar to the following may pop up:
“Successfully joined Wireless network SpeedTouch012345".
Note Some WLAN clients do not automatically join a WLAN. If so,
follow the instructions for the WLAN client software to initiate
the association.
4Browse to the SpeedTouch™570 Wireless web page to see that the MAC
address of your WLAN client is added to the ACL table.
Note: If a system password secures the SpeedTouch™570 from unauthorized
access, you'll need to authenticate first before you can actually browse its web
pages.

3EC 17766 BAAA TCZZA Ed. 01
1 SpeedTouch™570 Installation
18
1.4 SpeedTouch™570 Configuration Setup
Internet connectivity As soon as the SpeedTouch™570 is prepared as described in section “1.2 Preparing the
SpeedTouch™570” on page 10 and the first-time WLAN client is registered to the
SpeedTouch™570 WLAN according to subsection “1.3.1. First-time Wireless Client
Connectivity” on page 15, the SpeedTouch™570 can be prepared for Internet connec-
tivity.
What you need from
your ISP
You must have a user account with an Internet Service Provider (ISP) for Internet
access: For this user account, it will provide you with:
•A user name (logon ID)
•A password.
Other information might be required depending on the provided CD-rom and/or
specific requirements of the ISP.
Configuration of the
SpeedTouch™570
Depending on your computer's Operating System (OS) the configuration of your
Internet connectivity can be done automatically or manually.
In case your computer runs:
•A Microsoft Windows OS
From the included SpeedTouch™ Setup CD-rom a wizard will automatically guide
you through the configuration of both the SpeedTouch™570 and your PC for
setting up the appropriate configuration.
See subsection “1.4.1. Configuration Setup for MS Windows OSs” on page 19.
•Another OS, e.g. Mac OS, Unix, Linux, etc.
The configuration of the SpeedTouch™570 is semi-automatically done by
uploading the appropriate configuration file to your SpeedTouch™570 .
If needed, additional configuration of your computer must be done manually.
See subsection “1.4.2. Configuration Setup for other OSs” on page 24.

1 SpeedTouch™570 Installation
3EC 17766 BAAA TCZZA Ed. 01 19
1.4.1. Configuration Setup for MS Windows OSs
Microsoft Windows One of the following OSs must be installed on your PC(s):
•Microsoft Windows 95
•Microsoft Windows 98 or 98SE
•Microsoft Windows ME
•Microsoft Windows NT4.0
•Microsoft Windows 2000
•Microsoft Windows XP.
You may need the Windows installation CD-rom during installation.
TCP/IP Make sure that TCP/IP (*) is installed on your PC(s).
(*) Transmission Control Protocol (TCP) / Internet Protocol (IP)
The SpeedTouch™
Setup Wizard
The SpeedTouch™ Setup wizard can be divided in into two parts:
•The detection procedure
•The configuration procedure.
The detection
procedure
Step Action
1Insert the SpeedTouch™ Setup CD-rom in your PC's CD-rom drive. The
wizard will start automatically.
Note If the wizard does not start automatically, open a 'Run' window via
Start > Run from the Start menu and enter the following path:
D:\Setup.exe, where D is the drive letter of your CD-rom drive.

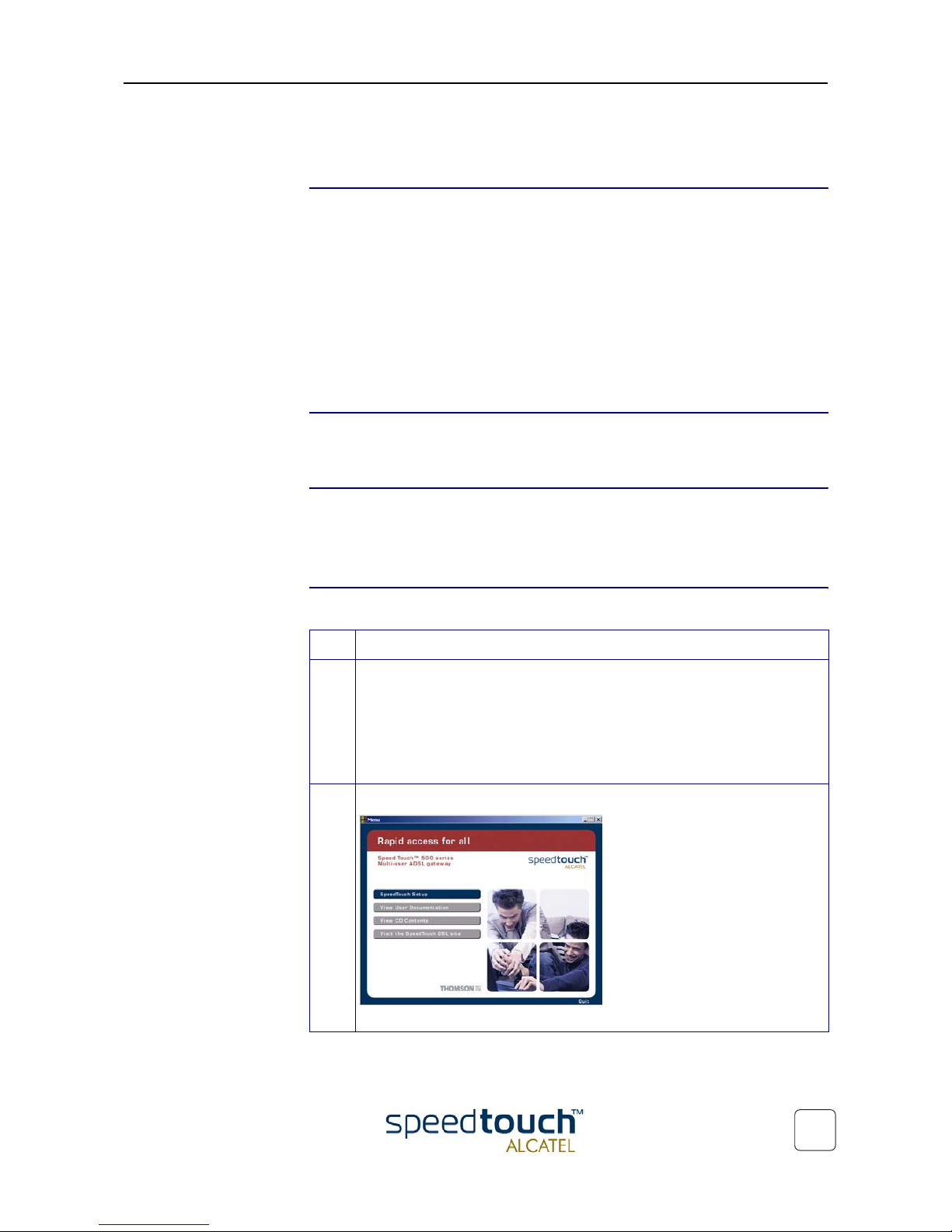

2The SpeedTouch™ Welcome window pops up:
To start the SpeedTouch™ Setup wizard, click SpeedTouch™ Setup.

3EC 17766 BAAA TCZZA Ed. 01
1 SpeedTouch™570 Installation
20
3The Welcome to the SpeedTouch™ Setup Wizard window pops up:
Click Next to proceed.
4The Software License Agreement for SpeedTouch™ window pops up:
Click Yes to accept the terms of the agreement and to continue with the
Setup wizard.
5The Setup wizard will continue by searching for SpeedTouch™ devices on the
network. The following window shows the detection progress:
Step Action
