Alcatel OmniTouch UC User manual

Alcatel-Lucent
OmniTouch Unified Communication
DID YOU KNOW ?
about UC Series...
Mobile solutions with
My Phone
December 2006

Mobile solutions with My Phone
TABLE OF CONTENTS
INTRODUCTION.......................................................................................................... 3
USE CASES................................................................................................................ 6
NOMADIC-WORKERS....................................................................................................... 6
HOME-WORKERS .......................................................................................................... 7
ROAD WARRIORS –VIRTUAL OFFICES...................................................................................... 8
TECHNICAL SPECIFICATIONS.......................................................................................... 9
MAIN CHARACTERISTICS OF THE VOIP SOLUTIONS.......................................................................... 9
History
Edition 1a, December 2005: creation of the document.
Edition 1b, February 2006: update of technical specifications.
Edition 1c, March 2006: update of technical specifications.
Edition 2, December 2006: document has been re-worked and technical specifications updated.
Abbreviations
OmniTouch UC is used in this document for Alcatel-Lucent OmniTouch Unified Communication
OmniPCX Enterprise is used in this document for Alcatel-Lucent OmniPCX Enterprise
Disclaimer
This documentation is provided for reference purposes only. While efforts were made to verify the
completeness and accuracy of the information contained in this documentation, this documentation is
provided “as is” without any warranty whatsoever and to the maximum extent permitted.
In the interest of continued product development, Alcatel-Lucent reserves the right to make
improvements to this manual and the products it describes at any time without notice or
obligation.
Copyright
Copyright® 2006-2007 by Alcatel-Lucent. Distribution of substantively modified versions of this
document is prohibited without the explicit permission of the copyright holder.
Distribution of the work or derivative of the work in any standard (paper) book form for commercial
purposes is prohibited unless prior permission is obtained from the copyright holder.
Edition 2, Ref. 8AL020043256ZZASA - © Alcatel-Lucent 2006-2007 2

Mobile solutions with My Phone
Introduction
Technologies that support nomadic information environments can be either wired or wireless.
Nevertheless, the advancement in the wireless technologies in the recent year has accelerated
organizations' efforts to achieve nomadic computing and culture, as these technologies support nomads
both within and beyond organizational boundaries. Today, employees are equipped with a wide variety
of computing devices from handsets to laptops for various information processing needs. These devices
have helped remote workers increase access to information and expedite fieldwork. Network services
such as Voice over IP (VoIP) and virtual private network (VPN) are helping create unified organizations
with a distributed workforce.
Reminder
My Phone (Web Softphone or 4980 Softphone application) delivers all of the basic and advanced
functions of an office telephone on a desktop or laptop computer. Used as a stand-alone end station or
in conjunction with phone sets (including IP devices), it provides following advantages:
Mobility with your business phone, which becomes a business softphone (thus, a unique phone
number). Running on a laptop, you can take your extension with you and receive calls wherever
you are connected to the corporate network (even dial-up connections while on the road can be
used to check voicemail and place calls while online). Your business phone is charged whatever
the physical phone/device you are using.
Access to corporate, public and personal directories besides OmniPCX phonebook.
Intuitive User Interface:
To quickly place calls.
For call control services and advanced softphone services.
Nomadic solutions with My Phone
When on the move, My Phone allows you to associate any phone (cellular, home phone…) for audio or
use your PC with Voice over IP (multi-media capabilities or USB headset/handset). Web Softphone and
4980 Softphone applications answer to all your needs:
The Home-Worker (through a PSTN number or Voice over IP).
The Nomadic-Worker:
Off Site mobility services (through a PSTN number or Voice over IP).
On Site mobility services (e.g. with DECT/PWT, Voice over IP).
The Virtual Office:
For non-dedicated workplace (PC and phone set) in the Company.
Before providing you with business examples, let’s explain first capabilities you have when moving On
Site or Off Site the Company. Following schema illustrates and summarizes these capabilities
(models/modes):
Edition 2, Ref. 8AL020043256ZZASA - © Alcatel-Lucent 2006-2007 3

Mobile solutions with My Phone
Model [1] - User is associated to a physical extension (telephone); in this case, two modes are
available when moving On Site or Off Site with a unique phone number:
PSTN mode, thanks to a PSTN phone (cellular phone, home phone…) for the audio part.
VoIP mode, thanks to a Personal Computer with Voice over IP (multi-media capabilities or USB
headset/handset).
PSTN phone
Physical extension:
phone set that is charged
Your computer
DATA
DATA
Physical extension:
phone set that is charged Your computer
DATA + VOICE
DATA + VOICE
VoIP mode
VoIP mode
Switch to PSTN mode
if VoIP quality
deteriorates
VOICE
VOICE
PSTN mode
PSTN mode
One phone number to reach you:
your office phone
One phone number to reach you:
your office phone
Model [2] - User is associated to a virtual extension (no telephone): the Personal Computer with
Voice over IP (multi-media capabilities or USB headset/handset) becomes the office phone.
Switch to PSTN mode if
VoIP quality
deteriorates
VoIP mode
VoIP mode
PSTN mode
PSTN mode
Your office phone is your computer
(no physical phone set)
Your office phone is your computer
(no physical phone set)
Your computer
DATA + VOICE
DATA + VOICE
PSTN phone
Your computer
DATA
DATA
VOICE
VOICE
Virtual extension:
phone set that is charged
Notes:
User’s physical extension is frozen in Model [1] (PSTN or VoIP mode). This means that the phone
set cannot be used until the Nomadic mode is cancelled.
The PSTN mode associates a PSTN number to any phone set (this phone set is not monitored by
the OmniPCX Enterprise/4400 system):
Off Site with, for example, your cellular phone or home phone.
On Site with, for example, a SIP phone or the Cellular Client (remote
extension).
Edition 2, Ref. 8AL020043256ZZASA - © Alcatel-Lucent 2006-2007 4

Mobile solutions with My Phone
"Following table indicates which models/modes are currently supported by both Softphone
applications:
Models/modes Web Softphone 4980 Softphone
Softphone in VoIP Mode Yes
(from UC R4.1 on) Yes
Model [1]: user is associated
to a physical extension
(telephone) Softphone in PSTN mode Yes Yes
Model [2]: user is associated
to a virtual extension (no
telephone)
Softphone in VoIP mode
(with the capability to switch
to the PSTN mode) Yes Yes
Edition 2, Ref. 8AL020043256ZZASA - © Alcatel-Lucent 2006-2007 5

Mobile solutions with My Phone
Use cases
Let’s consider hereafter three examples (nomadic-workers, home-workers and road warriors), showing
mobility capabilities you have with your Softphone applications:
Nomadic-workers
Local nomadic workers consist of employees whose jobs require them to spend a great deal of time
away from their desks to attend meetings, interact with co-workers, or solve problems. While they are
restricted to the vicinity of their workplace, their jobs still require them to be highly mobile.

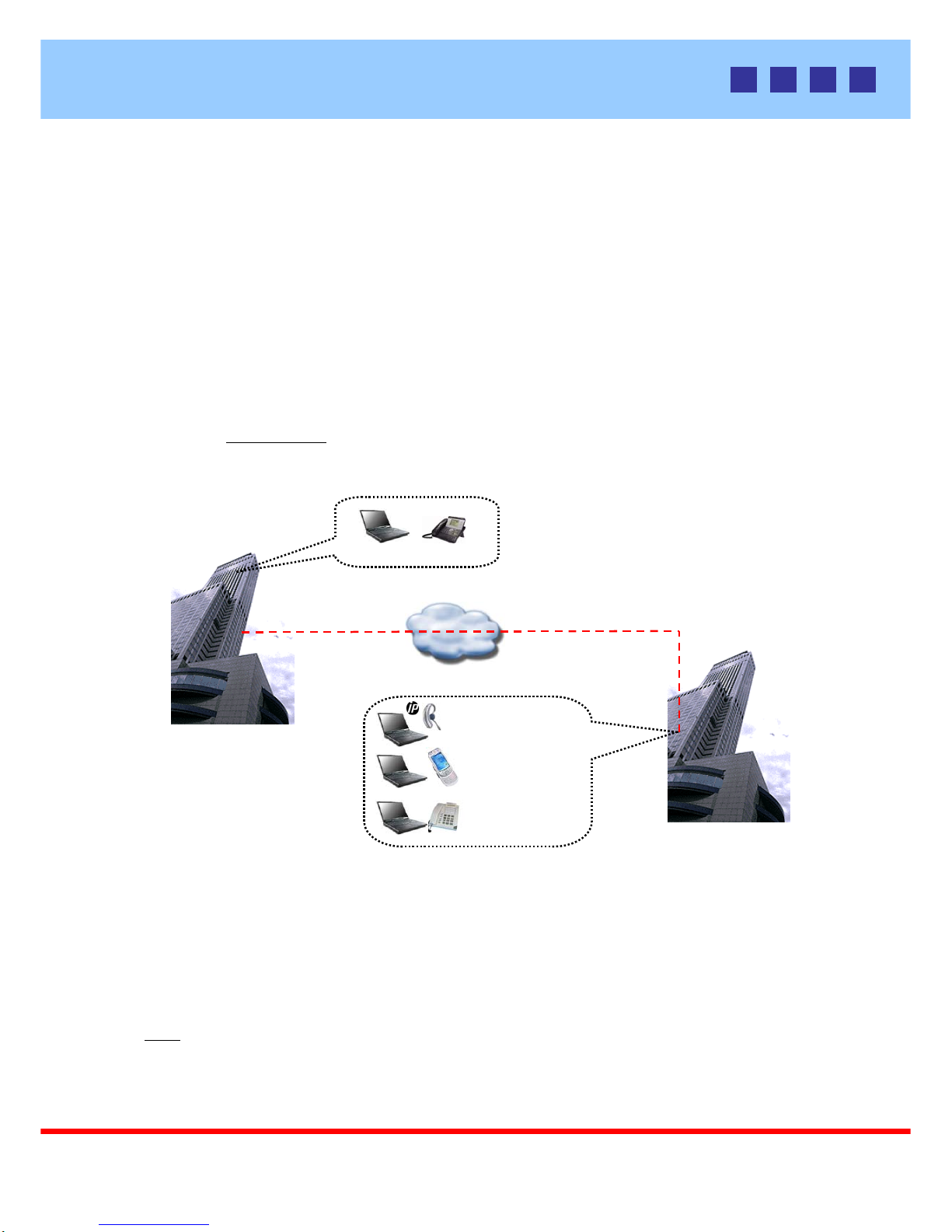

In the example below, you have a physical office on site A with an office phone, and you usually keep
your personal mobile phone with you. You have to move at another company site (B) for a meeting with
co-workers. So, question is: what kind of possibilities I have with my Softphone applications for being
reachable and performing outgoing calls, like in my office ?
Your PC, your office phone
Your office
Your meeting room
Your PC + your headset
Your PC + your personal
mobile phone
Your PC + the phone set
in the meeting room
Your Company / Site A
Your Company / Site B
Corporate network Corporate network
or
or
Once connected to the corporate network at site B, several possibilities are offered with your PC:
Either use the Web Softphone/4980 Softphone application in VoIP mode, i.e. use your PC
with Voice over IP (multi-media capabilities or USB headset/handset) for the audio part.
Or use the Web Softphone/4980 Softphone application in PSTN mode: associate your personal
mobile phone or the phone set in the meeting room for the audio part (the phone set in the
meeting room must be reachable through a PSTN number).
Note: when using the 4980 Softphone application, user is able to switch dynamically from PSTN mode to
VoIP mode and vice-versa.
Edition 2, Ref. 8AL020043256ZZASA - © Alcatel-Lucent 2006-2007 6

Mobile solutions with My Phone
Home-workers
Home-workers are employees working mainly from home for improving productivity and cutting down
on travel costs. With a business-class Internet connection in the home office, home-workers can work
conveniently and without compromising on speed and performance.

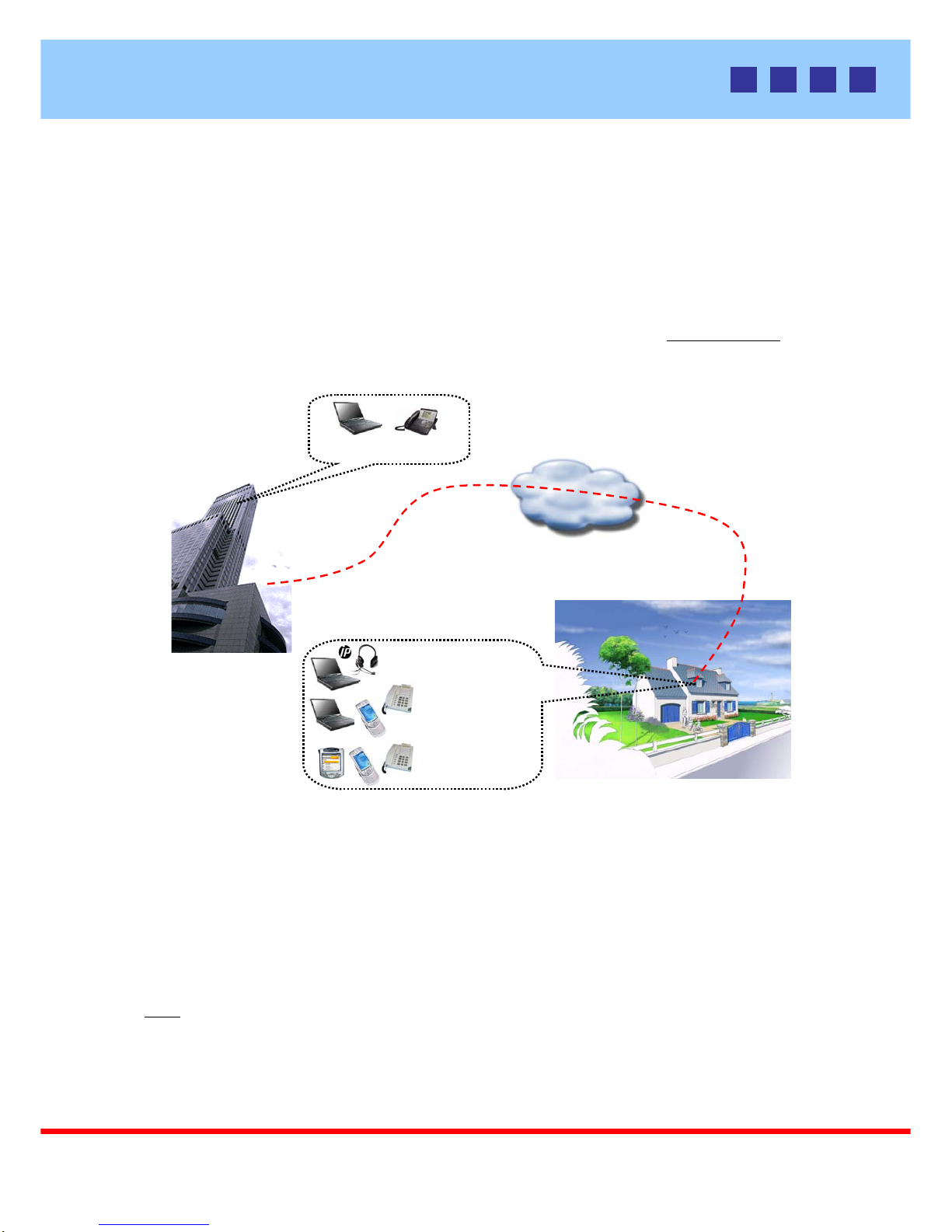

In the example below, you have a physical office on site A with an office phone, and you usually keep
your personal mobile phone with you. For going faster in your new job, you need to stay at home for
the next two weeks. At home, you need to make long distance business calls without being charged. Via
the Internet, you can access the corporate directory or personal contacts, use click to call and contact
your correspondents. Your business phone will be charged for the call. OK, but what should I use ?
Your Company
Internet
VPN connection
through ADSL
Corporate network
Your PC, your office phone
Your office
Your Sweet Home
Your working room
Your PC + your headset
Your PC + your mobile
phone or home phone
Your PDA + your home
phone or mobile phone
or
or
Once connected to your corporate network, thanks to a VPN connection, you have the choice to use:
Either your PC and the Web Softphone/4980 Softphone application in VoIP mode, i.e. use
your PC with Voice over IP (multi-media capabilities or USB headset/handset) for the audio
part.
Or your PC and the Web Softphone/4980 Softphone application in PSTN mode (for associating
your personal mobile phone or home phone for the audio part).
Or your wireless PDA and the Web Softphone application in PSTN mode (for associating your
personal mobile phone or home phone for the audio part).
Note: when using the 4980 Softphone application, user is able to switch dynamically from PSTN mode to
VoIP mode and vice-versa.
Edition 2, Ref. 8AL020043256ZZASA - © Alcatel-Lucent 2006-2007 7

Mobile solutions with My Phone
Road Warriors – Virtual Offices
As office-free professionals, road warriors don’t have some of the perks that office employees take for
granted, like hearty Internet access, reliable landline phone connections, and always-on email.
Solutions for road warriors must be of high enough quality so as to completely substitute, not merely
support, the traditional LAN-connected workstation and desk phone.

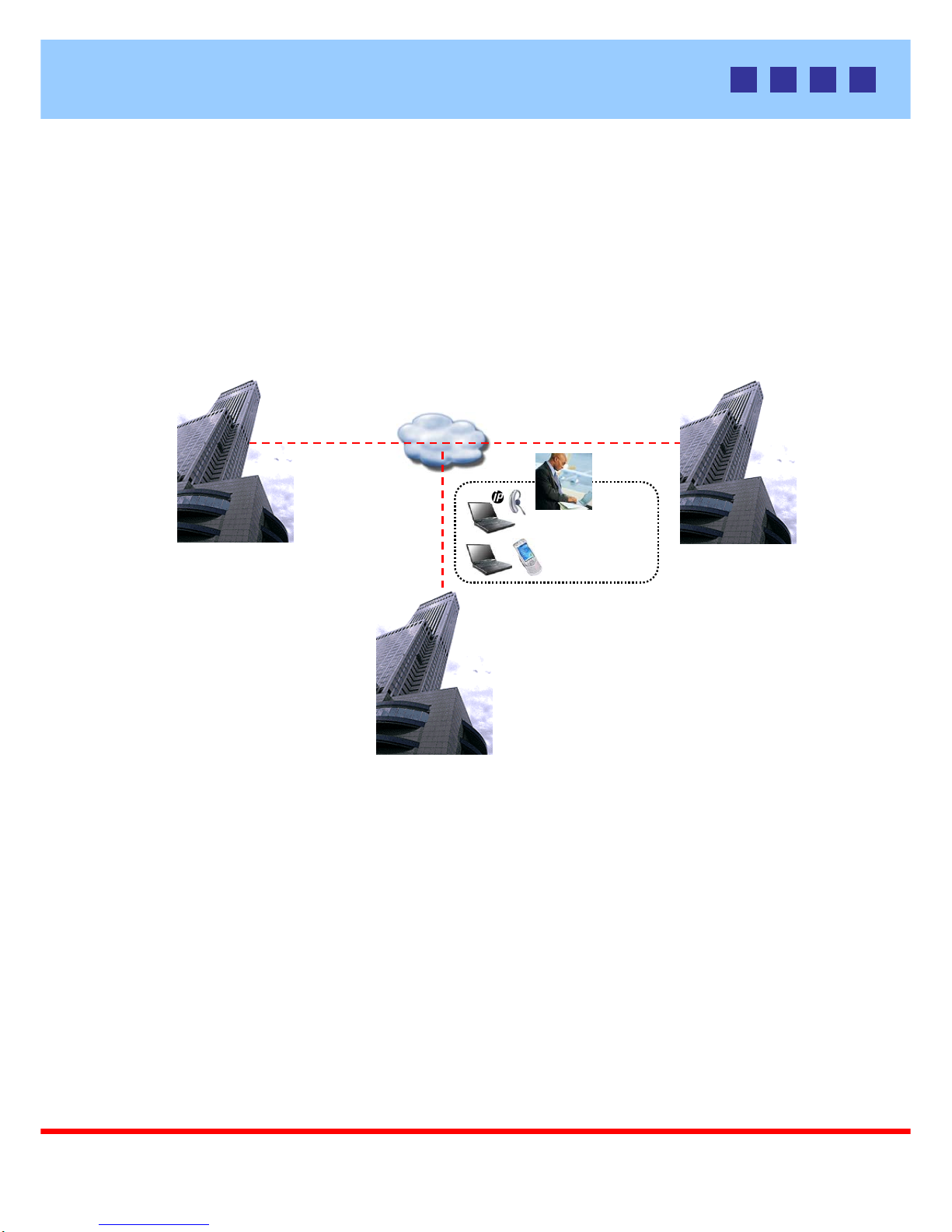

In example below, for weekly meetings, you have to move either to the Headquarter (A) or at another
company site (B or C). You don’t have any office and office phone, but of course, you always keep your
professional mobile phone with you. So, during the days you are staying in your virtual office, you need
to be reachable and make business calls using efficient communication tools.
Your PC + your headset
Your PC + your
professional mobile
phone
Your Company /
Headquarter, site A
Your Company / Site B
Corporate network Corporate network
Your Company / Site C
Corporate network
or
Once connected to your corporate network, use the Web Softphone/4980 Softphone in VoIP mode,
i.e. use your PC with Voice over IP (multi-media capabilities or USB headset/handset) for the audio
part.
If for any reason the IP voice quality deteriorates, you will be able to switch to the PSTN mode and
associate for example your professional mobile phone.
Edition 2, Ref. 8AL020043256ZZASA - © Alcatel-Lucent 2006-2007 8

Mobile solutions with My Phone
Technical specifications
This section briefly provides the main technical characteristics of the VoIP mode for both models
explained in previous sections (for full details, please refer to the Technical Communication TC0643,
available on the Alcatel-Lucent Business Partner Web Site).
Main characteristics of the VoIP solutions
Characteristic
IP Softphone (Web or 4980)
User is associated to a virtual
extension (no telephone)
IP Softphone (Web or 4980) (1)
User is associated to a physical
extension (telephone)
Operating System (client side) Windows only Windows only
RTP/RTCP support Yes (2) Yes (2)
Support of direct RTP flows Yes Yes (5)
Codec G.711 - 64Kbits/s (3)
G723.1 – 5,3 and 6,3Kbits/s
G.729a - 8Kbits/s
G.711 - 64Kbits/s (3)
G723.1 – 5,3 and 6,3Kbits/s
G.729a - 8Kbits/s (4)
Quality of Service (QoS): Level
3 IP TOS/DiffServ Yes Yes
QoS tickets generation (IP
statistics) Yes No
Level 2 QoS: 802.1 P/Q No (6) No (6)
Audio Media control: audio
tuning wizard, audio volume
manager, dual audio device Yes Yes
DTMF generation Yes Yes
As defined in RFC 2833 Yes No
Wave Audio API from Microsoft
for acoustic echo cancellation
and noise reduction (depending
on sound board)
Yes (USB handset/headset
recommended) Yes (USB handset/headset recommended)
Echo cancellation (64 ms) Yes (4) Yes (4)
Signaling for voice calls
establishment Proprietary Alcatel-Lucent UA protocol (encapsulated into IP) H323 protocol
Spatial Redundancy in Dual IP
Subnet Yes (4) Yes (4)
VoIP encryption No (6) No (6)
(1) Web Softphone in VoIP mode from OmniTouch UC R4.1 on
(2) Use of the ABERS RTP stack (Alcatel-Lucent RTP stack), which is equivalent to the IP-Phone stack
(3) Voice Activity Detection (VAD) is not available
(4) Available from OmniTouch UC R4.0 on
(5) Available from OmniTouch UC R4.0 and OmniPCX Enterprise R7.0 on
(6) Planned in a future release (2ndQ 2007)
Edition 2, Ref. 8AL020043256ZZASA - © Alcatel-Lucent 2006-2007 9

Mobile solutions with My Phone
Save commuting time, optimize your working
time: be a part time home-worker !
Contribute to sustainable development by
using environmentally friendly technologies !
"Use Alcatel-Lucent OmniTouch UC Softphones
Edition 2, Ref. 8AL020043256ZZASA - © Alcatel-Lucent 2006-2007 10

Mobile solutions with My Phone
`This paper, as well as other UC Series subjects, is
available on the Alcatel-Lucent Business Partner
Web Site in section Our Offer/Products/OmniTouch
Unified Communication.
Alcatel-Lucent and the Alcatel-Lucent logo are registered trademarks of Alcatel-
Lucent. All other trademarks are the property of their respective owners. Alcatel-
Lucent assumes no responsibility for the accuracy of the information presented, which
is subject to change without notice.
© 2006
-
2007 Alcatel
-
Lucent. All rights reserved.
BROADEN YOUR LIFE
Edition 2, Ref. 8AL020043256ZZASA - © Alcatel-Lucent 2006-2007 11
