USER MANUAL
ALCATEL one touch CF100P

0
Contents
Contents .....................................................................................................0
1. Your mobile...............................................................................................1
2. Getting started ...........................................................................................4
3. Basic functions...........................................................................................5
4. Contacts...................................................................................................7
5. Recent Calls..............................................................................................9
6. Messages............................................................................................... 10
7. Settings ................................................................................................. 13
8. Entertainment .......................................................................................... 14
9. Tools..................................................................................................... 15
10. FM Radio.............................................................................................. 16
FAQ ......................................................................................................... 16
Safety and use............................................................................................ 18
Friendly reminder:
This user manual applies to the one touch CF100P phone. If there are minor differences in the
description or illustrations between the manual and the actual product，the actual product shall take
precedence. Customers will not be notified separately of any upgraded model of this phone. Please
contact our Customer service.
We reserve the right to revise anytime the contents of this manual without prior notice.

1
1. Your mobile
1.1 Basic specifications
Item Specifications
Phone Size: 200mm[L]×153.8mm[W]×48.7mm[Thickness]
Weight: 574g (Battery included)
Screen resolution 128*64 pixels
Contacts 500 entries
Recent calls 60 entries
Messages 350 entries
Operating temperature -10℃~55℃
Battery Ni-MH
Capacity: 1200mAh
Talk time: 4 hours(approx.)
Standby time: 150 hours (approx.)
Charging time: 3 hours (approx.)
Explanation:
Standby time refers to the time when the phone although in operating mode is not used for making calls
or remains idle. Standby time and call time are both related to the conditions of use, the network situation
and the environment.

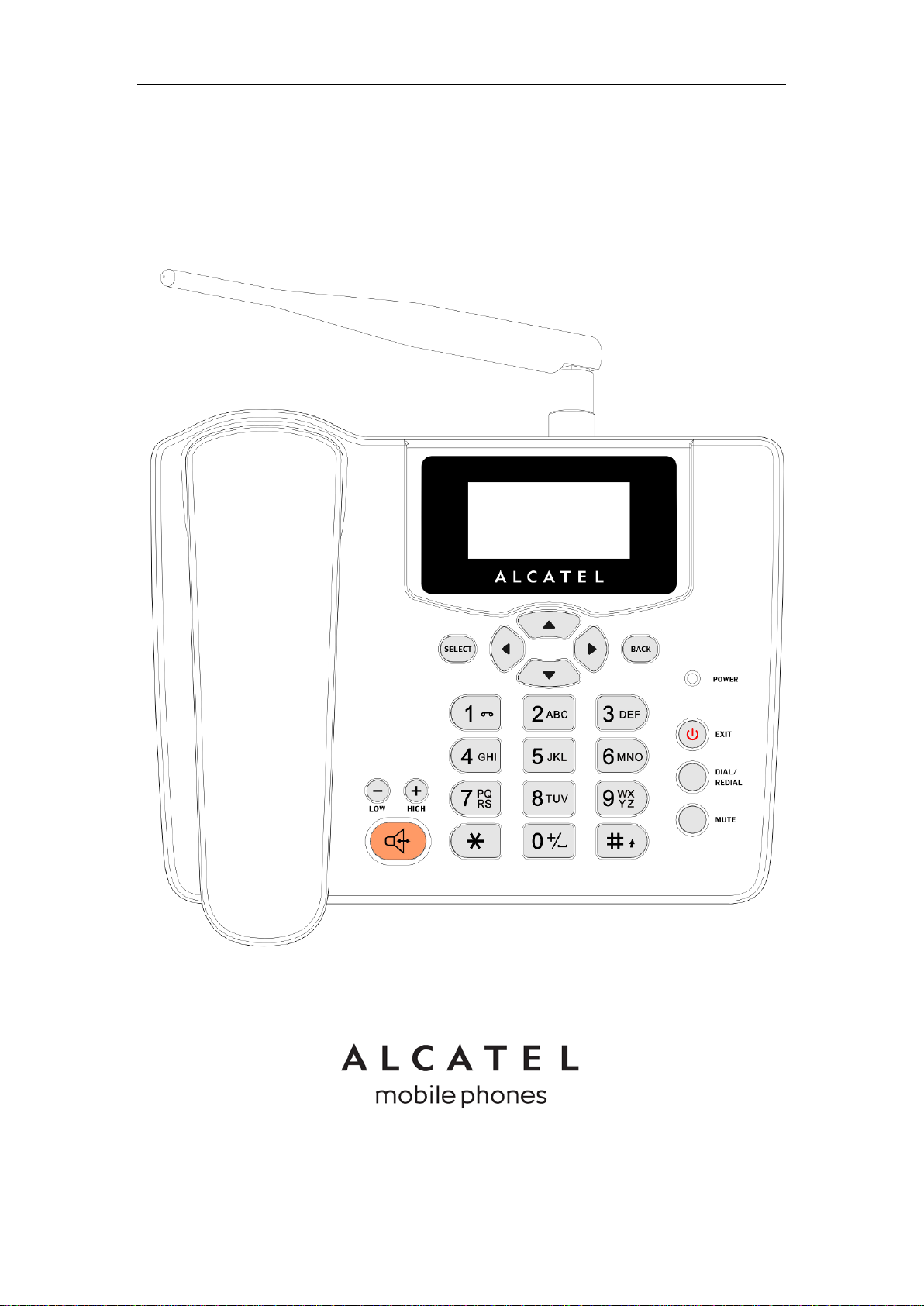

1.2 Key pad indications

2
Number Item Function
1 SELECT Key
Enter menu
Confirm an option
2 BACK Key
Contacts List
In Menu: Back/Delete
3
Navigation Keys
Left: Alarm
Right: Recent Calls
Up: Messages
Down: Create message
4 EXIT Key
Power on/Power off
End a call
Back to the idle screen
5 DIAL/REDIAL Key
Recent Call
Answer/Send a call
6 MUTE Key
Mute/Unmute during the call, the other can hear/
not hear you during the call

3
7
Volume Key
Change the volume during the call
8
Speaker Key
You can select this key to activate or deactivate
handsfree
9
1 Key
When standby, holding [1] Key 2 seconds to call
the voice mail number.
10
* Key
When input numbers in standby, holding [*] Key 2
seconds to input P after main number and then
extension number.
11
0 Key
When input numbers in standby, holding [0] Key 2
seconds to input + before the numbers.
When you edit a message, press this key to enter
space.
12
# Key
When input numbers in standby, holding [#] 2
seconds to input Tafter main numbers and then
extension number.
When you edit one message, press this key to
change the input method.
1.3 Main Menu
From the main menu, use the navigation key to select the item you want. After selection,
press the left soft key to confirm.
Contacts Delete All Phone
Contacts List Messages Call
Search Create Security
Add New Inbox Sound
Groups Outbox Entertainment
Speed Dial Draft Tools
Contacts Management Templates Stopwatch
Recent Calls Delete Messages Alarm
Missed Calls Settings Schedule
Received Calls Memory Status Calculator
Dialed Calls Voice Mail World Time
Call Time Settings FM Radio
Last Call Display
1.4 Screen Icons

4
Battery power indicator. More bars indicate a higher power level.
The more bars, the stronger signal
You have received one or more text messages
Indicate the message box is full
You have received one or more voicemail messages
Indicate the phone is making a call
You have missed one or more calls
Alarm or schedule has been set
Indicate the phone have set Voice privacy
Indicate the phone is roaming
2. Getting started
2.1 Removing and installing the back cover
Close the back cover Open the back cover

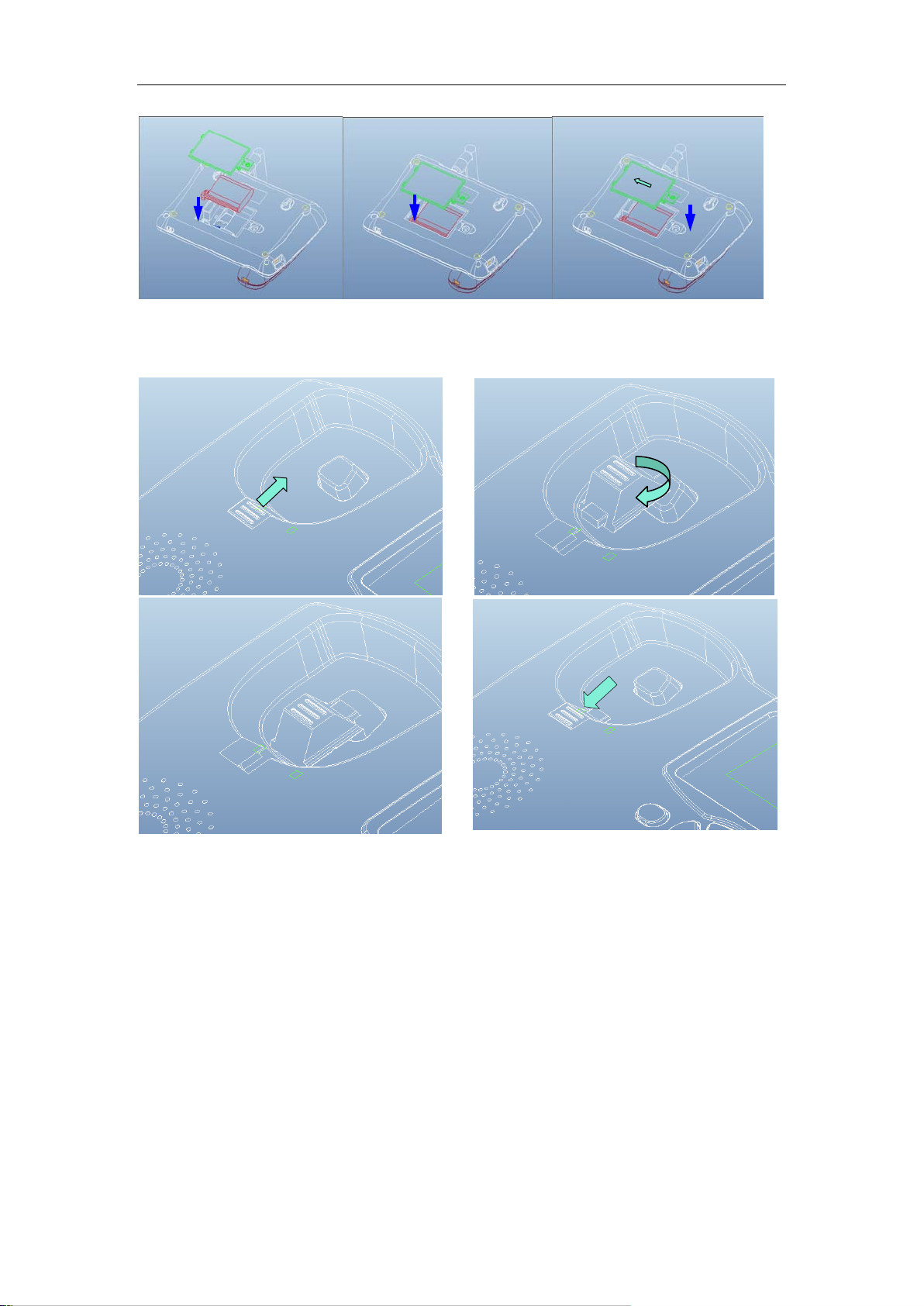

2.2 Installing and removing the battery

5
Installing the battery Fixing the battery Closing the back cover
2.3 How to use the Wall Hook
3. Basic functions
3.1 Power on/off
When power is sufficient, press and holds the EXIT key to power on. If you have activated
a password, you will be prompted to enter it. Normally the phone is ready for use as soon
as you enter the password. please refer to Menu/Settings/Security settings. When the
phone is power on, press and holds the key EXIT to turn it off.
3.2 Making a call

6
3.2.1 Enter the number directly
In the standby mode, use the number key to enter a phone number, and then press the
Dial/Redial key to make the call.
3.2.2 Dial a number in the Call Memory
In the standby mode, press the Dial/Redial key to access recent calls list, and press send
key again to dial the selected number.
3.2.3 Speed Dial
In the standby mode, make a long key press on keys 2 to 9 to speed dial a number. You
also can press the number keys and then press the Dial/Redial key to make a speed dial.
For details regarding speed dial setting. Please refer to “Contacts/Speed dial”. Key 1 is a
default setting for voice mail number.
3.2.4 Emergency call
Enter emergency number, and then press the Dial/Redial key. In any situation, with or
without phone lock activated, your phone can still make an emergency call.
3.3 Functions available during a call
During a call, access the Menu by pressing the Select key.
3.4 Input mode
You may enter letters, numbers and symbols in the Contact, SMS and other menu
functions.
3.4.1 Entering letters
There are three text modes: Abc, En, 123.
Please use the # key to change input modes. Please use * key to change the capital and
small letter.
3.4.2 Entering numbers
Press # Key to select the input method 123 to input one number.
3.4.3 Entering symbols
Press and hold * key to enter symbol list.

7
4. Contacts
The phone can store up to 500 contacts. From the idle screen press the Back key to
display the list of contacts. The contact list can also be accessed through Menu/Contacts.
4.1 Contacts List
Select Menu/Contacts/Contacts List to access the contacts list. Press the Select key for
the following options: View, Edit, Add New, Send Messages, Send Contacts, Copy/Move
to UIM Card (for phone contacts), Copy/Move to Phone (for UIM card contacts) and
Delete.
View: Check the contact’s personal information.
Edit: Edit the contact data.
Add New: Add a new contact.
Send Messages: Send a text message to the contact.
Send Contacts: Create a new text message and add the contact details to the content.
Copy to UIM Card/Copy to Phone: Copy a phone contact to UIM card /Copy a UIM card
contact to phone.
Move to UIM Card/Move to Phone: Move a phone contact to UIM card /Move a UIM card
contact to phone.
Delete: Delete the contact details in Contacts.
4.2 Search
Select Menu/Contacts/Search, input contact’s name, you can find out all contacts which
contain the name you input.
4.3 Add New
Select Menu/Contacts/Add New, to add a new contact to phone or UIM Card. If the default
save Location is phone memory, you can enter Name, Mobile number, home number,
office number, fax number, email address, address, website address, memo, group and

8
ring tone.
4.4 Groups
Select Menu/Contacts/Groups to access groups list, Contacts are separated by the
following groups: All, No Group, UIM Card, VIP, Family, Colleague, Friends, Schoolmates
and Business. You can select any group to view all the contacts in that group; you can
also rename the group.
4.5 Speed Dial
Select Menu/Contacts/Speed Dial to set keys 2 to 9 for speed dialing. If the number key
has not been set, press the Select key and select a phone number from Contacts. If the
number key has been set, press the left soft key and the following options will be available:
Add New, Delete.
Add New: You can add a number as speed dial number.
Delete: Delete the speed dial number.
4.6 Contacts Management
Select Menu/Contacts/Contacts Management to access contacts management option.
You can see the following menu: Move Contacts, Copy Contacts, Delete Contacts, Save
Location, View Mode and Memory Status.
Move Contacts: Move all the phone contacts or batch contacts to UIM card, or move all
the UIM card contacts or batch contacts to phone.
Copy Contacts: Copy all the phone contacts or batch contacts to UIM card, or copy all the
UIM card contacts or batch contacts to phone.
Delete Contacts: Delete batch contacts in phone or delete batch contacts in UIM card or
delete all the contacts in phone and UIM card. You need to enter the phone password if
you select to delete all contacts.
Save Location: Make default position when add a new contact. You can select: Phone,
UIM Card or Select When Save.
View Mode: Select one mode to view contacts list. If you select Phone, you can view only

9
phone contacts when you open contacts list, and you can view only UIM card contacts if
you select UIM Card. When you select Phone and UIM Card, you can view all the contacts
every time you open contacts list.
Memory Status: View the number of entries stored and check the memory used up for the
contact in the phone memory and UIM card.
5. Recent Calls
From the idle screen, press the Dial/Redial key to display the list of dialed numbers. Press
the left and right keys to toggle between: Dialed Calls, Missed Calls and Received Calls.
In the “Recent calls” menu you can also access the following options: Missed Calls,
Received Calls, Dialed Calls, Call Time, Last Call and Delete All.
5.1 Missed calls, Received calls, Dialed calls
Select Missed calls/ Received calls/ Dialed calls from the Recent Calls menu to access
the submenus of the various call logs. Use the left soft key to access the options such as
View, Edit, Save, Save to Contacts, Send Messages, Send Contacts and Delete.
View: View the details of the record.
Edit: Edit the number before you save it or make the call.
Save: Save the number to the contacts.
Save To Contacts: Save the number to the existed contacts.
Send Messages: Send a text message to the record.
Send Contacts: Create a new text message and add the contact details to the content.
Delete: Delete the record.
5.2 Call time
Select Menu/Recent calls/Call time to display the time record of all received calls, dialed
calls and all calls. The call time of all calls can be set to zero any time by resetting the
timer.

10
5.3 Last Call
You can see the details of your last call.
5.4 Delete All
Select Recent Calls/Delete All you can clear all Missed Calls, Received Calls, Dialed calls
and All Calls.
6. Messages
Press down key directly to access the message editing screen. Press upper key or press
the Select key to select Messages to access the Messages menu.
6.1 Create new message
Select Menu/Messages/Create to access the message editing screen. Please refer to
“Input mode” section for instructions on message editing.
In the message editing screen, press the Select key for the following options: Send, Insert
contacts, Insert Templates, Insert Emotion Symbol and Settings.
Send: access recipients, you can input up to 100 recipients.
Insert Contacts: Add different contact details from Contacts to a message.
Insert Templates: Add commonly-used terms to a message.
Insert Emotion Symbol: Add an expression to a message.
Settings: Set the send mode, the priority and the delivery report for the message edited.
6.2 Inbox
Select Menu/Messages/Inbox to access the list of messages in this box. Press the left soft
key for the following options: View, Reply, Forward, Delete, Copy to UIM Card/Copy to
Phone, Move to UIM Card/Move to Phone.
View: Review the contents of the current messages. From the contents, press the left soft
key for the following options: Reply, Forward, Delete and Extract details, Copy to UIM
Card/Copy to Phone, Move to UIM Card/Move to Phone.

11
Reply: Send a message to the sender of the current message.
Forward: Modify the contents of a message and send it.
Delete: Delete a message.
Copy to UIM Card/Copy to Phone: Copy a phone message to UIM card or copy a UIM
card message to phone.
Move to UIM Card/Move to Phone: Move a phone message to UIM card or move a UIM
card message to phone.
6.3 Outbox
Select Menu/ Messages/Outbox to access the list of messages in this box. Press the
Select key for the following options: View, Resend, Forward and Delete. About the
operations, please refer to the related options in the “Inbox”.
6.4 Draft
Select Menu/ Messages/Draft to access the list of messages in the draft box. Press the
Select key for the following options: View, Forward and Delete. About the operations,
please refer to the related options in the “Inbox”.
6.5 Templates
Select Menu/ Messages/Templates to access the list of messages templates. Press the
up/down key to select the message you want.
Press the left soft key for the following options: Send, Add, Edit and Delete (Edit and
Delete options will be visible for new templates).
It has 10 message templates in factory reset mode, and you may edit it optionally or add
more templates accordingly.
6.6 Delete messages
Select Menu/ Messages/Delete Messages to access delete function. You may delete the
messages in Inbox, Outbox, Draft and also clear all the messages.

12
6.7 Settings
Select Menu/ Messages/Settings to access submenu with below options: Send Option,
Priority, Delivery Reports, Callback Number, Save Location,Message Validity and Auto
Delete.
Send Option: Choose a default send mode when create and send a new message, such
as send and save, send only or save only.
Priority: Choose the priority sequence such as Normal, Urgent and Emergent.
Delivery Reports: You may activate/deactivate this function. The phone will receive the
information message notification that inform message sent or unsent.
Callback Number: You may activate/deactivate this function. When you activate it, you
need to enter the number which you want the receiver to call you back.
Save Location: You can choose the new messages’ save position. The options are Phone
and UIM Card.
Message Validity: Choose the validity of message.
Auto Delete: You can turn on the function. When the inbox is full, the newest message will
replace the oldest message.
6.8 Memory Status
Select Menu/Messages/Memory Status to check SMS storage status in Phone (Inbox,
Outbox and Draft) and UIM Card.
6.9 Voice mail
Select Menu/Messages/Voice Mail to enter the voice mail submenu, the following options
are available: Voice Mail, Listen Voice Mail and Voice Mail Number.
Voice Mail: Check how many voice messages are in the phone, press 1 to access to the
voicemail, press 2 to clear voice mail.
Listen Voice Mail: Dial the voice mail number.
Voice Mail Number: Set the voice mail number.

13
7. Settings
7.1 Display
You can do some settings following your need. You can customize your phone by setting
Brightness and Backlight Time.
Brightness: You can choose the brightness as Light Dark or Normal.
Backlight Time: Set the backlight time - 10 sec, 30 sec, 50 sec, always on
7.2 Phone
Language: English.
Time Format: Set 12-hour mode and 24-hour mode.
Date Format: Set date format and you may have three options: dd/mm/yy, mm/dd/yy,
yy/mm/dd.
Reception Alert: When you turn on it, if the phone fails to connect to the network, you will
hear the alert tone.
7.3 Call
Minute Beep: You will hear the alert sound at the 50th second of every minute during the
call if you activate this function.
Voice Privacy: Activated this feature, voice service will be protected by encoding.
Auto Redial: The cell phone will redial automatically when the call has failed.
DTMF Tone Settings: You can set the DTMF Tone as Normal or Long.
Supply Services: You may access to call forward and call waiting by choosing this item.
Call Forward (requires network support): You can activate the status of call forward to
forward calls to another phone in the following conditions: Busy, No Answer.
Call Waiting (requires network support): When it is activated, you can pick up or end the
second calling when you are on the phone.
Dialing Delay Time: You can set the dialing delay time as 3 Sec, 4 Sec,…7 sec or off.

14
7.4 Security
Select Menu/Settings/Security, then enter the security submenu by inputting the phone
code (default phone code: 0000). You can set entry code for your Messages, Contacts,
and Recent Calls here.
Phone Lock: Including phone code activation and inactivation, and password resetting. If
you activate the phone code, you have to enter the phone code every time when the cell
phone powers on.
PIN Setting: Including PIN code checking and PIN code resetting. When PIN code is
activated, the PIN code needs to be entered when cell phone turns on. If you enter
incorrect PIN code for 3 times, you should enter PUK code to reset PIN code. PIN code
and PUK code are supplied by operator for UIM card.
Contacts Lock: Setting protective code to Contacts, the code is the same as phone code.
Recent Calls Lock: Setting protective code for Recent Calls, the code is the same as
phone code.
Messages Lock: Setting protective code for SMS service, the code is the same as phone
code.
Restore Factory Setting: chosen this item, the phone will be resumed to original settings
when it came out from the factory. Please be aware that after selecting the restore factory
setting, all the settings of user will be deleted.
7.5 Sound
Select Menu/Settings/Sound, you can enter the sound settings menu.
Press the Select key to enter the submenu; you can see the following operations:
Set the volume or the ring tone of incoming call, SMS, Alarm, and the alert mode of
incoming call, SMS, alarm, missed call and power on/off.
8. Entertainment
The phone is embedded with one game: Tetris. Please refer to the game instructions for
details and operations.

15
9. Tools
9.1 Stopwatch
Press Left soft key to start time keeping, or press Stop function key to pause time keeping,
or press continue function key to resume time keeping. You can press record function key
to get the time recorded.
9.2 Alarm
Your phone has a built-in alarm clock. You can edit up to 6 alarm clocks.
Edit: you may edit the Alarm clock status, time, and mode. The status is either on or off. If
you have selected 24-hour Time Format under Settings-Phone, then you can input 00:00
to 23:59; if you have selected 12-hour Time Format, you can choose AM or PM for time by
pressing # key, if the number you input is out of the range, the phone will not show. The
available modes are: Every day, Monday to Friday, Monday to Saturday, any day of
workday and weekend, and Once.
On/Off: Start/Stop using the alarm clock
Delete: Delete the alarm settings
Delete All: Clear all alarm settings
9.3 Schedule
There is a monthly-view calendar for you to keep track of important meetings,
appointments, etc. Days with events entered will be marked with an icon.
9.4 Calculator
Your phone can carry out simple operations, i.e. the [Four Arithmetic Operations].
Numbers are entered using number keys, press the * key to input decimal points “.”, the
Select key can be used to insert the plus and minus symbols, the Back key is used to
clear the entries, the left key to insert “-” and the right key to insert “÷”, the upper key is
used to insert “+” and the lower key to insert “×”. Press the # key to display the result of
the calculation.

16
9.5 World Time
This function allows you to find out the time in different cities around the world.
10. FM Radio
You can use the phone as the FM Radio.
For FM Radio screen:
Left and Right keys: Accommodate the channel frequency by frequency, each time by
0.1MHz.
Up and down navigation keys: Auto search to previous or next channel.
* / # key or Low/High Key: To decrease or increase the volume of FM radio
Global Search: select Option/Global Search, all the channels will be automatically
searched out, and generate a channel list for user reference.
Channel List: select Option/Channel List, access to Channel List submenu, press left soft
key, you can play the channel, edit the exist channel, or delete the channel or delete all
channels.
Save: select Option/Save, you can save current channel into channel list.
Minimize: Select Option/Minimize to make FM screen invisible, meanwhile you can use
other functions (SMS, Games, Add names etc.).
The quality of FM radio depends on the coverage of the radio station in that particular area.
FAQ
If an anomaly occurs when you are using your phone, please refer to the following table. If
the problem remains unsolved, please contact the phone vendor.
FAQ Item to be checked

17
FAQ Item to be checked
The telephone does not
charge properly
Make sure that the charger is correctly connected to the
phone and the power socket.
Make sure you are using a charger specifically designed
for this phone.
The phone does not
switch on
Check the battery charge level.
Make sure the battery is properly installed.
Press and hold the ON key until the screen comes on.
Unable to dial a number Make sure you have dialed a valid phone number.
Check if your phone is connected to the network.
Poor sound quality Check if the reception signal is strong enough.
If you are inside a building, rotate the phone or move close
to a window.
The other party cannot
hear you during a call
Make sure the mouthpiece is not blocked.
The receiver volume is
low
Check if the receiver volume is set to maximum.
The phone signal is
poor or switches off
frequently
Make sure the phone antenna is not damaged.
Check the phone signal strength.
If there is no signal, use your phone in a location where the
signal is strong.
The phone displays “out
of network” or “network
failure”.
Check if you are in an area where the signal is weak (in a
tunnel or surrounded by building). Move to another
location and try again.
Make sure you are not trying to use a service that you
haven’t subscribed to. If you require this service, contact
the network for details.

18
FAQ Item to be checked
When you cannot
connect to the network
normally
(1) The network provider does not provide this service or
you have not subscribed to this service. Please contact
your provider for details on the subscription and use of
these services.
(2) Incorrect setting. Please set the correct parameters
Safety and use
Please read carefully and observe the following regulations to avoid damaging your
telephone or using it against the law.
Electronic devices/Health care facilities.
Turn off your phone when you are near high-precision electronic devices in use to avoid
causing malfunction or interfering with their operation (fire alarms, automatic doors and
automatic control equipment).
Turn off your phone in hospitals or places where the use of phones is restricted. Phones
affect the normal operation of electronic devices and medical instruments, such as
pacemakers, hearing aids and other electronic medical devices.
Phones should be forbidden inside an operating theatre, Intensive Care Unit (ICU) or
Cardiac Care Unit (CCU).
Pay attention to the settings of the sound volume to avoid disturbing the patients.
Flammable or explosive areas
Turn off your phone near flammable or explosive areas. Do not install/remove or charge
the battery or use the phone in these areas to prevent any explosion or fire. Flammable
and explosive areas include: chemical plants, facilities with chemical substances or
particles in the air (grains, dust and metal powder ), petrol stations and fuel depots, fuel
storage areas (for example, under a ship’s deck), areas with explosion warning signs,
