Alcedo JPD-FR300 User manual

JPD-FR300
Infrared Thermometer
Instruction Manual
0482

Content
EN.................................................................1
DE................................................................36
FR................................................................53
IT.................................................................69
ES................................................................86

EN
1
Product Information
Product Name: Infrared Thermometer
Model:JPD-FR300
Software version:1.0.0
Manufacturer: Nature Major Inc.
Address: 315 W 36th Street, New York, NY 10018
Copyright
Copyright ©Nature Major Inc. All rights reserved.
Statement
Nature Major Inc. owns and reserves all of the rights comprised in the
copyright of this document. No part of this document may be changed,
excerpted, copied, reproduced, or imitated in any form or by any means
without the prior consent of Nature Major Inc.
All statements, information, and recommendations in this document are
provided "AS IS" without warranties, guarantees or representations of any
kind, either express or implied. The information in this document is
subject to change without notice. Nature Major Inc. reserves the right of
final interpretation of this document.
Introduction
Thank you for purchasing this Infrared Thermometer. Please read the User
Manual carefully to make sure safe and proper use of this thermometer.
Please read and fully understand the Safety Precautions before use.
Keep the Instruction Manual with this thermometer for future
reference.

EN
2
Unpacking Check
Please open the package carefully before use, check whether all
accessories are available or not and whether any component is damaged
during transportation, and perform installation and operation following this
user manual. In case of any damage or operation problem, please contact
the dealer or contact Alcedo directly. You will need the following
information when making your claim: device model, serial number,
purchase date, and your contact information and address.
Package Contents
No.
Name
Quantity
1
Infrared Thermometer
1
2
Pouch
1
3
Battery (AAA)
2
4
Instruction Manual
1
5
Quick Start Guide
1
Safety Precautions
Read the following precautions carefully before using the
thermometer.
Attention
◆Take care of the temperature probe lens, which is fragile.
◆No service /maintenance while the equipment is in use.
◆Dispose used batteries with care. To protect the environment,
you are recommended to send the used batteries to a designated
collection point.
◆The thermometer doesn’t need recalibration.
◆- Make sure that the thermometer is not exposed to lint, dust,
light (including sunlight), etc.

EN
3
- Please note the effects of degraded sensors that can degrade
performance or cause other problems.
- Make sure that the thermometer is not exposed to pets, pests.
◆If the thermometer is soiled or its infrared optical components
is damaged, please stop using it.
◆The lay operator or lay responsible organization should contact
the manufacturer or manufacturer's representative on the
following issues: -assistance in setting up, using, or maintaining
the me equipment or me system when needed, or to report
unexpected operation or events.
◆The IR thermometer is identified as intended for consumer use.
The patient is an intended operator.
◆The effect that the following actions could be unsafe as
applicable: use of accessories, detachable parts, and materials
not described in the instructions for use or modification of the
equipment.
◆The hazards that can result from unauthorized modification of
the me equipment.
◆The manufacture can provide the circuit diagram, component
part list, description and calibration instructions to assist service
personal for parts repair.
◆Do not subject the thermometer to vibration or impact.
◆Do not take body temperature readings within 20 minutes after
you do physical exercises or get excited.
◆Do not use the thermometer on newborns or for continuous
temperature monitoring purposes.
◆Do not use the thermometer for purposes that are not specified
in this User’s Manual. Follow the instructions in the
"Measurement Process" chapter and carefully operate the
thermometer when measuring children's temperature.
◆Do not immerse the thermometer in water or other liquid, as it is
not waterproof. Clean and disinfect the thermometer as
described in the "Cleaning and Disinfection" chapter.
◆Do not touch the tip of the temperature probe, on which a
precise temperature sensor resides.

EN
4
◆Keep the temperature probe clean to make sure accurate
readings.
◆Before measuring the temperature from the ear canal, clean the
earwax, if any.
◆The ambient temperature must not be extremely high or low. To
make sure accurate readings, keep the thermometer under room
temperature for more than 30 minutes before use.
◆Do not use the thermometer under an ambient temperature
higher than 40°C (104°F) or lower than 10°C (50°F), which is
beyond the operating temperature range of the thermometer.
◆Risk of pollution! The user is recommended to send the
overdue thermometer to local garbage disposal site or send it
back to us.
◆2 AAA batteries of 1.5V are the only replaceable accessories of
the thermometer. Please do not use the batteries of other
voltages or specifications.
Warning
Warning
⚫Do not force the temperature probe of the thermometer into an
ear canal. Otherwise, the ear canal may get injured.
⚫Keep the thermometer out of the reach of children.
⚫The result may be inaccurate if you use the overdue
thermometer.
⚫The thermometer is not intended to diagnose or treat any health
problem or disease. The measurement results are for reference
only.
⚫It is dangerous to make a self-diagnosis or self-treatment based
on the obtained measurement results. For such purposes, please
consult a doctor.
Do not charge an alkaline dry-cell battery or throw it in fire.
Otherwise, the battery may explode.
Do not disassemble the thermometer or attempt to repair it.

EN
5
Otherwise, the thermometer may be damaged permanently.
Do not take temperature measurements on body parts other than
forehead and ears. Otherwise, the temperature readings may be
inaccurate.
During measurement, do not use a mobile phone or any other
device that may cause electromagnetic interference.
Do not use the thermometer in an environment where
flammable anesthetic mixture with air or with oxygen or nitrous
oxide is available.
Symbols
Symbol
Description
Type BF applied part.
Attention must be paid.
The action is prohibited.
Information about the manufacturer.
Date of manufacture.
Consult the instructions for use.
This product complies with the MDD93/42/EEC
requirements.
Waste electrical materials should be sent to a
dedicated collection point for recycling. Must contact
its local authorities to determine the proper method
of disposal of potentially bio hazardous parts and
ACCESSORIES.
IP22
Degree of protection against the Ingress of water.

EN
6
Symbol
Description
Warning
A personal injury or damage to the thermometer may
occur if the thermometer is not used correctly.
Attention
Inaccurate reading or damage to the thermometer
may occur if the thermometer is not used correctly.
Body Temperature Basics
•The normal body temperature is a range.
•The normal range varies from person to person and can fluctuate
throughout the day.
•The normal range also varies by body site. Therefore, measurements
from different sites should not be compared directly.
To determine if an individual is experiencing an elevated body temperature
and/or having a fever, it is critical to know the individual’s normal body
temperature when he/she is well. Take multiple readings to obtain the
normal body temperature range and note the specific body site measured,
for example: forehead or eardrum temperature.
Body Part
Normal Temperature Range
Forehead
34.7°C–37.3°C / 94.5°F–99.1°F
Ear canal
35.8°C–38.0°C / 96.4°F–100.4°F
Mouth
35.3°C–37.5°C / 95.9°F–99.5°F
Armpit
34.7°C–37.3°C / 94.5°F–99.1°F
Anus
36.6°C–38.0°C / 97.9°F–100.4°F
The normal body temperature range slightly varies with age and gender.

EN
7
Generally, newborns or children have higher body temperature than adults,
and adults have higher body temperature than the elderly. Women's body
temperature are appropriately 0.3°C (0.5°F) higher than men's.
Variation in body temperature
Product Description
1) Overview
Infrared Thermometer JPD-FR300 measures the body temperature based
on the infrared energy emitted from the eardrum or the forehead. Users can
quickly get measurement results after positioning properly the temperature
probe in the ear canal or forehead.It can also be used to measure the
surface temperature of object.(such as milk and water)
2) Structure
The thermometer consists of a shell, an LCD, a measure button, a beeper,
an infrared temperature sensor, and a Microprocessor.

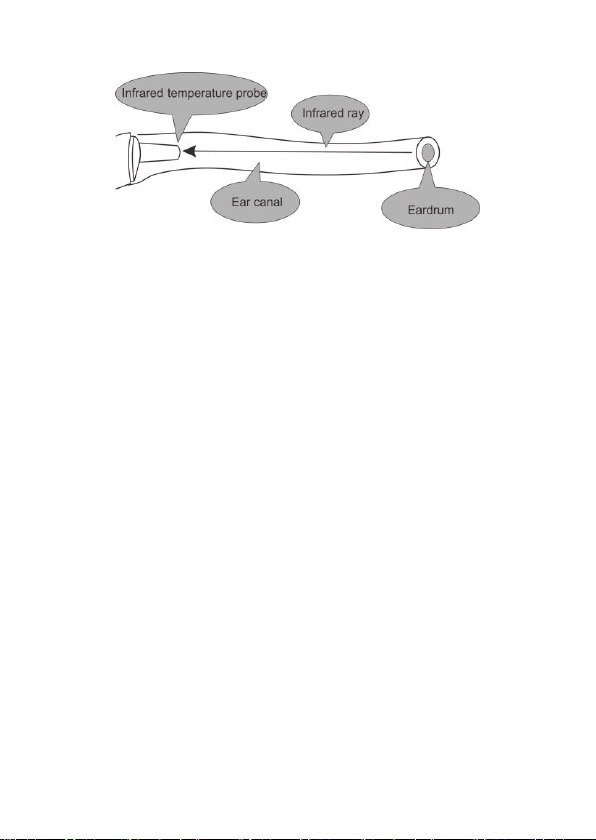

3) Operating principle
The infrared temperature sensor collects infrared energy emitted by the
eardrum or the skin surface. After being focused by a lens, the energy is
converted into a temperature reading by the thermopiles and measurement
circuits.

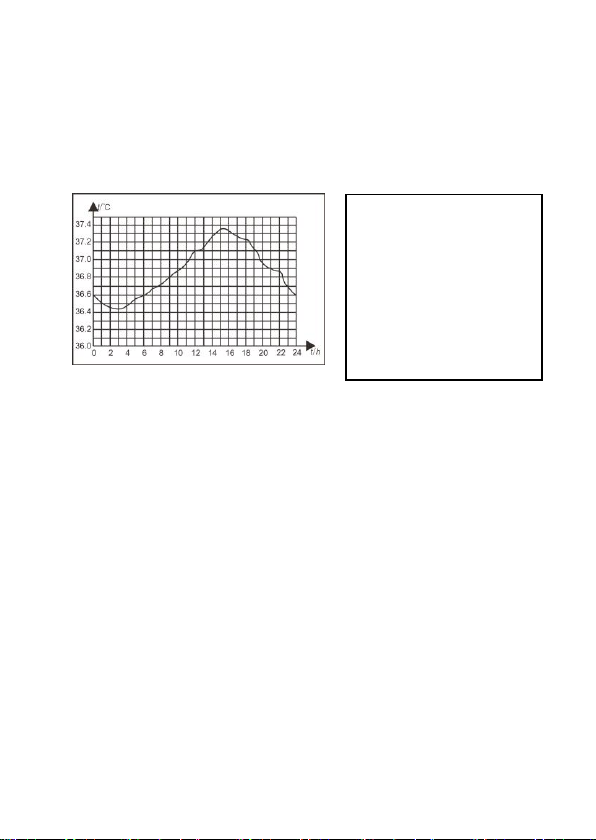

Normal body temperature
fluctuates throughout the day
and is also affected by external
factors.The body temperature of
an individual is the lowest
between 2:00 a.m. and 4:00 a.m.
and the highest between 2:00
p.m. and 8:00 p.m. An
individual's body temperature
typically changes by less than
1°C (1.8°F) each day.

EN
8
4) Intended use
The JPD-FR300 Dual Mode Digital Infrared Thermometer is intended for
the measurement of human body temperatures. The forehead mode is
indicated for use by people of all ages and the eardrum mode is indicated
for use by people above three months old.
5) Contraindications
Do not use the thermometer if the ear is infected with otitis or suppuration.
Features
01 Good safety
●Passive infrared receiving technology.
02 Easy operation
●Ergonomic design
●One button measurement
03 Quick measurement
●1-second measurement
04 High accuracy
●Advanced infrared temperature sensor, with high sensitivity
●High accuracy with automatic temperature calibration
05 Diverse functions
●20 readings recall

EN
9
●Fever alert
●Switching between ºC and ºF
●Automatic power-off, power saving
06 Extensive application scope
● Forehead temperature measurement applicable to all age groups
● Ear temperature measurement applicable to children older than
three months, adults, and the elderly
07 Child mode
This mode is recommended for people under 12 years of age.
Product structure
(1) LCD display screen
(2) Power button / Measure button
(3) Unit switch button (˚C / ˚F)
(4) Mode button (Adult mode / Child mode/ Object)
(5) Probe (take off the cover when measuring the ear temperature) (applied
part)

EN
10
(6) Probe cap (Automatic switch among object, forehead and ear modes,
by removing the probe cap to measure ear temperature and placing back
the probe cap for object and forehead temperature measurement.)
(7) Memory button / Sound switch
(8) Battery cover

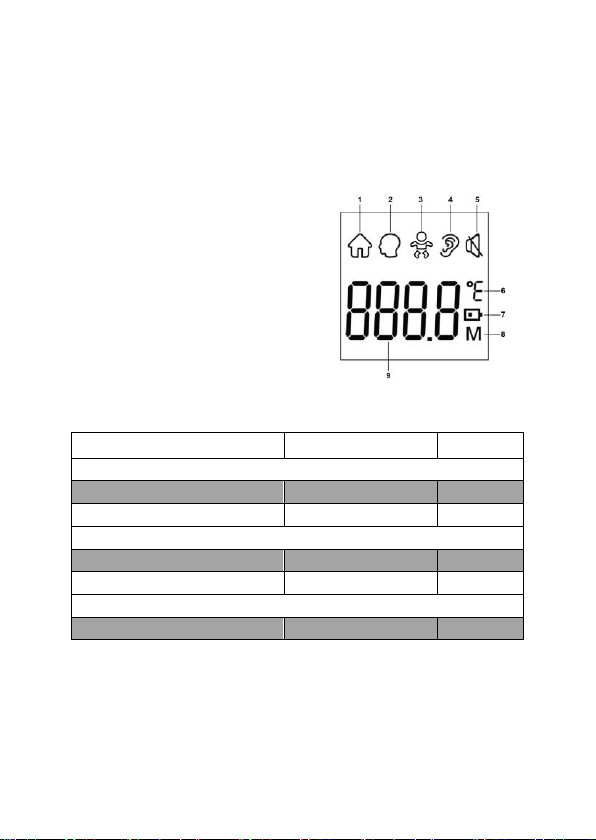

Display description
1. Object temperature mode
2. Forehead temperature mode
3. Child mode
4. Ear temperature mode
5. Mute / un-mute
6. Temperature unit (˚C / ˚F)
7. Low battery
8. Memory recall
9.Temperature value
Sounds and backlight color instructions
Range
Sounds
Backlight
Forehead temperature (Adult / Child)
22.0℃-37.5℃/71.6℉-99.5℉
A long beep
green
37.6℃-43℃/99.6℉-109.4℉
3 short double beeps
Red
Ear temperature (Adult / Child)
34.0℃-37.5℃/93.2℉-99.5℉
A long beep
green
37.6℃-43.0℃/99.6℉-109.4℉
3 short double beeps
Red
Object temperature
0℃-100℃/32.0℉-212℉
A long beep
green
Note: When the forehead temperature is between 22.0℃/71.6℉and
37.5°C/99.5℉, the ear temperature is between 34.0℃/93.2℉and
37.5°C/99.5℉, there will be a long beep and a green backlight. This
indicates that your body temperature is normal.

EN
11
When the forehead and ear temperature is between 37.6°C/99.6℉ and
43.0°C/109.4℉, there will be 3 short double beeps and the temperature
value will flash on the screen. This indicates that your body temperature is
a little high. You may have a fever. Please consult your doctor if you are
not sure.
Display and Operating Instructions
Screen Display
Operating Instructions
Displayed State
Sound and
Backlight Color

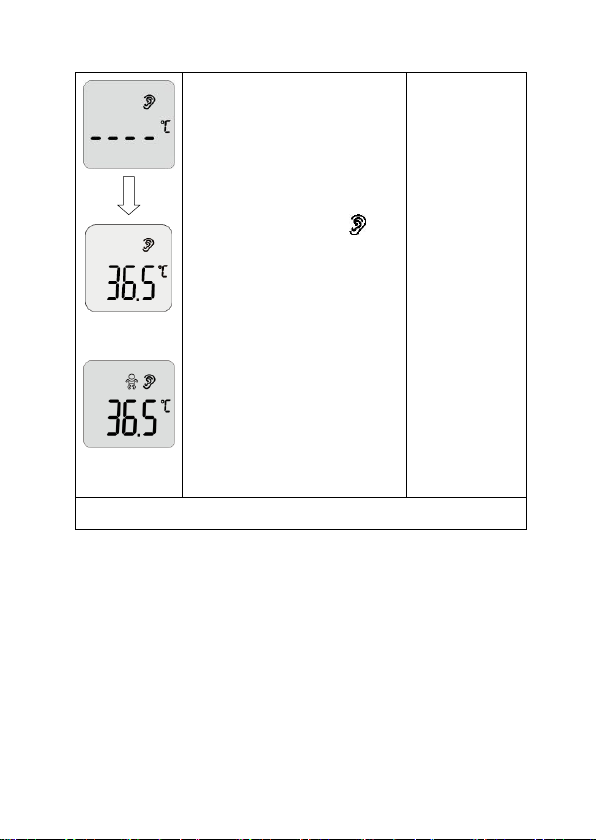

Measuring Ear temperature (Adult / Child)

EN
12
Ear temperature
for adult
Ear temperature
for child
Take off the probe cap, press and
release the Power button for 1
second to power on the
thermometer. The symbol “ ” is
displayed on the screen.
Switch to the adult or child
measurement mode by dialing the
side adult/child switcher according
to your measurement needs.
Insert the temperature probe into a
proper position in the ear canal.
Press the Measure button to start a
measurement.
See the table in the
“Sounds and
backlight color
instructions”
section.
Measuring Forehead temperature (Adult / Child)

EN
13
Forehead
temperature for
adult
Forehead
temperature for
child
Put the cover on the probe, press
and release the Power button for 1
second to power on the
thermometer The “Head” symbol
is displayed on the screen.
Switch to the adult or child
measurement mode by dialing the
side adult/child switcher according
to your measurement needs.
Point the thermometer to the center
of the forehead.about”1-3cm ”
away from the skin surface. Press
and release the Measure button.
The temperature will be displayed
on the screen.
See the table in the
“Sounds and
backlight color
instructions”
section.

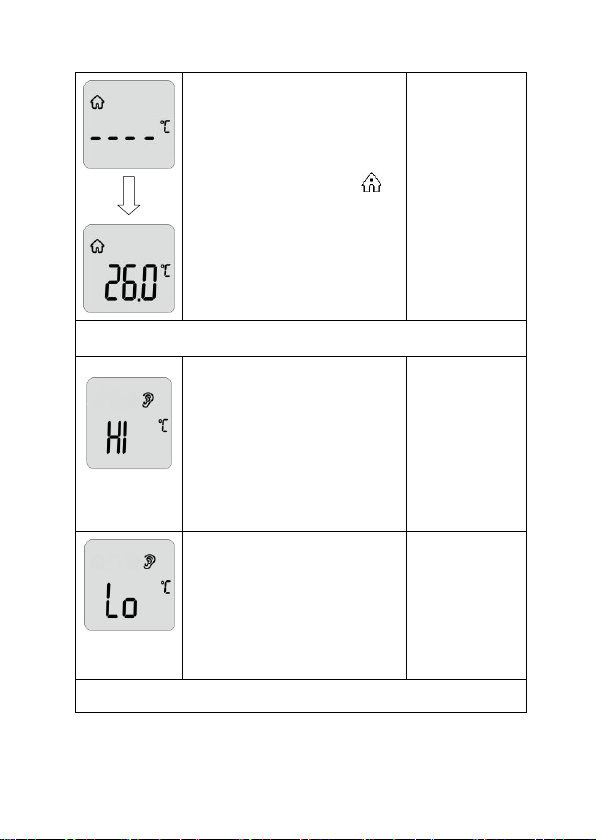

Measuring Object temperature

EN
14
Put the cover on the probe, switch
to the object measurement mode by
pressing the Mode button.The
thermometer enters the Object
mode. The “House” symbol is
displayed on the screen.
Point the thermometer to the center
of the object. Press and release the
Measure button. The temperature
will be displayed on the screen.
See the table in the
“Sounds and
backlight color
instructions”
section.
Out of the measuring range display
(for reference
only)
In Ear mode, a temperature reading
of more than 43.0℃ (109.4℉)
In Forehead mode, a temperature
reading of more than 43.0℃
(109.4℉)
In Object mode, a temperature
reading of more than 100ºC
(212.0ºF)
A long beeps,the
backlight is red.
(for reference
only)
In Ear mode, a temperature reading
of less than 34.0℃ (93.2.0℉)
In Forehead mode, a temperature
reading of less than 22.0℃ (71.6℉)
In Object mode, a temperature
reading of less than 0ºC (32.0ºF)
A long beeps,the
backlight is red.
Recall 20 memories

EN
15
In a power-on state, press the
Memory button enter the memory
mode.
When the Memory button is
released, 01 will be shown,
followed by the recorded reading.
Press the Memory button again for
the next recorded data. 02 will be
shown, followed by the recorded
reading.
A maximum of 20 temperature
readings can be recalled.
When the maximum number of
records is exceeded, the earliest
memory data will be overwritten.
Note:
01 means the latest data.
Silent,the
backlight is
green.
No memory data / Clear memory data

EN
16
The display is as shown , when
there is no more data checked while
recalling memories. Remove 2 dry
batteries and after 10 seconds
re-install the power to clear all
memory data.
When the power is
turned back on,
there are a long
beep and a green
backlight, which
then turns into red.

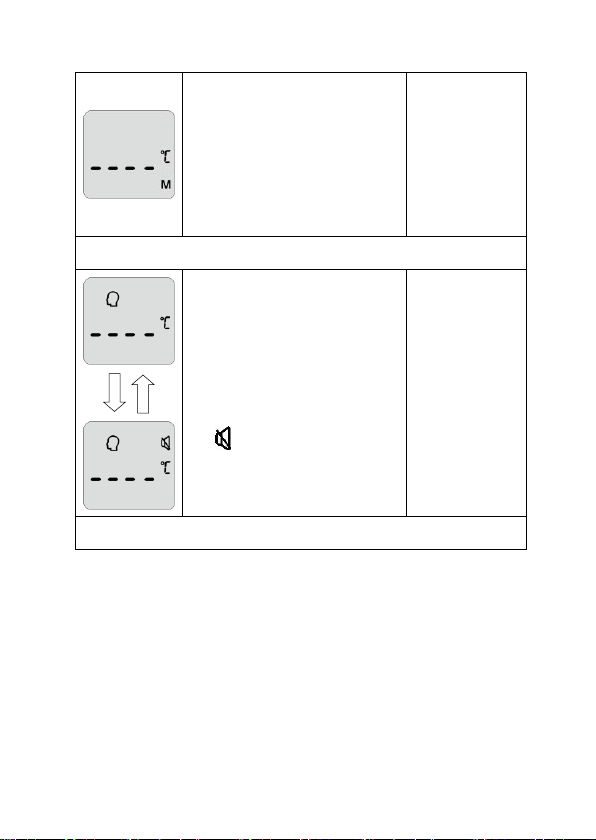

Switching between mute and un-mute
In the power-on state, press and
hold the sound switch button for
about 2 seconds to switch the sound
on or off. When the sound is turned
on, it will beep once and the mute
symbol will be displayed when the
sound is off.
The symbol is displayed in
Mute mode and disappears in
Un-mute mode.
When the sound is
turned on, it
sounds a long
beep and the
backlight is
green.
Switching between object temperature and body temperature
